Owner’s
Guide
X6850HRT
COMMERCIAL INCLINE ELLIPTICAL TRAINER
ongratulations on choosing a VISION FITNESS Incline Elliptical Trainer.
You’ve taken an important step in developing and sustaining an exercise
program! Your Incline Elliptical Trainer is a tremendously effective tool for
achieving your facility’s fitness goals. Regular use of your Incline Elliptical
Trainer can improve the quality of your members’ lives in so many ways.
Here are just a few of the health benefits of aerobic exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
• Reduced Stress
• Help in Countering Anxiety and Depression
• An Improved Self Image
The key to reaping these benefits is to develop the exercise habit. Your
new Incline Elliptical Trainer will be an important tool in helping your
members achieve this exercise habit. This Owner’s Guide provides you with
basic information on using this VISION FITNESS Incline Elliptical Trainer.
A more complete knowledge of your new Incline Elliptical Trainer will
assist you in helping your members achieve their goals.
Some kinds of service to your Incline Elliptical Trainer should only be
performed by your VISION FITNESS retailer. Please contact your
authorized VISION FITNESS retailer should service be required. If a
question or problem arises which cannot be handled by your
VISION FITNESS retailer, please contact us:
VISION FITNESS
500 South CP Avenue
P.O. Box 280
Lake Mills, WI 53551
Ph: 1.800.335.4348
Fax: 1.920.648.3373
www.visionfitness.com
C
1
ALL MODELS
X6850HRT GENERAL
SAFETY INSTRUCTIONS . . . . . . . . . . 4
ASSEMBLY & MOVING THE INCLINE
ELLIPTICAL TRAINER . . . . . . . . . . . . 6
STABILIZING THE INCLINE ELLIPTICAL
TRAINER, TURNING ON AND OFF . . . . 7
CONTACT HEART RATE, INCLINE RAMP . 8
USING THE FAN . . . . . . . . . . . . . . . . 9
USING FACILITY ENGINEERING MODE
SETTINGS . . . . . . . . . . . . . . . . . . . 26
SERVICE & TROUBLESHOOTING . . . 28
LIMITED HOME USE WARRANTY . . . 30
COMMERCIAL WARRANTY . . . . . . . . 32
ALL MODELS GENERAL
Table of Contents
DISPLAY CONSOLE . . . . . . . . . . . . . 10
DISPLAY CONSOLE DESCRIPTIONS . . 11
CSAFE PORTS . . . . . . . . . . . . . . . . 13
PROGRAM OVERVIEWS . . . . . . . . . 14
PROGRAM OPTIONS . . . . . . . . . . . 16
USING THE CONSOLE . . . . . . . . . . . 18
USING THE PROGRAMS . . . . . . . . . 20
USING THE SPRINT 8 PROGRAM . . . 21
USING THE TOTAL BODY PROGRAM . 22
USING CUSTOM PROGRAMS . . . . . . 23
ALL HRT PROGRAMS, ADJUSTING
TARGET HEART RATE . . . . . . . . . . . 24
CONSOLE
X6850HRT
2
3
X6850HRT
FRONT FOOT &
TRANSPORT WHEELS
CONSOLE
COMMERCIAL INCLINE ELLIPTICAL TRAINER
X6850HRT
CONSOLE MAST
HANDLEBARS
CONSOLE MAST
ACCESSORY
TRAY
4
ALL MODELS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be
followed, including the following:
Read all instructions before using this exercise product.
To reduce the risk of burns, fire, electrical shock or injury
to persons:
• Use this exercise product for its intended use as described in this
Owner’s Guide. Only use attachments recommended by the
manufacturer.
• Never drop or insert any object into any opening.
• Do not remove the Incline Elliptical Trainer sidecovers. Service should be
performed only by an authorized VISION FITNESS retailer.
• Never operate this Incline Elliptical Trainer if it has a damaged cord or
plug, if it is not working properly, or if it has been damaged or immersed in
water. Please contact your authorized VISION FITNESS retailer for service.
• Keep the cord away from heated surfaces.
• Do not use outdoors.
• To disconnect, turn the switch to the OFF position, then remove plug
from outlet.
• Only use the power cord provided with your VISION FITNESS Incline
Elliptical Trainer.
• Never place the power cord under carpeting or place any object on
top of the power cord that may pinch and damage it.
• Unplug your Incline Elliptical Trainer when not in use and before moving it.
CHILDREN
• Keep children off your Incline Elliptical Trainer at all times.
• When the Incline Elliptical Trainer is in use, young children and pets
should be kept at least 10 feet away.
WARNING!
5
ALL MODELS
OTHER SAFETY TIPS FOR YOUR VISION FITNESS INCLINE ELLIPTICAL TRAINER
CAUTION!
If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear loose clothing that might catch on any part of the Incline
Elliptical Trainer.
• Read this Owner’s Guide before operating this Incline Elliptical Trainer.
CLEANING
• Clean only with soap and a slightly damp cloth; never use solvents.
6
ALL MODELS
ASSEMBLY
It is recommended, when possible, that an authorized VISION FITNESS
retailer assemble your Incline Elliptical Trainer. If you have elected to
assemble this product yourself, for your safety please read and follow
each of the steps in the enclosed assembly instructions. If you have any
questions regarding any part or function of your Incline Elliptical Trainer,
contact your retailer.
MOVING
Your VISION FITNESS Incline Elliptical Trainer has transport wheels
included for ease of mobility. To move, firmly grasp the rear of the frame
assembly. Carefully lift and roll on the transport wheels.
CAUTION:
Our Incline Elliptical Trainers are well-built and heavy, weighing up
to 340 pounds! Use care and additional help if necessary.
7
ALL MODELS
STABILIZING THE INCLINE ELLIPTICAL
TRAINER
After positioning the Incline
Elliptical Trainer in its intended
location, check the unit’s stability.
Rocking or wobbling indicates that
your Incline Elliptical Trainer needs
to be leveled. Determine which
leveler is not resting completely on
the floor. Loosen the nut at the
base of the leveler to allow the
leveler to rotate. Now rotate the
leveler to the left or right until the
Incline Elliptical Trainer is stable.
Lock the adjustment by tightening
the nut against the rear foot support.
TURNING THE UNIT ON AND OFF
Use the power switch on the front
of the unit to turn the machine ON
and OFF. It is recommended to turn
the machine off when not in use.
8
ALL MODELS
CONTACT HEART RATE
HAND PULSE HEART RATE SENSORS
The Contact Hand Pulse Sensors
are included on each product to
monitor your heart rate. To use,
grasp both of the sensors with a
comfortable grip during your
workout. The console will display
your heart rate. It may take the
system a few seconds to zero in
on your actual heart rate.
INCLINE RAMP
Press the INCLINE UP or DOWN
arrows to adjust the ramp incline
from 1 to 20. This incline setting
represents a ramp angle from 4°
through 21°.
Ramp changes are not immediate.
They will take time to get to the
target incline angle.
9
ALL MODELS
USING THE FAN

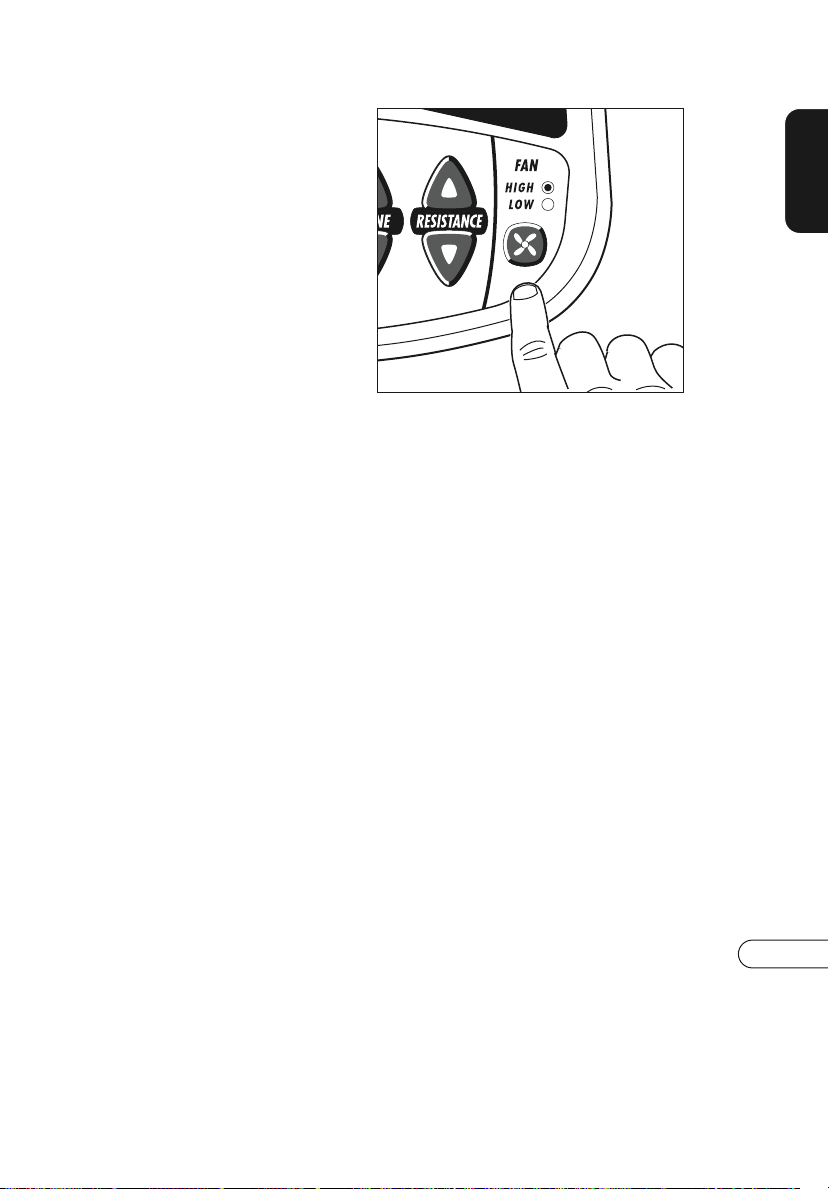

To operate the fan, press the fan
key to cycle from OFF to LOW to
HIGH to OFF. LED indicator lights
will display what speed level the
fan is set for.
Please note the fan will shut down
when the user stops exercising.
10
X6850HRT
DISPLAY CONSOLE
DISPLAY CONSOLE OVERVIEW
The computerized display allows the user to select a workout that meets
their desired fitness goals. It allows the user to monitor the progress and
feedback of each workout so they can track improvements in overall fitness
over time.
A
B
C
D
F
H
G
I
J
E
11
X6850HRT
DISPLAY CONSOLE DESCRIPTIONS
A. START
Press the START key to begin a MANUAL workout using the default
settings and bypass initial set-up. When the program begins, the user has
the ability to change resistance levels with the RESISTANCE ARROW
keys, or change incline with the INCLINE ARROW keys. Feedback
information will be calculated using default settings.
B. PAUSE/HOLD TO RESET
PAUSE:
If you need to PAUSE your program during a workout, pressing
the PAUSE key will PAUSE your program for five minutes. Pressing
START will return you to your workout.
RESET:
If you need to RESET the console during your workout, you can
do so by holding down the PAUSE/RESET button for three seconds,
or until the display resets.
C. ENTER
This key is used to select specific information; such as age, weight, or
resistance level, during setup of the users program.
D. RESISTANCE ARROW KEYS
These keys are used to change values in setup mode prior to the
workout. During the workout, they are used to change workout
resistance levels. In Heart Rate Training (HRT
®
) programs they are used
to change the target heart rate.
E. INCLINE ARROW KEYS
These keys are used to change values in setup mode prior to the
workout. During the workout, they are used to change the level of incline.
F. PROGRAM KEYS
These quick keys provide instant access to the workout programs and
make program setup quick and easy. Additionally you can change
workout profiles on the fly while working out in many of the programs.
G. FAN OPERATION KEY
This key is used to operate the fan and control the amount of air
provided by the fan.
H. PROFILE DISPLAY
This window provides a 10x15 block profile display of workout segments.
12
X6850HRT
DISPLAY CONSOLE DESCRIPTIONS
(continued)
I. MESSAGE WINDOW
This window provides fixed and scrolling messages to walk the user
through setup, provide instruction, provide feedback information, or
provide positive re-enforcement.
J. FEEDBACK:
During your workout these windows display exercise feedback
about your workout, including:
WORKOUT TIME:
the time elapsed or the time remaining in your
workout.
TIME OF DAY:
the current time of day in either 12 or 24 hours.
HEART RATE:
the rate at which your heart beats; measured in beats
per minute.
PERCENT OF MAXIMUM HEART RATE:
a comparison of your current
heart rate to your predicted maximum heart rate (220 – age).
STRIDES/MIN:
the stride rate or Strides Per Minute (SPM).
DISTANCE:
the total distance traveled in miles or kilometers since
the start of your workout.
CALORIES:
an estimate of calories burned since the beginning of
the workout.
WATTS:
a measurement of workload; one watt is equal to six
kilogram-meters per minute.
METS:
a measurement of oxygen consumption; one MET equals
the approximate amount of oxygen consumed per minute by a
person at rest.
RESISTANCE:
the current resistance level of your workout.
INCLINE:
the current incline level of your workout.
13
X6850HRT
CSAFE
Two network ports allow the Incline Elliptical Trainer to use a fitness
entertainment system, and/or a interactive fitness network such as Fitlinxx
®
.
CSAFE:
This connection enables the console to upload the users
exercise information to a fitness network data base.
ENTERTAINMENT:
This feature allows the console to power a third-party
receiver for entertainment systems such as Cardio Theater
®
.
These ports are located on the backside of the console and are enclosed
by removable covers.
For more information about CSAFE specifications, please visit their web site
at: www.fitlinxx.com/csafe
ENTERTAINMENT
CSAFE
14
X6850HRT
FAT BURN
is a program that uses slight
increases in resistance to achieve a higher
workload and a higher amount of calories
burned.
GLUTE BURN
is a is a challenging program
designed to tone the lower half of the body.
The program includes incline changes and
user prompts for maximum effectiveness.
PROGRAMMING
OVERVIEWS
MANUAL
is a user-controlled program in which
the user controls all resistance changes.
INTERVAL
is an efficient workout that
strengthens your cardiovascular system by
alternating work intervals and recovery
intervals.
SUMMIT HIKE
is a variable ramp incline
program that adds variety and targets your
muscles from different angles.
SPRINT 8
is an anaerobic based interval
program. It incorporates eight high intensity
intervals that last 30 seconds each with
recovery intervals that last 90 seconds each.
The SPRINT 8 program lasts 20 minutes.
15
X6850HRT
HRT CARDIO
is a high intensity program designed to
keep the user in the upper range of their predicted
maximum heart rate. It promotes cardiovascular
endurance and maximum calorie burning. The
program automatically adjusts resistance to keep
you at 80% of your predicted maximum heart rate. This program is
recommended for your athletic and high level participants.
HRT WEIGHT LOSS
is a lower intensity workout that will help burn a higher
percentage of calories from the body’s fat reserves. The program will
adjust resistance to keep the user at 65% of their predicted maximum heart
rate. This program is great for beginner or intermediate level fitness
participants.
HRT INTERVAL
alternates between intervals of 80% and 70% of the users
predicted maximum heart rate. This program was designed to increase
cardiovascular fitness capacity.
HRT HILL
increases intensity levels from 65% to 70% to 75% to 80% of the
users predicted maximum heart rate. This program is intended to promote
cardiovascular strength and endurance.
CUSTOM
allows you to preset up to five
workout profiles by setting the workload of
each segment in the program. You have the
ability to save or change the workouts
whenever you wish.they are changed in setup.
HRT PROGRAMS
TOTAL BODY
is an excellent program that will
target all of your major muscle groups.
Random messages will prompt different
activities during effort intervals and will be
followed by lower intensity recovery intervals.
16
X6850HRT
PROGRAM OPTIONS
PRESET
INCLINE
MANUAL
INTERVAL
FAT BURN
GLUTE BURN
SUMMIT HIKE
SPRINT 8
TOTAL BODY
HRT®PROGRAMS
CUSTOM
PROGRAM
•
•
•
PRESET
RESISTANCE
•
•
•
•
•
•
•
INSTRUCTIONAL
MESSAGE PROMPTS
•
•
FIXED
TIME
•
•
HEART RATE
CONTROLLED
•
NOTE:
The incline profile will be displayed during the GLUTE BURN and
SUMMIT HIKE programs. The resistance profile will be displayed briefly if
you change your resistance level. All other programs will display the
resistance level and only display the inline level briefly when you change
the incline level.
17
X6850HRT
18
X6850HRT
USING THE CONSOLE
QUICK START
The easiest way to begin
exercising is to simply press the
START key. Current default settings
will be used to determine exercise
feedback. The user will need to
adjust resistance and incline as
they need.
SELECTING A PROGRAM
The user will need to select one of
the program keys on the left side
of the console keypad. You can
also scroll through program
options by using the arrow keys on
the console keypad.
ENTER AGE
Use the UP arrow key and
DOWN arrow key to adjust the
displayed age to the correct value.
Press ENTER to select.
ENTER WORKOUT TIME
Use the UP arrow key and DOWN
arrow key to adjust the displayed
workout time to the correct value.
Press ENTER to select.
19
X6850HRT
When all values have been entered the program will begin. You can press
START at any time to begin the program with the settings you have entered.
ENTERING RESISTANCE LEVEL OR
INCLINE LEVEL
Use the RESISTANCE UP and
RESISTANCE DOWN arrow keys
to adjust the displayed resistance
level to the correct value.
Some programs may require you
to set the incline level. Set the
incline level with the INCLINE UP
and INCLINE DOWN arrow
keys. Press ENTER to select.
ENTER USER WEIGHT
Use the UP arrow key and DOWN
arrow key to adjust the user weight
to the correct value. Press ENTER to
select.
150
20
X6850HRT
USING THE PROGRAMS
The MANUAL, INTERVAL, FAT BURN,
GLUTE BURN, and SUMMIT HIKE
programs are all preset program
profiles with 15 segments of equal
time. Each segment is 1/15 of the
total program time. When adjusting
the programs resistance level, the
change will be made to the entire
programs intensity level, not just the
current segment.
The GLUTE BURN and SUMMIT
HIKE programs are incline based
programs in which the incline level
will be displayed in the profile
window instead of resistance level.
21
X6850HRT
USING THE SPRINT 8 PROGRAM
The SPRINT 8 program is an anaerobic
interval program designed to build
muscle, improve speed, and naturally
increase the release of Human Growth
Hormone (HGH) in your body.
Producing HGH through exercise and
a proper diet has been shown as an
effective way to burn fat and build lean muscle mass according to Phil
Campbell, author of
Ready, Set, GO! SYNERGY FITNESS
. Please go to
Mr. Campbell’s website, www.readysetgofitness.com, for more details
about this radical new approach to fitness.
The SPRINT 8 program features intense sprint intervals followed by
recovery intervals. The program includes the following phases:
1.
WARM-UP
should gradually increase your heart rate and increase
respiration and blood flow to working muscles. The warm-up is
controlled by the user to meet your specific needs.
2.
INTERVAL TRAINING
starts immediately after the warm-up with a
30-second sprint interval. Seven recovery intervals of one minute
and 30 seconds will alternate with the eight 30-second sprint
intervals. The message display will prompt you to increase your
stride rate during the sprint interval and decrease stride rate during
the recovery interval. A difference of 40 to 60 strides per minute
between sprint interval and recovery interval is recommended.
3.
COOL-DOWN
helps return your body’s systems to resting levels. Less
demand is placed on your heart during recovery if an appropriate
cool-down is used following the exercise.
Due to the fact that this is a specialized training program, total workout time
is not displayed during the program. The interval time is displayed in the
time window instead. It takes only 20 minutes to complete the SPRINT 8
workout.
22
X6850HRT
USING THE TOTAL BODY PROGRAM
The Total Body program is an interval
based program designed to improve
muscular strength and endurance. It
alternates random effort intervals and
recovery interval. The effort intervals
will instruct the user to perform random
strength building activities such as:
“PUSH WITH ARMS”, “PULL WITH ARMS”, “LEAN BACK AS YOU
PEDAL”, and “PEDAL BACKWARDS”.
The program includes the following phases:
1. A two minute warm-up controlled by the user that is designed to
increase respiration and increase blood flow to the working muscles.
2. Seven 60 second effort intervals with random strength building activities.
The LCD message center will prompt you with specific messages.
3. Six 90 second recovery intervals to bring your heart rate back down.
4. A two minute cool-down to help bring your body back to resting level.
The total workout will be complete in 20 minutes.
23
X6850HRT
USING CUSTOM PROGRAMS
The CUSTOM programs allow five
separate workout choices to be set
and then stored for future use.
Setup for the CUSTOM programs
begins just as any other program.
The user will push the CUSTOM
program key, set age, set time, and set weight. At this point, the console
will ask the user to select one of five CUSTOM programs. If the programs
have not yet been set, the user can follow these setup instructions:
1. Use the arrows to select one of five CUSTOM programs.
2. Press ENTER to select.
3. The dot on the bottom left corner of the dot matrix will now be
flashing. Use the UP
▲
or DOWN ▼arrow to adjust the resistance
of the first segment to your desired setting.
4. Push ENTER to select.
5. Continue setting each segment until all 15 segments have been set.
6. When you press ENTER after the final segment, you will now have
the option of setting your incline levels.
7. Use the UP
▲
or DOWN ▼arrow to adjust the incline of each segment.
8. Press ENTER to select.
9. Continue setting each segment until all 15 segments have been set.
10. Press START to begin.
Each program will remain saved in the console’s memory and can be used
over again.
If the CUSTOM programs have already been saved, you have two
options:
1. Press START to begin the program as it has been set.
2. Press ENTER to begin resetting each segment for a new program.
24
X6850HRT
ALL HRT PROGRAMS
During the workout, the user will grasp
the hand pulse sensors or wear the
telemetric chest strap to send their
heart rate signal to a receiver in the
console. The console will continuously
monitor the heart rate, adjusting the
resistance level of the Incline Elliptical
Trainer to keep your heart rate within several beats of your target heart
rate. The heart rate feedback window conveniently displays your Heart
Rate, and % Heart Rate to keep you informed about your current heart
rate. Each program will begin with a two-minute warm-up. When the
workout time has been completed, the console will begin a five-minute
cool-down. The user will be responsible for adjusting resistance as they
need during the warm-up and cool-down.
ADJUSTING TARGET HEART RATE
While exercising in one of the
HRT
®
programs, you may decide
the target heart rate needs to be
adjusted. To adjust your target heart
rate, use the UP arrow or DOWN
arrow. Push ENTER to select.
25
X6850HRT
HRT CARDIO
The HRT CARDIO program is designed to maintain your heart rate at 80%
of your predicted maximum heart rate. It is intended to improve efficiency
and endurance of your cardiovascular system by working your heart, lungs
and circulatory systems. This is a great workout for anyone, but beginners
may want to start lower and build their way up to 80% of their predicted
maximum heart rate.
HRT WEIGHT LOSS
The HRT WEIGHT LOSS program is designed to maintain your heart rate
at 65% of your predicted maximum heart rate. The goal of this program
is to burn calories by using your body’s fat reserves as the primary fuel
during exercise and to improve the efficiency of your workout by
eliminating over-training or under-training. This is a great workout for
beginners.
HRT INTERVAL
The HRT INTERVAL program is designed to increase aerobic endurance
and your overall fitness level, increase endurance of muscle fibers, and
increase the amount of calories burned in your exercise session. This
program consists of alternating effort and recovery intervals. The target
heart rate for your effort interval will be 80% of your predicted maximum
heart rate, while the target heart rate for your recovery intervals will be
70% of your predicted maximum heart rate. The two-minute effort interval
begins when you reach your target heart rate for that particular interval.
HRT HILL
The HRT HILL program uses four different target heart rates to build
cardiovascular strength and endurance. The resistance will adjust until your
heart rate reaches the target heart rate for the four separate hills. The hills
will be set at 65%, 70%, 75%, and 80% of your predicted maximum heart
rate. The program will keep you at each heart rate level for one minute
from the time the target heart rate is reached. The program will repeat the
series of hills until the workout time is complete.
26
GENERAL
USING FACILITY ENGINEERING MODE SETTINGS
Engineering mode is used to customize your Incline Elliptical Trainer for
your facilities needs, or to view useful information about your Incline
Elliptical Trainer. These features are only accessible to your staff when they
press the keys in a specific sequence.
USING ENGINEERING MODE
• To enter press and hold the RESISTANCE UP and RESISTANCE
DOWN arrow keys simultaneously for four seconds or until you see
the message.
• When in engineering mode you can scroll through the optional
settings by using the UP and DOWN arrow keys. Press the ENTER
key to select the setting you wish to view or modify.
• Use the UP and DOWN arrow keys to modify the settings.
• Press the ENTER key to save your setting.
• Press and hold the PAUSE key for four seconds to exit engineering mode.
The following settings will be available in the engineering mode:
MAXIMUM TIME –
The manager has the ability to set the maximum time
the workouts can be set for. This feature is necessary for busy facilities
that may want to limit the amount of time their users are on the Incline
Elliptical Trainer. The default is 99 minutes.
USER DEFAULT TIME –
This mode allows you to set a specific default time
for setup mode. This default time will also be used when the exerciser
presses START for a quick start program.
USER DEFAULT AGE –
This mode allows you to set a specific default age
for setup mode. This is particularly useful when the Incline Elliptical
Trainer is placed at a facility where the user’s age range is very
specific, such as a school. This default age will also be used when
the exerciser presses START for a quick start program.
27
GENERAL
USING FACILITY ENGINEERING MODE SETTINGS
continued
USER DEFAULT WEIGHT –
This mode allows you to set a specific default
weight for setup mode. This default weight will also be used when the
exerciser presses START for a quick start program.
USER DEFAULT LANGUAGE –
This mode allows you to choose from a
variety of Language options. Choose from English, German, French,
Dutch, Spanish, or Italian.
MILES OR KILOMETER SETTING –
This allows you to choose miles or
kilometers for distance. It also determines weight in pounds or
kilograms.
PRODUCT TYPE SETTING –
This mode is used to set which product you
are using.
ACCUMULATED TIME –
Displays accumulated hours of use.
ACCUMULATED DISTANCE –
Displays accumulated distance in miles or
kilometers.
SOFTWARE VERSION –
Displays the current software version and revision
date.
CLOCK SET (12 OR 24 HOURS) –
Sets the clock feature for 12 or 24 hour
time.
CLOCK SET (MINUTES) –
Sets the minutes on the clock.
CLOCK SET (HOURS) –
Sets the hours on the clock.
28
GENERAL
DAILY MONTHLY ANNUALLY
DISPLAY CONSOLE
ALL BOLTS AND HARDWARE
FRAME
HANDLEBARS
GUIDE RAILS
ROLLER WHEELS
PLASTIC COVERS
FOOTPLATES
POWER CORD
ITEM
CLEAN
CLEAN
CLEAN
CLEAN
CLEAN
CLEAN
CLEAN
INSPECT
INSPECT
INSPECT
INSPECT
INSPECT
INSPECT
SERVICE AND TROUBLESHOOTING
PREVENTATIVE MAINTENANCE TIPS
• To reduce the risk of electrical shock always unplug the Incline
Elliptical Trainer from the electrical outlet before cleaning or maintaining.
• Locate Incline Elliptical Trainer in a cool, dry place.
• Make sure all bolts and fasteners are kept tight.
• Keep the display console free from fingerprints and salt buildup
caused by sweat.
• Use a cotton cloth with water and a mild cleaning product to clean
the Incline Elliptical Trainer. Other fabrics, including paper towels,
may scratch the surface. Do not use ammonia or acid-based cleaners.
• Clean the housing thoroughly on a regular basis.
PREVENTATIVE MAINTENANCE SCHEDULE
Follow the schedule below to ensure proper operation of the product.
29
GENERAL
TROUBLESHOOTING YOUR INCLINE ELLIPTICAL TRAINER
Our Incline Elliptical Trainers are designed to be reliable and easy to use.
If, however, you have a problem, these troubleshooting steps may indicate
the cause.
PROBLEM: The console does not light up.
SOLUTION: Make sure the wire harness is plugged into the back of the
console.
PROBLEM: The Incline Elliptical Trainer makes a squeaking or creaking noise.
SOLUTION: Check and tighten all the bolts on the Incline Elliptical Trainer.
SOLUTION: Clean the track and the roller wheels with a cloth and a mild
cleaning detergent.
NOTE:
If the above steps do not remedy the problem, discontinue use, turn
the power off and contact your retailer.
OBTAINING SERVICE
Do not attempt to service this Incline Elliptical Trainer yourself except for the
maintenance tasks described in this manual. For information on service to
your VISION FITNESS Incline Elliptical Trainer, contact the local retailer
from whom you purchased the Incline Elliptical Trainer. To expedite
service, please make sure to have your serial number available. The serial
number is found on a label located on the front support tube of your Incline
Elliptical Trainer.
SERIAL NUMBER:______________________
30
GENERAL
LIMITED HOME USE WARRANTY
VISION FITNESS extends the following exclusive, limited warranty, which shall
apply only to the use of the device in the home, for residential, non-commercial
purposes. Any other use of the device shall void this warranty.
VISION FITNESS hereby extends the following limited warranties for the following
components of the device, for the time period indicated:
FRAME - LIFETIME VISION FITNESS warrants the Frame against defects in
workmanship and materials for the life of the product, so long as it remains in the
possession of the original owner.
CAMBRIDGE MOTOR WORKS
TM
ELECTROMAGNETIC BRAKE - LIFETIME
VISION FITNESS warrants the Cambridge Motor Works ™ Electromagnetic Brake
against defects in workmanship and materials for the life of the product, so long
as the device remains in the possession of the original owner.
ELECTRONICS & PARTS - FIVE YEARS VISION FITNESS warrants the Electronic
components and all original Parts against defects in workmanship and
materials for a period of five years from the date of purchase, so long as the
device remains in the possession of the original owner.
LABOR - TWO YEARS VISION FITNESS shall cover the Labor cost for the repair
of the device for a period of two years from the date of original purchase, so long
as the device remains in the possession of the original owner.
31
GENERAL
LIMITED HOME USE WARRANTY
(continued)
EXCLUSIVE REMEDY
The exclusive remedy for any of the above warranties shall be repair or
replacement of defective Parts, or the supply of Labor to cure any defect,
provided that Labor shall be limited to two years. All Labor shall be supplied by
the local Retailer and the product must be located within that Retailer’s service
area. Products located outside the Retailer’s service area will not be covered by
the Labor warranty.
EXCLUSIONS AND LIMITATIONS
This warranty applies only to the original owner and is not transferable. This
warranty is expressly limited to the repair or replacement of a defective Frame,
Cambridge Motor Works
TM,
Electromagnetic Brake, Electronic component, or
defective Part and is the sole remedy of the warranty. The warranty does not cover
normal wear and tear, improper assembly or maintenance, or installation of parts
or accessories not originally intended or compatible with the Fitness Product as
sold. The warranty does not apply to damage or failure due to accident, abuse,
corrosion, discoloration of paint or plastic, or neglect. VISION FITNESS shall not
be responsible for incidental or consequential damages. Parts and Electronic
components reconditioned to As New Condition by VISION FITNESS or its
vendors may sometimes be supplied as warranty replacement parts and constitute
fulfillment of warranty terms. Any warranty replacement parts shall be warranted
for the remainder of the original warranty term.
VISION FITNESS expressly disclaims all other warranties, express or implied,
including but not limited to all warranties of fitness for a particular purpose or of
merchantability. This warranty gives you specific legal rights, and your rights may
vary from state to state.
WARRANTY REGISTRATION
Your warranty card must be completed and sent to VISION FITNESS before a
warranty claim can be processed. You may also register via our website at
www.visionfitness.com. Inside the enclosed warranty card, you will find a
customer survey. Your care in completing the survey will be of value to us in
serving you in the future. Comments and suggestions are always welcome. We
are certain you will enjoy your new Incline Elliptical Trainer. Thank you for selecting
a VISION FITNESS product.
32
GENERAL
COMMERCIAL WARRANTY
COMMERCIAL USES DEFINED VISION FITNESS warrants the
X6850HRT
Incline
Elliptical Trainer for use in commercial facilities. Examples of commercial facilities
include but are not limited to: Hotels; Resorts; Police and Fire Stations; Apartment
Complexes; Rehabilitation and Sports Medicine Clinics; Hospitals; Elementary
Middle, and High Schools; YMCAs; Private Health Clubs; Colleges and Universities.
FRAME - LIFETIME VISION FITNESS warrants the Frame against defects in
workmanship and materials for the lifetime of the original owner, so long as the
device remains in the possession of the original owner.
CAMBRIDGE MOTOR WORKS
TM
ELECTROMAGNETIC BRAKE, ELECTRONICS,
& PARTS - FIVE YEARS VISION FITNESS warrants the Electromagnetic Brake,
Electronics & Parts against defects in workmanship and materials for a period of
five years from date of original purchase, so long as the device remains in the
possession of the original owner.
LABOR - TWO YEARS For a period of two years from the date of purchase,
VISION FITNESS, through its local retailers, will provide the necessary Labor for
repair and replacement of Frames, Electronics, Motors, and Parts under this
warranty, so long as the device remains in the possession of the original owner.
33
GENERAL
COMMERCIAL WARRANTY
(continued)
EXCLUSIVE REMEDY
The exclusive remedy for any of the above warranties shall be repair or
replacement of defective Parts or the supply of Labor to cure any defect, provided
that the Labor be limited to one year.
EXCLUSIONS AND LIMITATIONS
This warranty applies only to the original owner and is not transferable. This
warranty is expressly limited to the repair or replacement of a defective Frame,
Electronic component, or defective Part and is the sole remedy of the warranty. The
warranty does not cover normal wear and tear, improper assembly or
maintenance, or installation of parts or accessories not originally intended or
compatible with the product as sold. This warranty does not apply to damage or
failure due to accident, abuse, corrosion, discoloration of paint or plastic or
neglect. VISION FITNESS shall not be responsible for incidental or consequential
damages. Parts and Electronic components reconditioned to As New Condition
by VISION FITNESS or its vendors may sometimes be supplied as warranty
replacement parts and constitute fulfillment of warranty terms. Any warranty
replacement parts shall be warranted for the remainder of the original warranty
term.
VISION FITNESS expressly disclaims all other warranties, express or implied,
including but not limited to all warranties of fitness for a particular purpose or of
merchantability. This warranty gives you specific rights, and your rights may vary
from state to state.
WARRANTY REGISTRATION
Your warranty card must be completed and sent to VISION FITNESS before a
warranty claim can be processed. We suggest that commercial facilities register
via our website at www.visionfitness.com and complete the commercial customer
survey. Your care in completing the survey will be of value to us in
serving you in the future. You may also register by filling out and mailing in the
enclosed warranty card. Comments and suggestions are always welcome. We
are certain you will enjoy your new Incline Elliptical Trainer. Thank you for selecting
a VISION FITNESS product.
500 South CP Avenue • P.O. Box 280
Lake Mills, WI 53551
toll free 800.335.4348 • phone 920.648.4090
fax 920.648.3373
www.visionfitness.com
©2006 Vision Fitness. All Rights Reserved.
HRT is a Trademark of Vision Fitness.
12.06
OM18.53PRD
REV1
starts
vision
with a
it all
Loading...
