VISHAY TLWW9900 Technical data

VISHAY

19232

e3

Pb

Pb-free

TELUX™ LED

Description

The TELUX™ series is a clear, non diffused LED for
high end applications where supreme luminous flux is
required.

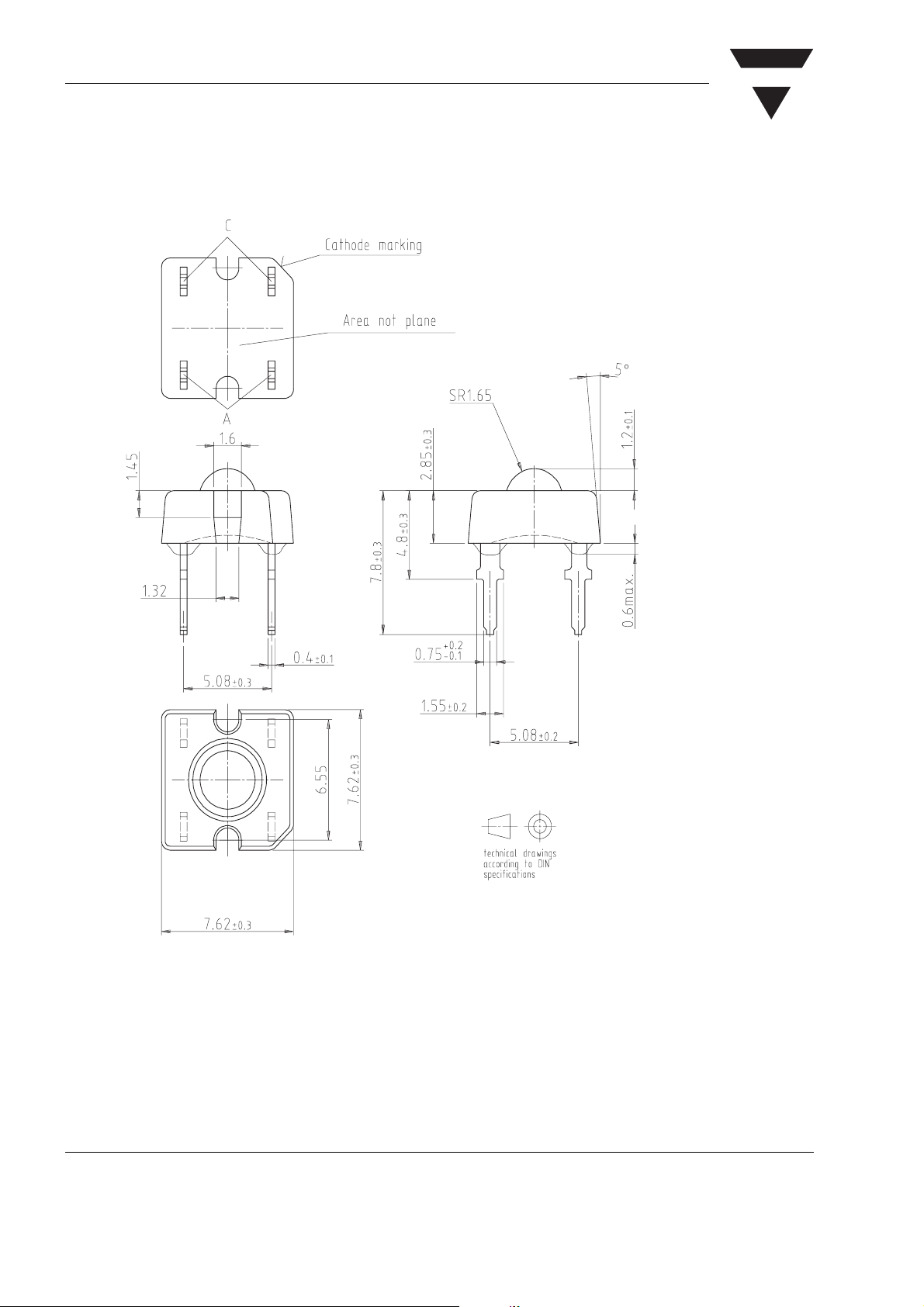

It is designed in an industry standard 7.62 mm square
package utilizing highly developed InGaN technology.

The supreme heat dissipation of TELUX™ allows
applications at high ambient temperatures.

All packing units are binned for luminous flux and
color to achieve best homogenous light appearance
in application.

TLWW9900

Vishay Semiconductors

Features

• Lead-free device

• Utilizing InGaN technology

• High luminous flux

• Supreme heat dissipation: R

• High operating temperature: T

is 90 K/W

thJP

+ 100 °C

j

• Packed in tubes for automatic insertion

• Luminous flux and color categorized for each tube

Applications

Exterior lighting
Interior lighting
Dashboard illumination
Replaces incandescent lamps

• Small mechanical tolerances allow precise usage
of external reflectors or lightguides

• ESD-withstand voltage:
> 1 kV acc. to MIL STD 883 D, Method 3015.7

Parts Table

Part Color, Luminous Intensity Angle of Half Intensity (±ϕ) Technology

TLWW9900 White, φ

> 1500 mlm 45 ° InGaN / TAG on SiC

V

Absolute Maximum Ratings

T

= 25 °C, unless otherwise specified

amb

TLWW9900

Parameter Test condition Symbol Value Unit

Reverse voltage I

DC Forward current T

Surge forward current t

Power dissipation T

Junction temperature T

Operating temperature range T

Storage temperature range T

= 10 µAV

R

≤ 50 °C I

amb

≤ 10 µsI

p

≤ 50 °C P

amb

F

FSM

amb

stg

R

V

j

5V

50 mA

0.1 A

255 mW

100 °C

- 40 to + 100 °C

- 55 to + 100 °C

Document Number 83216

Rev. 1.5, 31-Aug-04

www.vishay.com

1

TLWW9900

VISHAY

Vishay Semiconductors

Parameter Test condition Symbol Val ue Unit

Soldering temperature t ≤ 5 s, 1.5 mm from body

T

sd

260 °C
preheat temperature
100 °C/ 30 sec.

Thermal resistance junction/
ambient

with cathode heatsink

of 70 mm

2

Thermal resistance junction/pin R

R

thJA

thJP

200 K/W

90 K/W

Optical and Electrical Characteristics

T

= 25 °C, unless otherwise specified

amb

White

TLWW9900

Parameter Test condition Symbol Min Ty p. Max Unit

Total flux I

Luminous intensity/Total flux I

Color temperature I

Angle of half intensity I

= 50 mA,

F

R

= 200 °K/W

thJA

= 50 mA,

F

= 200 °K/W

R

thJA

= 50 mA,

F

= 200 °K/W

R

thJA

= 50 mA,

F

= 200 °K/W

R

thJA

φ

V

I

V/φV

T

K

ϕ ± 45 deg

Total included angle 90 % of Total Flux Captured ϕ 75 deg

Forward voltage I

Reverse voltage I

Junction capacitance V

= 50 mA,

F

R

= 200 °K/W

thJA

= 10 µAV

R

= 0, f = 1 MHz C

R

V

F

R

j

1500 2200 mlm

0.7 mcd/mlm

5500 K

4.3 5.2 V

510 V

50 pF

Chromaticity Coordinate Classification

Group X Y

min max min max

3a 0.2900 0.3025 Y = 1.4x - 0.121 Y = 1.4x - 0.071

3b 0.3025 0.3150 Y = 1.4x - 0.121 Y = 1.4x - 0.071

3c 0.2900 0.3025 Y = 1.4x - 0.171 Y = 1.4x - 0.121

3d 0.3025 0.3150 Y = 1.4x - 0.171 Y = 1.4x - 0.121

4a 0.3150 0.3275 Y = 1.4x - 0.121 Y = 1.4x - 0.071

4b 0.3275 0.3400 Y = 1.4x - 0.121 Y = 1.4x - 0.071

4c 0.3150 0.3275 Y = 1.4x - 0.171 Y = 1.4x - 0.121

4d 0.3275 0.3400 Y = 1.4x - 0.171 Y = 1.4x - 0.121

5a 0.3400 0.3525 Y = 1.4x - 0.121 Y = 1.4x - 0.071

5b 0.3525 0.3650 Y = 1.4x - 0.121 Y = 1.4x - 0.071

5c 0.3400 0.3525 Y = 1.4x - 0.171 Y = 1.4x - 0.121

5d 0.3525 0.3650 Y = 1.4x - 0.171 Y = 1.4x - 0.121

tolerance ± 0.005

www.vishay.com

2

Document Number 83216

Rev. 1.5, 31-Aug-04

VISHAY

Luminous Flux Classification

Group Luminous Intensity (mcd)

C 1500 2400

D 2000 3000

E 2500 3600

F 3000 4200

TLWW9900

Vishay Semiconductors

min max

Typical Characteristics (T

250

225

200

175

150

125

100

75

R

= 200 K/W

thJA

50

V

P - Power Dissipation ( mW )

25

0

08020 40 60 100 120

T

16066

- Ambient Temperature ( ° C)

amb

= 25 °C unless otherwise specified)

amb

Figure 1. Power Dissipation vs. Ambient Temperature for InGaN

60

50

40

30

20

F

10

I - Forward Current ( mA )

0

16067

= 200 K/W

R

thJA

08020 40 60 100 120

T

- Ambient Temperature ( ° C)

amb

0°

V rel

I - Relative Luminous Intensity

16200

1.0

0.9

0.8

0.7

0.4 0.2 0 0.2 0.4

0.6
Angular Displacement

10° 20°

30°

40°

50°

60°

70°

80°

0.6

Figure 3. Rel. Luminous Intensity vs. Angular Displacement

100

90

80

70

60

50

40

30

20

% Total Luminous Flux

10

0

0 25 50 75 100 125

16201

Total Included Angle (Degrees)

Figure 2. Forward Current vs. Ambient Temperature for InGaN

Document Number 83216

Rev. 1.5, 31-Aug-04

Figure 4. Percentage Total Luminous Flux vs. Total Included Angle

for 90 ° emission angle
