VISHAY TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100 Technical data

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

Standard 0603 SMD LED

18562

DESCRIPTION

The new 0603 LED series have been designed in the
smallest SMD package. This innovative 0603 LED
technology opens the way to

• smaller products of higher performance

• more design in flexibility

• enhanced applications
The 0603 LED is an obvious solution for small-scale,

high power products that are expected to work
reliability in an arduous environment.

PRODUCT GROUP AND PACKAGE DATA

• Product group: LED

• Package: SMD 0603

• Product series: standard

• Angle of half intensity: ± 80°

Vishay Semiconductors

FEATURES

• Smallest SMD package 0603 with
exceptional brightness 1.6 mm x 0.8 mm x

0.6 mm (L x W x H)

• High reliability lead frame based

• Temperature range - 40 °C to + 100 °C

• Footprint compatible to 0603 chipled

• Wavelength 470 nm (blue), 570 nm (green),
560 nm (pure green), 587 nm (yellow), 606 nm
(orange), 633 nm (red)

• AllnGaP and GaN technology

• Viewing angle: extremely wide 160°

• Grouping parameter: luminous intensity,
wavelength

• Available in 8 mm tape

• Compatible to IR reflow soldering

• Lead (Pb)-free device

• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC

• Preconditioning: acc. to JEDEC level 2

• Automotive qualified AEC-Q101

APPLICATIONS

• Backlight keypads

• Navigation systems

• Cellular phone displays

• Displays for industrial control systems

• Automotive features

• Miniaturized color effects

• Traffic displays

e4

PARTS TABLE

PART

TLMS1100-GS08

TLMO1100-GS08

TLMY1100-GS08

TLMG1100-GS08

TLMP1100-GS08

TLMB1100-GS08

Document Number 83173
Rev. 2.0, 03-Nov-08

COLOR, LUMINOUS INTENSITY AT IF = 20 mA

= 63 mcd (typ.)

Red, I

V

Orange, I

Ye l l o w, I

Green, I

Pure green, I

For technical support, please contact: [e-mail]

Blue, I

= 80 mcd (typ.)

V

= 80 mcd (typ.)

V

= 35 mcd (typ.)

V

= 15 mcd (typ.)

V

= 5 mcd (typ.)

V

www.vishay.com

1

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

Vishay Semiconductors

ABSOLUTE MAXIMUM RATINGS 1) TLMS1100, TLM01100, TLMY1100, TLMG1100, TLMP1100

PARAMETER TEST CONDITION SYMBOL VAL UE UNIT

Reverse voltage

DC Forward current T

Surge forward current t

2)

≤ 75 °C

amb

≤ 10 µs

p

Power dissipation

Junction temperature

Operating temperature range

Storage temperature range

Soldering temperature acc. Vishay spec.

Thermal resistance junction/
ambient

mounted on PC board

(pad size > 5 mm

2

)

Note:

1) T

= 25 °C, unless otherwise specified

amb

2)

Driving the LED in reverse direction is suitable for short term application

I

T

R

V

I

FSM

P

T

amb

T

T

thJA

stg

R

F

12 V

30 mA

0.5 A

V

j

90 mW

120 °C

- 40 to + 100 °C

- 40 to + 100 °C

sd

260 °C

480 K/W

ABSOLUTE MAXIMUM RATINGS

1)

TLMB1100

PARAMETER TEST CONDITION SYMBOL VALU E UNIT

Reverse voltage

DC Forward current T

Surge forward current t

2)

≤ 60 °C

amb

≤ 10 µs

p

Power dissipation

Junction temperature

Operating temperature range

Storage temperature range

Soldering temperature acc. Vishay spec.

Thermal resistance junction/
ambient

mounted on PC board

(pad size > 5 mm

2

)

I

T

R

V

I

FSM

P

T

amb

T

T

thJA

F

stg

sd

R

5V

15 mA

0.1 A

V

j

68 mW

100 °C

- 40 to + 100 °C

- 40 to + 100 °C

260 °C

480 K/W

Note:

1) T

= 25 °C, unless otherwise specified

amb

2)

Driving the LED in reverse direction is suitable for short term application

OPTICAL AND ELECTRICAL CHARACTERISTICS 1) TLMS1100, RED

PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT

= 20 mA I

Luminous intensity

Dominant wavelength

Peak wavelength

Angle of half intensity

Forward voltage

Reverse voltage

Junction capacitance

Note:

1) T

= 25 °C, unless otherwise specified

amb

I

F

= 20 mA λ

I

F

= 20 mA λ

I

F

= 20 mA

I

F

I

= 20 mA V

F

= 10 µA V

I

R

V

= 0, f = 1 MHz C

R

V

d

p

ϕ ± 80 deg

F

R

j

32 63 mcd

627 633 639 nm

645 nm

2.1 3.0 V

6V

15 pF

www.vishay.com
2

For technical support, please contact: [e-mail]

Document Number 83173

Rev. 2.0, 03-Nov-08

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

Vishay Semiconductors

OPTICAL AND ELECTRICAL CHARACTERISTICS 1) TLMO1100, ORANGE

PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT

= 20 mA I

Luminous intensity

Dominant wavelength

Peak wavelength

Angle of half intensity

Forward voltage

Reverse voltage

Junction capacitance

I

F

= 20 mA λ

I

F

I

= 20 mA λ

F

= 20 mA

I

F

I

= 20 mA V

F

= 10 µA V

I

R

= 0, f = 1 MHz C

V

R

V

d

p

ϕ ± 80 deg

F

R

j

Note:

1) T

= 25 °C, unless otherwise specified

amb

OPTICAL AND ELECTRICAL CHARACTERISTICS 1) TLMY1100, YELLOW

PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT

= 20 mA I

Luminous intensity

Dominant wavelength

Peak wavelength

Angle of half intensity

Forward voltage

Reverse voltage

Junction capacitance

Note:

1) T

= 25 °C, unless otherwise specified

amb

I

F

= 20 mA λ

I

F

= 20 mA λ

I

F

= 20 mA

I

F

= 20 mA V

I

F

= 10 µA V

I

R

V

= 0, f = 1 MHz C

R

V

d

p

ϕ ± 80 deg

F

R

j

50 80 mcd

600 606 609 nm

610 nm

2.1 3 V

6V

15 pF

50 80 mcd

580 587 595 nm

591 nm

2.1 3 V

6V

15 pF

OPTICAL AND ELECTRICAL CHARACTERISTICS 1) TLMG1100, GREEN

PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT

= 20 mA I

Luminous intensity

Dominant wavelength

Peak wavelength

Angle of half intensity

Forward voltage

Reverse voltage

Junction capacitance

I

F

= 20 mA λ

I

F

= 20 mA λ

I

F

= 20 mA

I

F

I

= 20 mA V

F

I

= 10 µA V

R

= 0, f = 1 MHz C

V

R

V

d

p

12.5 35 mcd

564 570 575 nm

572 nm

ϕ ± 80 deg

F

R

j

6V

2.1 3.0 V

15 pF

Note:

1) T

= 25 °C, unless otherwise specified

amb

OPTICAL AND ELECTRICAL CHARACTERISTICS 1) TLMP1100, PURE GREEN

PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT

= 20 mA I

Luminous intensity

Dominant wavelength

Peak wavelength

Angle of half intensity

Forward voltage

Reverse voltage

Junction capacitance

Note:

1) T

= 25 °C, unless otherwise specified

amb

I

F

= 20 mA λ

I

F

= 20 mA λ

I

F

= 20 mA

I

F

I

= 20 mA V

F

= 10 µA V

I

R

= 0, f = 1 MHz C

V

R

V

d

p

ϕ ± 80 deg

F

R

j

6.3 15 mcd

551 558 566 nm

555 nm

2.1 3 V

6V

15 pF

Document Number 83173
Rev. 2.0, 03-Nov-08

For technical support, please contact: [e-mail]

www.vishay.com

3

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

Vishay Semiconductors

OPTICAL AND ELECTRICAL CHARACTERISTICS 1) TLMB1100, BLUE

PARAMETER TEST CONDITION SYMBOL MIN TYP. MAX UNIT

= 10 mA I

Luminous intensity

Dominant wavelength

Peak wavelength

Angle of half intensity

Forward voltage

Reverse voltage

Note:

1) T

= 25 °C, unless otherwise specified

amb

I

F

= 10 mA λ

I

F

= 10 mA λ

I

F

I

= 10 mA

F

I

= 20 mA V

F

I

= 10 µA V

R

V

d

p

ϕ ± 80 deg

F

R

COLOR CLASSIFICATION

DOMINANT WAVELENGTH (nm)

GROUP

- 1 551 554 564 565

- 2 460 464 554 557 566 569 580 583 600 603

- 3 464 468 557 560 569 572 583 586 603 606

- 4 468 472 560 563 572 575 586 589 606 609

- 5 472 476 563 566 589 592 609 612

- 6 592 595

Note:
Wavelengths are tested at a current pulse duration of 25 ms and an accuracy of ± 1 nm

BLUE PURE GREEN GREEN YEL LOW ORANGE

MIN. MAX. MIN. MAX. MIN. MAX. MIN. MAX. MIN. MAX.

45 mcd

466 nm

428 nm

3.9 4.5 V

5.0 V

LUMINOUS INTENSITY CLASSIFICATION

GROUP

Pa 4 6.3

Pb 5 8

Qa 6.3 10

Qb 8 12.5

Ra 10 16

Rb 12.5 20

Sa 16 25

Sb 20 32

Ta 2 5 4 0

Tb 32 50

Ua 40 63

Ub 50 80

Va 63 100

Vb 80 125

Wa 100 160

Wb 125 200

Note:
Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ± 11 %.
The above type numbers represent the order groups which include only a few brightness groups. Only one group will be shipped on each reel
(there will be no mixing of two groups on each reel).
In order to ensure availability, single brightness groups will not be orderable.
In a similar manner for colors where wavelength groups are measured and binned, single wavelength groups will be shipped in any one reel.
In order to ensure availability, single wavelength groups will not be orderable.

MIN. MAX.

LUMINOUS INTENSITY (mcd)

www.vishay.com
4

For technical support, please contact: [e-mail]

Document Number 83173

Rev. 2.0, 03-Nov-08

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

2.40

Vishay Semiconductors

GROUP NAME ON LABEL

LUMINOUS INTENSITY GROUP HALFGROUP WAVELE NG TH

Qb4

Note:
One packing unit/tape contains only one classification group of luminous intensity, color and forward voltage.
Only one single classification groups is not available.
The given groups are not order codes, customer specific group combinations require marketing agreement.
No color subgrouping for super red.

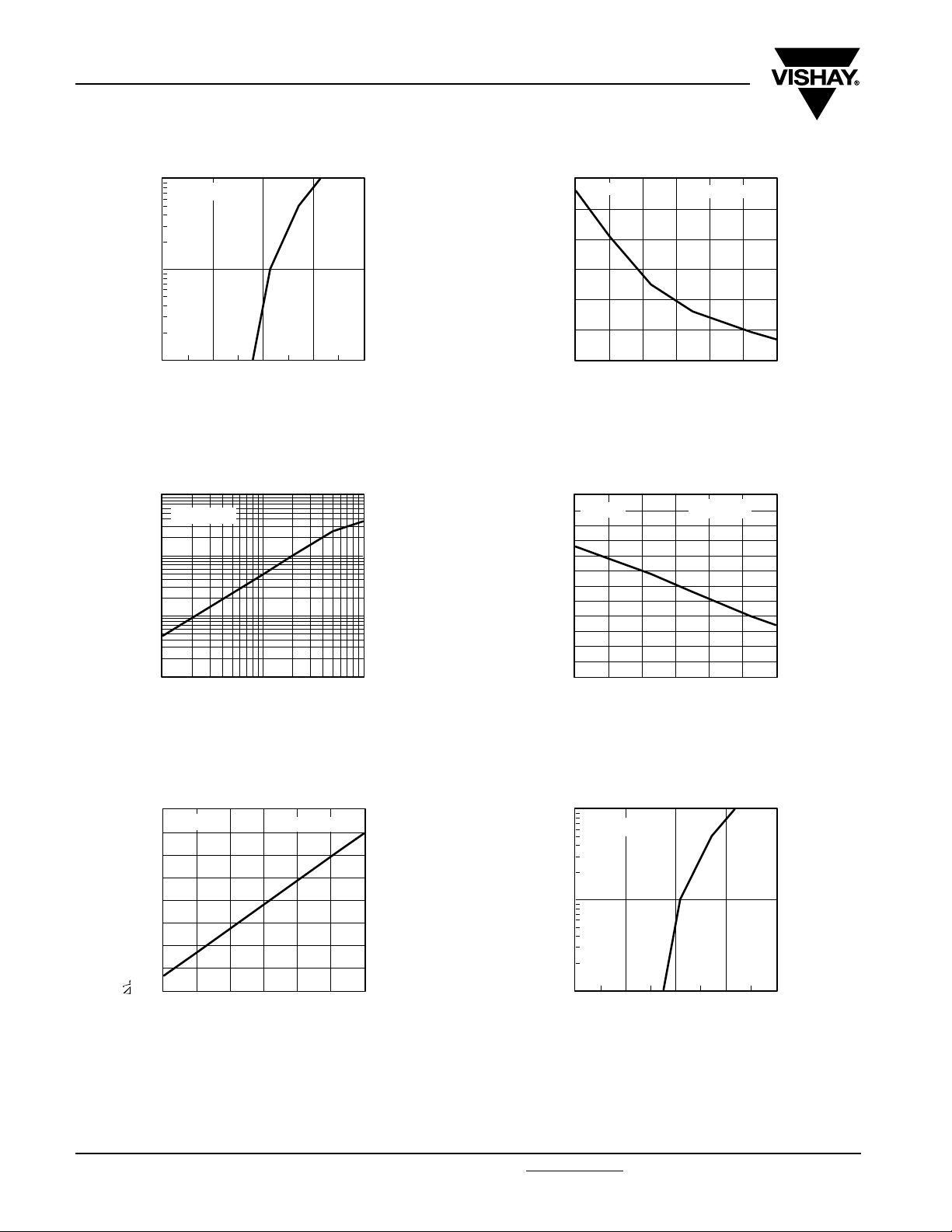

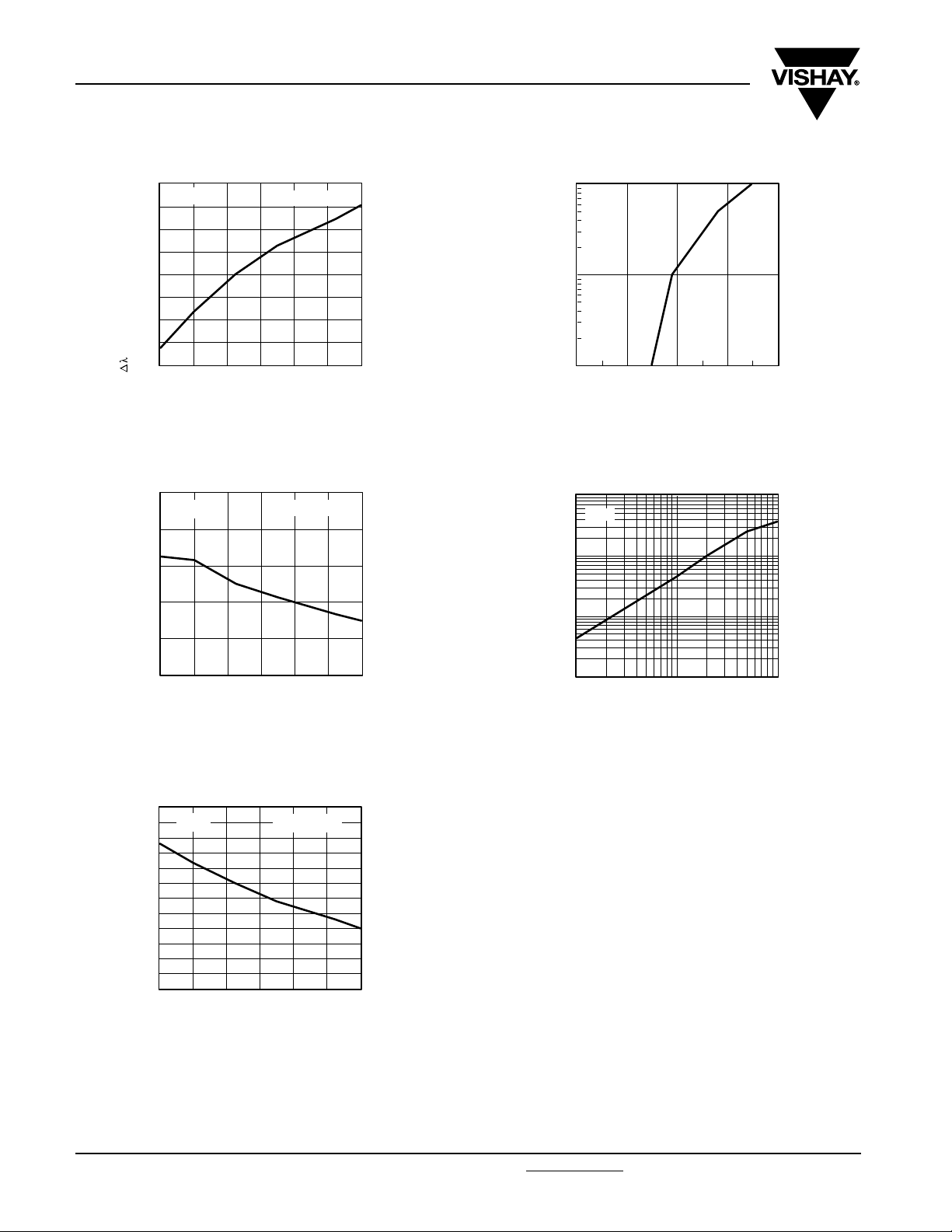

TYPICAL CHARACTERISTICS

T

= 25 °C, unless otherwise specified

amb

40

35

30

25

20

15

10

- Forward Current (mA)

F

I

5

0

0 20406080 100 120

T

19108

- Ambient Temperature (°C)

amb

Figure 1. Forward Current vs. Ambient Temperature

8

orange

6

4

2

0

- 2

- 4

- Change of Dom. Wavelength (nm)

d

- 6

- 20 0 20 40 60 80 100

T

- Ambient Temperature (°C)

19081

amb

IF = 20 mA

Figure 2. Change of Dominant Wavelength vs.

Ambient Temperature

2.0
orange

1.6

1.2

0.8

0.4

Vrel

I - Relative Luminous Intensity

0.0

- 20 0 20 40 60 80 100

19088

T

- Ambient Temperature (°C)

amb

IF = 20 mA

Figure 3. Relative Luminous Intensity vs. Amb. Temperature

orange

2.35

2.30

2.25

2.20

2.15

2.10

2.05

2.00

1.95

F

V - Forward Voltage (V)

1.90

1.85

1.

80

- 20 0 20 40 60 80 100

19093

- Ambient Temperature (°C)

T

am b

IF = 20 mA

Figure 4. Forward Voltage vs. Ambient Temperature

Document Number 83173
Rev. 2.0, 03-Nov-08

For technical support, please contact: [e-mail]

www.vishay.com

5

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

4

Vishay Semiconductors

100

orange

10

F

I - Forward Current (mA)

1

1.0 1.5 2.0 2.5 3.0

- Forward Voltage (V)

19099

V

F

Figure 5. Forward Current vs. Forward Voltage

10

orange

1

0.1

20

blue

15

10

5

- Forward Current (mA)

F

I

0

020406080 100 120

T

19106

- Ambient Temperature (°C)

amb

Figure 8. Forward Current vs. Ambient Temperature

blue

3

2

1

0

IF = 10 mA

Vrel

I - Relative Luminous Intensity

0.01
1 10 100

19109

IF - Forward Current (mA)

Figure 6. Relative Luminous Intensity vs. Forward Current

- Change of Dom. Wavelength (nm)

d

- 2

- 20 0 20 40 60

T

- Ambient Temperature (°C)

19082

amb

80 100

Figure 9. Change of Dominant Wavelength vs.

Ambient Temperature

- 1

100

90

blue

80

70

60

50

40

30

20

- Power Dissipation (mW)

V

P

10

0

0 20406080 100 120

- Ambient Temperature (°C)

19105

T

amb

Figure 7. Power Dissipation vs. Ambient Temperature

Figure 10. Relative Luminous Intensity vs. Amb. Temperature

2.0
blue

1.6

1.2

0.

8

0.4

- Relative Luminous Intensity

V rel

I

0.0

- 20 0 20 40 60 80 100

19090

- Ambient Temperature (°C)

T

amb

IF = 10 mA

www.vishay.com
6

For technical support, please contact: [e-mail]

Document Number 83173

Rev. 2.0, 03-Nov-08

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

2.4

Vishay Semiconductors

4.20

4.15

blue

IF = 10 mA

4.10

4.05

4.00

3.95

3.90

3.85

3.80

3.75

- Forward Voltage (V)

F

V

3.70

3.65

3.60

- 20 0 20 40 60 80 100

- Ambient Temperature (°C)

19094

T

amb

Figure 11. Forward Voltage vs. Ambient Temperature

100

blue

10

10

8

pure green

IF = 20 mA

6

4

2

0

- 2

- 4

- Change of Dom. Wavelength (nm)

d

- 6

- 20 0 20 40 60 80 100

T

- Ambient Temperature (°C)

19083

amb

Figure 14. Change of Dominant Wavelength vs.

Ambient Temperature

pure green

2.0

1.6

1.2

0.8

I F = 20 mA

- Forward Current (mA)

F

I

1

6543

19100

2

- Forward Voltage (V)

V

F

Figure 12. Forward Current vs. Forward Voltage

10

blue

1

0.1

- Relative Luminous Intensity

V rel

I

0.01
1 10 100

I

19110

- Forward Current (mA)

F

Figure 13. Relative Luminous Intensity vs. Forward Current

0.4

Vrel

I - Relative Luminous Intensity

0.0

- 20 0 20 40 60 80 100

- Ambient Temperature (°C)

19087

T

amb

Figure 15. Relative Luminous Intensity vs. Amb. Temperature

2.40

2.35

pure green

I F = 20 mA

2.30

2.25

2.20

2.15

2.10

2.05

2.00

1.95

F

V - Forward Voltage (V)

1.90

1.85

1.80

- 20 0 20 40 60 80 100

T

19095

- Ambient Temperature (°C)

amb

Figure 16. Forward Voltage vs. Ambient Temperature

Document Number 83173
Rev. 2.0, 03-Nov-08

For technical support, please contact: [e-mail]

www.vishay.com

7

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

Vishay Semiconductors

100

pure green

10

F

I - Forward Current (mA)

1

1.0 1.5 2.0 2.5 3.0

- Forward Voltage (V)

19101

V

F

Figure 17. Forward Current vs. Forward Voltage

10

pure green

1

0.1

Vrel

I - Relative Luminous Intensity

0.01
1 10 100

- Forward Current (mA)

19111

I

F

Figure 18. Relative Luminous Intensity vs. Forward Current

2.4
green

2.0

1.6

1.2

0.8

0.4

Vrel

I - Relative Luminous Intensity

0.0

- 20 0 20 40 60 80 100

19089

- Ambient Temperature (°C)

T

am b

I F = 20 mA

Figure 20. Relative Luminous Intensity vs. Amb. Temperature

2.40
green

2.35

2.30

2.25

2.20

2.15

2.10

2.05

2.00

1.95

F

V - Forward Voltage (V)

1.90

1.85

80

1.

- 20 0 20 40 60 80 100

T

- Ambient Temperature (°C)

19096

amb

IF = 20 mA

Figure 21. Forward Voltage vs. Ambient Temperature

10

8

6

4

2

0

- 2

- Change of Dom. Wavelength (nm)

- 4

d

- 6

- 20 0 20 40 60 80 100

19084

Figure 19. Change of Dominant Wavelength vs.

www.vishay.com
8

green

T

- Ambient Temperature (°C)

amb

Ambient Temperature

I F = 20 mA

100

10

F

I - Forward Current (mA)

1

19102

Figure 22. Forward Current vs. Forward Voltage

For technical support, please contact: [e-mail]

green

1.0 1.5 2.0 2.5 3.0

- Forward Voltage (V)

V

F

Document Number 83173

Rev. 2.0, 03-Nov-08

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

2.0

Vishay Semiconductors

10

green

1

0.1

Vrel

I - Relative Luminous Intensity

0.01
1 10 100

- Forward Current (mA)

19112

I

F

Figure 23. Relative Luminous Intensity vs. Forward Current

8

yellow

6

4

2

0

- 2

- 4

- Change of Dom. Wavelength (nm)

d

- 6

- 20 0 20 40 60 80 100

- Ambient Temperature (°C)

T

19085

amb

IF = 20 mA

Figure 24. Change of Dominant Wavelength vs.

Ambient Temperature

F

V - Forward Voltage (V)

19097

2.40

2.35

2.30

2.25

2.20

2.15

2.10

2.05

2.00

1.95

1.90

1.85

1.80

yellow

- 20 0 20 40 60 80 100

- Ambient Temperature (°C)

T

amb

IF = 20 mA

Figure 26. Forward Voltage vs. Ambient Temperature

100

yellow

10

F

I - Forward Current (mA)

1

1.0 1.5 2.0 2.5 3.0

- Forward Voltage (V)

19104

V

F

Figure 27. Forward Current vs. Forward Voltage

yellow

1.6

1.2

8

0.

0.4

V rel

I - Relative Luminous Intensity

0.0

- 20 0 20 40 60 80 100

19092

T

- Ambient Temperature (°C)

amb

IF = 20 mA

Figure 25. Relative Luminous Intensity vs. Amb. Temperature

Document Number 83173

For technical support, please contact: [e-mail]

Rev. 2.0, 03-Nov-08

10

yellow

1

0.1

Vrel

I - Relative Luminous Intensity

0.01
1 10 100

- Forward Current (mA)

19114

I

F

Figure 28. Relative Luminous Intensity vs. Forward Current

www.vishay.com

9

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

2.0

Vishay Semiconductors

4

red

3

2

1

0

- 1

- 2

- 3

- Change of Dom. Wavelength (nm)

d

- 4

- 20 0 20 40 60 80 100

T

- Ambient Temperature (°C)

19086

amb

I F = 20 mA

Figure 29. Change of Dominant Wavelength vs.

Ambient Temperature

red

1.6

1.2

0.8

0.4

Vrel

I - Relative Luminous Intensity

0.0

- 20 0 20 40 60 80 100

19091

- Ambient Temperature (°C)

T

am b

IF = 20 mA

Figure 30. Relative Luminous Intensity vs. Amb. Temperature

100

red

10

F

I - Forward Current (mA)

1

1.0 1.5 2.0 2.5 3.0

- Forward Voltage (V)

19103

V

F

Figure 32. Forward Current vs. Forward Voltage

10

red

1

0.1

- Relative Luminous Intensity

V rel

I

0.01
1 10 100

- Forward Current (mA)

19113

I

F

Figure 33. Relative Luminous Intensity vs. Forward Current

2.20

F

V - Forward Voltage (V)

19098

2.15

2.10

2.05

2.00

1.95

1.90

1.85

1.

1.75

1.70

1.65

1.60

red

80

- 20 0 20 40 60 80 100

- Ambient Temperature (°C)

T

amb

IF = 20 mA

Figure 31. Forward Voltage vs. Ambient Temperature

www.vishay.com

For technical support, please contact: [e-mail]

10

Document Number 83173

Rev. 2.0, 03-Nov-08

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

REEL DIMENSIONS in millimeters

Vishay Semiconductors

19043

Document Number 83173
Rev. 2.0, 03-Nov-08

For technical support, please contact: [e-mail]

www.vishay.com

11

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

Vishay Semiconductors

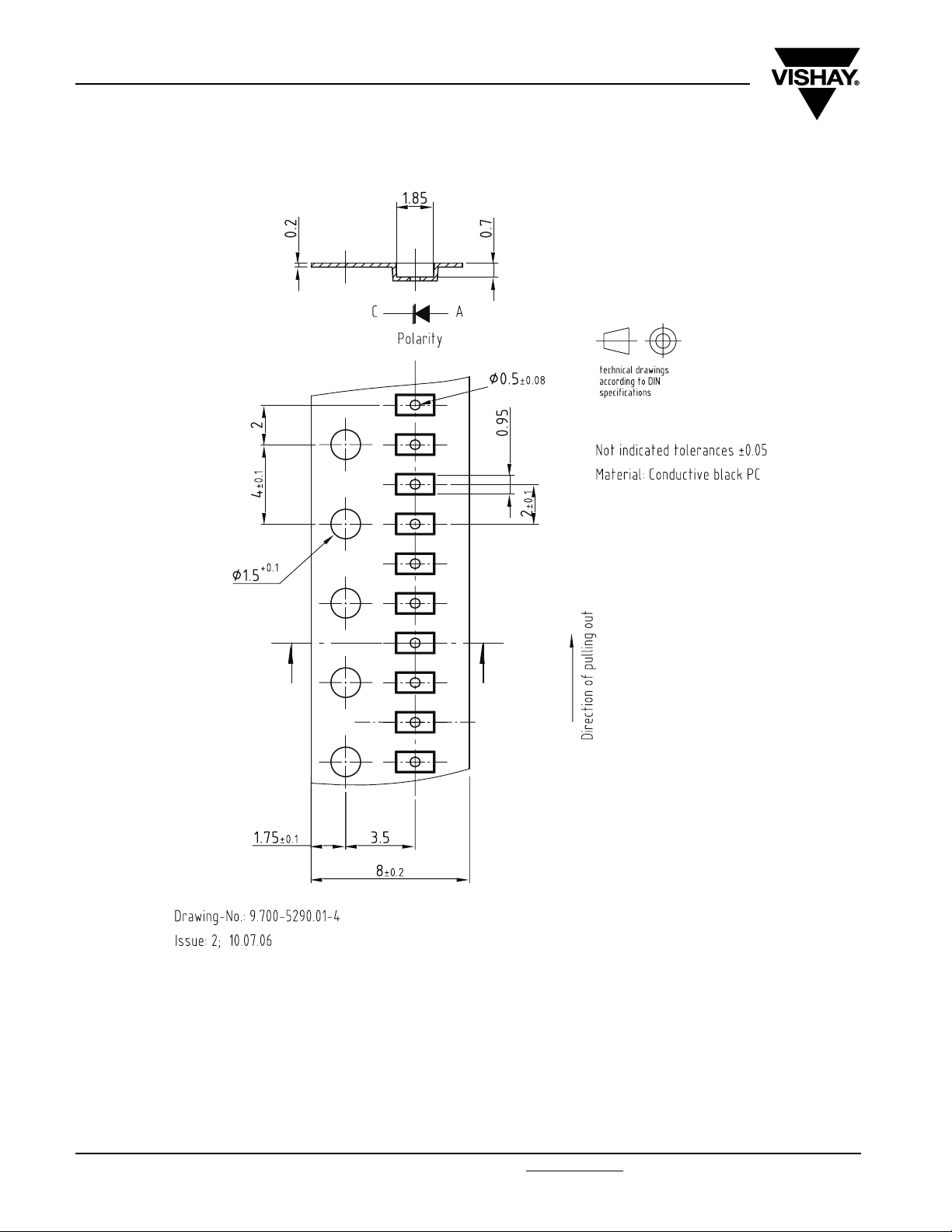

TAPE DIMENSIONS in millimeters

www.vishay.com
12

19044

For technical support, please contact: [e-mail]

Document Number 83173

Rev. 2.0, 03-Nov-08

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

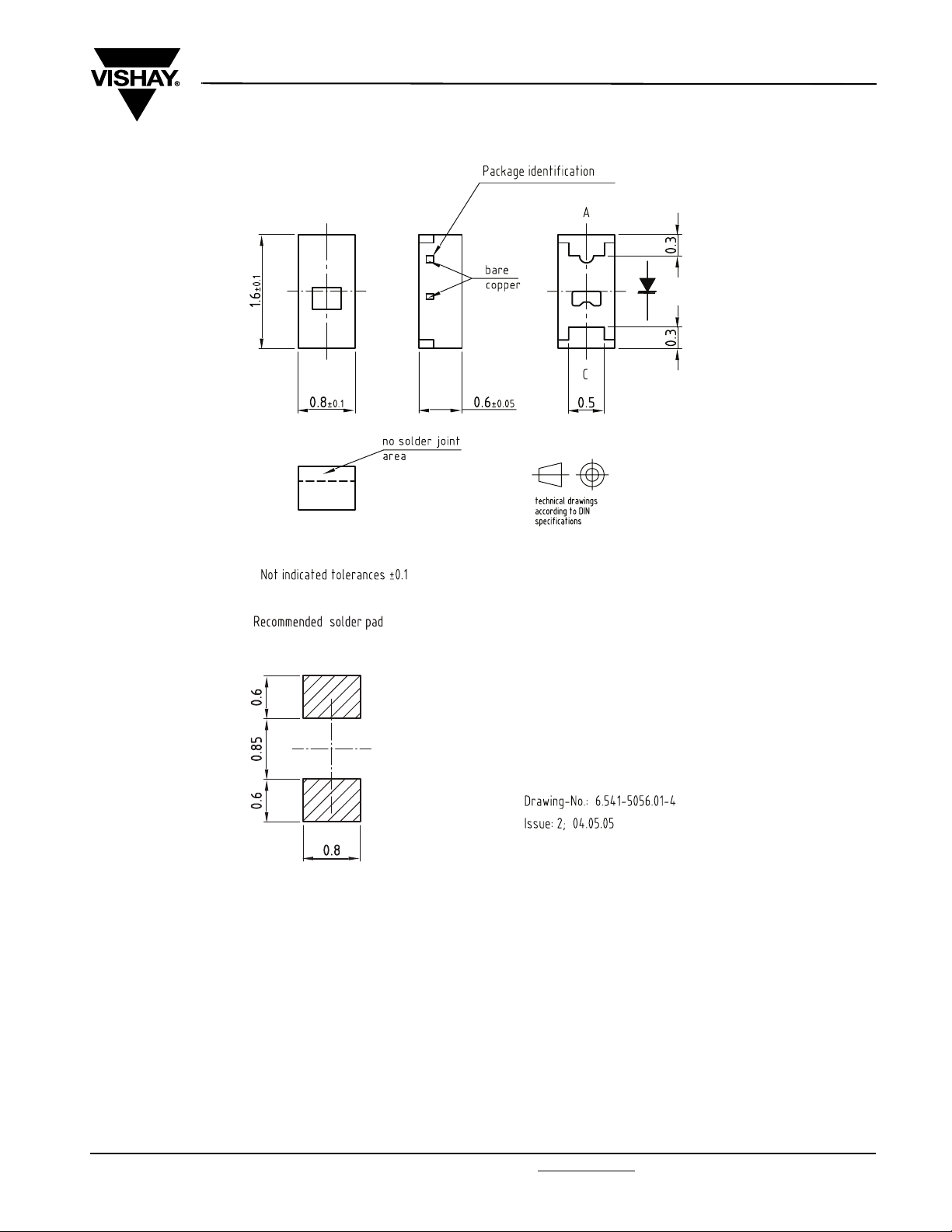

PACKAGE DIMENSIONS in millimeters

Vishay Semiconductors

Document Number 83173
Rev. 2.0, 03-Nov-08

19426

For technical support, please contact: [e-mail]

www.vishay.com

13

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

255

240 °C

217 °C

Vishay Semiconductors

SOLDERING PROFILE

IR Reflow Soldering Profile for lead (Pb)-free soldering

300

250

200

150

Temperature (°C)

100

50

0

0 50 100 150 200 250 300

19470-4

Figure 34. Vishay Lead (Pb)-free Reflow Soldering Profile

Preconditioning acc. to JEDEC Level 2

255 °C

max. 120 s

max. Ramp Up 3 °C/s

(acc. to J-STD-020C)

max. 30 s

max. 100 s

max. Ramp Down 6 °C/s

Time (s)

max. 2 cycles allowed

max. 260 °C

245 °C

DRY PACKING

The reel is packed in an anti-humidity bag to protect
the devices from absorbing moisture during
transportation and storage.

RECOMMENDED METHOD OF STORAGE

Dry box storage is recommended as soon as the
aluminum bag has been opened to prevent moisture
absorption. The following conditions should be
observed, if dry boxes are not available:

• Storage temperature 10 °C to 30 °C

• Storage humidity ≤ 60 % RH max.
After more than 1 year under these conditions

moisture content will be too high for reflow soldering.
In case of moisture absorption, the devices will recover

to the former condition by drying under the following
condition:

192 h at 40 °C + 5 °C/- 0 °C and < 5 % RH
(dry air/nitrogen) or

96 h at 60 °C + 5 °C and < 5 % RH for all device
containers or

24 h at 100 °C + 5 °C not suitable for reel or tubes.
An EIA JEDEC standard JESD22-A112 level 2 label is

included on all dry bags.

Aluminum bag

Label

Reel

15973

FINAL PACKING

The sealed reel is packed into a cardboard box. A
secondary cardboard box is used for shipping
purposes.

17028

Example of JESD22-A112 level 2 label

ESD PRECAUTION

Proper storage and handling procedures should be
followed to prevent ESD damage to the devices
especially when they are removed from the antistatic
shielding bag. Electro-static sensitive devices warning
labels are on the packaging.

VISHAY SEMICONDUCTORS STANDARD
BAR CODE LABELS

The Vishay Semiconductors standard bar code labels
are printed at final packing areas. The labels are on
each packing unit and contain Vishay Semiconductors
specific data.

www.vishay.com
14

For technical support, please contact: [e-mail]

Document Number 83173

Rev. 2.0, 03-Nov-08

TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100

Vishay Semiconductors

OZONE DEPLETING SUBSTANCES POLICY STATEMENT

It is the policy of Vishay Semiconductor GmbH to

1. Meet all present and future national and international statutory requirements.

2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems with respect to their impact on the health and safety of our employees and the public, as well as their
impact on the environment.

It is particular concern to control or eliminate releases of those substances into the atmosphere which are known as
ozone depleting substances (ODSs).

The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. Various national and international initiatives are pressing for an earlier ban
on these substances.

Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use of
ODSs listed in the following documents.

1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively.

2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency (EPA) in the USA.

3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.

Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.

We reserve the right to make changes to improve technical design

and may do so without further notice.

Parameters can vary in different applications. All operating parameters must be validated for each customer

application by the customer. Should the buyer use Vishay Semiconductors products for any unintended or

unauthorized application, the buyer shall indemnify Vishay Semiconductors against all claims, costs, damages, and

expenses, arising out of, directly or indirectly, any claim of personal damage, injury or death associated with such

unintended or unauthorized use.

Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany

Document Number 83173
Rev. 2.0, 03-Nov-08

For technical support, please contact: [e-mail]

www.vishay.com

15

Legal Disclaimer Notice

Vishay

Disclaimer

All product specifications and data are subject to change without notice.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf
(collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein
or in any other disclosure relating to any product.

Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any
information provided herein to the maximum extent permitted by law. The product specifications do not expand or
otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed
therein, which apply to these products.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Vishay.

The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless
otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such
applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting
from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding
products designed for such applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document Number: 91000 www.vishay.com
Revision: 18-Jul-08 1
