CLV8 / CLV7 / CLV6 / CLV4
Sound comes first
Each musical instrument has a soul of its own.
The soul of classical organs comes from far away, arising from distant times and ancient cultures. Nowadays it can be found in Viscount’s passion
and expertise, which is not just a business but a philosophy, a way to conceive, love and realize quality products with character. In other words, a soul.
The CLV series, created with the exclusive Physis® technology, answers to the needs of the modern organist: to feel, play and live an intimacy
with their own instrument. It’s a matter of depth and poignancy.
Product of Viscount’s experience, art and craftsmanship, the CLV series organs are intended for musicians, students and enthusiasts.
Fit for the most common situations, such as home study, concert halls and great churches, these organs can be fine tuned
and edited up to the smallest detail, according to needs, personal taste, situation and music style.
Whatever the adjustments, they will always deliver the faithful, majestic and deep sound of a real pipe organ.
Nevertheless, comfort and easiness have not been neglected. The organist can finally feel one with the instrument,
become its kindred spirit and command it.
Reach the keyboard with your fingers and fall in love with the soul of a timeless sound.
Physis® technology
Musicians grow more experienced, refined, and demanding each day.
This is why Viscount created the Physis® technology, which is a worldwide patented new digital synthesis system that reproduces the sound of pipe organs. This revolutionary technology is not based on recorded samplings, but simulates the sound emitted by real pipes through accurate physical models,
reproducing even the finest details and acoustic behaviour of an organ.
The sound is generated in real time, considering the main physical parameters of the pipes, such as material, size, diameter, shape,
air pressure, position of the various components on the windchest and much more.
The great quality of the Physis® technology is present in each model of the UNICO CLV series.
Unique sensations, anywhere.
UNICO CLV8
Manual I
Prinzipal 8’
Flöte 8’
Prestant 4’
Offenflöte 4’
Doublette 2’
Larigot 1 1/3’
Sifflöte 1’
Sesquialtera II
Mixtur IV
Regal 16’
Krummhorn 8’
Tremulant
Coupler III/I
Midi
Manual II
Prinzipal 16’
Prinzipal 8’
Hohlflöte 8’
Gamba 8’
Unda Maris 8’
Oktave 4’
Spitzflöte 4’
Quinte 2 2/3’
Superoktave 2’
Kornett IV
Mixtur V
Contra Trompete 16’
Trompete 8’
Tremulant
Coupler III/II
Coupler I/II
Midi
Manual III
Bourdon 16’
Geigen Prinzipal 8’
Rohrgedackt 8’
Viola di Gamba 8’
Vox Celeste 8’
Oktave 4’
Rohrflöte 4’
Nasard 2 2/3’
Blockflöte 2’
Terz 1 3/5’
Scharf III
Fagott 16’
Oboe 8’
Vox Humana 8’
Clairon 4’
Tremulant
Midi
Pedal
Untersatz 32’
Prinzipalbass 16’
Subbass 16’
Gedackt 16’
Oktavbass 8’
Gedackt 8’
Choralbass 4’
Mixtur IV
Contra Bombarde 32’
Posaune 16’
Trompete 8’
Coupler II/P
Coupler III/P
Coupler I/P
Midi
Available in dark or light oak colour, this model is the flagship of the CLV series. A majestic three manual console that will amaze you immediately with the
sound that only great pipe organs have.
UNICO CLV8 TECHNICAL SPECIFICATIONS
SPECIFICATIONS
Keyboards
Pedalboard
Stop Type
Audio Amplifiers
Speakers
Expression Pedals
Crescendo Pedal
STOPS and VOICES
Pedal
Manual I
Manual II
Manual III
Total Speaking Stops
Sound Styles
Alternative Voices
Orchestra Voices
ACCESSORIES
General Pistons
Memory Banks
Total Memories
Piston Sequencer
Toe Studs
Automatic Pedal
Enclosed piston
Couplers
Transposer
General Volume - Reverb Volume
Divisional Midi Enable
Orchestra and Midi Sustain
Pen Drive Mass Storage
Sequencer Remote Control
3 x 61 notes “tracker touch” keyboards, with velocity control for MIDI and Orchestra sections.

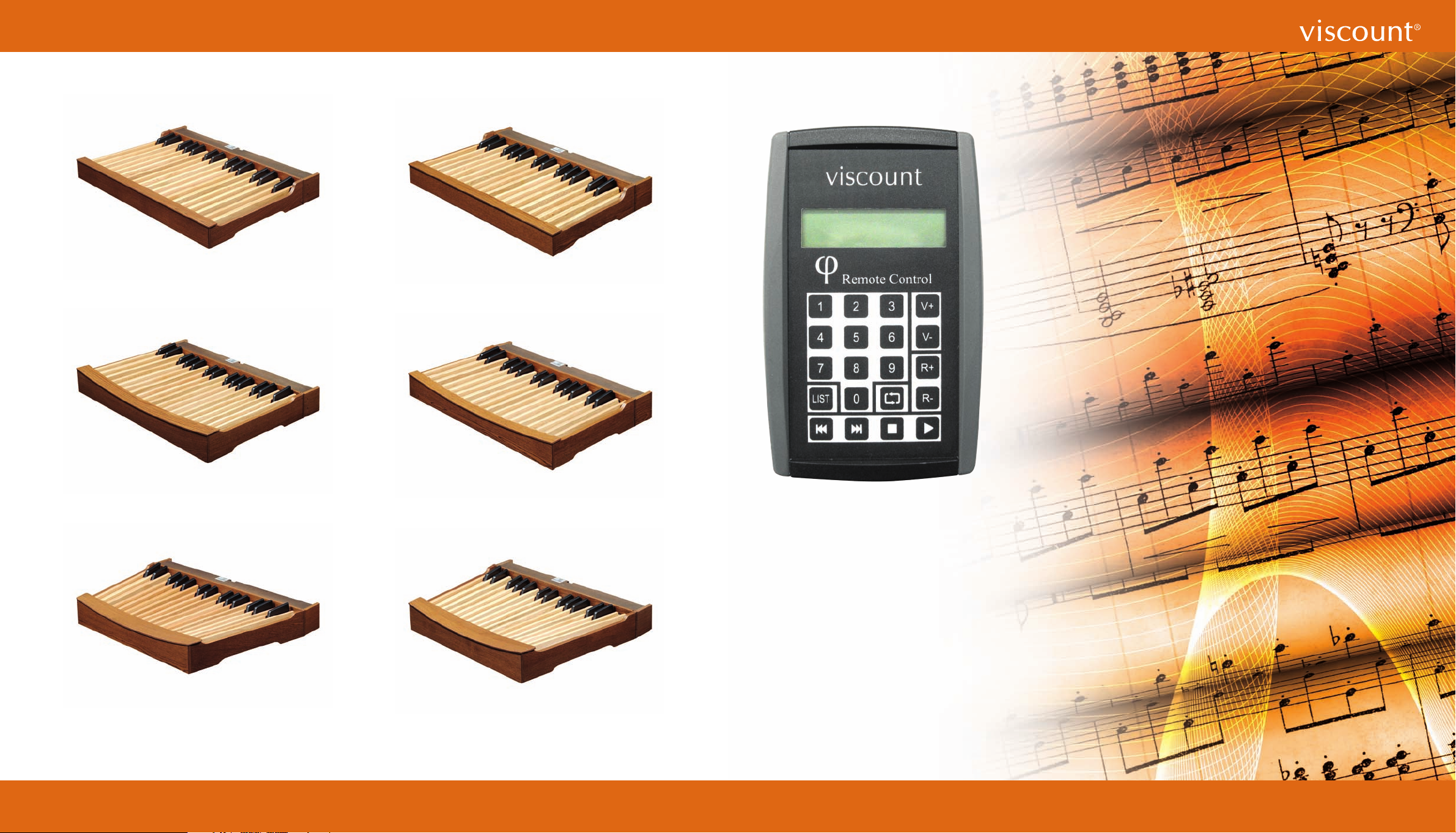

32 notes straight, straight concave, radiating concave
Tilt tab
4 x 60 Watt + 1 x 100 Watt
9
2, Man III and Man I
Yes, 16 steps programmable
11
11
13
15
50. Hundreds voices in the internal sound bank
4 Preset + 4 User. Hundreds sound styles can be loaded and/or stored from/to internal memory and pen drive
Selectable additional sound for each stop
Selectable additional sound for dedicated stop
8
16
128 general, tens of thousands with pen drive
Prev - Next pistons
12
Yes
Yes
6, with Stops and Toe Studs
-6/+5
With rotary potentiometers
Yes
Kick switch located on the side of the expression pedal
Usual Usb pen drive can be used as mass storage
Optional radio no directive 50 mt distance remote control with built in 2x16 display
DISPLAY
Display
Edit Voice Parameters
Divisional Volume
Tremulant
Reverberation
Ensemble Effect
Insufficient Air Pressure Effect
Tracker Keyboard Effect
Historic Temperaments
Keyboards Inversion
Output Router
External Out Volume Control
External Out 5 Band Equalizer
Midi Programmable
Sequencer
Demo Songs
File Management
Lock Organ
CONNECTIONS
Midi In, Out, Thru
Stereo Headphone Out
Stereo Aux In
Mic In
Multiple Line Out
USB (device) to PC (for “Physis Editor”)
USB (host) for Pen Drive
CONSOLE
Description
Width x Height x Depth with Pedalb.
Width x Height x Depth without Pedalb.
Weight
128 x 64 dots graphic with backlight
Stop by stop adjustable voice parameters
Separate for each division
3, Separately for each manuals depth and speed adjustable
8 Types
Adjustable
Proportional to the active Voices
Yes
Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975,
Meantone, Meantone pure minor third, Zarlino, Sauveur I, Sauveur II, Barca, Rameau, Pythagorean; each with programmable “Tonic”
Key Note
Yes
Stop by stop adjustable windchest layout
Independent volume control for each channel
Yes
Tx/Rx Midi Ch., Tx/Rx Midi Filter, Send PG, Keyb. Midi Velocity
Interactive song sequencer with overdubbing function
Yes
Copy, Load, Save, Rename, Delete etc.
With password
Yes
Yes
Yes
With gain control
5, 13 with output optional expansion board
For finest finishing and personalization like Stop by Stop, Note by Note Volume and Pitch Regulation, Stop disposition, Internal and
External Routing, etc. (optional)
Yes
Elegant console in dark or light oak color, elegant lighted music rack, roll cover and matching bench
cm 143x123x69
cm 143x123x111,2
Kg 161
Specifications subject to change without prior notice
UNICO CLV7
Manual I
Bourdon 16’
Prinzipal 8’
Hohlflöte 8’
Unda Maris 8’
Oktave 4’
Spitzflöte 4’
Superoktave 2’
Kornett IV
Mixtur V
Contra Trompete 16’
Trompete 8’
Krummhorn 8’
Piano
Strings
Manual II
Rohrgedackt 8’
Viola di Gamba 8’
Vox Celeste 8’
Prinzipal 4’
Rohrflöte 4’
Nasard 2 2/3’
Blockflöte 2’
Terz 1 3/5’
Scharf III
Fagott 16’
Oboe 8’
Clairon 4’
Celesta
Chimes
Tremulant
Midi
Pedal
Contra Violon 32’
Prinzipalbass 16’
Subbass 16’
Oktavbass 8’
Gedackt 8’
Choralbass 4’
Contra Bombarde 32’
Posaune 16’
Trompete 8’
Cello
Coupler I/P
Coupler II/P
Midi

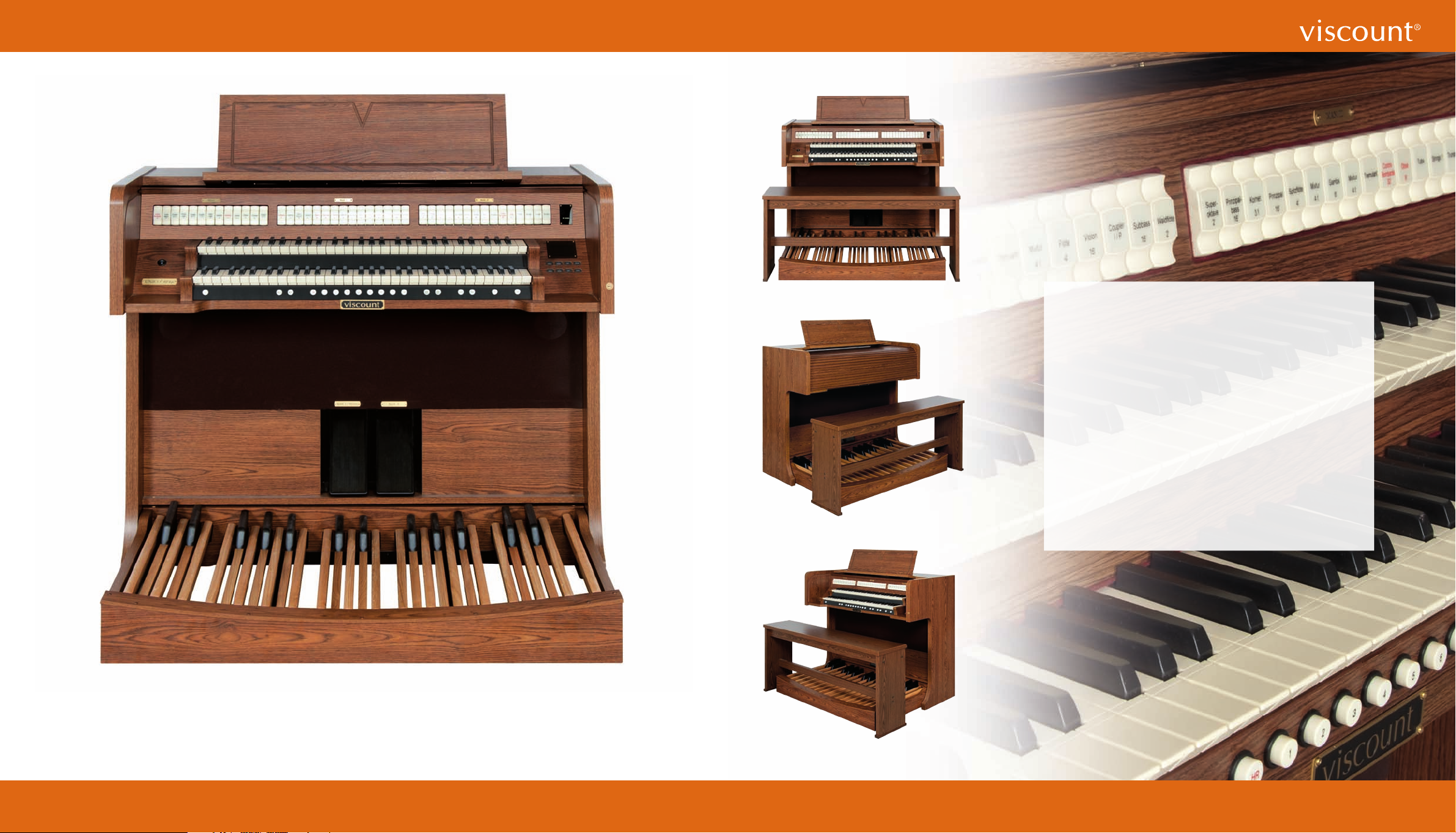

Ideal for those who need a two-manual organ with draw stops. Featuring an elegant dark oak cabinet, great sound performance and peerless quality.
UNICO CLV7 TECHNICAL SPECIFICATIONS
SPECIFICATIONS
Keyboards
Pedalboard
Stop Type
Audio Amplifiers
Speakers
Expression Pedals
Crescendo Pedal
STOPS and VOICES
Pedal
Manual I
Manual II
Total Speaking Stops
Sound Styles
Alternative Voices
Orchestra Voices
ACCESSORIES
General Pistons
Memory Banks
Total Memories
Piston Sequencer
Toe Studs
Automatic Pedal
Enclosed piston
Couplers
Transposer
General Volume - Reverb Volume
Divisional Midi Enable
Orchestra and Midi Sustain
Pen Drive Mass Storage
Sequencer Remote Control
2 x 61 notes “tracker touch” keyboards, with velocity control for MIDI and Orchestra sections.
32 notes straight, straight concave, radiating concave
DrawKnob
2 x 60 Watt + 1 x 100 Watt
5
1, Man II
Yes, 16 steps programmable
9
12
12
33 + 5 orch. Hundreds voices in the internal sound bank
4 Preset + 4 User. Hundreds sound styles can be loaded and/or stored from/to internal memory and pen drive
Selectable additional sound for each stop
Selectable additional sound for dedicated stop
8
16
128 general, tens of thousands with pen drive
Prev - Next pistons
6
Yes
Yes
3, with Stops and Toe Studs
-6/+5
With rotary potentiometers
Yes
Kick switch located on the side of the expression pedal
Usual Usb pen drive can be used as mass storage
Optional radio no directive 50 mt distance remote control with built in 2x16 display
DISPLAY
Display
Edit Voice Parameters
Divisional Volume
Tremulant
Reverberation
Ensemble Effect
Insufficient Air Pressure Effect
Tracker Keyboard Effect
Historic Temperaments
Keyboards Inversion
Output Router
External Out Volume Control
External Out 5 Band Equalizer
Internal Ampl. 5 Band Equalizer
Midi Programmable
Sequencer
Demo Songs
File Management
Lock Organ
CONNECTIONS
Midi In, Out, Thru
Stereo Headphone Out
Stereo Aux In
Mic In
Multiple Line Out
USB (device) to PC (for “Physis Editor”)
USB (host) for Pen Drive
CONSOLE
Description
Width x Height x Depth with Pedalb.
Width x Height x Depth without Pedalb.
Weight
128 x 64 dots graphic with backlight
Stop by stop adjustable voice parameters
Separate for each division
2, Separately for each manuals depth and speed adjustable
8 Types
Adjustable
Proportional to the active Voices
Yes
Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975,
Meantone, Meantone pure minor third, Zarlino, Sauveur I, Sauveur II, Barca, Rameau, Pythagorean; each with programmable “Tonic”
Key Note
Yes
Stop by stop adjustable windchest layout
Independent volume control for each channel
Independent equalizer for each channel
Yes
Tx/Rx Midi Ch., Tx/Rx Midi Filter, Send PG, Keyb. Midi Velocity
Interactive song sequencer with overdubbing function
Yes
Copy, Load, Save, Rename, Delete etc.
With password
Yes
Yes
Yes
With gain control
5, 13 with output optional expansion board
For finest finishing and personalization like Stop by Stop, Note by Note Volume and Pitch Regulation, Stop disposition, Internal and
External Routing, etc. (optional)
Yes
Elegant console in dark oak color, elegant lighted music rack, roll cover and matching bench
cm 143x123x69
cm 143x123x111,2
Kg 156
Specifications subject to change without prior notice
UNICO CLV6
Manual I
Bourdon 16’
Prinzipal 8’
Hohlflöte 8’
Unda Maris 8’
Oktave 4’
Spitzflöte 4’
Superoktave 2’
Kornett IV
Mixtur V
Contra Trompete 16’
Trompete 8’
Krummhorn 8’
Tremulant
Coupler II/I
Midi
Manual II
Rohrgedackt 8’
Viola di Gamba 8’
Vox Celeste 8’
Prinzipal 4’
Rohrflöte 4’
Nasard 2 2/3’
Blockflöte 2’
Terz 1 3/5’
Scharf III
Fagott 16’
Oboe 8’
Vox Humana 8’
Clairon 4’
Tremulant
Midi
Pedal
Contra Violon 32’
Prinzipalbass 16’
Subbass 16’
Violone 16’
Oktavbass 8’
Gedackt 8’
Choralbass 4’
Contra Bombarde 32’
Posaune 16’
Trompete 8’
Coupler I/P
Coupler II/P
Midi
A complete console, with 35 stops and a 32-note pedalboard. Available in dark or light oak colour.
UNICO CLV6 TECHNICAL SPECIFICATIONS
SPECIFICATIONS
Keyboards
Pedalboard
Stop Type
Audio Amplifiers
Speakers
Expression Pedals
Crescendo Pedal
STOPS and VOICES
Pedal
Manual I
Manual II
Total Speaking Stops
Sound Styles
Alternative Voices
Orchestra Voices
ACCESSORIES
General Pistons
Memory Banks
Total Memories
Piston Sequencer
Toe Studs
Automatic Pedal
Enclosed piston
Couplers
Transposer
General Volume - Reverb Volume
Divisional Midi Enable
Orchestra and Midi Sustain
Pen Drive Mass Storage
Sequencer Remote Control
2 x 61 notes “tracker touch” keyboards, with velocity control for MIDI and Orchestra sections.
32 notes straight, straight concave, radiating concave
Tilt tab
2 x 60 Watt + 1 x 100 Watt
5
1, Man II
Yes, 16 steps programmable
10
12
13
35. Hundreds voices in the internal sound bank
4 Preset + 4 User. Hundreds sound styles can be loaded and/or stored from/to internal memory and pen drive
Selectable additional sound for each stop
Selectable additional sound for dedicated stop
8
16
128 general, tens of thousands with pen drive
Prev - Next pistons
4
Yes
Yes
3, with Stops and Toe Studs
-6/+5
With rotary potentiometers
Yes
Kick switch located on the side of the expression pedal
Usual Usb pen drive can be used as mass storage
Optional radio no directive 50 mt distance remote control with built in 2x16 display
DISPLAY
Display
Edit Voice Parameters
Divisional Volume
Tremulant
Reverberation
Ensemble Effect
Insufficient Air Pressure Effect
Tracker Keyboard Effect
Historic Temperaments
Keyboards Inversion
Output Router
External Out Volume Control
External Out 5 Band Equalizer
Internal Ampl. 5 Band Equalizer
Midi Programmable
Sequencer
Demo Songs
File Management
Lock Organ
CONNECTIONS
Midi In, Out, Thru
Stereo Headphone Out
Stereo Aux In
Mic In
Multiple Line Out
USB (device) to PC (for “Physis Editor”)
USB (host) for Pen Drive
CONSOLE
Description
Width x Height x Depth with Pedalb.
Width x Height x Depth without Pedalb.
Weight
128 x 64 dots graphic with backlight
Stop by stop adjustable voice parameters
Separate for each division
2, Separately for each manuals depth and speed adjustable
8 Types
Adjustable
Proportional to the active Voices
Yes
Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975,
Meantone, Meantone pure minor third, Zarlino, Sauveur I, Sauveur II, Barca, Rameau, Pythagorean; each with programmable “Tonic”
Key Note
Yes
Stop by stop adjustable windchest layout
Independent volume control for each channel
Independent equalizer for each channel
Yes
Tx/Rx Midi Ch., Tx/Rx Midi Filter, Send PG, Keyb. Midi Velocity
Interactive song sequencer with overdubbing function
Yes
Copy, Load, Save, Rename, Delete etc.
With password
Si
Si
Si
With gain control
5, 13 with output optional expansion board
For finest finishing and personalization like Stop by Stop, Note by Note Volume and Pitch Regulation, Stop disposition, Internal and
External Routing, etc. (optional)
Yes
Elegant console in dark or light oak color, elegant lighted music rack, roll cover and matching bench
cm 145,8x114,5x66,5
cm 145,8x114,5x111,7
Kg 137
Specifications subject to change without prior notice
UNICO CLV4
Manual I
Bourdon 16’
Prinzipal 8
Hohlflöte 8’
Unda Maris 8’
Oktave 4’
Spitzflöte 4’
Superoktave 2’
Kornett IV
Mixtur V
Contra Trompete 16’
Trompete 8’
Krummhorn 8’
Tremulant
Coupler II/I
Midi
Manual II
Rohrgedackt 8’
Viola di Gamba 8’
Vox Celeste 8’
Prinzipal 4’
Rohrflöte 4’
Nasard 2 2/3’
Blockflöte 2’
Terz 1 3/5’
Scharf III
Fagott 16’
Oboe 8’
Vox Humana 8’
Clairon 4’
Tremulant
Midi
Pedal
Contra Violon 32’
Prinzipalbass 16’
Subbass 16’
Violone 16’
Oktavbass 8’
Gedackt 8’
Choralbass 4’
Contra Bombarde 32’
Posaune 16’
Trompete 8’
Coupler I/P
Coupler II/P
Midi
w
Ideal instrument for practicing and teaching, both at home or in music schools. Light and easy, it charms with its high flexibility, and the sound elegance
of the Physis® technology.
UNICO CLV4 TECHNICAL SPECIFICATIONS
SPECIFICATIONS
Keyboards
Pedalboard
Stop Type
Audio Amplifiers
Speakers
Expression Pedals
STOPS and VOICES
Pedal
Manual I
Manual II
Total Speaking Stops
Sound Styles
Alternative Voices
Orchestra Voices
ACCESSORIES
General Pistons
Memory Banks
Total Memories
Piston Sequencer
Toe Studs
Automatic Pedal
Enclosed piston
Couplers
Transposer
General Volume - Reverb Volume
Divisional Midi Enable
Orchestra and Midi Sustain
Pen Drive Mass Storage
Sequencer Remote Control
2 x 61 notes “tracker touch” keyboards, with velocity control for MIDI and Orchestra sections.
30 notes straight, straight concave, radiating concave
Tilt tab
2 x 60 Watt + 1 x 100 Watt
5
2, Man II and Man I / Pedal
10
12
13
35. Hundreds voices in the internal sound bank
4 Preset + 4 User. Hundreds sound styles can be loaded and/or stored from/to internal memory and pen drive
Selectable additional sound for each stop
Selectable additional sound for dedicated stop
8
16
128 general, tens of thousands with pen drive
Prev - Next pistons
4
Yes
Yes
3, with Stops and Toe Studs
-6/+5
With rotary potentiometers
Yes
Kick switch located on the side of the expression pedal
Usual Usb pen drive can be used as mass storage
Optional radio no directive 50 mt distance remote control with built in 2x16 display
DISPLAY
Display
Edit Voice Parameters
Divisional Volume
Tremulant
Reverberation
Ensemble Effect
Insufficient Air Pressure Effect
Tracker Keyboard Effect
Historic Temperaments
Keyboards Inversion
Output Router
External Out Volume Control
External Out 5 Band Equalizer
Internal Ampl. 5 Band Equalizer
Midi Programmable
Sequencer
Demo Songs
File Management
Lock Organ
CONNECTIONS
Midi In, Out, Thru
Stereo Headphone Out
Stereo Aux In
Mic In
Multiple Line Out
USB (device) to PC (for “Physis Editor”)
USB (host) for Pen Drive
CONSOLE
Description
Width x Height x Depth with Pedalb.
Width x Height x Depth without Pedalb.
Weight
128 x 64 dots graphic with backlight
Stop by stop adjustable voice parameters
Separate for each division
2, Separately for each manuals depth and speed adjustable
8 Types
Adjustable
Proportional to the active Voices
Yes
Kirnberger II, Kirnberger III, Werckmeister III, Werckmeister IV, Werckmeister V, Vallotti, Silbermann I, Silbermann II, Kellner 1975,
Meantone, Meantone pure minor third, Zarlino, Sauveur I, Sauveur II, Barca, Rameau, Pythagorean; each with programmable “Tonic”
Key Note
Yes
Stop by stop adjustable windchest layout
Independent volume control for each channel
Independent equalizer for each channel
Yes
Tx/Rx Midi Ch., Tx/Rx Midi Filter, Send PG, Keyb. Midi Velocity
Interactive song sequencer with overdubbing function
Yes
Copy, Load, Save, Rename, Delete etc.
With password
Yes
Yes
Yes
With gain control
5, 13 with output optional expansion board
For finest finishing and personalization like Stop by Stop, Note by Note Volume and Pitch Regulation, Stop disposition, Internal and
External Routing, etc. (optional)
Yes
Elegant console in dark or light oak color, elegant lighted music rack, roll cover and matching bench
cm 126,6 x 114,5 x 62,3
cm 126,6 x 114,5 x 111
Kg 121
Specifications subject to change without prior notice
PEDALBOARDS / REMOTE CONTROL (OPTION)
32 notes straight
for CLV 8 / CLV 7 / CLV 6 models
32 notes straight concave
for CLV 8 / CLV 7 / CLV 6 models
30 notes straight
for CLV 4 model
30 notes straight concave
for CLV 4 model
This user friendly wireless remote control (optional)
can be used to control the sequencer functions of
the organ. Use this remote to play a MIDI track,
move through the playlists, adjust the active stops
of a track and much more, even 50 metres (164
feet) away from the organ. Equipped with a 2x16
characters display, allows you to control the running track at any time.
32 notes radiating concave
for CLV 8 / CLV 7 / CLV 6 models
30 notes radiating concave
for CLV 4 model
VISCOUNT INTERNATIONAL S.p.A. Via Borgo 68 / 70 - 47836 Mondaino (RN) - Italy
Tel. + 39 0541 981700 - Fax +39 0541 981052 www.viscount-organs.com - www.physisorgans.com E-mail: organs@viscount.it
ING
Loading...
