Copyright © VIPA GmbH
1 General
1.1 Copyright © VIPA GmbH
VIPA HMIGeneral
All Rights Reserved
This document contains proprietary information of VIPA and is not to
be disclosed or used except in accordance with applicable agreements.
This material is protected by the copyright laws. It may not be reproduced, distributed, or altered in any fashion by any entity (either
internal or external to VIPA), except in accordance with applicable
agreements, contracts or licensing, without the express written consent of VIPA and the business management owner of the material.
For permission to reproduce or distribute, please contact: VIPA,
Gesellschaft für Visualisierung und Prozessautomatisierung mbH
Ohmstraße 4, D-91074 Herzogenaurach, Germany
Tel.: +49 9132 744 -0
Fax.: +49 9132 744-1864
EMail: [email protected]
http://www.vipa.com
Every effort has been made to ensure that the information
contained in this document was complete and accurate at
the time of publishing. Nevertheless, the authors retain the
right to modify the information.
This customer document describes all the hardware units
and functions known at the present time. Descriptions may
be included for units which are not present at the customer
site. The exact scope of delivery is described in the
respective purchase contract.
CE Conformity Declaration
Conformity Information
Hereby, VIPA GmbH declares that the products and systems are in
compliance with the essential requirements and other relevant provisions. Conformity is indicated by the CE marking affixed to the
product.
For more information regarding CE marking and Declaration of Conformity (DoC), please contact your local VIPA customer service
organization.
HB160 | TP | 62K-JID0 | GB | 15-36 4
Page 5
VIPA HMI General
About this manual
Trademarks
Information product
support
VIPA, SLIO, System 100V, System 200V, System 300V, System
300S, System 400V, System 500S and Commander Compact are
registered trademarks of VIPA Gesellschaft für Visualisierung und
Prozessautomatisierung mbH.
SPEED7 is a registered trademark of profichip GmbH.
SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are registered trademarks of Siemens AG.
Microsoft and Windows are registered trademarks of Microsoft Inc.,
USA.
Portable Document Format (PDF) and Postscript are registered trademarks of Adobe Systems, Inc.
All other trademarks, logos and service or product marks specified
herein are owned by their respective companies.
Contact your local VIPA Customer Service Organization representative if you wish to report errors or questions regarding the contents of
this document. If you are unable to locate a customer service centre,
contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Telefax: +49 9132 744-1204
EMail: [email protected]
Technical support
About this manual
1.2
Objective and contents
Product Order number as of state:
HW BS
TP 610C 62K-JID0-... 01
Contact your local VIPA Customer Service Organization representative if you encounter problems with the product or have questions
regarding the product. If you are unable to locate a customer service
centre, contact VIPA as follows:
VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany
Tel.: +49 9132 744-1150 (Hotline)
EMail: [email protected]
This manual describes the Touch Panel 62K-JID0-... from VIPA. It
contains a description of the structure, project engineering and
deployment.
WindowsÒ CE 6.0 Prof.
Target audience
Structure of the manual
HB160 | TP | 62K-JID0 | GB | 15-36 5
The manual is targeted at users who have a background in automation technology.
The manual consists of chapters. Every chapter provides a self-contained description of a specific topic.
Page 6
Safety information
VIPA HMIGeneral
Guide to the document
Availability
Icons Headings
The following guides are available in the manual:
n An overall table of contents at the beginning of the manual
n References with page numbers
The manual is available in:
n printed form, on paper
n in electronic form as PDF-file (Adobe Acrobat Reader)
Important passages in the text are highlighted by following icons and
headings:
DANGER!
Immediate or likely danger. Personal injury is possible.
CAUTION!
Damages to property is likely if these warnings are not
heeded.
1.3 Safety information
Applications conforming with specifications
Supplementary information and useful tips.
The Touch Panels are constructed and produced for:
n VIPA CPUs 01x, 11x, 21x, 31x, 51x and S7-300/400 from Sie-
mens
n communication and process control
n industrial applications
n operation within the environmental conditions specified in the
technical data
n installation into a cubicle
DANGER!
This device is not certified for applications in
in explosive environments (EX-zone)
–
Documentation
The manual must be available to all personnel in the
n project design department
n installation department
n commissioning
n operation
HB160 | TP | 62K-JID0 | GB | 15-36 6
Page 7
VIPA HMI General
Safety information
CAUTION!
The following conditions must be met before using or
commissioning the components described in this
manual:
– Hardware modifications to the process control system
should only be carried out when the system has been
disconnected from power!
Installation and hardware modifications only by prop-
–
erly trained personnel.
– The national rules and regulations of the respective
country must be satisfied (installation, safety, EMC ...)
National rules and regulations apply to the disposal of the unit!Disposal
HB160 | TP | 62K-JID0 | GB | 15-36 7
Page 8
Safety information for users
2 Hardware description
2.1 Safety information for users
VIPA HMIHardware description
Handling of electrostatic sensitive modules
Shipping of modules
VIPA modules make use of highly integrated components in MOSTechnology. These components are extremely sensitive to over-voltages that can occur during electrostatic discharges. The following
symbol is attached to modules that can be destroyed by electrostatic
discharges.
The Symbol is located on the module, the module rack or on packing
material and it indicates the presence of electrostatic sensitive equipment. It is possible that electrostatic sensitive equipment is destroyed
by energies and voltages that are far less than the human threshold
of perception. These voltages can occur where persons do not discharge themselves before handling electrostatic sensitive modules
and they can damage components thereby, causing the module to
become inoperable or unusable. Modules that have been damaged
by electrostatic discharges can fail after a temperature change,
mechanical shock or changes in the electrical load. Only the consequent implementation of protection devices and meticulous attention
to the applicable rules and regulations for handling the respective
equipment can prevent failures of electrostatic sensitive modules.
Modules must be shipped in the original packing material.
Measurements and
alterations on electrostatic sensitive modules
When you are conducting measurements on electrostatic sensitive
modules you should take the following precautions:
n Floating instruments must be discharged before use.
n Instruments must be grounded.
Modifying electrostatic sensitive modules you should only use soldering irons with grounded tips.
CAUTION!
Personnel and instruments should be grounded when
working on electrostatic sensitive modules.
HB160 | TP | 62K-JID0 | GB | 15-36 8
Page 9
VIPA HMI Hardware description
Properties
2.2 Properties
General
The VIPA Touch Panel allows you to visualize and alter operating
states and recent process values of a connected PLC. The Touch
Panel is a compact and modular embedded PC based on Windows
CE. Besides the extensive WindowsÒ CE functions the Touch Panel
offers varied communication possibilities. Here the Touch Panel can
simply be configured, controlled and remoted.
Ò
n WindowsÒ CE 6.0 Prof.
n 62K-JID0-CB: Movicon 11 CE Standard (4096 I/O bytes)
n Processor Xscale, 1.1GHz
n Work memory 256Mbyte
n User memory 512Mbyte
n 380Mbyte memory for user data
n CF-Card II and MMC/SD card slot
n RS232, RS422/485, MPI, PROFIBUS DP slave, Ethernet, USB-A
and USB-B interfaces
n Robust aluminium die casting case
n Display SVGA 800 x 600 / 600 x 800 (16M colors)
n Battery backed clock
n Resistive touch screen
n Easy mounting via integrated pivoted lever
n Protection class IP65 (frontal)
Order data
Type Order number Description
TP 610C 62K-JID0-... 10.4" SVGA, TFT color, MPI/PROFIBUS DP/RS485,
RS232, RS422/485, 2xUSB-A, USB-B, 2xEthernet
RJ45 (Switch)
HB160 | TP | 62K-JID0 | GB | 15-36 9
Page 10
Structure > Overview
2.3 Structure
VIPA HMIHardware description
2.3.1

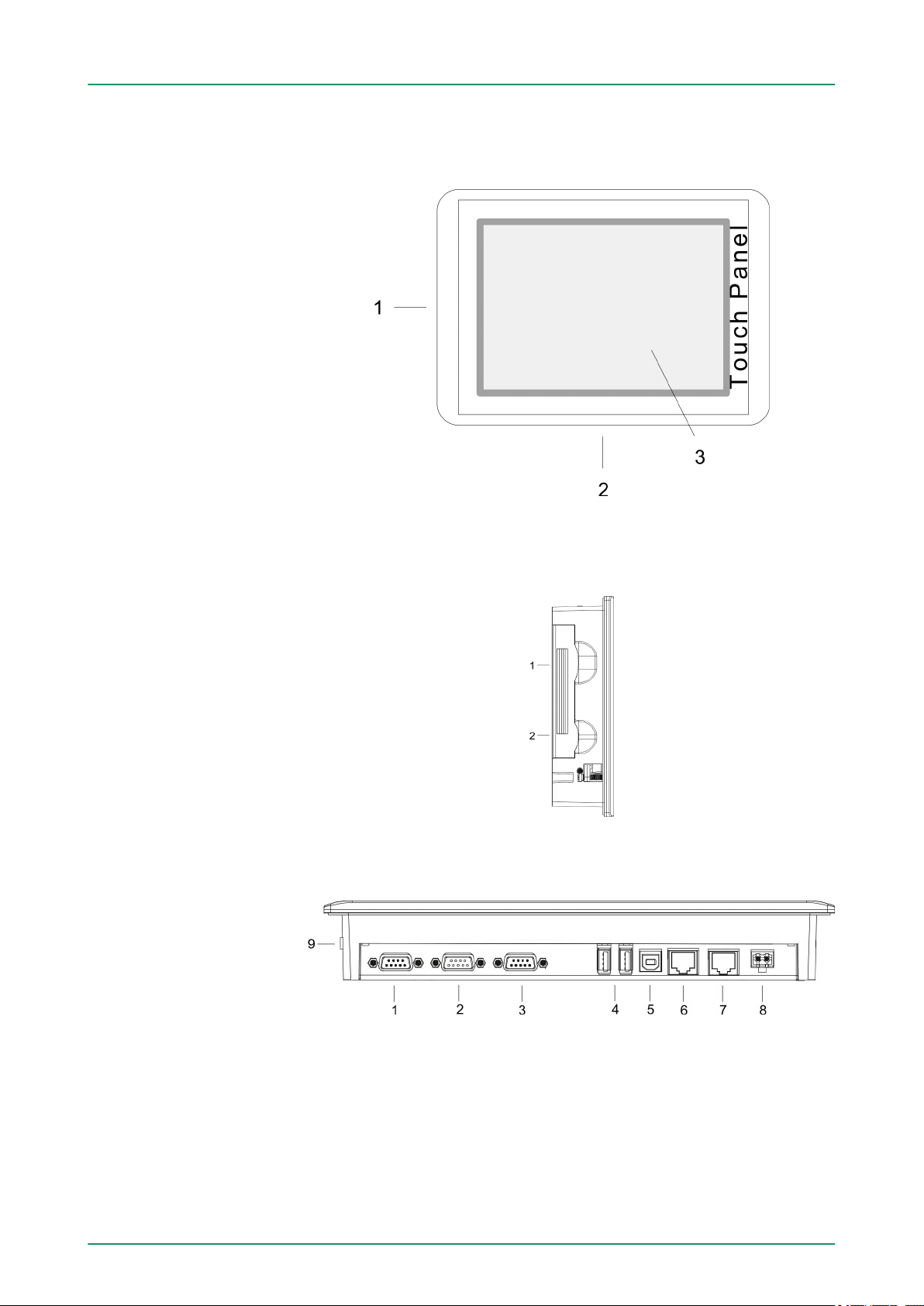

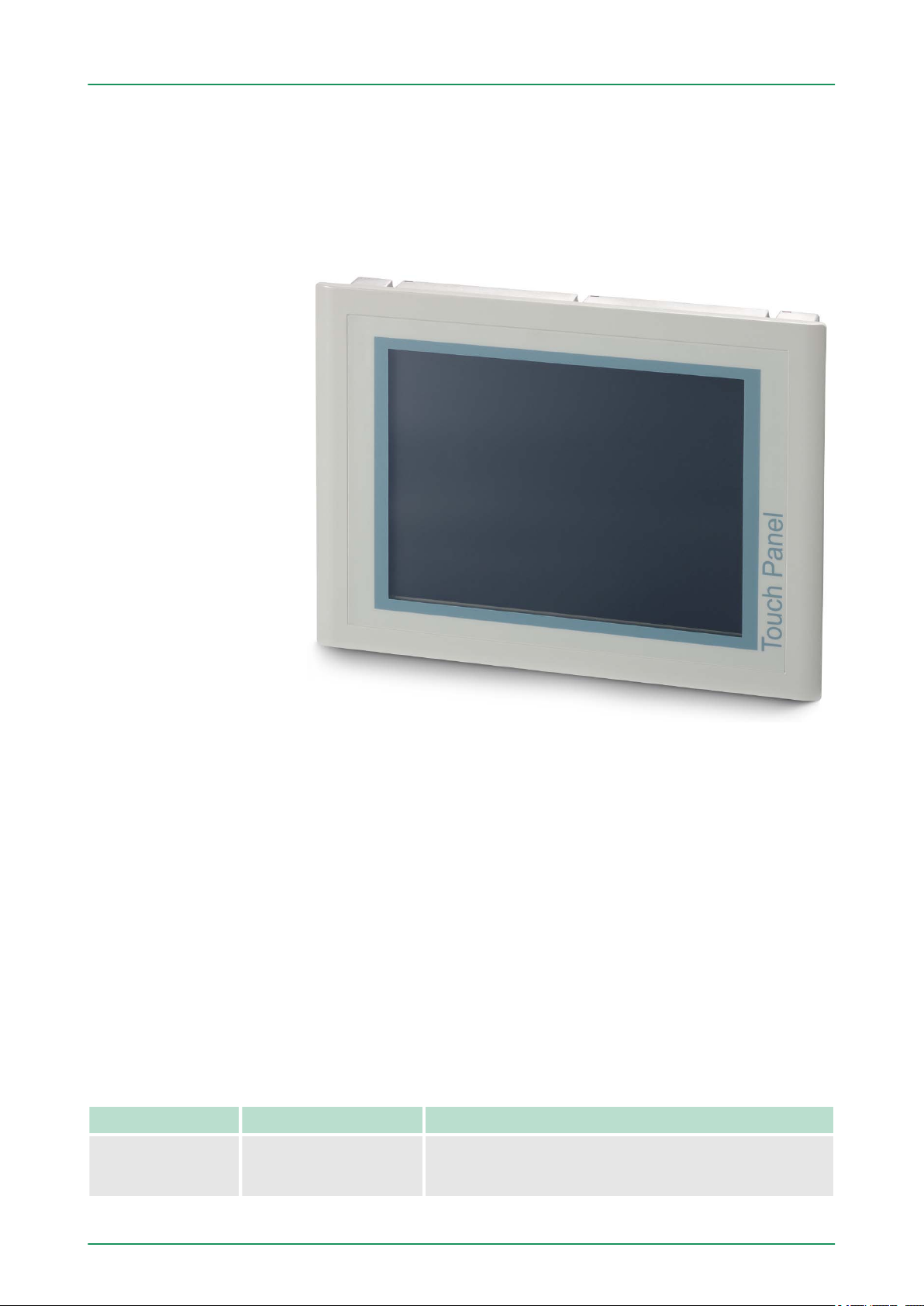

Front view
Side view
Overview
1 Slot for storage medium (CF, SD/MMC)
2 Connection for interfaces and power supply
3 Display with touch sensitive area (touch screen)
Bottom view (Interfaces)
1 Compact Flash
2 MMC / SD
1 RS422/485 interface COM 2
2 RS232 interface COM 1
3 MPI/PROFIBUS DP/RS485 interface
4 2x "Host"-USB-A interfaces
5 "Slave"-USB-B interface
6 RJ45 jack for Ethernet communication
7 RJ45 jack for Ethernet communication
8 Slot for DC 24V voltage supply
9 Slot for CF/SD/MMC storage medium
HB160 | TP | 62K-JID0 | GB | 15-36 10
Page 11
VIPA HMI Hardware description
Structure > Interfaces
Please make sure that the Touch Panel always has to be
supplied with external voltage!

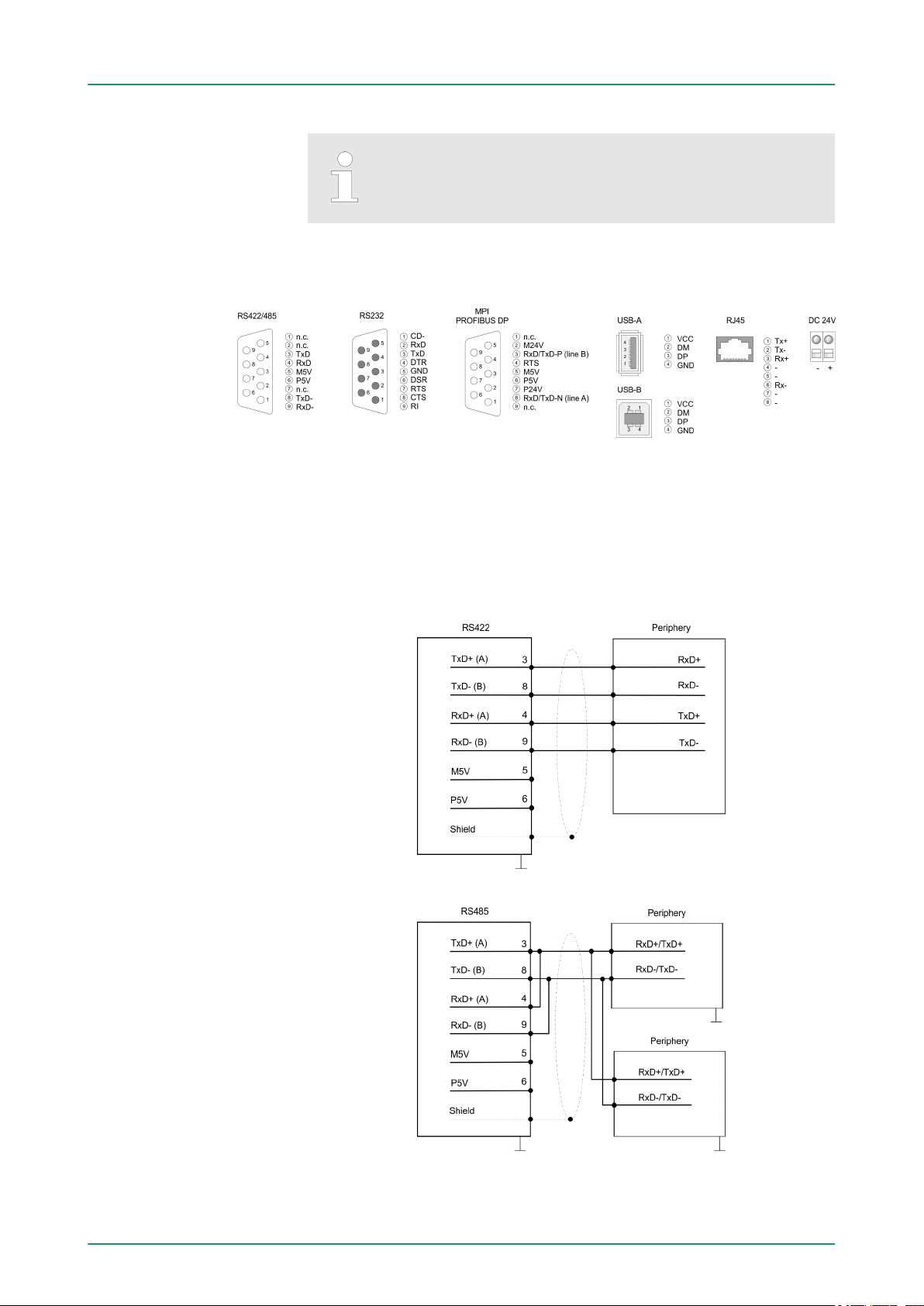

2.3.2 Interfaces
RS422/485 interface
9 pin SubD jack
n Logical states represented by voltage differences between the 4
cores
n Serial bus connection in 4-wire technology using full duplex mode
n Data communications up to a max. distance of 500m
n Data communication rate up to 115.2kBaud
n Serial bus connection in 2-wire technology using half duplex mode
HB160 | TP | 62K-JID0 | GB | 15-36 11
Page 12
Structure > Interfaces
VIPA HMIHardware description

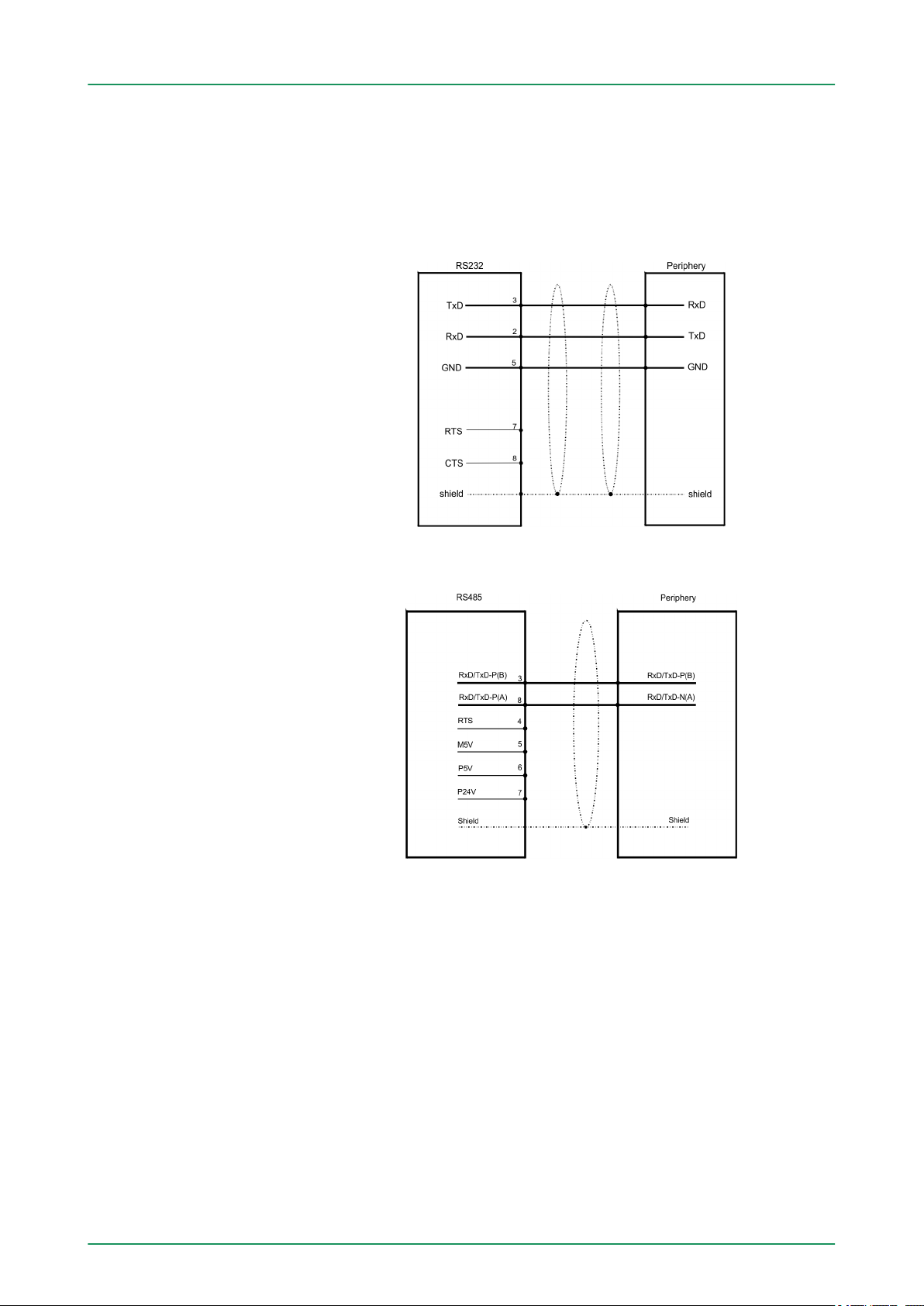

RS232 interface
MPI/PROFIBUS DP
interface
9 pin SubD plug
n Interface is compatible to the COM interface of a PC
n Logical signals as voltage levels
n Point-to-point links with serial full-duplex transfer in two-wire tech-
nology up to 15m distance
n Data transfer rate up to 115.2kbit/s
9 pin SubD jack
Ethernet connection
"Host"-USB-A
"Slave"-USB-B
An RJ45 jack provides the interface to the twisted pair cable, required
for Ethernet.
Using the "Host"-USB-A interface USB mouse, keyboard, stick or
USB hard discs can be connected.
For project transfer with Microsoft ActiveSync a programming cable
can be connected using the "Slave"-USB-B interface.
The USB-A interface of your PC can be connected to the "Slave"USB-B interface of your Touch Panel deploying the USB programming cable.
The USB programming cable is delivered by VIPA with order No.
670-0KB10.
HB160 | TP | 62K-JID0 | GB | 15-36 12
Page 13
VIPA HMI Hardware description
Structure > Memory management
Power supply
2.3.3
Overview
Work memory
Memory management
The Touch Panel has got an integrated power supply. The power
supply has to be provided with DC 24V (20.4 ... 28.8V). For this you
find an according DC 24V slot on the bottom side.
The power supply is protected against inverse polarity and overcurrent. The battery for the clock of the Touch Panel is an accumulator
with a suitable charging circuit. This accumulator is maintenance-free
and does not need to be exchanged within the life span of the Touch
Panel.
The following memory systems are available for every Touch Panel:
n 256Mbyte work memory
n 512Mbyte user memory (ca. 380Mbyte for user data)
n USB storage media connected via "Host"-USB-A interface
n Slot for CF (Type II)
n Slot for MMC/SD
Please only use memory cards formatted with FAT(32)!
Every Touch Panel has a work memory with a size of 256Mbyte. The
work memory is not buffered and is deleted after shut down. Please
consider that also registry entries are stored in the work memory that
are set back to default settings after the next re-boot. You can save
them permanently by means of the KuK Tools (within consignment).
User memory
USB storage media
Slot for CF
Slot for SD/MMC
As internal permanent storage medium every Touch Panel has a
flash disc with a size of 512Mbyte (about 380Mbyte user data). After
the start of WindowsÒ CE this memory is listed as Flashdiskunder My
Device.
The connection of USB sticks and USB drives by use of the "Host"USB-A interface is supported by the Touch Panel. After connection
the storage media is listed as Hard Disk under My Device.
Here you can plug a CompactFlashÒ type II. The card may be
plugged and removed during runtime and is immediately listed as
Storage Card at My Device.
Every CompactFlashÒ storage module has a pulling edge. Hold the
CompactFlash in the way that the pulling edge points to the left side.
Push the storage module without much power into the slot until the
impact. To remove the card touch it at the pulling edge and pull.
On this slot you can plug storage modules of the type SD or MMC.
The card may be plugged and removed during runtime and is immediately listed as SDMMC Card at My Device.
Please take care to plug the according card as shown on the back of
the Touch Panel.
HB160 | TP | 62K-JID0 | GB | 15-36 13
Page 14
Dimensions
Security flap for
memory cards
Dimensions
2.4
VIPA HMIHardware description

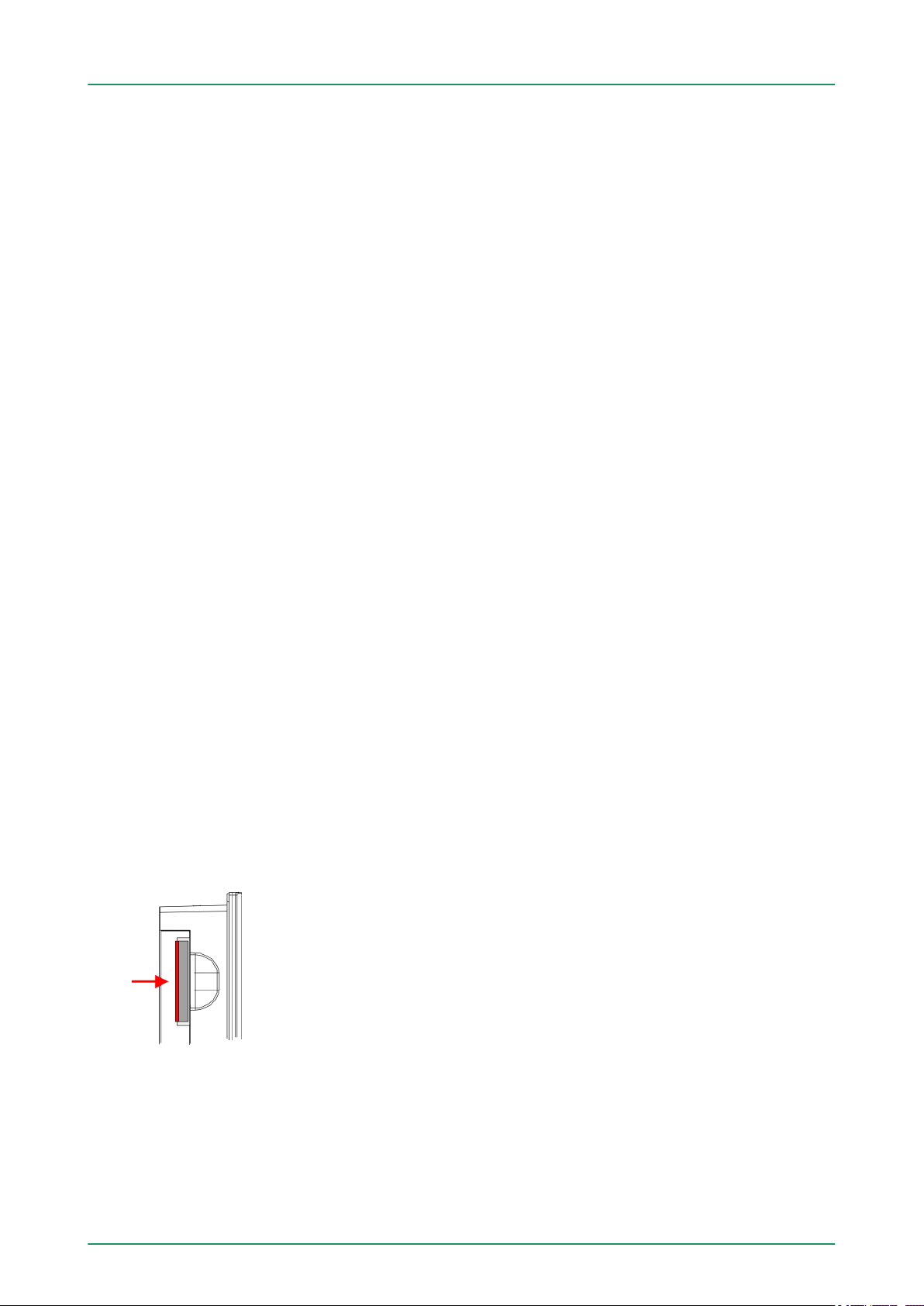

On the left side of the Touch Panel are the card slots for memory
cards. The cards are visibly covered by a security flap and are thus
secured from slipping out.
Please take care to pull the security flap back before plugging or
pulling a memory card like shown in the illustration and put it back
again afterwards. When plugging, the security flap additionally snaps
into position above the plugged memory card.

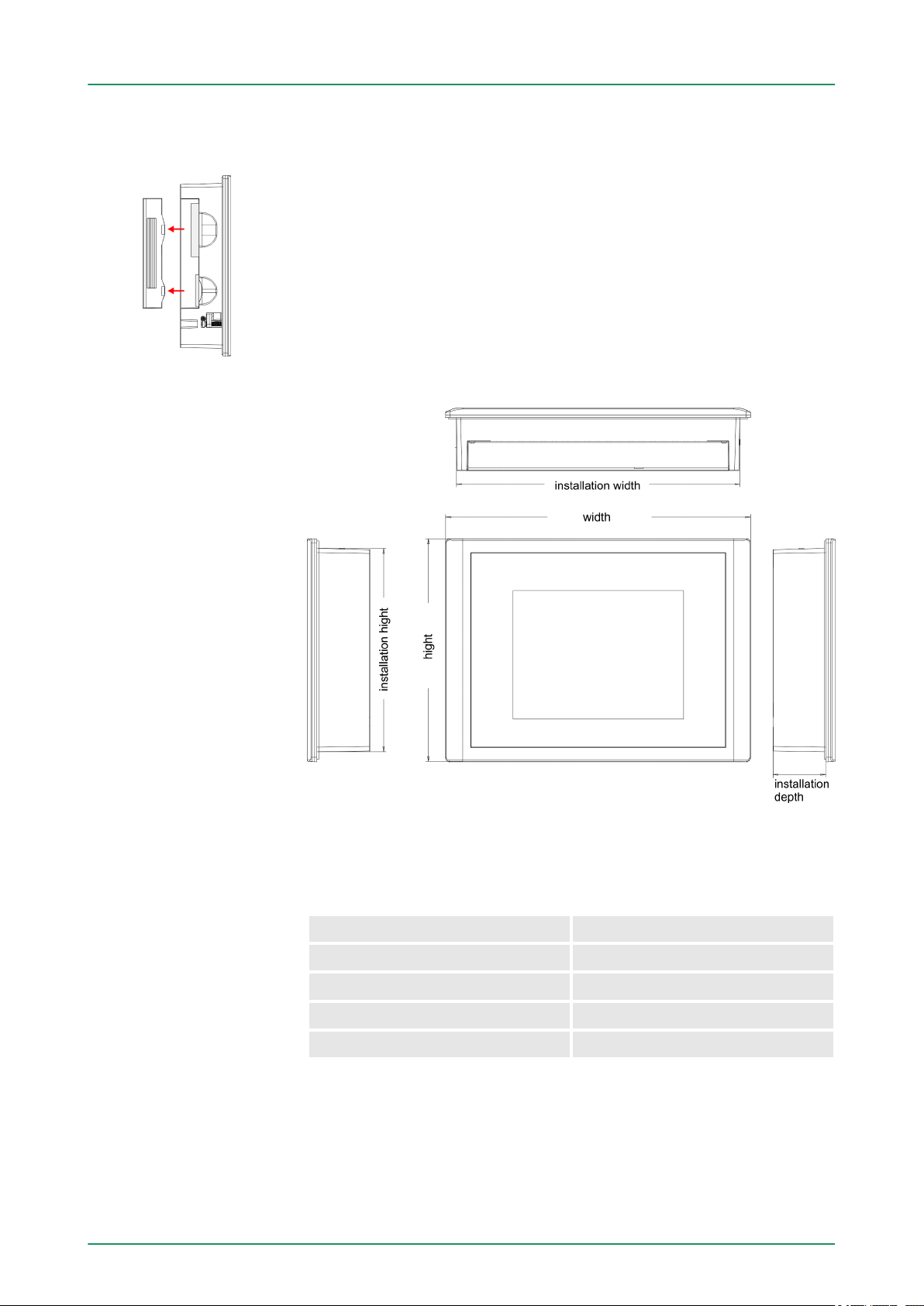

Installation dimensions
10.4" - 62K-JID0-...
For the installation of the Touch Panel in control cabinets and desks
the following dimensions are necessary:
Front panel width 1.5 ... 6mm
Installation cutting (W x H) 287 x 217mm
Front panel (W x H) 304 x 233mm
Rear panel (W x H x D) 285 x 215 x 45mm
Installation depth 45mm
HB160 | TP | 62K-JID0 | GB | 15-36 14
Page 15
VIPA HMI Hardware description
Dimensions
The degrees of protection are only guaranteed when the
following is observed:
– Material thickness at the mounting cut-out: 1.5 ... 6mm
– The deviation from the plane for the panel cut-out is
£
0.5mm. This condition must be fulfilled for the mounted
HMI device.
– Permissible surface roughness in the area of the seal:
£
120µm (friction coefficient 120)
HB160 | TP | 62K-JID0 | GB | 15-36 15
Page 16
VIPA HMIHardware description
General data
2.5 General data
Conformity and approval
Conformity
CE 2006/95/EG Low-voltage directive
2004/108/EG EMC directive
Approval
UL UL 508 Approval for USA and Canada
others
RoHS 2011/65/EU Product is lead-free; Restriction of the use of
certain hazardous substances in electrical and
electronic equipment
Protection of persons and device protection
Type of protection - IP20
Electrical isolation
to the field bus - electrically isolated
to the process level - electrically isolated
Insulation resistance -
Insulation voltage to reference earth
Inputs / outputs - AC / DC 50V, test voltage AC 500V
Protective measures - against short circuit
Environmental conditions to EN 61131-2
Climatic
Storage / transport EN 60068-2-14 -20…+60°C
Operation
Horizontal installation EN 61131-2 0…+50°C
Vertical installation EN 61131-2 0…+50°C
Air humidity EN 60068-2-30 RH1 (without condensation, rel. humidity 10…
95%)
Pollution EN 61131-2 Degree of pollution 2
Mechanical
Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz
Shock EN 60068-2-27 15g, 11ms
HB160 | TP | 62K-JID0 | GB | 15-36 16
Page 17
VIPA HMI Hardware description
Technical data > 62K-JID0-CB
Mounting conditions
Mounting place - In the control cabinet
Mounting position - Horizontal and vertical
EMC Standard Comment
Emitted interfer-
EN 61000-6-4 Class A (Industrial area)
ence
Noise immunity
zone B
EN 61000-6-2 Industrial area
EN 61000-4-2
ESD
8kV at air discharge (degree of severity 3),
4kV at contact discharge (degree of severity
2)
EN 61000-4-3 HF field immunity (casing)
80MHz … 1000MHz, 10V/m, 80% AM (1kHz)
1.4GHz ... 2.0GHz, 3V/m, 80% AM (1kHz)
2GHz ... 2.7GHz, 1V/m, 80% AM (1kHz)
EN 61000-4-6 HF conducted
150kHz … 80MHz, 10V, 80% AM (1kHz)
EN 61000-4-4 Burst, degree of severity 3
EN 61000-4-5 Surge, installation class 3 *
*) Due to the high-energetic single pulses with Surge an appropriate external protective circuit with lightning protection elements like conductors
for lightning and overvoltage is necessary.
2.6 Technical data
2.6.1
Order no. 62K-JID0-CB
Type Touch Panel TP 610C
Display
Display size (diagonal) 10.4 "
Display size (width) 211.2 mm
Display size (height) 158.4 mm
Resolution 600 x 800 / 800 x 600
Aspect ratio 4:3
Type of display TFT color (16.7M colors)
MTBF Backlights (25°C) 50000 h
System properties
Processor Xscale 1.1 GHz
62K-JID0-CB
HB160 | TP | 62K-JID0 | GB | 15-36 17
Page 18
Technical data > 62K-JID0-CB
Order no. 62K-JID0-CB
Operating system Windows CE 6.0 Prof.
User software Movicon 11 CE Standard
Work memory 256 MB
User memory 512 MB
Available memory (user data) 380 MB
VIPA HMIHardware description
SD/MMC Slot
CF Card Slot Typ II
ü
ü
CFast Slot -
Time
Real-time clock buffered
ü
Clock buffered period (min.) 6 w
Type of buffering Vanadium Rechargeable Lithium Battery
Load time for 50% buffering period 10 h
Load time for 100% buffering period 48 h
Accuracy (max. deviation per day) 10 s
Operating controls
Touchscreen resistive
Touch function Single Touch
Keyboard external via USB
Mouse external via USB
Interfaces
MPI, PROFIBUS-DP RS485 isolated
MPI, PROFIBUS-DP connector Sub-D, 9-pin, female
Serial, COM1 RS232
COM1 connector Sub-D, 9-pin, male
Serial, COM2 RS422/485 isolated
COM2 connector Sub-D, 9-pin, female
Number of USB-A interfaces 2
USB-A connector USB-A (host)
Number of USB-B interfaces 1
USB-B connector USB-B (device)
Number of ethernet interfaces 2
Ethernet Ethernet 10/100 MBit
Ethernet connector RJ45
Integrated ethernet switch
ü
Video connectors -
HB160 | TP | 62K-JID0 | GB | 15-36 18
Page 19
VIPA HMI Hardware description
Technical data > 62K-JID0-CB
Order no. 62K-JID0-CB
Audio connections -
Technical data power supply
Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
ü
Current consumption (no-load operation) 0.51 A
Current consumption (rated value) 0.7 A
Inrush current 7 A
I²t 0.25 A²s
Power loss 12.2 W
Status information, alarms, diagnostics
Supply voltage display yes
Mechanical data
Housing / Protection type
Material die-cast aluminum
Mounting via integrated pivoted lever
Protect type front side IP 65
Protect type back side IP 20
Dimensions
Front panel 304 mm x 233 mm x 7.5 mm
Rear panel 285 mm x 215 mm x 45 mm
Installation cut-out
Width 287 mm
Height 217 mm
Minimum 1.5 mm
Maximum front panel thickness 6 mm
Weight 3251 g
Environmental conditions
Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Certifications
UL certification in preparation
HB160 | TP | 62K-JID0 | GB | 15-36 19
Page 20
Technical data > 62K-JID0-CX
2.6.2 62K-JID0-CX
Order no. 62K-JID0-CX
Type Touch Panel TP 610C
Display
Display size (diagonal) 10.4 "
Display size (width) 211.2 mm
Display size (height) 158.4 mm
Resolution 600 x 800 / 800 x 600
Aspect ratio 4:3
Type of display TFT color (16.7M colors)
MTBF Backlights (25°C) 50000 h
System properties
Processor Xscale 1.1 GHz
VIPA HMIHardware description
Operating system Windows CE 6.0 Prof.
User software -
Work memory 256 MB
User memory 512 MB
Available memory (user data) 380 MB
SD/MMC Slot
CF Card Slot Typ II
ü
ü
CFast Slot -
Time
Real-time clock buffered
ü
Clock buffered period (min.) 6 w
Type of buffering Vanadium Rechargeable Lithium Battery
Load time for 50% buffering period 10 h
Load time for 100% buffering period 48 h
Accuracy (max. deviation per day) 10 s
Operating controls
Touchscreen resistive
Touch function Single Touch
Keyboard external via USB
Mouse external via USB
Interfaces
MPI, PROFIBUS-DP RS485 isolated
MPI, PROFIBUS-DP connector Sub-D, 9-pin, female
Serial, COM1 RS232
HB160 | TP | 62K-JID0 | GB | 15-36 20
Page 21
VIPA HMI Hardware description
Technical data > 62K-JID0-CX
Order no. 62K-JID0-CX
COM1 connector Sub-D, 9-pin, male
Serial, COM2 RS422/485 isolated
COM2 connector Sub-D, 9-pin, female
Number of USB-A interfaces 2
USB-A connector USB-A (host)
Number of USB-B interfaces 1
USB-B connector USB-B (device)
Number of ethernet interfaces 2
Ethernet Ethernet 10/100 MBit
Ethernet connector RJ45
Integrated ethernet switch
ü
Video connectors -
Audio connections -
Technical data power supply
Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
ü
Current consumption (no-load operation) 0.51 A
Current consumption (rated value) 0.7 A
Inrush current 7 A
I²t 0.25 A²s
Power loss 12.2 W
Status information, alarms, diagnostics
Supply voltage display yes
Mechanical data
Housing / Protection type
Material die-cast aluminum
Mounting via integrated pivoted lever
Protect type front side IP 65
Protect type back side IP 20
Dimensions
Front panel 304 mm x 233 mm x 7.5 mm
Rear panel 285 mm x 215 mm x 45 mm
Installation cut-out
Width 287 mm
Height 217 mm
HB160 | TP | 62K-JID0 | GB | 15-36 21
Page 22
Technical data > 62K-JID0-CX
Order no. 62K-JID0-CX
Minimum 1.5 mm
Maximum front panel thickness 6 mm
Weight 3251 g
Environmental conditions
Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Certifications
UL certification in preparation
VIPA HMIHardware description
HB160 | TP | 62K-JID0 | GB | 15-36 22
Page 23
VIPA HMI Deployment Touch Panel
Installation
3 Deployment Touch Panel
3.1 Installation
Overview
Installation cutting
Installation
The Touch Panel is suitable for the installation in operating tables and
control cabinet fronts. The installation happens via the back. The
Touch Panel is provided with a patented integrated fixing technique
that allows an easy connection with a simple screwdriver.
Due to the fact that the Touch Panel has a plug connector for bus
connection and voltage supply, a fast and easy device change is possible.
For the installation into a operating tableau and control cabinet fronts,
the Touch Panel requires the following front plate cutting:
Touch Panel W x H in mm
62K-JID0-... 287 x 217

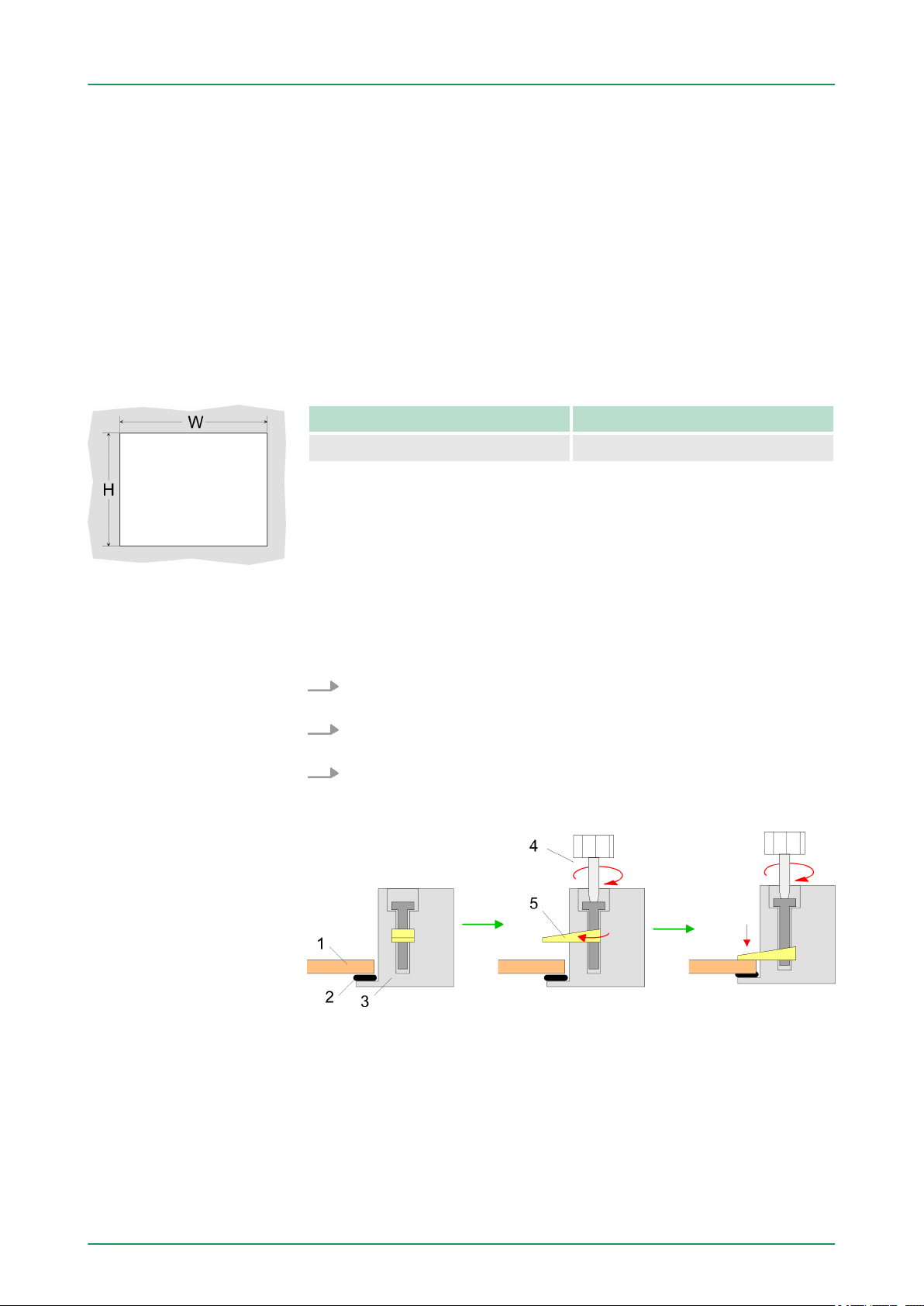

The fixing technique is integrated in the casing of the Touch Panel
and accessible via the back. For the installation, a small slit screwdriver is required
1. Push the operator panel [3] from the front side into the front
panel cutting [1] until it touches the panel with the seal [2].
2. Now bolt the lever [5] clockwise with the screwdriver [4] until it
rotates to the outside.
3. Further screwing bolts the lever to the front panel until it holds
this to the control cabinet front.
HB160 | TP | 62K-JID0 | GB | 15-36 23
Page 24
Installation
VIPA HMIDeployment Touch Panel
Connect power supply
For the cabling of the DC 24V power supply green plugs with CageClamp technology are deployed. The spring-clip connector technology simplifies the wiring requirements for signaling and power
cables. In contrast to screw terminal connections, spring-clip wiring is
vibration proof.
Here also you can connect wires with a cross-section of 0.08mm2 to
2.5mm2. You can use flexible wires without end case as well as stiff
wires.

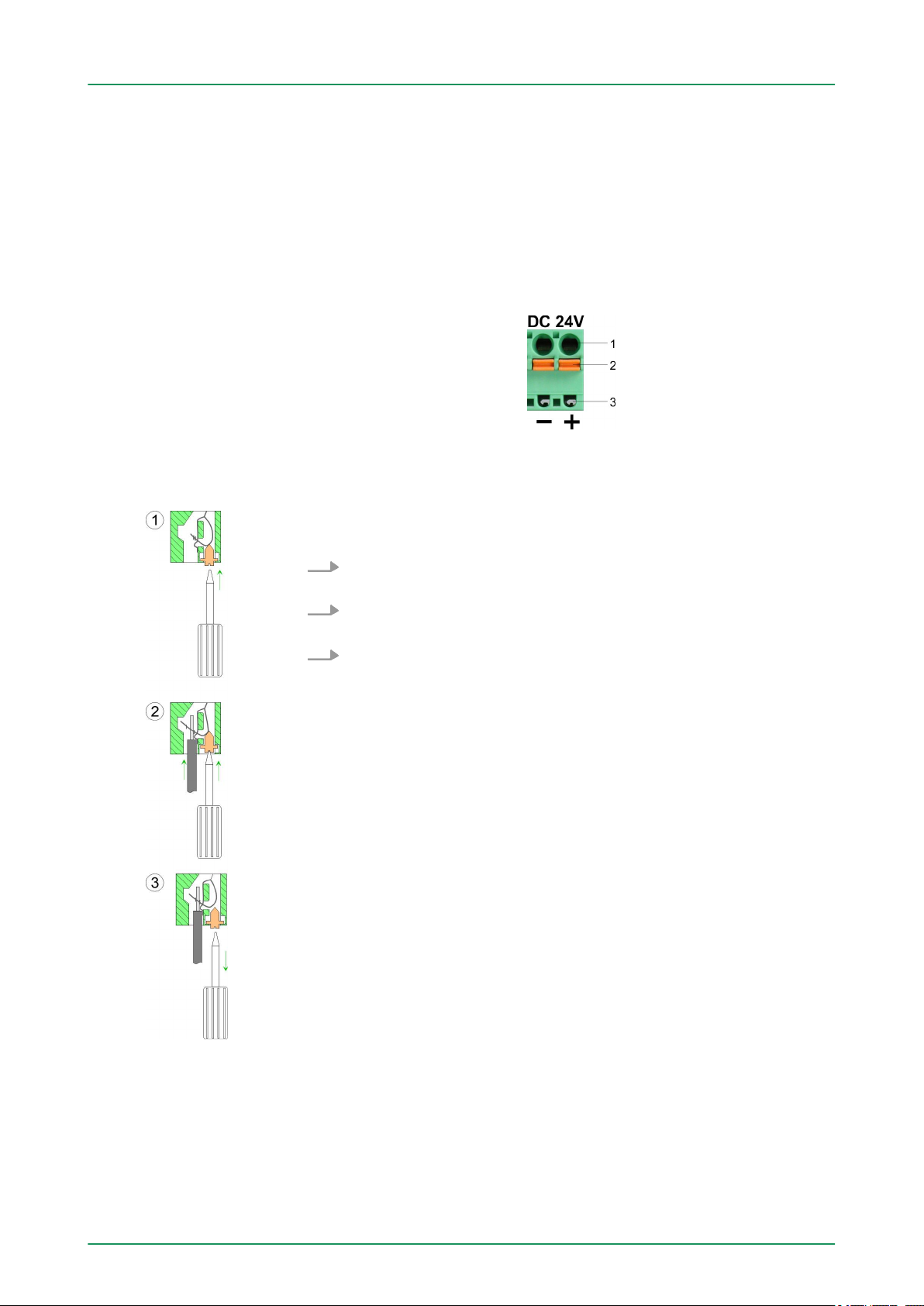

Fix the conductors to the CageClamps like this:
1 Round opening for wires
2 Locking (orange) for screwdriver
3 Test point for 2mm test tip
The picture on the left side shows the cabling step by step from top
view.
1. For cabling you push the locking vertical to the inside with a
suiting screwdriver and hold the screwdriver in this position.
2. Insert the insulation-stripped wire into the round opening. You
can use wires with a cross-section from 0.08mm2 to 2.5mm2.
3. By removing the screwdriver the wire is connected safely with
the plug connector via a spring.
HB160 | TP | 62K-JID0 | GB | 15-36 24
Page 25
VIPA HMI Deployment Touch Panel
Commissioning > VIPA Startup-Manager
3.2 Commissioning
CAUTION!
– Before commissioning the device must be brought to
room temperature.
At condensation the device must be absolutely dry
–
before connected to power.
– To avoid overheat during operation the device must not
be laid open to direct sun light.
– After opening the control cabinet or desk, there are
parts with possible dangerous voltage available.
– For all signal connections only screened cables are
permitted.
– Signal cables must not be let within the same cable
shaft as high voltage cables.
3.2.1 VIPA Startup-Manager
Start screen
As soon as the Touch Panel is provided by power supply, the VIPA
Startup-Manager will be loaded.

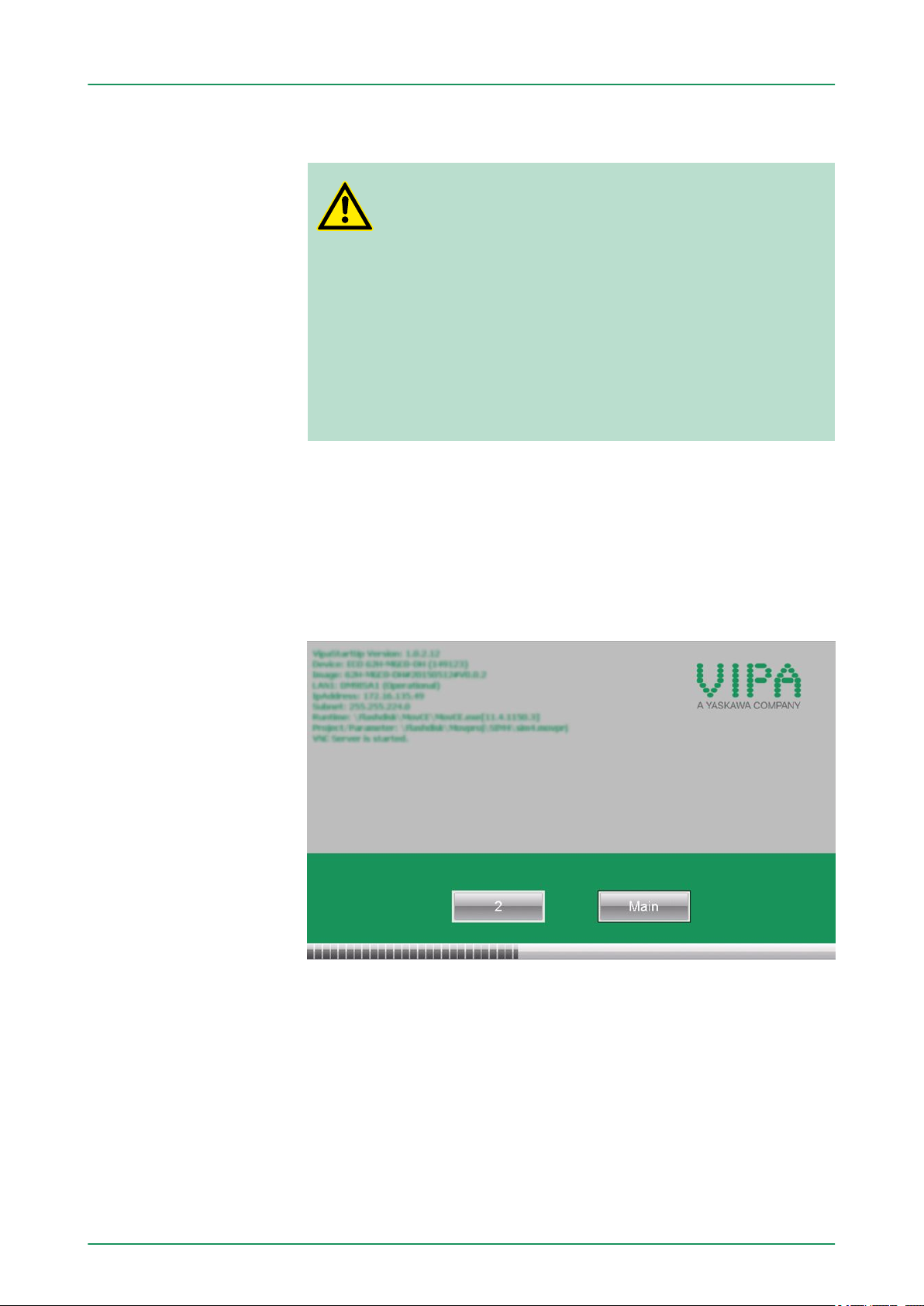

At the first startup of the VIPA Startup-Manager the following start
screen appears.
There is a button on the initial screen with a counter, which counts
backwards. If you click on this button within this time, the project will
start. If the time expires, the project will start automatically. With the
button ‘Main’
A delay time of 5 seconds is default. In the selection menu under
"Autostart" you can adjust this time.
you get to the selection menu.
Selection menu
HB160 | TP | 62K-JID0 | GB | 15-36 25
There are following buttons in the selection menu:
n Settings
n Info/Update
n Autostart
Page 26
Commissioning > VIPA Startup-Manager
n Backup
n Exit
n Back
VIPA HMIDeployment Touch Panel
Settings
Info/Update (firmware)
In [Settings] under Change Settings you can set a password for the
Startup-Manager. The password will be requested when interrupting
the start countdown or before closing the Startup-Managers by "Exit".
By default, no password is defined. In Control Panel [Open...] the
system settings like brightness of the display can be preset or the display can be re-calibrated. Here the MPI/DP slave interface may also
be configured. Further you get here the Touch Panel information:
product number, serial number and licenses.
To execute the firmware update press the button [Info/Update]. After
clicking on [Info/Update] the current image is displayed under "Panel
Information" with panel name, creation date and version number.
With [Create Screenshot] you can make a screen shot of the panel
information and select a destination for its storage.
With [Search Image] a list of all the firmware images is shown, which
are available on the panel and connected storage media. These
images will be listed with create data and version number. Choose
your new image.
If the selected image is not correct for your panel, an error massage
will appear. If the image is correct for your panel, in the following
message the current installed image version and the new selected
image version will be listed.
1. Click on [Update Image] to execute the update. This can take a
few seconds.
After successful update the Touch Panel restarts automati-
ð
cally.
After the restart the calibration window opens.
2. Re-calibrate the panel as described. After calibration tap anywhere on the screen.
The calibration window closes.
ð
Autostart
To remain the settings permanently, they have to be saved
with KuK Tools [Store].
With [Autostart] you define which runtime and which project will be
started automatically together with the panel startup.
HB160 | TP | 62K-JID0 | GB | 15-36 26
Page 27
VIPA HMI Deployment Touch Panel
Commissioning > VIPA Startup-Manager

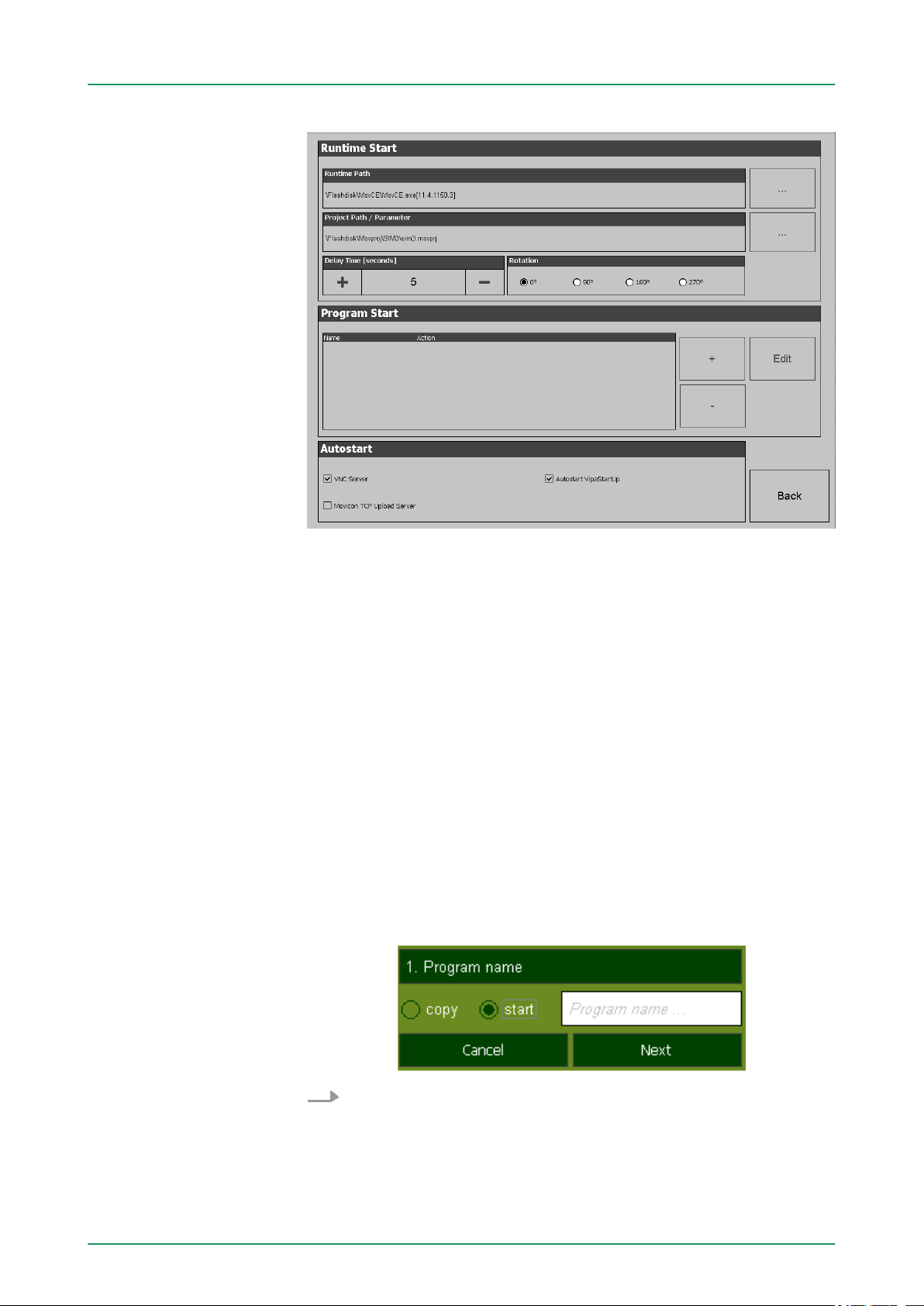

With [...] under "Runtime path" res. "Project path" all existing runtimes
res. projects on the panel and the storage media are listed.
If the panel should start with a project of the web visualization of the
VIPA SPEED7 Studio, you have to select a batch file with [...] under
"Runtime path" ‘Enter manually è Flashdisk’. For this, select under
"Type" all Files
and select one of the following batch files:
n Start VIPA Webbrowser.bat
n Start VIPA Webserver and Browser fullscreen.bat
n Start VIPA Webserver and Browser.bat
n Start VIPA Webserver.bat
Under "Delay Time" you can adjust a delay time > 0 by using the buttons [+] and [-]. 5 seconds are default.
Via "Rotation" the orientation of the panel can be changed.
Via "Program start" with [+] you can add programmes, which have to
start automatically.
1. Select "start" and assign a name for the program.
HB160 | TP | 62K-JID0 | GB | 15-36 27
Page 28
Commissioning > VIPA Startup-Manager

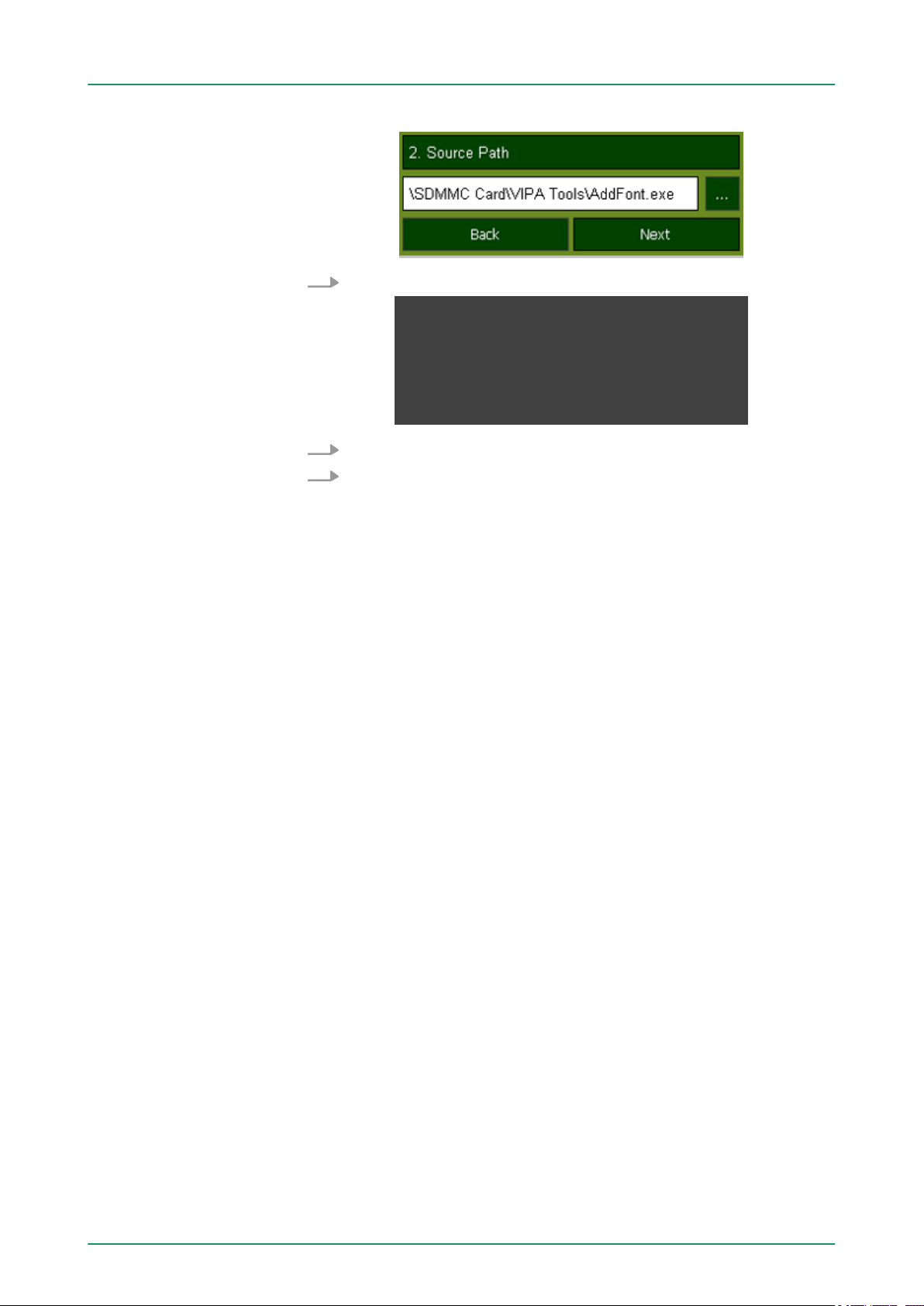

2. Upload your program with [...].
3. You can optionally set parameters.
4. Exit with [Finish].
VIPA HMIDeployment Touch Panel
Backup
Exit
Back
With "Copy" [...] you can copy WindowsÒ CE files on the panel from a
source path to a destination path.
With "Autostart" you can select the automatic startup of the VNC
server, the Movicon-TCP upload server resp. the Startup-Manager.
With [Back] you get back to the select menu.
By default, the configuration of the Startup-Manager, the registry settings for the backlight, the local settings and the LAN settings will be
saved by [Backup] in ‘Flashdisk è Backup’. The name of the backup
file is "backup.bkv". Which settings will be saved and the storage
location are defined in the file "ToDoList.xml" under ‘Flashdisk
è VipaStartup
’. These can be adjusted accordingly.
The VIPA Startup-Manager will be closed by [Exit] and the system
returns to the WindowsÒ screen.
With [Back] you get back to the start screen of the VIPA Startup-Man-
ager.
HB160 | TP | 62K-JID0 | GB | 15-36 28
Page 29
VIPA HMI Deployment Touch Panel
Operating system WindowsÒ Embedded CE 6.0 Prof. > General
3.3 Connection to a PLC system

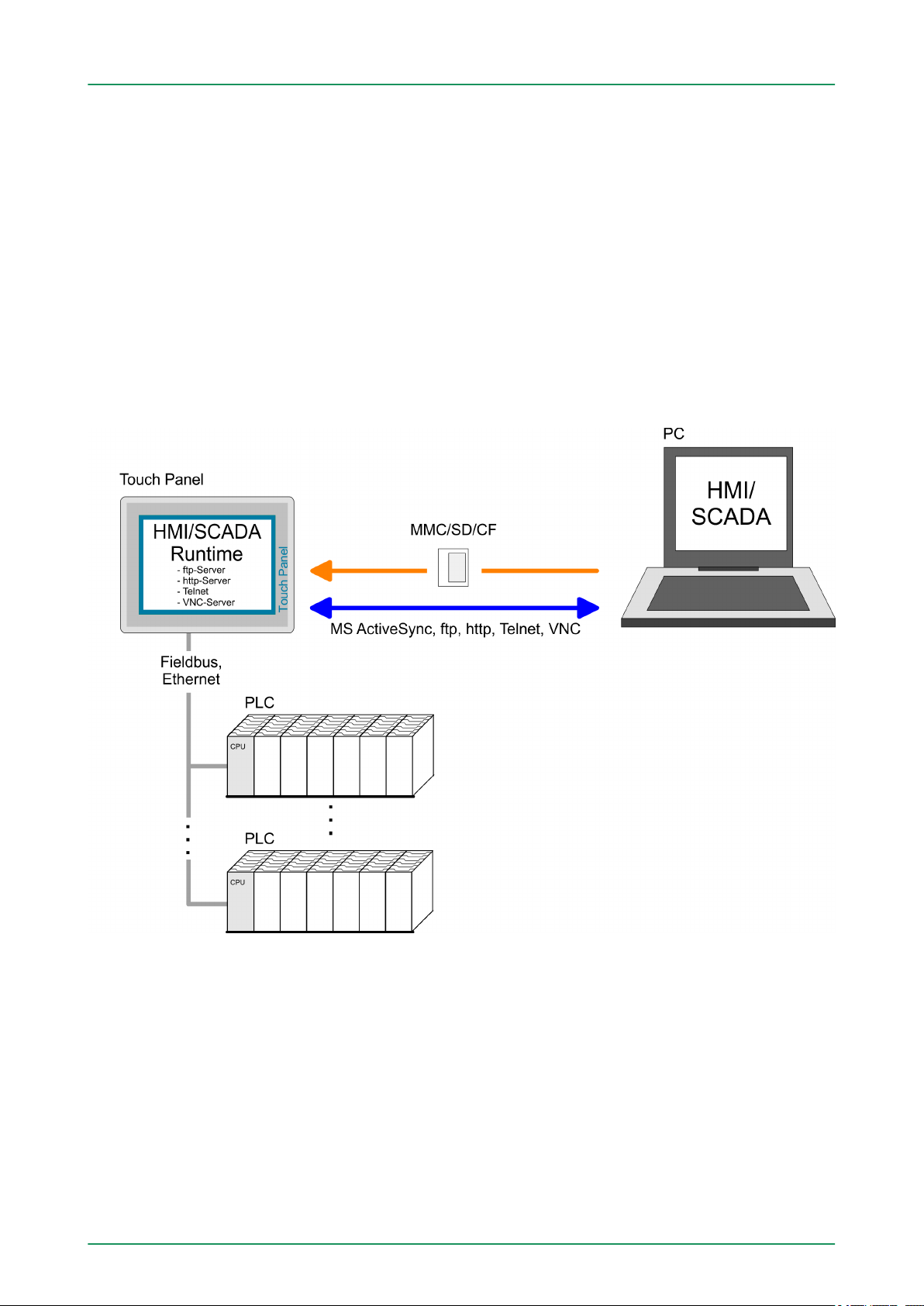

Overview
For the inclusion into your PLC system several HMI/SCADA projectengineering platforms are at your disposal that has to be installed at
an external PC. Here you may create your project, where appropriate
simulate it and transfer it to the Touch Panel via a connection that
you’ve entered before. Via the at the Touch Panel pre-installed runtime version of the HMI/SCADA project engineering platforms your
project is run able.
By using the according communication driver, the Touch Panel supports connecting options to the PLC via field bus and Ethernet.
During operation your operating device communicates with the
according PLC and reacts to the application courses in the PLC
according to the configured processes. Via dialogues configured
before, process values may be monitored graphically, altered and
evaluated.
3.4
Operating system WindowsÒ Embedded CE 6.0 Prof.
3.4.1
HB160 | TP | 62K-JID0 | GB | 15-36 29
General
The newly developed standard WindowsÒ CE allows devices that are
communicating with each other to exchange information with Windows® based devices and to establish connections to the Internet.
Microsoft WindowsÒ CE is a 32bit, open and scalable platform for a
multiplicity of communication and data processing devices. The functions like multi-tasking and multi-threading are supported by this operating system.
Page 30
Operating system WindowsÒ Embedded CE 6.0 Prof. > General
VIPA HMIDeployment Touch Panel
WindowsÒ Embedded
CE 6.0
Properties
Differences to the
standard Windows
Ò
operation
Pen entry
WindowsÒ Embedded CE 6.0 supports some file viewer and an
Internet browser.
n ftp, http, Telnet and VNC server
n RAS server
n ActiveSync file transfer (USB, RS232)
n RDP (Remote Desktop Protocol)
n Internet Explorer 6
n Registry Editor
n WordPad
n Mouse pointer
n USB keyboard driver
n HP printer driver (COM, Ethernet, USB)
n File viewer for Word, Excel, PowerPoint and PDF
n VIPA Startup Manager
Please regard that for the deployment of WindowsÒ CE a thorough
knowledge of operating WindowsÒ are assumed. Here are only
shown the differences to a "standard" WindowsÒ operating system.
You’re operating the Touch Panel by means of a pencil res. with the
finger. When touching an area at the touch screen this area is recognized and the program reacts accordingly. The following types of
entry are differentiated:
Double click
A double click has to be executed like mouse operation by touching
the area at the screen twice. A double click on an object opens res.
executes this.
Drag
By tapping on an object and then dragging you can move the object
on the screen. If no object is selected, a frame is created by the dragging that selects the touched objects.
Ò
Characteristics with Windows
Embedded CE 6.0
In this version mouse functions are fully supported. As soon as the
touch screen is touched with the pen, a mouse pointer is shown on
the desktop at the pen position.
Navigation within the
dialog window
Exit WindowsÒ (shut
down)
The windows can be moved via the head bar. Here you can also find
the [OK] button to confirm entries and the [X] button for exiting the
dialog.
You can not exit WindowsÒ. By switching the power supply off and on
again you can restart WindowsÒ. Before a reboot you should always
save your data res. close all running applications to avoid data loss.
Please consider that changes which are made are set
back after PowerOFF-PowerON and are only stored via
[Store] which can be found under
‘Start è Programs
è KuK_Tools è KuK Tools’.
HB160 | TP | 62K-JID0 | GB | 15-36 30
Page 31
VIPA HMI Deployment Touch Panel
3.4.2 Structure
Operating system WindowsÒ Embedded CE 6.0 Prof.
> Structure

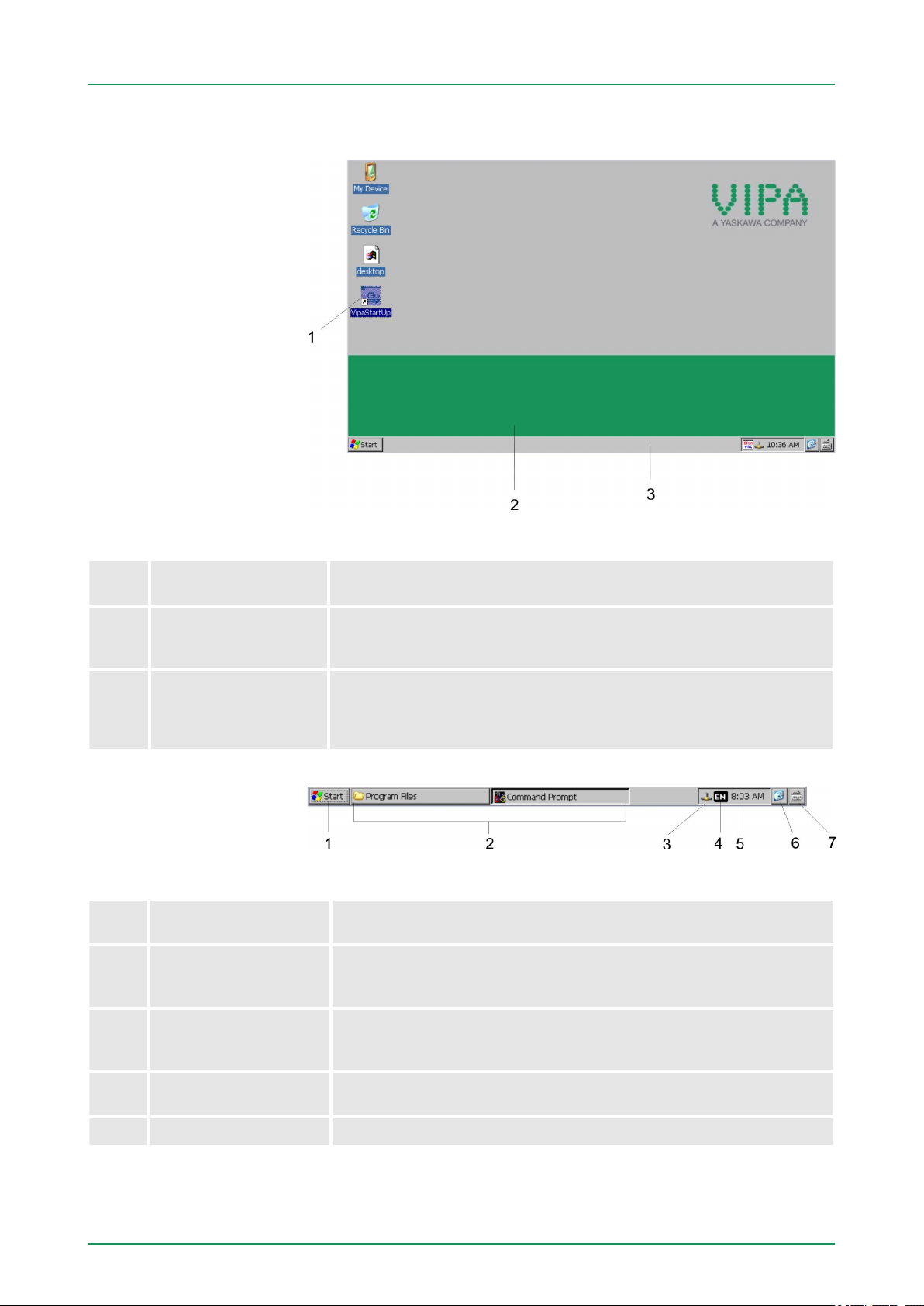

1 Icon Via icons on the desktop you gain direct access to the application
related to the icon.
2 Desktop
The desktop is the screen that is shown after login to Windows
CE. It contains e.g. links to the mostly used applications res.
system components.
3 Task bar The task bar is part of the desktop. When opening an application,
a document or a window, every running object is displayed as
button on the task bar. Via this buttons you can easily change
between the open windows.
Task bar
1 Start button This button offers you access to all components of your Touch
Panel like e.g. applications, system settings, file browser etc.
2 Open applications For every open application a button can be found in the task bar.
There is no button for minimizing. The switch between the applications is performed via this buttons.
3 Network connection As soon as your Touch Panel is connected via Ethernet you can
see here the Ethernet address. If there is no connection via
Ethernet, the symbol is displayed crossed out.
Ò
4 Keyboard layout If you’ve connected a keyboard you can choose the requested
language layout via this button.
5 Time This area shows the time that you can change via double click.
HB160 | TP | 62K-JID0 | GB | 15-36
31
Page 32
VIPA HMIDeployment Touch Panel
Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure
6 Show desktop All windows are minimized and the desktop is shown.

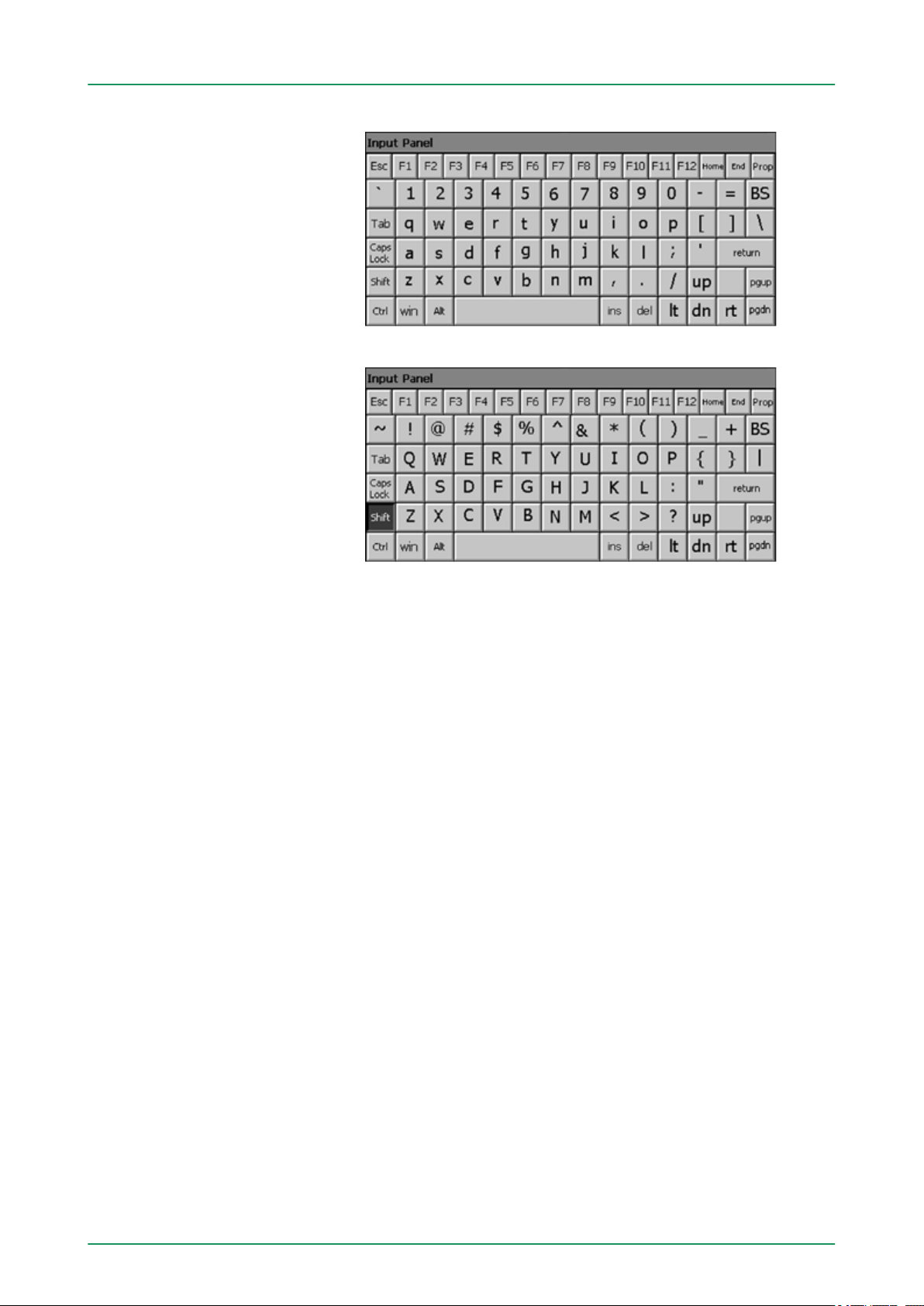

7 Software keyboard This button displays a keyboard on the screen. "Hide Input
Panel" hides the keyboard again.

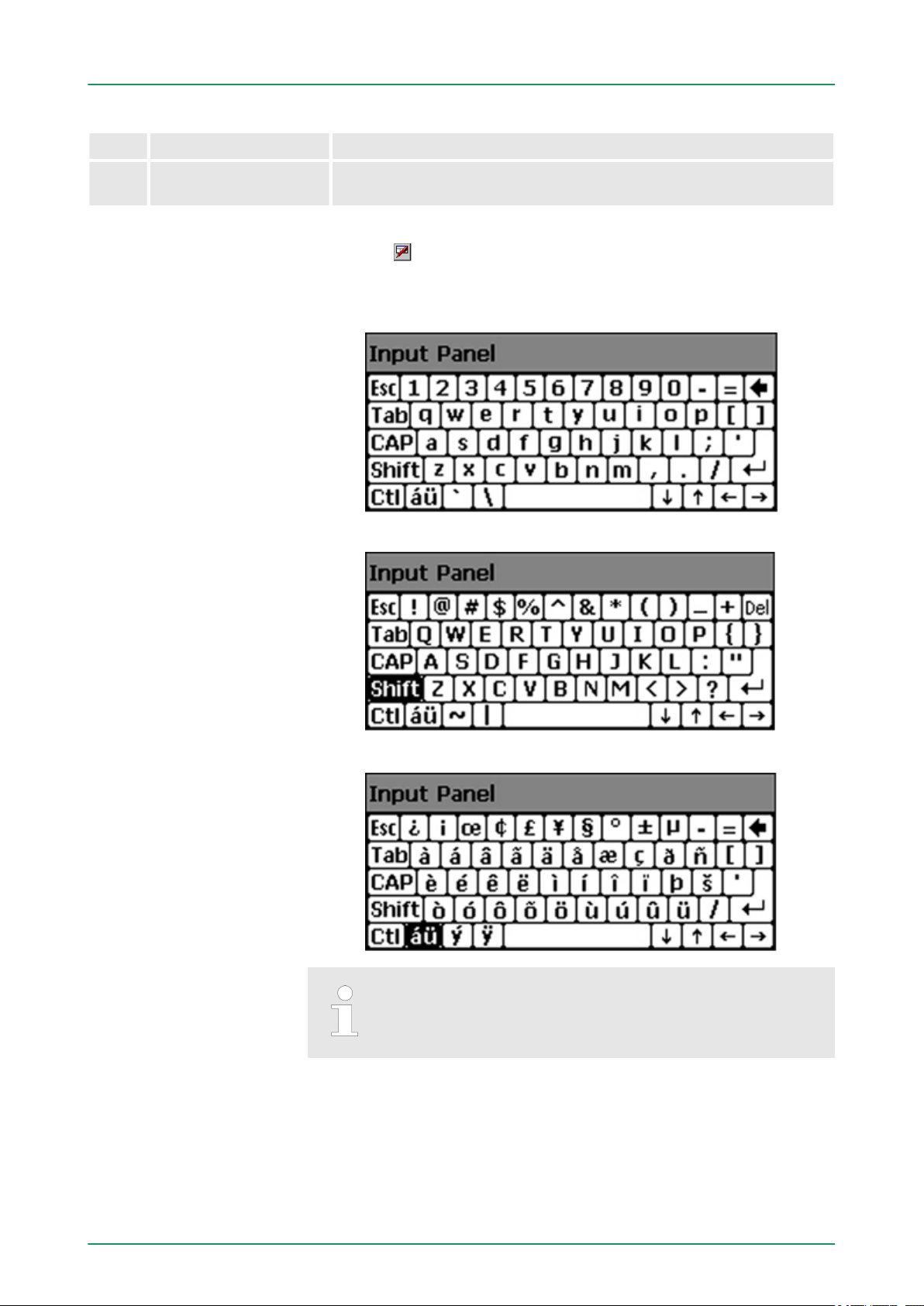

Software keyboard
Keyboard
The button allows you to select one of the available software keyboards. At the moment the following standard keyboards are implemented:
At pushed Shift key:
At pushed [a´ü] key:
Please note that äöü can exclusively be entered via the
software keyboard "Keyboard".
HB160 | TP | 62K-JID0 | GB | 15-36 32
Page 33
VIPA HMI Deployment Touch Panel
Large KB
Operating system WindowsÒ Embedded CE 6.0 Prof.
At pushed Shift key:
> Structure
Meaning
Hide keyboard
Home Position 1
End End
BS Backspace
up ã
dn ä
lt á
rt â
pgup Page ã
pgdn Page ä
ins Insert
del Delete
Tab Tabulator
Shift
Caps/Lock
The software keyboard allows you to enter key entries without connecting an external keyboard. As soon as an entry is required the
software keyboard is automatically shown. Hide Input Panel hides the
keyboard again.
HB160 | TP | 62K-JID0 | GB | 15-36
33
Page 34
Operating system WindowsÒ Embedded CE 6.0 Prof. > Structure
VIPA HMIDeployment Touch Panel
System setting (Control
Panel)
As many components of the Control Panel conform with the system
control of WindowsÒ, most of the description is not necessary. The
description of the control panel components relevant for operating the
Touch Panel can be found in the following:
n Set display
Via ‘Start è Settings è Control Panel è Display
’ the dialog win-
dows for the display properties opens. Here you can change the
settings for the monitor options.
n Calibrate touch screen
If the touch screen does not always react to a double click or not
precisely recognize the position of an entry, you can call the
dialog Stylus via ‘Start è Settings è Control Panel’. In the register Double-Tap you can use the grid pattern to preset a double
click velocity and test this on the symbol below. Click [OK] to
accept the value. The calibration of the touch screens is completed via the register Calibration by following the instructions.
n Set Ethernet parameters
The dialog field for pre-setting an Ethernet address can be found
in ‘Start è Settings è Network and Dial-up Connections’. The
default setting is address assignment via DHCP.
n System properties (System)
Here you receive information about the version of the current WindowsÒ operating system, the memory load and sharing (alterations here are not accepted into the registry) and the copyright.
The register Device Name allows you to change the device name
that is shown during Ethernet communication for instance.
Set MPI parameters
Please note that changes are set back after PowerOFFPowerON. To store them permanently into the registry file
you have to store them explicitly. For this call
‘Start
è Programs è KuK_Tools è KuK Tools’ [Store].

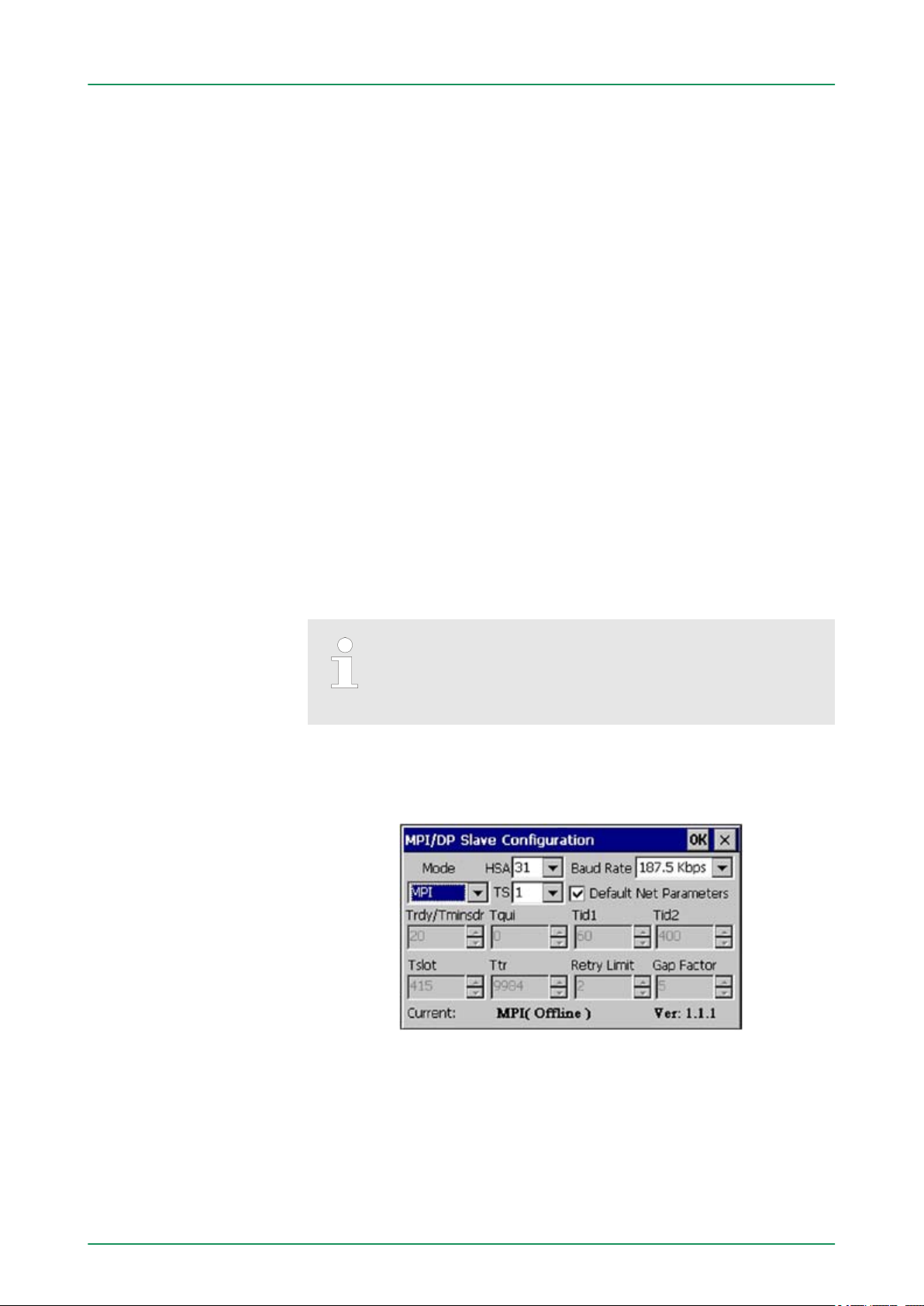

The dialog window where to configure the integrated MPI interface
can be found under ‘Start è Settings è Control Panel
è MPI Configuration
’.
n HSA
Here you set the highest MPI address (highest station address).
Within a MPI network the highest MPI address must be identical!
n TS
With TS (this station) you set the local MPI address for the Touch
Panel.
HB160 | TP | 62K-JID0 | GB | 15-36 34
Page 35
VIPA HMI Deployment Touch Panel
Communication via ActiveSync
n Baud Rate
Enter here the transfer velocity of your MPI net. The baud rate has
to be identical for every MPI participant within the network.
According to the Baud Rate the network parameters are set.
n Default Net Parameters
It is recommended not to alter the Default Net Parameters that are
set by the baud rate.
n Status
The status of the MPI interface is monitored via Status as "Offline", "Online" or "Error".
Here made changes are also not saved after PowerOFFPowerON. Save the data permanently in the current registry file via [Store] under ‘Start è Programs
è KuK_Tools
è KuK Tools’.
3.5 Communication via ActiveSync
Overview
Installation
ActiveSync is a communication platform developed by Microsoft
especially for mobile computers to synchronize data between a
mobile device and a PC via USB. Many developer tools res. SCADA
project-engineering tools use ActiveSync for the data transfer. Before
you can access the Touch Panel from the PC via ActiveSync you
have to install it on the PC. ActiveSync is freeware and can be downloaded from www.microsoft.de.
1. Download the ActiveSync from the Microsoft website and start
the file MSASYNC.EXE.
2. Start the installation with [Next].
3. Choose an installation directory and click on [Next].
ActiveSync is installed.
ð
HB160 | TP | 62K-JID0 | GB | 15-36 35
Page 36
Communication via ActiveSync
VIPA HMIDeployment Touch Panel
Establish connection

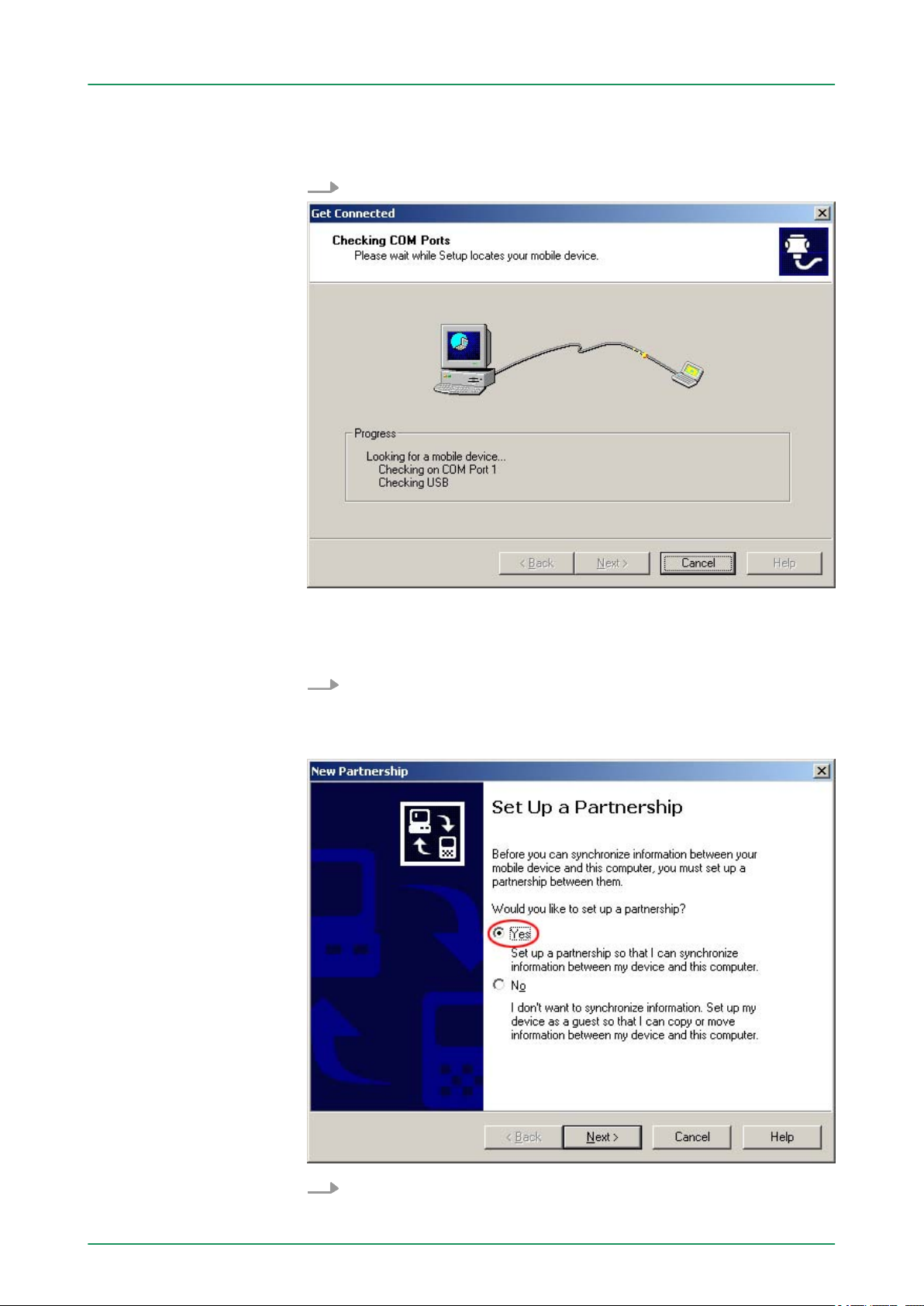

After the installation the dialog window "establish connection" is
opened.
Start the search run with [Next]:
Install partnership for
USB communication
Now you can install a "partnership" via an USB connection with the
following approach:
1. Connect your Touch Panel via the "Device"-USB-B jack to your
PC and turn on the Touch Panel.
The USB device (Touch Panel) is recognized and the dialog
ð
window "new partnership" opens.
2. Choose "yes" for fixing a partnership and push [Next].
HB160 | TP | 62K-JID0 | GB | 15-36 36
Page 37
VIPA HMI Deployment Touch Panel
Integrated Server > General

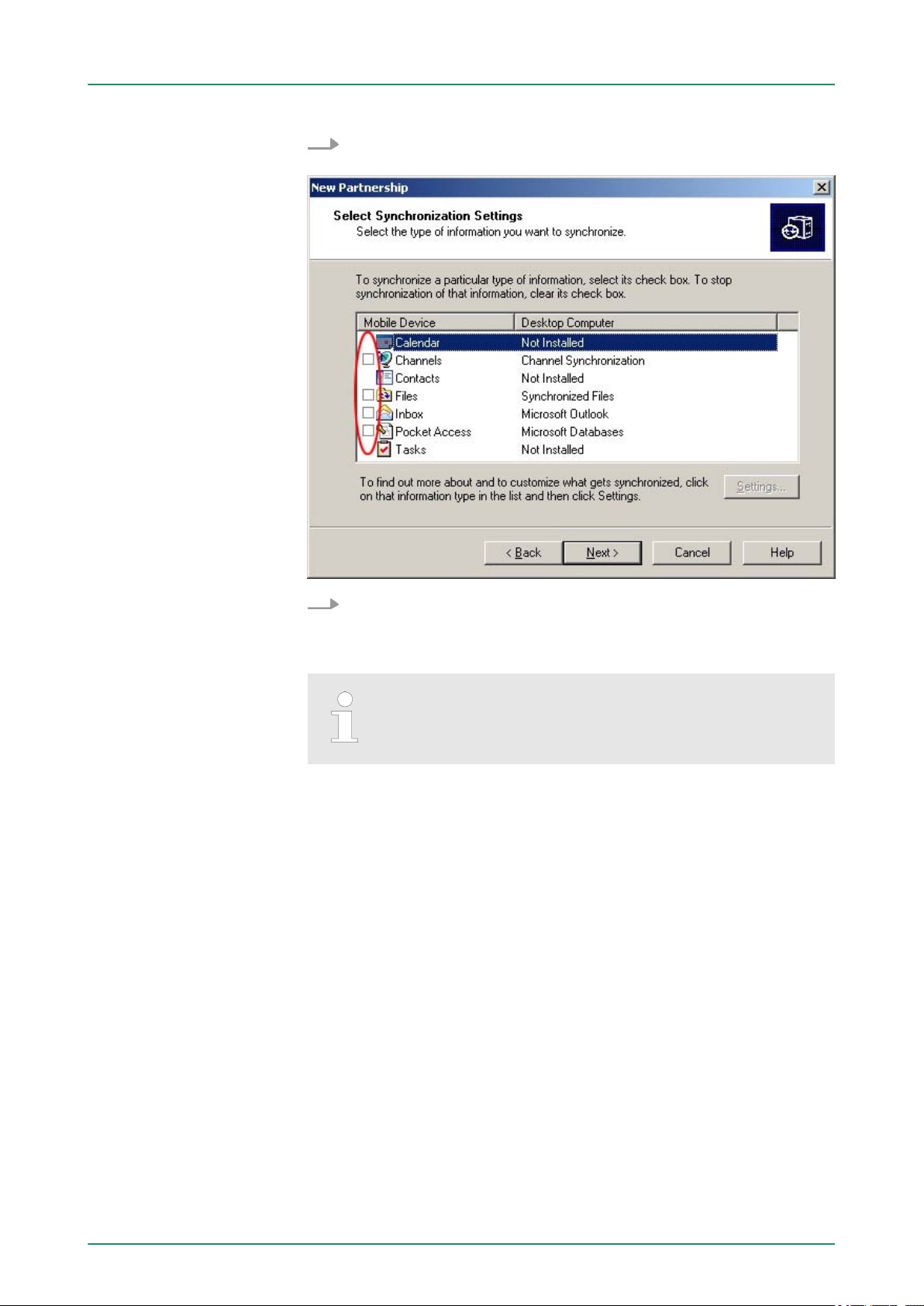

3. In the opening window de-activate all synchronization settings
and click on [Next].
3.6 Integrated Server
3.6.1
Login data
Overview
General
4. [Finish] establishes the partnership.
Now you can access the Touch Panel with ActiveSync via USB.
To keep the settings also after power on, you have to store
them to the registry with ‘START è Programs
è KuK_Tools
The Touch Panel has several integrated server that enable a remote
maintenance within a network. Some servers only allow access by
means of entering User name and Password. The following login data
are used standardly:
User name: wince
Password: vipatp
Per default the following server are integrated:
è KuK Tools’ [Store].
n ftp server (activated)
n http server (activated)
n Telnet (activated)
n VNC (not activated)
Phrases
HB160 | TP | 62K-JID0 | GB | 15-36 37
Phrases that are used in the description of the server:
Page 38
Integrated Server > ftp server
VIPA HMIDeployment Touch Panel
Client
Server
Host
Download
Upload
3.6.2
ftp server
A client is an application that uses the service of a server within a network. For example, a web browser is a client because at every call of
a website it sends a request to a web server and receives an answer.
A server is an application that waits for the contact request of a client
application and exchanges messages with it after contact start. This
communication type is called Client-Server communication.
Computer within a network where at least one server is running.
Data transfer Server ® Client
Data transfer Client ® Server
By means of a ftp server data between client and server can be
exchanged. Here you can copy, delete or create files and directories.
Conditions for ftp
access
Establishing a ftp connection
Depending on the ftp client your PC must have the following conditions for a ftp connection. If there are still problems with the ftp access
please ask your system administrator.
Internet Explorer
n ftp access possible with version 5.5 or higher
n activate directory view for ftp sites
For the adjustment choose in the Internet Explorer ‘Options
è Internet options
set the following settings:
1. activate: "activate directory view for ftp sites"
2. Restart the Internet Explorer.
The settings are saved.
ð
Below is explained, how to establish of a ftp connection between a
WindowsÒ based PC with Windows Explorer as ftp client and your
Touch Panel.
1. Connect your Touch Panel with the network where your PC is a
member via an Ethernet cable.
2. Switch on your Touch Panel.
’, register "extended" in the area "Browsing” and
HB160 | TP | 62K-JID0 | GB | 15-36 38
Page 39
VIPA HMI Deployment Touch Panel
Integrated Server > http server

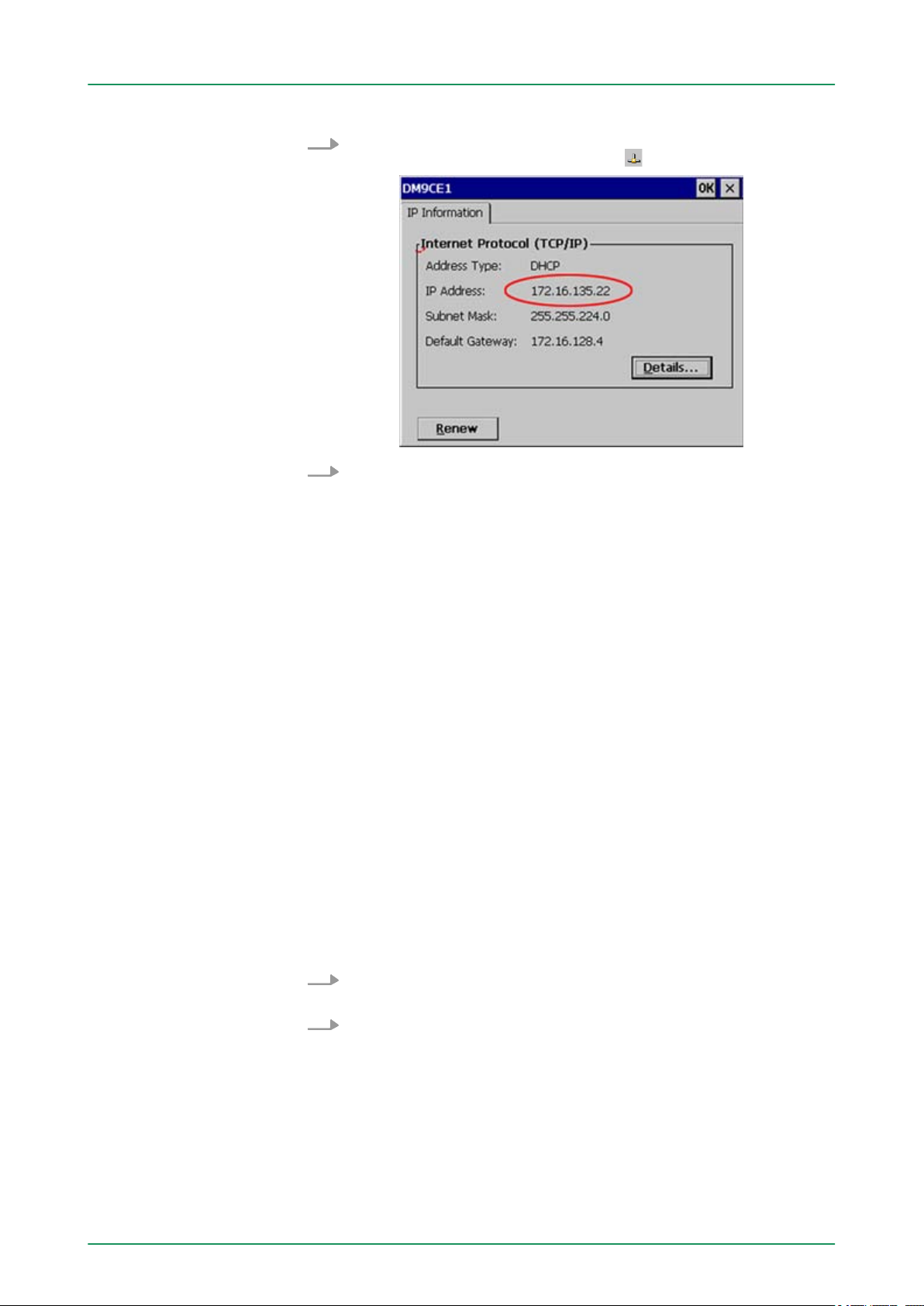

3. As soon as your Touch Panel is connected via Ethernet, you
may monitor the IP address data via in the taskbar.
4. After you’ve confirmed the pre-settings, start your ftp client (e.g.
Windows Explorer) and enter the following text into the "address
bar":
ftp://wince:vipatp@IP-Adresse
3.6.3
Web admin
http server
In the appearing explorer window you can execute the
ð
requested file operations.
The Touch Panel has an integrated http server (web server) that
allows depending on the access the administration of the Touch
Panel res. of websites in the Touch Panel. The administrative access
to the http server happens via Ethernet from the PC by setting the IP
address of the Touch Panel with attached "Admin" type.
Using the websites you may e.g. publish online documentations for a
connected PC or go online with applications on the PC.
As web admin you have access to all functions that are required for
uploading and administrating of websites on the Touch Panel. Additionally you may set the access rights for user and create user
groups. More detailed information about creating and administrating
of websites on the Touch Panel are available in the online documentation of the web servers.
The login as web admin requires the following steps:
1. Start the web browser at your PC and enter the following into
the address bar: IP address/webadmin
2. Enter the following into the authentification:
n User name: wince
n Password: vipatp
HB160 | TP | 62K-JID0 | GB | 15-36 39
Page 40
Integrated Server > Telnet server
3.6.4 Telnet server
VIPA HMIDeployment Touch Panel
Telnet is a text based client-server protocol on TCP level. Using of a
Telnet client like e.g. the "MS-DOS console" in your WindowsÒ operating system you may execute text based all file remote functions at
your Panel PC like copy, delete and create files and directories. You
may also start applications. Terminating an application is not possible.
Establishing a Telnet
connection
The establishing of a Telnet connection is password protected and
has the following approach:
1. Start a Telnet client like for example "MS-DOS console" at your
PC and enter the following into the address bar: telnet IP
address.
When the connection is established, the Panel PC asks for
ð
the user name and the password.
2. Enter the following:
Login: wince
Password: vipatp (entry is hidden)
After entering valid user data a command line for entries
ð
appears:

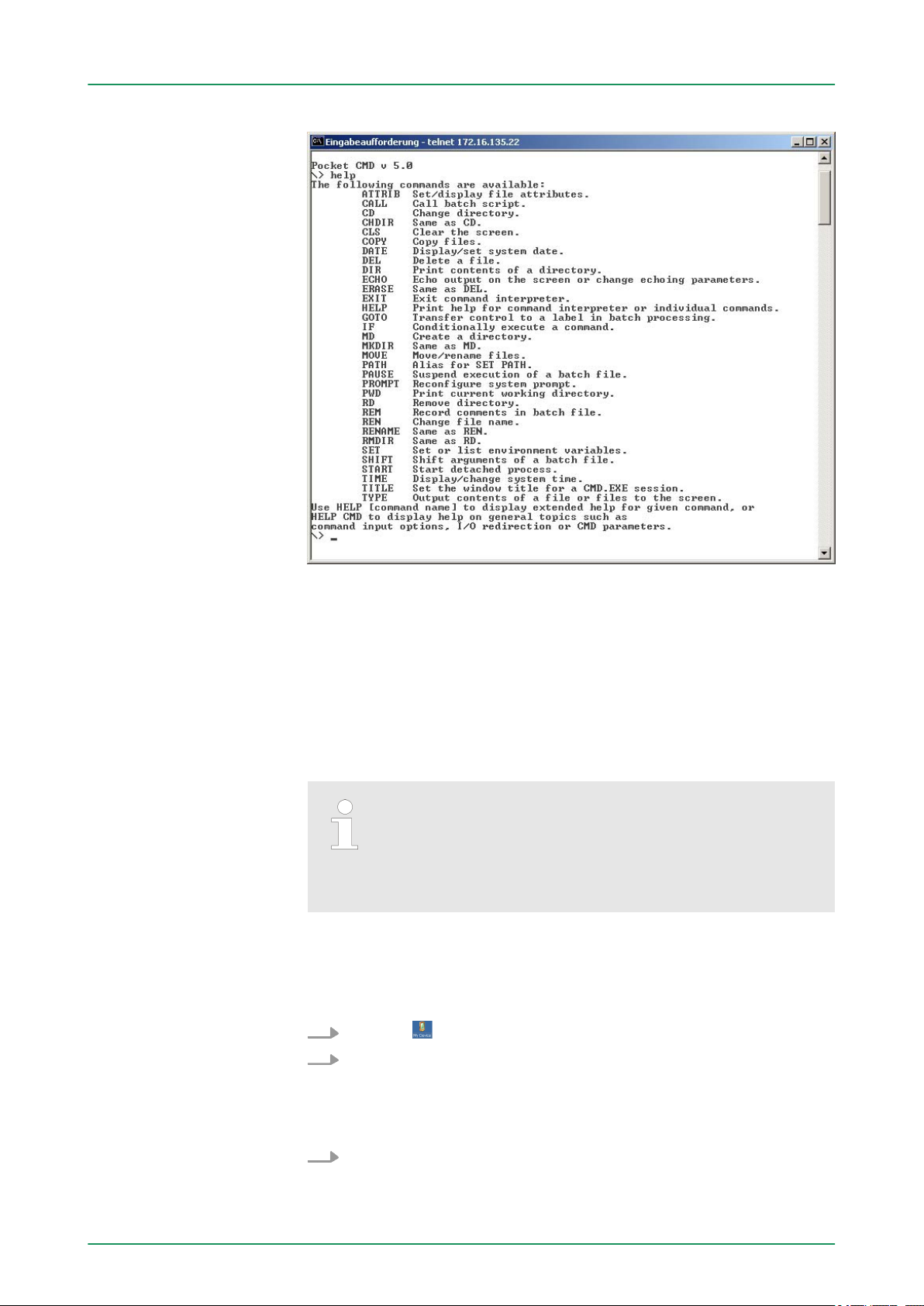

Commands
By entering Exit res. closing the window you may terminate the
Telnet connection at any time.
After establishment of a Telnet connection the Panel PC provides you
with commands. A list of possible commands with a short description
is available via the command help. By beginning with "help" before a
command you receive help to this command.
HB160 | TP | 62K-JID0 | GB | 15-36 40
Page 41
VIPA HMI Deployment Touch Panel
Integrated Server > VNC server
3.6.5 VNC server
Establishing a VNC connection
The Touch Panel has an integrated VNC server (virtual network control) that allows the total control of the Touch Panel with a PC via network. For this, a window displays the current Touch Panel content for
remote control. Operation is performed via PC keyboard and mouse.
Condition for the VNC communication is, that the VNC server is
started on the Touch Panel and a VNC client on the PC. You may
download a VNC client as freeware from internet.
Because you can deactivate all safety attitudes with the
VNC server, you should use these exclusively for start-up!
Per default the VNC server is on delivery deactivated.
Due to software reasons VIPA does not support the VNC
server function!
With "Autostart" you can select the automatic startup of the VNC
server, via the Startup-Manager.
The VNC connection establishment has the following approach:
1.
Click on and open the "Windows" directory.
2. Start the VNC server by executing the file winvnc.exe. To show
the server has been started, the symbol Efon vnc appears in
the task bar. You may also start the VNC server at the Touch
Panel via a Telnet connection by entering the command winvnc
in the command console with an active Telnet connection.
3. Now start the VNC client vncviewer.exe on your PC.
HB160 | TP | 62K-JID0 | GB | 15-36 41
Page 42
Access to the network resources
VIPA HMIDeployment Touch Panel

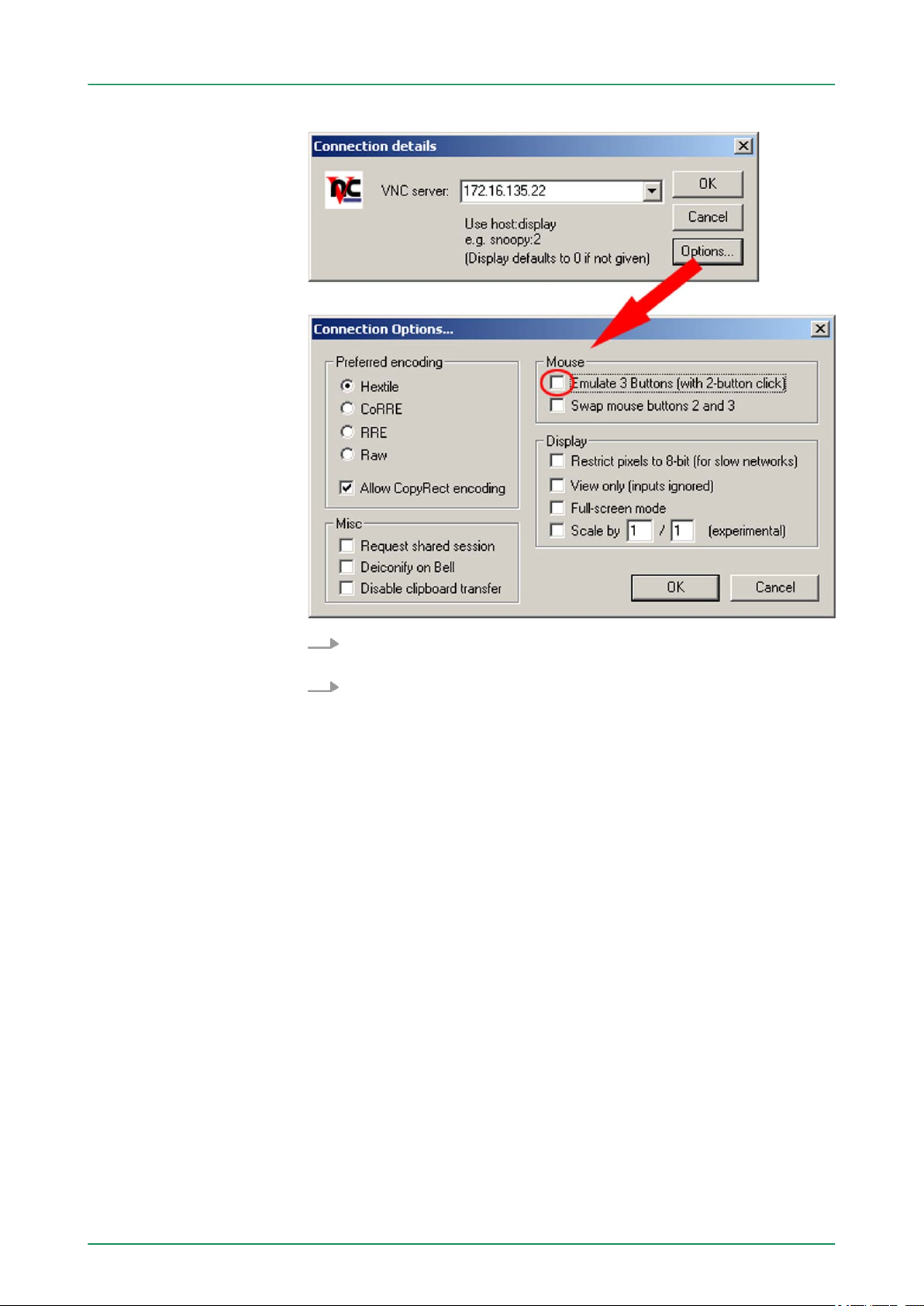

4. Click on [Options] and deactivate the field "Emulate 3 Buttons..."
like shown at Mouse.
5. Enter the IP address of the Touch Panel at VNC server. Click on
[OK] and enter the password vipatp. You can change the password over the configuration file, for this execute vncconfig.exe.
Now a VNC connection is established and the screen content of
the Touch Panel is monitored within a window.
Closing the VNC window terminates the VNC connection, the server
keeps running.
Access to the network resources
3.7
Overview
The Touch Panel allows you to access shared resources in a Microsoft network like drives and printer. Here you may assign existing
public directories or printer in the network to local directories or printer
in the Touch Panel.
Condition for this is that you are logged in to the network with your
user name and password. The assignment of a network resource is
performed in the Touch Panel via the command console "Command
Prompt". Start the command console with ‘START è Programs
è Command Prompt’.
The access to the network resource is performed with the commands
Net view and Net use.
List released resources
Shared resources of a network PC can be listed by the command: \>
net view PC-Name
HB160 | TP | 62K-JID0 | GB | 15-36 42
Page 43
VIPA HMI Deployment Touch Panel
Access to the network resources

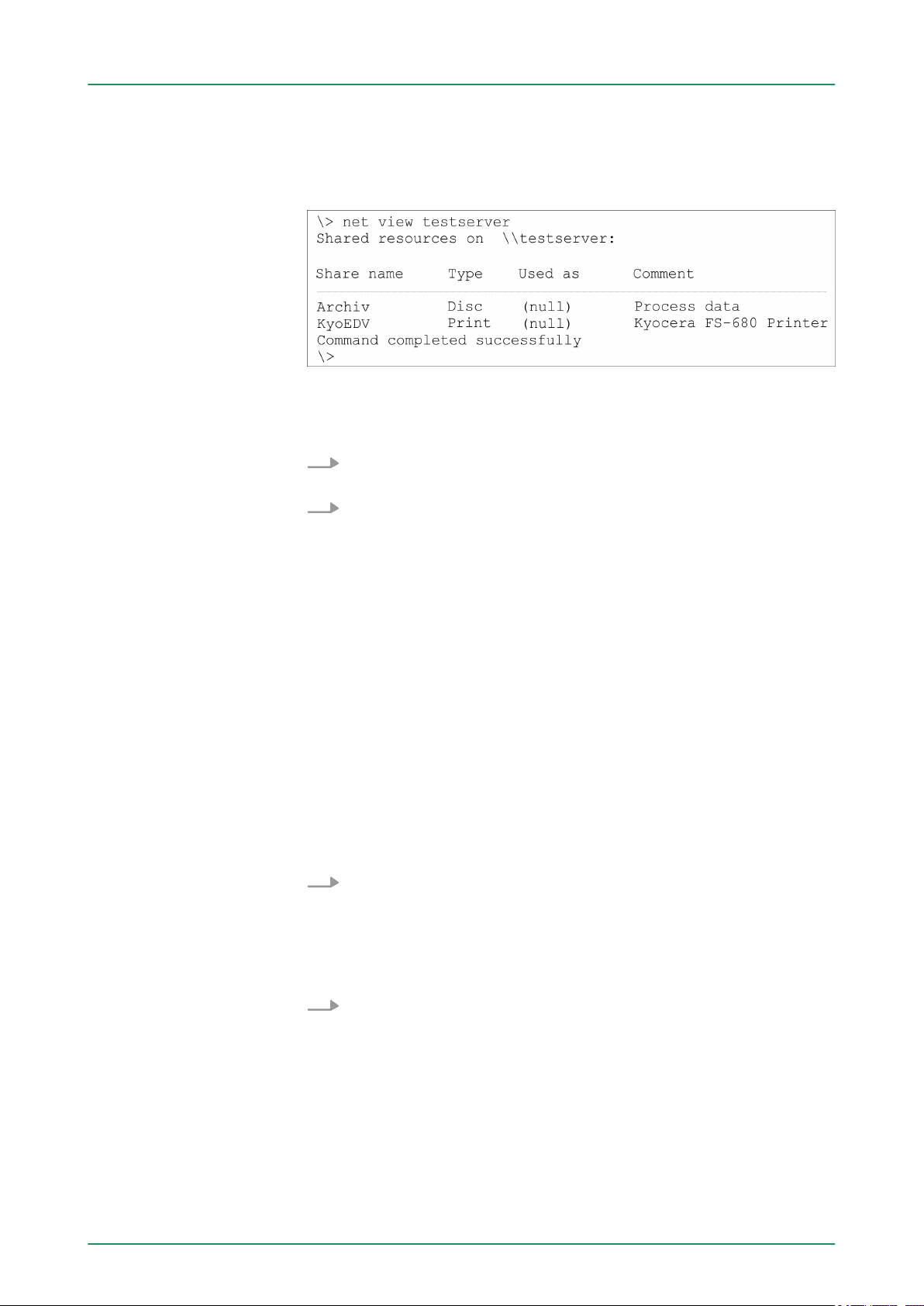

For example net view testserver lists all shared resources of
the network PC "test server". To test the physical connection a PING
to the IP address of the network PC can be executed if there are
problems while contacting the network PC.
Connect net drive
Example:
Configure network
printer
The connection of a local name at the Touch Panel with a shared
drive of the network PC happens with the following approach:
1. Enter the following in the command prompt: \> net use
local_name \\network drive /user:User name
2. Enter user name, password and where app. user group.
After successful login the following message appears: ‘Successfully
mapped to network name’ .
The connected network drive is then available on the Touch Panel
with the local_name via My Device under Network.
Local_Name: data, network drive: testserver\archive, Username:guest
Input: \> net use data \\testserver\archiv /
user:guest
The connected network drive is then available via \network\data at the
Touch Panel.
The configuration of a network printer happens with the following
approach:
1. Enter this command into the command prompt: \> net use printer
name network printer
Example:
Printer name: Printer, network printer: \\testserver\printer
Entry: \> net use printer \\testserver\printer
2. Enter user name, password and if necessary user group.
After the successful login the following message appears
Successfully mapped to network printer
The printer can now be accessed as "network\printer".
Test print
For example you can print the content of the current directory using \>
dir > network\printer.
HB160 | TP | 62K-JID0 | GB | 15-36 43
Page 44
Access to the network resources
VIPA HMIDeployment Touch Panel
List network connections
Terminate network connections

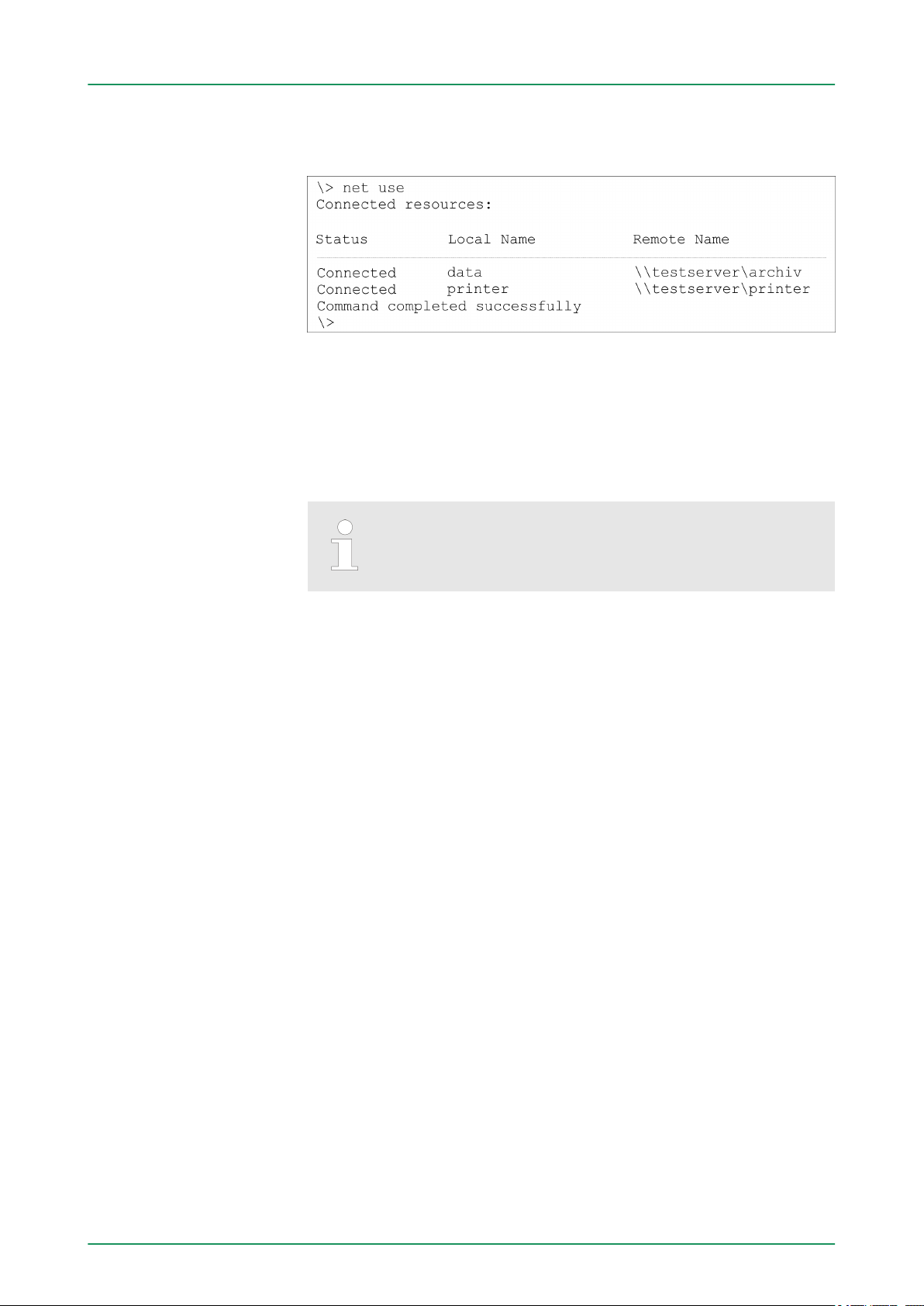

The listing command for all network connections of your Touch Panel
is \> net use
You can terminate already assigned network resources via
\> net use local_name /d
Example: \> net use data /d deletes the network connection to
the drive "archive" of "test server".
To save the settings also after power on, you have to store
them to the registry with ‘START è Programs
è KuK_Tools
è KuK Tools’ [Store].
HB160 | TP | 62K-JID0 | GB | 15-36 44
Page 45
VIPA HMI Installation Guidelines
Basic rules for the EMC-equitable assembly of installations
4 Installation Guidelines
4.1 Basic rules for the EMC-equitable assembly of installations
General
What does EMC mean?
Possible interference
causes
The installation guidelines contain information about the interference
free deployment of a PLC system. There is the description of the
ways, interference may occur in your PLC, how you can make sure
the electromagnetic compatibility (EMC), and how you manage the
isolation.
Electromagnetic compatibility (EMC) means the ability of an electrical
device, to function error free in an electromagnetic environment
without being interfered respectively without interfering the environment.
The components of VIPA are developed for the deployment in industrial environments and meets high demands on the EMC. Nevertheless you should project an EMC planning before installing the components and take conceivable interference causes into account.
Electromagnetic interferences may interfere your control via different
ways:
n Electromagnetic fields (RF coupling)
n Magnetic fields with power frequency
n Bus system
n Power supply
n Protected earth conductor
Depending on the spreading medium (lead bound or lead free) and
the distance to the interference cause, interferences to your control
occur by means of different coupling mechanisms.
There are:
n galvanic coupling
n capacitive coupling
n inductive coupling
n radiant coupling
HB160 | TP | 62K-JID0 | GB | 15-36 45
Page 46
Basic rules for the EMC-equitable assembly of installations
VIPA HMIInstallation Guidelines
Coupling mechanisms
and interference

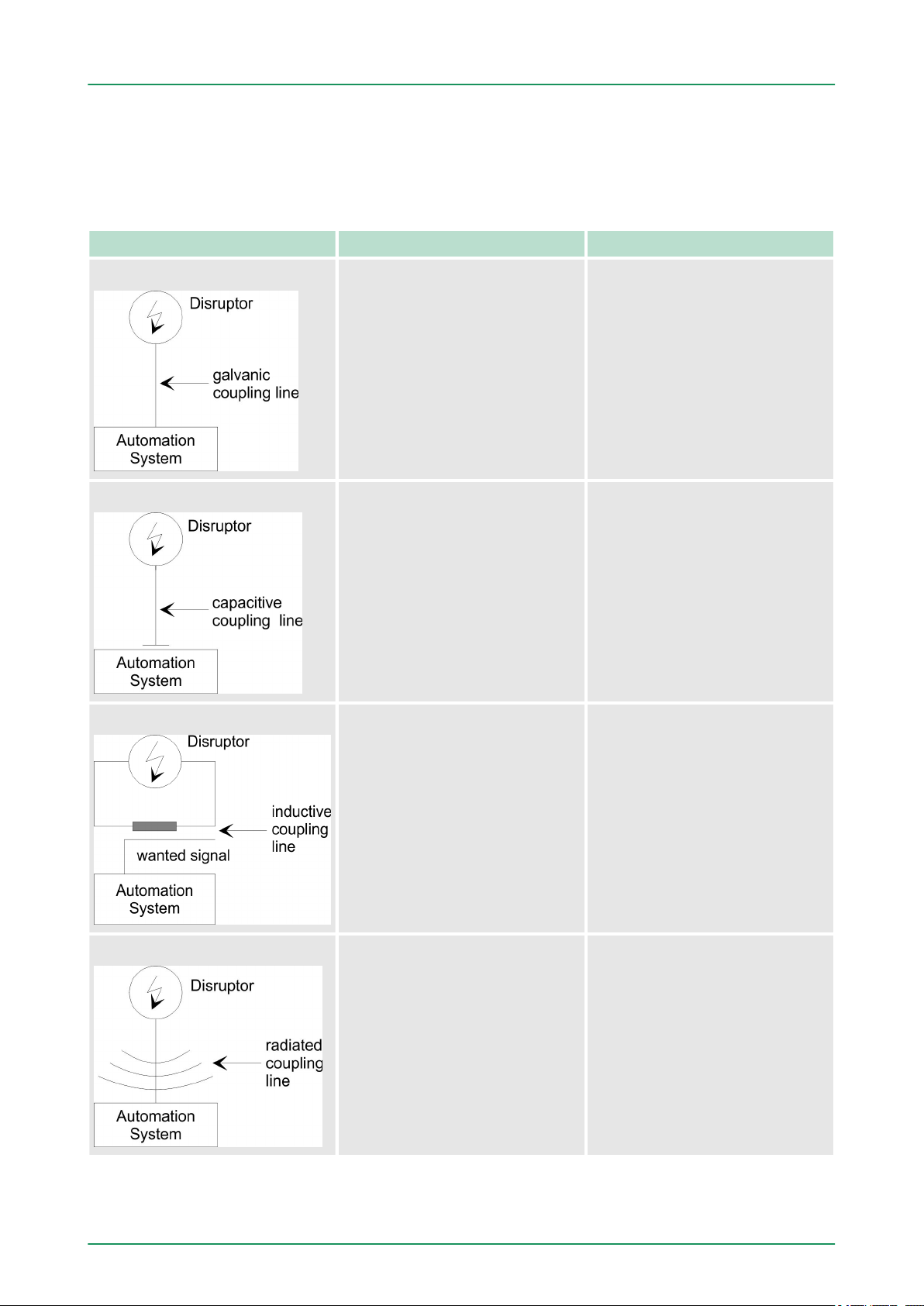

The following table shows the four different coupling mechanisms,
their causes and possible interference sources.
sources
Coupling mechanism Cause Typical source
Galvanic coupling Galvanic or metallic coupling
always occurs, when two current circuits have a common
line.
n Pulsed devices (Net influ-
ence from transducers and
foreign net devices)
n Starting motors
n Different potential of com-
ponent cubicles with
common current supply
n Static discharges
Capacitate coupling Capacitate or electric coupling
occurs between conductors
with different potential. The
coupling is proportionate to the
temporal change of the
voltage.
n Interference through par-
allel signal lines
n Static discharge of the per-
sonnel
n Contactors
Inductive coupling Inductive or magnetic coupling
occurs between two current
active line loops. The magnetic
flows associated with the currents induct interference voltages. The coupling is proportional to the time related
change of the current.
Radiate power coupling One talks of radiate power cou-
pling, when an electromagnetic
wave meets a line circuit. The
hit of the wave inducts currents
and voltages.
n Transducers, motors, elec-
tric welding devices
n Parallel net cables
n Cables with toggled cur-
rents
n Signal cable with high fre-
quency
n Unused coils
n Sender in the neighbour-
hood (e.g. walkie-talkie)
n Sparking lines (sparking
plugs, collector of electric
motors, welding devices)
HB160 | TP | 62K-JID0 | GB | 15-36 46
Page 47
VIPA HMI Installation Guidelines
EMC-equitable assembly
Basic rules for EMC
In the most times it is enough to take care of some elementary rules
to guarantee the EMC. Please regard the following basic rules when
installing your PLC.
n Take care of a correct area-wide grounding of the inactive metal
parts when installing your components.
Install a central connection between the ground and the pro-
–
tected earth conductor system.
– Connect all inactive metal extensive and impedance-low.
– Please try not to use aluminium parts. Aluminium is easily oxi-
dizing and is therefore less suitable for grounding.
n When cabling, take care of the correct line routing.
– Organize your cabling in line groups (high voltage, current
supply, signal and data lines).
– Always lay your high voltage lines and signal respectively data
lines in separate channels or bundles.
– Route the signal and data lines as near as possible beside
ground areas (e.g. suspension bars, metal rails, tin cabinet).
n Proof the correct fixing of the lead isolation.
– Data lines must be laid isolated.
– Analog lines must be laid isolated. When transmitting signals
with small amplitudes the one sided laying of the isolation may
be favourable.
– Lay the line isolation extensively on an isolation/protected
earth conductor rail directly after the cabinet entry and fix the
isolation with cable clamps.
– Make sure that the isolation/protected earth conductor rail is
connected impedance-low with the cabinet.
– Use metallic or metallised plug cases for isolated data lines.
n In special use cases you should appoint special EMC actions.
– Consider to wire all inductivities with erase links.
– Please consider luminescent lamps can influence signal lines.
n Create a homogeneous reference potential and ground all elec-
trical operating supplies when possible.
– Please take care for the targeted employment of the grounding
actions. The grounding of the PLC serves for protection and
functionality activity.
– Connect installation parts and cabinets with your PLC in star
topology with the isolation/protected earth conductor system.
So you avoid ground loops.
– If there are potential differences between installation parts and
cabinets, lay sufficiently dimensioned potential compensation
lines.
4.2 EMC-equitable assembly
Mostly, measures for suppressing interference voltages are only
taken, when the control is already in commission and the perfect
receive of a wanted signal is disturbed. Causes for such interference's are in the most cases inadequate reference potentials, coming
from mistakes at the device assembly and installation.
Guidelines for assembling and grounding of
inactive metal parts
HB160 | TP | 62K-JID0 | GB | 15-36 47
When assembling the devices, you have to ensure the large-surface
grounding of the inactive metal parts. A correctly done grounding supports an unambiguous reference potential for the control and reduces
the impact of coupled interferences.
Page 48
EMC-equitable cabling
VIPA HMIInstallation Guidelines
Grounding means the conducting connection of all inactive metal
parts. The sum of all interconnected inactive parts is called ground.
Inactive parts are all conductive parts electrically separated from all
active parts by means of a basic isolation and that may only get
voltage in case of an error.
The ground must not adopt dangerous contact voltage even in case
of an error. Thus you have to connect the ground with the protected
earth conductor. To avoid ground loops, local distant ground constructions (cubicles, construction and machine parts) have to be connected with the protected earth conductor system in star-topology.
Please regard at grounding:
n Connect the inactive metal parts as carefully as the active ones.
n Take care of impedance-low metal-metal-connections, e.g. with
large-surface and well conductive contacts.
n If you include coated or anodized metal parts in the grounding,
you have to come through the isolating protection layers. For this
you may use special contact washers or remove the isolation
layer.
n Protect the connection points from corrosion, e.g. with grease.
n Moveable grounding parts (e.g. cubicle doors) have to be con-
nected via flexible ground strips. The ground strips should be
short and have a large surface, because the surface is decisive
for the diversion of high frequency interferences.
4.3 EMC-equitable cabling
Line routing
Line routing inside and
outside of cubicles
Content of this section is the line routing of bus, signal and supply
lines. Object of the line routing is to suppress the "slurring" at parallel
lines.
For an EMC-equitable routing of the lines it is convenient to divide the
cables in different groups and install each group itself:
Group A
n screened bus and data lines
n screened analog lines
n unshielded lines for direct voltage £60V
n unshielded lines for alternating voltage £25V
n Coaxial cables for monitors
Group B
n unshielded lines for direct voltage >60V and £400V
n unshielded lines for alternating voltage >25V and £400V
Group C
n unshielded lines for direct and alternating voltage >400V
Group D
n Lines for H1 respectively TCP/IP
Combination of groups
Following the table you may see the conditions for the cabling of the
line groups by combining the single groups:
HB160 | TP | 62K-JID0 | GB | 15-36 48
Page 49
VIPA HMI Installation Guidelines
EMC-equitable cabling
Group A Group B Group C Group D
Group A [1] [2] [3] [4]
Group B [2] [1] [3] [4]
Group C [3] [3] [1] [4]
Group D [4] [4] [4] [1]
[1] The lines may be installed in common bundles or cable
trusses.
[2] The lines have to be installed in different bundles or cable
trusses (without min. distance).
[3] The lines have to be installed in different bundles or cable
trusses inside of cubicles and outside of the cubicle but
inside the building in separated cable trusses with a min. distance of 10cm.
[4] The lines have to be installed in different bundles or cable
trusses with a min. distance of 50cm.
Line routing outside of
buildings
Lightning protection
Wherever possible, exterior cabling should be installed on metallic
cable trays. A galvanic connection must be provided for joints
between cable trays. You must abide by the applicable lightning protection and grounding regulations when installing exterior cables.
CAUTION!
Where cables and signal lines for PLC equipment are
installed outside of buildings, the conditions for internal
and external lightning protection must be satisfied.
– Exterior lines should either be installed in metallic con-
duit pipes that is grounded on both ends or in steelreinforced concrete cable trunks with continuously connected reinforcing.
–
Signal lines should be protected against overvoltage by
varistors or by lightning arrester filled with rare gas.
– Install these protective elements at the location where
the cables enter the building.
Any lightning protection system must be based on an individual assessment of the entire plant. For questions
please contact VIPA GmbH.
HB160 | TP | 62K-JID0 | GB | 15-36 49
Page 50
EMC-equitable cabling
VIPA HMIInstallation Guidelines
Equipotential bonding
Rules for equipotential
bonding
Potential differences can occur between different sections when controllers and peripheral equipment are connected by means of non-isolated connections or the screens of screened cables are connected at
both ends and grounded on different sections of the plant. One
reason for a potential difference can be that different sections of the
plant are powered from different power sources. These potential differences must be reduced by means of equipotential bonding conductors to ensure that the electronic equipment employed on the plant
operates properly.
n The lower the impedance of the equipotential bonding conductor,
the higher the effectiveness of potential equalization.
n The impedance of the equipotential bonding conductor must not
exceed 10% of the impedance of the screen where screened
signal lines are connected between the different sections of the
plant and the screening is connected to ground/neutral on both
sides.
n The cross-sectional area of the equipotential bonding conductor
must be calculated to carry the maximum equalization current.
The following cross-sections have been successfully employed:
16mm2 Cu for equipotential bonding conductors up to 200m
–
– 25mm2 Cu equipotential bonding conductors exceeding 200m.
n Use copper or galvanized steel for equipotential bonding conduc-
tors. These must be connected to ground/neutral by means of
large-surface connections that are protected from corrosion.
n The equipotential bonding conductor should be installed in such a
manner that it includes the smallest surface between the bonding
conductor and the signal lines.
Screening of lines and
cables
One-sided grounding of
screens
Screening is one method commonly used to reduce (attenuate) the
interference pick-up from magnetic, electrical or electromagnetic
fields.
n Interference on screens is conducted to ground by the conductive
connection between the screen and the screening rain/enclosure.
To avoid interference from these currents it is very important that
the neutral connection is a low-impedance connection.
n You should only use cables that are provided with a braided
screen. The degree of screening should be more than 80%.
n Avoid cables with foil-type screens as the foil can be easily dam-
aged by tension and pressure at the point of attachment; this can
result in reduced effectiveness of the screening action.
n As a rule you should always ground the screens of cables on both
ends. This is the only way in which you can ensure that high frequency interference is attenuated properly.
In exceptional cases it may be necessary to ground the screen on
one side only. However, this will only attenuate the lowest frequencies. The one-sided grounding of screens may provide advantages
when:
n It is not possible to install an equipotential bonding conductor
n Analogue signals (a few mV or mA) must be transmitted
n Foil-type screening (static screening) is employed.
HB160 | TP | 62K-JID0 | GB | 15-36 50
Page 51
VIPA HMI Installation Guidelines
Special precautions providing high noise immunity
You should always use metallic or metallised covers for serial data
lines. Connect the screen of the data line to the cover. Do not connect the screen to PIN 1 of the connector! In case of stationary operations it is recommended that the remove the insulation from the
screened cable without cutting the screen and to attach this point to
the screening/neutral rail.
Potential differences can give rise to an equalization current via the screen connected between the two ground
connections. In this case you must install an additional
equipotential bonding conductor.
Connecting the screen
Please observe the following points when you handle the screens:
n Use only metallic cable clamps when connecting the screening of
cables. These clamps must provide a good electrical contact and
a large-surface connection to the screen.
n Attach the screens to the screening rail directly at the point where
the cables enter the enclosure. The screening conductor must be
continued to the module without interruption, however, it must not
be connected to the module!
4.4 Special precautions providing high noise immunity
Inductors require
snubber networks
Inductors controlled by your programmable controller (e.g. contactors
and relays) do not normally require additional snubber networks or
suppressors as the respective modules have been provided with the
required components.
Equipotential bonding
HB160 | TP | 62K-JID0 | GB | 15-36 51
Snubber networks must only be connected to inductors when output
circuits can be disabled by means of additional contacts (e.g. relay
contacts). In this case the integrated suppressors on the module are
also disabled. You can connect diodes to suppress back-emc, varistors or RC-networks to the inductors.
Page 52
Special precautions providing high noise immunity
VIPA HMIInstallation Guidelines
Power outlet for PGs
Cubicle illumination
Suppression of fluorescent lamps in cubicles

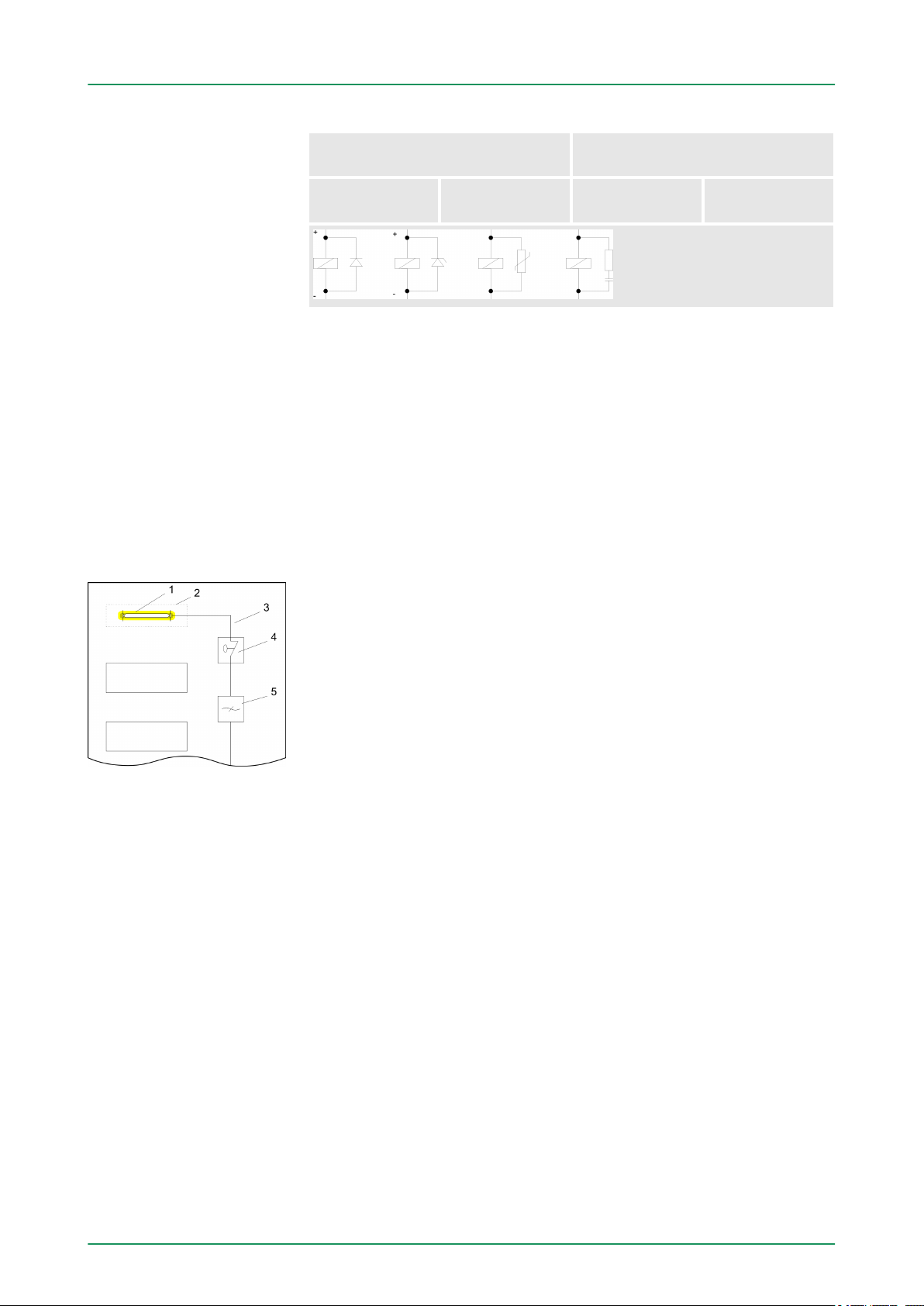

Connections of DC-activated
inductors
Connections of AC-activated
inductors
using a diode using a Z-diode using a varistor using RC-net-
work
Every cubicle must be provided with a power outlet for the PU. These
outlets must be wired to the distribution system, which is also used to
connect the neutral conductor for the cubicle.
The cubicle illumination should consist of incandescent lights, e.g.
LINESTRA-lamps. Avoid using fluorescent lamps as these lamps can
cause interference. If you can not avoid using fluorescent lamps you
should implement the steps outlined in the following figure.
1 Fluorescent lamp
2 Screen above the lamp
3 Screened cable
4 Switch with metallic cover
5 Line filter or screened power cable
HB160 | TP | 62K-JID0 | GB | 15-36 52
Page 53
VIPA HMI Installation Guidelines
Checklist for the EMC-compliant installation of controllers
4.5 Checklist for the EMC-compliant installation of controllers
EMV-measures Space for Notes
Connection of the inactive parts
You should take special care to check the connections of:
n Module racks
n Frames
n Screen and protected earth conductor
Are all the inactive metal parts interconnected by means of large-surface and low-impedance connections?
Has a proper connection been installed with respect to the ground/protected earth conductor system?
Has the isolation been removed from varnished and anodized surfaces
or have these connections been fitted with special contact washer?
Have the connection been protected from corrosion, e.g. by means of
grease?
Have doors been grounded by means of grounding straps connected
to the body of the cubicle?
Cable routing
Cabling divided into groups?
Power cables (230 ... 400V) and signal lines installed in separate
channels or bunches?
Potential compensating
When installing the equipment at separate locations, check the installation of the potential compensating line.
Cable screen
All covers of plugs are metallic?
All analog and data lines installed screened?
Line screens attached to the screening or the protected earth conductor?
Have the screens been connected by means of large-surface and lowimpedance cable clamps?
Cable screens grounded both-sided where possible?
Inductors
Have the coils of contactors controlled by means of contacts been
connected to snubber networks?
HB160 | TP | 62K-JID0 | GB | 15-36 53
Loading...
