Page 1

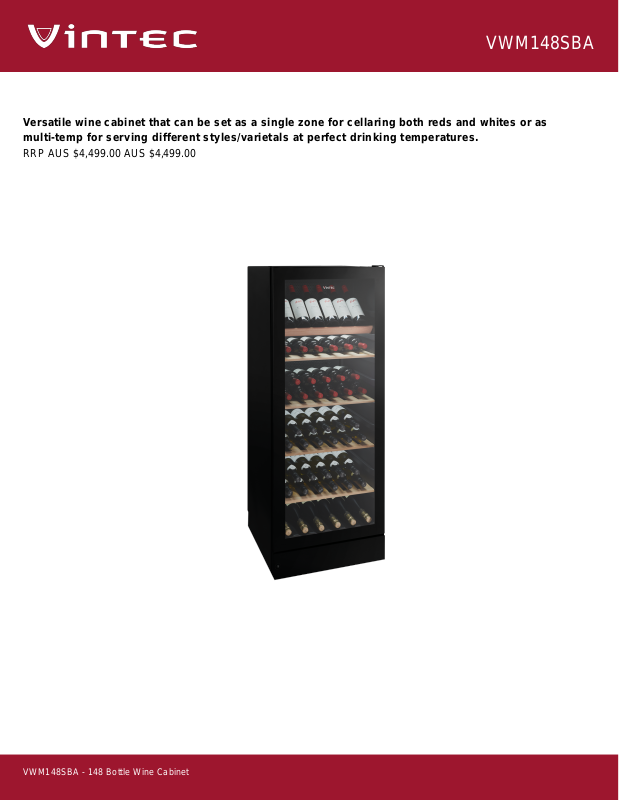

Versatile wine cabinet that can be set as a single zone for cellaring both reds and whites or as
multi-temp for serving different styles/varietals at perfect drinking temperatures.
RRP AUS $4,499.00 AUS $4,499.00
VWM148SBA
VWM148SBA - 148 Bottle Wine Cabinet
Page 2
Product Details
FEATURES
Audio and visual alarm LED internal lighting Digital temperature display Adjustable wooden shelves
Security lock Double glazed door, with
anti-UV glass
Winter function heating
system
BENEFITS
Multi-Temp
Vintec versatile Multi-Temp technology is designed for serving
different varietals at their perfect individual drinking
temperatures. It provides a gradient of temperature throughout
the cabinet, which is ideal for keeping all wine styles at their
optimal drinking temperature.
Winter Heating Function
In some areas, the temperature in winter could drop drastically.
Our wine cabinets are equipped with a heating function to
deliver a constant temperature through the cellar all year round.
Stable Temperature
Our wine cabinets maintain a stable temperature to keep your
wine in perfect cellaring conditions. This is thanks to double
glazed glass, insulated side panels and interactions between a
compressor and thermostat. (Digital display varies by model)
UV Protected Dark Storage Area
UV rays negatively impact the quality of your wine. Our
cabinets eliminate this treat by incorporating UV treated tinted
glass doors, dark interiors and dimmed internal LED lights.
No Vibration
To protect the storage life and quality of your wine, our
cabinets have been designed to create a vibration proof
environment by including an externally housed compressor,
rubber shock absorbers and vibration absorbing wooden
shelves.
VWM148SBA
VWM148SBA - 148 Bottle Wine Cabinet
Page 3
Specifications
WINE CELLARS
Domestic Warranty 2
Installation Type Both
Finish Borderless Black Glass
Door Type Glass Door
Door Construction Double Glazed, UV Treated
Handle Recessed
Fridge door opening Right
Refrigerant R600a
Easy Capacity (Bottles) 80
Max Capacity (Bottles) 148
Main Function Serve Wide Range of
Varietals
Alternate Function Cellar Reds & Whites
No of Zones 1 or Multi
Temperature Range Zone 1
(deg)
6 - 22 Degrees C
DIMENSIONS
Height (mm) 1550
Width (mm) 595
Depth (mm) 610
Number of rows (Total inc
bottom & ½ shelves)
6
Number of columns 1
Max number of slots 6
VWM148SBA
VWM148SBA - 148 Bottle Wine Cabinet
Page 4
WINE CELLARS
Air space at sides (mm) 30
Air space above cabinet
(mm)
50
Joinery cut out dimensionminimum height (mm)
1600
Joinery cut out dimensionminimum width (mm)
615
Joinery cut out dimensionminimum depth (mm)
640
Power Supply 240V / 10AMP
Electricity Consumption
(kWh/Day)
1
Ambient Temperature (deg) 5-35
Display Panel LED Digital Display
Castors and Feet 2 Front Adjustable Feet, 2
Back Castors
Internal Heater Yes
Lock Yes
Alarm Audio & Visual
Lighting White LED
VWM148SBA
VWM148SBA - 148 Bottle Wine Cabinet
Page 5
WINE CELLARS
Number of Shelves 5
Shelving Material Wood
Pack Dimensions Height
(mm)
1625
Pack Dimension Width
(mm)
636
Pack Dimension Depth
(mm)
671
Type Wine Cabinet
Function Both
VWM148SBA
VWM148SBA - 148 Bottle Wine Cabinet
Page 6
ELECTROLUX HOME PRODUCTS AUSTRALIA
telephone: 1300 363 640
fax: 1800 350 067
email: [email protected]
web: www.electrolux.com.au
ELECTROLUX HOME PRODUCTS NEW ZEALAND
telephone: 09 573 2230
fax: 09 573 2221
email: [email protected]
web: www.electrolux.co.nz
Terms and Conditions
IMPORTANT
This is a guide of product dimensions only. For complete installation instructions, refer to the manual provided with product.
PRODUCT INFORMATION
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of
continuous productdevelopment, product specifications may change without notice. Prospective purchasers should therefore check with their retailer to
ensure this publication correctly describes theproducts that are being offered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Electrolux Home Products PtyLtd (Australia) and Electrolux (NZ) Ltd (New Zealand) will not be liable for
any loss, liability or damage of whatever kind arising as a result of reliance on such information. Colours ofproducts illustrated are as close as printing
limitations allow. Electrolux will at all times comply with its obligations pursuant to law including Trade Practices (Australian Consumer Law) Act and
Regulations.
WARRANTY
This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to
(and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand. All warranties are subject to the
conditions set out in the warranty card accompanying the product when purchased.
VWM148SBA
VWM148SBA - 148 Bottle Wine Cabinet
