Page 1

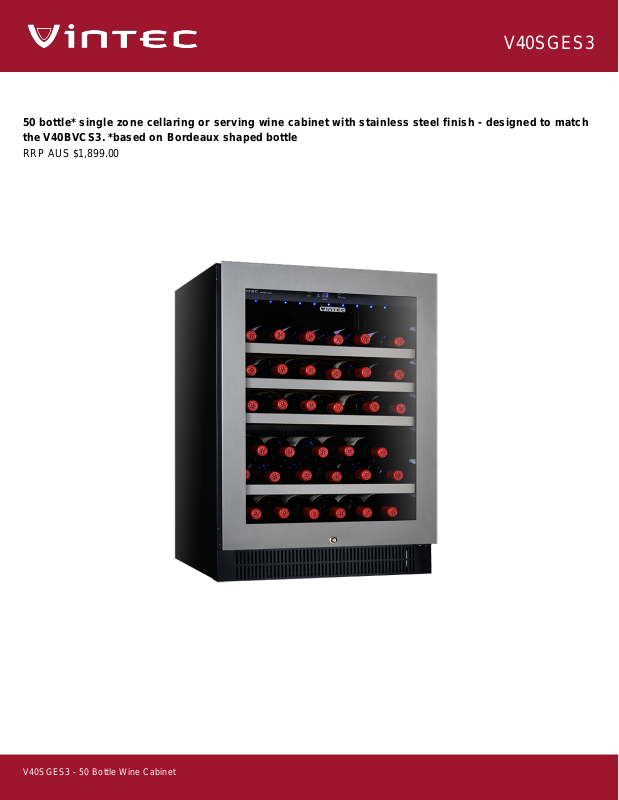

50 bottle* single zone cellaring or serving wine cabinet with stainless steel finish - designed to match
the V40BVCS3. *based on Bordeaux shaped bottle
RRP AUS $1,899.00
V40SGES3
V40SGES3 - 50 Bottle Wine Cabinet
Page 2
Product Details
FEATURES
Triple glazed door, with
anti-UV glass
Adjustable wooden shelves Security lock Reversible door
Digital temperature display LED internal lighting
BENEFITS
Stable Temperature
Our wine cabinets maintain a stable temperature to keep your
wine in perfect cellaring conditions. This is thanks to triple
glazed glass, insulated side panels and interactions between a
compressor and thermostat.
UV Protected Dark Storage Area
UV rays negatively impact the quality of your wine. Our
cabinets eliminate this treat by incorporating UV treated tinted
glass doors, dark interiors and dimmed internal LED lights.
No Vibration
To protect the storage life and quality of your wine, our
cabinets have been designed to create a vibration proof
environment by including an externally housed compressor,
rubber shock absorbers and vibration absorbing wooden
shelves.
Humidity above 50%
Our wine cabinets incorporate a Thermal Recycling Pump that
ensures adequate humidity levels are maintained. The Thermal
Recycling Pump works by heating condensed water, which is
then introduced as humid air within the cabinet.
V40SGES3
V40SGES3 - 50 Bottle Wine Cabinet
Page 3
Specifications
WINE CELLARS
Domestic Warranty 2
Installation Type Both
Finish Seamless Stainless Steel
Door Type Glass Door
Door Construction Triple Glazed, UV treated
Handle Recessed
Fridge door opening Reversible
Refrigerant R600a
Easy Capacity (Bottles) 40
Max Capacity (Bottles) 50
Main Function Cellar Red & White
Alternate Function Serve White or Red
No of Zones 1
Temperature Range Zone 1
(deg)
6 - 18 Degrees C
DIMENSIONS
Height (mm) 820
Width (mm) 595
Depth (mm) 563
V40SGES3
V40SGES3 - 50 Bottle Wine Cabinet
Page 4
WINE CELLARS
Depth Door Open (mm) 1140
Air space at sides (mm) 10
Air space above cabinet
(mm)
30
Joinery cut out dimensionminimum height (mm)
850
Joinery cut out dimensionminimum width (mm)
615
Joinery cut out dimensionminimum depth (mm)
600
Plinth depth (mm) 76
Plinth Height (mm) 84
Weight Unloaded 52
Power Supply 240V / 10AMP
Electricity Consumption
(kWh/Day)
1
Ambient Temperature (deg) 5-35
Display Panel LED Digital Display
Castors and Feet 4 Adjustable Feet
Internal Heater No
V40SGES3
V40SGES3 - 50 Bottle Wine Cabinet
Page 5
WINE CELLARS
Lock Yes
Alarm Visual
Lighting Blue LED
Number of Shelves 5
Shelving Material Metallic
Shelving Type 4 Full,1 Half
Shipping Weight (Kg) 52
Pack Dimensions Height
(mm)
880
Pack Dimension Width
(mm)
665
Pack Dimension Depth
(mm)
685
Type Wine Cabinet
Function Cellar
V40SGES3
V40SGES3 - 50 Bottle Wine Cabinet
Page 6

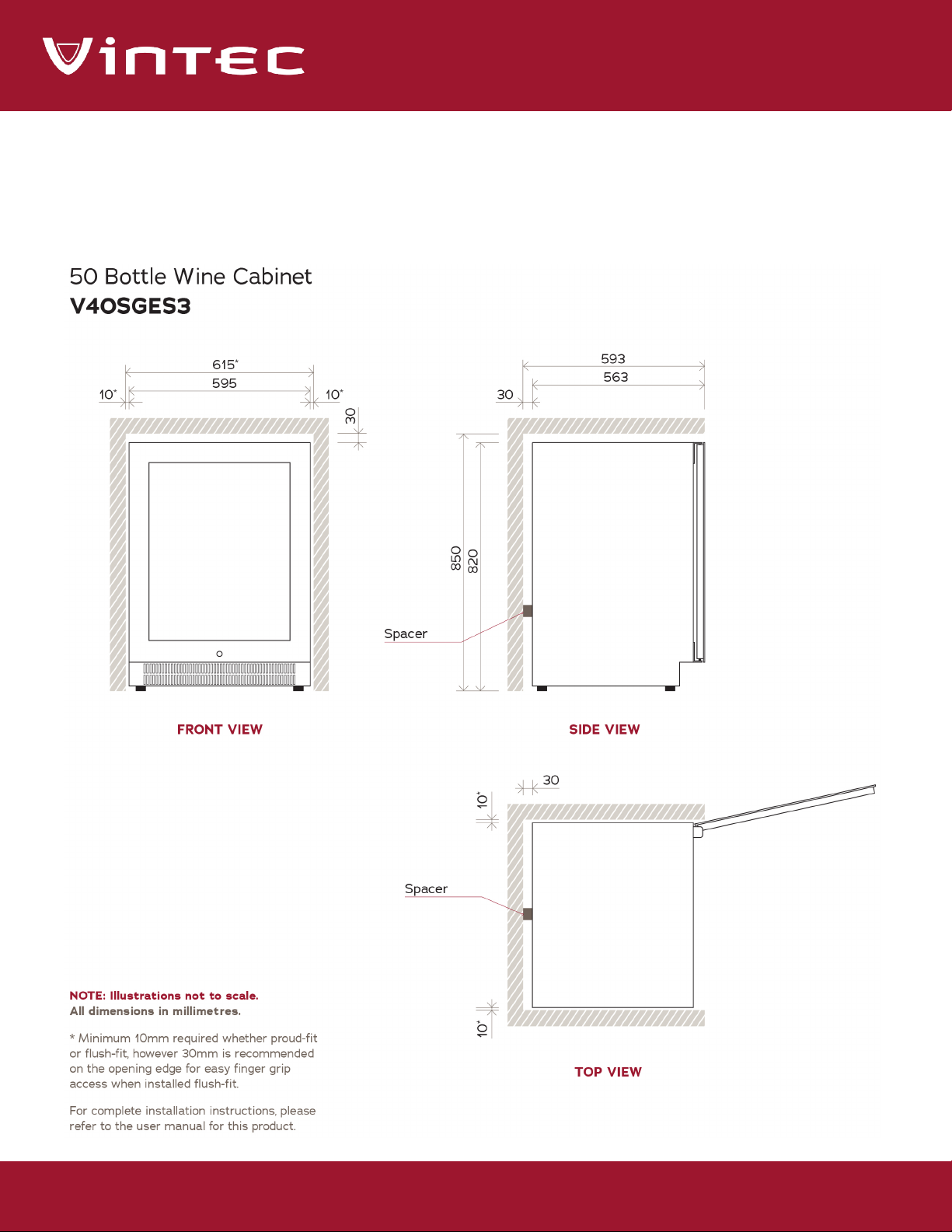

Dimensions
V40SGES3
V40SGES3 - 50 Bottle Wine Cabinet
Page 7
ELECTROLUX HOME PRODUCTS AUSTRALIA
telephone: 1300 363 640
fax: 1800 350 067
email: [email protected]
web: www.electrolux.com.au
ELECTROLUX HOME PRODUCTS NEW ZEALAND
telephone: 09 573 2230
fax: 09 573 2221
email: [email protected]
web: www.electrolux.co.nz
Terms and Conditions
IMPORTANT
This is a guide of product dimensions only. For complete installation instructions, refer to the manual provided with product.
PRODUCT INFORMATION
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of
continuous productdevelopment, product specifications may change without notice. Prospective purchasers should therefore check with their retailer to
ensure this publication correctly describes theproducts that are being offered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Electrolux Home Products PtyLtd (Australia) and Electrolux (NZ) Ltd (New Zealand) will not be liable for
any loss, liability or damage of whatever kind arising as a result of reliance on such information. Colours ofproducts illustrated are as close as printing
limitations allow. Electrolux will at all times comply with its obligations pursuant to law including Trade Practices (Australian Consumer Law) Act and
Regulations.
