Page 1

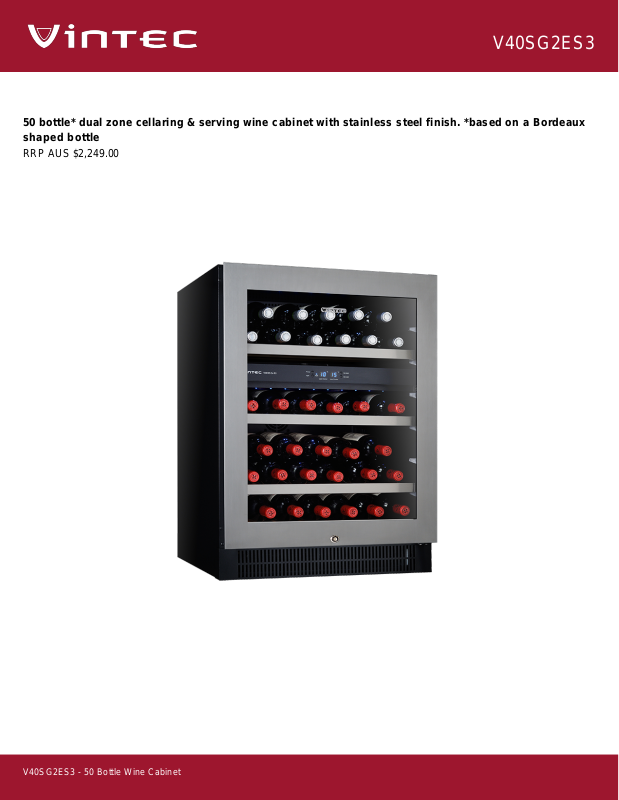

50 bottle* dual zone cellaring & serving wine cabinet with stainless steel finish. *based on a Bordeaux
shaped bottle
RRP AUS $2,249.00
V40SG2ES3
V40SG2ES3 - 50 Bottle Wine Cabinet
Page 2
Product Details
FEATURES
Two separate zones Triple glazed door, with
anti-UV glass
Adjustable wooden shelves Security lock
Reversible door Digital temperature display LED internal lighting
BENEFITS
Two Separate Zones
Ideal for keeping both reds and whites at perfect drinking
temperatures. Set the top zone at 6 - 8 for white and
Champagne, and the bottom at 16 - 18 for reds. Alternatively,
the bottom compartment can be set at 12 - 14 for cellaring.
Stable Temperature
Our wine cabinets maintain a stable temperature to keep your
wine in perfect cellaring conditions. This is thanks to triple
glazed glass, insulated side panels and interactions between a
compressor and thermostat.
UV Protected Dark Storage Area
UV rays negatively impact the quality of your wine. Our
cabinets eliminate this treat by incorporating UV treated tinted
glass doors, dark interiors and dimmed internal LED lights.
No Vibration
To protect the storage life and quality of your wine, our
cabinets have been designed to create a vibration proof
environment by including an externally housed compressor,
rubber shock absorbers and vibration absorbing wooden
shelves.
Humidity above 50%
Our wine cabinets incorporate a Thermal Recycling Pump that
ensures adequate humidity levels are maintained. The Thermal
Recycling Pump works by heating condensed water, which is
then introduced as humid air within the cabinet.
V40SG2ES3
V40SG2ES3 - 50 Bottle Wine Cabinet
Page 3
Specifications
WINE CELLARS
Domestic Warranty 2
Installation Type Both
Finish Seamless Stainless Steel
Door Type Glass Door
Door Construction Solid Door
Handle Recessed
Fridge door opening Reversible
Refrigerant R600a
Easy Capacity (Bottles) 40
Max Capacity (Bottles) 50
Main Function Serve Red or White
Alternate Function Serve or Cellar
No of Zones 2
Temperature Range Zone 1
(deg)
6 - 10 Degrees C
DIMENSIONS
Height (mm) 820
Width (mm) 595
Depth (mm) 563
Number of rows (Total inc
bottom & ½ shelves)
4
Number of columns 1
Max number of slots 6
V40SG2ES3
V40SG2ES3 - 50 Bottle Wine Cabinet
Page 4
WINE CELLARS
Temperature Range Zone 2
(deg)
10 -18 Degrees C
Depth Door Open (mm) 1140
Air space at sides (mm) 10
Air space above cabinet
(mm)
30
Joinery cut out dimensionminimum height (mm)
850
Joinery cut out dimensionminimum width (mm)
615
Joinery cut out dimensionminimum depth (mm)
600
Plinth depth (mm) 76
Plinth Height (mm) 84
Weight Unloaded 52
Power Supply 240V / 10AMP
Electricity Consumption
(kWh/Day)
1
Ambient Temperature (deg) 5-35
Display Panel LED Digital Display
V40SG2ES3
V40SG2ES3 - 50 Bottle Wine Cabinet
Page 5
WINE CELLARS
Castors and Feet 4 Adjustable Feet
Internal Heater Yes
Lock Yes
Alarm Visual
Lighting Blue LED
Number of Shelves 4
Shelving Material Metallic
Shelving Type 3 Full, 1 Half
Shipping Weight (Kg) 52
Pack Dimensions Height
(mm)
880
Pack Dimension Width
(mm)
665
Pack Dimension Depth
(mm)
685
Type Wine Cabinet
Function Both
V40SG2ES3
V40SG2ES3 - 50 Bottle Wine Cabinet
Page 6

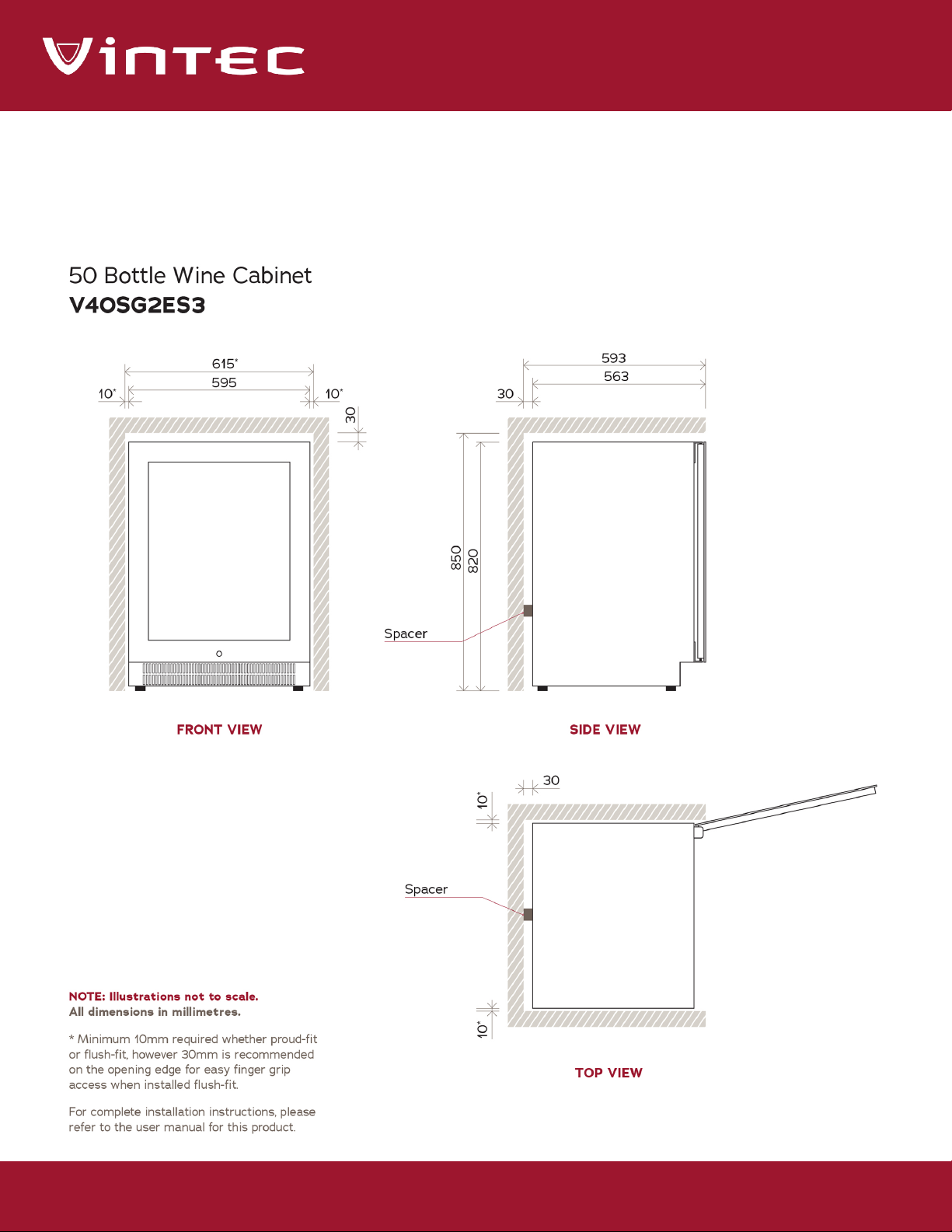

Dimensions
V40SG2ES3
V40SG2ES3 - 50 Bottle Wine Cabinet
Page 7
ELECTROLUX HOME PRODUCTS AUSTRALIA
telephone: 1300 363 640
fax: 1800 350 067
email: [email protected]
web: www.electrolux.com.au
ELECTROLUX HOME PRODUCTS NEW ZEALAND
telephone: 09 573 2230
fax: 09 573 2221
email: [email protected]
web: www.electrolux.co.nz
