Page 1

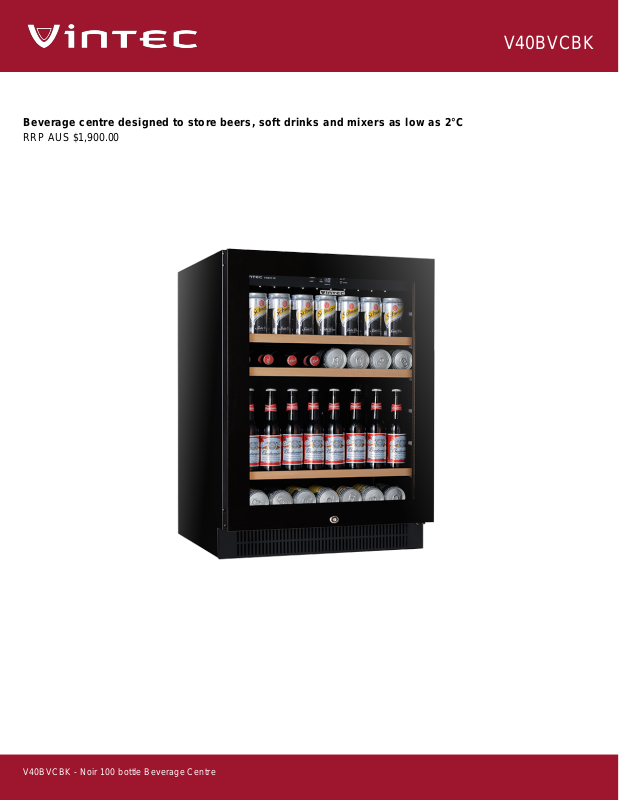

Beverage centre designed to store beers, soft drinks and mixers as low as 2°C
RRP AUS $1,900.00
V40BVCBK
V40BVCBK - Noir 100 bottle Beverage Centre
Page 2
Product Details
FEATURES
Triple glazed door, with
anti-UV glass
Adjustable shelves Security lock Reversible door
Digital temperature display LED internal lighting
BENEFITS
Perfect for Entertaining
Our beverage centre keeps beer cold at 2 - 5 degrees and chills
white wines and Champagne for serving.
Design
Could be paired with one of our Noir 50 bottle wine cabinets,
single zone V40SGEBK or dual zone V40SG2EBK.
V40BVCBK
V40BVCBK - Noir 100 bottle Beverage Centre
Page 3
Specifications
WINE CELLARS
Domestic Warranty 2
Installation Type Both
Finish Borderless Black Glass
Door Type Glass Door
Door Construction Triple Glazed, UV treated
Handle Recessed
Fridge door opening Reversible
Refrigerant R600a
Easy Capacity (Bottles) 80
Max Capacity (Bottles) 100
Main Function Serve Beer & White
Alternate Function None
No of Zones 1
Temperature Range Zone 1
(deg)
2 - 10 Degrees C
WINE CELLARS
Plinth depth (mm) 85
Plinth Height (mm) 85
Weight Unloaded 52
Power Supply 240V / 10AMP
Electricity Consumption
(kWh/Day)
1
Ambient Temperature (deg) 5-35
Display Panel LED Digital Display
Castors and Feet 4 Adjustable Feet
Lock Yes
Alarm Visual
Lighting White LED
Number of Shelves 3
Shelving Material Metallic with Wood Front
Shelving Type 3 Adjustable
V40BVCBK
V40BVCBK - Noir 100 bottle Beverage Centre
Page 4
WINE CELLARS
Height (mm) 820
Width (mm) 595
Depth(mm) 563
Depth Door Open (mm) 1140
Air space at sides (mm) 10
Air space above cabinet
(mm)
30
Joinery cut out dimensionminimum height (mm)
850
Joinery cut out dimensionminimum width (mm)
615
Joinery cut out dimensionminimum depth (mm)
600
WINE CELLARS
Shipping Weight (Kg) 52
Pack Dimensions Height
(mm)
880
Pack Dimension Width
(mm)
655
Pack Dimension Depth
(mm)
685
Type Beverage Center
Function Serve
V40BVCBK
V40BVCBK - Noir 100 bottle Beverage Centre
Page 5
ELECTROLUX HOME PRODUCTS AUSTRALIA
telephone: 1300 363 640
fax: 1800 350 067
email: [email protected]
web: www.electrolux.com.au
ELECTROLUX HOME PRODUCTS NEW ZEALAND
telephone: 09 573 2230
fax: 09 573 2221
email: [email protected]
web: www.electrolux.co.nz
Terms and Conditions
IMPORTANT
This is a guide of product dimensions only. For complete installation instructions, refer to the manual provided with product.
PRODUCT INFORMATION
The descriptors and illustrations in this publication apply to the specific products and models described as at the date of issue. Under our policy of
continuous productdevelopment, product specifications may change without notice. Prospective purchasers should therefore check with their retailer to
ensure this publication correctly describes theproducts that are being offered for sale. All information supplied is to be used for general reference
purposes only and is on the understanding that Electrolux Home Products PtyLtd (Australia) and Electrolux (NZ) Ltd (New Zealand) will not be liable for
any loss, liability or damage of whatever kind arising as a result of reliance on such information. Colours ofproducts illustrated are as close as printing
limitations allow. Electrolux will at all times comply with its obligations pursuant to law including Trade Practices (Australian Consumer Law) Act and
Regulations.
WARRANTY
This warranty only applies to Appliances purchased and used in Australia or New Zealand and used in normal domestic applications and is in addition to
(and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand. All warranties are subject to the
conditions set out in the warranty card accompanying the product when purchased.
V40BVCBK
V40BVCBK - Noir 100 bottle Beverage Centre
