The F-1™ gate operator has the capacity to operate swing gate up to
1500 lbs./12 ft. or 1000 lbs./16 ft. at 100% duty cycle under extreme
conditions. This effi cient operator provides a solution for high traffi c
commercial and residential applications. The F-1™ operator offers
effi ciency and technology combined in a single package.
THE VIKING F-1™ SWING GATE OPERATOR
Page 3
F-1 Vehicular Gate Operator • Revision F1NXMN10.D • October 2014
Page 4
PARTS DIAGRAM:
Item Description Part No.
1 Operator Cover Bolt (2) VASWCB
2 Operator Cover VNXF1CV
3 Output Shaft Knob DWOUK10
4 Output Shaft Cover VNXSWOSC
5 Clutch Key VAWRCK20
6 Clutch and Handle DWCL20
7 Output Arm DWAR20
8 Output Shaft DWOP20
9 Control Board VFLEXPCB
10 Fuse - 15 amp VNXF15A
11 Fuse - 4 amp VNXF4A
12 Limit Switch Holder DWLH10
13 Limit Switch (2) DULS10
14 Limit Cam & Holder DWLC10
15 Worm Gear #70 10:1 DWGB70
16 41B30 3/4 Sprocket (Gear) VASP3034
17 Chain #40x46 Pitches DWCA10
18 41B10 3/4 Sprocket (Motor) VASP1034
19 24V DC Gearhead Motor VAF1MO
20 Brush Kit VAMBK
21 Chassis VNXF1CH
22 Loop Rack VA-LR
23 Battery Switch DUMRS10
24 Motor Switch DUMRS10
25 Battery DUBA12
26 Modular Power Box Assembly VNXMPB
27 Toroid Transformer - 10 amp DUTT10
28 Power Box Panel Assembly VNXUPBPA
29 120V Receptacle VA120PL
30 Main Power Switch DUMRS10
31 Alarm DUAL10
32 Power Harness VNXSWPH
33 Limit Switch Harness VNXF1LSH
34 Multi-Part Arm Assembly (Standard) VA-F1ARM20
Option
Swivel Arm Assembly (for inclines up to 10°) VA-F1SWL20
2
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 5
OPERATOR REFERENCES:
1.
COVER BOLTS
2.
OUTPUT SHAFT COVER (HAT)
3.
MAIN COVER ASSEMBLY
4.
MANUAL RELEASE HANDLE releases the clutch to allow for manual operation
5.
CLUTCH KEY install if application does not require clutch to slip; remove to manually operate the gate
6.
OUTPUT ARM connects the Arm Assembly to Clutch & Handle Assembly
7.
VFLEX CONTROL BOARD
8.
MOTOR SWITCH discontinues power to the motor; also serves as a breaker that will self-trip to protect the motor circuitry
VIKING TECHNICAL SUPPORT 1.800.908.0884
9.
BATTERY SWITCH disconnects batteries from the charging circuit during troubleshooting
10.
MAIN AC POWER SWITCH discontinues the 115/230VAC power supplied to the operator
11.
EMI FUSE main power supply protection
12.
MODULAR POWER BOX ASSEMBLY removable; provides a convenient solution for optional low voltage installations
13.
LOOP RACK for convenient loop detector installation
14.
J-BOX high voltage power supply connection
15.
COVER BOLT MOUNTING BRACKET
3
Page 6

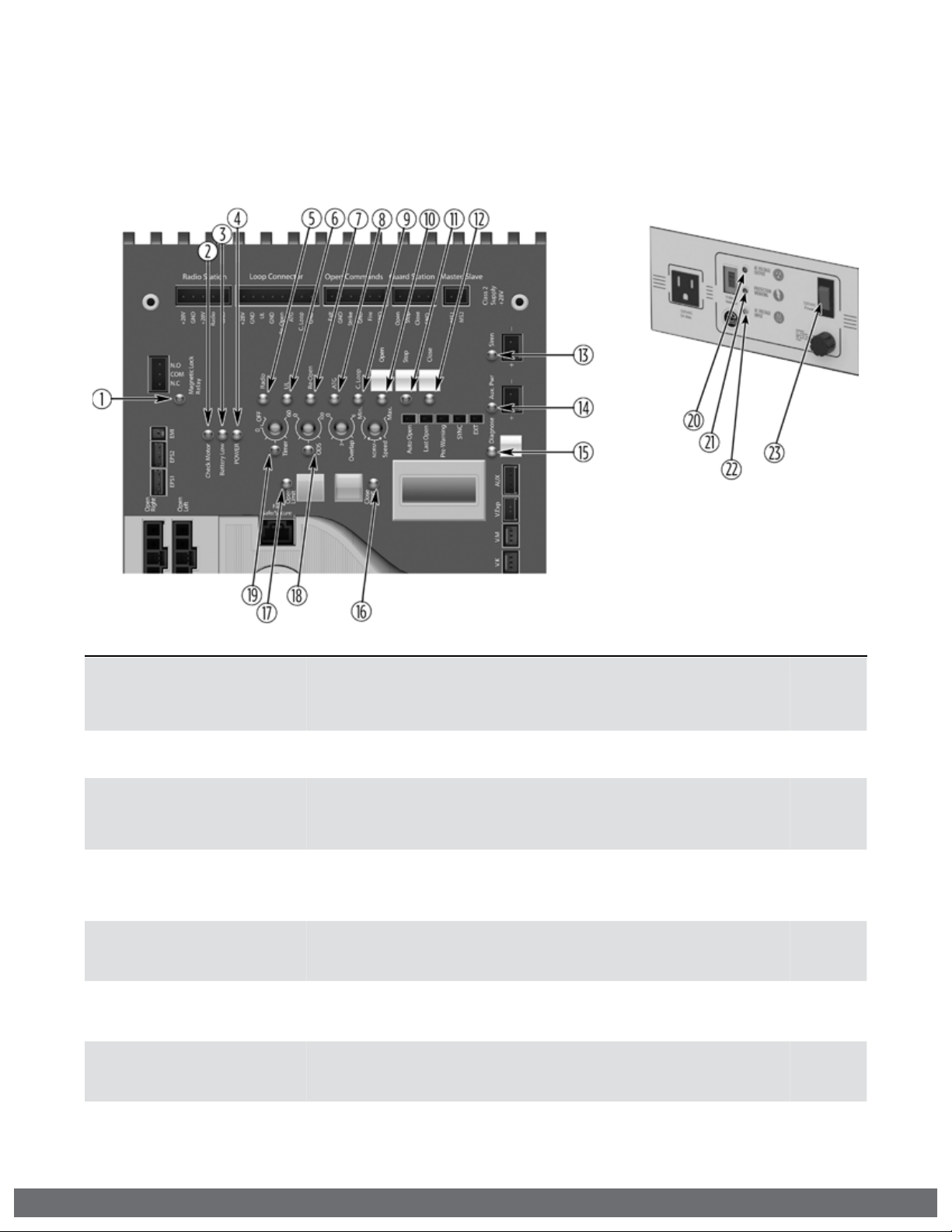

CONTROL BOARD REFERENCES:
1.
POWER HARNESS CONNECTOR provides power to the control board. pg 18-19
2.
“OPEN LEFT” & “OPEN RIGHT” provides power to the motor. pg 20
3.
LIMIT SETUP BUTTONS available for future developments.
4.

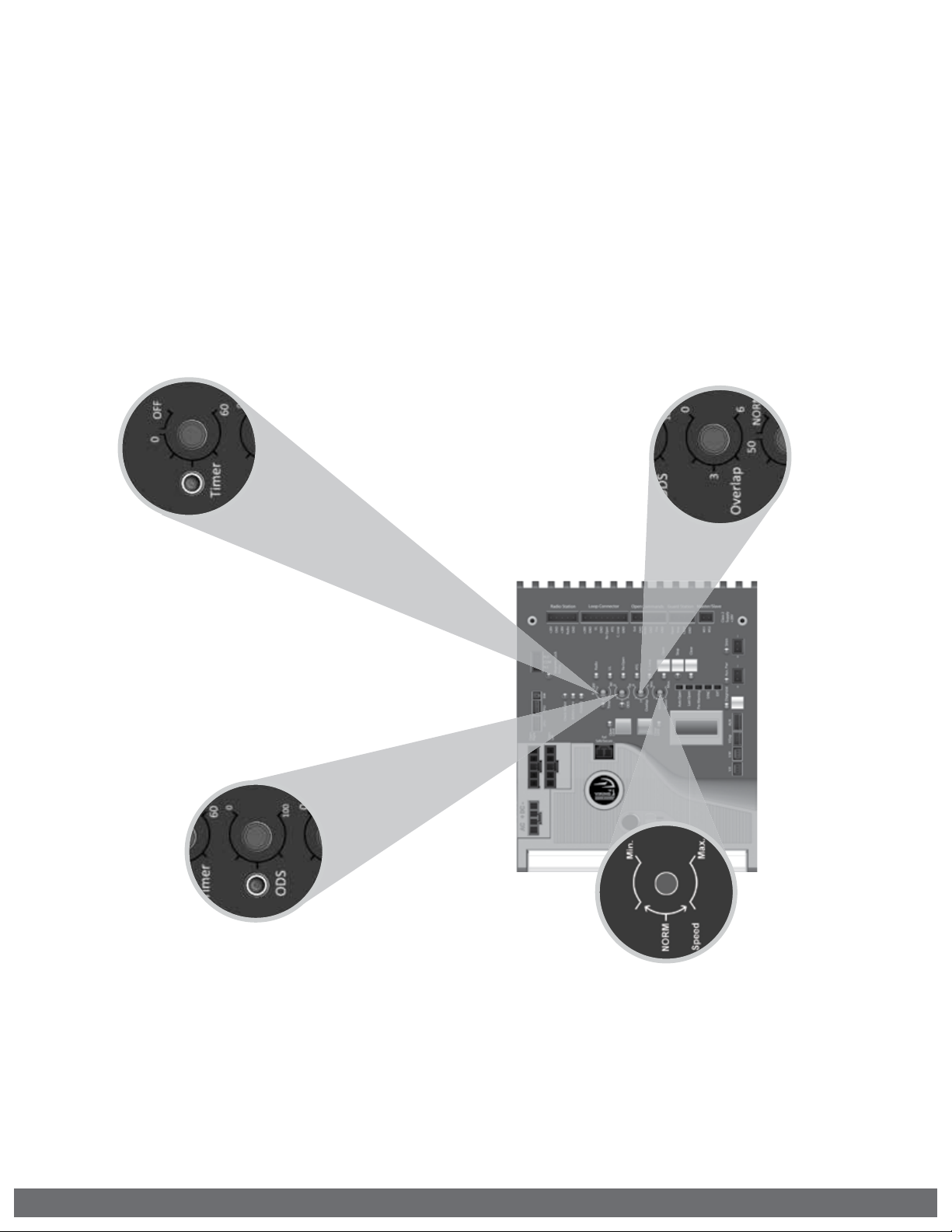

FEATURE ACTIVATION TRIM POTS activate and set features. pg 24
5.
“EPS1” CONNECTOR available for future developments.
6.
“EPS2” CONNECTOR available for future developments.
7.
EMI BOARD CONNECTOR monitors the high voltage power supply.
8.
“CHECK MOTOR” Status LED indicates motor power status. pg 36
9.
“BATTERY LOW” Status LED indicates battery power status. pg 36
10.
“POWER” Status LED control board power status. pg 18,36
11.
“MAGNETIC LOCK RELAY” Status LED status of this on-board relay. pg 34, 36
12.
“MAGNETIC LOCK RELAY” Terminal Block connect electric locks here. pg 34, 36
13.
INPUT STATUS LEDs indicates input status. pg 36-37
14.
ACCESS CONTROL TERMINAL BLOCKS accessory connections. pg 29-32, 42-44
15.
“MASTER/SLAVE” Terminal Block wired master/slave connection. pg 22
16.
CONTROL BOARD MOUNTING HOLES secures and grounds the control board.
17.
“Siren” Terminal Block Vikings UL Siren is connected here.
18.
ON-BOARD 3 BUTTON STATION controls the gate during set up.
19.
“AUX. PWR” Terminal Block used for solar applications & in-motion warning devices. pg 19, 25
20.
FEATURE ACTIVATION PIN HEADERS activate features by placing a jumper onto the pin headers. pg 25
21.

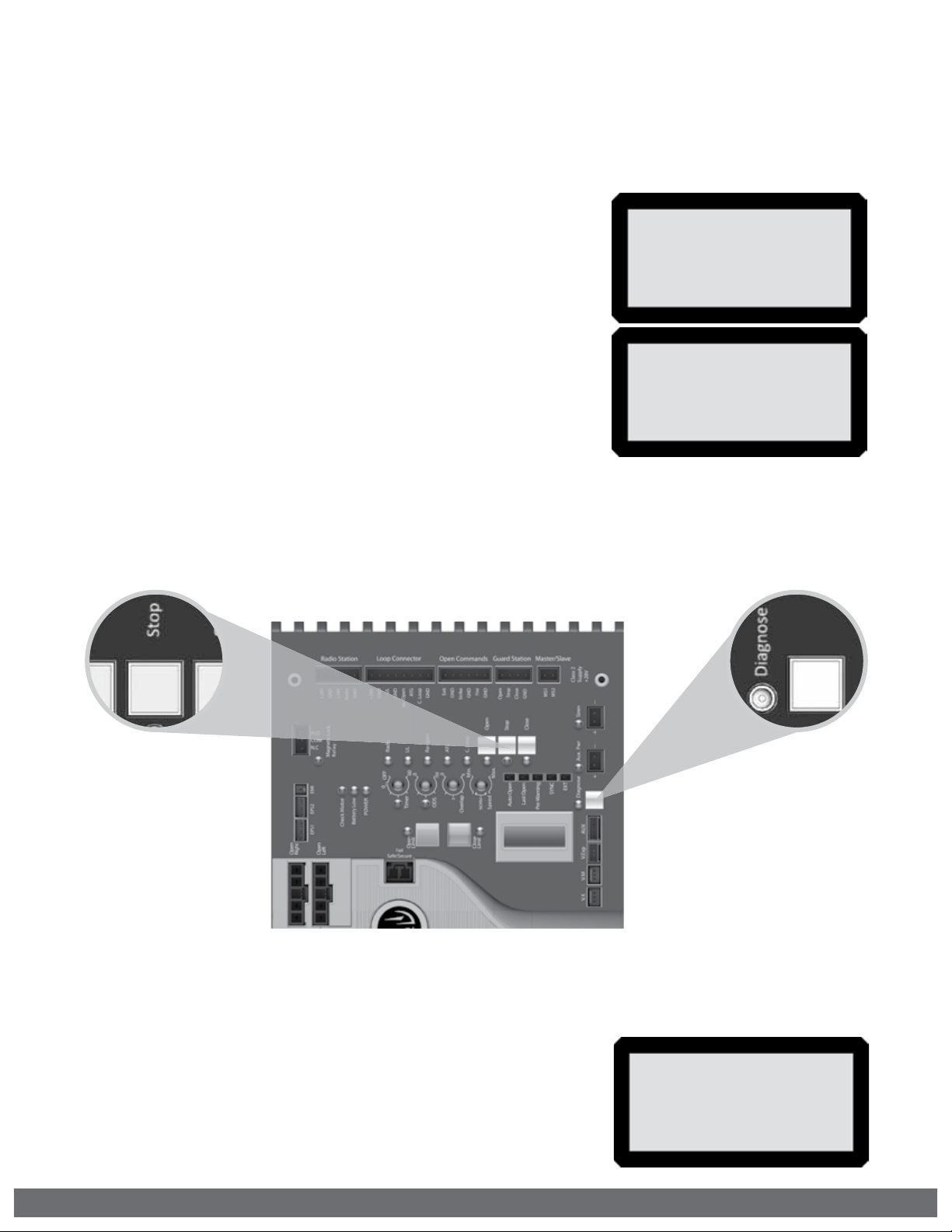

“DIAGNOSE” Button allows you to navigate through the Diagnostics LCD Display. pg 38-40
22.
“DIAGNOSE” LED informs that errors have been detected and available on LCD Display. pg 38-40
23.

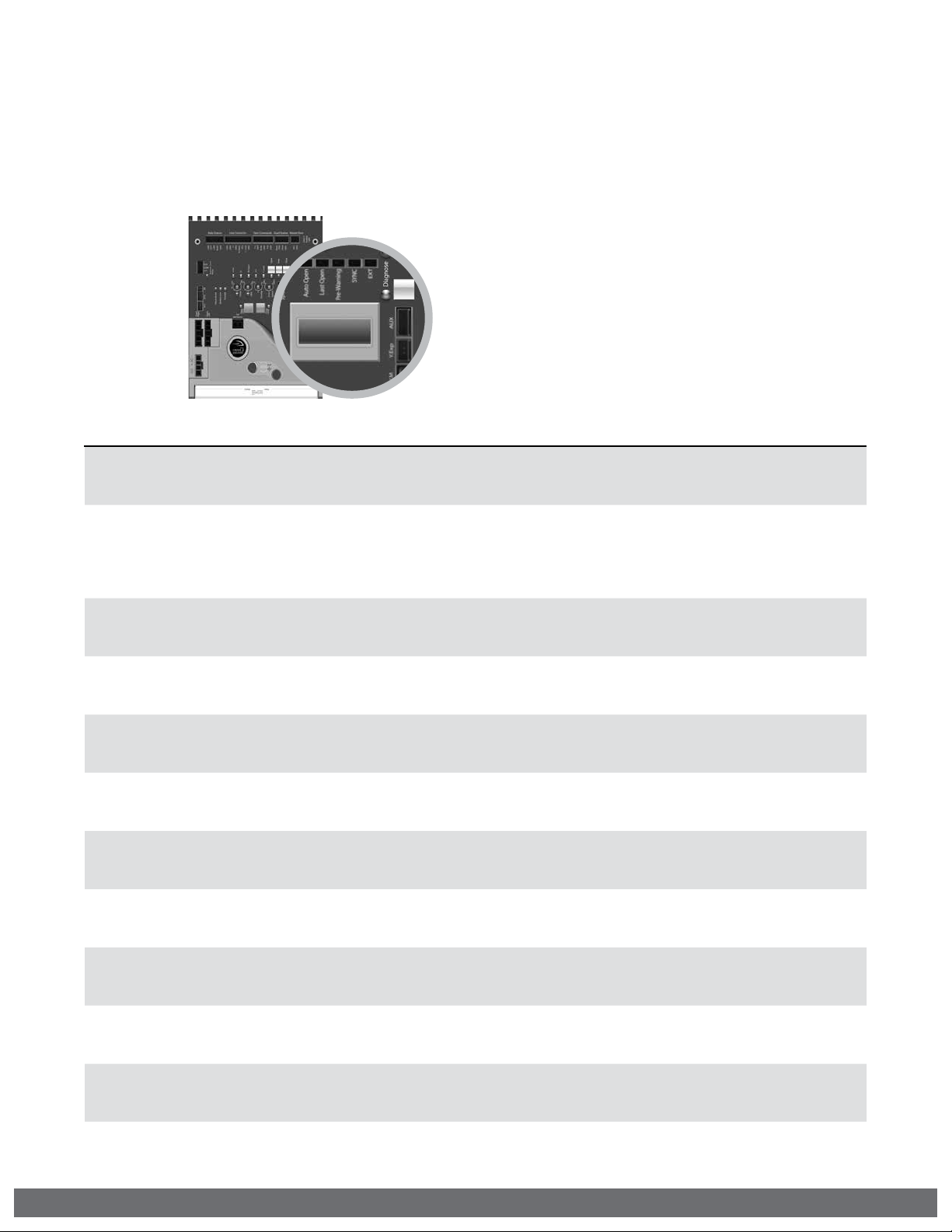

LCD DIAGNOSTICS DISPLAY provides error messages, diagnostics and operator status information. pg 38-40
24.
EXPANSION PRODUCT CONNECTIONS connections for additional products from Viking Access Systems. pg 46
25.
“FAIL SAFE/SECURE” Jumper power failure option. pg 25
26.
FUSE HOLDER - 15 AMP for motor circuit.
27.
FUSE HOLDER - 4 AMP for charging circuit.
28.
HEAT SINK secures the control board and dissipates heat.
4
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 7
TABLE OF CONTENTS:
22-23
46
42-45
PARTS DIAGRAM/PARTS LIST 2 OPERATOR REFERENCES 3 CONTROL BOARD REFERENCES 4 IMPORTANT SAFETY INFORMATION 6-12
Important Safety Instructions 6 Important Installation Instructions 7 Maintenance 8 General Safety Precautions 8-9 Operator Classification 9 Photo Beam (non-contact sensor) Installation 10 Edge Sensor (contact sensor) Installation 11 Manual Release 11 Audible Alarm Reset Installation 12 Warning Placard Installation 12
IMPORTANT INSTALLATION INFORMATION 13
Specifications 13
GATE OPERATOR INSTALLATION 14-17
Concrete Pad Option 14 (Blank Page) 15 Operator Positioning; Arm Assembly 16-17
ELECTRICAL INSTALLATION 18-19
High Voltage Supply Option 18 Low Voltage Supply Option 19 Solar Supply Option 19
LIMITS SETUP 20-21 MASTER/SLAVE SET UP 22-23
Two Wire Communication 22 Wireless Communication Options 23
CONTROL BOARD SETUP 24-27
Initial Settings 24-25 Obstruction Detection Sensor (Primary Entrapment Protection) 26
Heater, Lock Mode................................................................................................................. 27
ACCESSORY CONNECTIONS 29-35
Re-Open Photo Beam (Vehicular Safety) 29 Radio Receiver (Typical) 30 Anti-Tail Gate, Open Commands, Guard Station 31 Viking Loop Rack 32 Guidelines for Loop Installations 33 Magnetic Lock, Lock Solenoid 34 Barrier Arm (B-12) Synchronization Option 35
TROUBLESHOOTING 36-41
LED References 36-37 LCD Display References 38-40 Solutions 41
APPENDIX A, B & C 42-45 VIKING EXPANSION PRODUCTS 46
VIKING TECHNICAL SUPPORT 1.800.908.0884
5
Page 8
IMPORTANT SAFETY INFORMATION
! WARNING! Not Following these instructions may cause severe injury or death.
IMPORTANT SAFETY INSTRUCTIONS
! WARNING! To reduce the risk of severe injury or death.
1.
READ AND FOLLOW ALL INSTRUCTIONS.
2.
Never let children operate or play with gate controls. Keep the remote away from children.
3.
Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4.
Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or when an object activates the non-contact sensors. After adjusting the force or the limit travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of injury or death.
5.
Use the emergency release only when the gate is not moving.
6.
KEEP GATES PROPERLY MAINTAINED. Read the user’s manual. Have a qualified service person make repairs to gate hardware.
7.
The entrance is for vehicles only. Pedestrians must use a separate entrance.
8.
Every gate operator installation MUST have secondary protection devices against entrapment, such as edge sensors and photo beams more in particularly in places where the risk of entrapment is more likely to occur.
9.
SAVE THESE INSTRUCTIONS.
IMPORTANT INSTALLATION INSTRUCTIONS
1.
Install the gate operator only when: a.
The operator is appropriate for the construction of the gate and usage Class of the gate (refer to page 9),
b.
All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 6 feet (1.83 m) above the ground to prevent a 2-1/4 inch (57.2 mm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position,
c.
ALL EXPOSED PINCH POINTS ARE ELIMINATED OR GUARDED, AND
d.
GUARDING IS SUPPLIED FOR EXPOSED ROLLERS.
2.
The Operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that persons will not come into contact with the vehicular gate during the entire path of travel of the vehicular gate.
3.
The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open in to the public access areas.
4.
The gate must be properly installed and work freely in both directions prior to the installation of the gate operator. Do not over-tighten the operator clutch or pressure relief valve to compensate for a damaged gate.
5.
The gate operator controls must be placed so that the user has full view of the gate area when the gate is moving AND AWAY FROM THE GATE PATH PERIMETER.
6
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 9
IMPORTANT SAFETY INFORMATION
! WARNING! Not Following these instructions may cause severe injury or death.
IMPORTANT INSTALLATION INSTRUCTIONS (Continued)
6.
Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and where the user is prevented from reaching over, under, around or through the gate to operate the controls.
Exception: Emergency access controls only accessible by authorized personnel
(i.e. fire, police, EMS) may be placed at any location in the line-of-sight of the gate.
7.
The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start.
8.
A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
9.
For gate operators using non-contact sensors (Photo Beams or like) in accordance with section 31.1.1 of the UL standard:
a.
See instructions on the placement of non-contact sensors for each type of application (refer to page 10).
b.
Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is still moving, and
c.
One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists, such as the perimeter reachable by a moving gate or barrier (refer to page 10).
d.
Use only Omron E3K-R10K4 photoelectric eye to comply with UL 325
10.
For a gate operator utilizing a contact sensor (Edge sensor or like) in accordance with section 31.1.1 of the UL 325 standard:
a.
One or more contact sensors shall be located where the risk of entrapment or obstruction exists, such as a the leading edge, trailing edge, and post mounted both inside and outside of a vehicular horizontal slide gate.
b.
One or more contact sensors shall be located at the bottom of a vehicular vertical lift gate.
c.
One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.
d.
A hardwired contact sensor shall be located and its wiring arranged so that the communication between the sensor and the gate operator is not subject to mechanical damage.
e.
A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for entrapment protection functions shall be located where the transmission of the signals are not obstructed or impeded by building structures, natural landscaping or similar obstructions. A wireless contact sensor shall function under the intended end-use conditions.
f.
One or more contact sensors shall be located on the inside and outside leading edge of a swing gate. Additionally, if the bottom edge of a swing gate is greater than 6 inches (152 mm) above the ground at any point in its arc of travel, one or more contact sensors shall be located at the bottom edge (refer to page 11).
g.
One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm).
h.
Only Use Miller Edge Model MGR20 or MGS20 edge sensor to comply with UL325.
VIKING TECHNICAL SUPPORT 1.800.908.0884
7
Page 10
IMPORTANT SAFETY INFORMATION
! WARNING! Not Following these instructions may cause severe injury or death.
MAINTENANCE
Remove the Power Harness from the Control Board. (refer to page 18)
•Cleanandlubricatetheturningpinsandgatehingesusingtherecommended
lubricant.
•Checkthatallhardwareofthegateoperatorisproperlytighten.
•Ensurethatthegatemovesfreely.
•Checkforcorrodedpartsandreplaceifnecessary.
•Checkthebatteryforthefollowing:
- Battery connections must be free of corrosion.
- Battery voltage must be 26VDC (fully charged battery).
Reconnect the Power Harness for the Control Board. (refer to page 18)
•Checkandconfirmtheproperoperationofallsafetydevices(photoelectric
eye, edge sensors or like).
•Checkandconfirmtheoperationofallinstalledaccessories.
•CheckandconfirmtheoperationofallspecialfeaturessuchastheIntelligent
Obstruction Sensor, Hold Open Timer. (refer to page 24 and 26)
•Checkandconfirmtheoperationofthemanualrelease.(refertopage11)
•Verifythefunctionally of the battery backup, or power failure option, by
turning off the main power source (115VAC or 230VAC). DO NOT FORGET TO TURN ON THE MAIN POWER SOURCE AFTER VERIFICATION.
GENERAL SAFETY PRECAUTIONS
The following precautions are an integral and essential part of the product and must be supplied to the user. Read them carefully as they contain important indications for the safe installation, use and maintenance.
•Theseinstructionmustbekeptandforwardedtoallpossiblefutureusersofthe
system.
•Thisproductmustbeusedonlyforthatwhichithasbeenexpresslydesigned.
•Anyotheruseistobeconsideredimproperandthereforedangerous.
•Themanufacturercannotbeheldresponsibleforpossibledamagecausedby
improper, erroneous or unreasonable use.
•Avoidoperatingintheproximityofthehingesormovingmechanicalparts.
•Donotenterthepathofthemovinggatewhileinmotion.
•Donotobstructthemotionofthegateasthismaycauseasituationofdanger.
•Donotallowchildrentoplayorstaywithinthepathofthemovinggate.
•Keepremotecontroloranyothercontroldevicesoutofthereachofchildren,in
order to avoid possible involuntary activation of the gate operator.
•Incaseofbreakdownormalfunctioningoftheproduct,disconnectfromthemain
power source. Do not attempt to repair or intervene directly, contact only qualified personnel for repair.
•Failuretocomplywiththeabovemaycreateasituationofdanger.
•Allcleaning,maintenanceorrepairworkmustbecarriedoutbyqualifiedpersonnel.
•Inordertoguaranteethatthesystemworksefficientlyandcorrectlyitisimportant
to have the manufacturer’s instructions on maintenance of the gate and operator carried out by qualified personnel.
•Inparticular,regularchecksarerecommendedinordertoverifythatthesafety
devices are operating correctly.
All installation, maintenance and repair work must be documented and made available to the user.
8
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 11
IMPORTANT SAFETY INFORMATION
! CAUTION: To Reduce the Risk of Fire or Injury to Persons:
a.
Use only the following type and size battery(ies): Yuasa NP7-12 or VIKING DUBA12
b.
Donotdisposeofthebattery(ies)inre.Thecellsmayexplode.Checkwithlocal
codes for possible disposal instructions.
c.
Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
d.
Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys.
e.
Changethebattery(ies)providedwithoridentiedforusewiththisproductonlyin accordancewiththeinstructionsandlimitationsspeciedinthismanual.
f.
Observe proper polarity orientation between the battery(ies) and charging circuit.
g.
Do not mix batteries of differ ant sizes or from different manufactures in this product (applies to products employing more than one user replaceable secondary battery).
h.
A battery-operated product employing a secondary battery supply intended to be
chargedwithintheproductshallcontainspecicinstructionsconcerningtheproper
method of charging.
UL325 Gate Operator Classifications
GLOSSARY
RESIDENTIAL VEHICULAR GATE OPERATOR
CLASS I -
for use in garages or parking areas associated with a residence of one-to four single families.
COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR
CLASS II –
intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units), hotel, garages, retail store, or other building servicing the general public.
INDUSTRIAL/LIMITED ACCESS VEHICULAR GATE OPERATOR
CLASS III –
intended for use in an industrial location or building such as a factory or loading dock area or other locations not accessible by or intended to service the
general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR
CLASS IV –
intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations not servicing the general public, in which unauthorized access is prevented via supervision by security personnel.
A vehicular gate operator (or system) intended
A vehicular gate operator (or system)
A vehicular gate operator (or system)
A vehicular gate operator (or system)
Install the gate operator only when:
The operator is appropriate for the construction of the gate and the Usage Class of the gate.
VIKING TECHNICAL SUPPORT 1.800.908.0884
9
Page 12
IMPORTANT SAFETY INFORMATION
! WARNING! Not Following these instructions may cause severe injury or death.
NOTE: This type on installation DOES NOT reverse the gate all the way back to its limits when the photo beam is obstructed. This installation is only to protect against entrapment and to comply with UL325.
Secondary Entrapment Protection
Photo Beam (non-contact sensor) Installation
•
Photo beams or like must be installed to reduce the risk of entrapment.
•
Use only Omron E3K-R10K4 photoelectric eye to comply with UL325
•
Make the electrical connections of the photoelectric sensor as described here in this page.
•
Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is still moving, and;
•
One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists, such as the perimeter reachable by a moving gate or barrier.
Consult the installation manual for the UL325 device (photo beam or like) for detail information about the usage, installation and maintenance.
10
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 13
IMPORTANT SAFETY INFORMATION
! WARNING! Not Following these instructions may cause severe injury or death.
NOTE: This type on installation DOES NOT reverse the gate all the way back to its limits when the edge sensor is obstructed. This installation is only to protect against entrapment and to comply with UL325.
Secondary Entrapment Protection
Edge Sensor (contact sensor) Installation
•
Edge Sensors or like must be installed to reduce the risk of entrapment.
•
Use only Miller Edge 3-sided activation type MGR20 or MGS20 to comply with UL325
•
One or more contact sensors shall be located on the inside and outside leading edge of a swing gate. Additionally, if the bottom edge of a swing gate is greater than 6 inches (152 mm) above the ground at any point in its arc of travel, one or more contact sensors shall be located on the bottom edge.
1.
A hardwired contact sensor shall be located and its wiring arranged so that the communication between the sensor and the gate operator is not subjected to mechanical damage.
2.
A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for entrapment protection functions shall be located where the transmission of the signals are not obstructed or impeded by building structures, natural landscaping or similar obstruction. A wireless contact sensor shall function under the intended end-use conditions.
Manual Release
When manual operation is required:
1.
Remove the “Output Shaft Cover” or Hat.
2.
Lift the “Manual Release Handle”.
3.
Remove the “Clutch Key”.
To resume normal operation:
1.
Align the notches on the Output Shaft to the clutch and reinstall the Clutch Key.
2.
Push the Manual Release Handle down, back to the locked position.
Refer to page 17 for more details
VIKING TECHNICAL SUPPORT 1.800.908.0884
11
Page 14
IMPORTANT SAFETY INFORMATION
! WARNING! Not Following these instructions may cause severe injury or death.
Audible Alarm Reset Switch Installation
Manual Reset for the Audible Alarm
•
UL325 standard requires an audible alarm to sound after two consecutive events detected by the primary entrapment protection of the gate operator (obstruction sensor).
•
The audible alarm will continue to sound for 5 minutes or until a stop command gets actuated.
•
The Stop command can be actuated in two different forms:
1.
Using the Built in Stop switch on the Control Board or;
2.
Using an External Stop button within the sight of the gate, away from moving parts of the gate and out of reach of children.
a.
Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and where the user is prevented from reaching over, under, around or through the gate to operate the controls. Outdoor or easily accessible controls shall have a security feature to prevent unauthorized use.
b.
The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start.
2
Warning Placard Installation
•
All Warning Placards must be installed where visible in the area of the gate.
•
A minimum of two placards shall be in­stalled.
•
A placard is to be installed in the area of each side of the gate and be visible.
12
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 15
IMPORTANT INSTALLATION INFORMATION
! CAUTION: To Reduce the Risk of Fire or Injury to Persons: ! WARNING: For use with gates at a maximum 1500 lbs. in weight or 16 ft. in length.
DO NOT allow pedestrian use of this gate DO NOT install the gate operator to lift gates
Locate Control Buttons:
1.
Within sight of the gate,
2.
At a minimum height of 5 feet so small children are not able to reach it; and
3.
At least 6 feet away from all moving parts of the gate.
16 ft.
1000 lb.
12 ft.
1500 lb.
Specications:
Maximum Gate Length: 16 ft. / 12 ft. Maximum Gate Weight: 1000 lb. / 1500 lb. Operating Temperature: -20°F (-28°C) to 160°F (71°C) Power Requirements: 115VAC / 230VAC (5.5* Amp / 1.25 Amp)
Single Phase (50Hz / 60Hz) Alternative Power 24VAC / VDC (60VA) or Solar
*Includes 3 amp load on receptacle
VIKING TECHNICAL SUPPORT 1.800.908.0884
13
Page 16
GATE OPERATOR INSTALLATION

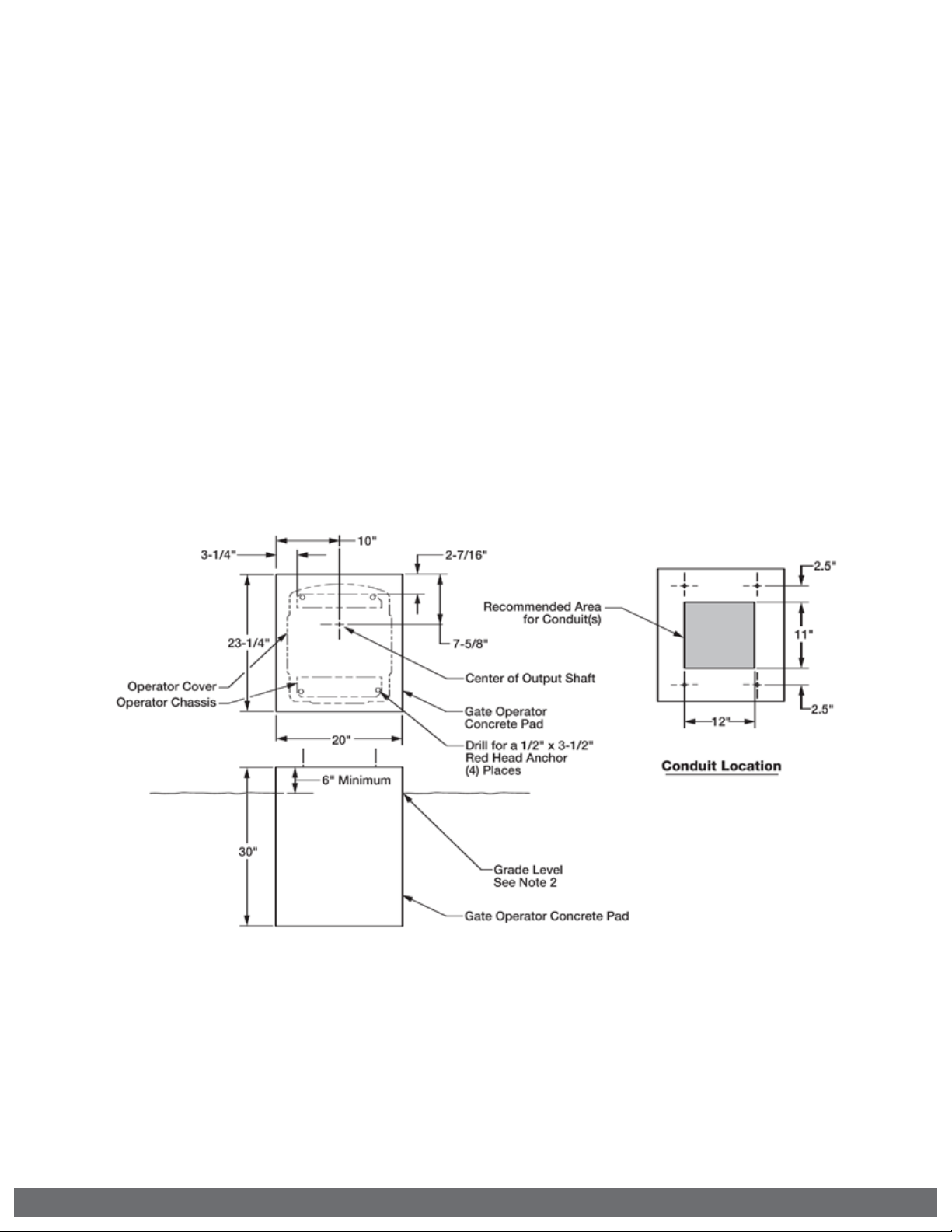

Concrete Pad Option
1.
Follow the local building code to determine the required depth of the concrete pad.
2.
Pad measurements recommended by Viking Access Systems are at least 23” long, 20” wide and 30” deep to ensure the stable operation of the operator, and a minimum of 6” above level grade to avoid any flooding of the machinery.
3.
Provide a sufficient number of conduit pathways for all low power accessories such as loop detector leads, maglock, non-contact sensors, contact sensors, safety and other commands. Also provide conduit for the power supply to the operator.
! DO NOT run low voltage and high voltage wiring in the same conduit. ! Provide at least 12” separation between low and high voltage conduits.
14
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 17
GATE OPERATOR INSTALLATION

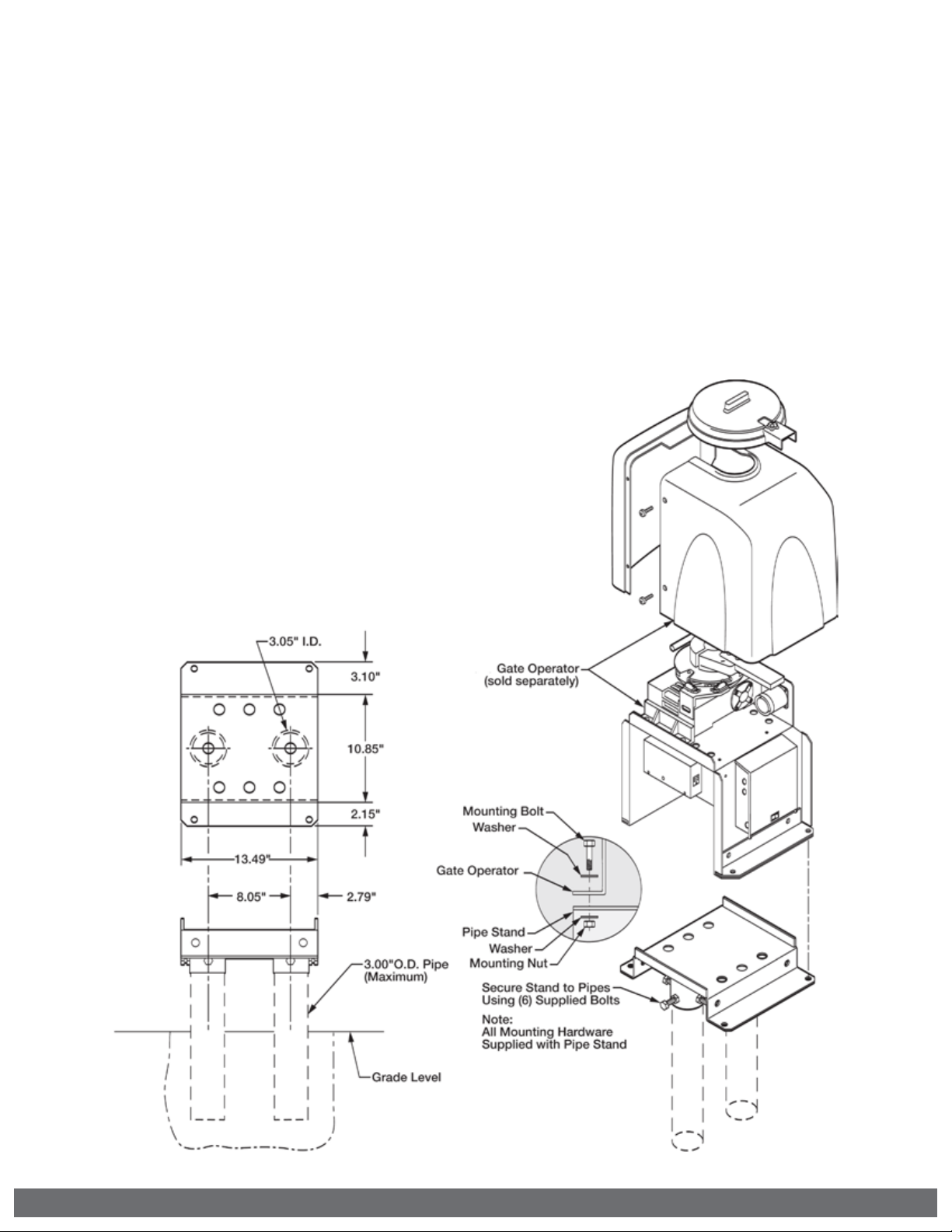

Post Mounting Option
TIP:
The operator can be post mounted to be elevated above snow and flood lines.
1.
Consult the local building codes for the depth and concrete requirements.
2.
Maximum 3.00” OD pipe.
3.
Provide a sufficient number of conduit pathways for all low power accessories. Also provide conduit for the power supply to the operator.
! DO NOT run low voltage and high voltage wiring in the same conduit. ! Provide at least 12” separation between low and high voltage conduits.
REQUIRED ADD-ON: PART# VA-F 1PS
•
Main pieces made of 1/4” thick material
•
All mounting hardware is included
•
Posts and U-Bolts are not supplied
VIKING TECHNICAL SUPPORT 1.800.908.0884
15
Page 18
GATE OPERATOR INSTALLATION
Operator Positioning
! IMPO R TANT: Swing Gates must not open into public access areas.
The gate must be installed in a location so that enough clearance is supplied between the gate, while opening and closing, and adjacent structures to reduce the risk of entrapment.

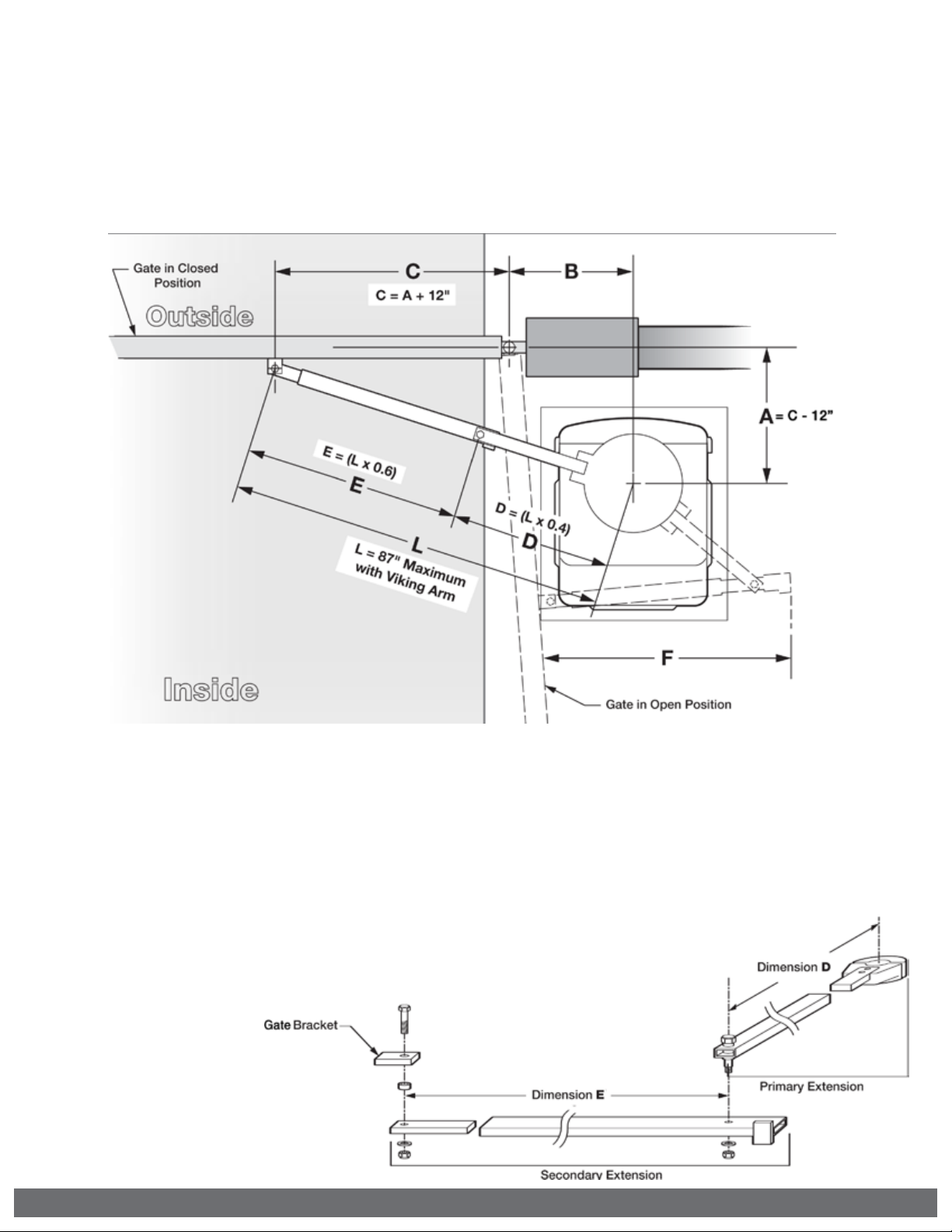

! TECHNICAL TIPS: Operator and Arm Geometry
•
Increasing “C” dimension provides better gate control and stability by reducing the effects of inertia and deceasing the gate leverage against the operator.
•
Following to the geometrical formulas and relationships provided is recommended.
Arm Assembly: VA-F1ARM20 and VA-F1SWL20
VA-F1ARM (Standard) Typical installations. Gate travels level.
VA-F1SWL20 (Option) Gate travels on an incline, up to 10° and with a maximum pull scale force of 70 lbs. to manually pull the gate up grade,
16
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 19
GATE OPERATOR INSTALLATION
! IMPO R TANT: When attaching the Arm Assembly to the gate, if the “Gate Bracket” is not
welded to a frame member that runs the full length of the gate, the operator may damage the gate. Do not attach the Gate Bracket to only a few pickets.
STEP 1
Install the Clutch and cut the Arm Assembly to achieve the desired dimensions for “D” and “E” according to the formulas provided on page 16.
! TIP: Leave some additional material
when cutting the Arm Assembly to allow for adjustment.
STEP 3
With the Clutch installed and released, manually move the gate to both limits. Verify the following:
1.
The gate reaches the desired limits.
2.
The Arm does not bind at any point.
STEP 2
With the gate at the closed, install the Arm Assembly. Check that the dimensions correspond accordingly to the formulas provided on page 16.
! TIP: Use C-clamps or tack-weld the Arm
assembly in place until Step 3 has been completed.
STEP 4
Once satisfied with the installation and movement of the gate, weld the arm pieces securely. Paint the Arm to protect against rusting.
STEP 5
Rotate the Clutch until it lines up with the notches on top of the Output Shaft and insert the Clutch Key.
VIKING TECHNICAL SUPPORT 1.800.908.0884
STEP 6
Verify the Clutch is adjusted properly.
•
Both sides adjusted evenly.
•
Handle is locked, by hand, and
positioned horizontally at 0°. With the Clutch Key removed, the Clutch should not slip with moderate force applied to the gate.
17
Page 20
ELECTRICAL INSTALLATION
Ground Rod
1a
1b
3b
3c
3d
High Voltage Supply Option
!
Caution: Always turn off power breakers when working with high voltage. DO NOT
connect the “Power Harness” to the Control Board until the electrical installation is complete and ready for verification.

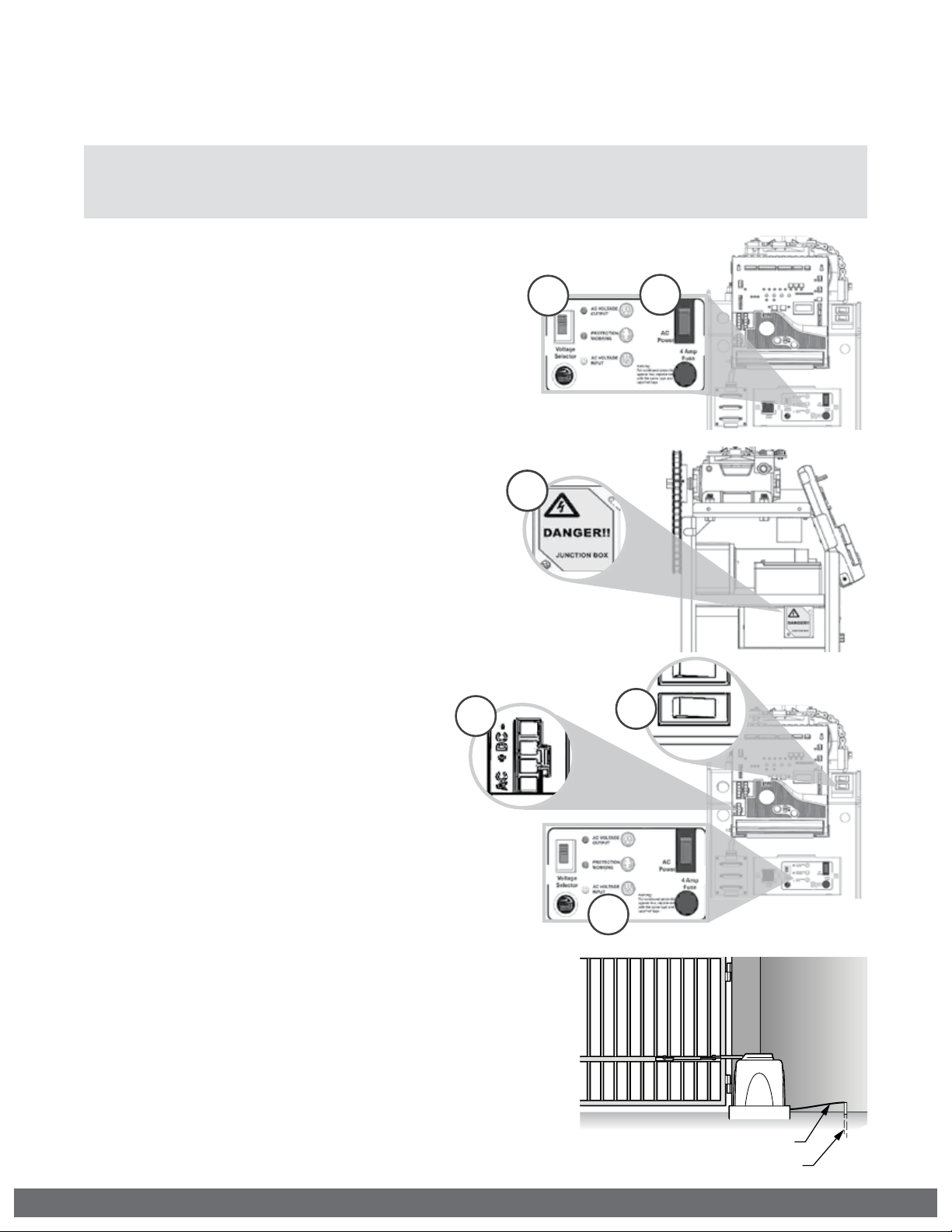

STEP 1
At the “Power Box”:
a.
Set the “Voltage Selector” according to the supply voltage (115V or 230V).
b.
Turn the “AC Power” switch ON
STEP 2
!
WARNING: SINGLE PHASE AC ONLY
At the “J-Box”:
a.
Connect the incoming power wires, matching the wire color codes.
b.
If the supply voltage is 120VAC, connect the red wire, labeled “Outlet Power”, to the neutral (white) wires.
2a
STEP 3
a.
Turn ON the main facility breaker
b.
Verify that all three (3) LEDs are illuminated at the “Power Box”.
c.
Turn the “Battery Switch” ON.
At the Control Board:
d.
Connect the Power Harness and verify the “POWER” LED is illuminated solid.
! TECHNICAL TIP: If the “Power” LED is
flashing or any of the 3 LEDs on the “Power Box” are not illuminated, refer to the Troubleshooting pages.
Tips for proper ground installation:
To minimize the effects caused by lightning, follow these guidelines.
•
Use a ground rod to provide a ground reference.
•
Consult your city code and be aware of under-ground services in the site of the gate operator to prevent inconveniences.
•
Always use a single bonding point for grounding.
•
All ground wires must be as short and as thick as possible.
•
Prevent unnecessary turns or loops in all ground wires.
Earth Ground
18
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 21
ELECTRICAL INSTALLATION
B
A

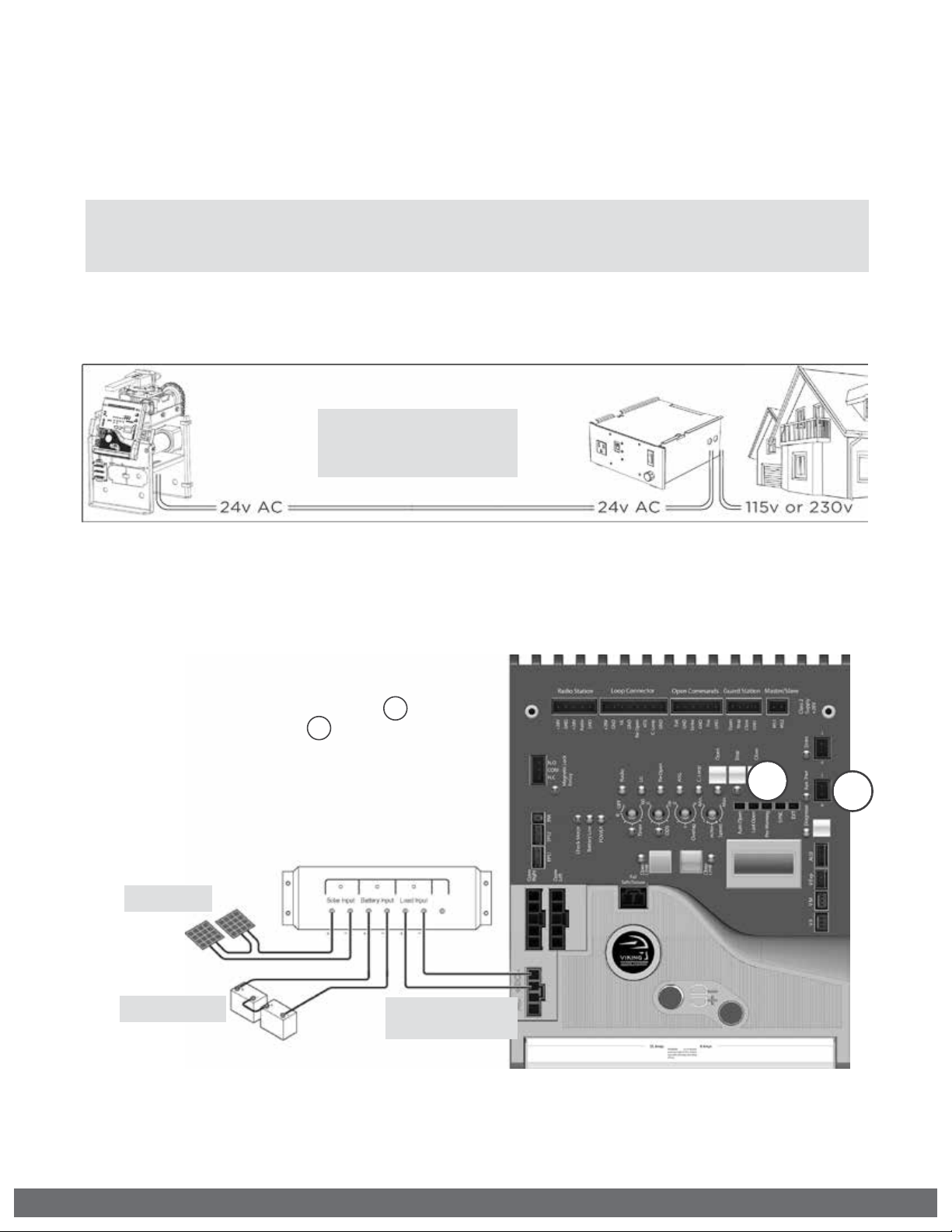

Low Voltage Supply Option
TIP:
The operator is equipped with a Modular Power Box that can be relocated to
provide power for low voltage installations. Supplies 24VAC to the operator.
! Caution: Always turn off power breakers when working with high voltage. DO NOT
connect the “Power Harness” to the Control Board until the electrical installation is complete and ready for verification.
Remove the “Power Box” from the operators chassis and relocate to the nearest high voltage source (115V or 230V single phase AC). Follow local codes or guidelines.
MAXIMUM DISTANCE:
500 ft. with 10 AWG wire

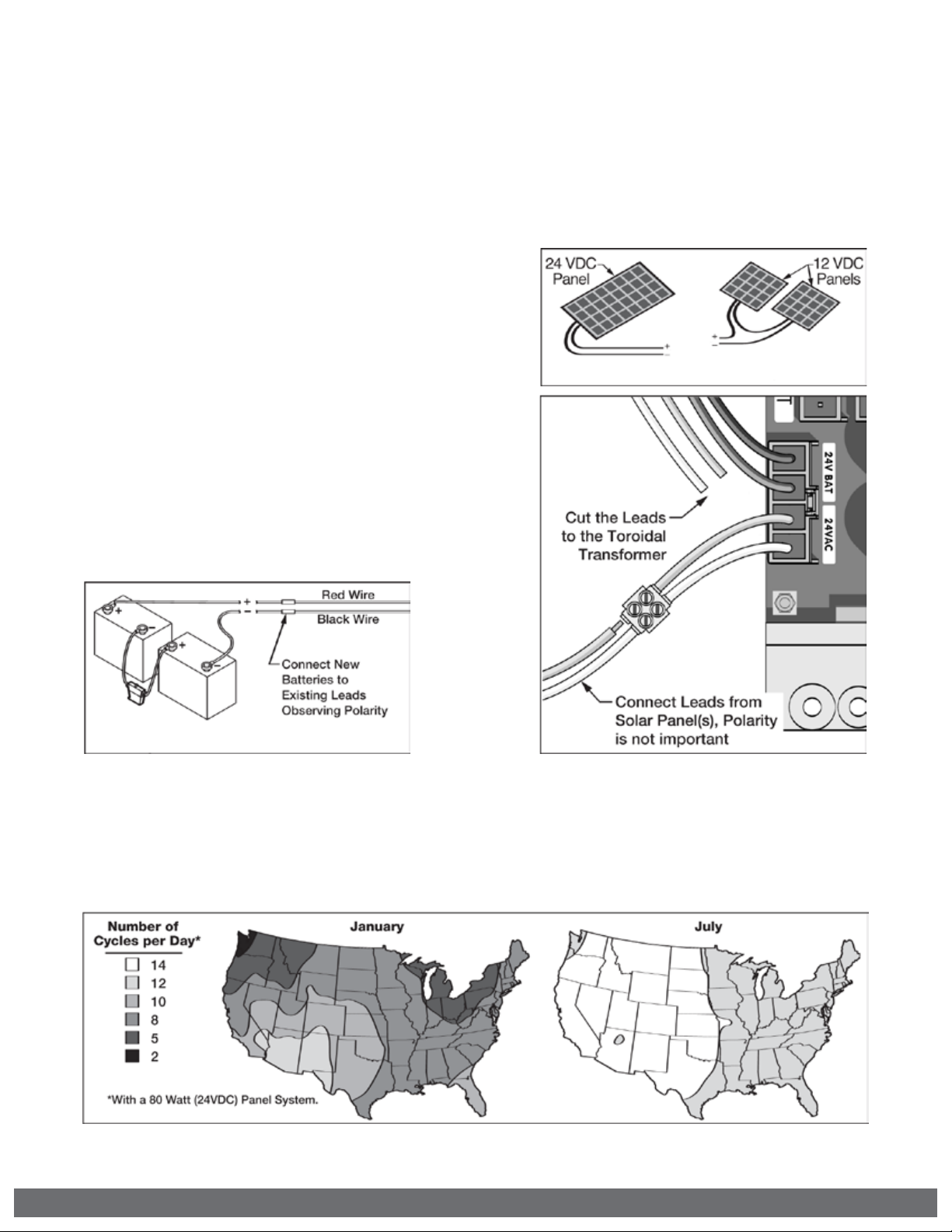

Solar Supply Option
Vikings Solar Package (part # VA-SOCHP) is an efficient and effective solution to powering the operator with solar energy. (See page 46 for package details)
! Tip: Solar efficiency can be increased
by activating the “Pre-Warning” feature. The “Aux. Pwr” terminals will then provide power to all nonessential controls beginning 3 seconds prior to gate movement and while the gate is moving. (page 25)
Connect the two panels in series.
Connect the batteries in series.
B
A
Disconnect the operators power harness and use the Solar Harness.
! IMPORTANT: The number of cycles achieved daily is dependent on many factors,
including local solar radiation data and power consumption of the motor and accessories. It is very important that you consider this when using solar power.
VIKING TECHNICAL SUPPORT 1.800.908.0884
19
Page 22
LIMITS SETUP

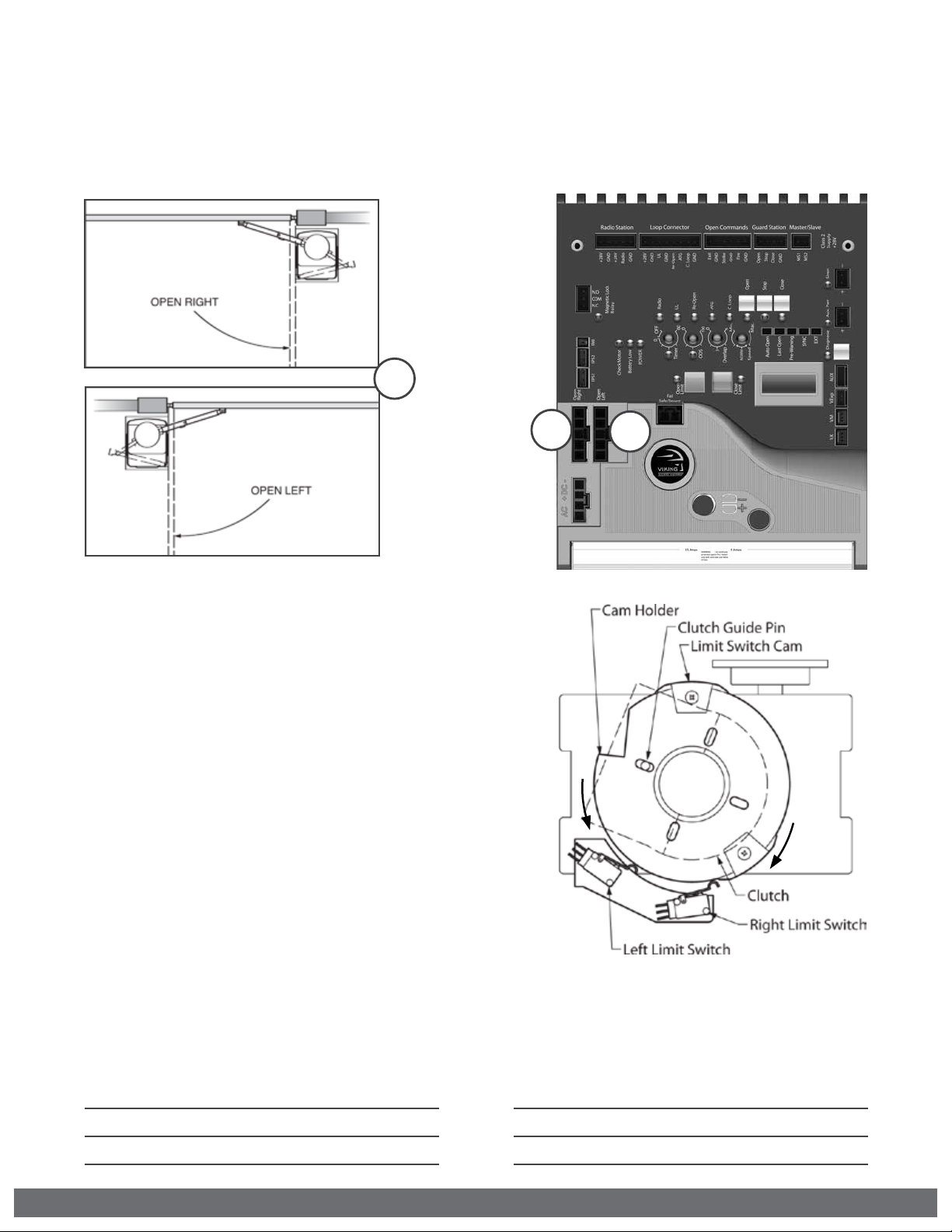

STEP 1 Connect the “Limit Switch Harness” to the Control Board.
a.
“OPEN RIGHT” Connector if the gate opens Right.
b.
“OPEN LEFT” Connector if the gate opens Left.
1
STEP 2
At the “Limit Cam & Holder” assembly:
a.
Loosen screws on both of the “Limit Switch Cams”.
b.
With the Articulating Arm and “Clutch” installed, insure that the “Clutch Guide Pin” is seated into one of the four holes on the “Cam Holder”.
c.
Move the gate manually to the desired closed limit position and adjust the nearest Limit Switch Cam to actuate the corresponding limit switch.
d.
Slight tighten the Limit Cam Screw.
e.
Repeat Step 2c & 2d for the desired open limit position.
f.
Run the 2 full cycles before confirming your limit settings. Adjust accordingly if required.
1a
1b
Tip: Referring to Step 2b. The “Cam Holder” contains four (4) Guide Pin holes to allow
for proper positioning, if required, due to an alternative operator orientation.
Gate OPENS to the LEFT
Left Limit Switch = Closed Limit
Right Limit Switch = Open Limit
20
Left Limit Switch = Open Limit
Right Limit Switch = Closed Limit
Gate OPENS to the RIGHT
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 23

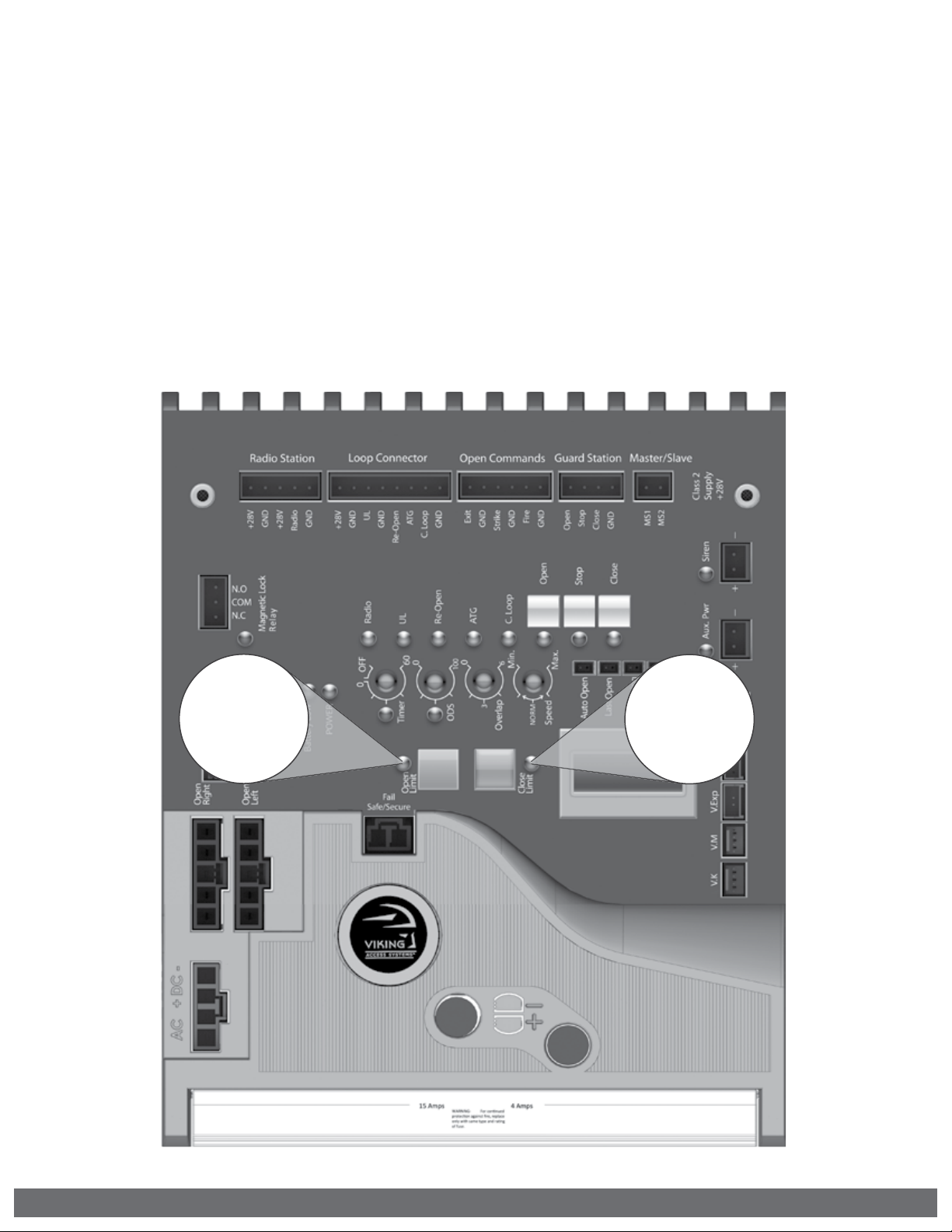

LIMITS SETUP
! IMPORTANT: This gate operator uses mechanical limit switches. Therefore, the limits
cannot be set electronically by the control board. The Limit Buttons on the control board have been rendered inactive.
! TECHNICAL TIP: Each Limit LED will illuminate solid when the corresponding limit switch
is actuated. The LEDs will flash simultaneously while both limit switches are actuated at the same time. This display may indicate a problem with the limit switches or wires.
“Open Limit” LED indicates the gate is at the open limit.
“Close Limit” LED indicates the gate is at the close limit.
VIKING TECHNICAL SUPPORT 1.800.908.0884
21
Page 24
MASTER/SLAVE SETUP
Two Wire Communication
!
IMPORTANT: DO NOT run the Master/Slave communication cable in the same conduit
or within 12” of 115 - 230v power supply cables.
! Technical Tip: DO NOT set the “Timer” and/or “Overlap” features on both operators
Control Boards. Only turn these features on at the Master Control Board.

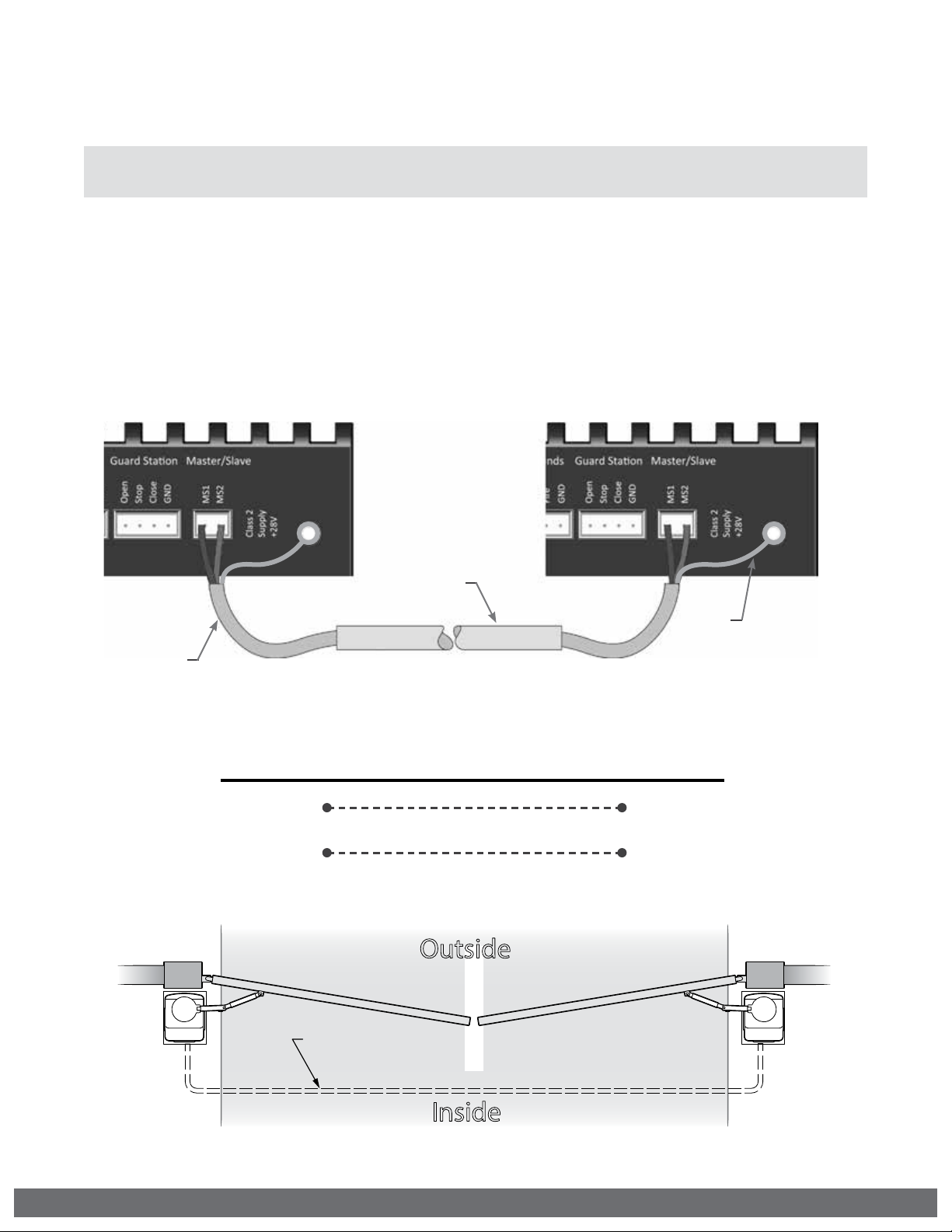

CABLE REQUIREMENTS:
•
2 Conductor (wire)
•
18 AWG or better
•
Shielded (overall foil)
•
Drain Wire (non-insulated or bare wire)
Shielded Cable
Master Board
“MS1”
“MS2”
Conduit
Drain Wire
Slave Board
“MS1”
“MS2”
22
Conduit between Master and Slave
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 25
MASTER/SLAVE SETUP

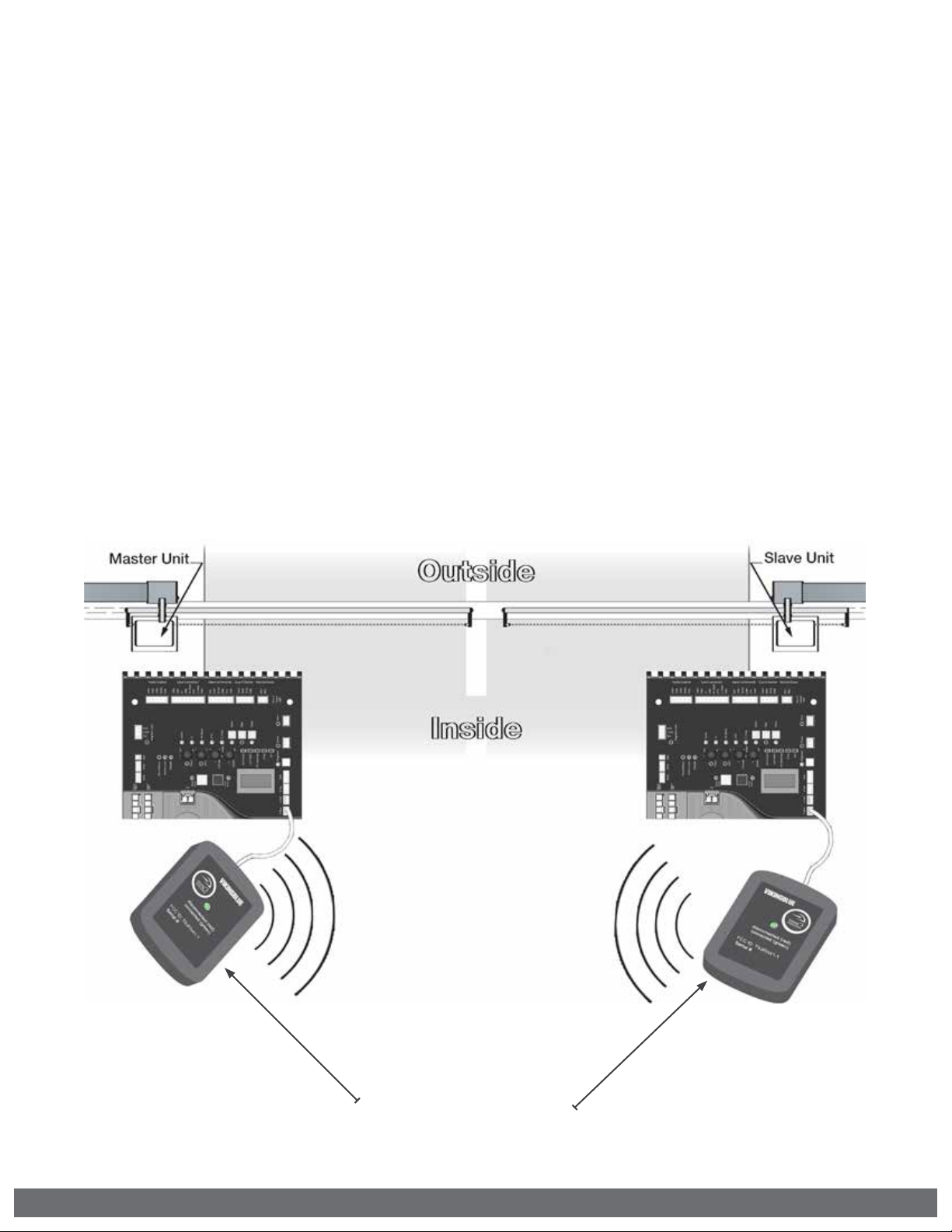

Wireless Communication Options
!
Technical Tip: DO NOT set the “Timer” and/or “Overlap” features on both operators
Control Boards. Only turn these features on at the Master Control Board.
REQUIRED ADD-ON: Choose option A or B
A.
Viking Konnect - Wireless Master/Slave Kit
PART# VA-KONNECT-MS
B.
Viking Blue - Wireless Master/Slave Kit
PART# VA-BLUE-MSKT
Connect the Modules provided to the “V.K” plug & play connection of each operators Control Board. It is not important which board the master or slave module is placed on.
VIKING TECHNICAL SUPPORT 1.800.908.0884
Green LEDs will be illuminated solid when communication is ON.
23
Page 26
CONTROL BOARD SETUP
Initial Settings
“Timer” Hold Open Timer
Automatically closes the gate after the selected amount of time from 1-60 seconds.
Turning the dial between “0” and “OFF” will disable this feature, requiring a close command to close the gate.
“Overlap” Overlap Delay
For Master/Slave applications. The control board that has this feature turned on is the MASTER and will delay from 1-6 seconds. Slave will delay to close.
! Do not turn this feature on at both
control boards, only the Master.
“ODS” Obstruction Detection Sensor
Sets the amount of force required to trip the inherent obstruction sensor.
See page 26 for more details about this feature.
24
“Speed” Motor Speed
Increases or decreases the speed of gate travel.
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 27
Initial Settings
CONTROL BOARD SETUP
NOTE:
Installing a shunt or jumper on the pins will activate the feature.

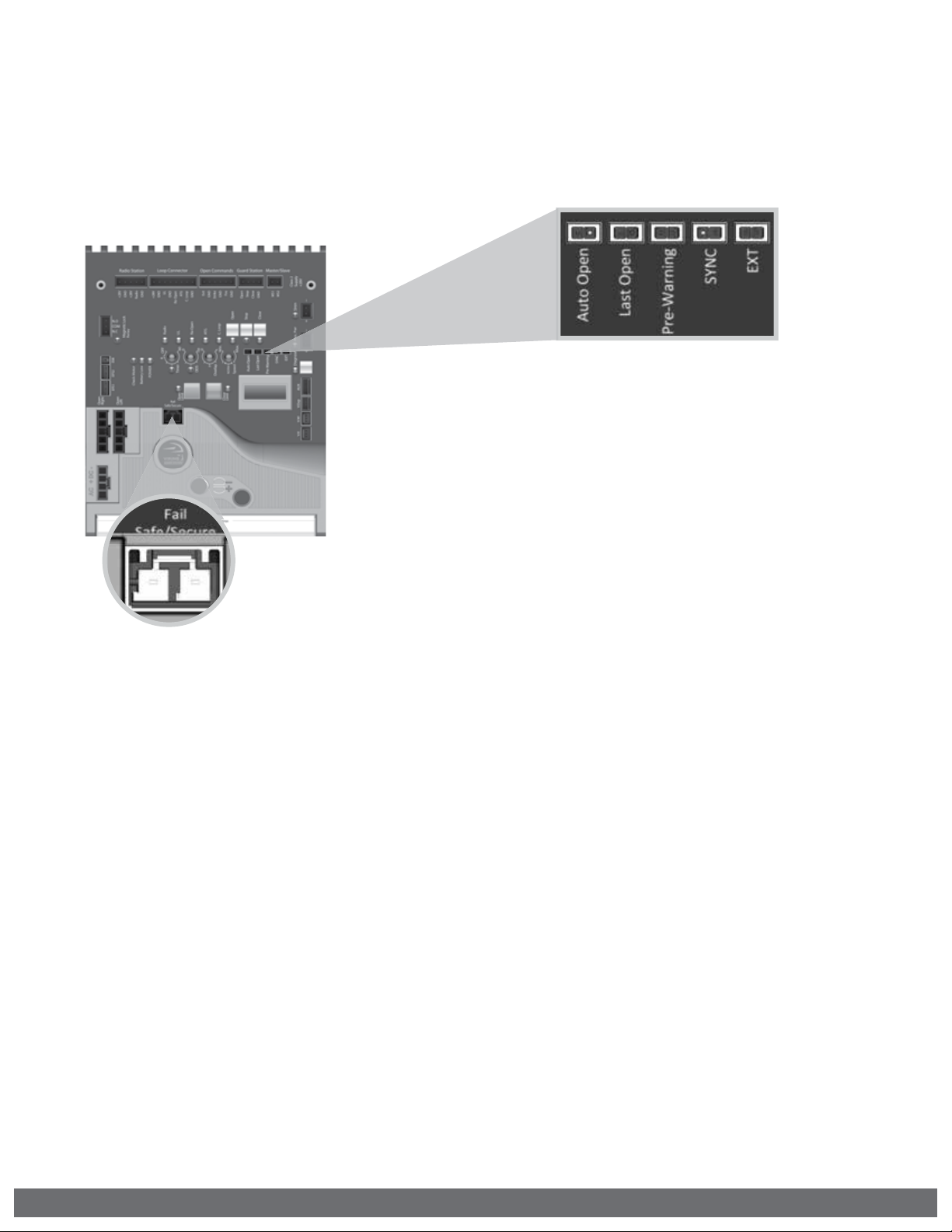

“Auto Open” - Power Failure Option
Opens the gate automatically during power failure. Resumes normal operation when power is restored.
“Last Open” - Power Failure Option
Opens the gate automatically when the battery backup voltage is critically low.
“Fail Safe/Secure”
During complete power failure, including battery power; determines the force required to manually move the gate.
•
Fail Safe Mode:
By removing the wire­jumper plug from the “Fail Safe/Secure” connector: The gate can move manually with a relatively low amount of force.
•
Fail Secure Mode:
By inserting the wire­jumper plug into the “Fail Safe/Secure” connector: The gate will not move manually.
“Pre-Warning” Initiates two options for
an audio or visual warning 3 seconds prior to gate motion and will continue:
1.
Until gate reaches closed limit:
“Magnetic Lock” terminals provide a contact between “COM” and “N.O”.
2.
Until gate reaches either limit:
“AUX. PWR” terminals provide 24VDC.
“Sync” Used only in conjunction with
the Viking Barrier gate operator model B-12. Activating this feature allows for synchronized operation with the B-12 operator. See page 35.
“EXT” Available for future developments.
! IMPORTANT: Regardless of the power failure options chosen, the gate can be moved
manually with a relatively low amount of force by following the steps for “Manual Release” as outlined at on page 11.
VIKING TECHNICAL SUPPORT 1.800.908.0884
25
Page 28
CONTROL BOARD SETUP
Obstruction Sensor (Primary Entrapment Protection)
!
IMPORTANT: The appropriate “ODS” setting is dependant upon the gate installation
and construction. Set this feature accordingly. Additional Safety equipment should be used to reduce possible risk of injury or vehicle damage.
“ODS” Obstruction Detection Sensor
The Obstruction Sensor detects obstructions in the path of the traveling gate. The dial sets the amount of force required to activate the operators inherent obstruction detection.
Setting the dial to “0” will require the least amount of force to activate;
Setting the dial to “100” will require the maximum amount of force to activate.
UL325 standard requires an audio alarm to go off after two consecutive entrapment events sensed by the Inherent Entrapment Protection of the Gate Operator.
The audio alarm will sound for a period of 5 minutes or until a Stop command or the “Alarm Reset” switch has been actuated. (refer to page 12)
When the Obstruction Sensor detects an obstruction it will:
1.
Stop the gate’s movement and reverse it momentarily.
2.
Bring the gate to a resting position.
3.
Disable the Hold Open Timer feature until the Gate Operator receives a new command.
If second obstruction is detected before the gate reaches either limit it will:
1.
Stop the gate’s movement.
2.
Disable the Gate Operator.
3.
Sound the UL Alarm
4.
A STOP command must be provided to disable the alarm and continue operation.
! TECHNICAL TIP: The Status LED for the
“ODS” will indicate the following when it has been triggered.
A.
Solid: Obstruction.
Detected a sudden or abrupt increase in gate resistance.
B.
Flashing: Overload.
Detected a more subtle, but sustained increase in gate resistance.
26
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 29
CONTROL BOARD SETUP
Viking Heater
The operator has an integrated heater that is thermostatically controlled. Activate this feature when the operator is used in application temperatures down to -20°F (-29°C).
To set the heater to turn on at the Close Limit:
1.
Use the “Diagnose” button to scroll through the LCD Display to “HEATER CLS”
2.
Press and hold the “Stop” button on the control board.
3.
Press and release the “Diagnose” button to turn this feature ON and OFF.
To set the heater to turn on at the Open Limit:
1.
Use the “Diagnose” button to scroll through the LCD Display to “HEATER OPN”
2.
Perform steps 2-3 as described above.
NOTE: If the application requires the gate to be held open for any reason, set the HEATER
ON for both limit positions.
HEATER CLS ON
HEATER OPN ON
! IMPORTANT: A POSITIVE STOP must be used on the gate at the limit position(s) the
HEATER has been set for.
Viking Lock Mode
Turning this feature ON will secure the gate at the closed position, preventing unauthorized manual entry.
Use the LCD Display to activate this feature.
1.
Use the “Diagnose” button to scroll through the LCD menu to “LOCK MOD”
2.
Press and hold the “Stop” button on the control board.
3.
Press and release the “Diagnose” button to turn this feature ON and OFF.
VIKING TECHNICAL SUPPORT 1.800.908.0884
LOCK MOD ON
27
Page 30
(THIS PAGE LEFT BLANK INTENTIONALLY)
28
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 31
ACCESSORY CONNECTIONS

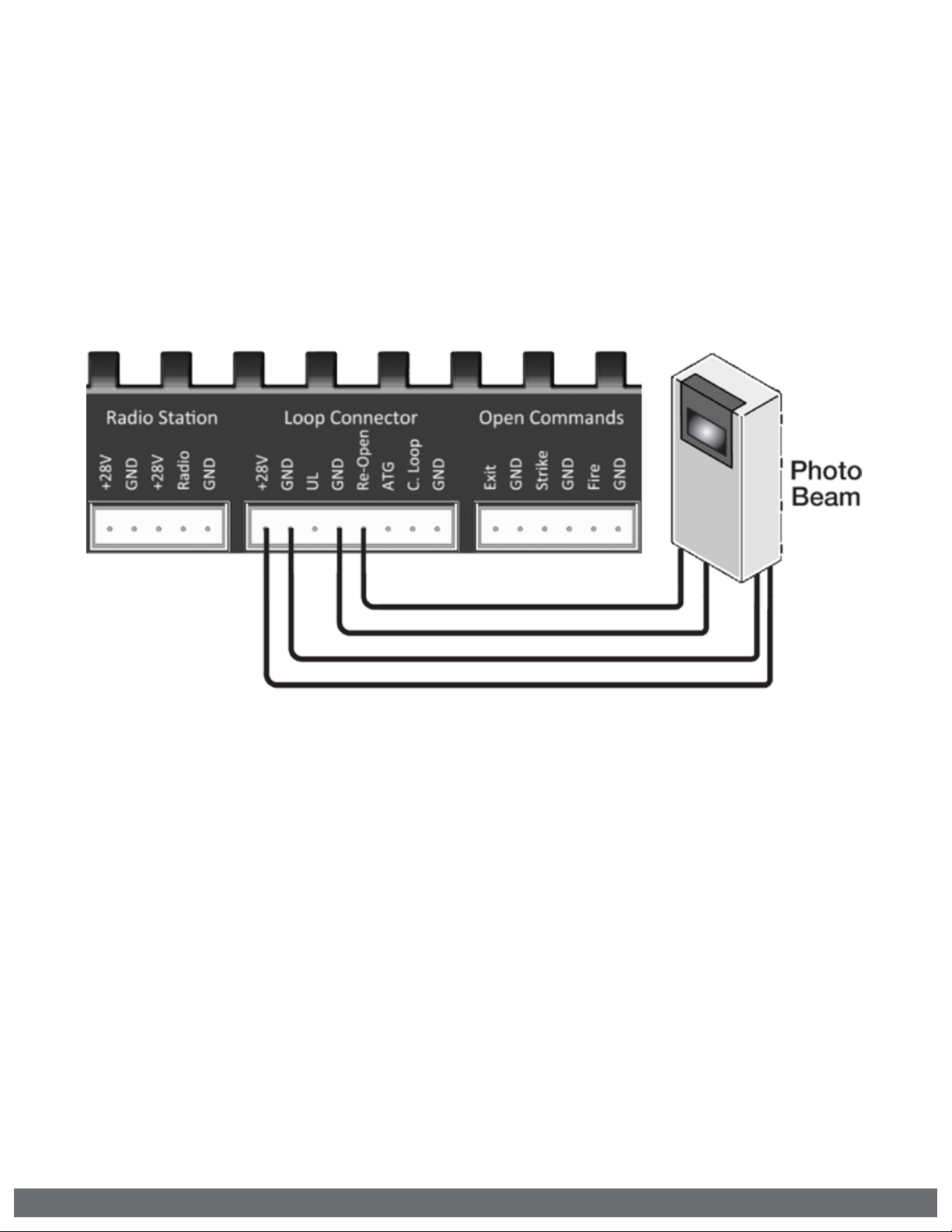

Re-Open Photo Beam (vehicular Safety)
NOTE:
to the open limit when the beam is obstructed. Intended for vehicular safety ONLY. For the purpose of pedestrian entrapment, see pages 10-11.
This type of photo-beam installation will stop then RE-OPEN the gate all the way
N.O.
Note regarding Photo Beam types:
Fail-Safe type - connect the “N.C.” terminal of the photo beam to the “Re-Open” terminal on the control board.
Typically, these are the reflective type photo beams.
Fail -Secure type - connect the “N.O.” terminal of the photo beam to the “Re-Open” terminal on the control board.
Typically, these are the transmitter/ receiver type photo beams.
COM
( - ) ( + )
Check for proper operation:
The “Re-Open” LED will illuminate solid while the beam is obstructed and remain off when the beam is unobstructed.
! TECHNICAL TIP: For more information
regarding accessory connections to the control board and individual input terminal functions, refer to “Appendix (A)”, pages 42-43.
VIKING TECHNICAL SUPPORT 1.800.908.0884

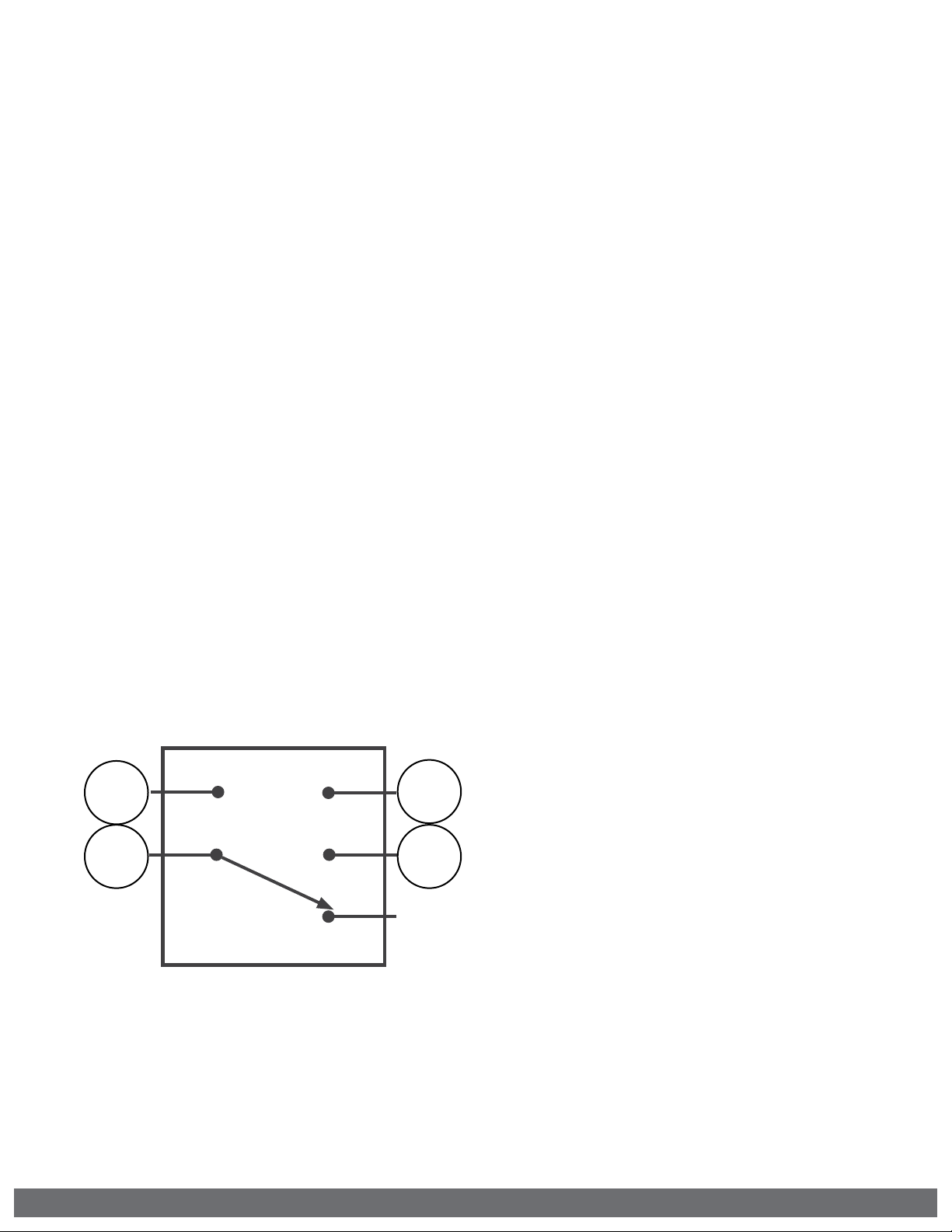

29
Page 32
ACCESSORY CONNECTIONS
COM N.O.
(-) (+)

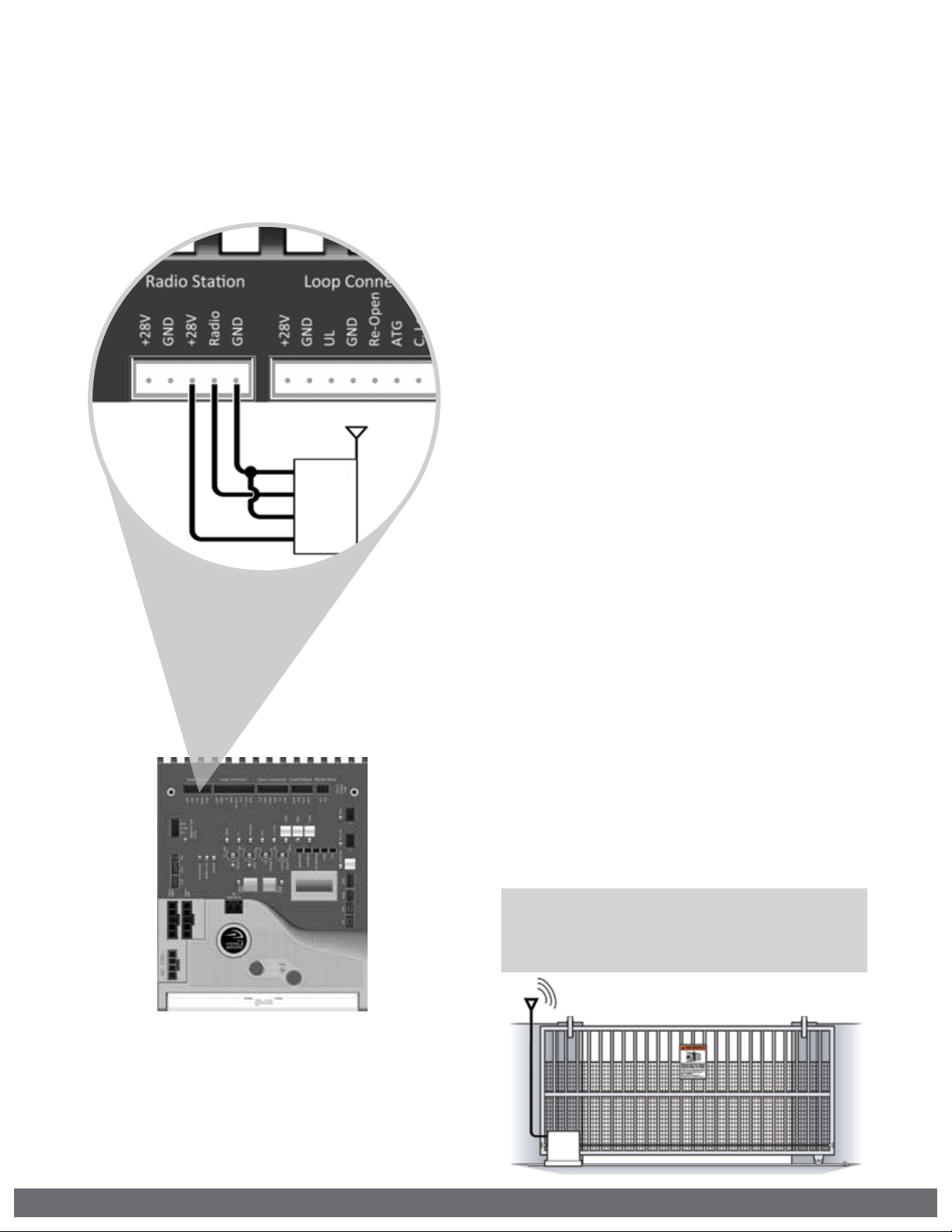

Radio Receiver (Typical)
!
IMPORTANT: The Hold Open “Timer” setting (page 24) affects how the gate will
respond to the radio receiver command.
The control board provides two modes of operation that a radio receiver can control the gate:
Open-Stop-Close
1.
By having the radio receiver connected as illustrated and with the Hold Open Timer OFF (see page 24):
Every command of the radio transmitter will control the gate as follows:
a.
First command opens the gate,
b.
Second command stops the gate and
c.
Third command closes the gate
d.
Any subsequent commands will continue in the same order to control the gate.
This type of configuration is not recommended for commercial installations.
! TECHNICAL TIP: For more information
regarding accessory connections and terminal functions, refer to “Appendix (A)” on pages 42-43.

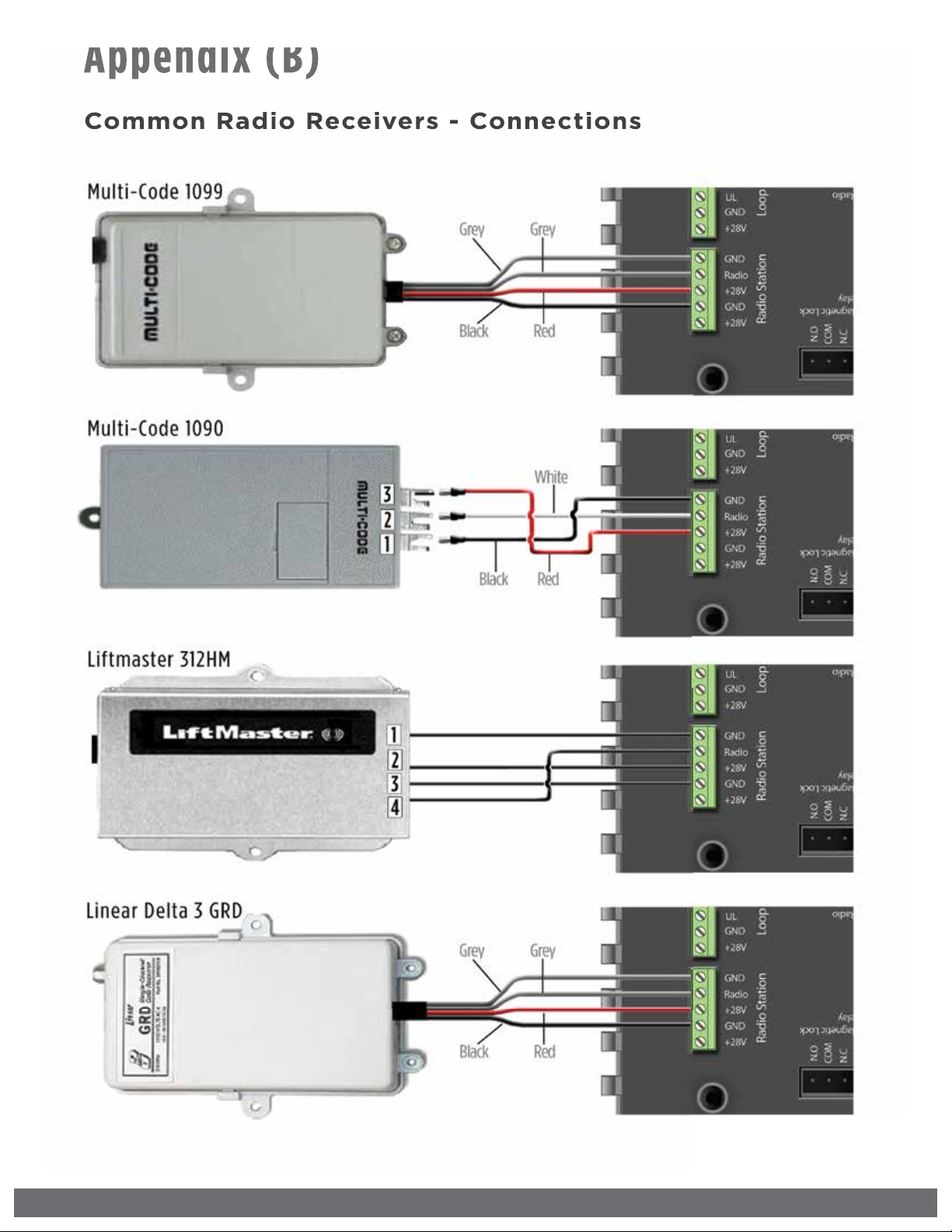

See “Appendix (B)” on page 44 for connecting common radio receiver models.
30
Open Only
2.
By having the radio receiver connected as illustrated and with the Hold Open Timer ON (see page 24):
Each command of the radio transmitter is
ALWAYS AN OPEN COMMAND to the gate.
For maximum reception range:
Locate the radio antenna to the top of the gate column.
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 33
ACCESSORY CONNECTIONS

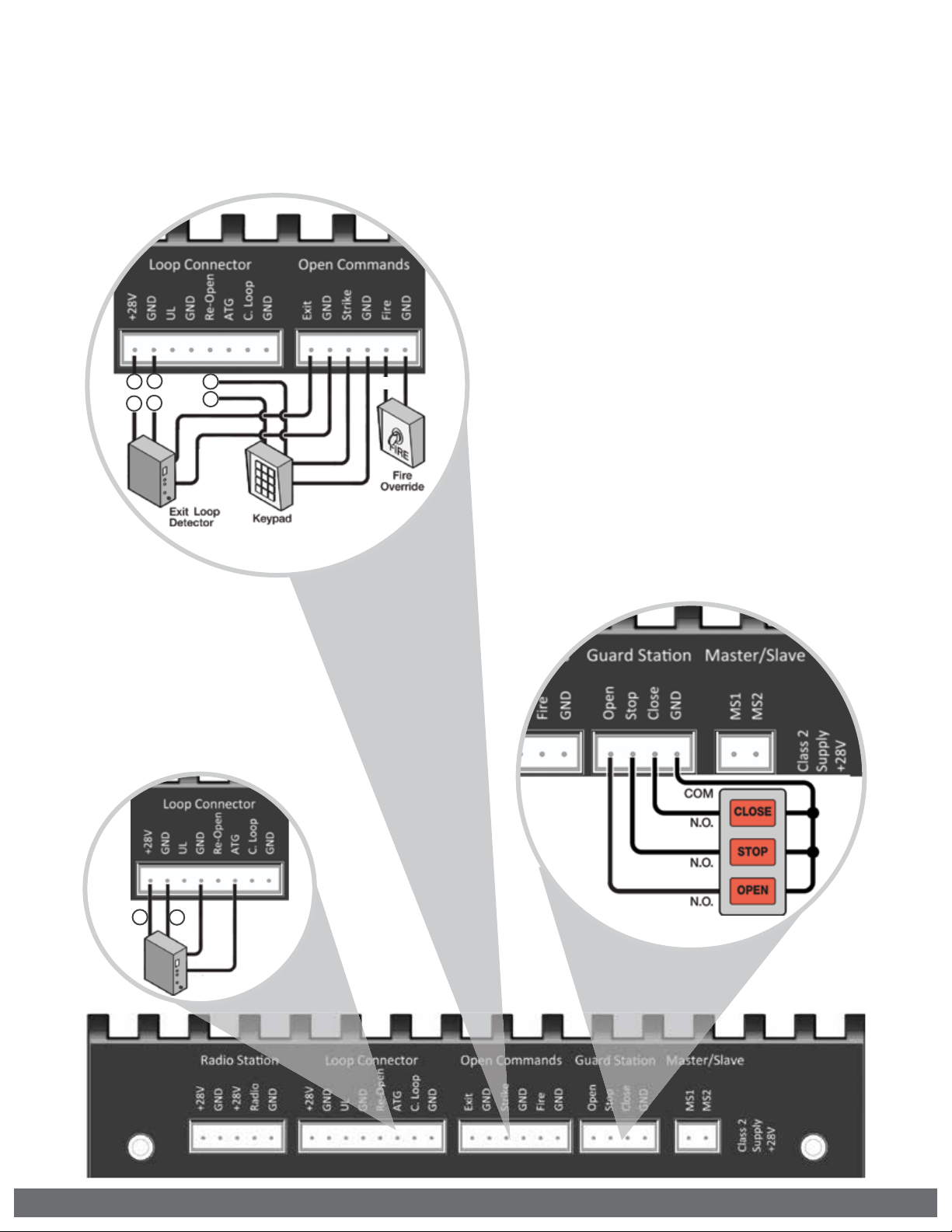

Anti-Tailgate, Open Commands & Guard Station
!
TECHNICAL TIP: For more information regarding accessory connections and terminal
functions, refer to “Appendix (A)” on pages 42-43.
Open Commands
“Exit”, “Fire” and “Strike” input terminals all provide an open command to the control board. Any device connected as shown will open the gate.
-
+ +
N.O.
-
COM
N.O.
COM
-
+
“ATG” Anti-Tailgate
This input will stop the gate when the vehicle triggers the sensor, then closes the gate when the vehicle leaves the sensor, preventing unauthorized vehicles from entry.
N.O.
COM
Guard Station
All three buttons must be a
!
Normally Open “N.O.” type of switch, and can share the same common “C” connection to “GND”.
-
+
VIKING TECHNICAL SUPPORT 1.800.908.0884
COM
N.O.
31
Page 34
ACCESSORY CONNECTIONS

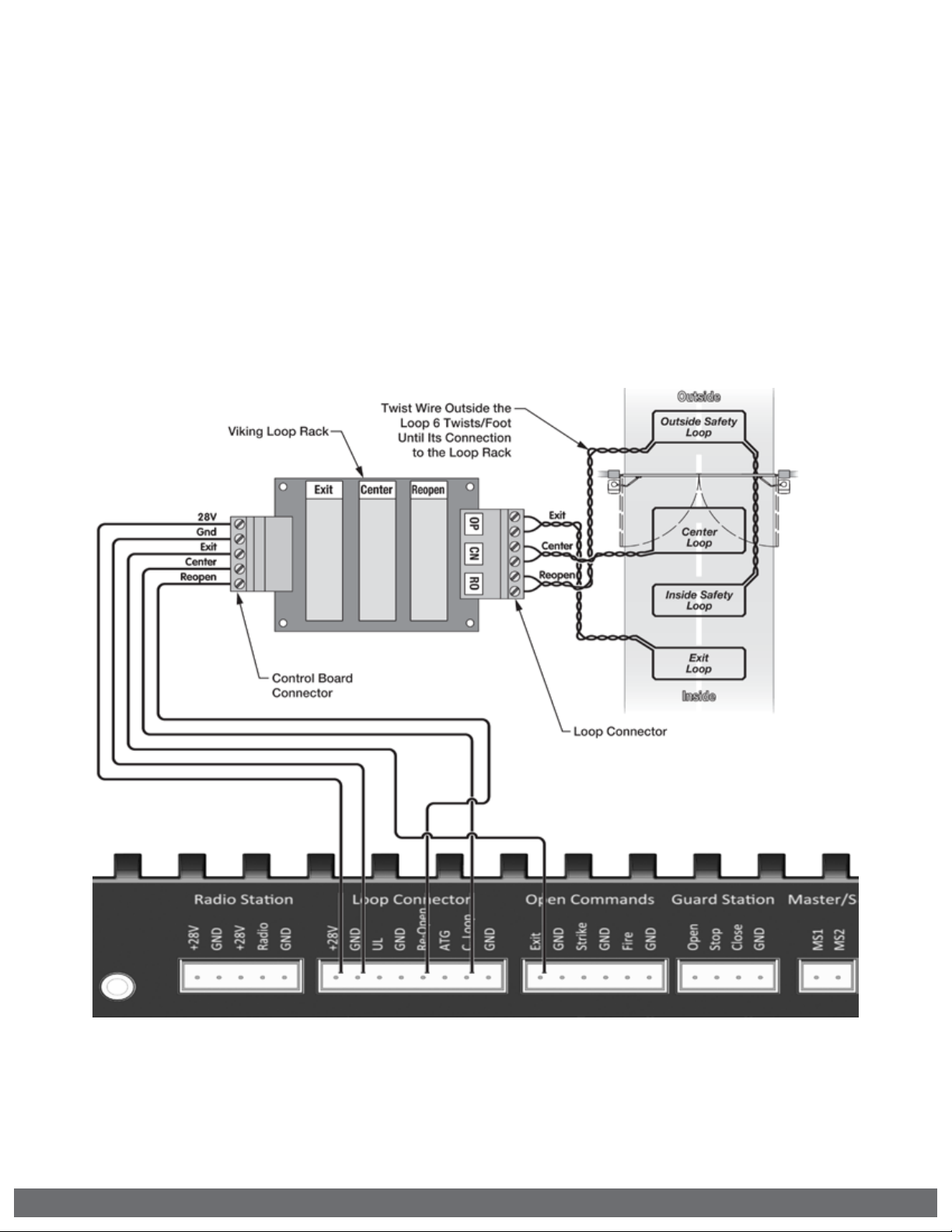

Viking Loop Rack
TIP:
This operator may be equipped with a pre-wired Loop Rack that plug-in type loop
detectors can be connected to. This provides a convenient alternative to the box type loop detectors that would need to be wired to the control board. Viking does not provide either type of loop detectors.
Loop Rack: Part # VA-LR
Loop Rack Wiring Harness: Part # VA-LRH
32
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 35
ACCESSORY CONNECTIONS
5'
5' 5'
AA
5'
Gate in Open Position
Inside
Reopen
Loop
Center
Loop
Outside Reopen
Loop
Exit
Loop
Make Even
with Open Gate

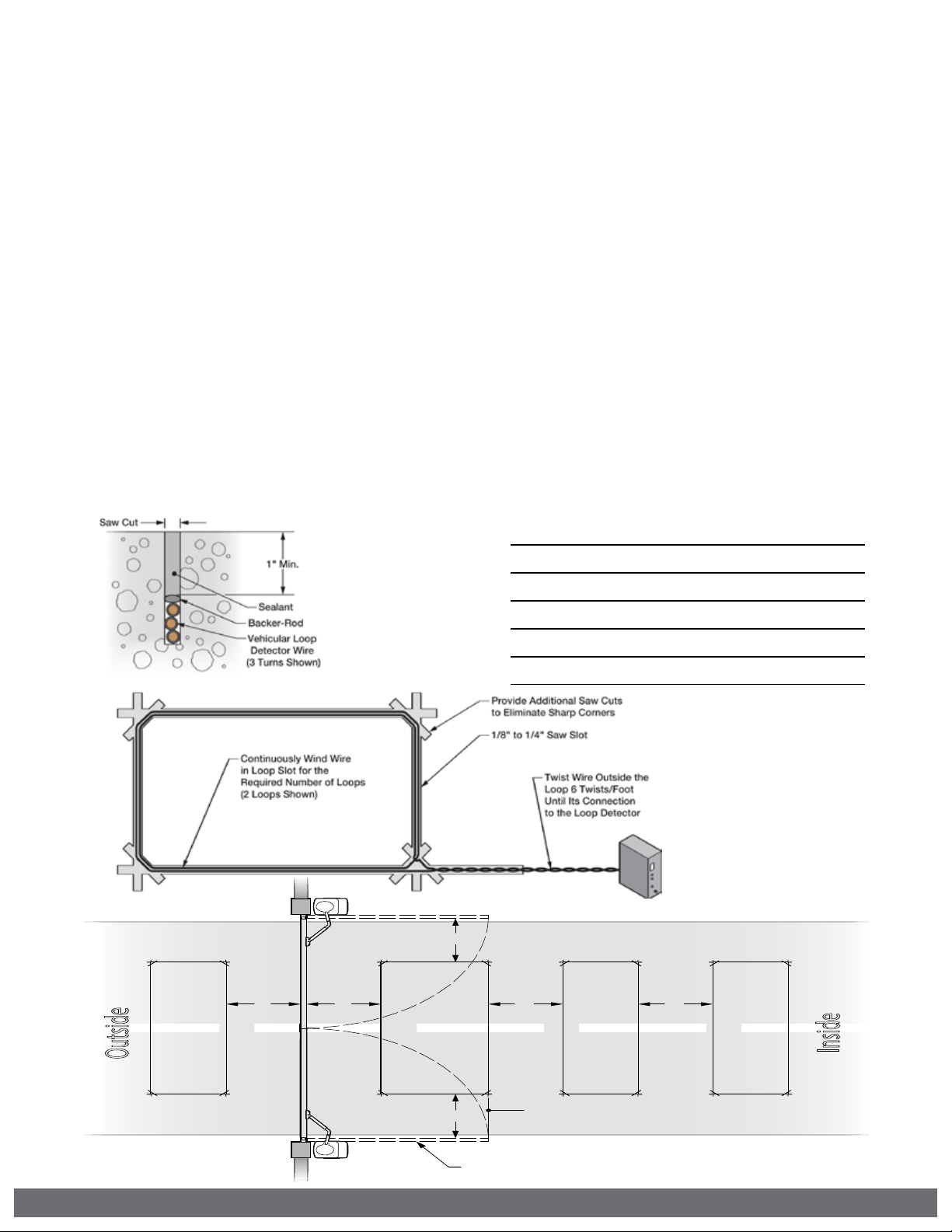

Guidelines for Loop Installation
1.
Prevent sharp corners in the geometry of the loop sensor.
2.
Install the appropriate number of turns for your loop geometry based on the loop perimeter. Use Table C (below) as a guide.
3.
Use XLP (cross-linked-polyethylene) type of wire. This wire reduces the effects of moisture and other environmental events in altering the functionality of the vehicular loop detector.
4.
Twist the lead wire at least 6 turns per foot.
5.
Use BACKER-ROD to minimize damage to the loop detector wire prior to using the sealant.
6.
Place the loop detector wire and adjust the sensitivity of the vehicular loop detector unit in a way to minimize the effects of the gate over the loop detector wire.
! IMPORTANT! Some of the following parameters may affect the proper
functionality of the vehicular loop detector.
Consult the manufacturer of the vehicular loop detector and/or loop wire.
•Gatesize
•Numberofturnsintheloopsensorwire
•Distanceoftheloopsensorwiretothegateateitherattheopenorcloseposition
Table C - Recommended Number of Turns
Perimeter (ft.) Number of Turns
10 5
20 4
30-40 3
50-100 2
Dimension “A” - 5’ for Single Gate 6’ for Dual Gate
VIKING TECHNICAL SUPPORT 1.800.908.0884
33
Page 36
ACCESSORY CONNECTIONS

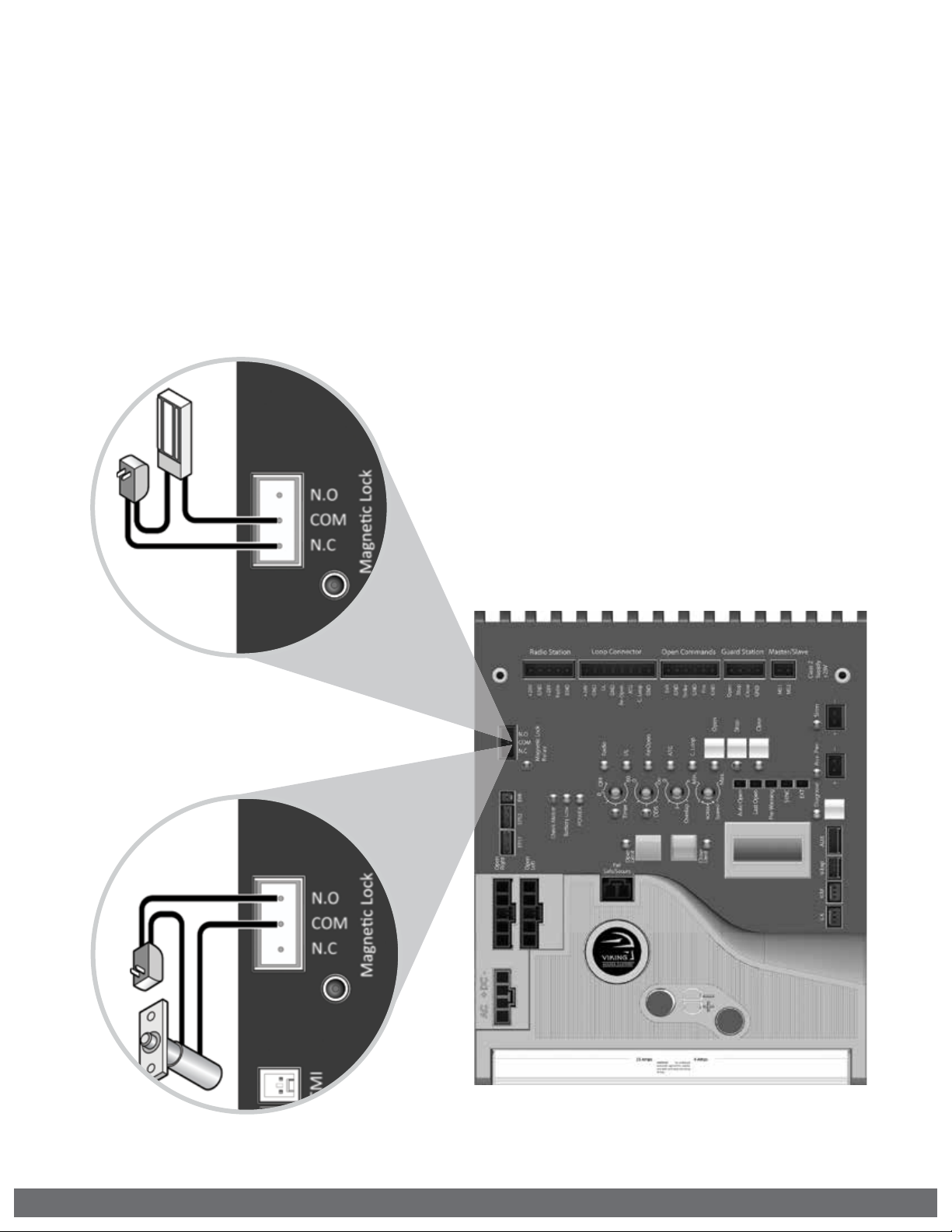

Magnetic Lock, Lock Solenoid
NOTE:
can be purchased from your dealer or distributor.
Viking Access Systems does not provide external gate lock devices. These items
Power for the Locks:
Do not use the 24VDC power supplied by the control board. An external power supply, or plug-in transformer, must be used for the magnetic lock or lock
Magnetic Lock
solenoid. Plug the transformer into the “120VAC” receptacle provided at the operators Power Box. This will prevent rapid drainage of the battery in the event of power failure.
The control boards “Magnetic Lock” relay is rated for 10A-250VAC.
( + )
! TECHNICAL TIP: The Magnetic Lock Relay
LED will indicate status of the on-board
( + )
relay even if a lock is not connected to the control board. Refer to page 36.
Lock Solenoid
34
( + )
( + )
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 37
SYNCHRONIZATION WITH B-12
Barrier Arm (B-12) Synchronization Option
NOTE:
synchronized operation with the Viking Barrier Arm Operator model B-12.
This type of application opens and closes in the following pattern:
1.
2.
3.

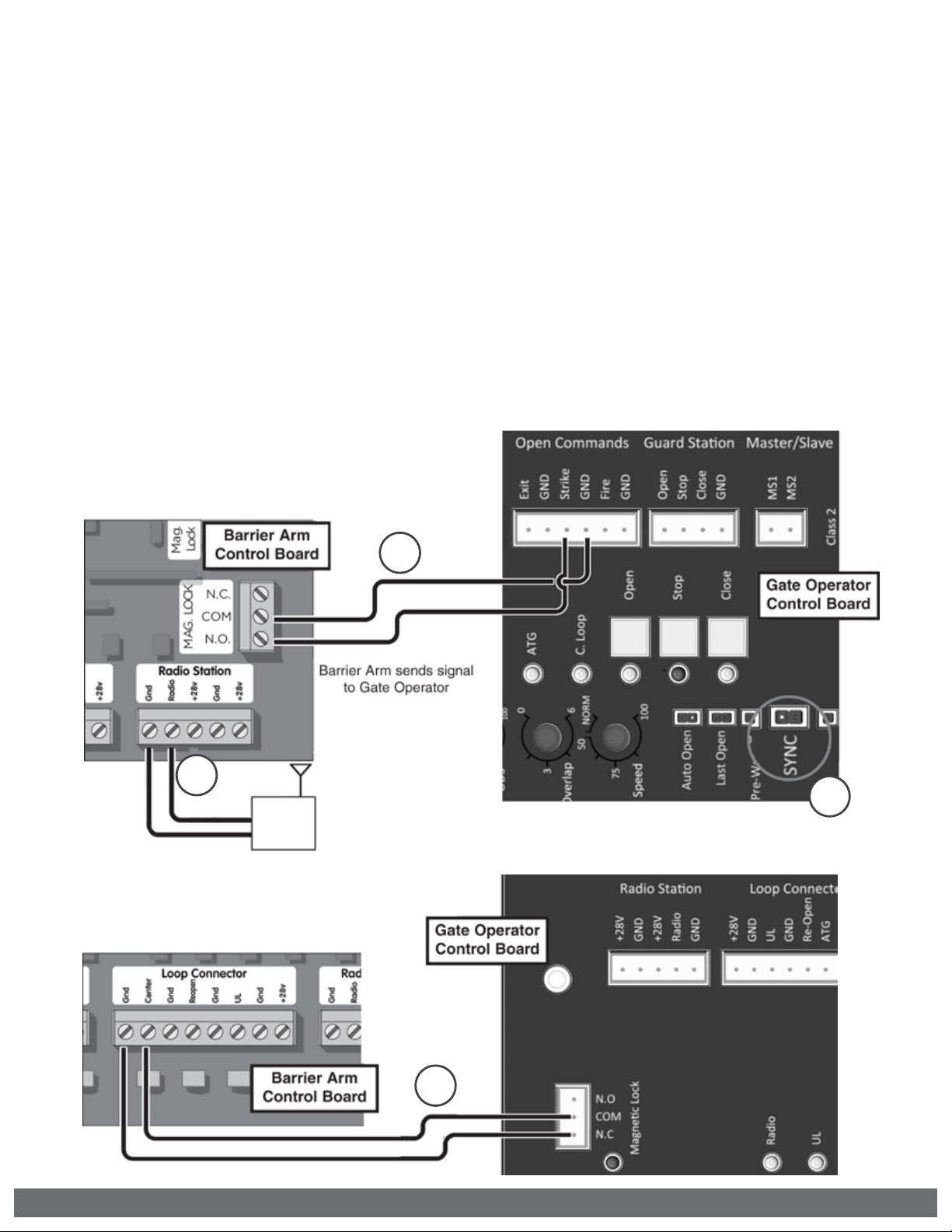

STEP 1 (Figure A & B)
Connect the Gate Operator to the Viking B-12 Barrier Arm Operator as illustrated.
STEP 3 (Figure B)
On the Gate Operator Control Board, activate Sync Mode by placing a jumper on to the pin headers labeled “SYNC”.
Figure A
The Control Board provides a convenient solution for applications that require
Open Command is provided only to the Viking B-12 Barrier Arm Operator. The Barrier Arm will delay to open until this Gate Operator reaches its Open Limit. The Gate Operator will delay to close until the Barrier Arm reaches its Close Limit.
STEP 2 (Figure A)
At the B-12 Barrier Arm Operator, connect the primary device that will be used as the OPEN input.
Figure B
1
2
STEP 4 (Figure C & D)
Connect Viking B-12 Barrier Arm Operator to the Gate Operator as illustrated.
VIKING TECHNICAL SUPPORT 1.800.908.0884
Figure C
3
Figure D
4
35
Page 38
TROUBLESHOOTING
LED References
In addition to the LCD Display, the control board LEDs monitor the various circuits of the control board. Use the table below to identify the corresponding “TS Ref#” and refer to page 38-41 for further troubleshooting.
# LED Status Meaning
1 “Magnetic
Lock Relay”
2 “Check Motor” OFF Normal Condition.
3 “Battery Low” OFF Normal Condition.
4 “POWER” SOLID Normal Condition.
5 “Radio” OFF Normal Condition.
6 “UL” OFF Normal Condition.
7 “Re-Open” OFF Normal Condition.
8 “ATG” OFF Normal Condition.
OFF At Closed Limit and Magnetic Lock Relay state is closed across “COM” &
“N.C”. (pg 34). Gate should be at the Close Limit.
SOLID Not at Closed Limit and Magnetic Lock Relay state is closed across “COM” &
“N.O”. (pg 34). Gate should not be at the Close Limit
SOLID The control board is sending power to the motor but the circuit is open.
SOLID Batteries are low. Check power supply to the operator. (pg 18-19).
FLASHING Batteries critically low. Check power supply to the operator. (pg 18-19).
FLASHING Operator is running on batteries only (pg 18-19).
OFF No power to control board.
SOLID Control Board is receiving an input from a device connected to the
Radio terminal (pg 30, 42).
SOLID Control Board is receiving an input from a device connected to the UL
terminal (pg 12-13, 42).
SOLID Control Board is receiving an input from a device connected to the Re-
Open terminal (pg 29, 32, 42).
SOLID Control Board is receiving an input from a device connected to the ATG
terminal (pg 31, 42).
Page 41
TS Ref#(s)
7, 8
1, 2 1, 2
1, 2
1, 2, 4, 5
9, 10
9, 10
9, 10
9, 10
36
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 39
TROUBLESHOOTING
LED References
Use the table below to identify the corresponding “TS Ref#” and refer to page 38-41 for further troubleshooting.
Pg 41
# LED Status Meaning
9 “C Loop” OFF Normal Condition.
SOLID Control Board is receiving an input from a device connected to the
10 “Open” OFF Normal Condition.
SOLID Control board is receiving an input from a device connected to any of
11 “STOP” OFF Normal Condition.
SOLID Control Board is receiving an input from a device connected to the
12 “Close” OFF Normal Condition.
SOLID Control Board is receiving an input from a device connected to the
13 “Siren”
14 “Aux. Pwr”
15 “Diagnose” OFF Normal Condition.
“Close Limit”
16
17
“Open Limit”
18 “ODS” OFF Normal Condition.
19 “Timer” OFF The close timer is turned OFF or gate is not at the open limit if the timer is
“AC VOLTAGE INPUT”
20
“PROTECTION WORKING”
21
“AC VOLTAGE OUTPUT”
22
23 “AC POWER” SOLID Normal Condition for High Voltage installations.
OFF Normal Condition.
SOLID Second consecutive obstruction has been detected. (pg 26).
FLASHING Batteries are critically low.
OFF No voltage output on these terminals at the moment.
SOLID There is 24VDC output on these terminals at the moment.
FLASHING Errors have been detected; Check LCD Display for ERR messages (pg 40).
OFF Gate is not at the close limit position.
SOLID Gate is at the close limit position.
FLASHING Indicates a problem with the limit switches or wires. (pg 20-21).
OFF Gate is not at the open limit position.
SOLID Gate is at the open limit position.
FLASHING Indicates a problem with the limit switches or wires. (pg 20-21).
SOLID Obstruction has been detected. (pg 26).
FLASHING Overload has been detected. (pg 26).
SOLID Gate is at Open Limit, Timer is turned ON and counting down to close. (pg
FLASHING Gate is at Open Limit, Timer is turned ON but is not timing out due to a
SOLID Normal Condition.
OFF IncomingpowertoPowerSupplyPanelAssemblyisnotsufcient.(pg18).
SOLID Normal Condition.
OFF EMI Board is damaged and circuit is not protected . Replace EMI Board.
SOLID Normal Condition.
OFF There is no output voltage from the Power Supply Panel Assembly.
OFF High Voltage is not supplied to the Modular Power Box (pg 18).
C Loop terminal (pg 32, 42).
the following input terminals: Exit, Fire, Strike or Open (pg 31, 42).
Stop terminal (pg 31, 42).
Close terminal (pg 31, 42).
turned ON. (pg 24).
24).
conictingcommand.(pg24).
TS Ref#(s)
9, 10
9, 10
9, 10
9, 10
11, 13, 1, 2
1, 2
6
6
11, 13, 1, 2 11, 13, 1, 2
9, 10
1
2
1
VIKING TECHNICAL SUPPORT 1.800.908.0884
37
Page 40
TROUBLESHOOTING
LCD Display References
The control board is equipped with a LCD Display that provides operator information, current conditions, settings, diagnostics and error messages. Use the table below to identify the corresponding “TS Ref#” and refer to page 41 for further troubleshooting.
1.
ErrorMessageswillbedisplayedrst.
2.
The”Diagnose”LEDwillashconsecutively
indicating how many Error Messages are available.
3.
Press the Diagnose button to manually scroll through all of the Messages.
Page 41
LCD MSG Meaning
TS Ref #s
VIKING ACCESS
MODEL F1
GATE IS IDLE
GATE IS OPENING
GATE IS CLOSING
GATE IS OPENED
GATE IS CLOSED
STOP BY OBSTRUCT
Welcome Message
Indicates the Model of the unit
System Status Messages
Gate is stopped between limits
Gate is opening
Gate is closing
Gate is at the limit open position
Gate is at the limit close position
Gate stopped due to an obstruction sensor event
11, 12, 13
STOP BY OVERLOAD
OVERLAP TIMING
HOLDING __ SEC
EPS2 OK
38
Gate stopped due to an overload of the gate system
11, 12
Gate is waiting for the overlap time
Gate is at the limit open position and timing to close - The display shows the actual time left before closing
While the gate is running, indicates the percentage of accuracy of the EPS. “OK” indicates 100% accurate communication
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 41
LCD Display References
LCD MSG Meaning
Multi Meter Displays
TROUBLESHOOTING
Page 41
TS Ref #s
MOT AMP __._ A
MOT VOLT __._ VDC
AC VOLT __._ VAC
CHARGE __._ VDC
BAT VOLT __._ VDC
EPS2 ___% ERR
Speed __%
OVERLAP _._ SEC
This is the motor current amperage during operation
This is the actual motor voltage during operation
This is the actual low voltage AC to the Control Board from the transformer
Indicates the charging voltage to the batteries, if the Battery Switch is in the OFF position.
Indicates battery voltage, if the AC power is discontinued to the Control Board.
Board Settings Messages
Indicates that the Electronic Positioning Sensor (EPS) needs to be tuned. Error rate is displayed as a percentage
Shows the percentage of speed set by the Speed adjustment on the control board. (pg 24)
Shows the number of seconds set by the Overlap Adjustment on the control board.
ODS SENS
Shows the force setting selected to trip the obstruction sensor. (pg 26)
___%
TIMER __ SEC
HEATER __ OFF
HEATER __ ON
VIKING TECHNICAL SUPPORT 1.800.908.0884
Shows the amount time set or remaining to hold the gate at the Open Limit position, before the gate starts to close. (pg 24)
The Integrated Heater is disabled for the open “OPN” and/or close “CLS” limits (pg 27)
The Integrated Heater has been enabled to turn on at the open “OPN” and/ or close “CLS” limits (pg 27) “*” will be displayed while it is heating
39
Page 42
TROUBLESHOOTING
LCD Display References
LCD MSG Meaning
Error Messages
Page 37
TS Ref #s
ERR AC LOW
ERR AC HIGH
ERR AC NO AC
ERR CHRG HIGH
ERR CHRG CHECK 4A
ERR BAT LOW
ERR FUSE 15 AMP
ERR EMI NO EMI
Indicates that the 24VAC supply to the VFlex Board is too low from the 115/230 power supply.
Indicates that the 24VAC supply to the VFlex Board is too high from the 115/230 power supply.
Indicates that there is no 24VAC supply detected to the VFlex Board from the 115/230 power supply.
Potential problem with the charging voltage from the control board.
a) 4 Amp Fuse is blown, or; b) There is a problem with the batteries or the control board.
The battery is low.
15 Amp motor fuse is blown on the Master or Single Control Board.
No EMI board detected.
1, 3, 20
1, 3, 20
1, 2, 4, 20
1, ?
18, ?
1, 2, 3, 4
7, 11, 12
15
ERR EMI NO FUSE
ERR EMI NO AC
ERR EMI Unknown
ERR EMI PROTECT
40
4 Amp main fuse is blown on Power Supply Panel Assembly.
There is no AC voltage detected from the EMI Board.
There is a problem with the communication between the EMI Board and the VFlex Board.
Lightning strike protection for the EMI Board (behind the Power Supply Panel Assembly) needs to be replaced.
VIKING TECHNICAL SUPPORT 1.800.908.0884
2
20
21
?
Page 43
TROUBLESHOOTING
Solutions
Begin the troubleshooting process by referring to the error messages on the LCD Display and/or the Status LEDs on the control board. Use pages 36-40 to identify the Troubleshooting Reference # (TS Ref#) then reference the table below.
TS Ref# CHECK Page Ref#
1
Check that the high voltage power supplied to “EMI Board” is within range. 100V-120V or 200V-240V
Remove and check EMI Fuse for continuity.
2
Check that the “Voltage Selector”, on the EMI Board, is set according to the high
3
voltage power supply. 115VAC or 230VAC Check that the “AC POWER” switch is turned ON
4
5 Check that the Power Harness is connected to the control board.
Check that the limit circuits are Normally Closed (N.C.). Check the limit switch.
6 7 Check Motor Fuse on the control board. pg 4 8 Check that the operator is not in Manual Release mode pg 3, 11 9
Check the Status LEDs and LCD Display to determine if the control board is receiving an input from any external devices or if the “ODS” has been triggered.
Remove the external devices from the control board to determine if the control
10
board is responding to an input or problem with the external device or wiring.
11
Check the “ODS” setting on the control board.
12
Check that the gate can be moved manually with low resistance throughout its full range of motion.
Check the limit position.
13 14
Not applicable to this model
15 Check that the EMI cable is properly connected to the “EMI” connection at the
VFlex control board and at the EMI Board.
16
Check the LCD Display for Error Messages Not applicable to this model
17 18
Check 4 Amp fuse on the control board Manually adjust any setting on the Control Board to clear all wireless override
19
settings
20
Check for 24VAC out from the Toroidal Transformer and Power Harness
21
Check the EMI Cable and contacts between the EMI Board and the VFlex Board The Control Board or EMI board may be damaged. Call Viking Technical Support
?
for further assistance
pg 18 pg 3, 18
pg 3, 18 pg 3, 18,
36, 37 pg 4, 18 pg 20-21
pg 24, 26, 36-38
pg 29-32, 36-37
pg 8, 12, 26
pg 8, 17 pg 20-21
pg 4
pg 4 pg 40
pg 4
pg 3, 18 pg 2, 4
VIKING TECHNICAL SUPPORT 1.800.908.0884
41
Page 44
Appendix (A)
“N.O.”
Anti -Tailg ate
“N.O.”
Access Control Connections
Power Connections

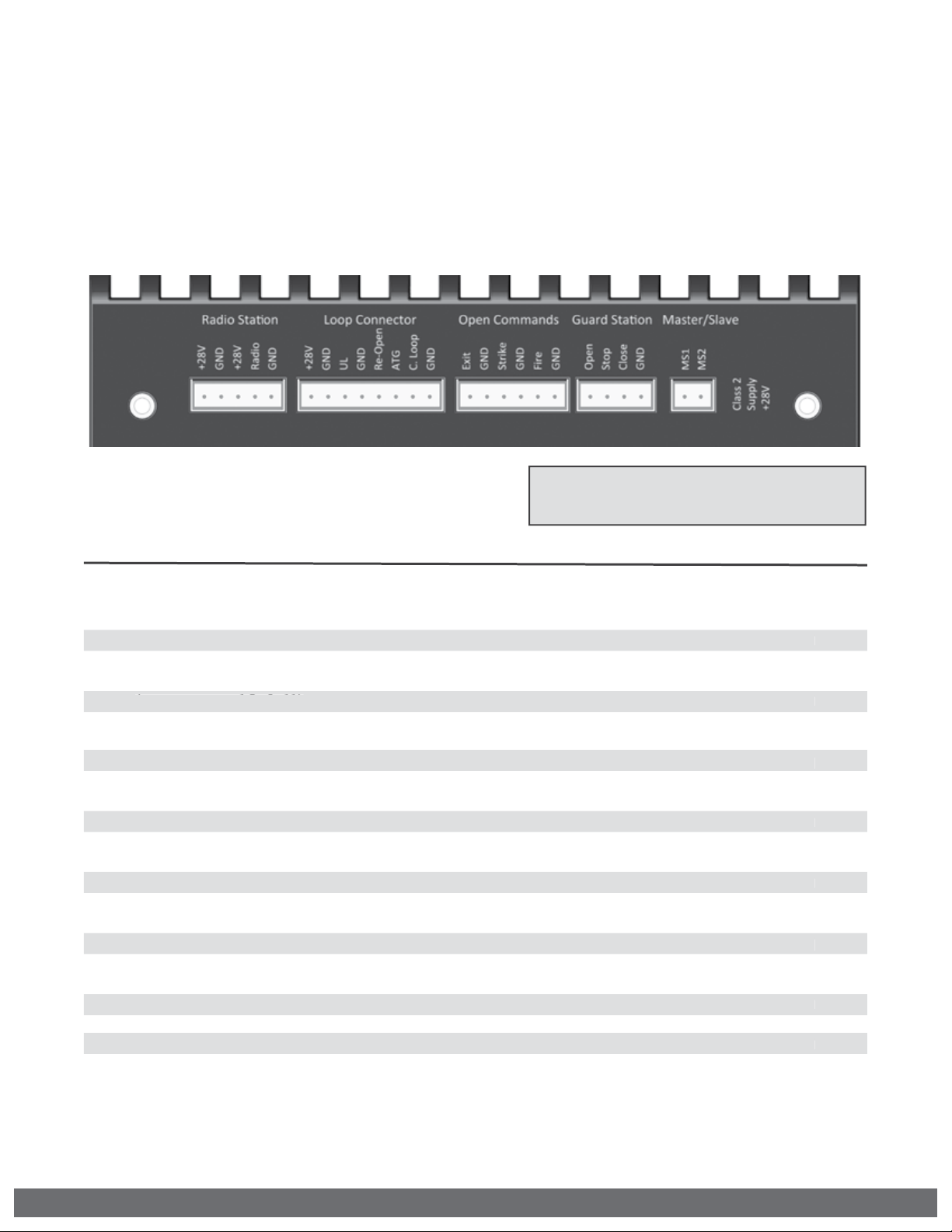

The control board provides a 24VDC output to power external devices and controls. Alternatively, for devices that require a power supply other than 24VDC, the operators Power Box contains a convenient 120VAC receptacle to connect a plug-in transformer.
“C” = Common
Terminals Connections and Input Functions:
“N.O.” = Normally Open
Viking Terminal Function Device Terminal
“+28V” --------------------- DC Positive --------------- “+” “GND” --------------------- DC Negative --------------- “ ” “GND” --------------------- Relay Common --------------- “C” Radio” ------------------------------------------------------------- N.O.
If “Timer” OFF: Open - Stop - Close If “Timer” ON: Open / Reopen if closing U L (see pages 10 & 11) N.O. If input is brief: Stops gate then Reverses 12 inches If input is longer: Stops gate, does not reverse Re-Open N.O. If stopped: No function If closing: Stops then Opens gate ATG A n ti-Tailgate N.O. Input is received: Stops gate if closing Input is released: Closes gate to prevent tailgating
C. Loop N.O.
If not at open limit: No function If at open limit: Prevents gate from Closing
Open, Exit, Fire& StrikeN.O.
If stopped: Opens gate If closing: Stops then Opens gate
Stop” N.O.
If traveling: Stops gate
Close N.O.
If stopped: Closes gate If traveling: No function
! TECHNICAL TIP: Each input Terminal (i.e. Radio, Exit, Re-Open, UL) has a corresponding
Status LED that when illuminated indicates an input is currently being provided to the terminal and the gate is responding accordingly. (See pages 36-37 LED References)
42
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 45
EXIT
+28V
GND
GND
Relays In General
APPENDIX (A)
NOTE:
controls. These items can be purchases from your dealer or distributor.
In General
In regards to the Viking control board, all external safety devices and access controls contain, and are, simple relays that provide an input to the Viking control board when the device is activated.
When these devices are activated, their internal relays create a contact, or short, between the “C” and “N.O.” terminals. This contact is what provides the command to the Viking control board.
! TECHNICAL TIP: Viking uses the
Normally Open “N.O.” contact from the device, excluding “fail-safe” type photo beams. In such instances, the Normally Closed “N.C.” will be used instead.
Viking Access Systems does not provide the external safety devices and access
Glossary of Terms
1.
Terminal: Wire Connections.
2.
Input Terminal: On the Viking
control board, the terminal which is labeled for a specific command (Re­Open, Exit, Radio, etc.). The N.O. contact from the access control device is to be connected to the Input Terminal.
3.
Terminal Block: On the Viking
control board, a removable block containing multiple terminals.
4.
Relay: The component of an access
control or safety device that provides an input or command to the Viking control board.
5.
“C” Relay Common Terminal: This is
the relay terminal that makes contact (a short) to the N.O. terminal when the device is activated. Always wire this
relay terminal to any “GND” terminal at the control board.
6.
“N.O.” Relay Normally Open
Terminal: The relay terminal that has
an open contact to “C” while the relay is not activated, and a closed contact
+
COM N.O.
N.C.
Not Used
when the relay is activated. Almost
always wire this relay terminal to an “Input Terminal” at the control board,
7.
“N.C.” Relay Normally Closed
Terminal: The relay terminal that has
a closed contact to “C” while the relay is not activated, and an open contact when the relay is activated. This
terminal is rarely used.
8.
Relay Coil: Contains the terminals
that provide power at the relay.
9.
+” Relay Positive Terminal: The
positive power pole for the relay coil.
Always wire this relay terminal to any “+28v” terminal at the control board.
10.
” Relay Negative Terminal: The
negative power pole for the relay coil.
Always wire this relay terminal to any “GND” terminal at the control board.
VIKING TECHNICAL SUPPORT 1.800.908.0884
43
Page 46
Appendix (B)
Appendix (B)
Common Radio Receivers - Connections
44
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 47
Solar Applications
APPENDIX (C)
NOTE:
applications. Alternatively, individual and third party solar components can be used. The following are minimum system requirements and installation information.
Viking recommends Solar Package (part # VA-SOCHP) for most general solar
Panels
•
Voltage 24V
•
Wattage 80W (minimum)
Cut the wires coming from the toroidal transformer.
Connect the solar panel cables to the power harness as shown.
Batteries & Fuse
Voltage 24V Amp Hour 35Ah (minimum) Fuse 10A (minimum) Replace the operators batteries with
35Ah or greater.
! IMPORTANT: The chart provided can be used as a guide for the number of cycles the
gate will operate per day. The chart is for a single gate operator with just: a.
One Radio Receiver
b.
One low voltage, low current loop detector
c.
One low voltage, low current photo beam
If more specific information is needed please consult with Viking Access Systems. For more information regarding solar energy refer to www.nrel.gov/solar
VIKING TECHNICAL SUPPORT 1.800.908.0884
45
Page 48
VIKING EXPANSION PRODUCTS
VIKING KONNECT Master/Slave Kit Secure and reliable
Master/Slave communication using Viking’s Konnect technology. Paired with the Viking App, each module also doubles as a diagnostic tool.
Part# VA-KONNECT-MS
***Q-7, B-12 & ECU Operators require (2) Antenna Extension Cables (part# VA-RPSMA)***
VIKING KONNECT Diagnostic Tool On-site remote
access to the operator from the convenience of a compatible hand held device. With the Viking App, this tool becomes a wireless extension of the control board allowing you to view and change settings, review diagnostic information, operate the gate for testing and update the control boards firmware. Part# VA-KONNECT-D
***Q-7, B-12 & ECU Operators require (1) Antenna Extension Cable (part# VA- RPSMA)***
VIKING MONITOR Off-site access to operator diagnostics
and perform firmware updates from just about anywhere with cellular service. With the Viking App, this tool allows you to monitor and label multiple operators by site and location for quick reference. Provides error notifications, operator status, settings and diagnostic information.
Part# VA-MONITOR
***Q-7, B-12 & ECU Operators require (1) Antenna Extension Cable (part# VA- RPSMA)***
VIKING APP Mobile device user interface application for Viking
Konnect and Viking Monitor. Available for iOS, Android and Windows operating systems. Free for download from your mobile device application store or www.vikingaccess.com
VIKING AC SURGE PRO Adds another layer of protection to
the high voltage power supply of your gate operator. Connecting the AC Surge Pro in parallel to the EMI Board, provides a dual layer of protection from surges up to 20,000 Volts / 10,000 Amps. Part# VA-SURGEPROAC
VIKING SOLAR KIT The components included in this package
are intended to provide sufficient power for general applications.
Part# VA-SOCHP
This Kit includes the following components: (2) 12V 40W Solar Panels Part# VA-SO40W (wired in series = 24V 80W) (2) 12V 35Ah batteries Part# DUBA35 (wired in series = 24V 35Ah) (1) Solar Charger Part# SOCHR10 (1) Solar Power Harness Part# SOHAR
46
! NOTE: The number of cycles achieved from this kit are dependent upon
the following and may require increased panel and battery capacities:
•
Power consumption of all accessories being used
•
Average solar radiation of geographic location
VIKING TECHNICAL SUPPORT 1.800.908.0884
Page 49
OUR CONTINUOUS COMMITMENT TO EXCELLENCE
Viking Access Systems is continuously working hard to identify and
design products that will appeal to the industry and its needs. As
technology continues to advance, we have developed a completely
effi cient and intelligent line of gate operators to meet the changing
demands. These machines offer: full UL325 and UL991 compliance,
soft-start and soft-stop, intelligent obstruction sensors, continuous
operation (100% duty cycle) and extreme power effi ciency. Innovative
features include: adaptive and self-learning algorithms, redundancy
design in both hardware and software to ensure operation and
functionality, protection from lightning, short circuit and power surges,
and our exclusive helical gearing offering the highest effi ciency rating
in the industry. Our entire product line is continually modifi ed and
improved based on the latest technology and our customer’s valuable
feedback. The results are products that offer accuracy, effi ciency,
reliability and performance, all in sleek, high-tech designs.
We pledge to continue establishing ourself as the leader in high quality,
innovative gate operators by developing “Next Level” technology. We
are committed to providing safety and convenience with innovative
solutions for every security gate need.
Page 50
STANDARD FEATURES
AND OPERATOR SPECIFICATIONS
• UL Listed; UL325 and UL991
• ETL Listed; UL325 and UL991
• Fail-Safe option sets the gate to automatically transfer to a fail-safe mode in the event of a power failure, allowing the gate to be pushed open without the use of special knowledge of the equipment
• Fail-Secure option sets the gate to electronically lock in the event of a power failure, allowing no manual movement without the use of the manual release
• Mechanical gate release handle
• Elegant design, appealing to any architectural project
• Plated and powder coated steel chassis
• Adjustable travel speed
• Opening up to 120°
• 100% duty cycle
• Modular Power Supply Box for convenient low voltage installations
• 300 cycles of operation on backup battery (600 lb. gate and 12' length)
• Intelligent speed control with smooth start and stop, self-adjust system
• Anti-Tailgate and Operation Pre-Warning features
• On-Board LCD Display provides diagnostics, operator status, settings and real-time volt and amp readings
• Intelligent obstruction detection with adjustable sensitivity
• Built-in climate control for cold weather applications
• Built-in protection against lightning strikes or similar electrical surges
• Regulated power supply for your external accessories
• Inherent overload protection; redundancy design using multiple types of protection
• Modular connectors for easy access control and accessory installation
• Solar panel and low voltage wiring compatibility
• LED indicators display gate and operator status for easy troubleshooting
INSTALLATION DATE: __________________________________
COMPANY / INSTALLER: ________________________________
CO N TACT: __________________________________________
SERIAL NUMBER(S): ____________________________________
ALL INSTALLATION, MAINTENANCE AND REPAIR WORK MUST BE DOCUMENTED AND MADE AVAILABLE TO THE USER.
VIKING ACCESS SYSTEMS
631 Wald Irvine, CA 92618 Phone 800.908.0884 Fax 949.753.1640
www.vikingaccess.com
Loading...
