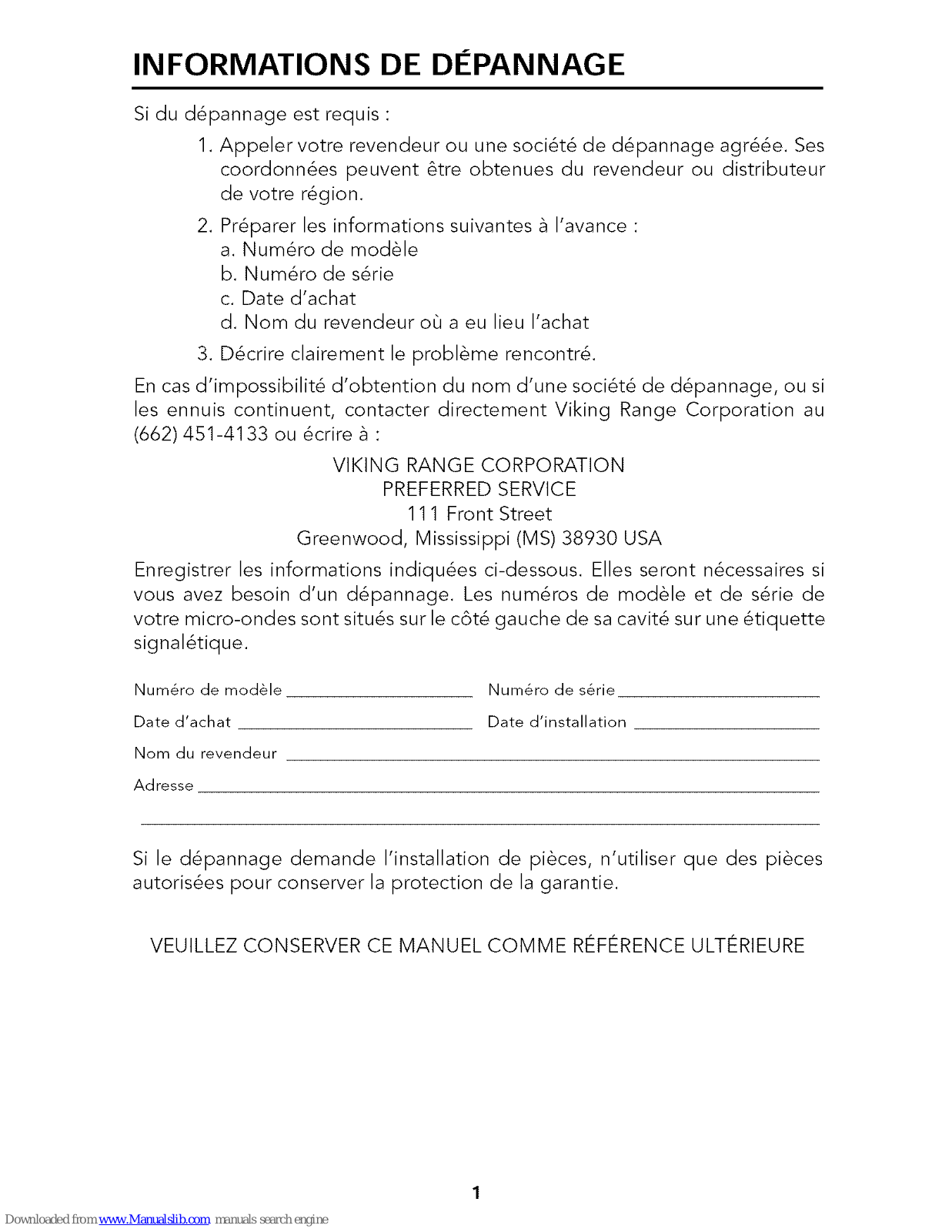

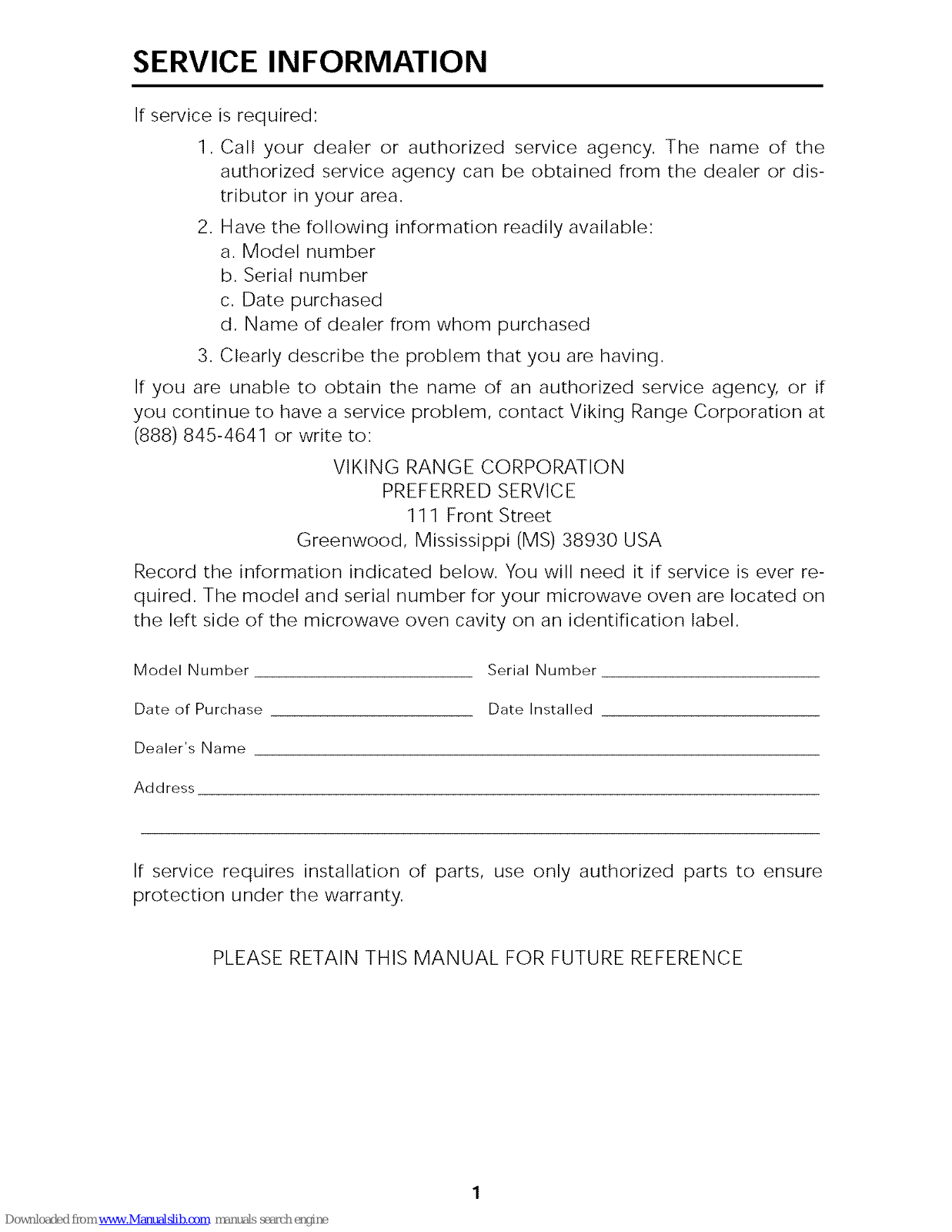

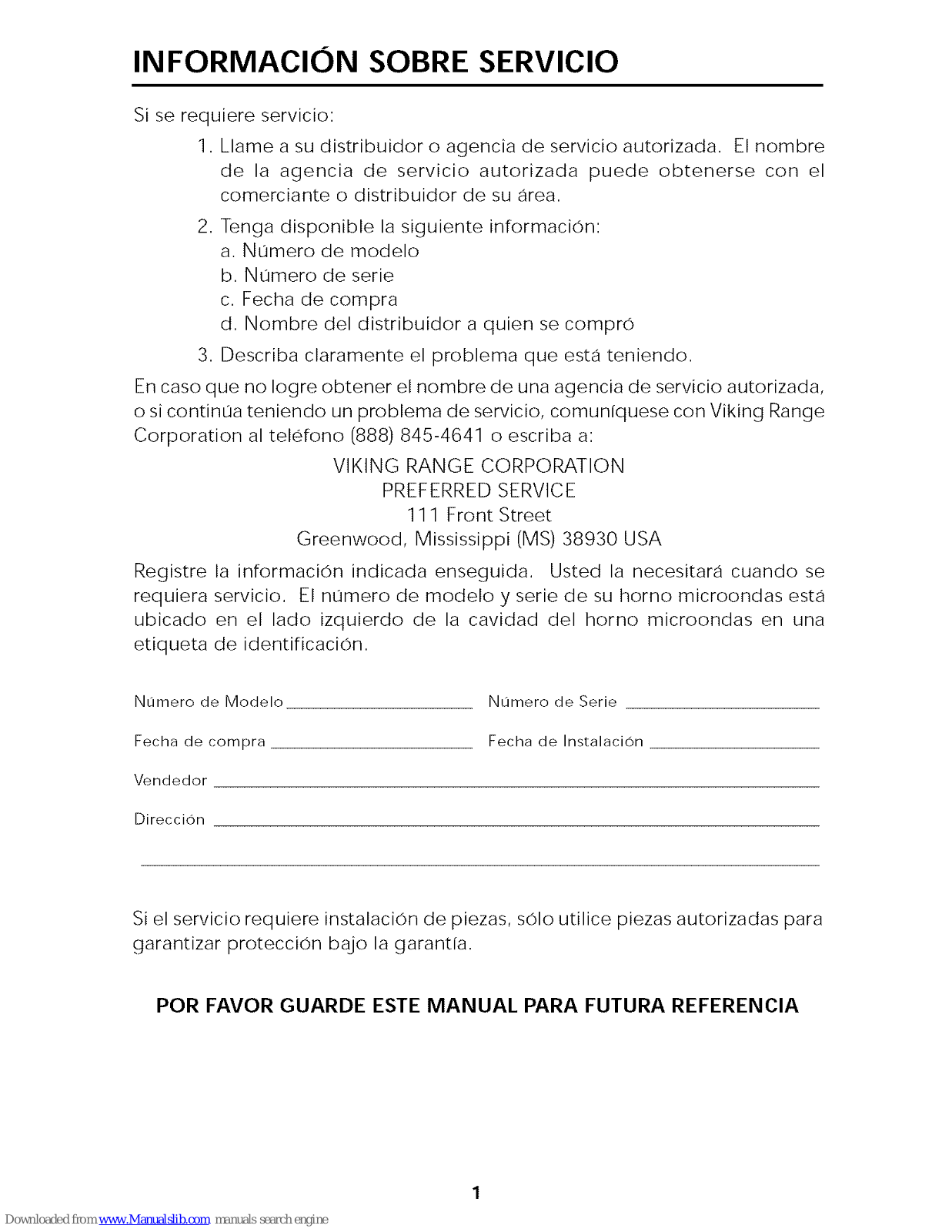

SERVICE INFORMATION

If service is required:

1. Call your dealer or authorized service agency. The name of the
authorized service agency can be obtained from the dealer or dis-

tributor in your area.

2. Have the following information readily available:
a. Model number

b. Serial number
c. Date purchased

d, Name of dealer from whom purchased

3. Clearly describe the problem that you are having.

If you are unable to obtain the name of an authorized service agency, or if

you continue to have a service problem, contact Viking Range Corporation at

[phone] or write to:

VIKING RANGE CORPORATION

PREFERRED SERVICE

111 Front Street

Greenwood, Mississippi (MS) 38930 USA

Record the information indicated below. You will need it if service is ever re-
quired. The model and serial number for your microwave oven are located on

the left side of the microwave oven cavity on an identification label.

Model Number Serial Number

Date of Purchase Date Installed

Dealer's Name

Address

If service requires installation of parts, use only authorized parts to ensure

protection under the warranty.

PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE

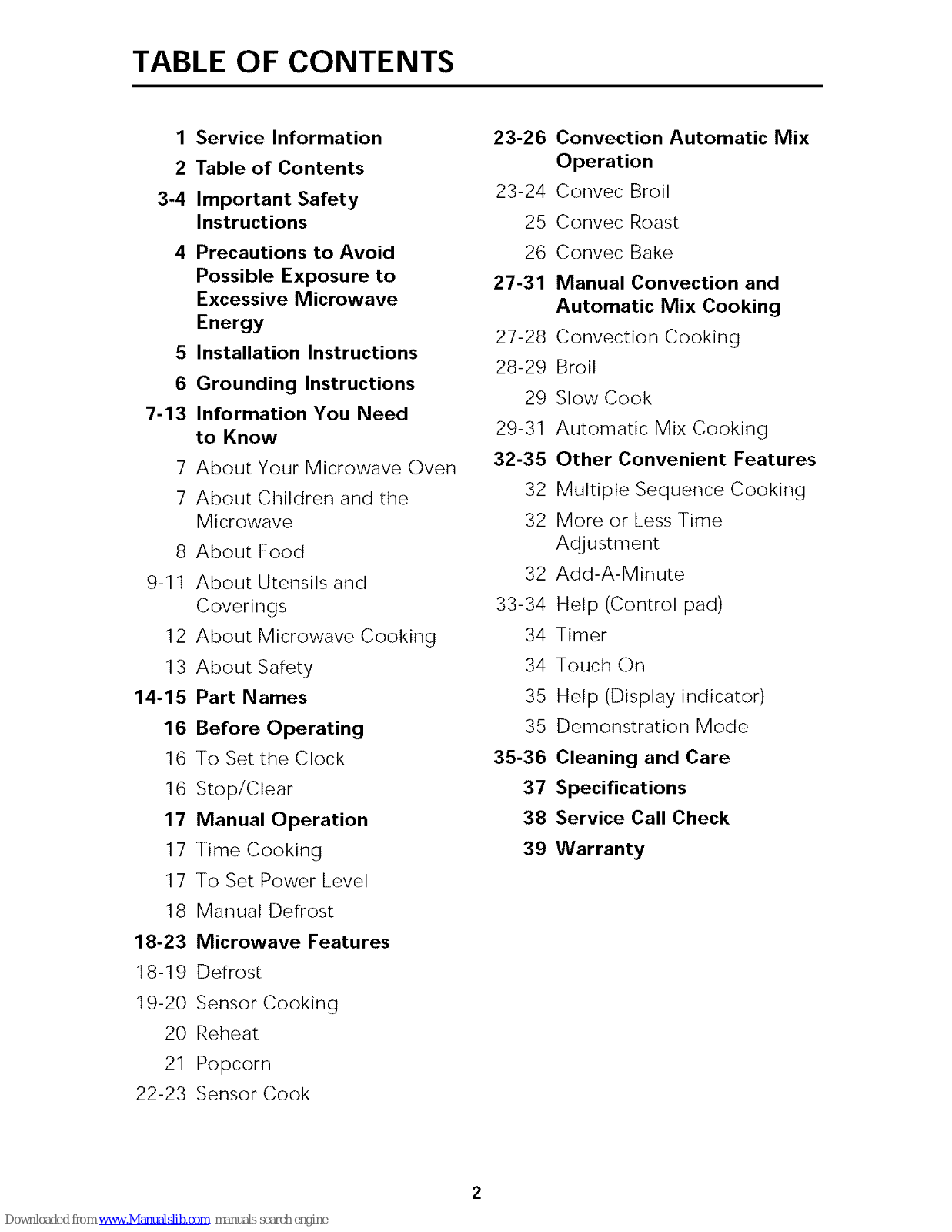

TABLE OF CONTENTS

1 Service Information 23-26
2 Table of Contents

3-4 Important Safety 23-24

Instructions 25

4 Precautions to Avoid 26

Possible Exposure to 27-31
Excessive Microwave

Energy

27-28

5 Installation Instructions

28-29

6 Grounding Instructions

29

7-13 Information You Need

to Know 29-31

7 About Your Microwave Oven 32-35
7 About Children and the 32

Microwave 32

8 About Food

9-11 About Utensils and 32

Coverings 33-34
12 About Microwave Cooking 34
13 About Safety 34

14-15 Part Names 35

16 Before Operating 35

16 To Set the Clock 35-36
16 Stop/Clear 37

17 Manual Operation 38

17 Time Cooking 39
17 To Set Power Level

18 Manual Defrost

18-23 Microwave Features

18-19 Defrost
19-20 Sensor Cooking

20 Reheat
21 Popcorn

22-23 Sensor Cook

Convection Automatic Mix

Operation
Convec Broil

Convec Roast
Convec Bake

Manual Convection and
Automatic Mix Cooking

Convection Cooking
Broil

Slow Cook
Automatic Mix Cooking

Other Convenient Features
Multiple Sequence Cooking

More or Less Time
Adjustment
Add-A-Minute

Help (Control pad)
Timer

Touch On
Help (Display indicator)

Demonstration Mode

(:;leaning and Care
Specifications

Service Call Check

Warranty

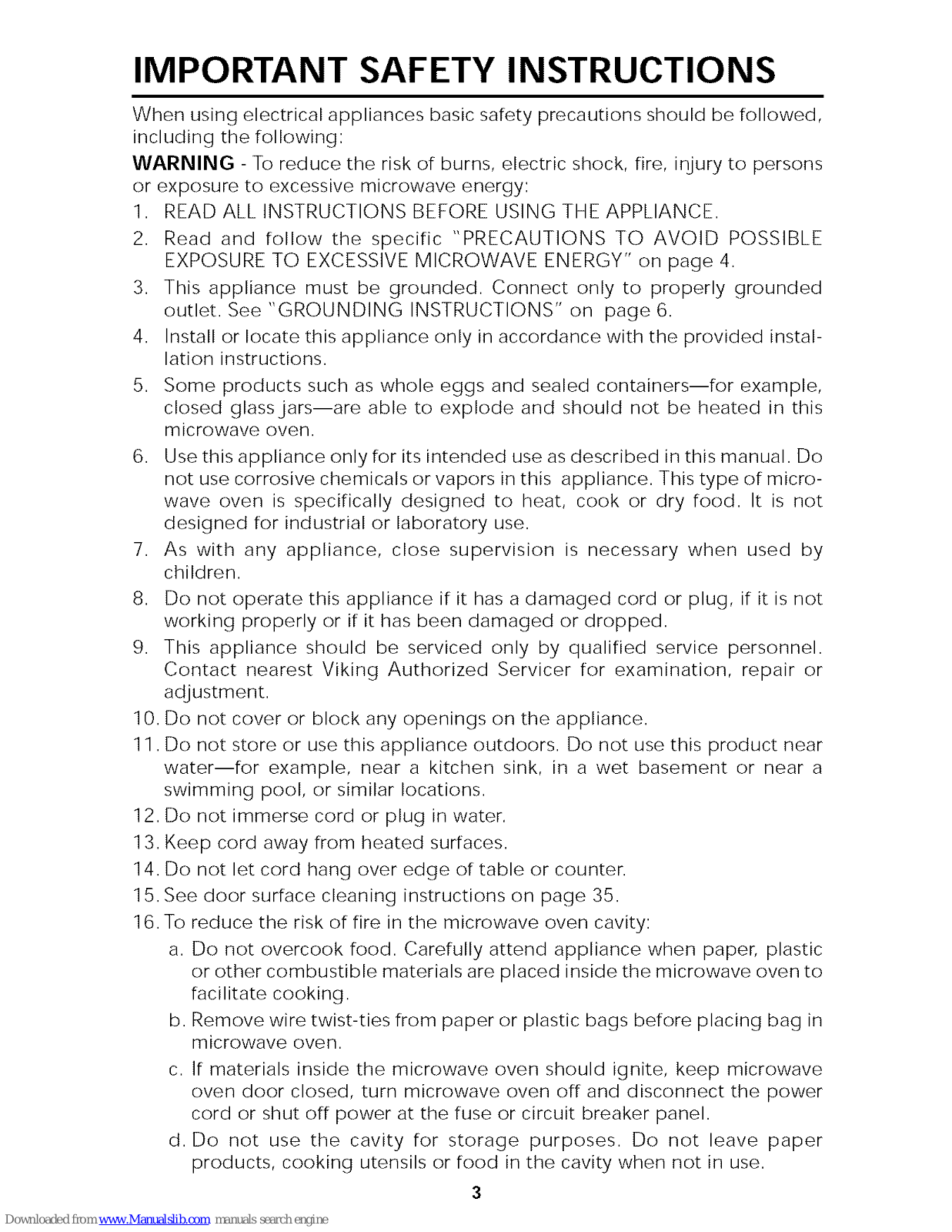

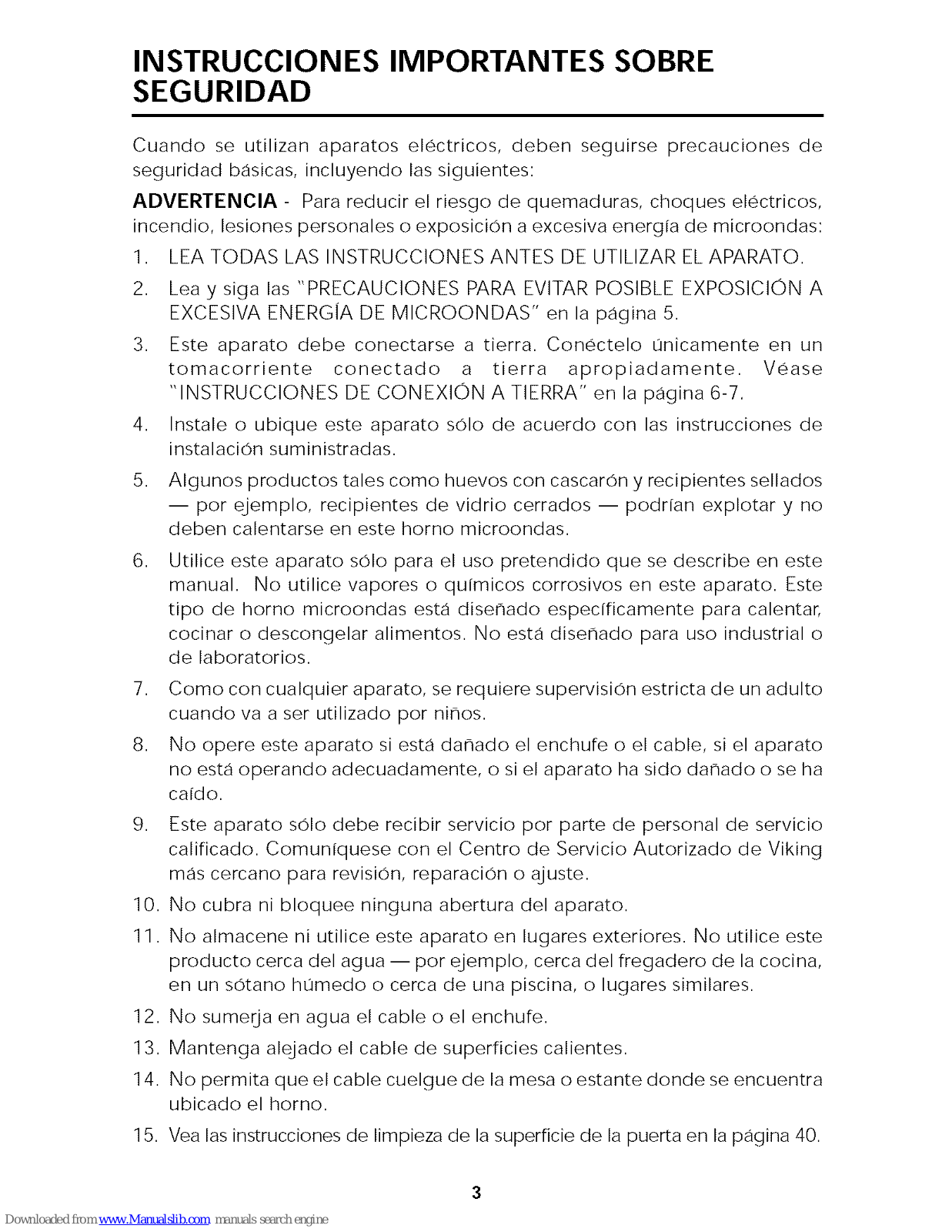

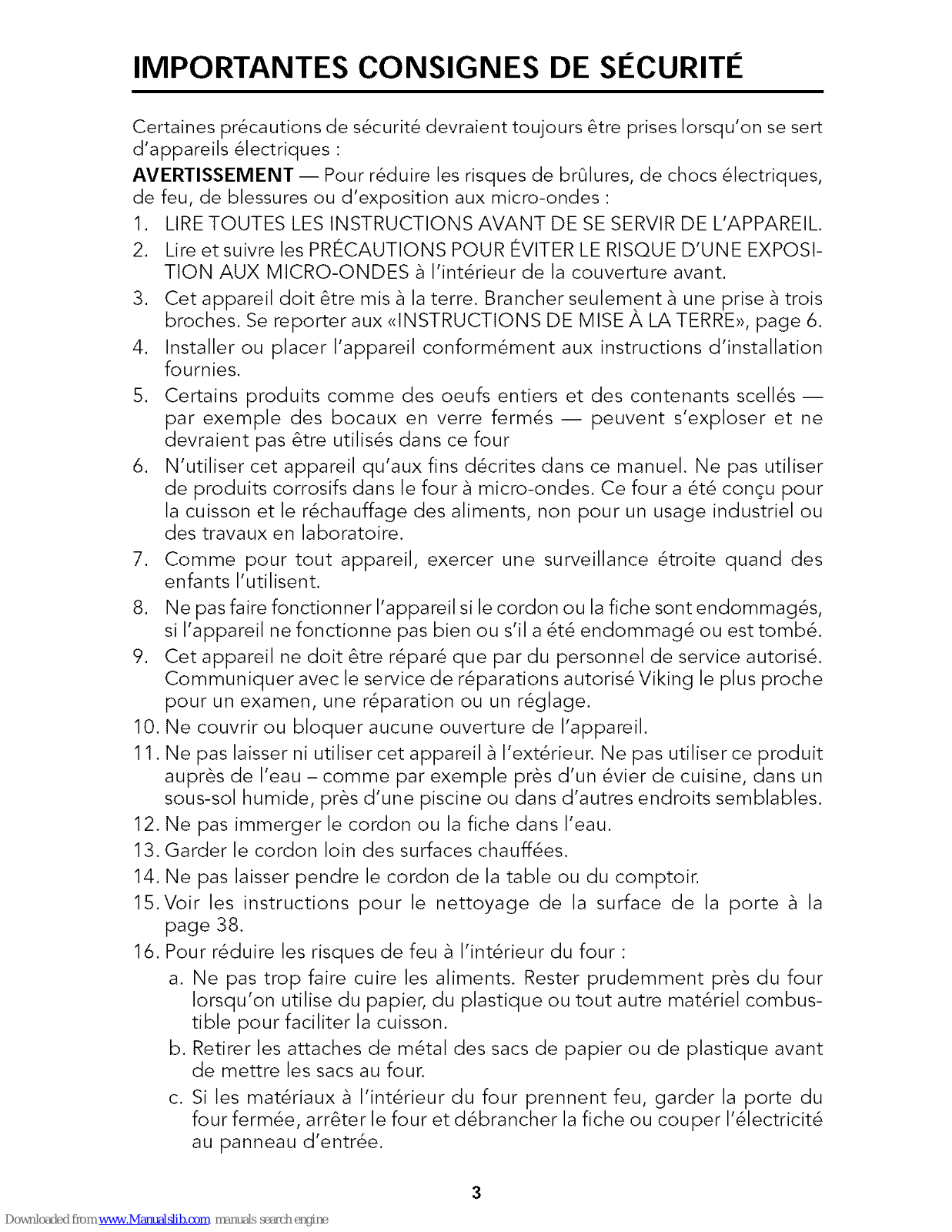

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed,
including the following:

WARNING - To reduce the risk of burns, electric shock, fire, injury to persons
or exposure to excessive microwave energy:

1. READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 4.

3. This appliance must be grounded. Connect only to properly grounded
outlet. See "GROUNDING INSTRUCTIONS" on page 6.

4. Install or locate this appliance only in accordance with the provided instal-
lation instructions.

5. Some products such as whole eggs and sealed containers--for example,
closed glassjars--are able to explode and should not be heated in this

microwave oven.

6. Use this appliance only for its intended use as described in this manual. Do
not use corrosive chemicals or vapors in this appliance. This type of micro-

wave oven is specifically designed to heat, cook or dry food. It is not

designed for industrial or laboratory use.

7. As with any appliance, close supervision is necessary when used by
children.

8. Do not operate this appliance if it has a damaged cord or plug, if it is not

working properly or if it has been damaged or dropped.

9. This appliance should be serviced only by qualified service personnel.
Contact nearest Viking Authorized Servicer for examination, repair or

adjustment.

10. Do not cover or block any openings on the appliance.

11. Do not store or use this appliance outdoors. Do not use this product near

water--for example, near a kitchen sink, in a wet basement or near a

swimming pool, or similar locations.

12. Do not immerse cord or plug in water,

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or counter.

15. See door surface cleaning instructions on page 35.

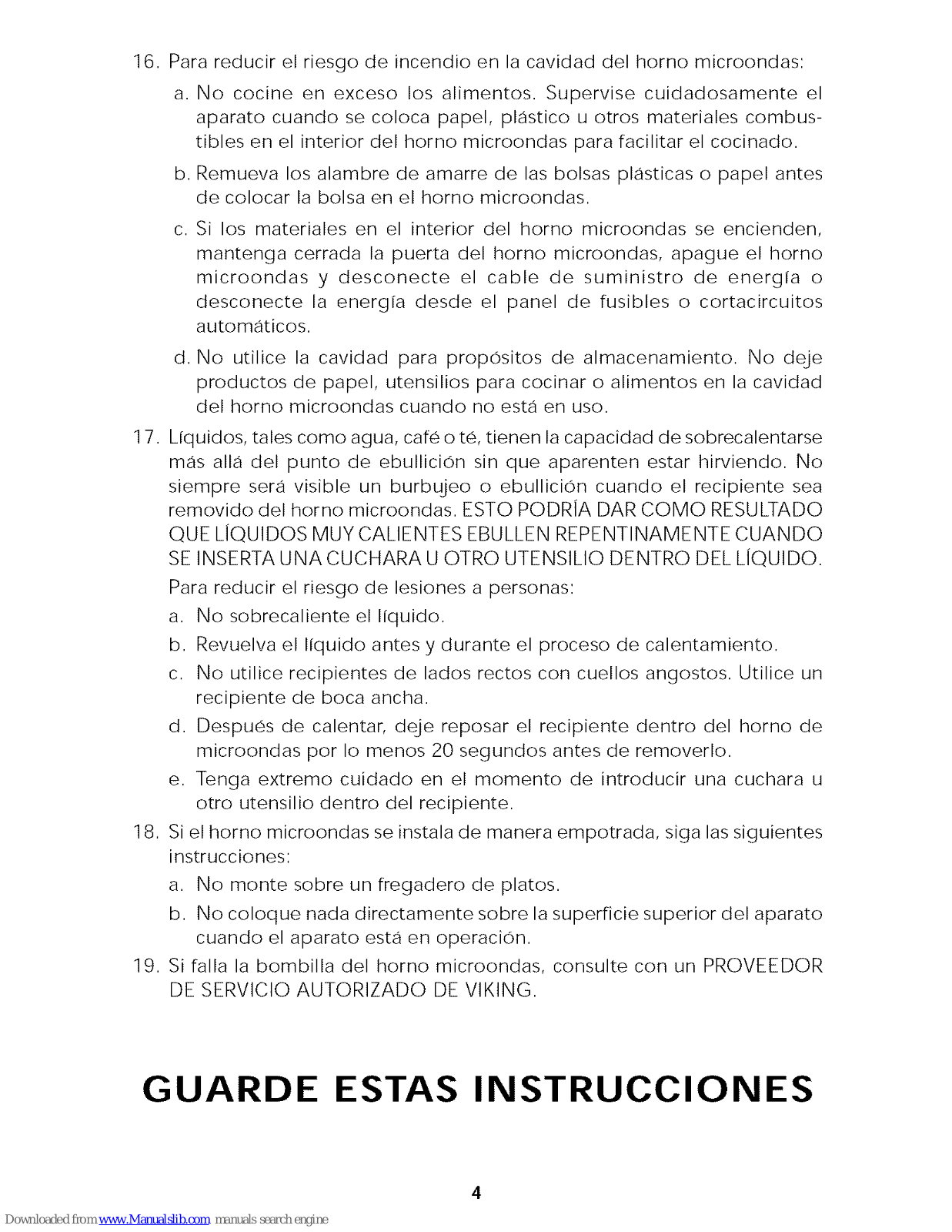

16. To reduce the risk of fire in the microwave oven cavity:

a. Do not overcook food. Carefully attend appliance when paper, plastic

or other combustible materials are placed inside the microwave oven to
facilitate cooking.

b. Remove wire twist-ties from paper or plastic bags before placing bag in

microwave oven.

c. If materials inside the microwave oven should ignite, keep microwave

oven door closed, turn microwave oven off and disconnect the power
cord or shut off power at the fuse or circuit breaker panel.

d. Do not use the cavity for storage purposes. Do not leave paper

products, cooking utensils or food in the cavity when not in use.

3

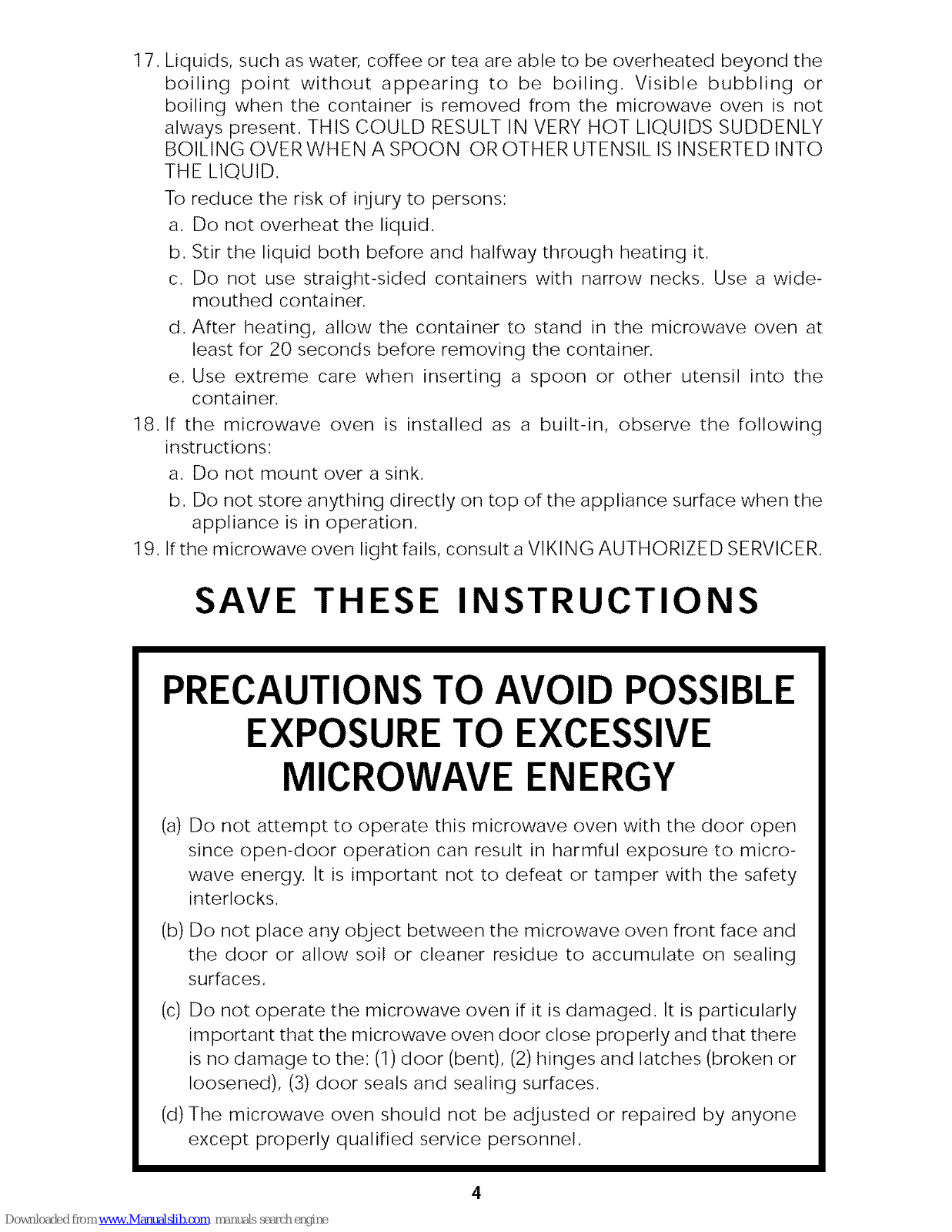

17.Liquids,suchaswater,coffeeorteaareabletobeoverheatedbeyondthe
boiling point withoutappearingto be boiling. Visiblebubblingor

boilingwhenthe containerisremovedfromthemicrowaveovenisnot
alwayspresent,THISCOULDRESULTINVERYHOTLIQUIDSSUDDENLY
BOILINGOVERWHENASPOONOROTHERUTENSILISINSERTEDINTO

THELIQUID.
Toreducetheriskof injurytopersons:

a.Donotoverheattheliquid.
b.Stirtheliquidbothbeforeandhalfwaythroughheatingit.

c. Donot usestraight-sidedcontainerswithnarrownecks.Useawide-

mouthedcontainer.

d.Afterheating,allowthecontainerto standinthe microwaveovenat

leastfor20secondsbeforeremovingthecontainer.

e.Useextremecarewheninsertinga spoonorotherutensilintothe

container.

18.If the microwaveovenis installedasa built-in,observethefollowing
instructions:

a.Donotmountoverasink.
b.Donotstoreanythingdirectlyontopoftheappliancesurfacewhenthe

applianceisinoperation.

19.Ifthemicrowaveovenlightfails,consultaVIKINGAUTHORIZEDSERVICER.

SAVE THESE INSTRUCTIONS

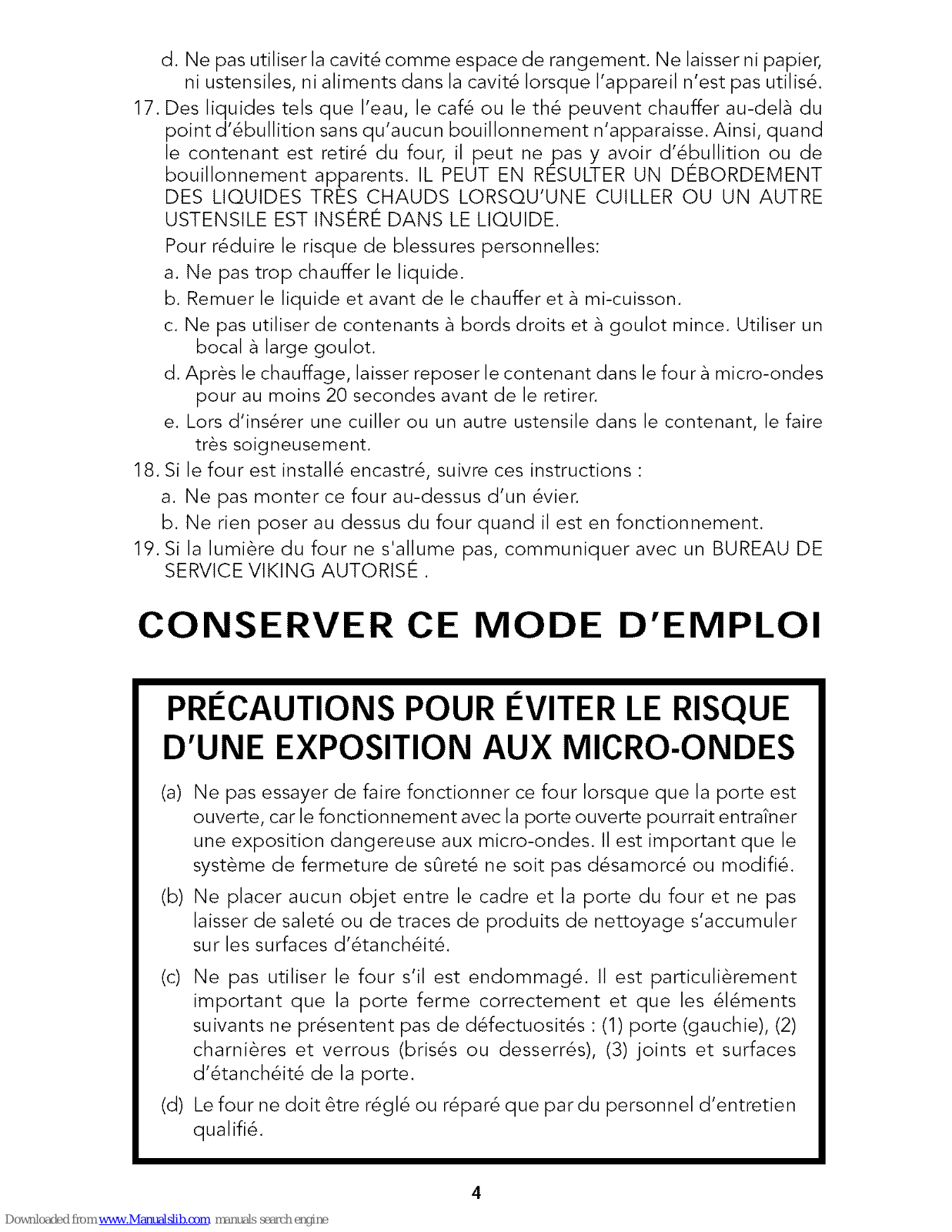

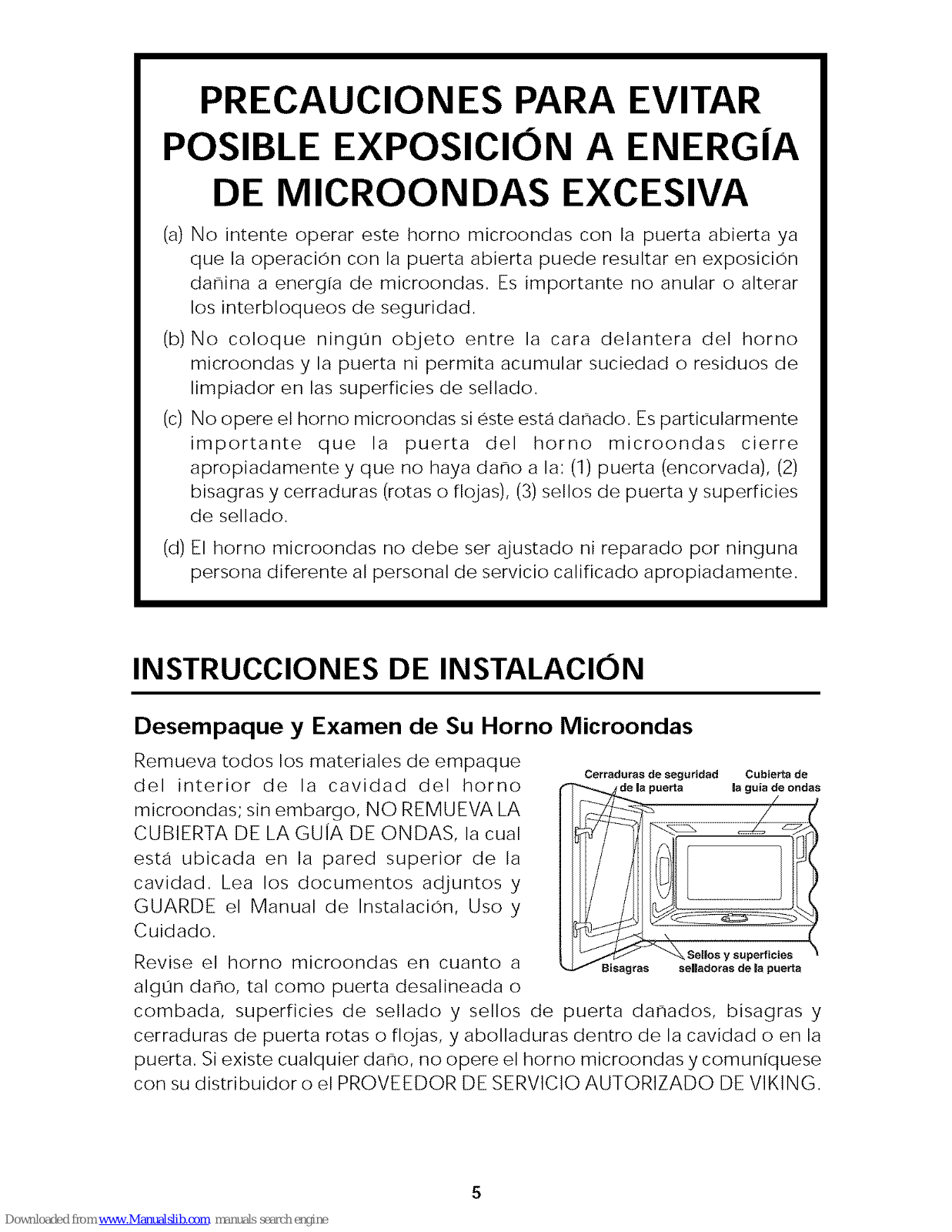

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURETO EXCESSIVE

MICROWAVE ENERGY

(a) Do not attempt to operate this microwave oven with the door open

since open-door operation can result in harmful exposure to micro-
wave energy. It is important not to defeat or tamper with the safety

interlocks.

(b) Do not place any object between the microwave oven front face and

the door or allow soil or cleaner residue to accumulate on sealing
surfaces,

(c) Do not operate the microwave oven if it is damaged. It is particularly

important that the microwave oven door close properly and that there
is no damage to the: (1) door (bent), (2) hinges and latches (broken or
loosened), (3) door seals and sealing surfaces.

(d) The microwave oven should not be adjusted or repaired by anyone

except properly qualified service personnel.

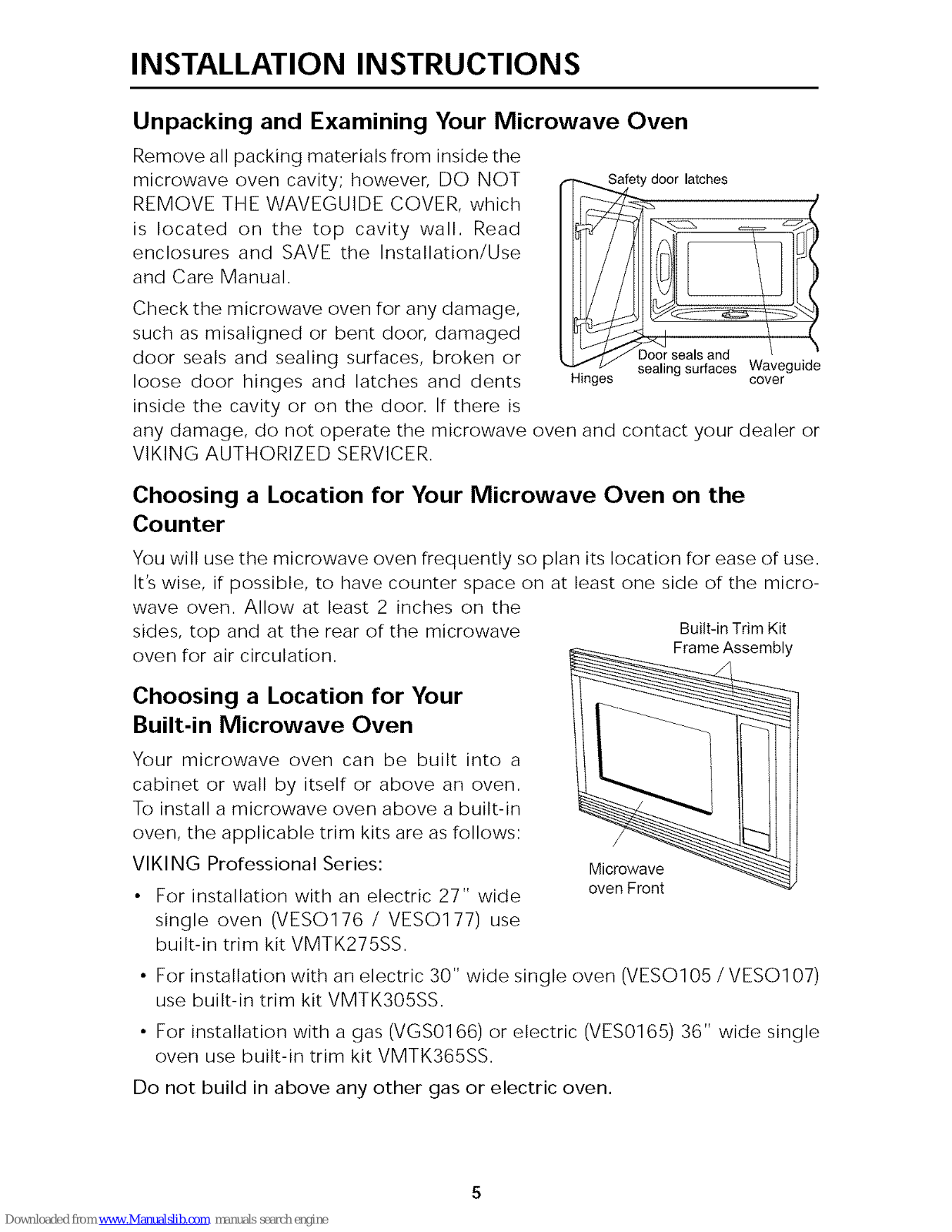

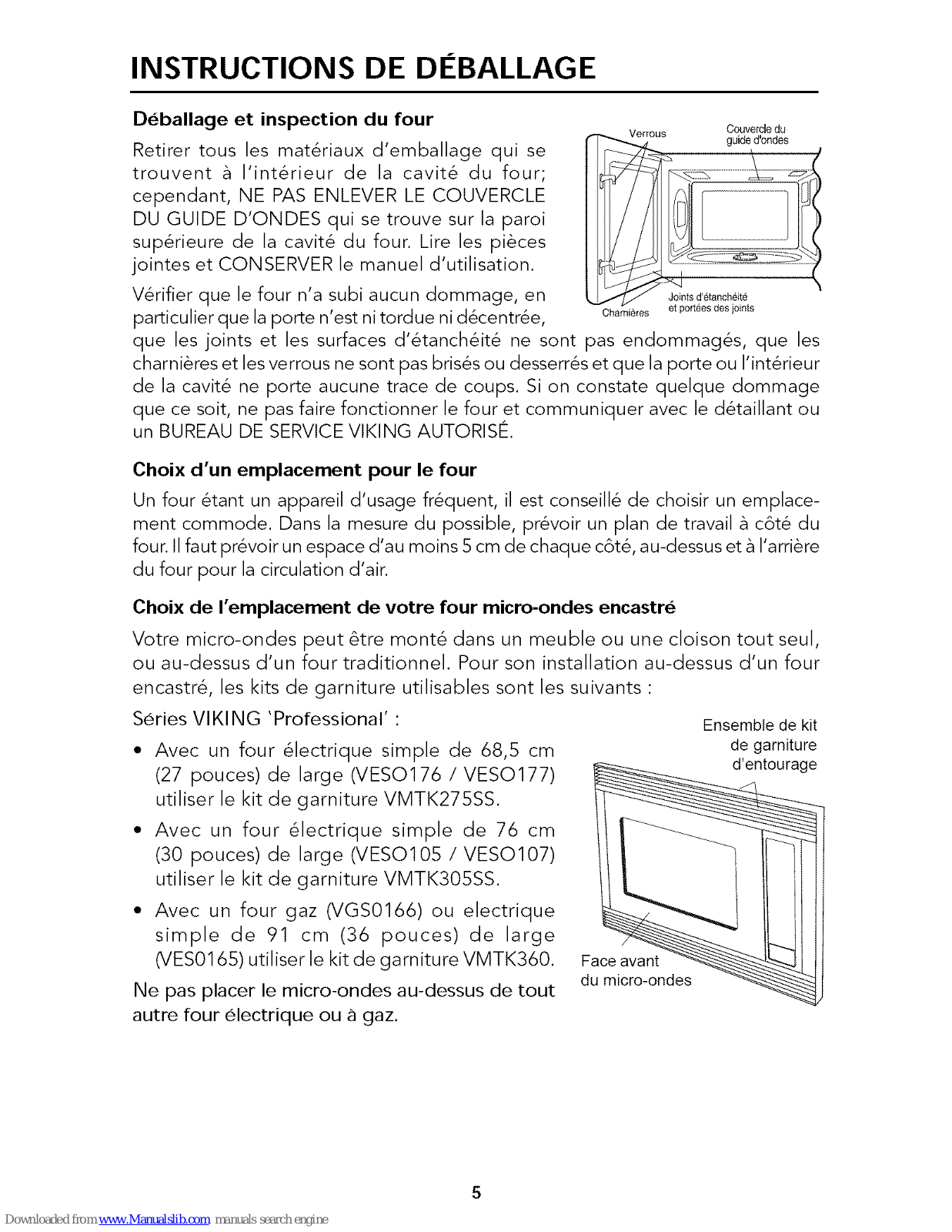

INSTALLATION INSTRUCTIONS

Unpacking and Examining Your Microwave Oven

Remove all packing materials from inside the
microwave oven cavity; however, DO NOT

REMOVE THE WAVEGUIDE COVER, which
is located on the top cavity wall, Read

enclosures and SAVE the Installation/Use
and Care Manual.

Check the microwave oven for any damage,
such as misaligned or bent door, damaged
door seals and sealing surfaces, broken or
loose door hinges and latches and dents
inside the cavity or on the door. If there is

door latches

Hinges cover

any damage, do not operate the microwave oven and contact your dealer or
VIKING AUTHORIZED SERVICER.

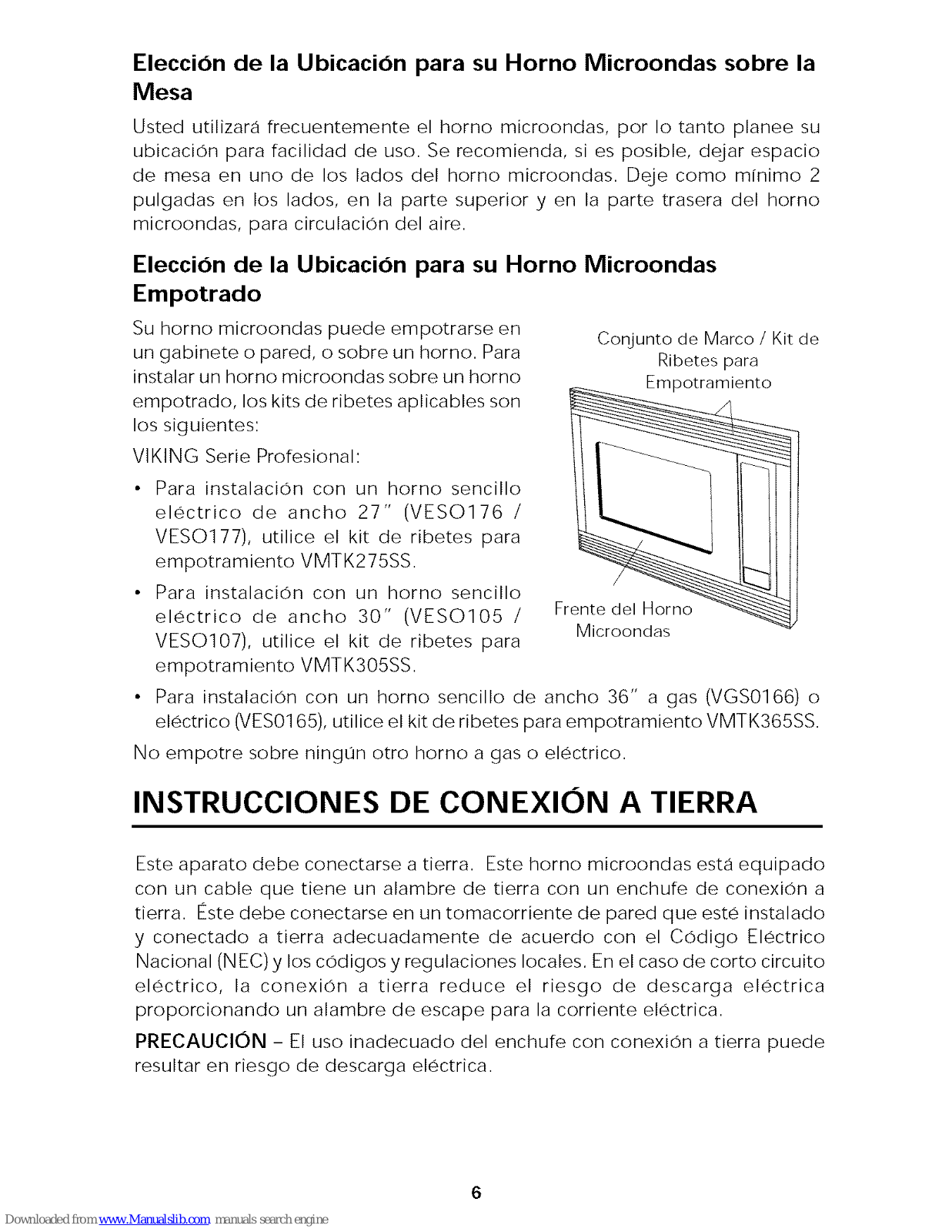

Choosing a Location for Your Microwave Oven on the

Counter

You will use the microwave oven frequently so plan its location for ease of use.

It's wise, if possible, to have counter space on at least one side of the micro-

wave oven. Allow at least 2 inches on the
sides, top and at the rear of the microwave

oven for air circulation.

Choosing a Location for Your
Built-in Microwave Oven

Your microwave oven can be built into a
cabinet or wall by itself or above an oven,

To install a microwave oven above a built-in
oven, the applicable trim kits are as follows:

VIKING Professional Series:

• For installation with an electric 27" wide
single oven (VESO176 / VESO177) use

built-in trim kit VMTK275SS.

Built-in Trim Kit

Frame Assembly

Microwave
oven Front

• For installation with an electric 30" wide single oven (VESO105 / VESO107)
use built-in trim kit VMTK305SS.

• For installation with a gas (VGS0166) or electric (VES0165) 36" wide single

oven use built-in trim kit VMTK365SS.

Do not build in above any other gas or electric oven.

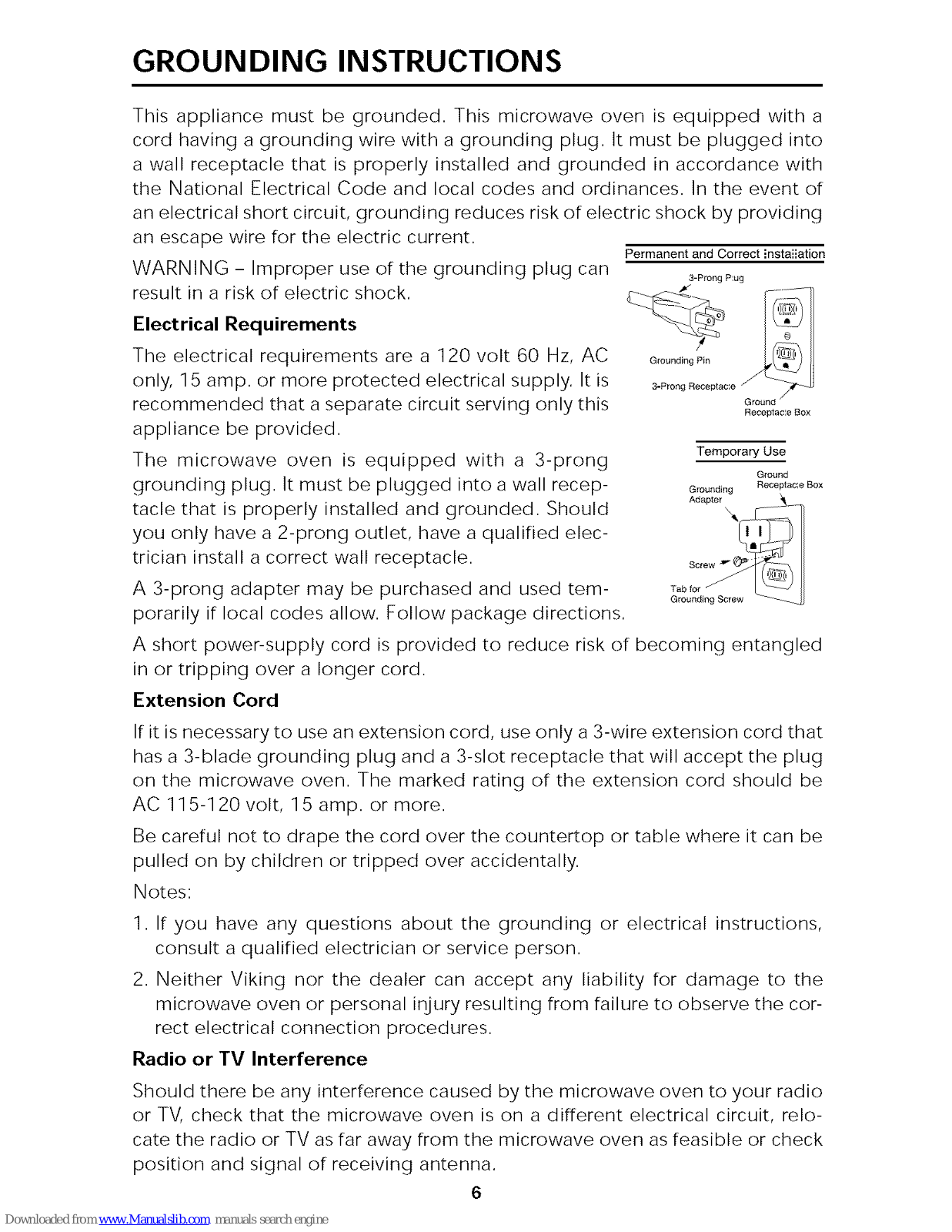

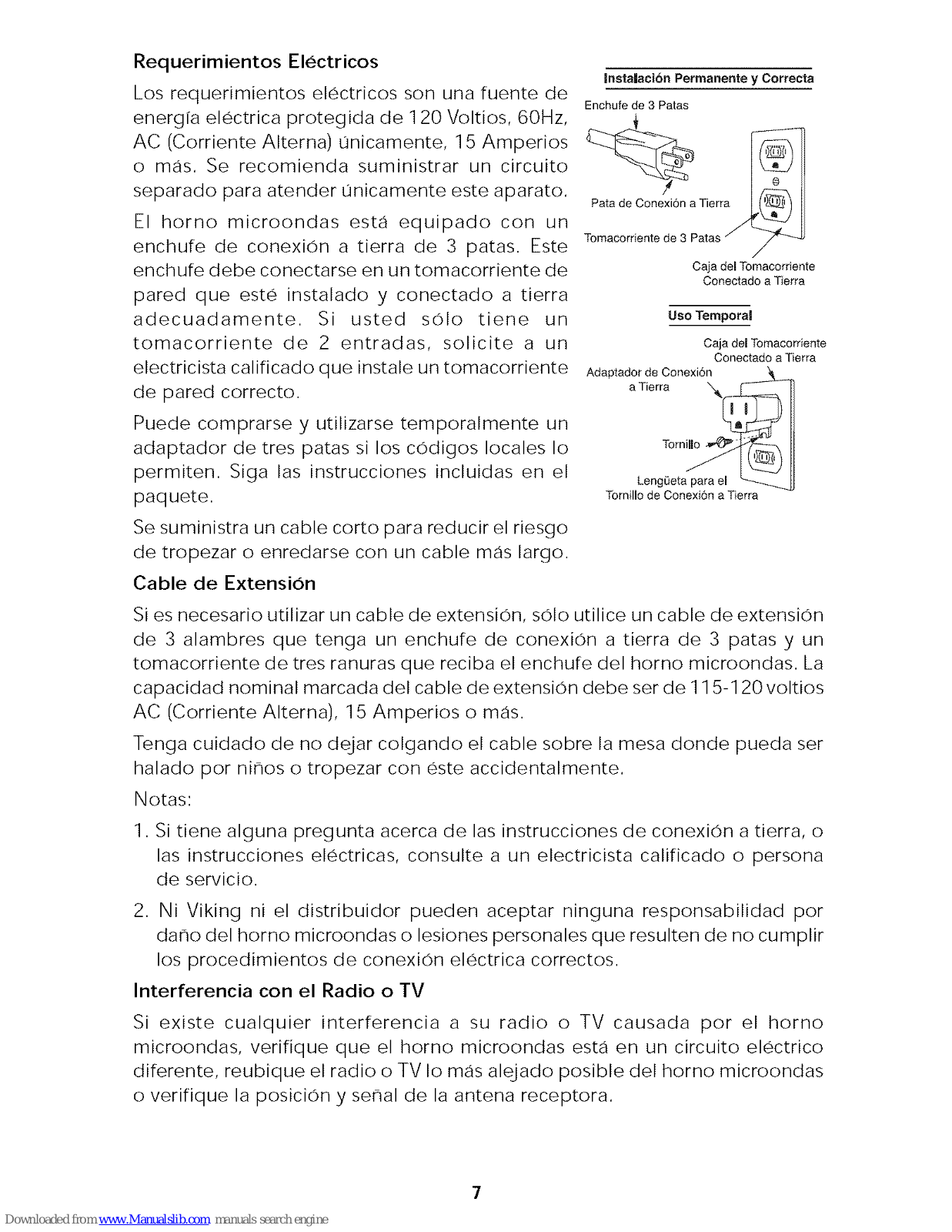

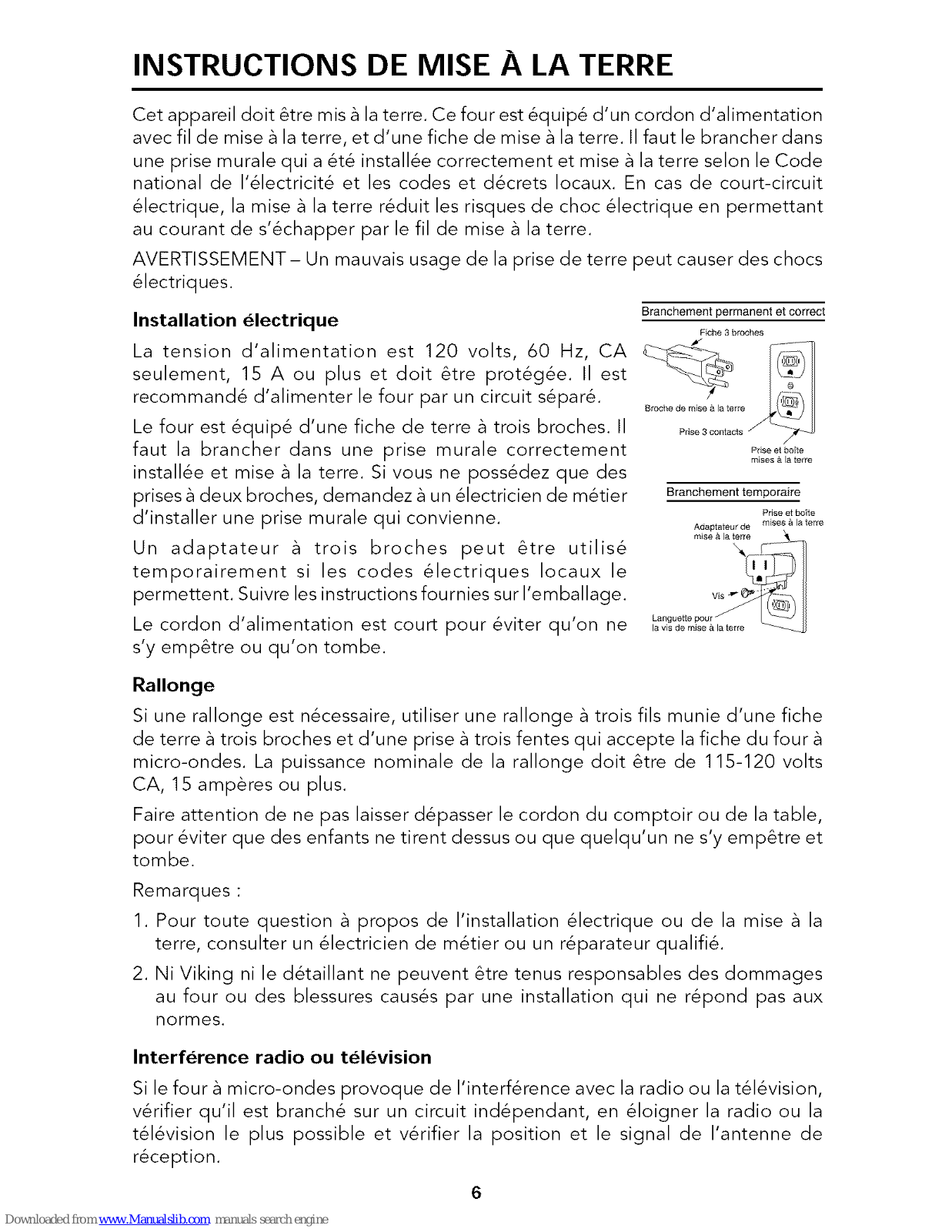

GROUNDING INSTRUCTIONS

This appliance must be grounded. This microwave oven is equipped with a
cord having a grounding wire with a grounding plug. It must be plugged into

a wall receptacle that is properly installed and grounded in accordance with
the National Electrical Code and local codes and ordinances. In the event of

an electrical short circuit, grounding reduces risk of electric shock by providing
an escape wire for the electric current.

Permanent and Correct instaiiation

WARNING - Improper use of the grounding plug can

3-Prong P:ug

result in a risk of electric shock,
Electrical Requirements

The electrical requirements are a 120 volt 60 Hz, AC
only, 15 amp. or more protected electrical supply, It is
recommended that a separate circuit serving only this e'°°n°_

Receplacle Box

appliance be provided.
The microwave oven is equipped with a 3-prong TemporaryUse

Ground

grounding plug. it must be plugged into a wall recep- G,o_,,_JngR0oOp,o_,0B0*
tacle that is properly installed and grounded. Should
you only have a 2-prong outlet, have a qualified elec-
trician install a correct wall receptacle.

A 3-prong adapter may be purchased and used tem-
porarily if local codes allow. Follow package directions,

A short power-supply cord is provided to reduce risk of becoming entangled
in or tripping over a longer cord.

Extension Cord

If it is necessary to use an extension cord, use only a 3-wire extension cord that

has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug
on the microwave oven. The marked rating of the extension cord should be
AC 115-120 volt, 15 amp. or more.

Be careful not to drape the cord over the countertop or table where it can be
pulled on by children or tripped over accidentally.

Notes:

1. If you have any questions about the grounding or electrical instructions,
consult a qualified electrician or service person.

2. Neither Viking nor the dealer can accept any liability for damage to the

microwave oven or personal injury resulting from failure to observe the cor-

rect electrical connection procedures.

Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio

or TV, check that the microwave oven is on a different electrical circuit, relo-
cate the radio or TV as far away from the microwave oven as feasible or check

position and signal of receiving antenna,

6

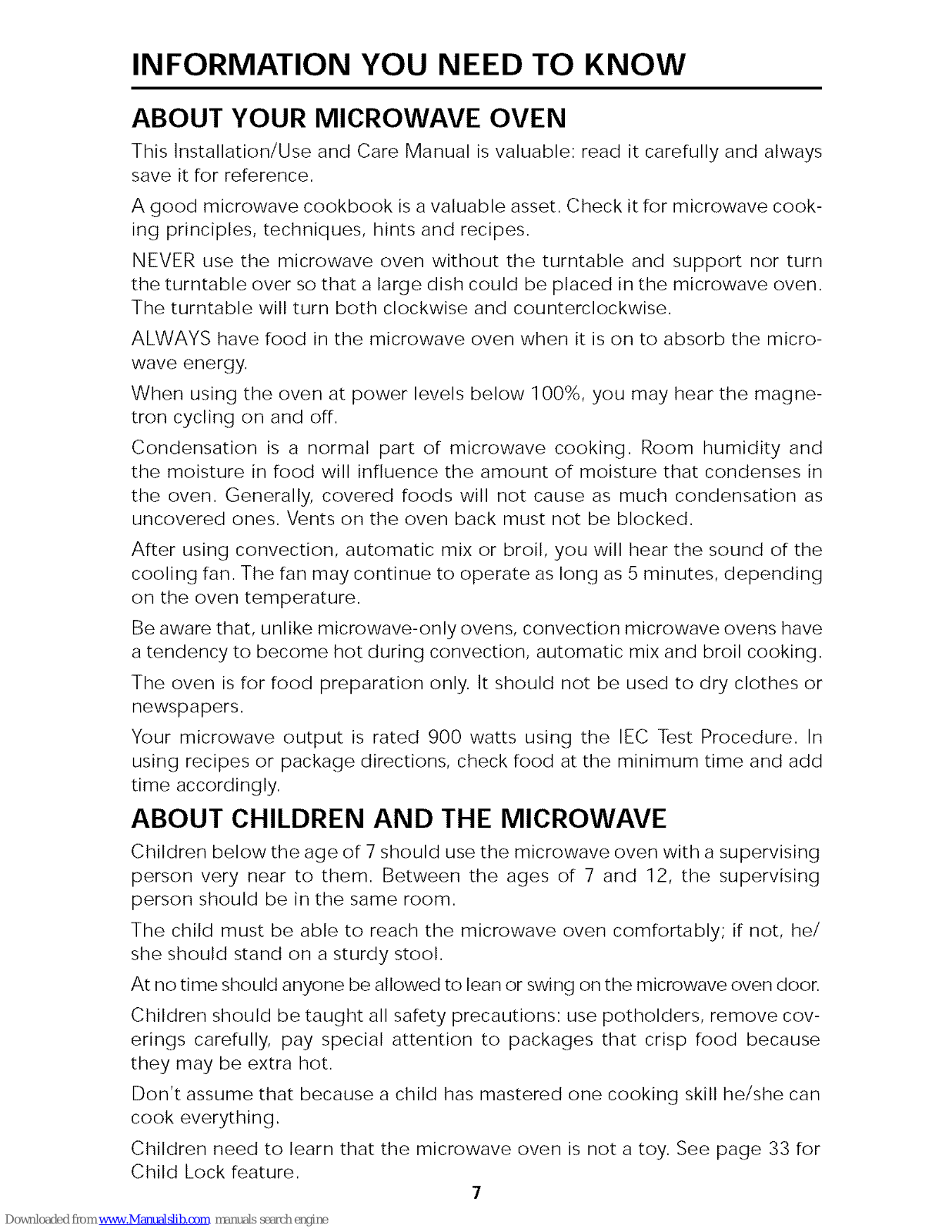

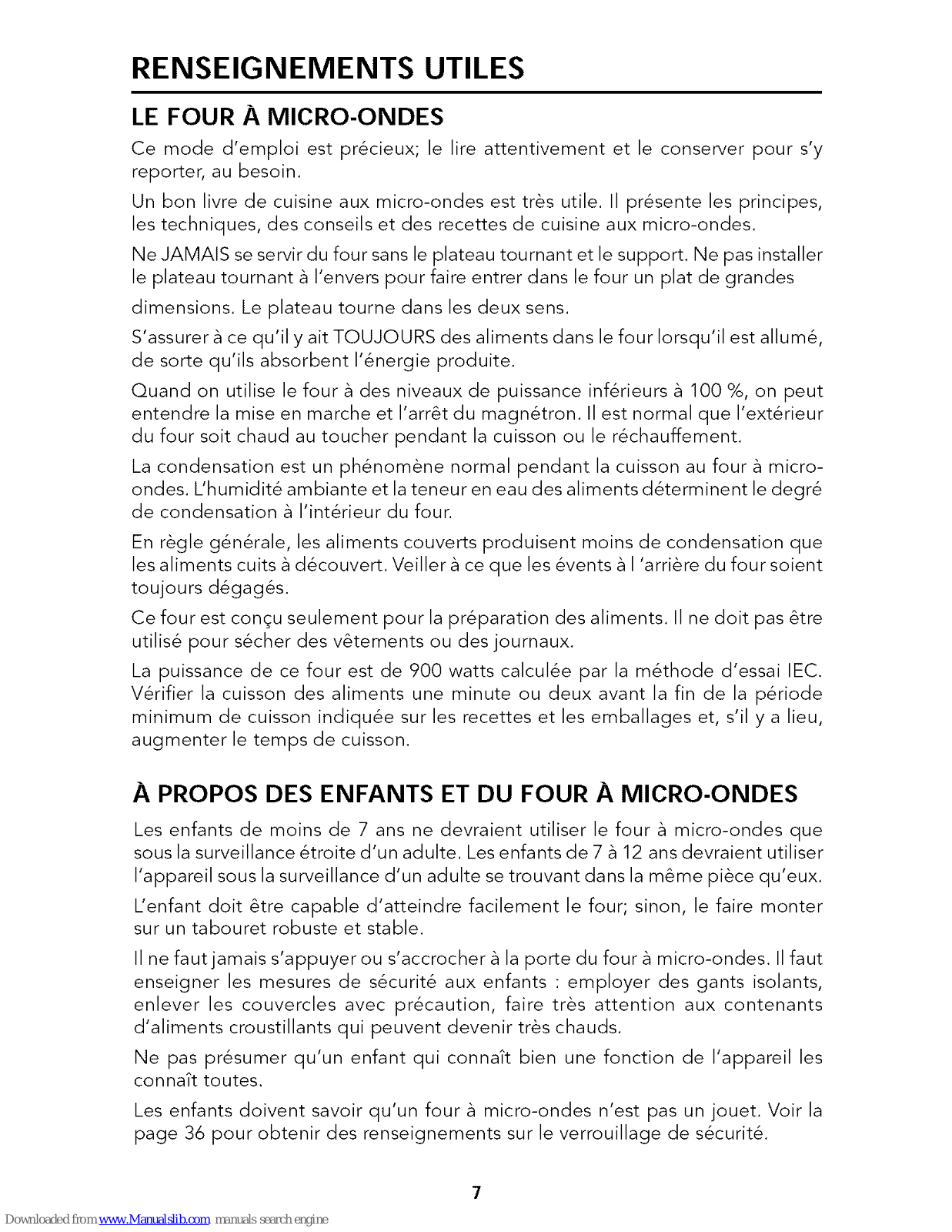

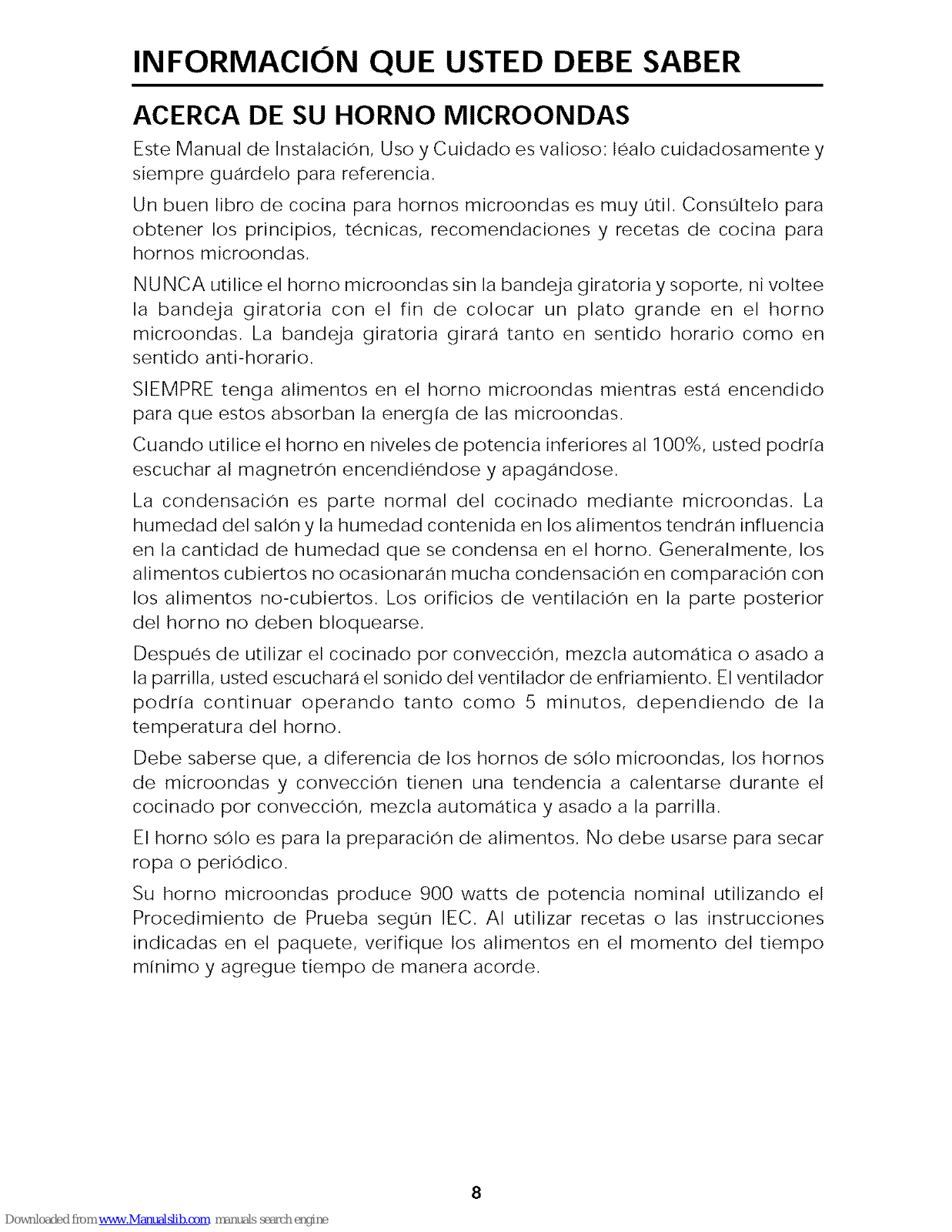

INFORMATION YOU NEED TO KNOW

ABOUT YOUR MICROWAVE OVEN

This Installation/Use and Care Manual is valuable: read it carefully and always

save it for reference,

A good microwave cookbook is a valuable asset. Check it for microwave cook-

ing principles, techniques, hints and recipes.
NEVER use the microwave oven without the turntable and support nor turn

the turntable over so that a large dish could be placed in the microwave oven.
The turntable will turn both clockwise and counterclockwise.

ALWAYS have food in the microwave oven when it is on to absorb the micro-
wave energy.

When using the oven at power levels below 100%, you may hear the magne-
tron cycling on and off.

Condensation is a normal part of microwave cooking. Room humidity and

the moisture in food will influence the amount of moisture that condenses in
the oven. Generally, covered foods will not cause as much condensation as

uncovered ones. Vents on the oven back must not be blocked.

After using convection, automatic mix or broil, you will hear the sound of the

cooling fan. The fan may continue to operate as long as 5 minutes, depending
on the oven temperature.

Be aware that, unlike microwave-only ovens, convection microwave ovens have
a tendency to become hot during convection, automatic mix and broil cooking.

The oven is for food preparation only. It should not be used to dry clothes or

newspapers.

Your microwave output is rated 900 watts using the lEG Test Procedure. In

using recipes or package directions, check food at the minimum time and add

time accordingly.

ABOUT CHILDREN AND THE MICROWAVE

Children below the age of 7 should use the microwave oven with a supervising

person very near to them. Between the ages of 7 and 12, the supervising
person should be in the same room.

The child must be able to reach the microwave oven comfortably; if not, he/
she should stand on a sturdy stool.

At no time should anyone be allowed to lean or swing on the microwave oven door.
Children should be taught all safety precautions: use potholders, remove cov-

erings carefully, pay special attention to packages that crisp food because
they may be extra hot.

Don't assume that because a child has mastered one cooking skill he/she can

cook everything,
Children need to learn that the microwave oven is not a toy. See page 33 for

Child Lock feature,

7

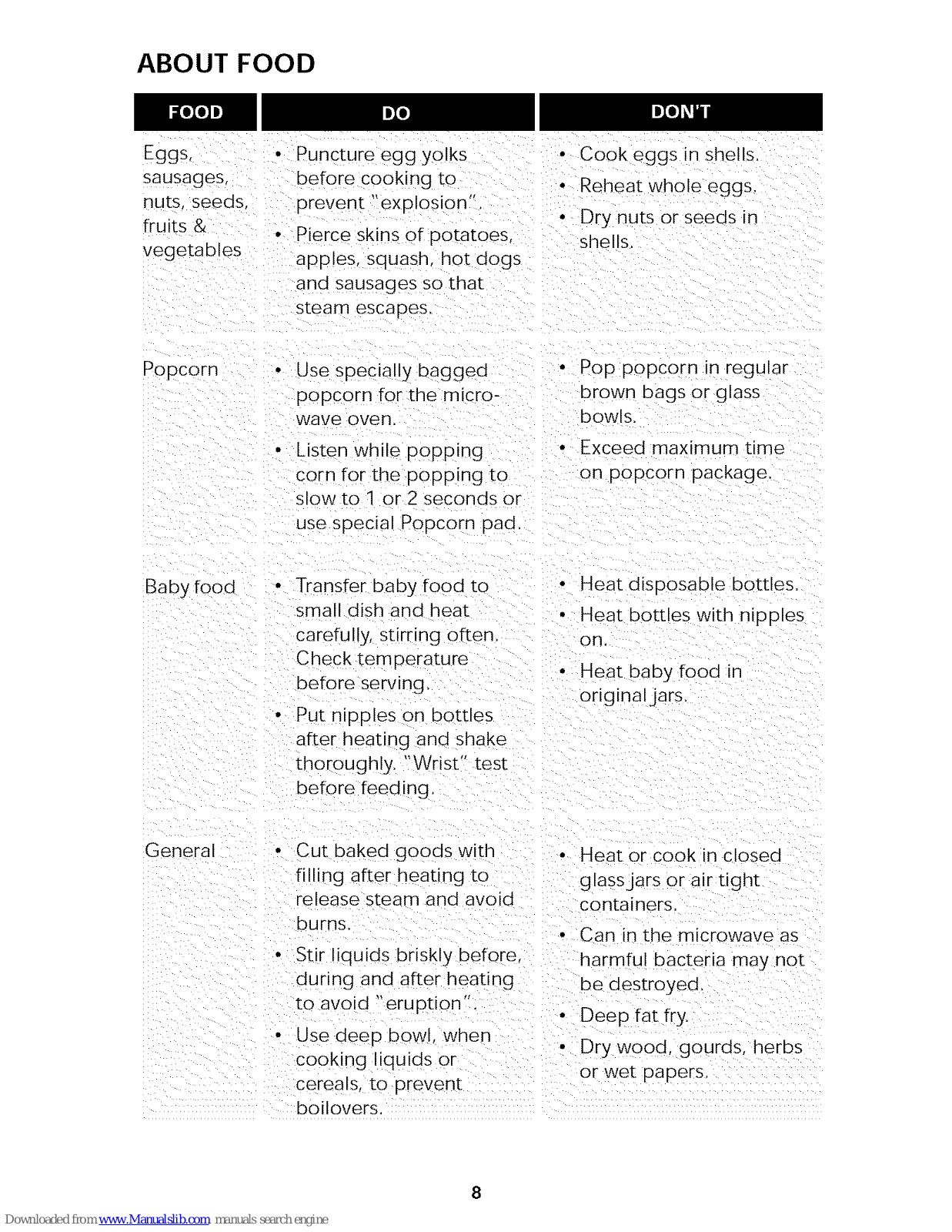

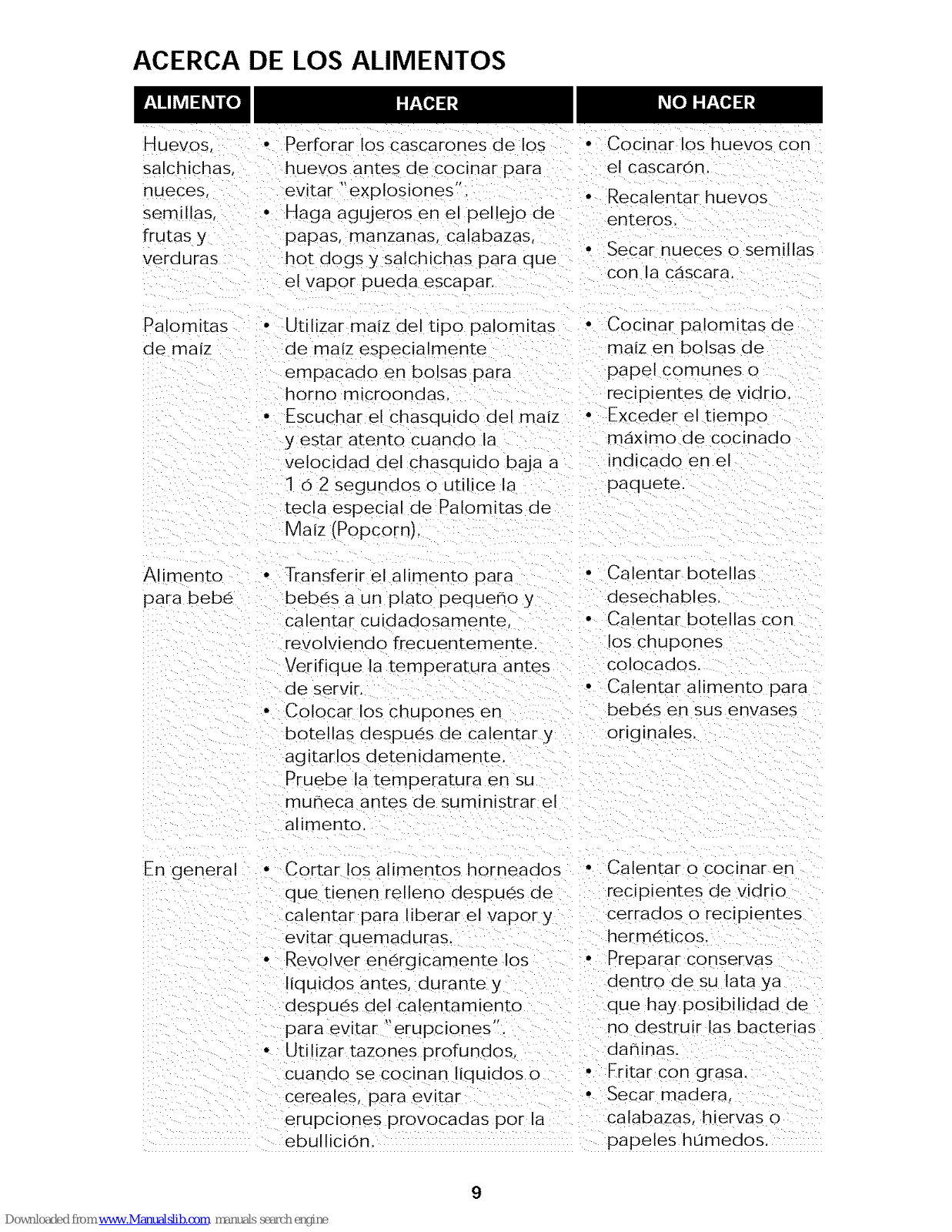

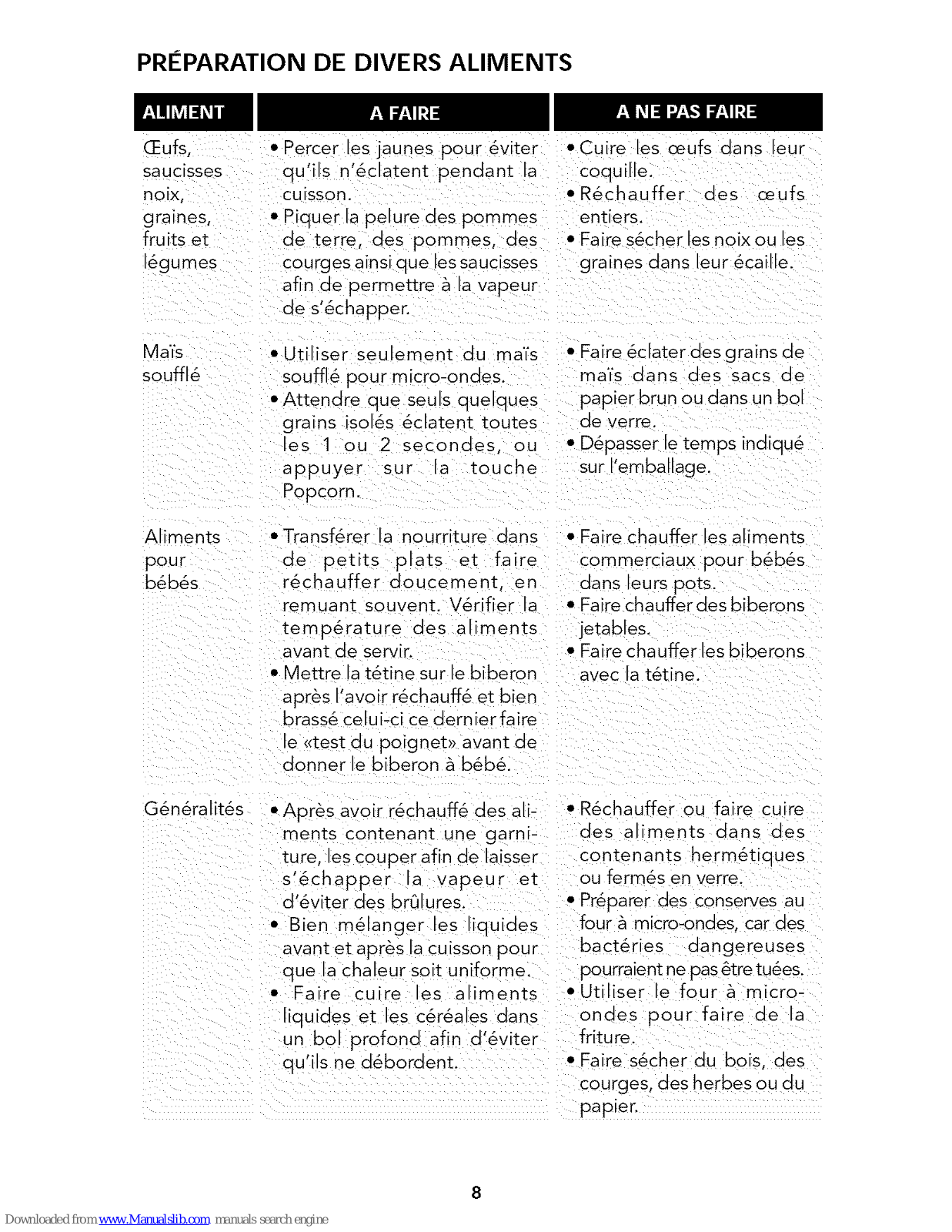

ABOUT FOOD

Eggs

sausages,
nuts seeds

fruits &
vegetables

Puncture egg yolks • Cook eggs in shells
before cooking to • Reheat whole eggs.

prevent "explosion". ..................

Pierce skins of potatoes, shells
apples, squash, hot dogs

and sausages so that
steam esca Des.

Popcorn • Use specially bagged • Pop popcorn in reqular

popcorn for the micro- brown bags or glass
wave over" bowls.

• Listen while popping • Exceed maximum time
corn for the popping to on popcorn package.

slow to 1 or 2 seconds or
use special Popcorn pad

3aby food

• Transfer baby food to
small dish and heat

carefully, stirring often
Check temperature
before serving.

Put nipples on bottles
after heating and shake

thoroughly. "Wrist' test
before feeding

• Heat disposable bottles.

• Heat mottles with nipples

on,

• Heat aaby food in
original jars.

General

• Cut baked goods with ,
filling after heating to

release steam and avoid
burns.

• Stir liquids 9riskly before,
during and after heating

to avoid "'eruption". •

• Use deep bowl when
cooking iquids or

cereals, to prevent
boilovers.

Heat or cook in closed

g lass jars or air tight
containers.

Can in the microwave as
harmful bacteria may not

be destroyed.
Deep fat fry.

Dry wood gourds herbs

or wet 9apers

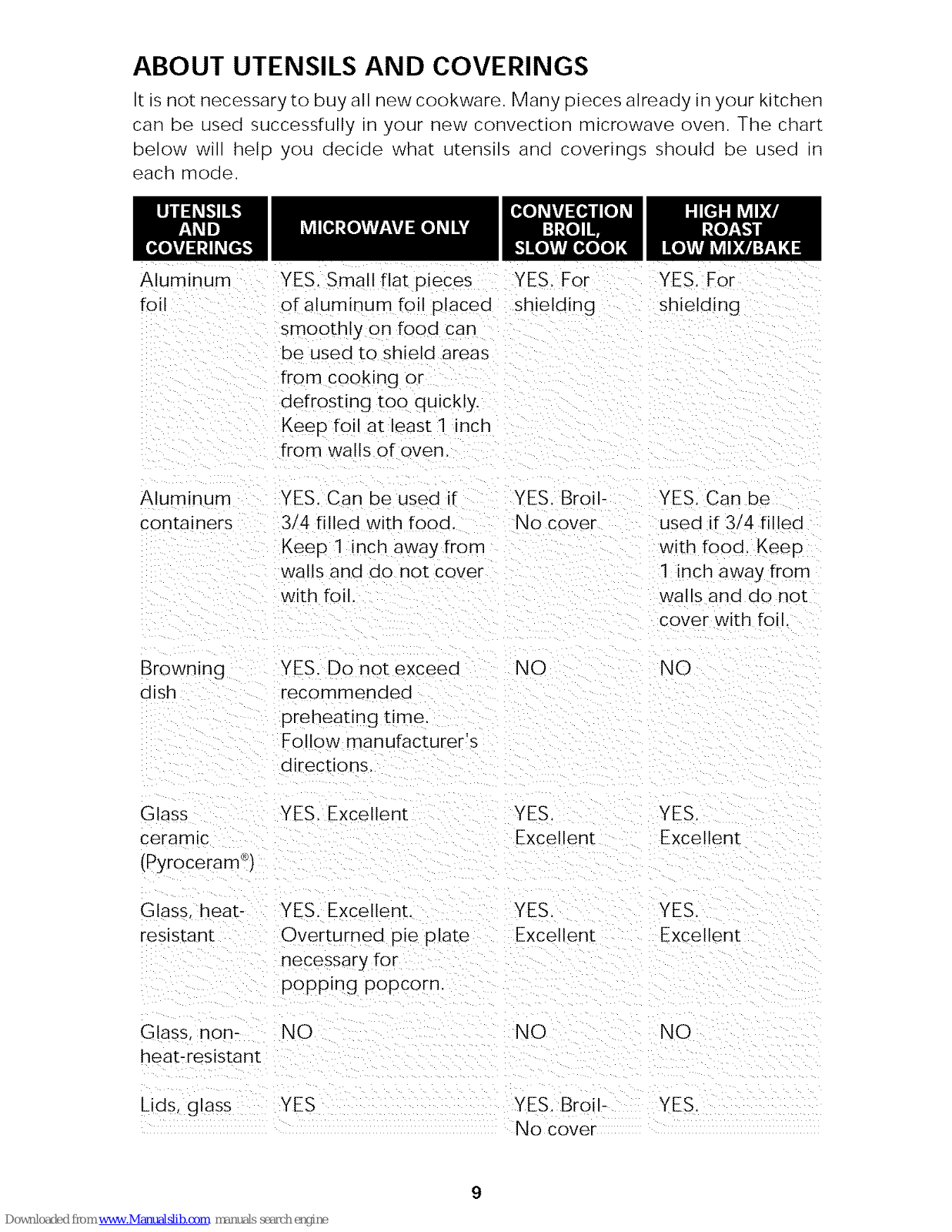

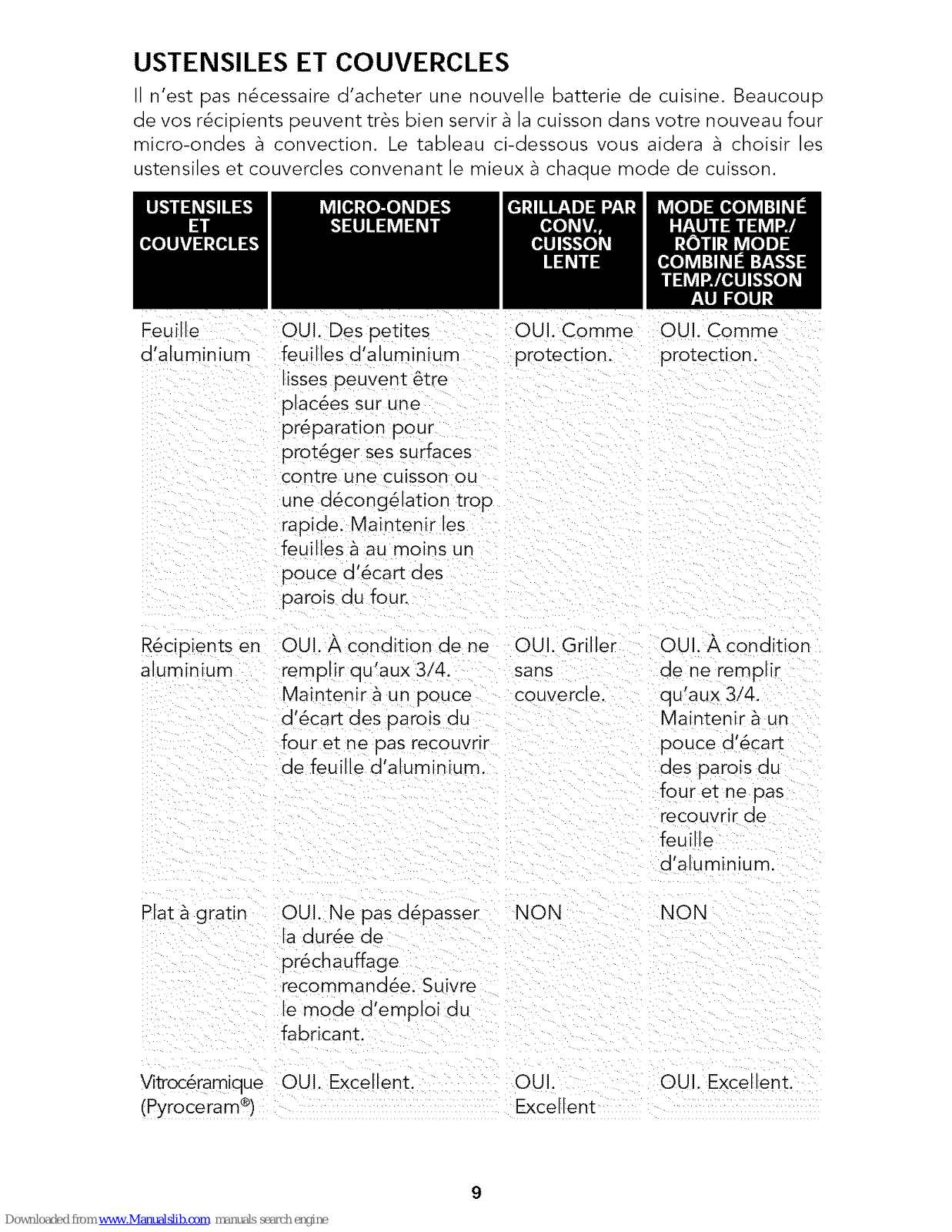

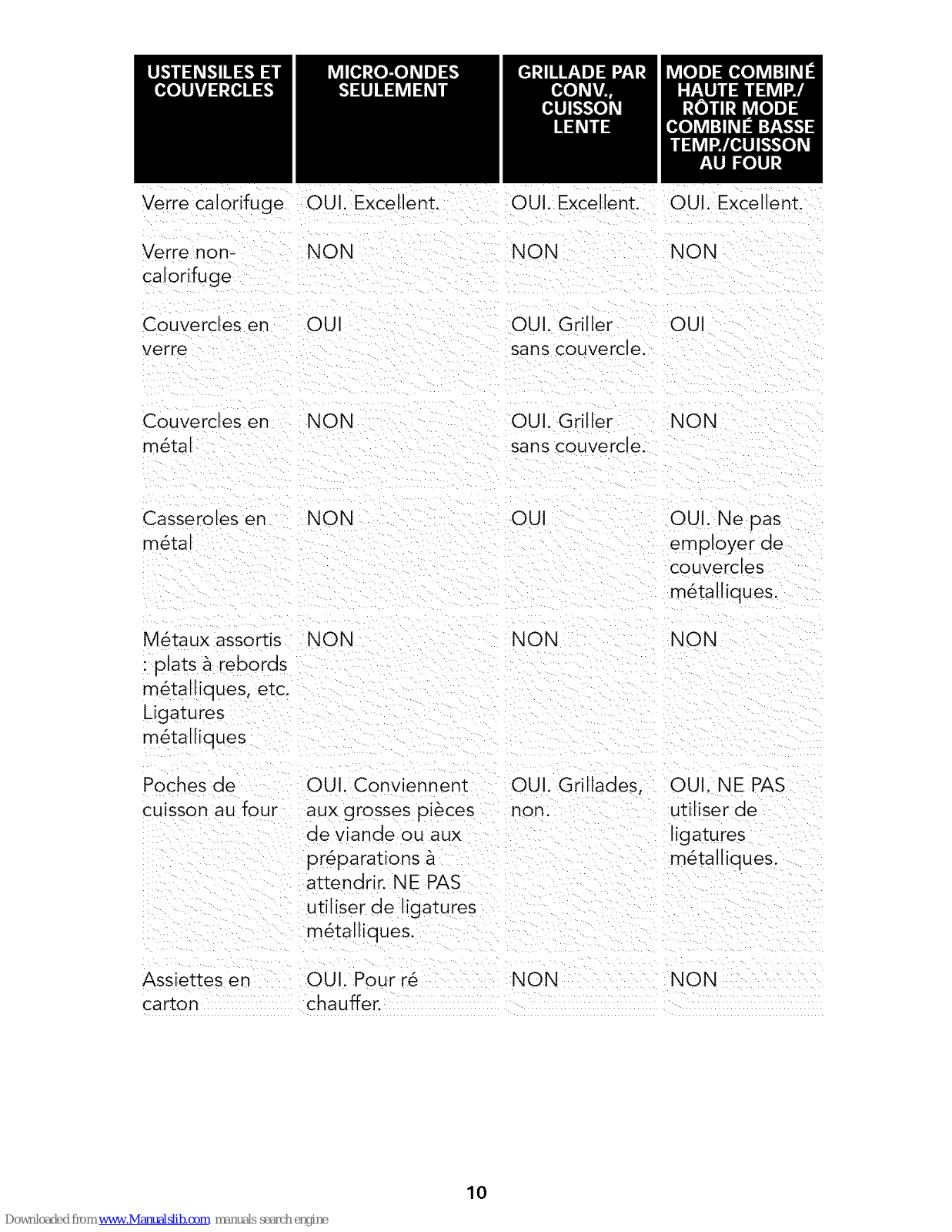

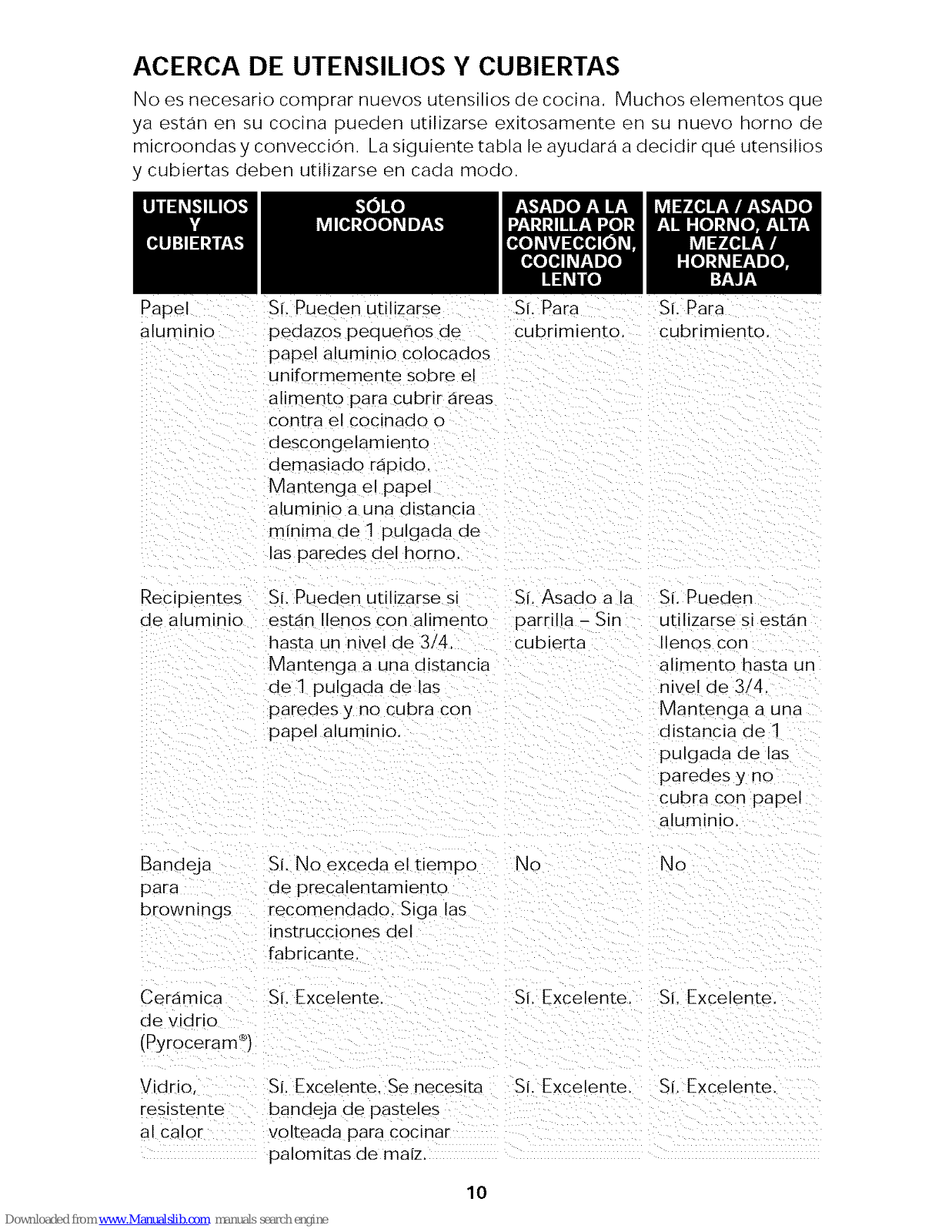

ABOUT UTENSILS AND COVERINGS

It is not necessary to buy all new cookware. Many pieces already in your kitchen

can be used successfully in your new convection microwave oven. The chart
below will help you decide what utensils and coverings should be used in

each mode.

Aluminum

foil

Aluminum

containers

3rowning

dish

G lass
ceramic

(Pyroceram _)

Glass, heat-
resistant

Glass, non-
heat-resistant

_ids, glass

YES, Small flat pieces
of aluminum foil placed
smoothly on food can

be used to shield areas
from cooking or

defrosting too quickly.

Keep foil at least 1 inch
from walls of oven.

YES. For YES, For
shielding shield ng

YES, Can be used if YES. Broil-

3/4 filled with food, No cover
Keep 1 inch away from

walls and do not cover
with foil.

YES, Can be
used if 3/4 filled
with food. Kee 9

1 inch away from
walls and do not

cover with foil.

YES. Do not exceed

recommended
preheating time

Follow manufacturer's

directions

NO NO

YES. Excellent YES YES

Excellent Excellent

YES, Excellent, YES YES

Overturned pie plate Excellent Excellent
necessary for
popping popcorn.

NO NO NO

YES YES. Broil- YES

No cover

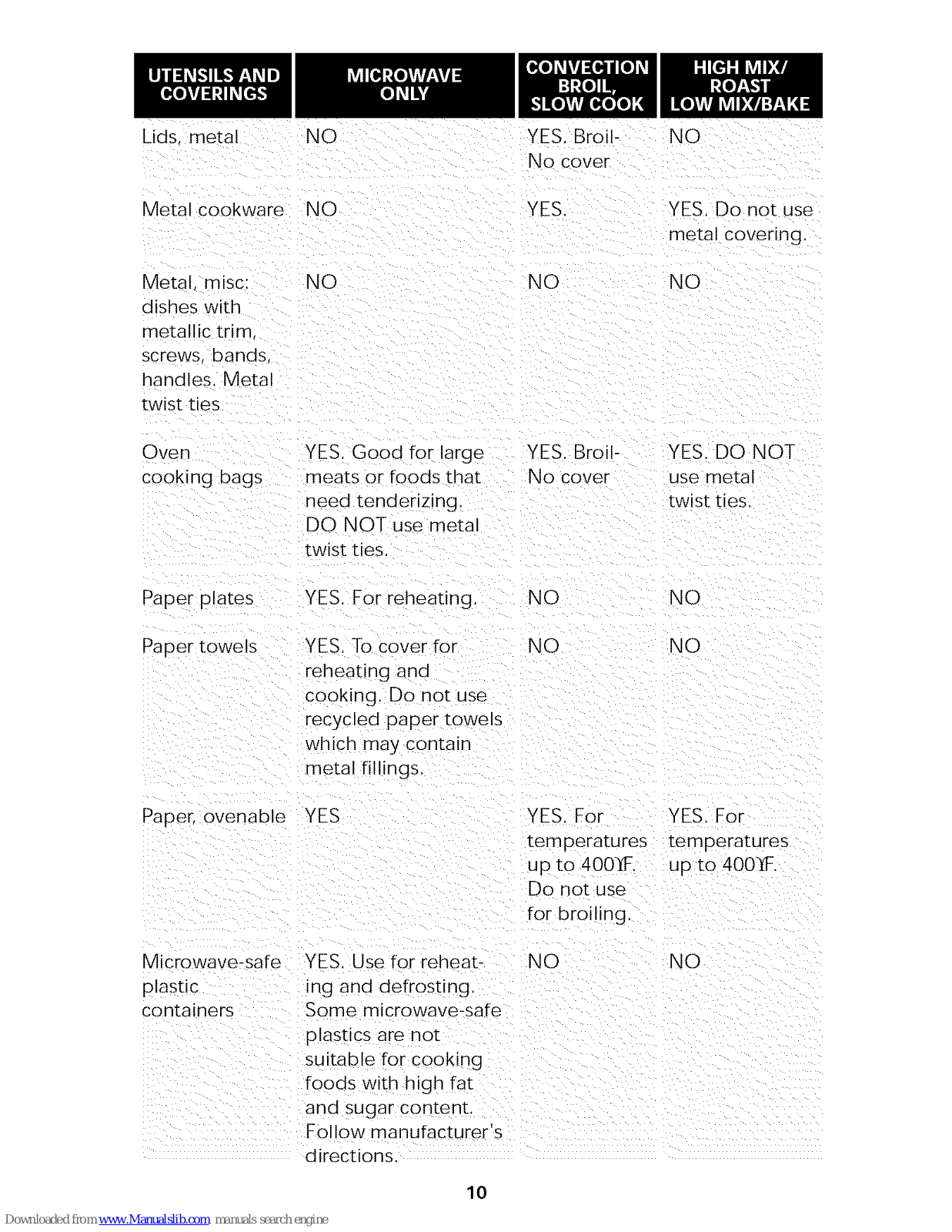

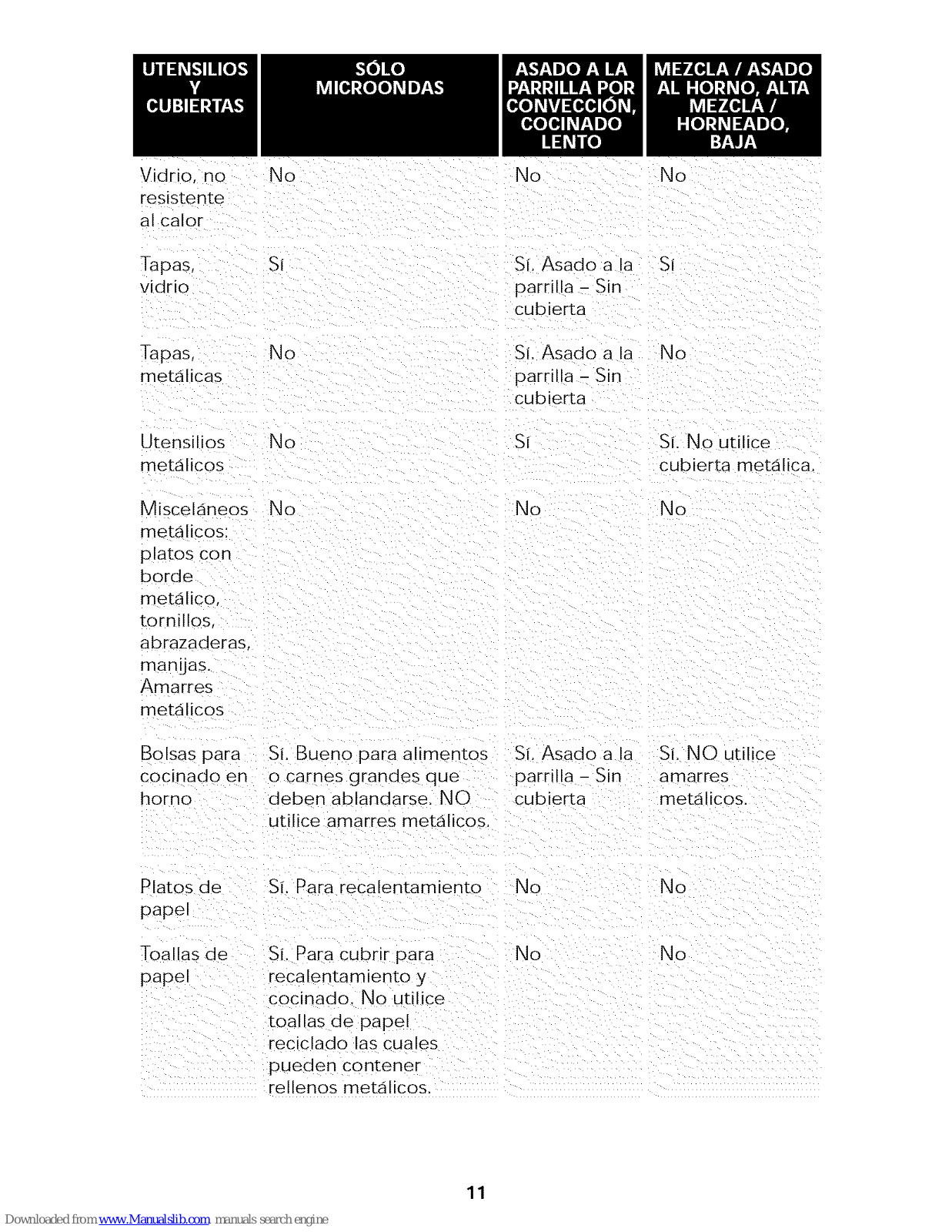

Lids metal NO YES. Broil-

No cover

NO

Metal cookware NO YES. YES. Do not use

metal covering.

Metal misc: NO
dishes with

metallic trim
screws, bands

handles. Metal
twist ties

NO NO

Oven
cooking bags

YES, Good for large YES. Broil-

meats or foods that No cover
need tenderizing.

DO NOT use meta

twist ties,

YES. DO NOT

use metal

twist ties,

Paper plates YES. For reheating. NC. NO

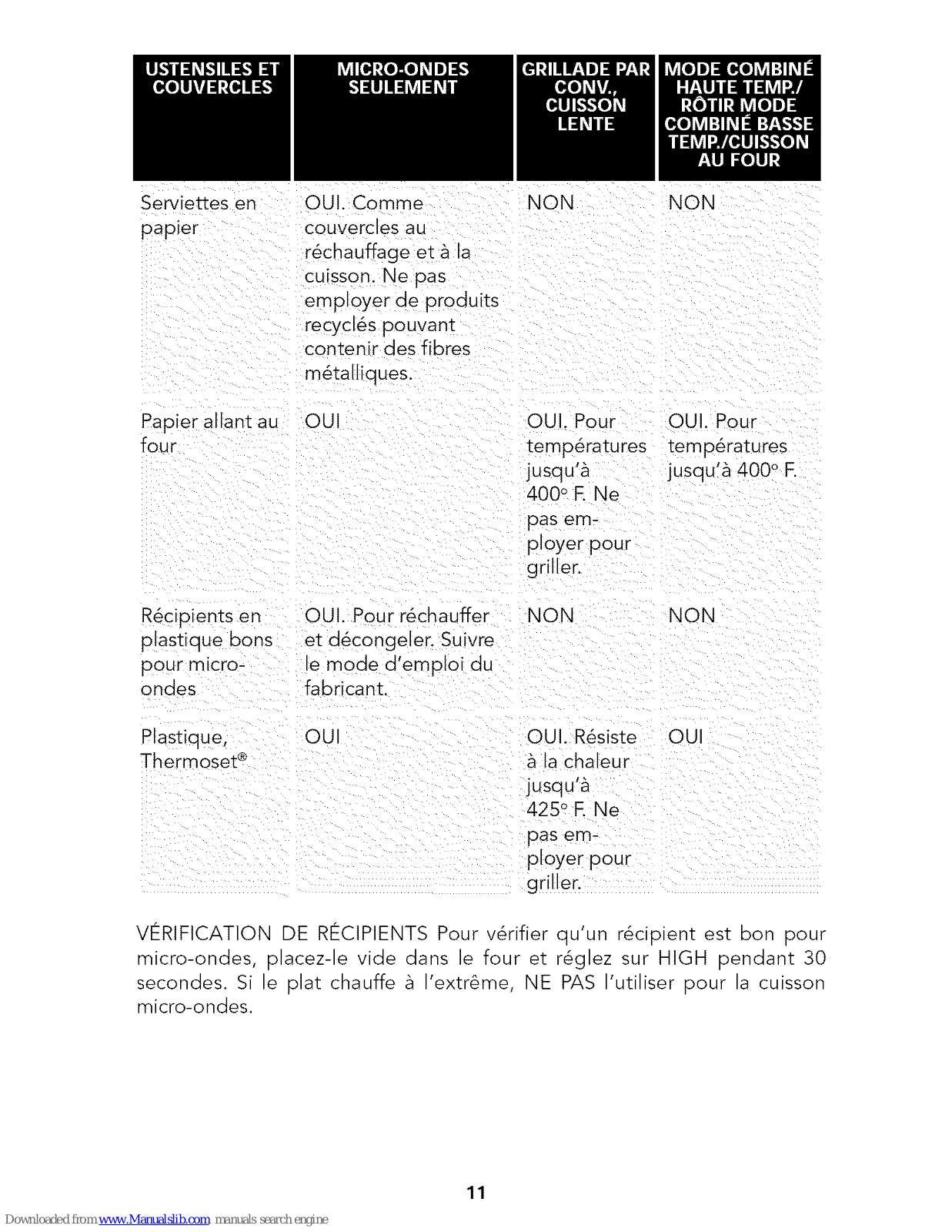

Paper towels

YES, To cover for NO NO

reheating and

cooking Do not use

recycled paper towels

which may contain

metal fillings,

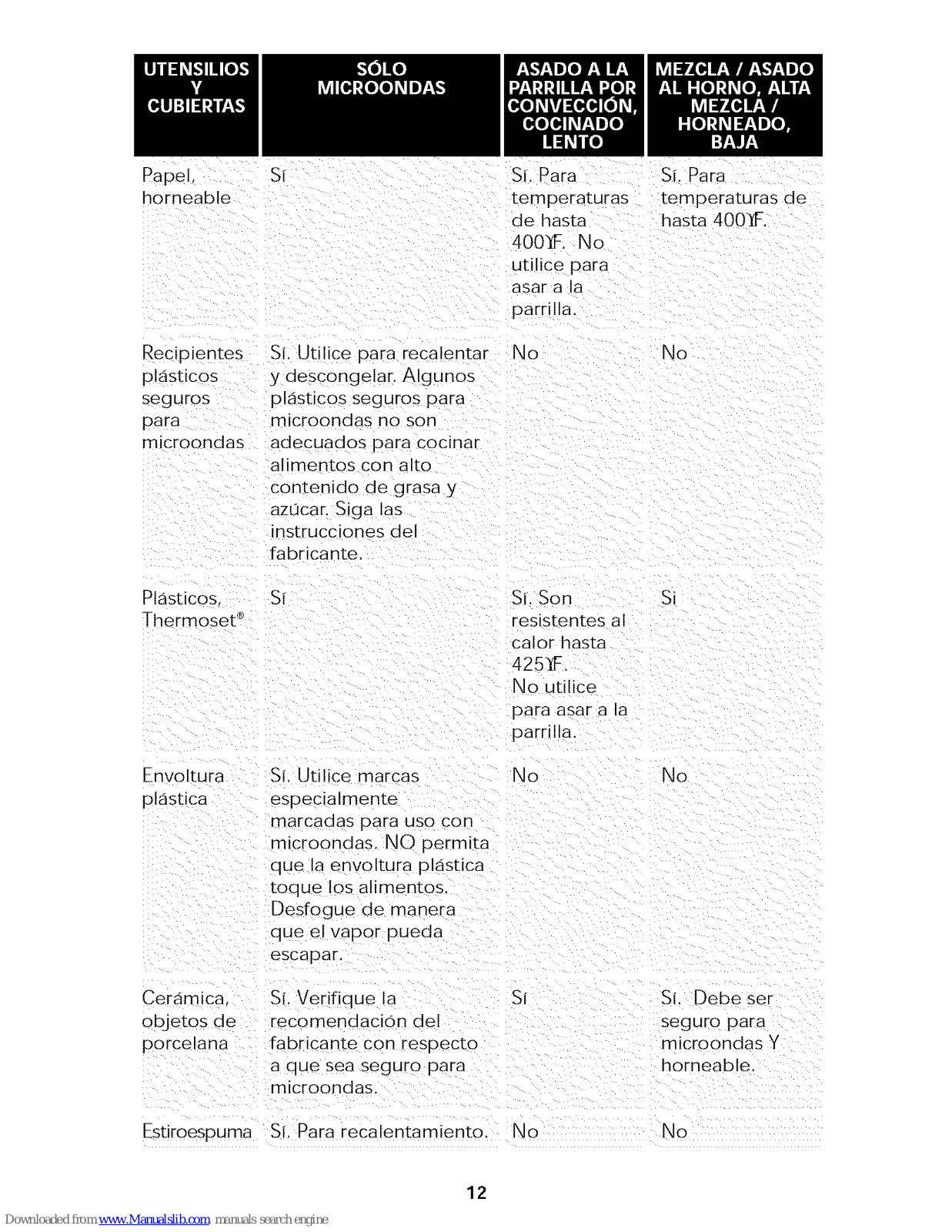

Paper, ovenable YES

YES. For YES. For
temperatures temperatures

up to 400_. up to 400_,
Do not use

for broiling

Microwave-sate
plastic

containers

YES, Use for reheat- NO

ing and defrosting

Some microwave-safe

plastics are not
suitable for cooking
foods with high fat
and sugar content.

Follow manufacturer's
directions.

NO

10

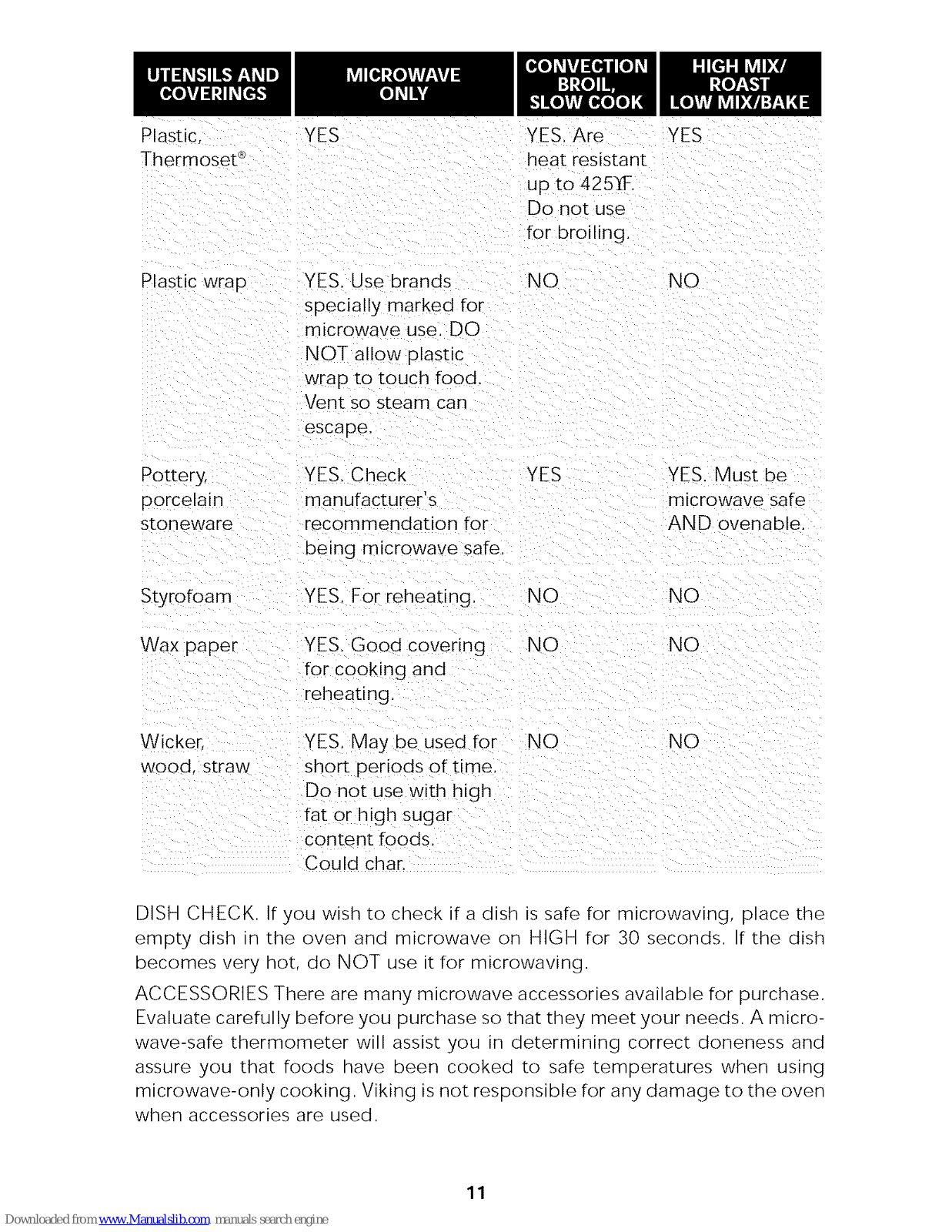

Plastic,

Thermoset'R*

YES YES. Are YES

heat resistant

up to 42511:.

Do not use

for broiling,

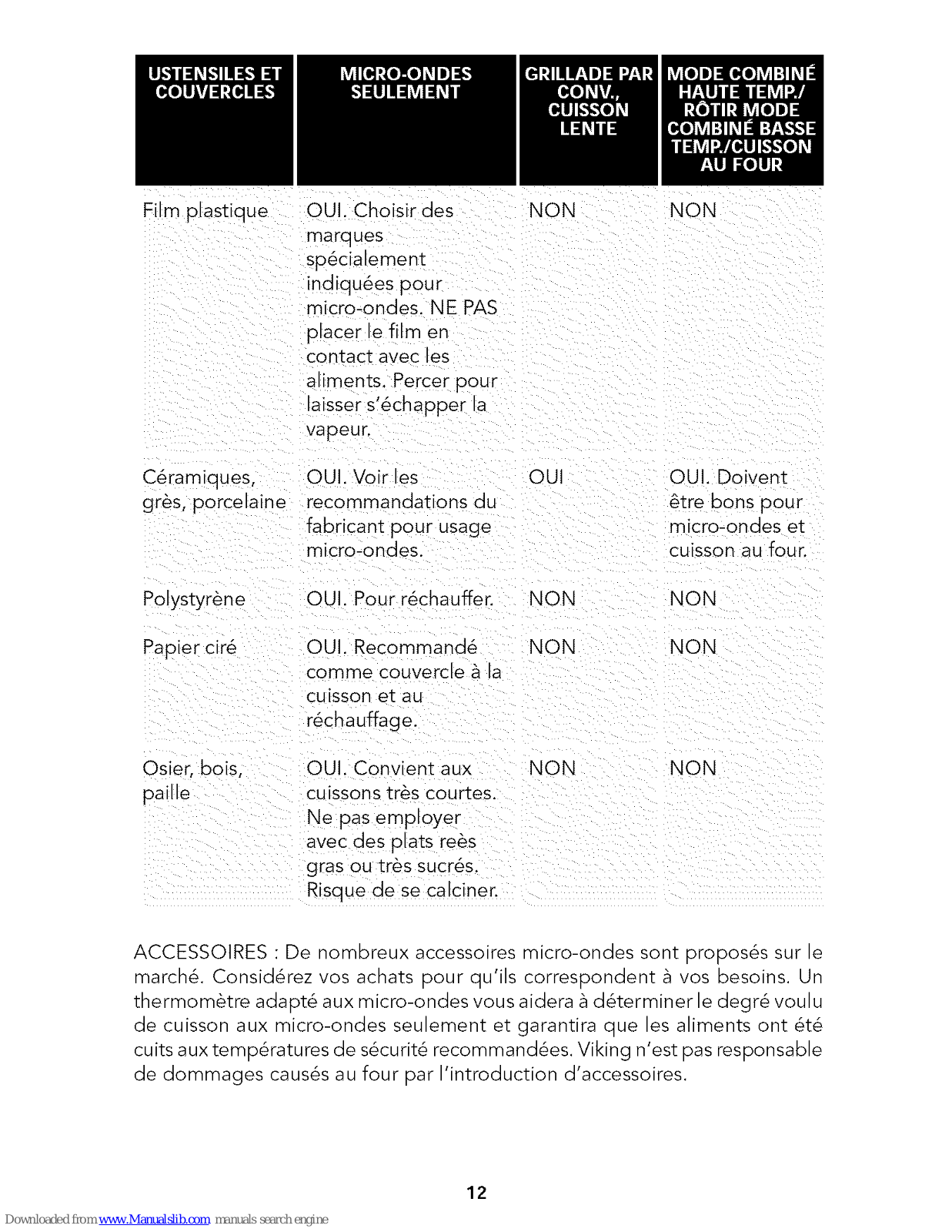

Plastic wrap

YES. Use brands
specially marked for

m_crowave use DO

NOT allow plastic
wrap to touch food.

Vent so steam can
escape.

NO NO

Pottery,
porcelain

stoneware

YES. Check
manufacturer's
recommendation for

being microwave safe

YES YES, Must be

microwave safe
AND ovenable,

Styrofoam YES For reheating, NO NO

Wax paper YES. Good covering

for cooking and
reheating.

NO NO

Wicker,
wood, straw

YES, May be used for NO NO
short periods of time,

Do not use with high
fat or h igh sugar

content foods.
Could char

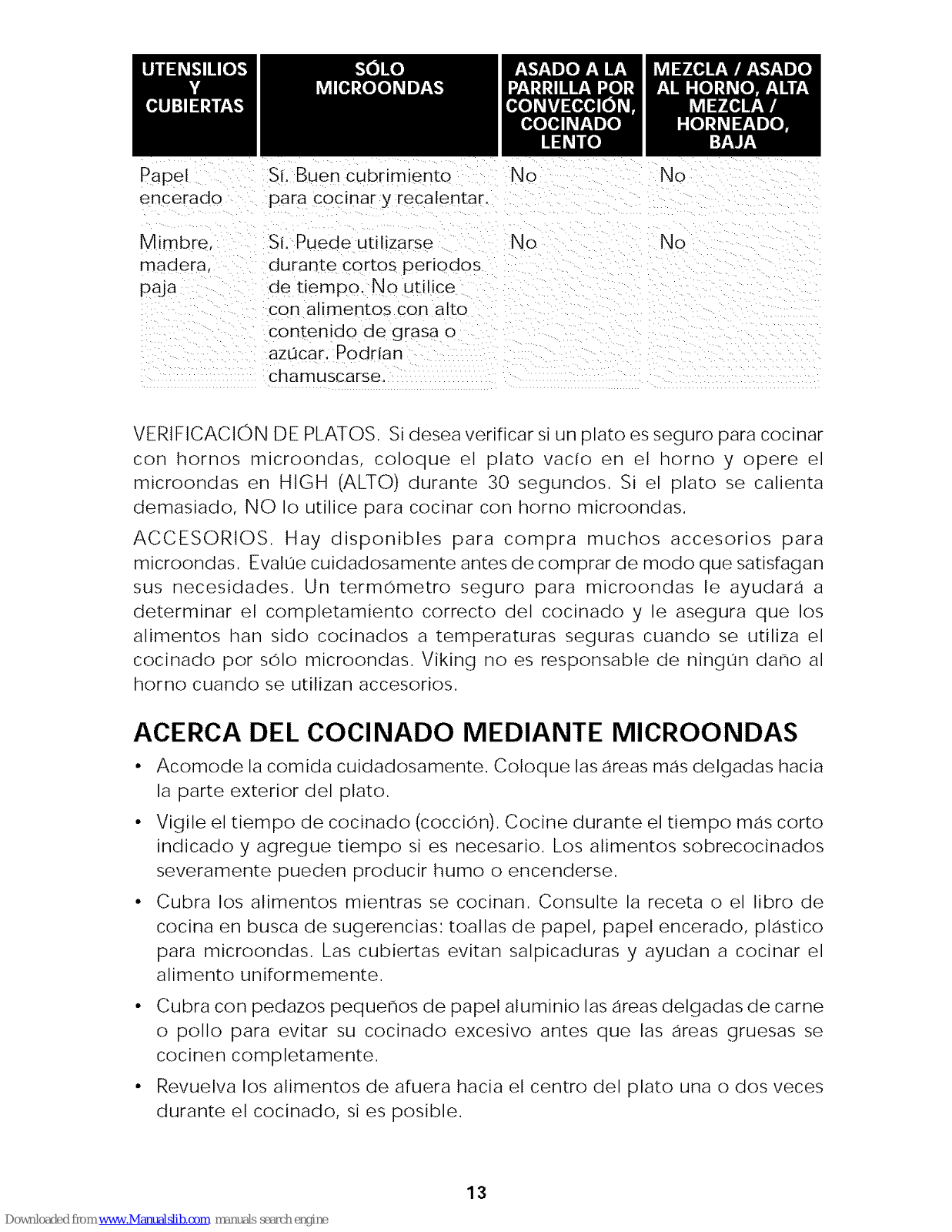

DISH CHECK. If you wish to check if a dish is safe for microwaving, place the

empty dish in the oven and microwave on HIGH for 30 seconds, If the dish

becomes very hot, do NOT use it for microwaving,

ACCESSORIES There are many microwave accessories available for purchase,

Evaluate carefully before you purchase so that they meet your needs, A micro-
wave-safe thermometer will assist you in determining correct doneness and
assure you that foods have been cooked to safe temperatures when using

microwave-only cooking, Viking is not responsible for any damage to the oven
when accessories are used.

11

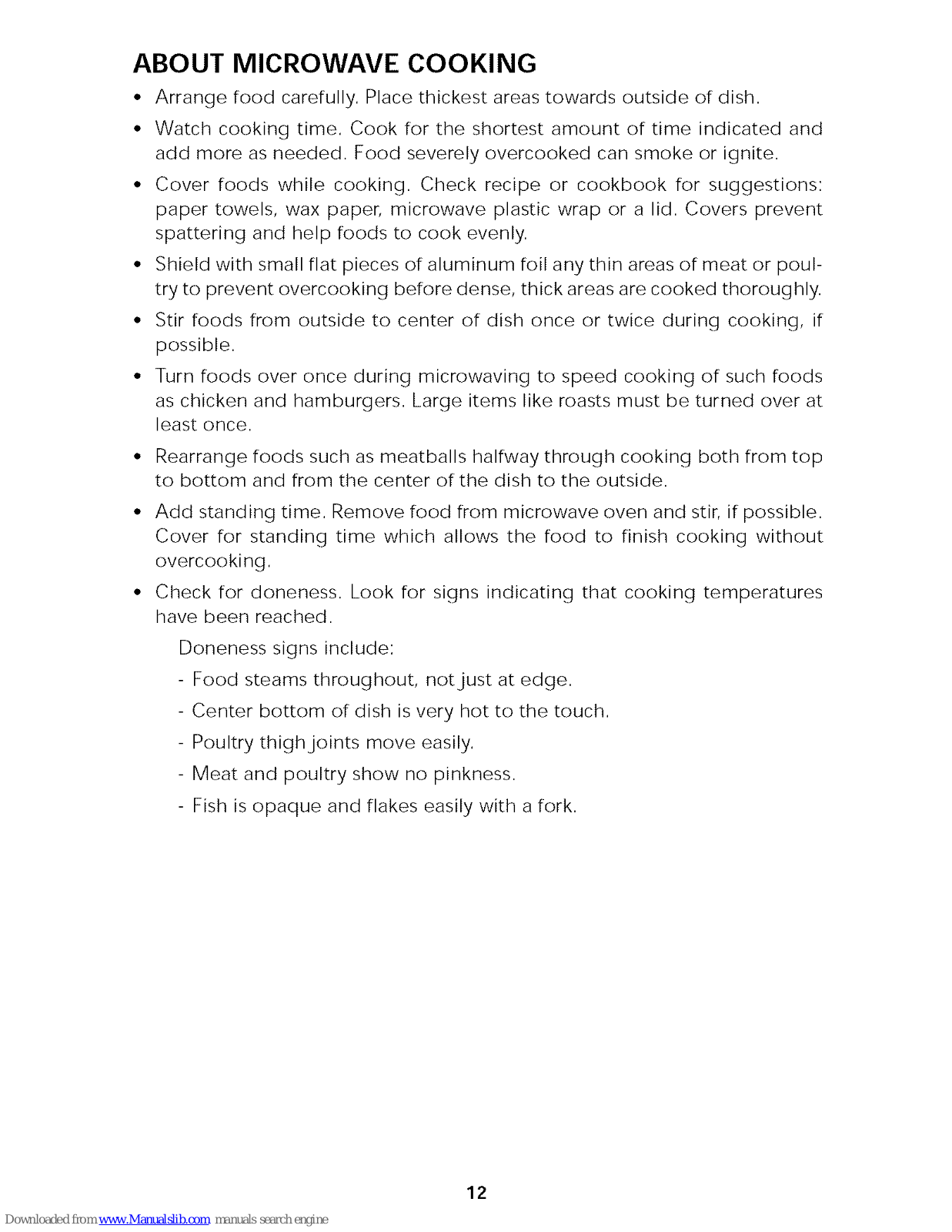

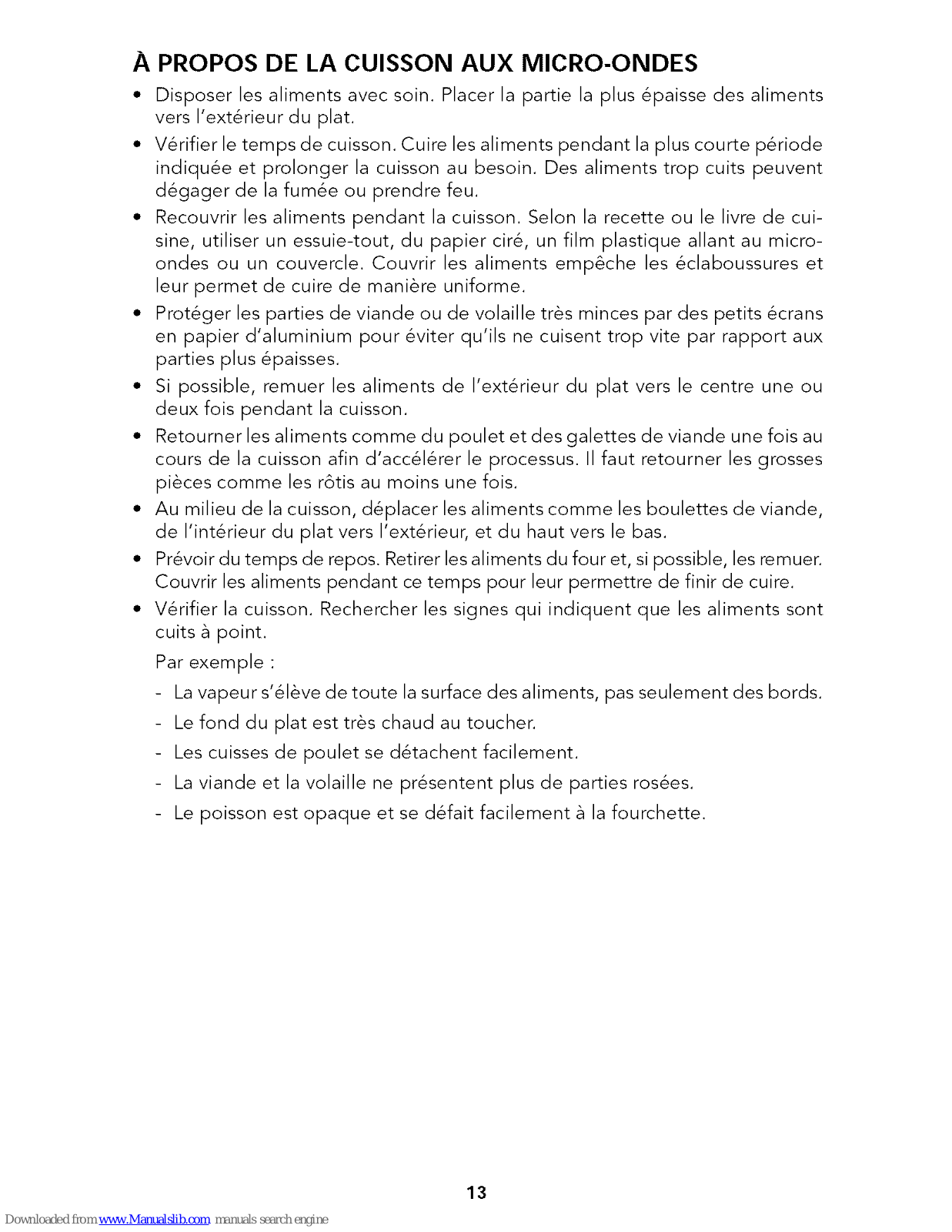

ABOUT MICROWAVE COOKING

• Arrange food carefully, Place thickest areas towards outside of dish.

• Watch cooking time, Cook for the shortest amount of time indicated and
add more as needed. Food severely overcooked can smoke or ignite.

• Cover foods while cooking. Check recipe or cookbook for suggestions:

paper towels, wax paper, microwave plastic wrap or a lid. Covers prevent

spattering and help foods to cook evenly.

• Shield with small flat pieces of aluminum foil any thin areas of meat or poul-
try to prevent overcooking before dense, thick areas are cooked thoroughly.

• Stir foods from outside to center of dish once or twice during cooking, if

possible.

• Turn foods over once during microwaving to speed cooking of such foods
as chicken and hamburgers. Large items like roasts must be turned over at

least once.

• Rearrange foods such as meatballs halfway through cooking both from top
to bottom and from the center of the dish to the outside.

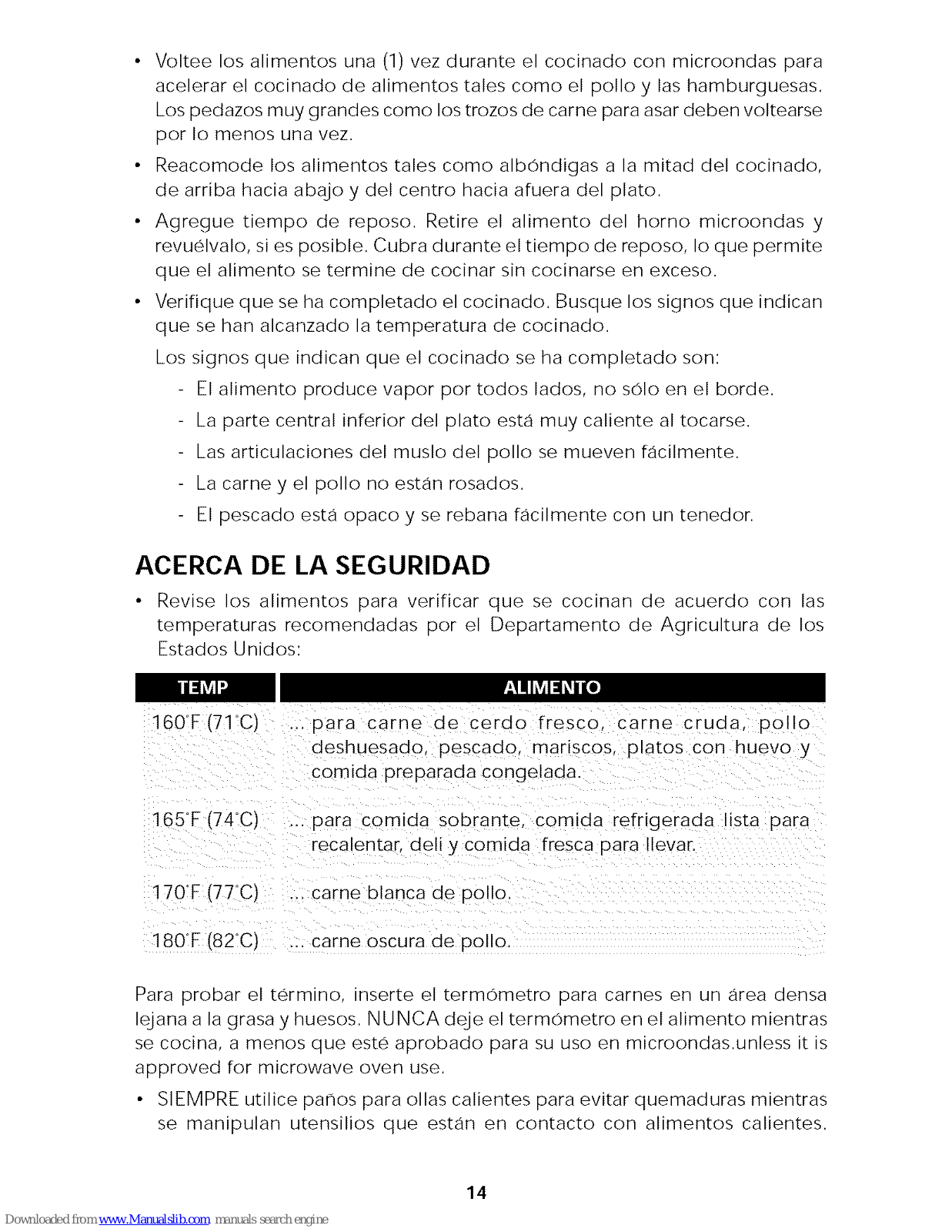

• Add standing time, Remove food from microwave oven and stir, if possible.
Cover for standing time which allows the food to finish cooking without

overcooking,

• Check for doneness. Look for signs indicating that cooking temperatures

have been reached.

Doneness signs include:

- Food steams throughout, not just at edge.

- Center bottom of dish is very hot to the touch,

- Poultry thigh joints move easily,

- Meat and poultry show no pinkness.

- Fish is opaque and flakes easily with a fork.

12

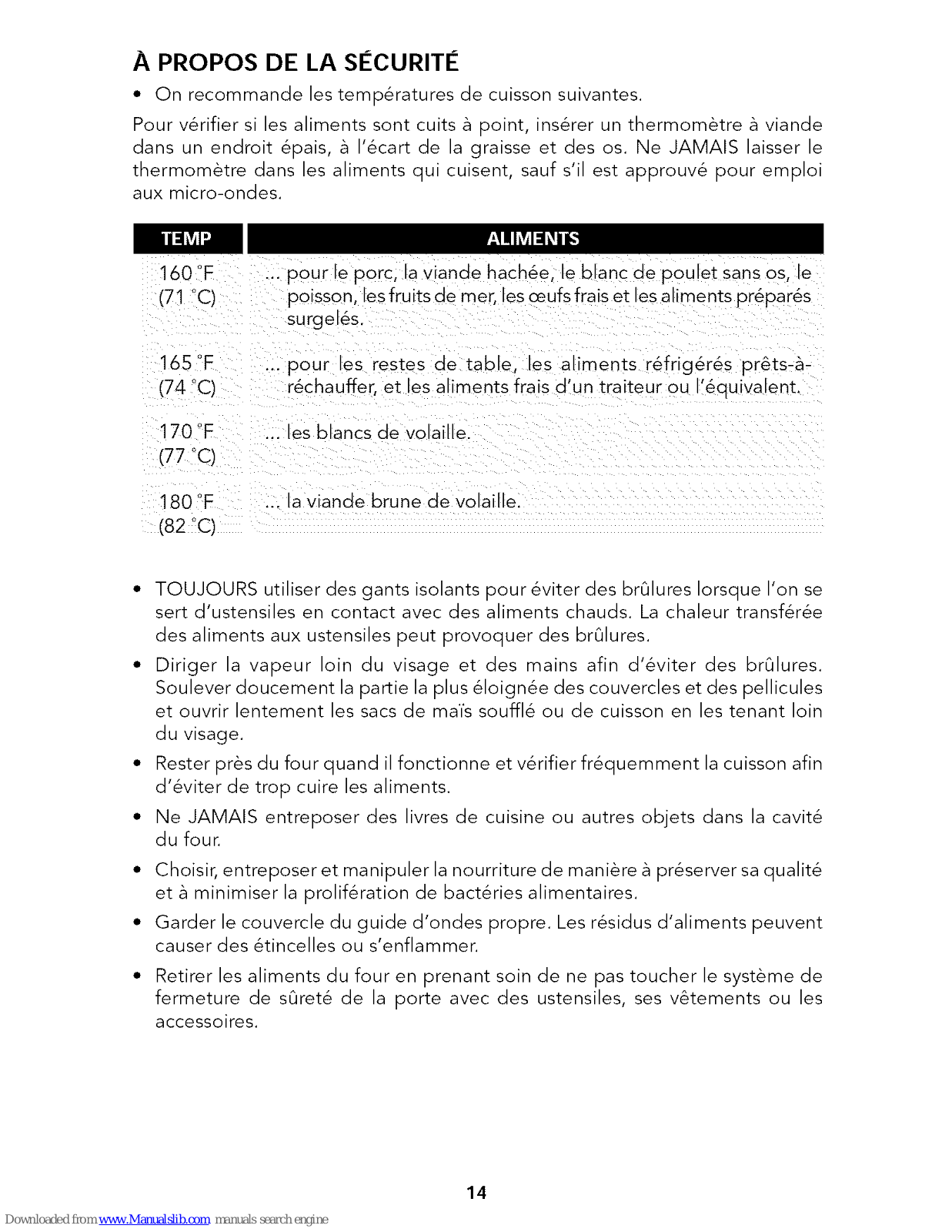

ABOUT SAFETY

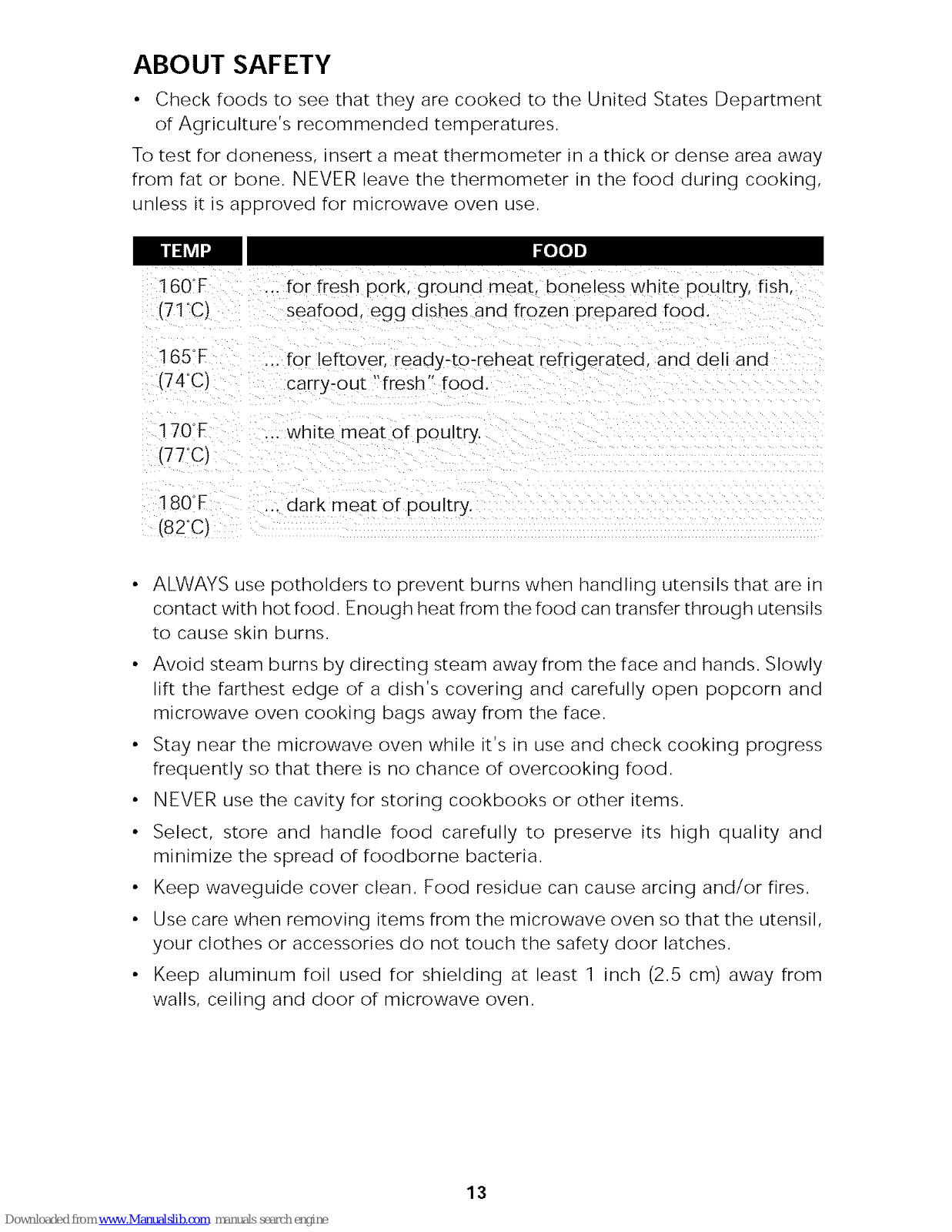

• Check foods to see that they are cooked to the United States Department
of Agriculture's recommended temperatures.

To test for doneness, insert a meat thermometer in a thick or dense area away
from fat or bone. NEVER leave the thermometer in the food during cooking,
unless it is approved for microwave oven use.

IlitLV_l_ _eIe] D)

160'F

171°C)
16EF

(74%)

170_F
(77°C1

... for fresh pork, ground meat boneless white poultry fish

seafood, egg dishes and frozen prepared food.

for leftover, ready-to-reheat refrigerated and den and
carry-out "fresh" food

white meat of poultry.

180_F
182%]

dark meat of poultry.

• ALWAYS use potholders to prevent burns when handling utensils that are in
contact with hot food, Enough heat from the food can transfer through utensils

to cause skin burns,

• Avoid steam burns by directing steam away from the face and hands. Slowly

lift the farthest edge of a dish's covering and carefully open popcorn and
microwave oven cooking bags away from the face.

• Stay near the microwave oven while it's in use and check cooking progress
frequently so that there is no chance of overcooking food,

• NEVER use the cavity for storing cookbooks or other items.

• Select, store and handle food carefully to preserve its high quality and

minimize the spread of foodborne bacteria,

• Keep waveguide cover clean. Food residue can cause arcing and/or fires.

• Use care when removing items from the microwave oven so that the utensil,
your clothes or accessories do not touch the safety door latches,

• Keep aluminum foil used for shielding at least 1 inch (2.5 cm) away from
walls, ceiling and door of microwave oven.

13

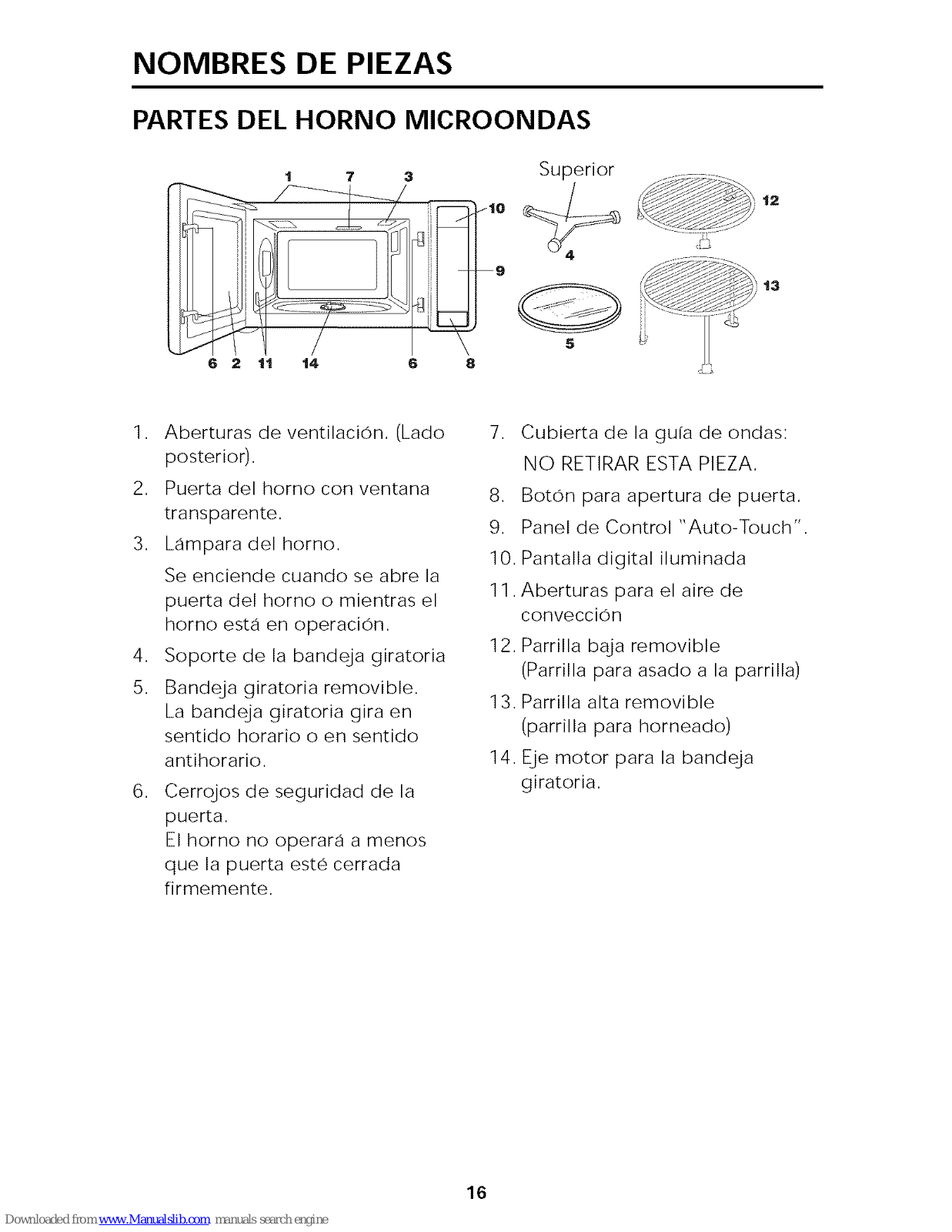

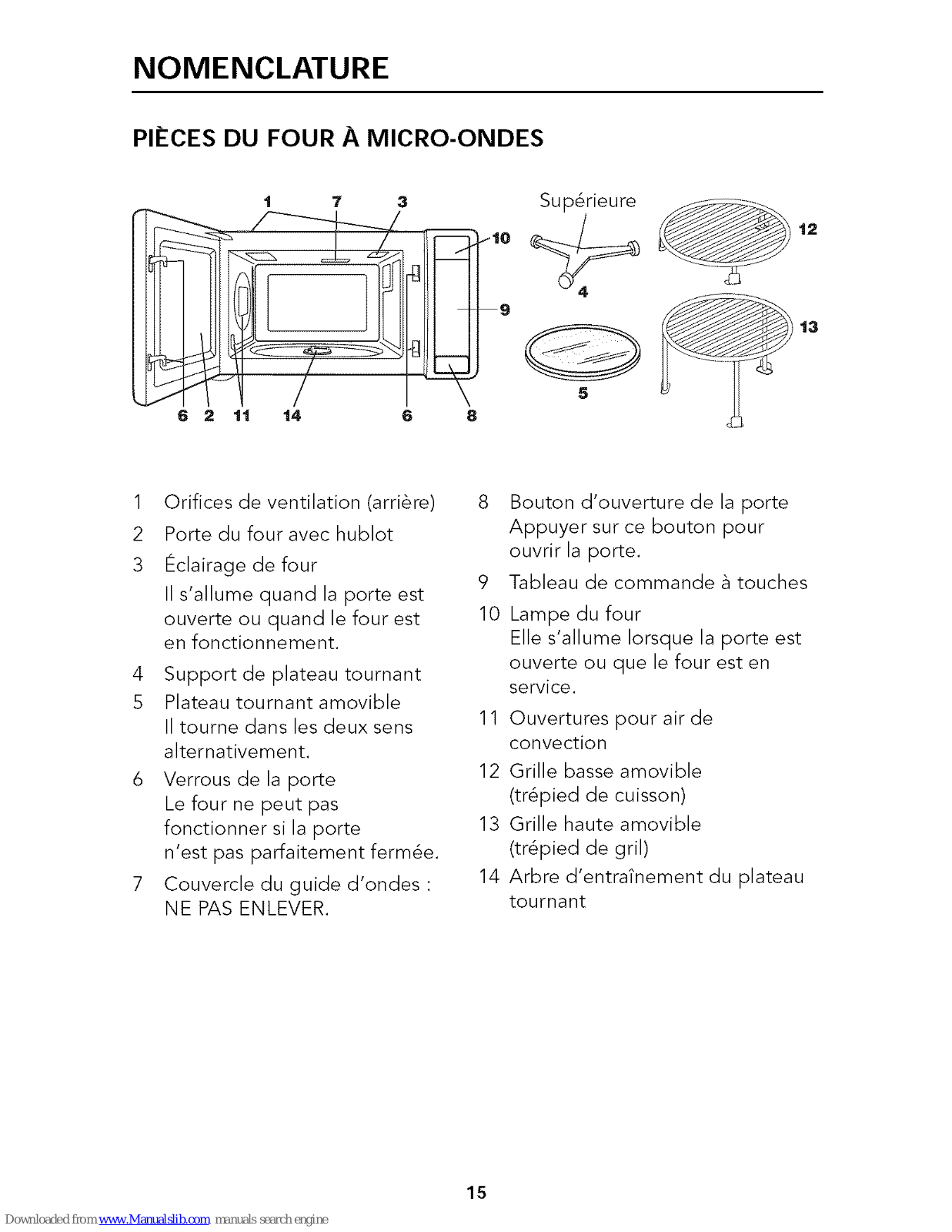

PART NAMES

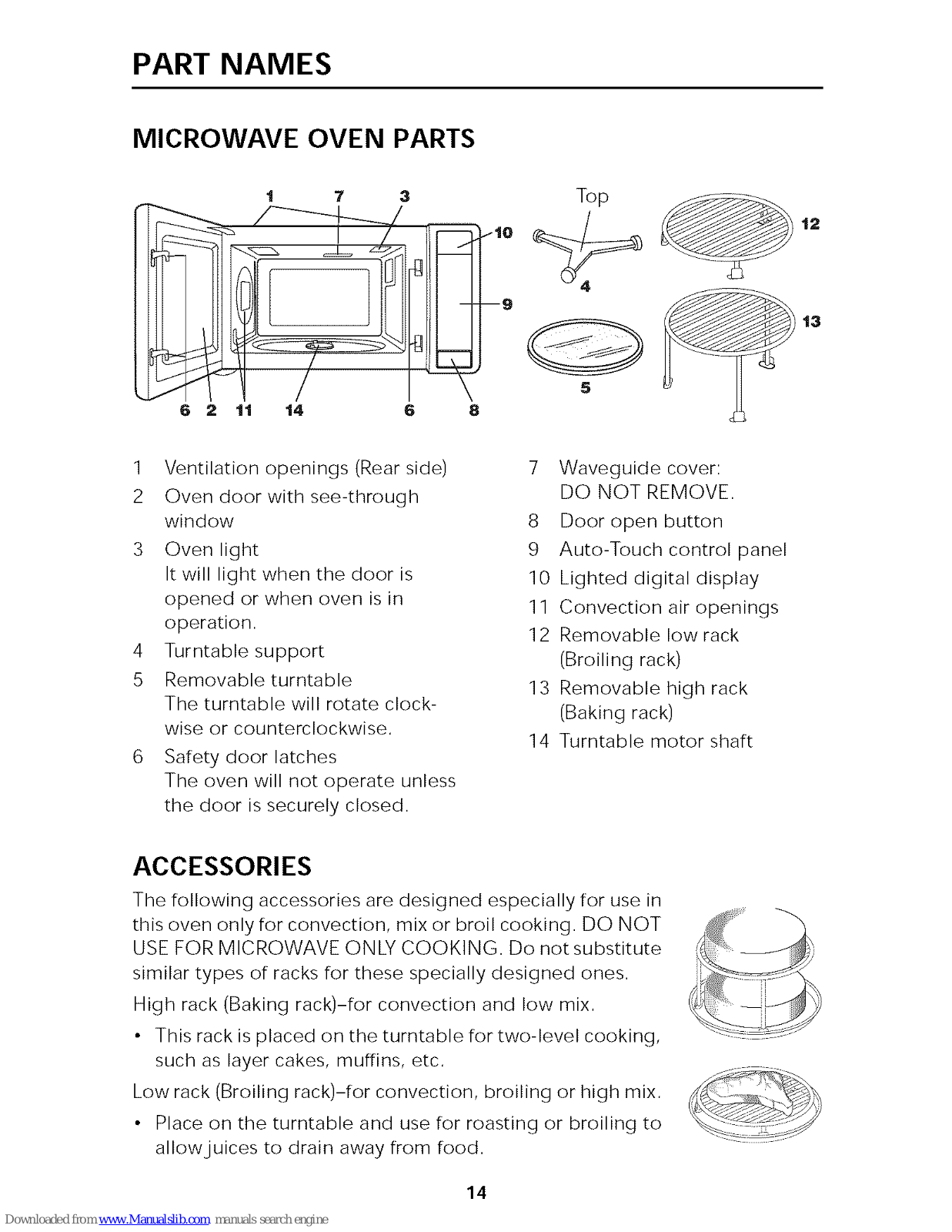

MICROWAVE OVEN PARTS

t 7 3

6 2 1t t4 6

\ s

8

1 Ventilation openings (Rear side)
2 Oven door with see-through

window

3 Oven light

It will light when the door is

opened or when oven is in
operation.

4 Turntable support
5 Removable turntable

The turntable will rotate clock-
wise or counterclockwise,

6 Safety door latches

The oven will not operate unless
the door is securely closed.

7 Waveguide cover:

DO NOT REMOVE.

8 Door open button
9 Auto-Touch control panel
10 Lighted digital display

11 Convection air openings
12 Removable low rack

(Broiling rack)

13 Removable high rack

(Baking rack)

14 Turntable motor shaft

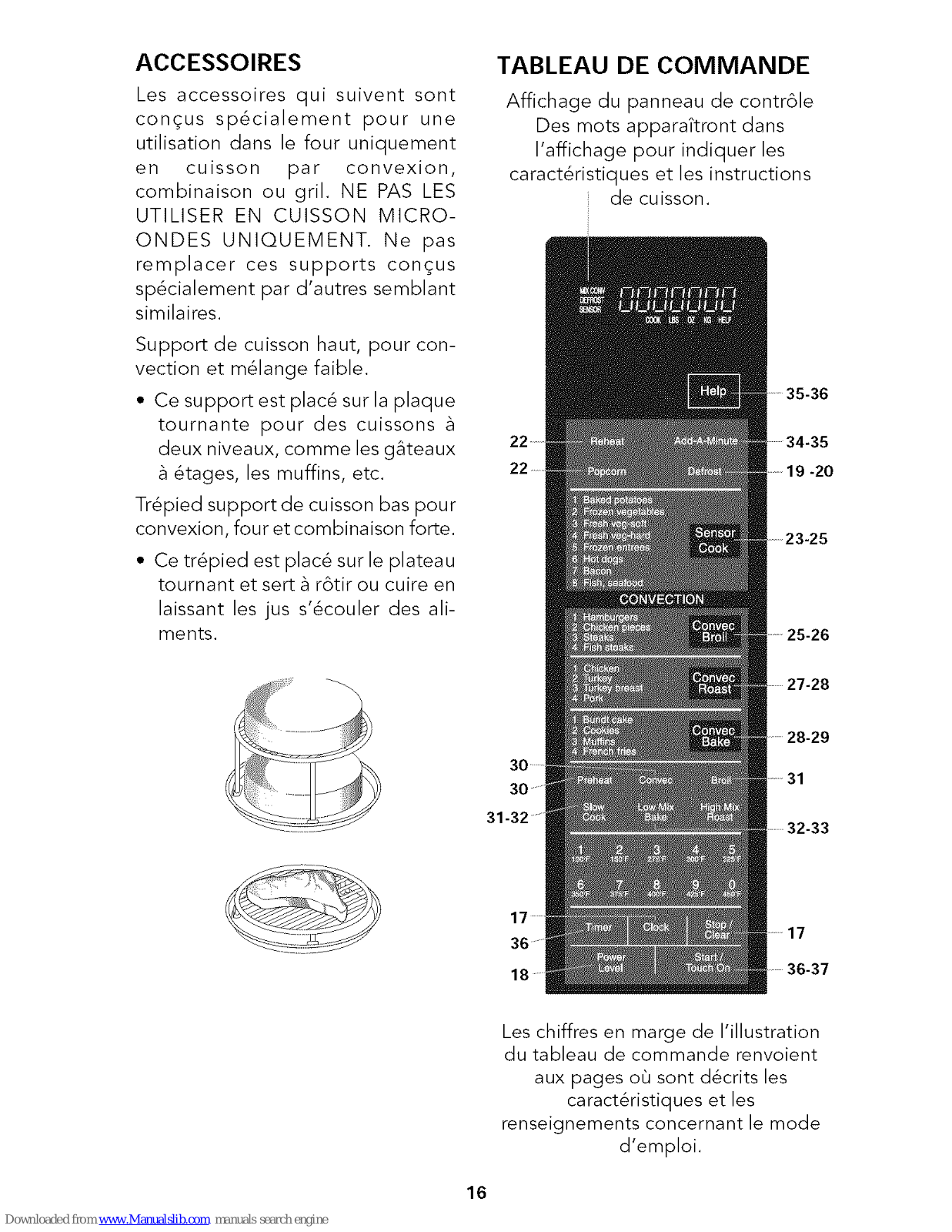

ACCESSORIES

The following accessories are designed especially for use in
this oven only for convection, mix or broil cooking. DO NOT

USE FOR MICROWAVE ONLY COOKING. Do not substitute
similar types of racks for these specially designed ones.

High rack (Baking rack)-for convection and low mix,

• This rack is placed on the turntable for two-level cooking,
such as layer cakes, muffins, etc,

Low rack (Broiling rack)-for convection, broiling or high mix,

• Place on the turntable and use for roasting or broiling to
allow juices to drain away from food.

14

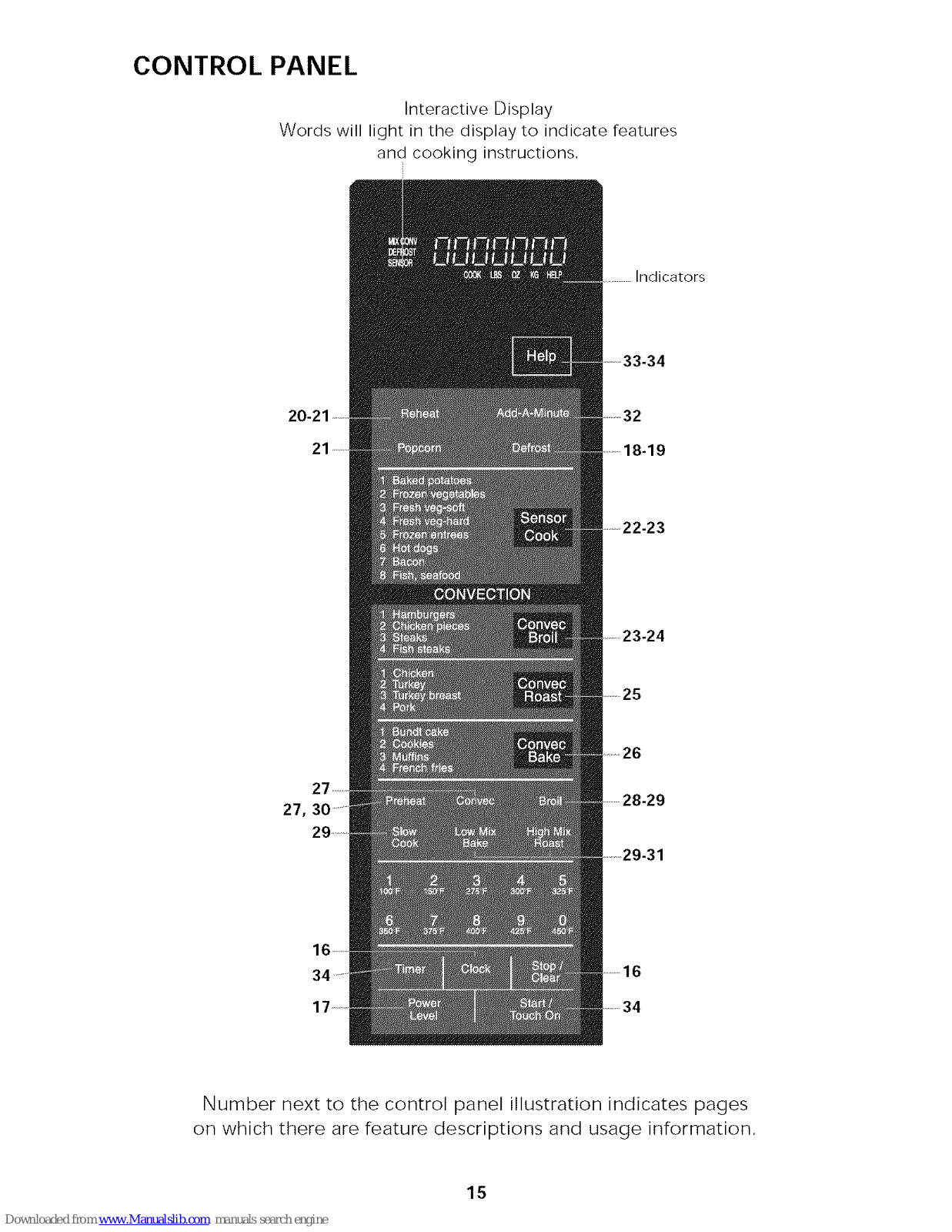

CONTROL PANEL

Interactive Display

Words will light in the display to indicate features

and cooking instructions.

Indicators

27,

Number next to the control panel illustration indicates pages

on which there are feature descriptions and usage information.

15

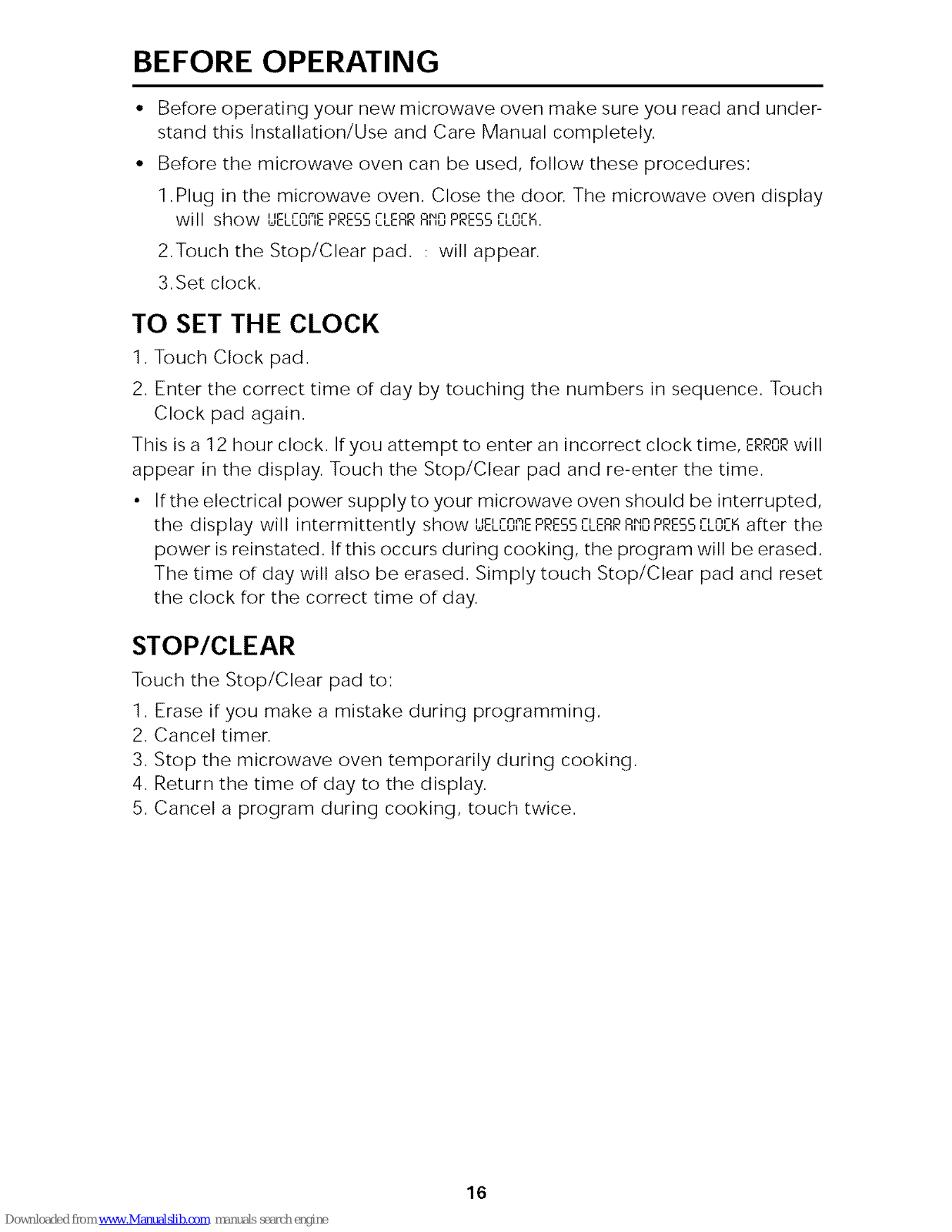

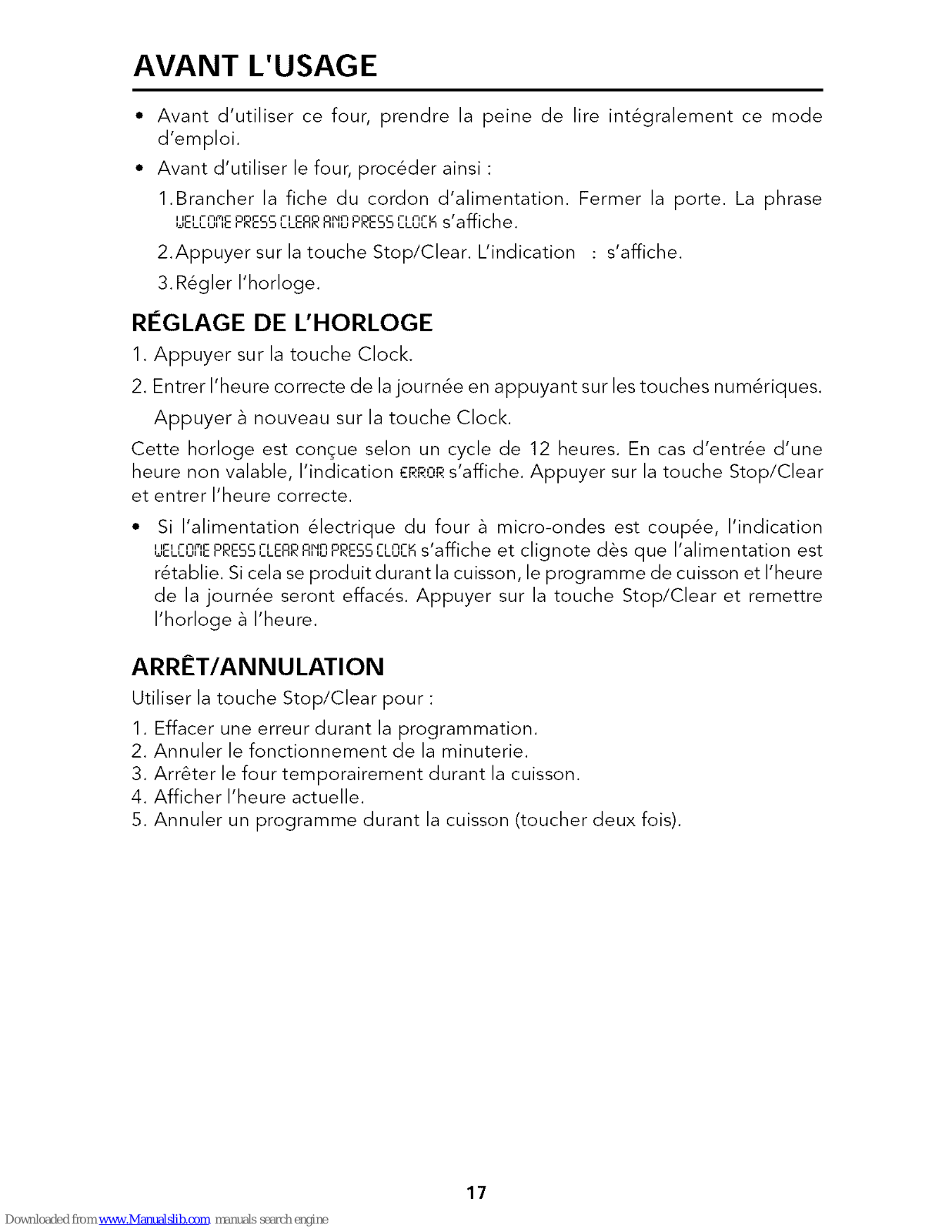

BEFORE OPERATING

Before operating your new microwave oven make sure you read and under-
stand this Installation/Use and Care Manual completely.

Before the microwave oven can be used, follow these procedures:

1. Plug in the microwave oven. Close the doon The microwave oven display
will show "ELEOFIEPRESSCLERRRI'IOPRESSCLOCK.

2.Touch the Stop/Clear pad. : will appear.

3.Set clock.

TO SET THE CLOCK

1. Touch Clock pad.

2. Enter the correct time of day by touching the numbers in sequence. Touch
Clock pad again.

This is a 12 hour clock. If you attempt to enter an incorrect clock time, ERRORwill
appear in the display. Touch the Stop/Clear pad and re-enter the time.

• If the electrical power supply to your microwave oven should be interrupted,
the display will intermittently show "ELrOnEPRESSrLERRRI'IDPRESSrLOrlSafter the
power is reinstated. If this occurs during cooking, the program will be erased,
The time of day will also be erased. Simply touch Stop/Clear pad and reset
the clock for the correct time of day.

STOP/CLEAR

Touch the Stop/Clear pad to:

1. Erase if you make a mistake during programming,

2. Cancel timer.

3. Stop the microwave oven temporarily during cooking.

4. Return the time of day to the display.

5. Cancel a program during cooking, touch twice.

16

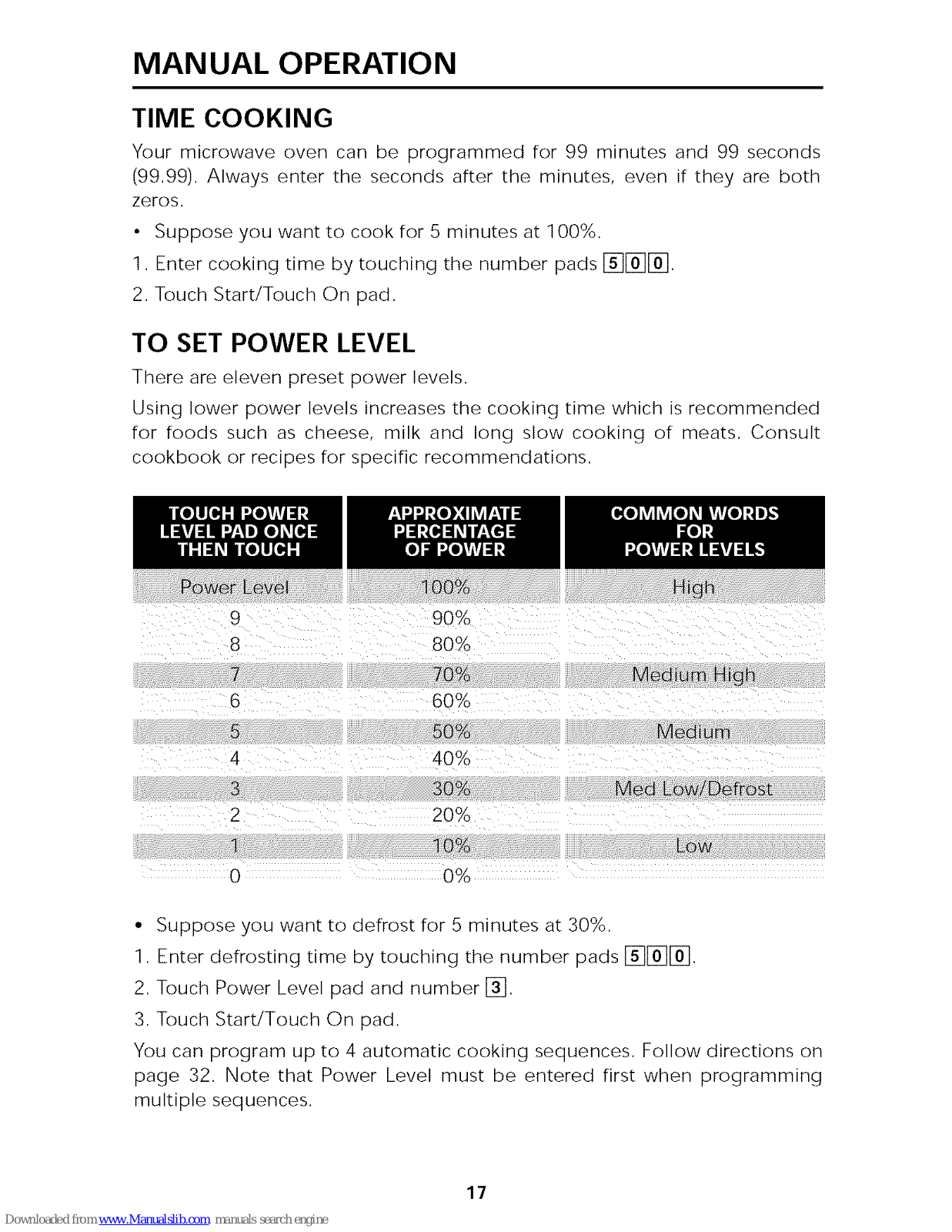

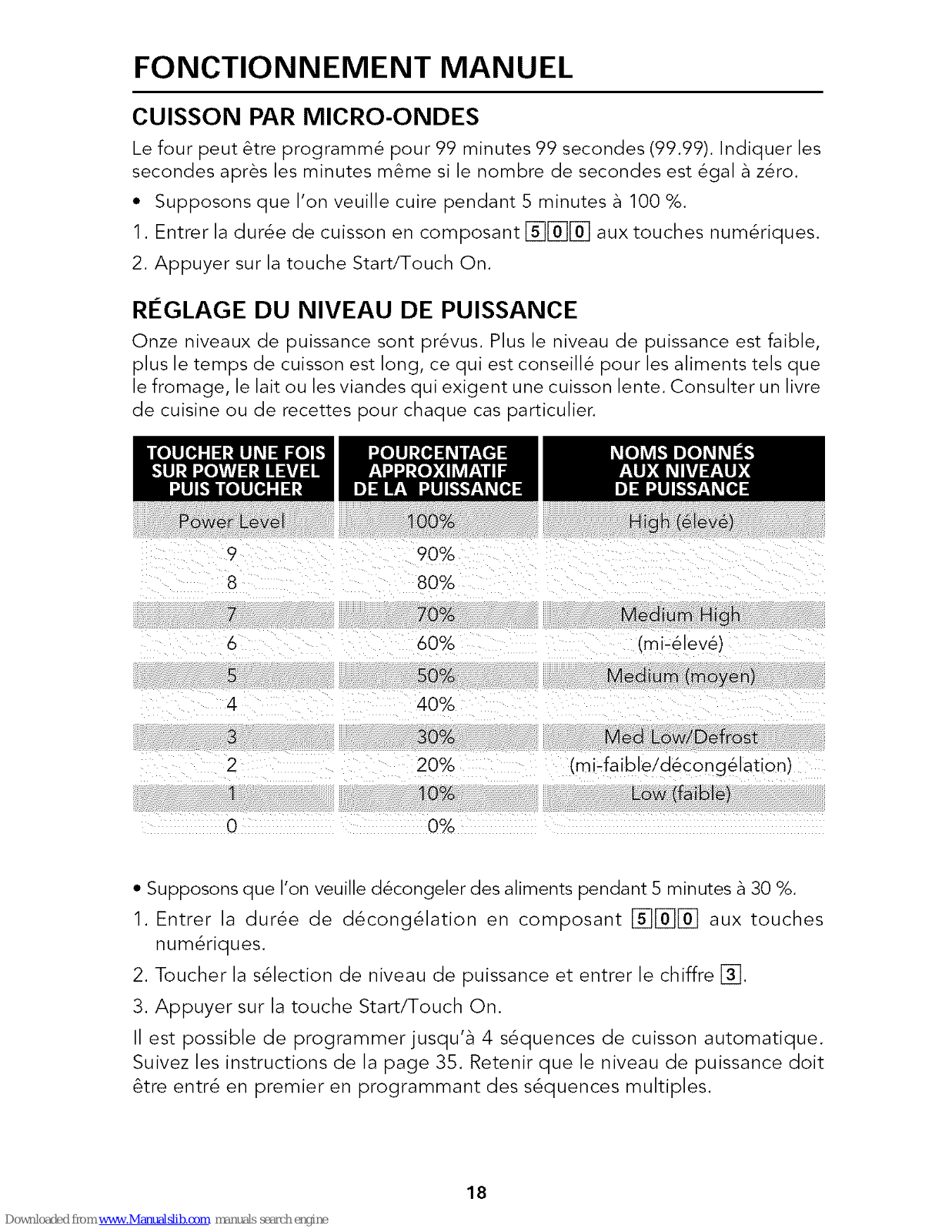

MAN UAL OPERATION

TIME COOKING

Your microwave oven can be programmed for 99 minutes and 99 seconds
(99,99). Always enter the seconds after the minutes, even if they are both

zeros.

• Suppose you want to cook for 5 minutes at 100%.

1. Enter cooking time by touching the number pads [_][]_][]_].

2. Touch Start/Touch On pad.

TO SET POWER LEVEL

There are eleven preset power levels.
Using lower power levels increases the cooking time which is recommended

for foods such as cheese, milk and long slow cooking of meats, Consult
cookbook or recipes for specific recommendations.

9

8

6

4
3

2

9O%
80! o

60%
50% M

4O%

M

20%

• Suppose you want to defrost for 5 minutes at 30%.

1. Enter defrosting time by touching the number pads [_][]_][]_].

2. Touch Power Level pad and number [_.

3. Touch Start/Touch On pad.

You can program up to 4 automatic cooking sequences, Follow directions on

page 32. Note that Power Level must be entered first when programming
multiple sequences.

17

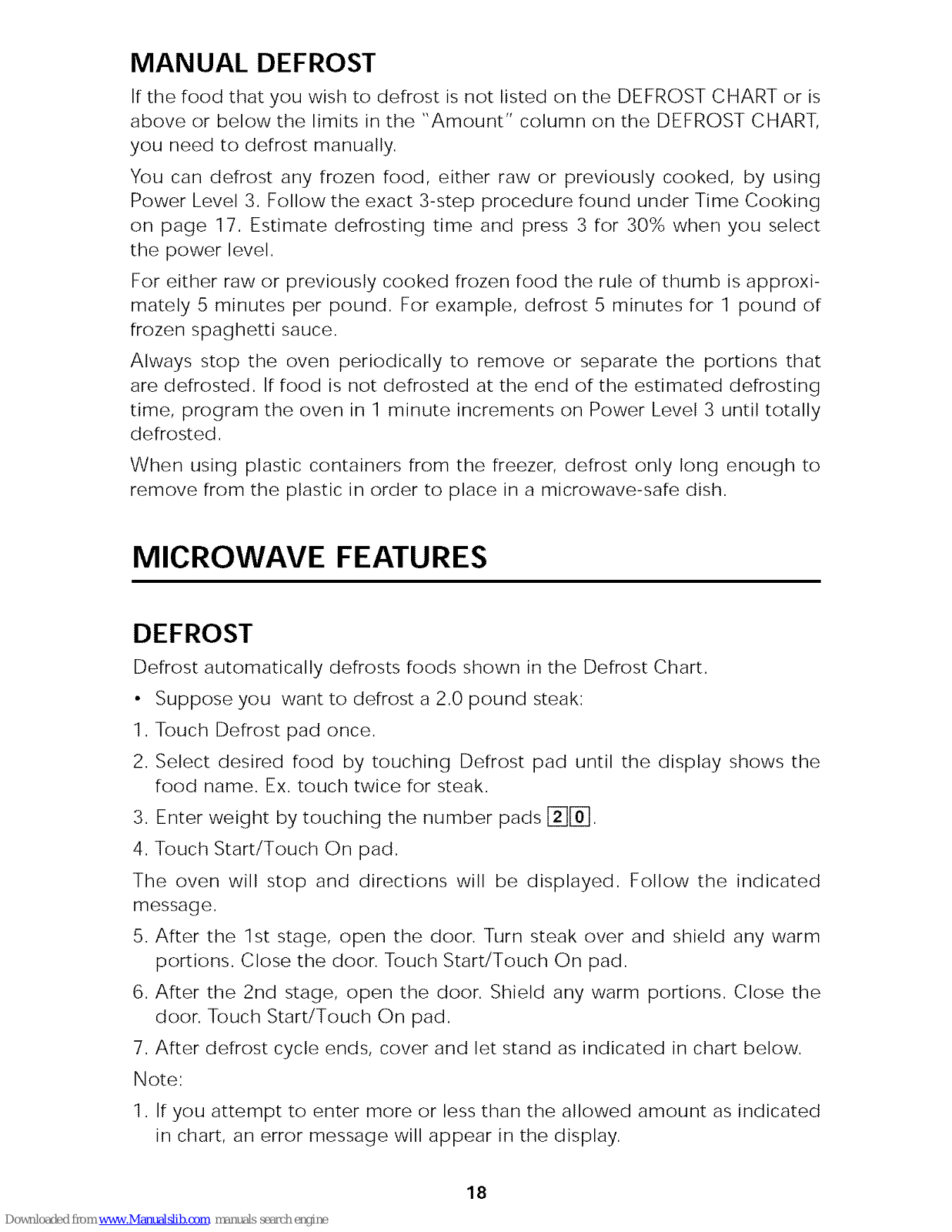

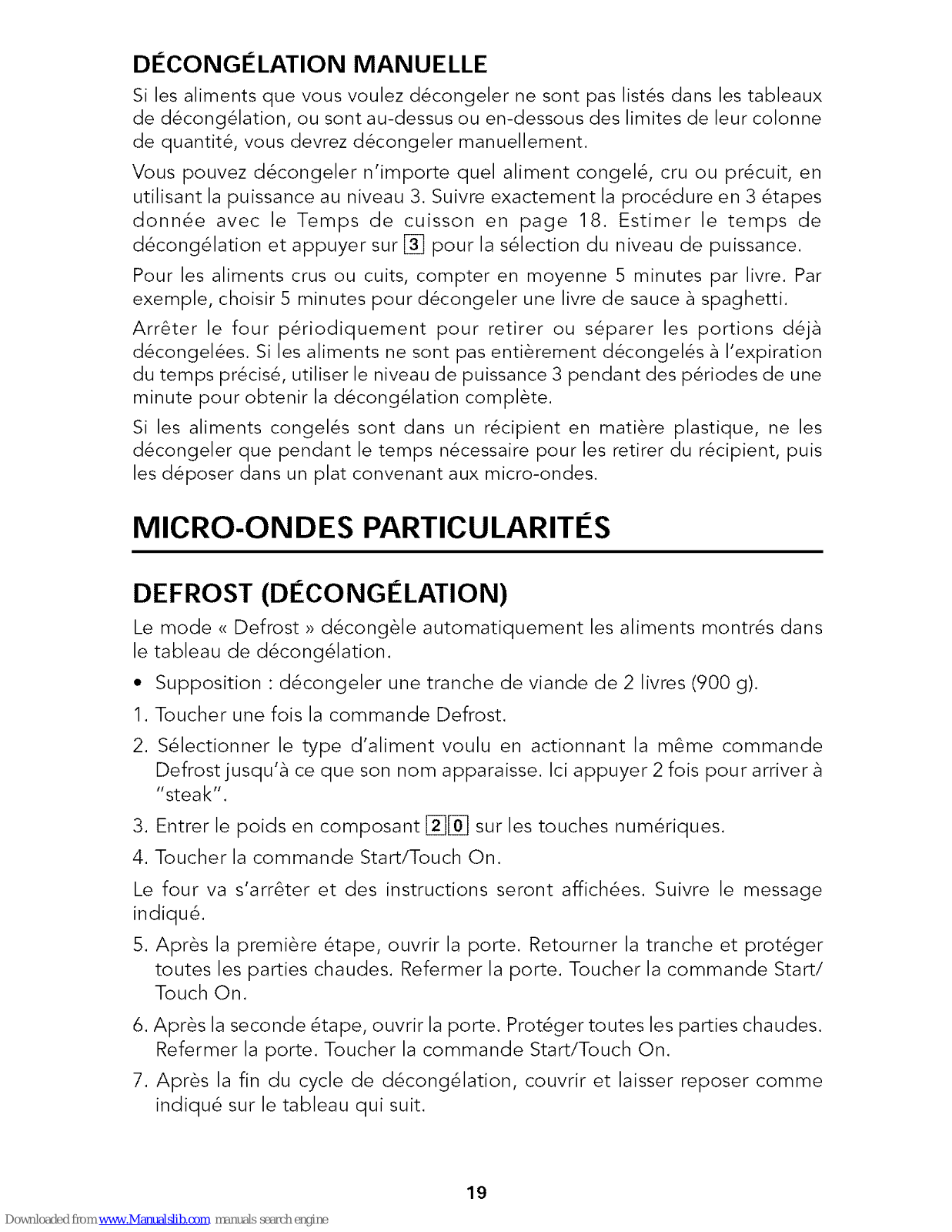

MANUAL DEFROST

If the food that you wish to defrost is not listed on the DEFROST CHART or is

above or below the limits in the "Amount" column on the DEFROST CHART,

you need to defrost manually.

You can defrost any frozen food, either raw or previously cooked, by using
Power Level 3, Follow the exact 3-step procedure found under Time Cooking
on page 17, Estimate defrosting time and press 3 for 30% when you select
the power level.

For either raw or previously cooked frozen food the rule of thumb is approxi-

mately 5 minutes per pound. For example, defrost 5 minutes for 1 pound of
frozen spaghetti sauce.

Always stop the oven periodically to remove or separate the portions that
are defrosted. If food is not defrosted at the end of the estimated defrosting
time, program the oven in 1 minute increments on Power Level 3 until totally

defrosted,
When using plastic containers from the freezer, defrost only long enough to

remove from the plastic in order to place in a microwave-safe dish.

MICROWAVE FEATURES

DEFROST

Defrost automatically defrosts foods shown in the Defrost Chart.

• Suppose you want to defrost a 2.0 pound steak:

1. Touch Defrost pad once.

2. Select desired food by touching Defrost pad until the display shows the
food name. Ex. touch twice for steak.

3. Enter weight by touching the number pads [_[_.

4. Touch Start/Touch On pad.

The oven will stop and directions will be displayed. Follow the indicated
message.

5. After the 1st stage, open the door. Turn steak over and shield any warm

portions. Close the door. Touch Start/Touch On pad.

6. After the 2rid stage, open the door. Shield any warm portions. Close the
door. Touch Start/Touch On pad.

7. After defrost cycle ends, cover and let stand as indicated in chart below.

Note:

1. If you attempt to enter more or less than the allowed amount as indicated

in chart, an error message will appear in the display.

18

2.Defrostcanbe programmedwith Moreor LessTimeAdjustment.See

page32.

3.Todefrostotherfoodsorfoodsaboveor belowtheweightsallowedon

DefrostChartseeManualDefrostonpage18.

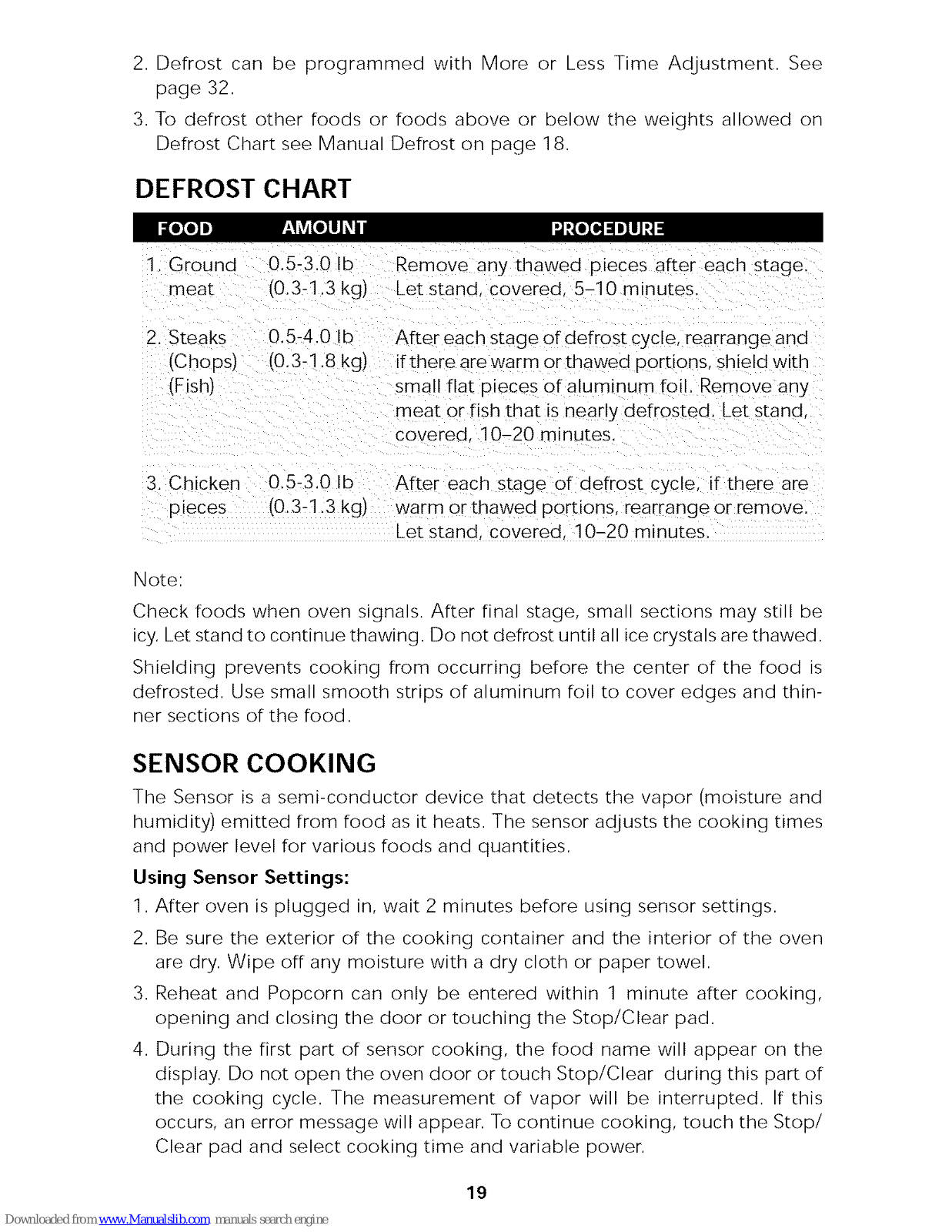

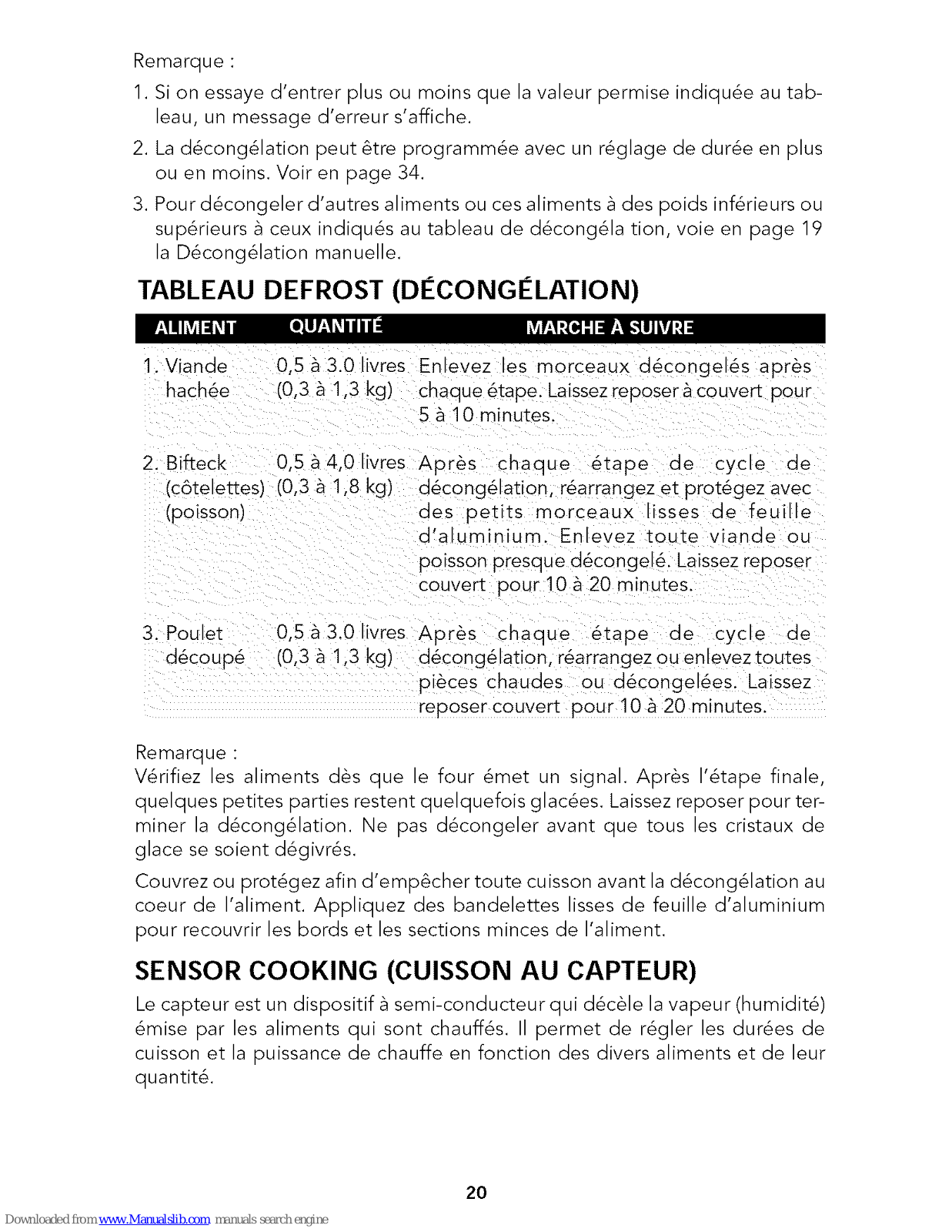

DEFROST CHART

I_oIo] D] r-*1_vi[o]!J_ild ',]:[oil,] l lie J,'|I

Ground 0.5-3.0 Ib Remove an)' thawed pieces after each stage.

meat (0,3-1,3 kg] Let stand covered 5-10 minutes

2, Steaks

fChops)

(Fish]

0.5-4.0 Ib After each stage of defrost cycle, rearrange and
(0.3-1,8 kg) ifthere are warm or thawed portions, shield with

small flat pieces of alum num foil, Remove any
meat or fish that is nearly defrosted, Let stand

covered. 10-20 minutes.

3, Chicken 0.5-3,0 Ib

pieces {0,3-1.3 kgJ

After each stage of defrost cycle if there are
warm or thawed portions, rearrange or remove.

Let stand, covered, 10-20 minutes.

Note:

Check foods when oven signals. After final stage, small sections may still be
icy, Let stand to continue thawing. Do not defrost until all ice crystals are thawed.

Shielding prevents cooking from occurring before the center of the food is
defrosted. Use small smooth strips of aluminum foil to cover edges and thin-

ner sections of the food.

SENSOR COOKING

The Sensor is a semi-conductor device that detects the vapor (moisture and
humidity) emitted from food as it heats. The sensor adjusts the cooking times
and power level for various foods and quantities,

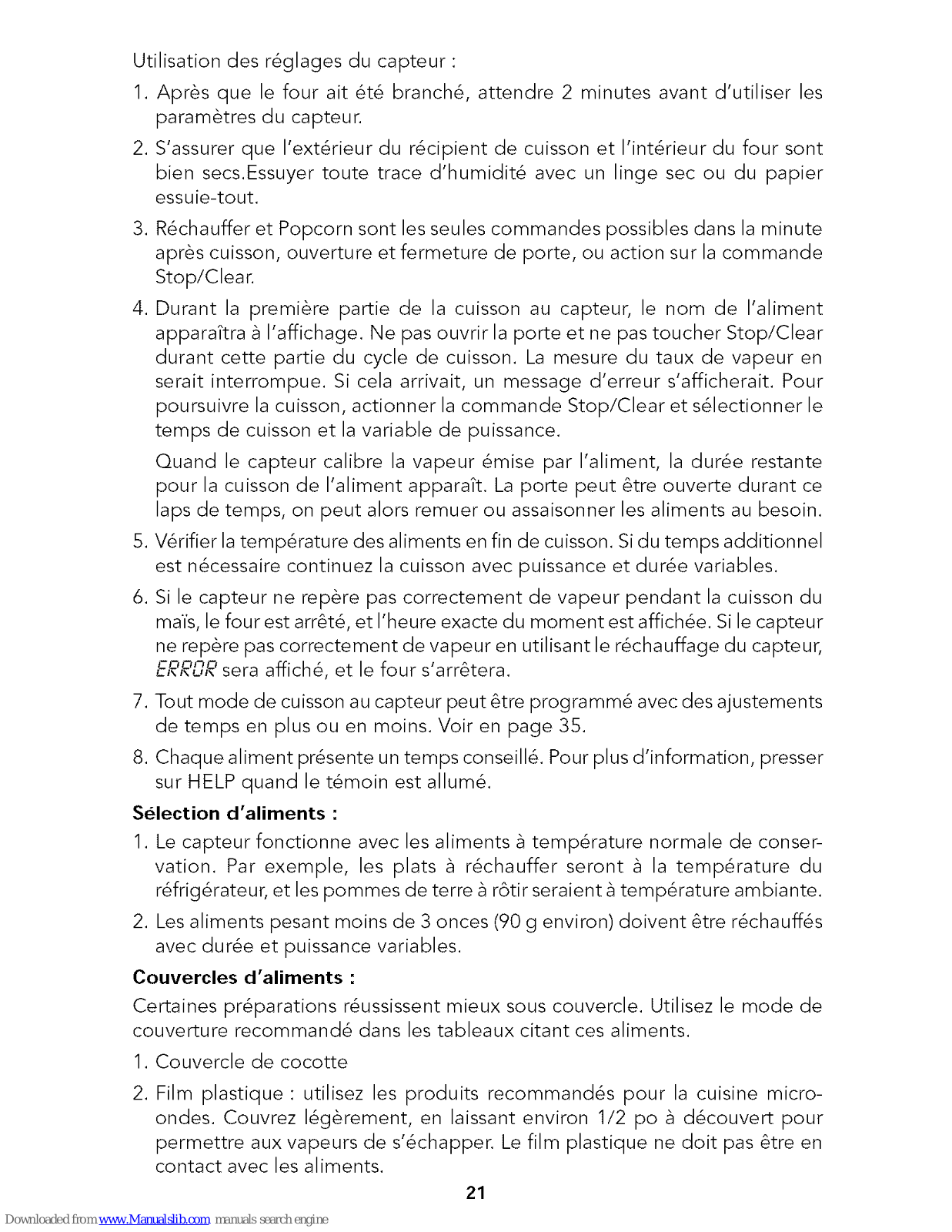

Using Sensor Settings:

1. After oven is plugged in, wait 2 minutes before using sensor settings.

2. Be sure the exterior of the cooking container and the interior of the oven
are dry. Wipe off any moisture with a dry cloth or paper towel.

3. Reheat and Popcorn can only be entered within 1 minute after cooking,
opening and closing the door or touching the Stop/Clear pad.

4. During the first part of sensor cooking, the food name will appear on the
display. Do not open the oven door or touch Stop/Clear during this part of
the cooking cycle. The measurement of vapor will be interrupted. If this
occurs, an error message will appear. To continue cooking, touch the Stop/
Clear pad and select cooking time and variable power,

19

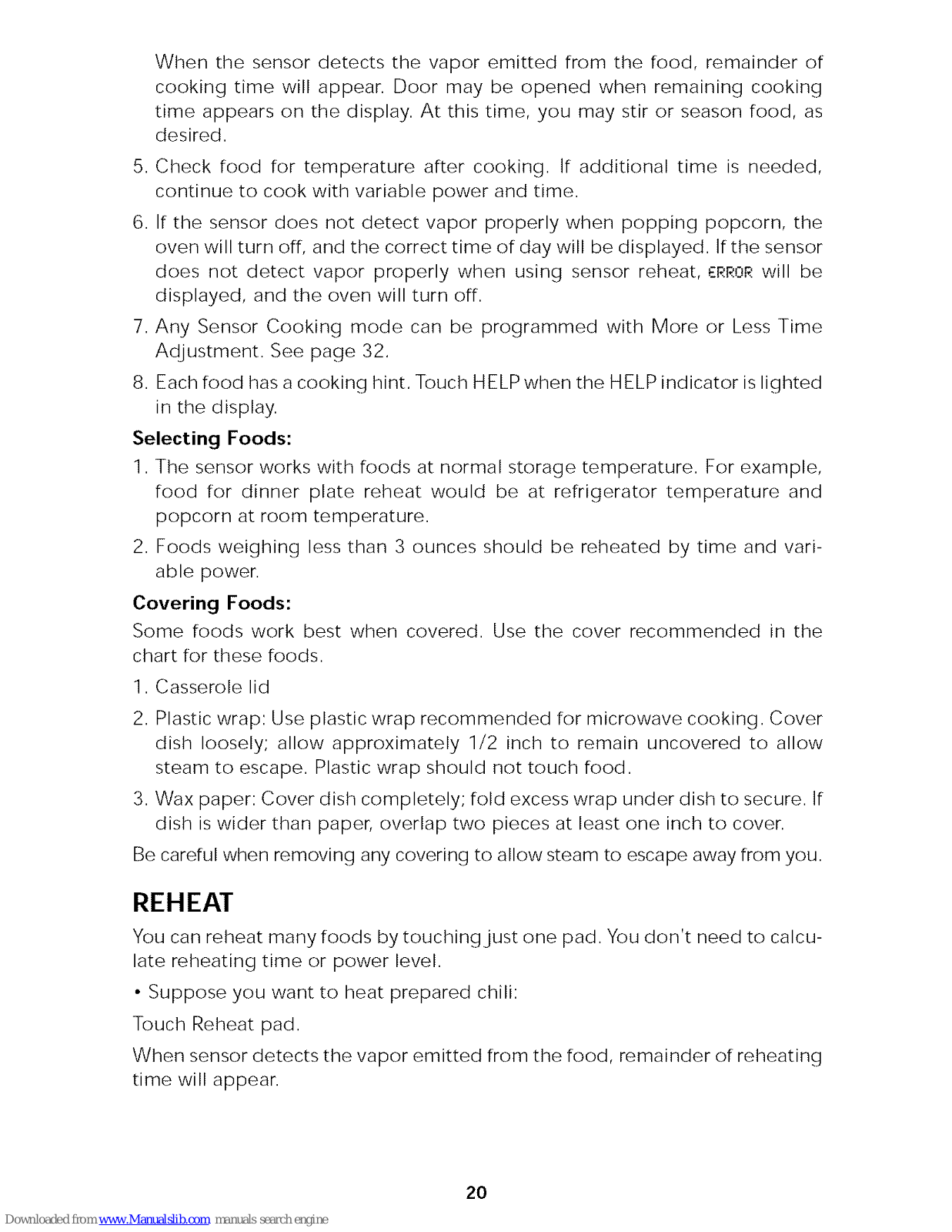

Whenthesensordetectsthe vaporemittedfromthefood,remainderof
cookingtimewillappear.Doormaybeopenedwhenremainingcooking
timeappearsonthedisplay.Atthistime,youmaystirorseasonfood,as

desired.

5.Checkfoodfor temperatureaftercooking.Ifadditionaltimeis needed,
continuetocookwithvariablepowerandtime.

6.Ifthesensordoesnotdetectvaporproperlywhenpoppingpopcorn,the
ovenwillturnoff,andthecorrecttimeofdaywillbedisplayed.Ifthesensor

doesnotdetectvaporproperlywhenusingsensorreheat,ERRORwill be
displayed,andtheovenwillturnoff.

7.AnySensorCookingmodecanbe programmedwithMoreorLessTime
Adjustment.Seepage32,

8.Eachfoodhasacookinghint,TouchHELPwhentheHELPindicatorislighted

inthedisplay.

Selecting Foods:

1. The sensor works with foods at normal storage temperature. For example,
food for dinner plate reheat would be at refrigerator temperature and

popcorn at room temperature.

2. Foods weighing less than 3 ounces should be reheated by time and vari-
able power.

Covering Foods:

Some foods work best when covered. Use the cover recommended in the
chart for these foods.

1. Casserole lid

2. Plastic wrap: Use plastic wrap recommended for microwave cooking. Cover
dish loosely; allow approximately 1/2 inch to remain uncovered to allow
steam to escape. Plastic wrap should not touch food.

3. Wax paper: Cover dish completely; fold excess wrap under dish to secure. If
dish is wider than paper, overlap two pieces at least one inch to cover.

Be careful when removing any covering to allow steam to escape away from you.

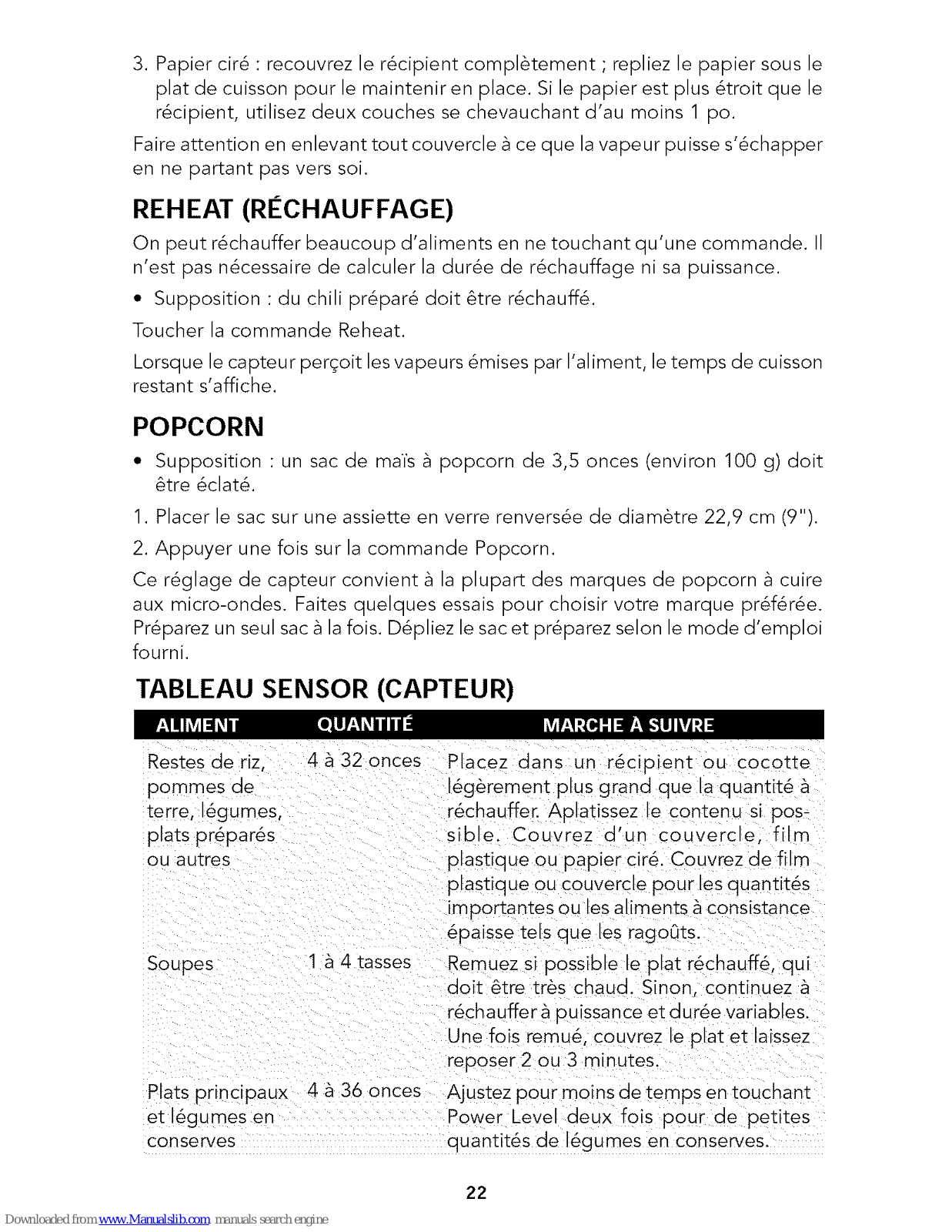

REHEAT

You can reheat many foods by touching just one pad. You don't need to calcu-
late reheating time or power level.

• Suppose you want to heat prepared chili:

Touch Reheat pad.
When sensor detects the vapor emitted from the food, remainder of reheating

time will appear.

20

POPCORN

• Suppose you want to pop a 3.5 oz. bag of popcorn:

1. Place bag on overturned 9" glass pie plate.

2. Touch Popcorn pad once.
This sensor setting works well with most brands of microwave popcorn. You

may wish to try several and choose your favorite. Pop only one bag at a time.
Unfold the bag and place in oven according to directions.

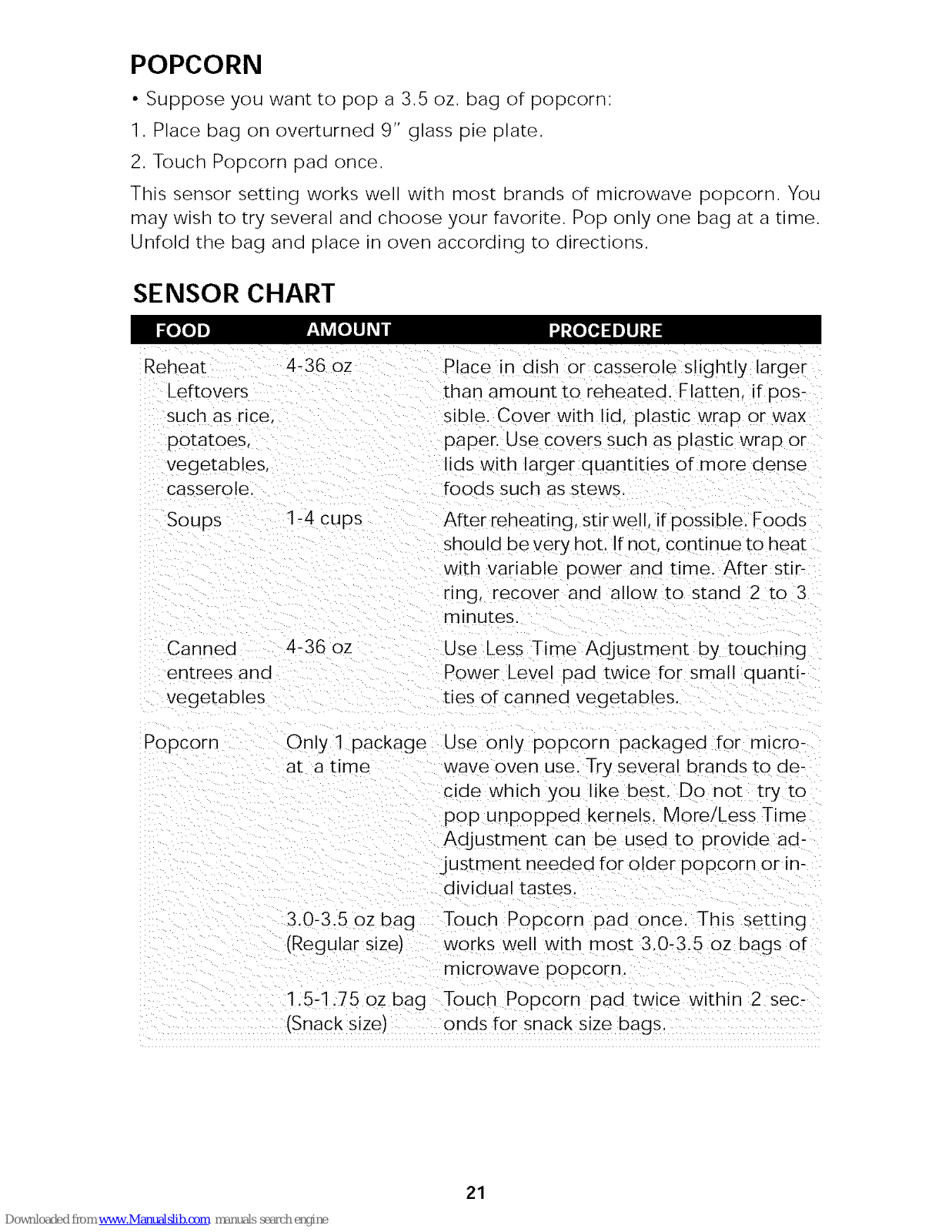

SENSOR CHART

(oIo) n,) r*-_Lv_[ollJ_Id I'_:ToIoJ1 DleJ:;_

Reheat 4-36 oz

Leftovers
such as rice

potatoes
vegetables

casserole.
Sow ps 1-4 cups

Canned 4-36 oz
entrees and

vegetables

Place in dish or casserole slightly larger
than amountto reheated. Flatten if pos-
sible. Cover with lid plastic wrap or wax

paper. Use covers such as plastic wrap or

lids with larger quantities of more dense

roods such as stews.
After reheating, stirwel if possible. Foods

should be very hot. If not. continue to heat

with variable power and time. After stir-

ring recover and allow to stand 2 to 3

minutes.

Use Less Time Adjustment by touching

Power Level pad twice for small quanti-

ties of canned vegetables,

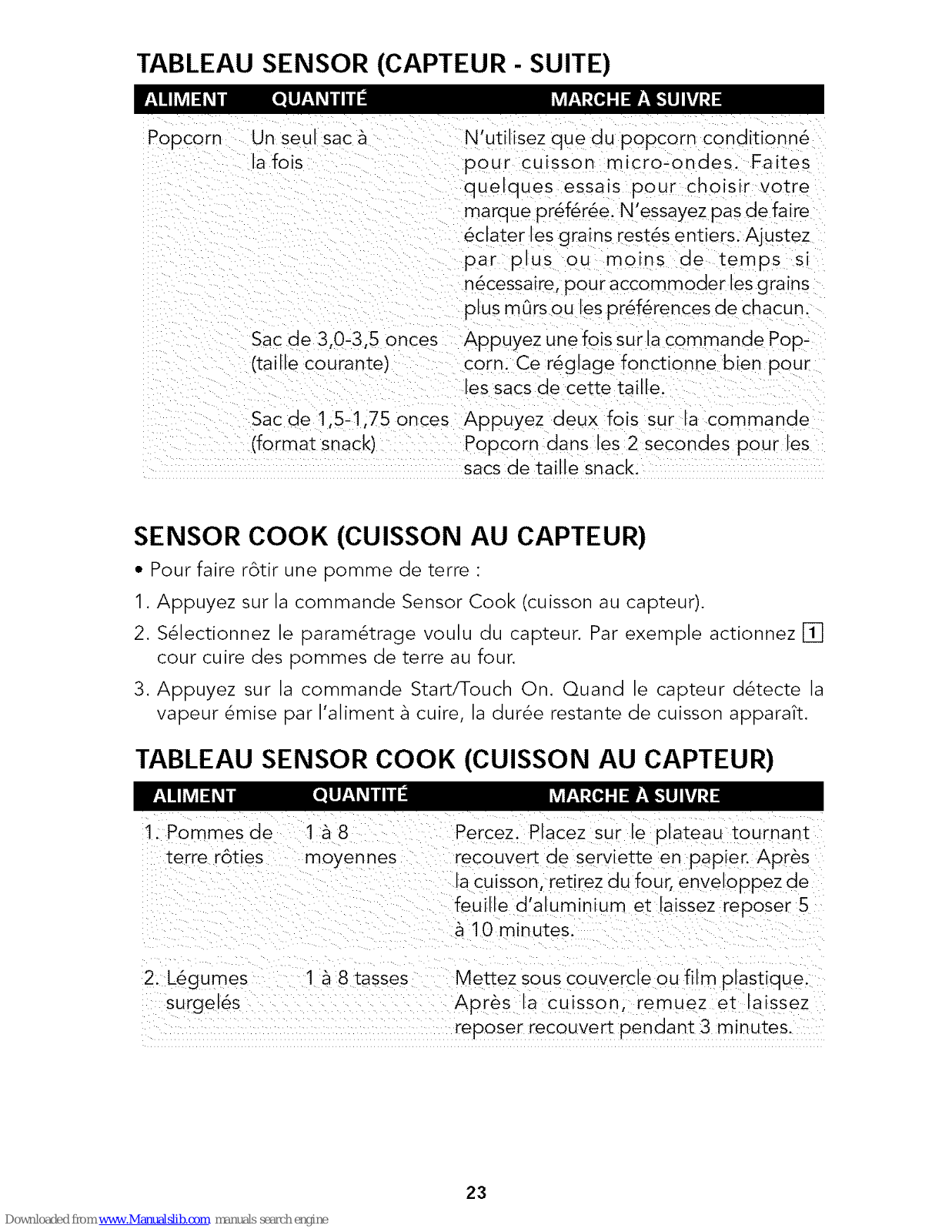

Popcorn Only 1 package Use only popcorn packaged for micro-

at a time wave oven use. Try several brandsto de-

cide which you like best Do not try to

pop unpopped kernels. More!Less Time

Adjustment can be used to provide ad-

justment needed for older popcorn or in-

dividual tastes.

3,0-3.5 oz bag Touch Popcorn pad once, This setting
(Regular size) works well with most 3 0-3.5 oz bags of

microwave popcorn.

1.5-1.75 oz bag Touch Popcorn pad twice within 2 sec-
(Snack size, onds for snack size baqs

21

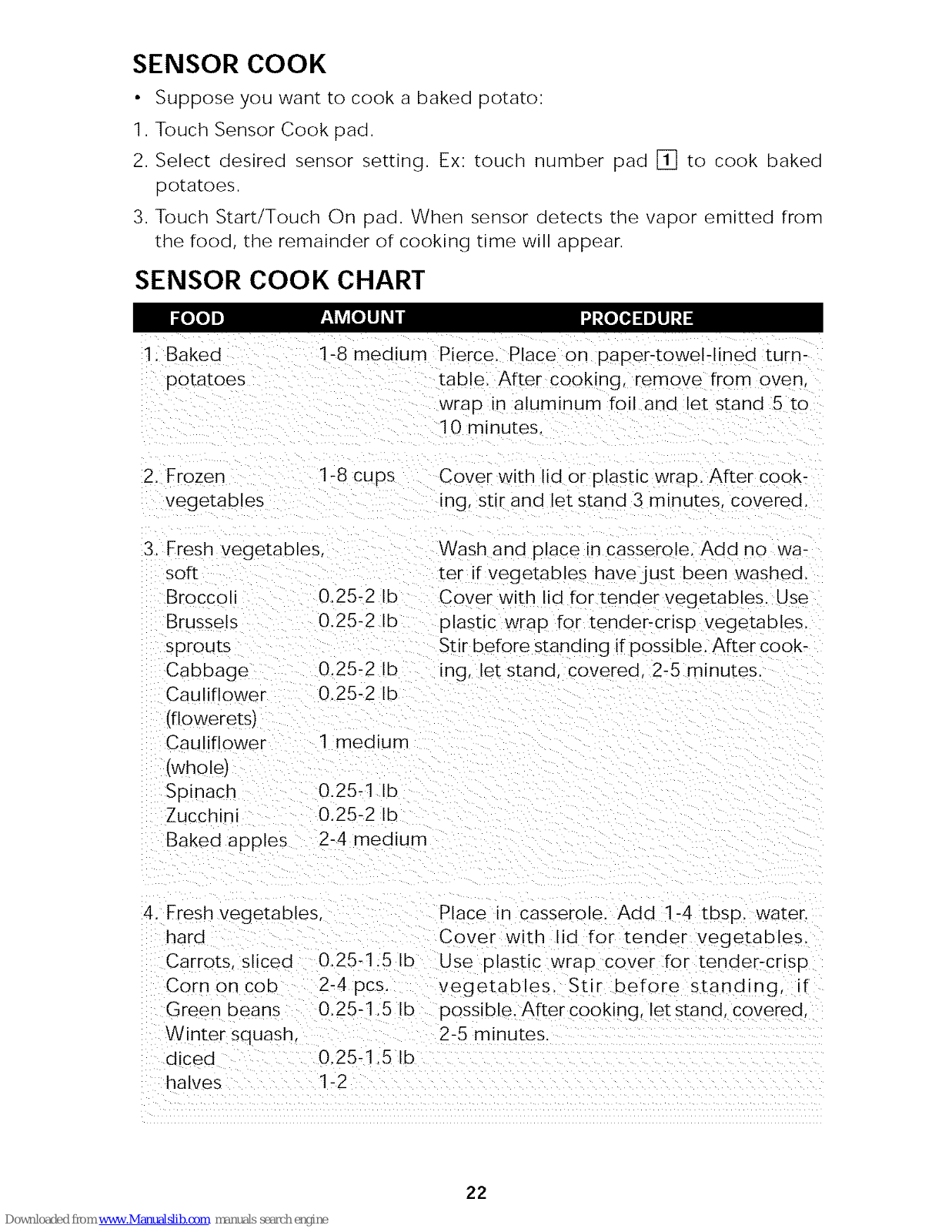

SENSOR COOK

• Suppose you want to cook a baked potato:

1. Touch Sensor Cook pad.

2. Select desired sensor setting. Ex: touch number pad [] to cook baked
potatoes.

3. Touch Start/Touch On pad. When sensor detects the vapor emitted from

the food, the remainder of cooking time will appear.

SENSOR COOK CHART

(oIo] D] F-'IL+_[O]II_i d I'J,'ToIa_:1u01l]:] ::1

1 Baked

potatoes

1-8 medium

Pierce Place on paper-towel-lined turn-

table. After cooking, remove from oven

wrap in aluminum foil and let stand 5 to
10 minutes.

2, Frozen 1-8 cups

vegetables

Cover with lid or plastic wrap. After cook-
ing, stir and let stand 3 minutes covered.

3. Fresh vegetables
soft

Broccol
Brussels

sprouts

Cabbage 0.25-2 Ib
Cauliflower 0.25-2 Ib

Iflowerets}
Cauliflower 1 medium

(wholel,

Spinach 0.25-1 Ib
Zucchini 0.25-2 Ib

Baked apples 2-4 medium

Wash and place in casserole Add no wa-
ter if vegetables have just been washed.

0.25-2 Ib Cover with lid for tender vegetables Use

0.25-2 Ib plastic wrap for tender-crisp vegetables.
Stir before standing if possi ale. After cook-
ing, let stand covered 2-5 minutes.

4. Fresh vegetables Place in casserole. Add 1-4 tbsp. water.
hard Cover with lid for tender vegetables.
Carrots. sliced 0.25-1.5 Ib Use plastic wrap cover for tender-crisp
Corn on cob 2-4pcs. vegetables. Stir before standing if
Green beans 0.25-1.5 Ib possible. After cooking letstand covered

Winter squash 2-5 minutes.
mFced 0.25-1 5 Ib

hawes 1-2

22

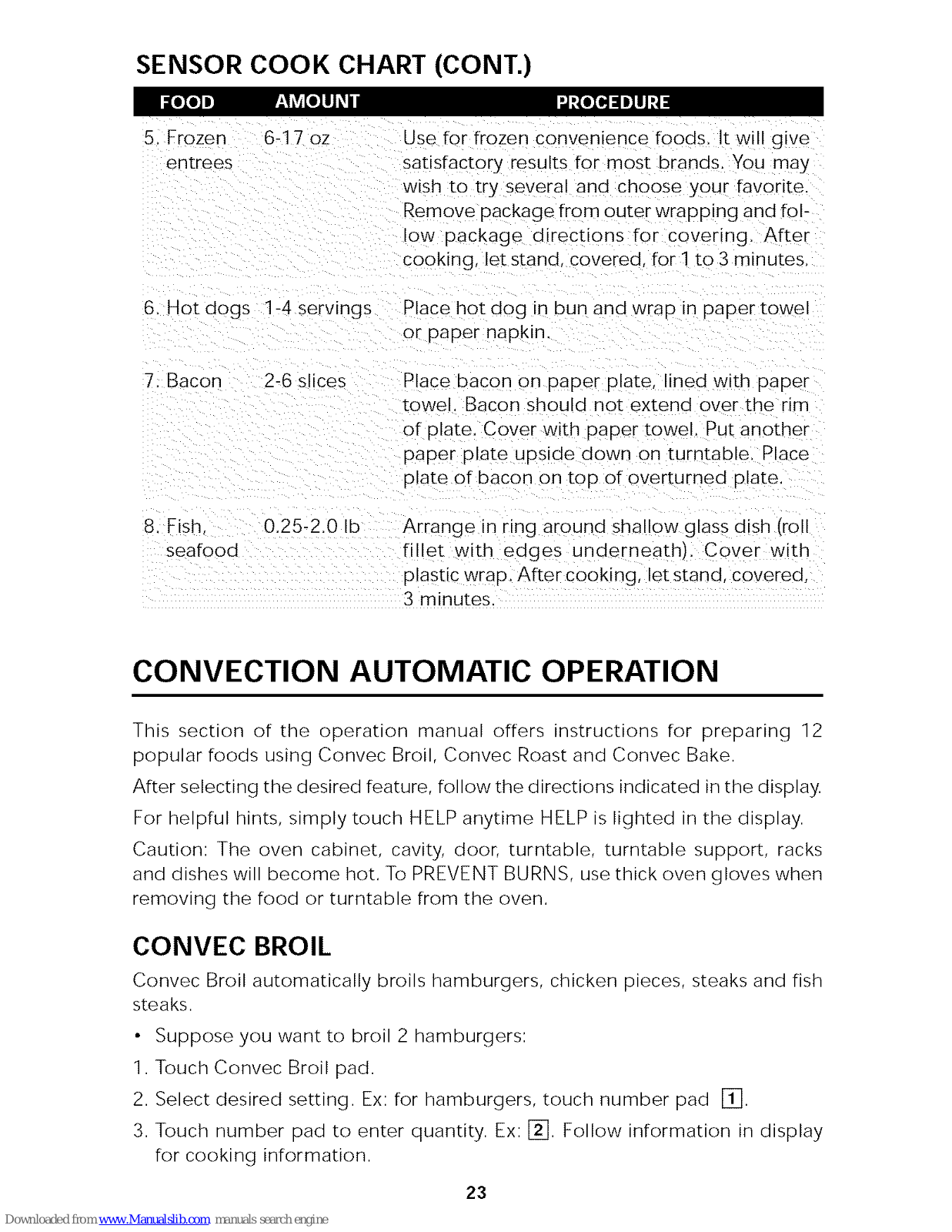

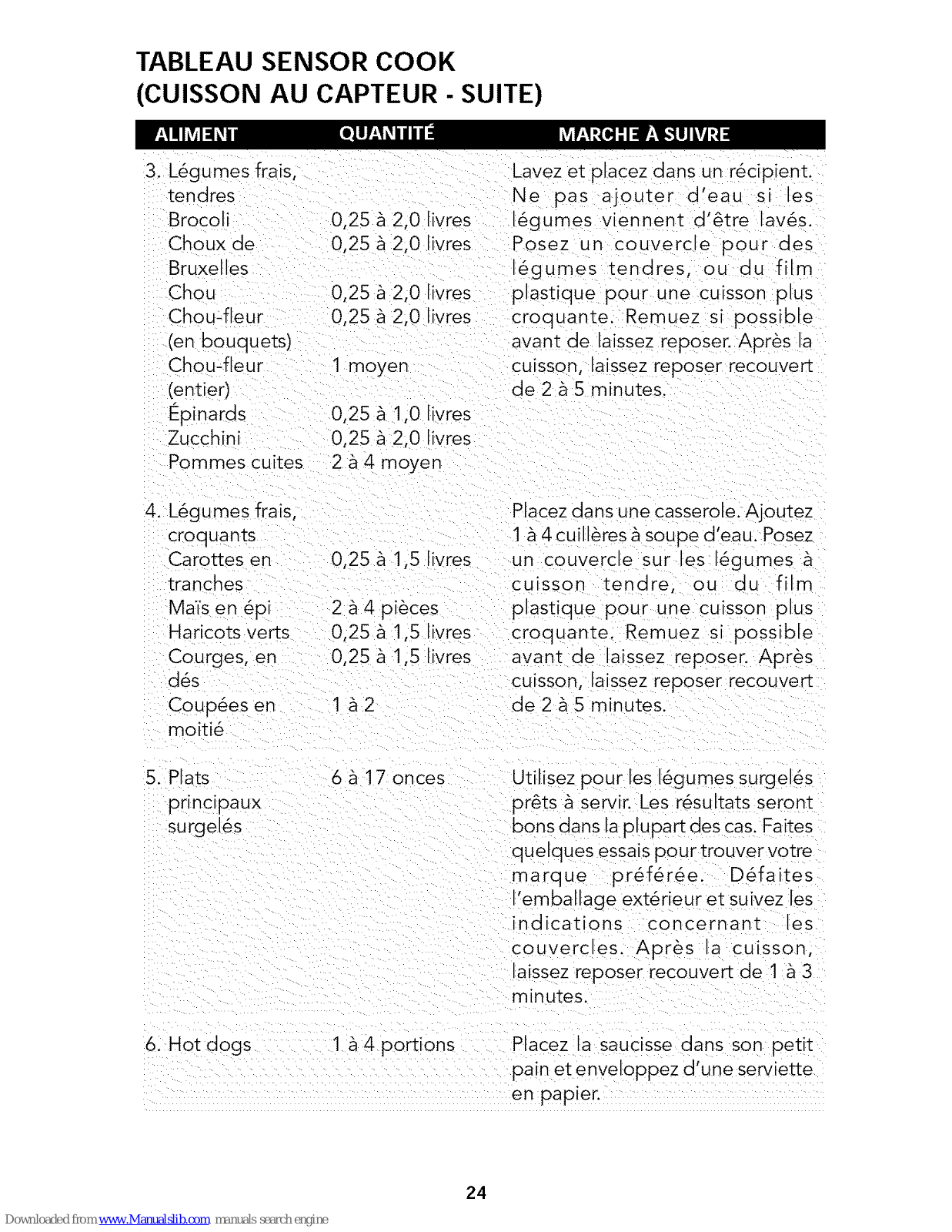

SENSOR COOK CHART (CONT.)

II[oIo] m] V:ILV_[O]IJ_ii I__'ToIoJ1 DI|J_'_1

5. Frozen 6-17 oz
entrees

Use for frozen convenience foods. It wdl give
satisfactory results for most brands. You may
wish to try several and choose your favorite.
Remove package from outer wrapping and fol-
low package directions for covering. After

cooking et stand, covered, for 1 to 3 m_nutes.

6. Hot dogs 1-4 servings Place hot dog in bun and wrap in paper rowe

or paper napkin.

7. Bacon 2-6 slices

Place macon on paper plate, lined with paper
towel. Bacon should not extend over the rim

of plate. Cover with paper towel. Put another
paper plate upside down on turntable. Place
plate of bacon on top of overturned plate.

8. Fish
seafood

0.25-2.0 Ib Arrange in ring around shallow glass dish {roll
fi let with edges underneathJ Cover with

plastic wrap. After cooking et stand, covered,
3 minutes.

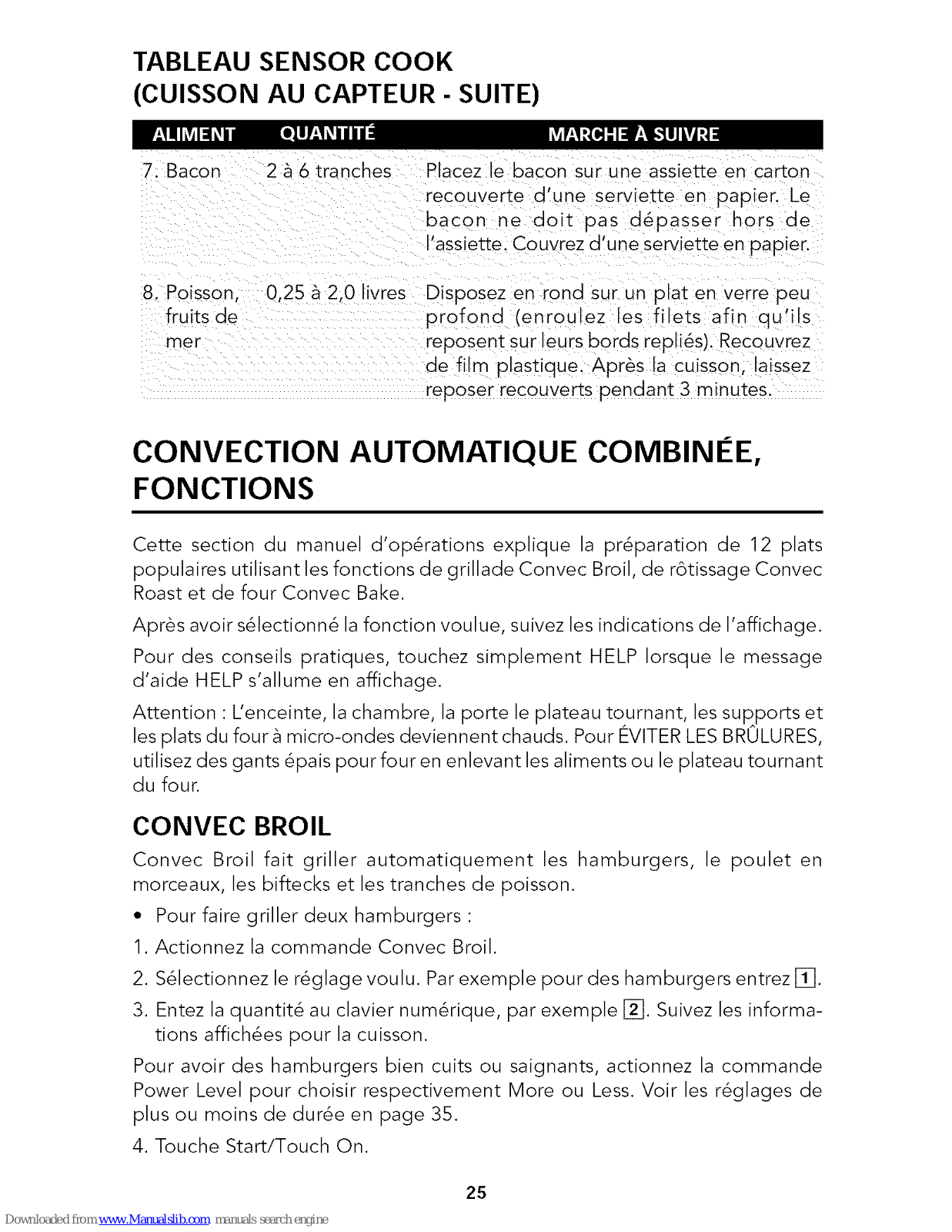

CONVECTION AUTOMATIC OPERATION

This section of the operation manual offers instructions for preparing 12
popular foods using Convec Broil, Convec Roast and Convec Bake.

After selecting the desired feature, follow the directions indicated in the display

For helpful hints, simply touch HELP anytime HELP is lighted in the display.

Caution: The oven cabinet, cavity, door, turntable, turntable support, racks
and dishes will become hot. To PREVENT BURNS, use thick oven gloves when

removing the food or turntable from the oven.

CONVEC BROIL

Convec Broil automatically broils hamburgers, chicken pieces, steaks and fish
steaks.

• Suppose you want to broil 2 hamburgers:

1. Touch Convec Broil pad.

2. Select desired setting. Ex: for hamburgers, touch number pad [_.

3. Touch number pad to enter quantity. Ex: [_]. Follow information in display
for cooking information.

23

Forwelldoneorrareburgers,touchPowerLevelpadto selectMoreforwell

doneorLessforrare.SeeMore/LessTimeAdjustmentonpage32.

4.TouchStart/TouchOnpad,

After broil preheatcycleends,the ovenwill stopanddirectionswillbe
displayed.Followtheindicatedmessage.Openthedoorandplacehamburg-

ersintooven.Closethedoor,

5.TouchStart/TouchOnpad.

Note:

1.ConvecBroilcanbeprogrammedwithMore/LessTimeAdjustment.See

page32.

2.Ifyouattemptto entermoreorlessthantheallowedamountasindicated

inchartbelow,anerrormessagewillappearinthedisplay.

3.Tobroil otherfoodsor foodsaboveor belowtheweightor number
allowedon ConvecBroilChartfollowinstructionsin the Convection

MicrowaveCookbook.SeeConvectionBroilingChart.

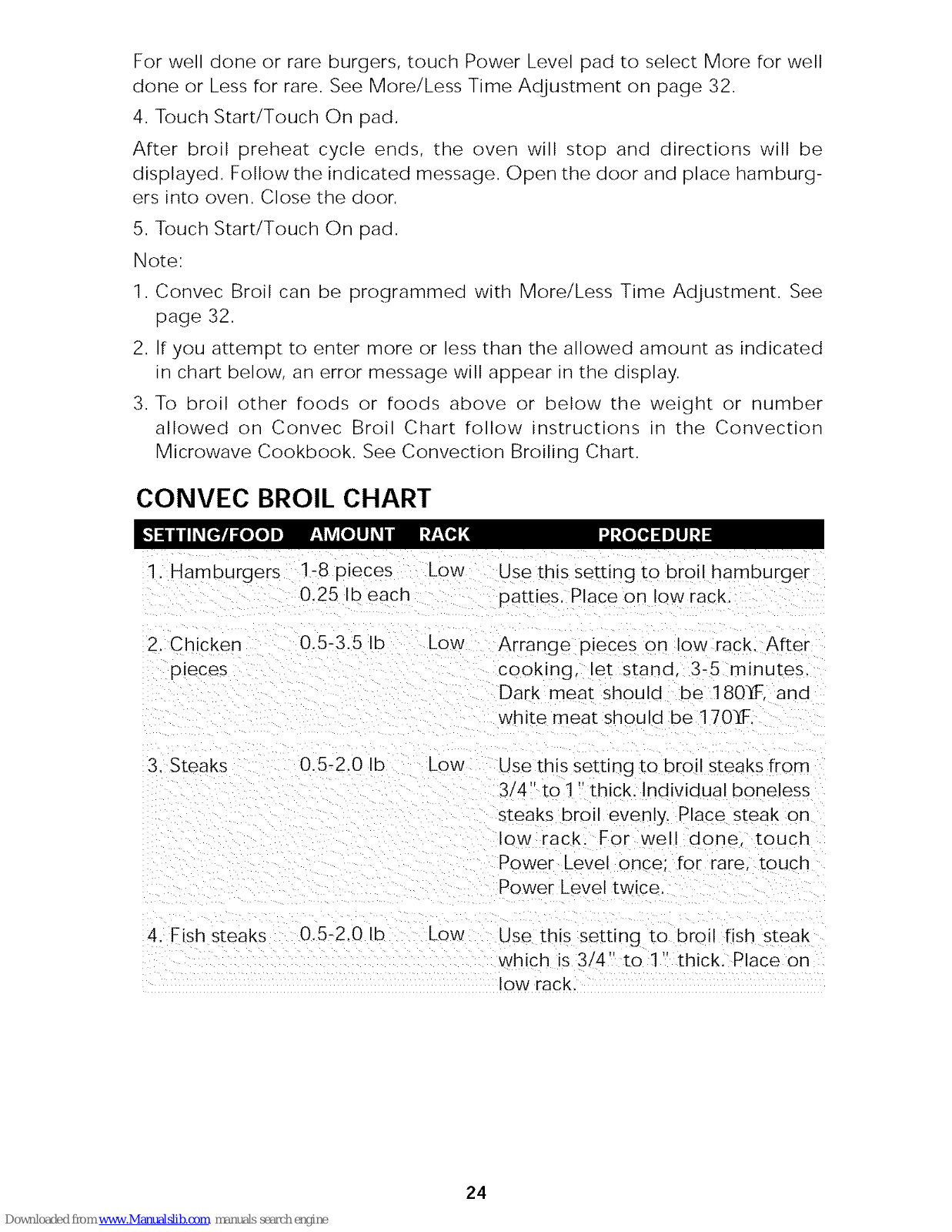

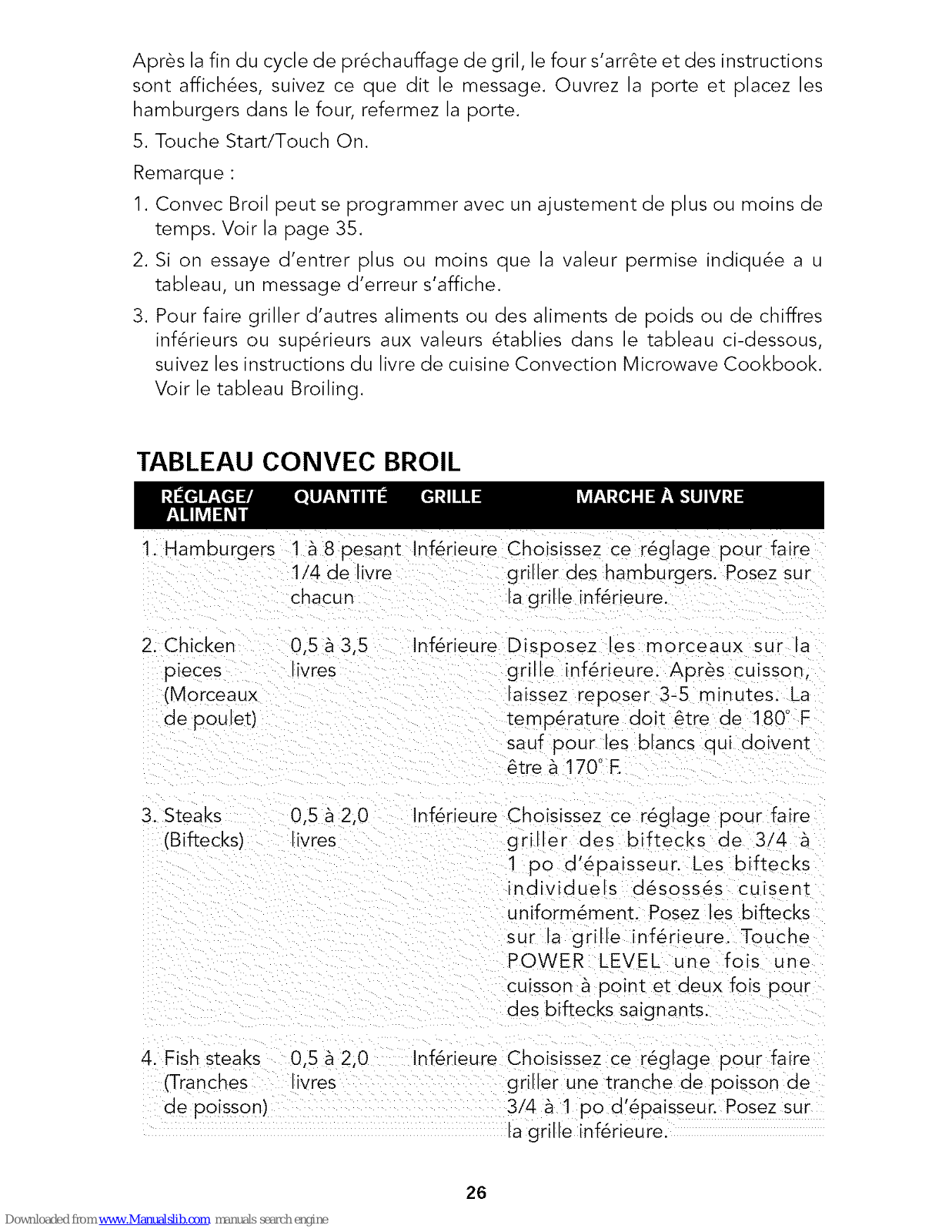

CONVEC BROIL CHART

_lq/il_[_AI[eI.]D] r:_Lv_[e]lJ_il I,'t*-Te]r,q I'.],'TeIo]1D]IJ,'_1

1. Hamburgers 1-8 pieces Low Jse this setting to aroil hamburger

0.25 b each aatties. Place on low rack

2, Chicken 0,5-3.5 b Low

pieces

Arrange p_eces on low rack. After

cooking, let stand, 3-5 minutes.

Dark meat should be 1 80"_F and

white meat should be 170]_F,

3. Steaks 0.5-2.0 Ib

Low Use this setting to broil steaks from

3/4' to 1 "thick. Individual boneless
steaks broil evenly. Place steak on

ow rack. For well done touch
mower Level once: for rare, touch
mower Level twice,

4. Fish steaks 0,5-2.0 Ib Low Use this setting to broil fish steak
which is 3/4' to 1 " thick. Place on

ow rack.

24

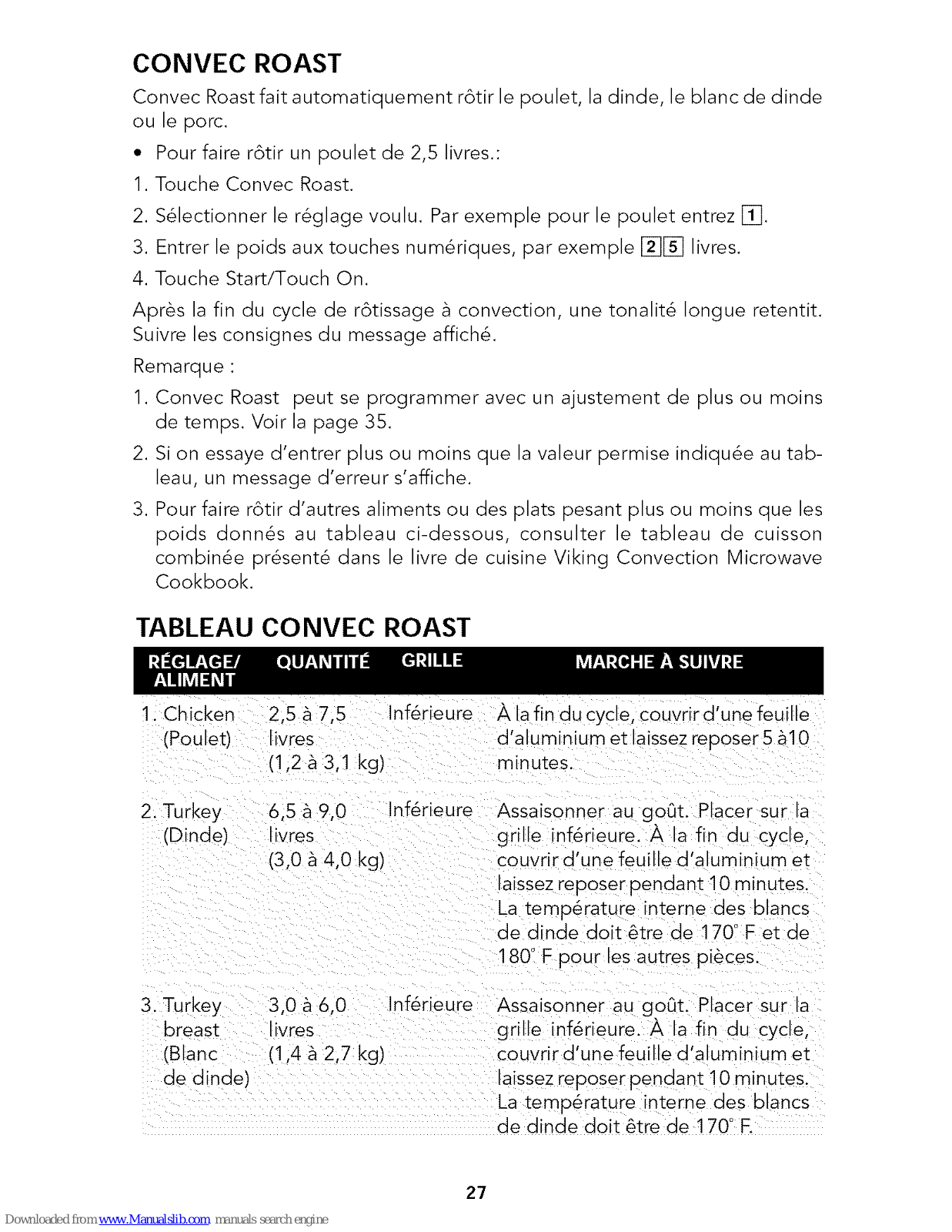

CONVEC ROAST

Convec Roast automatically roasts chicken, turkey, turkey breast or pork,

• Suppose you want to roast a 2.5 pound chicken:

1. Touch Convec Roast pad.

2. Select desired setting. Ex: for chicken, touch number pad E_].

3. Touch number pad to enter weight. Ex: [_E_ lb.

4. Touch Start/Touch On pad.
After Convec Roast cycle ends, a long tone will sound. Follow the indicated

message.

Note:

1. Convec Roast can be programmed with More/Less Time Adjustment. See
page 32.

2. If you attempt to enter more or less than the allowed weight as indicated
in chart below, an error message will appear in the display.

3. To roast other food or foods above or below the weights allowed on

Convec Roast Chart, check the Viking Convection Microwave Cookbook
Combination Roasting Chart.

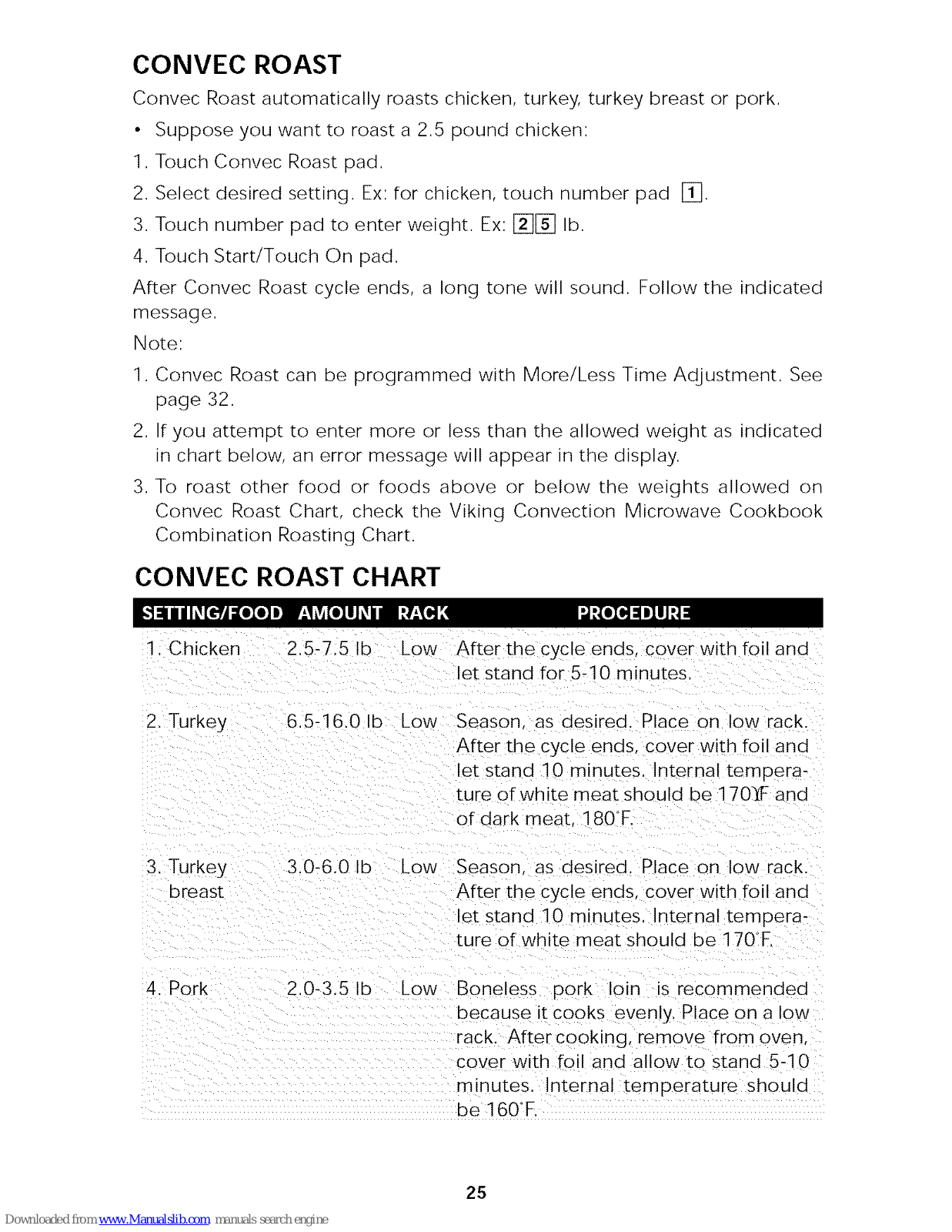

CONVEC ROAST CHART

_l:igdl_[e_A(oIo)e] r:_v_[o]eJ_id ,'t:Td,N I'J,'ToIo]==luJ,']=

1, Chicken

2.5-7.5 Ib Low After the cycle ends. cover with foil and
et stand for 5-10 minutes.

2. Turkey

6.5-16.0 Ib Low Season as desired. Place on low rack.

After the cycle ends. cover with foil and

et stand 10 minutes. Internal tempera-

ture of white meat should ae 170"l:F and
of dark meat. 180T

3. Turkey 3.0-6,0 Ib
breast

=ow Season as desired, Place on low rack.

After the cycle ends cover with foil and

et stand 10 minutes, nternal tempera-

ture of white meat should be 170_F

4. Pork 2,0-3.5 Ib Low 3oneless pork loin s recommended
aecause it cooks evenly, Place on a low
rack. After cooking remove from oven

cover with foil and allow to stand 5-10

minutes. Internal temperature should
ae 160_F.

25

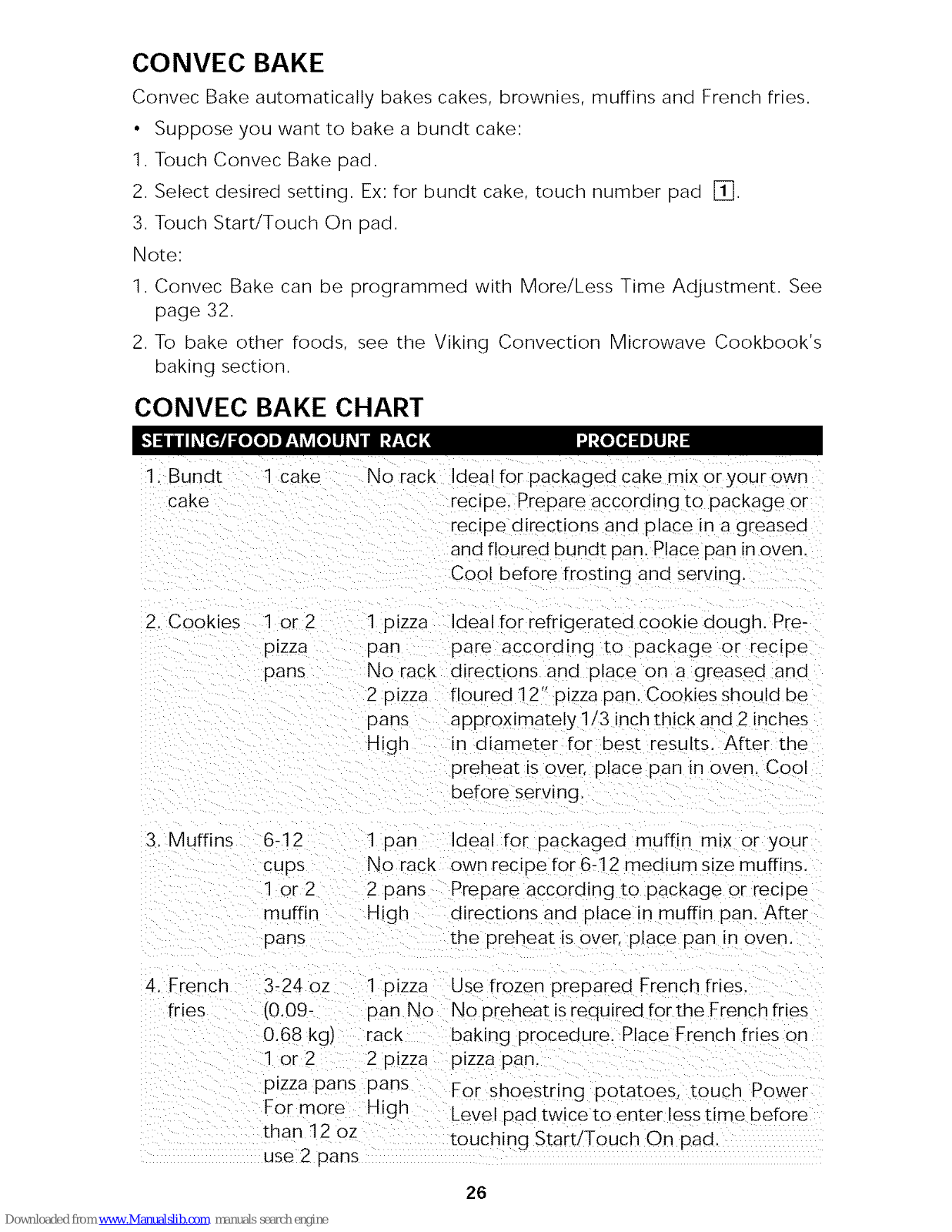

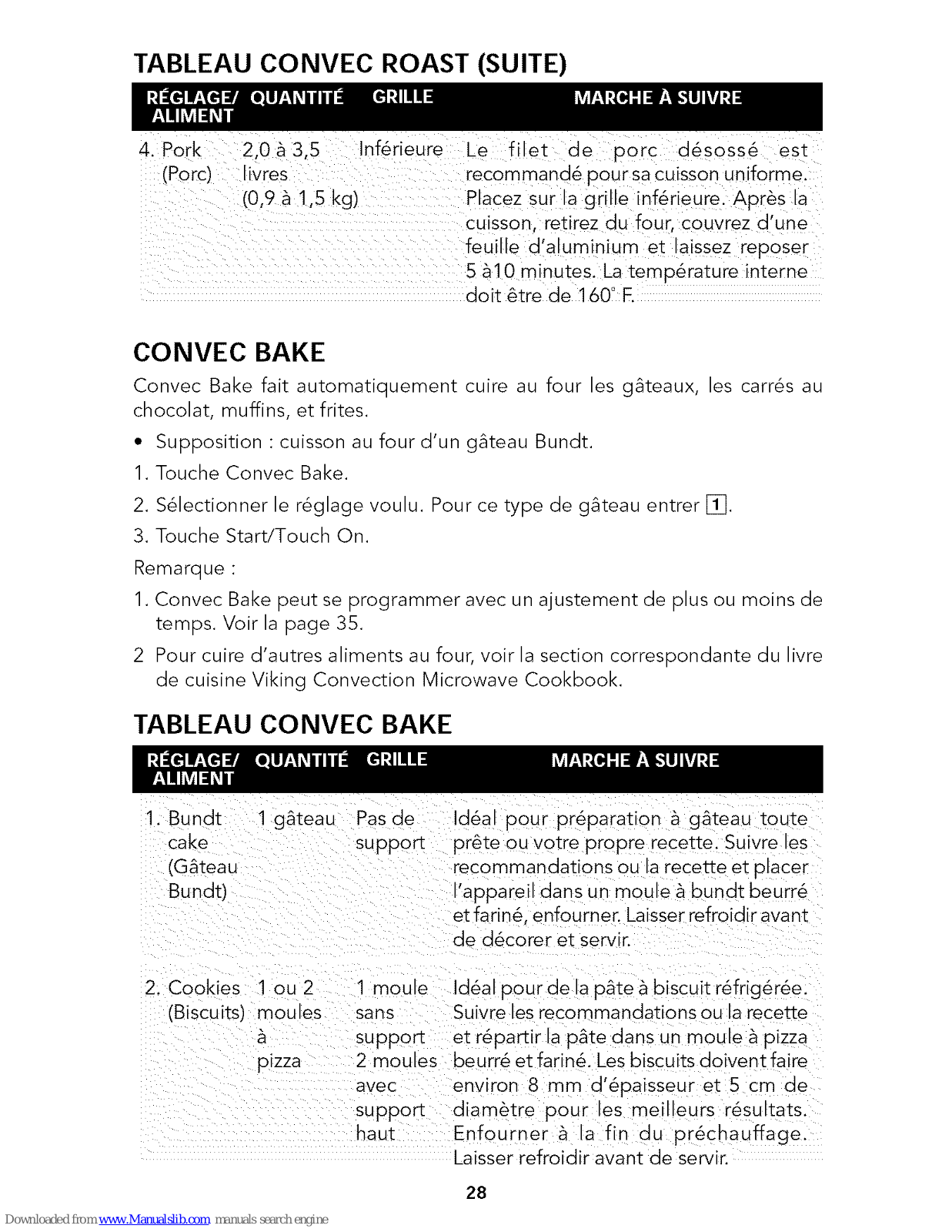

CONVEC BAKE

Convec Bake automatically bakes cakes, brownies, muffins and French fries.

• Suppose you want to bake a bundt cake:

1. Touch Convec Bake pad.

2. Select desired setting. Ex: for bundt cake, touch number pad E_.

3. Touch Start/Touch On pad.
Note:

1. Convec Bake can be programmed with More/Less Time Adjustment. See
page 32.

2. To bake other Foods, see the Viking Convection Microwave Cookbook's
baking section.

CONVEC BAKE CHART

,1q I/I I_[e_J:[oIo]m7-,ILv_[o]l] _i/ I_'!-,_(e]_4 I_,'toIeJI mll],';1

1. Bundt 1 cake No rack
cake

Ideal for packaged cake mix or your own
recipe, Prepare according to package or
recipe directions and place n a greased

and floured bundt pan. Place pan _noven.

Cool before frosting and serving.

2, Cookies 1 or 2 1 pizza Ideal for refr gerated cookie dough. Pre-

p_zza pan pare according to package or recipe
pans No rack directions and place on a greased and

2 pizza floured 12" 9izza pan. Cookies should be
pans approximately 1/3 inch thick and 2 inches
High in diameter for best results, After the

preheat is over, place pan in oven. Cool
before serwng

3, Muffins

6-12 1 pan Ideal for packaged muffin mix or your
cups No rack own recipe for 6-12 medium size muffins,
1 or 2 2 pans Prepare according to package or recipe
muffin High directions and place in muffin pan. After
pans the preheat is over, place pan _n oven,

4. French 3-24 oz 1 pizza Use frozen prepared French fries.
_ries (0,09- pan No No preheat is required forthe French fries

0,68 kgj rack baking orocedure. Place French Fries on
1 or 2 2 pizza pizza pan.

pizza pans pans For shoestring potatoes, touch Power
For more High Level pad twice to enter lesstime 3efore
than 12 oz touching Start/Touch On oad,

use 2 oans

26

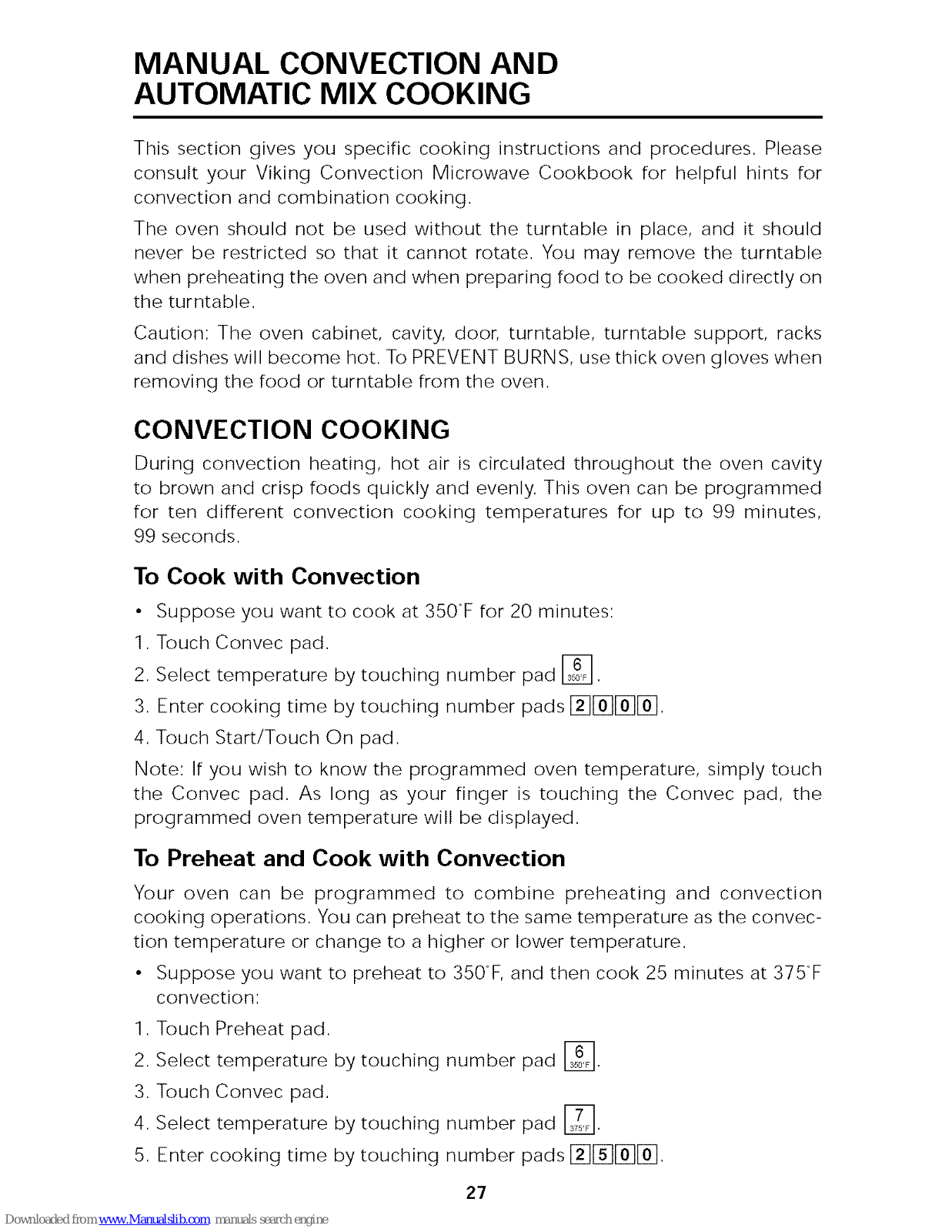

MANUAL CONVECTION AND

AUTOMATIC MIX COOKING

This section gives you specific cooking instructions and procedures, Please

consult your Viking Convection Microwave Cookbook for helpful hints for
convection and combination cooking.

The oven should not be used without the turntable in place, and it should

never be restricted so that it cannot rotate. You may remove the turntable

when preheating the oven and when preparing food to be cooked directly on
the turntable.

Caution: The oven cabinet, cavity, door, turntable, turntable support, racks
and dishes will become hot. To PREVENT BURNS, use thick oven gloves when
removing the food or turntable From the oven.

CONVECTION COOKING

During convection heating, hot air is circulated throughout the oven cavity

to brown and crisp foods quickly and evenly. This oven can be programmed
for ten different convection cooking temperatures for up to 99 minutes,

99 seconds.

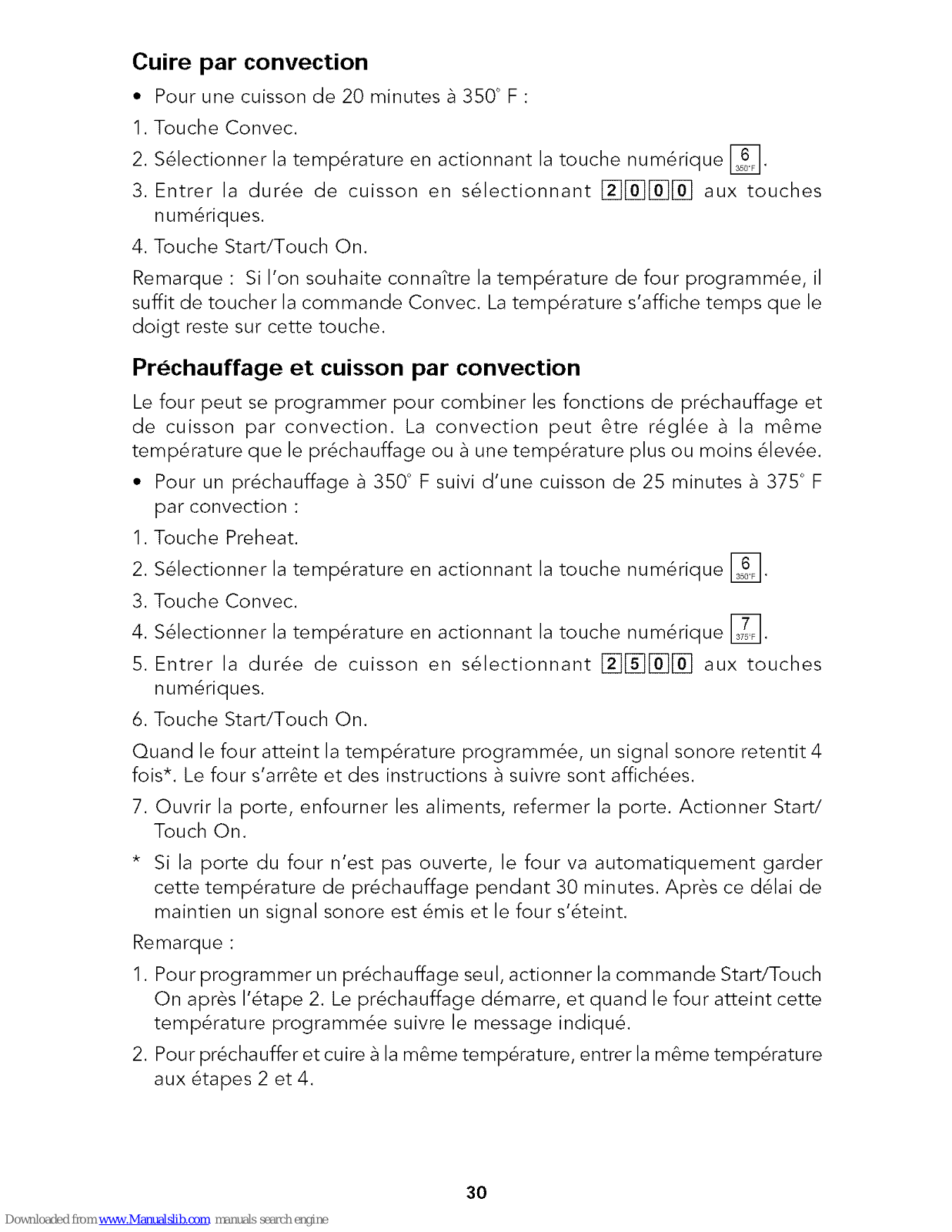

To Cook with Convection

• Suppose you want to cook at 350T for 20 minutes:

1. Touch Convec pad.

2. Select temperature by touching number pad _.

3. Enter cooking time by touching number pads [_][_[_[_.
4, Touch Start/Touch On pad.
Note: If you wish to know the programmed oven temperature, simply touch

the Convec pad. As long as your finger is touching the Convec pad, the

programmed oven temperature will be displayed.

To Preheat and Cook with Convection

Your oven can be programmed to combine preheating and convection

cooking operations, You can preheat to the same temperature as the convec-

tion temperature or change to a higher or lower temperature,

• Suppose you want to preheat to 350T, and then cook 25 minutes at 375T
convection;

1. Touch Preheat pad.

2. Select temperature by touching number pad _L_0,_.

3. Touch Convec pad,

4. Select temperature by touching number pad _.

5. Enter cooking time by touching number pads []#][_][]_][]_].
27

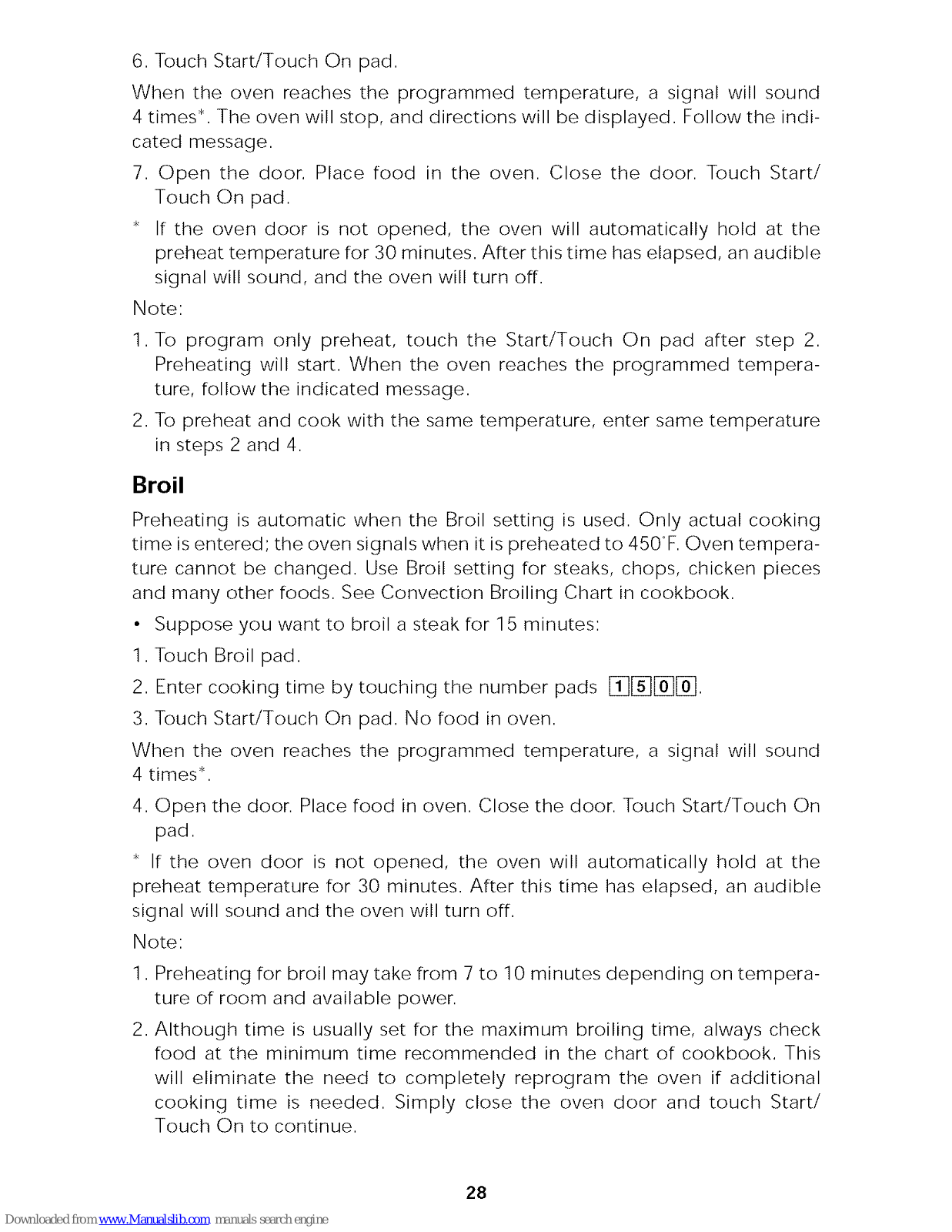

6.TouchStart/TouchOnpad.
Whenthe ovenreachestheprogrammedtemperature,asignalwillsound

4timesLTheovenwillstop,anddirectionswillbedisplayed.Followtheindi-
catedmessage.

7. Openthe door,Placefood in the oven.Closethedoor.TouchStart/
TouchOnpad.

Iftheovendoorisnotopened,the ovenwillautomaticallyholdatthe

preheattemperaturefor30minutes.Afterthistimehaselapsed,anaudible
signalwillsound,andtheovenwillturnoff.

Note:

1.Toprogramonlypreheat,touchthe Start/TouchOnpadafterstep2.
Preheatingwill start.Whentheovenreachestheprogrammedtempera-

ture,followtheindicatedmessage.

2.Topreheatandcookwiththesametemperature,entersametemperature
insteps2 and4.

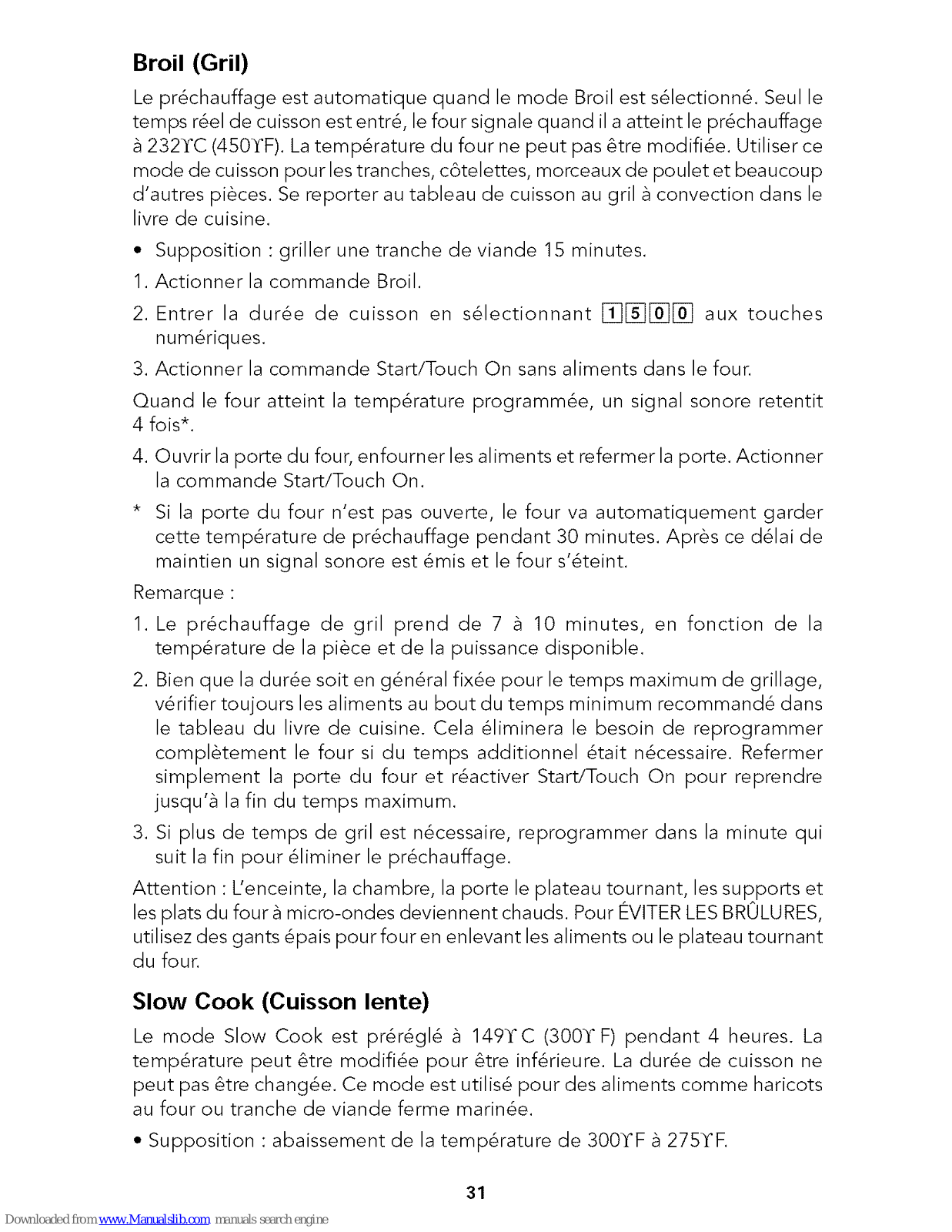

Broil

Preheating is automatic when the Broil setting is used. Only actual cooking
time is entered; the oven signals when it is preheated to 450T. Oven tempera-
ture cannot be changed. Use Broil setting for steaks, chops, chicken pieces
and many other foods. See Convection Broiling Chart in cookbook.

• Suppose you want to broil a steak for 15 minutes:

1. Touch Broil pad.

2. Enter cooking time by touching the number pads E_]E_[_[_.

3. Touch Start/Touch On pad. No food in oven.

When the oven reaches the programmed temperature, a signal will sound
4 times _.

4. Open the door. Place food in oven. Close the door. Touch Start/Touch On
pad.

If the oven door is not opened, the oven will automatically hold at the

preheat temperature for 30 minutes. After this time has elapsed, an audible
signal will sound and the oven will turn off.

Note:

1. Preheating for broil may take from 7 to 10 minutes depending on tempera-
ture of room and available power.

2. Although time is usually set for the maximum broiling time, always check
food at the minimum time recommended in the chart of cookbook, This

will eliminate the need to completely reprogram the oven if additional
cooking time is needed. Simply close the oven door and touch Start/
Touch On to continue.

28

3.Shouldyouneedmorebroilingtime,reprogramwithin1minuteoftheend
toeliminatepreheating,

Caution:Theovencabinet,cavity,door,turntable,turntablesupport,racks
anddisheswillbecomehot.ToPREVENTBURNS,usethickovengloveswhen
removingthefoodorturntablefromtheoven.

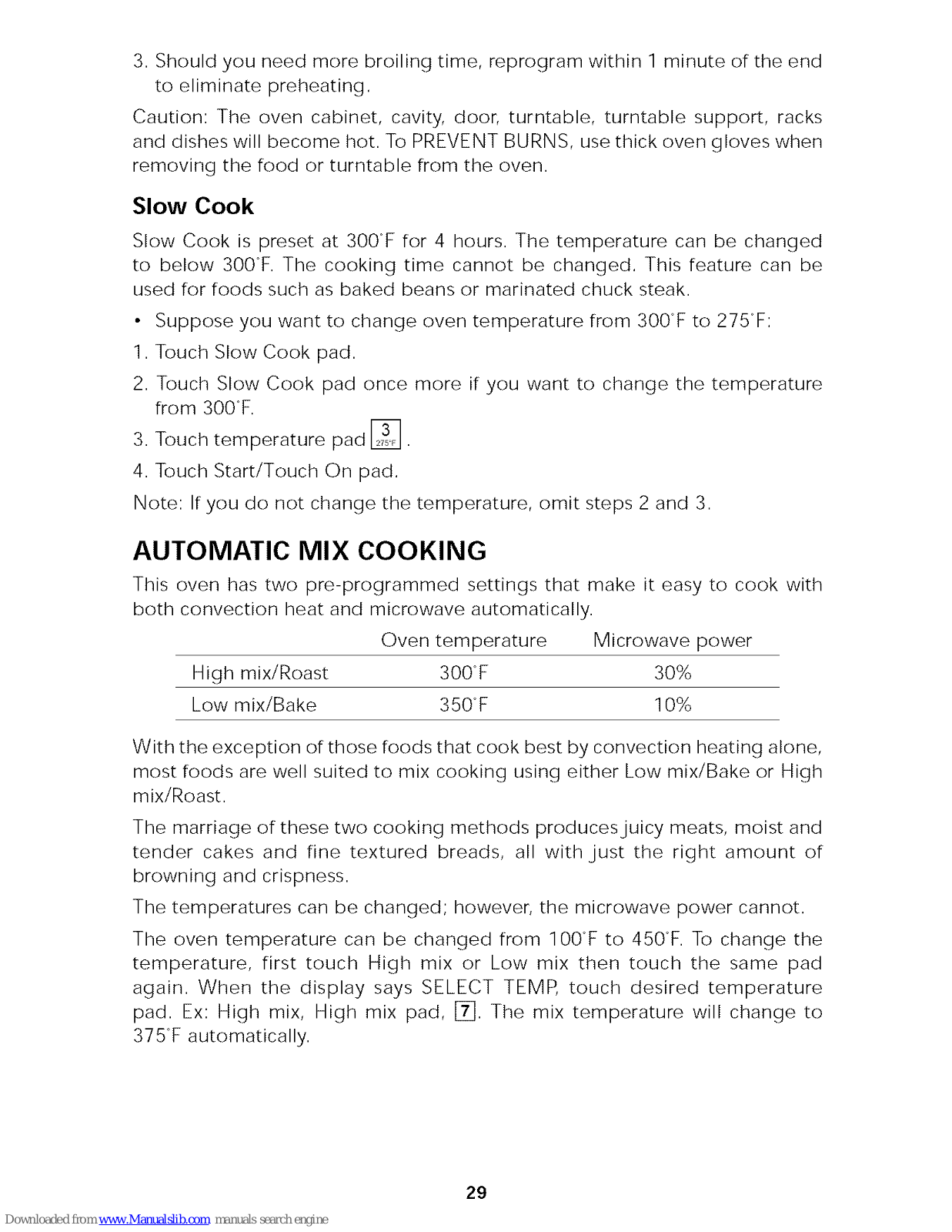

Slow Cook

Slow Cook is preset at 300_F for 4 hours. The temperature can be changed
to below 300_F. The cooking time cannot be changed, This feature can be

used for foods such as baked beans or marinated chuck steak.

• Suppose you want to change oven temperature from 300_F to 27EF:

1. Touch Slow Cook pad.

2. Touch Slow Cook pad once more if you want to change the temperature
from 300_F.

3. Touch temperature pad _.

4. Touch Start/Touch On pad,

Note: If you do not change the temperature, omit steps 2 and 3.

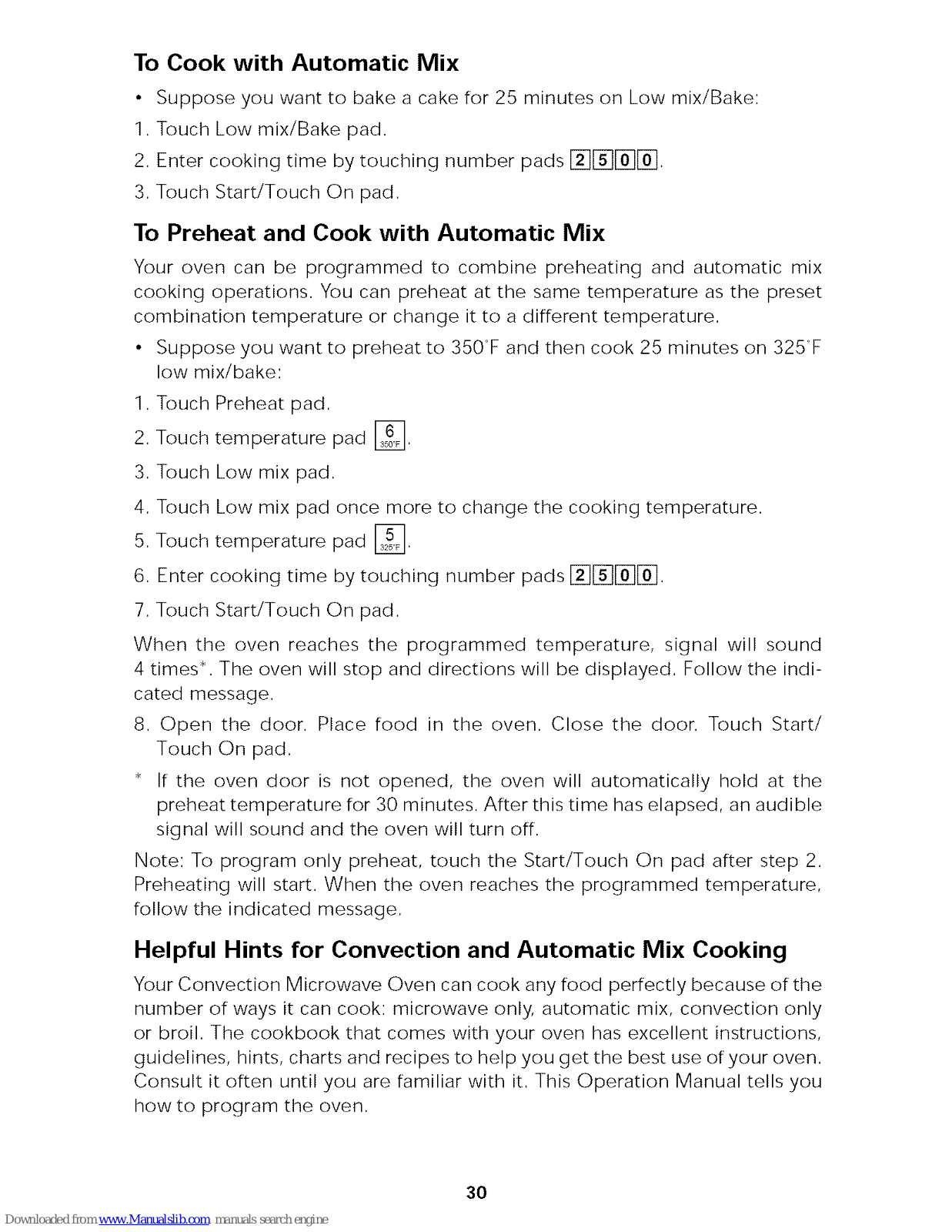

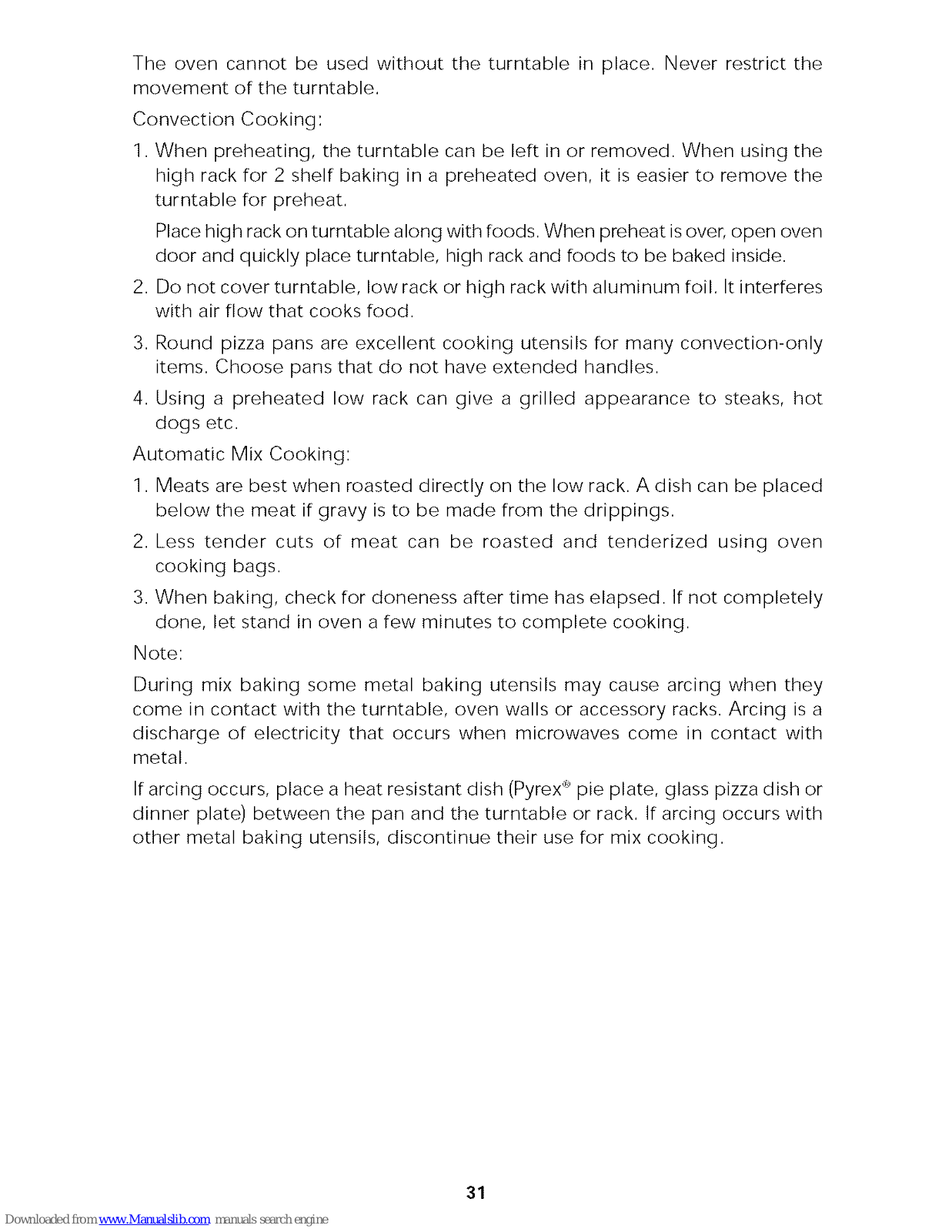

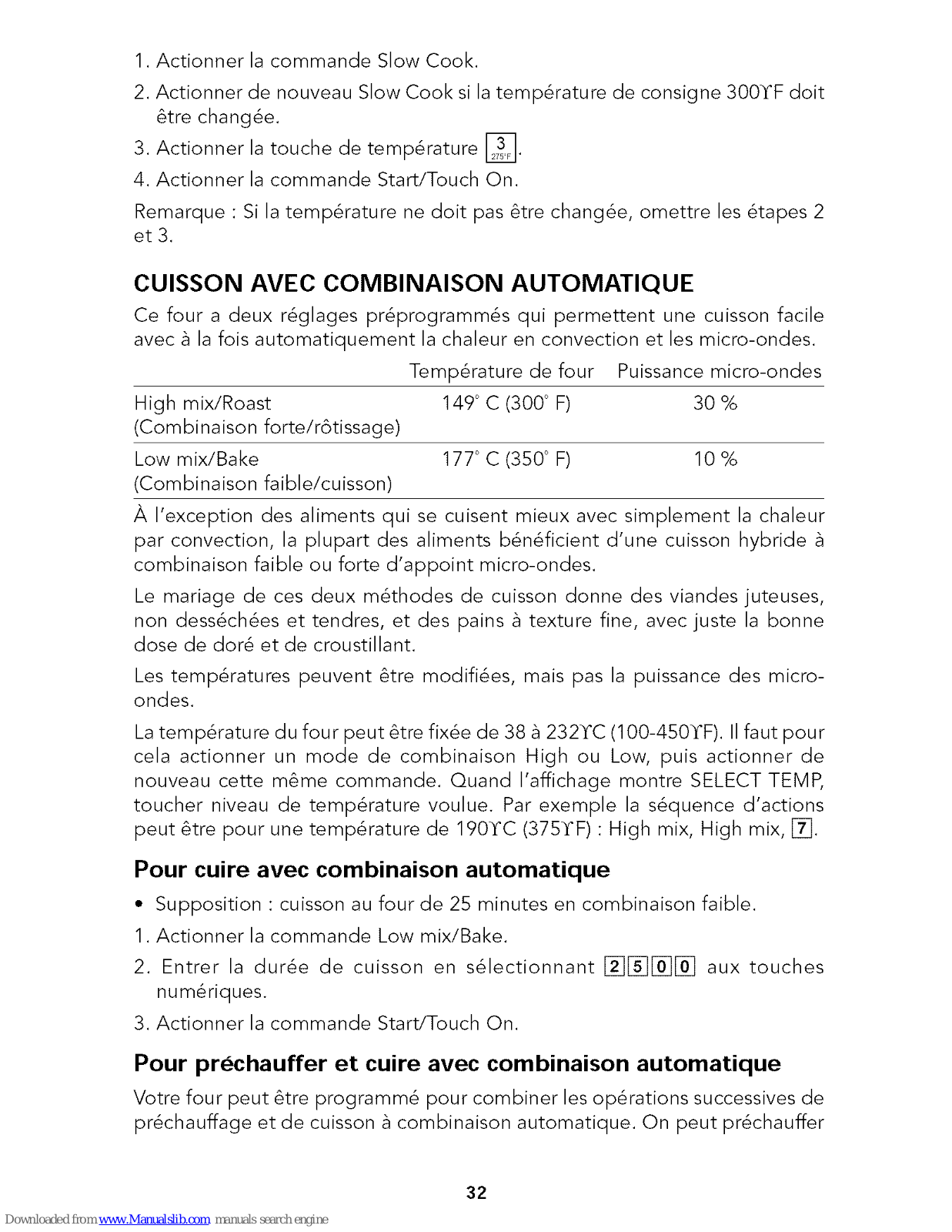

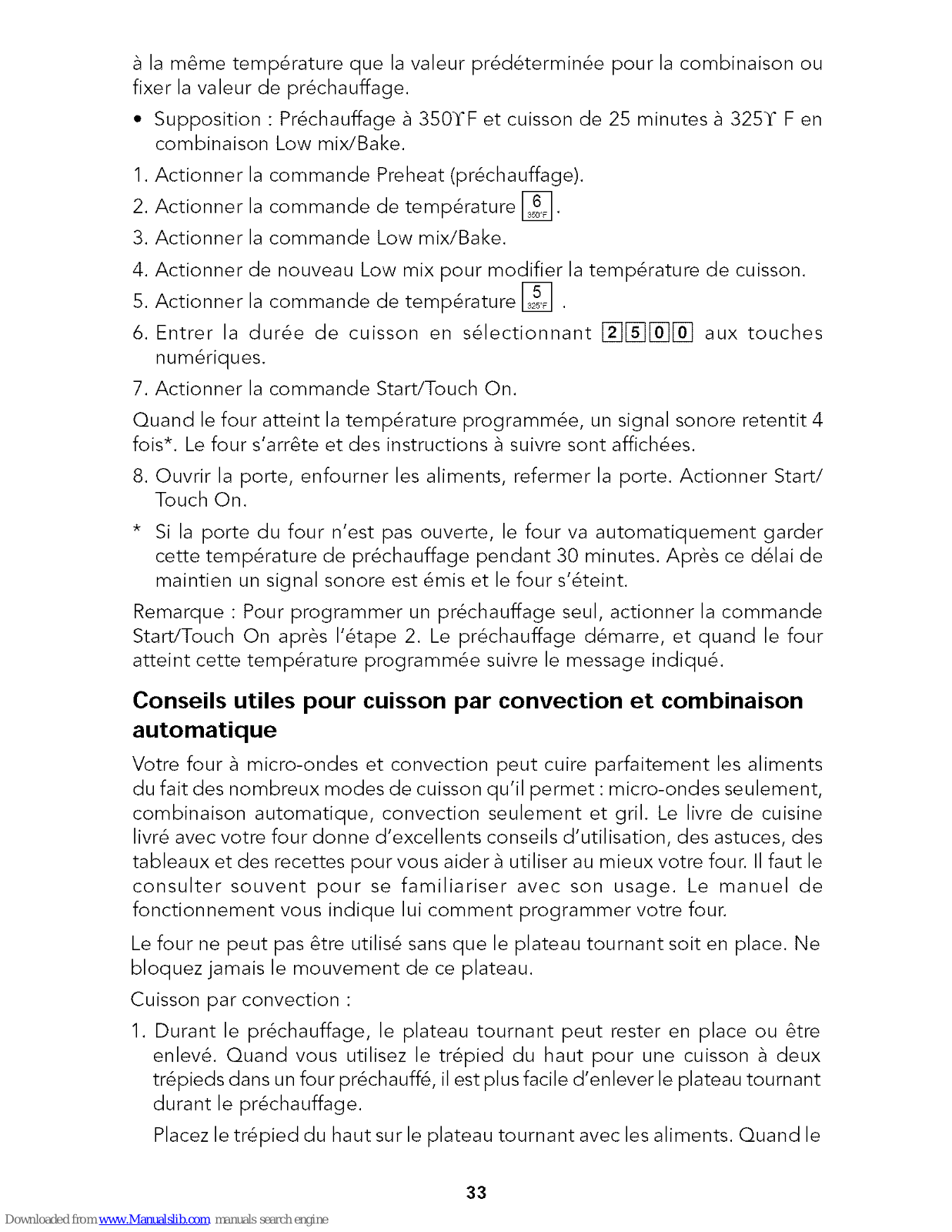

AUTOMATIC MIX COOKING

This oven has two pre-programmed settings that make it easy to cook with
both convection heat and microwave automatically.

Oven temperature Microwave power

High mix/Roast 300_F 30%
Low mix/Bake 350_F 10%

With the exception of those foods that cook best by convection heating alone,
most foods are well suited to mix cooking using either Low mix/Bake or High

mix/Roast.
The marriage of these two cooking methods produces juicy meats, moist and

tender cakes and fine textured breads, all with just the right amount of
browning and crispness.

The temperatures can be changed; however, the microwave power cannot.
The oven temperature can be changed from 100_F to 450_F. To change the

temperature, first touch High mix or Low mix then touch the same pad
again. When the display says SELECT TEMP, touch desired temperature
pad. Ex: High mix, High mix pad, [_. The mix temperature will change to
37EF automatically.

29
