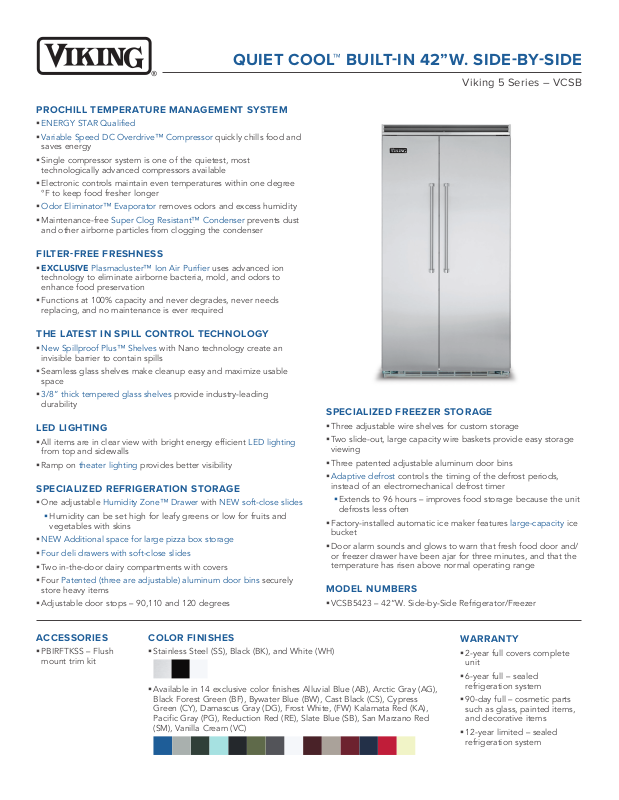

Viking §VCSB5423 Specification Sheet
QUIET COOL™ BUILT-IN 42”W. SIDE-BY-SIDE
PROCHILL TEMPERATURE MANAGEMENT SYSTEM
§ ENERGY STAR Qualified
§ Variable Speed DC Overdrive™ Compressor quickly chills food and
saves energy
§ Single compressor system is one of the quietest, most
technologically advanced compressors available
§ Electronic controls maintain even temperatures within one degree
°F to keep food fresher longer
§ Odor Eliminator™ Evaporator removes odors and excess humidity
§ Maintenance-free Super Clog Resistant™ Condenser prevents dust
and other airborne particles from clogging the condenser
FILTER-FREE FRESHNESS
§ EXCLUSIVE Plasmacluster™ Ion Air Purifier uses advanced ion
technology to eliminate airborne bacteria, mold, and odors to
enhance food preservation
§ Functions at 100% capacity and never degrades, never needs
replacing, and no maintenance is ever required
THE LATEST IN SPILL CONTROL TECHNOLOGY
§ New Spillproof Plus™ Shelves with Nano technology create an
invisible barrier to contain spills
§ Seamless glass shelves make cleanup easy and maximize usable
space
§ 3/8” thick tempered glass shelves provide industry-leading
durability
LED LIGHTING
§ All items are in clear view with bright energy efficient LED lighting
from top and sidewalls
§ Ramp on theater lighting provides better visibility
SPECIALIZED REFRIGERATION STORAGE
§ One adjustable Humidity Zone™ Drawer with NEW soft-close slides
§ Humidity can be set high for leafy greens or low for fruits and
vegetables with skins
§ NEW Additional space for large pizza box storage
§ Four deli drawers with soft-close slides
§ Two in-the-door dairy compartments with covers
§ Four Patented (three are adjustable) aluminum door bins securely
store heavy items
§ Adjustable door stops – 90,110 and 120 degrees
Viking 5 Series – VCSB
SPECIALIZED FREEZER STORAGE
§ Three adjustable wire shelves for custom storage
§ Two slide-out, large capacity wire baskets provide easy storage
viewing
§ Three patented adjustable aluminum door bins
§ Adaptive defrost controls the timing of the defrost periods,
instead of an electromechanical defrost timer
§ Extends to 96 hours – improves food storage because the unit
defrosts less often
§ Factory-installed automatic ice maker features large-capacity ice
bucket
§ Door alarm sounds and glows to warn that fresh food door and/
or freezer drawer have been ajar for three minutes, and that the
temperature has risen above normal operating range
MODEL NUMBERS
§ VCSB5423 – 42”W. Side-by-Side Refrigerator/Freezer
ACCESSORIES
§ PBIRFTKSS – Flush
mount trim kit
COLOR FINISHES
§ Stainless Steel (SS), Black (BK), and White (WH)
§ Available in 14 exclusive color finishes Alluvial Blue (AB), Arctic Gray (AG),
Black Forest Green (BF), Bywater Blue (BW), Cast Black (CS), Cypress
Green (CY), Damascus Gray (DG), Frost White, (FW) Kalamata Red (KA),
Pacific Gray (PG), Reduction Red (RE), Slate Blue (SB), San Marzano Red
(SM), Vanilla Cream (VC)
WARRANTY
§ 2-year full covers complete
unit
§ 6-year full – sealed
refrigeration system
§ 90-day full – cosmetic parts
such as glass, painted items,
and decorative items
§ 12-year limited – sealed
refrigeration system
d Mount
QUIET COOL™ BUILT-IN 42”W. SIDE-BY-SIDE
Viking 5 Series – VCSB
42”W. SIDE-BY-SIDE
DESCRIPTION VCSB5423 VCSB5423 FLUSH MOUNT
Overall Width 42” (106.7 cm)
Overall Height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.
Overall Depth from rear
To front edge of side trim:
To front of top grille:
To front of handle endcap:
Cutout Width 41-5/8” (105.7 cm) min. to 41-3/4” (106 cm) max. 42” (106.7 cm)
Cutout Height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.
Cutout Depth 24” (61.0 cm) min. 26-1/2” (67.3 cm) min.
Electrical Requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with grounded 3-prong plug attached to product
Maximum Amp Usage 9.9 amps
Inlet Water Requirements 1/4” copper tubing inlet waterline; min. 20 psi; max. 120 psi
Overall Interior Dimensions
Refrigerator
Freezer
Total Capacity
Approximate Shipping Weight 525 lb. (238 kg) 525 lb. (238 kg)
23-3/4” (60.3 cm)
26-1/4” (66.7 cm)
29-3/16” (74.1 cm)
15.76 cu. ft. (446 liters)
9.56 cu. ft. (271 liters)
25.32 cu. ft. (717 liters)
25-1/2” (64.8 cm)
26-1/4” (66.7 cm)
29-3/16” (74.1 cm)
15.76 cu. ft. (446 liters)
9.56 cu. ft. (271 liters)
25.32 cu. ft. (717 liters)
Please do not prepare installation from brochure data only. See installation instructions for important clearance/installation information.
3–19/32”
(9.1 cm)
7
5
–
1
5
/1
(1
6
9
”
2
.9
cm
)
42”42”42”
(1
0
6
29-3/16”
(7
41”
(10
4.1
cm
)
.7
c
m
)
)
m
c
.1
4
m
23–7/8”
c
.6
0
(6
24-5/8”
(62.6 cm
cm)
26-1/4”
(66.7
)
1–1/2”
cm
.8
(3
9–5/32”
(23.3 cm)
8
2
–
3
/4
(210.2 cm
”
min.
)
to
84–1/16”
(213.5 cm
m
)
ax.
)
)
Standar
Flush Mount
(106.0 cm) max.
42”
Flush Mount only
(106.7 cm)
24”
(61.0 cm)
26-1/2”
(67.3 cm)
82–7/8”
(210.5 cm) min.
anti-tip board &
opening height
84–1/16”
(213.5 cm) max.
anti-tip board &
opening height
41–5/8”
(105.7 cm) min.
to
41–3/4”
See Anti-Tip board installation
9”
(22.9 cm)
73-3/8”
(186.4 cm)
3–5/8”
(9.2 cm)
10–3/4”
(27.3 cm)
5/8”
(1.6 cm)
Electric Outlet Location
6”
(15.2 cm)
(22.9 cm)
Water Line Entry Area
42”
(106.7 cm)
Flush Mount only
41–5/8”
6–3/4”
(17.1 cm)
(26.7 cm)
(105.7 cm)
10–1/2”
7–5/8”
(19.4 cm)
3”
(7.6 cm)
Optional floor
water line entry
9”
5/8”
(1.6 cm)
(1.6 cm)
5/8”
1”
(2.5 cm)
VIKING RANGE, LLC 111 FRONT STREET GREENWOOD, MISSISSIPPI 38930 USA
For detailed product information, model numbers, or to request a quote call 1-888-845-4641 or visit vikingrange.com
© 2020 Viking Range, LLC All rights reserved. Specifications subject to change without notice.
