Viking VCBB363JMAG-R Parts List

Download

Unit Shelving

ITEM PART NUMBER PART DESCRIPTION QTY

1 PM910351 Glass Shelf 2 Produce Drawer For Breakdown See Page 002 3 Convertible Meat Savor For Breakdown See Page 003

Unit Shelving

Produce Drawer

ITEM PART NUMBER PART DESCRIPTION QTY

1 PM010530 Glass Shelf 2 PD020032 Screw, 8 X 3/8 Ph Wfr 3 PK930290 Slide Support - Right 4 12046701 Crisper Rail Weld 5 PK030439 Glide Center Support 6 PM910343 Drawer Rail - Right 7 012396-000 Produce Drawer Assembly 8 PD920162 Screw, 8 - 16 Plastite

9 PM910342 Drawer Rail - Left 10 PK930291 Slide Support - Left 11 PD920161 Screw, 8 X 3/8 Plastite 12 PM910388 Drawer Slide - Left / Right

Produce Drawer

Convertible Meat Saver

ITEM PART NUMBER PART DESCRIPTION QTY

1 PK930286 Meat Saver Shelf

2 PK930388 Meat Saver Rear Duct

3 M0581001 Grommet Screw

4 PD020195 Screw, 8 X 5/8 Hex Washer Hd Serrated

5 PK930169 Meat Saver Duct - Right

6 M0211021 Screw, 8 X 1 Hex Washer Hd

7 PK930172 Control Cover

8 PK930168 Dial Control

9 PK930283 Meat Saver Duct Spacer 10 PM910334 Tension Roller 11 PM910287 Meat Saver Slide - Right 12 PK930173 Slide Support - Right 13 PD920162 Screw, 8 - 16 Plastite 14 PK930175 Drawer Support - Right 15 PK930278 Meat Saver Drawer 16 PK930176 Drawer Support - Left 17 PK930174 Slide Support - Left 18 PM910288 Meat Saver Slide - Left 19 PK930284 Meat Saver Duct - Left 20 V12223207 SUB TO 000368-000 - DELI LID ASSY 36 BM 1

Convertible Meat Saver

Refrigerator Compartment

ITEM PART NUMBER PART DESCRIPTION QTY

1 K2096475 Fan Mount Plate

2 PD020188 Screw, 8 X 1 1/2 Hex Washer Hd

3 000732-000 Axial Fan

4 M0221913 Screw, 8 X 2 AB FHP

5 M0581001 Grommet Screw

6 A3079001 Lamp - 40W

7 12070201 Fan Cover Cap - Right

8 PK020074 Side Ladder

9 12071501 Center Ladder 10 M0238535 Screw, Small 11 PD020194 Screw, 8 X 1/2 Hex Washer Hd Serrated 12 PK930267 Light Cover Assembly 13 L20910705 Light Bracket 14 PE950125 Light Socket 15 12070202 Fan Cover Cap - Left 16 PD020195 Screw, 8 X 5/8 Hex Washer Hd Serrated 17 12067401 Fan Cover

Refrigerator Compartment

Refrigerator Door Foam Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 PC020280 Upper Pivot Plate Assembly - Right Hinge

1 042382-000 RH, BM 4 HOLE PIVOT PLATE KIT 1

(MANUFACTURED BETWEEN 4/10/2006 THRU 8/10/12) 1 PC020281 Upper Pivot Plate Assembly - Left Hinge 1 042381-000 LH, BM 4 HOLE PIVOT PLATE KIT 1

(MANUFACTURED BETWEEN 4/10/2006 THRU 8/10/12) 2 PD040162 Hinge Spacer 2 042381-000 LH, BM 4 HOLE PIVOT PLATE KIT 1

(MANUFACTURED BETWEEN 4/10/2006 THRU 8/10/12) 3 G32915034 Door Foam Assembly

(Includes Gasket) 4 PD920174 Screw, 10 X 1 6 Lobe Gimblet 5 PD020187 Screw, 8 X 1/4 Hex Washer Hd Serrated 6 PC020296 Door Closure Cam 7 PC020282 Lower Pivot Plate Assembly - Right Hinge

PC020283 Lower Pivot Plate Assembly - Left Hinge 8 G5099297 Door Shelf - Full 9 G5099298 Door Shelf - Half

10 V12097404 Dairy Door Bin 11 PB070326 Door Gasket 1

(BEFORE 06-10/08)

11 005449-000 GASKET, ASM, 36, FF 1

(ON OR AFTER 06-10-08) 12 001617-000 Pivot Plate Spacer 13 PC020269 Door Stop 14 PD020234 Screw, 10 X 1/2 THP SS

Refrigerator Door Foam Area

Refrigerator Door Skin Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 PE030173 Handle - SS

PE030173PVD Handle - BR

2 PE030001 Handle End Cap - SS

PE030001PVD Handle End Cap - BR 3 M0210458 Screw, 8 X 5/8 Wfr Hd SMS 4 B20915910 Door Skin - Right Hinge (SS)

L20915910WH Door Skin - Right Hinge (WH)

C90915910AL Door Skin - Right Hinge (AL)

(Before 01/01/08)

C90915910BT Door Skin - Right Hinge (BT)

(Before 01/01/08)

C90915910EP Door Skin - Right Hinge (EP)

(Before 01/01/08)

C90915910FG Door Skin - Right Hinge (FG)

(Before 01/01/08) C90915910BK Door Skin - Right Hinge (BK) C90915910BU Door Skin - Right Hinge (BU) C90915910CB Door Skin - Right Hinge (CB)

C90915910GG Door Skin - Right Hinge (GG) C90915910SG Door Skin - Right Hinge (SG)

C90915910VB Door Skin - Right Hinge (VB) C90915910AR Door Skin - Right Hinge (AR)

(After 01/01/08)

C90915910CH Door Skin - Right Hinge (CH)

(After 01/01/08)

C90915910CW Door Skin - Right Hinge (CW)

(After 01/01/08)

C90915910GM Door Skin - Right Hinge (GM)

(After 01/01/08)

C90915910IB Door Skin - Right Hinge (IB)

(After 01/01/08)

C90915910MS Door Skin - Right Hinge (MS)

(After 01/01/08)

C90915910OG Door Skin - Right Hinge (OG)

(After 01/01/08)

C90915910PL Door Skin - Right Hinge (PL)

(After 01/01/08)

C90915910PM Door Skin - Right Hinge (PM)

(After 01/01/08)

C90915910RR Door Skin - Right Hinge (RR)

Refrigerator Door Skin Area

(After 01/01/08) C90915910SA Door Skin - Right Hinge (SA)

(After 01/01/08) C90915910SE Door Skin - Right Hinge (SE)

(After 01/01/08) C90915910TP Door Skin - Right Hinge (TP)

(After 01/01/08)

B20915909 Door Skin - Left Hinge (SS)

L20915909WH Door Skin - Left Hinge (WH)

C90915909AL Door Skin - Left Hinge (AL)

(Before 01/01/08) C90915909BT Door Skin - Left Hinge (BT)

(Before 01/01/08) C90915909EP Door Skin - Left Hinge (EP)

(Before 01/01/08) C90915909FG Door Skin - Left Hinge (FG)

(Before 01/01/08) C90915909BK Door Skin - Left Hinge (BK) C90915909BU Door Skin - Left Hinge (BU) C90915909CB Door Skin - Left Hinge (CB)

C90915909GG Door Skin - Left Hinge (GG) C90915909SG Door Skin - Left Hinge (SG)

C90915909VB Door Skin - Left Hinge (VB) C90915909AR Door Skin - Left Hinge (AR)

(After 01/01/08)

C90915909CH Door Skin - Left Hinge (CH)

(After 01/01/08)

C90915909CW Door Skin - Left Hinge (CW)

(After 01/01/08)

C90915909GM Door Skin - Left Hinge (GM)

(After 01/01/08)

C90915909IB Door Skin - Left Hinge (IB)

(After 01/01/08)

C90915909MS Door Skin - Left Hinge (MS)

(After 01/01/08)

C90915909OG Door Skin - Left Hinge (OG)

(After 01/01/08)

C90915909PL Door Skin - Left Hinge (PL)

(After 01/01/08)

C90915909PM Door Skin - Left Hinge (PM)

(After 01/01/08)

C90915909RR Door Skin - Left Hinge (RR)

(After 01/01/08)

C90915909SA Door Skin - Left Hinge (SA)

(After 01/01/08) C90915909SE Door Skin - Left Hinge (SE)

(After 01/01/08) C90915909TP Door Skin - Left Hinge (TP)

(After 01/01/08)

5 PD940086 Door Skin Spacer

(Hinge Side)

PE940205 Door Trim - Side

(Handle Side)

6 M0204303 Screw, 1/4 X 1/2 IHXS 7 K2097525 Bracket Handle Support 8 PM910391 Block Insulation 9 PD940086 Door Skin Spacer

(Hinge Side)

PE940205 Door Trim - Side

(Handle Side)

10 PK030554 Top / Bottom Trim 11 PD030006 Capped Washer Pal Nut 12 PE010030 Logo - Black / Chrome

PE010068 Logo - Black / Brass PE010031 Logo - White / Chrome PE010076 Logo - White / Brass

Ice Maker Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 10253003 Wiring Cover 2 A4554818 Snap Bushing 3 12106101 Wiring Cover 4 G50911850 Ice Maker Assembly 5 PK930056 Ice Pan 6 PM010630 Top Basket 7 PD020270 Cap Screw 8 PD020189 Screw, 12 X .641 Shoulder 9 12088001 Roller - Upper Basket

Ice Maker Area

Freezer Compartment

ITEM PART NUMBER PART DESCRIPTION QTY

1 000247-000 Evaporator Cover 2 PD020194 Screw, 8 X 1/2 Hex Washer Serrated 3 M0581001 Grommet Screw 4 K2097168 Bracket, LH Divider 5 K2097169 Bracket, RH Divider 6 M0232929 Screw, 8 X 3/8 IHXS 7 K2097172 Return Air Channel 8 M0211018 Screw, 8 X 5/8 Hex Washer Hd Serrated

9 12063301 Freezer Fan Cover 10 M0211014 Screw, 8 x 1/4 Hex Washer Hd Serrated 11 C8983701 Thermistor 12 M0213105 Screw, 2 X 5/8 PNP 13 K2098398 Switch Mounting Bracket 14 003471-000 Snap Action Switch 15 12074501 Freezer Light Cover 16 M0223729 Screw, 8 X 1/4 Pan Hd Zinc 17 A3079001 Lamp - 40 Watt 18 PK930253 Freezer Light Lens 19 M0238846 Shoulder Screw 20 PE950125 Light Socket 21 L2098313 Freezer Light Bracket

Freezer Compartment

Freezer Door Foam Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 PC080025 Outer Slide - LH

2 PC080026 Middle Slide - LH

3 PC080027 Inner Slide - LH

4 M0274067 Nylon Washer

5 PM010622 Basket Frame

6 M0253916 Screw, 8 X 3/8 Hex Washer Hd Serrated

7 003995-000 Bottom Basket Divider

8 M0238731 Screw, TF

9 PC080030 Inner Slide - RH 10 001091-000 Screw, 8 X 1/4 Flat PH Taptite 11 PC080029 Middle Slide - RH 12 PC080028 Outer Slide - RH 13 PD920174 Screw, 10 X 1 6 Lobe Gimblet 14 PM910172 Bottom Basket 15 PB070325 Door Gasket 1

(BEFORE 06-10-08)

15 005450-000 GASKET,ASM,36,BM FZ 1

(ON OR AFTER 06-10-08)

16 G50916475 Door Foam Assembly

(Includes Gasket)

Freezer Door Foam Area

Freezer Door Skin Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 K2096535 Handle Bracket

2 PE940174 Top / Bottom Trim

3 PM910392 Block Insulation

4 M0204303 Screw, 1/4 X 1/2 Hex Washer Hd Serrated

5 PE940173 Side Trim

6 PE930094 Handle - SS

PE930094PVD Handle - BR

7 PE030001 Handle End Cap - SS

PE030001PVD Handle End Cap - BR

8 B2096933 Door Skin - SS

L20915910WH Door Skin - (WH)

C90915910AL Door Skin - (AL)

(Before 01/01/08)

C90915910BT Door Skin - (BT)

(Before 01/01/08)

C90915910EP Door Skin - (EP)

(Before 01/01/08)

C90915910FG Door Skin - (FG)

(Before 01/01/08) C90915910BK Door Skin - (BK) C90915910BU Door Skin - (BU) C90915910CB Door Skin - (CB)

C90915910GG Door Skin - (GG) C90915910SG Door Skin - (SG)

C90915910VB Door Skin - (VB) C90915910AR Door Skin - (AR)

(After 01/01/08)

C90915910CH Door Skin - (CH)

(After 01/01/08)

C90915910CW Door Skin - (CW)

(After 01/01/08)

C90915910GM Door Skin - (GM)

(After 01/01/08)

C90915910IB Door Skin - (IB)

(After 01/01/08)

C90915910MS Door Skin - (MS)

(After 01/01/08)

C90915910OG Door Skin - (OG)

(After 01/01/08)

C90915910PL Door Skin - (PL)

Freezer Door Skin Area

(After 01/01/08)

C90915910PM Door Skin - (PM)

(After 01/01/08)

C90915910RR Door Skin - (RR)

(After 01/01/08) C90915910SA Door Skin - (SA)

(After 01/01/08) C90915910SE Door Skin - (SE)

(After 01/01/08) C90915910TP Door Skin - (TP)

9 M0210458 Screw, 8 X 5/8 Ph Wfr

Control Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 A3030361 Gasket 2 M0288120 Speed Nut 3 K2098654 Power Switch Bracket 4 PE950149 Power Switch 5 A4554817 Snap Bushing 6 M0104106 Cord Clip 7 PE070728 Low Voltage Board 8 PE950174 Overlay

9 PE950122 EMB Switch 10 PD020194 Screw, 8 X 1/2 Hex Washer Hd Serrated 11 M0238846 Shoulder Screw 12 PK030458 Control Panel - Right Hinge

PK030459 Control Panel - Left Hinge 13 12064001 Control Panel Support 14 PC040010 Pop Rivet 15 M0224128 Screw, 8 X 5/16 TRP 16 K20910061 Control Box Front 17 PD020013 Screw, 6 X 3/8 Ph Pan 18 M0585506 PC Board Support 19 PE970463 High Voltage Board 20 M0585504 PC Board Support 21 005396-000 Protective Film 22 K20910060 PCB Bracket 23 K2099402 Control Box 24 K20915000 Control Box Top

Control Area

Upper Unit Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 F2097740 Process Tube 2 10547001 Drier Clip 3 PB920171 Condenser Assembly 4 A3189370 Foam Gasket 5 G5096494 Condenser Fan Assembly 6 F2096507 Process Tube 7 G5097976 Compressor Assembly 8 M0221523 Shoulder Screw

9 M0211014 Screw, 8 X 1/4 Hex Washer Hd Serrated 10 PD020195 Screw, 8 X 5/8 Hex Washer Hd Serrated 11 PD020010 Green Grounding Screw 12 10916507 Power Cord 13 10835901 Rubber Grommet 14 PC020238 Upper Hinge - Right Hinge

PC020256 Upper Hinge - Left Hinge 15 002573-000 Cord Clamp 16 PD030118 Clip 17 PC020242 Hex Socket Set Screw 18 000570-000 1/4 X 1 IHXWS 19 PD020226 Screw, 8 X 1/2 FHP SS 20 PK030477 Door Stop Retainer 21 10699601 Damper Tubing 22 PE070849 Inverter 23 PD020194 Screw, 8 X 1/2 Hex Washer Hd Serrated 24 K2096943 Panel Bracket 25 M0104102 Cord Clip 26 K20912569 Grille Bracket Support 27 F2096669 Drier Tube 28 PM010616 Drier

Upper Unit Area

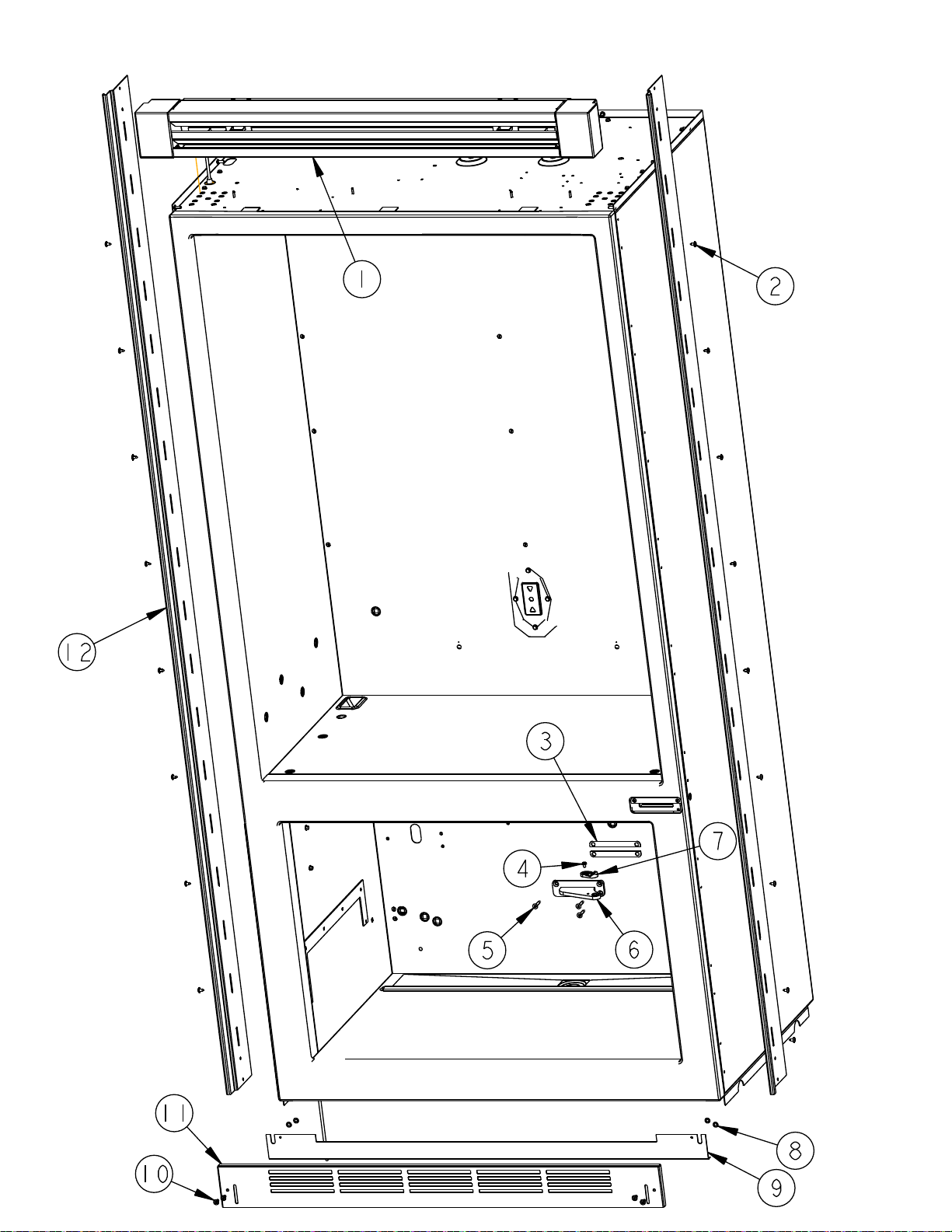

Unit Exterior

ITEM PART NUMBER PART DESCRIPTION QTY

1 G32913043 Upper Grille Assembly - Right Hinge

(For Breakdown see Page 014)

G32913044 Upper Grille Assembly - Left Hinge

(For Breakdown see Page 014) 2 M0210417 Machine Screw 3 K10911852 Shim, Center Hinge 4 PD020187 Screw, 8 X 1/4 Hex Washer Hd 5 PD920174 Screw, 10 X 1 6 Lobe Gimblet 6 PC020250 Lower Hinge Assembly - Right Hinge

PC020249 Lower Hinge Assembly - Left Hinge 7 PC020228 Door Closure 8 40370P01 Nylon Flat Washer 9 000147-002 Lower Kick Plate

10 M0210443 Screw, 8 X 1/2 Wafer Hd 11 C9099972BK Vented Toe Grille NI G50915600 Complete Toe Grille Assembly

(Includes Items 8 - 11)

12 PK910123 Side Trim

Unit Exterior

MC Cover and Upper Grille

ITEM PART NUMBER PART DESCRIPTION QTY

1 K2099931 MC Top 2 PC040010 Pop Rivet 3 PD020194 Screw, 8 X 1/2 Hex Washer Hd Serrated 4 K2099933 MC Back 5 K2099459 MC Side - Right 6 PC040017 Pop Rivet 7 PB070355 MC Cover Insulation 8 A4554806 Snap Bushing 9 PB970171 MC Insulation - Back Side

10 PB070358 MC Cover Insulation 11 M0220417 Screw, 8 X 7/16 IHXP 12 B2096961 Louver Bracket 13 B20913728 End Cap (Hinge Side) - Right Hinge

B20913729 End Cap (Hinge Side) - Left Hinge 14 B20911392 Middle Louver 15 B20913049 Bottom Louver - Right Hinge

B20913050 Bottom Louver - Left Hinge 16 PB070359 MC Cover Insulation 17 K20915902 PSM Cross Member 18 B2096962 Louver Support Bracket 19 B20911818 Grill End Cap (Non-Hinge Side) 20 B20911391 Top Louver 21 PK050004 Grille Bracket 22 K2099460 MC Side - Left 23 PD020233 Lag Screw 24 PD040157 Sleeve Bearing 25 K20915675 PSM Bracket 26 K2099455 MC Support

MC Cover and Upper Grille

Evaporator Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 A1017202 Fan Grommet 2 12059901 Evaporator Fan 3 L21910017 Evaporator Fan Bracket 4 PM910168 Evaporator Fan Shroud 5 PD020193 Screw, 8 X 3/8 Hex Washer Hd Serrated 6 10656101 Motor Bracket 7 PE950153 Evaporator Fan Motor 8 PM910178 Evaporator

9 M0581001 Grommet Screw 10 12067301 Evaporator Block 11 PJ910030 Evaporator Heater 12 10428101 Evaporator Heater Clip 13 PD020195 Screw, 8 X 5/8 Hex Washer Hd Serrated 14 PD020194 Screw, 8 X 1/2 Hex Washer Hd Serrated 15 M0232929 Screw, 8 X 3/8 IHXS 16 PD020038 Screw, 10 X 3/8 Hex Washer Hd 17 PB910259 Thermostat Defrost Terminator

Evaporator Area

Lower Unit Area

ITEM PART NUMBER PART DESCRIPTION QTY

1 PD030146 Stand Off Lock Clip

2 K20911831 Condensate Support Bracket

3 PC040010 Pop Rivet

4 PK930348 Drain Pan

5 G50914125 Pan Heater Assembly

6 PM910398 Leveler Module - Right

7 K2098044 Grille Bracket Standoff - Right

8 A4554817 Snap Bushing

9 K20915952 Bottom Drain Shield 10 000731-000 Axial Fan 11 PD020274 Screw, 8 X 1 1/4 Hex Washer Hd Serrated 12 PA970012 Water Valve 13 K20913788 Water Valve Bracket 14 M0220417 Screw, 8 X 7/16 IHXP 15 K2098096 Bracket Grill Standoff - Left 16 PD020194 Screw, 8 X 1/2 Hex Washer Hd Serrated 17 PM910399 Leveler Module - Left 18 A4554806 Snap Bushing 19 M0104106 Cord Clip 20 M0104102 Cord Clip 21 M0327801 Electrical Tap 22 PE050248 Horizontal Float Switch 23 M0253916 Screw, 8 X 3/8 Tri-Lobe 24 B20915627 Horizontal Float Switch Bracket 25 F20915696 Serpentine Drain

Lower Unit Area
