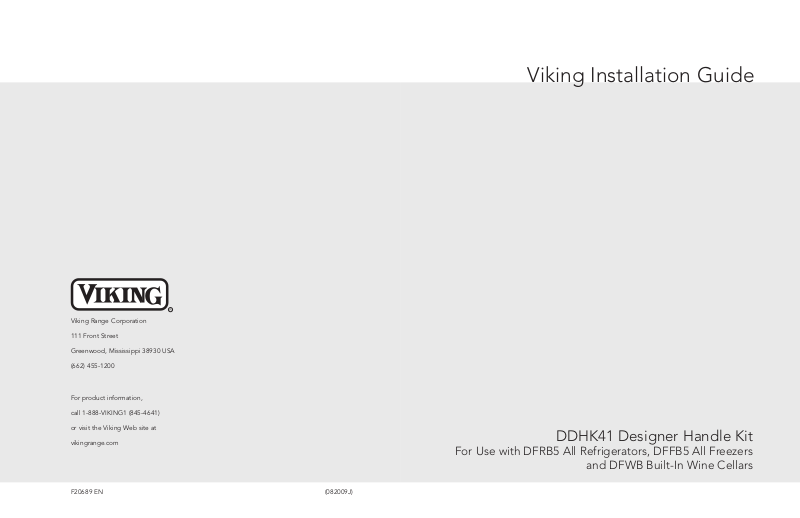

Viking Installation Guide
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
F20689 EN
DDHK41 Designer Handle Kit
For Use with DFRB5 All Refrigerators, DFFB5 All Freezers
and DFWB Built-In Wine Cellars
(082009J)
IMPORTANT–Please Read and Follow!
A
A
13-1/8”
(33.3 cm)
13/16”
(2.1 cm)
38-19/32”
(98.0 cm)
1-1/2”
(3.8 cm)
3/4” (1.9 cm)
Full Overlay
Panel
3/16” (0.5 cm)
Thru Hole
7/16” (1.1 cm)
Counter Bore x 1/2”
Depth (max)
13/16”
(2.1 cm)
• Before beginning, please read these instructions completely and carefully.
• Use caution during assembly to minimize scratches.
• Do not remove permanently affixed labels, warnings or plates from the product. This may
void the warranty.
• Please refer to the DFRB5, DFFB5 and DFWB Installation Instructions for more information
on installing the door panel.
• The installer should leave instructions with the customer who should retain for local
inspector’s use and future reference.
Installation with Wooden Full Overlay
Custom Door Front
Handle Installation
36” Custom Door
DFRB All Refrigerator/DFFB All Freezer
(Front View)
Designer Handle
Parts Included
Part Quantity
Designer Handles
#10 x 3/4” Hex Head Screws
Installation Instructions
(1)
(4)
Required Tools
Electric Drill
3/16” (0.5 cm) Drill Bit
7/16” (1.1 cm) Spade or Forstner Bit (Counterbore)
Tape Measure
Hex Head Screw Driver
Masking Tape and Pencil
To Install:
1. Locate the wooden custom panel.
2. Using the illustrations on the next page, layout the handle location on the panels. It is
recommended that masking tape be placed where the four holes will be drilled to help mark
the hole placement and to prevent any damage to the door when drilling the holes.
3. The Designer handle will be mounted using (4) of the #10 x 3/4” Hex head screws provided.
Using the 3/16”(0.5 cm) drill bit, drill completely through the door in the hole locations.
Using the 7/16” (1.1 cm) bit, counter-bore four holes 1/2” (1.2 cm) deep max. on the
BACKSIDE of the custom door panel.
4. Attach the Designer handle to the panel using (4) #10 x 3/4” screws provided.
Section A-A
