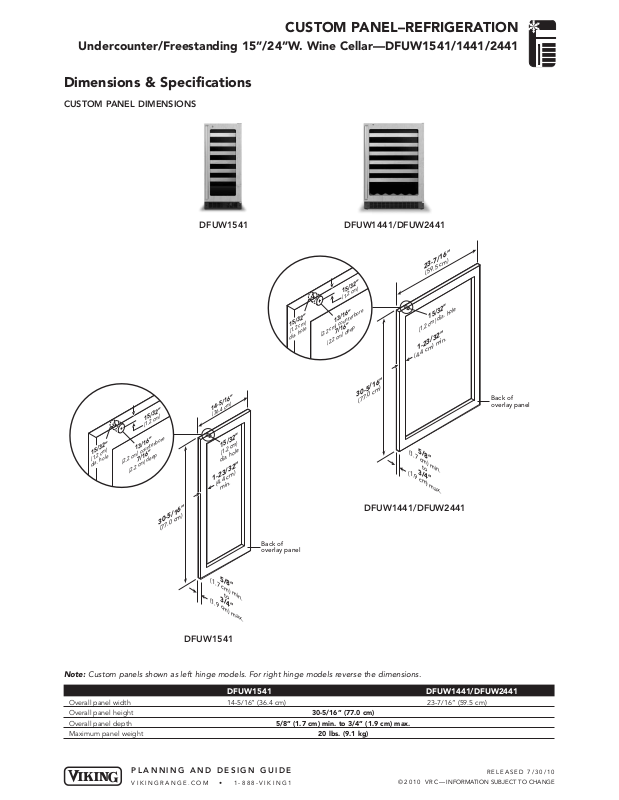

CUSTOM PANEL–REFRIGERATION
Undercounter/Freestanding 15”/24”W. Wine Cellar—DFUW1541/1441/2441
Dimensions & Specifications
CUSTOM PANEL DIMENSIONS
DFUW1541
DFUW1441/DFUW2441
DFUW1441/DFUW2441
DFUW1541
Note: Custom panels shown as left hinge models. For right hinge models reverse the dimensions.
Overall panel width 14-5/16” (36.4 cm) 23-7/16” (59.5 cm)
Overall panel height 30-5/16” (77.0 cm)
Overall panel depth 5/8” (1.7 cm) min. to 3/4” (1.9 cm) max.
Maximum panel weight 20 lbs. (9.1 kg)
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
DFUW1541 DFUW1441/DFUW2441
R E L E A S E D 7/ 3 0 / 1 0
© 2 0 1 0 V R C — INFORMATION SUBJECT TO CHANGE
