Viking Char-Broilers Parts List



©2009 Viking Commercial Division 1



Product Page

Char-Broilers 3
Cheesemelter, Single 24 - 30 - 36 7
Cheesemelter, Single 48 - 60 - 72 10
Cheesemelter, Pass Through 13
French Top 16
Griddle, Manual 60-30-12 19
Griddle, Manual 72-48-36-24-18 22
Griddle, Thermostatically Controlled 60-30-12 26
Griddle, Thermostatically Controlled 72-48-36-24-18 29
Hot Top, 12" 33
Hot Top, 18" 37
Open Burner, 12" 40
Open Burner, 18" 44
Oven, Convection 48
Oven, Standard 55
Plancha 60
Salamander
Step Up
Split Top
Wine Cellar

©2009 Viking Commercial Division 2

Char-Broiler

©2009 Viking Commercial Division 3

Char Broiler

V72

C

-_

_

V60

C

-_

_

V48

C

-_

_

V36

C

-_

_

V30

C

-_

_

V24

C

-_

_

V18

C

-_

_

Model

Part Number Part Description QTY QTY QTY QTY QTY QTY QTY

1 AV72PS Plate Shelf, Standard 72"

AV60PS Plate Shelf, Standard 60"
AV48PS Plate Shelf, Standard 48"
AV36PS Plate Shelf, Standard 36"
AV30PS Plate Shelf, Standard 30"
AV24PS Plate Shelf, Standard 24"

1

1

1

1

1

1
AV18PS Plate Shelf, Standard 18"
AV72PS6 Plate Shelf, 6" Deep 72"
AV60PS6 Plate Shelf, 6" Deep 60"
AV48PS6 Plate Shelf, 6" Deep 48"
AV36PS6 Plate Shelf, 6" Deep, 36"
AV30PS6 Plate Shelf, 6" Deep, 30"
AV24PS6 Plate Shelf, 6" Deep, 24"

1

1 1

1

1

1

1
AV18PS6 Plate Shelf, 6" Deep, 18"
AV72PS8 Plate Shelf, 8" Deep 72"
AV60PS8 Plate Shelf, 8" Deep 60"
AV48PS8 Plate Shelf, 8" Deep 48"
AV36PS8 Plate Shelf, 8" Deep, 36"
AV30PS8 Plate Shelf, 8" Deep, 30"
AV24PS8 Plate Shelf, 8" Deep, 24"

1

1

1

1

1

1
AV18PS8 Plate Shelf, 8" Deep, 18"
010539-000 Washer, Plate Shelf
010330-000 Nut, Plate Shelf
006024-000 RANGE TOP KNOB ASM, 90 DEG. 12 10 8 6 5 4 3

2

2 2 2 2 2 2 2
2 2 2 2 2 2 2

004705-000 10-24 x 1.25 SET SCREW 12 10 8 6 5 4 3
004706-000 MACHINE SCREW, 6-32 x 3/8, PAN HD, PHILLIPS 48 40 32 24 20 16 12
013886-000 CONTROL PANEL, CHAR BROILER, 72" 1

3

016250-000 CONTROL PANEL, CHAR BROILER, 60" 1
013326-000 CONTROL PANEL, CHAR BROILER, 48" 1
005000-000 CONTROL PANEL, CHAR BROILER, 36" 1
013511-000 CONTROL PANEL, CHAR BROILER, 30" 1
013301-000 CONTROL PANEL, CHAR BROILER, 24" 1
010951-000 CONTROL PANEL, CHAR BROILER, 18" 1
012171-000 Name Plate
PD020033

4

Screw, Front Panel

1 1 1 1 1 1 1
5 4 4 4 4

5 016114-000 Bracket, Front Panel Bottom 2 2 2 2 2 2 2

010328-000 Screw, Brackt 2 2 2 2 2 2 2
M0270528 Washer 2 2 2 2 2 2 2

1

1

1

©2009 Viking Commercial Division 4

Char Broiler

V72

C

-_

_

V60

C

-_

_

V48

C

-_

_

V36

C

-_

_

V30

C

-_

_

V24

C

-_

_

V18

C

-_

_

Model

Part Number Part Description QTY QTY QTY QTY QTY QTY QTY

6 016113-000 Bracket, Front Panel Top RH 1 1 1 1 1 1 1

016120-000 Bracket, Front Panel Top LH 1 1 1 1 1 1 1
010328-000 Screw, Brackt 2 2 2 2 2 2 2
M0270528 Washer 2 2 2 2 2 2 2
005011-000 BRACKET, MANIFOLD 4 4 4 2 2 2 2

7

PD020069 CAP SCREW 1/4-20 X 3/4 SS 12 12 12 8 8 8 8
010539-000 WASHER, .266 x .563, S.S. 16 16 16 8 8 8 8
010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 28 26 24 14 13 12 11
004964-000 Manifold, 36" Broiler 2 1

8

009671-000 Manifold, 30" Broiler 2 1
010542-000 Manifold, 24" Broiler 2 1
009272-000 Manifold, 18" Broiler 1
006525-000 VALVE, GAS, COMM, ON-OFF 12 10 8 6 5 4 3

9

004839-000 SHUTOFF, PILOT 12 10 8 6 5 4 3

10

010158-000 1/8" NPT PLUG 8 2 2 4 1 1 1

11

010373-000 FITTING, VALVE OUTLET ADAPTOR 3/8-27x 3/8 CC 12 10 8 6 5 4 3

12

009392-000 TUBING, FLEX, SST, 3/8cc X 8" 12 10 8 6 5 4 3

13

010349-000 BULK HEAD ORIFICE HOLDER, 3/8CC X 3/8-27 12 10 8 6 5 4 3

14

006907-000 BRACKET, ORIFICE ELBOW, STRAIGHT 12 10 8 6 5 4 3

15

010836-000 Screw, Orifice Holder Bracket 24 20 18 12 10 8 6
010533-000 NUT LOCK 3/4-16, BRASS 12 10 8 6 5 4 3

16

010990-000 Orifice, NG #47 12 10 8 6 5 4 3

17

PB040062 Orifice, LP #56
010573-000 BURNER, TUBE, SST,BROILER ASM 12 10 8 6 5 4 3

18
19 010330-000 Nut, Pilot Bracket
20 006954-000 Pilot Bracket

010524-000 PILOT ASM, BRAZED, FLEX, 12" 12 10 8 6 5 4 3

21

009199-000 HEAT SHIELD, BROILER 10 8 7 5 4 3 2

22

013090-000 BRACKET, RADIANT SUPPORT 72" 2

23

12 10 8 6 5 4 3
12 10 8 6 5 4 3

013246-000 BRACKET, RADIANT SUPPORT 60" 2
013240-000 BRACKET, RADIANT SUPPORT 48" 2
006619-000 BRACKET, RADIANT SUPPORT 36" 2
012338-000 BRACKET, RADIANT SUPPORT 30" 2
013229-000 BRACKET, RADIANT SUPPORT 24" 2
013779-000 BRACKET, RADIANT SUPPORT 18" 2
004995-000 Radiant, Cast Iron 12 10 8 6 5 4 3

24

©2009 Viking Commercial Division 5

Char Broiler

V72

C

-_

_

V60

C

-_

_

V48

C

-_

_

V36

C

-_

_

V30

C

-_

_

V24

C

-_

_

V18

C

-_

_

Model

Part Number Part Description QTY QTY QTY QTY QTY QTY QTY

005010-000 Radiant, SS 12 10 8 6 5 4 3

25

005446-000 Radiant, Cast Iron Waffle 10 8 6 5 4 3 3

26

009923-000 Briquette Ceramic 180 144 108 90 72 54 36

27

008316-000 Side Splash, 5.5" RH 1 1 1 1 1 1 1

28

010155-000 Side Splash, 5.5" LH 1 1 1 1 1 1 1
010611-000 Side Splash, 3" RH 1 1 1 1 1 1 1
010609-000 Side Splash, 3" LH 1 1 1 1 1 1 1
011610-000 Screw, Side Splash 6 6 6 6 6 6 6

29

011626-000 Bushing, Side Splash 6 6 6 6 6 6 6
005402-000 Bolt, Shoulder Grate Support 20 16 16 12 8 8 4

30

016555-000 SIDE, PNL, RH, RANGE TOP 1 1 1 1 1 1 1

31

016556-000 SIDE, PNL, LH, RANGE TOP 1 1 1 1 1 1 1

32
33 PD020069 Screw 8 8 8 8 8 8 8
34 010259-000 Manifold Cap Kit, LH

010260-000 Manifold Cap Kit, RH
009583-000 SUPPORT, GRATE, BROILER 14" 5 4 1

35

1 1 1 1 1 1 1
1 1 1 1 1 1 1

009539-000 SUPPORT, GRATE, BROILER 11" 4 3 2 2
009603-000 Grate, SS Rod 18" 1

36

006817-000 Grate, SS Rod 11" 4 3 2
009573-000 Grate, SS Rod 14" 5 4 2
004996-000 Grate, Cast Iron 6.5" 8 6 4 3

37

009591-000 Grate, Cast Iron 7.0" 10 8 3
010632-000 Drip Pan Asm, 36" 2 1

38

013509-000 Drip Pan Asm, 30" 2 1
013300-000 Drip Pan Asm, 24" 2 1
013388-000 Drip Pan Asm, 18" 1
006678-000 HANDLE, GRS, CAN, GRIDDLE 2 2 2 1 1 1 1
010511-000 SCREW M4 X 10, HX HD, S.S. 4 4 4 2 2 2 2

39 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP
012490-000 Regulator, 1" NG
014018-000 Regulator, 1" LP
012500-000 Regulator, 1 1/4" NG
014020-000 Regulator, 1 1/4" NG

40 009088-000 4" Leg with mounting plate 4 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16

©2009 Viking Commercial Division 6

Cheesemelter - 36 - 30 - 24

©2009 Viking Commercial Division 7

Cheesemelter -

R - W - C

C

M_-

-

C

M_-

-

C

M_-

-

Model

Part Number Part Description QTY QTY QTY

1 012866-000 Cover, RH 1 1 1

PD020033 Screw, Panel 2 2 2

2 012867-000 Cover, LH 1 1 1

PD020033 Screw, Panel 2 2 2

3 010286-000 Pan, Drip 36" 1

016061-000 Pan, Drip 30" 1
015687-000 Pan, Drip 24" 1

4 009188-000 Rack 36" 1

016064-000 Rack 30" 1
015690-000 Rack 24" 1

5 009186-000 Ladder, Rack Support RH 1 1
6 009187-000 Ladder, Rack Support LH 1 1
7 010285-000 Panel, Back Inside 36" 1

016059-000 Panel, Back Inside 30" 1
015686-000 Panel, Back Inside 24" 1
PD020033 Screw, Panel 8 8 8

8 011115-000 Knob, On-Off 1 1 1

004705-000 Set Screw 1 1 1
004706-000 Screw, Knob 4 4 4

9 011240-000 Panel, Front 36" 1

016053-000 Panel, Front 30" 1
015693-000 Panel, Front 24" 1
PD020033 Screw, Panel 4 4 4

10 004728-000 Viking Name Plate 1 1 1

010480-000 Press Nut 2 2 2

11 011235-000 IR Retainer, RH 36" 1 1

016063-000 IR Retainer, RH 24" 1

12 011232-000 IR Retainer, LH 36" 1 1

016062-000 IR Retainer, LH 24" 1

13 011227-000 IR Shield 1 1 1
14 010517-000 Burner, IR 24" W/Screen 1

015788-000 Orifice NG, #41
015799-000 Orifice LP, #53

©2009 Viking Commercial Division 8

Cheesemelter -

R - W - C

C

M_-

-

C

M_-

-

C

M_-

-

Model

Part Number Part Description QTY QTY QTY

14 016065-000 Burner, IR 16.6" W/Screen 1

Orifice NG, #
Orifice LP, #

14 015680-000 Burner, IR 12.9" W/Screen 1

Orifice NG, #

Orifice LP, #
15 011014-000 Flue Filler, LH
16 011010-000 Flue Filler, RH
17 015191-000 Pilot, CM/SM 1 1 1
18 010477-000 1/4" Flex Tubing, Pilot 1 1 1
19 011271-000 Manifold, CM/SM RT 1 1 1
20 010309-000 Valve, Burner 1 1 1
21 010315-000 Valve, Pilot 1 1 1
22 010476-000 3/8" Flex Tubing, Burner 1 1 1
23 010158-000 Plug, Hex 1 1 1
24 010330-000 Nut, Manifold 2 2 2
25 010539-000 Washer, Manifold 2 2 2
26 015688-000 Panel, Top 24" 1

016060-000 Panel, Top 30" 1
010297-000 Panel, Top 36" 1
PD020033 Screw, Panel 9 9 9

27 010302-000 Panel, Back

016335-000 Panel, Back
015689-000 Panel, Back

(counter model only)
(counter model only)
(counter model only)

1

1

PD020033 Screw, Panel 8 8 7

28 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP
012490-000 Regulator, 1" NG
014018-000 Regulator, 1" LP
012500-000 Regulator, 1 1/4" NG
014020-000 Regulator, 1 1/4" LP

29 010290-000 Wall Brackt 36" 1

017502-000 Wall Brackt 30" 1
017501-000 Wall Brackt 24" 1

30 009088-000 4" Leg with mounting plate 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16

1

©2009 Viking Commercial Division 9

Cheesemelter - 48 - 60 - 72

©2009 Viking Commercial Division 10

Cheesemelter -

R - W - C

C

M_-

-

C

M_-

-

C

M_-

-

Model

Part Number Part Description QTY QTY QTY

1 011115-000 Knob, On-Off 2 2 2

004705-000 Set Screw 2 2 2
004706-000 Screw, Knob 8 8 8

2 016483-000 Panel, Front Assy. 72" 1

011787-000 Panel, Front Assy. 60" 1
016359-000 Panel, Front Assy. 48" 1

PD020033 Screw, Panel 4 4 4
3 004728-000 Name Plate, Viking 1 1 1
4 010480-000 Press Nut 2 2 2
5 016897-000 Pan, Drip 2

009387-000 Pan, Drip 2

016381-000 Pan, Drip 2

009337-000 Cap, Center Drip Pans 1 1 1
6 012866-000 Cover, RH 1 1

PD020033 Screw, Panel 2 2 2
7 012867-000 Cover, LH 1 1

PD020033 Screw, Panel 2 2 2
8 009187-000 Ladder, Rack Support LH 1 1 1
9 016567-000 Rack 72" 2

010860-000 Rack 60" 2

016370-000 Rack 48" 2

009337-000 Center Cap, Drip Pans 2

10 011617-000 Ladder, Rack Support Center 1
11 009186-000 Ladder, Rack Support RH 1 1
12 016480-000 Panel, Back Inside 72" 1

009390-000 Panel, Back Inside 60" 1

016362-000 Panel, Back Inside 48" 1

PD020033 Screw, Panel 16 12 10

13 011227-000 IR Shield RH 1 1 1
14 016405-000 IR Shield LH 1 1 1
15 011235-000 IR Retainer, RH 1 1 1
16 016890-000 IR Retainer, Center 1 1 1
17 011232-000 IR Retainer, LH 1 1 1
18 016880-000 Burner, IR 27" W/Screen 2

Orifice NG, #
Orifice LP, #

Flex Line to connect burners

©2009 Viking Commercial Division 11

Cheesemelter -

R - W - C

C

M_-

-

C

M_-

-

C

M_-

-

Model

Part Number Part Description QTY QTY QTY

18 010517-000 Burner, IR 24" W/Screen 2

015788-000 Orifice NG, #41

015799-000 Orifice LP, #53

18 016065-000 Burner, IR 16.6" W/Screen 2

Orifice NG, #

Orifice LP, #
19 015191-000 Pilot, CM/SM 2 2 2
20 011010-000 Flue Filler, RH 1 1 1
21 011014-000 Flue Filler, LH 1 1 1
22 016486-000 Panel, Top 72" 1

011887-000 Panel, Top 60" 1
016363-000 Panel, Top 48" 1
PD020033 Screw, Panel 18 14 12

23 017506-000 Wall Brackt 72" 1

017505-000 Wall Brackt 60" 1
017503-000 Wall Brackt 48" 1

24 011271-000 Manifold, CM/SM RT 1 1 1

010330-000 Nut, Manifold 2 2 2
010539-000 Washer, Manifold 2 2 2

25 016024-000 Manifold, CM/SM LT 1 1 1

010330-000 Nut, Manifold 2 2 2

010539-000 Washer, Manifold 2 2 2
26 010309-000 Valve, Burner 2 2 2
27 010315-000 Valve, Pilot 2 2 2
28 010158-000 Plug, Hex 2 2 2
29 010476-000 3/8" Flex Tubing, Burner 2 2 2
30 010477-000 1/4" Flex Tubing, Pilot 2 2 2
31 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP
32 009088-000 4" Leg with mounting plate 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16

©2009 Viking Commercial Division 12

Cheesemelter - Pass Through

©2009 Viking Commercial Division 13

Cheesemelter -

Pass Through

V72

C

MD

-

__

V60

C

MD

-

__

V48

C

MD

-

__

V36

C

MD

-

__

Model

Part Number Part Description QTY QTY QTY QTY

1 016483-000 Panel, Front 72" 2

011787-000 Panel, Front 60" 2

016359-000 Panel, Front 48" 2

011240-000 Panel, Front 36" 2

PD020033 Screw, Panel 8 8 8 8

004728-000 Name Plate, Viking 2 2 2 2

010480-000 Press Nut 4 4 4 4

2 011115-000 Knob, On-Off 4 4 4 2

004705-000 Set Screw 4 4 4 2

004706-000 Screw, Knob 16 16 16 8

3 016897-000 Pan, Drip 4

009387-000 Pan, Drip 4

016381-000 Pan, Drip 4

010286-000 Pan, Drip 2

4 009337-000 Cap, Center Drip Pans 2 2 2
5 009187-000 Ladder, Rack Support LH 2 2 2 2
6 009186-000 Ladder, Rack Support RH 2 2 2 2
7 011617-000 Ladder, Rack Support Center 2 2 2
8 017290-000 Rack 72" 4

015864-000 Rack 60" 4

017163-000 Rack 48" 4

014424-000 Rack 36" 2

9 012866-000 Cover, RH 2 2 2 2
10 012867-000 Cover, LH 2 2 2 2
11 PD020033 Screw, Panel 8 8 8 8
12 011271-000 Manifold, CM/SM RT 2 2 2 1

010330-000 Nut, Manifold 4 4 4 2
010539-000 Washer, Manifold 4 4 4 2

13 016024-000 Manifold, CM/SM LT 2 2 2 1

010330-000 Nut, Manifold 4 4 4 2

010539-000 Washer, Manifold 4 4 4 2
14 010309-000 Valve, Burner 4 4 4 2
15 010315-000 Valve, Pilot 4 4 4 2
16 010158-000 Plug, Hex 4 4 4 2
17 010476-000 3/8" Flex Tubing, Burner 4 4 4 2
18 010477-000 1/4" Flex Tubing, Pilot 4 4 4 2

Need flex line added
T for flex

©2009 Viking Commercial Division 14

Cheesemelter -

Pass Through

V72

C

MD

-

__

V60

C

MD

-

__

V48

C

MD

-

__

V36

C

MD

-

__

Model

Part Number Part Description QTY QTY QTY QTY
19 011227-000 IR Shield RH 2 2 2 2
20 016405-000 IR Shield LH 2 2 2 2
21 011235-000 IR Retainer, RH 2 2 2

011841-000 IR Retainer, RH 2

22 011232-000 IR Retainer, LH 2 2 2

011842-000 IR Retainer, LH 2
23 016890-000 IR Retainer, Center 2 2 2
24 016880-000 Burner, IR 27" W/Screen 4

Orifice NG, #
Orifice LP, #

24 010517-000 Burner, IR 24" W/Screen 4

015788-000 Orifice NG, #41

015799-000 Orifice LP, #53
24 016065-000 Burner, IR 16.6" W/Screen 4

Orifice NG, #
Orifice LP, #

24 010517-000 Burner, IR 24" W/Screen 2

017768-000 Orifice NG, #43

Orifice LP, #
25 015191-000 Pilot, CM/SM 4 4 4 2
26 016486-000 Panel, Top 72" 2

011887-000 Panel, Top 60" 2
016363-000 Panel, Top 48" 2
010297-000 Panel, Top 36" 2
PD020033 Screw, Panel 36 28 24 16

27 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP
012490-000 Regulator, 1" NG
014018-000 Regulator, 1" LP
012500-000 Regulator, 1 1/4" NG
014020-000 Regulator, 1 1/4" LP

©2009 Viking Commercial Division 15

French Top

©2009 Viking Commercial Division 16

French Top

F2

-NG

V18

F-

N

G

V36

F2

-L

P

V18

F-

LP

Model

Part Number Part Description QTY QTY QTY QTY

1 AV36PS Plate Shelf, Standard 36" 1 1

AV18PS Plate Shelf, Standard 18" 1 1
AV36PS6 Plate Shelf, 6" Deep, 36" 1 1
AV18PS6 Plate Shelf, 6" Deep, 18" 1 1
AV36PS8 Plate Shelf, 8" Deep, 36" 1 1
AV18PS8 Plate Shelf, 8" Deep, 18" 1 1
010539-000 Washer, Plate Shelf 2 2 2 2
010330-000 Nut, Plate Shelf 2 2 2 2

2 006024-000 RANGE TOP KNOB ASM, 90 DEG. 2 1 2 1

004705-000 10-24 x 1.25 SET SCREW 2 1 2 1
004706-000 MACHINE SCREW, 6-32 x 3/8, PAN HD, PHILLIPS 8 4 8 4

3 013125-000 Panel, Control FT 36" 1 1

010665-000 Panel, Control FT 18" 1 1

012171-000 Name Plate 1 1 1 1
4 PD020033 Screw, Front Panel 4 4 4 4
5 016120-000 Bracket, Front Panel Top LH 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1

M0270528 Washer 1 1 1 1
6 016113-000 Bracket, Front Panel Top RH 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1

M0270528 Washer 1 1 1 1
7 016114-000 Bracket, Front Panel Bottom 2 2 2 2

010328-000 Screw, Brackt 2 2 2 2

M0270528 Washer 2 2 2 2
8 010864-000 Drip Tray, French Top 18" Assembly 2 1 2 1

006678-000 HANDLE, GRS, CAN, GRIDDLE

010511-000 SCREW M4 X 10, HX HD, S.S.

2 1 2 1
4 2 4 2

9 006512-000 Manifold, FT-HT 36" 1 1

009272-000 Manifold, FT-HT 18" 1 1

10 005011-000 BRACKET, MANIFOLD 2 2 2 2

PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4

010539-000 WASHER, .266 x .563, S.S. 8 8 8 8

010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 8 8

11 006525-000 VALVE, GAS, COMM, ON-OFF 2 1 2 1
12 004839-000 SHUTOFF, PILOT 2 1 2 1
13 010158-000 1/8" NPT PLUG 9 5 9 5

©2009 Viking Commercial Division 17

French Top

F2

-NG

V18

F-

N

G

V36

F2

-L

P

V18

F-

LP

Model

Part Number Part Description QTY QTY QTY QTY
14 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 2 1 2 1
15 010349-000 Orifice Holder 2 1 2 1
16 010596-000 Bracket, Orifice Holder 2 1 2 1

PD020048 Screw 2 1 2 1
010533-000 NUT LOCK 3/4-16, BRASS 2 1 2 1

17
18 PB040076 Orifice, Hood #40 NG 2 1

Orifice, Hood #58 LP 2 1

19 008559-000 Bottom, Burner Short 2 1 2 1

011696-000 Air Shutter 2 1 2 1

011697-000 Screw, Air Shutter 2 1 2 1
20 008488-000 Top, Round Burner 2 1 2 1
21 010524-000 Pilot Assembly 2 1 2 1
22 010589-000 Bracket, Pilot 2 1 2 1

PD020048 Screw 4 2 4 2
23 006745-000 Hanger, Burner 2 1 2 1

PD020048 Screw 4 2 4 2
24 005997-000 Shield, Burner Box 1 0 1 0
25 005951-000 Burner Box 2 1 2 1

PD020069 Screw 4 4 4 4
26 005740-000 French Top, Complete 2 1 2 1

PD010006 Leveling Screw 8 4 8 4
27 005734-000 Outer Ring, French Top 2 1 2 1
28 005736-000 Inner Ring, French Top 2 1 2 1

019633-000 Tool, Ring Removal 1 1 1 1

016555-000

29

016556-000

30

SIDE, PNL, LH, RANGE TOP 1 1 1 1

SIDE, PNL, RH, RANGE TOP 1 1 1 1
31 PD020069 Screw 8 8 8 8
32 010259-000 Manifold Cap Kit, LH 1 1 1 1

010260-000 Manifold Cap Kit, RH 1 1 1 1

33 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP
012490-000 Regulator, 1" NG
014018-000 Regulator, 1" LP
012500-000 Regulator, 1 1/4" NG
014020-000 Regulator, 1 1/4" LP

34 009088-000 4" Leg with mounting plate 4 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16

©2009 Viking Commercial Division 18

Griddle, Manual 60-30-12

©2009 Viking Commercial Division 19

Manual

G-

_

_

G-

_

_

G-

_

_

Griddle

Part Number Part Description QTY QTY QTY

1 AV60PS Plate Shelf, Standard 60" 1

AV30PS Plate Shelf, Standard 30" 1
AV12PS Plate Shelf, Standard 12" 1
AV60PS6 Plate Shelf, 6" Deep 60"
AV30PS6 Plate Shelf, 6" Deep 30"
AV12PS6 Plate Shelf, 6" Deep 12"
AV60PS8 Plate Shelf, 8" Deep 60"
AV30PS8 Plate Shelf, 8" Deep 30"
AV12PS8 Plate Shelf, 8" Deep 12"
010539-000 Washer, Plate Shelf
010330-000 Nut, Plate Shelf
011115-000 Knob, On-Off

2

004705-000 Set Screw
004706-000 Screw, Knob

3 016571-000 CONTROL, PNL, 60"GRIDDLE 1

013353-000 CONTROL, PNL, 30"GRIDDLE 1

008907-000 CONTROL, PNL, 12"GRIDDLE 1
4 PD020033 Screw, Front Panel 4 4 4
5 016114-000 Bracket, Front Panel Bottom 2 2 2
6 016113-000 Bracket, Front Panel Top RH 1 1 1
7 016120-000 Bracket, Front Panel Top LH 1 1 1
8 010328-000 Screw, Brackt 4 4 4
9 M0270528 Washer 4 4 4

11 006525-000 VALVE, GAS, COMM, ON-OFF 6 3 1

Model

6 4 3
6 4 3

24 16 12

011360-000 FITTING, 1/2-14 NPT x 3/8 CC

14
15 004839-000 PILOT SHUT OFF 6 4 3

009661-000 MANIFOLD, 30" BROILER, LH REAR GAS ASM

16

011069-000

010158-000 1/8" NPT PLUG

17 005011-000 BRACKET, MANIFOLD 4 4 2
18 PD020069 CAP SCREW 1/4-20 X 3/4 SS 8 8 4
19 010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 4
20 010539-000 WASHER, .266 x .563, S.S. 8 8 4
21 010349-000 Orifice Holder 6 4 3

010533-000 NUT LOCK 3/4-16, BRASS 6 4 2

22 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 6 4 3

©2009 Viking Commercial Division 20

MANIFOLD, 12" BROILER, LH REAR GAS ASM

6 4 3

2 1

1

Manual

G-

_

_

G-

_

_

G-

_

_

Griddle

Part Number Part Description QTY QTY QTY

006907-000 BRACKET, ORIFICE ELBOW, STRAIGHT

23

010328-000 10-24 X 1/2" TY F W/HEX WASH

24

PB040057 ORIFICE HOOD #46 NG

25

PB040059

26 010524-000 Pilot Assembly 6 4 3
27 006954-000 Pilot Bracket 6 4 3
28 010330-000 Nut, Plate Shelf 6 4 3
29 006902-000 Burner 6 4 3
30 PB040034

PB040062

31 004974-000 Burner, Straight Tube
32 PD020069 CAP SCREW 1/4-20 X 3/4 SS 6 4 3
33 010330-000 Nut, Plate Shelf 6 4 3

016555-000 SIDE, PNL, RH, RANGE TOP

34

016556-000 SIDE, PNL, LH, RANGE TOP

35
36 PD020069 Screw 8 8 8
37 010259-000 Manifold Cap Kit, LH

010260-000 Manifold Cap Kit, RH

38 006546-000 Grease Can Assembly 2 2 1

006678-000 HANDLE, GRS, CAN, GRIDDLE

010511-000 SCREW M4 X 10, HX HD, S.S.

39 016572-000 Griddle Plate 60" w/ 2.5" Side Splash

012216-000 Griddle Plate 30" w/ 2.5" Side Splash

008775-000 Griddle Plate 12" w/ 2.5" Side Splash

016578-000 Griddle Plate 60" w/ 4" Side Splash

012230-000 Griddle Plate 30" w/ 4" Side Splash

012243-000 Griddle Plate 12" w/ 4" Side Splash

40 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP

41 009088-000 4" Leg with mounting plate 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16

ORIFICE HOOD #54 LP

ORIFICE HOOD #50 NG
ORIFICE HOOD #56 LP

Model

6 4 3

12 8 6

1 1 1
1 1 1

1 1 1
1 1 1

2 2 1
4 4 2

©2009 Viking Commercial Division 21

Griddle, Manual 72-48-36-24-18

©2009 Viking Commercial Division 22

Manual

G-

_

_

G-

_

_

G-

_

_

G-

_

_

G-

_

_

Griddle

Part Number Part Description QTY QTY QTY QTY QTY

1 AV72PS Plate Shelf, Standard 72"

AV48PS Plate Shelf, Standard 48"

AV36PS Plate Shelf, Standard 36"

AV24PS Plate Shelf, Standard 24"

AV18PS Plate Shelf, Standard 18"

AV72PS6 Plate Shelf, 6" Deep 72"

AV48PS6 Plate Shelf, 6" Deep 48"

AV36PS6 Plate Shelf, 6" Deep, 36"

AV24PS6 Plate Shelf, 6" Deep, 24"

AV18PS6 Plate Shelf, 6" Deep, 18"

AV72PS8 Plate Shelf, 8" Deep 72"

AV48PS8 Plate Shelf, 8" Deep 48"

AV36PS8 Plate Shelf, 8" Deep, 36"

AV24PS8 Plate Shelf, 8" Deep, 24"

AV18PS8 Plate Shelf, 8" Deep, 18"

010539-000 Washer, Plate Shelf

010330-000 Nut, Plate Shelf

011115-000 Knob, On-Off

2

004705-000 Set Screw

004706-000 Screw, Knob
3 016590-000 CONTROL, PNL, 72"GRIDDLE 1

009058-000 CONTROL, PNL, 48"GRIDDLE 1

006461-000 CONTROL, PNL, 36"GRIDDLE 1

015122-000 CONTROL, PNL, 24"GRIDDLE 1

015262-000 CONTROL, PNL, 18"GRIDDLE 1
4 PD020033 Screw, Front Panel 4 4 4 4 4
5 016114-000 Bracket, Front Panel Bottom 2 2 2 2 2
6 016113-000 Bracket, Front Panel Top RH 1 1 1 1 1
7 016120-000 Bracket, Front Panel Top LH 1 1 1 1 1
8 M0270528 Washer 4 4 4 4 4
9 010328-000 Screw, Brackt 4 4 4 4 4

11 006525-000 VALVE, GAS, COMM, ON-OFF 6 4 3 2 1

011360-000 FITTING, 1/2-14 NPT x 3/8 CC

14
15 004839-000 PILOT SHUT OFF 6 4 3 2 1

Model

6 4 3 2 1
6 4 3 2 1

24 16 12 8 4

6 4 3 2 1

©2009 Viking Commercial Division 23

Manual

G-

_

_

G-

_

_

G-

_

_

G-

_

_

G-

_

_

Griddle

Part Number Part Description QTY QTY QTY QTY QTY

004964-000 MANIFOLD, 36" BROILER, LH REAR GAS ASM

16

009059-000

010564-000

010158-000 1/8" NPT PLUG

17 005011-000 BRACKET, MANIFOLD 4 4 2 2 2
18 PD020069 CAP SCREW 1/4-20 X 3/4 SS 8 8 4 4 4
19 010539-000 WASHER, .266 x .563, S.S. 8 8 4 4 4
20 010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 4 4 4
21 010349-000 Orifice Holder 6 4 3 2 1

010533-000 NUT LOCK 3/4-16, BRASS

22 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 6 4 3 2 1

006907-000 BRACKET, ORIFICE ELBOW, STRAIGHT

23

010328-000 10-24 X 1/2" TY F W/HEX WASH

24

016145-000 ORIFICE HOOD #43 NG

25

PB040059

26 010524-000 Pilot Assembly 6 4 3 2 1
27 006954-000 Pilot Bracket 6 4 3 2 1
28 010330-000 Nut, Plate Shelf 6 4 3 2 1
29 006902-000 Burner 6 4 3 2 1
30 PD020069 CAP SCREW 1/4-20 X 3/4 SS 6 4 3 2 1
31 010330-000 Nut, Plate Shelf 6 4 3 2 1
32 006546-000 Grease Can Assembly 2 2 1 1 1

006678-000 HANDLE, GRS, CAN, GRIDDLE

010511-000 SCREW M4 X 10, HX HD, S.S.

33 016586-000 Griddle Plate 72" w/ 2.5" Side Splash

008997-000 Griddle Plate 48" w/ 2.5" Side Splash

006478-000 Griddle Plate 36" w/ 2.5" Side Splash

015110-000 Griddle Plate 24" w/ 2.5" Side Splash

012201-000 Griddle Plate 18" w/ 2.5" Side Splash

016581-000 Griddle Plate 72" w/ 4" Side Splash

015102-000 Griddle Plate 48" w/ 4" Side Splash

011200-000 Griddle Plate 36" w/ 4" Side Splash

012234-000 Griddle Plate 24" w/ 4" Side Splash

012203-000 Griddle Plate 18" w/ 4" Side Splash

016555-000 SIDE, PNL, RH, RANGE TOP

34

016556-000 SIDE, PNL, LH, RANGE TOP

35
36 PD020069 Screw 8 8 8 8 8

MANIFOLD, 24" BROILER, LH REAR GAS ASM
MANIFOLD, 18" BROILER, LH REAR GAS ASM

ORIFICE HOOD #54 LP

Model

2 1

2 1

6 4 3 2 1

6 4 3 2 1

12 8 6 4 2

2 2 1 1 1
4 4 2 2 2

1 1 1 1 1
1 1 1 1 1

1

©2009 Viking Commercial Division 24

Manual

G-

_

_

G-

_

_

G-

_

_

G-

_

_

G-

_

_

Griddle

Part Number Part Description QTY QTY QTY QTY QTY

37 010259-000 Manifold Cap Kit, LH

010260-000 Manifold Cap Kit, RH

38 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP

39 009088-000 4" Leg with mounting plate 4 4 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16 16

Model

1 1 1 1
1 1 1 1

©2009 Viking Commercial Division 25

Griddle Thermostatically Controlled 60-30-12

©2009 Viking Commercial Division 26

T-Stat

T-__T-__T-

__

Griddle

Part Number Part Description QTY QTY QTY

1 AV60PS Plate Shelf, Standard 60" 1

AV30PS Plate Shelf, Standard 30" 1

AV12PS Plate Shelf, Standard 12" 1

AV60PS6 Plate Shelf, 6" Deep 60"

AV30PS6 Plate Shelf, 6" Deep 30"

AV12PS6 Plate Shelf, 6" Deep 12"

AV60PS8 Plate Shelf, 8" Deep 60"

AV30PS8 Plate Shelf, 8" Deep 30"

AV12PS8 Plate Shelf, 8" Deep 12"

010539-000 Washer, Plate Shelf

010330-000 Nut, Plate Shelf
2 010991-000 RANGE TOP KNOB ASSEMBLY, T-STAT 6 4 3

004705-000 10-24x1.25 SET SCREW 6 4 3
3 016571-000 CONTROL, PNL, 60"GRIDDLE 1

013353-000 CONTROL, PNL, 30"GRIDDLE 1

008907-000 CONTROL, PNL, 12"GRIDDLE 1
4 PD020033 Screw, Front Panel 4 4 4
5 016114-000 Bracket, Front Panel Bottom 2 2 2
6 016113-000 Bracket, Front Panel Top RH 1 1 1
7 016120-000 Bracket, Front Panel Top LH 1 1 1
8 010328-000 Screw, Brackt 4 4 4
9 M0270528 Washer 4 4 4

10 011401-000 ADAPTOR, KNOB, T-STAT BJWA 6 3 1
11 008380-000 THERMOSTAT BJWA, GRIDDLE 6 3 1

012489-000 INLET FLANGE NIPPLE

12

012491-000 SCREW10-24x1 ZN PL HEX SLOT LOCK WASH

13

011360-000 FITTING, 1/2-14 NPT x 3/8 CC

14
15 004839-000 PILOT SHUT OFF 6 4 3

009661-000 MANIFOLD, 30" BROILER, LH REAR GAS ASM

16

011069-000

010158-000 1/8" NPT PLUG

17 005011-000 BRACKET, MANIFOLD 4 4 2
18 PD020069 CAP SCREW 1/4-20 X 3/4 SS 8 8 4
19 010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 4
20 010539-000 WASHER, .266 x .563, S.S. 8 8 4
21 010349-000 Orifice Holder 6 4 3

010533-000 NUT LOCK 3/4-16, BRASS 6 4 2 1

22 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 6 4 3

MANIFOLD, 12" BROILER, LH REAR GAS ASM

Model

6 4 3

12 8 6

6 4 3

2 1

1

©2009 Viking Commercial Division 27

T-Stat

T-__T-__T-

__

Griddle

Part Number Part Description QTY QTY QTY

006907-000 BRACKET, ORIFICE ELBOW, STRAIGHT

23

010328-000 10-24 X 1/2" TY F W/HEX WASH

24

PB040057 ORIFICE HOOD #46 NG

25

PB040059

26 010524-000 Pilot Assembly 6 4 3
27 006954-000 Pilot Bracket 6 4 3
28 010330-000 Nut, Plate Shelf 6 4 3
29 006902-000 Burner 6 4 3
30 PB040034

PB040062

31 004974-000 Burner, Straight Tube
32 PD020069 CAP SCREW 1/4-20 X 3/4 SS 6 4 3
33 010330-000 Nut, Plate Shelf 6 4 3

016555-000 SIDE, PNL, RH, RANGE TOP

34

016556-000 SIDE, PNL, LH, RANGE TOP

35
36 PD020069 Screw 8 8 8
37 010259-000 Manifold Cap Kit, LH

010260-000 Manifold Cap Kit, RH

38 006546-000 Grease Can Assembly 2 2 1

006678-000 HANDLE, GRS, CAN, GRIDDLE

010511-000 SCREW M4 X 10, HX HD, S.S.

39 016572-000 Griddle Plate 60" w/ 2.5" Side Splash

012216-000 Griddle Plate 30" w/ 2.5" Side Splash

008775-000 Griddle Plate 12" w/ 2.5" Side Splash

016578-000 Griddle Plate 60" w/ 4" Side Splash

012230-000 Griddle Plate 30" w/ 4" Side Splash

012243-000 Griddle Plate 12" w/ 4" Side Splash

40 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP

41 009088-000 4" Leg with mounting plate 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16

ORIFICE HOOD #54 LP

ORIFICE HOOD #50 NG
ORIFICE HOOD #56 LP

Model

6 4 3

12 8 6

1 1 1
1 1 1

1 1 1
1 1 1

2 2 1
4 4 2

©2009 Viking Commercial Division 28

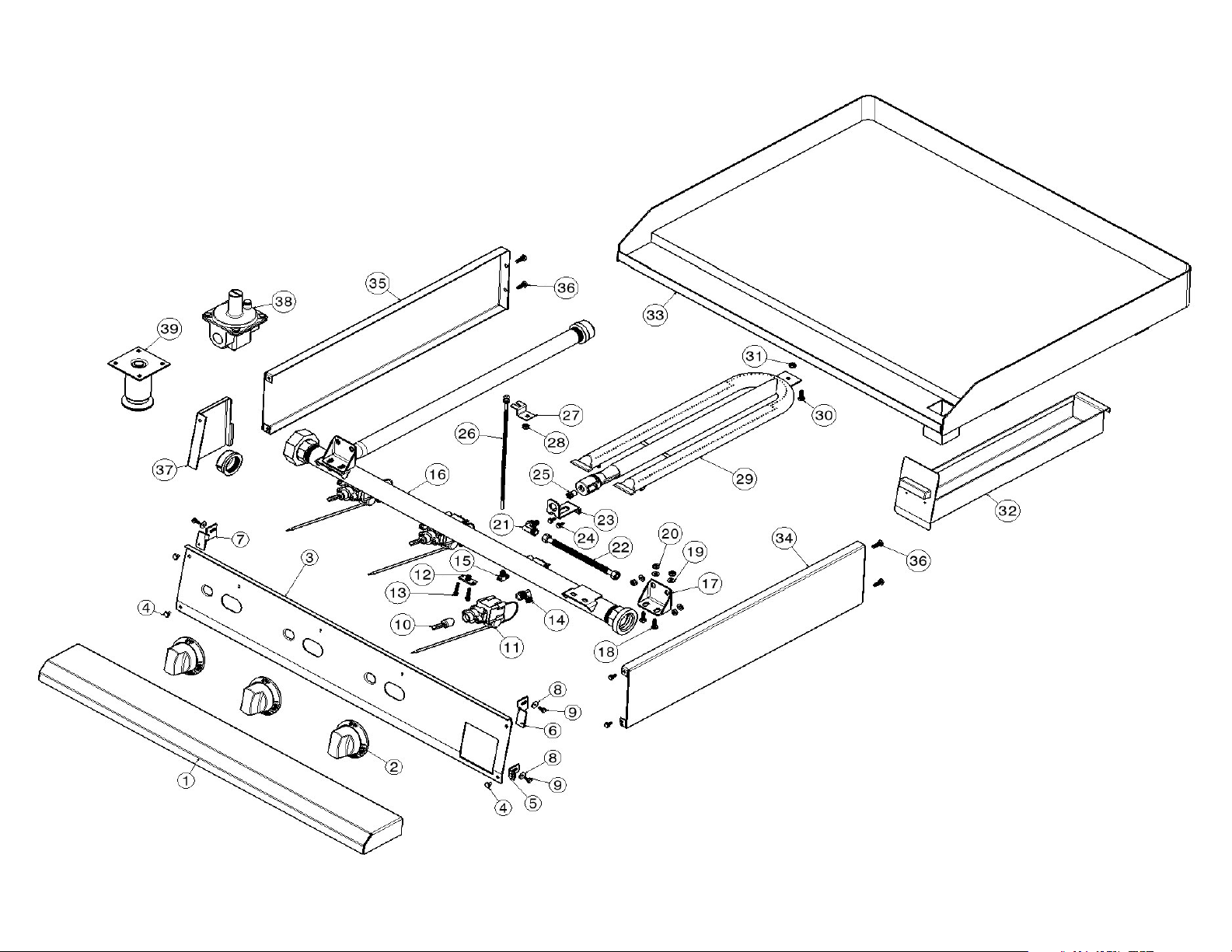

Griddle Thermostatically Controlled 72-48-36-24-18

©2009 Viking Commercial Division 29

T-Stat

T-__T-__T-__T-__T-

__

Griddle

Part Number Part Description QTY QTY QTY QTY QTY

1 AV72PS Plate Shelf, Standard 72"

AV48PS Plate Shelf, Standard 48"

AV36PS Plate Shelf, Standard 36"

AV24PS Plate Shelf, Standard 24"

AV18PS Plate Shelf, Standard 18"

AV72PS6 Plate Shelf, 6" Deep 72"

AV48PS6 Plate Shelf, 6" Deep 48"

AV36PS6 Plate Shelf, 6" Deep, 36"

AV24PS6 Plate Shelf, 6" Deep, 24"

AV18PS6 Plate Shelf, 6" Deep, 18"

AV72PS8 Plate Shelf, 8" Deep 72"

AV48PS8 Plate Shelf, 8" Deep 48"

AV36PS8 Plate Shelf, 8" Deep, 36"

AV24PS8 Plate Shelf, 8" Deep, 24"

AV18PS8 Plate Shelf, 8" Deep, 18"

010539-000 Washer, Plate Shelf

010330-000 Nut, Plate Shelf
2 010991-000 RANGE TOP KNOB ASSEMBLY, T-STAT 6 4 3 2 1

004705-000 10-24x1.25 SET SCREW 6 4 3 2 1
3 016590-000 CONTROL, PNL, 72"GRIDDLE 1

009058-000 CONTROL, PNL, 48"GRIDDLE 1

006461-000 CONTROL, PNL, 36"GRIDDLE 1

015122-000 CONTROL, PNL, 24"GRIDDLE 1

015262-000 CONTROL, PNL, 18"GRIDDLE 1
4 PD020033 Screw, Front Panel 4 4 4 4 4
5 016114-000 Bracket, Front Panel Bottom 2 2 2 2 2
6 016113-000 Bracket, Front Panel Top RH 1 1 1 1 1
7 016120-000 Bracket, Front Panel Top LH 1 1 1 1 1
8 M0270528 Washer 4 4 4 4 4
9 010328-000 Screw, Brackt 4 4 4 4 4

10 011401-000 ADAPTOR, KNOB, T-STAT BJWA 6 4 3 2 1
11 008380-000 THERMOSTAT BJWA, GRIDDLE 6 4 3 2 1

012489-000 INLET FLANGE NIPPLE

12

012491-000 SCREW10-24x1 ZN PL HEX SLOT LOCK WASH

13

011360-000 FITTING, 1/2-14 NPT x 3/8 CC

14
15 004839-000 PILOT SHUT OFF 6 4 3 2 1

Model

6 4 3 2 1

12 8 6 4 2

6 4 3 2 1

©2009 Viking Commercial Division 30

T-Stat

T-__T-__T-__T-__T-

__

Griddle

Part Number Part Description QTY QTY QTY QTY QTY

004964-000 MANIFOLD, 36" BROILER, LH REAR GAS ASM

16

009059-000

010564-000

010158-000 1/8" NPT PLUG

17 005011-000 BRACKET, MANIFOLD 4 4 2 2 2
18 PD020069 CAP SCREW 1/4-20 X 3/4 SS 8 8 4 4 4
19 010539-000 WASHER, .266 x .563, S.S. 8 8 4 4 4
20 010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 4 4 4
21 010349-000 Orifice Holder 6 4 3 2 1

010533-000 NUT LOCK 3/4-16, BRASS

22 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 6 4 3 2 1

006907-000 BRACKET, ORIFICE ELBOW, STRAIGHT

23

010328-000 10-24 X 1/2" TY F W/HEX WASH

24

016145-000 ORIFICE HOOD #43 NG

25

PB040059

26 010524-000 Pilot Assembly 6 4 3 2 1
27 006954-000 Pilot Bracket 6 4 3 2 1
28 010330-000 Nut, Plate Shelf 6 4 3 2 1
29 006902-000 Burner 6 4 3 2 1
30 PD020069 CAP SCREW 1/4-20 X 3/4 SS 6 4 3 2 1
31 010330-000 Nut, Plate Shelf 6 4 3 2 1
32 006546-000 Grease Can Assembly 2 2 1 1 1

006678-000 HANDLE, GRS, CAN, GRIDDLE

010511-000 SCREW M4 X 10, HX HD, S.S.

33 016586-000 Griddle Plate 72" w/ 2.5" Side Splash

008997-000 Griddle Plate 48" w/ 2.5" Side Splash

006478-000 Griddle Plate 36" w/ 2.5" Side Splash

015110-000 Griddle Plate 24" w/ 2.5" Side Splash

012201-000 Griddle Plate 18" w/ 2.5" Side Splash

016581-000 Griddle Plate 72" w/ 4" Side Splash

015102-000 Griddle Plate 48" w/ 4" Side Splash

011200-000 Griddle Plate 36" w/ 4" Side Splash

012234-000 Griddle Plate 24" w/ 4" Side Splash

012203-000 Griddle Plate 18" w/ 4" Side Splash

016555-000 SIDE, PNL, RH, RANGE TOP

34

016556-000 SIDE, PNL, LH, RANGE TOP

35
36 PD020069 Screw 8 8 8 8 8

MANIFOLD, 24" BROILER, LH REAR GAS ASM
MANIFOLD, 18" BROILER, LH REAR GAS ASM

ORIFICE HOOD #54 LP

Model

2 1

2 1

6 4 3 2 1

6 4 3 2 1

12 8 6 4 2

2 2 1 1 1
4 4 2 2 2

1 1 1 1 1
1 1 1 1 1

1

©2009 Viking Commercial Division 31

T-Stat

T-__T-__T-__T-__T-

__

Griddle

Part Number Part Description QTY QTY QTY QTY QTY

37 010259-000 Manifold Cap Kit, LH

010260-000 Manifold Cap Kit, RH

38 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP

39 009088-000 4" Leg with mounting plate 4 4 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16 16

Model

1 1 1 1
1 1 1 1

©2009 Viking Commercial Division 32

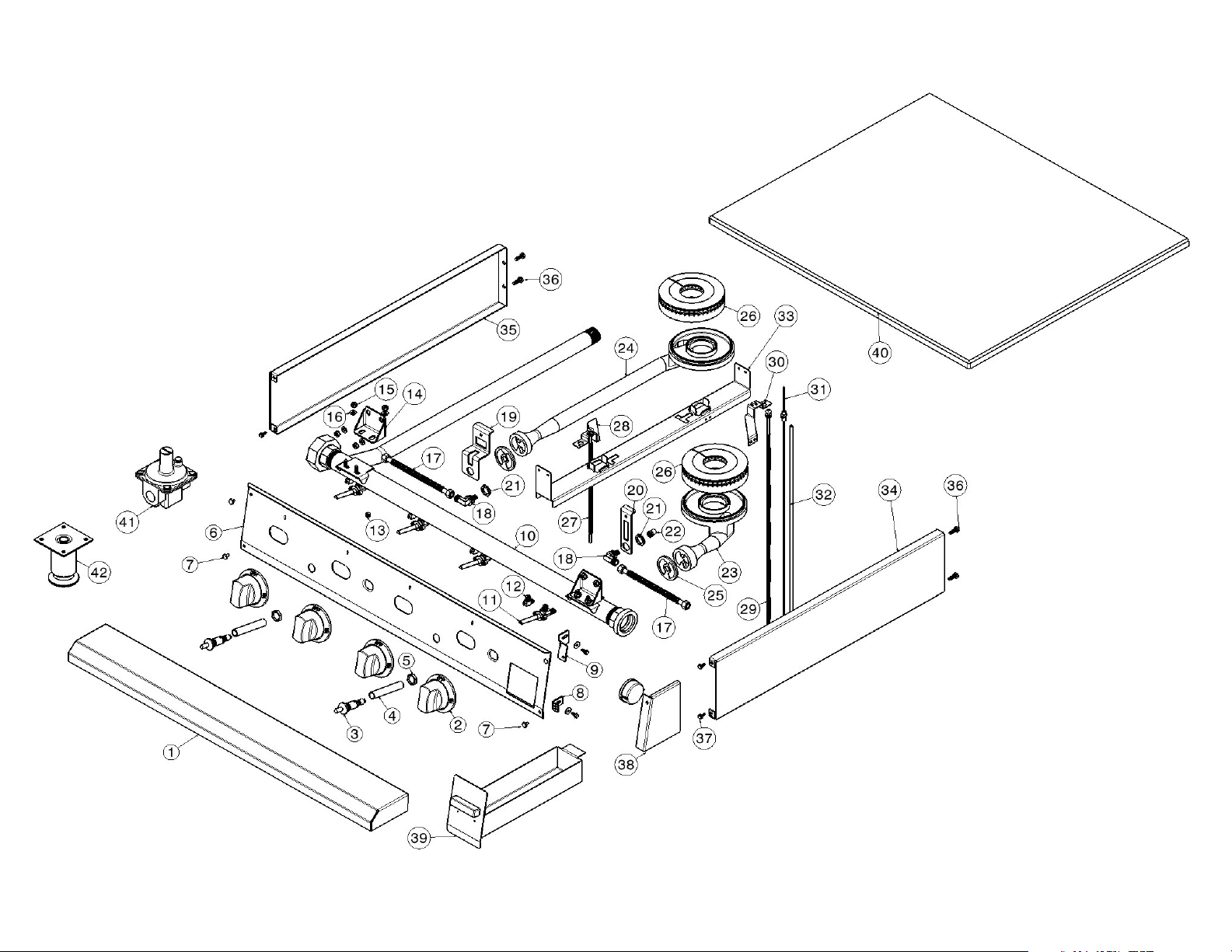

Hot Top - 12"

©2009 Viking Commercial Division 33

Hot Top 12"

H

3-

N

G

H

2-

N

G

V12

H

-NG

V36

H

3-

L

P

V24

H

2-

L

P

V12

H

-L

P

Part Number Part Description QTY QTY QTY QTY QTY QTY

1 AV36PS Plate Shelf, Standard 36" 1 1

AV24PS Plate Shelf, Standard 24" 1 1

AV12PS Plate Shelf, Standard 12" 1 1

AV36PS6 Plate Shelf, 6" Deep, 36" 1 1

AV24PS6 Plate Shelf, 6" Deep, 24" 1 1

AV12PS6 Plate Shelf, 6" Deep, 12" 1 1

AV36PS8 Plate Shelf, 8" Deep, 36" 1 1

AV24PS8 Plate Shelf, 8" Deep, 24" 1 1

AV12PS8 Plate Shelf, 8" Deep, 12" 1 1

010539-000 Washer, Plate Shelf 2 2 2 2 2 2

010330-000 Nut, Plate Shelf 2 2 2 2 2 2
2 006024-000 RANGE TOP KNOB ASM, 90 DEG. 6 4 2 6 4 2

004705-000 Set Screw 24 16 8 24 16 8

004706-000 Screw, Knob 6 4 2 6 4 2
3 010917-000 PIEZO IGNITER, PUSH BUTTON 3 2 1 3 2 1

019121-000 Sleeve, Fiber Glass (Piezo Igniter) 3 2 1 3 2 1
4 014230-000 PAL TYPE NUT, 18MM X 1.5MM THRD. 3 2 1 3 2 1
5 015219-000 CONTROL PANEL V36H3 1 1

014626-000 CONTROL PANEL V24H2 1 1

010962-000 CONTROL PANEL V12H 1 1

012171-000 Name Plate 1 1 1 1 1 1
6 PD020033 Screw, Front Panel 4 4 4 4 4 4
7 016120-000 Bracket, Front Panel Top LH 1 1 1 1 1 1

M0270528 Washer 1 1 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1 1 1
8 016113-000 Bracket, Front Panel Top RH 1 1 1 1 1 1

M0270528 Washer 1 1 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1 1 1
9 016114-000 Bracket, Front Panel Bottom 2 2 2 2 2 2

M0270528 Washer 2 2 2 2 2 2

010328-000 Screw, Brackt 2 2 2 2 2 2

10 004964-000 MANIFOLD, 36" 12"HT 1 1

010542-000 MANIFOLD, WA 24" W/1" LH REAR GAS ASM 1 1

008802-000 MANIFOLD, WA 12" 1 1

Model

©2009 Viking Commercial Division 34

Hot Top 12"

H

3-

N

G

H

2-

N

G

V12

H

-NG

V36

H

3-

L

P

V24

H

2-

L

P

V12

H

-L

P

Part Number Part Description QTY QTY QTY QTY QTY QTY

11 005011-000 BRACKET, MANIFOLD 2 2 2 2 2 2

PS020069 Cap Screw 1/4-20 x 3/4 SS 4 4 4 4 4 4

010539-000 WASHER, .266 x .563, S.S. 8 8 8 8 8 8

010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 8 8 8 8

12 006525-000 VALVE, GAS, COMM, ON-OFF 6 4 2 6 4 2
13 004839-000 SHUTOFF, PILOT 6 4 2 6 4 2
14 010158-000 1/8" NPT PLUG 4 1 1 4 1 1
15 015473-000 Heat Shield, 36" 1 1

015455-000 Heat Shield, 24" 1 1

016699-000 Heat Shield, 12" 1 1

16 015458-000 Manifold Shield 1 1 1 1
17 011111-000 FRONT HEAT SHIELD 12" HOT TOP 3 2 1 3 2 1
18 011113-000 BACK SUPPORT, 12" HOT TOP 3 2 1 3 2 1
19 PD020069 CAP SCREW 1/4-20 X 3/4 SS 12 8 4 12 8 4
20 011112-000 HANGER, BURNER, 12" HOT TOP 3 2 1 3 2 1
21 PD020048 Screw, 10 x 1/2 30 20 10 30 20 10
22 008488-000 TOP, ROUND BURNER 6 4 2 6 4 2
23 008559-000 BOTTOM, SHORT, ROUND BURNER 3 2 1 3 2 1

011696-000 Air Shutter 6 4 2 6 4 2

011697-000 Screw, Air Shutter 6 4 2 6 4 2

24 008573-000 BOTTOM, LONG, ROUND BURNER 3 2 1 3 2 1

011696-000 Air Shutter 6 4 2 6 4 2

011697-000 Screw, Air Shutter 6 4 2 6 4 2

25 010922-000 PILOT ASM REAR, BRAZED, FLEX, 28" 3 2 1 3 2 1
26 010921-000 PILOT ASM, BRAZED, FLEX, 17" 3 2 1 3 2 1
27 014557-000 ELECTRODE W/RING TERMINAL .092"x(F), 26" 3 2 1 3 2 1
28 014520-000 ELECTRODE W/TERMINAL .110"x.020"(F),17" 3 2 1 3 2 1
29 016750-000 Fiber Glass Sleeve, 26" 3 2 1 3 2 1
30 016749-000 Fiber Glass Sleeve, 17" 3 2 1 3 2 1
31 017767-000 BRACKET, PILOT, HT 6 4 2 6 4 2
32 010373-000 FITTING, VALVE OUTLET ADAPTOR 3/8-27x 3/8 CC 6 4 2 6 4 2
33 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 6 4 2 6 4 2
34 010349-000 BULK HEAD ORIFICE HOLDER, 3/8CC X 3/8-27 6 4 2 6 4 2
35 010600-000 BRACKET, ORF, REAR, FT / HT 3 2 1 3 2 1
36 010596-000 BRACKET, ORF, FR, FT / HT 3 2 1 3 2 1
37 010533-000 NUT LOCK 3/4-16, BRASS 6 4 2 6 4 2

Model

©2009 Viking Commercial Division 35

Hot Top 12"

H

3-

N

G

H

2-

N

G

V12

H

-NG

V36

H

3-

L

P

V24

H

2-

L

P

V12

H

-L

P

Part Number Part Description QTY QTY QTY QTY QTY QTY

38 PB040035 ORIFICE HOOD, #51 NG 6 4 2

011458-000 ORIFICE HOOD, #55 LP 6 4 2

39 009114-000 CAST PLATE, 12" HOT TOP 3 2 1 3 2 1

PD010006 Leveling Screw 12 8 4 12 8 4

016556-000

40

PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4 4 4

016555-000

41

PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4 4 4

42 010259-000 Manifold Cap Kit, LH 1 1 1 1 1 1

010260-000 Manifold Cap Kit, RH 1 1 1 1 1 1

43 012497-000 Regulator, 3/4" NG 1 1 1

014019-000 Regulator, 3/4" LP 1 1 1

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP

44 009088-000 4" Leg with mounting plate 4 4 4 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16 16 16

SIDE, PNL, LH, RANGE TOP 1 1 1 1 1 1

SIDE, PNL, RH, RANGE TOP 1 1 1 1 1 1

Model

©2009 Viking Commercial Division 36

Hot Top -18"

©2009 Viking Commercial Division 37

Hot Top 18"

H

2-

N

G

V18

H

-NG

V36

H

2-

L

P

V18

H

-L

P

Part Number Part Description QTY QTY QTY QTY

1 AV36PS Plate Shelf, Standard 36" 1 1

AV18PS Plate Shelf, Standard 18" 1 1

AV36PS6 Plate Shelf, 6" Deep, 36" 1 1

AV18PS6 Plate Shelf, 6" Deep, 18" 1 1

AV36PS8 Plate Shelf, 8" Deep, 36" 1 1

AV18PS8 Plate Shelf, 8" Deep, 18" 1 1

010539-000 Washer, Plate Shelf 2 2 2 2

010330-000 Nut, Plate Shelf 2 2 2 2
2 006024-000 RANGE TOP KNOB ASM, 90 DEG. 4 2 4 2

004705-000 Set Screw 16 8 16 8

004706-000 Screw, Knob 4 2 4 2
3 010917-000 PIEZO IGNITER, PUSH BUTTON 2 1 2 1

019121-000 Sleeve, Fiber Glass (Piezo Igniter) 2 1 2 1
4 014230-000 PAL TYPE NUT, 18MM X 1.5MM THRD. 2 1 2 1
5 015255-000 CONTROL PANEL V36H2 1 1

010960-000 CONTROL PANEL V18H 1 1

012171-000 Name Plate 1 1 1 1
6 PD020033 Screw, Front Panel 4 4 4 4
7 016120-000 Bracket, Front Panel Top LH 1 1 1 1

M0270528 Washer 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1
8 016113-000 Bracket, Front Panel Top RH 1 1 1 1

M0270528 Washer 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1
9 016114-000 Bracket, Front Panel Bottom 2 2 2 2

M0270528 Washer 2 2 2 2

010328-000 Screw, Brackt 2 2 2 2

10 006512-000 MANIFOLD, 36" 18"HT 1 1

010564-000 MANIFOLD, WA 18" W/1" LH REAR GAS ASM 1 1

11 006525-000 VALVE, GAS, COMM, ON-OFF 4 2 4 2
12 004839-000 SHUTOFF, PILOT 4 2 4 2
13 010158-000 1/8" NPT PLUG 1 1 1 1
14 005011-000 BRACKET, MANIFOLD 2 2 2 2

PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4

010539-000 WASHER, .266 x .563, S.S. 8 8 8 8

010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 8 8

15 010373-000 FITTING, VALVE OUTLET ADAPTOR 3/8-27x 3/8 CC 4 2 4 2
16 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 4 2 4 2

©2009 Viking Commercial Division 38

Model

Hot Top 18"

H

2-

N

G

V18

H

-NG

V36

H

2-

L

P

V18

H

-L

P

Part Number Part Description QTY QTY QTY QTY
17 010349-000 BULK HEAD ORIFICE HOLDER, 3/8CC X 3/8-27 4 2 4 2
18 010533-000 NUT LOCK 3/4-16, BRASS 4 2 4 2
19 010990-000 ORIFICE HOOD, #47 NG 4 2

011458-000 ORIFICE HOOD, #55 LP 4 2
20 010596-000 BRACKET, ORF, FR, FT / HT 2 1 2 1
21 010600-000 BRACKET, ORF, REAR, FT / HT 2 1 2 1
22 008488-000 TOP, ROUND BURNER 4 2 4 2
23 008573-000 BOTTOM, LONG, ROUND BURNER 2 1 2 1
24 008559-000 BOTTOM, SHORT, ROUND BURNER 2 1 2 1
25 011696-000 Air Shutter 4 2 4 2

011697-000 Screw, Air Shutter 4 2 4 2
26 006745-000 Hanger, Burner 2 1 2 1
27 010328-000 Screw, 10-24 x 1/2" 8 4 8 4
28 010921-000 PILOT ASM, BRAZED, FLEX, 17" 2 1 2 1
29 010922-000 PILOT ASM REAR, BRAZED, FLEX, 28" 2 1 2 1
30 010589-000 BRACKET, PILOT, FT / HT 4 2 4 2
31 010328-000 Screw, 10-24 x 1/2" 8 4 8 4
32 014520-000 ELECTRODE W/TERMINAL .110"x.020"(F),17" 2 1 2 1
33 016749-000 Fiber Glass Sleeve, 17" 2 1 2 1
34 014557-000 ELECTRODE W/RING TERMINAL .092"x(F), 26" 2 1 2 1
35 016750-000 Fiber Glass Sleeve, 26" 2 1 2 1
36 005951-000 Burner Box 2 1 2 1
37 PD020069 1/4 20 Hex Bolt 8 4 8 4
38 005496-000 CAST PLATE, 18" HOT TOP 2 1 2 1

PD010006 Leveling Screw 8 4 8 4
39 016555-000 SIDE, PNL, RH, RANGE TOP 1 1 1 1

016556-000 SIDE, PNL, LH, RANGE TOP 1 1 1 1

PD020069 CAP SCREW 1/4-20 X 3/4 SS 8 8 8 8
40 010259-000 Manifold Cap Kit, LH 1 1 1 1

010260-000 Manifold Cap Kit, RH 1 1 1 1
41 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP
42 009088-000 4" Leg with mounting plate 4 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16

©2009 Viking Commercial Division 39

Model

Open Burner - 12"

©2009 Viking Commercial Division 40

Open Top

B

6

-

N

G

B

4

-

N

G

B

2

-

N

G

V36

B

6

-

LP

V24

B

4

-

LP

V12

B

2

-

LP

Burners

Part Number Part Description QTY QTY QTY QTY QTY QTY

1 AV36PS Plate Shelf, Standard 36" 1 1

AV24PS Plate Shelf, Standard 24" 1 1

AV12PS Plate Shelf, Standard 12" 1 1

AV36PS6 Plate Shelf, 6" Deep, 36" 1 1

AV24PS6 Plate Shelf, 6" Deep, 24" 1 1

AV12PS6 Plate Shelf, 6" Deep, 12" 1 1

AV36PS8 Plate Shelf, 8" Deep, 36" 1 1

AV24PS8 Plate Shelf, 8" Deep, 24" 1 1

AV12PS8 Plate Shelf, 8" Deep, 12" 1 1

010539-000 Washer, Plate Shelf 2 2 2 2 2 2

010330-000 Nut, Plate Shelf 2 2 2 2 2 2

2 006024-000 RANGE TOP KNOB ASM, 90 DEG. 6 4 2 6 4 2

004705-000 10-24 x 1.25 SET SCREW 6 4 2 6 4 2

004706-000 MACHINE SCREW, 6-32 x 3/8, PAN HD, PHILLIPS 24 4 2 24 4 2

3 004903-000 PANEL, CTRL, 36", 6 BURNER 1 1

009556-000 PANEL, CTRL, 24", 4 BURNER 1 1

009409-000 PANEL, CTRL, 12", 2 BURNER 1 1

012171-000 Name Plate 1 1 1 1 1 1

4 PD020033 Screw, Front Panel 4 4 4 4 4 4
5 016120-000 Bracket, Front Panel Top LH 1 1 1 1 1 1

M0270528 Washer 1 1 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1 1 1

6 016113-000 Bracket, Front Panel Top RH 1 1 1 1 1 1

M0270528 Washer 1 1 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1 1 1

7 016114-000 Bracket, Front Panel Bottom 2 2 2 2 2 2

M0270528 Washer 2 2 2 2 2 2

010328-000 Screw, Brackt 2 2 2 2 2 2

8 004964-000 Manifold, 36" Range top 6 Burner 1 1

010542-000 Manifold, 24" Range top 1 1

008802-000 Manifold, 12" Range top 1 1

9 005011-000 BRACKET, MANIFOLD 2 2 2 2 2 2

PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4 4 4

010539-000 WASHER, .266 x .563, S.S. 8 8 8 8 8 8

010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 8 8 8 8
10 006525-000 VALVE, GAS, COMM, ON-OFF 6 4 2 6 4 2
11 004839-000 SHUTOFF, PILOT 6 4 2 6 4 2

Model

©2009 Viking Commercial Division 41

Open Top

B

6

-

N

G

B

4

-

N

G

B

2

-

N

G

V36

B

6

-

LP

V24

B

4

-

LP

V12

B

2

-

LP

Burners

Part Number Part Description QTY QTY QTY QTY QTY QTY
12 010158-000 1/8" NPT PLUG 1 1 1 1 1 1
13 010373-000 FITTING, VALVE OUTLET ADAPTOR 3/8-27x 3/8 CC 6 4 2 6 4 2
14 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 6 4 2 6 4 2
15 009401-000 TUBING, FLEX, SST, 3/16cc X 16" 3 2 1 3 2 1
16 009403-000 TUBING, FLEX, SST, 3/16cc X 28" 3 2 1 3 2 1
17 004933-000 BURNER JET HOLDER 6 4 2 6 4 2

009833-000 BURNER ORIFICE, NG #41 6 4 2

010346-000 BURNER ORIFICE, LP #54 6 4 2
18 004931-000 JET HOLDER CLAW 6 4 2 6 4 2
19 009834-000 BOLT, JET HOLDER 6 4 2 6 4 2
20 008197-000 TUBING, BURNER, REAR 3 2 1 3 2 1
21 004935-000 TUBING, BURNER, FRONT 3 2 1 3 2 1
22 004727-000 BURNER CAP E SIZE 6 4 2 6 4 2

019255-000 Burner Cap "Top Holes" optional
23 004726-000 BURNER BASE E SIZE 6 4 2 6 4 2
24 004930-000 BURNER FLANGE 6 4 2 6 4 2
25 016186-000 Washer, Rear Burner Only 3 2 1 3 2 1
26 004909-000 BURNER IGNITER 6 4 2 6 4 2
27 008975-000 NUT, PILOT, RANGE TOP 6 4 2 6 4 2
28 008824-000 FITTING, PLT, RANGE TOP 6 4 2 6 4 2
29 009825-000 Pan, Burner - 36" 1 1

010528-000 Pan Burner - 24" 1 1

004928-000 Pan Burner - 12" 1 1
30 010844-000 BOWL, BNR, 36", 6 BURNER ASM 1 1

010853-000 BOWL, BNR, 24", 4 BURNER ASM 1 1

010855-000 BOWL, BNR, 12", 2 BURNER ASM 1 1
31 017144-000 Trim, 36" 1 1

017145-000 Trim, 24" 1 1

017148-000 Trim, 12" 1 1
32 016555-000 SIDE, PNL, RH, RANGE TOP 1 1 1 1 1 1

016556-000 SIDE, PNL, LH, RANGE TOP 1 1 1 1 1 1
33 PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4 4 4
34 010259-000 Manifold Cap Kit, LH 1 1 1 1 1 1

010260-000 Manifold Cap Kit, RH 1 1 1 1 1 1
35 004708-000 Rod Grate, 12" Standard 3 2 1 3 2 1

014606-000 Straight Rod Grate, 12" Optional

Model

©2009 Viking Commercial Division 42

Open Top

B

6

-

N

G

B

4

-

N

G

B

2

-

N

G

V36

B

6

-

LP

V24

B

4

-

LP

V12

B

2

-

LP

Burners

Part Number Part Description QTY QTY QTY QTY QTY QTY

36 007653-000 Grate Leg Base 12 8 4 12 8 4

007655-000 Grate Leg Top 12 8 4 12 8 4

012566-000 Set Screw, Grate Leg Top 12 8 4 12 8 4
37 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP
38 009088-000 4" Leg with mounting plate 4 4 4 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16 16 16

Model

©2009 Viking Commercial Division 43

Open Burner - 18"

©2009 Viking Commercial Division 44

Open Top

B

4

-

N

G

B

2

-

N

G

V36

B

4

-

LP

V18

B

2

-

LP

Burners

Model

Part Number Part Description QTY QTY QTY QTY

1 AV36PS Plate Shelf, Standard 36" 1 1

AV18PS Plate Shelf, Standard 18" 1 1

AV36PS6 Plate Shelf, 6" Deep, 36" 1 1

AV18PS6 Plate Shelf, 6" Deep, 18" 1 1

AV36PS8 Plate Shelf, 8" Deep, 36" 1 1

AV18PS8 Plate Shelf, 8" Deep, 18" 1 1

010539-000 Washer, Plate Shelf 2 2 2 2

010330-000 Nut, Plate Shelf 2 2 2 2

2 006024-000 RANGE TOP KNOB ASM, 90 DEG. 4 2 4 2

004705-000 10-24 x 1.25 SET SCREW 4 2 4 2

004706-000 MACHINE SCREW, 6-32 x 3/8, PAN HD, PHILLIPS 4 2 4 2

3 005146-000 PANEL, CTRL, 36", 4 BURNER 1 1

009420-000 PANEL, CTRL, 18", 2 BURNER 1 1

012171-000 Name Plate 1 1 1 1

4 PD020033 Screw, Front Panel 4 4 4 4
5 016120-000 Bracket, Front Panel Top LH 1 1 1 1

M0270528 Washer 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1

6 016113-000 Bracket, Front Panel Top RH 1 1 1 1

M0270528 Washer 1 1 1 1

010328-000 Screw, Brackt 1 1 1 1

7 016114-000 Bracket, Front Panel Bottom 2 2 2 2

M0270528 Washer 2 2 2 2

010328-000 Screw, Brackt 2 2 2 2

8 009443-000 Manifold, 36" Range top 4 Burner 1 1

010564-000 Manifold, 18" Range top 1 1

9 005011-000 BRACKET, MANIFOLD 2 2 2 2

PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4

010539-000 WASHER, .266 x .563, S.S. 8 8 8 8

010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 8 8
10 006525-000 VALVE, GAS, COMM, ON-OFF 4 2 4 2
11 004839-000 SHUTOFF, PILOT 4 2 4 2
12 010158-000 1/8" NPT PLUG 1 1 1 1
13 010373-000 FITTING, VALVE OUTLET ADAPTOR 3/8-27x 3/8 CC 4 2 4 2
14 009392-000 TUBING, FLEX, SST, 3/8cc X 8" 4 2 4 2

©2009 Viking Commercial Division 45

Open Top

B

4

-

N

G

B

2

-

N

G

V36

B

4

-

LP

V18

B

2

-

LP

Burners

Model

Part Number Part Description QTY QTY QTY QTY
15 009401-000 TUBING, FLEX, SST, 3/16cc X 16" 2 1 2 1
16 009403-000 TUBING, FLEX, SST, 3/16cc X 28" 2 1 2 1
17 004933-000 BURNER JET HOLDER 4 2 4 2

009833-000 BURNER ORIFICE, NG #41 4 2

010346-000 BURNER ORIFICE, LP #54 4 2
18 004931-000 JET HOLDER CLAW 4 2 4 2
19 009834-000 BOLT, JET HOLDER 4 2 4 2
20 008197-000 TUBING, BURNER, REAR 2 1 2 1
21 004935-000 TUBING, BURNER, FRONT 2 1 2 1
22 004727-000 BURNER CAP E SIZE 4 2 4 2

019255-000 Burner Cap "Top Holes" optional
23 004726-000 BURNER BASE E SIZE 4 2 4 2
24 004930-000 BURNER FLANGE 4 2 4 2
25 016186-000 Washer, Rear Burner Only 2 1 2 1
26 004909-000 BURNER IGNITER 4 2 4 2
27 008975-000 NUT, PILOT, RANGE TOP 4 2 4 2
28 008824-000 FITTING, PLT, RANGE TOP 4 2 4 2
29 009825-000 Pan, Burner - 36" 1 1

010558-000 Pan Burner - 18" 1
30 010852-000 BOWL, BNR, 36", 4 BURNER ASM 1 1

010854-000 BOWL, BNR, 18", 2 BURNER ASM 1 1
31 017144-000 Trim, 36" 1 1

017147-000 Trim, 18" 1 1
32 016555-000 SIDE, PNL, RH, RANGE TOP 1 1 1 1

016556-000 SIDE, PNL, LH, RANGE TOP 1 1 1 1
33 PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4
34 010259-000 Manifold Cap Kit, LH 1 1 1 1

010260-000 Manifold Cap Kit, RH 1 1 1 1
35 004841-000 Rod Grate, 18" Standard 2 1 2 1

016369-000 Straight Rod gate, 18" Optional
36 007653-000 Grate Leg Base 8 4 8 4

007655-000 Grate Leg Top 8 4 8 4

012566-000 Set Screw, Grate Leg Top 8 4 8 4

©2009 Viking Commercial Division 46

Open Top

B

4

-

N

G

B

2

-

N

G

V36

B

4

-

LP

V18

B

2

-

LP

Burners

Model

Part Number Part Description QTY QTY QTY QTY

37 012497-000 Regulator, 3/4" NG

014019-000 Regulator, 3/4" LP

012490-000 Regulator, 1" NG

014018-000 Regulator, 1" LP

012500-000 Regulator, 1 1/4" NG

014020-000 Regulator, 1 1/4" LP
38 009088-000 4" Leg with mounting plate 4 4 4 4

PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16

©2009 Viking Commercial Division 47

Oven, Convection

©2009 Viking Commercial Division 48

©2009 Viking Commercial Division 49

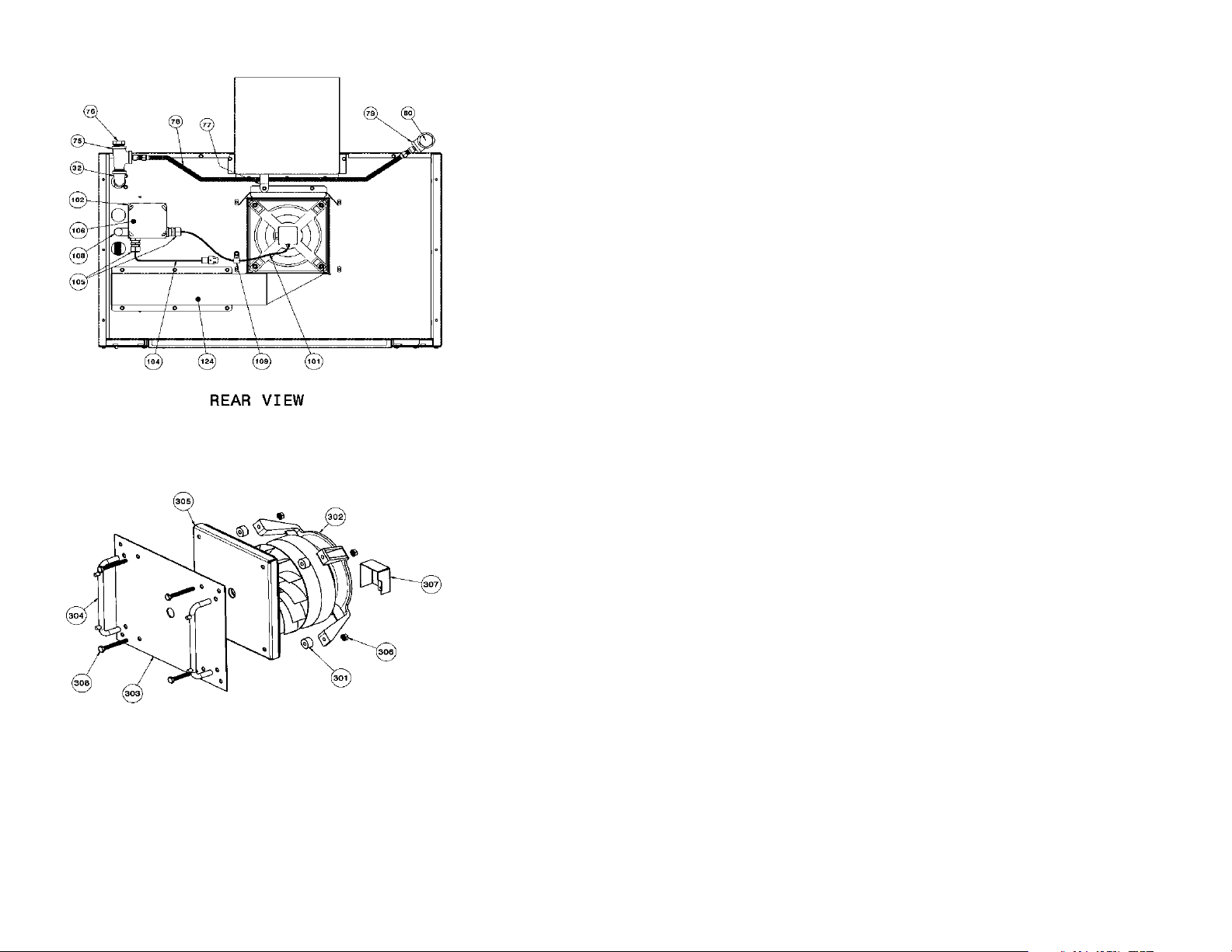

©2009 Viking Commercial Division 50

V36

C

O-

N

G

C

OP-

N

G

P

V36

C

OP-

L

P

V36

L

O-

C

Oven,

Convection

Model

Part Number Part Description QTY QTY QTY QTY
5 009154-000 Bracket, Door Hinge, LH 1 1 1 1
6 009175-000 Bracket, Door Hinge, RH 1 1 1 1
9 031516-000 Burner, Oven 1 1 1 1

10 010533-000 Nut, Brass 1 1 1 1
11 010349-000 Orifice Holder 1 1 1 1
12 031513-000 Oven Pilot, with ign. NG 1 1

031541-000 Oven Pilot, with ign. LP 1 1
13 PD020068 Screw, Pilot 1 1 1 1
14 012662-000 Thermocouple 1 1 1 1
21 017764-000 Dampening Sleeving 2 2 2 2
22 PD020033 Screw, 10-24 Special 16 16 16 16
23 015660-000 Washer, Flat SS 3 3 3 3
24 PD030044 Hex Lock Nut, 10-24 SS 9 9 9 9
26 012992-000 Oven Tank, Convection SS 1 1 1 1

016417-000 Oven Tank, Convection Porcelain 1 1 1 1
27 016617-000 Gas Pipe, Rear 1 1 1 1
28 006096-000 Plate, Oven Heat Sink 2 2 2 2
29 031466-000 Screw, 1/4-20 SS 10 10 10 10
30 017270-000 Elbow, 1/2 x 3/8 NPT 1 1 1 1
31 015190-000 Fitting, Tube 3/8 Compression 1 1 1 1
32 016662-000 Elbow, 3/4 x 1/2 NPT 1 1 1 1
33 012679-000 Bracket, Thermostat Probe 1 1 1 1
34 005532-000 Front Frame Panel 1 1 1 1
35 PD020048 Screw, #10 SS 44 44 44 44
36 016934-000 Convection switch control box assy 1 1 1 1
37 024802-000 Manifold Component Weld Assy 1 1 1 1
38 024830-000 Bracket, Safety Valve 1 1 1 1
39 011663-000 Manifold Assembly 1 1 1 1
40 006485-000 Flue Box 1 1 1 1
41 006786-000 Tray, Oven 1 1 1 1
42 007888-000 Rack Support, Oven 2 2 2 2
43 007503-000 Rack, Oven 2 2 2 2
44 005817-000 Thermostat Knob 1 1 1 1
45 011115-000 Knob, ON/OFF 1 1 1 1
46 010917-000 Piezo Igniter 1 1 1 1
47 011110-000 Burner Orifice Bracket 1 1 1 1
48 015737-000 Ign. Ground Wire 1 1 1 1

©2009 Viking Commercial Division 51

V36

C

O-

N

G

C

OP-

N

G

P

V36

C

OP-

L

P

V36

L

O-

C

Oven,

Convection

Model

Part Number Part Description QTY QTY QTY QTY
51 010477-000 Tubing, Flex SS 1/4 x 20" 2 2 2 2
52 010476-000 Tubing, Flex SS 3/8 x 18" 2 2 2 2
54 006936-000 Female Plate, Hinge 2 2 2 2
55 006939-000 Male Plate, Hinge 2 2 2 2
56 010482-000 Kick plate, 36" 1 1 1 1
57 010811-000 1/4-20 x 5/8 SS Screw 4 4 4 4
58 009183-000 Pin, Door Hinge 2 2 2 2
59 009559-000 Washer, Door Brass 1 1 1 1
60 008821-000 Bearing, Hinge 2 2 2 2
61 005404-000 Arm Counterweight, LH 1 1 1 1
62 005403-000 Arm Counterweight, RH 1 1 1 1
63 017556-000 Inner Door Panel 1 1 1 1
64 016244-000 Stiffener, Inner Door Panel 1 1 1 1
65 010330-000 Nut, Lock 1/4-20 SS 7 7 7 7
66 009572-000 Insulation, Door 1 1 1 1
67 005888-000 Outer Door Panel 1 1 1 1
68 005301-000 Name Plate, 6" 1 1 1 1
69 005524-000 End cap, Door Handle LH 1 1 1 1
70 005885-000 End cap, Door Handle RH 1 1 1 1
71 005510-000 Handle, Oven Door 1 1 1 1
72 035547-000 Screw, Oven Door Handle 4 4 4 4
73 016029-000 Orifice #42 NG 1 1

PB040063 Orifice #52 LP 1 1
74 016496-000 Literature 1 1 1 1
75 016752-000 Tee 3/4 x 3/4 x 3/4 1 1 1 1
76 016771-000 Plug 1 1 1 1
77 017271-000 Clamp 1 1 1 1
78 016762-000 Flex Gas Line, 5/8" x 36" 1 1 1 1
79 014995-000 Tee, 1 x 3/4 x 1 1 1 1 1
80 016611-000 Plug, 1" 1 1 1 1
81 PB020198 20" Flex Tubing 1 1 1 1
82 PD020056 Screw, 10-24 x .50 SS 6 6 6 6
83 PD020055 Screw, 10-16 x 1/2 SS 4 4 4 4
84 003083-000 Screw, 8-18 x 1/2 2 2 2 2
85 PD030006 Pal nut 2 2 2 2
86 035644-000 Nut, Lock SS 10 10 10 10
87 034563-000 Nut, Jam SS 2 2 2 2

©2009 Viking Commercial Division 52

V36

C

O-

N

G

C

OP-

N

G

P

V36

C

OP-

L

P

V36

L

O-

C

Oven,

Convection

Model

Part Number Part Description QTY QTY QTY QTY

88 035841-000 STANDOFF, OVEN DOOR ENDCAP 2 2 2 2

100 006229-000 Convection Motor Mount Assembly 1 1 1 1
101 016125-000 Motor Wiring Assy 1 1 1 1
102 012973-000 Box, Electrical, Conv. Oven 1 1 1 1
103 012971-000 Wire Assembly, 36'' Conv. Oven 1 1 1 1
104 012859-000 Cord, Power, 9 FT 1 1 1 1
105 015810-000 Grip, Cord, Plastic 2 2 2 2
106 012974-000 Cover, Electrical Box 1 1 1 1
107 015192-000 BLOCK, TERMINAL, 4-POS. 1 1 1 1
108 015203-000 Connector, 1" angle Compression 1 1 1 1
109 015208-000 Clip, Wiring 3/8" 3 3 3 3
110 037816-000 BAFFLE, WELD-ASSY, CONV. OVEN 1 1 1 1
111 031768-000 WING NUT, 1/4-20, 18-8 SS 4 4 4 4
112 019981-000 DEFLECTOR, FAN 1 1 1 1
113 011692-000 Cover, Upper Motor 1 1 1 1
114 011074-000 Guard, Conv. Motor Fan 1 1 1 1
115 011292-000 Bolt, Hex Head, 1/4-20 x 1.5, Stainless Steel 4 4 4 4
116 019997-000 Bracket, Capacitor 1 1 1 1
117 014607-000 Capacitor, Motor 30MFD 1 1 1 1
118 011690-000 Capacitor, Motor 12MFD 1 1 1 1
119 015901-000 Knob Assembly, 50 percent 1 1 1 1
120 PJ030036 3 POSITION SELECTOR SWITCH 1 1 1 1
121 038314-000 COVER, Selector Switch, V36CO 1 1 1 1
122 PD020269 SCREW, #8-32 X 1/4, PH PAN, ZN PL 2 2 2 2
123 038243-000 Inner Duct, Weld Assy., Conv. Oven 1 1 1 1
124 038244-000 Outer Duct, Weld Assy., Conv. Oven 1 1 1 1
201 009425-000 VALVE, THERMOSTAT 1 1 1 1
202 015159-000 NIPPLE, 3/8" HEX 1 1 1 1
203 015154-000 COUPLING, 3/8" NPT, HALF 1 1 1 1
204 006433-000 SHUTOFF VALVE 1 1 1 1
205 015153-000 ELBOW, 3/8" NPT, 90 DEGREE STREET 1 1 1 1
206 015155-000 TEE, 3/8" X 1/4" X 3/8" NPT, RED. 1 1 1 1
207 015158-000 BUSHING, 1/4" X 1/8" NPT, HEX 1 1 1 1

©2009 Viking Commercial Division 53

V36

C

O-

N

G

C

OP-

N

G

P

V36

C

OP-

L

P

V36

L

O-

C

Oven,

Convection

Part Number Part Description QTY QTY QTY QTY
208 010315-000 PILOT ADJUSTER 1 1 1 1
209 011360-000 FITTING, 3/8" NPT X 3/8 CC 2 2 2 2
210 015190-000 FITTING, TUBE 3/8" COMPRESSION 2 2 2 2
211 009422-000 VALVE, SAFETY 1 1 1 1
301 006230-000 SPACER, CONV. MOTOR 4 4 4 4
302 006211-000 MOTOR, OVEN, CONVECTION 1 1 1 1
303 006233-000 PLATE, CONV. OVEN MOTOR 1 1 1 1
304 006238-000 HANDLE, CONV. OVEN MOTOR 2 2 2 2
305 011145-000 MOTOR COVER, INSULATION ASSY. 1 1 1 1
306 010330-000 1/4-20 KEEPS NUT, SS 4 4 4 4
307 014859-000 COVER, REAR MOTOR TERMINAL 1 1 1 1
308 025955-000 SCREW, CAP, HEX HEAD, 1/4-20 X 2-1/4", SS 4 4 4 4

Model

Not Shown

004642-000 6 Inch Leg 4 4 4 4
004919-000 Leg Mounting Plate 4 4 4 4
PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16
012464-000 CASTER, ADJ, 4" W/LOCK
012475-000 CASTER, ADJ, 4" W/O LOCK
014816-000 CASTER, STD, 4" W/O Lock
014817-000 CASTER, STD, 4" W/Lock
012497-000 Regulator, 3/4" NG
014019-000 Regulator, 3/4" LP
012490-000 Regulator, 1" NG
014018-000 Regulator, 1" LP
012500-000 Regulator, 1 1/4" NG
014020-000 Regulator, 1 1/4" LP

2 2 2 2
2 2 2 2
2 2 2 2
2 2 2 2

©2009 Viking Commercial Division 54

Oven, Standard

©2009 Viking Commercial Division 55

©2009 Viking Commercial Division 56

V36

S

O

-

N

G

S

O

P

-

N

G

V36

V36

S

O

P

-

L

P

LP

-

O

S

Oven,
Standard

Model

Part Number Part Description QTY QTY QTY QTY

5 009154-000 Bracket, Door Hinge, LH 1 1 1 1
6 009175-000 Bracket, Door Hinge, RH 1 1 1 1

9 031516-000 BURNER, TUBE, WITH PILOT BRACKET, WA 1 1 1 1
10 010533-000 NUT, LOCK, 3/4-16, BRASS 1 1 1 1
11 010349-000 BULKHEAD ORIFICE HOLDER, 3/8CC X 3/8-27 1 1 1 1
12 031513-000 PILOT WITH IGNITOR - NG, B11H3-1 1 1

031541-000

PILOT WITH IGNITOR - LP, B11H3-2 1 1
13 PD020068 SCREW, 10-32 X 1/2 SS, PHIL, TRUSS 1
14 012662-000 Thermocouple, Oven Burner 1 1 1 1
21 017764-000 Sleeving, Counterweight 2 2 2 2
22 PD020033 10-24 X 1/2 NICKEL PHIL WAFER HD #2 DRIVE 15 15 15 15
23 015660-000 Washer, Flat, 1/4 ID X 1.00 OD, S.S. 3 3 3 3
24 010280-000 Nut, 10-24, With Tooth Washer 2 2 2 2
26 010545-000 Standard Oven Tank Assy 1 1

016418-000 Standard Oven Tank Assy, Porcelain 1 1
27 016617-000 Pipe, Oven Gas Rear 1 1 1 1
28 006096-000 Plate, Oven Heating 2 2 2 2
29 031466-000 CAP SCREW, 1/4-20 X 1.25, THREADED, SS 10 10 10 10
30 017270-000 Elbow, Red. 1/2 X 3/8 NPT 1 1 1 1
31 015190-000 Fitting, Tube 3/8" Compression 1 1 1 1
32 016662-000 Elbow, Red. 3/4 X 1/2 NPT 1 1 1 1
33 012679-000 Bracket, Thermostat Probe 1 1 1 1
34 005532-000 Panel, Front Frame 1 1 1 1
35 PD020048 SCREW, #10 x 1/2 HXWSH, TEK, 410 SS 27 27 27 27
36 010548-000 Standard Control Box Assembly 1 1 1 1
37 024802-000 Manifold Component Weld Assy 1 1 1 1
38 024830-000 Bracket, Safety Gas Valve 1 1 1 1
39 011663-000 Manifold Standard Oven Control Assembly 1 1 1 1
40 006485-000 Flue Box Assy 1 1 1 1
41 006786-000 Tray, Oven 1 1 1 1
42 007888-000 Rack Support, Oven 2 2 2 2
43 007503-000 Rack, Oven Wire 2 2 2 2
44 005817-000 Thermostat Knob Assembly 1 1 1 1
45 011115-000 Knob, Assy, ON-OFF, 75 Percent 1 1 1 1
46 010917-000 Piezo Igniter, Push Button 1 1 1 1
47 011110-000 Bracket, Burner Orifice 1 1 1 1
48 015737-000 Piezo Grounding Wire Assy 1 1 1 1

©2009 Viking Commercial Division 57

V36

S

O

-

N

G

S

O

P

-

N

G

V36

V36

S

O

P

-

L

P

1/4"-20 x 5/8", 18-8 SST HEX SOCKET BUTTON HD SCR

LP

-

O

S

Oven,

Standard

Model

Part Number Part Description QTY QTY QTY QTY
49 006336-000 Panel, Top Oven Cabinet 1 1 1 1
50 006335-000 Panel, Side Cabinet, LH 1 1 1 1
51 015221-000 TUBING, FLEX, SST, 1/4CC Male & Female x 20" 2 2 2 2
52 010476-000 TUBING, FLEX, SST, 3/8CC x 18 Inch 2 2 2 2
53 016020-000 Panel, R/H Cabinet Assy 1 1 1 1
54 006936-000 Female Plate, Kick Hinge 2 2 2 2
55 006939-000 Male Kick Hinge Assy 2 2 2 2
56 010482-000 Kickplate 36 Inch Weld Assy 1 1 1 1
57 010811-000

4 4 4 4
58 009183-000 Pin, Oven Door Hinge 2 2 2 2
59 009559-000 Washer, Door Pin 1 1 1 1
60 008821-000 Bearing, Counterweight Sleeve 2 2 2 2
61 005404-000 Arm Counterweight Assy, L.H. 1 1 1 1
62 005403-000 Arm Counterweight Assy, R.H. 1 1 1 1
63 017556-000 Liner, Oven, Stud Assembly 1 1 1 1
64 016244-000 Door Liner Stiffener 1 1 1 1
65 010330-000 NUT, KEPS, 1/4-20, SS 7 7 7 7
66 009572-000 Insulation, Oven Door 1 1 1 1
67 005888-000 Panel, Oven Front Door 1 1 1 1
68 005301-000 Viking Nameplate, 6 Inch 1 1 1 1
69 005524-000 Endcap, Oven Door Handle, LH 1 1 1 1
70 005885-000 Endcap, Oven Door Handle, RH 1 1 1 1
71 005510-000 Handle, Oven Door 1 1 1 1
72 035547-000 SCREW, MACH., #10-24 X 2-1/2, PH TRU HD, S.S. 4 4 4 4
73 015695-000 ORIFICE HOOD #38 NG 1 1

PB040063 ORIFICE HOOD #52 LP 1 1
74 016495-000 LITERATURE, Standard Oven ASSY 1 1 1 1
75 016752-000 Tee, 3/4" MNPT X 3/4" FNPT X 3/4" FNPT 1 1 1 1
76 016771-000 Plug, 3/4" Hex Head 1 1 1 1
77 017271-000 Clamp, One Hole Metal 1 1 1 1
78 016762-000 5/8" X 36" FLEX, SST, 3/4"X3/4" CONNECTORS 1 1 1 1
79 014995-000 Tee, 1" x 3/4" x 1" NPT 1 1 1 1
80 016611-000 Plug, 1" Hex Head 1 1 1 1
81 PB020198 20" FLEX TUBING 1 1 1 1
82 PD020056 MACH. SCREW, #10-24 X .50, PH TR HD, SS 4 4 4 4
83 PD020055 SCREW, #10-16 x 1/2, PH, PNH, SLF-DLNG, SS 4 4 4 4
84 003083-000 SCREW, #8-18 X 1/2, PH, FLAT TOP TRUSS HD AB 2 2 2 2

©2009 Viking Commercial Division 58

V36

S

O

-

N

G

S

O

P

-

N

G

V36

V36

S

O

P

-

L

P

PALNUT, CAPPED, WASHER, STUD DIAM. .125, ZN PL

LP

-

O

S

Oven,

Standard

Part Number Part Description QTY QTY QTY QTY
85 PD030006
86 035644-000 NUT, LOCK, FLEXIBLE, 1/4-20NC, S.S. 10 10 10 10
87 034563-000 NUT, JAM, 7/16-14NC, SS 2 2 2 2
88 035841-000 STANDOFF, OVEN DOOR ENDCAP 2 2 2 2

201 009425-000 VALVE, THERMOSTAT 1 1 1 1
202 015159-000 NIPPLE, 3/8" HEX 1 1 1 1
203 015154-000 COUPLING, 3/8" NPT, HALF 1 1 1 1
204 006433-000 SHUTOFF VALVE 1 1 1 1
205 015153-000 ELBOW, 3/8" NPT, 90 DEGREE STREET 1 1 1 1
206 015155-000 TEE, 3/8" X 1/4" X 3/8" NPT, RED. 1 1 1 1
207 015158-000 BUSHING, 1/4" X 1/8" NPT, HEX 1 1 1 1
208 010315-000 PILOT ADJUSTER 1 1 1 1
209 011360-000 FITTING, 3/8" NPT X 3/8 CC 2 2 2 2
210 015190-000 FITTING, TUBE 3/8" COMPRESSION 2 2 2 2
211 009422-000 VALVE, SAFETY 1 1 1 1

Model

2 2 2 2

Not Shown

004642-000 6 Inch Leg 4 4 4 4
004919-000 Leg Mounting Plate 4 4 4 4
PD020069 CAP SCREW 1/4-20 X 3/4 SS 16 16 16 16
012464-000 CASTER, ADJ, 4" W/LOCK
012475-000 CASTER, ADJ, 4" W/O LOCK
014816-000 CASTER, STD, 4" W/O Lock
014817-000 CASTER, STD, 4" W/Lock
012497-000 Regulator, 3/4" NG
014019-000 Regulator, 3/4" LP
012490-000 Regulator, 1" NG
014018-000 Regulator, 1" LP
012500-000 Regulator, 1 1/4" NG
014020-000 Regulator, 1 1/4" LP

2 2 2 2
2 2 2 2
2 2 2 2
2 2 2 2

©2009 Viking Commercial Division 59

Plancha

©2009 Viking Commercial Division 60

Plancha

V36

P

-

V30

P

-

V24

P

-

V18

P

-

Model

Part Number Part Description QTY QTY QTY QTY

1 AV36PS Plate Shelf, Standard 36" 1

AV30PS Plate Shelf, Standard 30" 1
AV24PS Plate Shelf, Standard 24" 1
AV18PS Plate Shelf, Standard 18" 1
AV36PS6 Plate Shelf, 6" Deep, 36" 1
AV30PS6 Plate Shelf, 6" Deep, 30" 1
AV24PS6 Plate Shelf, 6" Deep, 24" 1
AV18PS6 Plate Shelf, 6" Deep, 18" 1
AV36PS8 Plate Shelf, 8" Deep, 36" 1
AV30PS8 Plate Shelf, 8" Deep, 30" 1
AV24PS8 Plate Shelf, 8" Deep, 24" 1
AV18PS8 Plate Shelf, 8" Deep, 18" 1
010539-000 Washer, Plate Shelf 2 2 2 2
010330-000 Nut, Plate Shelf 2 2 2 2

2 006024-000 RANGE TOP KNOB ASM, 90 DEG. 6 4 2 6

004705-000 Set Screw 24 16 8 24
3 010917-000 PIEZO IGNITER, PUSH BUTTON 3 2 1 1
4 019121-000 Sleeve, Fiber Glass (Piezo Igniter) 3 2 1 1
5 014230-000 PAL TYPE NUT, 18MM X 1.5MM THRD. 3 2 1 1
6 010843-000 Control Panel, 36" Plancha

Control Panel, 30" Plancha
Control Panel, 24" Plancha

Control Panel, 18" Plancha
7 PD020033 Screw, Front Panel 4 4 4 4
8 016114-000 Bracket, Front Panel Bottom 2 2 2 2

M0270528 Washer 2 2 2 2
010328-000 Screw, Brackt 2 2 2 2

9 016120-000 Bracket, Front Panel Top LH 1 1 1 1

016113-000 Bracket, Front Panel Top RH 1 1 1 1
M0270528 Washer 2 2 2 2
010328-000 Screw, Brackt 2 2 2 2

10 011013-000 Manifold, 36" 1

Manifold, 30" 1

Manifold, 24" 1

Manifold, 18" 1

11 006525-000 VALVE, GAS, COMM, ON-OFF 4 4 2 2
12 004839-000 SHUTOFF, PILOT 4 4 2 2
13 010158-000 1/8" NPT PLUG 1 1 1 1

©2009 Viking Commercial Division 61

Plancha

V36

P

-

V30

P

-

V24

P

-

V18

P

-

Model

Part Number Part Description QTY QTY QTY QTY

14 005011-000 BRACKET, MANIFOLD 2 2 2 2

PD020069 CAP SCREW 1/4-20 X 3/4 SS 4 4 4 4
15 010330-000 1/4"-20 (L:3/16", W:7/16") LOCK NUT 8 8 8 8
16 010539-000 WASHER, .266 x .563, S.S. 8 8 8 8

©2009 Viking Commercial Division 62
