MODEL VG08005
CONTENT
PACKING LIST / TOOLS NEEDED
PANEL DIMENSIONS
FITTINGS / TECHNICAL DATA

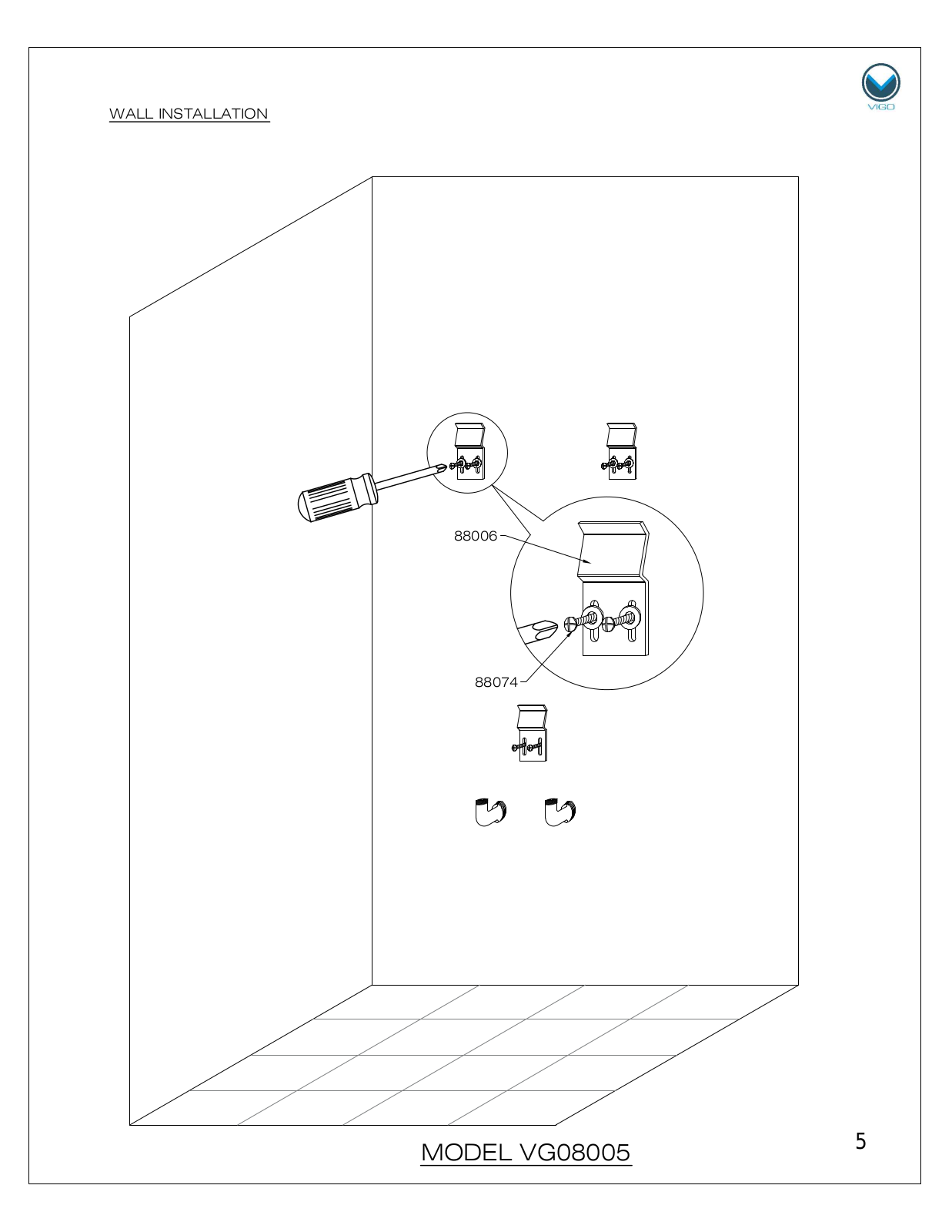

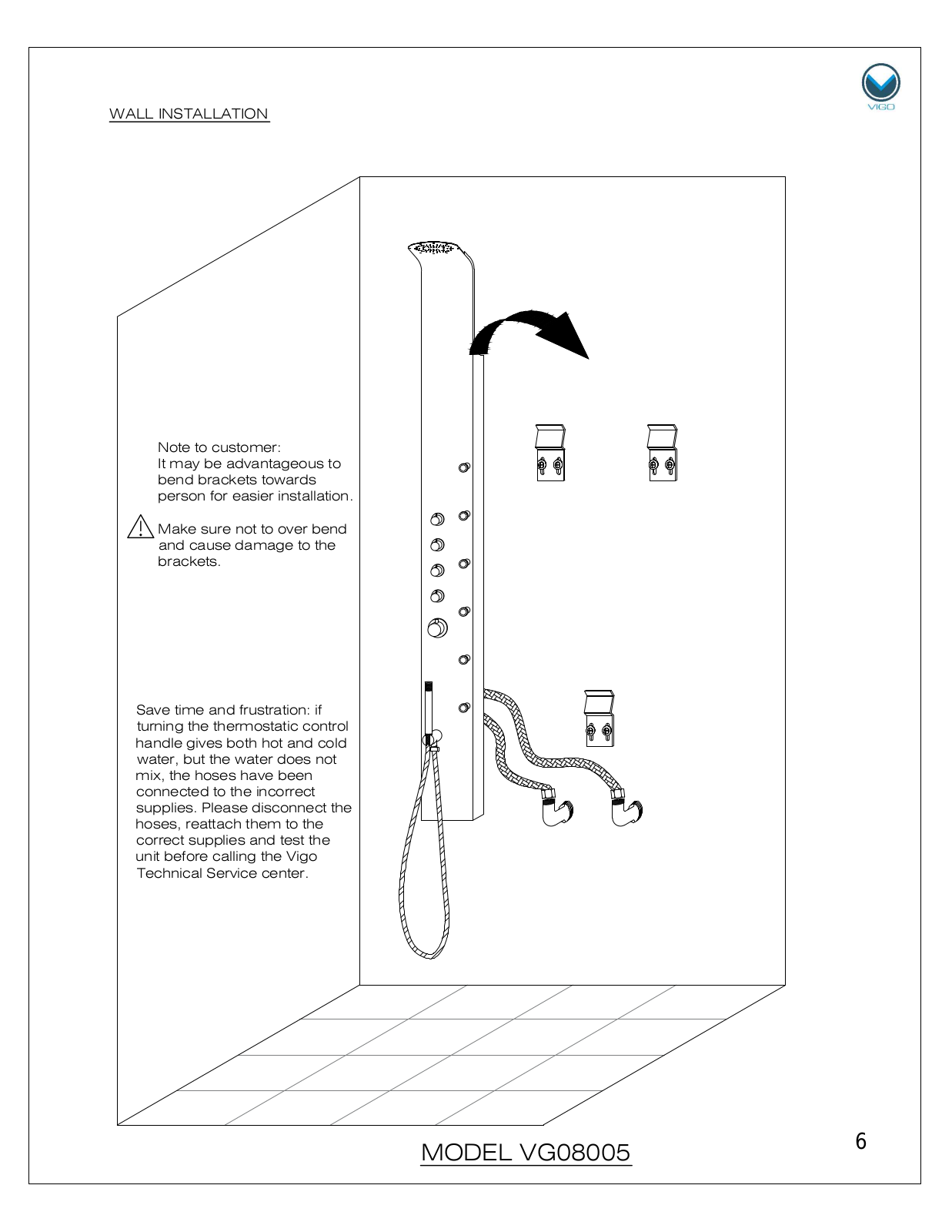

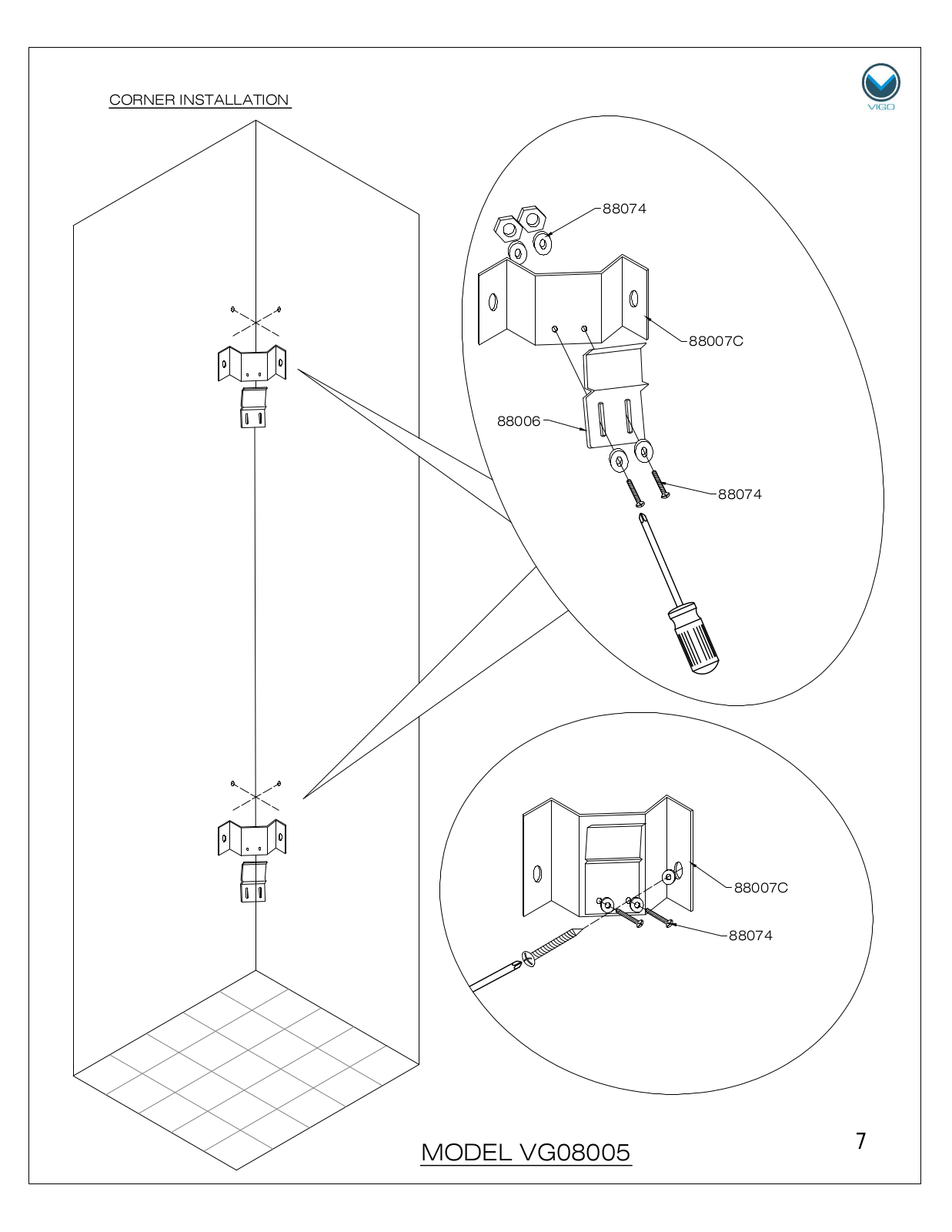

WALL/CORNER INSTALLATION

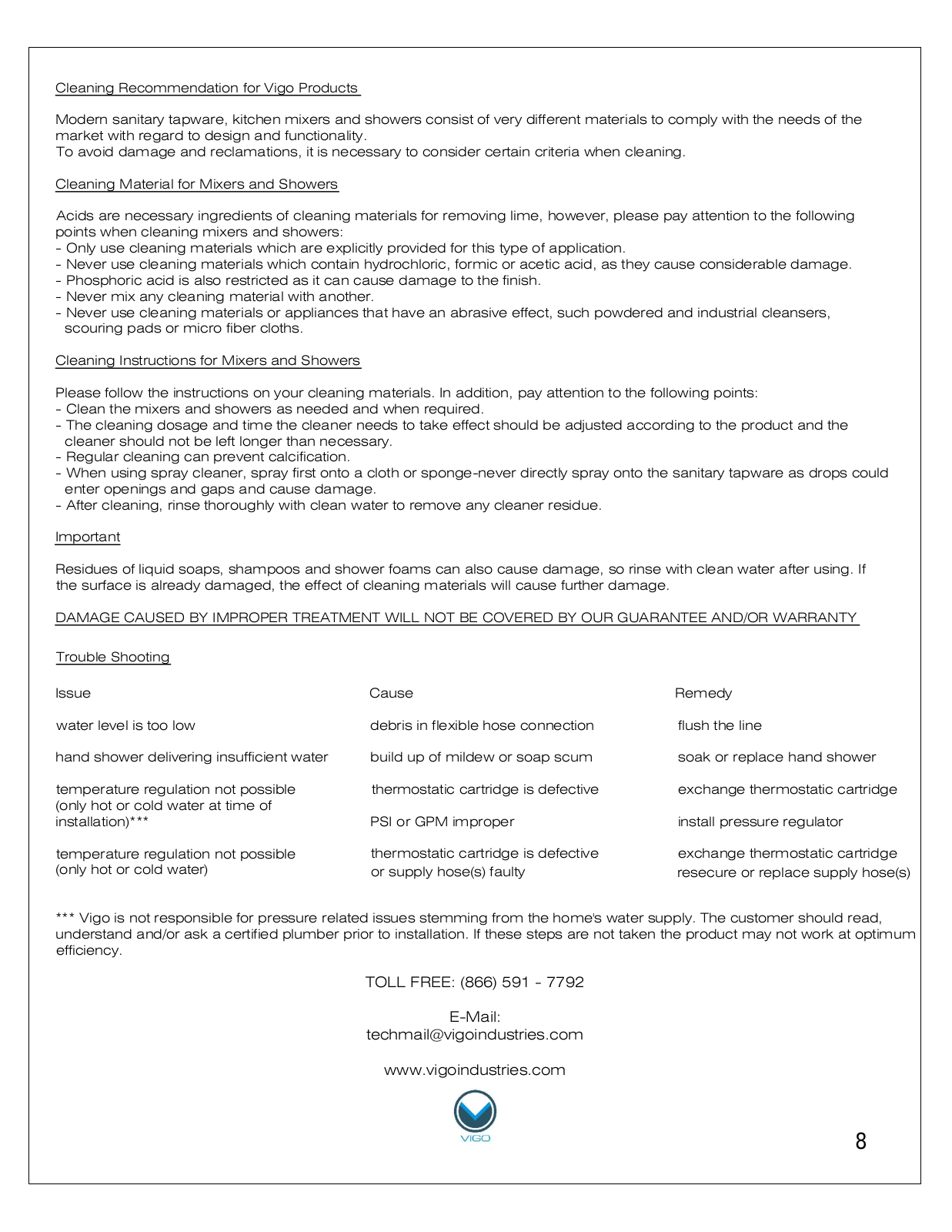

CARE AND TROUBLE SHOOTING

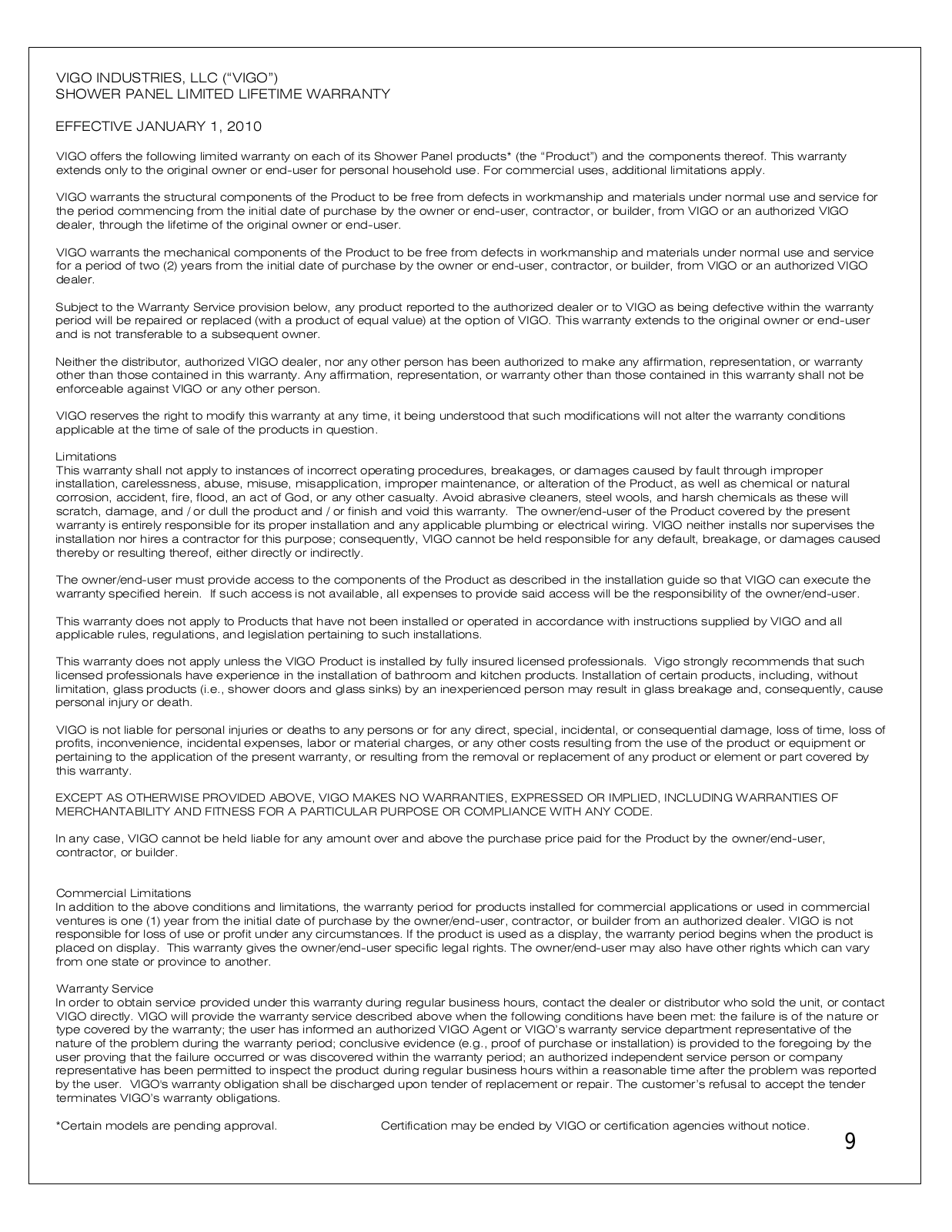

WARRANTY
1
PACKING LIST
DESCRIPTION |
|
MODEL NUMBER |
|
- PANEL HOUSING |
|
88060 |
|
- HAND SHOWER HOSE |
|
88004 |
|
- HAND SHOWER |
|
88037 |
|
- FLEXIBLE HOSES 16" LONG WITH 1/2" FEMALE |
|
88005 |
|
CONNECTION FOR HOT & COLD WATER SUPPLY |
|
||
- WALL MOUNTING BRACKET - 3PC |
|
88006 |
|
- CORNER MOUNTING BRACKET - 2PC |
|
88007C |
|
- FIXING PLUGS - 6PC |
|
84000 |
|
- SCREWS - 6PC |
|
88008 |
|
- BLACK SCREEN - 2PC |
|
84001 |
|
- BLUE WASHERS - 2PC |
|
84044 |
|
- METAL WASHERS - 6PC |
|
88092 |
|
- CORNER BRACKET INSTALLATION HDWR - 4SET |
88074 |
||
MISCELLANEOUS PARTS
- THERMOSTATIC CARTRIDGE |
88011 |
- HANDLE FOR HEAD SHOWER |
88039 |
- HANDLE FOR WATER JET |
88040 |
- HANDLE FOR HAND SHOWER |
88042 |
- HANDLE FOR THERMOSTATIC CONTROL |
88043 |
- HANDLE BUTTON FOR VOLUME CONTROL |
88044 |
- HANDLE BUTTON FOR THERMOSTATIC CONTROL |
88045 |
- OVER HEAD SHOWER WITH STEM |
88046 |
- STEM (MAIN VALVE) |
88047 |
- VOLUME CONTROL CARTRIDGE |
88048 |
- HAND SHOWER HOLDER |
88018 |
- BODY JETS |
88038 |
88060
88092
TOOLS
(NOT INCLUDED)
PSI
88004 88037
88005 88006 88007C
84000
88008
84001
84044 88074
PRESSURE GAUGE TO ASSURE PROPER PRESSURE ( MAX 60 PSI)
RECOMMENDED - SHUT OFF
VALVES FOR HOT AND COLD
MODEL VG08005 |
2 |
|
PANEL DIMENSIONS
6 3/8"
16 1/2"
70 1/2"
68" |
43 3/8" |
|
13 7/8" |
NOTE: Dimension may vary up to 3/8". It is highly recommended to pull all dimensions off actual model for installation and measuring purposes.
MODEL VG08005 |
3 |
THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"
