SAFETY INSTRUCTION
Important Safety Instruction
1. Read all warnings.
2. Follow all instrucons to ensure longevity of monitor.
3. Do not place the monitor near water.
4. Clean only with dry cloth.
5. Do not block any venlaon openings. Install in accordance with the manufacturer’s instrucons.
6. Do not install near any heat sources such as radiators, heat registers,stoves, or other heat generang
devices.
7. Do not override the safety purpose of the polarized or grounding-type plug.
8. A polarized plug has two blades with one wider than the other.
9. A grounding type plug has two blades and a third grounding prong.
10. The wide blade or the third prong are provided for your safety.
11. If the provided plug does not t into your outlet, consult with electrician for replacement of the outlet.
12. Protect the power cord from being walked on or pinched parcularly at plugs, convenience receptacles
and the point where it connects to the monitor.
13. Only use aachment/accessories specied by the manufacturer.
14. Use only with the cart, stand, tripod, bracket or table specied by the manufacturer or sold with the
monitor. When a cart is used, use cauon when moving the cart & monitor in combinaon to avoid
injuries.
15. Unplug the monitor during lightning storms or when unused for long periods of me.
16. Refer all servicing to qualied service personnel. Servicing is required when the monitor has been
damaged in any way.
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases
shall be placed near the monitor.
The monitor should have ample distance (e.g. 10cm) from the wall for sucient venlaon.
3User ManualVisit the ViewZ USA website at https://www.viewzusa.com
SAFETY INSTRUCTION
Important Safety Instruction
Mark Indication and Substance
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
This symbol is intended to alert the user to the presence of uninsulated & dangerous voltage
within the monitor’s enclosure that may be of sucient magnitude to constute a risk of
electric shock to persons.
This symbol is intended to alert the user to the presence of important operang and
maintenance (servicing) instrucons in the literature accompanying the monitor.
Warning
• Do not use damaged or loose cables and plug.
• Do not pull the plug out by the wire nor touch the plug with wet hands.
• Use only a properly grounded plug and receptacle.
• Do not connect too many extension cords or plugs to one outlet.
• Do not excessively bend the plug and wire.
• Do not disconnect the power cord while it's sll plugged into the monitor.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or re.
• Never open the monitor. There are no user-serviceable parts inside and opening will void warranty.
• Removing covers may expose you to dangerous shock hazards or other risks.
• Keep any heang devices away from the power cable and monitor.
• Do not place the monitor near water.
• Do not insert objects of any kind into the monitor's open slots, as they may touch dangerous voltage points.
• Please follow the laws and regulaons of your municipality to dispose the monitor properly.
• Do not use the monitor in high temperature, humid, dusty or oily areas.
• Do not install the monitor where it will be exposed to connual vibraon.
• Keep the plasc packaging out of children’s reach.
• If any damage is detected upon rst opening the box, contact agency from which you bought the monitor directly.
• If your monitor does not operate normally – in parcular, if there is any unusual sound or smell coming from the
monitor – unplug it immediately and contact an authorized dealer or the service center.
4User ManualVisit the ViewZ USA website at https://www.viewzusa.com
SAFETY INSTRUCTION
Important Safety Instruction
Caution
• If the connector between the plug and the pin is dusty or dirty, clean it properly using a dry cloth.
• Make sure to unplug the power cord before cleaning the monitor.
• Make sure to leave a gap between monitor and wall.
• Do not drop the monitor when moving it.
• Place your monitor in a locaon with low humidity and a minimum dust.
• Install the monitor base on a showcase or shelf so that the end of the base does not protrude from the
showcase or shelf.
• Do not place the monitor on an unstable or small surface area.
• Do not install inside a vehicle.
• Disconnect the plug from the outlet during storms or lightning or if it has not been used for a long me.
• Do not try to move the monitor by pulling on the power cord.
• Do not cover the vents on the monitor.
• When moving the monitor, turn o and unplug the power cord. Make sure that all cables, including HDMI
cable and cables connected to other devices, are disconnected before moving it.
• Place the monitor out of children’s reach, as they could damage it by hanging onto it.
ViewZ monitors are manufactured using high-end semiconductor technology with precision rangs of 99.9%
and above. However, it may be the case that certain RGB and white pixels seem darker (or enrely unlit i.e.
black).
Modern producon methods cannot guarantee an absolute fault-free monitor. To this eect, no LED
manufacturer can guarantee a defect free panel. A few isolated pixel or sub-pixel faults are considered
tolerable and dierent policies exist that govern the amount of these tolerable values.
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can somemes form for
which a separate ruling applies. A cluster is dened as an area of 5x5 pixels. ViewZ’s policy on pixel failure:
either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com
5User ManualVisit the ViewZ USA website at https://www.viewzusa.com
FCC RF INTERFERENCE STATEMENT
Note
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal
installaon.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that
interference will not occur in a parcular installaon.
If this equipment does cause harmful interference to radio or television recepon which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures.
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio, TV technician for help.
• Only shielded interface cable should be used.
Finally, any changes or modicaons to the equipment by the user not expressly approved by the grantee or
manufacturer could void the users authority to operate such equipment.
► DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the
radio interference regulaon of Canadian Department of communicaons.
6User ManualVisit the ViewZ USA website at https://www.viewzusa.com
INSTALLATION
Installation Tools
The following tools may be required depending on your installaon.
Your ViewZ monitor is shipped with all proper installaon hardware and components. If there are parts missing
and/or damaged, please stop the installaon and contact ViewZ USA at (888)-998-4399.
Your ViewZ monitor is compable with ViewZ monitor mounts. For more informaon, please contact ViewZ USA at (888)-998-4399.
Wall Mount
• Part #
Ceiling Mount
WM50
• Tilng -15° ~ 0°
• Universal Mount
• Compable with
24LX, 27LX, 32LX
• Part #
WM71
• Tilng -15° ~ 0°
• Universal Mount
• Compable with
42LX
• Part #
AM02-A
• Tilng -15° ~15°
• Swivel 180°
• VESA 75 ~ 200
• Compable with
24LX, 27LX, 32LX
• Part #
CM-6/18
• VESA 75 ~ 200
• Black / White
• 6 ~ 18
• Compable with• Compable with
24LX, 27LX, 32LX
• Part #
CMKiT-02
• Tilng -12° ~ +5°
• Rotaon 360°
• 35" ~ 70"• 35" ~ 70"
24LX,27LX,32LX,42LX
• Part #
CMKiT-04
• Tilng -12° ~ +5°
• Universal Mount
• Compable with
42LX
7User ManualVisit the ViewZ USA website at https://www.viewzusa.com
CONNECT EXTERNAL EQUIPMENTS
Interface Input Ports
The following image is the descripon of interface input ports
i oa
weqrtyusdfg
1. AV AUDIO IN ( L / R )
2. YPbPr AUDIO IN ( L / R )
3. AV ( BNC ) #1 IN
4. AV ( BNC ) #1 OUT
5. AV ( BNC ) #2 IN
6. AV ( BNC ) #2 OUT
7. YPbPr ( BNC ) IN
8. AV ( BNC ) #3 IN
9. AV ( BNC ) #4 IN
10. AV ( BNC ) #5 IN
11. VGA (15 Pin D-Sub) IN
12. DVI IN
13. HDMI IN
14. AC 110V IN
8User ManualVisit the ViewZ USA website at https://www.viewzusa.com
REMOTE FUNCTION
Remote Controller (#16)
1. Power
2. Picture
3. Freeze
4. Up
5. Le
6. Menu
7. Right
8. Down
9. Mute
10. Input
11. VGA Input Select
12. YPbPr Input Select
13. HDMI Input Select
14. AV Input Select
15. S-Video Input Select - N / A
16. DVI Input Select
q
w
e
r
t
y
u
i
o
a
s
d
f
g
h
j
Display image, sound and custom sengs can be adjusted in OSD (On Screen Display) menu by remote controller.
To adjust monitor seng value :
1. Press the 'MENU' buon to enter the OSD menu
2. Press the 'INPUT' buon to select input source
3. Press the 'FREEZE' buon to freeze current display image On / O - only available on the remote controller
4. Press the ▲ / ▼ buons to select the desired sub-menu. The selected submenu will be highlighted
5. Press the 'MENU' buon to enter the sub-menu for adjusng items
6. Change the value you wish to adjust by using the ◄ / ► buons
7. Press the'MENU' buon to conrm / exit for saving adjustment value on sub-menu
8. Without entering OSD MENU, press ◄ / ► buons to adjust the audio volume
9. Without entering OSD MENU, press VGA, YPbPr, HDMI, AV & DVI buons to select desired input source
10. Press the 'MUTE' buon to on / o audio - audio only works with VGA / AV input
9User ManualVisit the ViewZ USA website at https://www.viewzusa.com
CONTROL AND FUNCTION
On Monitor, Button Control
qwertyu
1. Source
Select an input source
2. Menu
Enter or exit the OSD / Select a menu on OSD
3. Le & Right ◄ (VOL) ►
Change the value on selected menu
4. Up & Down ▲ ▼
Switch a menu on OSD
5. Power
Monitor power on / o
6. IR Receiver
7. LED Indicator
Green color: monitor on
Red color : monitor o
Monitor Button Function
All picture, sound sengs and setup can be adjusted in OSD (On Screen Display) menu.
To adjust the OSD screen:
1. Press the MENU buon to enter the OSD MENU
2. Press the ◄ / ► buons to select the desired main-MENU. The selected main-MENU is highlighted
3. Press the ▲ / ▼ buons to select the desired sub-MENU. The selected sub-MENU is highlighted
4. Change the value you wish to adjust by using the ◄ / ► buons
5. Press the MENU buon to conrm the adjustment on sub-MENU
6. Press the MENU buon to exit the sub-MENU and go back to the main-MENU
7. Press the MENU buon to exit the OSD MENU
10User ManualVisit the ViewZ USA website at https://www.viewzusa.com
CONTROL AND FUNCTION
Select Input Source
Press 'SOURCE' buon on monitor or 'INPUT' buon on remote controller
VGA
HDMI
DVI
AV1
AV2
AV3
AV4
AV5
YPBPR
Volume
Press ▲ / ▼ buon to change input source and then press
Press ▲ / ▼ buon to change input source and then press
◄ / ►
buon to select input source on monitor
◄ / ►
buon to select input source on remote controller
Press◄ / ► buons to adjust volume on monitor
Press◄ / ► buons to adjust volume on remote controller
Detect Source Signal Message
If you connect any input source, monitor will display current input source resoluon and frequency.
11User ManualVisit the ViewZ USA website at https://www.viewzusa.com
CONTROL AND FUNCTION

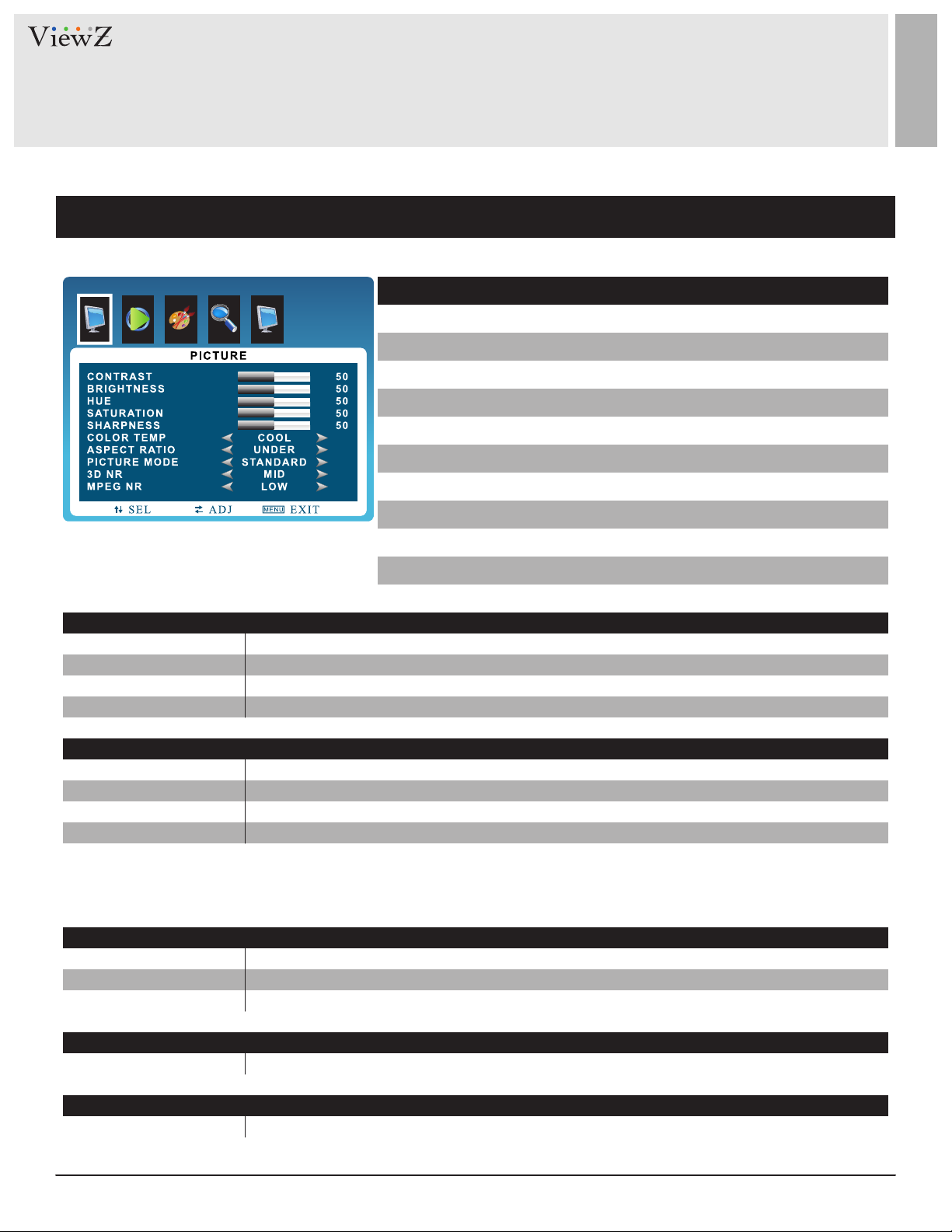

▲/▼ MOVE ◄/► SELECT(ADJUST) MENU RETURN
MILD
USER
DYNAMIC
STANDARD
Reduce contrast and sharpness
Apply user selected values - brightness, contrast, color and hue
Provide enhanced contrast and sharpness
Provide standard contrast and sharpness
FUNCTION
BRIGHTNESS
CONTRAST
1)
HUE
SATURATION
SHARPNESS
COLOR TEMP
ASPECT RATIO
PICTURE MODE
3D NR
MPEG NR
1) Only available in Composite ( video ) input
Adjust the Brightness
Adjust the contrast
Adjust the hue
Adjust the color saturation
Adjust the sharpness
Adjust the color setting
Adjust the video format
Adjust the image color setting
Reduce the noise
Reduce the noise
PICTURE MODE
VALUE
0 ~ 100
0 ~ 100
0 ~ 100
0 ~ 100
0 ~ 100
See table below
See table below
See table below
See table below
See table below
1) 2) 3)
16 : 9
1) 2) 3)
4 : 3
UNDER
ZOOM
1) VGA-input support
2) AV-input support
3) HDMI-input support
2) 3)
3)
Set the image size to 16 : 9
Set the image size to 4 : 3
Adjust the image size based on input resolution
Zoom the image size as factory preset zoom level
COLOR TEMP.
ASPECT RATIO
WARM
NORMAL
COOL
Give the white color a reddish tint
Give the white color a neutral tint
Give the white color a blue-ish tint
3D NR
OFF-LOW-MID-HIGH
Estimates the amount of noise automatically and applies suitable noise reduction processing
MPEG NR
OFF-LOW-HIGH
Reduces noise on MPEG pictures such as mosquito-noise and block-noise
12User ManualVisit the ViewZ USA website at https://www.viewzusa.com
CONTROL AND FUNCTION

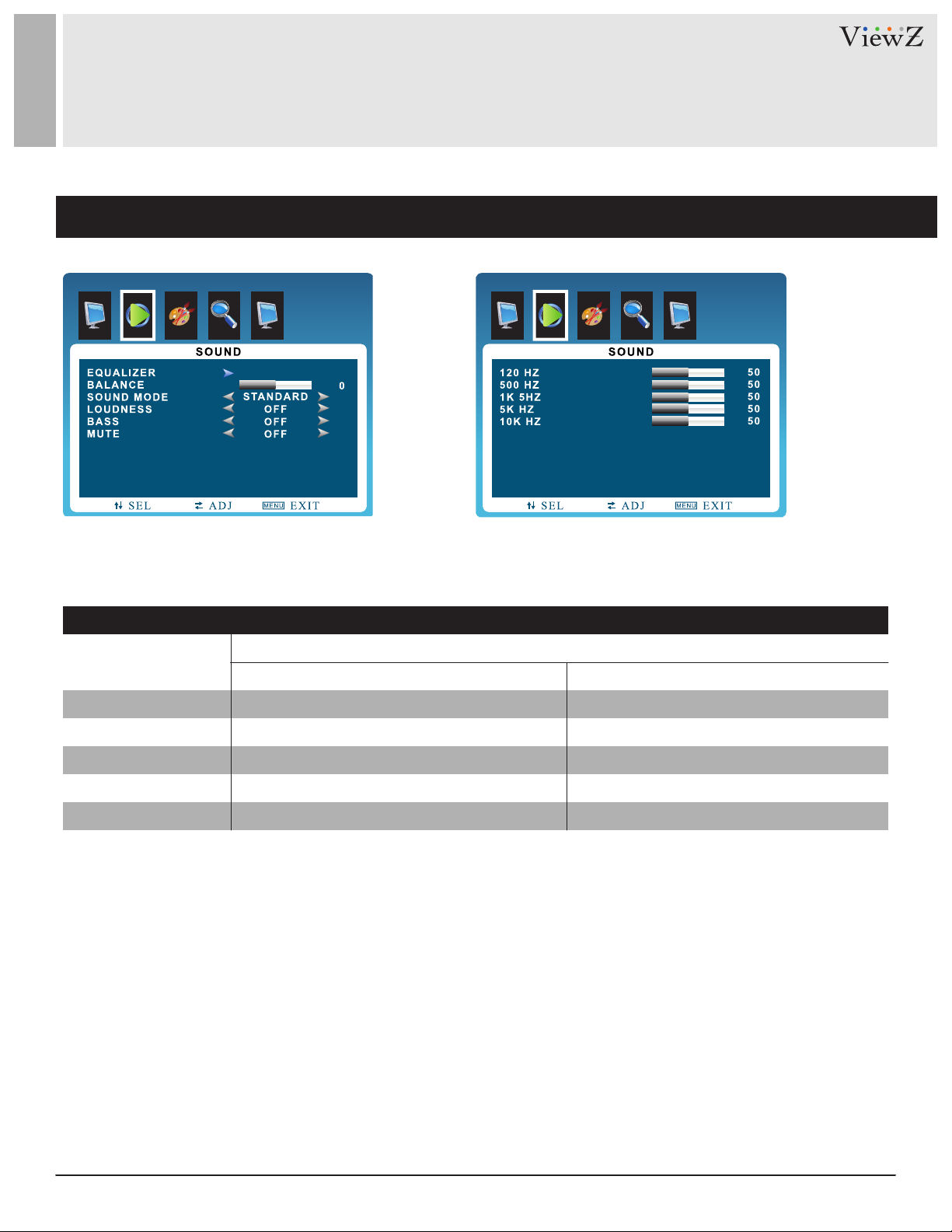

Sound
▲/▼ MOVE ◄/► SELECT(ADJUST) MENU RETURN
FUNCTIONVALUE
EQUALIZER
BALANCEAdjust the balance-50 ~ +50
SOUND MODE
LOUDNESS
BASS
MUTE
Adjust the balance between frequency components within an electronic signal
120 Hz / 500 Hz / 1K 5 Hz / 5K Hz / 10K Hz
Select one of the presets
Adjust preset sound mode
Adjust the bass level
Mute the sound
Equalizer Option Window
0 ~ 100
USER / MUSIC / MOVIE / STANDARD
MODE 1 / MODE 2/ MODE 3 / MODE 4 / OFF
ON /OFF / 1 - 12
ON / OFF
13User ManualVisit the ViewZ USA website at https://www.viewzusa.com
CONTROL AND FUNCTION

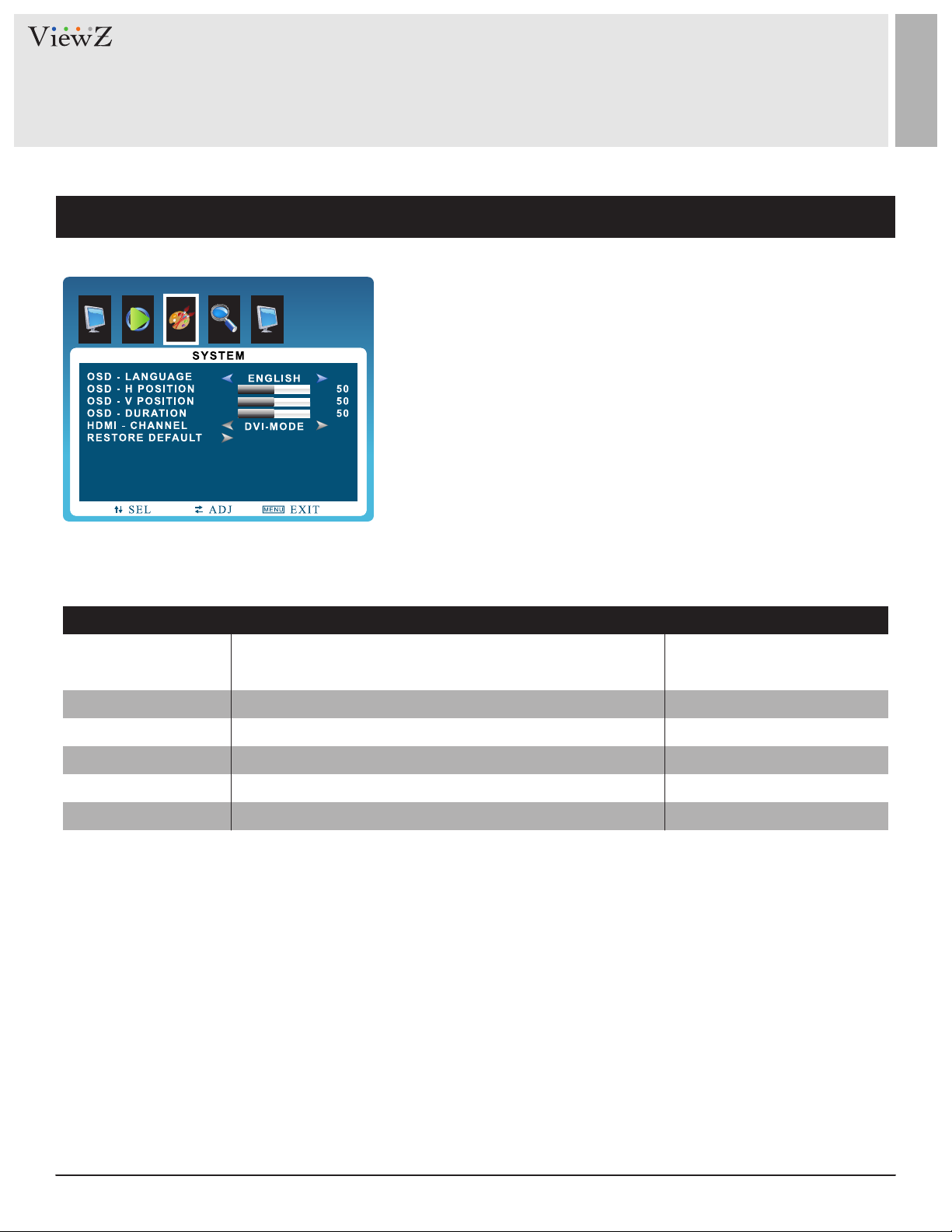

System - OSD SETUP
▲/▼ MOVE ◄/► SELECT(ADJUST) MENU RETURN
OSD LANGUAGE
OSD DURATION
HDMI - CHANNEL
RESTORE DEFAULT
1) HDMI input support
FUNCTIONVALUE
Set the language of the OSD menu
Set the OSD display time
1)
HDMI connection to set for PC
HDMI connection to set for DVD & PC
HDMI connection to set for DVI Channel
Reset the monitor settings to the factory default
English, Spanish, French
Russian, Portuguese
0 ~ 60 sec
PC MODE
DVD MODE
DVI MODE
14User ManualVisit the ViewZ USA website at https://www.viewzusa.com
CONTROL AND FUNCTION
Advance
▲/▼ MOVE ◄/► SELECT(ADJUST) MENU RETURN
H-POSITION
V-POSITION
CLOCK
PHASE
SLEEP TIMER
PREVENT BURN-IN
1) Only available in VGA input
1)
1)
1)
1)
FUNCTIONVALUE
Adjust the horizontal picture position
Adjust the vertical picture position
Adjust the number of horizontal picture elements
Adjust the vertical noise of screen image
Set the time interval for the sleep mode to activate
Set periodic image retention
1 ~ 100
1 ~ 100
1 ~ 100
1 ~ 100
0 / 15 / 30 / 45 / 60 sec
1 HR / 2 HR / 4 HR / TEST / OFF
15User ManualVisit the ViewZ USA website at https://www.viewzusa.com
CONTROL AND FUNCTION
PIP / PBP
▲/▼MOVE◄/►SELECT(ADJUST) MENU RETURN
OFF
PIP (Picture in Picture)
PBP (Picture by Picture)
PIP / PBP input source
PIP / PBP function off
Separates the screen into two parts. One source device is displayed on the main screen
at the same time the another source device is displayed in inset windows
Separates the screen in half displaying output from two different source devices simultaneously
on the left and right sides of the screen
DVI, YPBPR, HDMI, VGA, AV1, AV2, AV3, AV4, AV5
MULTI WINDOW
SUB SOURCE
PIP SIZE
PIP H-POSITION
PIP V-POSITION
SOUND SELECT
SWAP
FUNCTION
Select PIP or PBP option
Select PIP input source
Adjust PIP window size
Adjust PIP horizontal position
Adjust PIP vertical position
Select sound source input
Swap the main display
MULTI WINDOW
SUB SOURCE
VALUE
See table below
See table below
See table below
0 ~ 100
0 ~ 100
MAIN, SUB
PIP SIZE
SMALL, MEDIUM, LARGE
Display small, medium, large size PIP window on main display
PIP MODE
HDMI
DVI
VGA
AV
YPbPr
HDMI
X
X
X
O
O
DVI
X
X
X
O
O
VGA
X
X
X
O
O
16User ManualVisit the ViewZ USA website at https://www.viewzusa.com
AV
O
O
O
O
YPbPr
O
O
O
X
O
X
STAND GUIDE
Installing the Monitor Stand
To install the monitor stand
M6 x L40 screws for VZ-24LX, VZ-27LX, VZ-32LX & VZ-42LX
Aenon!
For VZ-24LX, VZ-27LX, VZ-32LX and VZ-42LX : You must use 4 * M6 x L40 screws to install the monitor stands
WARNING !
If screws longer than M6 x L40 mm are used for VZ-24LX, VZ-27LX, VZ-32LX and VZ-42LX,
they may cause damage to the unit. Please use bolt of correct size and length as instructed.
Installing Safety & Cauon !
At least two people are recommended to safely install the stands.
If you use the wrong size screws, it may cause damage to the monitor.
If the monitor is damaged by using wrong size screws, ViewZ will not be held responsible.
17User ManualVisit the ViewZ USA website at https://www.viewzusa.com
MOUNTING GUIDE
Wall Mounting (Optional)
VZ-LX monitors are suitable for VESA wall mount (not included).
M4 x L10 screws for VZ-24LX , VZ-27LX
M6 x L8 screws for VZ-32LX
M8 x L8 screws for VZ-42LX
1. VZ-24LX, VZ-27LX : VESA WALL MOUNT 75mm x 75mm, 100mm x 100mm
2. VZ-32LX : VESA WALL MOUNT 200mm x 200mm
3. VZ-42LX : VESA WALL MOUNT 300mm x 300mm
Aenon!
VZ-24LX, VZ-27LX : You must use 4 * M4 x L10 screws to assemble this monitor and the wall mount bracket.
VZ-32LX : You must use 4 * M6 x L8 screws to assemble this monitor and the wall mount bracket.
VZ-42LX : You must use 4 * M8 x L8 screws to assemble this monitor and the wall mount bracket.
WARNING !
If user uses screws longer than
M4 x L10 mm for VZ-24LX, VZ-27LX,
M6 x L8 mm for VZ-32LX,
M8 x L8 mm for VZ-42LX,
it may cause damage to the unit. Please use bolt of correct size and length as instructed.
Mounng Safety !
At least two people are recommended to safely install the mount.
18User ManualVisit the ViewZ USA website at https://www.viewzusa.com
VIDEO #3, VIDEO #4, VIDEO #5, YPbPr 1, VGA (RGB-PC) 1, DVI 1, HDMI 1
YPbPr AUDIO INPUT / AV AUDIO INPUT / PC STEREO INPUT
CE / FCC / RoHS
AC 100-240V, 50/60Hz
≤ 40 W≤ 40 W
HDMI cable, AC 110V Power cable, User’s Manual, Remote controller
Net : 27.62 lb / 12.53 kg
Gross : 34.43 lb / 15.62 kg
≤ 48 W
Net : 34.54 lb / 15.67 kg
Gross : 43.05 lb / 19.53 kg
≤ 70 W
19User ManualVisit the ViewZ USA website at https://www.viewzusa.com
TROUBLESHOOTING GUIDE
- Check the following before calling for service.
- If the same problems connue aer checking, contact the reseller you purchased the monitor from.
We recommend that you test with dierent input sources when you have trouble with
At start
No image or
Noise on the screen
the current input source. If symptom persists, follow the instrucons below. Aer
following the instrucons below, please contact us at 1-888-99-VIEWZ.
- Make sure the cable is correctly plugged into the outlet
- Make sure the power cable is correctly plugged into the monitor
- Make sure the cable is correctly connected between monitor & source
- Check brightness and see if brightness is set to 'Ø'
- Check video source
Incorrect display or
Half display
Flickering and
shadow image
The audio funcon is
not working
LED is ickering
or no image
- Check your video source
- Reset video source : connecon, cable replacement, seng & more
- Check your input source setting for resolution and phase (Hz)
- Check the volume and make sure MUTE is not on
- Check HDMI / Audio port cable connection
- Check the interface cable connecon and make sure it's plugged in correctly
- Check the input source
20User ManualVisit the ViewZ USA website at https://www.viewzusa.com
TERMS OF WARRANTY / RMA
- The warranty period for this monitor is 3 years. The warranty will be voided for the scenarios listed below.
- You can also download the manual and informaon of VIEWZ web site: VIEWZUSA.COM
When power feed to the monitor exceeds capacity and causes damage
Accident, Abuse, Misuse, Neglect, Fire, Water/liquids, Lightning or any act of nature
Cases of
Damaged by dropping, throwing and hing the monitor
Non-Warranty
Coverage
* Above informaon can be changed without nocaon - please check our website or
contact ViewZ representave for latest RMA service policy.
* When shipping the monitor for RMA, make sure to pack safely to ensure the monitor is
not damaged during shipping.
Failure caused by users attempt to modify the product
Failure by limited life of parts such as LED Lamps and any other consumables
Damaged by using third party power cable, unstable power input and electric shock
21User ManualVisit the ViewZ USA website at https://www.viewzusa.com
NOTE
22User ManualVisit the ViewZ USA website at https://www.viewzusa.com
WARRANTY
ViewZ USA
LIMITED 3 YEAR WARRANTY
What and Who is Covered by this Limited Warranty and for How Long
ViewZ USA warrants this product to be free from defects in material and workmanship for 3 years to the original owner of
this product. The limited warranty is valid only for the original purchaser of the product.
What ViewZ USA Will Do
At the sole discreon of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defecve. If ViewZ USA
chooses to replace a defecve product or part, a replacement product or part will be shipped to you at no charge, but you must pay
any labor costs.
What is Not Covered; Limitaons
ViewZ USA disclaims any liability for damage to mounts, adapters, displays, projectors, other property, or personal injury resulng, in
whole or in part, from improper installaon, modicaon, use or misuse of its products.
ViewZ USA disclaims all other warranes, express or implied, including warranes of merchantability and tness for a parcular
purpose. ViewZ USA is not responsible for incidental or consequenal damages, including but not limited to, inability to use its
products or labor costs for removing and replacing defecve products or parts. Some states do not allow the exclusion or limitaon
of incidental or consequenal damage, so the above limitaon or exclusion many not apply to you.
What Customers Must Do for Limited Warranty Service
If you discover a problem that you think may be covered by the warranty you MUST REPORT it in wring to the address below within
thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer purchaser must accompany all warranty
claims. Warranty claims must also include a descripon of the problem, the purchaser’s name, address, and telephone number.
General inquiries can be addressed to ViewZ USA Customer Service at 1-888-998-4399. Warranty claims will not be accepted over the
phone or by fax.
ViewZ USA
An: Warranty Claim
177 W. Orangethorpe Ave.
Placena, CA 92870
How State Law Applies
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
Disclaimer
ViewZ USA intends to make this manual accurate and complete. However, ViewZ USA makes no claim that the informaon contained
herein covers all details, condions or variaons, nor does it provide for every possible conngency in connecon with the
installaon or use of this monitor. The informaon contained in this document is subject to change without noce or obligaon of
any kind. ViewZ USA makes no representaon of warranty, expressed or implied, regarding the informaon contained herein. ViewZ
USA assumes no responsibility for accuracy, completeness or suciency of the informaon contained in this document.
Contact Us
NORTH AMERICA
177 W. Orangethorpe Ave.
Placena, CA 92870
USA and Canada
Phone: 1-888-998-4399
Fax: 1-714-996-1138
Other Locaons
