23-INCH TFT-LCD

PUBLIC VIEW MONITOR

INSTRUCTION MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

SAFETY INSTRUCTION ………………………………………………………….……

2 ~ 3

CAUTIONS ……………………………………………………………..........................

FCC RF INTERFERENCE STATEMENT …………………………….......................

WIRING ……………………………………………………………...............................

CONNECTING WITH EXTERNAL EQUIPMENT ……………………………………

REMOTE FUNCTIONS …………………………………………………………………

CONTROLS AND FUNCTIONS ………………………………………………………..

9 ~ 26

MOUNTING GUIDE ……………………………………………………………………..

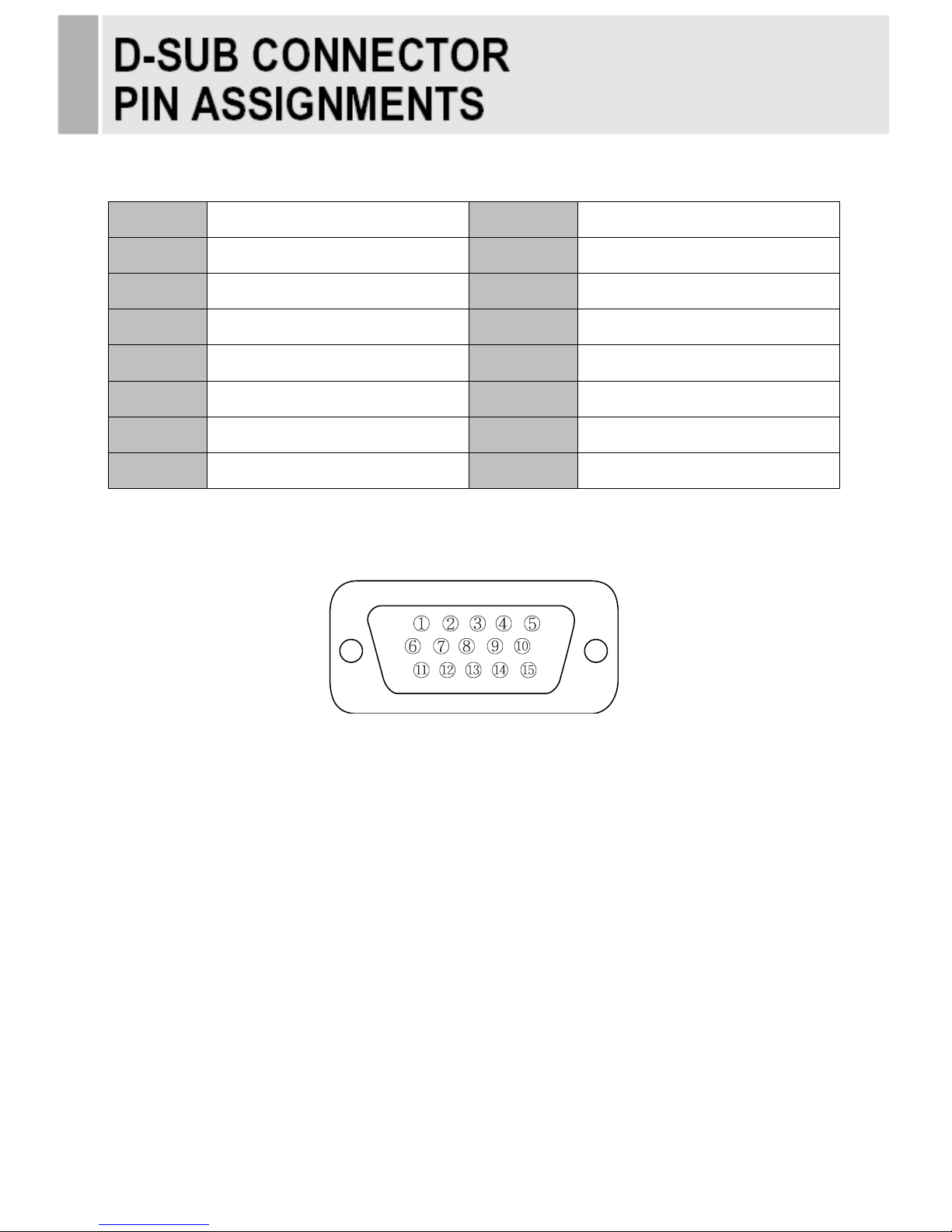

D-SUB CONNECTOR PIN ASSIGNMENTS …………………………………………

POWER MANAGEMENT ………………………………………………………………

SPECIFICATIONS ………………………………………………………………………

30 ~ 33

TROUBLE SHOOTING GUIDE ………………………………………………….........

INSTRUCTION MANUAL ………………………………………………………………………. 1

This Monitor was

Manufactured by ISO 9001 Certified Factory

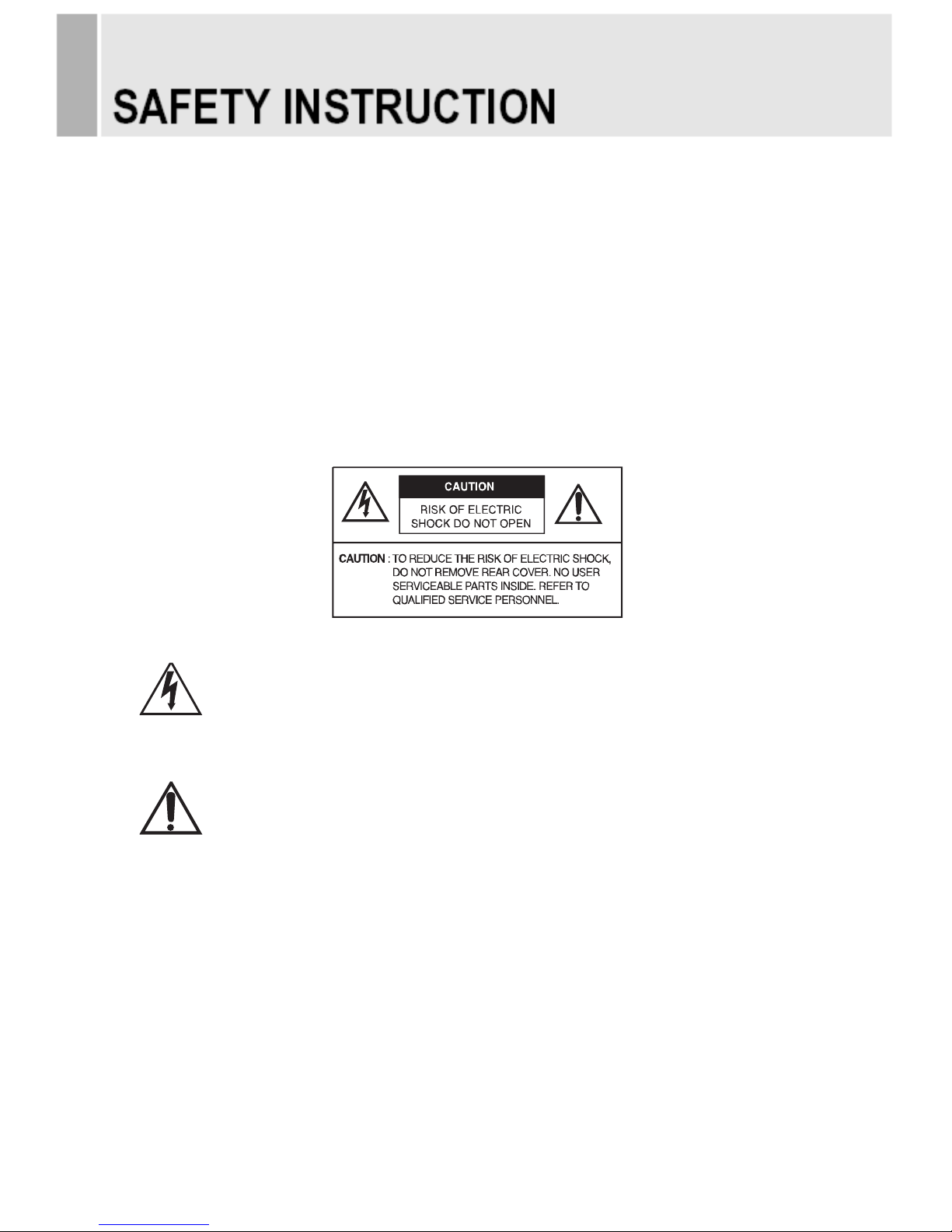

Important Safety Instruction

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

Apolarized plug has two blades with one wider than the other. Agrounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the bsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachment/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does not operate normally or has been dropped.

2 ………………………………………………………………………. INSTRUCTION MANUAL

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus.

14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.

“WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”

“The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.”

This symbol is intended to alert the user to the presence of uninsulated : dangerous voltage with in the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

INSTRUCTION MANUAL ………………………………………………………………………. 3

CAUTION

The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible.

ATTENTIONN

Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à proximité du matériel et être facile d`accès

▶ NEVER REMOVE THE BACK COVER

Removal of the back cover should be carried out only by qualified personnel.

▶ DO NOT USE IN HOSTILE ENVIRONMENTS

To prevent shock or fire hazard, do not expose the unit to rain or moisture. This unit is designed to be used in the office or home. Do not subject the unit to vibrations, dust of corrosive gases.

▶ KEEP IN A WELL VENTILATED PLACE

Ventilation holes are provided on the cabinet to prevent the temperature from rising. Do not cover the unit or place anything on the top of unit.

▶ AVOID HEAT

Avoid placing the unit in direct sunshine or near a heating appliance.

▶ TO ELIMINATE EYE FATIGUE

Do not use the unit against a bright back ground and where sunlight or other light sources will shine directly on the monitor.

▶ BE CAREFUL OF HEAVY OBJECT

Neither the monitor itself nor any other heavy object should rest on the power cord. Damage to a power cord can cause fire or electrical shock.

4 ………………………………………………………………………. INSTRUCTION MANUAL

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio, TV technician for help.

- Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

▶ DOC COMPLIANCE NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications.

INSTRUCTION MANUAL ………………………………………………………………………. 5

WIRING (only 24V~ inputs)

1. On the back of the monitor, loosen the thumb screws and lower the access panel.

2. Attach the leads from the power supply (not supplied) to the left and right connectors.

WARNING: Do not connect a ground to the center post.

3. When finished, secure the access panel.

Table A shows the recommended maximum wiring distances (transformer to load), and are calculated with a 10-percent voltage drop. (10 percent is generally the maximum allowable voltage drop for AC-powered devices.)

Recommended Wiring Distances

Inch

Wire

18AWG

16AWG

14AWG

23”

150 ft

(45 m)

240 ft

(73 m)

300 ft

(91 m)

6 …………………………………………….……………………………INSTRUCTION MANUAL

A. TOP PANEL CONTROL

A-1. AC IN Type

1. HDMI2 IN

2. HDMI1 IN

3. DVI IN

5. PC STEREO IN

7. COMPONENT Y,Pb,Pr & SOUND L,R IN

9. CAMERA OUT

11. AV2 (VIDEO2) OUT

13. USB 2.0 (Optional)

A-2. AC 24V IN Type

4. VGA (D-SUB) IN

6. AUDIO OUT (Speaker)

8. DC 12V IN

10. AV2 (VIDEO2) IN

12. AC IN

14. SD CARD READER (Optional)

1. AC 24V IN

2. HDMI1 IN

3. DVI IN

5. PC STEREO IN

7. COMPONENT Y,Pb,Pr & SOUND L,R IN

9. CAMERA OUT

11. AV2 (VIDEO2) OUT

13. USB 2.0 (Optional)

4. VGA (D-SUB) IN

6. AUDIO OUT (Speaker)

8. DC 12V IN

10. AV2 (VIDEO2) IN

12. AC IN

14. SD CARD READER (Optional)

INSTRUCTION MANUAL ………………………………………………………………………. 7

2 3 4 5 6 7 8 9 10

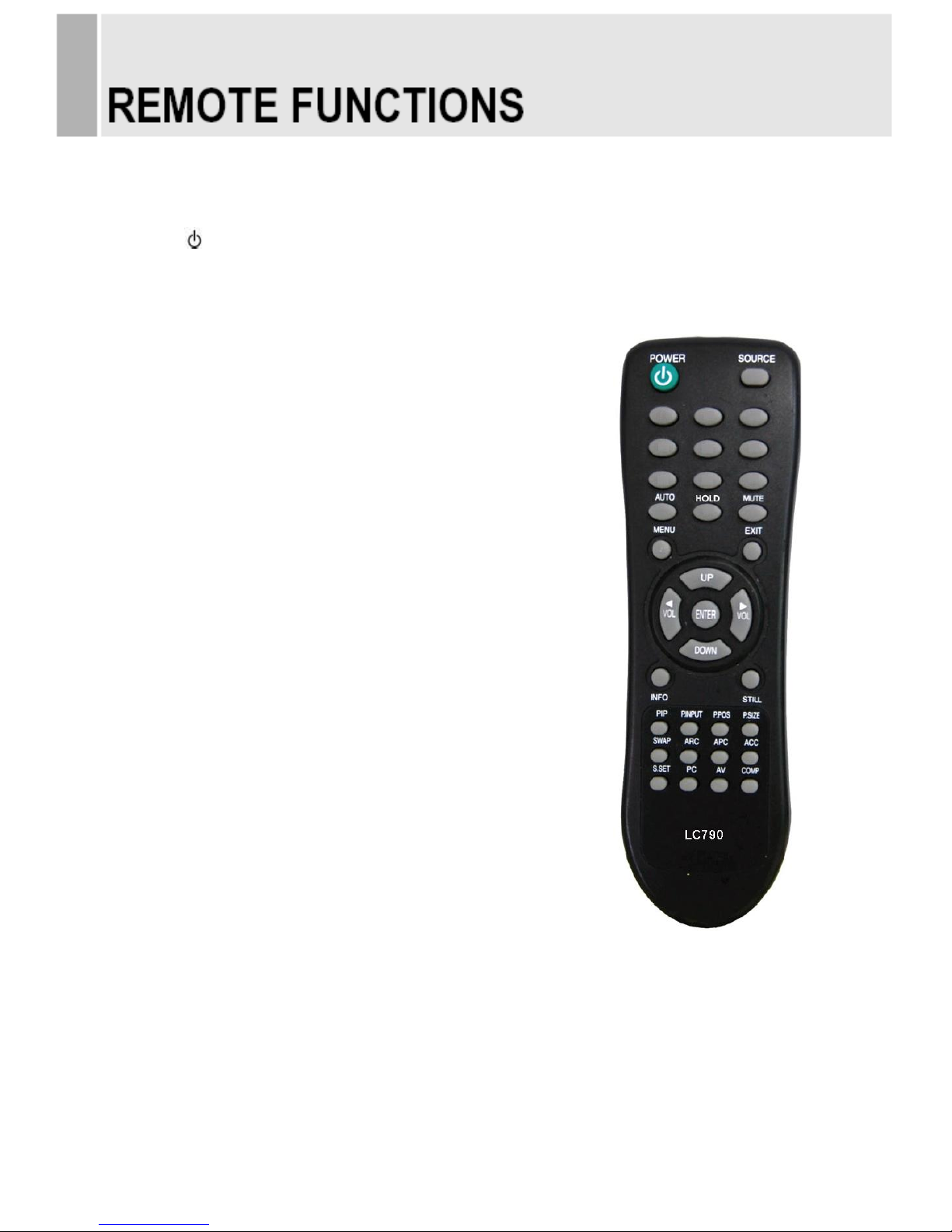

B. REMOTE CONTROLLER(Optional)

1. POWER( )

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

2. SOURCE

Selects an input source.

3. AUTO

Auto geometry adjustment in the RGB PC source.

4. HOLD

Stops the Motion Detection & Auto switching functions.

5. MUTE

Mutes the sound.

6. MENU

Activates and exits the On Screen Display.

7. EXIT

Exits the On Screen Display.

8. VOL(◀ & ▶)

Increases or decreases the level of audio volume.

9. UP/DOWN

Moves upwards or downwards in the OSD menu.

10. ENTER

Enters an OSD submenu or accepts your selection.

11. INFO

Displays the information about input source.

12. STILL

Pauses the picture.

13. PIP (Picture In Picture)

Activates the PIP mode.

14. P.INPUT

Changes the source of sub-picture in the PIP mode.

15. P.POS

Changes the position of sub-picture in the PIP mode.

16. P.SIZE

Changes the sizes of sub and main pictures in the PIP mode.

17. SWAP

Alternates between sub and main pictures in the PIP mode.

18. ARC (Aspect Ratio Control)

Selects a screen ratio.

19. APC (Auto Picture Control)

Selects a picture mode.

20. ACC (Auto Color Control)

Selects a color mode.

21. S.SET

Selects the source of sound between main and sub pictures in the PIP mode.

22. PC

Selects a PC mode(PC, DVI & HDMI).

23. AV

Selects an AV mode(AV2 & S-VIDEO).

24. COMP

Selects the Component mode.

8 ………………………………………………………………………. INSTRUCTION MANUAL

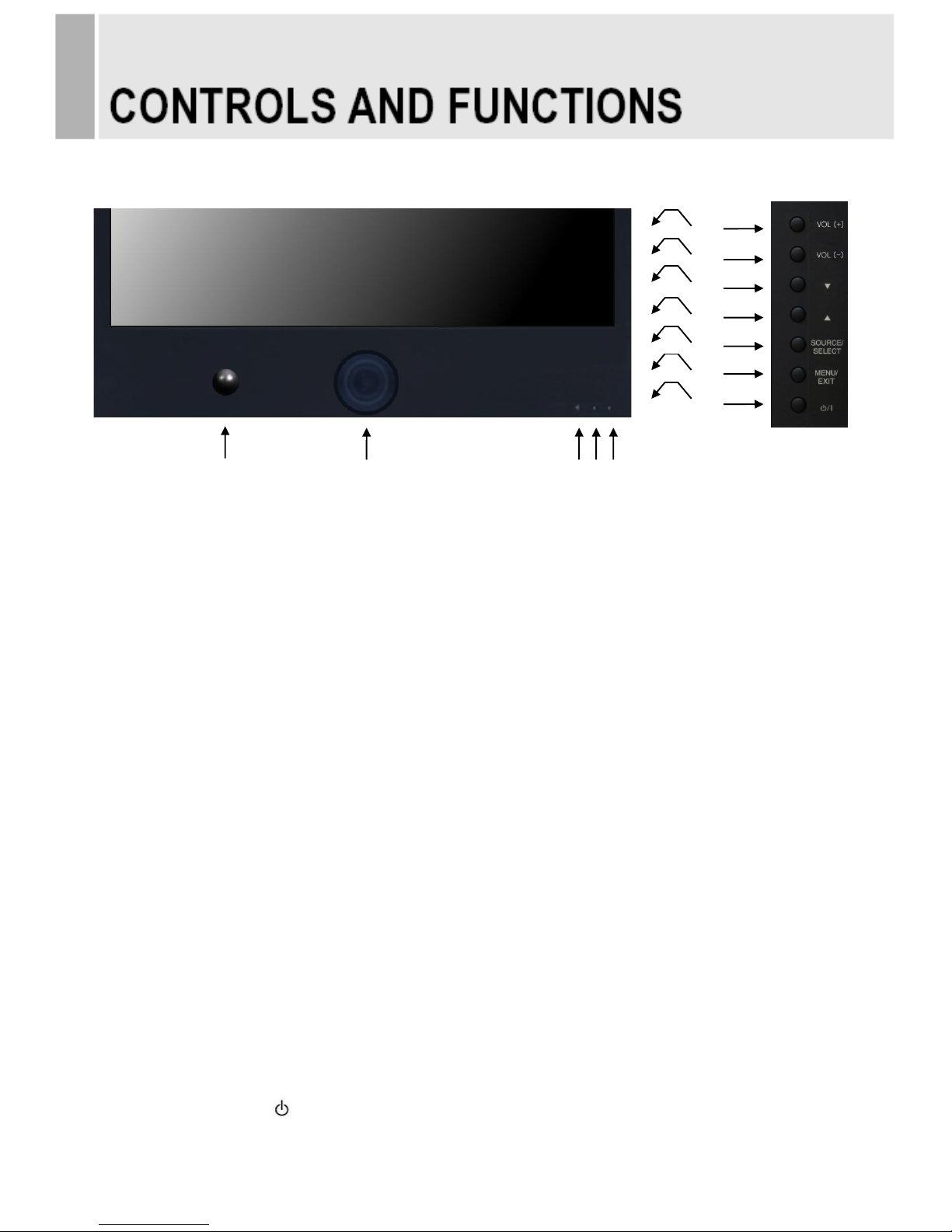

C. FRONT & BACK KEY CONTROL

1. PIR(Passive Infra-Red) Sensor

Built-in PIR(Passive Infra-Red) Sensor for the Motion Detection function.

2. BUILT-IN CAMERA

Image of this camera is shown by HDMI.

3. IR Sensor

Remote controller sensor.

4. POWER LED

The power LED lights with green when the power is turned ON. The power is turned off by pressing the power switch again and the power LED goes to off.

5. RECORDING INDICATOR LED

This LED indicates the recording status by blinking the LED light. User can choose the LED colors among these. (Red, Blue, Purple)

6 & 7. VOL(+) & VOL(-)

Adjust the volume and menu settings.

8 & 9. ▲ & ▼

These buttons allow user to enter the sub-menu of the activated function. The up(▲) button is HOLD function and stop the Motion Detection & Auto switching functions.

10. SOURCE/SELECT

Selects an input source. Enters a submenu or accepts your selection in the OSD menu.

11. MENU/EXIT

Activates and exits the On Screen Display. This button can also be used to move previous menu or status.

12. POWER ON/OFF( / I )

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

INSTRUCTION MANUAL ………………………………………………………………………. 9

6 7 8

2 3 4 1 11

OSD MENU DESCRIPTION

All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen:

1. Press the Menu button to enter the OSD menu.

2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted.

3. Press the ▶ button to enter the submenu for adjusting items.

4. Change the value you wish to adjust by using the ▲/▼ buttons.

5. Press the ◀ button to exit the submenu for adjusting items.

6. Press the Menu button to exit the OSD menu.

A. Custom

Option

Function

Value

Brightness

Adjusts brightness of the screen.

0 ~ 100

Contrast

Adjusts intensity of the image.

0 ~ 100

Color

Adjusts color of the picture.

0 ~ 100

Tint

1) 2)

Adjusts tint of the picture.

0 ~ 100

Sharpness

Adjusts sharpness of the picture.

0 ~ 100

1) Unavailable in RGB PC, DVI, HDMI1 and HDMI2.

2) Unavailable in PAL system.

10 ………………………………………………………………………. INSTRUCTION MANUAL

B. Picture/Sound

Option

Function

Value

Picture Mode

Sets picture mode.

See table below

Color Tone

Sets color tone.

See table below

Mute

Mutes speaker sound.

Off or On

Volume

Adjust the level of audio volume.

0 ~ 100

Size

Display picture size.

See table below

Reduces noise of the picture.

On or Off

3D Comb

Activates the 3D comb filter.

On or Off

See table below.

See table below

Date Time

Sets the date time on the screen.

See table below

Recording Indicator

Sets the light color of recoding LED

Off, Red, Blue, Purple

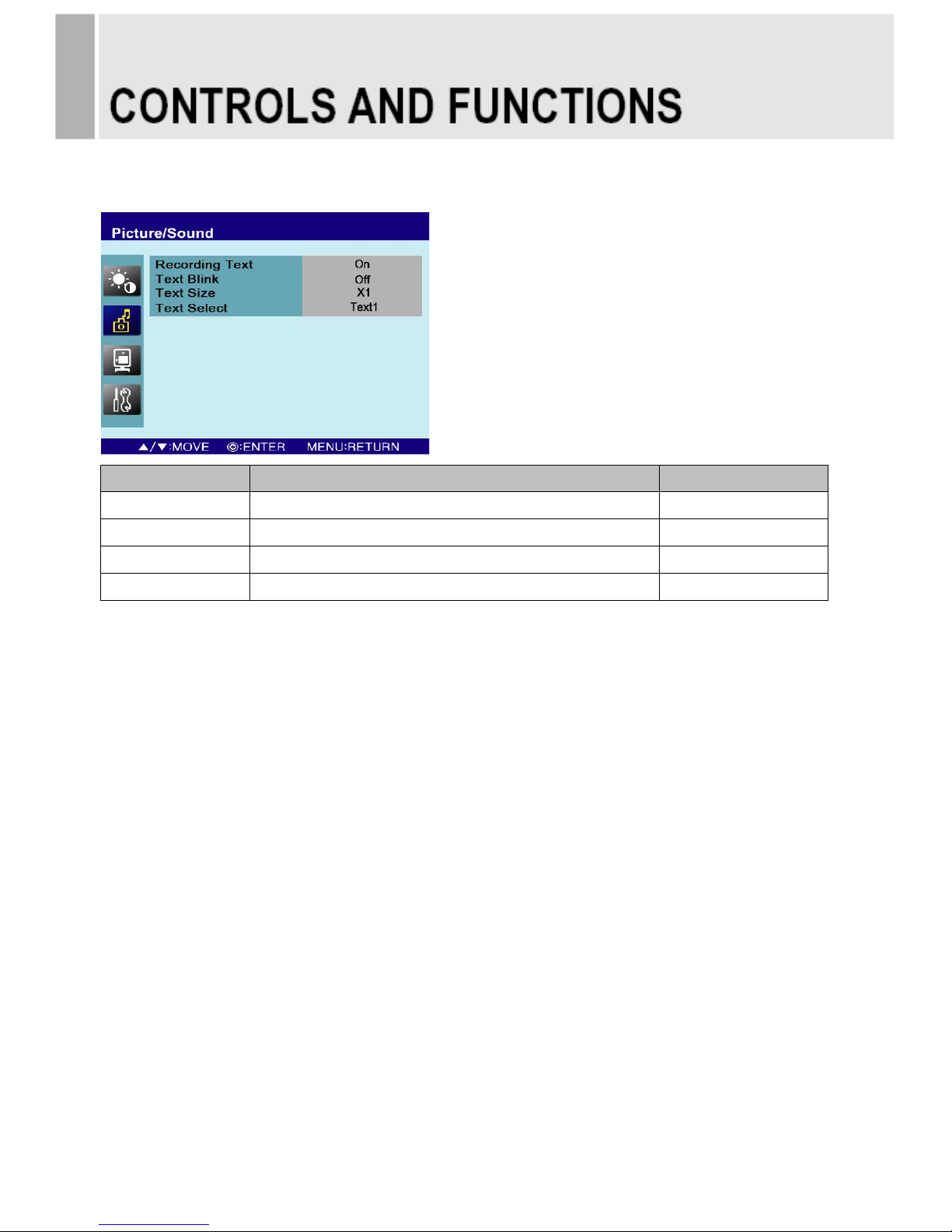

Recording Text

Sets the recording indication text.

See table below

Cam out

CVBS out is possible to watch Cam out through the CAMERA OUT Port when power off. (Operating is On.)

On or Off

(Default is Off.)

1) Unavailable in RGB PC, DVI, HDMI1 and HDMI2.

2) Unavailable in S-Video, RGB PC, DVI, HDMI1 and HDMI2.

3) Only available in RGB PC.

Picture Mode

Custom

Applies user selected values.(Brightness, Contrast, Color, Tint and Sharpness)

Dynamic

Provides enhanced contrast and sharpness.

Standard

Provides standard contrast and sharpness.

Movie

Is recommended for viewing film-based content.

Mild

Reduces contras and sharpness.

INSTRUCTION MANUAL ………………………………………………………………………. 11

Color Tone

Cool

Gives the white color a bluish tint.

Normal

Gives the white color a neutral tint.

Warm

Gives the white color a reddish tint.

User

To manually adjust the color tones(Red, Green, and Blue).

Size

4:3

Sets the image size to 4:3

Panorama

Sets the image to panorama

Zoom1

Expands the image size about two times to upward and downward

Zoom2

Expands the image size about one and half times to upward and downward

Wide

Sets the image size to wide

Under

Adjusts the image size to display resolution without overscan

1:1

Adjusts the image size to input resolution with overscan

1) Unavailable in RGB PC, DVI, HDMI1 and HDMI2.

2) Unavailable in RGB PC.

Option

Function

Value

Auto Adjust

Auto geometry adjustment.

Phase

Adjusts the number of horizontal picture elements.

0 ~ 100

H-Position

Adjusts the horizontally picture position.

0 ~ 100

V-Position

Adjusts the vertically picture position.

0 ~ 100

Frequency

Adjusts the vertical noise of screen image.

0 ~ 100

12 ………………………………………………………………………. INSTRUCTION MANUAL

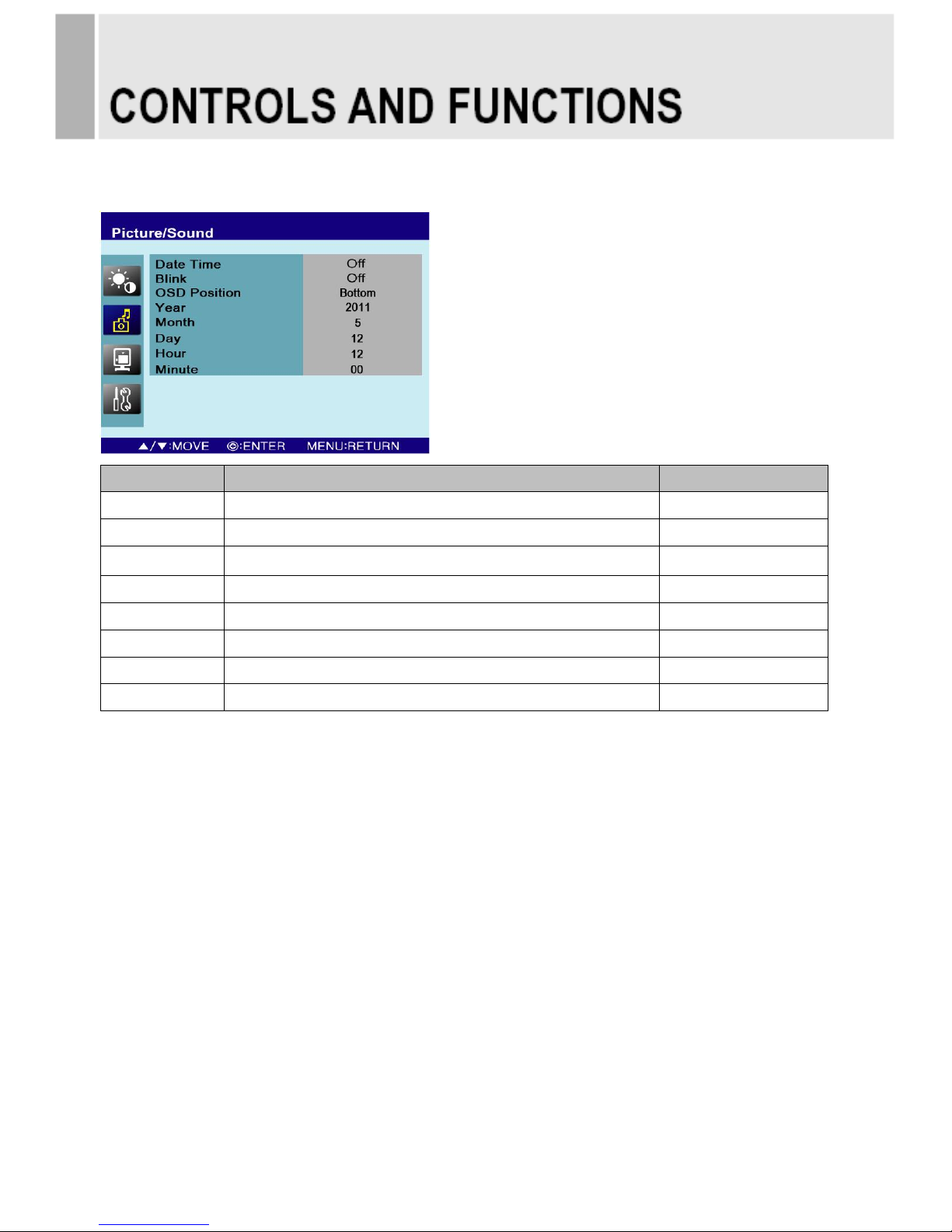

Date Time

Option

Function

Value

Date Time

Activates the feature of Date Time.

Off or On

Blink

This function is for blinking Date & Time texts.

Off or On

OSD Position

Selects the location of Date Time text.

Top, Bottom

Year*

Selects the wanted year.

2000~2100

Month*

Selects the wanted month.

1~12

Day*

Selects the wanted day.

1~31

Hour*

Selects the wanted hour.

0~23

Minute*

Selects the wanted minute.

0~59

* User can set the wanted time (Year, Month, Day, Hour, Minute) by using VOL(◀/▶) key.

INSTRUCTION MANUAL ………………………………………………………………………. 13

Recording Text

Option

Function

Value

Recording Text

Activates the feature of Recording Text.

Off or On

Text Blink

This function is for blinking Recording text.

Off or On

Text Size

Selects the size of Recording text.

X1, X2, X3

Text Select

Selects the wanted phrases.

Text1, Text2, Text31)

1) Text phrases

 Text1: Recording  Text2: Recording in Progress  Text3: Surveillance in Progress

14 ………………………………………………………………………. INSTRUCTION MANUAL

C. PIP

Option

Function

Value

PIP

Activates the PIP feature.

Off or On

Input Source

Selects the input source for the PIP area.

See table below

PIP Mode

Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3, and full screen side by side.

PIP, PBP1 or PBP2 PIP Size

Selects the size of PIP screen.

Size1, Size2 or Size3

Position

Selects the position of PIP screen. Right of Bottom, Left of Bottom, Left of Top and Right of Top.

RB, LB, LT or RT Swap

Alternates between the main and sub picture

Sound Select

Selects the sound source from either the Main or PIP

Main or Sub

Input Source

Main

Sub

Available

combination

AV2, S-Video and C/R

RGB PC, DVI, HDMI1 or HDMI2 RGB PC, DVI, HDMI1 or HDMI2

AV2, S-Video and C/R

Unavailable combination

RGB PC, DVI, HDMI1 or HDMI2

INSTRUCTION MANUAL ………………………………………………………………………. 15

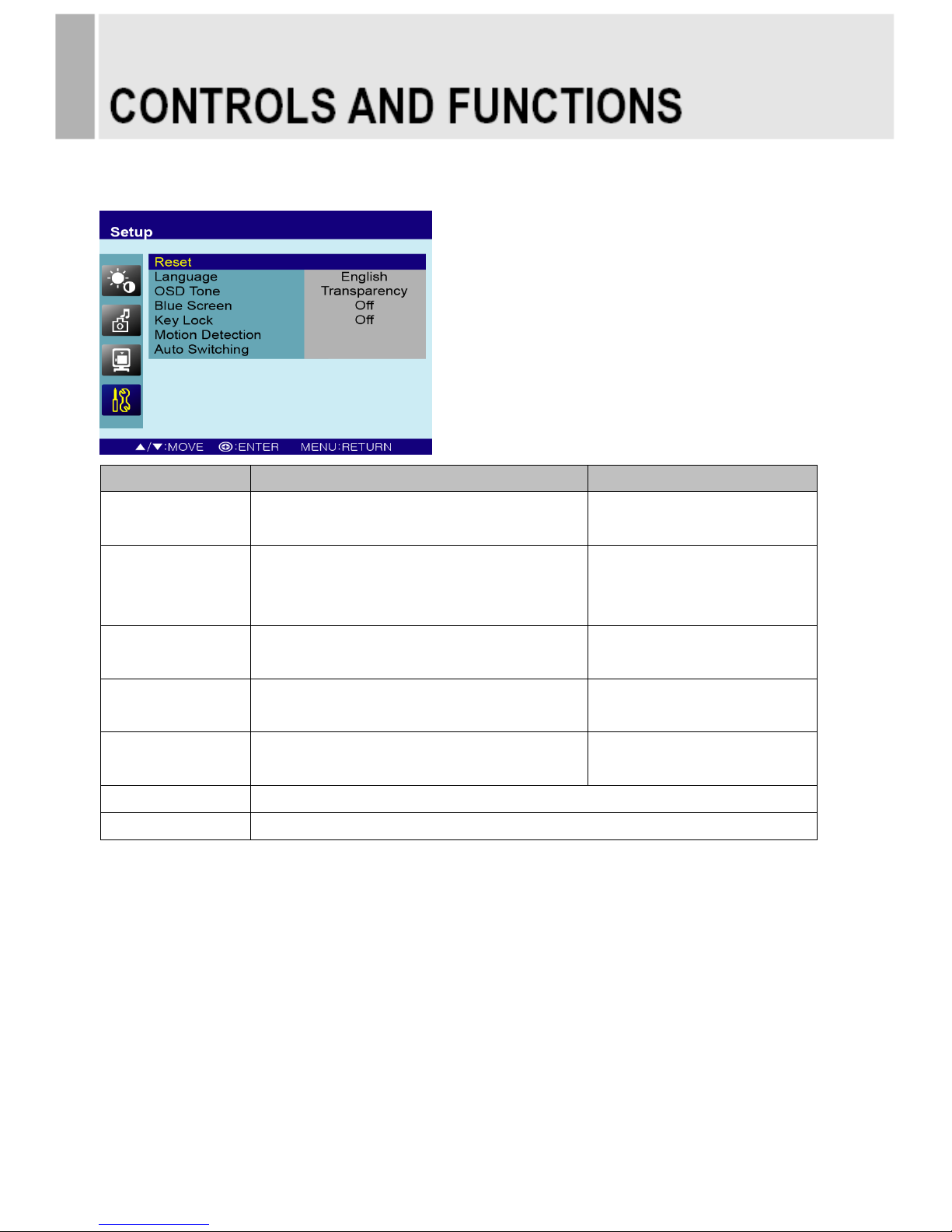

D. Setup

Option

Function

Value

Reset

Resets the monitor settings to their factory default.

Language

Sets the language of the OSD menu.

English, French, Deutsch, Italian, Spanish, Portuguese or Nederland

OSD Tone

Changes background of monitor menus. (e.g. input source & information)

Transparency or On

Blue Screen

Displays a blue screen if the monitor receives no signal.

Off or On

Key Lock

Locks all buttons of the monitor. Note: Use remote controller to unlock.

Off or On Motion Detection

See table below

Auto Switching

See table below

16 ………………………………………………………………………. INSTRUCTION MANUAL

Motion Detection (Built-in PIR sensor; Passive Infra-Red)

Option

Function

Value

Detection Enable

Activates the Motion Detection feature.

Off or On

Detection Input

Selects the input source for the Motion Detection.

AV2, S-Video, RGB PC, DVI, HDMI1, HDMI2 or C/R

Buzzer

Activates an audible signal when the monitor receives a motion detection signal.

On or Off

Detection Time

Selects the amount of time, in seconds, that the monitor displays the motion detection input image.

3 ~ 100 Detection Option

Inactivated.

Display Type

Selects the mode in which the monitor displays the motion detection input. The monitor takes one of the following actions:

- PIP & FULL: Displays the motion detection input in the PIP of the current video input source.

Note: The main video source must support the motion detection input source as a PIP option. See section “Input Source” in “C. PIP”.

- FULL: Switches the display to show the motion detection input in the full screen.

PIP & FULL or FULL

INSTRUCTION MANUAL ………………………………………………………………………. 17

Auto Switching

Option

Function

Value

Auto Switching

Activates the Auto Switching feature.

Off or On

Input Enable

Opens another menu and you can select the input sources to include in the Auto Switching cycle.

AV2, S-Video, RGB PC, DVI, HDMI1, HDMI2 and C/R

Time

Selects the amount of time, in seconds, that the monitor displays each selected input source.

3 ~ 100

18 ………………………………………………………………………. INSTRUCTION MANUAL

Menu of the M/P (Media Player)

• Connect USB & SD card devices

1. Connect USB & SD card devices to USB slot which are on the slide of the monitor set.

• Removing the USB & SD card devices from Monitor

1. Return to main menu and press ESC.

2. Remove the USB & SD card devices from Monitor.

- Entering Card Reader, displaying main menu.

[MUSIC] [MOVIE] [MUSIC PHOTO] [SETUP]

Option

Function


Displaying photo and slideshow.

MUSIC

Playing music in the USB device.

MOVIE

Playing movie in the USB device

MUSIC PHOTO

Displaying photo and slideshow with playing music.

SETUP

Select subtitle language and photo slideshow effect, time.

INSTRUCTION MANUAL ………………………………………………………………………. 19

A. PHOTO

JPEG File Viewing Options

- When you select Photo in entry menu,

1. Press the USB button and then use ◀/▶ button to select the Photo.

2. Press the SEL button.

3. Press the ▲/▼ button to select photo file.

4. Press the SEL button for 1 picture display for slideshow.

5. Press exit or press the ESC button to return to the USB menu.

Slideshow

1. Press ◀/▶ button to select the Photo.

2. You can choose the slide show effect, frequency and play mode in the USB Setup.

3. Press the SEL button to pause the current image.

5. Press exit or press the ESC button to return to the USB menu.

Using the remote control

SEL

Starting photo slideshow displaying

PLAY/PAUSE

PLAY/PAUSE functions use SEL button in slideshow displaying

ESC

Stop slideshow and return to photo file list menu

20 ………………………………………………………………………. INSTRUCTION MANUAL

B. MUSIC

- Purchased MP3/music files may contain copyright restrictions.

1. Press ◀/▶ button to select the Music.

2. Press the SEL button.

3. Press the ▲/▼ button to select desired music file.

4. Press the SEL button. Then the music starts.

5. Press exit or press the ESC button to return to the USB menu.

Using the remote control

SEL

Selected music playing

PLAY/PAUSE

PLAY/PAUSE functions use SEL button

ESC

Stop playing music and return the music file list

INSTRUCTION MANUAL ………………………………………………………………………. 21

C. MOVIE

- Select the Movie

1. Press ◀/▶ button to select the Movie

2. Press the SEL button.

3. Press the ▲/▼ button to select desired movie file.

4. Press the SEL button. Then the movie starts.

5. Press exit or press the ESC button to return to the USB menu.

Using the remote control

SEL

Playing selected movie file

PLAY/PAUSE

PLAY/PAUSE functions use SEL button

ESC

Stop playing movie and return to movie file list

22 ………………………………………………………………………. INSTRUCTION MANUAL

D. PHOTO MUSIC

-Playing slideshow with music.

1. Press the USB button and then use ◀/▶ button to select the PHOTO MUSIC.

2. Press the SEL button.

3. Press the ▲/▼ button to select photo file.

4. Press the SEL button for picture display for slideshow.

5. Moved to music file list for music playing.

6. Press the SEL button for playing music with photo slide show.

7. Press exit or press the ESC button to return to the USB menu.

Using the remote control

Select photo and music file

PLAY/PAUSE

PLAY/PAUSE functions use SEL button in Music playing

ESC

Stop playing slideshow with music and return to movie file list

INSTRUCTION MANUAL ………………………………………………………………………. 23

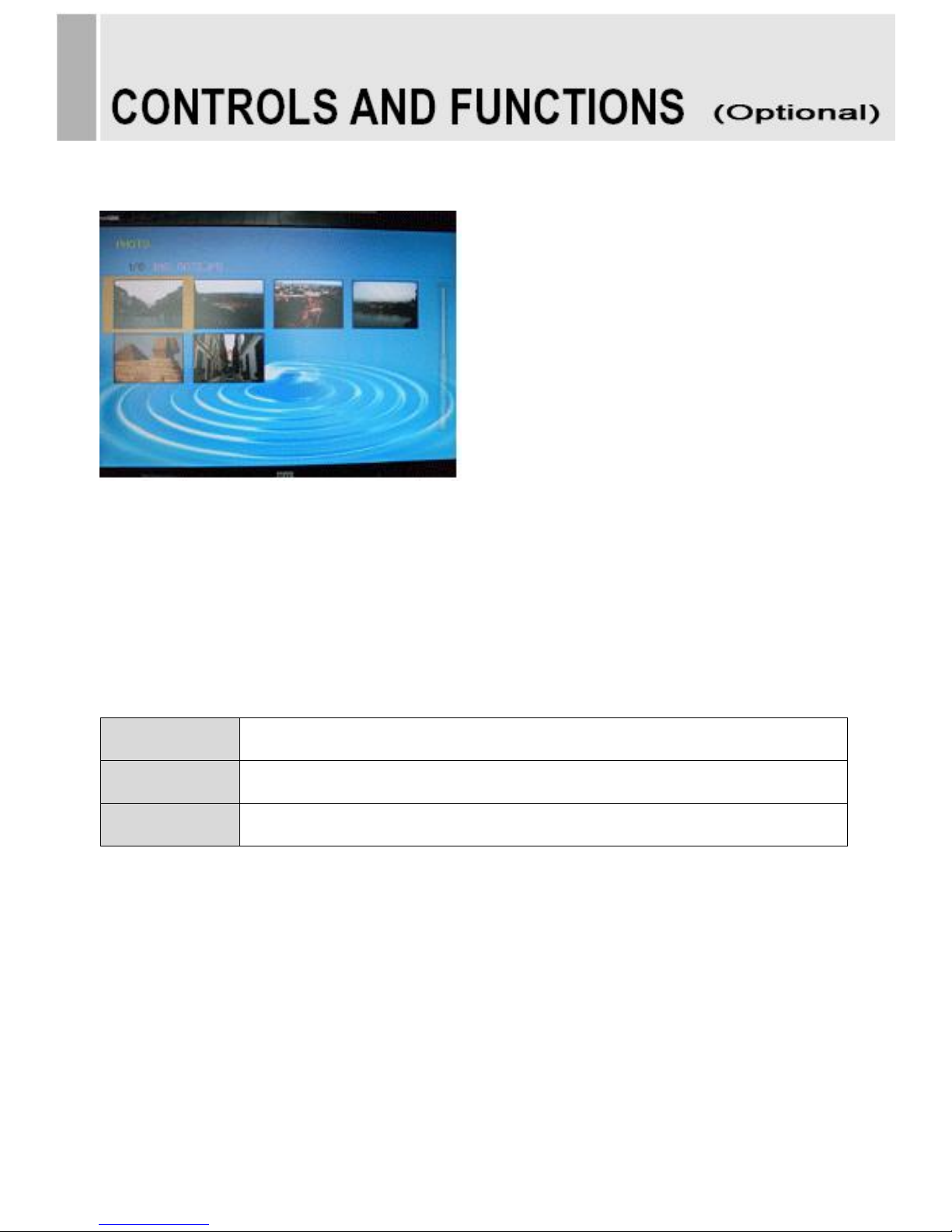

E. PHOTO Thumbnail mode

- Thumbnail mode in photo.

- Press ▶ button in Photo File list or ACT button in main menu

1. Press ▲/▼/◀/▶ button to select desired photo file.

2. Press SEL button to start Slideshow

3. Press exit or press the ESC button to return to the USB menu.

Using the remote control

SEL

Select desired photo file for slideshow playing

PLAY/PAUSE

PLAY/PAUSE functions use SEL button in photo playing

ESC

Stop Thumbnail mode and return to file list

24 ………………………………………………………………………. INSTRUCTION MANUAL

F. SETUP

1. SETUP- PHOTO

Select Slideshow Effect

-The picture display effect for the slide show.

1. Press ◀/▶ button to select the Setup.

2. Press the SEL button enter the Setup menu.

3. Press the ▶ and then use ▲/▼ button to select Slideshow EFFECT.

4. Press the ▶ and then use ▲/▼ button to select the desired Effect.

5. Press exit or press the ESC button to return to the USB menu.

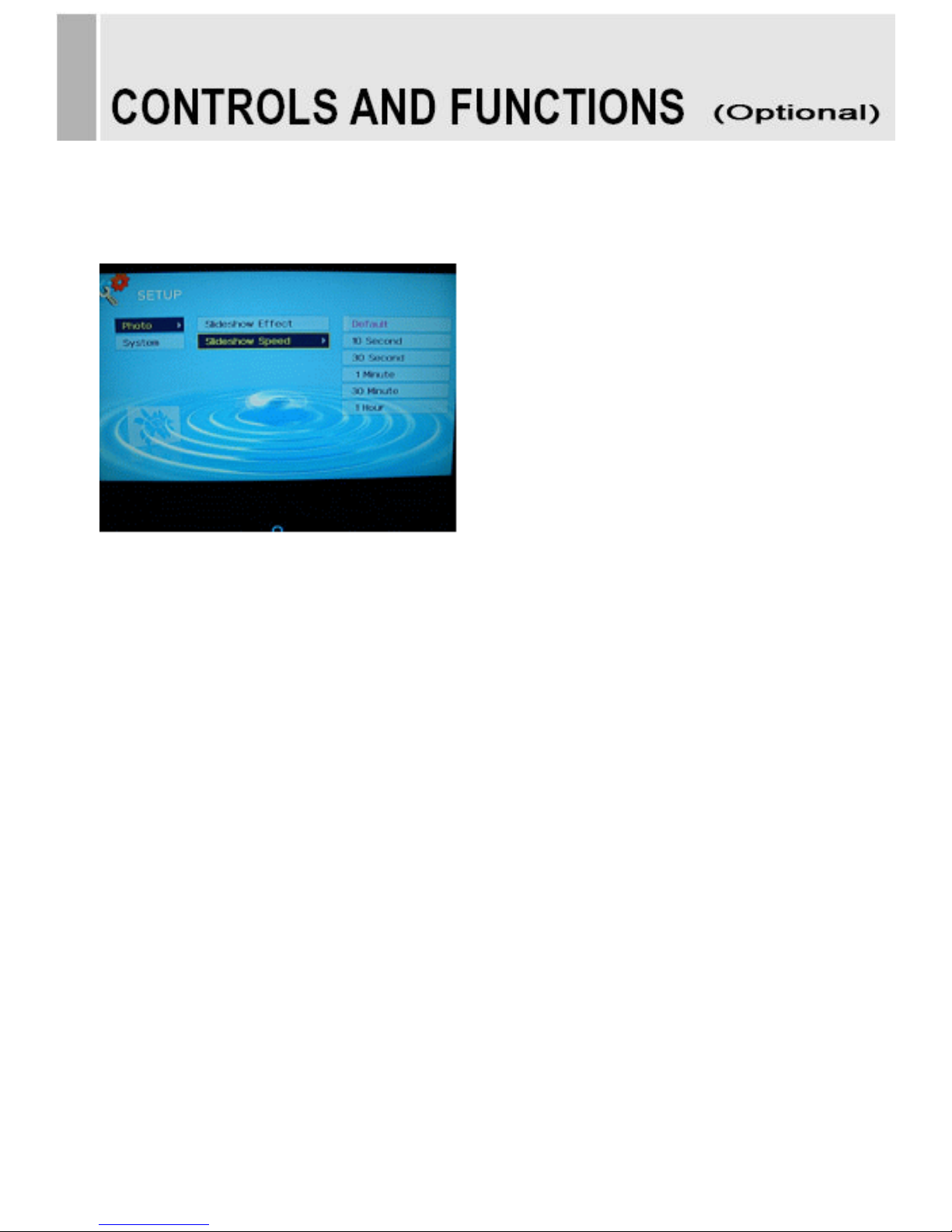

Select Slideshow Speed

-The picture display interval for the slide show.

1. Press ◀/▶ button to select the Setup.

2. Press the SEL button to enter the Setup menu.

3. Press the ▲/▼ button to select the PHOTO SETUP.

4. Press the ▶ and then use ▲/▼ button to select.E

5. Press the ▶ and then use ▲/▼ button to select the Speed.

6. Press exit or press the ESC button to return to the USB menu.

INSTRUCTION MANUAL ………………………………………………………………………. 25

2. SETUP-SYSTEM

Select SUBTITLE LANG.

- The menus can be shown on the screen in the selected language. First select your language.

1. Press ◀/▶ button to select the Setup.

2. Press the SEL button to enter the Setup menu.

3. Press the ▲/▼ button to select the SYSTEM SETUP.

4. Press the ▶ and then use ▲/▼ button to select SUBTITLE LANGUAGE.

5. Press the ▶ and then use ▲/▼button to select the desired language.

6. Press exit or press the ESC button to return to the USB menu.

26 ………………………………………………………………………. INSTRUCTION MANUAL

Wall mounting (Optional)

The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery).

※ Attention!

You must use four M4x10 screws to assemble this monitor and the wall mount bracket.

INSTRUCTION MANUAL ………………………………………………………………………. 27

▶ PIN ASSIGNMENTS

Pin 1

RED VIDEO

2 GREEN VIDEO

SIGNAL CABLE DETECT

BLUE VIDEO

GROUND

SDA(for DDC)

GROUND

H-SYNC.(or H+V SYNC.)

RED GROUND

V-SYNC.

GREEN GROUND

SCL(for DDC)

BLUE GROUND

D-SUB

▶ ACCESSORIES

1. Power cord. (AC 110V only.)

2. User’s manual.

3. PC cable.

4. Stereo cable. (Optional)

5. Remote controller. (Optional)

6. Batteries. (Optional)

7. Wall mount. (Optional)

28 ………………………………………………………………………. INSTRUCTION MANUAL

POWER CONSUMPTION

MODE

POWER CONSUMPTION

< 35W

POWER OFF

< 1W

LED INDICATOR The power management feature of the monitor is comprised of two stages:

ON(GREEN) and POWER OFF(RED).

MODE

LED COLOR

MONITOR OPERATION

GREEN

Normal Operation

POWER OFF

RED

Not Operation

INSTRUCTION MANUAL ………………………………………………………………………. 29

1. Monitor Specification

23”

LCD-Type

23˝ Diagonal AM-TFT(Active-Matrix)

Pixel pitch(mm) : 0.2655(H) x 0.2655(V)

BRIGHTNESS: 250cd/㎡(Typical)

CONTRAST RATIO: 1000:1(Typical)

VIEWING ANGLE: 160°/160°(H/V)

RESPONSE TIME: 5msec(Typical)

RESOLUTION (H x V)

1920X1080 @60Hz

FREQUENCY

HORIZONTAL: 31~80KHz, VERTICAL: 56~75Hz

INPUT SIGNAL

VIDEO(1ch input 1.0Vp-p, 75Ω terminated, loop-through out)

S-VIDEO(1ch input (Y/C))

DVI D(Digital Video Interface)

HDMI1, HDMI2 (High Definition Multimedia Interface)

PC RGB

AV(composite) Sound In/Out

PC Stereo In

Audio Out

Card Reader (Optional)

ACTIVE DISPLAY AREA

(H x V)

509.76 mm X 286.74 mm (20.07” X 11.29”)

PACKING DIMENSIONS

(W x D x H)

650 mm X 205 mm X 545 mm (25.59” X 8.07” X 21.45”)

WEIGHT AC IN

Net: 8.8kg (19.40 Ibs) / Gross: 10.5kg (23.15 Ibs)

AC 24 IN

Net: 8.3kg (18.30 Ibs) / Gross: 10.5kg (23.15 Ibs)

ELECTRICAL

RATINGS

AC IN

100-240V~, 50/60Hz (auto switching) (Built-in Adaptor Output: 12V / 5.83A)

AC 24 IN

AC 24V (50/60Hz)

▶▶ NOTE: Technical specifications are subject to change without notice.

30 ………………………………………………………………………. INSTRUCTION MANUAL

2. Camera Specification

ITEM

Built-in CAMERA

Sensor Type

1/3” Panasonic 1.3M Progressive CMOS

Total Number of Pixels

1376(H) X 1070(V) = 1,472,320 (pixel)

Number of Active Pixels

1280(H) X 1024(V) = 1,310,720 (pixel)

Min. Illumination

0.5 Lux@50IRE, F1.2

Lens

Mount

D-Mount

Lens

DC Iris, 2.8mm~10mm, F1.2

Output

Resolution

720P 60fps

Standard HD-SDI

1,485 Gbit HD-SDI(SMPTE 292M)

CVBS OUT

1.0 Vp-p Composite (75Ω)  (Fix Camera out of a SET)

Video

Control

Control Method

OSD

AGC

LOW, MIDDLE, HIGH

DWDR

OFF, LOW, MIDDLE, HIGH

2D, 3D DNR

OFF, ON (Level Adjustable)

SENS_UP

OFF, X2~X30, AUTO

White Balance

ATW, AWC->SET, INDOOR, OUTDOOR, MANUAL

Electric Shutter

AUTO(NTSC: 1/60~1/100,000 /PAL:1/50~1/100,000)

Day & Night

AUTO, COLOR, B/W, EXT

Motion

OFF / ON (3-AREA)

Privacy

OFF / ON (8 Zones)

Power Consumption

DC 12V (±10%), Max, 280mA

Operating Temperature

-10℃~55℃

Storage Temperature

-20℃~85℃

▶▶ NOTE: Technical specifications are subject to change without notice.

INSTRUCTION MANUAL ………………………………………………………………………. 31

3. PIR sensor Specification

ITEM

Built-in PIR sensor

Detection angle

X-axis: 138°, Y-axis: 125°

Ratings

(25[℃])

Sensitive Area (mm)

2 elements

Spectral Response (㎛)

5~14

Signal Output (mVp-p)

Noise (mVp-p)

0.4

Offset Voltage (V)

0.1

Supply Voltage (V)

2.2~15

Operating Temp. (℃)

30~70

▶▶ NOTE: Technical specifications are subject to change without notice.

32 ………………………………………………………………………. INSTRUCTION MANUAL

4. Card Reader Specification (Optional)

ITEM

MEDIA SUPPOTING SPECIFICATION

View Z 23-INCH TFT-LCD Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
