> Download the vColorTuner Software
1. Visit ViewSonic’s website to download the vColorTuner software:
https://www.viewsonic.com/
2. After the download completes, install the software.
> Setup
1. Connect one end of a USB Type A cable to the projector’s service
port, and the other end to your laptop.
2. Open the projector’s OSD Menu and go to : SYSTEM >
Control Method > USB.
> Create a vColorTuner account
1. Open the vColorTuner software.
2. Sign up for a vColorTuner account.
3. Activate your account via the email link.
> vColorTuner Quick Tour
1. Once logged in, there will be a Quick Tour to introduce the software.
2. To check the status of the connection with the vColorTuner Server,
press the Testing button.
3. Follow the on-screen instructions to complete the process.

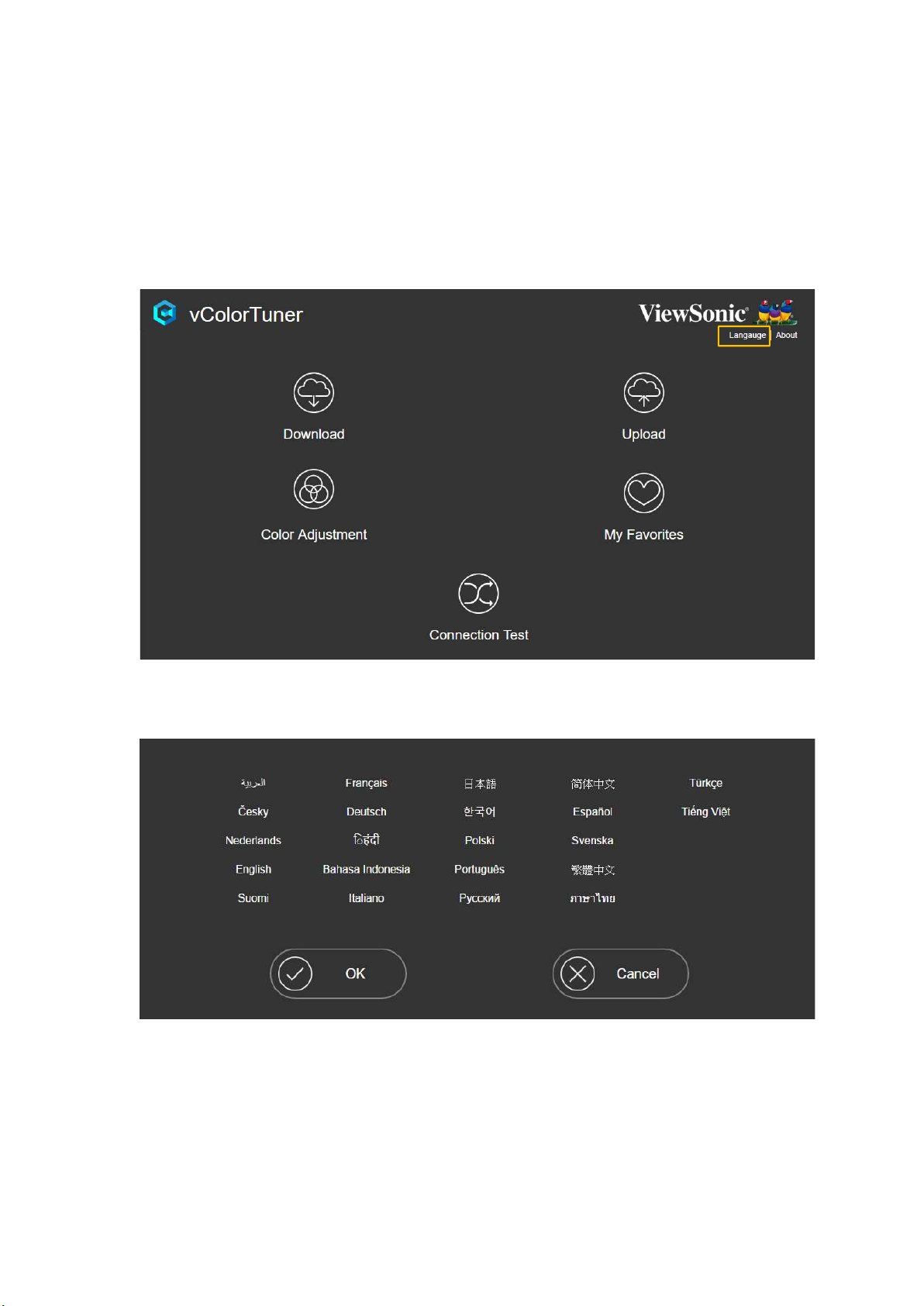

> Language
The vColorTuner software supports a multi-language OSD.
To adjust the language:
1. Select Language.
2. Choose your preferred on-screen language from the list provided, and
click OK.
> vColorTuner Homepage
Menu Description
[1] Download
[2] Upload Upload color profiles from My Favorites.
[3] Color Adjustment
[4] My Favorites
[5] Connection Test
Check, download, and exchange color profiles on
the server.
Adjust color values to your preference.
Save your color profile(s) or check downloaded
files.
Check connection status with the server.
NOTE: If the connection fails, an “Error Message” will appear and remind you
to check the connection.
Download
Number
1 Click the Apply button to preview your chosen profile.
Click the Download button to save profiles to My Favorites.
2
You may refer to Times to see which file is the most
3
downloaded.
Description

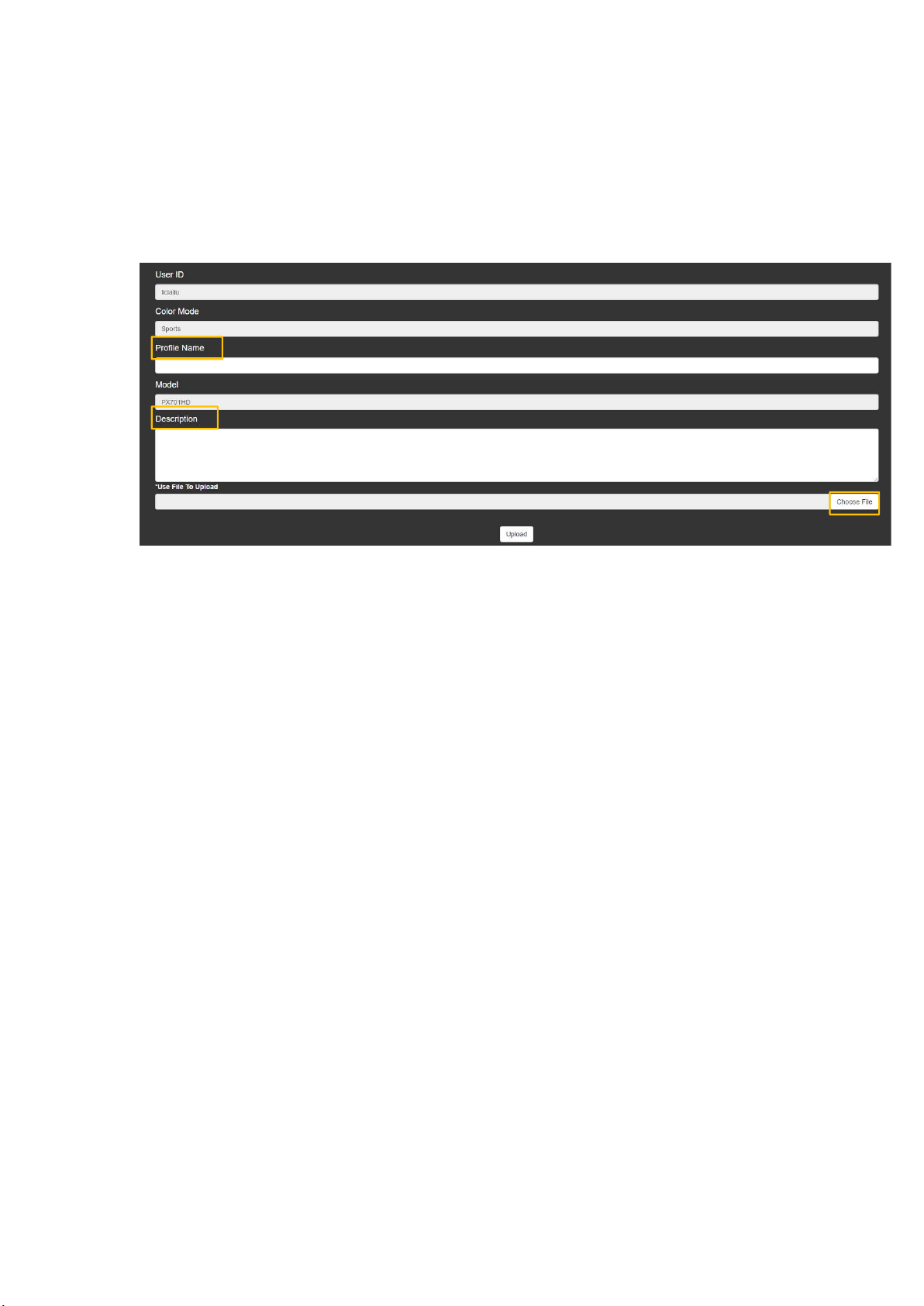

Upload
Key in Profile Name and Description, then choose the file you want to
upload to the cloud. After completion, you can start to share your file(s)
with others.
Color Adjustment
Number
1 Select the Color Mode.
2 Select the Gamma Table.
3
4 Click the Reset button to restore the default settings for the bar.
5 After finishing adjustments, select the Save as Favorite button to
6 Select the Reset Setting button to reset all changes and restore
Drag the bar on each item to adjust its value. Changes will
appear on projected images instantaneously.
save the profile.
the default settings.
Description

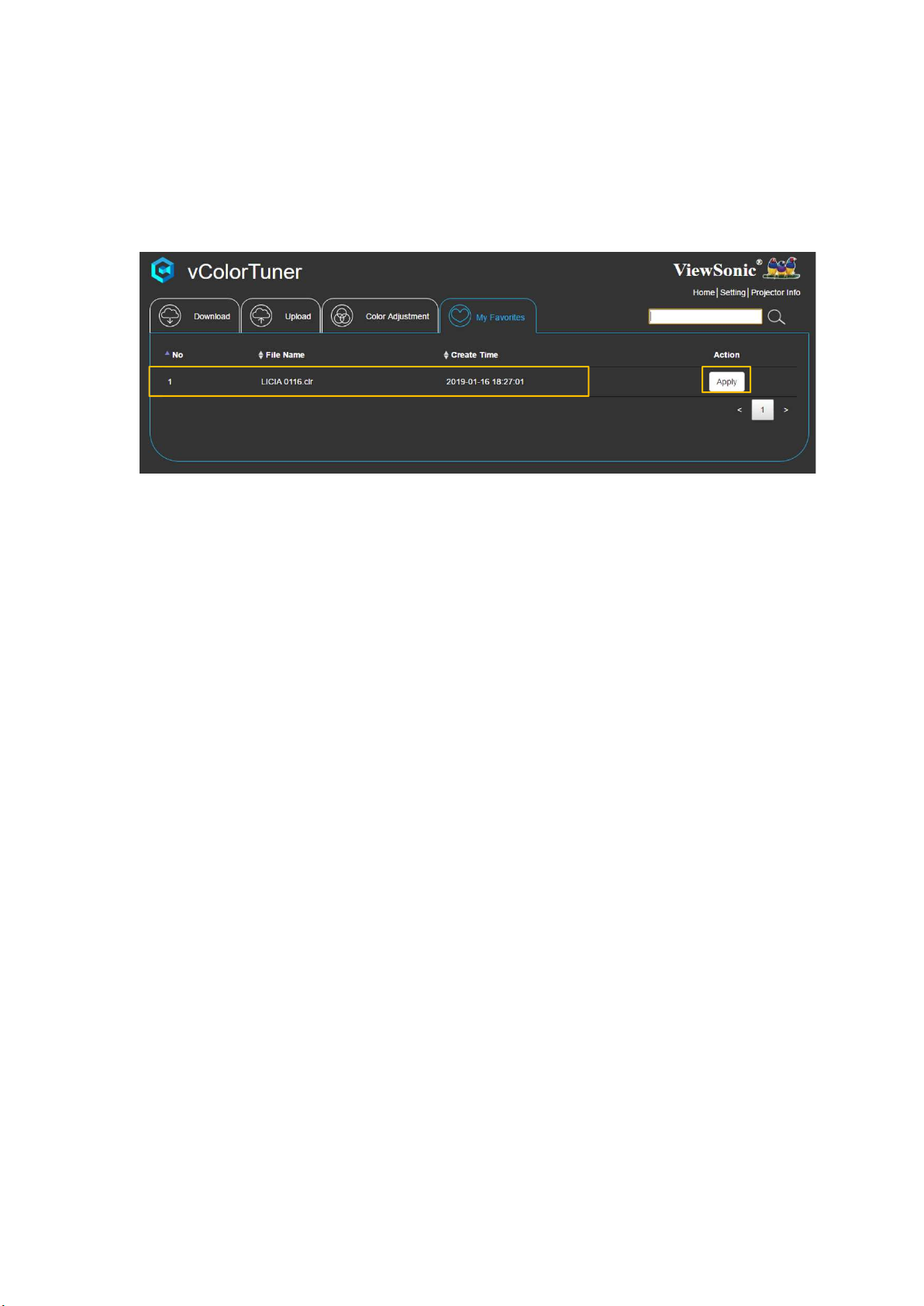

My Favorites
Here you can find files saved or downloaded from Color Adjustment or
Download. To apply the selected profile to the projector, click the Apply
button.

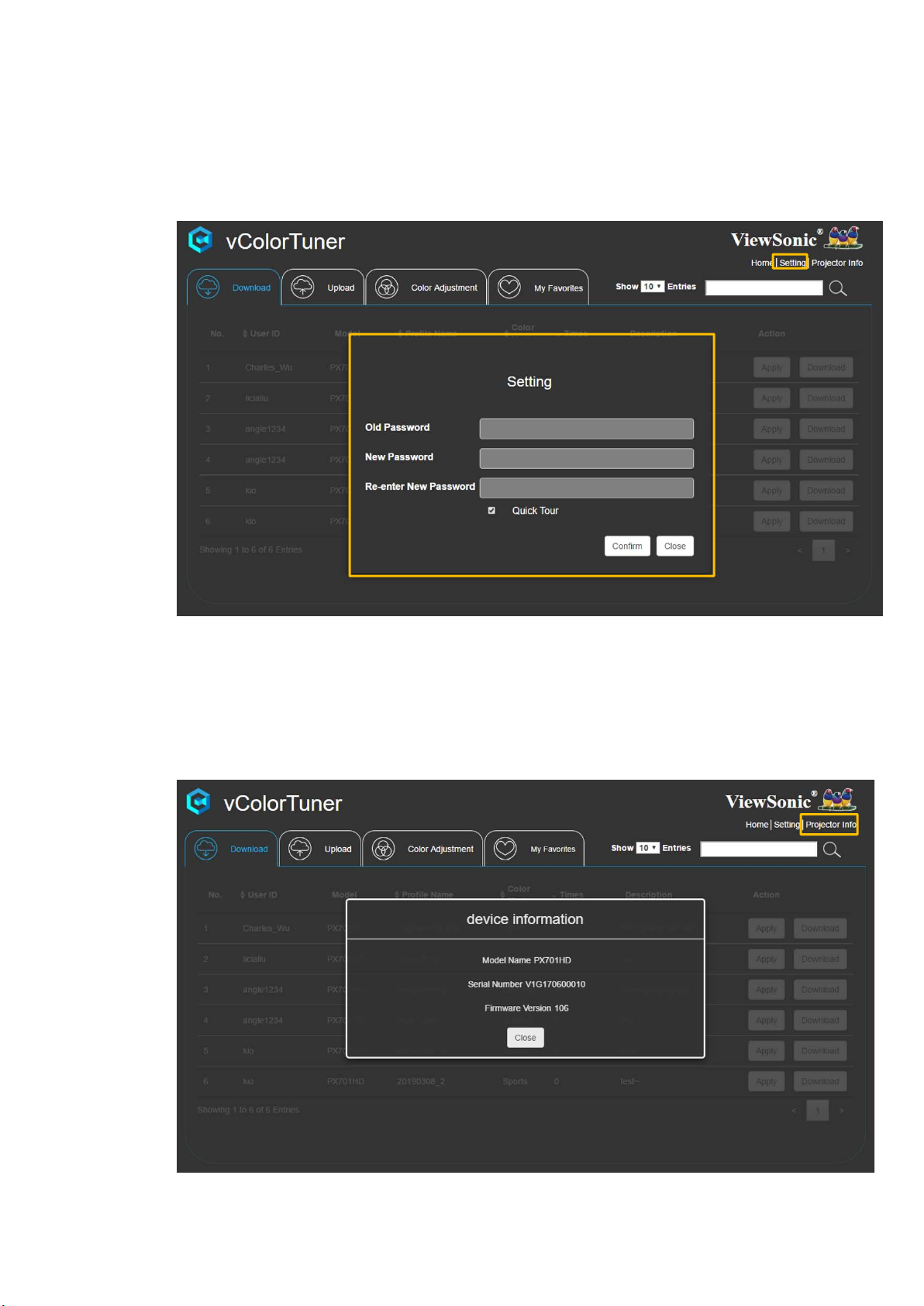

> Settings
To change the password, select Setting.
> Projector Info
Selecting Projector Info provides the device information, including:
Model Name, Serial Number, and Firmware Version.
