Service Manual
ViewSonic VX2835wm-1
Model No. VS11531
28” wide Color TFT LCD Display
(VX2835wm-1_SM Rev. 1b Jun.2007)
ViewSonic 381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583
Page 2
Copyright
Copyright © 2007 by ViewSonic Corporation. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of ViewSonic
Corporation.
Disclaimer
ViewSonic makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranty of merchantability or fitness for any
particular purpose. Further, ViewSonic reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation of ViewSonic to notify any
person of such revision or changes.
Trademarks
Optiquest is a registered trademark of ViewSonic Corporation.
ViewSonic is a registered trademark of ViewSonic Corporation.
All other trademarks used within this document are the property of their respective owners.
Product disposal at end of product life
The lamp in this product contains mercury. Pleas e dispose of in accordance with local, state or
federal laws.
Revision History
Revision SM Editing Date ECR Number Description of Changes Editor
1a 5/21/2007 Initial Release Jamie Chang

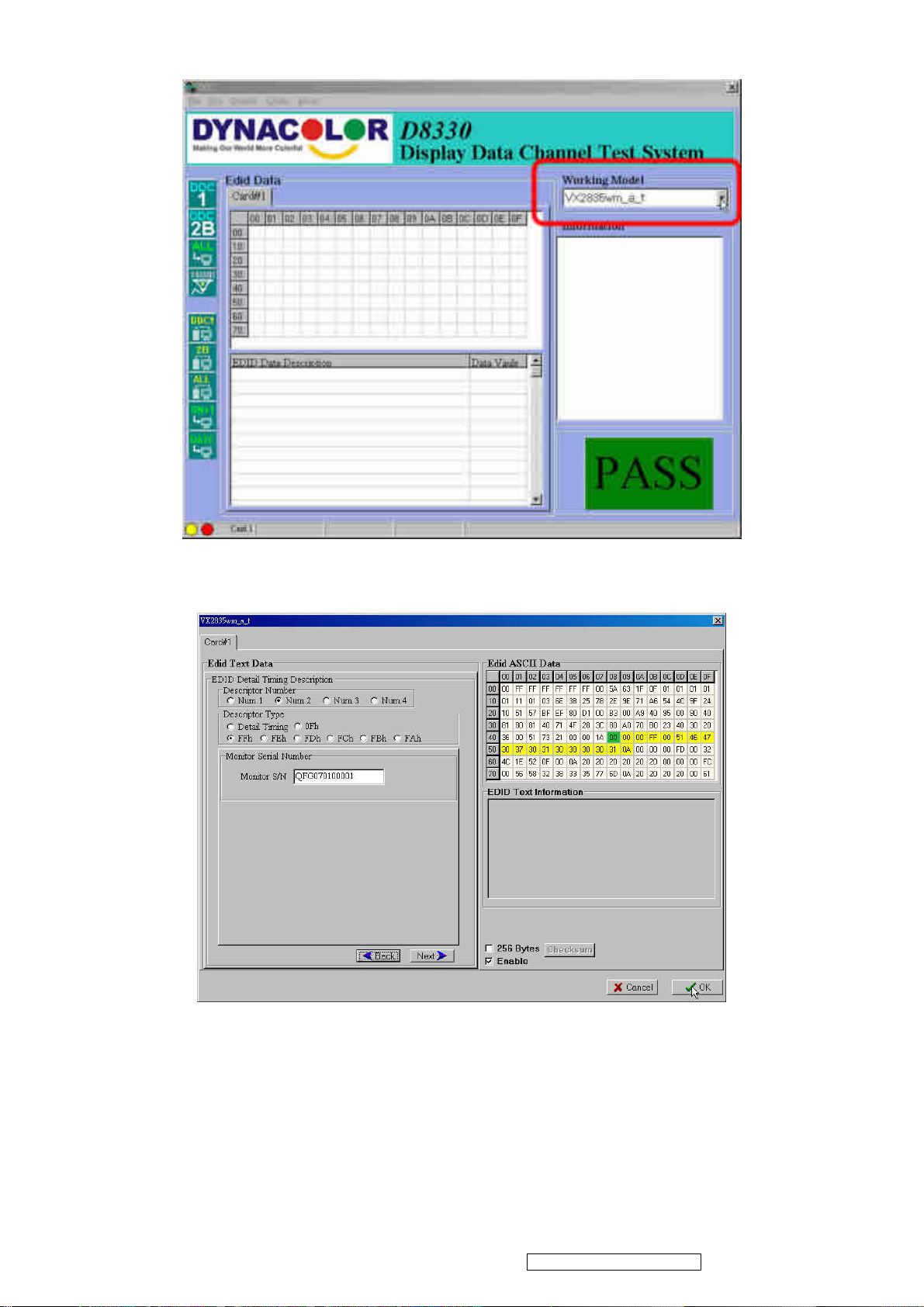

1b 6/25/2007 Replaced the photo of Step 2 in Section DDCKey Jamie Chang
i
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 3
TABLE OF CONTENTS
1. Precautions and Safety Notices ......................................................................................... 1
2. Specification ....................................................................................................................... 5
3. Front Panel Function Control Description ..................................................................... 35
4. Circuit Description............................................................................................................. 40
5. Adjusting Procedure .......................................................................................................... 41

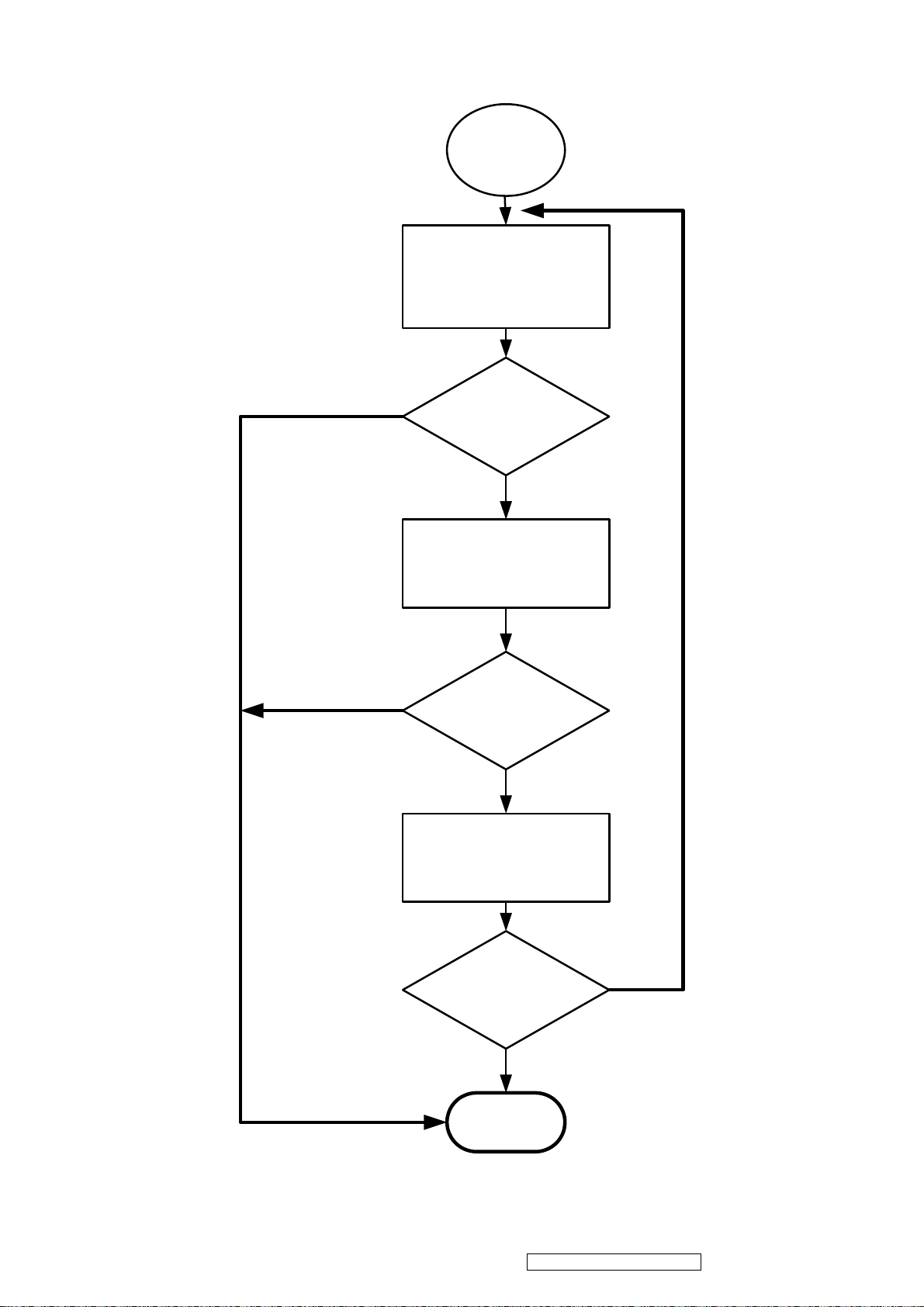

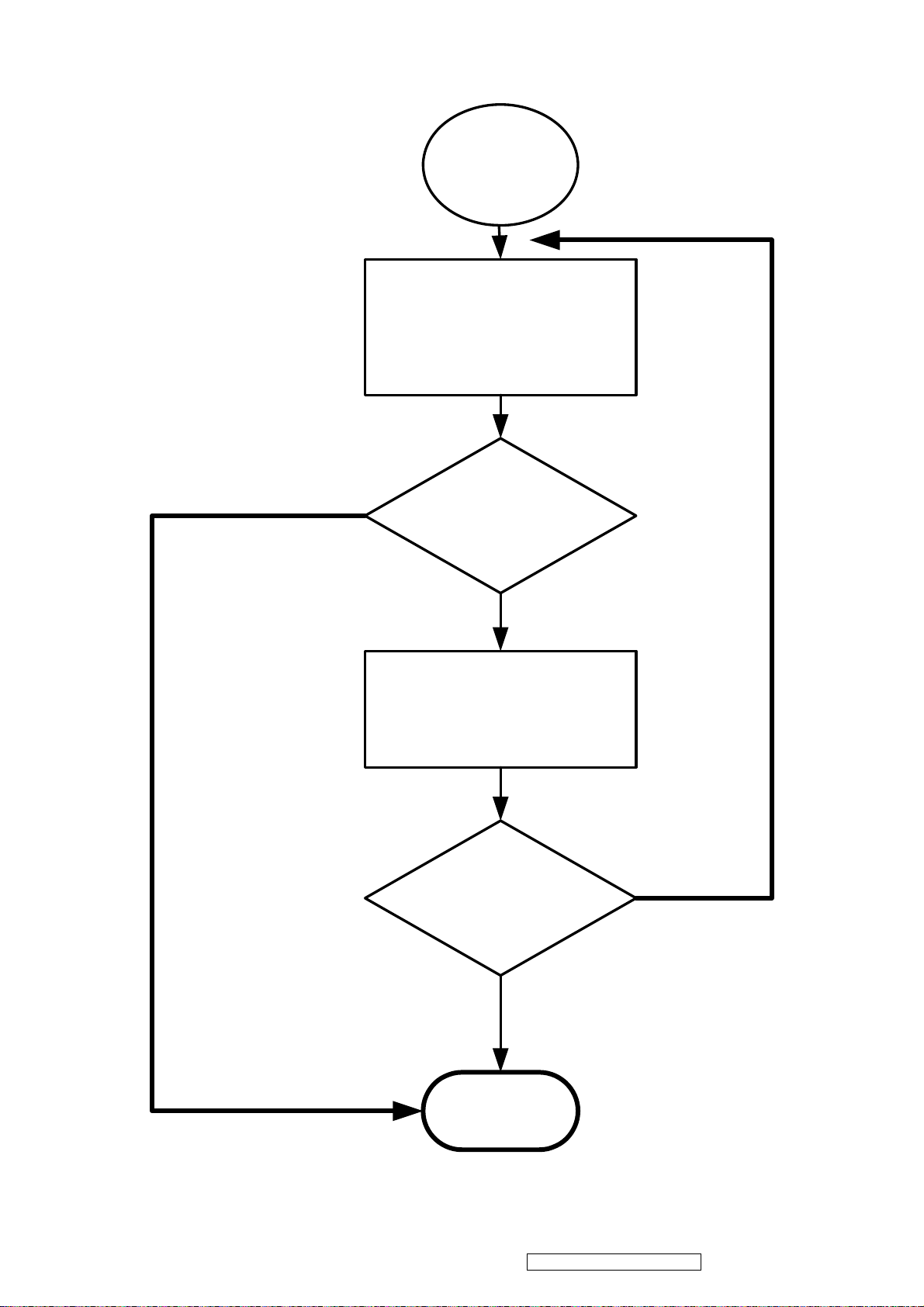

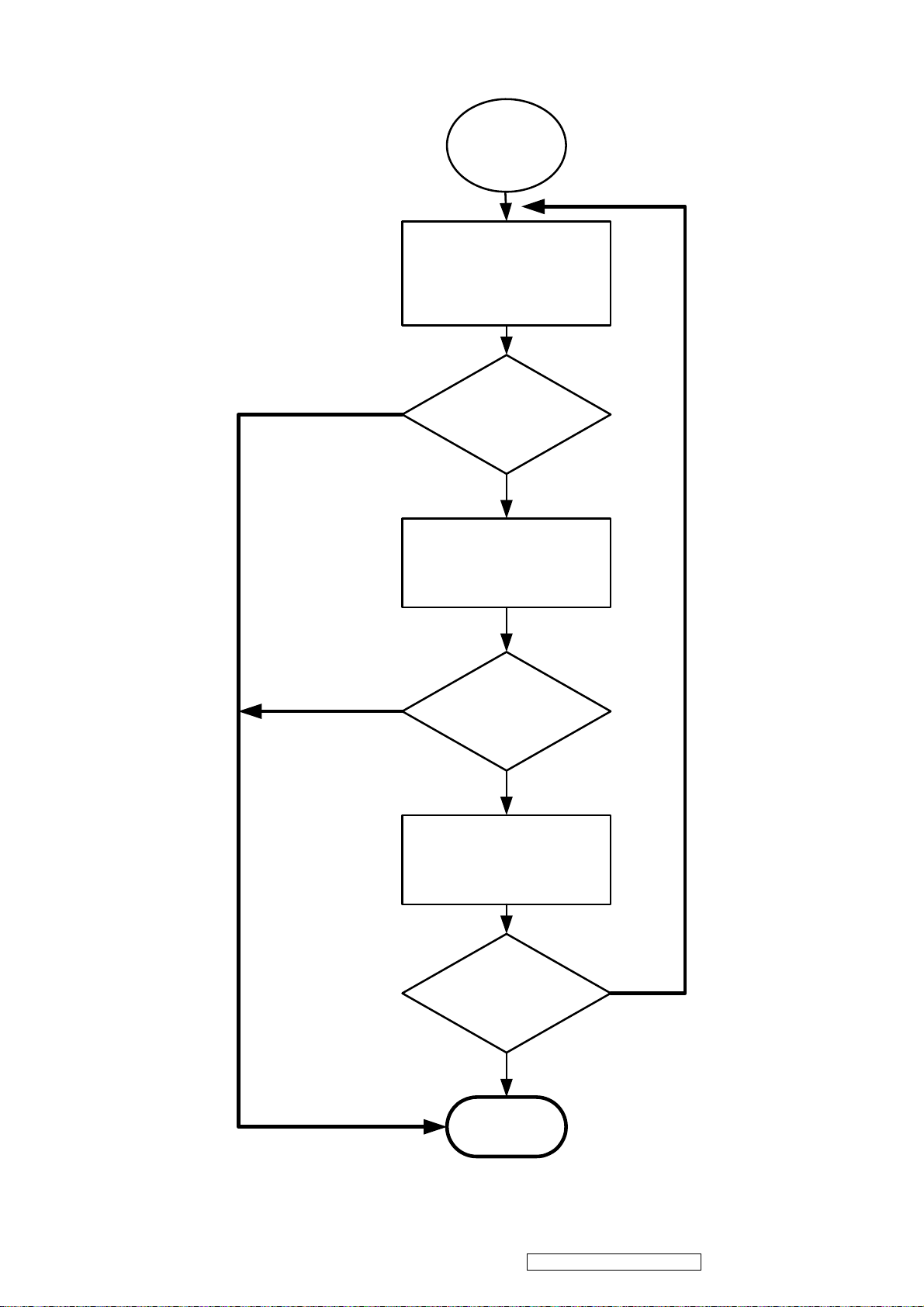

6. Trouble Shooting Flow Chart ............................................................................................ 62
7. Block Diagrams ................................................................................................................ 68

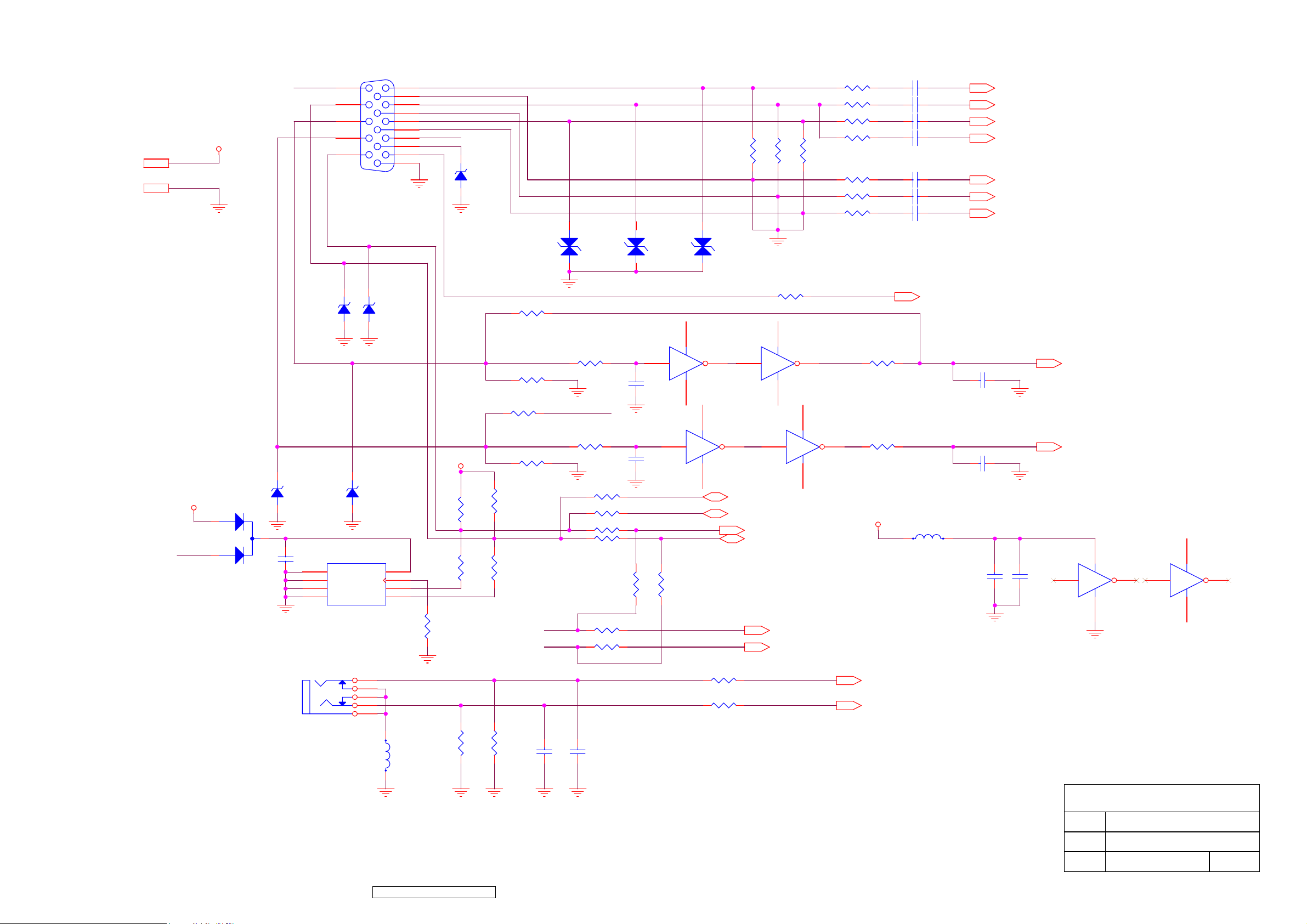

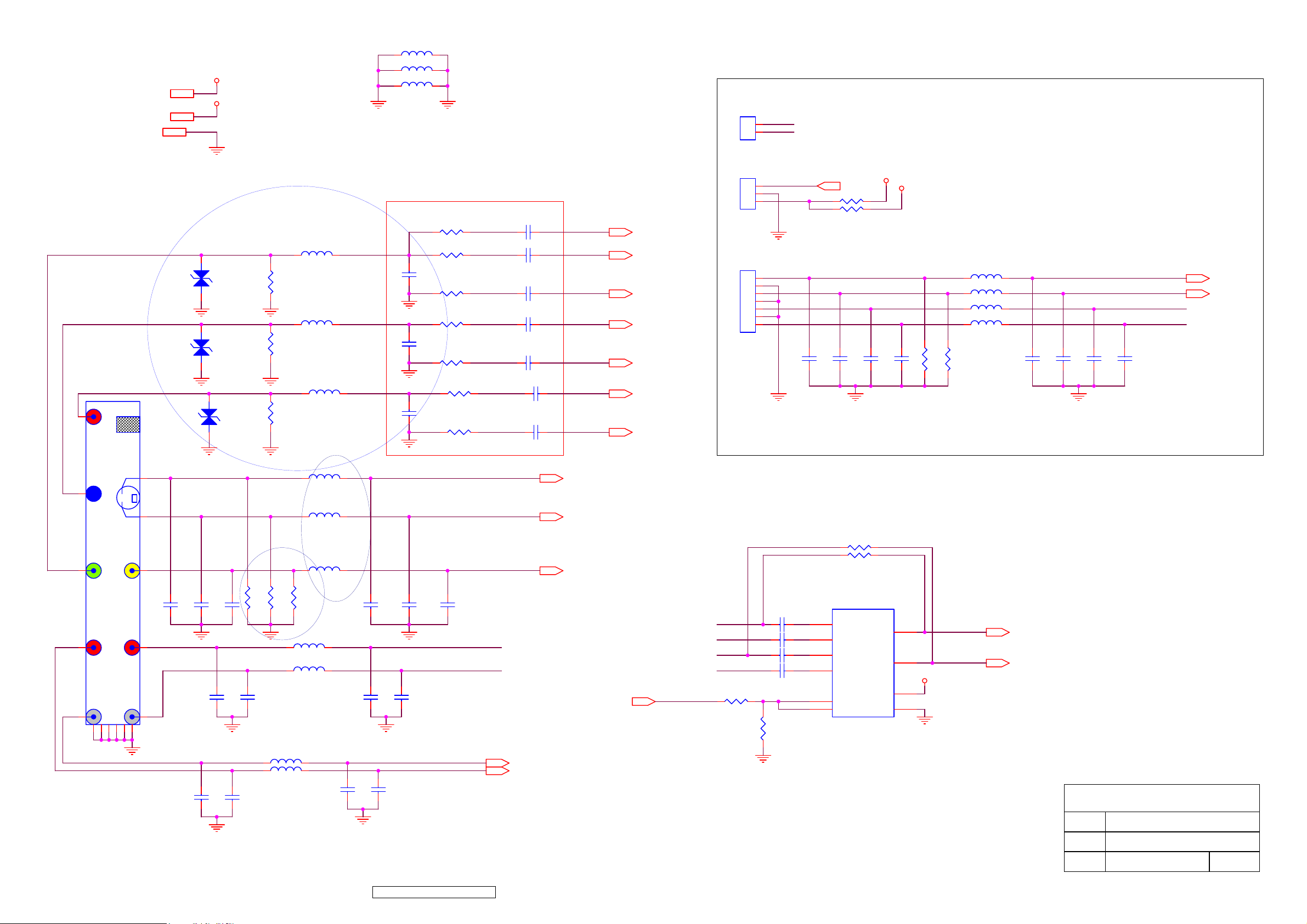

8. Schematic Diagrams ........................................................................................................ 69

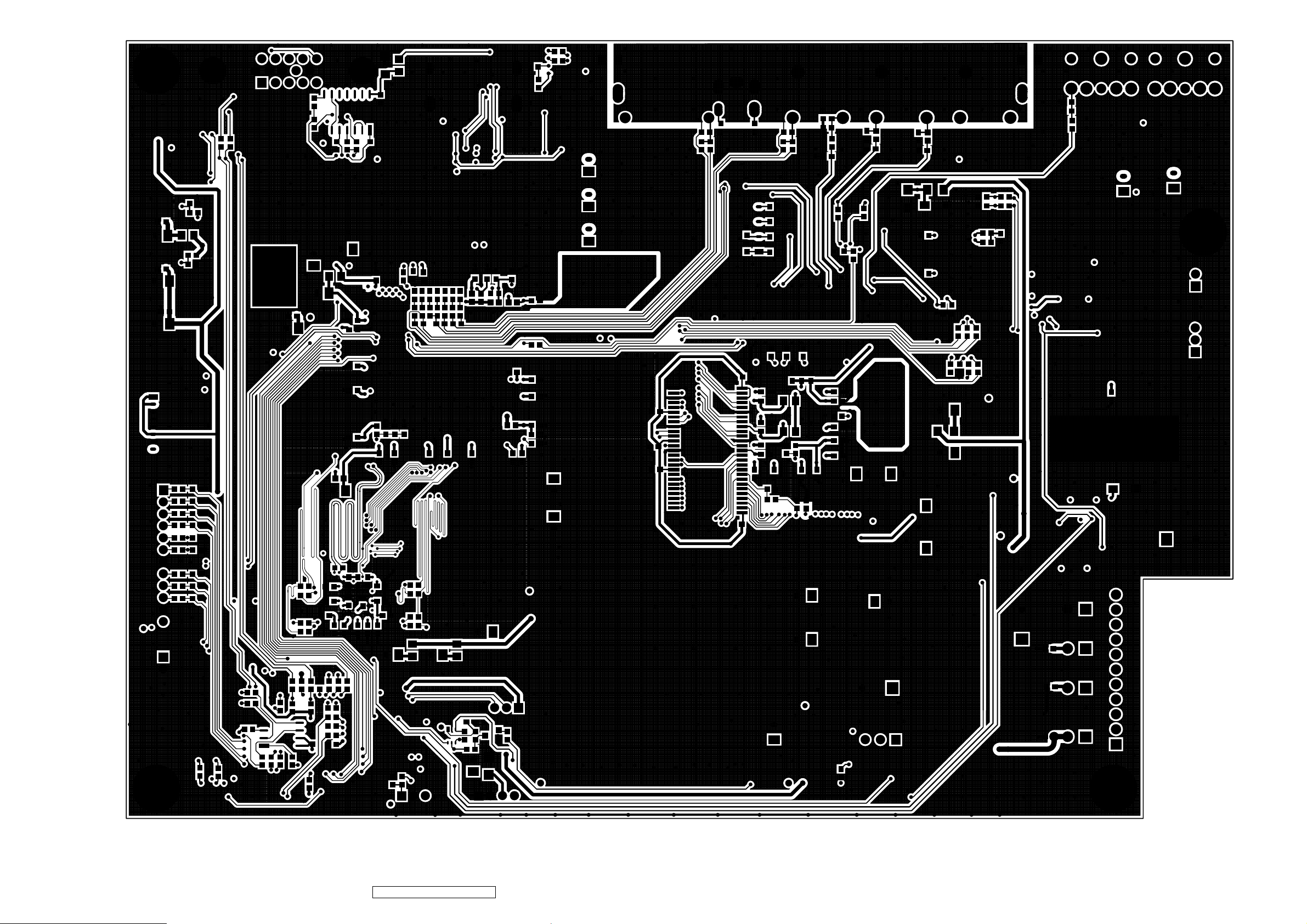

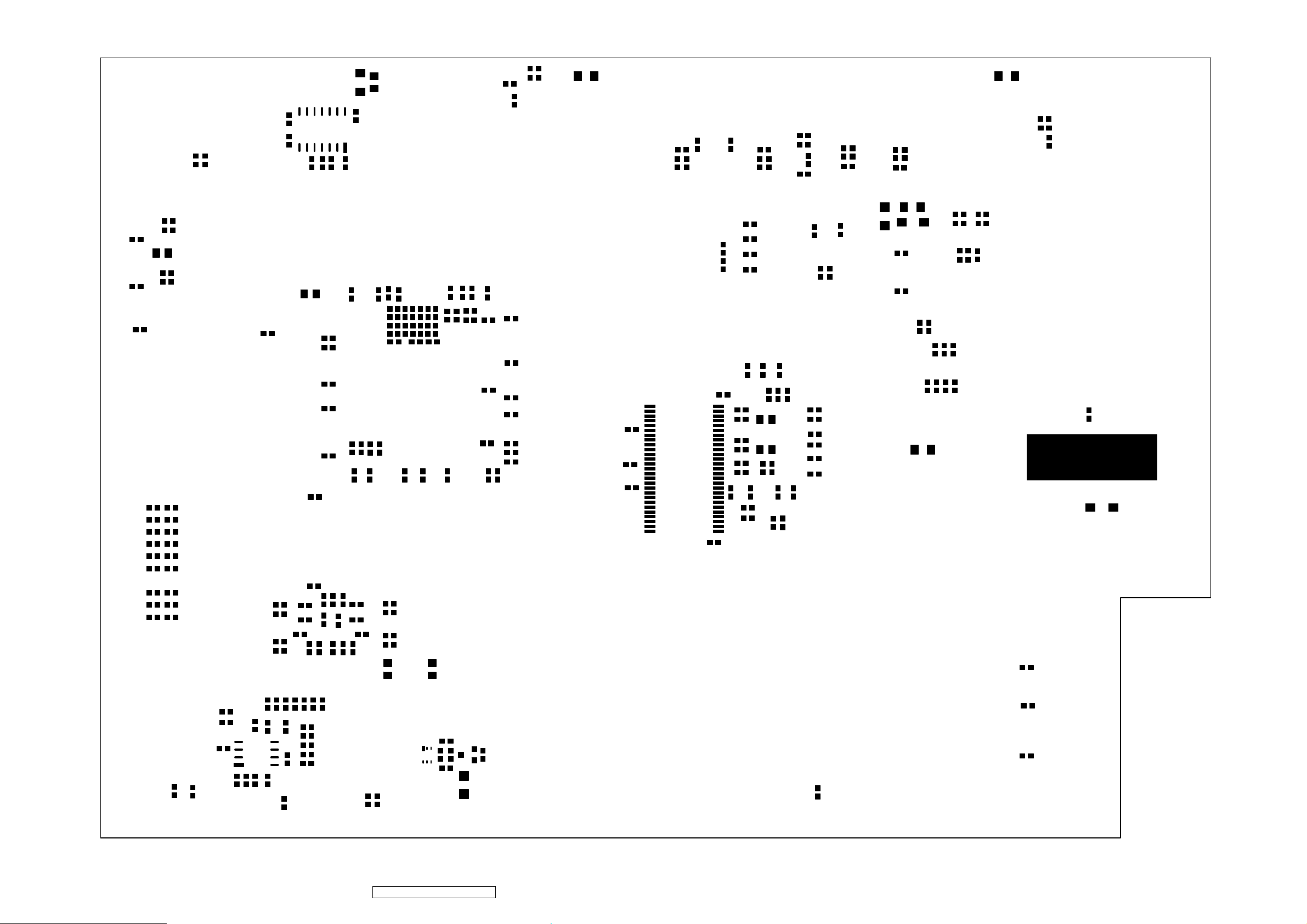

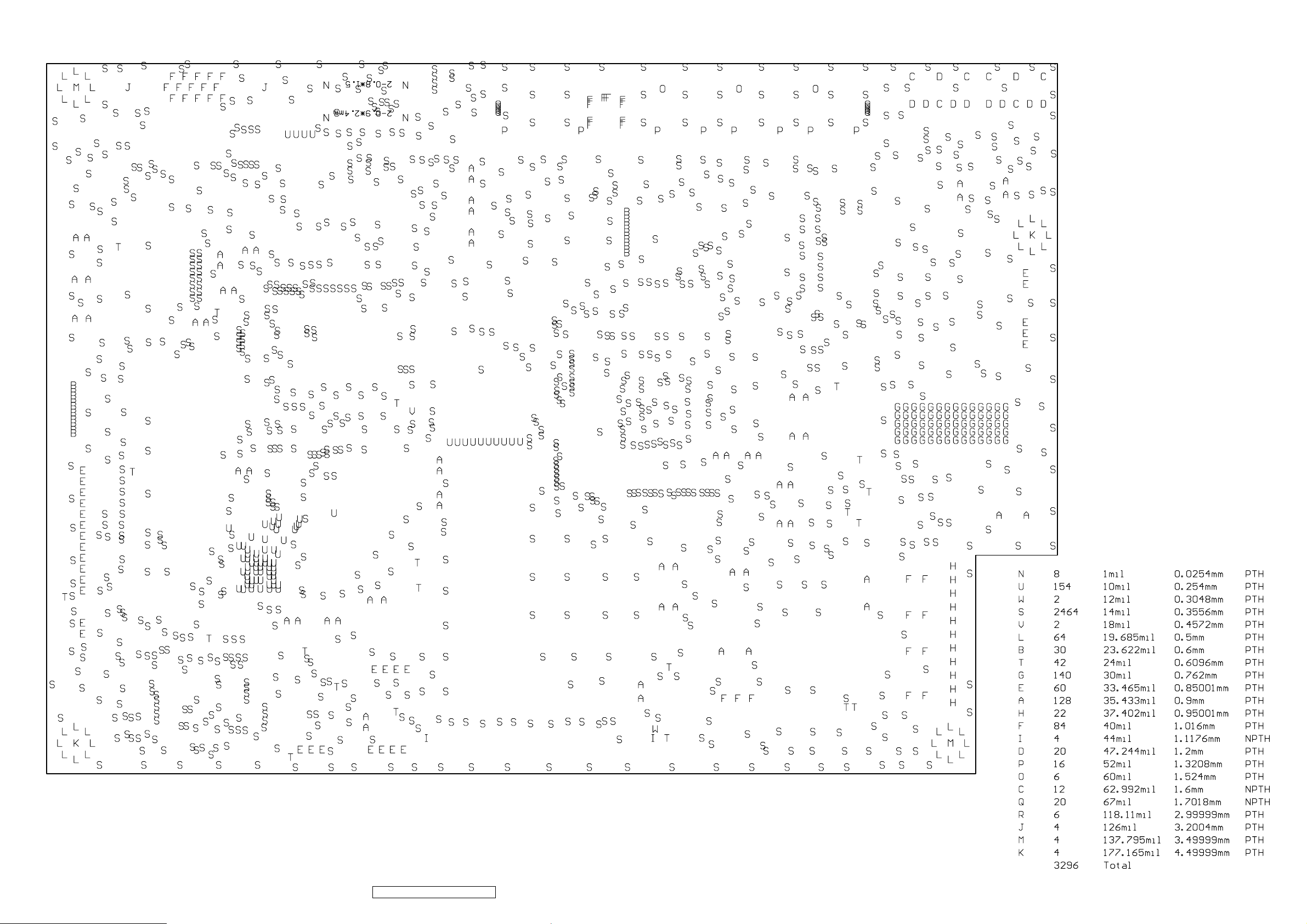

9. PCB Layout Diagrams ...................................................................................................... 81
10. Exploded Diagram And Spare Parts List........................................................................ 90
11. Recommended Spare Parts List .................................................................................... 92
ii
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 4
1. Precautions and Safety Notices
1. Appropriate Operation
(1) Turn off the product before cleaning.
(2) Use only a dry soft cloth when cleaning the LCD panel surface.
(3) Use a soft cloth soaked with mild detergent to clean the display housing.
(4) Disconnect the power plug from AC outlet if the product is not used for a long period of time.
(5) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.
(6) Do not touch the LCD panel surface with sharp or hard objects.
(7) Do not place heavy objects on the LCD display, video cable, or power cord.
(8) Do not use abrasive cleaners, waxes or solvents for your cleaning.
(9) Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
2. Caution
No modification of any circuit should be attempted. Service work should only be
performed after you are thoroughly familiar with all of the following safety checks and servicing
guidelines.
3. Safety Check
Care should be taken while servicing this LCD display. Because of the high voltage used in the
inverter circuit, the voltage is exposed in such areas as the associated transformer circuits.
4. Power Supply Requirements
The external AC power operating range shall be from 90 to 264Vac
5. LCD Module Handling Precautions
5.1. Handling Precautions
(1) Since front polarizer is easily damaged, pay attention not to scratch it.
(2) Be sure to turn off power supply when inserting or disconnecting from input connector.
(3) Wipe off water drop immediately. Long contact with water may cause discoloration or
spots.
(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard
surface.
(6) Since CMOS LSI is used in this module, take care of static electricity and insure human
earth when handling.
(7) Do not open nor modify the Module Assembly.
(8) Do not press the reflector sheet at the back of the module to any directions.
(9)
In case if a Module has to be put back into the packing container slot after once it was
taken out from the container, do not press the center of the CCFL Reflector edge. Instead,
press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may be
damaged.
(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt
1
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 5
the Interface Connector of the TFT Module.
(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for
example), do not twist nor bend the TFT Module even momentary. At designing the
enclosure, it should be taken into consideration that no bending/twisting forces are applied
to the TFT Module from outside. Otherwise the TFT Module may be damaged.
(12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow
local ordinances or regulations for disposal.
(13) Small amount of materials having no flammability grade is used in the LCD module. The
LCD module should be supplied by power complied with requirements of Limited Power
Source, or be applied exemption.
(14) The LCD module is designed so that the CFL in it is supplied by Limited Current Circuit
Do not connect the CFL in Hazardous Voltage Circuit.
2
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 6
5.2 handling and placing procedure
1. Open the carton box, before you remove anything from the carton box, check all the accessory
listed in the packing list.
Remember the position of the left and right poly foams to avoid any problem when packing them.
2. When removing the LCD monitor, make sure that you are holding from the back side of the LCD
monitor and not the front side of the LCD monitor.
3
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 7
3. Place the LCD monitor on a flat table and remove the plastic bag.
4. When placing the LCD screen on the table, you need to make sure there are no object underneath
to avoid any damage on the LCD screen.
It is not advisable to wear any jewelry like rings, bracelet or watch to avoid any scratch on the
LCD screen, or casing when doing the service.
4
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 8
2. Specification
Introduction
FEATURES VX2835wm
Size
Luminance (Typ)
TFTLCD PANEL
st
1
Input Signal
Sync Compatibility
Compatibility
Power Voltage AC 100-240V, 50/60Hz Yes
Contrast Ratio (Typ)
Colors 16.7 M
Response Time 5 ms(on/off) / 3ms (G to G)
Viewing Angle (H/V)
Recommend resolution 1920x1200@60Hz
Analog Yes (75ohms, 0.7/1.0 Vp-p)
Digital Yes
Separate Sync Yes
Composite Sync Yes( No Guarantee image Quality)
Sync on Green Yes( No Guarantee image Quality)
PC Yes
Power Mac Yes
TV Box Yes
27.54 " wide
500 cd/㎡
800:1
160 ° / 160 °
On Mode
Power Consumption
Audio 3W / THD 10% (Max) Yes
Ergonomics
OSD Control [ 1 ] [ 2 ] [ ][▼] [▲] Yes
Operating Condition
Storage Condition
Regulation
( Max. for Energy star)
Off Mode (Max)
Tilt ( 20 ° - -5 °)
Swivel No
Pivot No
Height Adjust No
Temperature (℉/℃)
Humidity (%) 10 % - 90 %
Temperature (℉/℃)
Humidity (%) 10 % - 80 %
Global: CB, TCO06,WEEE,ROHS
VSA:UL, cUL, FCC-B, IRAM, NOM, Energy Star, ICES-003
VSE:,NEMKO/ERGO, CE
GOST-R+Hygienic ,SASO , ENERGY, UkrSEPRO
32℉-104 /℉ +0℃-+40℃
-4℉-140 /℉ -20℃-60℃
< 64.5W
≦1 W
Yes
VSI: BSMI, PSB, C-TICK, EK, VCCI,
VSCN:CCC
5
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 9
Product definition and specification
Region
VSA VSAP VSE VSCN
(M) (A)/(P)/(J)/(S)/(K) (E)/(U) (G)
Product Name VX2835wm
Model Number VS11531
OSD Languages
English, French, German, Italian, Spanish, Finnish, Russian,
Japanese, Traditional Chinese, Simplified Chinese
TFT LCD Panel and Model # HSD 280MUW1-A
Scalar Mstar, Model # :MST 6251DA-205LF
Input Signal D-Sub / HDMI / YPbPr / CVBS / S-Video
Sync Compatibility Separate / [Composite / SOG(image quality no
guarantee )]
Audio 3W
Power Consumption Built-in/ under 64.5W (max , Energy Star
Standard@175nits) / 130 W(max @500nits)
Power Cable Refer to Appendix G
Analog Cable (1.8 m, color : black), with PC
YES
2001 and Hot Plug Detect &DDC
HDMI to DVI-D converter(cablex1.8m)
ViewSonic CD Wizard
ViewSonic Quick Start Guide
Screen Protector Mylar
Extrme Label (?ms)
Service Insert (new version)
Warranty Sticker
Warranty Card
Carton Sticker
PE bag of Carton
Energy Star Sticker(Upper Right corner)
Hi-pot label (Back cover)
QC pass label(Back cover)
YES
Arabic, English, Finnish, Spanish, German, Italian, Japanese,
Swedish, Polish, Korean, Portuguese, Russian, French,
Simplified Chinese, Traditional Chinese, Czech, Hungarian,
Greek, Dutch, Turkish
YES
NO NO NO NO
YES NO NO NO
NO NO NO YES
NO NO NO YES
NO NO NO YES
NO NO NO YES
YES YES YES YES
YES YES YES YES
NO NO NO YES
6
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 10
4-1 GENERAL specification
Test Resolution & Frequency 1920x1200 @ 60Hz
Test Image Size Full Size
Contrast and Brightness Controls
Factory Default:
Contrast = 70%, Brightness = 100%
4-2 VIDEO INTERFACE
Analog Input Connector DB-15 (Analog), refer the appendix A
Digital Input Connector HDMI, 19pin Tape A
Video Input 1 RCA jack (Red, Blue, Green) for YPbPr
Video Input 2 RCA jack (Yellow) for CVBS
Video Input 3 S-Video jack
Audio input 1 3.5Mini Jack for PC Audio and (DVI-D adapter applied)
Audio input 2 RCA jack (White / Red) for YPbPr
Audio input 3
Default Input Connector Defaults to the first detected input
Video Cable Strain Relief
RCA jack (White / Red) for CVBS and S-Video, they will share the same RCA
jack
D-Sub: 12Kg, 5min.
HDMI to DVI : 3Kg, 5min.
Composite(AV): 3Kg, 5min.
Video Cable Connector DB-15 Pin out Compliant DDC / CI
1. Video RGB (Analog)
Video Signals
Video Impedance 75 Ohms (Analog), 100 Ohms (Digital)
Maximum PC Video Signal 950 mV with no damage to monitor
Maximum Mac Video Signal 1250 mV with no damage to monitor
Sync Signals TTL
DDC/CI Compliant with Revision 1.0
HDCP HDCP code inside and compatible
Sync Compatibility
Video Compatibility
Separate,[ Composite, and Sync on Green (image quality no guarantee )]
2. TMDS (Digital)
(Need RCA to SCART for european market)
Separate Sync, [Composite Sync, SOG
(image quality no guarantee )]
Shall be compatible with all PC type computers, Macintosh computers, and
after market video cards
Video timing support
(CVBS / S-Video)
(HDMI / YPbPr)
Resolution Compatibility 640x350 640x400 640x480 720x400
7
480i / 480p @ 60Hz
576i / 576p @ 50Hz
480i / 480p @ 60Hz 576i / 576p @ 50Hz Video timing support
720p @ 50/60Hz 1080i / 1080p @ 50/60Hz
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 11
720x480 800x600 832x624 1024x768
1152x864 1152x870 1280x720 1280x768
1280x960 1280x1024 1360x768 1400x1050
1440x900 1600x1200 1680x1050 1920x1200
The image vertical size might not be full screen.
But the image vertical position should be at the center.
Exclusions Not compatible with interlaced video
Video input
Audio / Video Action
CVBS S-Video YPbPr D-sub
RCA (white + red)
● ●
X X X X
with CVBS
Audio
input
RCA (white + red)
with YPbPr
X X
●
3.5mm phone jack X X X
Audio in HDMI X X X X X
Video OVERSCAN
Component over scan: 5~8%
AV over scan: 5~8%
HDMI over scan: No over scan for PC input, 5~8% for video source.
PC: No over scan
4-3 POWER SUPPLY
Internal Power Supply Part Number: 71-Y2831200G001
DVI-D via
HDMI
HDMI
X X X
● ●
X
●
Input Voltage Range AC90~264 (Worldwide)
Input Frequency Range 47 to 64 Hertz
Short Circuit Protection Output can be shorted without damage
3.3~4.5A typ. at 5 VDC
Over Current Protection
( Protect when short circuit )
Leakage Current 3.5mA (Max) at 264VAC / 50Hz
Efficiency 80 % typical at 115VAC Full Load
Fuse Internal and not user replaceable
Power Dissipation < 130 Watts (typ)
Max Input AC Current 1.6A (max)
Inrush Current
(Cold Start)
80 A Max./ 240VAC / 50Hz
(Cold Start at 25℃,Full Load)
Shall start and function properly when under full load, with all combinations of
Power Supply Cold Start
input voltage, input frequency, and operating temperature
Shall be able to withstand an ANSI/IEEE C62.41-1980 6000V 200 ampere ring
Power Supply Transient Immunity
wave transient test with no damage
8
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 12
Power Supply Line Surge Immunity
Shall be able to withstand 1.5 times nominal line voltage for one cycle with no
damage
Power Supply Missing Cycle Immunity
Power Supply Acoustics
US Type Power Cable
Color = Black
European Type Power Cable
Color = Black
CCC Type Power Cable
Color = Black
PSE Type Power Cable
Color = Black
Power Saving Operation(Method) VESA DPMS Signaling
Shall be able to function properly, without reset or visible screen artifacts, when
½ cycle of AC power is randomly missing at nominal input
The power supply shall not produce audible noise that would be detectable by the
user. Audible shall define to be in compliance with ISO 7779 (DIN
EN27779:1991) Noise measurements of machines acoustics. Power Switch noise
shall not be considered
Separate 3-prong NEMA 5-15P type plug. Length = 1.8m. Connects to display.
Schuko CEE7-7 type plug.
Length = 1.8m, Connects to display.
Separate 3-prong type plug.
Length = 1.8m. Connects to display.
Separate 2-prong NEMA 1-15P type plug.
Length = 1.8m. Connects to display.
On Mode <60 W (Typ) / under 64W (Max for Energy Star)
Max power output :130W(Max. @500nits)
Power Consumption
Recovery Time On Mode = N/A, Active Off < 3 sec
Saving Mode < 2 W@230VAC 50Hz
Off Mode < 1 W @230VAC 50Hz
(DC Power Off; Meet to Energy Star Ver4.0 Tier2)
9
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 13
4-4 ELECTRICAL REQUIREMENT
Horizontal / Vertical Frequency
Horizontal Frequency 24 – 82 kHz
Vertical Refresh Rate 50 – 85* Hz
Maximum Pixel Clock Analog is 205MHz, Digital is 165 MHz
Sync Polarity Independent of sync polarity.
Timing Table
Item
Timing
Analog
Separated
Composite
SOG
Digital - TMDS
CVBS
S-Video
For Composite and SOG, the image
vertical size image will be not full
YPbPr
Remark
1 640 x 350 @ 70 Hz, 32 KHz
2 640 x 350 @ 85 Hz, 38 KHz
3 640 x 400 @ 60 Hz, 32 KHz
X X X
screen (Still at the center), And the
OSD will be
640x350/640x400/720x400
(promary= 640x400).
For Composite and SOG, the image
vertical size image will be not full
screen (Still at the center), And the
X X X
OSD will be
640x350/640x400/720x400
(promary= 640x400).
For SOG sync, switch
640x400@60Hz and
X X X
640x480@60Hz by [1]+[2] short cut
key (primary = 640x480@60Hz)
For Composite and SOG, the image
vertical size image will be not full
4 640 x 400 @ 70 Hz, 32 KHz
5 640 x 400 @ 85 Hz, 38 KHz
10
X X X
X X X
screen (Still at the center), And the
OSD will be
640x350/640x400/720x400
(promary= 640x400).
For Composite and SOG, the image
vertical size image will be not full
screen (Still at the center), And the
OSD will be
640x350/640x400/720x400
(promary= 640x400).
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 14
6 640 x 480 @ 50 Hz, 25 KHz
X X X
For SOG sync, switch
7 640 x 480 @ 60 Hz, 32 KHz
8 640 x 480 @ 67 Hz, 35 KHz
9 640 x 480 @ 70 Hz, 35 KHz
10 640 x 480 @ 72 Hz 38 KHz
11 640 x 480 @ 75 Hz, 38 KHz
12 640 x 480 @ 85 Hz, 43 KHz
13 720 x 400 @ 70 Hz, 32 KHz
X X X
X X X
X X X
X X X
X X X
X X X
X X X
640x400@60Hz and
640x480@60Hz by [1]+[2] short cut
key (primary = 640x480@60Hz)
Mac Timing
For Composite and SOG, the image
vertical size image will be not full
screen (Still at the center), And the
OSD will be
640x350/640x400/720x400
(promary= 640x400).
For Composite and SOG, the image
vertical size image will be not full
14 720 x 400 @ 85 Hz, 38 KHz
15 720 x 480 @ 60 Hz, 32 KHz
16 800 x 600 @ 60 Hz, 38 KHz
17 800 x 600 @ 70 Hz, 43 KHz
18 800 x 600 @ 72 Hz, 48 KHz
19 800 x 600 @ 75 Hz, 47 KHz
20 800 x 600 @ 85 Hz, 54 KHz
21 832 x 624 @ 75 Hz, 50 KHz
22 1024 x 768 @ 50 Hz, 40 KHz
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
screen (Still at the center), And the
OSD will be
640x350/640x400/720x400
(promary= 640x400).
For Analog sync, the information
OSD shows 640x480
For Separated and Composite sync,
Switch 1024x768@50Hz and
1280x768@50Hz by [1]+[2] short
cut key (primery =
1024x768@50Hz)
23 1024 x 768 @ 60 Hz, 48 KHz
24 1024 x 768 @ 70 Hz, 57 KHz
25 1024 x 768 @ 72 Hz, 58 KHz
26 1024 x 768 @ 75 Hz, 60 KHz
27 1024 x 768 @ 75 Hz, 60 KHz
11
X X X
X X X
X X X
X X X
X X X
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 15
28 1024 x 768 @ 85 Hz, 69 KHz
X X X
29 1152 x 864 @ 75 Hz, 68 KHz
30 1152 x 870 @ 75 Hz, 69 KHz
31 1280 x 720 @ 50 Hz, 38 KHz
32 1280 x 720 @ 60 Hz, 38 KHz
33 1280 x 768 @ 50 Hz, 40 KHz
34 1280 x 768 @ 60 Hz, 47 KHz
35 1280 x 768 @ 60 Hz, 48 KHz
36 1280 x 768 @ 75 Hz, 60 KHz
37 1280 x 768 @ 85 Hz, 69 KHz
38 1280 x 960 @ 50 Hz, 49 KHz
39 1280 x 960 @ 60 Hz, 60 KHz
40 1280 x 960 @ 75 Hz, 75 KHz
XX
XX
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
For Separated and Composite sync,
Switch 1024x768@50Hz and
1280x768@50Hz by [1]+[2] short
cut key (primary =
1024x768@50Hz)
41 1280 x 960 @ 85 Hz, 86 KHz
1280 x
42
1024
1280 x
43
1024
1280 x
44
1024
1280 x
45
1024
1280 x
46
1024
47 1360 x 768 @ 60 Hz, 48 KHz
1400 x
48
1050
1400 x
49
1050
@ 50 Hz, 53 KHz
@ 60 Hz, 64 KHz
@ 70 Hz, 75 KHz
@ 75 Hz, 80 KHz
@ 85 Hz, 91 KHz
@ 50 Hz, 54 KHz
@ 60 Hz, 65 KHz
X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
For analog sync, Switch
1400x1050@60Hz and
1680x1050@60Hz by [1]+[2] short
cut key (primary =
1400x1050@60Hz)
For Separated and Composite sync,
1400 x
50
1050
12
@ 60 Hz, 65 KHz
X
X X X
Switch 1400x1050@60Hz and
1680x1050@60Hz by [1]+[2] short
cut key (primary =
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 16
1400x1050@60Hz)
1400 x
51
1050
52 1440 x 900 @ 60 Hz, 56 KHz
53 1440 x 900 @ 60 Hz, 60 KHz
54 1440 x 900 @ 75 Hz, 75 KHz
55 1440 x 900 @ 85 Hz, 85 KHz
1600 x
56
1200
1600 x
57
1200
1680 x
58
1050
@ 75 Hz, 82 KHz
@ 50 Hz, 62 KHz
@ 60 Hz, 75 KHz
@ 60 Hz, 65 KHz
X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
For analog sync, Switch
1400x1050@60Hz and
1680x1050@60Hz by [1]+[2] short
cut key (primary =
1400x1050@60Hz)
For Separated and Composite sync,
1680 x
59
1050
1920 x
60
1200
61 480p @ 50 Hz
62 480p @ 60 Hz
63 480i @ 50 Hz
64 480i @ 60 Hz
65 576i @ 50 Hz
66 576i @ 60 Hz
67 576p @ 50 Hz
68 576p @ 60 Hz
69 720p @ 50 Hz
70 720p @ 60 Hz
@ 60 Hz, 65 KHz
@ 60 Hz, 74 KHz
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X X X
X
X X X
X X X
X X
X X
X X
X X
X X
X X
X X
X X
Switch 1400x1050@60Hz and
1680x1050@60Hz by [1]+[2] short
cut key (primary =
1400x1050@60Hz)
Reduce Blanking
Unable Test,
Unable Test
Unable Test
Unable Test
71 1080i @ 50 Hz
72 1080i @ 60 Hz
73 1080p @ 50 Hz
74 1080p @ 60 Hz
13
X X X
X X X
X X X
X X X
X X
X X
X X
X X
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 17
4-5 FRONT PANEL CONTROLS AND INDICATORS
Front Panel Hardware Controls
Power Switch (Front Head) Power Control, soft Power Switch.
Blue – ON
Power LED (Front Head)
Front Panel Controls (Head)
[ 1 ] [ 2 ] [ ] [▼] [▲]
Reaction Time
Short Cuts Function from the button(s)
[1] Main Menu
[2] Input toggle (D-sub / HDMI / YPbPr / S-Video / CVBS)
[▼] To immediately audio menu.
Orange – Active Off
Dark = Soft Power Switch OFF
[ 1 ] BUTTON 1
[ 2 ] Button 2
[ ] Power
[▼] DOWN ARROW BUTTON
[▲] UP ARROW BUTTON
Note: Power Button, Button 1 and Button 2
must be one-shot logic operation. (i.e. there
should be no cycling)
OSD must fully appear within 0.5s after
pressing Button 1
[▼] +[▲]
Contrast & Brightness page
(Recall both of audio to default under Audio page)
Toggle 720x400 and 640x400 mode when input 720x400
[1] + [2]
or 640x400 mode
[1] + [▼] + [▲]
White Balance. (Not shown on user’s guide)
(Keep pressing 3 sec)
[1] + [▼] Power Lock
[1] + [▲] OSD Lock
[▲]
Essential mode switch
Standard ->Text -> Cinema -> Game -> Portrait -> Scenery -> Vivid
Skin tone switch
[2] + [▲]
Nature -> Reddish -> yellowish
[2] + [▼] DDC/CI ON/Off (ON:DDC/CI ; Off:DDC/2B)
[▼] +[▲] + [ ] Factory Mode
Remark : All the short cuts function are only available while OSD off
14
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 18
Main Menu Controls
Auto Image Adjust*1
Contrast/Brightness*2*4
Input Select
D-Sub,
AV (CVBS)
S-Video*
YPbPr*5
HDMI
Audio Adjust
Volume*4,
Mute*4
Bass,
Treble,
Balance,
Color Adjust
SRGB,
9300K,
5
,
Manual Image Adjust
Horizontal Size*
H/V. Position*1,
Fine Tune*1,
Sharpness*
Tint,
Color
Opticolor [Standard, Text , Cinema, Game, Portrait, Scenery,
Vivid ],
Opticolor Skin Tone[Nature, reddish ,yellowish],
Aspect radio [1:1 / 4:3 / 16:9 / full screen] ,
PIP [position 1,2,3,4 / Size 1, 2 / Source1,2],
PBP [Source1,2]
Setup Menu
Language [English, French, German, Italian, Spanish, Finnish,
1
,
3 ,
Russian, Japanese, Simplified Chinese, Traditional
Chinese]
7500K,
6500K(default),
5400,
User Color [R, G, B]
Information
H Frequency,
V Frequency,
Resolution,
Pixel Clock,
Video Format
Serial Number,
Model Number,
www.ViewSonic.com
Resolution Notice,
OSD Position,
OSD Timeout,
OSD Background
Sleep [30,45,60,120,off]
Memory Recall
*1 These functions are not available in Digital Mode
2
*
These functions are not available under SRGB Mode, Opticolor On, and Opticolor Skin Tone On
3
*
These functions are not available under Native Resolution Mode
4
*
These functions setting can be recalled to default value under certain page by pressing [▼]+[▲]
5
*
The audio functions should be transfer to RCA type from mini phone jack type when work under
YPbPr mode.
6
*
The audio functions should be transfer to HDMI type from mini phone jack type (or RCA type) when
work under HDMI mode with audio input
[Remark] Please refer to the detail in the Appendix C
15
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 19
Function descriptions
OSD Lock short cuts function for the buttons
The OSD lock will be activated by pressing the front panel control buttons "(1), & (▲)" for 10
seconds.
If the user then tries to access the OSD by pressing any of the buttons "1", "▼", "▲", "2" a
message will appear on the screen for 3 seconds showing "OSD Locked".
The OSD lock will be deactivated by pressing the front panel control buttons "(1), & (▲)"
again for 10 seconds.
Note1: When the OSD is locked will lock all functions, including “Volume” and “Mute”
Note2: Status bar indicating OSD Lock or Unlock is in progress and when complete it will indicate “OSD
Locked”
Note3: OSD Lock should not lock Power Button and Power Lock function
Power Lock short cuts function for the buttons
The power button lock will be activated by pressing the front panel control buttons "(1), & (▼)"
for 10 seconds.
Locking the power button means that the user won't be able to turn off the LCD while the
power button is locked. If the user presses the power button while it is locked, a message will
appear on the screen for 3 seconds showing "Power Button Locked". It also means that with the
power button locked, the LCD would automatically turn back "On" when power is restored after a
power failure. If the power button is not in the locked mode, then power should return to it's
previous state when power is restored after a power failure.
The power button lock will be deactivated by pressing the front panel control buttons "(1), &
(▼)" again for 10 seconds.
Note 1: Status bar indicating Power Button lock or unlock is in progress and when complete it
will indicate “Power Button Locked”
Note 2: Power should only be lockable in the “On State”
Memory Recall Actions
Memory Recall action on the analog and digital mode as below
1. Set the factory defaults as shown in Section 4-8
2. Clean all the mode setting buffer
3. Execute Auto Image Adjust
Note: Memory Recall should have no effect for Language, Power Lock, User Color Settings or
Input Priority
Resolution Notice Actions
1. Resolution Notice OSD should show on screen after changing to non-native mode for 30 sec
2. The OSD should disappear after 10 sec or by pressing button [1] or [2]
16
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 20
Resolution Notice function should be disabled when press button [2] under Resolution Notice
OSD
0-Touch™ Function Actions
1. Execute Auto Image Adjust when new mode detected, and save the settings to buffer for
further use
2. It should be reset by Memory Recall function
(Should not reset by power off, power unplug and others)
OSD Auto Save
The OSD shall save new settings when it is turned off by the user or when it times out. There
shall not be a separate save
Input Priority
This function is defined the auto detect priority when the display has several inputs. Please refer
to the detail flow chart as the appendix D
17
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 21
4-6 AUDIO INTERFACE (SPEAKER SPECIFICATION)
Line input signal 1.0 Vrms @1kHz
Maximum Amp power output (Watt) 3 W (RL=8Ω)
Amp –THD < 10 % THD @1kHz
Speaker Power rating(Ω/Watt) 8Ω/ 3 W
Signal to Noise Ratio 72 dB
Frequency response 300 – 20kHz
SPL. 85 ± 3 dB (at 0.5m)
FO 300 Hz
3.5 mm stereo jacks
Line input connection
Vibration
Screen image
Connector PC99 requirement Audio in Lime Green pantone # 577C
Cable type / length 3.5mm stereo cable / 1.8m length
Audio DPMS
HDMI
RCA 1 (with YPbPr)
RCA 2 (with CVBS / S-Video)
There should be no audible vibration resonance at
volume=100% & any Freq.
There should be no affect on the screen image stability under
any conditions
Speakers stay off when the rest of the monitor is in power saving
Note: There is no guarantee <1 W at power consumption in
Active Off mode, when the Audio Cable is connected
18
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 22
4-7 TFT LCD PANEL
Panel Source Identify
The panel code “T” for HannStar panel should be shown on the position
1. Lower right side of ID label. (See Figure 2)
2. Lower right side of UPC label . (See Figure 3)
3. The F/W version sticker or silkscreen Main board.
Panel Characteristics:
1st Source Panel
Model number HSD280MUW1-A
Type TN type with RSDS interface
Active Size 27.5” wide; 593.28 (H) x 370.8 (V)
Pixel Arrangement RGB Vertical Stripe
Pixel Pitch 0.309 (H) x 0.309 (H) mm
Glass Treatment Anti Glare (Hard coating 3H)
# of Backlights 14 CCFL w/ Inverter / direct type
Backlight Life 50000Hours (Min) at 6mA
Luminance (5-point) –
Condition:
500 cd/m2 (Typ after 30 minute warm up)
CT = User Color,
400 cd/m2 (Min after 30 minute warm up)
Contrast = Max,
Brightness = Max
Brightness Uniformity ≧75% Entire Area (min)
Contrast Ratio 800:1 (typ), 600:1(min)
Color Depth 16.7 million colors
@ CR>10
Viewing Angle (Horizontal)
Typical: 160
TN type
Minimum: 150
@ CR>10
Viewing Angle (Vertical)
Typical: 160
TN type
Minimum: 150
Typical = 5ms (on/off) / 3ms (G to G)
Response Time
Maxmum = 10 ms (on/off) / 7ms (G to G)
10%-90% @ Ta=25°C
Panel Defects Please see Panel Quality Specifications.
19
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 23
EDID DATA
VX2835wm-a
Time: 14:26:31
Date: Wed Jan 17, 2007
______________________________________________________________________
______________________________________________________________________
VIEWSONIC CORPORATION
EDID Version # 1, Revision # 3
DDCTest For: ViewSonic VX2835wm
______________________________________________________________________
______________________________________________________________________
EDID Block 0, Bytes 0-127
128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 00 FF FF FF FF FF FF 00 5A 63
10 | 1F 0F 01 01 01 01 01 11 01 03
20 | 6E 3B 25 78 2E 9E 71 A6 54 4C
30 | 9F 24 10 51 57 BF EF 80 D1 00
40 | B3 00 A9 40 95 00 90 40 81 80
50 | 81 40 71 4F 28 3C 80 A0 70 B0
60 | 23 40 30 20 36 00 51 73 21 00
70 | 00 1A 00 00 00 FF 00 51 46 47
80 | 30 37 30 31 30 30 30 30 31 0A
90 | 00 00 00 FD 00 32 4C 1E 52 11
100 | 00 0A 20 20 20 20 20 20 00 00
110 | 00 FC 00 56 58 32 38 33 35 77
120 | 6D 0A 20 20 20 20 00 5F
______________________________________________________________________
(08-09) ID Manufacturer Name ________________ = VSC
(11-10) Product ID Code _____________________ = 0F1F
(12-15) Last 5 Digits of Serial Number ______ = Not Used
(16) Week of Manufacture _________________ = 01
(17) Year of Manufacture _________________ = 2007
(10-17) Complete Serial Number ______________ = See Descriptor Block
(18) EDID Version Number _________________ = 1
(19) EDID Revision Number ________________ = 3
(20) VIDEO INPUT DEFINITION:
Analog Signal
0.700, 0.000 (0.700 Vp-p)
Separate Syncs, Composite Sync, Sync on Green
20
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 24
(21) Maximum Horizontal Image Size ________________ = 590 mm
(22) Maximum Vertical Image Size __________________ = 370 mm
(23) Display Gamma ________________________________ = 2.20
(24) Power Management and Supported Feature(s):
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.650 Green X - 0.300 Blue X - 0.142 White X - 0.316
Red Y - 0.329 Green Y - 0.623 Blue Y - 0.065 White Y - 0.341
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
(38-53) Standard Timing Identification:
1920 X 1200 @60Hz
1680 X 1050 @60Hz
1600 X 1200 @60Hz
1440 X 900 @60Hz
1400 X 1050 @60Hz
1280 X 1024 @60Hz
1280 X 960 @60Hz
1152 X 864 @75Hz
______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
1920x1200 Pixel Clock: 154.00 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
21
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 25
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1920 pixels Blanking Time: 160 pixels
Sync Offset: 48 pixels Sync Pulse Width: 32 pixels
Border: 0 pixels Frequency: 74.04 KHz
Vertical:
Active Time: 1200 lines Blanking Time: 35 lines
Sync Offset: 3 lines Sync Pulse Width: 6 lines
Border: 0 lines Frequency: 59.95 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (-)
______________________________________________________________________
(72-89) Detailed Timing / Descriptor Block 2:
Monitor Serial Number:
QFG070100001
______________________________________________________________________
(90-107) Detailed Timing / Descriptor Block 3:
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 76 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 82 KHz
Pixel Clock - 170 MHz
Secondary GTF - Not Supported
______________________________________________________________________
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VX2835wm
(126) No Extension EDID Block(s)
(127) CheckSum OK
22
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 26
VX2835wm-HDMI
Time: 16:22:30
Date: Wed Jan 17, 2007
______________________________________________________________________
______________________________________________________________________
VIEWSONIC CORPORATION
EDID Version # 1, Revision # 3
DDCTest For: ViewSonic VX2835wm
______________________________________________________________________
______________________________________________________________________
EDID Block 0, Bytes 0-127
128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 00 FF FF FF FF FF FF 00 5A 63
10 | 1F 0F 01 01 01 01 01 11 01 03
20 | 80 3B 25 78 2E 9E 71 A6 54 4C
30 | 9F 24 10 51 57 BF EF 80 D1 00
40 | B3 00 A9 40 95 00 90 40 81 80
50 | 81 40 71 4F 28 3C 80 A0 70 B0
60 | 23 40 30 20 36 00 51 73 21 00
70 | 00 1A 00 00 00 FF 00 51 46 47
80 | 30 37 30 31 30 30 30 30 31 0A
90 | 00 00 00 FD 00 32 4C 1E 52 11
100 | 00 0A 20 20 20 20 20 20 00 00
110 | 00 FC 00 56 58 32 38 33 35 77
120 | 6D 0A 20 20 20 20 01 4C
______________________________________________________________________
(08-09) ID Manufacturer Name ________________ = VSC
(11-10) Product ID Code _____________________ = 0F1F
(12-15) Last 5 Digits of Serial Number ______ = Not Used
(16) Week of Manufacture _________________ = 01
(17) Year of Manufacture _________________ = 2007
(10-17) Complete Serial Number ______________ = See Descriptor Block
(18) EDID Version Number _________________ = 1
(19) EDID Revision Number ________________ = 3
(20) VIDEO INPUT DEFINITION:
Digital Signal
Non - VESA DFP 1.x Compatible
(21) Maximum Horizontal Image Size ________________ = 590 mm
(22) Maximum Vertical Image Size __________________ = 370 mm
23
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 27
(23) Display Gamma ________________________________ = 2.20
(24) Power Management and Supported Feature(s):
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.650 Green X - 0.300 Blue X - 0.142 White X - 0.316
Red Y - 0.329 Green Y - 0.623 Blue Y - 0.065 White Y - 0.341
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
(38-53) Standard Timing Identification:
1920 X 1200 @60Hz
1680 X 1050 @60Hz
1600 X 1200 @60Hz
1440 X 900 @60Hz
1400 X 1050 @60Hz
1280 X 1024 @60Hz
1280 X 960 @60Hz
1152 X 864 @75Hz
______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
1920x1200 Pixel Clock: 154.00 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
24
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 28
Active Time: 1920 pixels Blanking Time: 160 pixels
Sync Offset: 48 pixels Sync Pulse Width: 32 pixels
Border: 0 pixels Frequency: 74.04 KHz
Vertical:
Active Time: 1200 lines Blanking Time: 35 lines
Sync Offset: 3 lines Sync Pulse Width: 6 lines
Border: 0 lines Frequency: 59.95 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (-)
______________________________________________________________________
(72-89) Detailed Timing / Descriptor Block 2:
Monitor Serial Number:
QFG070100001
______________________________________________________________________
(90-107) Detailed Timing / Descriptor Block 3:
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 76 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 82 KHz
Pixel Clock - 170 MHz
Secondary GTF - Not Supported
______________________________________________________________________
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VX2835wm
(126) Extension EDID Block(s): 1
(127) CheckSum OK
25
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 29
Time: 16:22:30
Date: Wed Jan 17, 2007
______________________________________________________________________
______________________________________________________________________
VIEWSONIC CORPORATION
EDID CEA-861B Timing Extension Version 3
______________________________________________________________________
______________________________________________________________________
EDID Block 1, Bytes 128-255
Block Type: CEA EDID Timing Extension
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 02 03 19 F1 46 90 04 05 07 03
10 | 0E 23 09 07 07 83 01 00 00 65
20 | 03 0C 00 10 00 02 3A 80 18 71
30 | 38 2D 40 58 2C 45 00 51 73 21
40 | 00 00 1F 01 1D 80 18 71 1C 16
50 | 20 58 2C 25 00 51 73 21 00 00
60 | 9E 8C 0A D0 8A 20 E0 2D 10 10
70 | 3E 96 00 51 73 21 00 00 18 01
80 | 1D 00 72 51 D0 1E 20 6E 28 55
90 | 00 51 73 21 00 00 1E 00 00 00
100 | 00 00 00 00 00 00 00 00 00 00
110 | 00 00 00 00 00 00 00 00 00 00
120 | 00 00 00 00 00 00 00 33
______________________________________________________________________
(2)Detailed Timing Start at - 25
(3)DTV Supports Underscan, DTV Supports Basic Audio
, DTV Supports YCbCr 4:4:4, DTV Supports YCbCr 4:2:2
, Native Format: 1
(4)Video Data Block/Short Video Descriptors, Number of Data Byte to Follow: 6
(5) 1920x1080p 59.94/60Hz 16:9 New Native
(6) 1280x720p 59.94/60Hz 16:9 861
(7) 1920x1080i 59.94/60Hz 16:9 861
(8) 720(1440)x480i 59.94/60Hz 16:9 New
(9) 720x480p 59.94/60Hz 16:9 861
(10) 640x480p 59.94/60Hz 4:3 861
(11)Audio Data Block, Number of Data Byte to Follow: 3, Uncompressed
(12) Audio Channels: 2, Linear PCM (IEC60958)
(13) Sampling Frequency: 32KHz, 44.1KHz, 48KHz,
(14) Sampling bit rate: 16 bit, 20 bit, 24 bit,
(15)Speaker Data Block, Number of Data Byte to Follow: 3
26
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 30
(16-18) FL/FR,
(19)Vendor Specific Data Block, Number of Data Byte to Follow: 5
(20-22) Vendor IEEE Registration ID: 000C03 Hexadecimal
(23-24) Vendor Specific Data: 1000 Hexadecimal
______________________________________________________________________
(25-42) Detailed Timing / Descriptor Block 1:
1920x1080p Pixel Clock: 148.50 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1920 pixels Blanking Time: 280 pixels
Sync Offset: 88 pixels Sync Pulse Width: 44 pixels
Border: 0 pixels Frequency: 67.50 KHz
Vertical:
Active Time: 1080 lines Blanking Time: 45 lines
Sync Offset: 4 lines Sync Pulse Width: 5 lines
Border: 0 lines Frequency: 60.00 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(43-60) Detailed Timing / Descriptor Block 2:
1920x1080i Pixel Clock: 74.25 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1920 pixels Blanking Time: 280 pixels
Sync Offset: 88 pixels Sync Pulse Width: 44 pixels
Border: 0 pixels Frequency: 33.75 KHz
Vertical:
Active Time: 540 lines Blanking Time: 22 lines
Sync Offset: 2 lines Sync Pulse Width: 5 lines
Border: 0 lines Frequency: 60.05 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(61-78) Detailed Timing / Descriptor Block 3:
720x480p Pixel Clock: 27.00 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
27
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 31
Active Time: 720 pixels Blanking Time: 138 pixels
Sync Offset: 16 pixels Sync Pulse Width: 62 pixels
Border: 0 pixels Frequency: 31.47 KHz
Vertical:
Active Time: 480 lines Blanking Time: 45 lines
Sync Offset: 9 lines Sync Pulse Width: 6 lines
Border: 0 lines Frequency: 59.94 Hz
Digital Separate, Horizontal Polarity (-) Vertical Polarity (-)
______________________________________________________________________
(79-96) Detailed Timing / Descriptor Block 4:
1280x720p Pixel Clock: 74.25 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1280 pixels Blanking Time: 370 pixels
Sync Offset: 110 pixels Sync Pulse Width: 40 pixels
Border: 0 pixels Frequency: 45.00 KHz
Vertical:
Active Time: 720 lines Blanking Time: 30 lines
Sync Offset: 5 lines Sync Pulse Width: 5 lines
Border: 0 lines Frequency: 60.00 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(97-114) Detailed Timing / Descriptor Block 5:
No Data:
(115-126) No Data:
(127) CheckSum OK
28
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 32
VX2835wm-E_HDMI
Time: 17:19:17
Date: Wed Jan 17, 2007
______________________________________________________________________
VIEWSONIC CORPORATION
EDID Version # 1, Revision # 3
DDCTest For: ViewSonic VX2835wm
______________________________________________________________________
EDID Block 0, Bytes 0-127
128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 00 FF FF FF FF FF FF 00 5A 63
10 | 1F 0F 01 01 01 01 01 11 01 03
20 | 80 3B 25 78 2E 9E 71 A6 54 4C
30 | 9F 24 10 51 57 BF EF 80 D1 00
40 | B3 00 A9 40 95 00 90 40 81 80
50 | 81 40 71 4F 28 3C 80 A0 70 B0
60 | 23 40 30 20 36 00 51 73 21 00
70 | 00 1A 00 00 00 FF 00 51 46 47
80 | 30 37 30 31 30 30 30 30 31 0A
90 | 00 00 00 FD 00 32 4C 1E 52 11
100 | 00 0A 20 20 20 20 20 20 00 00
110 | 00 FC 00 56 58 32 38 33 35 77
120 | 6D 0A 20 20 20 20 01 4C
______________________________________________________________________
(08-09) ID Manufacturer Name ________________ = VSC
(11-10) Product ID Code _____________________ = 0F1F
(12-15) Last 5 Digits of Serial Number ______ = Not Used
(16) Week of Manufacture _________________ = 01
(17) Year of Manufacture _________________ = 2007
(10-17) Complete Serial Number ______________ = See Descriptor Block
(18) EDID Version Number _________________ = 1
(19) EDID Revision Number ________________ = 3
(20) VIDEO INPUT DEFINITION:
Digital Signal
Non - VESA DFP 1.x Compatible
(21) Maximum Horizontal Image Size ________________ = 590 mm
(22) Maximum Vertical Image Size __________________ = 370 mm
(23) Display Gamma ________________________________ = 2.20
(24) Power Management and Supported Feature(s):
29
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 33
Active Off/Very Low Power, Standard Default Color Space,
Preferred Timing Mode
Display Type = R/G/B Color
(25-34) CHROMA INFO:
Red X - 0.650 Green X - 0.300 Blue X - 0.142 White X - 0.316
Red Y - 0.329 Green Y - 0.623 Blue Y - 0.065 White Y - 0.341
(35) ESTABLISHED TIMING I:
720 X 400 @ 70Hz (IBM,VGA)
640 X 480 @ 60Hz (IBM,VGA)
640 X 480 @ 67Hz (Apple,Mac II)
640 X 480 @ 72Hz (VESA)
640 X 480 @ 75Hz (VESA)
800 X 600 @ 56Hz (VESA)
800 X 600 @ 60Hz (VESA)
(36) ESTABLISHED TIMING II:
800 X 600 @ 72Hz (VESA)
800 X 600 @ 75Hz (VESA)
832 X 624 @ 75Hz (Apple,Mac II)
1024 X 768 @ 60Hz (VESA)
1024 X 768 @ 70Hz (VESA)
1024 X 768 @ 75Hz (VESA)
1280 X 1024 @ 75Hz (VESA)
(37) Manufacturer's Reserved Timing:
1152 X 870 @ 75Hz (Apple,Mac II)
(38-53) Standard Timing Identification:
1920 X 1200 @60Hz
1680 X 1050 @60Hz
1600 X 1200 @60Hz
1440 X 900 @60Hz
1400 X 1050 @60Hz
1280 X 1024 @60Hz
1280 X 960 @60Hz
1152 X 864 @75Hz
______________________________________________________________________
(54-71) Detailed Timing / Descriptor Block 1:
1920x1200 Pixel Clock: 154.00 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1920 pixels Blanking Time: 160 pixels
Sync Offset: 48 pixels Sync Pulse Width: 32 pixels
30
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 34
Border: 0 pixels Frequency: 74.04 KHz
Vertical:
Active Time: 1200 lines Blanking Time: 35 lines
Sync Offset: 3 lines Sync Pulse Width: 6 lines
Border: 0 lines Frequency: 59.95 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (-)
______________________________________________________________________
(72-89) Detailed Timing / Descriptor Block 2:
Monitor Serial Number:
QFG070100001
______________________________________________________________________
(90-107) Detailed Timing / Descriptor Block 3:
Monitor Range Limits:
Min Vertical Freq - 50 Hz
Max Vertical Freq - 76 Hz
Min Horiz. Freq - 30 KHz
Max Horiz. Freq - 82 KHz
Pixel Clock - 170 MHz
Secondary GTF - Not Supported
______________________________________________________________________
(108-125) Detailed Timing / Descriptor Block 4:
Monitor Name:
VX2835wm
(126) Extension EDID Block(s): 1
(127) CheckSum OK
31
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 35
Time: 17:19:17
Date: Wed Jan 17, 2007
______________________________________________________________________
______________________________________________________________________
VIEWSONIC CORPORATION
EDID CEA-861B Timing Extension Version 3
______________________________________________________________________
______________________________________________________________________
EDID Block 1, Bytes 128-255
Block Type: CEA EDID Timing Extension
0 1 2 3 4 5 6 7 8 9
________________________________________
0 | 02 03 1A F1 47 9F 14 13 12 1E
10 | 16 01 23 09 07 07 83 01 00 00
20 | 65 0C 03 00 10 00 02 3A 80 D0
30 | 72 38 2D 40 10 2C 45 80 51 73
40 | 21 00 00 1F 01 1D 80 D0 72 1C
50 | 16 20 10 2C 25 80 51 73 21 00
60 | 00 9E 01 1D 00 BC 52 D0 1E 20
70 | B8 28 55 40 51 73 21 00 00 1E
80 | 8C 0A D0 90 20 40 31 20 0C 40
90 | 55 00 51 73 21 00 00 18 00 00
100 | 00 00 00 00 00 00 00 00 00 00
110 | 00 00 00 00 00 00 00 00 00 00
120 | 00 00 00 00 00 00 00 25
______________________________________________________________________
(2)Detailed Timing Start at - 26
(3)DTV Supports Underscan, DTV Supports Basic Audio
, DTV Supports YCbCr 4:4:4, DTV Supports YCbCr 4:2:2
, Native Format: 1
(4)Video Data Block/Short Video Descriptors, Number of Data Byte to Follow: 7
(5) 1920x1080p 50Hz 16:9 New Native
(6) 1920x1080i 50Hz 16:9 861A
(7) 1280x720p 50Hz 16:9 861A
(8) 720x576p 50Hz 16:9 861A
(9) 1440x576p 50Hz 16:9 New
(10) 720(1440)x576i 50Hz 16:9 861A Optional
(11) 640x480p 59.94/60Hz 4:3 861
(12)Audio Data Block, Number of Data Byte to Follow: 3, Uncompressed
(13) Audio Channels: 2, Linear PCM (IEC60958)
(14) Sampling Frequency: 32KHz, 44.1KHz, 48KHz,
(15) Sampling bit rate: 16 bit, 20 bit, 24 bit,
32
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 36
(16)Speaker Data Block, Number of Data Byte to Follow: 3
(17-19) FL/FR,
(20)Vendor Specific Data Block, Number of Data Byte to Follow: 5
(21-23) Vendor IEEE Registration ID: 00030C Hexadecimal
(24-25) Vendor Specific Data: 1000 Hexadecimal
______________________________________________________________________
(26-43) Detailed Timing / Descriptor Block 1:
1920x1080p Pixel Clock: 148.50 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1920 pixels Blanking Time: 720 pixels
Sync Offset: 528 pixels Sync Pulse Width: 44 pixels
Border: 0 pixels Frequency: 56.25 KHz
Vertical:
Active Time: 1080 lines Blanking Time: 45 lines
Sync Offset: 4 lines Sync Pulse Width: 5 lines
Border: 0 lines Frequency: 50.00 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(44-61) Detailed Timing / Descriptor Block 2:
1920x1080i Pixel Clock: 74.25 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 1920 pixels Blanking Time: 720 pixels
Sync Offset: 528 pixels Sync Pulse Width: 44 pixels
Border: 0 pixels Frequency: 28.13 KHz
Vertical:
Active Time: 540 lines Blanking Time: 22 lines
Sync Offset: 2 lines Sync Pulse Width: 5 lines
Border: 0 lines Frequency: 50.04 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(62-79) Detailed Timing / Descriptor Block 3:
1280x720p Pixel Clock: 74.25 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
33
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 37
Active Time: 1280 pixels Blanking Time: 700 pixels
Sync Offset: 440 pixels Sync Pulse Width: 40 pixels
Border: 0 pixels Frequency: 37.50 KHz
Vertical:
Active Time: 720 lines Blanking Time: 30 lines
Sync Offset: 5 lines Sync Pulse Width: 5 lines
Border: 0 lines Frequency: 50.00 Hz
Digital Separate, Horizontal Polarity (+) Vertical Polarity (+)
______________________________________________________________________
(80-97) Detailed Timing / Descriptor Block 4:
720x576p Pixel Clock: 27.00 MHz
______________________________________________________________________
Horizontal Image Size: 593 mm Vertical Image Size: 371 mm
Refreshed Mode: Non-Interlaced Normal Display - No Stereo
Horizontal:
Active Time: 720 pixels Blanking Time: 144 pixels
Sync Offset: 12 pixels Sync Pulse Width: 64 pixels
Border: 0 pixels Frequency: 31.25 KHz
Vertical:
Active Time: 576 lines Blanking Time: 49 lines
Sync Offset: 5 lines Sync Pulse Width: 5 lines
Border: 0 lines Frequency: 50.00 Hz
Digital Separate, Horizontal Polarity (-) Vertical Polarity (-)
______________________________________________________________________
(98-115) Detailed Timing / Descriptor Block 5:
No Data:
(116-126) No Data:
(127) CheckSum OK
34
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 38
3. Front Panel Function Control Description
OSD Menu Controls
Select the menu items shown below by using the up [▲] and down [▼] buttons.
NOTE: All OSD menus and adjustment screens disappear automatically after about 15 seconds.
This is adjustable through the OSD timeout setting in the setup menu.
Main Menu:
Auto Image Adjust: Automatically adjust sizes and centers the screen image.
REMARK: There may need manual adjustment of “ phase ＂ for optimized
performance for various VGA tolerance.
Contrast /Brightness: To adjust the Contrast and Brightness of the LCD monitor.
Input Select : toggles between inputs if you have more than one computer connected to the
VX2835wm. Please press the power on/off key to restart monitor when changing the HDMI input
device.
35
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 39
Audio Adjust : Volume increases the volume, decreases the volume, and mutes the audio.
Adjust Base and Treble level. Balance – adjust left and right speaker.
Color Adjust: Provides several selection on color adjustment, including preset color temperatures
and a User Color mode which allows independent adjustment of red (R), green (G), and blue (B). The
factory setting for this product is 6500K.
Information: displays the timing mode (video signal input) coming from the graphics card in the
computer, the LCD model number, the serial number, and the ViewSonic® website URL.
36
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 40
Manual Adjust :
Horizontal Size: To adjust the horizontal pixel clock of the video.
H./V. Position: To adjust the horizontal and vertical position of the video.
Fine Tune: To adjust the delay time of data and clock.
Sharpness: To select the picture sharpness of display.
Tint : sharpens the focus by aligning text and/or graphics with pixel boundaries.
Color : Adjusts the saturation level of image. (It's inactive in D-SUB mode only)
Aspect Ratio : Selects the image size for 1:1, 4:3, 16:9 & full screen
OptiColor Mode : provides an optimum display environment depending on the contents displayed. It
contains 7 user-selectable presets. These 7 presets are easily accessible from the short cut keys
OptiColor Skin Tone : includes 3 presets (Natural / Red Tone / Yellow Tone) which user can select
according to user's preference.
PIP : Auto detection when the display has several inputs.
(I)When the display power on, the auto detect priority shall be as following:
Display Power
Input
Go to the Last Active Input (flag A) Go to the First Input Priority
Go to next input
[Do not update the Last Active Input
The Input signal
Go to Disconnect process
Input signal
End
Update the Last Active Input (flag A)
Display
End
37
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 41
II) When the active input is disconnected, the auto detect priority shall be as follows :
Disconnect
Input
Go to next input
Input
Input signal
Over 5
“NO SIGNAL”
Setup Menu::
The Input Signal
Over 5 sec ?
Power saving
Update the Last Active Input
Display
End
“NO SIGNAL”
Power
Display
End
Language Select: allows the user to choose the language used in the menus and control screens.
38
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 42
OSD Position: allows the user to move the OSD menus and control screen.
OSD Timeout: To set the displaying time of OSD menu in the screen.
Memory Recall:
Restore default settings of Clock, H./V. Position, Phase, Contrast, Brightness, Color temperature,
OSD position, OSD timeout and Sharpness, Volume.
39
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 43
4. Circuit Description
Internal Power Supply Part Number: 71-Y2831200G001
Input Voltage Range AC90~264 (Worldwide)
Input Frequency Range 47 to 64 Hertz
Short Circuit Protection Output can be shorted without damage
Over Current Protection
Leakage Current 3.5mA (Max) at 264VAC / 50Hz
Efficiency 80 % typical at 115VAC Full Load
Fuse Internal and not user replaceable
Power Dissipation < 130 Watts (typ)
Max Input AC Current 1.6A (max)
Inrush Current
(Cold Start)
Power Supply Cold Start
Power Supply Transient Immunity
Power Supply Line Surge Immunity
Power Supply Missing Cycle
Immunity
3.3~4.5A typ. at 5 VDC
( Protect when short circuit )
80 A Max./ 240VAC / 50Hz
(Cold Start at 25℃,Full Load)
Shall start and function properly when under full load, with all combinations
of input voltage, input frequency, and operating temperature
Shall be able to withstand an ANSI/IEEE C62.41-1980 6000V 200 ampere
ring wave transient test with no damage
Shall be able to withstand 1.5 times nominal line voltage for one cycle with
no damage
Shall be able to function properly, without reset or visible screen artifacts,
when ½ cycle of AC power is randomly missing at nominal input
The power supply shall not produce audible noise that would be detectable
Power Supply Acoustics
US Type Power Cable
Color = Black
European Type Power Cable
Color = Black
CCC Type Power Cable
Color = Black
PSE Type Power Cable
Color = Black
Power Saving Operation(Method) VESA DPMS Signaling
Power Consumption
by the user. Audible shall define to be in compliance with ISO 7779 (DIN
EN27779:1991) Noise measurements of machines acoustics. Power
Switch noise shall not be considered
Separate 3-prong NEMA 5-15P type plug. Length = 1.8m. Connects to
display.
Schuko CEE7-7 type plug.
Length = 1.8m, Connects to display.
Separate 3-prong type plug.
Length = 1.8m. Connects to display.
Separate 2-prong NEMA 1-15P type plug.
Length = 1.8m. Connects to display.
On Mode <60 W (Typ) / under 64W (Max for Energy Star)
Max power output :130W(Max. @500nits)
Saving Mode < 2 W@230VAC 50Hz
Off Mode < 1 W @230VAC 50Hz
(DC Power Off; Meet to Energy Star Ver4.0 Tier2)
Recovery Time On Mode = N/A, Active Off < 3 sec
40
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 44
5. Adjustment Procedure
5.1. Function Test
5.1.1 Product
- 28” LCD Monitor
5.1.2 Test Equipment
- Color Video Signal & Pattern (or PC with SXGA resolution and a sound card)
5.1.3 Test Condition
Before function test and alignment, each LCD Monitor should be run-in and warmed up for at least
30 minutes with the following conditions:
(a) In room temperature,
(b) With full-white screen, RGB, and Black
(c) With cycled display modes,
640*480 (H=43.27kHz, V=85Hz)
800*600 (H=53.7kHz, V=85Hz)
1024*768 (H=68.67kHz, V=85Hz)
1280*1024 (H=79.97kHz, V=75Hz)
5.2 Test Display Modes & Pattern
5.2.1. Compatible Modes
Analog
1. 640 x 350 @ 70Hz, 31.5kHz
2. 640 x 480 @ 60Hz, 31.5kHz
3. 640 x 480 @ 67Hz, 35.0kHz
4. 640 x 480 @ 75Hz, 37.5kHz
5. 640 x 480 @ 72Hz, 37.9kHz
6. 640 x 480 @ 85Hz, 43.27kHz
7. 720 x 400 @ 70Hz, 31.5kHz
8. 800 x 600 @ 56Hz, 35.1kHz
9. 800 x 600 @ 60Hz, 37.9kHz
10. 800 x 600 @ 75Hz, 46.9kHz
11. 800 x 600 @ 72Hz, 48.1kHz
12. 800 x 600 @ 85Hz, 53.7kHz
13. 832 x 624 @ 75Hz, 49.7kHz
14. 1024 x 768 @ 60Hz, 48.4kHz
15. 1024 x 768 @ 70Hz, 56.5kHz
16. 1024 x 768 @ 72Hz, 58.1kHz
17. 1024 x 768 @ 75Hz, 60.0kHz
18. 1024 x 768 @ 85Hz, 68.67kHz
19. 1280 x 1024 @ 60Hz, 63.4kHz
20. 1280 x 1024 @ 75Hz, 79.97kHz
41
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 45

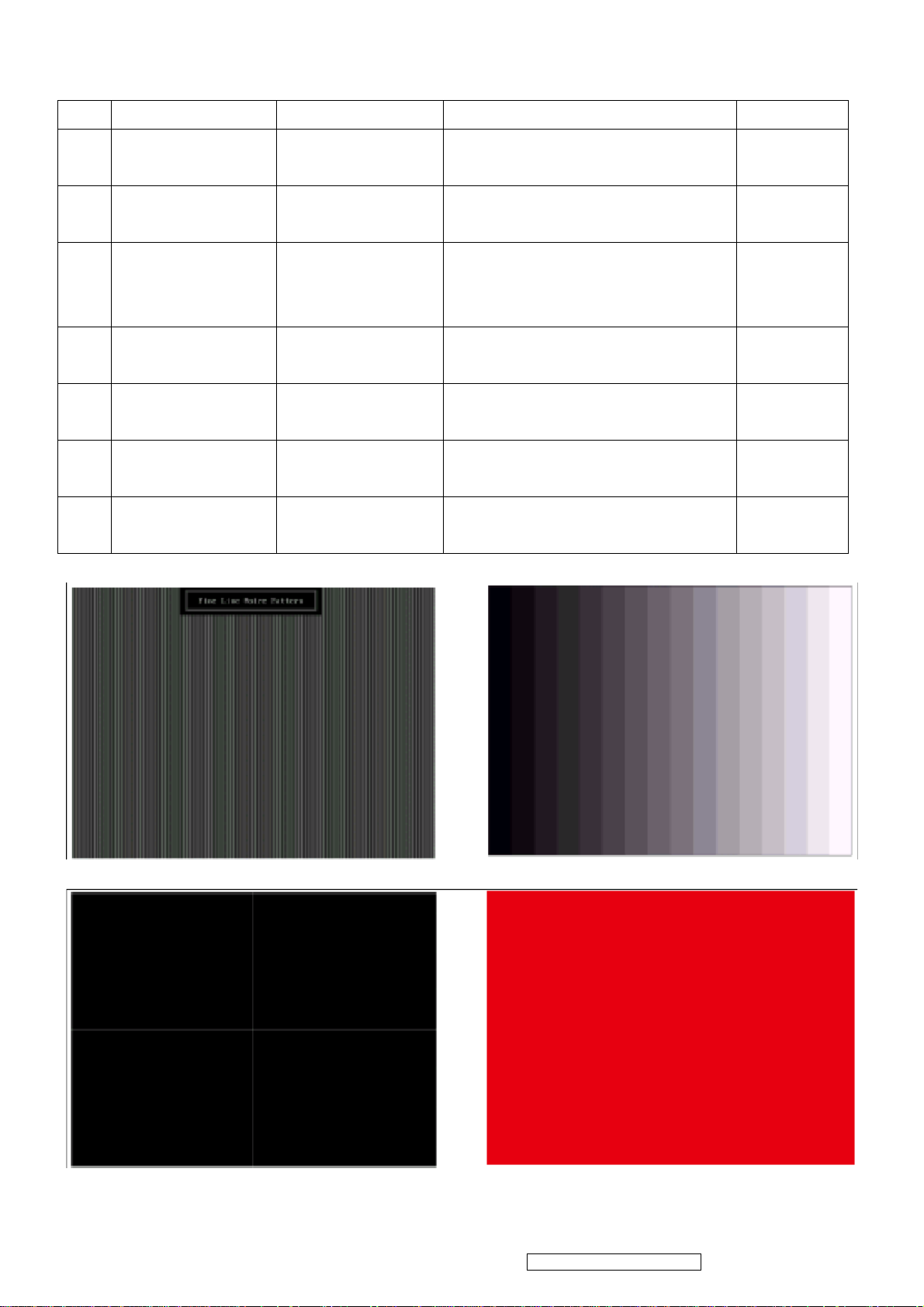

5.2.2 Function Test Display Pattern
Item Test Content Pattern Specification Remark
1 Frequency & Tracking Fine Line Moire Eliminate visual wavy
noise.
2 Contrast/Brightness 16 Gray Scale 16 gray levels should be
distinguishable.
3 Boundary Horizontal &
Vertical Thickness
4 RGB Color
Performance
5 Screen Uniformity &
Flicker
6 Dead Pixel/Line White Screen &
7 White Balance White & Black
RGB Color
Intensities
Full White Should be compliant with the spec. Figure 7
Dark Screen
Pattern
Horizontal and Vertical position of video
should be adjustable to be within the screen
frame.
Contrast of each R, G, B, color should be
normal.
The numbers of dead pixels should be
compliant with the spec.
The screen must have the pure white and
black pattern, no other color.
Figure 1
Figure 2
Figure 3
Figure 4, 5,
6
Figure 7, 8
Figure 9
Fine Line Morie Pattern (Figure1) Gray Scale Pattern (Figure2)
Horizontal & Vertical Thickness Pattern (Figure 3) R. Color Pattern (Figure 4)
42
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 46

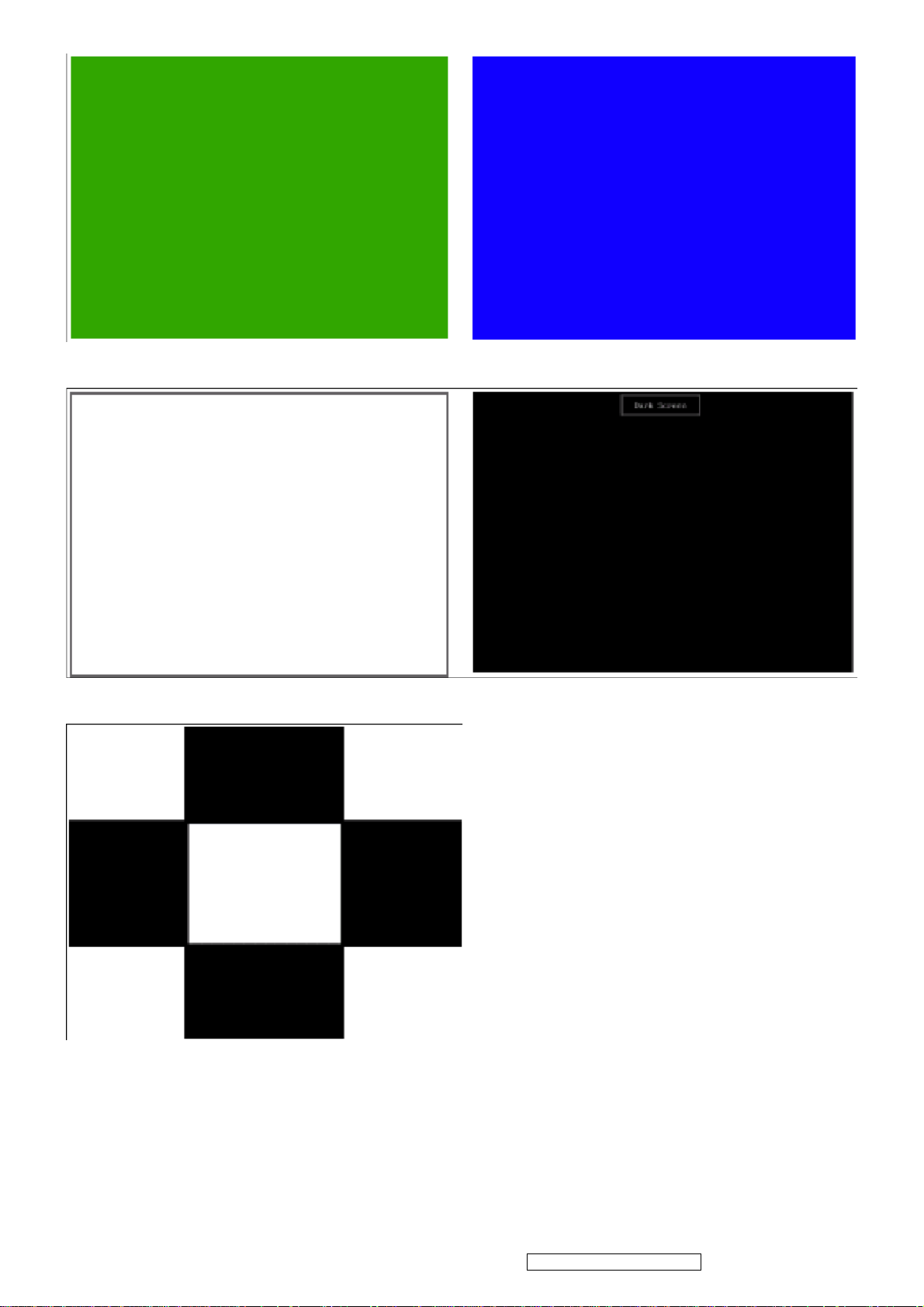

G. Color Pattern (Figure5) B. Color Pattern (Figure 6)
Full White Patter (Figure 7) Dark Screen Pattern (Figure 8)
Black-White Pattern (Figure 9)
43
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 47
5.3 Function Test and Alignment Procedure
5.3.1 All Modes Reset
You should do “All Mode Reset” first. This action will allow you to erase all end-user’s
settings and restore the factory defaults.
5.3.2 Auto Image Adjust
Please select and enter “Auto Image Adjust” function on Main Menu to see if it is workable.
The “Auto Image Adjust” function is aimed to offer a better screen quality by built-in ASIC.
For optimum screen quality, the user has to adjust each function manually.
5.3.3 Firmware
Test Pattern: Burn In Mode (Refer to Chapter III-3. Hot Keys for Function Controls)
- Make sure the F/W is the latest version.
5.3.4 DDC
Test Pattern: EDID program
- Make sure it can pass test program.
5.3.5 Fine Tune and Sharpness
Test Signal: 1280*1024@60Hz
Test Pattern: Line Moire Pattern
- Check and see if the image has noise and focus performs well. Eliminate visual line bar.
- If not, readjust by the following steps:
(a) Select and enter “Fine Tune” function on “Manual Image Adjust” to adjust the image
to eliminate visual wavy noise.
(b) Then, select and enter “Sharpness” function to adjust the clarity and focus of the screen
image.
5.3.6 Boundary
Test Signal: 1280*1024@60Hz
Test Pattern: Horizontal & Vertical Line Thickness Pattern
- Check and see if the image boundary is within the screen frame.
- If not, readjust by the following steps:
(a) Select and enter “Manual Image Adjust” function on OSD Main Menu.
(b) Then, select and enter “Horizontal Size” or “Horizontal/Vertical Position” function to
adjust the video boundary to be full scanned and within screen frame.
5.3.7 White Balance
Test Signal: 1280*1024@60Hz
Test Pattern: White and Black Pattern
44
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 48
5.3.8 R, G, B, Colors Contrast
Test Signal: 1280*1024@60Hz
Test Pattern: R, G, B, Color Intensities Pattern and 16 Gray Scale Pattern
- Check and see if each color is normal and distinguishable.
- If not, please return the unit to repair area.
5.3.9 Screen Uniformity and Flicker
Test Signal: 1280*1024@60Hz
Test Pattern: Full White Pattern
- Check and see if it is in normal condition.
5.3.10 Dead Pixel and Line
Test Signal: 1280*1024@60Hz
Test Pattern: Dark and White Screen Pattern
- Check and see if there are dead pixels on LCD panel with shadow gauge and filter film.
- The total numbers and distance of dead pixels should be compliant with the spec.
5.3.11 Mura
Test Pattern: White, RGB, Black, & Grey
Test Tool: 8% ND Filter
- Check if the Mura can pass 8% ND Filter.
5.3.12 Audio
Test Signal: Voice signal (optional, depend on model)
Test Pattern: liberty
- Make sure there is audio output.
- Make sure that audio function (volume≦80%) is working without noise and resonance.
- Make sure that the sound of right and left speakers are in balance.
5.3.13 Check for Secondary Display Modes
Test Signal:
Analog: 640*350@70Hz; 640*480@60HZ
720*400@70Hz; 800*600@60HZ/70HZ/75HZ
832*624@75Hz, 1024*768@60HZ/70HZ/75HZ
1280*1024@60/75Hz
- Normally when the primary mode 1280*1024@60Hz is well adjusted and compliant
with the specification, the secondary display modes will be great possible to be compliant
with the spec. But we still have to check with the general test pattern to make sure every
secondary is compliant with the specification.
45
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 49
5.3. 14 All Modes Reset
After final QC step, we have to erase all saved changes again and restore the factory defaults.
You should do “All Mode Reset” again.
5.3.15 Power Off Monitor
Turn off the monitor by pressing “Power” button.
5.4 Firmware Upgrade Procedure
5.4.1 Equipment needed :
Use 15 pin D-Sub and USB cable
ISP tool ISP connection
5.4.2 Hardware setup connection :
46
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 50
5.4.3 How to check current Firmware version
4.1.1 Press Up and Down arrow button at the same time for 3 seconds and then release.
4.1.2 Press Power button and wait for the blue screen to display.
4.1.3 Press 1 immediately and the firmware version screen will display on the screen.
5.4.4 Procedure to update firmware version
Setup procedure to update Bin and Hex Firmware
1. Make sure the USB cable and 15 pin Sub
cable are properly connected to the PC
computer and LCD monitor.
Execute the software program
2. Click “Yes”to continue
47
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 51

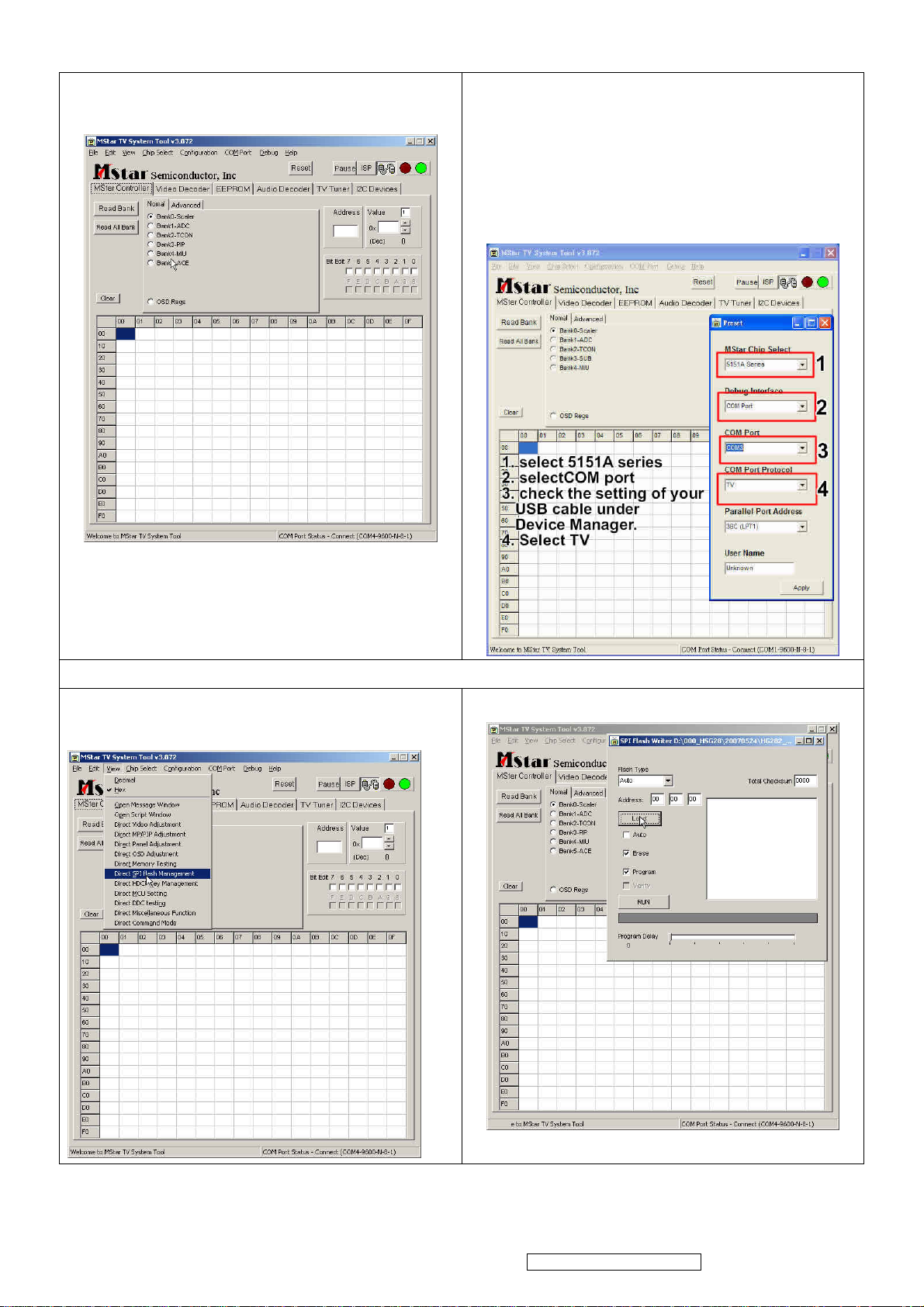

3. Click the connection icon and the LED should
turn to GREEN color ( means connected)
4.
1. Mstar Chip set - Select 5151A series
2. Debug Interace - Select COMPORT
3. COM Port - you need to check the
assigned COM Port under Control Panel
Æ Device Manager Æ Com Port
4. Com Port Protocol – select TV
Start to do firmware BIN update
5. On the top menu, click VIEW Æ Direct SPIU
Flash Management
6. Click “Load”
48
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 52
7. Locate and load the bios file
8. Set the Program Delay to “3”
9. Click “RUN”
Exit after seeing “OK”. Disconnect all cables
10.
and turn off all AC power.
49
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 53

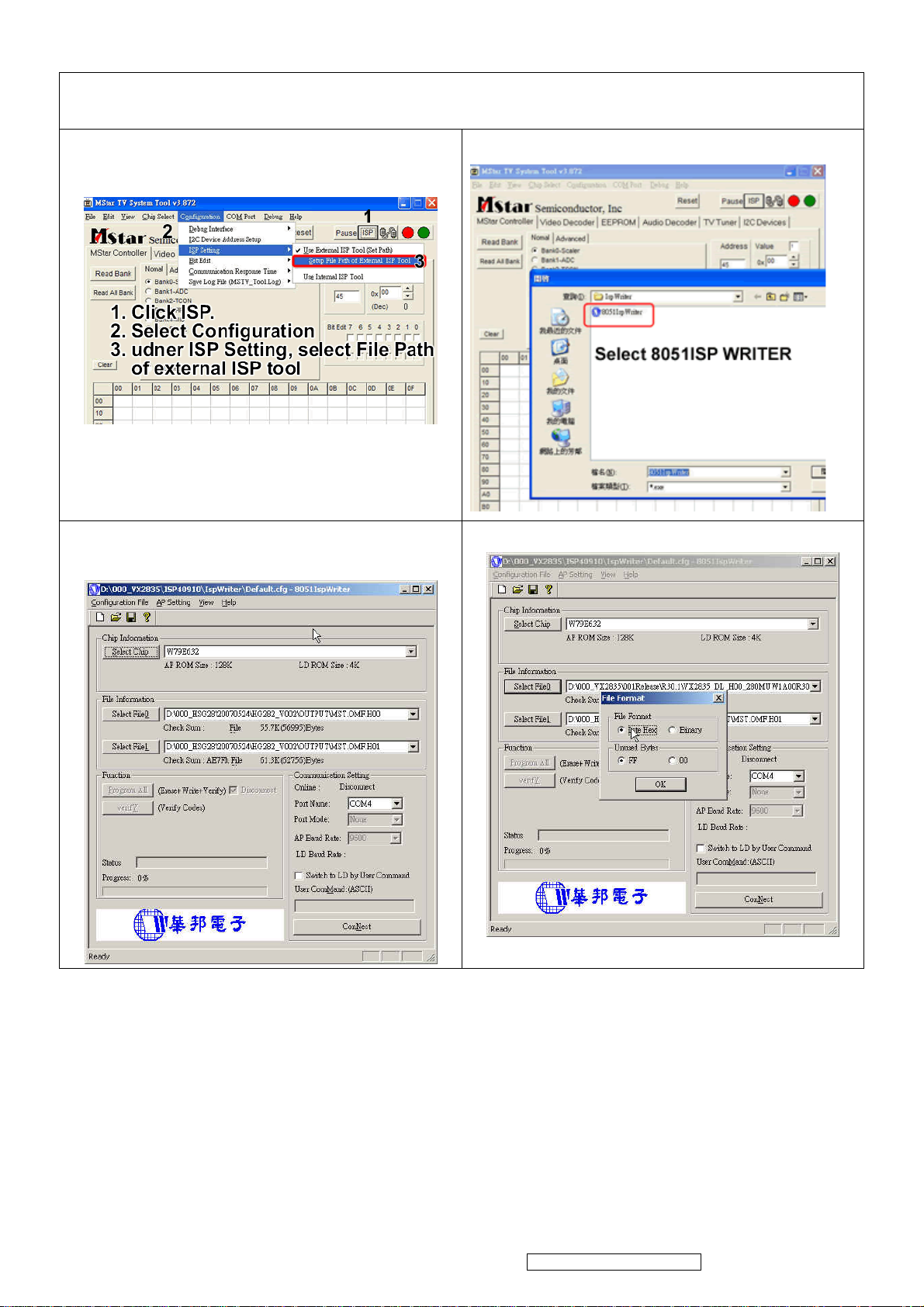

Start to do firmware HEX update ( you need to follow set up procedure 1 to 4 before proceeding to
this step )
1. Click ISP, on the top menu, select configuration
Æ ISP SettingÆ File Path of external ISP tool
3. Select the correct chip (W79E632) and select the
hex file.
2. Locate the file for 8051ISP writer
4. Select HEX format
50
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 54
5. Select the second HEX file 6. Select HEX format
7. Check the com port setting (Control
PanelÆSystemÆDevice ManagerÆCOMP PORT.
Click “Connect Next Chip”
Click Program All
8. Program OK - Done
51
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 55
5.5 .6 DDC Key In Procedure
Note:
1. Every time after replacing the main board, you have to do the DDC key in.
2. If you find the DDC does not conform to the monitor, you have to do the DDC key in.
Equipment Needed
- VX2835 LCD Monitor
- DDC Card
- PC
- RS232 cable
- HDMI Cable
DDC Card (D8330)
RS-232 Cable VGA Cable
52
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 56
Step 1 : Select VX2835 on Working Model column to show EDID data on left
Step 2 : Modify the column of Week of Manufacture and Year of Manufacture and ID serial
Number then press “2B” button for changing serial number data.
53
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 57
Step 3 : You will see the result as follows.

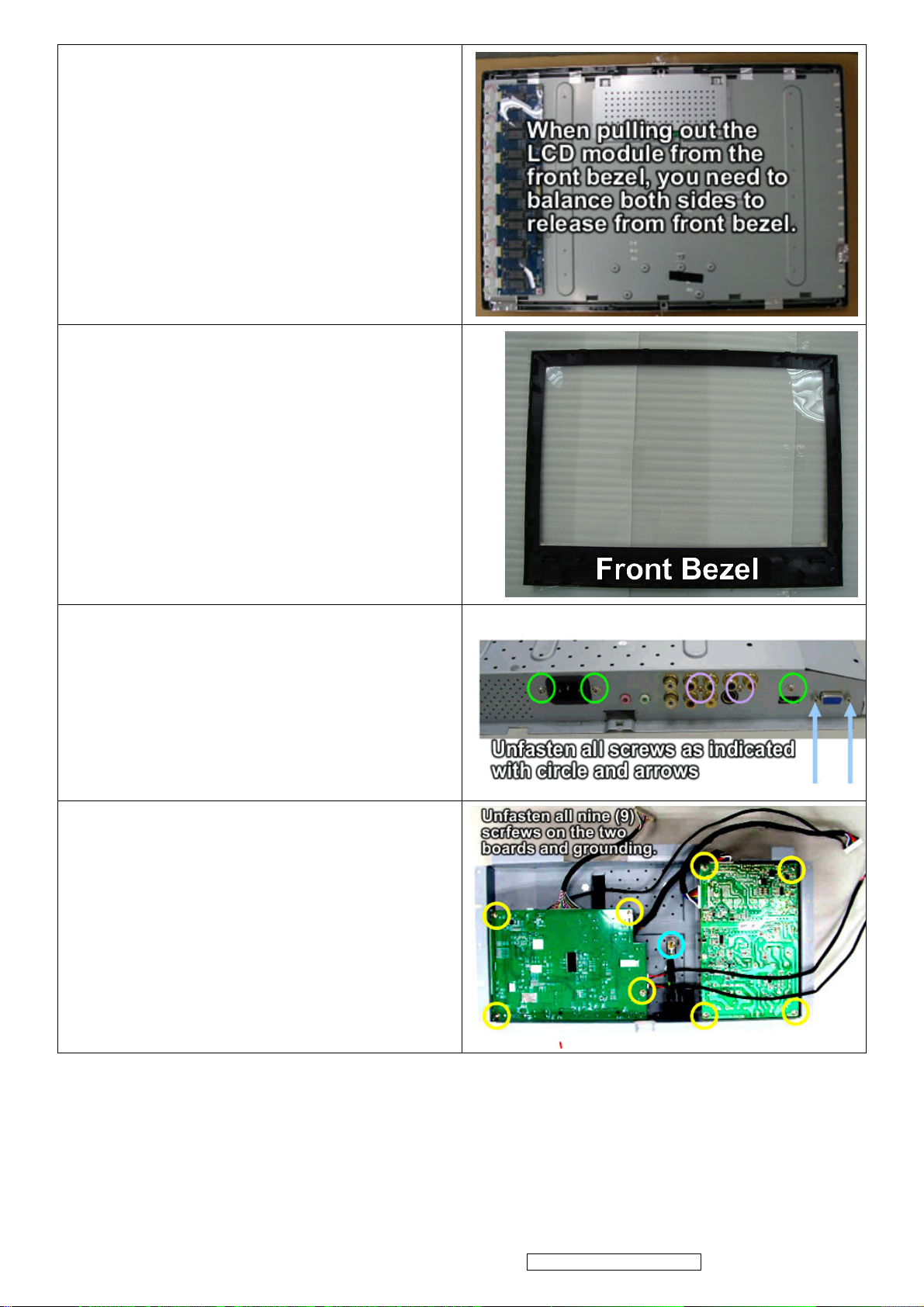

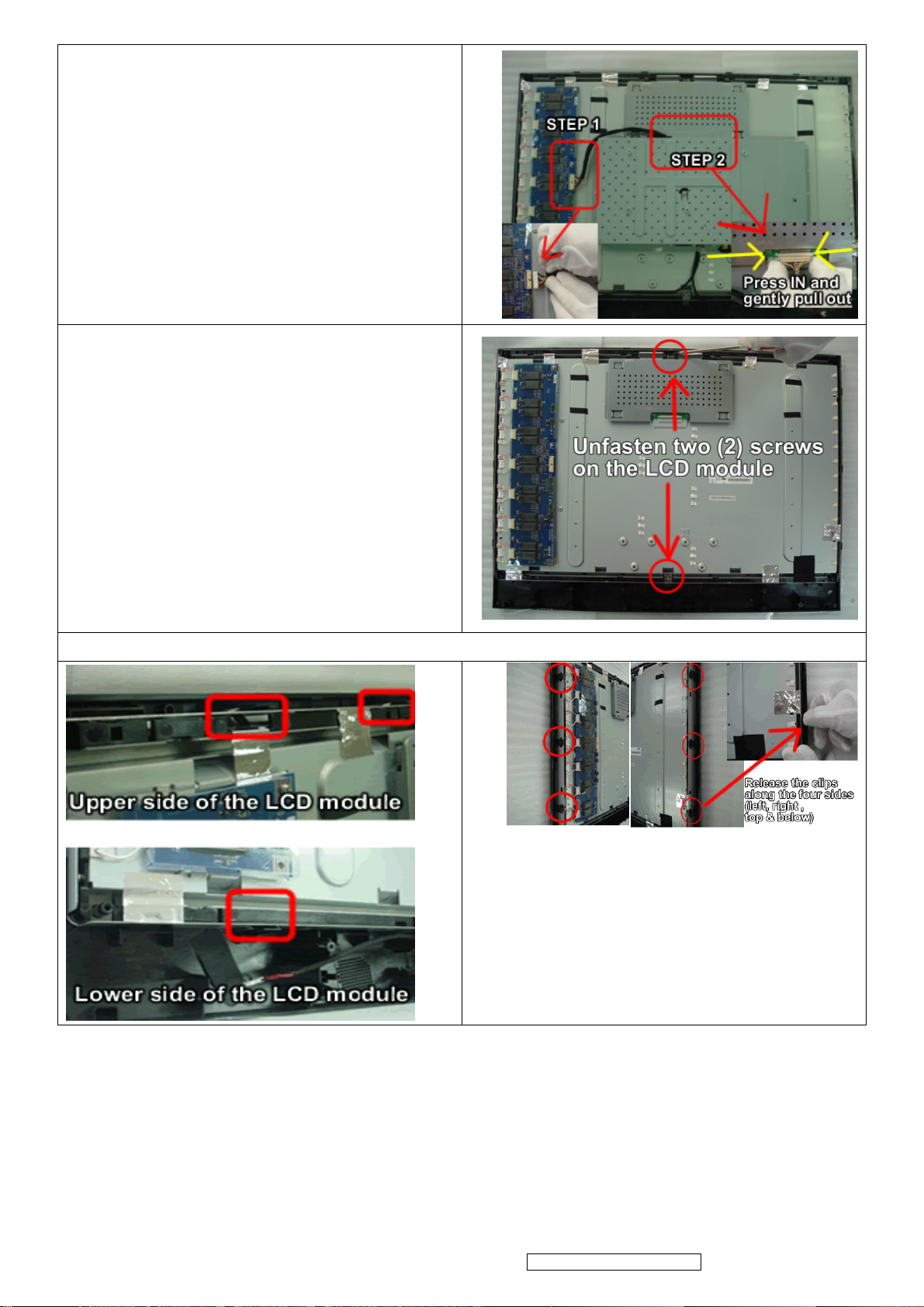

5.6 Disassembly Procedure
1. Put the LCD monitor on a flat table, make sure
the table surface with cover with foam to protect
the LCD panel from scratch.
Make sure also that there is no object underneath
the LCD monitor before putting the LCD down
2. Follow step 1, press both sides of the hinge
cover, then proceed to step 2, pull out the left
cover to remove.
3. Follow step 1, press both sides of the hinge
cover, then proceed to step 2, pull out the right
cover to remove.
54
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 58
4. Unfasten eight (8) screws ojn both sides of the
ARM hinge.
5. Gently remove the base stand assembly to
separate from the LCD monitor.
6. Unfasten seven (7) pcs screws on the back cover
of the LCD monitor.
7. To remove the back cover, start from the lower
left corner. Use a plastic tool ( flat) and insert
on the opening on the lower left corner. Follow
the number.
STEP 1
55
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 59
STEP 2 STEP 3
8. Unfasten six (6) screws on the hinge bracket.
9. You can now remove the left speaker.
Disconnect the speaker cable from the
connector.
10. You can now remove the right speaker.
Disconnect the speaker cable from the
connector.
56
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 60
11. Remove the black insulation tape along the
left, right and upper sides of the LCD panel.
12. Disconnect the keyboard cable.
13. Unfasten four (4) screws on the key board.
14. Unfasten seven (7) pcs screws on the
shielding.
57
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 61
15. Step 1 - Disconnect the cable from the
connector.
Step 2 - Gently lift up the shielding half
way, and disconnect the cable underneath. To
disconnect the cable, hold and press the end
cable and gently pullout from the connector to
disconnect.
16. Unfasten two (2) screws on the upper and
bottom sides of the LCD module.
17. Release all the snap locks along the four sides of the LCD screen.
58
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 62
18. When removing the LCD module, you need to
pull out both side at the same time to avoid any
obstruction.
19. Separate the front bezel of the LCD monitor.
20. Unfasten all screws under the shielding.
21. Unfasten all screws on the MB and Power
Board and grounding.
59
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 63
22. You may now separate MB and Power Board
23. The disassembly procedure is done.
NOTE : There might be some additional aluminum foils for EMI solution that are not shown in this
procedure.
60
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 64

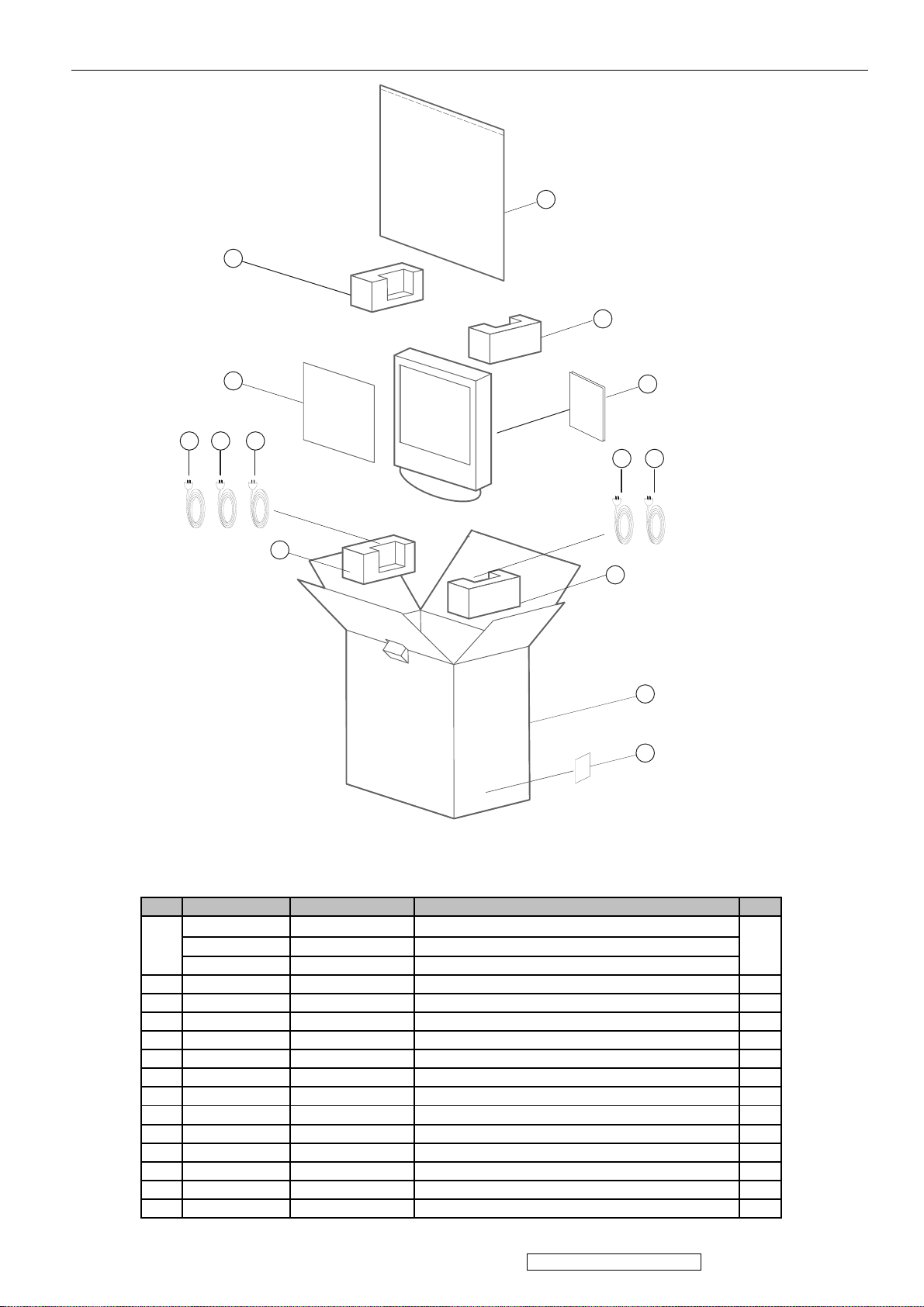

Packing for Shipping
y
N
g
N
N
N
g
y
N
7
10
11
12
32 4
1
5 6
8
9
13
14
PACKING PART LIST ( VX2835wm-1 )
ViewSonic Model Number: VS11531
Rev: 1a
Item ViewSonic P/N Ref. P/N Location Q't
DC-00008431 72-28350100G310 VX2835wm USA Packing assy,made in Taiwan
/A 72-28350100G210 VX2835 China packing assy,made in Taiwan
1
DC-00008429 72-28350100G110 VX2835 TWN packin
2 CB-00008003 33-00070500G000 CABLE STEREO PHONE SZE33261B 1
3
4
5
6 CB-00008001 33-00090501G000 CABLE SIGNAL D/15P-15P(M)1800MM 1
7 P-00008486 61-03000017G000 PE Ba
8 P-00008485 61-01000065G000 VX2835 END CAP-L-bottom EPS 1
9 P-00008484 61-01000064G000 VX2835 END CAP-R-bottom EPS 1
10 P-00008483 61-01000059G000 VX2835 END CAP-L-top EPS 1
11 P-00008482 61-01000058G000 VX2835 END CAP-R-top EPS 1
12 DC-00008432 42-01120015G000 m
13 P-00008481 60-01000117G610 VX2835wm Carton,Taiwan 1
14
61
/A 33-Y2830601G200 Cable HDMI To DVI 1.8M(GLET) 1
/A 33-Y2830501G010 Cable SIGNAL CVBS/R/L 1800mm(GLET) 1
/A 33-00000004G000 PWR CORD EUR 250V/10A 1800MM 3C BLK 1
lar 394*617*0.1mm for VIEWSONIC 2835 1
/A 62-06000003G000 BARCODE LABEL 76.2*76.2MM 1
,800*1000mm*0.05t 1
assy,made in Taiwan
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
1
Page 65
6. Troubleshooting Flow Chart
NO POWER
1. Re connect AC power
2. Re connect Power cable
NO POWER
YES
IS THERE A POWER ?
NO
Replace Power Board
NO
IS THERE A POWER ?
YES
END
62
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 66
NO DISPLAY
NO
DISPLAY
1. Press power button
2. check sub-cable if
connected properly
3. Check all cables inside
the monitor
YES
IS THERE A DISPALY?
NO
YES
Replace MB Board
IS THERE A DISPLAY ?
NO
Replace Panel
NO
IS THERE A DISPLAY ?
YES
END
63
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 67
DISPLAY HAVE VERTICAL LINES
YES
Dispaly
have
vertical
line
1. Check if sub-cable is OK
and connected properly
3. Check all cables inside
the monitor
IS THE DISPALY
GOOD ?
NO
Replace PANEL
IS THERE A DISPLAY ?
YES
NO
END
64
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 68
DISPLAY BACKLIGHT IS OFF
Display
Backlight
is OFF
1. Check inverter cable if
connected properly
2. Check for any damage
on inverter cable
YES
YES
Is display
backlight
ON ?
NO
Replace Power / Inverter
board
Is display
backlight
ON ?
NO
Replace Panel
NO
Is display
backlight
ON ?
YES
END
65
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 69
DISPLAY HAVE BLOCK BAR
YES
Dispaly
have block
bar
1. Check if sub-cable is OK
and connected properly
3. Check all cables inside
the monitor
IS THE DISP A LY
GOOD ?
NO
Replace PANEL
IS THE DISP A LY
GOOD ?
YES
NO
END
66
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 70
NO AUDIO
NO Audio
1. Check if audio cable is
connected properly
2. Check OSD and check if
MUTE IS set to OFF or ON
YES
IS THE AUDIO
GOOD ?
NO
Replace
Power/Inverter
Board
IS THE AUDIO
GOOD ?
YES
NO
END
67
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 71
7. Block Diagram
POWER
LVDS
Output
FLASH
PM25LV010
HDCP KEY
24C08
EEPROMPC
24C32
Speaker
12V/5V/3V3
I2C
Scaler IC
MST6251DA
DDR
EM6A9320
MCU
W79E633A40
I2C
Audio Output R/L
TDA7297D
Audio AMP
MTS_O R/L
656 Format
24C02
DDCD
R+-/G+-/B+-
Digital
HDMI
68
RGB
Input
DDCA
Analog
RGB
24C02
Input
YPbPr
AV1
Input
YPbPr
S/CVBS
AV2
S/CVBS
Input
Video Decoder
TVP5160
10bit 4:2:2
DAC
PCM1754
PT2134A
Audio S/W
PC R/L
HDMI R/L
LINE IN
S/CVBS R/L
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 72

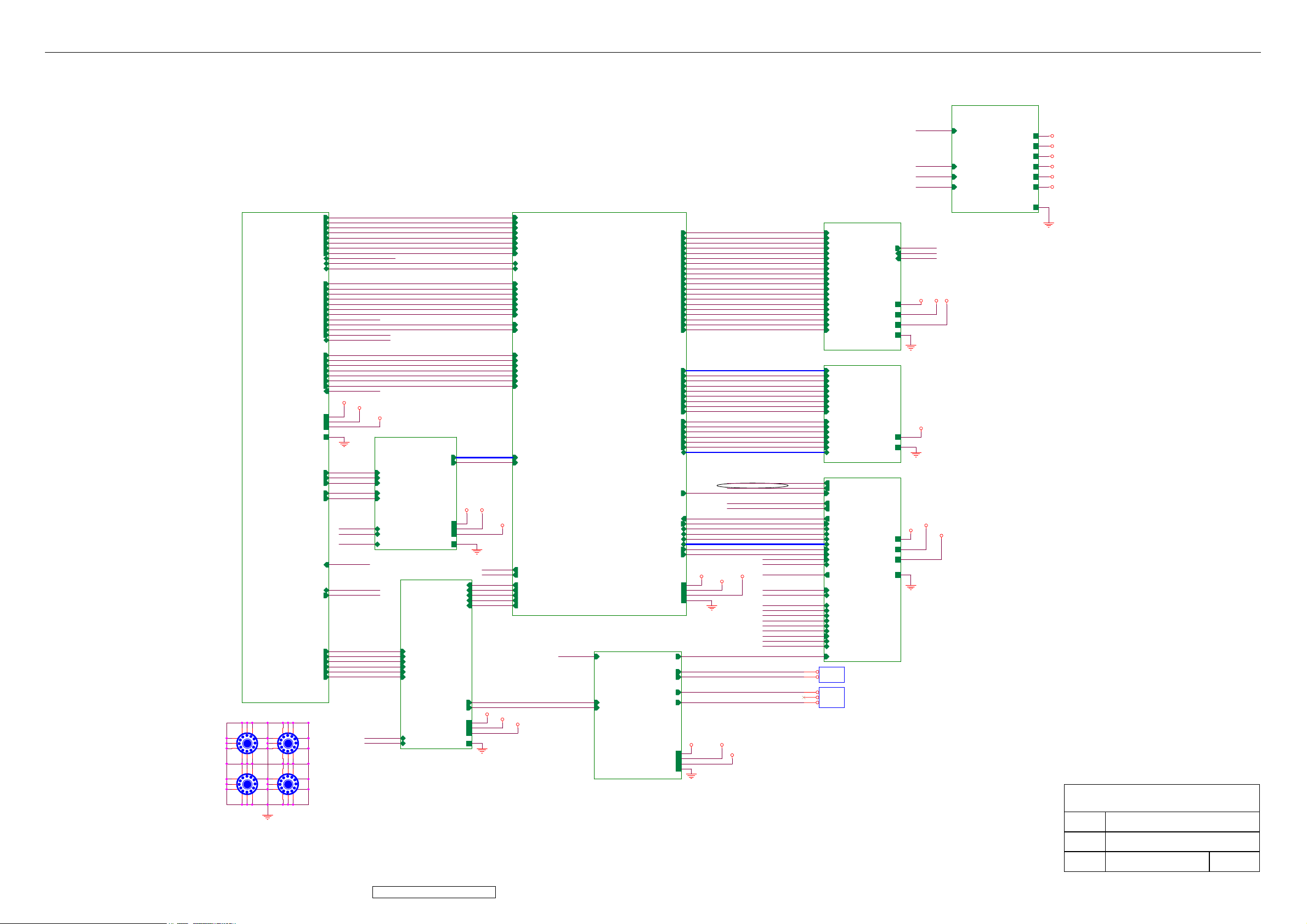

8. Schematic Diagrams
POWER
B01
INPUT INTERFACE
MTG1
2
3
ID3.5/OD7.0
4
5
6
7
9 1
8
MTG4
2
3
ID3.5/OD7.0
4
5
6
7
9 1
8
DDCCI_VGA_RXD
DDCCI_VGA_TXD
2
3
4
5
6
7
8
2
3
4
5
6
7
8
DVI_B+
DVI_B-
DVI_G+
DVI_GDVI_R+
DVI_R-
DVI_CK+
DVI_CK-
HPDCTRL
DVI_SDA
DVI_SCL
GREEN+
GREEN-
BLUE+
BLUE-
ST_DET
HS_RGB
VS_RGB
TX_SCL
RX_SDA
SOG_Y
IR_SW
5V_STBY
P_A3.3V
GNDD
AV2_SY
AV2_SC
AV2_CVBS
CARD_SY
CARD_SC
IR_CARD
PC_R
PC_L
Y/Pb/Pr_R
Y/Pb/Pr_L
Y/C_R
Y/C_L
MTG2
ID4.5/OD7.0
9 1
MTG6
ID4.5/OD8.0
9 1
RED+
RED-
SOG
PR+
PR-
Y+
PB+
PB-
Y-
5V
HPDCTRL
DVI_SDA
DVI_SCL
RED+
REDGREEN+
GREENBLUE+
BLUESOG
ST_DET
HS_RGB
VS_RGB
TX_SCL
RX_SDA
PR+
PR-
SOG_Y
Y+
Y-
PB+
PBIR_SW
5V_STBY
P_A3.3V
GNDD
CARD_SY
CARD_SC
SCL_3V3
SDA_3V3
RESET#
IR_CARD
DDCCI_VGA_RXD
DDCCI_VGA_TXD
PC_R
PC_L
Y/Pb/Pr_R
Y/Pb/Pr_L
Y/C_R
Y/C_L
DVI_B+
DVI_BDVI_G+
DVI_GDVI_R+
DVI_RDVI_CK+
DVI_CK-
5V
Video Decoder
Video Decoder
SCL_5V
SDA_5V
AV2_SY
AV2_SC
AV2_CVBS
CARD_SY
CARD_SC
SCL_3V3
SDA_3V3
RESET#
Audio Switch
PC_R
PC_L
Y/Pb/Pr_R
Y/Pb/Pr_L
Y/C_R
Y/C_L
SCL_5V
SDA_5V
Audio Switch
F03 MST6251DA SCHEMATIC
SCALER
DVI_B+
DVI_B-
D[0..7]
D_CLK
P_A3.3V
GNDD
5V
3V3
AUWS
AUSCK
AUMCK
AUMUTE
MTS_O_R
MTS_O_L
AUDIO_5V
AUSD
GNDD
DVI_G+
DVI_GDVI_R+
DVI_RDVI_CK+
DVI_CK-
DVI_SDA
DVI_SCL
RED+
REDGREEN+
BLUE+
BLUESOG
HS_RGB
VS_RGB
PR+
PRSOG_Y
Y+
YPB+
PB-
D[0..7]
D_CLK
3V35V
GNDD
LCD_PWR
S_ADJ_PWM
AUWS
AUSCK
AUSD
AUMCK
AUMUTE
12V
12V
5V
GNDD
P_A3.3V
D[0..7]
D_CLK
LCD_PWR
S_ADJ_PWM
AUWS
AUSCK
AUSD
AUMCK
AUMUTE
SCALER
AUDIO MUTE#
MTS_O_R SPK_R-
5V
MTS_O_L
AUDIO_5V
AUDIO
AUDIO MUTE#
MTS_O_R
MTS_O_L
AUDIO
RXO0-
RXO0+
RXO1-
RXO1+
RXO2-
RXO2+
RXOC-
RXOC+
RXO3-
RXO3+
RXE0-
RXE0+
RXE1-
RXE1+GREEN-
RXE2-
RXE2+
RXEC-
RXEC+
RXE3RXE3+
FSADDR[0..11]
/FSWE
/FSCAS
/FSRAS
FSCKE
FSBKSEL0
FSBKSEL1
FSCLK+
FSCLK-
FSDQM1
FSDQM0
FSDQS3
FSDQS2
FSDQS1
FSDQS0
FSDATAU[0..31]
IR_SW
5151A_RST
AD[0..3]
BLUE
ORANGE
5V_STBY
2V5_STBY
GNDD
EAR_DET
SPK_L+
SPK_L-
SPK_R+
SPK_R-
AUDIO_12V
AUDIO_5V
5V_STBY
GNDD
INT
WR
RD
ALE
5V
5V_STBY
EAR_DET
AUDIO_12V
GNDD
GNDD
AUDIO MUTE#
DCR
IR_SW
BL_EN
PWR_EN
5151A_RST
INT
WR
RD
ALE
AD[0..3]
BLUE
ORANGE
2V5_STBY
SPK_L+
SPK_L-
AUDIO_5V
5V_STBY
FSADDR[0..11]
/FSWE
/FSCAS
/FSRAS
FSCKE
FSBKSEL0
FSBKSEL1
FSCLK+
FSCLK-
FSDQM1
FSDQM0
FSDQS3
FSDQS2
FSDQS1
FSDQS0
FSDATAU[0..31]
5V
RXO0RXO0+
RXO1RXO1+
RXO2RXO2+
RXOCRXOC+
RXO3RXO3+
RXE0RXE0+
RXE1RXE1+
RXE2RXE2+
RXECRXEC+
RXE3RXE3+
ST_DET
HPDCTRL
IR_CARD
DDCCI_VGA_TXD
DDCCI_VGA_RXD
DVI_SCL
DVI_SDA
SCL_5V
SDA_5V
SCL_3V3
SDA_3V3
TX_SCL
RX_SDA
RESET#
SPK_R+
OUTPUT INTERFACE
RXO0RXO0+
RXO1RXO1+
RXO2RXO2+
RXO3-
RXE0-
RXE1-
RXE2-
RXECRXEC+
RXE3RXE3+
OUTPUT INTERFACE
DDR
DDR
MCU
AUDIO MUTE#
BL_EN
PWR_EN
5151A_RST
INT
WR
ALE
AD[0..3]
ORANGE
DDCCI_VGA_TXD
DVI_SCL
DVI_SDA
SCL_3V3
SDA_3V3
RX_SDA
RESET#
JP1
1
SPK_L+
2
SPK_L-
JP2
1
SPK_R+
2
NC
3
SPK_R-
RXOCRXOC+
RXO3+
RXE0+
RXE1+
RXE2+
FSADDR[0..11]
/FSWE
/FSCAS
/FSRAS
FSCKE
FSBKSEL0
FSBKSEL1
FSCLK+
FSCLK-
FSDQM1
FSDQM0
FSDQS3
FSDQS2
FSDQS1
FSDQS0
FSDATAU[0..31]
DCR
IR_SW
RD
BLUE
ST_DET
HPDCTRL
IR_CARD
DDCCI_VGA_RXD
SCL_5V
SDA_5V
TX_SCL
EAR_DET
PH_2
PH_3
ADJ_PWM
DCR
S_ADJ_PWM
VCC_LCD
GNDD
2V5_STBY
GNDD
5V_STBY
GNDD
BL_EN
PWR_EN
ADJ_PWM
LCD_PWR
ADJ_PWM
DCR
S_ADJ_PWM
5V
5V
3V3
GNDD
2V5_STBY
GNDD
5V_STBY
5V
5V
3V3
GNDD
MCU
BL_EN
PWR_EN
ADJ_PWM
LCD_PWR AUDIO_12V
POWER
3V3
VCC_LCD
3V3
VCC_LCD
5V_STBY
3V3
GNDD
VCC_LCD
12V
12V
5V_STBY
5V
5V
3V3
AUDIO_12V
GNDD
ViewSonic Corporation
GNDD
69
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Model
Title
SCALER
Date Rev:
Page 73
AUDIO_12V
AUDIO_12V10
5V_STBY5,6,8,10,11
AUDIO_5V3
GNDD1,3,4,5,6,7,8,9,10,11,12
MTS_O_R3
MTS_O_L3
AUDIO MUTE#8
R14
10K
B
R17
10K
GNDD GNDD GNDD
5V_STBY
R7 1K
R8 1K
AUDIO_12V
C
E
MMBT3904L
R18
10K
AUDIO_5V
GNDD
5V_STBY
R339 10K
R12 10K/NC
Q3
C5 0.22uF
C6 0.22uF
R9
1K/NC
GNDD GNDD
C12
10uF/16V/NC
C17
0.1uF/NC
AUDIO MUTE#
R10
1K/NC
STBY
MUTEAUDIO MUTE#
D15
MEZ05-9.1-D1/NC
GNDD
C13
1uF
U1
TDA7297D
14
12
GNDD
U3 G692L463TCUf
4
VCC
12
C2
+
C3
0.1uF
6
15
VCC
VCC
7 2
IN1 OUT1+
IN2
9
ST BY
8
MUTE
SGND
RESET/
GNDMR/
3
N.C
4
N.C
2
13
N.C
17
PW GND
PW GND
PW GND
PW GND
N.C
N.C
GND_AUDIO
13
18
0
GNDD
R231 10K
GNDD
GNDD
OUT1-
OUT2+
OUT2-
470uF/16V/NC
ECD_D10_5
MUTE
L40
10uH
CHK_0403
5
19
16
1
10
11
20
12
B1 0
B2 0
B3 0
B4 0
GNDD
EAR_DET8
AUDIO_12V
C7
100pF
GNDD
HP_R
EAR_DET
HP_L
H PLUG
L NO
PLUG
C8
100pFC9100pF
sound_R
sound_L
R20 0
R24 0
C10
100pF
R26
120k/NC
SPK_R+ 1
SPK_R- 1
SPK_L+ 1
SPK_L- 1
R324 0
R325 0
330pF
5V_STBY
R19
1K
C18
GNDD GNDDGNDD
MTS_O_R
MTS_O_L
R323 0
2
3
5
6
R326 0
C19
330pF
GNDD
U2
IN1-
IN1+
IN2+
IN2-
PT2308-S
R21 0
R23 0
R25 0
C1 10uF
C4 10uF
1
OUT1
VOUT2
7
10pF/NC
AUDIO_5V AUDIO_5V
R1
C20
10pF/NC
47k
B
R3
47k
VDD
VSS
C21
10pF/NC
C
Q1
E
MMBT3904L
R4
1k
8
C14
0.1uF
4
GNDD GNDD
C22
GNDD
R2
47k
B
R5
47k
GNDD GNDDGNDD GNDD
C11 100uF/25V
1 2
+
ECD_D6.3_2.5
AUDIO_5V
C15
10uF/16V
C16
1 2
+
ECD_D6.3_2.5
4
3
2
1
5
12
B5
0/R0805
B0805
C
Q2
E
MMBT3904L
sound_R
sound_L
R6
1k
HP_R
100uF/25V
HP_L
CN1
Headphone_OUT
ViewSonic Corporation
Model
Title
SCALER
70
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Date Rev:
Page 74
12V
R314
100
9V
D14
MEZ05-9.1-D1
U8
Y/Pb/Pr_R7
Y/C_R7
PC_R5
HDMI_R
Y/Pb/Pr_L7
Y/C_L7
PC_L5
HDMI_L
R232
R233
R234
R235
R236
R237
R238
R239
R240
1.2K
1.2K
1.2K
1.2K
1.2K
1.2K
1.2K
1.2K
5.6K
C293
2.7nF
C279
C280
C281
C282
C283
C285
C286
C288
C289
C291
C294
2.7nF
C295
0.1uF
2.2uF
2.2uF
2.2uF
2.2uF
2.2uF
2.2uF
2.2uF
2.2uF
0.1uF
0.1uF
C296
0.1uF
GNDD
11
RIN1
10
RIN2
9
RIN3
8
RIN4
16
LIN1
15
LIN2
14
LIN3
13
LIN4
19
BIN_L
20 21
BOUT_L BIN_R
4
TREB_R
3
TREB_L
7
LOUD_R
12
LOUD_L
28
REF
C297
PT2134A
22uF
1
VDD
DGND
25
C337
0.1uF
GNDD GNDD
OUT_L
OUT_R
ROUT
RIN
LOUT
LIN
BOUT_R
DATA
CLK
AGND
2
C338
24
23
6
5
18
17
22
26
27
C298
22pF
10uF
C284
C287
C290
C292
2.2uF
2.2uF
R242
R243
C299
22pF
0.1uF
0.1uF
C37
C41
33
33
R241
10uF
10uF
5.6K
GNDD
SDA_5V 8
SCL_5V 8
MTS_O_L 2
MTS_O_R 2
12V
R273
100
C322
100uF/25V
ECD_D6.3_2.5
GNDDGNDD
5V
C321
0.1uF
R283
33/NC
U34
MM1117STA
VOUT1VIN
1 4
ADJ VOUT2
12V
23
AUDIO_5V
GNDD
R274
220
R275
1.2K
AUDIO_5V
C323
100uF/25V
ECD_D6.3_2.5
GNDD
GNDD
GNDDGNDD
U5
C35
10uF
0
0
0
0
0
0
GNDD
1
BCK
2
DATA
3
LRCK
15
ML
14
MC
13
MD
16
SCK
12
ZEROL/NA
11
ZEROR/ZEROA
10
VCOM
PCM1754
VOUT/L
VOUT/R
VCC
DGND
AGND
NC
7
8
5V
6
C339
4
9
5
0.1uF
C340
10uF
GNDD
AUSCK11
AUSD11
AUWS11
AUMUTE11
AUMCK11
AUSCK
AUSD
AUWS
R271 NC
R47
AUMCK
R43
R44
R45
R46
0
R48
R49
GNDD
R224
R225
0
0
C273
NC
12V10
5V7,8,9,10,11,12
AUDIO_5V2
GNDD1,2,4,5,6,7,8,9,10,11,12
HDMI_L
HDMI_R
C274
NC
GNDD
ViewSonic Corporation
5V
GNDD
Model
71
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Title
SCALER
Date Rev:
Page 75

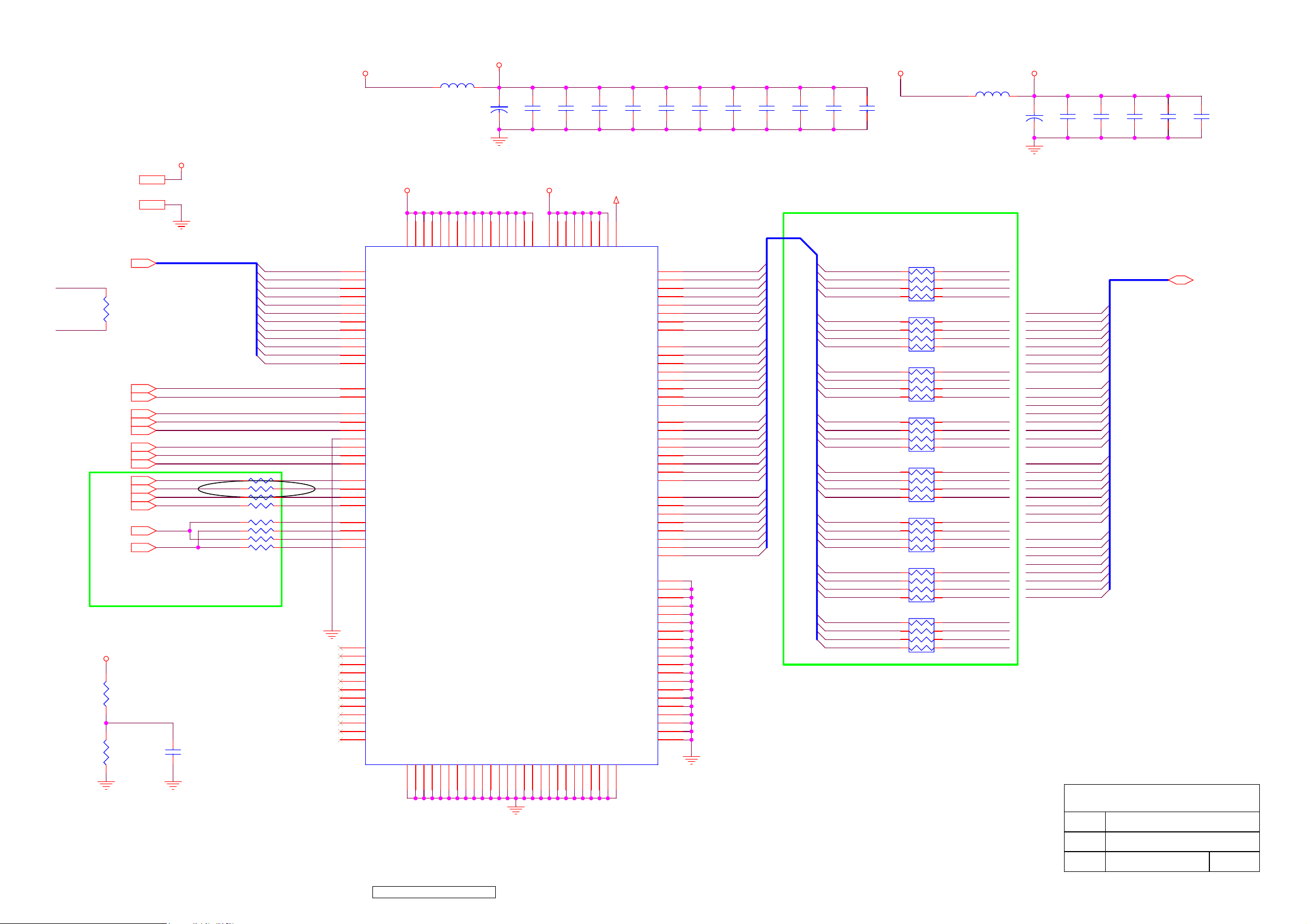

2V5_STBY
2V5_STBY
600Z/100MHz
L41
L0805
C52
47uF/25V
ECD_D5_2
2V5_DMQ
GNDD
L0805
C65
47uF/25V
ECD_D5_2
2V5_DMC
+
GNDD
C66
0.1uF
C67
0.1uF
C68
0.1uF
C69
0.1uF
C70
0.1uF
2V5_STBY
600Z/100MHz
C53
+
0.1uF
C54
0.1uF
C55
0.1uF
C56
0.1uF
C57
0.1uF
C58
0.1uF
C59
0.1uF
C60
0.1uF
C61
0.1uF
C62
0.1uF
C63
0.1uF
L42
2V5_STBY11
GNDD1,2,3,5,6,7,8,9,10,11,12
FSADDR[0..11]11
FSCLK+
R61
150_1%
FSCLK-
Place this parallel
termination close to
corresponding memory IC
Pins
FSBKSEL011
FSBKSEL111
FSCLK-11
FSCLK+11
FSCKE11
/FSRAS11
/FSCAS11
/FSWE11
FSDQS011
FSDQS211
FSDQS111
FSDQS311
FSDQM011
FSDQM111
Middle of DDR-SDRAM
and Scaler
2V5_DMQ
R70
1K
FSVREF
R71
1K
Near The DDR-SDRAM IC
GNDD
FSADDR[0..11]
FSDQM0
FSDQM1
C72
0.1uF
GNDDGNDD
R62 33
R327 33
R328 33
R65 33
R66 33
R67 33
R68 33
R69 33
FSADDR0
FSADDR1
FSADDR2
FSADDR3
FSADDR4
FSADDR5
FSADDR6
FSADDR7
FSADDR8
FSADDR9
FSADDR10
FSADDR11
FSBKSEL0
FSBKSEL1
FSCLKFSCLK+
FSCKE
/FSRAS
/FSCAS
/FSWE
EM6A9320/DDR-SDRAM/BGA
GNDD
M4
M5
L5
M6
M7
L8
M8
M9
M10
L7
K5
L6
M3
L4
L11
L10
M11
M1
L1
K1
K2
A1
G12
G1
A12
A2
G11
G2
A11
B3
B10
G3
G10
K8
K11
K12
L2
L3
L9
L12
M2
U9
A0
A1
A2
A3
A4
A5
A6
A7
A8/AP
A9
A10
A11
BA0
BA1
CK#
CK
CKE
CS#
RAS#
CAS#
WE#
DQS0
DQS1
DQS2
DQS3
DM0
DM1
DM2
DM3
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
VDDQ
VDDQ
VSS
VSS
GNDD
2V5_DMC
VDDQ
VDDQ
VSS
VSS
VDDQ
VSS
C6C7D3
VDD
VSS
VSS
2V5_DMQ
B2B4B6B7B9
VDDQ
VSS
D4D6D7D9E5E6E7E8F5F6F7F8G5G6G7G8H5H6H7H8J5J6J7J8K4
B11D2D11E3E10F3F10H3H10J3J10
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VSS
VSS
VSS
VSS
VSS
VSS
VDDQ
VDDQ
VSS
VSS
VDDQ
VSS
VDDQ
VSS
D10K3K6K7K10
VDD
VDD
VDD
VDD
VSS
VSS
VSS
VSS
FSVREF
VDD
VDD
VSS
VSS
M12
VDD
VSS
K9
VREF
VSS
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
A6
B5
A5
A4
B1
C2
C1
D1
J12
J11
H12
H11
F12
F11
E12
E11
E2
E1
F2
F1
H2
H1
J1
J2
D12
C12
C11
B12
A9
A8
B8
A7
A3
A10
C3
C4
C5
C8
C9
C10
D5
D8
E4
E9
F4
F9
G4
G9
H4
H9
J4
J9
FSDATA[0..31]
FSDATA0 FSDATA0
FSDATA1
FSDATA2
FSDATA3 FSDATA3
FSDATA4
FSDATA5
FSDATA6
FSDATA7
FSDATA16
FSDATA17
FSDATA18
FSDATA19
FSDATA20
FSDATA21
FSDATA22
FSDATA23
FSDATA8
FSDATA9
FSDATA10
FSDATA11
FSDATA12
FSDATA13
FSDATA14
FSDATA15
FSDATA24
FSDATA25
FSDATA26
FSDATA27
FSDATA28
FSDATA29
FSDATA30
FSDATA31
Middle of DDR-SDRAM
and Scaler
GNDD
FSDATA1
FSDATA2
FSDATA4
FSDATA5
FSDATA6
FSDATA7
FSDATA8
FSDATA9
FSDATA10
FSDATA11
FSDATA12
FSDATA13
FSDATA14
FSDATA15
FSDATA16
FSDATA17
FSDATA18
FSDATA19
FSDATA20
FSDATA21
FSDATA22
FSDATA23
FSDATA24
FSDATA25
FSDATA26
FSDATA27
FSDATA28
FSDATA29
FSDATA30
FSDATA31
RP1 33
4 5
3
2
1 8
RP2 33
4 5
3
2
1 8
RP3 33
4 5
3
2
1 8
RP4 33
4 5
3
2
1 8
RP5 33
4 5
3
2
1 8
RP6 33
4 5
3
2
1 8
RP7 33
4 5
3
2
1 8
RP8 33
4 5
3
2
1 8
6
7
6
7
6
7
6
7
6
7
6
7
6
7
6
7
FSDATAU0
FSDATAU1
FSDATAU2
FSDATAU3
FSDATAU4
FSDATAU5
FSDATAU6
FSDATAU7
FSDATAU8
FSDATAU9
FSDATAU10
FSDATAU11
FSDATAU12
FSDATAU13
FSDATAU14
FSDATAU15
FSDATAU16
FSDATAU17
FSDATAU18
FSDATAU19
FSDATAU20
FSDATAU21
FSDATAU22
FSDATAU23
FSDATAU24
FSDATAU25
FSDATAU26
FSDATAU27
FSDATAU28
FSDATAU29
FSDATAU30
FSDATAU31
FSDATAU0
FSDATAU1
FSDATAU2
FSDATAU3
FSDATAU4
FSDATAU5
FSDATAU6
FSDATAU7
FSDATAU8
FSDATAU9
FSDATAU10
FSDATAU11
FSDATAU12
FSDATAU13
FSDATAU14
FSDATAU15
FSDATAU16
FSDATAU17
FSDATAU18
FSDATAU19
FSDATAU20
FSDATAU21
FSDATAU22
FSDATAU23
FSDATAU24
FSDATAU25
FSDATAU26
FSDATAU27
FSDATAU28
FSDATAU29
FSDATAU30
FSDATAU31
FSDATAU[0..31]
FSDATAU[0..31] 11
ViewSonic Corporation
Model
72
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Title
SCALER
Date Rev:
Page 76
VGA_TX
5V_STBY
5V_STBY2,6,8,10,11
GNDD1,2,3,4,6,7,8,9,10,11,12
GNDD
11
12
13
14
15
DSUB-15
1
6
2
7
3
8
4
9
5
10
J1
GNDD
VGA_RX
VGA5V
D1
MLL5232B 5.6V
GNDD
12
D2
V100K_V05
12
D3
V100K_V05
R
G
B
R-
G-
B-
12
D4
V100K_V05
R76
75
R77
75
GNDD
R72 33
R73 33
R74 33
R75 470 C76 1nF
R78
75
R79 75
R80 75
R81 75
C73 47nF
C74 47nF
C75 47nF
C77 47nF
C78 47nF
C79 47nF
RED+ 11
GREEN+ 11
BLUE+ 11
SOG 11
RED- 11
GREEN- 11
BLUE- 11
5V_STBY
VGA5V
D9
BAT54C
MLL5232B 5.6V
D7
MLL5232B 5.6V
GNDD GNDD
0.1uF/16V
GNDD
D5
C80
U10
1
2
3
4 5
24C02
J2
PC_Line_in
NC
NC
NC
GND SDA
0/R0805
B0805
D6
MLL5232B 5.6V
GNDDGNDD
D8
MLL5232B 5.6V
8
VCC
7
VCLK
6
SCL
4
3
2
1
5
12
B6
R244
10K
GNDD
VSI
5V_STBY
R88
4.7K
R94
100R
R100
47K
R293 100R
R84 2.4K
R295 100R
R86 10K
R87
4.7K
R95
100R
VGA_TX
R101
47K
GNDD
R83 100/NC
GNDD
VS_RGB
R85 100/NC
GNDD
R213 NC
R214 NC
R89 0
R90 0
R335 0
R336 0
C83
C84
330pF
330pF
1 2
C333
18pF/NC
GNDD
5 6
C334
18pF/NC
GNDD
DDCCI_VGA_TXD
DDCCI_VGA_RXD
R346
R345
0/NC
0/NC
147
U36A
74LVC14/NC
147
U36C
74LVC14/NC
DVI_SDA 6,8,11
DVI_SCL 6,8,11
TX_SCL
RX_SDAVGA_RX
R97 1K
R99 1K
R82 100R
147
U36B
3 4
74LVC14/NC
147
9 8
DDCCI_VGA_TXD 8
DDCCI_VGA_RXD 8
TX_SCL 8
RX_SDA 8
PC_R
PC_L
ST_DET
U36D
74LVC14/NC
R294 22/NC
R296 22/NC
5V_STBY
B7 220z/100M/NC
PC_R 3
PC_L 3
ST_DET 8
HS_RGBHSI
C267 68pF
VS_RGB
C268 68pF
C335
C336
10uF/NC
100nF/NC
GNDD
GNDD
GNDD
HS_RGB 11
VS_RGB 11
147
U36E
11 10
74LVC14/NC
GNDD
147
U36F
13 12
74LVC14/NC
GNDD GNDD GNDD GNDD GNDD
73
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
ViewSonic Corporation
Model
Title
Date Rev:
SCALER
Page 77
5V_STBY
5V_STBY2,5,8,10,11
J3
GND
GND
GND
GND
+5V
CEC/DDC GND
DDC SCL
DDC SDA
CEC
HPD
Dat2 shield
Dat1 shield
Dat0 shield
clk shield
DAT0+
DAT0-
DAT1+
DAT1-
DAT2+
DAT2-
HD5V
GNDD1,2,3,4,5,7,8,9,10,11,12
20
21
22
23
18
17
15
16
13
19
2
5
8
11
7
9
4
6
1
3
GNDD
GNDD
HD5V
DDC_CLK_IN
DDC_DAT_IN
HPD_IN
RX0+
RX0RX1+
RX1RX2+
RX2-
R104
1K
R105
10K
DDC_SDA
DDC_SCL
R106
10K
R109 0
R110 0
R111 10R
R112 10R
R113 10R
R114 10R
R115 10R
R116 10R
DVI_SDA
DVI_SCL
DVI_B+
DVI_BDVI_G+
DVI_GDVI_R+
DVI_R-
R102
10K
GNDD
R107 0
R108 0
DVI_SDA 5,8,11
DVI_SCL 5,8,11
DVI_B+ 11
DVI_B- 11
DVI_G+ 11
DVI_G- 11
DVI_R+ 11
DVI_R- 11
R103
NC
8
7
6
U11
VCC
WP
SCL
24C02
HD_+5V
NC
NC
NC
GNDSDA
1
2
3
45
GNDD
D10
BAT54C
C85
0.1uF
5V_STBY
HD5V
HD5V
HDMI CON
R120
47K/NC
clk+
clk-
R121
47K
10
12
HD_+5V
R122
47K
RXC+
RXC-
RXC+
RX0-
RX0+
RX1-
RX1+
RX2-
RX2+
DDC_SCL
DDC_SDA
HPD
R117 10R
R118 10R
U12
1
5V_SUPPLY
2
LV_SUPPLY
3
GND
4
TMDS_D2+
5
TMDS_GND
6
TMDS_D2-
7
TMDS_D1+
8
TMDS_GND
9
TMDS_D1-
10
TMDS_D0+
11
TMDS_GND
12
TMDS_D0-
13
TMDS_CK+
14
TMDS_GND
15
TMDS_CK-
16
CE_REMOTE_IN
17
DDC_CLK_IN
18
DDC_DAT_IN
19 20
HOTPLUG_DET_IN HOTPLUG_DET_OUT
CM2021
GNDD GNDD
CE_REMOTE_OUT
ESD_BYP
TMDS_D2+
TMDS_GND
TMDS_D2-
TMDS_D1+
TMDS_GND
TMDS_D1-
TMDS_D0+
TMDS_GND
TMDS_D0-
TMDS_CK+
TMDS_GND
TMDS_CK-
DDC_CLK_OUT
DDC_DAT_OUT
NC
GND
DVI_CK+
DVI_CK-
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
C86 0.1uF
CONNECTORIC
RXC-RXC-
RXC+
RX0-
RX0+
RX1-
RX1+
RX2-
RX2+
DDC_CLK_IN
DDC_DAT_IN
HPD_IN
DVI_CK+ 11
DVI_CK- 11
HPD
GNDD
QA1
C
E
MMBT3904
GNDD
R119 4.7K
B
HPDCTRL 8
ViewSonic Corporation
Model
Title
SCALER
74
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Date Rev:
Page 78
16
15
CN2
RJ-1182Q
Pr
Pb
L52 0
L53 0
5V
5V3,8,9,10,11,12
P_A3.3V12
GNDD1,2,3,4,5,6,8,9,10,11,12
Y
12
o
o
o
o
13
C
P_A3.3V
GNDD
12
D11
V100K_V05/NC
A_GNDD A_GNDD
12
D12
V100K_V05/NC
A_GNDD A_GNDD
12
D13
V100K_V05/NC
A_GNDD A_GNDD
R125
33pF
R128
33pF
R131
33pF
L3 0
L4 0
L5 0
L6
L7
80z/100MHz
80z/100MHz
L39 0
A_GNDD
GNDD
Close
Scalar
R123 470
R124 33
C89
75
R126 75 C90 47nF
A_GNDD
R127 33 C91 47nF
C92
75
R129 75
A_GNDD
R130 33 C94 47nF
C95
75
R132 75
A_GNDD
C87 1nF
C88 47nF
C93 47nF
C96 47nF
SOG_Y
Y+
Y-
PB+
PB-
PR+
PR-
AV2_SY 12
AV2_SC 12
SOG_Y 11
Y+ 11
Y- 11
PB+ 11
PB- 11
PR+ 11
PR- 11
CON2
1
2
CON2
CON3
1
2
3
CON3
CON4
1
2
3
4
5
6
7
CON7
5V
GNDD
GNDD
22pF/NC
GNDD
IR_CARD
C301
R249 0/NC
R250 0
C302
22pF/NC
5V
C304
22pF
P_A3.3V
75
R251
L43
L44
L45
L46
R252
75
0
0
80ohm/100MHz
80ohm/100MHz
C305
22pF
C306
22pF
IR_CARD 8
C303
22pF
GNDD GNDD
CARD
SLOT
C307
470pF
C308
470pF
CARD_SY
CARD_SC
CARD_R
CARD_L
CARD_SY 12
CARD_SC 12
R220 0
L8
9
Y
6
R
L
3
7141011
AV
R
L
14
8
C97
22pF/NC
5
2
A_GNDD
R134
C99
C98
22pF/NC
22pF/NC
GNDD GNDD
C275
NC
C277NCC278
GNDD
R133
75/NC
GNDD
C276
NC
GNDD
L11 80ohm/100MHz
L12 80ohm/100MHz
NC
R135
75/NC
75/NC
L9 80ohm/100MHz
L10
80z/100MHz
80ohm/100MHz
C105
470pF
GNDD
C100
22pF
C103
470pF
GNDD
Y/Pb/Pr_L
Y/Pb/Pr_R
C106
470pF
C101
22pF
C104
470pF
AV2_R
AV2_L
C102
22pF
Y/Pb/Pr_L 3
Y/Pb/Pr_R 3
AV2_CVBS 12
IR_SW11
IR_SW
AV2_L
CARD_L
AV2_R
CARD_R
R278 0
C263
1uF/NC
C264
1uF/NC
C265
1uF/NC
C266
1uF/NC
R279
NC
IR_SW "L"-->AV2
IR_SW "H"-->CARD
GNDD
R221 0
U27
1
1A0
2
1A1
3
2B0
4
2B1
8
SWA
7
SWB
FSA2267
AOUT
BOUT
VCC
GND
9
6
Y/C_L
Y/C_R
Y/C_L 3
Y/C_R 3
P_A3.3V
10
5
GNDD
ViewSonic Corporation
Model
Title
SCALER
75
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Date Rev:
Page 79
5V_STBY2,5,6,10,11
Debug port
5V_STBY
RXD
TXD
GNDD
SDA_3V312
SCL_3V312
GNDD1,2,3,4,5,6,7,9,10,11,12
5V3,7,9,10,11,12
3V39,10,12
HEADER4X1
Debug port
Pitch 2.54mm
CON1
1
2
3
4
R156
3K3
5V
5V_STBY
R157
3K3
C113
100pF
GNDD
3V3
C114
100pF
G
G
5151A_RST11
HPDCTRL6
3V3
Q4
2N7002
3V3
Q6
2N7002
PWR_EN10
INT11
DCR9
BL_EN10
5V_STBY
R137
8.2K
GNDD
5V
DS
DS
C107
10uF
ST_DET5
POWER
5V_STBY
R347 0
R348 0/NC
C109 22pF
Y1
24.576MHz
C110 22pF
GNDD
INT
IR_IN
AUDIO_MUTE
Skin Tone
5V_STBY
Q5
D S
2N7002
R253 33
SCL_5V
SDA_5V
R257 33
R259 33
R340 33
R144 33
R260 33
R147 33
R148 33
R149 33
R262 33
R152 10K
power key in
G
Q7
G
D S
2N7002
12
EA/VP
UCLK
R158
4.7K
C115
100pF
5V_STBY
R136 10K
U13
35
EA/VP
21
X1
20
X2
10
RESET
14
INT0/P3.2
15
INT1/P3.3
16
T0/P3.4
17
T1/P3.5
2
P1.0
3
P1.1
4
P1.2
5
P1.3
6
P1.4
7
P1.5
8
P1.6
9
P1.7
1
P4.2
12
P4.3/ISP
80C51_PLCC W79E633A40PN
12
R159
4.7K
SDA_5V
SCL_5V
C116
100pF
GND VCC
22 44
GNDD
SDA_5V 3
SCL_5V 3
GNDD
C108
0.1uF
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7
RD/P3.7
WR/P3.6
PSEN
ALE/P
P4.0
P4.1
TXD/P3.1
RXD/P3.0
AAT3522GY-3.08-200-T1
43
42
41
40
39
38
37
36
24
25
26
27
28
29
30
31
19
18
32
33
23
34
13
11
R299 0
R300 0
TXD
RXD
U15
VCC
RSTN
GND
SOT_23_123
6
7
1 823
4 5
DDCCI_VGA_TXD
DDCCI_VGA_RXD
10K/NC
3
GNDD
2
1
GNDD
5V_STBY
RP9
10Kx4
R150
3V3
C112
0.1uF
6
7
10Kx4
1 823
4 5
AD0
AD1
AD2
AD3
R315 0
R316 100R
R317 100R
R318 0
R319 0
R320 0
R321 0
5V
R151
10K/NC
R154 0
R155 0
RESET#
R160
100K
GNDD
RP10
DDC_SW
DDCCI_SCL
DDCCI_SDA
SPI_CD0
SPI_CD1
SPI_CLK
SPI_CE#
RESET# 12
DDCCI_VGA_TXD 5
DDCCI_VGA_RXD 5
TX_SCL 5
RX_SDA 5
C309
0.1uF
AD[0..3] 11
UP
DOWN
1
2
3V3
R261
10K
ALE 11
RD 11
WR 11
DDCCI_SCL
DDCCI_SDA
8
7
3
4 5
GNDDGNDD
5V_STBY
5V_STBY
U29
PM25LV010
VDD
HOLD#
WP#
VSS SDI
AUDIO_MUTE
(F/W)
HHHH(OFF)
H
L
L L(With Ear Plug in)
EAR_DET2
R350 0/NC
U37
4
5
2
GNDD
GNDD
SDO
CE#
SCK
2
1
6
4
5
2
SPI_CD0
SPI_CE#
SPI_CLK
SPI_CD1
R351 0/NC
U38
FSA4157
EAR_DET(H/W) AUDIO_MUTE#
AUDIO_MUTE
EAR_DET
FSA4157
1
B1
A
3
B0
VCC
GND
A
VCC
GND
DDC_SW
6
S
1
B1
3
B0
DDC_SW
6
S
1
2
3
4 5
R153 NC
U14 NC7SZ08M5 X
1
A
2
B
R329 0
R330 0
U35
A0
A1
A2
GND SDA
24C32
VCC
WP
SCL
L(ON)L(With Ear Plug in)
L(ON)
L(ON)
VCC
GND
DVI_SCL
DVI_SDA
5V_STBY
8
7
6
GNDD
4
Y
5
3
GNDD
C310
0.1uF
GNDD
R263 100R
R264 100R
5V_STBY
C111
0.1uF
DVI_SCL 5,6,11
DVI_SDA 5,6,11
AUDIO MUTE# 2
SCL_5V
SDA_5V
CON5
10
11
12
CON12
GNDD
1
2
3
4
5
6
7
8
9
5V_STBY
R284 0
R285 0
R286 0
R287 0
R288 0
R289 0
R290 0
R291 0
R292 0
GNDD
C324
0.1uF
C325
0.1uF
C326
0.1uF
C327
0.1uF
GNDD
C328
0.1uF
C329
0.1uF
C330
0.1uF
C331
0.1uF
C332
0.1uF
UP
DOWN
1
2
BLUE
ORANGE
POWER
Skin Tone
IR_IN
BLUE 11
ORANGE 11
SCL_5V
SDA_5V
GNDD
76
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
R245
10K/NC
R312 100R
R313 100R
R246
10K
5V_STBY
8
7
6
24C02
HDMI EDID
U28
VCC
WP
SCL
CON6
1
2
3
4
5
6
7
8
CON8
5V_STBY
IR_IN
5V_STBY
5V
1
2
3
45
USB
POWER
R322
4.7K
GNDD
GNDD
NC
NC
NC
GNDSDA
5V_STBY
GNDD
U30
1
A
VCC
GND
FSA4157
B1
3
B0
S
IR_SW
6
4
5
2
IR SW-->HI(CARD)
R297 0
IR_SW 11
IR_CARD
GNDD
IR_CARD 7
R298
NC
IR
SWITCH
ViewSonic Corporation
Model
Title
SCALER
Date Rev:
Page 80
VCC_LCD
3V3
5V
VCC_LCD10
RXO0-11
RXO1-11
5V3,7,8,10,11,12
3V3
RXO2-11
RXOC-11
RXO3-11
RXE0-11
3V38,10,12
RXE1-11
RXE2-11
GNDD1,2,3,4,5,6,7,8,10,11,12
RXEC-11
RXE3-11
GNDD
RXO0+
RXO1+
RXO2+
RXOC+
1
30
RXO3+
RXE0+
RXE1+
RXE2+
RXEC+
RXE3+
RXO0RXO1-
RXO2RXOC-
RXO3RXE0RXE1RXE2-
RXECRXE3-
RXO0+ 11
RXO1+ 11
RXO2+ 11
RXOC+ 11
RXO3+ 11
RXE0+ 11
RXE1+ 11
RXE2+ 11
RXEC+ 11
RXE3+ 11
5V
R173
NC
R175
NC
GNDD GNDD
R174
NC
R176
NC
RXE0RXE0+
RXE1RXE1+
RXE2RXE2+
RXECRXEC+
RXE3RXE3+
RXO0RXO0+
RXO1RXO1+
RXO2RXO2+
RXOCRXOC+
RXO3RXO3+
PWM
VCC_LCD
MS240430
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
GND
GND
31
R341 47K/NC
PWM
32
CN3
GNDD
R342
U42
ADJ_PWM10
P_ADJ_PWM
R343 0/NC
5V
1
4
A
B1
C
5
VCC
2
GND
B0
3
6
S
DCR
S_ADJ_PWM 11
DCR 8
C341
0.1uF/NC
E
MMBT3904L/NC
1K/NC
GNDD
Q19
B
GNDD
FSA4157/NC
GNDD
GNDD
ADJ_PWM S_ADJ_PWM
R344 0
ViewSonic Corporation
Model
Title
SCALER
77
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Date Rev:
Page 81
5V
VCC_LCD
VCC_LCD9
AUDIO_12V
12V
AUDIO_12V2
12V
12V3
5V
5V3,7,8,9,11,12
5V_STBY2,5,6,8,11
3V38,9,12
5V_STBY
3V3
LCD_PWR11
LCD_PWR
5V
J4
3
3
2
2
1
1
R181 6.8K
GNDD
C128
0.1uF
G
12
R178
10K
Q11
2N7002
12
R180
10K
D
S
Q14
1
S
D
2
S
D
3
S
D
4 5
GD
FDS4435
Q10
G
AOS3401
8
7
6
VCC_LCD
DS
12
C129
+
100uF/25V
ECD_D6.3_2.5
C124
470uF/16V
GNDD
C269
0.1uF
C125
0.1uF
U16 AIC1084-ADJ
3
VIN
1
GND
VOUT0
2
12
R177
12
GNDD
100R
R179
165R
12
C126
+
470uF/16V
ECD_D10_5
3V3
C127
0.1uF
COND_H_2.5_11
CN5
GND
GND
BL_EN
BL_PWM
GNDD
1
2
3
4
JP3
1
2
3
4
5
6
7
8
9
10
11
C342
47uF/25V
+
GNDD
GNDD1,2,3,4,5,6,7,8,9,11,12
C133
10uF/16V
12V_IN
5V_STBY_IN
5V_IN
GNDD_IN
C134
NC
GNDD
GNDD
L13 CHOKE
L14 CHOKE
L15 CHOKE
L16 CHOKE
R186 0
R187 0
GNDD
C130
10uF
12V
5V_STBY
C132
0.1uF
GNDD GNDD
BL_EN
ADJ_PWM
C270
0.1uF/NC
GNDD
BL_EN 8
ADJ_PWM 9
C271
0.1uF/NC
C272
0.1uF/NC
5V
PWR_O
R182
0
GNDDGNDD GNDD
GNDD
5V_STBY 5V_STBY
R183
10K
Q12
C
E
MMBT3904
R185 4.7K
B
C
BE
R184
10K
PWR_EN 8
PWR_O
R282 0
12V AUDIO_12V
Q16
G
2N7002
GNDD
R349 0/NC
R280
20K
R281
68K
D
S
Q15
G
AOS3401
DS
ViewSonic Corporation
78
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Model
Title
SCALER
Date Rev:
Page 82
LED_B
LED_A
U33
MM1117STA
1 4
C175
0.1uF
207
DVI_R+
208
DVI_R-
2
DVI_G+
3
DVI_G-
5
DVI_B+
6
DVI_B-
8
DVI_CK+
9
DVI_CK-
11
REXT
14
DDCD_DA
15
DDCD_CK
18
HSYNC1
19
VSYNC1
20
BIN1
21
BIN1M
22
SOGIN1
23
GIN1
24
GIN1M
25
RIN1
26
RIN1M
27
BIN0M
28
BIN0
29
GIN0M
30
GIN0
31
SOGIN0
32
RIN0M
33
RIN0
36
HSYNC0
37
VSYNC0
38
RMID
39
REFP
40
REFM
41
VI_DATA[8]
42
VI_DATA[9]
43
VI_DATA[10]
44
VI_DATA[11]
45
VI_DATA[12]
46
VI_DATA[13]
47
VI_DATA[14]
48
VI_DATA[15]
51
GPIO[5]/VHS
52
GPIO[4]/VCLK2
53
VI_CK
54
VI_DATA[0]
55
VI_DATA[1]
56
VI_DATA[2]
57
VI_DATA[3]
58
VI_DATA[4]
59
VI_DATA[5]
60
VI_DATA[6]
61
VI_DATA[7]
77
GPIO[2]/VVS
67
HWRESET
68
INT
69
ALE
70
RDZ
71
WRZ
72
DBUS[0]
73
DBUS[1]
74
DBUS[2]
75
DBUS[3]
200
PWM0
201
PWM1
62
VCTRL
158
BYPASS
76
GPIO[3]/VDE
78
GPIO[1]/FIELD
202
XOUT
203
XIN
AVDD_PLL
pin12
C138
0.1uF
GNDD
VOUT1VIN
ADJ VOUT2
C147
100uF/25V
ECD_D6.3_2.5
2V5_STBY
23
GNDD
AVDDA
34
AVDD_ADC
AVDD_ADC
C148
0.1uF
GNDDGNDDGNDDGNDD GNDD
L49 0
L0805
R276
100R
R277
100R
AVDD_DVI
10
4
AVDD_DVI
AVDD_DVI
+2.5MVDD
C168
47uF/25V
ECD_D5_2
VDD_MPLL
204
AVDD_MPLL
GND
GND
GND
1
16
7
13
C169
+
0.1uF
pin86, pin102,pin113
GNDD
,pin125,pin139,pin154
+3.3DV2
66
162
182
VDDP
VDDP
GND
GND
GND
GND
GND
GND
80
351250
87
65
+3.3DV1
VDDP
GND
GND
108
103
U41 AIC1084-ADJ
3
VIN
1
GND
C170
0.1uF
GND
GND
GND
114
126
2
VOUT0
C171
C172
0.1uF
0.1uF
+2.5MVDD
125
86
113
102
154
139
VDDM
VDDM
VDDM
VDDM
VDDM
VDDM
U21A
MST5251A
GND
132
140
GND
GND
155
GND
15764183
GND
GND
GND
GND
GND
GND
184
172
159
163
194
GND
205
GNDD
C173
0.1uF
+APLL
206
12
R331
100R
12
R332
165R
AVDD_PLL
49
AVDD_APLL
GND
C174
0.1uF
AVDDPLL2
109
AVDD_PLL
AVDD_PLL2
63
VDDC
79
VDDC
L20 0
L23 0
L48 0
VDDC
131
17317195
156
185
VDDC
VDDC
VDDC
VDDC
L0805
C312
47uF/25V
ECD_D5_2
VDDC
C141
47uF/25V
ECD_D5_2
C155
47uF/25V
ECD_D5_2
198
199
AIWS
AISCK
+
197
AISD
+
GNDD
+
GNDD
C154
0.1uF
193
196
SIMCK
GNDD
192
SPDIFO
pin162,pin182
C142
0.1uF
C156
0.1uF
188
189
190
191
AUSD
AUWS
AUSCK
AUMCK
AUMUTE
MDATA[0]
MDATA[1]
MDATA[2]
MDATA[3]
MDATA[4]
MDATA[5]
MDATA[6]
MDATA[7]
MDATA[8]
MDATA[9]
MDATA[10]
MDATA[11]
MDATA[12]
MDATA[13]
MDATA[14]
MDATA[15]
MDATA[16]
MDATA[17]
MDATA[18]
MDATA[19]
MDATA[20]
MDATA[21]
MDATA[22]
MDATA[23]
MDATA[24]
MDATA[25]
MDATA[26]
MDATA[27]
MDATA[28]
MDATA[29]
MDATA[30]
MDATA[31]
MADR[11]
MADR[10]
C143
0.1uF
+3.3DV2
C157
0.1uF
U40
1
ADJ/GND
ME1117DT18
TO-252
LVB0M
LVB0P
LVB1M
LVB1P
LVB2M
LVB2P
LVBCKM
LVBCKP
LVB3M
LVB3P
LVA0M
LVA0P
LVA1M
LVA1P
LVA2M
LVA2P
LVACKM
LVACKP
LVA3M
LVA3P
DQS[0]
DQS[1]
DQM[0]
DQM[1]
DQS[2]
DQS[3]
MADR[9]
MADR[8]
MADR[7]
MADR[6]
MADR[5]
MADR[4]
MADR[3]
MADR[2]
MADR[1]
MADR[0]
WEZ
CASZ
RASZ
BADR[0]
BADR[1]
MCLK
MCLKZ
MCLKE
MVREF
pin66
+3.3DV1
C144
0.1uF
VOUTVIN
187
186
181
180
179
178
177
176
175
174
171
170
169
168
167
166
165
164
161
160
153
152
151
150
149
148
147
146
145
144
143
142
141
138
137
136
135
134
133
101
100
99
98
97
96
95
94
93
92
91
90
89
88
85
84
83
82
81
130
129
128
127
124
123
122
121
120
119
118
117
116
115
112
111
110
107
106
105
104
+APLL
1V8
L21
23
FSDQS0
FSDATAU0
FSDATAU1
FSDATAU2
FSDATAU3
FSDATAU4
FSDATAU5
FSDATAU6
FSDATAU7
FSDATAU8
FSDATAU9
FSDATAU10
FSDATAU11
FSDATAU12
FSDATAU13
FSDATAU14
FSDATAU15
FSDQS1
FSDQM0U
FSDQM1U
FSDQS2
FSDATAU16
FSDATAU17
FSDATAU18
FSDATAU19
FSDATAU20
FSDATAU21
FSDATAU22
FSDATAU23
FSDATAU24
FSDATAU25
FSDATAU26
FSDATAU27
FSDATAU28
FSDATAU29
FSDATAU30
FSDATAU31
FSDQS3U
R226 0
R227 0
R228 0
R229 0
R230 0
MVref
0
CHK_0403
R333
100
R334
44.2
GNDD
AUMUTE
AUWS
AUSCK
AUSD
AUMCK
FOR Digital Audio
RXE0RXE0+
RXE1RXE1+
RXE2RXE2+
RXECRXEC+
RXE3RXE3+
RXO0RXO0+
RXO1RXO1+
RXO2RXO2+
RXOCRXOC+
RXO3RXO3+
R191 33
R192 33
FSADDR11
FSADDR10
FSADDR9
FSADDR8
FSADDR7
FSADDR6
FSADDR5
FSADDR4
FSADDR3
FSADDR2
FSADDR1
FSADDR0
FSCLK+
FSCLKFSCKE
MVref
FSCLK+, FSCLK- should be routed
like a differentail pair
L54 0
L1206
C160
47uF/25V
ECD_D5_2
+APLL
+APLL
C152
pin49
0.1uF
GNDD
/FSWE 4
/FSCAS 4
/FSRAS 4
FSBKSEL0 4
FSBKSEL1 4
FSCLK+ 4
FSCLK- 4
FSCKE 4
AUMUTE 3
AUWS 3
AUSCK 3
AUSD 3
AUMCK 3
RXE0- 9
RXE0+ 9
RXE1- 9
RXE1+ 9
RXE2- 9
RXE2+ 9
RXEC- 9
RXEC+ 9
RXE3- 9
RXE3+ 9
RXO0- 9
RXO0+ 9
RXO1- 9
RXO1+ 9
RXO2- 9
RXO2+ 9
RXOC- 9
RXOC+ 9
RXO3- 9
RXO3+ 9
FSDQS0 4
FSDQS1 4
FSDQM0 4
FSDQM1 4
FSDQS2 4
FSDQS3 4
C161
+
GNDD
C162
0.1uF
0.1uF
pin63,pin79,pin131,
pin156,pin173,pin185,pin195
3V3AVDD
3V3AVDD
3V3AVDD
L28 0
3V3AVDD
L29 0
FSDATAU[0..31]
Unloaded trace impedance on this interface is 90 Ohm
Loaded trace impedace with DRAM load is 65 Ohm
(for 2.5 inch total trace length)
FSADDR[0..11]
C163
C164
C165
0.1uF
0.1uF
0.1uF
L24 0
C158
47uF/25V
ECD_D5_2
GNDD
L27 0
+
C179
47uF/25V
ECD_D5_2
GNDD
GNDD
FSDATAU[0..31] 4
+2.5MVDD
MVref
FSADDR[0..11] 4
ViewSonic Corporation
Model
R307
10K
R309
10K
5V_STBY 5V_STBY
C145
100uF/25V
ECD_D6.3_2.5
+3.3DV1
Q17
E
B
MMBT3906
C
R308 680
+3.3DV1
Q18
E
B
MMBT3906
C
R310 680
U17 XC6203E332PR
2 3
VIN VOUT
C146
0.1uF
BLUE
ORANGE
VSS
1
BLUE 8
ORANGE 8
HHDMI
AVDD_DVI
5V
5V3,7,8,9,10,12
5V_STBY2,5,6,8,10
2V5_STBY4
GNDD1,2,3,4,5,6,7,8,9,10,12
5151A_RST8
S_ADJ_PWM9
S_ADJ_PWM
C191
0.1uF
GNDD
D[0..7]12
D_CLK12
AD[0..3]8
R199 0
MMBT3904L
GNDD
5V_STBY
2V5_STBY
R195 100R
5V
Q13
C
E
GNDD
Y/Pb/Pr
D[0..7]
C189
0.1uF
AD[0..3]
R198
1K
B
DVI_SDA5,6,8
DVI_SCL5,6,8
PC
GNDD
GNDD
L17
0
CHK_0403
C135
47uF/25V
ECD_D5_2
5V
5V_STBY
R188 390
GNDD
3V3AVDD
C136
+
0.1uF
GNDD
L55 0/NC
L0805
L56 0
L0805
C176
100uF/25V
ECD_D6.3_2.5
R189 0
R190 0
BLUE+5
SOG5
RED+5
RED-5
PB-7
PB+7
Y-7
Y+7
PR-7
PR+7
C185 0.1uF
C186 0.1uF
GNDD
INT8
ALE8
RD8
WR8
R196 47K
R197 100/NC
C190 0.1uF
IR_SW7,8
14.318MHz
C193
18pF
DVI_R+
DVI_RDVI_G+
DVI_GDVI_B+
DVI_BDVI_CK+
DVI_CK-
HS_RGBHS_RGB
VS_RGBVS_RGB
BLUE+BLUE+
BLUE-BLUESOGSOG
GREEN+GREEN+
GREEN-GREENRED+RED+
RED-RED-
PBPB+
YY+
SOG_Y
PRPR+
D0
D1
D2
D3
D4
D5
D6
D7
LED_A
LED_B
DVI_R+6
DVI_R-6
DVI_G+6
DVI_G-6
DVI_B+6
DVI_B-6
DVI_CK+6
DVI_CK-6
DVI_SDA
DVI_SCL
HS_RGB5
VS_RGB5
BLUE-5
GREEN+5
GREEN-5
SOG_Y7
LCD_PWR10
C192
18pF
L18 0
L0805
GNDDGNDD
D_CLK
INT
ALE
RD
WR
AD0
AD1
AD2
AD3
IR_SW
LCD_PWR
X1
+
C180
0.1uF
C183
0.1uF
GNDD
C166
0.1uF
AVDDPLL2
C159
0.1uF
VDD_MPLL
C178
0.1uF
GNDD
AVDDA
C181
0.1uF
AVDD_DVI
C184
0.1uF
R193
1K
R194
1K
VDDC
C167
0.1uF
pin109
pin204
pin17,pin34
pin4,pin10
C187
C188
0.1uF
0.01uF
GNDD
79
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Title
SCALER
Date Rev:
Page 83

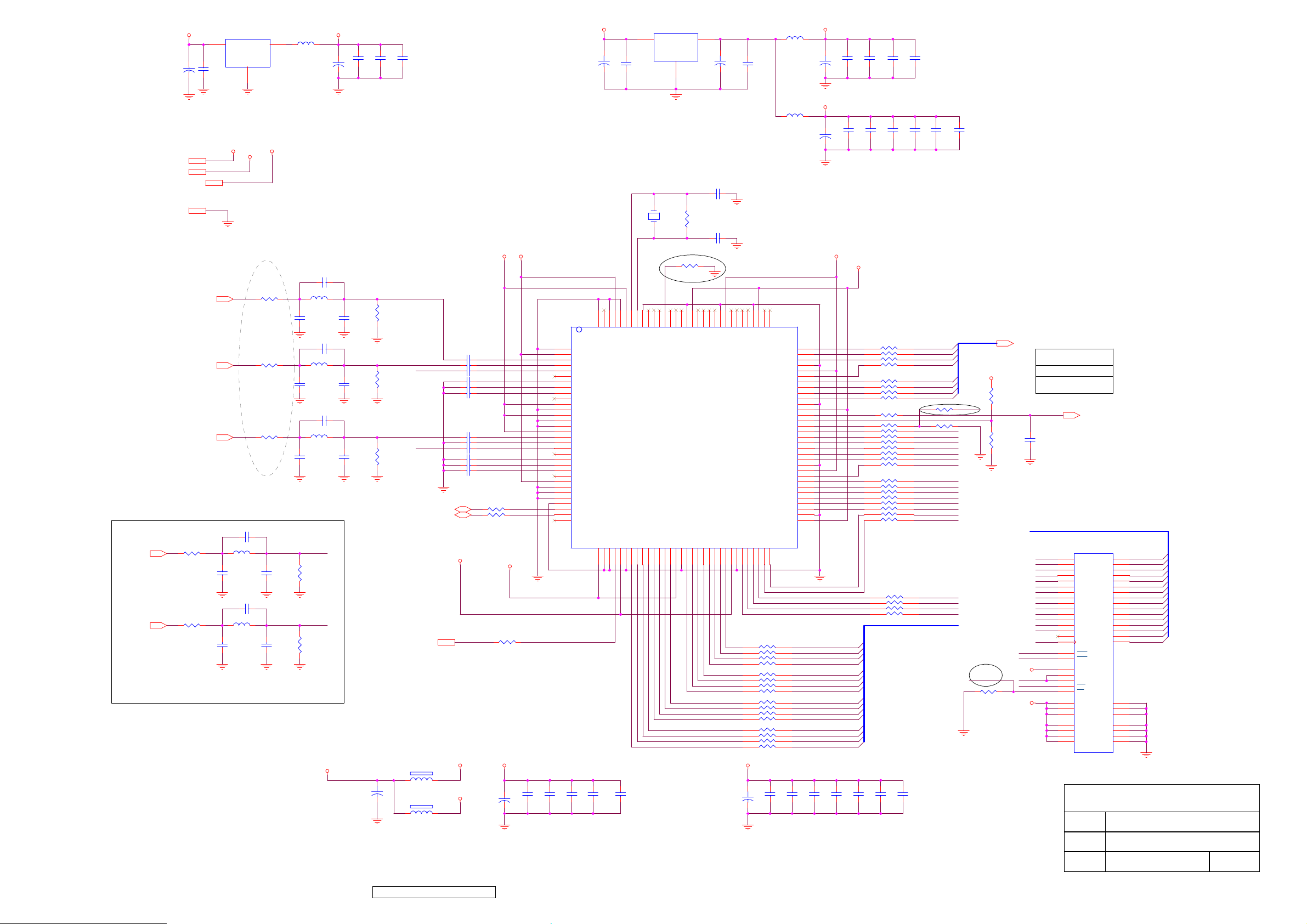

A33GND
A33VDD
VI_1
VI_2
VI_3
NC
VI_4
VI_5
VI_6
NC
A18VDD
A18GND
A18VDD
A18GND
A18GND
A18VDD
VI_7
VI_8
VI_9
NC
VI_10
VI_11
VI_12
NC
A33VDD
A33GND
A33GND
A33GND
D18DGND
SCL
SDA
INTREQ
C243
0.1uF
3V3
12
+
C197
100uF/25V
127
128
A33GND
D18DVDD
33
34
C244
0.1uF
U22 XC6203E182PR
2 3
VIN VOUT
ANALOG_OUT
126
A33GND
124
125
A33VDD
PLL18GND
C205
0.1uF
121
12265123
XTAL1
XTAL2
PLL18VDD
X2
118
119
120
FSS
D18DGND
VSS
1
GNDD
14.318MHz
R352 10K
113
114
115
116
117
FID/GPIO
C_0/GPIO
AVID/GPIO
HS/CS/GPIO
VS/VBLK/GPIO
+
C216 22pF
R200
100K
C217 22pF
GNDD
107
108
109
110
111
112
C_4/GPIO
C_3/GPIO
C_2/GPIO
C_1/GPIO
D18DVDD
D18DGND
TVP5160PNP
128P-TQFP
TVP5160PNP
D18DGND
D0D1D2D3D4D5D6D7D18DVDD
V33IOVDD
V33IOGND
PWDN
RESET#
373835
36
39404142434445464748495051525354555657586061626364
C245
0.1uF
D18DGND
D15
D14
D13
D12
D11
12
C198
100uF/25V
GNDD
GNDD
102
103
104
106
105
C_5/GPIO
V33IOVDD
V33IOGND
C_8/GPIO/DB
C_6/GPIO/DR
C_7/GPIO/DG
D10D9D8
V33IOVDD
V33IOGND
DQM
59
RP18 22Ω
RP19 22Ω
RP20 22Ω
RP21 22Ω
P_SD3.3V
+
CHK_0403
C206
0.1uF
98
97
10099101
Y_0
Y_1
D18DVDD
D18DGND
C_9/GPIO/FSO
V33IOGND
V33IOVDD
D18DGND
D18DVDD
DATACLK
GLCO/GPIO/I2CA0
GPIO/I2CA1
V33IOGND
V33IOVDD
D18DGND
D18DVDD
CLK
A11A9A8
A7
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
C247
C246
0.1uF
10uF/16V
GNDD
L30
L32
CHK_0403
Y_2
Y_3
Y_4
Y_5
Y_6
Y_7
Y_8
Y_9
A10
BA1
BA0
RAS#
CAS#
WE#
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
A3
A2
A1
A0
A4
A5
A6
5V
C207
+
47uF/25V
ECD_D5_2
GNDD
5V3,7,8,9,10,11
3V38,9,10
P_A3.3V7
GNDD1,2,3,4,5,6,7,8,9,10,11
AV2_CVBS7
CARD_SY7
CARD_SC7
R267 0
R269 0
U23 XC6203E332PR
2 3
VIN VOUT
5V
GNDD
VSS
1
GNDD
3V3
R201 75
R203 75
R207 75
C313 5.6pF
L50
P_A3.3V
C208
0.1uF
GNDD
AV2_SY7
AV2_SC7
1.8uH
C314
220pF
GNDD GNDD GNDD
C316 5.6pF
L51
1.8uH
C317
220pF
GNDD GNDD GNDD
L31
10uH
CHK_0403
C204
47uF/25V
ECD_D5_2
GNDD
C218 5.6pF
L33
1.8uH
C219
220pF
GNDD GNDD
C221 5.6pF
L34
1.8uH
C226
220pF
GNDD GNDD GNDD
C230 5.6pF
L35
1.8uH
C235
220pF
GNDD GNDD GNDD
CARD_Y
C315
220pF
C318
220pF
R268
75
CARD_C
R270
75
3V3
P_A3.3V
C195
C194
+
0.1uF/16V
C220
220pF
GNDD
C227
220pF
C236
220pF
1.Analog Channel Video Model Selection following up the
Datasheet Page 44 .
2.Must considered your Video Input Connector in layout
Side,To avoid Trace Cross in PCB.
12
+
C240
100uF/25V
GNDD
0.1uF/16V
R202
75
R204
75
R209
75
L36 600z/100MHz
L38 600z/100MHz
C196
0.1uF/16V
CARD_Y
CARD_C
RESET#8
SCL_3V38
SDA_3V38
GNDD
C222 0.1uF
C223 0.1uF
C224 0.1uF
C225 0.1uF
C228 0.1uF
C229 0.1uF
C231 0.1uF
C232 0.1uF
C234 0.1uF
C237 0.1uF
C238 0.1uF
C239 0.1uF
R210 0
R211 0
P_D3.3V
P_D3.3V
P_SD3.3V
47uF/25V
ECD_D5_2
P_A1.8V
R212 33
C254
GNDD
P_A3.3V
P_D1.8V
P_D3.3V
+
GNDD
0.1uF
C241
U24
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Active_Low
C242
0.1uF
74 10537 57 92
10uH
10uH
C215
47uF/25V
ECD_D5_2
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
GNDD
C248
0.1uF
P_A1.8V
C199
+
10uF/16V
GNDD
11 13 16 1232 25 125
C200
0.1uF/16V
C201
0.1uF/16V
P_D1.8V
+
DGND
0.1uF/16V
0.1uF/16V
C210
C209
33 47 65 85 11199
GNDD
P_D3.3V
P_D1.8V
10 Bit 4:2:2 ITU-R BT.656 Output
RP11 33Ω
1
2
3
4
RP12 33Ω
1
2
3
4
R206100R
RP13 22Ω
1
2
3
4
RP14 22Ω
1
2
3
4
RP15 22Ω
1
2
3
4
RP16 22Ω
1
2
3
4
RP17 22Ω
1
2
3
4
PTDR8
PTDR9
PTDR10
PTDR11
PTDR12
PTDR13
PTDR14
PTDR15
PTDR7
PTDR6
PTDR5
PTDR4
PTDR3
PTDR2
PTDR1
PTDR0
C251
C249
0.1uF
C250
0.1uF
0.1uF
C252
0.1uF
C202
0.1uF/16V
C211
0.1uF/16V
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
8
7
6
5
C253
0.1uF
0.1uF/16V
D0
D1
D2
D3
D4
D5
D6
D7
C203
0.1uF/16V
C213
C212
0.1uF/16V
R353 0
R337 10K
PTAR3
PTAR2
PTAR1
PTAR0
PTAR10
PTBA1_1
PTBA0_1
PTRAS_1
PTCAS_1
PTWE_1
PTAR4
PTAR5
PTAR6
PTAR7
PTAR8
PTAR9
PTAR11
PTCLKR_1
PTDQM_1
PTDR[0..15]
GNDD
C214
0.1uF/16V
D[0..7]
ABC
GNDD
ABC
R338 0
P_D3.3V
0 /NC
GNDD
D[0..7] 11
R205
R208
0
P_SD3.3V
PTDQM_1
PTWE_1
P_SD3.3V
I2C Address
Selection
0XBA
0XB8 Default
D_CLK
C233
NC
GNDD
PTDR[0..15]
PTAR0
PTAR1
PTAR2
PTAR3
PTAR4
PTAR5
PTAR6
PTAR7
PTAR8
PTAR9
PTAR10
PTAR11
PTBA1_1
PTBA0_1
PTCLKR_1
PTCAS_1
PTRAS_1
D_CLK 11
U25 W986416EH
23
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
BS1/A12
BS0/BA
NC
CLK
CAS
RAS
CKE
DQMU
DQML
WE
CS
1
VCC
VCC
VCC
3
VCCQ
9
VCCQ
VCCQ
VCCQ VSSQ
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
GND
GND
GND
VSSQ
VSSQ
VSSQ
24
25
26
29
30
31
32
33
34
22
35
21
20
36
38
17
18
37
39
15
16
19
14
27
43
49 6
PTDR0
2
PTDR1
4
PTDR2
5
PTDR3
7
PTDR4
8
PTDR5
10
PTDR6
11
PTDR7
13
PTDR8
42
PTDR9
44
PTDR10
45
PTDR11
47
PTDR12
48
PTDR13
50
PTDR14
51
PTDR15
53
28
41
54
52
46
12
GNDD
ViewSonic Corporation
Model
Title
SCALER
80
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Date Rev:
Page 84
9. PCB Layout Diagrams
81
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 85
81
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 86
83
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 87

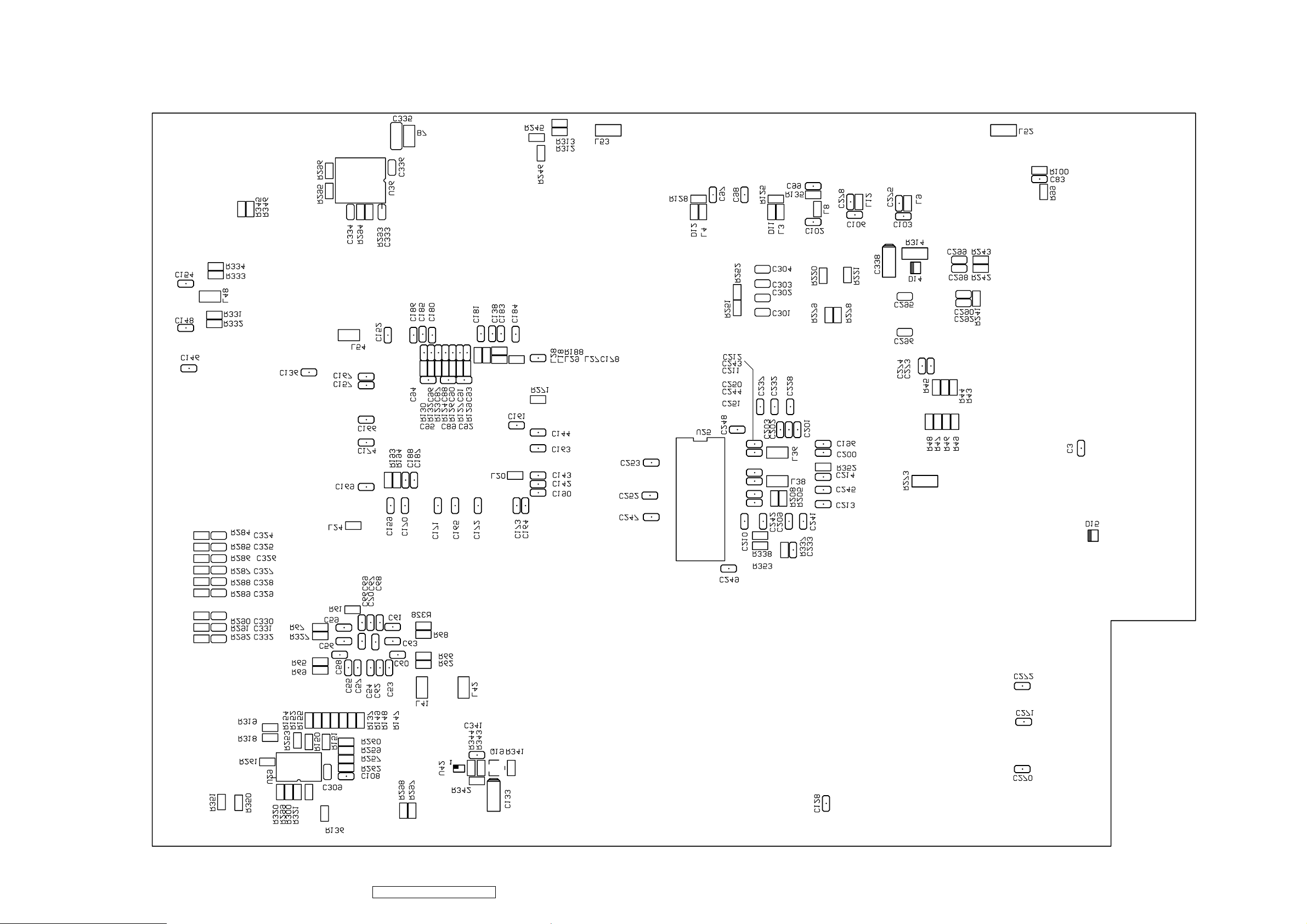

84
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 88
85
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 89
86
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 90
87
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 91
88
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 92
89
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 93
10. Exploded Diagram and Exploded Parts List
90
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 94
EXPLODED PARTS LIST ( VX2835wm-1 )
ViewSonic Model Number: VS11531
Rev: 1a
Serial No. Prefix: QFG
Item ViewSonic P/N Ref. P/N Description Q'ty
1 B-00008444 70-V9350200G040 VX1935 KEY BOARD ASS'Y (LF)(Premier) 1
C-00008464 45-X2830100G000 VX2835 BEZEL SUB ASSY 1
N/A 40-04020019G000 VX2835 LED LENS 1
M-00008126 42-04170013G000 VX2835 Viewsonic logo for viewsonic,AL 1
2
M-00008125 42-04170012G000 VX2835 bird logo for viewsonic,AL 1
N/A 40-03010051G000 VX2835-BUTTON,ABS,BLACK 1
N/A 40-03010050G000 VX2835-BUTTON1,ABS,BLACK 1
N/A 40-01010097G000 VX2835-BEZEL,ABS-HB,BLACK 1
3 C-00008469 40-07010011G000 VX2835 HINGE COVER R,ABS HB,BLACK 1
4 C-00008468 40-07010010G000 VX2835 HINGE COVER L,ABS HB,BLACK 1
5 N/A 40-09010005G000 VX2835 cable clipper up,ABS-HB,pan 877c 1
6 N/A 40-09010006G000 VX2835 cable clipper down,ABS-HB,pan 877 1
7 C-00008470 40-11010002G000 VX2835 BASE COVER,ABS-HB,pan 877c 1
8 M-00008124 40-05010032G000 VX2835 ARM FRONT 1
9 C-00008467 40-05010033G000 VX2835 ARM COVER,ABS-HB,pan 877c 1
10 C-00008466 40-06010031G000 VX2835 BASE,ABS-HB,BLACK 1
11 N/A 41-03010073G000 VX2835 BASE BKT,SECC,t=2.0mm 1
12 N/A 41-07010027G000 VX2835 HINGE,SECC+AL 1
13 C-00008465 40-02010042G000 VX2835-BACK COVER,ABS-HB,BLACK 1
14 N/A 43-01041203-010 SCREW M4*12 W*6.8 T/2.5MM PAN BK TAP 7
15 N/A 43-01043001G040 SCREW,M4*30,PAN,PT,ZN 8
16 N/A 43-04040804G000 SCREW M4*8 FLAT BZ ME 6
17 N/A 43-04040804G010 SCREW M4*8 FLAT BZ TAP 8
18 PL-00008001 42-02110002G000 HU171 Rubber Foot Black 6
19 N/A 41-04010030G000 VX2835 shielding,secc,t=0.8mm 1
20 N/A 43-12030502G000 SCREW M3*5 ROUND WASHER NI ME 18
21 N/A 43-12030801G010 SCREW M3x8 Round washer Zn Tap 6
22 N/A 70-Y2832500G000 VX2835 H/W PCB SUB ASSY 1
23 B-00008445 71-Y2831200G001 POWER MODULE 217W (PHIHONG) 1
24 N/A 43-01040605G400 SCREW M4*6,PAN,STAR Washer,CZ ,ME 1
25 N/A 41-03010072G000 VX2835 HINGE BKT,SECC,t=1.6mm 1
26 N/A 43-10040602G000 SCREW,M4x6L,CH,NI,ME 6
27 E-00008481 280MUW1-A00 LIQUID CRYSTAL DEVICE HSD280MUW1-A 1
28 N/A 43-12041002G010 SCREW M4*10 ROUND WASHER NI TAP 2
29 E-00008483 30-20033001G000 VX2835 SPEAKER 3.0W/8L LEFT 1
30 E-00008482 30-20033000G000 VX2835 SPEAKER 3.0W/8R Right 1
31 N/A 42-02110036G000 VX2835 SPEAKER RUBBER SPONGER 2
32 N/A 42-02110028G000 VX2835_SPEAKER_RUBBER 4
33 N/A 43-90000082G000 SCREW 4#-40*5*6.8 NI 2
91
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 95
11. Recommended Spare Parts List
)
[
]
M
y
[
,
RECOMMENDED SPARE PARTS LIST (VX2835wm-1)
ViewSonic Model Number: VS11531
Serial No. Prefix: QFG Rev: 1a
Item ECR/ECN ViewSonic P/N Ref. P/N Location Universal number#
1
Accessories:
2
[Adapter, Remote
3
Control]
4
5 Key Board (LF) B-00008444 70-V9350200G040
PC Board
6 Sub Board - Power Module 217W (PHIHONG) B-00008445 71-Y2831200G001
Assembl
8 Front Panel C-00008464 45-X2830100G000
Cabinets:
9 Back Cover C-00008465 40-02010042G000
[Flyback, Back
10 Base Assembly C-00008466 40-06010031G000
Cover, Base]
11 Cover - Arm Cover ABS-HB,pan 877c C-00008467 40-05010033G000
12 Hinge Cover - Left C-00008468 40-07010010G000
13 Hinge Cover - Right C-00008469 40-07010011G000
14 Base Cover - ABS-HB,pan 877c C-00008470 40-11010002G000
15
Cables:
16 Energy Star Label DC-00008001 62-07000009G000
Documentation:
17 QC-Pass Label DC-00008002 62-07000010G000
[Quick Start Guide,
18 Hi-Pot Pass Label DC-00008003 62-07000011G000
CD Rom]
19 User's Guide, Quick Start Guide, CD-Rom (Taiwan) DC-00008429 72-28350100G110
20 User's Guide, Quick Start Guide, CD-Rom (China) DC-00008430 72-28350100G210
21 User's Guide, Quick Start Guide, CD-Rom (USA) DC-00008431 72-28350100G310
22 Label mylar 394*617*0.1mm DC-00008432 42-01120015G000
23 LCD Panel - HSD280MUW1-A E-00008481 280MUW1-A00
Electronic
24 Speaker - 3.0W/8 Right E-00008482 30-20033000G000
Components:
25 Speaker - 3.0W/8 Left E-00008483 30-20033001G000
CRT-EEPROM
26 Arm Front - ABS-HB,pan 877c M-00008124 40-05010032G000
Miscellaneous:
27 Bird Logo M-00008125 42-04170012G000
28 Viewsonic logo M-00008126 42-04170013G000
29 Craft Box P-00008481 60-01000117G610
Packing Material:
30 Foam - (End Cap - Right Top) P-00008482 61-01000058G000
[Box, Foam]
31 Foam - (End Cap - Left Top ) P-00008483 61-01000059G000
32 Foam - (End Cap - Right Bottom) P-00008484 61-01000064G000
33 Foam - (End Cap - Left Bottom) P-00008485 61-01000065G000
34 PE Bag,800*1000mm*0.05t P-00008486 61-03000017G000
35 PE bag,1170mm*1095mm*0.08t P-00008487 61-03000018G000
: [All
All Cables
Description
Power Cord 125V/7A 1.8M 3C Taiwan A-00008004 33Power Cord - 250V/10A 1.8M 3C BLK (China) A-00008038 33Power Cord - 125V/10A 1.8M 3C BLK (USA
Power Cord - 250V/10A 1.8M 3C BLK (Europe) A-00008040 33-
Signal Cable - D/15P-15P(M)1800M
A-00008039 33-
CB-00008001 33-00090501G000
Remark 1:
Remark 2:
Above listed items are examples, supplier can expand the rows to add more necessary items.
All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved
by ViewSonic Corporation. This is to eliminate repeated cross checks of each item between this version and prior versions.
92
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 96
y
0
0
)
Q
0
t
0
T
0
L
0
)
0
)
0
0
k
0
0
k
0
0
k
0
k
0
k
0
M
0
I
0
0
)
(
)
m
p
m
m
m
(
)
(
)
0
8
0
2
0
m
0
m
0
y
0
0
K
0
K
0
K
0
K
0
0
0
0
K
0
K
0
0
c
0
7
0
0
m
0
m
0
m
0
0
5
0
k
0
5
0
0
0
L
0
L
0
m
0
m
0
P
BOM LIST ( VX2835wm-1 )
ViewSonic Model Number: VS11531
Rev: 1a
Serial No. Prefix: QFG
ItemViewSonic P/N Ref. P/N Description Location Universal number#Q't
1 N/A
2 N/A
3 N/A
4 N/A
5 N/A
6 N/A
7 E-00008481
8 E-00008482
9 E-00008483
10 N/A
11 N/A
12 N/A
13 N/A
14 A-00008039
15 N/A
16 A-00008040
17 A-00008003
18 A-00008038
19 N/A
20 A-00008004
21 CB-00008001
22 CB-00008097
23 CB-00008003
24 CB-00008109
25 N/A
26 N/A
27 N/A
28 N/A
29 N/A
30 N/A
31 N/A
32 N/A
33 N/A
34 N/A
35 N/A
36 N/A
37 N/A
38 N/A
39 N/A
40 N/A
41 C-00008465
42 N/A
43 N/A
44 N/A
45 M-00008124
46 C-00008467
47 C-00008466
48 C-00008468
49 C-00008469
50 N/A
51 N/A
52 C-00008470
53 N/A
54 N/A
55 N/A
56 N/A
57 DC-00008432
58 PL-00008001
59 C-00008005 42-02110008G00
60 N/A 42-02110028G00
61 N/A 42-02110036G00
62 M-00008125 42-04170012G00
63 M-00008126 42-04170013G00
64 N/A 42-10230001G00
65 N/A 42-10230002G00
66 N/A 43-01040605G40
67 N/A 43-01041203-010 SCREW M4*12 W*6.8 T/2.5MM PAN BK TA
04-1Y283A00G000 EDID VX2835 280MUW1A00 EDID A R10.0
04-1Y283A00G100 EDID VX2835 280MUW1A00 EDID DA R10.0
06-Y2830000G000 Bin Code VX2835 DL-FLA-280MUW1A00R30.
06-Y2831200G000 Bin Code VX2835 DL H00-280MUW1A00R30.0
06-Y2831200G010 Bin Code VX2835 DL H01-280MUW1A00R30.0
20-9MB04139G04
280MUW1-A00 LI
30-20033000G00
30-20033001G00
31-10400100G00
32-31002083G00
32-31012085G00
33-00080000G00
33-E3980000G00
33-00000004G00
33-E3980003G00
33-00080002G00
33-E3980005G00
33-E3910011G00
33-E3980011G00
33-00090501G00
33-R3910501G00
33-00070500G00
33-R3910506G00
33-Y2830201G000 AC INLET WIRE HRN 3PTO3P100MM
33-Y2830201G400 WIRE HRN 11P/2.5mm 24AWG 170m
33-Y2830201G401 Wire HRN HRS DF14 to 30
33-Y2830201G500 WIRE HRN 12P/2.0mm 28AWG 360m
33-Y2830201G600 WIRE HRN 10P/2.5mm 24AWG 300m
33-Y2830201G700
33-Y2830201G701
33-Y2830501G010 Cable SIGNAL CVBS/R/L 1800mm
33-Y2830601G200 Cable HDMI To DVI 1.8M
34-01230020G00
34-04170003G00
34-04170009G00
34-04170025G00
34-04170026G00
39-VX193500G000 VX1935 Ke
40-01010097G00
40-02010042G00
40-03010050G00
40-03010051G00
40-04020019G00
40-05010032G00
40-05010033G00
40-06010031G00
40-07010010G00
40-07010011G00
40-09010005G00
40-09010006G00
40-11010002G00
41-03010072G00
41-03010073G00
41-04010030G00
41-07010027G00
42-01120015G00
42-02110002G00
LED BLUE/Orange3P DIP (ENGYA
UID CRYSTAL DEVICE HSD280MUW1-A
VX2835 SPEAKER 3.0W/8R Righ
VX2835 SPEAKER 3.0W/8L LEF
SW TACT 160GF DIP TSAC-2
CONN W TO B 2P P*2.0 C1U2X-XX0VX(TACT
CONN W TO B 12P P*2.0 C1U2X-XX0VX(TACT
PWR CORD AMERICAN(UL/CSA) 125V/10A 1800m
PWR CORD US 125V/10A 1.8M 3C BLK Linete
PWR CORD EUR 250V/10A 1800MM 3C BLK
PWR CORD EU 250V/10A 1.8M 3C BLK Linete
PWR CORD CHINA 250V/10A 1800MM LF
PWR CORD CN 250V/10A 1.8M 3C BLK Linete
PWR CORD TAIWAN (BSMI) 125V/7A1800mm bl
PWR CORD TW 125V/7A 1.8M 3C BLK Linete
CABLE SIGNAL D/15P-15P(M)1800M
CABLE SIGNAL D/15P-15P(M)1800MM-JHEN VE
CABLE STEREO PHONE SZE33261B
CABLE STEREO PHONE(JHEN VEI
SZE71030B
/1.2532AWG 170m
WIRE HRN 3P-3P Speaker-R 370MM(大朋)
WIRE HRN 2P-2P Speaker-L 370MM(大朋)
GLET
GLET
Gasket W10*L10*H1
V261 Conductive Al Foil L50*W4
Al foil,W*L*H=30*50*0.1m
AL FOIL W50*L150*t0.1m
AL foil W50*L370*t0.1
Board PCB Ver : 2.
VX2835-BEZEL,ABS-HB,BLAC
VX2835-BACK COVER,ABS-HB,BLAC
VX2835-BUTTON1,ABS,BLAC
VX2835-BUTTON,ABS,BLAC
VX2835 LED LENS
VX2835 ARM FRONT,ABS-HB,pan 877c
VX2835 ARM COVER,ABS-HB,pan 877c
VX2835 BASE,ABS-HB,BLAC
VX2835 HINGE COVER L,ABS HB,BLAC
VX2835 HINGE COVER R,ABS HB,BLACK
VX2835 cable clipper up,ABS-HB,pan 877
VX2835 cable clipper down,ABS-HB,pan 87
VX2835 BASE COVER,ABS-HB,pan 877c
VX2835 HINGE BKT,SECC,t=1.6m
VX2835 BASE BKT,SECC,t=2.0m
VX2835 shielding,secc,t=0.8m
VX2835 HINGE,SECC+AL
mylar 394*617*0.1mm for VIEWSONIC 283
HU171 Rubber Foot Blac
Back cover of ESD rubber-2 Black φ7*1.
VX2835 SPEAKER RUBBER 4
VX2835 SPEAKER RUBBER SPONGER 2
VX2835 bird logo for viewsonic,A
VX2835 Viewsonic logo for viewsonic,A
Elec. tape cloth black W:15mm,TL:30
Elec.Tape cloth black W:40mm,TL=30
SCREW M4*6,PAN,STAR Washer,CZ ,ME 1
0.008
0.045
1
1
1
1
1
1
1
1
1
5
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
6
6
1
1
7
93
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 97
ItemViewSonic P/N Ref. P/N Description Location Universal number#Q't
y
0
E
0
P
0
0
0
0
0
I
0
n
0
0
0
0
0
t
0
t
0
)
0
a
0
n
0
0
M
0
M
0
m
0
l
0
l
0
l
0
l
0
m
0
r
)
0
n
0
n
0
n
68 N/A 43-01043001G040SCREW,M4*30,PAN,PT,ZN 8
69 N/A 43-04040804G00
70 N/A 43-04040804G01
71 N/A 43-10040602G00
72 N/A 43-12030502G00
73 N/A 43-12030801G01
74 N/A 43-12041002G01
75 N/A 43-90000082G00
76 C-00008464 45-X2830100G000 VX2835 BEZEL SUB ASSY 1
77 P-00008481 60-01000117G61
78 P-00008482 61-01000058G00
79 P-00008483 61-01000059G00
80 P-00008484 61-01000064G00
81 P-00008485 61-01000065G00
82 P-00008486 61-03000017G00
83 P-00008487 61-03000018G00
84 N/A 62-02000044G00
85 N/A 62-03000018G00
86 N/A 62-05000075G01
87 N/A 62-06000003G00
88 N/A 62-06000004G00
89 N/A 62-06000005G00
90 N/A 62-06000006G00
91 DC-00008001 62-07000009G00
92 DC-00008002 62-07000010G00
93 DC-00008003 62-07000011G00
94 N/A 62-07000014G00
95 N/A 62-07000015G00
96 N/A 62-07000027G00
97 B-00008444 70-V9350200G040 VX1935 KEY BOARD ASS'Y (LF)(Premier
98 B-00008074 70-VX193500G000 VX1935 KEY BOARD ASS’Y (Lead Free) 1
99 N/A 70-Y2832500G000 VX2835 H/W PCB SUB ASSY 1
100 B-00008445 71-Y2831200G001 POWER MODULE 217W (PHIHONG) 1
101 DC-00008429 72-28350100G11
102 N/A 72-28350100G21
103 DC-00008431 72-28350100G31
SCREW M4*8 FLAT BZ M
SCREW M4*8 FLAT BZ TA
SCREW,M4x6L,CH,NI,ME 6
SCREW M3*5 ROUND WASHER NI ME 18
SCREW M3x8 Round washer Zn Tap 6
SCREW M4*10 ROUND WASHER NI TAP 2
SCREW 4#-40*5*6.8 N
VX2835wm Carton,Taiwa
VX2835 END CAP-R-top EPS 1
VX2835 END CAP-L-top EPS 1
VX2835 END CAP-R-bottom EPS 1
VX2835 END CAP-L-bottom EPS 1
PE Bag,800*1000mm*0.05
VX2835 PE bag,1170mm*1095mm*0.08
VSC vista insert flyer(Art paper
ViewSonic Warranty Chin
VX2835wm ID Label,Taiwa
BARCODE LABEL 76.2*76.2MM 1
BARCODE LABEL 50*25M
BARCODE LABEL 25*12M
Barcode label 35*4m
Energy Star Labe
QC-Pass Labe
Hi-Pot Pass Labe
Customer labe
ViewSonic Customer label 180*100m
VSC manufacture sticke
VX2835 TWN packing assy,made in Taiwa
VX2835 China packing assy,made in Taiwa
VX2835wm USA Packing assy,made in Taiwa
6
8
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
94
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Page 98
* Reader’s Response*
Dear Readers:
Thank you in advance for your feedback on our Service Manual, which allows continuous improvement
of our products. We would appreciate your completion of the Assessment Matrix below, for return to
ViewSonic Corporation.
Assessment
A. What do you think about the content of this Service Manual?
Unit Excellent Good Fair Bad
1. Precautions and Safety Notices
2. Specification
3. Front Panel Function Control Description
4. Circuit Description
5. Adjustment Procedure
6. Troubleshooting Flow Chart
7. Block Diagrams
8. Schematic Diagrams
9.PCB Layout Diagrams
10. Exploded Diagram and Exploded Parts List
11. Recommended Spare Parts List
B. Are you satisfied with this Service Manual?
Item Excellent Good Fair Bad
1. Service Manual Content
2. Service Manual Layout
3. The form and listing
C. Do you have any other opinions or suggestions regarding this service manual?
Name:
Reader’s basic dada:
Title:
Company:
Add:
Tel:
Fax:
E-mail:
After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile
1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes
(marc.maupin@viewsonic.com)
95
ViewSonic Corporation Confidential - Do Not Copy VX2835wm-1
Loading...
