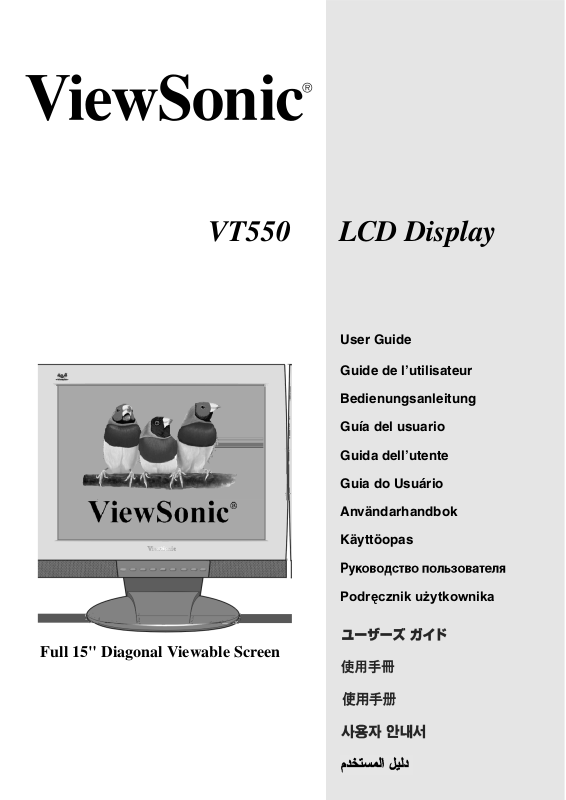

ViewSonic VT550 User Manual

VT550 LCD Display

User Guide

Guide de l’utilisateur

Bedienungsanleitung

Guía del usuario

Guida dell’utente

Guia do Usuário

Användarhandbok

Full 15" Diagonal Viewable Screen

Käyttöopas

PodrĊcznik uĪytkownika

Contents

Product Registration ..............................................................2

For Your Records ..................................................................2

Getting Started

Package Contents ................................................................. 3

Precautions ........................................................................... 3

Quick Installation ................................................................... 4

Installation of Wall Mount (Optional) .....................................5

Using the LCD Display

Setting the Timing Mode .......................................................6

OSD and Power Lock Settings..............................................6

Adjusting the Screen Image ..................................................7

Main Menu Controls .............................................................. 9

Other Information

Specifications ......................................................................14

Troubleshooting................................................................... 15

Customer Support ............................................................... 16

Cleaning the LCD Display ................................................... 17

Limited Warranty ................................................................. 18

Appendix

Safety Guidelines ................................................................ 19

Compliance Information for U.S.A. ......................................20

CE Conformity for Europe ................................................... 20

10/29/02 A ViewSonic VT550 1

Copyright © ViewSonic Corporation, 2002. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC
are trademarks of VESA.

NERGY STAR

E

As an E

NERGY STAR

E

®

is a registered trademark of the U.S. Environmental Protection Agency (EPA).

NERGY STAR

®

guidelines for energy efficiency.

®

partner, ViewSonic Corporation has determined that this product meets the

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this mate­rial, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this document may change without
notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available,
please register your product on the Internet at:

www.viewsonic.com

. The ViewSonic
ROM also provides an opportunity for you to print the registration form, which you may mail or fax
to ViewSonic.

For Your Records

®

Wizard CD-

Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:

ViewSonic VT550
VLCDS23897-3W
A-CD-VT550-1
______________
______________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product
properly at the end of its useful life. Your local waste disposal company may provide information
about proper disposal.

ViewSonic VT550 2

Getting Started

Congratulations on your purchase of a ViewSonic®LCD display.

Important!

Save the original box and all packing material for future shipping needs.

NOTE:

The word “Windows” in this user guide refers to the following Microsoft
operating systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000,
Windows Me (Millennium), and Windows XP.

Package Contents

Your LCD display package includes:

•LCD display

• Power cords

• Video cables (VGA and DVI)

• Audio cable (stereo mini jack)

• Microphone cable

• AC/DC adapter

• ViewSonic Wizard CD-ROM

NOTE:

User Guide PDF files and INF/ICM display optimization files. The INF file
ensures compatibility with Windows operating systems, and the ICM file (Image
Color Matching) ensures accurate on-screen colors. ViewSonic recommends that
you install both files.

The CD jacket contains the Quick Start Guide, and the CD includes the

Precautions

• Sit at least 18" from your LCD display.

•

Avoid touching the screen.

difficult to remove.

•

Never remove the rear cover.

display contains high-voltage parts. You may
be seriously injured if you touch them.

• Avoid exposing your LCD display to direct
sunlight or another heat source. Orient your
LCD display away from direct sunlight to
reduce glare.

• Always handle your LCD display with care
when moving it.

Skin oils are

Your LCD

• Place your LCD display in a well-ventilated
area. Do not place anything on your LCD
display that prevents heat dissipation.

• Ensure the area around the LCD display is
clean and free of moisture.

• Do not place heavy objects on the LCD
display, video cable, or power cord.

• If smoke, abnormal noise, or strange odor is
present, immediately switch the LCD display
off and call your dealer or ViewSonic. It is
dangerous to continue using the LCD display.

ViewSonic VT550 3

Quick Installation

1 Remove two rear panel covers
2 Connect power cord and AC/DC

adapter

3 Connect video cable

• Make sure both the LCD display and
computer are turned OFF

• Connect the video cable from the LCD
display to the computer

Macintosh users:

require a Macintosh adapter. Attach the
adapter to the computer and plug the video
cable into the adapter.

To order a ViewSonic
contact ViewSonic

Models older than G3

®

Macintosh adapter,

Customer Support

.

4 Turn ON LCD display and

computer

Turn ON the LCD display, then turn ON the
computer. This sequence (LCD display
before computer) is important.

NOTE:

message asking them to install the INF file.
This is on the CD.

Windows users may receive a

5 Insert the ViewSonic Wizard CD

into the computer’s CD drive.

Follow the on-screen instructions

If your computer does not have a CD-ROM
drive, see “Customer Support.”

(1) Wait for the CD-ROM to auto-start.

NOTE:

double-click on the CD-ROM icon in the
Windows Explorer, then double-click on

viewsonic.exe.

If the CD-ROM does not auto-start:

5 Wizard CD (continued)

(2) Follow the on-screen instructions.

6 Audio Installation (optional)

• Speakers Connect the audio cable (lime-colored) to
the AUDIO OUT port of your computer’s sound
card, then to the LCD display’s AUDIO IN port
(see illustration below).

• Microphone
colored to the MIC IN port of your computer’s
sound card, then to the LCD display’s MIC OUT
port. Plug an external microphone into the MIC IN
jack on the back of the LCD display. (See
illustration below.)

• Headphones
jack shown below.

Connect the microphone cable (pink-

Plug headphones into the headphone

7 Windows users: Set the timing

mode (resolution and refresh
rate)

Example:

For instructions on changing the resolution
and refresh rate, see the graphic card’s user
guide.

Installation is complete. Enjoy your new
ViewSonic LCD display.

To be best prepared for any future customer
service needs: print this user guide and write
the serial number in
page 2. (See back of LCD display.)

You can register your product online at the
website for your region. See the Customer
Support table in this guide.

The ViewSonic Wizard CD-ROM also
provides an opportunity for you to print the
registration form which you may mail or fax
to ViewSonic.

1024 x 768 @ 60 Hz.

“For Your Records”

on

Powe r IN

Audio IN

Headphone IN jack

Rear panel covers

MIC OUT (pink)

External MIC IN (white)

AC outlet (wall socket)

Power cord and AC/DC adapter

DVI video IN (digital)

VGA video IN (analog)

Kensington
lock

Computer
power
cord

ViewSonic VT550 4

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to
the instructions that come with the base mounting kit. To convert your LCD
display from a desk-mounted to a wall-mounted display, do the following:

Four screw holes with

rubber filler

Disconnect Power.

1

Lay the LCD display face down

2

on a towel or blanket. If you
remove the base for a wall mount,
the microphone in the base is
disconnected. But, you can leave
the base attached to the LCD
display with the wall mount.
Notice the four screw holes for
the wall mount on the back as
shown on the left. Remove the
rubber filler from each screw
hole.

Attach the mounting bracket

3

from the VESA compatible wall­mounting kit (75 mm x 75 mm
distance).

Attach the LCD display to the

4

wall, following the instructions in
the wall-mounting kit.

ViewSonic VT550 5

Using the LCD Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the
screen image and minimizing eye strain. The timing mode consists of the
resolution (example 1024 x 768) and refresh rate (or vertical frequency;
example 75 Hz). After setting the timing mode, use the OnView
to adjust the screen image.

For the best picture quality set your LCD display timing mode to:

VESA 1024 x 768 @ 60Hz.

To set the Timing Mode:

Set the resolution: Right-click on the Windows desktop > Properties >

1

Settings > set the resolution.
Set the refresh rate: See your graphic card's user guide for instructions.

2

®

controls

WARNING:

maximum refresh rate of 75Hz; doing so may result in permanent damage to
your LCD display.

Do not set the graphics card in your computer to exceed the

OSD and Power Lock Settings

You can lock the On Screen Displays (OSDs) and/or the power button to prevent
unwanted changes to the current image settings.

• OSD LOCK: Press and hold the [1] and [

monitor for 10 seconds. The message OSD LOCK will then display briefly

indicating that the OSD image settings are now locked.

• OSD UNLOCK: Press and hold the [1] and [

seconds. The message OSD UNLOCK will then display briefly indicating

that the OSD image settings are now unlocked.

• POWER BUTTON LOCK: Press and hold [1] and the down arrow

seconds. If the power button is pressed the message Power Button Locked

will display for 5 seconds. With or without this setting, after a power failure,
your LCD display’s power will automatically turn ON when power is
restored.

▲] buttons on the face of the

▲] buttons again for 10

▼ for 10

• POWER BUTTON UNLOCK: Press and hold [1] and the down arrow

again for 10 seconds.

ViewSonic VT550 6

▼

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView

®

controls which display on the screen. The OnView controls are explained at the
top of the next page and are defined in “Main Menu Controls” on page 9.

Main Menu
With OnView controls

Front Control Panel
shown below in detail

Speaker

Microphone

Displays the Main Menu
or exits the control screen
and saves adjustments

Speaker

Scrolls through menu options and
adjusts the displayed control.

Also a shortcut to display the
Contrast adjustment control
screen.

Decreases or
increases volume

Temporarily silences
audio output

Displays the control
screen for the highlighted
control.

Shortcut key: toggles
between two controls on
some screens: i.e.
Contrast/Brightness.

Shortcut key: toggles
between analog (VGA)
and digital (DVI) video
connections.

Power light
Green = ON
Orange = Power

Saving

Powe r
On/Off

Shortcut key: Toggles between standard and high
brightness mode for viewing PC data or video.

ViewSonic VT550 7

Do the following to adjust the screen image:

To display the Main Menu, press button [1].

1

NOTE:

All OnView menus and adjustment screens disappear automatically

after about 30 seconds.

To select a control you want to adjust, press ▲ or ▼ to scroll up or down the

2

Main Menu.
After the control is selected, press button [2]. A control screen like the one

3

shown below appears.

The line at the

The ▼down
arrow decreases,

▲

up arrow

increases

To adjust the control, press the up ▲ or down ▼ buttons.

4

To save the adjustments and exit the menu, press button [1]

5

bottom of the
screen tells you
what you can do
next: Exit or select
the Brightness
control.

.

twice

The following tips may help you optimize your display:

• Adjust your computer's graphic card so that it outputs a video signal 1024 x
768 @ 60 Hz to the LCD display. (Look for instructions on “changing the
refresh rate” in your graphic card's user guide.)

• If necessary, make small adjustments using H POSITION and V POSITION
until the screen image is completely visible

. (The black border around the
edge of the screen should barely touch the illuminated “active area” of the
LCD display.)

ViewSonic VT550 8

Main Menu Controls

Adjust the menu items shown below by using the up ▲ and down ▼ buttons.

Control Explanation

Auto Image Adjust

automatically sizes, centers, and fine tunes

the video signal to eliminate waviness and distortion.
Press the [2] button to obtain a sharper image.
NOTE: Auto Image Adjust works with most common video

cards. If this function does not work on your LCD display, then
lower the video refresh rate to 60 Hz and set the resolution to its
pre-set value.

Contrast

adjusts the difference between the image background

(black level) and the foreground (white level).

Brightness

Input Select

Audio Menu

adjusts background black level of the screen image.

toggles between an analog and a digital signal.

Volume

Balance

speaker.

Bass

Tre bl e

Mute

adjusts the low (bass) frequency audio output.

temporarily silences audio output.

increases or decreases the loudness of the audio output.

adjusts the proportion of sound coming from each

adjusts the high (treble) frequency audio output.

ViewSonic VT550 9

Control Explanation

Color Adjust

color temperatures and

provides several color adjustment modes: preset

RGB

which allows you to adjust red (R),
green (G), and blue (B) separately. The factory setting for this
product is 6500K (6500 Kelvin).

9300K

— Adds blue to the screen image for cooler white (used

in most office settings with fluorescent lighting).

6500K

— Adds red to the screen image for warmer white and

richer red.

5400K

— Adds green to the screen image for a darker color.

5000K

— Adds blue and green to the screen image for a darker

color.

User Color

individually

To select color (R, G or B) press button [2].

1

To adjust selected color, press ▲ or ▼.

2

Important

— Adjusts red (R), green (G), and blue (B)

.

: If you select RECALL from the Main Menu when
the product is set to a Preset Timing Mode, colors return to the
6500K factory preset.

Information

displays the timing mode (video signal input)
coming from the graphics card in your computer. See your
graphic card’s user guide for instructions on changing the
resolution and refresh rate (vertical frequency).

NOTE:

VESA 1024 x 768 @ 60 Hz (recommended) means that

the resolution is 1024 x 768 and the refresh rate is 60 Hertz.

Manual Image Adjust

The

Manual Image Adjust

Horizontal Size

adjusts ththt theht(y)/F1 1 Tf12.6997 0 0 12.6997 143.3317 492.09278.40.0024 Tc110006 Tw[9Horizon12(P)55nca9(zTJF9 1 Tf14.0544 0 0 14.0544 237.81658.77 9278.588.0024 Tc3.0133 Tw( c)-10(mo)219(eJ/F1t)-8(h)6(h)-he)t(y)hh I/F1tf-13(t)4(h)6(h)6(nright/F1 1 Tf12.6997 0 0 12.6997 143.3317 492.0925-1225.0024 Tc-0.0004 Tw13(t)5.9(V)6.1(r)2.1(t2Si))9(s)2(ac12(P)43n)10tser9(szTJF9 1 Tf14.0544 0 0 14.0544 237.81645Tm83925-1311.0024 Tc36.0004 Tw[(adjus)mo)229(e229.)]T(h)hert1e7en im-9ert1ens:

displays the Manual Image Adjust menu.

controls are explained below:

Control Explanation

Scaling

adjusts the video input signal to the screen size other

than 1024 x 768 @ 60 Hz using the following options.

adjusts the video signal so that the height and width of the

1:1

picture are the same.

Fill all

Fill Aspect Ratio

adjusts the video signal to fill the screen.

maintains the correct video signal proportions

for different resolutions.

Setup Menu

The

Setup Menu

displays the menu shown below.

controls are explained below:

Language

allows you to choose the language used in the menus

and control screens.

Resolution Notice

displays the Resolution Notice menu shown

below.

Resolution Notice

OSD Position

advises the optimal resolution to use.

allows you to move the on-screen display menus

and control screens.

OSD Timeout

sets the length of time an on-screen display
screen is displayed. For example, with a “15 second” setting, if
a control is not pushed within 15 seconds, the display screen
disappears.

OSD Background

allows you to turn the On-Screen-Display

background on or off.

ViewSonic VT550 122

Control Explanation

Memory Recall

returns adjustments to the original factory
settings if the display is operating in a factory Preset Timing
Mode listed in this user guide.

Exception:

This control does not affect changes made with the

User Color control.

ViewSonic VT550 133

Other Information

Specifications

LCD

Input signal

Multimedia

Compatibility

Resolution

Power

Display area

Ty p e

Color Filter
Glass surface

Video Sync RGB analog (0.7/1.0 Vp-p, 75 ohms)

Speakers
Audio Input
Microphone
Headphone

PC
Macintosh

Recommended and
supported

HDTV support 720p

Voltage 100-240 VAC, 50/60 Hz (auto switch), 12V DC, 3.0A

Full Scan 304.1 mm (H) x 228.1 mm (V)

1

15" (full 15" viewable diagonal area),
TFT (Thin Film Transistor), Active Matrix XGA LCD,

0.297 mm pixel pitch
RGB vertical stripe
Anti-Glare

DVI-D (TMDS, 100 Ohms)
Composite Sync, Separate Sync, Sync on Green

:30-62 kHz, fv:50-75 Hz

f

h

2 x 2 watts

3.5 mm stereo mini connector

3.5 mm internal and external

3.5 mm mini stero connector

Up to 1024 x 768 Non-interlaced (NI)
Power Macintosh up to 1024 x 768

1024 x 768 @ 60, 75 Hz NI
800 x 600 @ 60, 75 Hz NI
640 x 480 @ 60, 75 Hz NI
720 x 400 @ 70 Hz NI
1280 x 720 @60Hz

12.0" (H) x 9.0" (V)

Operating
conditions

Storage
conditions

Dimensions

Weight

Temperature
Humidity
Altitude

Temperature
Humidity
Altitude

Physical
(LCD display only)

Net4.0 kg (8.8 lbs) LCD display only

Regulations

Power saving
modes

Preset Timing Mode

Warning:

result in permanent damage to the LCD display.

1

Macintosh computers older than G3 require a ViewSonic®, Macintosh adapter. To order an adapter,

contact ViewSonic.

Do not set the graphics card in your computer to exceed these refresh rates; doing so may

On Normal (green LED)

Active Off <3W (orange LED)

(pre-adjusted to VESA® 1024 x 768 @ 60 Hz)

32° F to + 104° F (0° C to + 40° C)
10% to 90% (no condensation)
To 10,000 feet

-4° F to + 140° F (-20° C to + 60° C)
10% to 90% (no condensation)
To 40,000 feet

360.0 mm (W) x 139.5 mm (D) x 342.0 mm (H)

14.7" (W) x 5.5" (D) x 13.5" (H)

UL, FCC-B, c-UL, IC-B, CE, NEMKO, SEMKO, DEMKO,
FIMKO, TCO’99, PCT (BZ02), TUV/Ergo, BSMI, PSB,
CCEE, CB Report, ISO 13406-2, TUV/GS, VCCI, PCBC,

NERGY STAR

TUV-S, EPA, NOM, C-Tick, GOST-R,

E

®

ViewSonic VT550 144

Troubleshooting

No power

• Make sure power button (or switch) is ON.

• Make sure A/C power cord is securely connected to the DC power supply and
the power supply is firmly connected to the LCD display.

• Plug another electrical device (like a radio) into the power outlet to verify that
the outlet is supplying proper voltage.

Power is ON but no screen image

• Make sure the video cable supplied with the LCD display is tightly secured to
the video output port on the back of the computer. If the other end of the
video cable is not attached permanently to the LCD display, tightly secure it
to the LCD display.

• Adjust brightness and contrast.

• If you are using an Macintosh older than G3, you need a Macintosh adapter.

Wrong or abnormal colors

• If any colors (red, green, or blue) are missing, check the video cable to make
sure it is securely connected. Loose or broken pins in the cable connector
could cause an improper connection.

• Connect the LCD display to another computer.

• If you have an older graphics card, contact ViewSonic for a non-DDC
adapter.

Control buttons do not work

• Press only one button at a time.

ViewSonic VT550 155

Customer Support

For technical support or product service, see the table below or contact your
reseller.

NOTE:

Country/

You will need the product serial number.

Web site T = Telephone

Region

United States

Canada

United Kingdom viewsoniceurope.com

Europe, Middle
East, Baltic
countries, and
North Africa

Australia and New
Zealand

viewsonic.com/
support

viewsonic.com/
support

viewsoniceurope.com Contact your

viewsonic.com.au

F = FAX

[phone]

T:

[phone]

F:

[phone]

T:

[phone]

F:

0800 833 648

T:

[phone]

F:

reseller

[phone]

T:

[phone]

F:

Email

service.us@
viewsonic.com

service.ca@
viewsonic.com

service.eu@
viewsoniceurope.com

service.eu@
viewsoniceurope.com

service.au@
viewsonic.com

Singapore/India
and Southeast
Asia

Other Asia/Pacific
countries

South Africa viewsonic.com/asia

viewsonic.com.sg

viewsonic.com.tw

65 273 4018

T:

65 273 1566

F:

886 2 2246 3456

T:

886 2 8242 3668

F:

886 2 2246 3456

T:

886 2 8242 3668

F:

service.sg@
viewsonic.com

service.ap@
viewsonic.com

service.ap@
viewsonic.com

ViewSonic VT550 166

Cleaning the LCD Display

• MAKE SURE THE LCD DISPLAY IS TURNED OFF.

• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE
SCREEN OR CASE.

To clean the screen:

Wipe the screen with a clean, soft, lint-free cloth. This removes dust and

1

other particles.
If still not clean, apply a small amount of non-ammonia, non-alcohol based

2

glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

Use a soft, dry cloth.

1

If still not clean, apply a small amount of a non-ammonia, non-alcohol

2

based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.

Disclaimer

ViewSonic does not recommend the use of any ammonia or alcohol-based
cleaners on the LCD display screen or case. Some chemical cleaners have been
reported to damage the screen and/or case of the LCD display. ViewSonic will not
be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

ViewSonic VT550 177

Limited Warranty

VIEWSONIC LCD DISPLAY

What the warranty covers:

ViewSonic

warranty period. If a product proves to be defective in material or workmanship during the warranty
period,
product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic

three (3) years for all labor from the date of the first consumer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact

2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your

3. Take or ship the product freight prepaid in the original container to an authorized

4. For additional information or the name of the nearest

Limitation of implied warranties:

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of damages:

VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE
PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of
incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on
contact

ViewSonic LCD Display Warranty (V3.0) Release Date: 01-29-2002

warrants its products to be free from defects in material and workmanship during the

ViewSonic

®

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electrical power fluctuations or failure.
f. Use of supplies or parts not meeting
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.

You will need to provide your product's serial number.

name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

vice center or

ViewSonic

BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF
PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH
BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.

ViewSonic

will, at its sole option, repair or replace the product with a like product. Replacement

LCD displays are warranted for three (3) years for all parts including the light source and

ViewSonic.

’s specifications.

ViewSonic Customer Support.

ViewSonic

ViewSonic

products sold outside of the U.S.A. and Canada,

service center, contact

ser-

ViewSonic.

.

or your local

ViewSonic

ViewSonic

ViewSonic

dealer.

ViewSonic VT550 188

Appendix

Safety Guidelines

Warning:

CAUTION:

CAUTION:

certified for the individual country. Some examples are listed below:

This device must be operated with the original power supply, part number: 12V DC, ADP-50GH B.

The socket-outlet should be installed near the equipment and should be easily accessible.

Use a power cable that is properly grounded. Always use the appropriate AC cord that is

USA.................UL

Canada.............CSA

Germany..........VDE

Switzerland ..... SEV

Britain ............. BASE/BS

Japan ............... Electric Appliance Control Act

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The power cord set for this unit has been enclosed and has been selected according to the country of des­tination and must be used to prevent electric shock. Use the following guidelines if it is necessary to replace
the original cord set, or if the cord set is not enclosed.
The female receptacle of the cord set must meet IEC-60320 requirements and may look like (Figure A1
below):

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA
Labeled. For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For
units which sit on the floor, only SJT type cord sets may be used. The cord set must be selected according
to the current rating for your unit. Please consult the table below for the selection criteria for power cords
used in the United States and Canada.

Cord Type Size of Conductors in Cord Maximum Current Rating of Unit

SJT 18 AWG

16 AWG
14 AWG

SVT 18 AWG

17 AWG

10 Amps
12 Amps
12 Amps

10 Amps
12 Amps

For European Countries

In Europe you must use a cord set which is appropriate for the receptacles in your country. The cord set is HAR­Certified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors.

AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE PLUG SHOULD BE
CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO AN
APPROPRIATE SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

WARNING:

IMPORTANT:

If the coloured wires of the mains lead of this appliance do not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by
the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or
coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked
with the letter L or coloured RED.

If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you
have purchased the product.

THIS APPLIANCE MUST BE EARTHED.

The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Earth
Blue: Neutral
Brown: Live

ViewSonic VT550 199

Compliance Information for U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi­dential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer­ence to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the provided
shielded video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a
shielded BNC(5) cable. Also, any unauthorized changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this device.

CE Conformity for Europe

The device complies with the requirements of the EEC directive 89/336/EEC
as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic
compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard
to “Safety.”

ViewSonic VT550 20

ViewSonic Corporation
