ViewSonic VT3250LED, VT4250LED User Manual

Download

Page 1

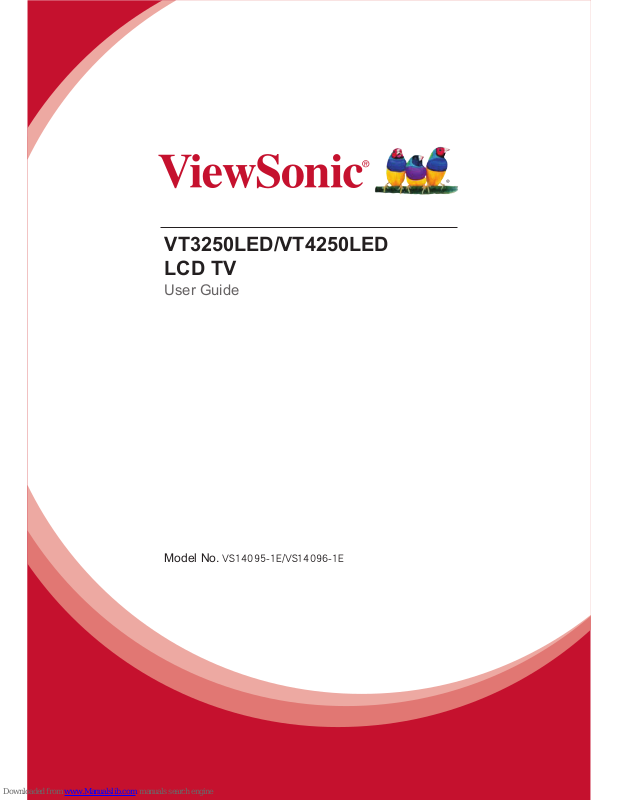

VT3250LED/VT4250LED LCD TV

User Guide

Model No.

VS14095-1E/VS14096-1E

Page 2

Important Safety Instructions

1. Read these instructions completely before using the equipment.

2. Keep these instructions in a safe place.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this equipment near water. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the LCD TV” in this guide for further instructions.

7. Do not block any ventilation openings. Install the equipment in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including ampliers) that produce heat.

9. Do not attempt to circumvent the safety provisions of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

and the third prong are provided for your safety. If the plug does not t into your

outlet, consult an electrician for replacement of the outlet.

10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the point where if emerges from the equipment. Be sure that the power outlet is located near the equipment so that it is easily accessible.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this equipment when it will be unused for long periods of time.

14. Refer all servicing to qualified service personnel. Service is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.

15. This product is only to perform the useful function of entertainment and visual display tasks are excluded.

Page 3

Compliance Information

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/ EC.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/

EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than

0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

SRS Trademark Information:

• TruSurround HD, SRS and the

symbol are trademarks of SRS Labs, Inc.

TruSurround HD technology is incorporated under license from SRS Labs, Inc.

• TruSurround HD ® creates a truly immersive surround sound experience with rich bass and clear dialog

from only two speakers.

is a trademark of SRS Labs, Inc.

TruSurround HD technology is incorporated under license from SRS.

Labs, Inc.

SRS TruSurround HD™ creates an immersive, feature-rich surround.

sound experience from two speakers, complete with rich bass, high, frequency detail and clear dialog.

Page 4

iii

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of

certain hazardous substances in electrical and electronic equipment (RoHS Directive)

and is deemed to comply with the maximum concentration values issued by the

European Technical Adaptation Committee (TAC) as shown below:

Substance

Proposed Maximum

Concentration

Actual Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below: Examples of exempted components are:

1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not specically mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by

weight or more lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.

Page 5

Copyright © ViewSonic® Corporation, 2011. All rights reserved. ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves the

right to change product specications without notice. Information in this document may

change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com.

For Your Records

Product Name:

Model Number: Document Number: Serial Number: Purchase Date:

VT3250LED/VT4250LED ViewSonic LED TV VS14095-1E(VT3250LED)/VS14096-1E(VT4250LED) VT3250LED/TVT4250LED_UG_ENG Rev. 1A 04-13-11 ___________________________________________ ___________________________________________

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Page 6

This manual provides as an operational guide to user. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be, representations or warranties concerning the products described.

Page 7

Table of Contents

Important Information �� 2

WARNING ................................................................................................. 2

CAUTION .................................................................................................. 2

NOTIFICATION ......................................................................................... 3

Important Safety Information �� 4 Usage Instructions �� 5

Installation .................................................................................................. 5

AC Power Cable ......................................................................................... 6

LCD Screen ................................................................................................ 6

Wiring ........................................................................................................ 7

Electric Shock ............................................................................................. 7

Lightning Storms ........................................................................................ 7

When Not in Use ........................................................................................ 7

Overloading ................................................................................................ 8

Optional Equipment .................................................................................... 8

Small Accessories ..................................................................................... 8

Antennas .................................................................................................... 8

Batteries ..................................................................................................... 9

Cleaning ..................................................................................................... 9

Magnetic Inuence ................................................................................... 10

Sound ....................................................................................................... 10

Carrying the TV ........................................................................................ 10

Ventilation ................................................................................................. 11

Moisture .................................................................................................... 12

Volume Adjustment ................................................................................... 12

Servicing ................................................................................................... 12

Package contents �� 14 Controls & Connections �� 15

Front view ................................................................................................. 15

Rear view ................................................................................................. 16

Activate the remote control �� 18

Installing batteries .................................................................................... 18

Attaching the Base �� 19

Wall-Mounting .......................................................................................... 20

PC Input Signal Reference Chart �� 21 Video Input Signal Reference Chart �� 21 Remote Control Unit �� 22

Switching Input Source ............................................................................. 24

OSD (On-Screen Display) menu �� 25

Operations in the OSD menu ................................................................... 25

Initial Setup ............................................................................................... 25

Adjust Picture Setting ............................................................................... 28

Adjust Sound Setting ................................................................................ 29

Adjust TV Setting ...................................................................................... 30

Adjust Features Setting ............................................................................ 32

Adjust Eco Setting .................................................................................... 34

Troubleshooting �� 35 Dimensions & Specications �� 37

Page 8

Important Information

WARNING

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION

RISQUE DE CHOC ELECTRIQUE,

NE PAS OUVRIR

PRECAUCION

RIESGO DE CHOQUE ELECTRICO

NO ABRIR

This symbol is intended to alert the user to the presence of insinuated “dangerous voltage” within the TV’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the TV.

To reduce the risk of re or electric shock, do not expose this TV to rain or moisture, the TV shall not be exposed to dripping or splashing and no objects lled with liquids, such as

vases, shall be placed on the TV.

To prevent injury, this apparatus must be securely attached to the table/floor/wall in accordance with the installation instructions.

Page 9

CAUTION

To prevent electric shock, do not use this polarized AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

Use the Wall-Mount bracket or TV stand which was recommended by ViewSonic, and please consult your dealer for detailed information.

Use with other Wall-Mount Bracket or TV stand may cause instability and possibly result in injury.

These servicing instructions are for use by qualied service personnel only. To reduce the

risks of electric shock do not perform any servicing other than that contained in the operating

instructions unless you are qualied to do so.

Do not place on the edge of the table.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please

contact your local city ofce, your household waste disposal service or the shop where you

purchased the product.

Page 10

NOTIFICATION

Radio Frequency Interference Statement

Warning:

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

For details concerning safety precautions, see “Important Safety Instructions” and “Important Usage Instructions” below.

Page 11

Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong is provided for your

safety. When the provided plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. If any liquid or solid object should fall inside the cabinet, unplug the TV immediately and

have it checked by qualied service personnel before operating it further.

Page 12

16. Avoid operating the TV at temperatures below 32°F (0°C).

17. If the TV is transported directly from a cold to a warm location, or if the room temperature changes suddenly, the picture may be blurred or show poor colour due to moisture condensation. In this case, please wait a few hours to let the moisture evaporate before turning on the TV.

18. The apparatus must be connected to a mains socket outlet with a protected earthed connection.

19. The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

20. When purchased or used in different countries,use an appropriate power cable which is compliant with local laws and regulations.

21. No naked ame sources, such as lighted candles, should be placed on the apparatus.

22. The device is not intended for use at visual display work places acc. BildscharbV. Usage Instructions

Page 13

Usage Instructions

Installation

Placement

It is recommended to watch the TV at a distance of 3 -7 times which of the screen height, and in moderate brightness. Watching the TV for too long or in a dark room may cause eye fatigue. To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. It is recommended to use spot lighting directed down from the ceiling or to cover the windows that face the screen with opaque drapery. It is desirable to install the TV in a

room where the oor and walls are not of a reective material.

3h~7h

To prevent the TV from toppling over and causing injury, take measurement to secure the TV to a wall or stand.

The TV should be installed near an easily accessible AC power outlet.

Observe the following in placing the TV. Otherwise the TV may fall from the stand or WallMount, causing damage or serious injury.

• Place the TV on a stable, level surface.

• Do not hang anything on the TV. Do not allow children to climb on the TV.

• Do not install the TV in places subject to extreme temperatures, such as in direct

sunlight, near a radiator, or near a heating vent or exposed to direct air conditioning.

• Never place the TV in hot, oily, humidor excessively dusty places.

• Do not install the TV where insects may enter.

• Do not install the TV where it may be exposed to mechanical vibration.

• Do not install the TV in a location where it may protrude, such as on or behind a pillar, or

where you might bump your head on it. Otherwise, it may result in injury.

Page 14

Outdoor Use

Do not install this TV outdoors. If the TV is exposed to rain, it may result in a fire or an electric shock. Do not expose the TV to direct sunlight, it may heat up and become damaged.

Wall-Mount

Wall-Mount installation requires the use of a Wall-Mount Bracket. When installing or

removing the TV, using a Wall-Mount Bracket, be sure to use qualied contractors. If not

properly secured during installation or removal from the Wall-Mount Bracket, the TV may fall and cause serious injury.

For use only with UL Listed Wall Mount Bracket with suitable weight/load.

Observe the following when installing the TV using a Wall-Mount bracket.

Be sure to follow the operating instructions supplied with the Wall-Mount bracket when installing the TV.

Be sure to attach the brackets supplied with the Wall-Mount bracket.

Don’t hang the TV from the ceiling. It may fall and cause serious injury.

Page 15

AC Power Cable

• Use the AC power cord specied by ViewSonic and suitable for the voltage where you use it.

• The plug is designed, for safety purposes, to t into the wall outlet only one way. If you

are unable to insert the plug fully into the outlet, contact your dealer.

• If you will not be using the TV for several days, disconnect the power by pulling the plug itself. Never pull on the cord.

• When disconnecting AC power cord, the power cord should be easily accessible for disconnection.

TV should be installed near an easily accessible power outlet. Do not use a poor fitting

outlet. Insert the plug fully into the outlet. If it is loose, it may cause arcing and result in a re.

Contact your electrician to have the outlet changed.

Observe the followings to prevent the AC power cord from being damaged. If the AC power

cord is damaged, it may result in a re or an electric shock. Stop using it and ask your dealer

or ViewSonic service center to exchange it.

• Do not place the TV where the power cord is subject to wear or abuse.

• Do not pinch, bend, or twist the cord excessively. The core lines may be bared and cut, causing a short-circuit, and resulting in a re or an electric shock.

• Do not convert or damage the power cord.

• Do not allow anything to rest on or roll over the power cord.

• Do not move the TV with the power cord plugged in.

• Keep the power cord away from heat sources.

• To unplug power cord, disconnect it from the wall outlet rst.

• Be sure to grasp the plug when disconnecting the power cord.

• Do not pull the power cord.

• Do not use the supplied AC power cord on any other equipment.

• Use only an original ViewSonic AC power cord, not other brands.

Page 16

LCD Screen

• Although the LCD screen is made with high-precision technology and has effective pixels of 99.99% or more, black dots or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD panel and is not a malfunction.

• The LCD screen is made with high-precision technology and to achieve a high level of performance and picture quality, this TV’s backlight setting is set to maximize the brightness of the TV. However, uneven brightness may be observed when the LCD TV is viewed in a dark ambient without an input source or a blank screen. This condition is normal and not a malfunction of the TV. Changing the Picture mode, Backlight setting, enabling the Light Sensor, or turning on the Power management will improve this condition. In order to ensure long performance of your set and reduce the risk of screen burning, please observe the following precautions: 1)Does not display still image (still computer and video game images, logos. pictures, text and images displayed in 4:3) for extended periods of time; 2) Use a screen saver when using a computer.

• Do not expose the LCD screen surface to direct sunlight. Doing so may damage the LCD panel.

• Do not push or scratch the LCD screen, or place objects on top of the TV. The image may be uneven or the LCD panel may be damaged.

• If the TV is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena improve as the temperature rises.

• Ghosting may occur when still pictures are displayed continuously. It should disappear after a few moments.

• The screen and cabinet get warm when the TV is in use. This is not a malfunction.

• Avoid spraying insect repellent with volatile material on the screen.

• Avoid prolonged contact with rubber or plastic material.

Page 17

Broken Pieces

Do not throw anything at the TV. The screen glass may break by the impact and cause serious injury.

If the surface of the TV cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.

Handling of broken glass and liquid crystal leakage

If the LCD panel gets damaged, crystalline liquid leakage may occur, or scattered broken glass may result. Do not touch broken glass or crystalline liquid which is toxic, with bare hands as cuts, poisoning or skin irritation may occur. Also, do not let glass fragments or leaked crystalline liquid get into your eyes or mouth. Should either contact your eyes or mouth, rinse the contacted area thoroughly with water and consult your doctor.

Wiring

When connecting cables, be sure to unplug the AC power cord for your safety. Take care not to catch your feet on the cables. It may damage the TV set.

Page 18

Electric Shock

Do not touch the AC power cord or the TV with a wet hand. If you plug/unplug the AC power cord from the TV with a wet hand, it may cause electric shock.

Lightning Storms

For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the TV due to lightning and power line surges.

When Not in Use

If you will not be using the TV set for several days, the TV set should be disconnected from the AC power outlet for environmental and safety reasons. The TV set is not disconnected from the AC power source when the TV set is switched off. To disconnect the TV set completely, pull the plug from the AC power outlet.

Page 19

Overloading

This TV set is designed to operate on a 220~240 VAC supply only. Take care not to connect

too many appliances to the same AC power outlet as this could result in a re or an electric

shock.

Optional Equipment

Do not install optional equipment too close to the TV set. Keep optional equipment at least

11.875 inches (30 cm) away from the TV set. If a VCR is installed in front of the TV set

or beside the TV set, the picture may become distorted. Picture distortion and/or noisy sound may occur if the TV set is positioned in close proximity to any equipment emitting electromagnetic radiation.

Small Accessories

Keep small accessories out of children’s reach.

Page 20

Antennas

Outdoor antenna grounding

If you want to connect an outdoor antenna, please assure that it is grounded to avoid bolt damages. Please notice the regulation EN 50083-1.

Please avoid water drops or spray water, also don’t put liquid lled cases (e.g. vases) next to

the unit.

A permanent high volume for headphones or earphones may causes ear and eardrum damages. Please avoid turning up the volume too loud. The adjustment of the equalizer to the maximum also increases the volume.

Don’t put things with open re/ames, like e.g. candles, next to the unit.

Antenna lead-in wire

Antenna discharge unit

Grounding conductors

Ground clamps

Electric service equipment

Ground clamps

Power service grounding electrode system

Page 21

Batteries

• Do not dispose of batteries in a re.

• Do not short circuit, disassemble or overheat the batteries.

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type.

• The batteries (batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like.

Disposal of used batteries

To preserve our environment, dispose of used batteries according to your local laws or regulations.

Page 22

Cleaning

Cleaning the AC power plug

Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks

up moisture, its insulation may deteriorate and result in a re.

Cleaning the screen surface/ cabinet of the TV set

• Unplug the AC power cord to avoid electric shock when cleaning.

• Clean the cabinet of the TV with a dry soft cloth. To remove dust from the screen, wipe it

gently with a soft cloth. Stubborn stains

• May be removed with a cloth slightly dampened with a solution of mild soap and warm water. Never use strong solvents such as thinner or benzine for cleaning.

• If using a chemically pretreated cloth, please follow the instruction provided on the package.

• The ventilation holes can accumulate dust over time. To ensure proper ventilation, we recommend removing the dust periodically (once a month) using a vacuum cleaner.

Page 23

Magnetic Inuence

This TV contains a strong magnet in the speaker unit that generates a magnetic eld. Keep any items susceptible to magnetic elds away from the speaker.

Sound

If a snapping or popping sound from the TV is continuous or frequent while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for some TV’s to make occasional snapping or popping sounds, particu larly when being turned on or off.

ding~

Pong~

Page 24

Carrying the TV

Carry the TV in the specied manner

To avoid dropping the TV and causing serious injury, be sure to follow these guidelines:

Before carrying the TV, disconnect all cables.

Carrying the large size TV requires two or more people.

When you carry the TV, place your hand as illustrated and hold it securely. Do not put stress on the LCD panel.

When lifting or moving the TV, hold it rmly from the bottom. Place your palm directly under

the panel.

When carrying, do not subject the TV to shocks or vibration, or excessive force.

Page 25

Ventilation

The slots and openings in the TV are provided for necessary ventilation. To ensure reliable operation of the TV and to protect it from overheating, these slots and openings must never be blocked or covered.

Unless proper ventilation is provided, the TV may gather dust and get dirty. For proper ventilation, observe the following:

• Do not install the TV face up, down or sideways.

• Do not install the TV turned over or upside down.

• Never cover the slots and openings with a cloth or other materials.

• Never block the slots and openings by placing the TV on a bed, sofa, rug or other similar

surface.

• Never place the TV in a conned space, such as a bookcase or built-in cabinet, unless

proper ventilation is provided.

Leave some space around the TV set as shown below. Otherwise, air-circulation may be

inadequate and will cause overheating, which may cause a re or damage to the TV set.

Install on the wall

4 inches

10 cm

4 inches

10 cm

4 inches

10 cm

Leave at least this space around the set.

11 7/8 inches

30 cm

Page 26

Installed with stand

4 inches

10 cm

4 inches

10 cm

Leave at least this space around the set.

11 7/8 inches

30 cm

4 inches

10 cm

Never install the TV set where Air circulation is blocked.

Objects and ventilation holes

Never push objects of any kind into the TV through the cabinet slots as they may touch

dangerous voltage points or short out parts that could result in a re or an electric shock. Do

not place any objects on the TV.

Page 27

Moisture

Moisture and ammable objects

• The TV must not be exposed to dripping or splashing. Do not place objects lled with

liquids, such as vases, on the TV.

• Do not use power-line operated TV sets near water— for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

It may result in a re or an electric shock.

• Do not let this TV get wet. Never spill liquid of any kind on the TV. If any liquid or solid

object does fall through, do not operate the TV. It may result in electric shock or damage

to the TV. Have it checked immediately by qualied personnel

• To prevent re, keep ammable objects or open ame (e.g. candles) away from the TV.

Volume Adjustment

Adjust the volume so as not to trouble your neighbors. Sound carries very easily at night. Therefore, closing the windows or using headphones is suggested.

When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

Page 28

Servicing

Do not attempt to service the TV by yourself since opening the cabinet may expose you to

dangerous voltage or other hazards. Refer all servicing to qualied service personnel.

Replacement Parts

When replacement parts are required, be sure the service technician certifies in writing

that he/she has used replacement parts specied by the manufacturer that have the same

characteristics as the original parts.

Unauthorized substitutions may result in a re, an electric shock or other hazards.

Safety Check

Upon completion of any service or repairs to the TV, ask the service technician to perform

routine safety checks (as specied by the manufacturer) to determine that the TV is in safe operating condition, and to so certify. Ask a qualied service technician to dispose of the TV.

Thank you for purchasing this ViewSonic high-denition television. The quality of the image you see on your ViewSonic TV is only as good as the quality of the signal it receives.

Mobile telephone warning

To avoid disturbances in picture and sound, malfunctioning of your TV or even damage to the TV, keep away your mobile telephone from the TV.

Page 29

End of life directive

We are paying a lot of attention to produce environmental friendly in green focal areas.

Your new receiver contains materials, which can be recycled and reused.

At the end of its life, specialized companies can dismantle the discarded receiver to concentrate the reusable materials and to minimize the amount of materials to be disposed of.

Please ensure you dispose of your old receiver according to local regulations.

Page 30

Package contents

After unpack the TV box, please check the TV and all accessories are well presented and undamaged.

TV Set

User Manual

Base

Remote ControlFlat Stand Cover

Quick Start Guide

Base Screw

Remote Control Battery

User

Manual

QSG

Page 31

Controls & Connections

Front view

SpeakerSpeaker

Power Indicator

Power Switch

IR Receiver

No Item Description

MENU Press to open or exit the OSD (on-screen display) menu.

(INPUT)

Press to select the input source.

+ Press to increase the sound volume level.

- Press to decrease the sound volume level.

P Press to select the next higher programme number.

P Press to select the next lower programme number.

Power

Press to turn on / off (standby) the TV set. (Press to turn on TV after the power on status, power indicator turns off.)

Power switch

Switches the TV on (‘ | ‘) or off (‘ o ‘).

Page 32

Rear view

432

9 1110

No Item Description

PC IN (RGB/AUDIO)

Connect PC’s video output connector using HD15HD15 cable (Analogue RGB), and connect PC’s audio out jack using audio cable.

For some Apple Macintosh computers, it may be necessary to use an adapter (not supplied). In the case, connect the adapter to the computer before connecting the HD15-HD15 cable.

If the picture is noisy, ickering or not clear, adjust

picture settings in OSD.

AV OUT (VIDEO/L/R)

Video and audio output connectors for the AV source from AV IN or Antenna Input.

SPDIF OUT* (Optical Digital Audio Out)

Connect an external sound system with optical cable to the SPDIF out jack on the back of your TV.

SCART

Connect to external equipment with scart socket. Full SCART, which transmits RGB, S-Video and CVBS in, and CVBS tuner out.

COMMON INTERFACE

Function when PC Card or ExpressCard is in COMMON INTERFACE slot of the set.

ANT IN

RF (Radio Frequency or modulated signal design used as the carrier for television broadcasts.) input that connects to your Cable or VHF/UHF antenna.

Page 33

USB 1 / 2 Insert USB storage device to view JPEG photos.

Headphone Output

Connects to your headphones. If your headphones do not match the jack, use a suitable plug adapter (not supplied). While headphones are connected, the TV speakers are muted.

COMPONENT

Connect to the Component video (Y/Pb/Pr) output of video devices , and to the left/right audio channel output of video devices.

AV IN

Connects COMPOSITE VIDEO output from your video equipment that has COMPOSITE, and audio (L/ R) jacks can connect audio source to your TV.

HDMI 1 / 2 / 3

HDMI (High-Denition Multimedia Interface) provides

an uncompressed, all-digital audio/video interface between this TV and any HDMI-equipped audio/video equipment, such as a set-top box, DVD player, Bluray Disc player, A/V receiver as well as PC.

HDMI supports enhanced, or high-denition video,

plus digital audio. If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN (with DVIto-HDMIcable or adapter) jack, and connect the audio jack to the PC AUDIO IN jacks of HDMI IN.

DVI-to-HDMI cable DVI-to-HDMI adapter

HDMI connection is necessary to view 480i, 480p, 720p, 1080i and 1080p formats. Be sure to use only an HDMI cable that bears the HDMI logo. (We do not supply DVI-HDMI cable and DVI-HDMIadapter and HD15-HD15 cable.)

* SPDIF

Sony/Philips Digital Interconnect Format. S/PDIF is mostly used to transmit compressed

multichannel audio from a media player to an amplier/receiver.

Page 34

Activate the remote control

Installing batteries

1. Turn the remote control to reveal its back side, and open the lid of the battery compartment.

2. Insert the batteries (supplied) ensuring that the positive and negative marked battery terminals match the (+) and (-) marks in the battery compartment. Note that these batteries are provided for your convenience so that you can operate the display straight away. You should replace them as soon as possible.

3. Ret the lid of the battery compartment.

Page 35

Attaching the Base

IMPORTANT: The base of the ViewSonic LCD TV must be assembled prior to usage�

1. Place the TV set facing down on a soft and at surface (blanket, foam, cloth, etc.) to prevent any damage to TV set.

2. Carefully align and insert the base to the stand

3. Insert the screws to the bottom of the base and use them to tighten the base to the stand.

Page 36

Wall-Mounting

Please install on a wall by using a Wall-Mount Bracket (sold separately). Before mounting the TV on a wall, the stand must be removed from the TV. Follow the simple steps below to remove the stand:

1. Disconnect all the cables from the TV.

2. Gently lay the TV face-down on a level and stable surface covered with a thick and soft cloth. Make sure the stand is hanging over the edge.

3. Remove the four screws that secure the cover, then remove the cover and the stand.

4. Secure the at stand cover to the back of your TV using the four screws you just removed.

5. Do not remove the stand for any reason other than to Wall-Mount the TV.

6. Be sure to store the removed screws and stand in a safe place until you are ready to reattach the Table-Top Stand. Keep the screws away from small children.

7. For bracket installation, refer to the instruction guide provided by the Wall-Mount Bracket model for your TV. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.

8. For product protection and safety reasons, ViewSonic strongly recommends that you use the Wall-Mounty Bracket model designed for your TV and the WallMounting of your TV should be performed by ViewSonic dealer or licensed contractor.

Note:

200 mm x 100 mm (32”) wall mount bracket is not included. Please contact your local distributor.

Note:

400 mm x 400 mm (42”) wall mount bracket is not included. Please contact your local distributor.

Page 37

PC Input Signal Reference Chart

After connecting the PC to the TV, set the output signal from the PC according to the chart below.

Presetting PC Mode

Standard Resolution Refresh Rate (Hz)

VESA 640 x 480 60 VESA 800 x 600 60 VESA 1024 x 768 60 VESA 1360 x 768 60 VESA 1920 x 1080 60

Video Input Signal Reference Chart

After connecting the video input to the TV, set the output signal from the video input according to the chart below.

Presetting Video Mode

Standard Resolution Refresh Rate (Hz)

SD 480i 60 SD 480P 60 SD 576i 50 SD 576P 50 HD 720P 50 HD 720P 60 HD 1080i 50

HD 1080i 60 FHD 1080p 50 FHD 1080p 60

Standard Denition Interface

You can also enjoy traditional programme by using a DVD player or VCR Player. Connect this equipment to your TV via the Composite Input or S-Video Input on the back of your TV.

Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.

Page 38

Remote Control Unit

Buttons located at the right side of the TV will operate the same as these buttons on the remote control�

1� (POWER)

Press to turn the LCD TV on or enter standby mode.

2�

(Input source)

Select an input source.

3� 0-9 DIGIT BUTTONS

To select a TV channel directly.

4� EPG

Press this button to display electronic programme guide when watching digital channels.

5� PRE PR

To display the previous selected TV channel.

6� USB

Press this button to switch USB input source.

7� PR LIST

Press to display a list of channels. Then press Red button to select the digital or analogue channel list. (Only available when your input source is TV).

8� ECO

Press this button to set the picture with less brightness for saving energy.

9�

Display programme information, if available.

10� +/-

Press to adjust the volume.

11�

(MUTE)

Press to toggle audio on and off. You can also press

+/- to restore the previous volume level.

12�

(Picture format)

Select picture format to Auto / Normal / Zoom 1 / Zoom 2 / Wide.

13� P

Press to select the channel.

14� DUAL

Select MONO / STEREO / DUAL 1 / DUAL 2 for ATV channel. Select Audio language for DTV channel.

15� AUDIO (ADJ)

Press to set the LCD TV to a predened sound setting. Personal / Music / Speech / DSS.

16� VIDEO (ADJ)

Press to set the LCD TV to a predened picture setting. Personal / Standard / Vivid / Movie / Eco

17� SLEEP

Press to turn the LCD TV off within an amount of time. (10 ~ 120 minutes.

18�

Press

to navigate and conrm your selection.

Page 39

19� OK

Press to activate a setting.

20� MENU

Press to activate the LCD TV OSD.

21� EXIT

Press to exit the LCD TV OSD or return to the previous layer.

22� Colour button

Press buttons to select the pictures with various colours of text. Different channels display different functions.

23� TELETEXT

Press this button to activate Teletext. Press again to activate Teletext with TV. Press again to turn off Teletext.

24� SUBTITLE

For DTV, press this button to toggle off / between available subtitle languages. For ATV, press this button to toggle off / between available subtitle pages in Teletext.

25� SIZE

Press this button to change the font size: Full screen, Top half and Bottom half.

26� SUBPAGE

To select the subpage when the current page contains subpage(s).

27� INDEX

Press this button to return to page 100 or the index page; and then press 0 to 9. The teletext page will be numbered and added to the page you select or the secondary item.

28� HOLD

Press this button to stop the scrolling of pages.The text decoder stops receiving data.

29� REVEAL

Reveal hidden information such as answers to a quiz.

30� FREEZE

Press to freeze a moving image on the screen. (Only available when your input source is TV).

Scart output signal will also be frozen when you are watching digital channels.

31�

Press to the previous photo.

32�

Press to stop the photo slideshow.

33�

Press to start/pause the photo slideshow. Caution: Do not freeze the video image for long periods of time. You may damage

the TV screen.

34�

Press to the next photo.

Page 40

Switching Input Source

You can press to choose the input source on the display menu.

1. Press

to display the INPUT LIST menu.

2. Press

/ to select an input source.

3. Press OK to enter.

Input List

SCART

HDMI 1

YPbPr

HDMI 2 HDMI 3 USB

Page 41

OSD (On-Screen Display) menu

Operations in the OSD menu

Initial Setup

When you rst start up this ViewSonic LCD TV set, please follow the Initial Wizard to your TV.

1� Selecting Language

Press

/ to select your preferred language, and press OK.

Back

Select

Exit

EXIT

Please select your language:

Initial Setup

Language

English

Deutsch

Français

Italiano

Español

Português

Nederlands

2� Selecting your country

Press

/ to select your country, and press OK.

Back

Select

Exit

EXIT

Please select your country.

Initial Setup

Country

Austria

Belgium Bulgaria

Switzerland

Czech Republic

Germany

Greece

Page 42

3� Selecting your mode

Press

/ to select "HOME" or "SHOP" mode, then press OK.

Back

Select

Exit

EXIT

Please select your mode

Initial Setup

Mode select

HOME

SHOP

4� Selecting your scan mode

Press

/ to select "Analogue" or "Analogue and Digital", then press OK.

Back

Select

Exit

EXIT

Please select your scan mode

Initial Setup

Scan Mode

Analogue

Analogue and Digital

5� Initial Setup Channel Scan

Press

/ to select "Scan" or "Skip Scan", then press OK.

First, please connect antenna.

Start channel scan now ?

If you skip this step, the channel

scan could be performed in Menu.

Initial Setup

Channel Scan

Scan

Skip Scan

Back

Select

Exit

EXIT

Page 43

6� Initial Setup Completed

Press OK to exit the Initial Setup.

Congratulations !!

Completed Initial Setup.

Please press [OK] to exit the

wizard.

Initial Setup

Completed

Back

Exit

Adjust Picture Setting


Exit

EXIT

Select

Enter

Brightness

Contrast

Colour 53

Tint 0

Sharpness 5

Smart Picture Personal

Colour Temperature Normal

Advanced Control

1. Press MENU to call out MENU.

2. Press

/ to select "Picture" , and press OK to enter.

3. Press

/ to select picture settings.

4. Press

/ to adjust.

5. Press MENU / EXIT to exit.

Item Description

Page 44

Smart Picture

Preset for all inputs can also be accessed by pressing picture on the remote control to directly toggle the modes.

Personal The user can set their favourite setting.

Standard

For standard picture settings. Recommended for home entertainment.

Vivid For enhances picture contrast and sharpness.

Movie

For viewing lm-based content. Most suitable for viewing in a theater-

like environment.

Eco Decrease backlight level to save the power consumption.

Brightness Brightens or darkens the picture.

Contrast Increases or decreases picture contrast.

Colour Increases or decreases colour saturation.

Tint Adjusts the picture tint. The tuning range is -32 ~ 32.

Sharpness Sharpens or softens the picture.

Colour Temperature

Normal Gives the white colour a nature tint.

Cool Gives the white colours a bluish tint.

Warm Gives the white colours a reddish tint.

Advanced Control

Noise Reduction

NR effect levels: Low, Medium, High, and Off.

Flesh Tone Adjusts the skin colour to be more natural.

Backlight Adjusts the back light strength.

DCR Dynamic Contrast Ratio (DCR) auto adjusts the backlight of the screen.

Page 45

Adjust Sound Setting

Sound

Exit

EXIT

Select

Enter

Equalizer 120Hz

Equalizer 500Hz

Equalizer 1.5KHz 6

Equalizer 5KHz 0

Equalizer 10KHz 0

Sound Mode Personal

Balance 0

Digital Audio Out PCM

1. Press MENU to call out MENU.

2. Press

/ to select "Sound" , and press OK to enter.

3. Press

/ to select audio settings.

4. Press

/ to adjust.

5. Press MENU / EXIT to exit.

Item Description

Sound Mode

Sound mode can also be accessed by pressing audio on the remote control.

Personal Adjust sound mode as personal favourite.

Music Enhances treble and bass.

Speech Enhances treble and keep bass in middle.

DSS

Soulution of processing surround sound effect for playback over two speakers.

Equalizer 120Hz

Adjusts the amount of bass. The tuning range is -6 ~ 6.

Equalizer 500Hz

Adjusts the amount of tenor. The tuning range is -6 ~ 6.

Equalizer

1.5KHz

Adjusts the amount of neutral. The tuning range is -6 ~ 6.

Equalizer 5KHz

Adjusts the amount of treble, the tuning range is -6 ~ 6.

Equalizer 10KHz

Adjusts the amount of descant. The tuning range is -6 ~ 6.

Page 46

Balance Emphasizes left or right speaker balance.

Digital Audio Out

Selects the digital audio out from menu options: Off, Dolby Digital, or PCM.

AVL Enable or disable automatic volume level.

Type

This function enables you to choose the type of additional narration during the TV watching from menu options: Normal, Hard of Hearing, or Audio Description.

Hard of Hearing: This function provides narration to deaf and hard of hearing viewers.

Audio Description

After setting the menu option Type to Audio Description, you can adjust the volume of the audio description.

Adjust TV Setting

Tuner Mode Antenna

2nd Audio

English

1st Audio

English

Country

Channels

Exit

EXIT

Select

Enter

1. Press MENU to call out MENU.

2. Press

/ to select "TV" , and press OK to enter.

3. Press

/ to select TV settings.

4. Press

/ to adjust.

5. Press MENU / EXIT to exit.

Item Description

Tuner Mode Selects tuner mode from Antenna or Cable.

Country

To select the relevant country. This is the country you are in, or the country whose channels you want to receive if you live near its borders.

1st Audio

Use this function when there are two or more audio languages been broadcasted. This is the language to be used for digital channels if it is available.

2nd Audio

Page 47

Channels

Enter the channels submenu, and choose from Channel Scan, Update Scan, Single RF

Scan, Analogue Manual Scan, Favourite Network Select, Channel Skip, Channel Sort, Channel Edit, Decoder, Analogue Ch Fine Tune, and Clean Channel List.

Channel Scan

Channel Scan will re-tune the television automatically. It is recommended to run the channel scan periodically to ensure that all new services are added.

Update Scan

Search the new channels automatically that are not in the channel list.

Single RF Scan (Digital Only)

Enter the single RF scan in the Channels submenu to scan digital channels.

Analogue Manual Scan

The television can be tuned-in manually using analogue manual scan. Use the number keys to enter the start frequency to scan up or scan down.

Favourite Network Select

If there are more than two networks detected after running the auto scan in channels menu, you can select the network you prefer.

Channels

Channel Skip

To prevent certain programs from being viewed by pressing

/ buttons on the remote control, the programme

position can be skipped. Tip: The skipped programme may not be found by pressing P

buttons but can be access by pressing number buttons directly.

Channel Sort Change the order of the channel list.

Channel Edit

Enter the Channel Edit in the Channels submenu to edit the channel number and channel name by using the number buttons 0~9.

Decoder (Analogue Only)

Channel decode support the Canal+ (paid television channel), however, the channel also broadcast some un-encrypted programs. These programs without encryption can be viewed free of charge.

Analogue Ch Fine Tune

Select Analogue Ch Fine Tune in the Channels submenu to adjust the frequency.

Clean Channel List Cleans the channel list that you had stored.

Page 48

Adjust Features Setting

Features

Exit

EXIT

Select

Enter

4:3 Mode

4:3

Picture Format

Auto

Time

Subtitle

Teletext Language

Menu Language English

Common Inerface

OAD

1. Press MENU to call out MENU.

2. Press

/ to select "Features" , and press OK to enter.

3. Press

/ to select features settings.

4. Press

/ to adjust.

5. Press MENU / EXIT to exit.

Item Description

Menu Language To select the on-screen display menu language.

4:3 Mode

Selects aspect ratio behavior for Auto mode. When 4:3 is selected, the picture size will follow the WSS or Scart Pin8 Spec.If 16:9 is selected, the picture format will be changed to Wide screen.

Picture Format To select the available display format from Auto, Normal, Zoom 1, Zoom 2, or Wide.

Time

Time Zone To select the time zone you are in.

Time

To set the time and date or select auto synchronization.

Tip: Before you want to set the time and date by your own, please make sure. Auto synchronization is Off.

Sleep Timer To set the TV to turn itself off within a certain time.

Page 49

Subtitle

Analogue Subtitle

To display the transmitted subtitle on the screen. Either this text can be permanently displayed (assuming that the service is available in the broadcast) or only when mute is active.

1st Subtitle

Use the digital subtitle function when two or more subtitle languages are broadcast. If subtitle data in a selected language is not broadcast, the default language subtitle will be displayed.

2nd Subtitle

Subtitle Type To choose the subtitle type from Normal or Hearing impaired.

Teletext Language

Digital Teletext Language

To select the teletext language.

Decode Page Lang. To set the teletext language to the regional location.

Common Interface

This menu appears with your CI supplier information.

HDMI Scan Info

Automatic

Set to underscan or overscan automatically when the video signal is detected.

Underscan

When the video signal is detected, all active pixels and lines are displayed with or without border.

Overscan

When the video signal is detected, some active pixels and lines at the edges are not displayed.

OAD

When you get the updating news from the TV shop’s web, you can update the operation software using the Download menu. The data for various units are transferred consecutively on a special receiving channel.

You need to search the channel with updating code stream.

Note: You must not switch off the unit during this process.

Parental

A password is required to gain access to this function. The factory default password is “1234”.

Channel Block To block certain TV channels.

Parental Guidance

To control access programmes based on their age ratings. All settings apply to digital channels.

Input Block To disable the specic external input signals.

Set Password

To set or change your password. Please follow the instructions to set it. All number combinations from 0000 to 9999 are valid.

Clear All To clear all the settings in the parental submenu.

No Signal Off

TV enters standby mode when there has on singal input for 30 minutes.

Off This feature can be switched off.

No Operation Off

TV enters standby mode when there has no operation on remote control or keypad.

Off This feature can be switched off.

Reset Default To reset all TV settings to the original factory values.

SW Ver. Displays the software version.

Page 50

Adjust Eco Setting

Eco Off

Eco

Exit

EXIT

Select

Enter

1. Press MENU to call out MENU.

2. Press

/ to select “Eco” , and press OK to enter.

3. Press

/ to select Eco.

4. Press

/ to adjust.

5. Press MENU/ EXIT to exit.

Item Description

Eco

Off Disables automatic backlight control.

Enables automatic backlight control. This will help to reduce the power consumption and expand the backlight life.

Page 51

Troubleshooting

Condition Explanation / Solution

No picture

No picture Check the Power Saving settings.

Cannot receive any channels

Make sure the power cord is connected securely. Turn on the power of the TV.

Check antenna/cable connections. Make sure the Cable setting is correct for your TV signal source.

TV is locked to one channel

Perform Channel Scan to add receivable channels that are not present in the TV’s memory.

Cannot receive or select

Perform Channel Scan to add receivable channels that are not present in the channels TV’s memory.

To receive or select cable channels, make sure that Cable in Tuner Mode is selected. To receive or select UHF channels over an antenna, make sure that Antenna in Tuner Mode is selected.

The TV turns off

Check if Sleep Timer is activated.

Check PC Power Management in General Settings.

No picture from some video

Check the connection between the optional video equipment and the TV sources.

Press INPUT on the remote control.

Select your desired input from the external Inputs list.

Poor picture

The quality of the images is not as good as what I saw at the store

Picture quality depends on the signal content. See Quick Setup Guide (supplied) to display the best possible picture for that signal.

Double images or ghosts

Check antenna/cable connections.

Check the antenna location and direction.

Only snow and noise appear on the screen

Check if the antenna is broken or bent; Check if the antenna has reached the end of its serviceable life. (3-5 years in normal use, 1-2 years at the seaside.)

Dotted lines or stripes

Keep the TV away from noise sources such as cars, motorcycles, or hair-dryers.

If using 300 ohm twin lead, move the excess lead away from the TV or try using 75 ohm coaxial cable instead.

No colour/Dark picture/ Colour is not correct/The picture is too bright

Press ADJ to select the desired picture mode. Adjust the Picture Mode options in the Picture settings.

Page 52

Noisy picture

Make sure that the antenna is connected using a 75ohm coaxial cable.

Keep the antenna cable away from other connecting cords.

To avoid TV interference, make sure to use an undamaged antenna cable.

No sound/Noisy sound

Good picture, no sound

Check the volume control. Press MUTE or

+ so

that disappears from the screen.

Disconnect your headphones.

For HDMI equipment, conrm that the audio output

setting of the connected equipment is set to PCM. This TV's HDMI inputs support PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits.

Audio noise

Make sure that the antenna is connected using a 75ohm coaxial cable.

Keep the antenna cable away from other connecting cords.

To avoid TV interference, make sure to use an undamaged antenna cable.

PC Input

No Picture / No Signal

Conrm the PC is correctly connected to the TV with

either the PC IN (with an HD15 cable) or with the HDMI IN.

Turn the PC off. Conrm the PC connection and

restart the PC. Plug and play will auto-detect the TV and correctly set up PC timing.

Verify PC Power Management is activated.

Poor Picture Adjust the resolution.

Wide Mode changes automatically

Default setting when you change the channel or video input, if 4:3 Default in the Screen settings is set to other than Off. If you want to lock in Wide Mode selected with WIDE on the remote control, set 4:3 Default to Off in the Screen settings.

Check the Auto Wide option in the Screen settings.

Suddenly the picture gets smaller

The picture gets smaller during the commercials, this is due to the method the provider broadcasts their contents. When HD content channels switch to SD

denition content (commercials), the picture may be

small with a black border.

Page 53

Black bands appear at the edges of the screen

Some wide screen programs are lmed in aspect

ratios that are greater than 16:9 (this is especially common with theatrical releases). Your TV will show these programs with black bands at the top and bottom of the screen. For more details, check the documentation that came with your DVD (or contact your programme provider). Programs in 4:3 aspect ratio will have bands on left and right sides of the screen.

Condition Explanation / Solution

PC Input

Certain programs on DVD or other digital sources display a loss of detail, especially during fastmotion or dark scenes

This is due to the digital compression of the source content used by certain digital broadcasts and DVDs which may cause your TV’s screen to display less detail than usual, or cause artifacts (small blocks or dots, pixilation) to appear on your screen. These signal compressions are more visible and are dependent on the clarity and resolution of the television.

Remote control does not operate

Check the polarity of the batteries or replace the batteries.

Point the remote control at the remote control sensor located at the front of the TV.

Fluorescent lamps can interfere with your remote

control operation; try turning off the uorescent

lamps.

Keep the remote control sensor area clear from obstacles.

Page 54

Dimensions & Specications

Model VT3250LED VT4250LED

Screen Size 32” diagonal 42” diagonal

Resolution 1920 x 1080 1920 x 1080

OSD Languages

Bulgarian, Croatian, Czech, Danish, Dutch, English, Finnish, French, Gaeilge, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Rumanian, Russian, Serbian, Slovakian, Slovenian, Spanish, Swedish, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Byelorussian

Video System PAL/SECAM/DVB-T/DVB-C

Audio System B/G, D/K, I, LL’ B/G, D/K, I, LL’

Speaker Output Speaker:10W x 2 Speaker: 8W x 2 + 10W x woofer

Rear Connectors

PC IN(VGA+PC Audio)

SCART(RGB+AV)

SPDIF out�

AV out

Side Connectors

Tuner

Common Interface

USB x 2

Headphone

HDMI x 2

Down-facing Connectors

Component

HDMI x 1

Input Voltage 220-240V~, 50-60Hz

Power consumption < 60W < 90W

Standby Power Consumption

< 0�5W < 0�5W

Set Dimension(W x H x D) (with base and stand)(mm)

765�8 x 539 x 197 998�2 x 670�1 x 233�5

Set Dimension(W x H x D) (w/o base and stand)(mm)

765�8 x 483�5 x 39�9

998�2 x 614�6 x 37�5

Net Weight (Kg) 10�2 15�1

Wall Mount Size 200 x 100mm 400 x 400mm

Page 55

Operation Temperature 0ºC~35ºC

USB Supported Formats JPEG JPEG

Caution:

ViewSonic is not responsible if the USB storage device is not supported, nor is it responsible for damage or loss of data from the device�

Tips:

1. If can’t detect the connected device, it would be caused by the connected

device driver not by TV failure�

2. The reading speed will be variable due to the different connected devices and

different storage capacities�

3. Sometimes it can’t detect the device because the connected device can’t

meet with the standard USB spec requirement (5V /500 mA)�

4. It can’t support all the below formats due to some source files decoding

issues� It’s not caused by TV failure�

5. USB port could be also used as software upgrade�

Page 56

Customer Support

For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number.

Country/Region Web Site Email

Austria www.viewsoniceurope.com/aus/ [email protected]

Belgium www.viewsoniceurope.com/befr/ [email protected]

Bulgaria www.viewsoniceurope.com [email protected]

Czech Republic www.viewsoniceurope.com/cz/ [email protected]

Denmark www.viewsoniceurope.com/dk/ [email protected]

Estonia www.viewsoniceurope.com// [email protected]

Finland www.viewsoniceurope.com// service_@viewsoniceurope.com

France www.viewsoniceurope.com/fr/ [email protected]

Germany www.viewsoniceurope.com/de/ [email protected]

Greece www.viewsoniceurope.com/gr/ [email protected]

Hungary www.viewsoniceurope.com/hu/ [email protected]

Republic of Ireland www.viewsoniceurope.com/uk/ [email protected]

Italy www.viewsoniceurope.com/it/ [email protected]

Latvia www.viewsoniceurope.com/lv/ [email protected]

Lithuania www.viewsoniceurope.com/lt/ [email protected]

Luxembourg www.viewsoniceurope.com/lu/ [email protected]

The Netherlands www.viewsoniceurope.com/nl/ [email protected]

Macedonia www.viewsoniceurope.com/ru/ [email protected]

Norway www.viewsoniceurope.com/no/ [email protected]

Poland

www.viewsoniceurope.com/pl/

[email protected]

Portugal www.viewsoniceurope.com [email protected]

Slovak Republic www.viewsoniceurope.com/ [email protected]

Slovenia www.viewsoniceurope.com/ [email protected]

Russia www.viewsoniceurope.com/ru/ [email protected]

Spain www.viewsoniceurope.com/es/ [email protected]

Sweden www.viewsoniceurope.com/se/ [email protected]

Switzerland www.viewsoniceurope.com/chde/ [email protected]

Ukraine www.viewsoniceurope.com/ [email protected]

United Kingdom www.viewsoniceurope.com/uk/ [email protected]

Page 57

Limited Warranty

VIEWSONIC LCD TV

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

ViewSonic LCD TVs are warranted for 1 year for all parts excluding the light source and 1 year for labor from the date of the rst

customer purchase.

Who the warranty protects:

This warranty is valid only for the rst consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modied or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized product modication, or failure to

follow instructions supplied with the product. b. Repair or attempted repair by anyone not authorized by ViewSonic. c. Any damage of the product due to shipment. d. Removal or installation of the product. e. Causes external to the product, such as electric power uctuations or failure. f. Use of supplies or parts not meeting ViewSonic’s specications. g. Normal wear and tear. h. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the

product for an extended period of time.

4. Removal, installation, and set-up service charges.

5. When you mount it on the wall, the following must be noticed: a. The accessories attached with this product are applicable for this product only. b. When the product is mounted on the wall, holes and xed screws will remain in the wall body. c. Wall face may discolor when this product has been mounted on the wall for a long time.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to Customer Support

page). You will need to provide your product’s serial number.

2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d)

a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of

merchantability and tness for a particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss

of time, loss of prots, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial

loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

Effect of state law:

This warranty gives you specic legal rights, and you may also have other rights which vary from state to state. Some states do

not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U�S�A� and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and

conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty providedcan be found in www.viewsoniceurope.com under Support/Warranty Information.

4.3: ViewSonic LCD TV Warranty LTV_LW01 Rev. 1C 06-25-07

Page 58
