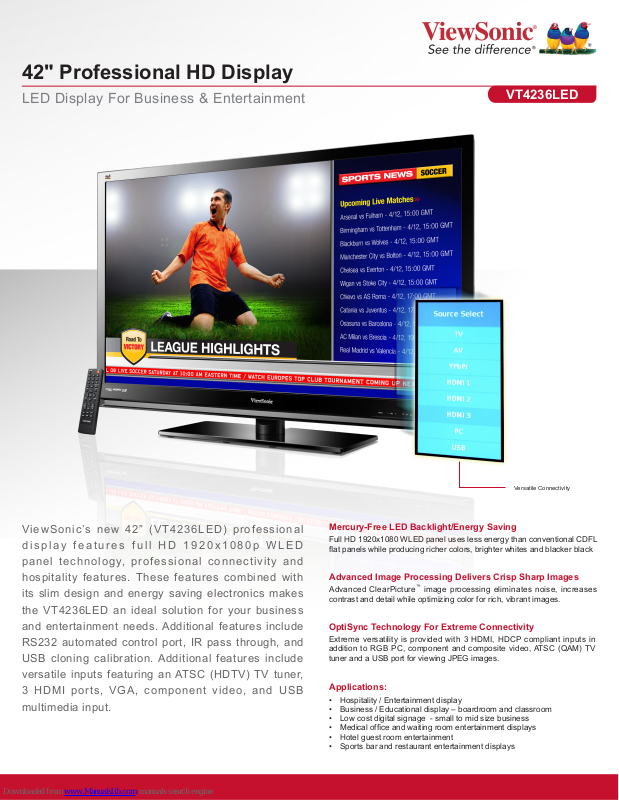

ViewSonic VT4236LED Specifications

42" Professional HD Display

LED Display For Business & Entertainment

VT4236LED

ViewSonic’s new 42” (VT4236LED) professional
display features full HD 1920x1080p WLED
panel technology, professional connectivity and
hospitality features. These features combined with
its slim design and energy saving electronics makes
the VT4236LED an ideal solution for your business
and entertainment needs. Additional features include
RS232 automated control port, IR pass through, and
USB cloning calibration. Additional features include
versatile inputs featuring an ATSC (HDTV) TV tuner,
3 HDMI ports, VGA, component video, and USB
multimedia input.

Versatile Connectivity

Mercury-Free LED Backlight/Energy Saving

Full HD 1920x1080 WLED panel uses less energy than conventional CDFL

at panels while producing richer colors, brighter whites and blacker black

Advanced Image Processing Delivers Crisp Sharp Images

Advanced ClearPicture™ image processing eliminates noise, increases
contrast and detail while optimizing color for rich, vibrant images.

OptiSync Technology For Extreme Connectivity

Extreme versatility is provided with 3 HDMI, HDCP compliant inputs in
addition to RGB PC, component and composite video, ATSC (QAM) TV
tuner and a USB port for viewing JPEG images.

Applications:

• Hospitality / Entertainment display

• Business / Educational display – boardroom and classroom

• Low cost digital signage - small to mid size business

• Medical ofce and waiting room entertainment displays

• Hotel guest room entertainment

• Sports bar and restaurant entertainment displays

42" Professional HD Display

VT4236LED

User Programmability with USB Cloning

VESA® Wall Mount

Custom user programmability is provided through an easy to use on-screen
menu selectable by remote control. In addition, a cloning function is provided
using the USB port for easy duplication of calibration to multiple displays.

Hospitality Menu

USB Cloning

Automated Control and IR Pass Through

Remote control capability is provided through a RS232 port. In addition, a IR
pass through port is provides for easy compatibility to a external set-top box
and remote control.

YPbPr Input

A/V Audio In

VGA

TV In

Remote Control Out

Specications

LCD Panel Type 42" Wide Color TFT Active Matrix LCD

Display Area 36.6" horizontal x 20.6" vertical; 42.0" diagonal
Optimum Resolution 1920x1080
Brightness 300 cd/m2 (typ
Contrast Ratio 2000:1 static (typ)
Viewing Angles 178º horizontal, 178º vertical
Response Time 6.5ms (typ.)
Backlight White-light LED
Backlight Life 30,000 hours (typ.)
Aspect Ratio 16:9
Panel Surface Anti-glare, hard-coating (3H)

INPUT / OUTPUT PC RGB analog (75 ohms, 0.7 Vp-p)
TV/Video TV/cable, composite (RCA), component YPbPr
Audio SPDIF, 3.5mm mini stereo audio in, earphone out and
RCA (left/right) audio in
Frequency Fh: 30~64kHz, Fv: 60~85Hz
Sync H/V separated (TTL)
Digital HDMI with HDCP and audio support (x3)
Tuner ATSC/NTSC/QAM
USB JPEG
Control RS232, IR Control

AUDIO OUTPUT Speakers 8 watt (x2), SPDIF, earphone

COMPATIBILITY PC Up to 1920x1080@ 60Hz (preferred)

Mac® Up to 1920x1080

INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p

CONNECTOR Analog 15-pin mini D-sub (VGA)

Digital HDMIx3, USB (Side) (JPEG)
Power Adapter DC 12V

POWER Voltage AC 100–240V (universal), +/-10% Wide Range
Consumption 113W (max)

CONTROLS Side Panel Controls Vol -/+, channel down/up, menu, source, power
Picture Picture mode, contrast, brightness, sharpness, tint, color,
screen size, wide, cinema, zoom, normal, auto adjust, clock,
phase, H/V position, color temperature, dynamic contrast,

lm mode, noise reduction

Specications and availability are subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.Corporate names, trademarks stated herein are

the property of their respective companies. Copyright © 2012 ViewSonic Corporation. All rights reserved. [16095-00B-04/12] VT4236LED

CONTROLS CONT. Audio Sound mode, treble, bass, balance, surround, AVL,
digital audio output, equalizer, rock, pop, jazz
Channel Channel list, favorite list, channel settings, air/cable,
auto (DTV/ATV) channel serarch
Parental Lock parental control, V-chip, change password,
keypad lock, source lock
Set Up Close caption, menu language, clock
Other Blue black, no signal/operation off, all reset, audio only

OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 10–90% (non-condensing)

DIMENSIONS Physical with stand 38.8 x 26.4 x 8.4 in. / 984.7 x 670.7 x 212.8 mm
(W x H x D) Physical without stand 38.8 x 24.3 x 1.8 in. / 984.7 x 617.8 x 45.9 mm

Packaging 19.7 x 15.7 x 6.1 in. / 500 x 400 x 155 mm

WEIGHT Net with stand 34.2 lb. / 15.5 kg
Net without stand 29.8 lb. / 13.5 kg
Gross 38.6 lb. / 17.5 kg

WALL MOUNT VESA® 200 x 200 mm

REGULATIONS FCC, cUL (UL), RoHS, BETS-7, Dolby, SRS,

ENERGY STAR®, NOM

RECYCLE/DISPOSAL Please dispose of in accordance with local,
state or federal laws.

WARRANTY Three-year limited warranty on parts, labor and backlight

What's in the box?

VT4236LED LCD HDTV, power cable, remote control with batteries, User Guide, Quick Start Guide

HDMI (x3)

SPDIF

RS232

USB

Earphone

ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO

14001, respectively, by TUV NORD.
