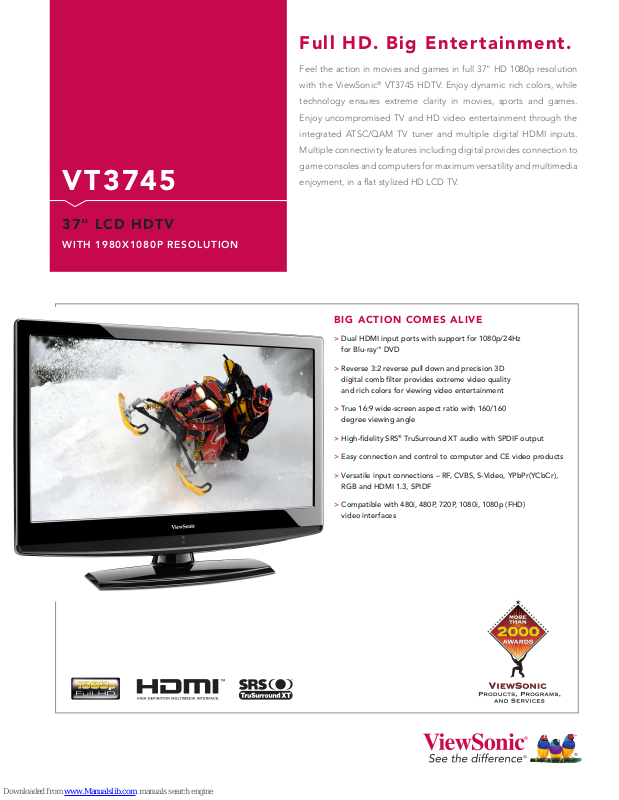

ViewSonic VT3745 - 37"" LCD TV, VT3745 Specifications

VT3745

37" LCD HDTV

WITH 1980X1080P RESOLUTION

Full HD. Big Entertainment.

Feel the action in movies and games in full 37" HD 1080p resolution

with the ViewSonic® VT3745 HDTV. Enjoy dynamic rich colors, while

technology ensures extreme clarity in movies, sports and games.

Enjoy uncompromised TV and HD video entertainment through the

integrated ATSC/QAM TV tuner and multiple digital HDMI inputs.

Multiple connectivity features including digital provides connection to

game consoles and computers for maximum versatility and multimedia

enjoyment, in a flat stylized HD LCD TV.

BIG ACTION COMES ALIVE

Dual HDMI input ports with support for 1080p/24Hz >

for Blu-ray™ DVD

Reverse 3:2 reverse pull down and precision 3D >
digital comb filter provides extreme video quality
and rich colors for viewing video entertainment

True 16:9 wide-screen aspect ratio with 160/160 >
degree viewing angle

High-fidelity SRS >

Easy connection and control to computer and CE video products >

Versatile input connections – RF, CVBS, S-Video, YPbPr(YCbCr), >
RGB and HDMI 1.3, SPIDF

Compatible with 480i, 480P, 720P, 1080i, 1080p (FHD) >
video interfaces

®

TruSurround XT audio with SPDIF output

VT3745

37" LCD HDTV WITH 1980X1080P RESOLUTION

LCD Type 37" Color TFT Active Matrix, wide LCD

Display Area 32.4" horizontal x 18.2" vertical; 37" diagonal
Optimum Resolution 1920x1080
Contrast Ratio 4000:1 (typ)
Viewing Angles 160º horizontal, 160º vertical
Response Time 5ms
Light Source Long life, 50,000 hrs. LCD panel
Brightness 450 cd/m2 (typ)
Aspect Ratio 16:9
Glass Surface Anti-glare

INPUT PC RGB analog (75 ohms, 0.7 Vp-p)

TV S-video, TV/cable, composite (RCA), component YPbPr/YCbCr
Audio 3.5mm mini stereo audio in/out and RCA (left/right) audio in (x2)
Frequency Fh: 30~64kHz, Fv: 60~75Hz
Sync H/V separated (TTL)
Digital HDMI with HDCP and audio support (x2)
Tuner ATSC/NTSC/QAM

AUDIO OUTPUT Speakers 2x5-watt
COMPATIBILITY PC 640x480, 800x600, 1024x768, 1280x720, 1280x768,

1280x1024, 1360x768
Mac®* G3/G4/G5 up to 1920x1080

INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR Analog 15-pin mini D-sub (VGA)

Digital HDMI (x2)
Power 3-pin AC plug

POWER Voltage AC 100–120V (universal), 50/60Hz

Consumption 145W (typ)

CONTROLS Basic Power, enter, channel +/–, volume +/–, menu

Picture Picture mode, brightness, contrast, color, tint, sharpness,
color temperature

TV/Audio Balance, bass, treble, surround, reverb, equalizer, SPDIF type,
auto volume control, tuner mode, auto scan, channel skip,
MTS, audio language

Set Up OSD language, aspect ratio, blue mute, time setup, closed
caption, memory recall, channel block, program block, input
block, change password, clear all

OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 10–65% (non-condensing)
DIMENSIONS Physical with stand 35.4" x 26.7" x 10" (900mm x 678mm x 254mm)
(W x H x D) Physical without stand 35.4" x 24.6" x 3.5" (900mm x 624mm x 89mm)
WEIGHT Net with stand 30.9 lb. (14kg)

Net without stand 28.6 lb. (13kg)
Gross 39.2 lb. (17.8kg)

VESA® MOUNT 200mm x 200mm
REGULATIONS cUL, FCC, NOM, EN 55013, CB, Dolby®, RoHS
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please

dispose of in accordance with local, state or federal laws.

PACKAGE CONTENTS LCD TV display, power cable(s), remote control with batteries,

Quick Start Guide, User Guide

WARRANTY One-year limited warranty on parts, labor and backlight.

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.

Sales: [phone] • [e-mail] • ViewSonic.com

*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and
programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the
property of their respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [15390-00B-12/10] VT3745-1

For more product information, visit us on the web at ViewSonic.com
