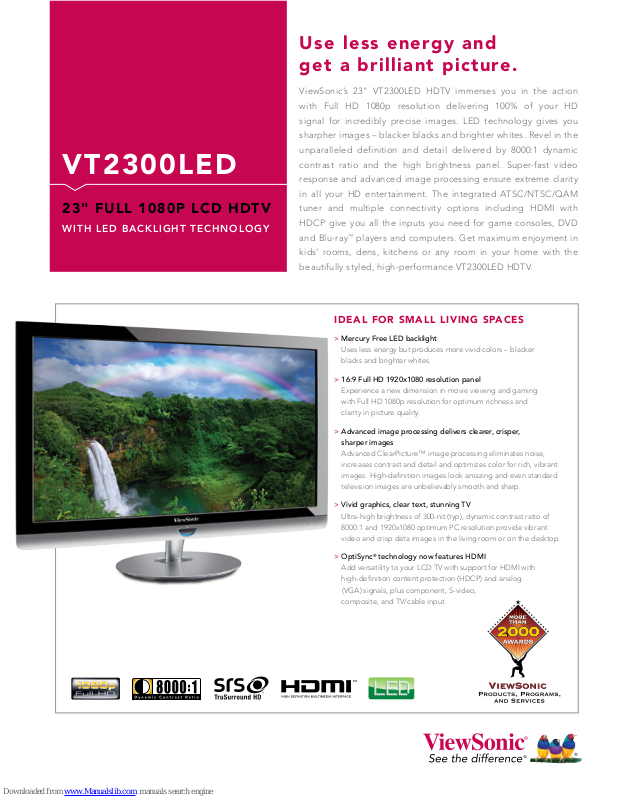

VT2300LED
23" FULL 1080P LCD HDTV
WIT H LED BACK L IGHT TECH N OLO G Y
Use less energy and
get a brilliant picture.
ViewSonic’s 23" VT2300LED HDTV immerses you in the action
with Full HD 1080p resolution delivering 100% of your HD
signal for incredibly precise images. LED technology gives you
sharpher images – blacker blacks and brighter whites. Revel in the
unparalleled definition and detail delivered by 8000:1 dynamic
contrast ratio and the high brightness panel. Super-fast video
response and advanced image processing ensure extreme clarity
in all your HD entertainment. The integrated ATSC/NTSC/QAM
tuner and multiple connectivity options including HDMI with
HDCP give you all the inputs you need for game consoles, DVD
and Blu-ray™ players and computers. Get maximum enjoyment in
kids’ rooms, dens, kitchens or any room in your home with the
beautifully styled, high-performance VT2300LED HDTV.
IDEAL FOR SMALL LIVING SPACES
Mercury Free LED backlight
>
Uses less energy but produces more vivid colors – blacker
blacks and brighter whites.
16:9 Full HD 1920x1080 resolution panel
>
Experience a new dimension in movie viewing and gaming
with Full HD 1080p resolution for optimum richness and
clarity in picture quality.
Advanced image processing delivers clearer, crisper,
>
sharper images
Advanced ClearPicture™ image processing eliminates noise,
increases contrast and detail and optimizes color for rich, vibrant
images. High-definition images look amazing and even standard
television images are unbelievably smooth and sharp.
Vivid graphics, clear text, stunning TV
>
Ultra-high brightness of 300-nit (typ), dynamic contrast ratio of
8000:1 and 1920x1080 optimum PC resolution provide vibrant
video and crisp data images in the living room or on the desktop.
OptiSync® technology now features HDMI
>
Add versatility to your LCD TV with support for HDMI with
high-definition content protection (HDCP) and analog
(VGA) signals, plus component, S-video,
composite, and TV/cable input.
VT2300LED
23 " F U LL 108 0P LCD HD T V W IT H L E D B ACK L IG H T T EC H NO L OG Y
LCD Type 23" Wide Color TFT Active Matrix LCD
Display Area 20.0" horizontal x 11.3" vertical; 23.0" diagonal
Optimum Resolution 1920x1080
Contrast Ratio 1000:1 static (typ), 8000:1 dynamic
Viewing Angles 170º horizontal, 160º vertical
Response Time 5ms
Light Source Long life, 30,000 hrs. (typ)
Brightness 300 cd/m
Aspect Ratio 16:9
Glass Surface Anti-glare, anti-reflective coat
INPUT PC RGB analog (75 ohms, 0.7 Vp-p)
TV TV/cable, composite (RCA), component YPbPr/YCbCr, S-Video
Audio
Frequency Fh: 30~64kHz, Fv: 60~75Hz
Sync H/V separated (TTL)
Digital HDMI (with HDCP and audio support)
Tuner ATSC/NTSC/QAM
AUDIO OUTPUT Speakers 2x5-watt
COMPATIBILITY PC 1920x1080 @ 60Hz (preferred)
Mac®* G3/G4/G5 up to 1920x1080
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR Analog 15-pin mini D-sub (VGA)
Digital HDMI
Power 3-pin AC plug
POWER Voltage AC 100–240V (universal), +/-10% Wide Range
Consumption 30W (typ)
CONTROLS Basic Vol -/+, menu, channel down/up, source, power
Picture Contrast, brightness, sharpness, tint, color,
color mode, zoom mode
TV TV/CATV, Auto scan
Set Up OSD timeout, OSD language
Audio Treble, bass, balance
ERGONOMICS Tilt Down 5º, Up 15º
OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 10–65% (non-condensing)
DIMENSIONS Physical with stand 22.2" x 16.5" x 7.5" (565mm x 418mm x 191mm)
(W x H x D) Physical without stand 22.2" x 14.0" x 1.8" (565mm x 358mm x 45mm)
WEIGHT Net with stand 9.9 lb. (4.5 kg)
Gross with stand 12.3 lb. (5.6 kg)
VESA® MOUNT 100mm x 100mm
REGULATIONS FCC, cUL (UL), RoHS, NOM, BETS-7, CB, ENERGY STAR
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS LCD TV display, power cable(s), remote control with batteries,
Quick Start Guide, User Guide
WARRANTY One-year limited warranty on parts and backlight
3.5mm mini stereo audio in, earphone out and RCA (left/right) audio in
2
(typ)
®
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and
programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the
property of their respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved. [14892-00C-03/10] VT2300LED-1
