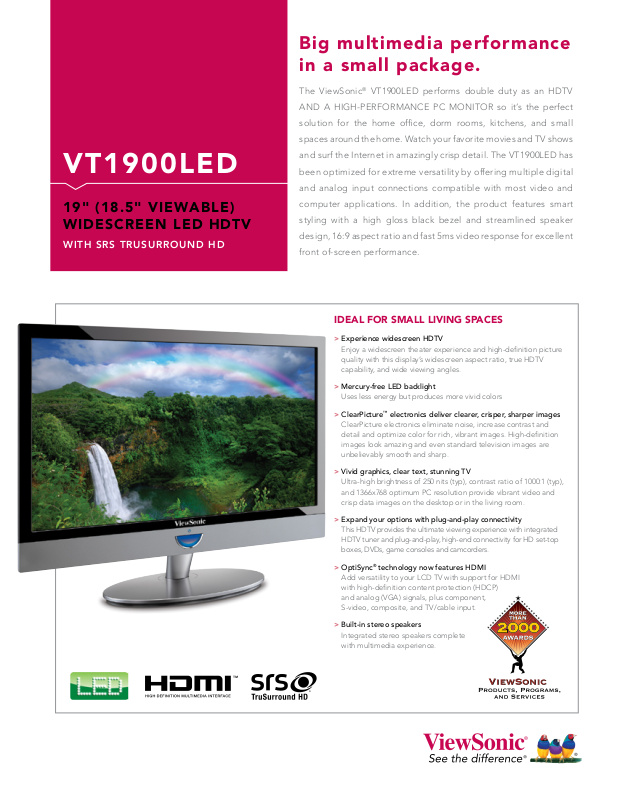

Page 1
VT1900LED
19" (18.5" VIEWABLE)
WIDESCREEN LED HDTV
WIT H S RS T RUS URRO UND HD
Big multimedia performance
in a small package.
The ViewSonic® VT1900LED performs double duty as an HDTV
AND A HIGH-PERFORMANCE PC MONITOR so it’s the perfect
solution for the home office, dorm rooms, kitchens, and small
spaces around the home. Watch your favorite movies and TV shows
and surf the Internet in amazingly crisp detail. The VT1900LED has
been optimized for extreme versatility by offering multiple digital
and analog input connections compatible with most video and
computer applications. In addition, the product features smart
styling with a high gloss black bezel and streamlined speaker
design, 16:9 aspect ratio and fast 5ms video response for excellent
front of-screen performance.
IDEAL FOR SMALL LIVING SPACES
Experience widescreen HDTV
>
Enjoy a widescreen theater experience and high-definition picture
quality with this display’s widescreen aspect ratio, true HDTV
capability, and wide viewing angles.
Mercury-free LED backlight
>
Uses less energy but produces more vivid colors
ClearPicture™ electronics deliver clearer, crisper, sharper images
>
ClearPicture electronics eliminate noise, increase contrast and
detail and optimize color for rich, vibrant images. High-definition
images look amazing and even standard television images are
unbelievably smooth and sharp.
Vivid graphics, clear text, stunning TV
>
Ultra-high brightness of 250 nits (typ), contrast ratio of 1000:1 (typ),
and 1366x768 optimum PC resolution provide vibrant video and
crisp data images on the desktop or in the living room.
Expand your options with plug-and-play connectivity
>
This HDTV provides the ultimate viewing experience with integrated
HDTV tuner and plug-and-play, high-end connectivity for HD set-top
boxes, DVDs, game consoles and camcorders.
OptiSync® technology now features HDMI
>
Add versatility to your LCD TV with support for HDMI
with high-definition content protection (HDCP)
and analog (VGA) signals, plus component,
S-video, composite, and TV/cable input.
Built-in stereo speakers
>
Integrated stereo speakers complete
with multimedia experience.
Page 2
VT1900LED
19" (18. 5" VIEWABLE) WIDESCREEN LED HDTV WITH SRS TRUSURROUND HD
LCD Type 19" (18.5" viewable) color TFT active matrix, wide LCD
Display Area 16.1" horizontal x 9.0" vertical; 18.5" diagonal
Optimum Resolution 1366x768
Contrast Ratio 1000:1 (typ)
Viewing Angles 170º horizontal, 160º vertical
Response Time 5ms
Light Source Long life 50,000 hrs (typ)
Brightness 250 cd/m
Aspect Ratio 16:9
Glass Surface Anti-glare, anti-reflective coat
INPUT
PC RGB analog (75 ohms, 0.7 Vp-p)
TV TV/cable, composite (RCA)
Audio 3.5mm mini stereo audio in/out and RCA (left/right) audio in
RGB Frequency F
Sync H/V separated (TTL)
Digital HDMI (with HDCP and audio support)
Tuner ATSC/NTSC/QAM
AUDIO OUTPUT
RCA Left/right
COMPATIBILITY
Mac
INPUT SIGNAL
CONNECTOR
Digital HDMI
Power 3-pin plug
POWER
Voltage AC 100–240V, (universal), 47–63Hz
Consumption 42W (typ)
CONTROLS
OnView
fine tune, color temperature, picture mode
(Video Mode) Picture (contrast, brightness, color, tint, sharpness, color
temperature), sound (volume, balance, bass, treble), input
menu (TV, AV, S-video, YCbCr, YPbPr, HDMI, VGA), parental
control (caption, change password, V-chip temporary
disable), setup menu (time out, language, memory recall)
(TV Mode) MTS, TV/CATV, auto scan, set channel, channel delete,
label, favorite, fine tune
ERGONOMICS
OPERATING
CONDITIONS Humidity 10–65% (non-condensing)
DIMENSIONS
(W x H x D) Physical without stand 17.4" x 11.8" x 1.6" (443mm x 299mm x 1.6mm)
WEIGHT
Net without stand 9.8 lb. (4.4 kg)
Gross with stand 14.2 lb. (6.4 kg)
WALL MOUNT
REGULATIONS
PACKAGE CONTENTS
batteries, Quick Start Guide, User Guide
WARRANTY
Speakers 2 x 3-watt
PC 1360x768 (preferred), 1280x1024
®
* Power Mac™ G3/G4/G5 up to 1360x768
TV/Video comp. 480i, 480p, 720p, 1080i
Analog 15-pin mini D-sub (VGA)
Basic Power, enter, channel +/–, volume +/–, menu
Tilt Down 2º, Up 20º
Temperature 32–104ºF (0–40ºC)
Physical with stand 17.4" x 13.6" x 5.0" (443mm x 347mm x 126mm)
Net with stand 10.4 lb. (4.9 kg)
VESA 100mmx100mm
UL, FCC, NOM, EN 55013, CB
®
(PC mode) Auto adjust, contrast, brightness, H position, V position,
LCD TV display, power cable(s), remote control with
One-year limited warranty on parts and backlight.
2
(typ)
: 24~82kHz, Fv: 50~75Hz
h
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
Sales: (888) 881-8781 • [email protected] • ViewSonic.com
*Adapter may be required. Analog adapter available from ViewSonic. All stated contrast ratios are typical. Specifications and availability are subject to
change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. HDMI, the HDMI
logo and High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing in the U.S. and/or other countries. SRS
TruSurround HD is a trademark of SRS Labs, Inc. Corporate names, trademarks stated herein are the property of their respective companies. Copyright
© 2010 ViewSonic Corporation. All rights reserved. [15054-01B-08/10] VT1900LED-1
