Page 1
VT1601LED
LCD TV
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://www.
viewsonic.com in English, or in specific languages using the Regional selection box in
the upper right corner of our website. “Antes de operar su equipo lea cu idadosamente
las instrucciones en este manual”
Model No. VS14862-1M
Page 2
ENGLISH
i
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning:Youarecautionedthatchangesormodicationsnotexpresslyapprovedbythepartyresponsible
for compliance could void your authority to operate the equipment.
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment
Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste,
but use the return and collection systems according to local law.
If the batteries, accumulators and button cells included with this equipment, display the chemical
symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than
0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.
ENERGY STAR Information:
To ensure your television is operating at optimal energy efciency, select [Home] mode during initial
activation.
Toreturnto[Home]modesettings,select[Standard]picturemode.[Standard]modeisrecommendedfor
normal home use.
KeepingtheTVatitsfactorydefaultsettingsthatmeetENERGYSTARcriteria.
Enabling certain features and functionality of LED TV will increase its energy consumption, possibly beyond
thelimitsrequiredforENERGYSTARqualication.
SRS Trademark Information:
•isatrademarkofSRSLabs,Inc.TruSurroundHDtechnologyisincorporatedunderlicense
fromSRSLabs,Inc.
SRSTruSurroundHD™createsanimmersive,feature-richsurroundsoundexperiencefromtwospeakers,
complete with rich bass, high frequency detail and clear dialog.
Page 3
ENGLISH
ii
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European
Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic
equipment(RoHSDirective)andisdeemedtocomplywiththemaximumconcentrationvaluesissuedbythe
EuropeanTechnicalAdaptationCommittee(TAC)asshownbelow:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
CertaincomponentsofproductsasstatedaboveareexemptedundertheAnnexoftheRoHSDirectivesas
noted below:
Examples of exempted components are:
1.Mercuryincompactuorescentlampsnotexceeding5mgperlampandinotherlampsnotspecically
mentionedintheAnnexofRoHSDirective.
2.Leadinglassofcathoderaytubes,electroniccomponents,uorescenttubes,andelectronicceramicparts
(e.g. piezoelectronic devices).
3.Leadinhightemperaturetypesolders(i.e.lead-basedalloyscontaining85%byweightormorelead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to
0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
Page 4
ENGLISH
iii
Copyright Information
Copyright©ViewSonic®Corporation,2012.Allrightsreserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonicCorporation.
ENERGYSTAR®isaregisteredtrademarkoftheU.S.EnvironmentalProtectionAgency(EPA).
AsanENERGYSTAR®partner,ViewSonicCorporationhasdeterminedthatthisproductmeetstheENERGY
STAR®guidelinesforenergyefciency.
Disclaimer:ViewSonicCorporationshallnotbeliablefortechnicaloreditorialerrorsoromissionscontained
herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance
or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change
productspecicationswithoutnotice.Informationinthisdocumentmaychangewithoutnotice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without
priorwrittenpermissionfromViewSonicCorporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please
register your product on the Internet at: www.viewsonic.com.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VT1601LED
ViewSonic LED TV
VS14862-1M
VT1601LED-1M_UG_ENG Rev. 1A 06-01-12
_________________________________
_________________________________
Product disposal at end of product life
ViewSonicrespectstheenvironmentandiscommittedtoworkingandlivinggreen.Thankyouforbeingpart
ofSmarter,GreenerComputing.PleasevisitViewSonicwebsitetolearnmore.
USA&Canada:http://www.viewsonic.com/company/green/recycle-program/
Europe:http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
Page 5
ENGLISH
iv
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instr uctions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not f it into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the car t, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. W hen a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all ser vicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. WARNING: To Reduce The Risk Of Fire Or Electric Shock,
Do Not Expose This Apparatus To Rain Or Moisture
16. Apparatus shall not be exposed to dripping or splashing
and no objests filled with liquids, such as vases, shall be
palced on the apparatus
17. The mains plug or appliance coupler shall remain readily opeable.
USE
AC power Cord
Keep the following guidelines to protect the AC power cord from
being damaged. If the AC power cord is damaged, it may result
in a fire or an electric shock. Stop using it and ask your dealer or
ViewSonic service center to exchange it.
•Do not place the TV where the power cord is subject to wear
or abuse.
•Do not pinch, bend, or twist the cord excessively.
•The core lines may be bared and cut, causing a short-circuit,
and resulting in a fire or an electric shock.
•Do not convert or damage the power cord.
•Avoid power cord being rolled over or rested
upon.
•When the power cord is plugged in, do not
move the TV.
•Keep the power cord away from heat sources.
•When you disconnect the AC power cord, disconnect it from
the wall outlet first.
•When disconnecting the power cord, grasp the plug instead of
pulling the power cord.
•Use only an original ViewSonic AC power cord, not other
brands.
•Do not use the supplied AC power cord on any other
equipment.
Wall outlet
Insert the plug fully into the outlet. If it is loose,
do not use it. Doing so may cause arcing and
result in a fire. Contact your electrician to change
the outlet.
Wiring
For your safety, be sure to unplug the AC power
cord when connecting cables.
Take care not to trip on the cables. It may cause damage to the
TV set.
Electric shock
Do not touch the AC power cord or the TV with a
wet hand. If you plug/unplug the AC power cord
from the TV with a wet hand, it may cause electric shock.
Lightning storms
During a lightning storm, unplug the TV from the wall outlet and
disconnect the antenna to prevent damage to the TV.
When not in use
If you will not be using the TV set for long periods of time, the
TV set should be disconnected from the AC power outlet to
prevent power line surges. The TV set is not disconnected from
the AC power source when the TV set is switched off.
To disconnect the TV set completely, unplug from the AC power
outlet.
Overloading
This TV set is designed to operate on a 120V AC supply only.
Dangerous Voltage:
The lightning flash with
arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of
dangerous voltage within the inside of the product
that may be sufficient level to constitute a risk of
electric shock to persons.
Instruction: The exclamation point within an
equilateral triangle is intended to alert the user to
the presence of important operating and servicing
instructions in the literature accompanying the
appliance.
Page 6
ENGLISH
v
If there are too many appliances connected to the
same AC power outlet, it could result in a fire or
an electric shock.
Optional equipment
If optional equipment is to be installed, leave
some space between optional equipment and
the TV set. Picture distortion and/or noisy sound may occur if
the TV set is positioned in close proximity to any equipment
emitting electromagnetic radiation.
Small accessories
Keep small accessories in a safe place where children are unable
to reach.
Magnetic inuence
This TV contains a strong magnet in the speaker unit that
generates a magnetic field. Keep any items susceptible to
magnetic fields away from the speaker.
Sound
If you hear snapping or popping sound comes
from the TV continuously or frequently while the
TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TVs to make occasional
snapping or popping sounds, particularly when being turned on
or off.
Use in outdoor
This TV is not designed for outdoors
installation. Do not expose the TV to rain,
as it may result in a fire or an electric shock.
Also, do not expose the TV to direct sunlight,
as it may heat up and become damaged.
Vehicle, ships and other vessels
Do not install this TV in a vehicle.
Car accidents may cause the TV to fall down and
cause injury.
Do not install this TV in a ship or vessel.
If the TV is exposed to seawater, it may cause a
fire or damage the TV.
Medical institutions
Do not place this TV in a place where medical equipment is in
use. It may cause the medical equipment to malfunction.
Volume adjustment
•Adjust the volume to avoid dist urbing your neighbors.
Sound carries easily at night. Therefore, we suggest you close
the windows or use headphones.
•When using headphones, adjust the volume to appropriate
levels, or hearing damage may result.
ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the precautions below.
Do not install the outdoor antenna system near of overhead
power lines or other electric light or power circuits, or where it
can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so that it can provide
some protection against voltage surges and built-up static
charges.
Section 810 of the National Electrical Code (NEC) in the U.S.A.
and Section 54 of the Canadian Electrical Code in Canada
provides information with in regard to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANS/NFPA 70
Antenna
Antenna discharge
unit
Grounding conductors
Power service grounding
electrode system
Ground clamps
Electric service
equipment
Ground clamp
CLEANING
Cleaning the AC power plug
Unplug the AC power plug and clean it
regularly. If the plug is covered with dust and
gathers moisture, its insulation may deteriorate
and result in a fire.
Cleaning the screen surface/ cabinet of
the TV set
When cleaning this TV, unplug the AC power
cord. If not, it may result in electric shock. Use
a dry soft cloth to clean the cabinet of the TV. To remove dust
near the screen, wipe it gently with a soft cloth. Stubborn stains
may be removed with a cloth slightly dampened with a solution
of mild soap and warm water. Never use strong solvents such as
thinner or benzine for cleaning. If using a chemically pretreated
cloth, please follow the instruction provided on the package. The
ventilation holes can accumulate dust over time.
To ensure proper ventilation, we recommend you to remove the
dust periodically (once a month) using a vacuum cleaner, while
the LED TV is powered off.
Disclaimer
Some chemical cleaners have been reported to damage the
screen and/or case of the LCD TV. ViewSonic will not be liable
for damage resulting from use of these cleaners.
CARRYING THE TV
Carry the TV as instructed
To prevent dropping the TV and causing serious injury, you must
follow these guidelines:
•Disconnect all cables before carrying the TV.
•Carrying the large size TV requires at least two or three
people.
•When you carry the TV, place your hands as illustrated and
hold it securely. Do not put stress on the LCD panel and the
frame around the screen.
•When carrying the TV, do not subject it to shocks, vibration,
Page 7
ENGLISH
vi
or excessive force.
•When lifting or moving the TV, hold it securely from the
bottom. Place your palm directly under the panel.
VENTILATION
Slots and openings in TV are provided for ventilation. To ensure
reliable operation of the TV and to protect it
from overheating, be sure these openings are
not blocked or covered.
The TV may accumulate dust and get dirty if
proper ventilation is not provided. For proper
ventilation, follow the following guidelines:
•Never install the TV face up, down or
sideways.
•Never install the TV turned over or upside
down.
•Never cover the slots and openings with a
cloth or other materials.
•Never block the slots and openings by
placing the TV on a bed, sofa, rug or other
similar surface.
•Never place the TV in a confined space, such as a bookcase
or built-in cabinet, unless proper ventilation is provided.
Leave some space around the TV set as shown below. Otherwise,
air-circulation may be inadequate and cause overheating, which
may cause a fire or damage to the TV set.
Installed on the wall
Installed with stand
4 inches
(10 cm)
4 inches
(10 cm)
2.375 inche
s
(6.03 cm)
11.875 inches
(30.16 cm)
4 inches
(10 cm)
4 inches
(10 cm)
4 inches
(10 cm)
11.875 inches
(30.16 cm)
Leave at least this space around the set.
Do not install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Objects and ventilation holes
Never push any objects into the slots on the TV cabinet as they
may touch dangerous voltage points or short out parts that could
result in a fire or an electric shock. Do not place any objects on
the TV.
MOISTURE
Moisture and ammable objects
•Keep the product away from moisture. Do not
expose this appliance to rain or moisture. Do
not place objects filled with liquids, such as
vases, on the TV.
•Do not use power-line operated V sets near
water, such as in places like a bathtub,
washbowl, kitchen sink, laundry tub, a wet
basement, or near a swimming pool, etc. It may
cause fire or electric shock.
•Do not let this TV get wet. Never spill liquid of any kind on the
TV. If water penetrates into the product, unplug the power cord
and contact ViewSonic.
•Do not operate the TV when wet. It may result in electric shock
or damage to the TV.
•To prevent fire, keep flammable objects or open flame (e.g.
candles) away from the TV.
INSTALLATION
Optional wall mount
To do Wall mount installation, you need a Wall-Mount Bracket.
When installing or removing the TV using the Wall-Mount
Bracket, be sure to use qualified contractors. If not properly
secured during installation or removal from the Wall-Mount
Bracket, the TV may fall and cause serious injury.
•When installing the TV using a Wall-Mount Bracket, make
sure you follow the operating instructions supplied with the
Wall-Mount Bracket.
•Attach the brackets supplied with the Wall-Mount Bracket.
•The TV is not designed for hanging from the ceiling. It may
fall and cause serious injury.
Placement
The TV should be installed near an easily accessible AC power
outlet.
Observe the following to prevent the TV from
falling from the stand or wall mount.
•Place the TV on a stable, level surface.
•Do not hang anything on the TV. Do not allow
Page 8
ENGLISH
vii
children to climb on the TV.
•Do not install the TV in places subject to extreme
temperature, such as in direct sunlight, near a radiator, or
heating vent. If the TV is exposed to extreme temperature,
the TV may overheat and cause deformation of the enclosure
or cause malfunction.
•Do not install the TV in a place exposed to direct air
conditioning.
•If the TV is installed in such a location, moisture may
condense inside and may cause a malfunction.
•Do not place the TV in hot, oily, humid or
excessively dusty places.
•Do not install the TV where insects may
enter.
•Do not install the TV where it may be exposed to mechanical
vibration.
•Do not install the TV in a location where it may spear up,
such as on or behind a pillar, or where you might bump your
head on it. It may cause injury.
Preventing the TV from toppling over
To prevent the TV from toppling over, secure the TV to a wall
or stand.
Placement for watching
We suggest you to watch the TV at a distance of 3-7 times that
of the screen height, and not in excessive brightness. It is easy
to cause eye fatigue if you watch TV for too long or in a dark
room. To obtain clear picture, do not expose the screen to direct
illumination or sunlight. Use spot lighting directed down from
the ceiling if you can.
LCD SCREEN
•Although the LCD screen is made with high precision
technology and has effective pixels of 99.99% or more, black
dots or bright points or light (red, blue, or green) may appear
constantly on the LCD screen. This is a str uctural property of
the LCD panel and is not a malfunction.
•The LCD screen is made with high-precision technology. To
achieve a high level of perfor mance and picture quality, this
TV’s backlight setting is set to maximize the brightness of
the TV. However, uneven brightness may be obser ved when
the LED TV is viewed in a dark environment without an input
source or a blank screen. This is a normal condition, not a
malfunction of the TV. To improve this condition, change the
Picture mode, Backlight setting, enable the Light Sensor, or
tur n on the Power management.
•Avoid exposing the LCD screen surface to direct sunlight. It
is likely to damage the LCD panel.
•Do not push or scratch the LCD screen, or place objects on
top of the TV. The image may be uneven or the LCD panel
may be damaged.
•If the TV is used in a cold place, a smear may occur in the
picture or the picture may become dark. It is not caused by a
failure. This condition will improve as the temperature rises.
•When still pictures are displayed continuously, ghosting may
occur. It should disappear after a shor t period of time.
•The screen and cabinet get warm when the TV is in use. This
is a normal condition.
•Spraying insect repellent with volatile material on the screen
will cause damage.
•Do not make prolonged contact with rubber or plastic
material.
Broken pieces
Do not throw anything at the TV.
Doing so may break the screen glass and cause
serious injury.
If the surface of the TV cracks, unplug the AC
power cord before touching the TV. Otherwise electric shock
may result.
Handling of broken glass and liquid
crystal leakage
If the LCD panel gets damaged, crystalline liquid leakage may
occur, or scattered broken glass may result. Do not touch broken
glass or crystalline liquid which is toxic, with bare hands as
cuts, poisoning or skin irritation may occur. Also do not glass
fragments or leaked crystalline liquid get into your eyes or
mouth. Should either contacted your eyes or mouth, rinse the
contacted area thoroughly with water and consult your doctor.
SERVICING
Do not attempt to repair the TV yourself,
since opening the cabinet may expose you
to dangerous voltage or other hazards. Ask
qualified service personnel to do the servicing
for your TV.
Replacement parts
When replacement parts are required, be sure the service
technician certifies in writing that he/she has used replacement
parts specified by the manufacturer that have the same
characteristics as the original parts. Unauthorized substitutions
may cause a fire, an electric shock or other hazards.
Safety check
Upon completion of repairs to the TV, ask the service
technician to perform routine safety checks (as specified by the
manufacturer) to determine that the TV is safe for operating, and
to so certify.
Ask a qualified service technician to dispose of the TV.
Page 9
1
ENGLISH
Getting Started
Package Contents
Please make sure the following items are included with your LCD TV.
If any items are missing, please contact your dealer.
Power Cord
Adapter
ViewSonic Quick Start Guide
ViewSonic User Guide
Remote Control
with batteries
LCD TV
Page 10
2
ENGLISH
Getting Started
Installing the LCD TV
Installing the Stand
1. Lay the TV at on a table with the LCD screen face down. To prevent the TV from being
scratched, put a piece of soft cloth on the table on which the screen will be set. (see Figure 1)
2. Unpack the stand, one hand hold the TV and one hand pull stand with arm together. (see
Figure 2)
3. Stand the TV up. (see Figure 3)
Disconnecting the Stand
1. Lay the TV at on a table with the LCD screen face down. To prevent the TV from being
scratched, put a piece of soft cloth on the table on which the screen will be set. (see Figure 1)
2. Remove the 4 screws on the hinge, then pull up the stand slowly. (see Figure 2)
3. Then, you shall successfully uninstall the stand. (see Figure 3)
Page 11
3
ENGLISH
Getting Started
Mounting ViewSonic LCD TV to the wall
The LCD TV can be used in a free standing position or wall-mounted. Before installing the product to the
wall, please consider the following guidelines:
• Read the Important Safety Instructions, at the start of this manual.
• Do not install in a moist or wet environment. This equipment is intended for indoor use.
• Do not install near heat source, or strong magnetic elds.
• Use only ViewSonic approved wall-mounting brackets to support the LCD TV weight.
• Before attaching the wall mount plate to the back cover, ensure the product is working.
• If your LCD TV is already set up for free-standing operation, you need to rst remove the
stand before mounting the device to the wall.
To attach the wall-mount bracket to LCD TV safely, please use the following guidelines:
• Disconnect the power and any other cables that might hinder moving the LCD TV.
• Set the LCD TV on a table or work surface, placing the screen face down on a towel or
woolen blanket to protect the screen surface from damage while installing plate.
• Before installing the LCD TV on the wall, ensure you have recorded the product serial
number on page (i) of the User Guide, as you will need the serial number to request
service should there be a service need.
• Install the wall mount plate to the LCD TV using screws NO LONGER than 10mm, as
longer screws found in universal (non-ViewSonic) wall mount kits may damage the
power supply causing the unit to fail. The wall-mount screw type is M4 x L10.
• Mount the wall mount bracket to the wall ensuring use of proper screws to support the
installation. Ensure there is at least 3cm of space surrounding any air-vents of your
LCD TV to allow adequate cooling during operation.
• Hang the LCD TV wall mount plate to the wall mount bracket, completing installation.
Enjoy your ViewSonic LCD TV!
Page 12
4
ENGLISH
Getting Started
Wall Mount Kit Specications (VESA)
When attaching to other building materials, please contact your nearesr dealer.
Product Family inch VESA Spec. (A x B) Standard Screw (C x D) Quantity
LCD TV
16 75 x 75 mm M4 x L10 4
19 ~ 24 100 x 100 mm M4 x L10 4
26 ~ 27 200 x 100 mm M4 x L10 4
32 ~ 37 400 x 100 mm M6 x L10 4
42 ~ 47 600 x 200 mm M6 x L10 4
52 400 x 200 mm M6 x L10 4
• ViewSonic provides the standard dimensions for wall mount kits as shown in the table
above.
C
D
• To nd the perfect mount, please browse www.viewsonic.com or call our service team:
United States 1-800-688-6688, Canada 1-866-463-4775.
• When purchasing our wall mount kit, a detailed install manual and all parts necessary for
assembly are provided.
• Do not use the screws that longer than the standard dimension, as they may cause damage
to the inside of the TV set.
Page 13
5
ENGLISH
Getting Started
Front View of the Product
Item Description
1
Power LED Indicator
Lights up in blue when the TV is turned on. Lights up in orange
when the TV is in standby mode.
2
CH Up / Down
Channel up / down when source is TV, or select a control while in OSD menu.
3
MENU
Turn OSD menu ON/OFF.
4
Power ON/OFF button
Turn the power on from standby mode or turn the power off to return to the
standby mode.
5
INPUT
Select input source.
6
Volume Up / Down
Increase / Decrease sound volume or adjust a highlighted control while in OSD
menu.
Page 14
6
ENGLISH
Getting Started

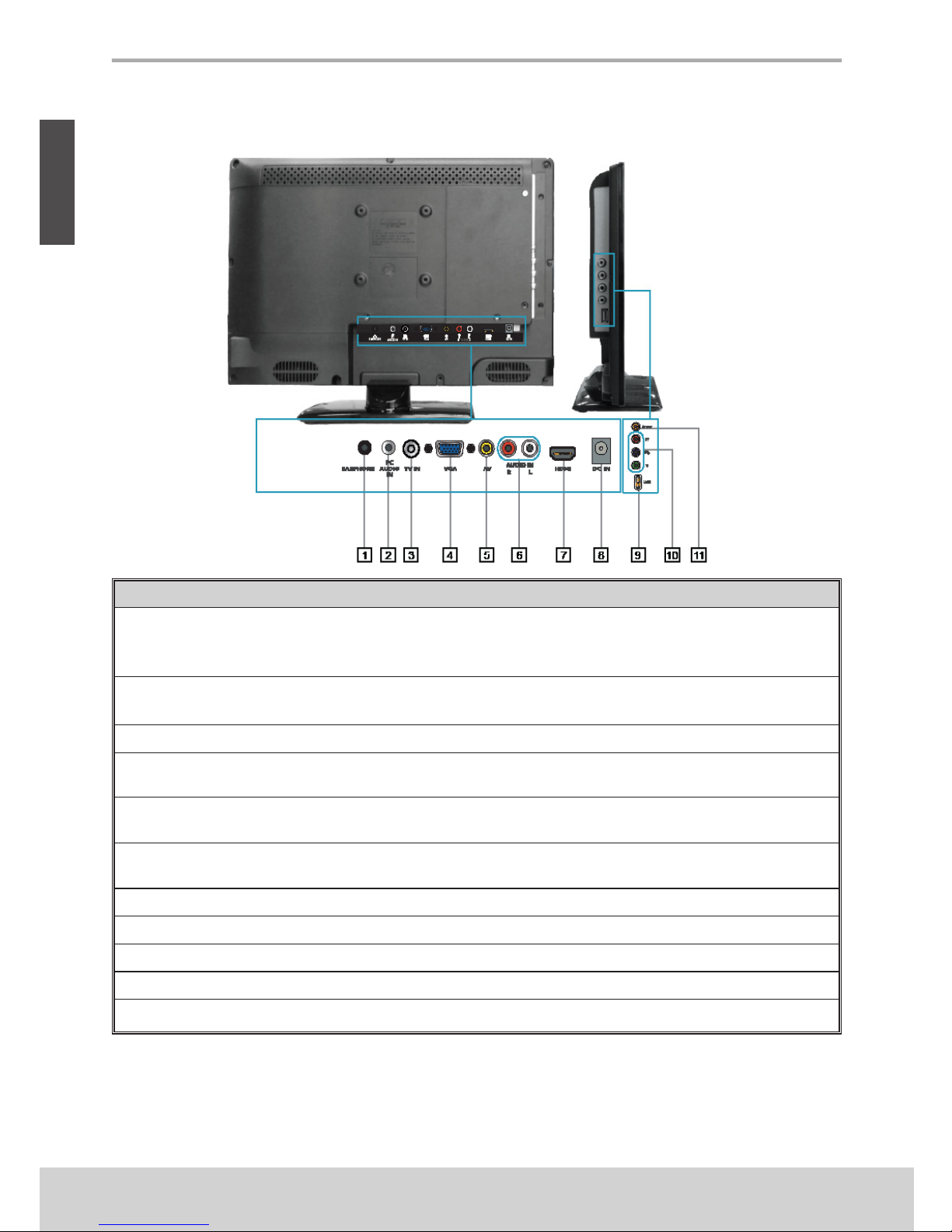

Rear View of the Product
Item Description
1
EARPHONE
Connect to your headphones. By connecting the headphones, you can listen to the
sound from the TV on headphones.
＊
If you connect the headphones, the TV speakers will be muted.
2
PC Audio input
Connect the RGB Audio Out on your computer to the RGB Audio on the rear of the
LCD TV.
3 TV Input Jack
Connect this jack to your Cable or VHF/UHF antenna.
4 VGA signal input
Connect a 15-pin D-sub RGB cable to the RGB output of your
computer and the other end to the RGB input on the rear of the LCD TV.
5 Composite Video input
Connect this jack to the composite video output connectors on your A/V equipment.
6
AV Audio input
(left/ right)
Connect the Audio in cable for AV from this jack to the corresponding connectors
on your A/V device.
7 HDMI Input Terminal
Connect this port to the HDMI output of A/V device.
8 Power(DC input)
Plug-in the supplied DC Power cord and connect to the DC input power source.
9 USB
Connect to your USB devices, such as USB ash drive.
10 YPbPr signal input
Connect this port to the YPbPr output of A/V device.
11
SPDIF Optical output
Connect this port to the SPDIF input of A/V device.
Page 15
7
ENGLISH
Getting Started

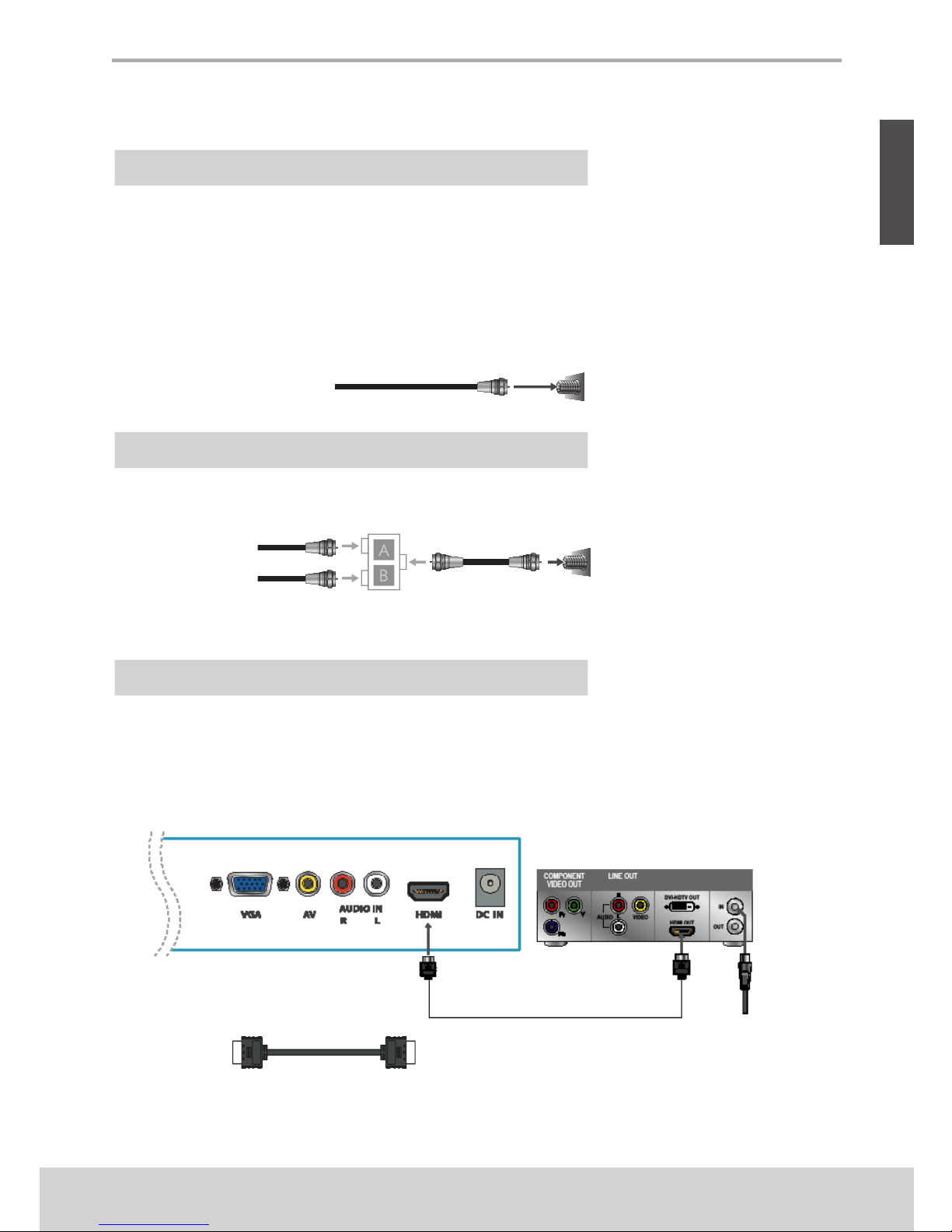

Cable System or VHF/UHF Antenna System
Enjoy the high-definition and standard-definition digital programming along with standard-
denition analog programming.
☼
• This TV is capable of receiving unscrambled digital programming for both cable and
external VHF/UHF antenna.
• We strongly recommend that you connect the antenna/cable input using a 75-ohm coaxial
cable (not supplied) to ensure the best picture quality.
Cable or VHF/UHF
Cable System and VHF/UHF Antenna System
Use an optional A-B RF switch (not supplied) to switch between the cable and antenna
programming, as shown below.
☼
• Remember to set the TV/CATV setting in the TV menu to Air or Cable for the type you
choose.
HD Cable Box/HD Satellite Box
You can also enjoy high-denition programming by subscribing to a high-denition cable service or
a high-denition satellite service. For the optimum picture quality, be sure to connect this device to
your TV via the HDMI or component video (with audio) input on the back of your LCD TV.
HDMI Connection
Connecting the LCD TV
Cable
Antenna
Rear of TV
VHF/UHF/CABLE input
A-B RF switch
75-ohm coaxial cable Rear of TV
VHF/UHF/CABLE input
HDMI cable
Rear of TV
HDMI cable
HD cable box/
HD satellite box
CATV/Satellite
antenna cable
Page 16
8
ENGLISH
Getting Started
Programming your Cable or Satellite Box remote
Refer the user manual from your service provider to determine the setting.
If it requires:
• 3 digits, please try “566”, “565”, “556”, or “688”. It usually works with DISHNetwork.
• 4 digits, please try “0054”. It usually works with Cox.
• 5-digits, please try “11454”, “11054”, or “10690”. It usually works with DIRECTV.

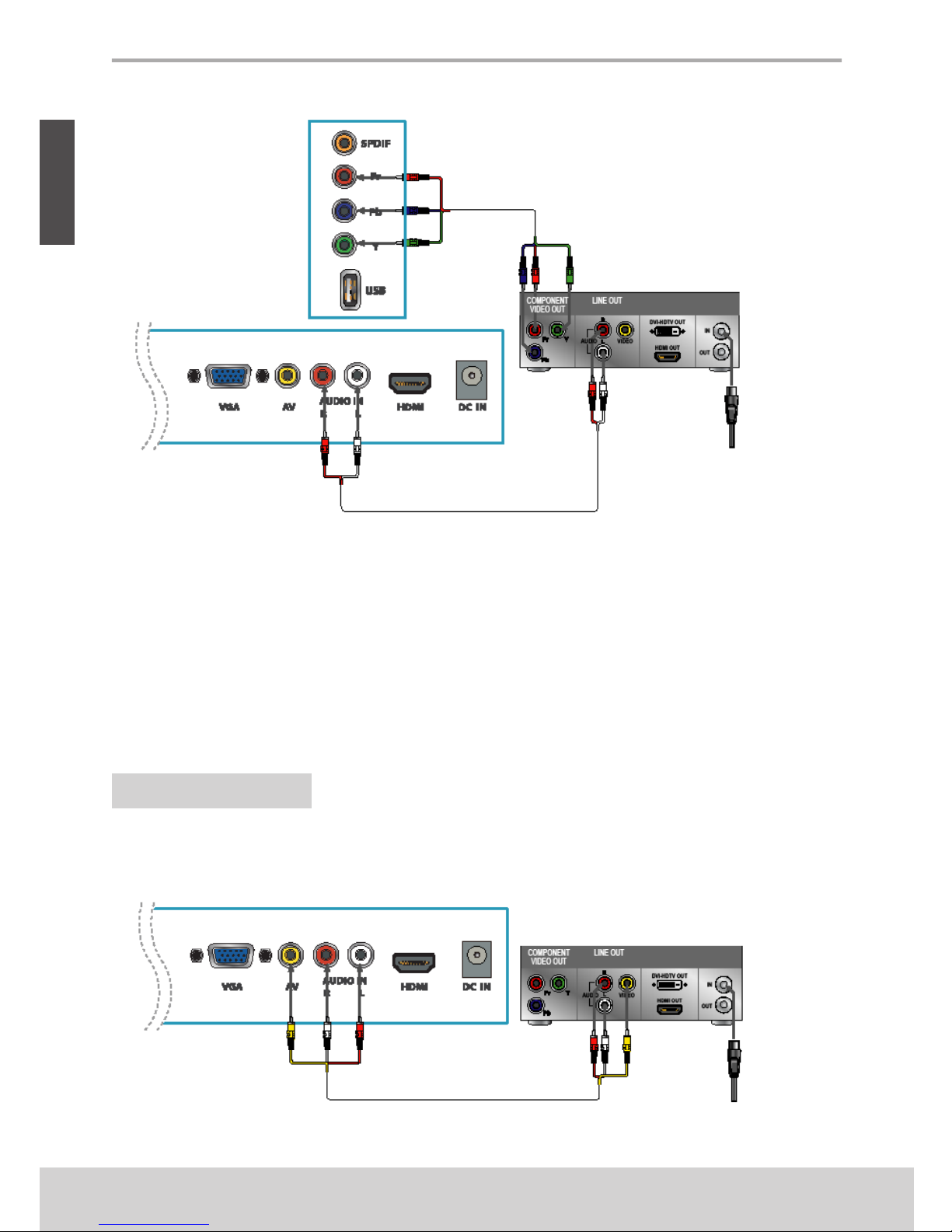

SD DVD Player
AV or S-Video Connection
HD cable box/
HD satellite box
Rear of TV
AV cable
CATV/Satellite
antenna cable
CATV/Satellite
antenna cable
HD cable box
HD satellite box
Rear of TV
Rear of TV
Component video cable
Audio cable
YPbPr or Component Connection
☼
• YPbPr provides better picture quality than the S-Video or the AV connection.
Page 17
9
ENGLISH
Getting Started

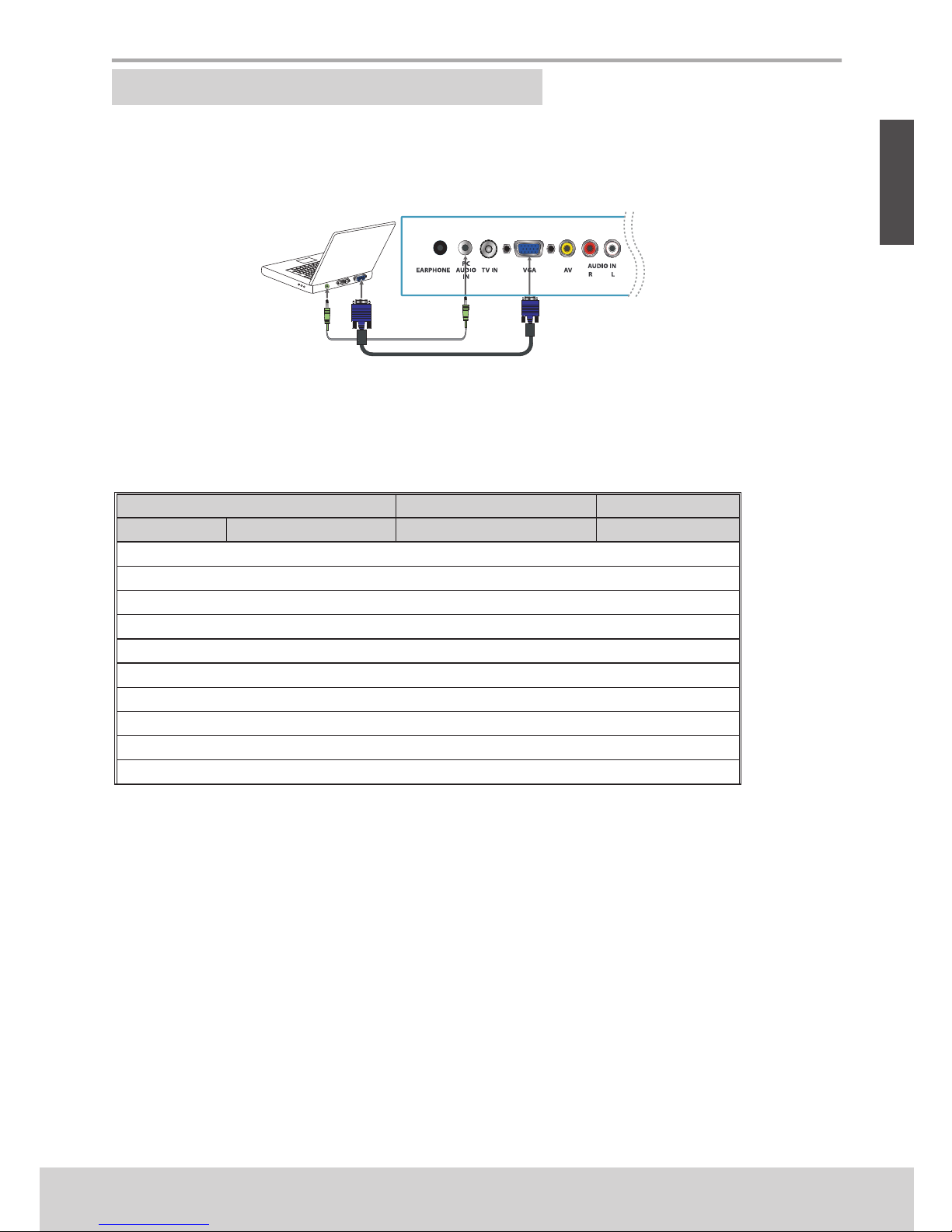

Personal Computer
Use the LCD TV as the monitor of your computer.
The picture below shows the connection for PC. The LCD TV can also be connected to PC
with DVI or VGA output.
☼
• Connect the PC IN jack to the PC using a 15-pin cable and audio cable.
• If the PC is connected to TV and no signal has been input from PC for more than 15 seconds,
the TV will enter standby mode automatically.
PC Timing Reference Chart
Mode Aspect Ratio Handling Compatible Input
Standard Resolution FS*Full-Screen RGB
IBM 720 x 400 @ 70Hz 1366x768 Yes
VESA 640 x 480 @ 60Hz 1366x768 Yes
VESA 800 x 600 @ 56Hz 1366x768 Yes
VESA 800 x 600 @ 60Hz 1366x768 Yes
VESA 1024 x 768 @ 60Hz 1366x768 Yes
VESA 1024 x 768 @ 70Hz 1366x768 Yes
VESA 1280 x 1024 @ 60Hz 1366x768 Yes
VESA 1360x 768 @ 60Hz 1366x768 Yes
VESA 1280 x 960 @ 60Hz 1366x768 Yes
VESA 1280 x 768 @ 60Hz 1366x768 Yes
☼ • This TV’s PC VGA input does not support interlaced signals.
• For the best picture quality, we recommend that you use the signals (boldfaced) in the
above chart with a 60 Hz vertical frequency from a personal computer.
• Preset Timing Mode (Pre-adjusted to GTF® 1366 x 768 @ 60 Hz)
Rear of TV
Audio cable (stereo mini plugs)
DVI cable
VGA 15 Pin cable
Page 18
10
ENGLISH
Using the TV Features

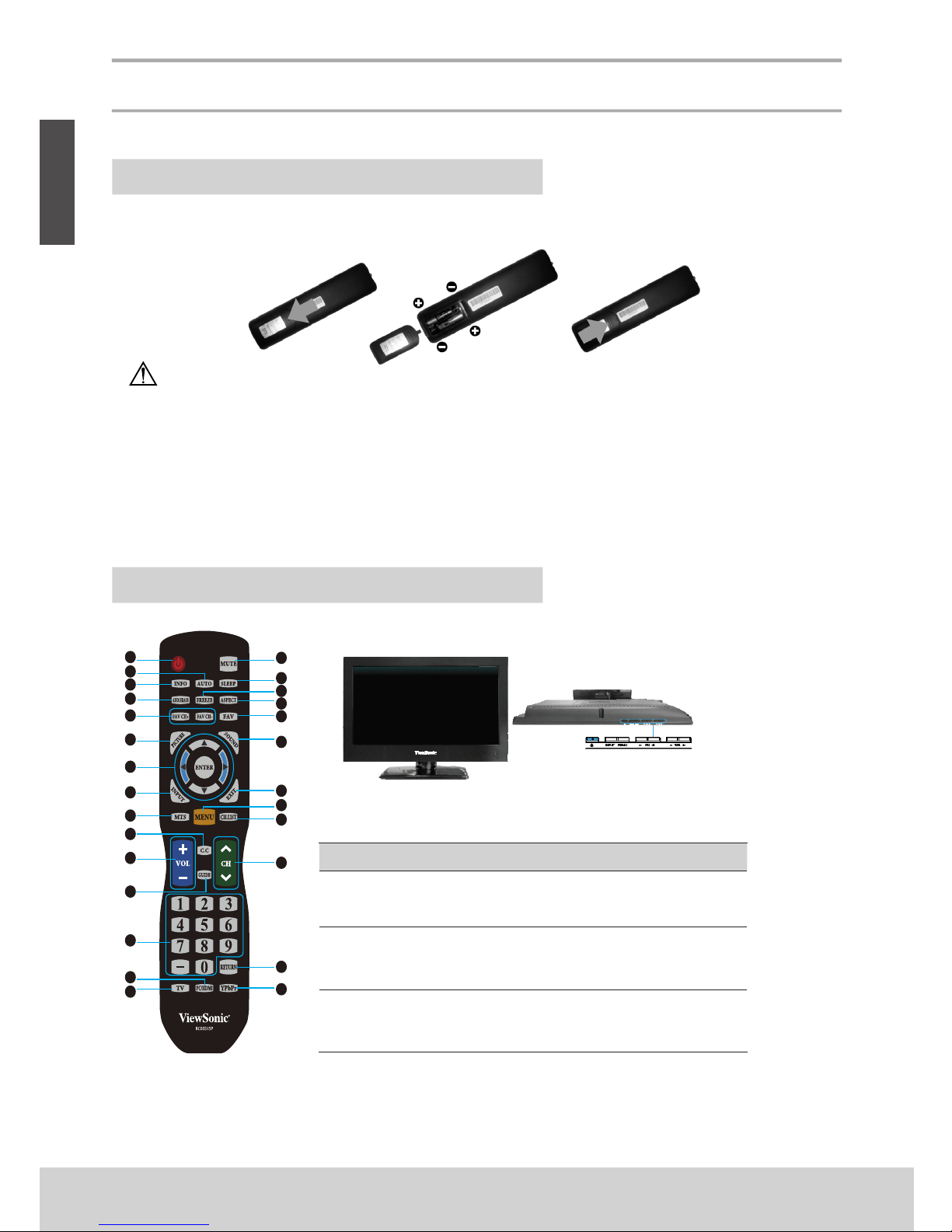

Inserting Remote Control Batteries
1. Remove the battery cover by pulling then lifting the knob on the cover.
2. Insert the batteries, corresponding to the (+) and (-) markings on the battery compartment.
3. Reattach the battery cover.
CAUTION
• Only use the specied AAA batteries.
• Do not mix new and old batteries. This may result in creaking or leakage, which may pose
a risk of re or lead to personal injury.
• Insert batteries according to (+) and (-) markings. Inserting the batteries incorrectly may
result in leakage, which may pose a risk of re or lead to personal injury.
• Dispose of the battery in accordance with local laws and regulations.
• Keep the batteries away from children or pets.
• When the remote control will not to be used for an extended period, remove the batteries.
Remote Control and TV Controls
1
2
3
4
5
6
8
9
10
11
12
13
14
15
7
16
17
18
19
20
21
22
23
24
25
26
27
Buttons located at the side of the LCD TV will operate the same as
these buttons on the remote control.
Button Description
1 POWER
Press this button to turn the power on from standby
mode. Press it again to return to the standby mode.
2
AUTO
PC source press this button to auto picture
position.
3
INFO
Press this button to display the current state of the
LCD TV.
Using the TV Features
Remote Control and TV Controls
Page 19
11
ENGLISH

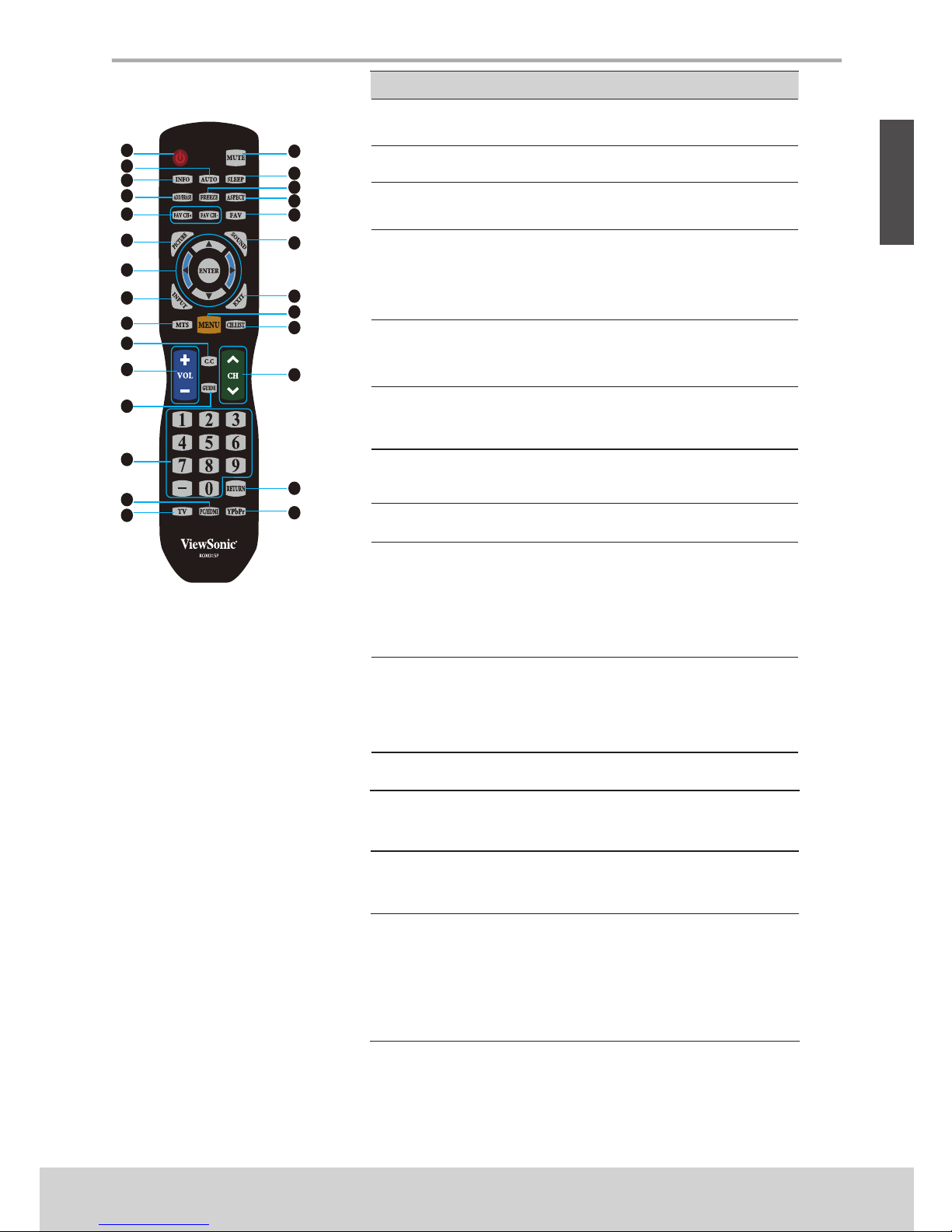

Using the TV Features
Button Description
4 ADD/
REAST
Press this button add or erast Favorite channel.
5 FAV+/-
Press this button to favorite channel+/-.
6
Press this button to select between the picture
modes of Standard, Dynamic,movie user.
7 ▲▼◄►/
ENTER
buttons
Press these buttons to navigate the OSD menus.
▲/▼ is for menu and function select, and ◄/► is
for function adjustment.
ENTER: Enter the function setting.
8 INPUT
Press to display the INPUT source list and select
the source with ▲/▼ buttons. To conrm the
selection, press ENTER.
9 MTS
Press this button to choose the available sound
output that is preset by TV broadcasting station.
(EX: Mono, Stereo, SAP)
10 C.C
Press to select the Closed Caption menu in the TV ,
AV.
11 - VOL +
Press to adjust the volume.
12 GUIDE
Press to display the Electronic Program Guide
(EPG). It contains the program information for the
channel you’re watching.
＊
The picture here shows an example of the GUIDE
screen in a DTV source.
13 0~9, -
number
buttons
Press 0~9 and “-” to select a channel. After you
input the channel numbers, press ENTER button
to direct to the channel immediately, or wait for 3
seconds to change automatically.
14 PC/HDMI
Press to change to PC or HDMI source.
1
2
3
4
5
6
8
9
10
11
12
13
14
15
7
16
17
18
19
20
21
22
23
24
25
26
27
15 TV
Press to direct to TV source when in any other
source.
16 MUTE
Press to turn off the sound. To restore the sound,
press this button again, or press the VOL+/-
button.
17 SLEEP
Press repeatedly to set the off timer. The function
is used to automatically shut off the LCD TV after
a preset period of time passed. There are several
times for choice – Off, 5 Min, 10 Min, 15 Min, 30
Min, 45 Min, 60 Min, 90 Min, 120 Min, 180 Min,
240 Min.
Page 20
12
ENGLISH
Using the TV Features
1
2
3
4
5
6
8
9
10
11
12
13
14
15
7
16
17
18
19
20
21
22
23
24
25
26
27

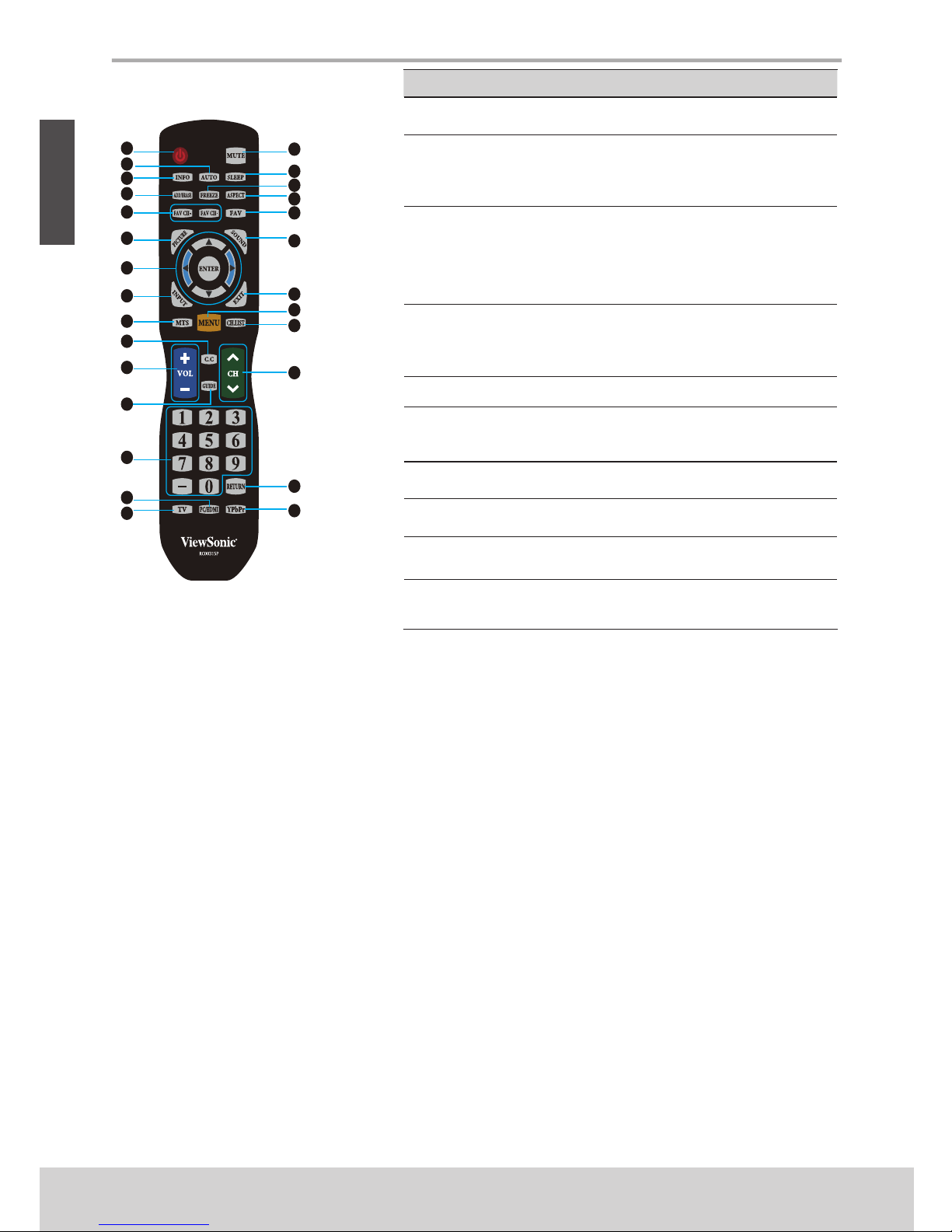

Button Description
18
FREEZE
Press this btton picture will be static.
19 ASPECT
Press this button repeatedly to select the
screen size. You can select from Normal,
wide,cinema,zoom,full 100%(above 720p timing).
20 FAV
Press this button to show Favorite List and select your
favorite channels that have already been stored.
＊
To preset favorite channels, use the Favorite item
in the Channel menu.
21 SOUND
Press this button to select between the sound
modes of Standard, soft,user,Dynamic.
22 EXIT
OSD exit.
23 MENU
Press to turn the OSD (On-Screen Display) menu
on.
24 CH-LIST
Press to display channel list.
25 ▼ CH ▲
Press to change the channels up or down.
26 RETURN
Press to return to previous channel.
27 YPbPr
Press to charge source to YPbPr.
Page 21
13
ENGLISH
Using the TV Features
Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the Power button on the side of the panel.
Operation

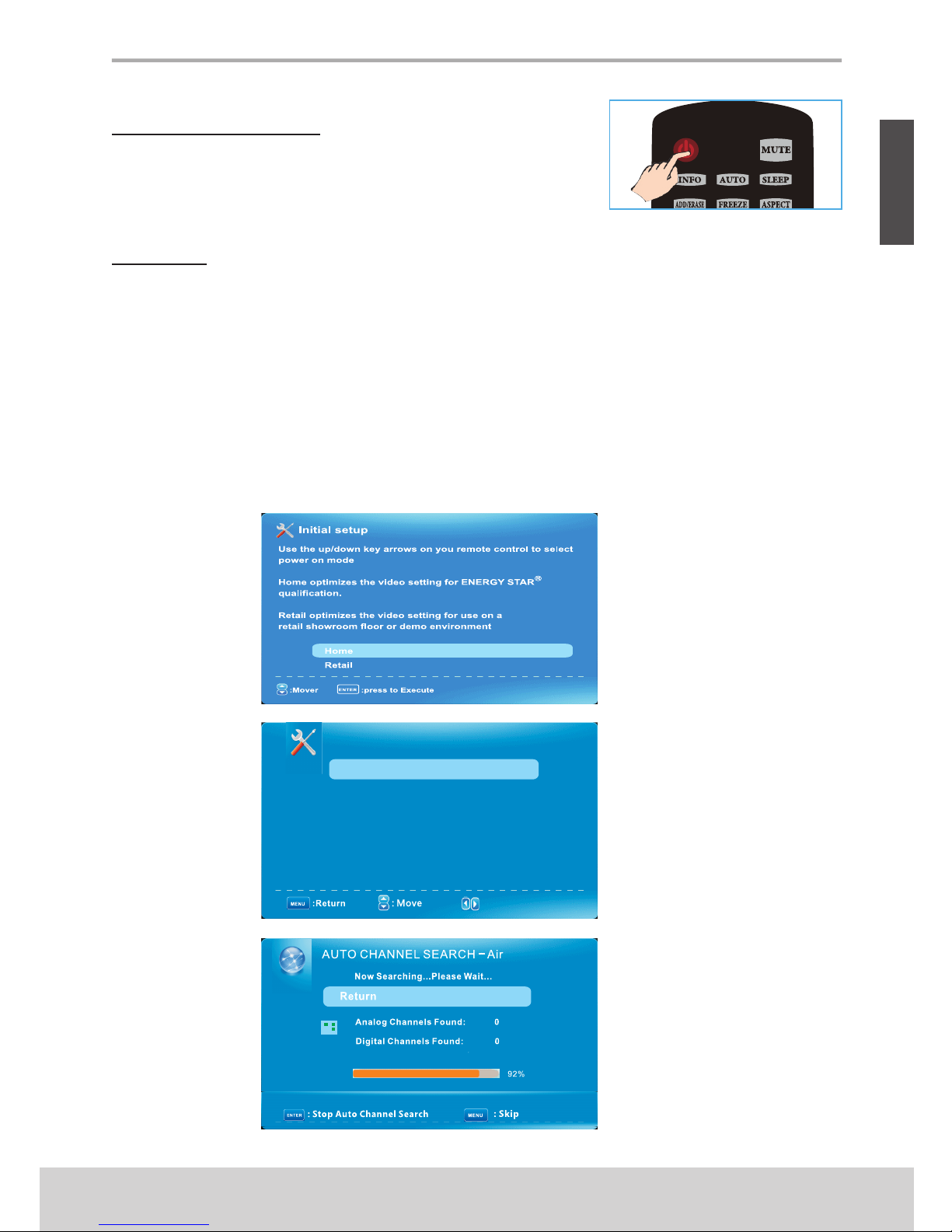

Initial Setup
(Setup Wizard only appears when rst turning the TV on and without channel scanning.)
1. Press the POWER button on the remote control. The Setup Wizard window will be display.
2.Press ▲ or ▼ to select Home or Retail(See Figure1).
3. Press ◄ or ► to select OSD language, then press ENTER to conrm the
selection, and press ▼ to go to next step. To return to the previous page, press
MENU.(See Figure2)
4. Select TV Source from Air or Cable, then press ENTER to continue.
5. The Initial Setup will be completed after Cannel scanning is nished. To interrupt the
scanning, press MENU at any time. (See Figure3)
Figure 1
Figure 2
Figure 3
Initial Setup
Menu Language
Signal Type
Auto Channel Search
English
Air
Execute
:Change Setting
＊
If there is no input signal within 15 minutes, TV will be
turned off automatically.
Page 22
14
ENGLISH
Using the TV Features

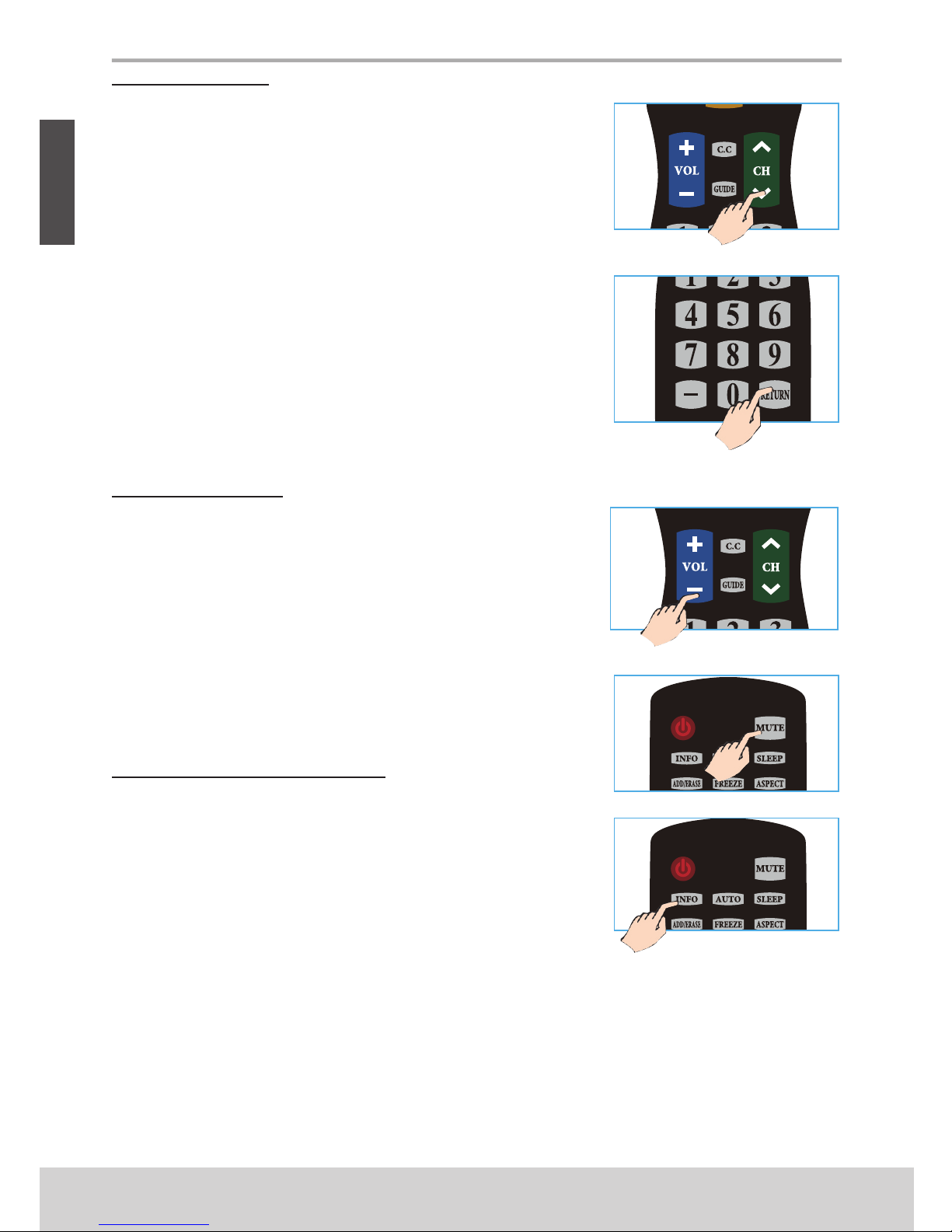

Changing Channels
1. Using Channel Buttons
Press ▼CH▲ button to change channels, and the TV
changes channels in sequence. You will see all channels
that have been memorized. Channels erased or not
memorized will not be shown.
2. Using Number Buttons
(1) ATV
The “-” button has no function in ATV mode. Directly
press the number buttons to select channels.
(2) DTV
Use “-” button to select the sub channel in DTV.
Ex: Your desired number is 80-3.
Press 8 → press 0 → press “-” → press 3.
＊Return to the previous channel, press RETURN
button.
Adjusting the Volume
Press VOL +/- to adjust volume.
To turn off the volume, press MUTE.
To restore volume, press MUTE again, or press
VOL +/- directly.
Viewing the Displayed Information
To display the current information of the LCD TV:
Press INFO, and the current state will be displayed on
the screen. (It shows all or some of the information about
Input, Channel, Resolution, Audio Type, etc., depending
on what input source it is in)
＊The picture here shows an example of the INFO screen
in a DTV source.
Page 23
15
ENGLISH
Using the TV Features
ENTER
:Press to Execute:Move

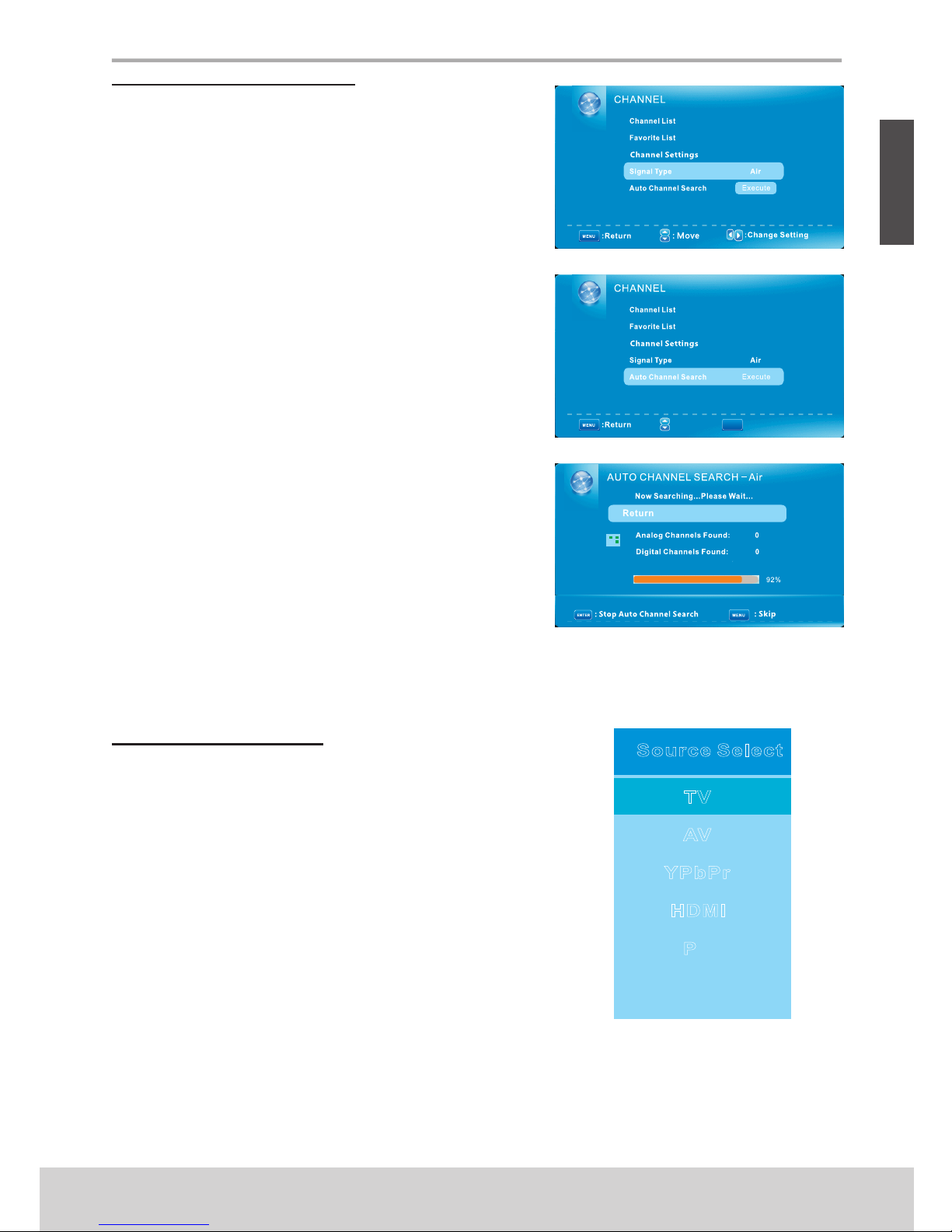

Storing Channels into Memory
1. Press the MENU button to display the OSD main menu.
2. Press ◄ or ► to select the “CHANNEL” menu, then
press ENTER to enter the menu. Press ▲ or ▼
to select “Signal Type”, and use ◄ or ► to select the
antenna connection to “Air” or “Cable”.
Air: RF signal programs by “Air”.
Cable: RF signal programs by “Cable”.
3. Press ▲ or ▼ to select “Auto Scan”, then press ► to
enter.
4. The Auto Scan screen will be shown, and after it is
done, the screen will return to the rst found channel.
Selecting the Input Source
To select the TV or other external input sources connected
to the TV.
1. Press the INPUT button on the remote control.
2. Press ▲ or ▼ to select the required input source between
TV, AV, YPbPr, HDMI, PC or Media.
(When in USB input source, the system only
supports JPEG and MP3 image les.)
3. To conrm the selection, press ENTER.
Source Select
TV
AV
YPbPr
HDMI
PC
Media
Page 24
16
ENGLISH
Using the TV Features

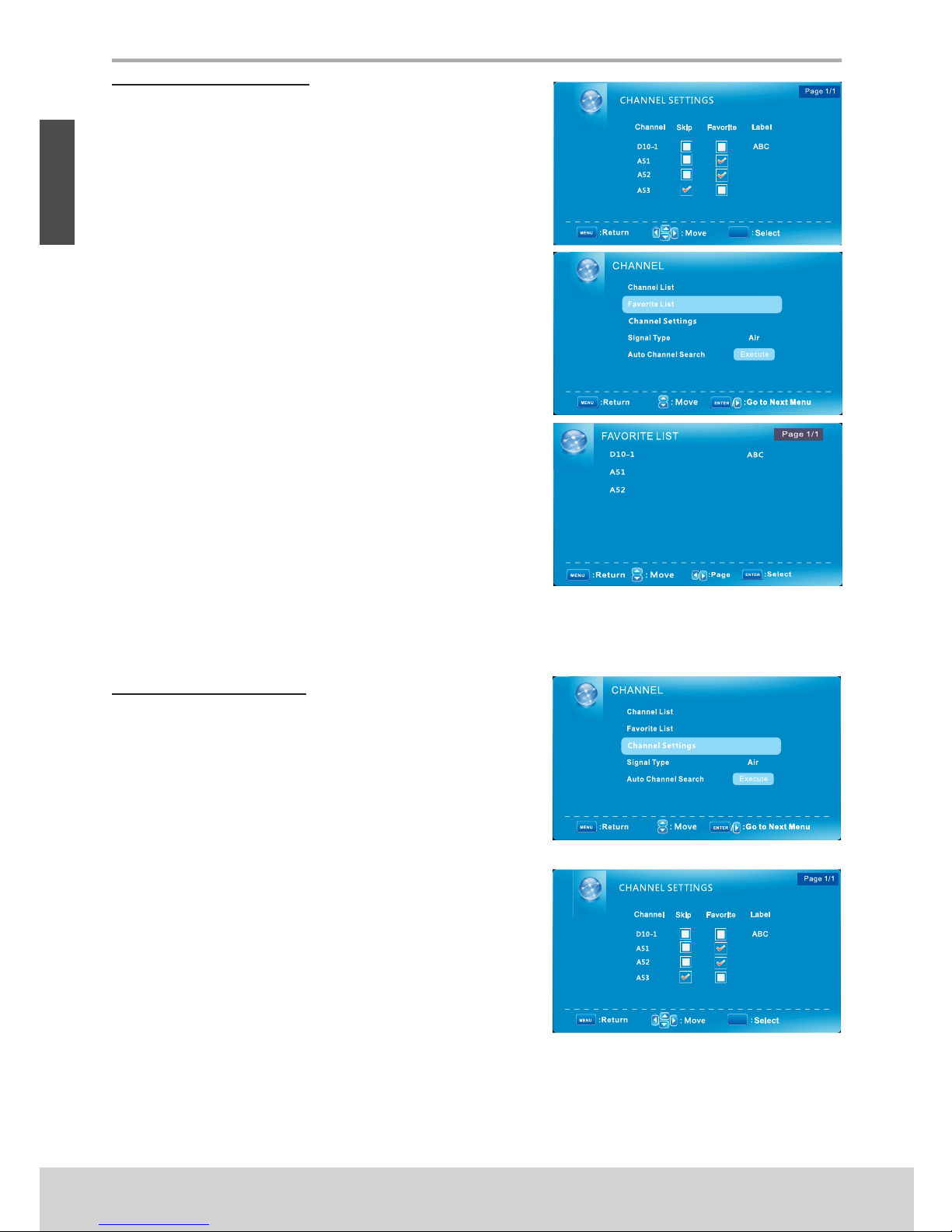

Favorite Channel Setting
To set your favorite channel into memory:
1. Press the MENU button to display the OSD main menu.
2. Press ◄ or ► to select the “CHANNEL” menu, then
press ENTER to enter the menu. Press ▲ or ▼
to select “Channel settings”, then press ► button to
enter “Channel settings” setting.
3. Press ▲ or ▼ to select the channel you’d like to be your
favorite channel.
Press ENTER to conrm your selection.
4. To cancel the selection, Press ENTER again on the selected
channel.
5. Press MENU to exit.
＊To view your favorite channels, press FAV button to
show Favorite List and select your favorite channels that
have already been stored.
ENTER
Adding/Erasing Channel
When the channel is erased, it will not appear on the
screen when you browse the channels with ▼CH▲
button. To see the channel again, you must add the channel
or perform the “Auto Scan” function again.
1. Press the MENU button to display the OSD main menu.
2. Press ◄ or ► to select the “CHANNEL” menu, then
press ENTER or ▼ to enter the menu. Press ▲ or ▼ to
select “Show/Hide”, then press ►
button to enter “Show/Hide” setting.
3. Press ▲ or ▼ to select the channel you want to Show/
Hide, and check or uncheck it with ENTER button.
4. Press MENU to exit.
ENTER
Page 25
17
ENGLISH
Using the TV Features
NAM_
ENTER
:Name Entry

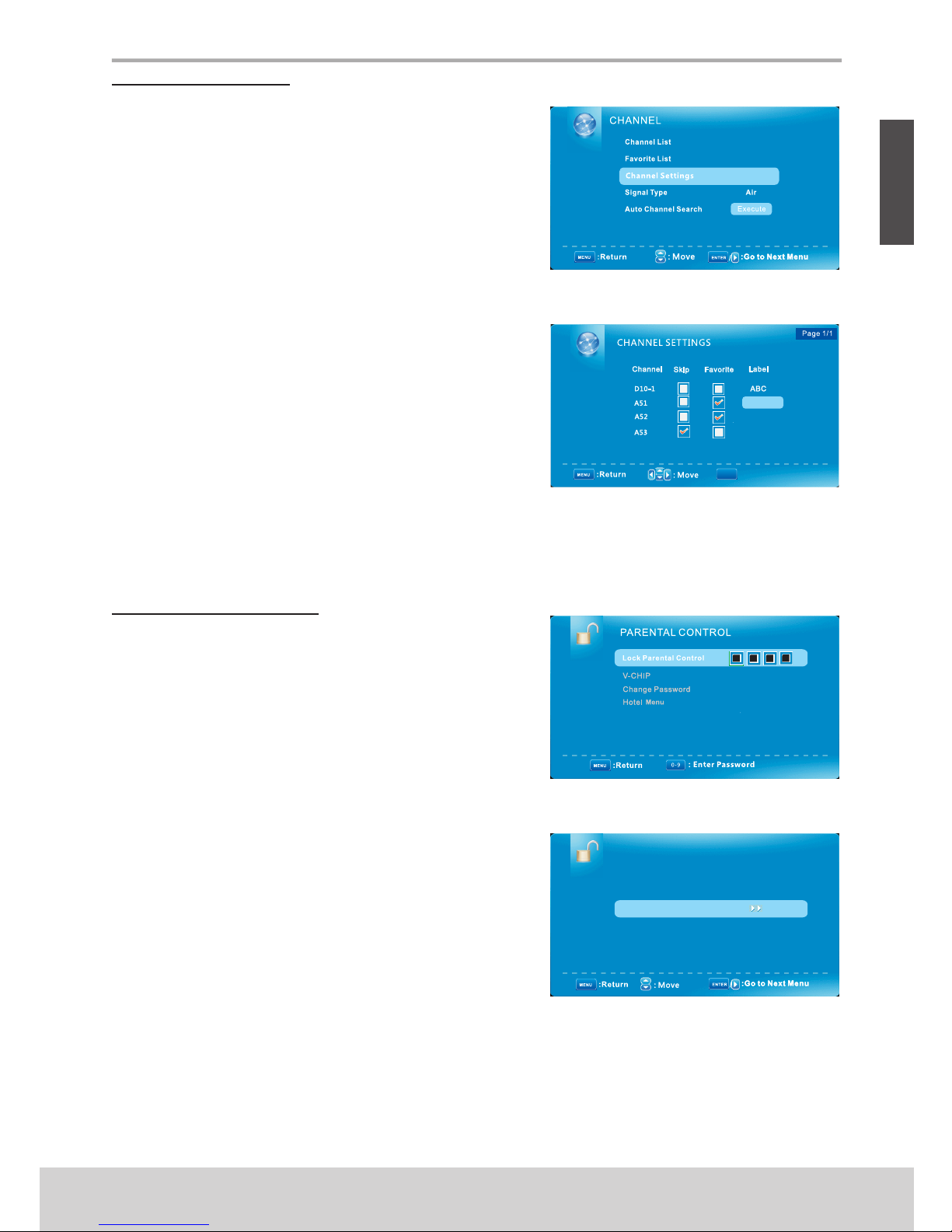

Channel Name Setting
To edit a name for the current channel:
1. Press the MENU button to display the OSD main menu.
2. Press ◄ or ► to select the “CHANNEL” menu, then
press ENTER or ▼ to enter the menu.
3. Press ▲ or ▼ to select “Channel Settings.”, then press
◄ or ► to select the channel you want to edit the name.
4. Press ▲ or ▼ to select “Channel Label”, then press ►
button to enter “Channel Label” setting.
5. Use ▲ or ▼ to choose letters or signs, ◄ or ► to move
forward or backward.
6. After you input the channel name, press MENU or
ENTER to complete the setting.
7. Press MENU to exit.

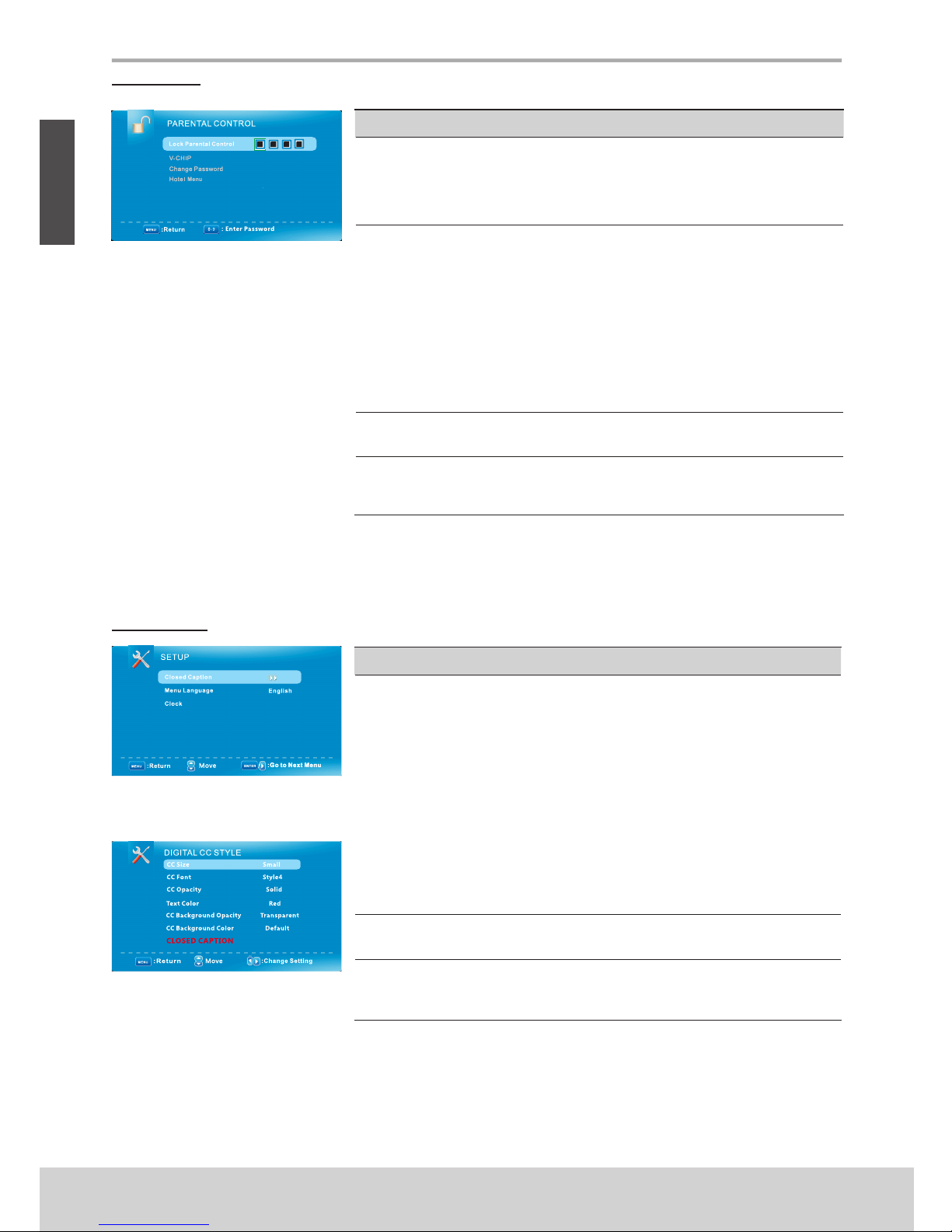

V-CHIP
PARENTAL CONTROL
Change Password
Hotel Menu
Lock Parental Control
Using the Parent Controls
1. Press the MENU button to display the OSD main menu.
2. Press ◄ or ► to select the “Parent” menu.
3. Press ENTER to enter Password.
4. Enter the password. (The default password is 0000)
5. Move to “V-CHIP”, and select “On” to enable the
detailed settings.
6. Move to “US” or “Canada” rating system.
Page 26
18
ENGLISH
Using the TV Features

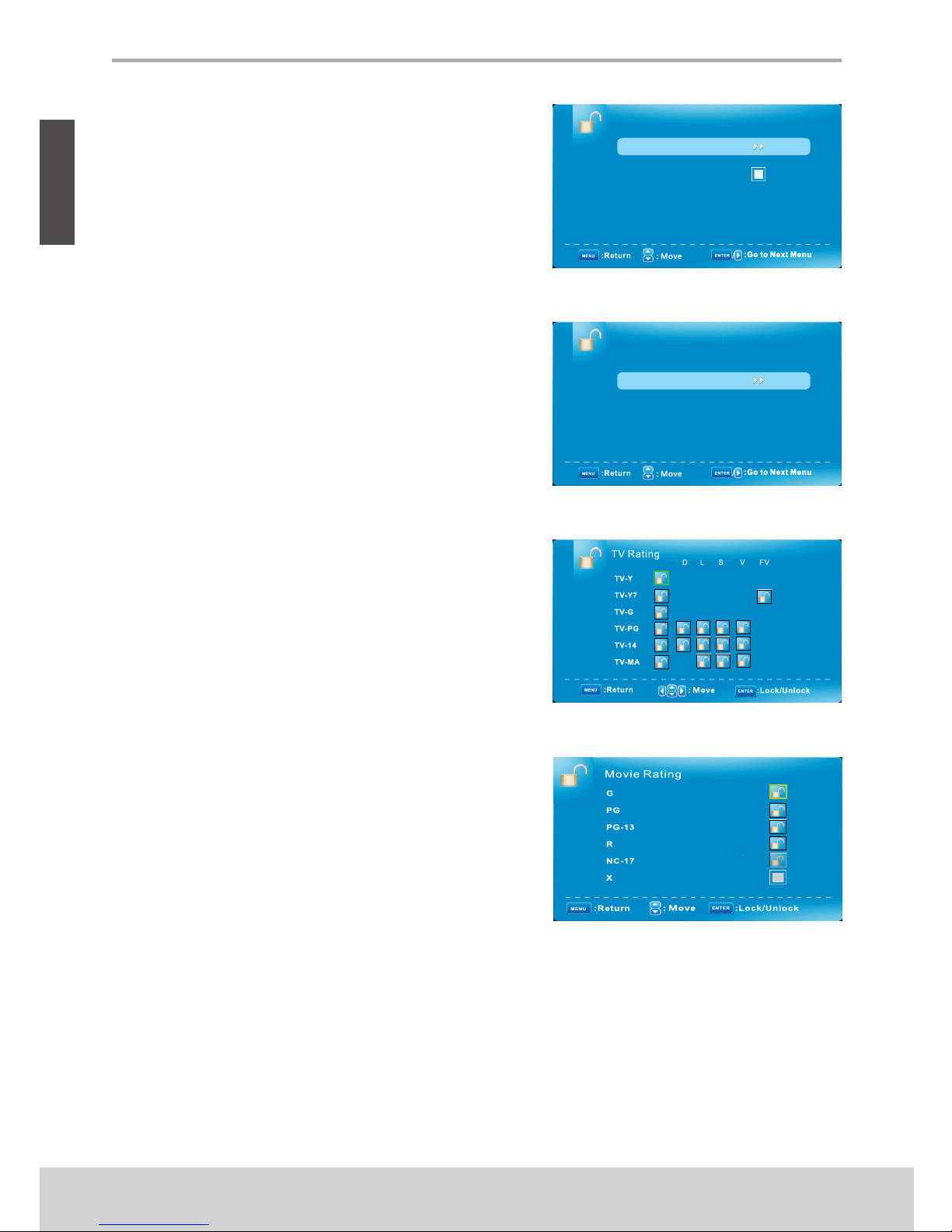

US V-Chip
V-CHIP
Canada V-Chip
Block UnRated Show
Downloadable Rating
Clear Downloadable Data
Movie rating
USA
TV rating
US: Press ► to set TV or Movie ratings.
(1) Movie
1. Press ▲ or ▼ to select “Movie”, then
press ► to enter “Movie” rating system setting.
2. Press ▲ or ▼ to select your desired Movie ratings
level.
The Movie ratings level are dened as following:
G (general audience)
PG (parental guidance suggested)
PG-13 (recommended for children 14 years of age
or older)
R (mature audience)
NC-17 (no one under 17 years of age)
X (adult audience only)
N/A (not applicable)
3. Press ▲/▼ to set or reset each area.
4. Press MENU to exit.
(2) TV
1. Press ▲ or ▼ to select “TV”, then press ►
to enter “TV” rating system setting.
2. Press ▲ or ▼ to select your desired TV ratings
level.
The following screen will allow you to customize
the following TV ratings:
TV-Y (all children)
TV-Y7 (older children)
TV-G (general audience)
TV-PG (guidance suggested)
TV-14 (strongly cautioned)
TV-MA (mature audience)
You can also customize the TV ratings for the
following content:
ALL (All types content)
FV (fantasy violence)
V (violence)
S (sexual situations)
L (adult language)
D (sexsual dialog)
3. Press ENTER to set or reset each area.
4. Press MENU to exit.
Page 27
19
ENGLISH
Using the TV Features
English rating
CANADA
French rating
English rating
CANADA
French rating

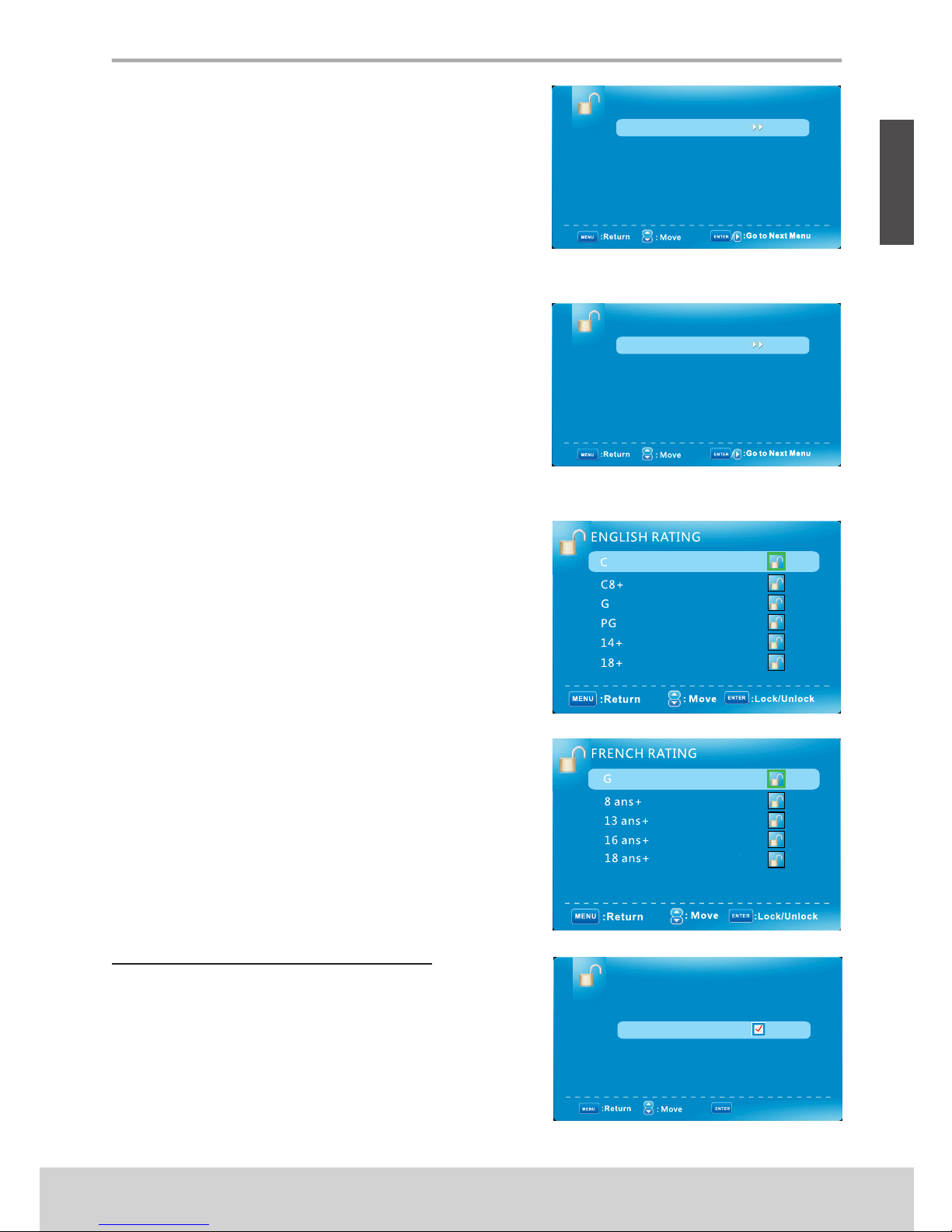

Canada: Press ► to set Canadian English and French
ratings.
(1) Canadian English
1. Press ▲ or ▼ to select “English rating”.
2. Press ► to enter.
3. Press ▲ or ▼ to select your desired Canadian
English rating level.
The Canadian English rating levels are dened as
following:
C (children)
C8+ (children eight years and older)
G (general programming, suitable for all audiences)
PG (parental guidance)
14+ (viewers and older)
18+ (adult programming)
EXEMPT (exempt)
4. Press ▲/▼ to set or reset each area.
5. Press MENU to exit.
(2) Canadian French
1. Press ▲ or ▼ to select “French rating”.
2. Press ► to enter.
3. Press ▲ or ▼ to select your desired Canadian
French rating level.
The Canadian French rating levels are dened as
following:
G (genenral)
8ans+ (children eight years and older)
13ans+ (not appropriate for children of less than 13
years)
16ans+ (not appropriate for children of less than 16
years)
18ans+ (reserved to adults)
EXEMPT (exempt)
4. Press ▲/▼ to set or reset each area.
5. Press MENU to exit.
To Block Unrated Movie or TV Programs
1. Press ▲ or ▼ to select “Unrated Lock”, then press ◄
or ► to select “On” or “Off”. When “On” is selected,
all programs that are not rated will be blocked.
2. Press MENU to exit.
US V-Chip
V-CHIP
Canada V-Chip
Block UnRated Show
Downloadable Rating
Clear Downloadable Data
:Lock /Unlock
Page 28
20
ENGLISH
Using the TV Features
To Change Password
1. Press ▲ or ▼ to select “Change Password”, then press
► to enter “Change Password” setting.
2. Move to “Enter Old Password”, then enter the old
password with number keys.
3. Enter your new password on “Enter New Password”.
4. Enter your new password again on “Conrm Password”.
After you complete the last step, the screen will return to
the top page of LOCK menu. If so, the password has been
changed successfully.
V-CHIP
PARENTAL CONTROL
Change Password
Hotel Menu
Lock Parental Control

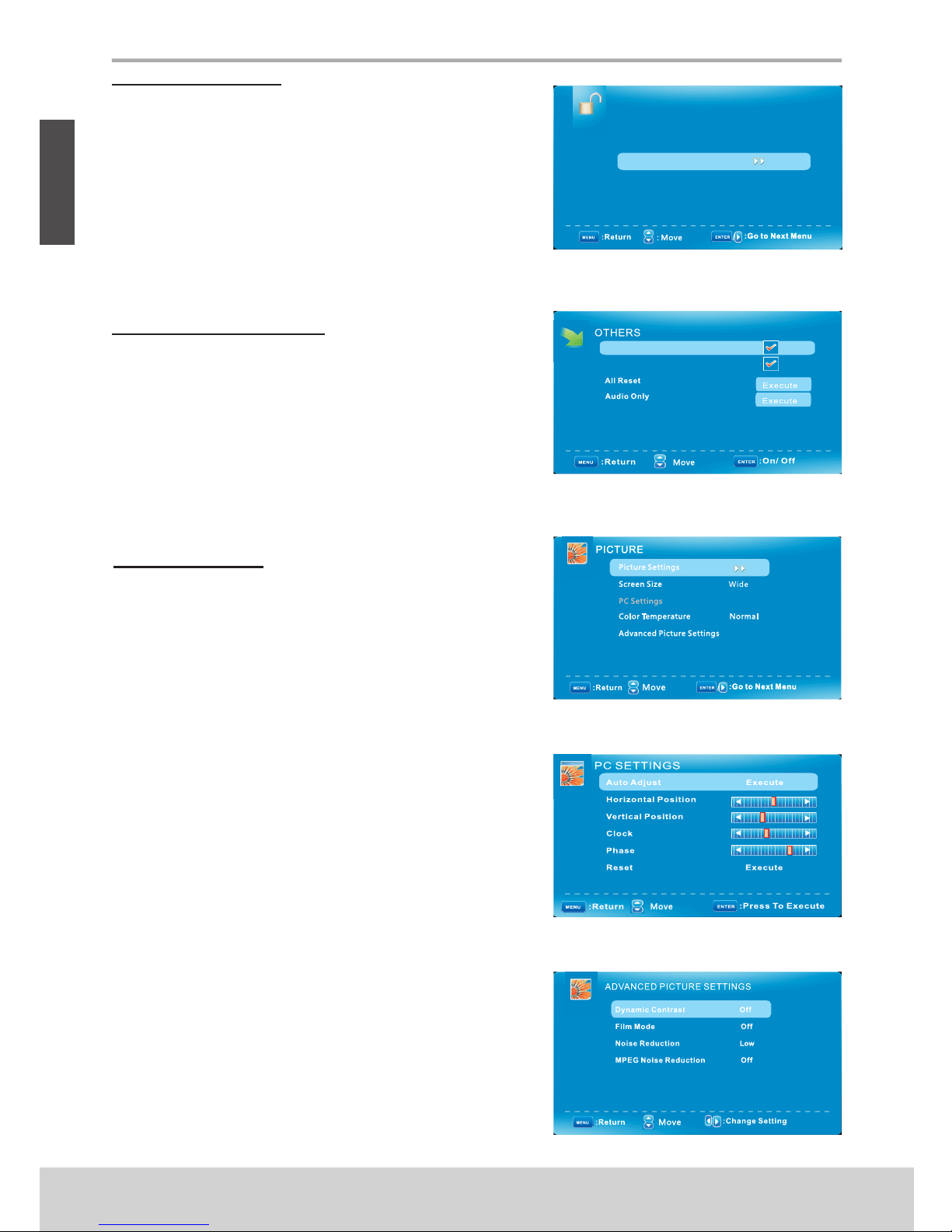

To Restore Factory Setting
1. Press the MENU button to display the OSD main menu.
2. Press ◄ or ► to select the “OTHERS” menu.
3. Press ENTER or ▼ to enter “OTHERS” menu.
4. Press ▲ or ▼ to select “Restore Default”, then press ►
to restore the factory default setting.
5. Select “Yes” and press ENTER to conrm the setting.
Blue Background
No Signal Power Off
Using PC Function
1. When in PC source, press the MENU button to display
the OSD main menu.
2. Press ◄ or ► to select the “PICTURE” menu, then
press ENTER or ▼ to enter the menu.
3. Press ▲ or ▼ to select your desired controls, and press
◄ or ► to adjust.
4. For PC settings, select “PC settings” (only in PC source)
and press ► to enter.
5. Press ▲ or ▼ to select “H-Pos” (H-Position), “V-Pos”
(V-Position), “Clock”,“Phase” or “Auto” (Auto
adjustment), and adjust the level with ◄ or ►.
* When in PC source, the other menus are the same as or
similar to when in other source.
* When there is no signal in the PC mode, “No Signal” will
be displayed on the screen and the TV will automatically
turn into power-saving mode after 15 seconds’ idleness.
Press POWER button on the remote control
and the TV will return to VGA mode.
Page 29
21
ENGLISH
Using the TV Features

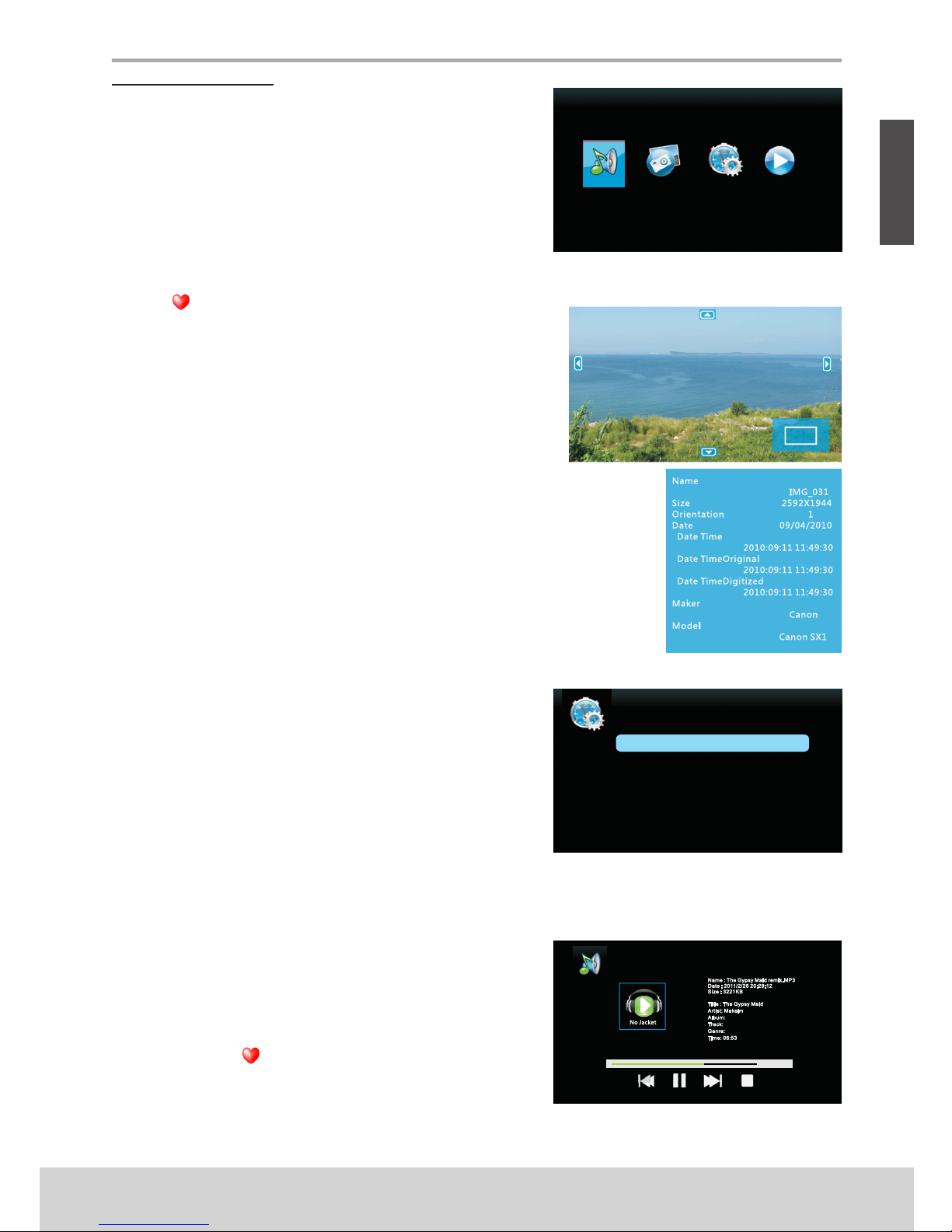

Using USB Function
When input source is selected to USB, insert the USB
device into the USB jack. USB only supports JPEG and
MP3 les.
Viewing Photo or Silde Show
1. Use ◄ or ► to select ‘‘Photo’’.
2. Use ▲ or ▼ to select the folder you want, and press
ENTER .
3. Return to main menu, press ▲ or ▼ to ”--“ and press
ENTER . Use ▲ or ▼ to select the image les
(With symbol) you want, and press ENTER to play.
In Photo function, you can use the buttons to make
following functions:
Press INFO can view all of the functions
* Press EXIT go back to the previous page.
* Use ◄ or ► to display the next or previous picture.
* Use ▲ or ▼ to rotate right or rotate left the picture.
(Only available in X1.0 mode)
* Press Aspect to zoom in. (X1.5~X4.0)
* When the Aspect Ratio, press ▲▼◄► to move.
* Press ENTER to auto-play or stop the pictures.
In “Option” menu can setup following functions:
1. Press the MENU button to display the OSD main menu.
2. Press ◄ or ► to select “Option” menu, then press
ENTER or ▼ to enter the menu. Press ▲ or ▼ to
select “Media”, and use ► to enter “Media” setting.
•Slide Show Timer:
To select the pictures auto-play interval time.
•Trans. Effect:
To select the auto-play effects of the slide show.
•File List Sorting:
To select the pictures arrange.
•Slide Show Repeat:
To select the slide show repeat to On or Off.
Music Photo Media setting NowPlaying
Slideshow Interval
off
off
once
off
on
Slideshow Effect
Slideshow Repeat
Music Play Mode
Music Play Repeat
Music Auto Play
1S
Playing the Music
1. Use ◄ or ► to select “Music”.
2. Use ▲ or ▼ to select the folder you want, and press
ENTER .
3. Return to main menu, press ▲ or ▼ to ”--“ and press
ENTER . Use ▲ or ▼ to select the
MP3 les (With symbol) you want, and press
ENTER to play.
4. In Music function, press ▼ to use all of the functions to
control.
04:00/06:53
Page 30
22
ENGLISH
Using the TV Features

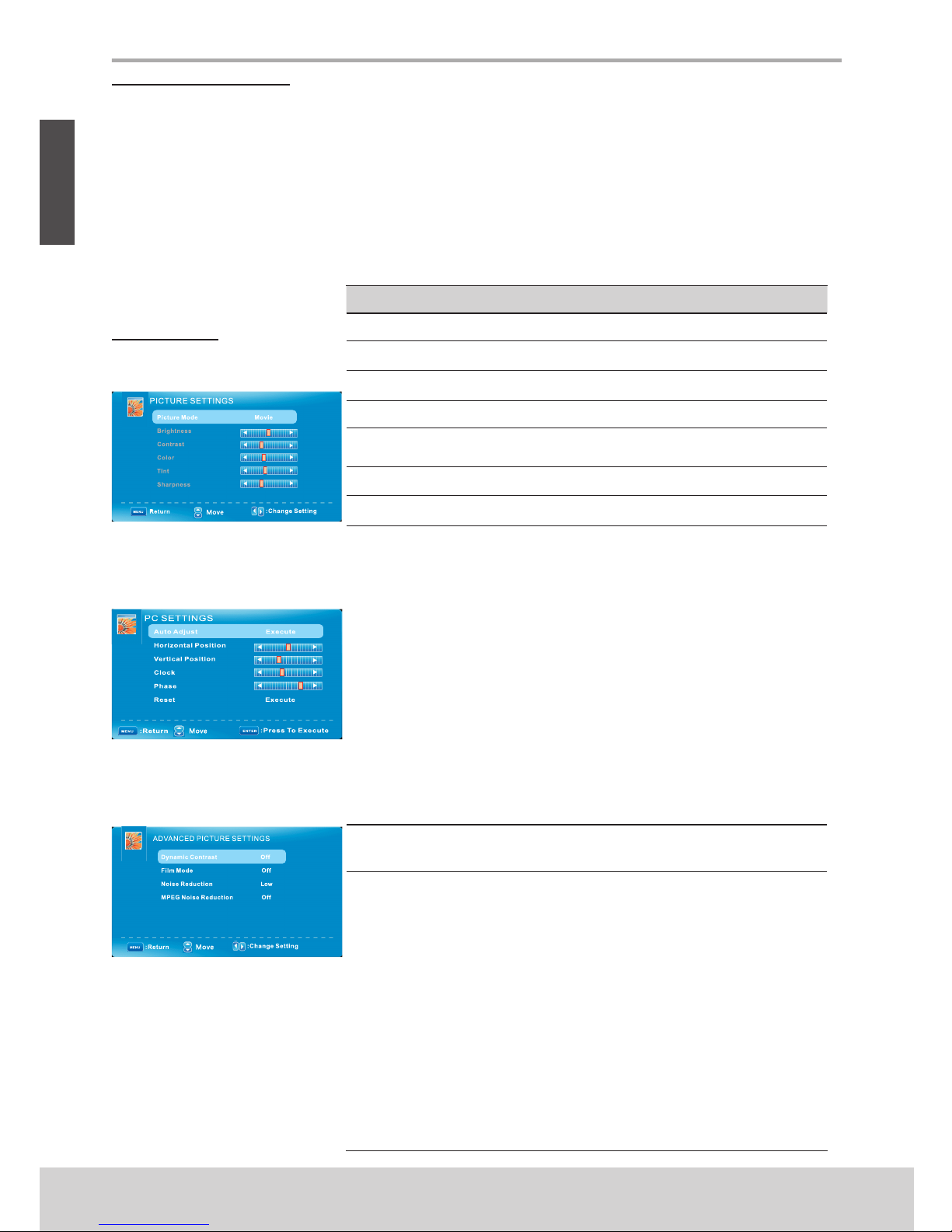

Adjusting the Settings
1. Press the MENU button to display the OSD main menu. There are six top menus on the screen:
PICTURE, SOUND, CHANNEL, PARENTAL, SETUP, and OTHERS. (CHANNEL menu can only be
enabled in TV source.)
2. Press ◄ or ► to select your desired top menu.
3. Press ENTER to enter the menu you select.
4. Use ▲▼ to select the control you want to adjust.
5. When selecting the control with ►, press ► to enter next level menu or enable the function.
(► will only appear when the control is highlighted)
6. Press ◄► to adjust or select the settings.
7. Press MENU to exit from the OSD menu.
Picture menu
Function Description
Picture Mode To select picture mode.
Brightness To adjust luminance of video.
Contrast To adjust contrast of video.
Color To adjust color.(Except PC source)
Tint To adjust tint level.(Except PC source)
Sharpness
To adjust picture sharpness.
Screen Size
To select image size between Normal,Wide,Cinema,Zoom.
PC Settings
To ne tune the image.(Only enabled in PC source)
* Auto Adjust: To auto adjust picture’s horizontal
position, vertical position, clock, phase, ne tune and
H-Size.
* Horizontal Position: To adjust the horizontal
position of the
picture.
* Vertical Position: To adjust the vertical position of
the picture.
* Clock: To adjust delay time of clock in order to
reduce the noise of picture.
* Phase: To adjust delay time of phase in order to
reduce the noise of picture.
* Reset: Reset the parameters of current menu to
default value.
Color
Temperature
To select and adjust color mode.
Advanced
Settings
* Dynamic Contrast: Off/Low/Medium/High
The system will adjust the luminance curve by
analyzing the picture content dynamically.
* Film Mode: Off/On
For the 2:2 or 3:2 format signal of cinema,enable
special pixel process to reduce the ick of moving
area.
* Noise Reduction: Off/Low/Medium/High
You can clear up analog TV signal by reducing the
dot noise.This feature is not available at PC or Media
source.
*MPEG Noise Reduction: Off/Low/Medium/High
Similar with the Noise Reduction ,you can set to
reduce the block noise.
Page 31
23
ENGLISH
Using the TV Features

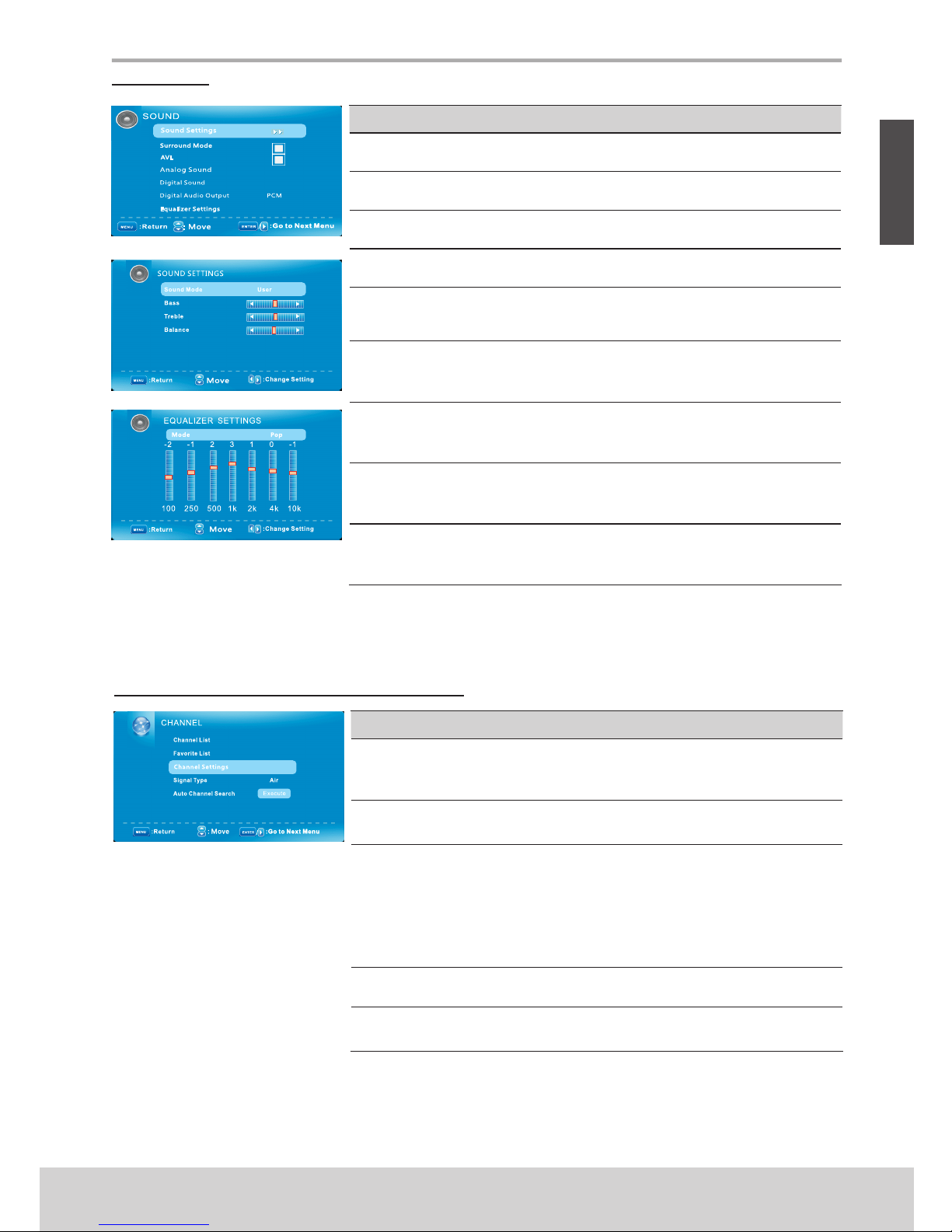

Audio menu
Function Description
Sound Mode To select Sound modes
Bass To adjust bass.
Treble To adjust the treble.
Balance
To adjust left and right audio balance.
AVL
To turn on/off AVL (automatic volume limited)
function.Press ENTER to set or cancel.
Analog Sound Available at analog TV channels.SAP/Stereo/Mono.
Digital Sound Availabel at digital TV channels. English/French/Spanish.
Digital Audio
Output
Set the audio output type of coax or optical terminal.
PCM/Raw/Off.
Equalizer
Settings
Adjust the curve of 7 bands equalizer.
Channel menu (Only available in TV source)
Function Description
Channel List You can view all the channels and choose one quickly.
Favorite List
All of you favorite channels are listed in this menu,and
you can choose them quickly.
Channel
Setting
Set the favorite channels,skipped channels,label of
channels.
* Skip: Set the channel to be skipped when using
CH+/ CH- to view channels.
* Favorite: Set the channel to your favorite list.
* Label: rename label of the channel.
Signal Type Set to Air or Cable according to your antenna source.
Auto Channel
Search
Highlight and press ENTER to start the auto searching.
Stereo
English
Page 32
24
ENGLISH
Using the TV Features
Function Description
Closed Caption
To set close caption options.
(Only available in TV, AV source)
*Caption Display: Display or hide the CC.
*Analog Caption Type: Select from below closed-
caption modes for analog programs.
(CC1~CC4, TEXT1~TEXT4)
*Digital Caption Type:Applies only to digital
channels with closed caption.Service1,2,3,4,5,6.
*Digital CC Preset: Default/Custom
If set to Custom, Digital CC Style is available.
*Digital CC Style
Menu Language
To select OSD language.English/Français/
Español.
Clock
Set the Time Zone/Auto Clock/Setup Time/
Day of week/Daylight Saving Time.
Setup menu
Lock menu
Function Description
Lock Parental
Control
The following items are only available if the
password input is correct.
Note:The default user password is “0000”,and if
forget what you set,try “1470”.
V-CHIP
Include below settings:
* US V-Chip: Rating system used at USA.
* Canada V-Chip: Rating system used at Canada.
* Block UnRated Show: Control whether lock the
program that have not any valid rating ag.
* Downloadable Rating: Control the RRT5 setting
which are valid only at some digital cabel channels.
* Clear Downloadable Data: Select to clear the
previous downloadable rating data.
Change
Password
Enter a 4-digital number you want to set.
Hotel Menu:
Boot Setting/Hotel Lock Setting/Power Save/
Export Setting/Import Setting/ Reset Hotel Setting.
Setup menu
Page 33
25
ENGLISH
Using the TV Features

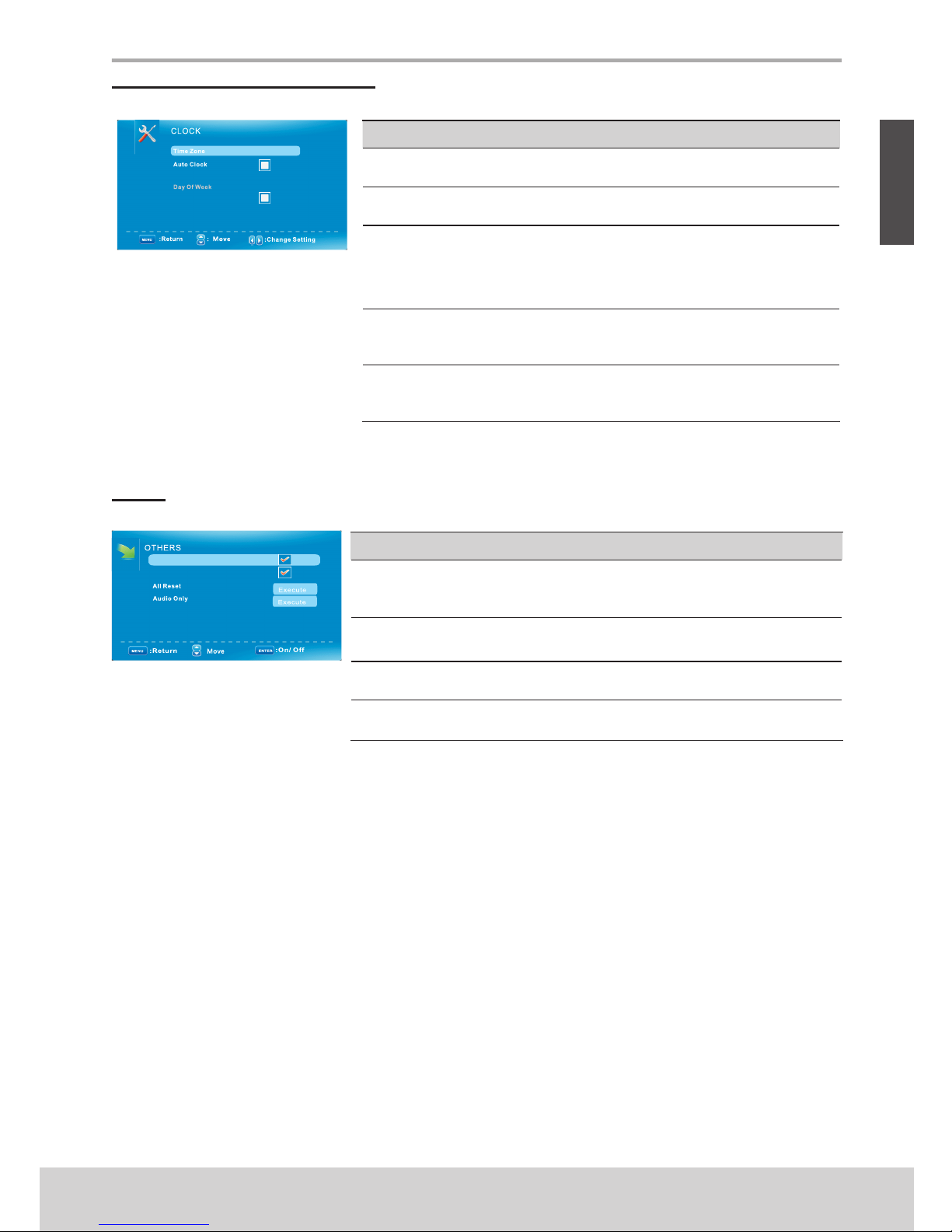

Function Description
Time Zone To select the time zone appropriate to your location.
Auto Clock To turn on/off Auto Sync.
Setup Time
Set Auto Clock to off,then you can set the time
manually.
Note:In the case of loss of power ,the clock setting
will be lost.
Day of Week
The TV will calculate current day of week according
to the time.
Daylight
Saving Time
Set summer time yes or not
Time menu (Except USB source)
Pacific
Setup Time 2009-10-21 20：00：00
Sat
Daylight Saving Time
Others
Function Description
Blue
Background
Set the screen background color blue or not when no
valid signal input.
No Signal
Power Off
If it is set,TV will automatically enter standby after 15
minutes without signal input.
All Reset
TV system is reset.
Audio only Hold on power key 3 second to restore video.
Blue Background
No Signal Power Off
Page 34
ENGLISH
26
Other Information
Troubleshooting
Please contact ViewSonic service team directly if you have questions, service needs, or require technical
assistance related on the use of your television.
Contact ViewSonic Service Team at:
http://www.ViewSonic.com
Or call our service team:
United States 1-800-688-6688
Canada 1-866-463-4775
Problem Possible Solution
No power • Make sure the power cord is properly connected to the
LCD TV AC power socket.
• Make sure the AC power cord is properly connected to the
wall outlet.
• Make sure the DC power button is ON (Blue LED).
• Plug another electrical device (like a radio) to the power
outlet to verify that the outlet is supplying the proper voltage.
No picture • The TV station may be experiencing problems. Try another
channel.
• The Cable TV signal may be scrambled or encoded. Please
contact your local cable operator.
• Make sure that connection to other components are correct
referring to the user guide.
• Make sure that setup has been done correctly after
connections.
• Make sure the correct input is selected and the input signal is
compatible.
Strange color, light color,
or color misalignment
• Ensure that the video cable is securely connected.
• The picture may appear dim in a brightly lit room.
• Adjust brightness, contrast, saturation (color), and tint
referring to the user guide.
• Check the input signal setting.
No sound • Check your audio connections are properly connected
referring to the user guide.
• The MUTE button may have been pressed, try pressing this
button again.
• Check your audio settings, your TV audio may be set to
minimum.
• Press the Volume + (Up) button on the remote control.
Page 35
Other Information
ENGLISH
27
Problem Possible Solution
Remote control unit does not
operate
• Make sure the directions of batteries are inserted correctly
referring to the user guide.
• Batteries could be weak or dead. Replace with new batteries.
• Is a uorescent light illuminated near the remote control
sensor?
• The path of the remote control beam may be blocked. Make
sure the path is clear and that the remote control is aimed at
the remote control sensor on the TV.
• Press the POWER button on the remote control to see if you
can turn on the TV.
• Press MENU button on the remote control to see if there is a
MENU shown on the screen.
• Press only one button at a time and it is the correct one for
the operation you want to perform.
Unit cannot be operated • External inuences such as lightning or static electricity may
cause improper operation. In this case, operate the unit after
rst turning on the power of the LCD TV and the AVC
System, or unplug the AC cord for 1 to 2 minutes, then
replug again.
Power is cut off suddenly • Is the sleep timer set in advance?
• Is there no signal in PC mode or HDMI mode?
• The internal temperature of the unit has increased. Remove
any objects blocking the vent or clean as necessary.
No CATV reception (or no
reception above CH13)
• Is the AIR/CABLE option set correctly? Please set the AIR/
CABLE option to CABLE referring to the user guide.
• CATV is connected improperly or not connected; please
check all the CATV connections.
• The cable TV service is interrupted; please contact your
cable operator.
Picture is cut off/with sidebar
screen
• Is the image positioned correctly?
• Are screen mode adjustments such as picture size set
correctly?
• Press WIDE button repeatedly on the remote control to see if
you can get the picture you prefer.
Page 36
Other Information
ENGLISH
28
Specications
Model VT1601LED
LCD
(LED Backlight)
Type 16” TFT Active Matrix RGB
0.252(H) x 0.252(V) mm pixel
Color Pixel Arrangement RGB vertical strip
Surface Treatment AG type, 3H hard coating, Haze 25
Input signal
RGB
RF
Video
RGB analog (0.7/1.0 Vp-p, 75 ohms) Separate Sync,
fh: 30-82 kHz, fv:55-76 Hz
TV system Antenna / NTSC+ATSC, TV cable system /
CATV+Digital cable
1 composite RCA, 1 YPbPr component, 1 HDMI
Audio 1 pair of RCA (L/R) stereo
USB JPEG / MP3 Format
Compatibility
PC Up to 1366 x768 @ 60 Hz, 1 VGA mode,
Resolution
Recommended
and supported
(VGA mode)
720*400@70Hz (IBM)
640*480@60Hz (VESA)
800*600@56Hz (VESA)
800*600@60Hz (VESA)
1024*768@60Hz (VESA)
1024*768@70Hz (VESA)
1280*1024@60Hz (VESA)
1360*768@60Hz (VESA)
1280* 960 @60Hz (VESA)
1280*768 @60Hz (VESA)
Speaker Output
2.5W x 2 @ THD=10%
Audio Output
1 Headphone jack, 1 SPDIF (optical)
Power
Voltage 100V/60Hz-264V/50Hz (auto switch)
Display area
Full Scan 344.232mm (H) x 193.536mm (V)
13.55” (H) x 7.62” (V)
Operating
conditions
Temperature
Humidity
Altitude
32°F to + 104°F ( 0°C to + 40°C)
20% to 80% (no condensation)
0 To 6,500 feet (2,000m)
Storage
condition
Temperature
Humidity
Altitude
-4°F to + 140°F (-20°C to + 60°C)
5% to 90% (no condensation)
0 To 12,000 feet (3,790.3m)
Dimensions
Physical
(W) x (H) x (D)
392.1mm x 291.7mm x 120.00mm
15.44’’ x 11.48’’ x 4.72’’
Weight
Net 1.5 kg (3.3 lb)
Power
consumption
On
Stand by
< 25 W [Max] (blue LED)
< 0.5 W @ 115 Vac only (orange LED)
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in
permanent damage to the LCD TV.
Note: Product Specications are subject to change without notice.
Page 37
Other Information
ENGLISH
29
Customer Support
For technical support or product service, see the table below or contact your reseller.
Note: You will need the product serial number.
Use with other Wall-Mount kit may cause instability and possibly result in injury.
To nd the perfect mount for VT1601LED, please browse www.viewsonic.com or call
our service team: United States 1-800-688-6688, Canada 1-866-463-4775.
Country/Region Website
T = Telephone
F = FAX
Email
United States www.viewsonic.com
T (Toll-Free)= 1-800-688-6688
T (Toll)= 1-424-233-2530
F= 1-909-468-3757
Canada www.viewsonic.com
T (Toll-Free)= 1-866-463-4775
T (Toll)= 1-424-233-2533
F= 1-909-468-3757
Latin America
(Argentina)
Latin America
(Columbia)
Latin America (Mexico) www.viewsonic.com/la/ T= 001-8882328722 [email protected]
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS
Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16
Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico
Page 38
Other Information
ENGLISH
30
Limited Warranty
VIEWSONIC LED TV
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period.
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or
replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
ViewSonic LED TVs are warranted for 1 year for all parts excluding the light source and 1 year for labor from the date of the rst customer purchase.
Who the warranty protects:
This warranty is valid only for the rst consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modied or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized product modication, or failure to
follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by ViewSonic.
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electric power uctuations or failure.
f. Use of supplies or parts not meeting ViewSonic’s specications.
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the
product for an extended period of time.
4. Removal, installation, and set-up service charges.
5. When you mount it on the wall, the following must be noticed:
a. The accessories attached with this product are applicable for this product only.
b. When the product is mounted on the wall, holes and xed screws will remain in the wall body.
c. Wall face may discolor when this product has been mounted on the wall for a long time.
How to get service:
1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to Customer Support
page). You will need to provide your product’s serial number.
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a
description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of
merchantability and tness for a particular purpose.
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:
1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss
of time, loss of prots, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial
loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
Effect of state law:
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state. Some states do not allow
limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and
exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic
dealer.
The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the
Maintenance Guarantee Card.
For users in Europe and Russia, full details of warranty providedcan be found in www.viewsoniceurope.com under Support/Warranty Information.
4.3: ViewSonic LED TV Warranty LTV_LW01 Rev. 1C 06-25-07
Page 39
Other Information
ENGLISH
31
Mexico Limited Warranty
VIEWSONIC LED TV
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the
warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic
will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include
remanufactured or refurbished parts or components & accessories.
How long the warranty is effective:
ViewSonic LED TVs are warranted for 1 year for all parts excluding the light source and 1 year for labor from the date
of the rst customer purchase.
Who the warranty protects:
This warranty is valid only for the rst consumer purchaser.
What the warranty does not cover:
1. Any product on which the serial number has been defaced, modied or removed.
2. Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized product modication,
unauthorized attempted repair, or failure to follow instructions supplied with the product.
b. Any damage of the product due to shipment.
c. Causes external to the product, such as electrical power uctuations or failure.
d. Use of supplies or parts not meeting ViewSonic’s specications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.
3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is
displayed on the product for an extended period of time.
4. Removal, installation, insurance, and set-up service charges.
How to get service:
For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the
attached Customer Support page). You will need to provide your product’s serial number, so please record the product
information in the space provided below on your purchase for your future use. Please retain your receipt of proof of
purchase to support your warranty claim.
For Your Records
Product Name: ____________________________ Model Number: _______________________________
Document Number: ________________________ Serial Number: ________________________________
Purchase Date: ____________________________ Extended Warranty Purchase? ________________(Y/N)
If so, what date does warranty expire? ______________
1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your
address, (d) a description of the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein including the
implied warranty of merchantability and tness for a particular purpose.
Exclusion of damages:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:
1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of
the product, loss of time, loss of prots, loss of business opportunity, loss of goodwill, interference with business
relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.
Page 40
Other Information
ENGLISH
32
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:
México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
Col. San Fernando Huixquilucan, Estado de México
Tel: (55) 3605-1099
http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:
Distribuciones y Servicios Computacionales SA de CV.
Calle Juarez 284 local 2
Col. Bugambilias C.P: 83140
Tel: 01-66-22-14-9005
