TABLET PC

Security Alert

Home Screen Use Instructions

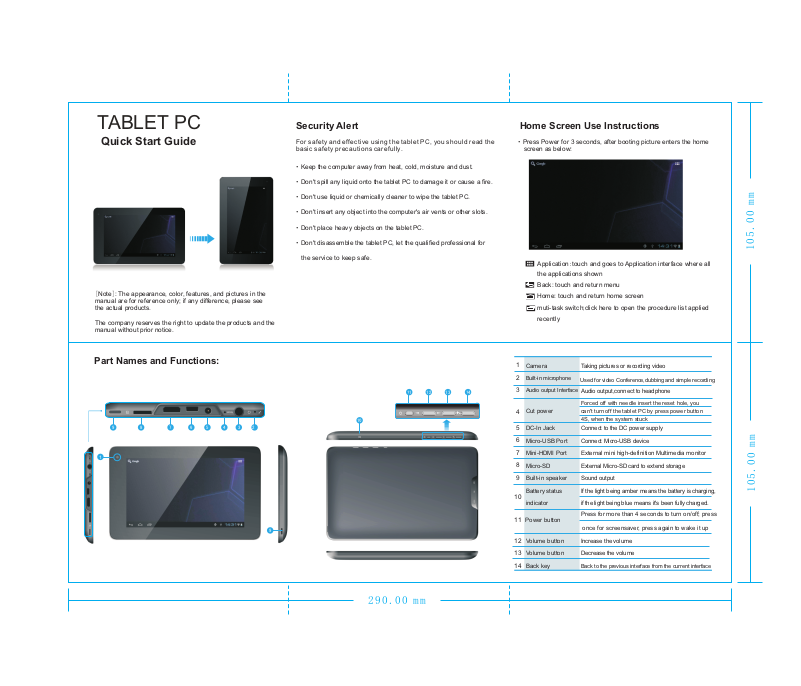

Quick Start Guide

[Note]: The appearance, color, features, and pictures in the manual are for reference only; if any difference, please see the actual products.

The company reserves the right to update the products and the manual without prior notice.

Part Names and Functions:

8 7 6 5 4 3

For safety and effective using the tablet PC, you should read the basic safety precautions careful ly.

Keep the computer away from heat, cold, moisture and dust.

Don't spill any liquid onto the tablet PC to damage it or cause a fire.

Don't use liquid or to wipe the tablet PC.

Don't insert any object into the computer's air vents or other slots.

Don't place heavy objects on the tablet PC.

Don't disassemble the tablet PC, let the qualified professional for

the service to keep safe.

chemically cleaner

11 12 13 14

·Press Power for 3 seconds, after booting picture enters the home screen as below:

Application:touch and goes to Application interface where all

the applications shown

Back: touch and return menu

Home: touch and return home screen

muti-task switch;click here to open the procedure list applied

recently

Camera

Built-in microphone

Audio output Interface

Cut power

DC-In Jack

Micro-

USB Port

Mini-HDMI Port

Micro-SD

Built-in speaker

Battery status

indicator

Power button

Volume button

Back key

Taking pictures or recording video

Used for video Conference,dubbing and simple recording

Audio output,connect to headphone

Forced off with needle insert the reset hole, you can't turn off the tablet PC by press power button 4S, when the system stuck

Connect to the DC power supply

Connect USB device

Micro-

External mini high-definition Multimedia monitor

External Micro-SD card to extend storage

Sound output

If the light being amber means the battery is charging,

if the light being blue means it's been fully charged.

Press for more than 4 seconds to turn on/off; press

once for screensaver, press again to wake it up

Increase the volume

Decrease the volume

Back to the previous interface from the current interface

10 5. 00 m m

29 0. 00 m m

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

IC STATEMENT

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils

radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)

l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter

tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

RF warning statement:

The device has been evaluated to meet general RF exposure requirement set forth for an uncontrolled enviroment. End users must maintain 0.5 cm distance away from the

This tran

or transmitter.

smitter must not be co-located or operating in conjunction with any other antenna

Tablet PC and its antenna.
