ViewStick 2
Wireless Presentation Gateway
User Guide
Model No. VS16704
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specic languages using the Regional selection
box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”
Thank you for choosing ViewSonic
With over 25 years as a world leading provider of visual solutions,
ViewSonic is dedicated to exceeding the world’s expectations for
technological evolution, innovation, and simplicity. At ViewSonic, we
believe that our products have the potential to make a positive impact
in the world, and we are confident that the ViewSonic product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic !
i
Compliance Information
Please read before proceeding
• Use only the batteries and power adapter provided by the manufacturer. The use
of unauthorized accessories may void your warranty.
• Do not store your device in temperatures higher than 50°C (122°F).
• The operating temperature for this device is from 0°C (32°F) to 35°C (95°F).
FCC Notice
The following statement applies to all products that have received FCC approval.
Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID:
GSS-VS16704 on the product label.This device complies with part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation. This
mobiledevice has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequencyenergy
and, if not installed and used in accordance with the instructions, may cause
harmful interferenceto radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void theuser’s authority to operate the equipment.The antenna(s)
used for this transmitter must not be colocated or operating in conjunction with any
otherantenna or transmitter.
The device was tested and complies to measurement standards and procedures
specified in FCC OET Bulletin 65, Supplement C
ii
FCC SAR Information
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
The users manual or instruction manual for an intentional or unintentional radiator
shall caution the user that changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate the
equipment.
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU and Low Voltage
Directive 2014/35/EU, RED Directive 2014/53/EU.
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and
Electronic Equipment Directive 2012/19/EU (WEEE).
The mark indicates the requirement NOT to dispose the equipment as
unsorted municipal waste, but use the return and collection systems
according to local law.
If the batteries, accumulators and button cells included with this equipment,
display the chemical symbol Hg, Cd, or Pb, then it means that the battery has
a heavy metal content of more than 0.0005% Mercury, or more than 0.002%
Cadmium, or more than 0.004% Lead.
European Union Regulatory Conformance
The equipment complies with the RF Exposure Requirement 1999/519/EC, Council
Recommendation of 12 July 1999 on the limitation of exposure of the general
public to electromagnetic fields (0-300 GHz). This equipment meets the following
conformance standards: EN301489-1, EN301489-17, EN55022/24, EN60950-1,
EN300328, EN62311.
We, hereby, declare that this Wi-Fi radio is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
iii
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive
2011/65/EU of the European Parliament and the Council on restriction of the use
of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued
by the European Technical Adaptation Committee (TAC) as shown below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex III
of the RoHS2 Directives as noted below:
Examples of exempted components are:
1. Mercury in cold cathode fluorescent lamps and external electrode fluorescent
lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
(1) Short length (≦500 mm): maximum 3.5 mg per lamp.
(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.
(3) Long length (＞1,500 mm): maximum 13 mg per lamp.
2. Lead in glass of cathode ray tubes.
3. Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.
5. Copper alloy containing up to 4% lead by weight.
6. Lead in high melting temperature type solders (i.e. lead-based alloys containing
85% by weight or more lead).
7. Electrical and electronic components containing lead in a glass or ceramic other
than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or
ceramic matrix compound.
iv
Copyright Information
Copyright © ViewSonic® Corporation, 2016. All rights reserved.
ViewSonic
®
, the three birds logo, OnView®, ViewMatch™, and ViewMeter® are
registered trademarks of ViewSonic® Corporation.
Disclaimer: ViewSonic
®
Corporation shall not be liable for technical or editorial errors
or omissions contained herein; nor for incidental or consequential damages resulting
from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic
®
Corporation reserves
the right to change product specifications without notice. Information in this
document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means,
for any purpose without prior written permission from ViewSonic
®
Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it
becomes available, please register your product on the Internet at: www.viewsonic.
com.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
ViewStick 2
Wireless Presentation Gateway
VS16704
ViewStick 2_UG_ENG Rev. 1A 06-30-16
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living green.
Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic
website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
v
Contents
Compliance Information
Please read before proceeding ..............................................................................i
FCC Notice .............................................................................................................i
FCC SAR Information ............................................................................................ ii
CE Conformity for European Countries ................................................................. ii
Following information is only for EU-member states: ............................................ii
European Union Regulatory Conformance............................................................ii
Declaration of RoHS2 Compliance ....................................................................... iii
Copyright Information
Product Registration ............................................................................................. iv
For Your Records .................................................................................................iv
Chapter 1: Product Introduction
1-1 Package Contents ...........................................................................................1
1-2 Hardware Recommendation............................................................................2
1-3 Highlights.........................................................................................................2
1-4 Hardware Setup/Installation ............................................................................3
Chapter 2: ViewStick 2 administration setting
2-1 Connect to Web Configuration Menu ..............................................................4
2-2 Status & Info ....................................................................................................5
2-3 Wireless Settings.............................................................................................6
2-4 WiFi connection setting ...................................................................................9
2-5 Projection Setting ..........................................................................................10
2-6 Password Setting ..........................................................................................11

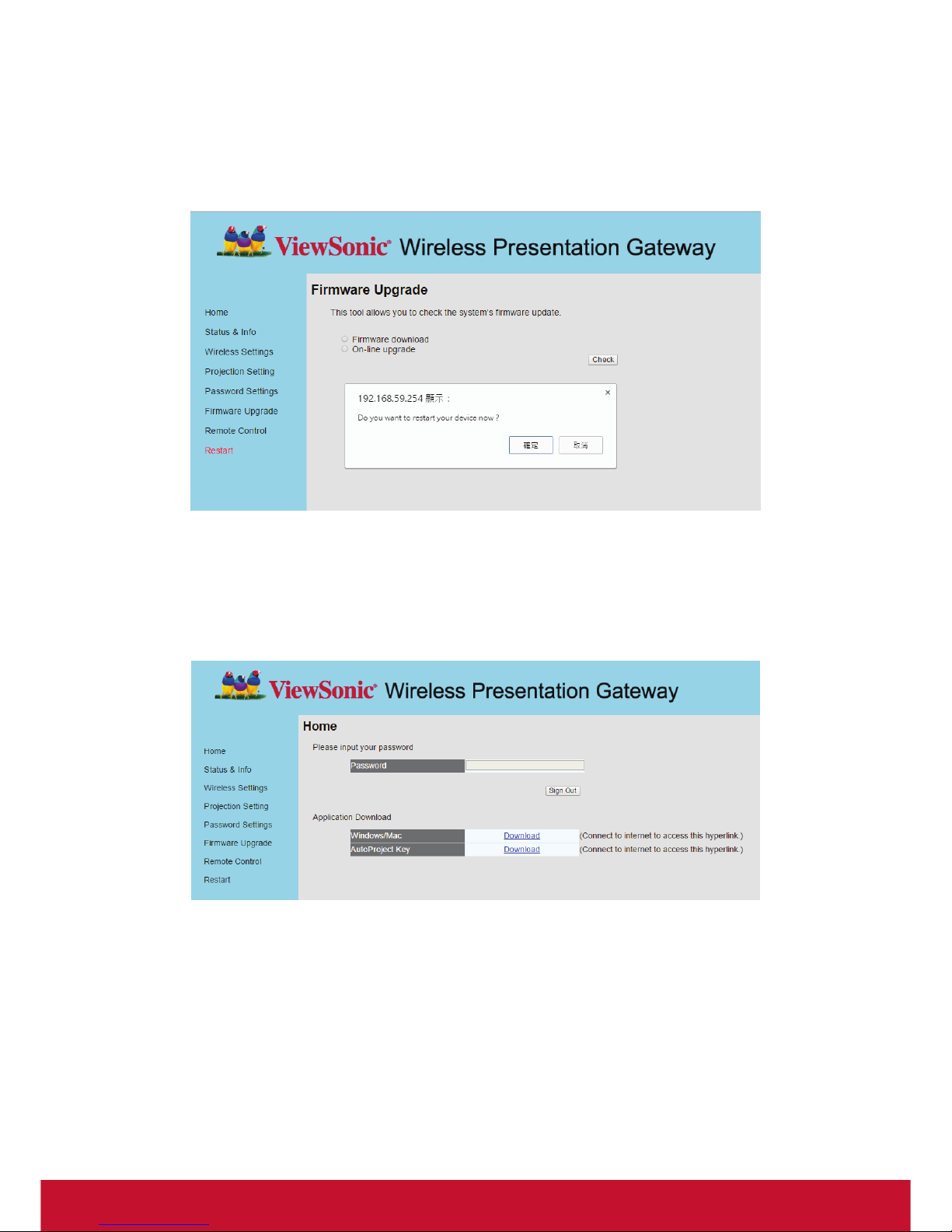

2-7 Firmware Upgrade.........................................................................................12
2-8 Restart ...........................................................................................................13
2-9 Logout ...........................................................................................................13

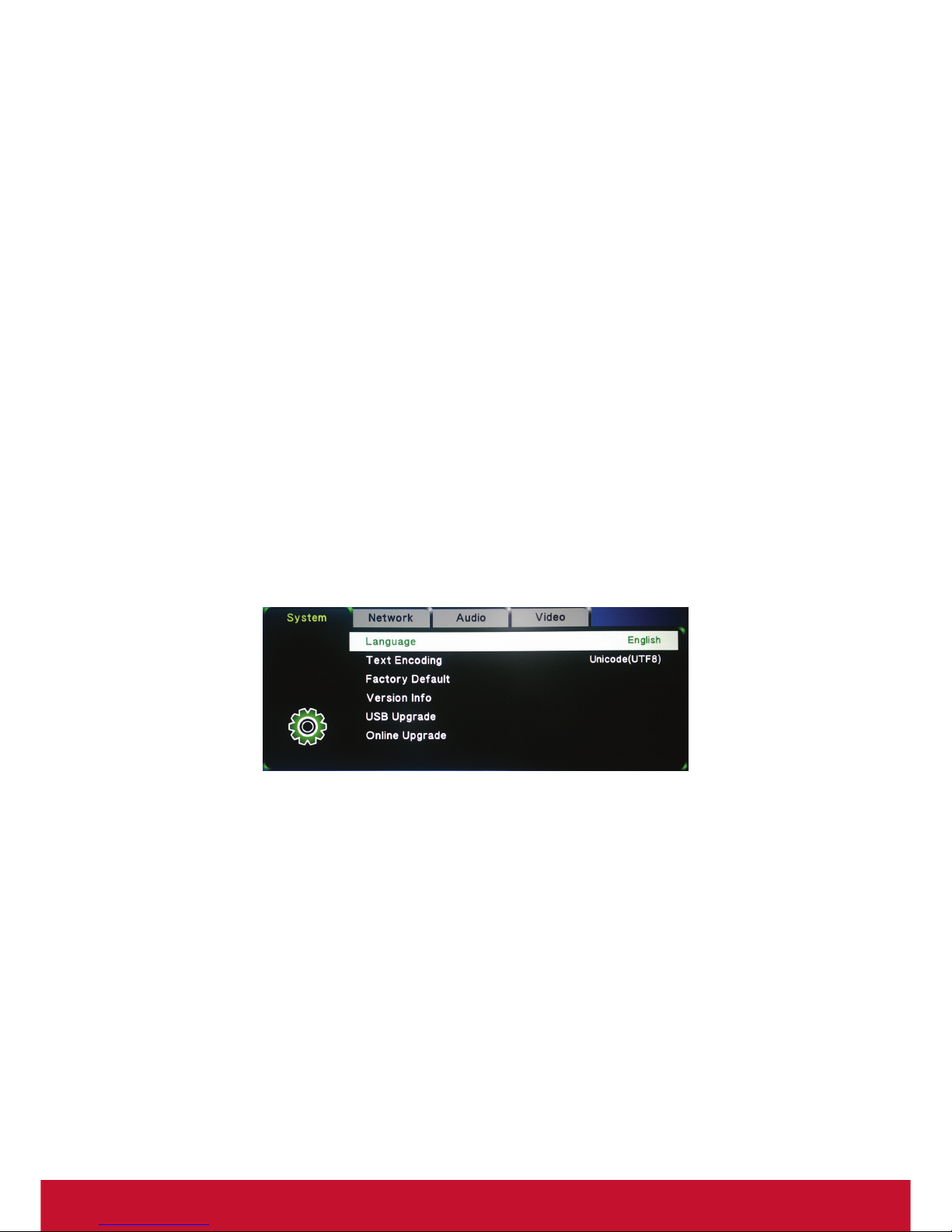

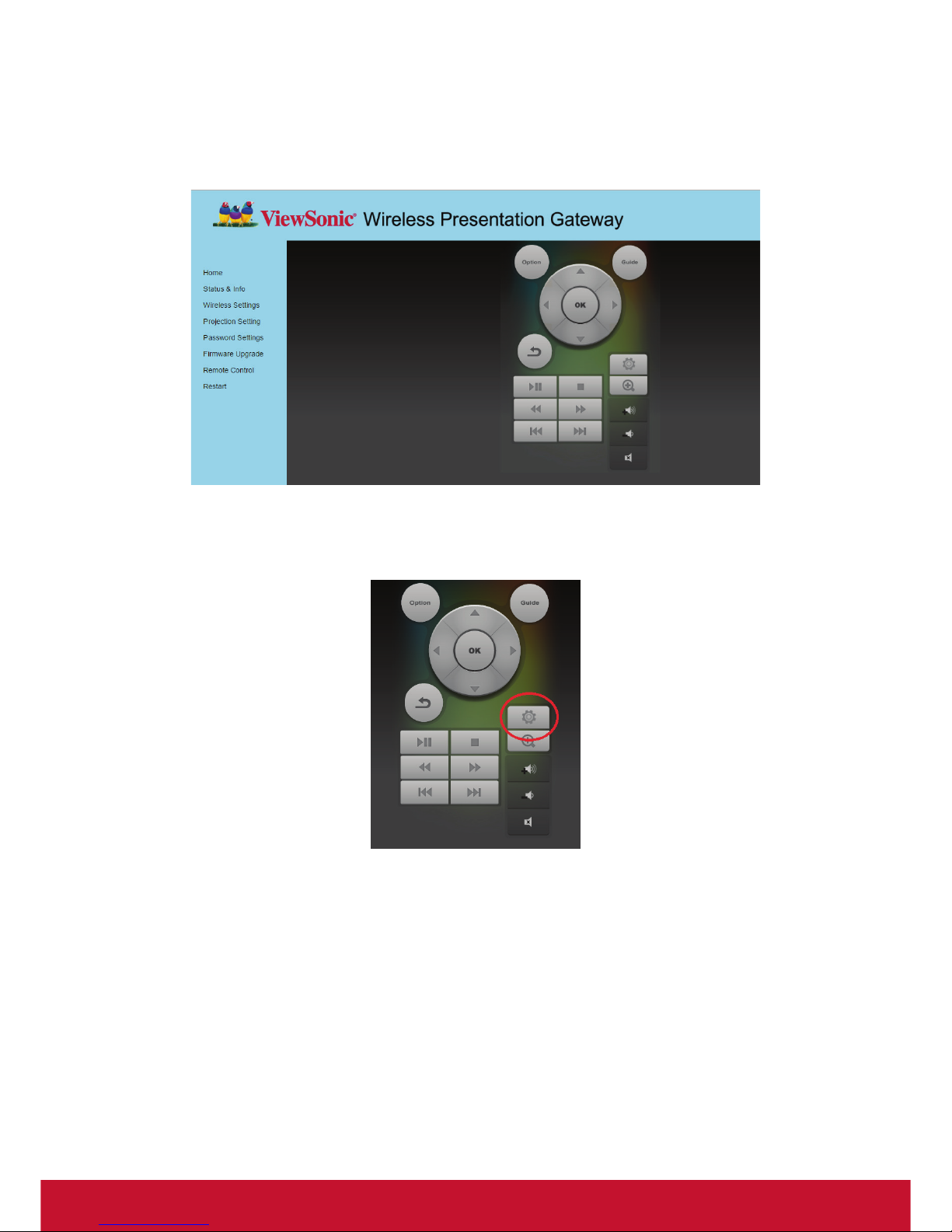

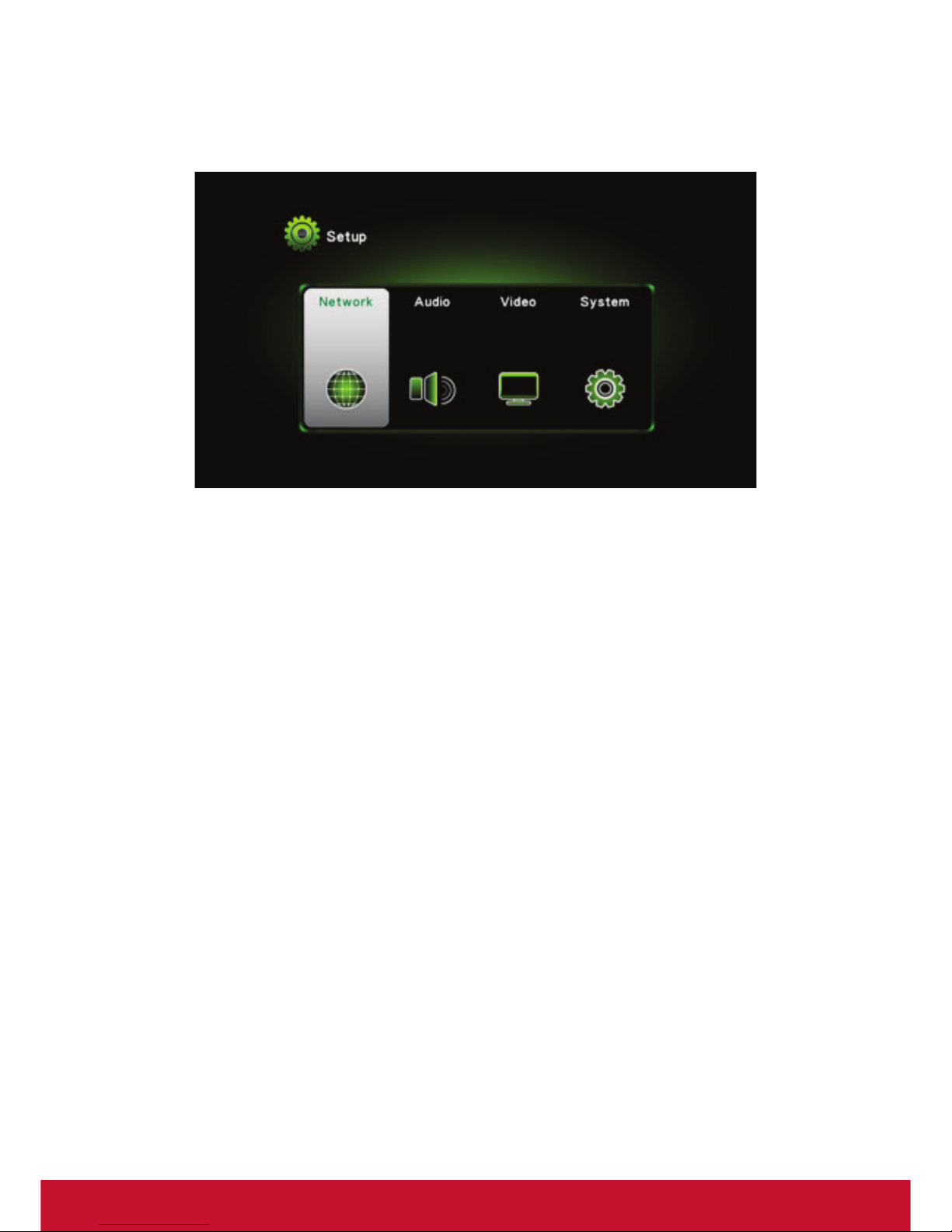

2-10 OSD Menu...................................................................................................14
2-11 Network Setting ...........................................................................................16
vi
Chapter 3: Computer Projection
3-1 Download & Install ........................................................................................21
3-2 Connect to ViewStick 2 ................................................................................22
3-3 Basic Mode....................................................................................................24
3-4 Moderator Mode ............................................................................................26
FAQ: ...................................................................................................................27

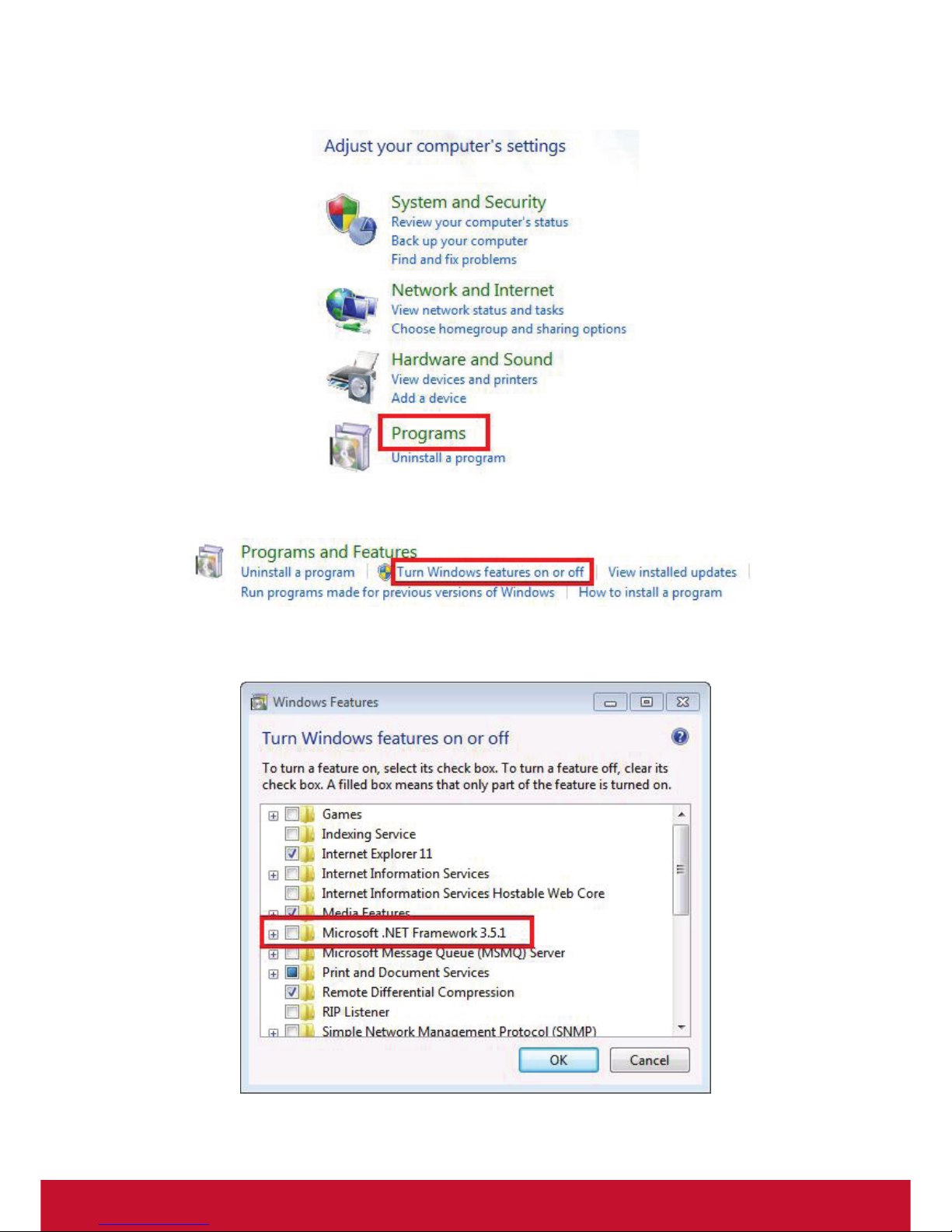

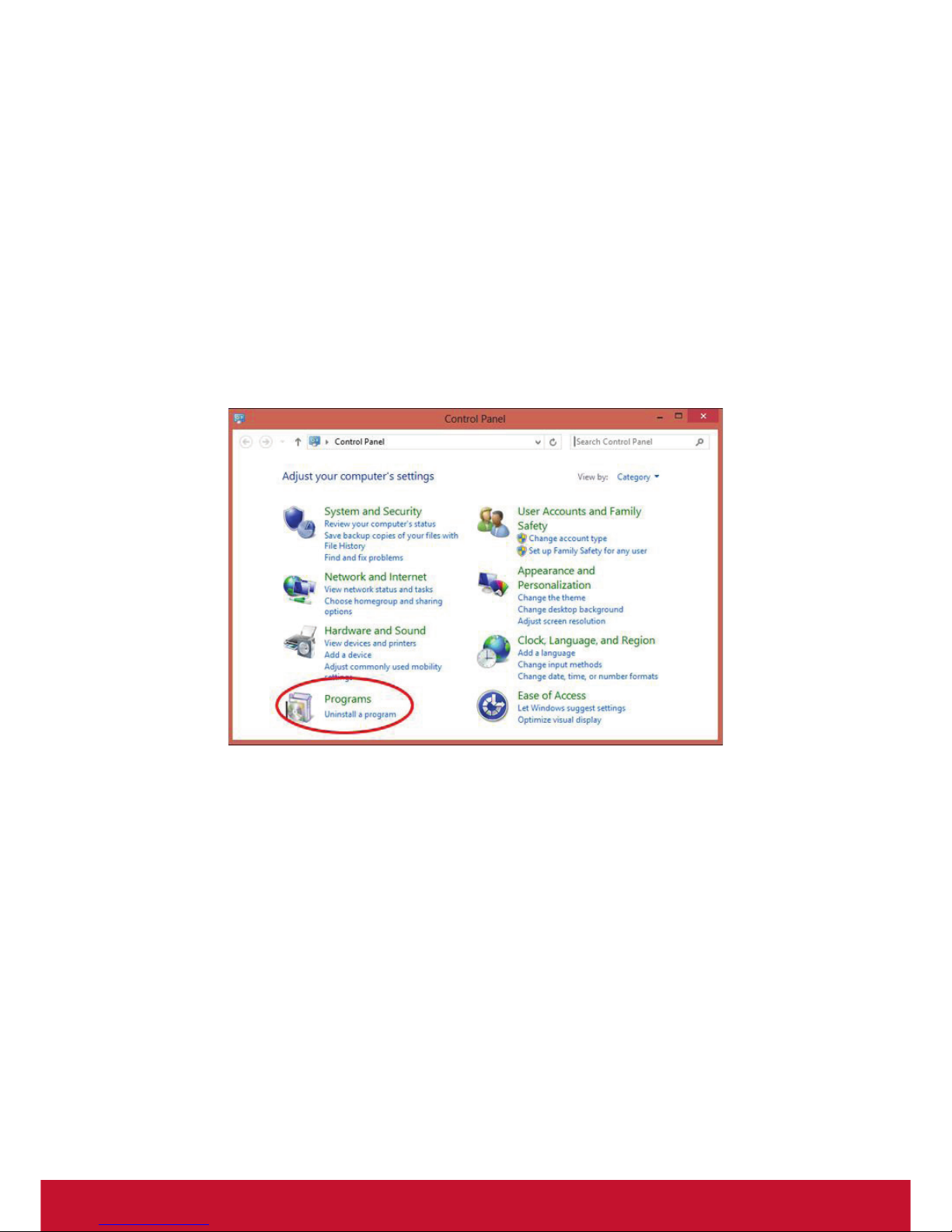

Windows 7 ...........................................................................................................28

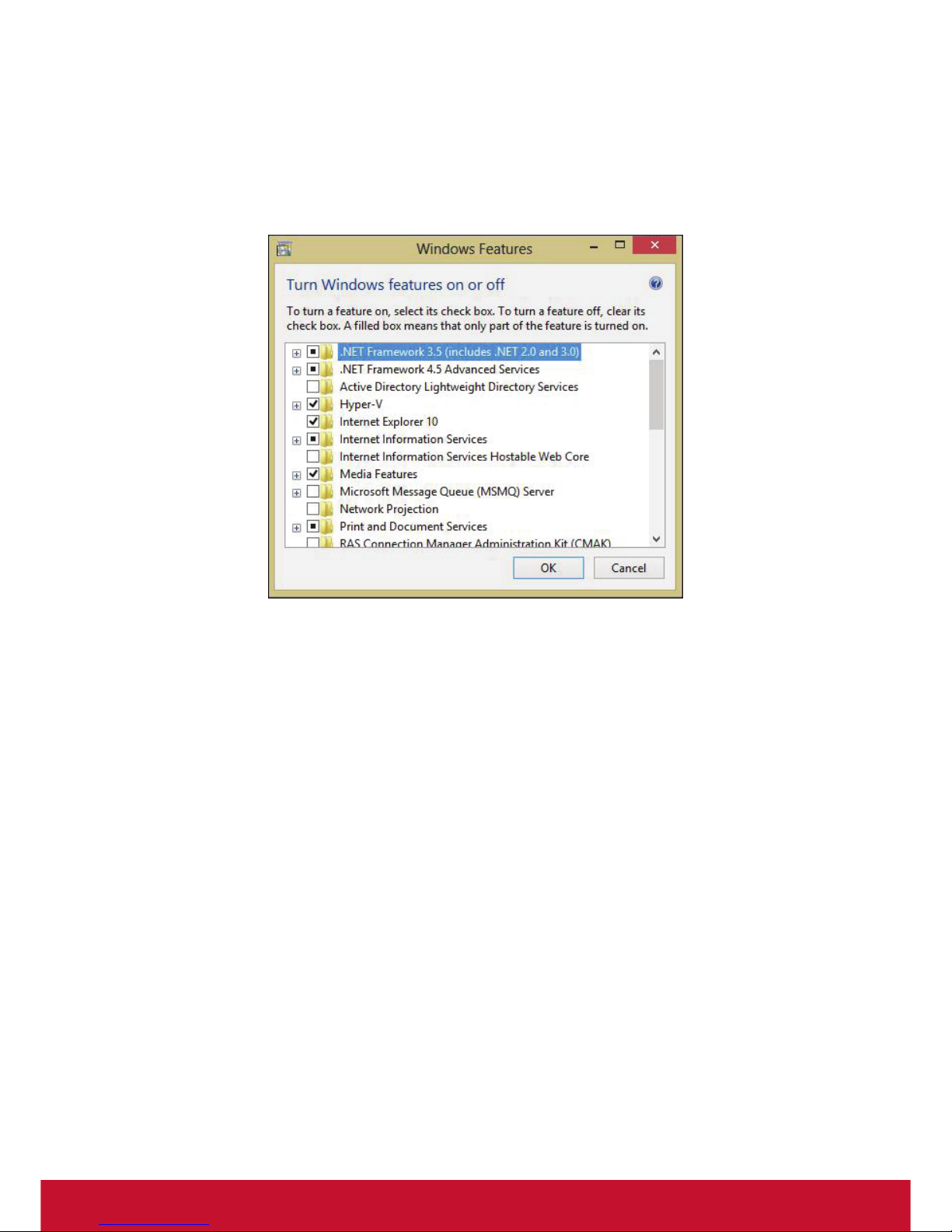

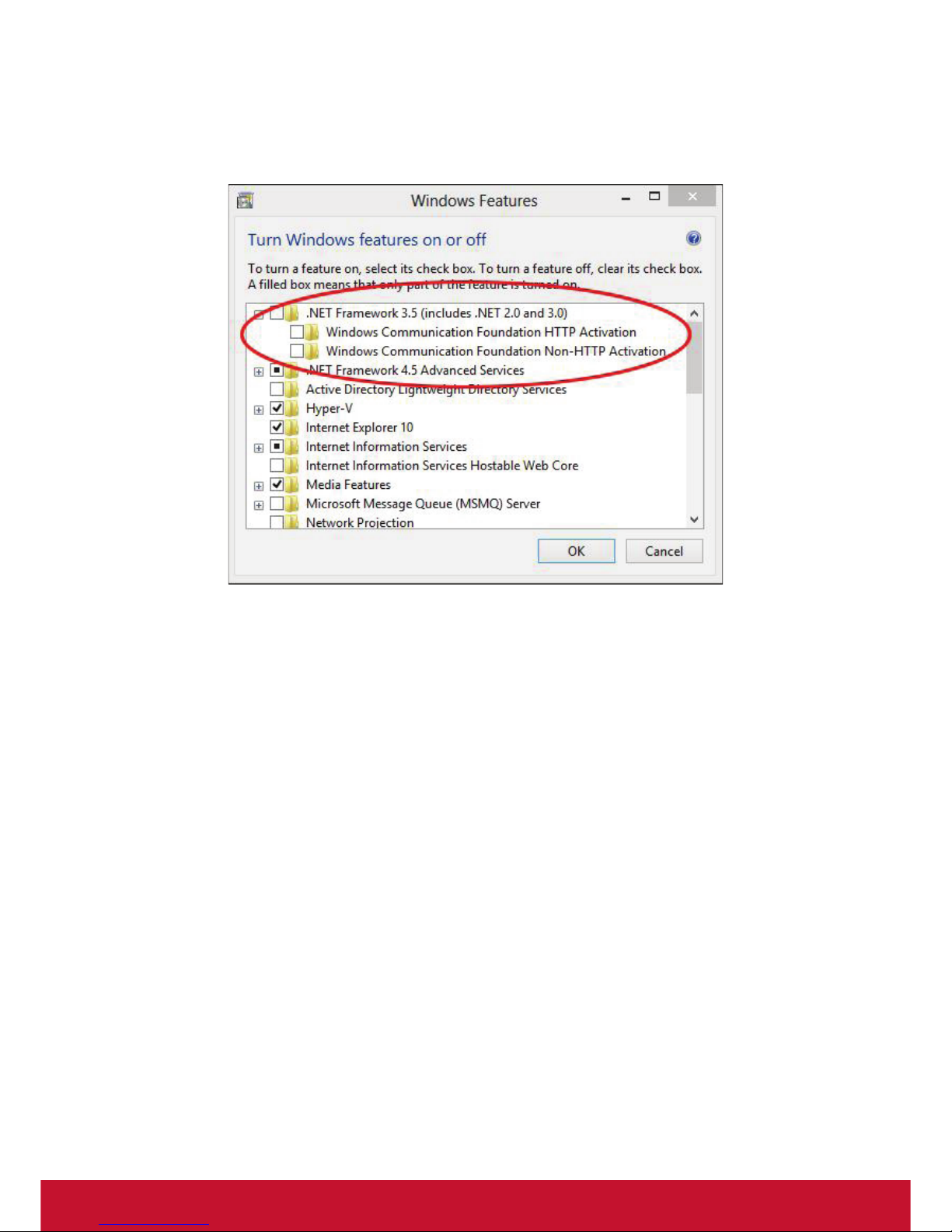

Windows 8 ...........................................................................................................31

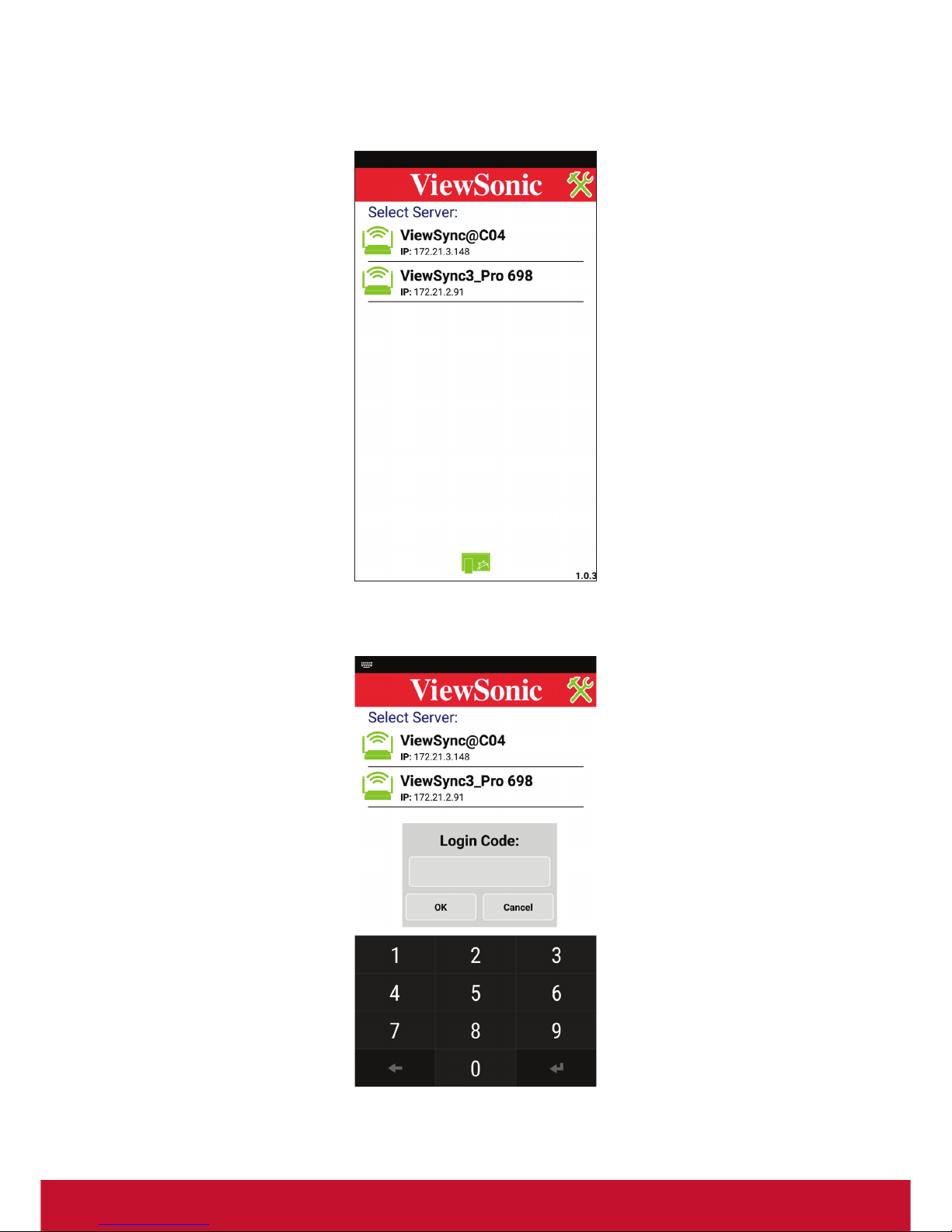

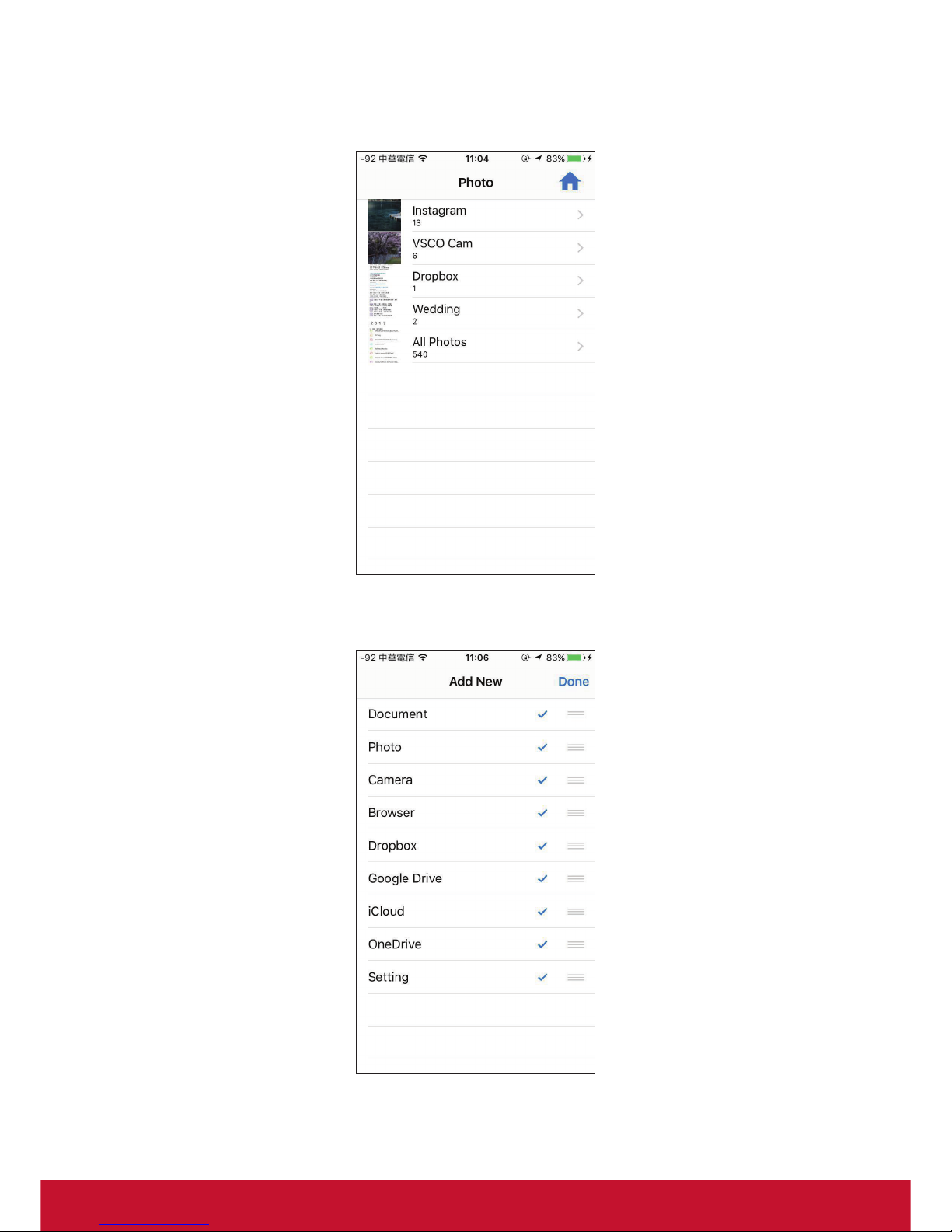

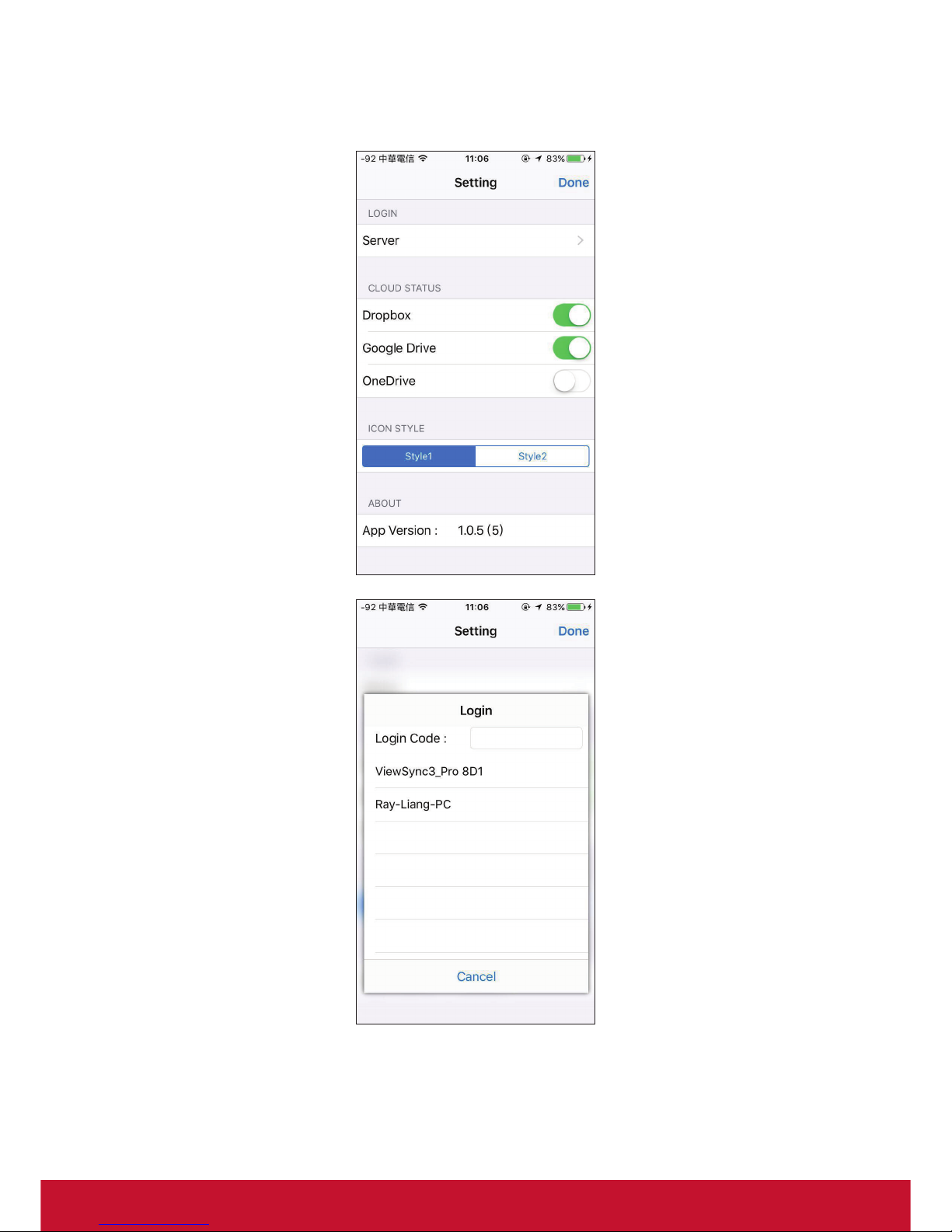

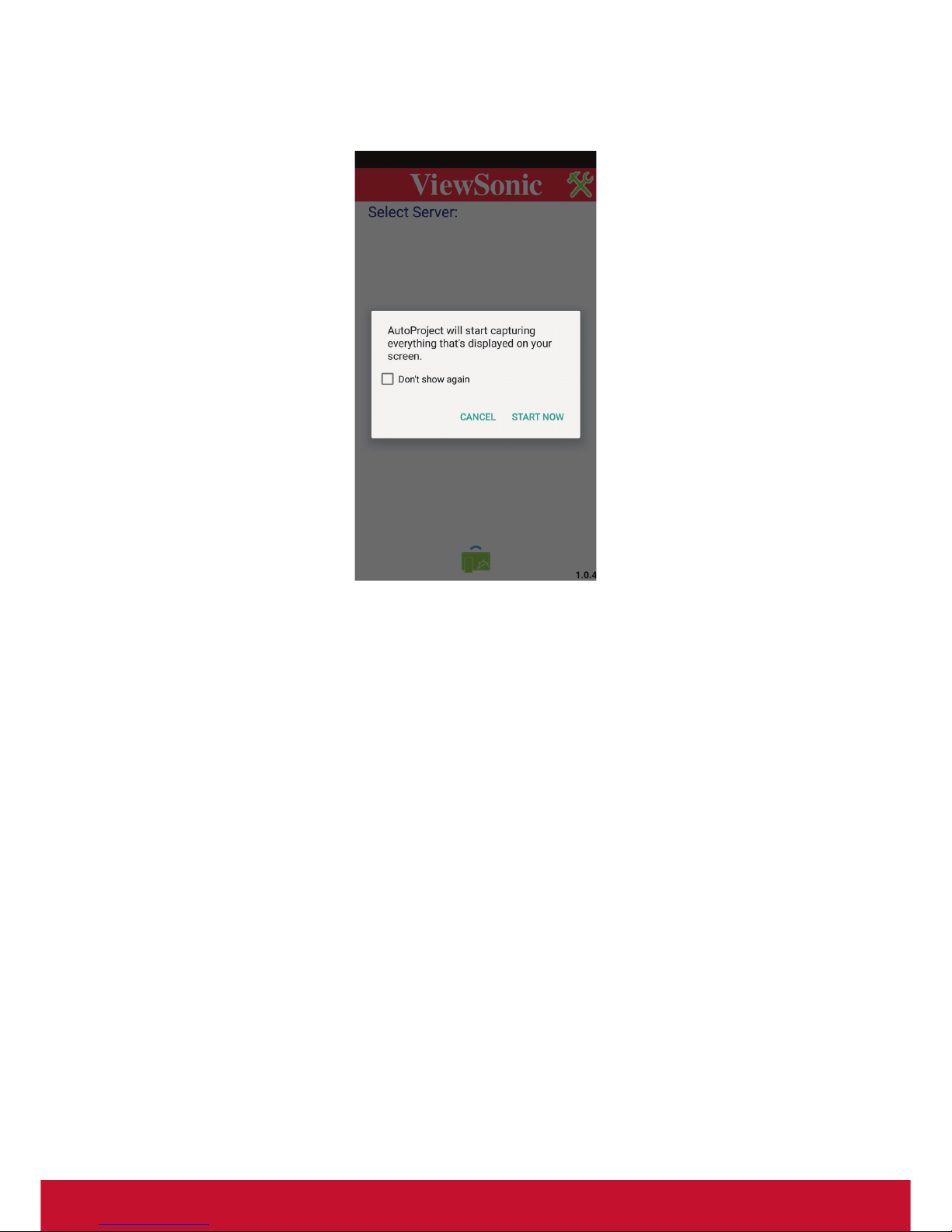

Chapter 4: Using ViewStick 2 on Mobile, Mobile APP
Chapter 5: Play media by USB
Appendix A: Support resolution
Appendex B: ViewStick 2 Support Media Format
Customer Support
1
Chapter 1: Product Introduction
Congratulations on your purchase of ViewSonic Wireless Presentation Gateway
ViewStick 2.
This section introduces you to the ViewStick 2 (referred to as the ViewStick 2 in this
user guide).
1-1 Package Contents
1. ViewStick 2
2. USB Y Cable
3. Quick Installation Guide
4. HDMI Extender
2
1-2 Hardware Recommendation
ViewStick 2 supports real time WiFi Projection, play back functions.
1. WiFi Presentation Mode (HDMI)
ViewStick 2 is designed to able to stream contents from PC (Windows 7 /
Window 8 / Windows 10 / Mac OS X 10.7/10.8/10.9/10.10/10.11) and Mobile
(iOS 8 or later / Android 5.0 or later) to your HDMI support Display through this
device.
2. PC or Notebook
• CPU: Core 2 Duo 2.0GHz or better
• Memory: 2.0 GB or better
• Network: 802.11g/n Wi-Fi
• Software: ViewStick 2 Utility. (Windows 7 above / OS X 10.7 above)
3. Mobile, Mobile APP
- AirPlay: iOS 9
- Android: 5.0 or later with ViewStick 2 Utility
- iOS: 8 or later with ViewStick 2 Utility
1-3 Highlights
Thanks again for choosing the product. This product allows multiple users to connect
to the same projector by wireless network and avoiding the hassle of using VGA or
HDMI cable.
Features
• 802.11 b/g/n Wireless compatibility
• 802.11n 2.4GHz singal band statndard
• Wireless multimedia streaming up to Full HD 1080p
• PC content, movies, photo’s apps and more all on your big screen
• Compatible with Windows, Mac, iOS and Android devices
• Network security
• USB display on Media Streaming mode
3
1-4 Hardware Setup/Installation
1. Front HDMI (Internal Micro USB)
2. Back HDMI (USB Y Cable)
4
Chapter 2: ViewStick 2 administration
setting
2-1 Connect to Web Configuration Menu
Please key IP address in browser, default is 192.168.59.254, The basic standby
screen shows IP information Default pass word is “admin”.
Item Description
Application download Download application
Remark: AutoProject key software download only for Client mode setting
download link is: "http://www.viewsonicglobal.com/vsweb.us/viewsync_
software/apj_new_version.zip"
5
2-2 Status & Info
Displays system information, like system software version and IP address. Many
useful information can be obtained here when you need help about system
configuration and firmware upgrade.
6
2-3 Wireless Settings
Congures wireless network settings.
1. ‘Basic’ Settings
Displays and configures the wireless settings.
Item Description
Device Name
(SSID)
Input the Device Name of presentation gateway here.
"ViewStick 2 XXX", XXX would be different from every
upgrade.”.
Click ‘Apply’ button to save the settings.
NOTE: When the configuration settings are changed, you must restart the network
connection. You can restart the network connection by clicking “Restart” on
the main menu.
7
2. “Security” Setting
Encryption: Disabled
Disables wireless encryption.
Encryption: WPA +WPA2
Enable WPA + WPA2 encryption. Wireless clients must support WPA encryption and
know the encryption passphrase you set here.
NOTE: When the configuration settings are changed, you must restart the network
connection. You can restart the network connection by clicking “Restart” on
the main menu.
8
3. Band Setting
Item Description
Band Select the wireless band. Available options are:
2.4GHz (B+G+N) - 802.11b, 802.11g, and 802.11n clients.
2.4G Channel Auto,1,6,11
9
2-4 WiFi connection setting
PS:
If setup WiFi connection successful, ViewStick 2 will become WiFi Client mode.
Your PC or phone need to link the same WiFi AP router for WiFi projection or media
streaming.
10
2-5 Projection Setting
Displays and congures the projection setting.
Item Description
OSD Menu
Language
Selection
Select the displaying language.
HDMI Output
Resolution
Select HDMI output resolution for projection.
VGA Output
Resolution
No VGA output on this device.
Login Code Enable /disable Login code request
Over write
User can interrupt and replace the current presenter by play
another transmitter.
NOTE: When the configuration settings are changed, you must restart the network
connection. You can restart the network connection by clicking “Restart” on
the main menu.
Loading...
