ViewSonic VG730M - 17"" LCD Monitor, VG730M Specification

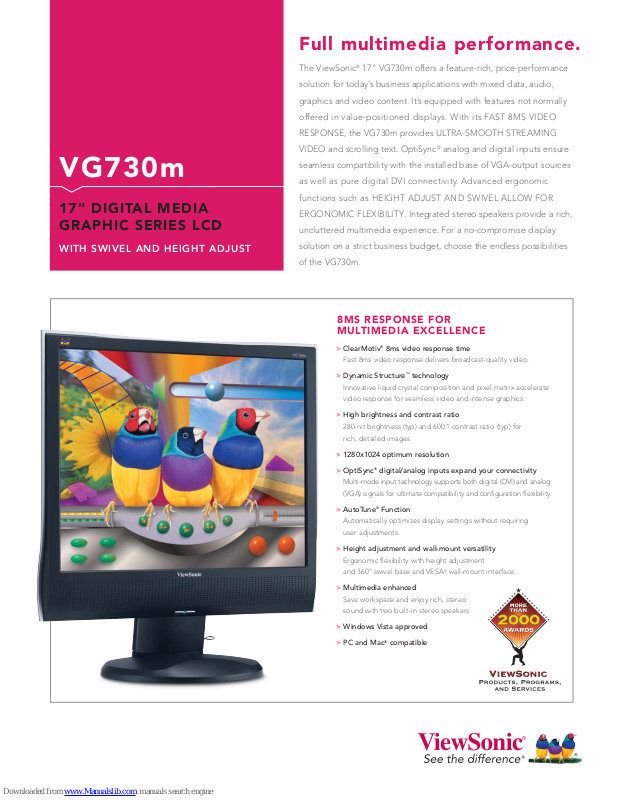

VG730m

17" DIGITAL MEDIA
GRAPHIC SERIES LCD

WITH SWIVEL AND HEIGHT ADJUST

Full multimedia performance.

The ViewSonic®17" VG730m offers a feature-rich, price-performance

solution for today’s business applications with mixed data, audio,

graphics and video content. It’s equipped with features not normally

offered in value-positioned displays. With its FAST 8MS VIDEO

RESPONSE, the VG730m provides ULTRA-SMOOTH STREAMING

®

VIDEO and scrolling text. OptiSync

seamless compatibility with the installed base of VGA-output sources

as well as pure digital DVI connectivity. Advanced ergonomic

functions such as HEIGHT ADJUST AND SWIVEL ALLOW FOR

ERGONOMIC FLEXIBILITY. Integrated stereo speakers provide a rich,

uncluttered multimedia experience. For a no-compromise display

solution on a strict business budget, choose the endless possibilities

of the VG730m.

8MS RESPONSE FOR
MULTIMEDIA EXCELLENCE

> ClearMotiv®8ms video response time

Fast 8ms video response delivers broadcast-quality video

> Dynamic Structure

Innovative liquid crystal composition and pixel matrix accelerate

video response for seamless video and intense graphics

> High brightness and contrast ratio

280-nit brightness (typ) and 600:1 contrast ratio (typ) for

rich, detailed images.

> 1280x1024 optimum resolution

> OptiSync

Multi-mode input technology supports both digital (DVI) and analog

(VGA) signals for ultimate compatibility and configuration flexibility

> AutoTune

Automatically optimizes display settings without requiring

user adjustments

> Height adjustment and wall-mount versatility

Ergonomic flexibility with height adjustment

and 360º swivel base and VESA

> Multimedia enhanced

Save workspace and enjoy rich, stereo

sound with two built-in stereo speakers.

> Windows Vista approved

> PC and Mac

®

™

technology

digital/analog inputs expand your connectivity

®

Function

.

®

compatible

analog and digital inputs ensure

.

.

.

®

wall-mount interface

.

VG730m

17" DIGITAL MEDIA GRAPHIC SERIES LCD WITH SWIVEL AND HEIGHT ADJUST

LCD Type 17" color TFT active matrix SXGA LCD

Display Area 13.3" horizontal x 10.6" vertical; 17.0" diagonal

Optimum Resolution 1280x1024

Contrast Ratio 600:1 (typ)

Viewing Angles 170° horizontal, 155° vertical @ contrast ratio > 5:1

Response Time 8ms (typ)

Light Source Long life, 50,000 hrs. (typ)

Brightness 280 cd/m2 (typ)

Panel Surface Anti-glare

VIDEO INPUT Analog/Digital RGB analog (75 ohms, 0.7 Vp-p)/DVI-D

360º SWIVEL

COMPATIBILITY PC VGA up to 1280x1024 non-interlaced

CONNECTOR Analog/Digital 15-pin mini D-sub/DVI-D

POWER Voltage AC 100–240V (universal), 50–60Hz (auto switch)

AUDIO Speakers 2x1.5-watt

CONTROLS Basic Power, 1, down, up, 2, mute

HEIGHT ADJUST

ERGONOMICS Height adjustment range 3.2", tilt, swivel range 360º

OPERATING Temperature 32–104°F (0–40°C)

CONDITIONS Humidity 10–90% (non-condensing)

DIMENSIONS Physical with stand 15.2" x 18.7" x 9" (386.8mm x 475.2mm x 230mm)

(W x H x D) Physical without stand 15.2" x 14.4" x 2.6" (386.8mm x 366.6mm x 67mm)

WEIGHT Net with stand 11.1 lb. (5.0 kg)

TILT

REGULATIONS UL, cUL, FCC-B, CB, CE, ENERGY STAR®, NOM, GS, ICES

RECYCLE/DISPOSAL The lamp in this product contains mercury. Please dispose of

PACKAGE CONTENTS LCD display, VGA cable (DVI cable not included), power cable,

WARRANTY Three-year limited warranty on parts, labor and backlight

Frequency Fh: 24~82kHz, Fv: 50~75Hz

Sync H/V separated (TTL)

Mac®* Power Mac™ G3/G4/G5 up to 1280x1024

Audio In Stereo mini audio line in

Power 3-pin AC plug

Consumption 35W (typ)

Amplifier 1.5-watt

®

OnView

Net without stand 8.2 lb. (3.7 kg)

Gross with stand 15.4 lb. (7.0 kg)

Auto image adjust, brightness, contrast, input selection,

ViewMatch®color adjust (sRGB, 9300K, 7500K, 6500K, 5400K),

information (mode, model number, serial number), audio

(volume, mute), manual image adjust (H. size, H. position,

V. position, fine tune, sharpness), setup menu (language,

resolution notice, OSD position, OSD timeout, OSD

background), memory recall

003, TUV-S, ERGO, TCO’03, GOST-R, SASO, BSMI, CCC, PSB,

C-TICK, RoHS

in accordance with local, state or federal laws.

audio cable, Quick Start Guide, ViewSonic Wizard CD

ViewSonic Corporation’s QMS & EMS have been registered to

ISO 9001 & ISO 14001, respectively, by the British Standards Institution.

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789

*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.
Windows Vista and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2008 ViewSonic Corporation. All rights reserved. [14824-00B-01/10] VG730m-1
