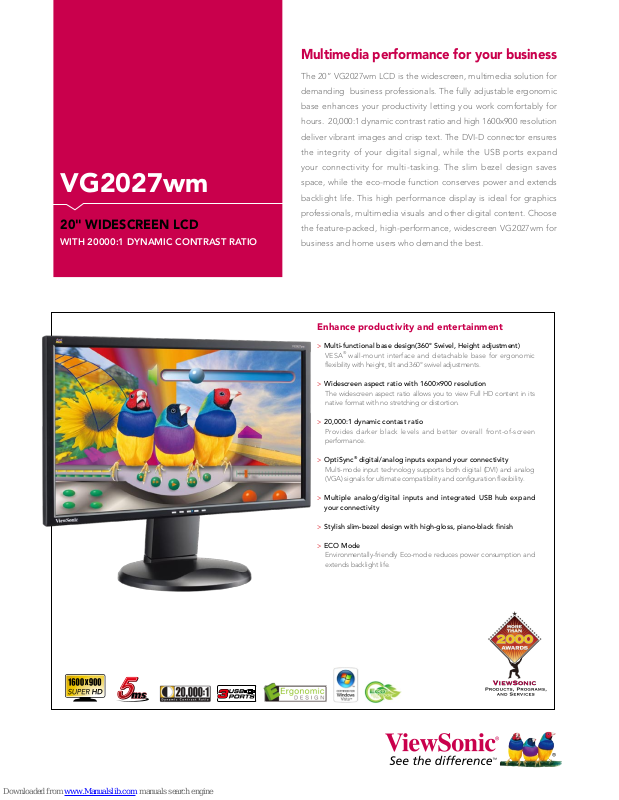

ViewSonic VG2027wm Specifications
VG2027wm
20" WIDESCREEN LCD
WITH 20000:1 DYNAMIC CONTRAST RATIO
Multimedia performance for your business
The 20” VG2027wm LCD is the widescreen, multimedia solution for
demanding business professionals. The fully adjustable ergonomic
base enhances your productivity letting you work comfortably for
hours. 20,000:1 dynamic contrast ratio and high 1600x900 resolution
deliver vibrant images and crisp text. The DVI-D connector ensures
the integrity of your digital signal, while the USB ports expand
your connectivity for multi-tasking. The slim bezel design saves
space, while the eco-mode function conserves power and extends
backlight life. This high performance display is ideal for graphics
professionals, multimedia visuals and other digital content. Choose
the feature-packed, high-performance, widescreen VG2027wm for
business and home users who demand the best.
Enhance productivity and entertainment
>
Multi-functional base design(360° Swivel, Height adjustment)
VESA
®
wall-mount interface and detachable base for ergonomic
flexibility with height, tilt and 360° swivel adjustments.
>
Widescreen aspect ratio with 1600×900 resolution
The widescreen aspect ratio allows you to view Full HD content in its
native format with no stretching or distortion.
>
20,000:1 dynamic contast ratio
Provides darker black levels and better overall front-of-screen
performance.
>
OptiSync
®
digital/analog inputs expand your connectivity
Multi-mode input technology supports both digital (DVI) and analog
(VGA) signals for ultimate compatibility and configuration flexibility.
>
Multiple analog/digital inputs and integrated USB hub expand
your connectivity
>
Stylish slim-bezel design with high-gloss, piano-black finish
>
ECO Mode
Environmentally-friendly Eco-mode reduces power consumption and
extends backlight life.
VG2027wm
20 " Wid e sc ree n L C D W ith 20, 000 : 1 D yna m ic Con t ra s t R ati o
DISPLAY Size 20.0" wide Color TFT Ac tive Matrix LCD w ith 16:9 aspect ratio
Display Area 18.8" (H) × 10.6" (V )/20" diagonal
Optimum Resolution 1600×900
Brightness 300 c d/m² (t yp.)
Contr ast Ratio 1000:1 (typ.); 20,00 0:1 dynamic
Viewing Angle 170° (H), 160° ( V), 5:1 c/r
Response Time 5ms (t yp.)
Pixel Pitch 0.276mm (H)×0.276mm ( V)
Panel Surface Anti-Glare
Light Source 50,0 00 hr s (ty p.)
Color Suppor t 16.7 M (6 -bit s + HiFRC)
INPUT
Analog RGB Analog (75 ohm s, 0.7 / 1.0 Vp-p)
Digital DVI-D ( TMDS, 100 ohms)
Sync H/V Separated
Frequency Fh: 24 -82kHz, Fv: 50-75Hz
COMPATIBILITY PC VGA up to 1600×900Non Interlaced
Mac Power Mac, up to 1600×900
CONNECTOR Analog 15 pin mini D-sub×1
Digital DVI-D
Audio 3.5 mm Audio in
USB dow n strea mx2 / u p strea mx1
Power Built-in power Ada pter, 3-Pin plug
AUDIO Speaker 2×2 watt
POWER
Volt age AC 100-240V (Universal); 50/60Hz (Switch)
Consumption 35 (typ.)
ECO mode optimize 3 0W (t yp.)/ con serve 24W (ty p.)
Save mod e
≦
1W
ERGONOMICS Tilt 20˚ ~ -5 ˚
CONTROLS Basic Power, Mute, [1], Up[▲], Down [
▲
], [2]
OSD Auto Imag e Adjust, Cont rast /Brightness, A udio adjus t: Volume
mute, Color Adjust: sRGB, 9300K, 7500K, 6500K, 5000K, User
Color [R , G, B]
In for mat ion , Ma nua l Im age Adju st: Ho ri zon tal size , H/ V
Position, fine tune, sharpness, dynamic contrast, aspect ratio,
Eco mode, Setup Menu: Language select, resolution n otice,
OSD Position, OSD Time Out, OSD Background, memor y recall
OPERATING
CONDITIONS
Temperature 0 - 40˚C (32 - 104˚F)
Humidity 10 - 90%
DIMENSIONS (WxHxD) Physical (w/ stand) 481mm × 393mm × 230 mm (15.7" × 12.8" × 7.5")
Physic al (w/o stand) 481mm × 393mm × 62mm (18.93" × 15.47" × 2.44")
WEIGHT Net 4.25 kg (9.4 lb)
Gross weight 6 .15 kg (13.5 lb)
REGULATIONS
CB, TCO03, WEEE, ROHS, UL/cUL, FCC-B, IRAM, NOM, Energy
Star, EPEAT, ERGO,CE, Ukraine, GOST-R+Hygienic ,SASO,
BSMI, PSB, C-TICK, MIC (or KCC), Green Mark, CCC
WALL MOUNT VESA 10 0mm × 10 0mm
POWER MAN AGEMENT TCO'03, ENERGY STAR
PACKAGE CONTENTS
VG2027wm LCD, Power Cable, Video Cable, Audio cable, USB
cable, Quick St art Guide
WARRANTY Three -year li mited warranty on part s, labor and backlight.
Model No.VS12514
