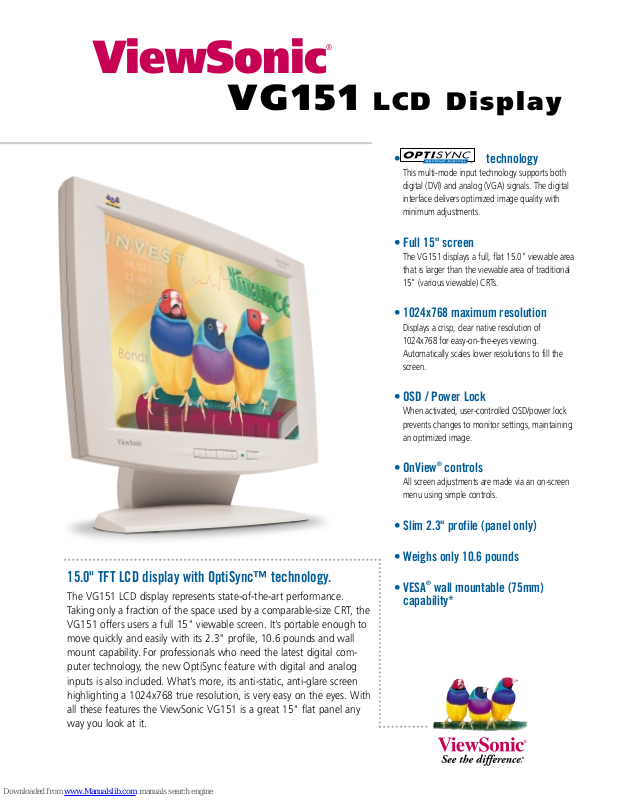

ViewSonic VG151-2, VG151b Specifications

15.0" TFT LCD display with OptiSync™ technology.

The VG151 LCD display represents state-of-the-art performance.
Taking only a fraction of the space used by a comparable-size CRT, the
VG151 offers users a full 15" viewable screen. It’s portable enough to
move quickly and easily with its 2.3" profile, 10.6 pounds and wall
mount capability. For professionals who need the latest digital com­puter technology, the new OptiSync feature with digital and analog
inputs is also included. What’s more, its anti-static, anti-glare screen
highlighting a 1024x768 true resolution, is very easy on the eyes. With
all these features the ViewSonic VG151 is a great 15" flat panel any
way you look at it.

• technology

This multi-mode input technology supports both
digital (DVI) and analog (VGA) signals. The digital
interface delivers optimized image quality with
minimum adjustments.

• Full 15" screen

The VG151 displays a full, flat 15.0" viewable area
that is larger than the viewable area of traditional
15" (various viewable) CRTs.

• 1024x768 maximum resolution

Displays a crisp, clear native resolution of
1024x768 for easy-on-the-eyes viewing.
Automatically scales lower resolutions to fill the
screen.

• OSD / Power Lock

When activated, user-controlled OSD/power lock
prevents changes to monitor settings, maintaining
an optimized image.

• OnView®controls

All screen adjustments are made via an on-screen
menu using simple controls.

• Slim 2.3" profile (panel only)

• Weighs only 10.6 pounds

• VESA

®

wall mountable (75mm)

capability*

VG151 LCD Display

ViewSonic

®

ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Phone [phone] or [phone] • In Canada [phone] • Fax [phone] • [e-mail] • ViewSonic.com

15.0" TFT LCD DISPLAY WITH OPTISYNC™TECHNOLOGY

LCD Type TFT active matrix LCD (16.7 million colors)

Display Area 15.0" viewable
Contrast Ratio 350:1 (typ)
Viewing Angle 120° horizontal, 100° vertical (typ)
Light Source Long life, 50,000 hrs. (typ)
Response Time 40ms (max)
Brightness 210 cd/m2(typ)
Glass Surface Anti-static, anti-glare coat

VIDEO INPUT

Video RGB analog or DVI-D digital
Frequency Fh:30–62kHz, Fv:50–75Hz

ANALOG Sync H/V Separated (TTL) composite, sync on green
COMPATIBILITY

PC VGA up to 1024x768 non-interlaced
Mac

®**

Power Mac™up to 1024x768

CONNECTORS

Analog RGB 15-pin mini D-sub
Digital Input 24-pin DVI-D
Power Adapter with 3-pin AC plug (CEE22), DC to head
Security Kensington®security port

POWER AC 100-240 VAC, 50/60Hz (auto switch), 20W (typ)
USER CONTROLS

Basic 1, down arrow, up arrow, 2, power
OnView

®

Auto contrast, contrast, brightness, H/V-position,
H-size, auto sync, fine tune, ViewMatch®color,

input

select (analog/digital), ViewMeter

®

, OSD position,

OSD language, smoothing, recall, background
BANDWIDTH Pixel Clock 100Mhz (max)
DISPLAY AREA 304mm (H) x 228mm (V)

DIMENSIONS

Physical 390mm (W) x 372mm (H) x 167mm (D)

(15.3" x 14.6" x 6.6")
WEIGHT Net 4.8kg (10.6 lbs.)
OTHER DDC1 & DDC2B
REGULATIONS UL, FCC-B, E

NERGY STA R

®

, DOC-B, CE, Energy 2000,
CSA, CB,TCO '99,TUV/GS, NEMKO, SEMKO, DEMKO,
FIMKO, BSMI, VCCI, CCIB, CCEE, PCT, C-TICK,
B-MARK, TUV/ERGO

POWER MANAGEMENT Meets E

NERGY STA R

®

, VESA®DPMS and TCO ’99

(VG151b - TCO ‘95) standards

WARRANTY Three-year limited warranty on parts,

labor and back light.

ViewSonic

®

VG151 LCD Display

• ViewSonic Wizard

This software provides user-friendly installation. The
included CD-ROM automates the set-up process to
deliver optimized screen performance.

• Anti-static, anti-glare screen

This screen treatment minimizes reflections while
maintaining the highest image quality.

•

• TCO ’99 and E

NERGY STAR

®

certified

• PC and Mac

®

compatible**

• Kensington

®

security port

Kensington security port protects your assets.

• Three-year limited warranty

*Wall mount accessories are optional. Designed for easy wall mount configuration with any optional third-party wall mount kit to meet VESA wall mount specifications. **Adapter may be required. Analog adapter available from ViewSonic. Specifications
subject to change without notice. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2003 ViewSonic Corporation. All rights reserved. [10308-03B_03/03] VS-2228

ViewSonic Corporation's QMS\ EMS has been registered to ISO 9001

& ISO 14001 by the British Standards Institution.

VG151b black case version
