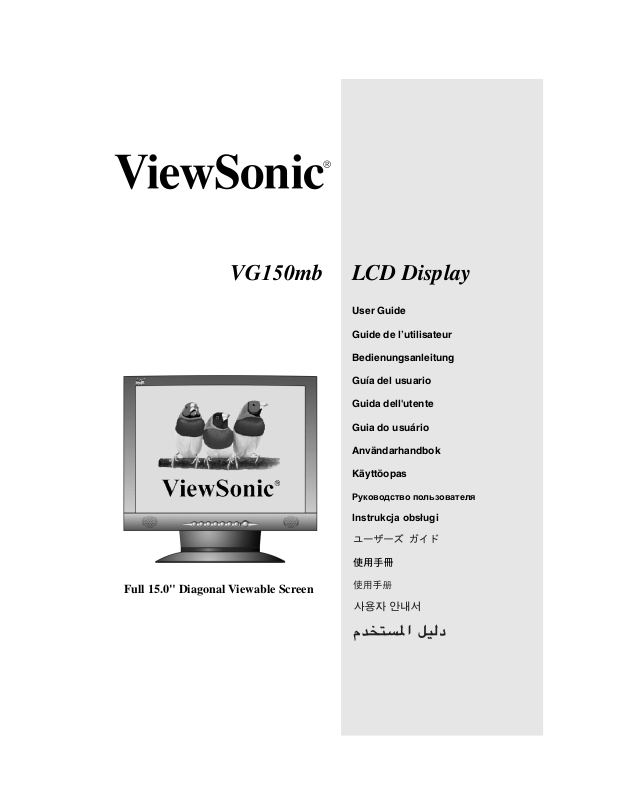

ViewSonic VG150mb User Guide

VG150 mb LCD Display

User Guide

Guide de l’utilisateur

Bedienungsanleitung

Guía del usuario

Guida dell'utente

Guia do usuário

Användarhandbok

Käyttöopas

Jmdh\h^kl\hihevah\Zl_ey

,QVWUXNFMDREVáXJL

Full 15.0" Diagonal Viewable Screen

Contents

Product Registration .............................................................2

For Your Records..................................................................2

Getting Started

Package Contents ................................................................. 3

Precautions ........................................................................... 3

Quick Installation ................................................................... 4

Installation of Wall Mount (Optional) ....................................5

Using the LCD Display

Setting the Timing Mode .......................................................6

OSD and Power button Lock Modes .....................................6

Adjusting the Screen Image ..................................................7

Main Menu Controls ............................................................9

Other Information

Specifications ......................................................................13

Troubleshooting...................................................................14

Customer Support ...............................................................15

Cleaning the LCD Display.....................................................16

Limited Warranty .................................................................17

Appendix

Safety Guidelines ................................................................18

Compliance Information ......................................................19

CE Conformity.....................................................................19

07/24/02 B ViewSonic VG150mb 1

Copyright © ViewSonic Corporation, 2002. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of
ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC
are trademarks of VESA.

NERGY STAR

E

As an E

NERGY STAR

E

®

is a registered trademark of the U.S. Environmental Protection Agency (EPA).

NERGY STAR

®

partner, ViewSonic Corporation has determined that this product meets the

®

guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting from furnishing this
material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specifications without notice. Information in this document may change without
notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available,
please register your product on the Internet at: www.viewsonic.com. The ViewSonic Wizard CD-
ROM also provides an opportunity for you to print the registration form, which you may mail or fax
to ViewSonic.

For Your Records

Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:

ViewSonic VG150mb
VLCDS23587-4W
A-CD-VG150mb-1
______________
______________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this product
properly at the end of its useful life. Your local waste disposal company may provide information
about proper disposal.

ViewSonic VG150mb 2

Getting Started

Congratulations on your purchase of a ViewSonic® LCD display.
Important!

Save the original box and all packing material for future shipping

needs.

NOTE:

The word “Windows” refers to Microsoft Windows 95, 98, NT, XP,

2000 and Me (Millennium).

Package Contents

IMPORTANT:

Your LCD display package includes:

• LCD display

• Power cords

• Audio cable

• Video cable

• AC/DC Adapter

• ViewSonic Wizard CD-ROM

NOTE:

The CD jacket contains the Quick Start Guide, and the CD includes User
Guide PDF files and INF/ICM display optimization files. The INF files ensures
compatibility with Windows operating systems, and the ICM file (Image Color
Matching) ensures accurate on-screen colors. ViewSonic recommends that you
install both files.

Save all packing material.

Precautions

• Sit at least 18" from your LCD display.

• Avoid touching the screen. Skin oils are

difficult to remove.

• Never remove the rear cover. Your

LCD display contains high-voltage parts. You
may be seriously injured if you touch them.

• Avoid exposing your LCD display to direct
sunlight or another heat source. Orient your
LCD display away from direct sunlight to
reduce glare.

• Always handle your LCD display with care
when moving it.

• Place your LCD display in a well-ventilated
area. Do not place anything on your
LCD display that prevents heat dissipation.

• Ensure the area around the LCD display is clean
and free of moisture.

• Do not place heavy objects on the LCD display,
video cable, or power cord.

• If smoke, abnormal noise, or strange odor is
present, immediately switch the LCD display
off and call your dealer or ViewSonic. It is
dangerous to continue using the LCD display.

ViewSonic VG150mb 3

Quick Installation

Optional: For instructions on wall mounting,
see page 5 of this user guide.

1 Connect power cord and AC/DC

adapter

2 Connect video cable

• Make sure both the LCD display and
computer are turned OFF

• Connect the video cable from the LCD
display to the computer

Macintosh users: Models older than G3
require a Macintosh adapter. Attach the
adapter to the computer and plug the video
cable into the adapter.

To order a ViewSonic
contact ViewSonic Customer Support.

®

Macintosh adapter,

3 Turn ON LCD display and computer

• Turn ON the LCD display, then turn ON the
computer. This sequence (LCD display
before computer) is important.

NOTE: Windows 95, 98 or 2000 users may
receive a message asking them to install the
INF file. This is on the CD.

4 Insert the ViewSonic Wizard CD

into the computer’s CD drive.

• Follow the on-screen instructions

Audio IN

Analog IN Port

AC IN

If your computer does not have a CD-ROM
drive, see “Customer Support."

(1) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-start:
double-click on the CD-ROM icon in the
Windows Explorer, then double-click on

viewsonic.exe.

(2) Follow the on-screen instructions.

5 Windows users: Set the timing

mode (resolution and refresh
rate)

Example: 1024 X 768 @ 60 Hz.

For instructions on changing the resolution
and refresh rate, see the graphic card’s user
guide.

Installation is complete. Enjoy your new
ViewSonic LCD display.

To be best prepared for any future customer
service needs: print this user guide and write
the serial number in "For Your Records" on
page 2. (See back of ViewPanel.)

You can register your product online at the
website for your region. See the Customer
Support table in this guide.

The ViewSonic Wizard CD-ROM also
provides an opportunity for you to print the
registration form which you may mail or fax
to ViewSonic.

AC/DC Adapter
with power cord

AC outlet
(wall socket)

Audio Cable

Video Cable

ViewSonic VG150mb 4

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to
the instructions that come with the base mounting kit. To convert your
LCD display from a desk-mounted to a wall-mounted display, do the following:

Disconnect Power.

1

Push the LCD display back and

2

down flat against the base as
shown.

Lay the LCD display face down on

3

a towel or blanket. Notice the
four screw holes on the bottom of
the base.

Four
screw
holes

Mounted

on the wall

Attach the mounting bracket

4

from the VESA compatible wall­mounting kit (75 mm x 75 mm
distance).

Attach the LCD display to the wall,

5

following the instructions in the
wall-mounting kit.

ViewSonic VG150mb 5

Using the LCD Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the
screen image and minimizing eye strain. The

resolution

example 60 Hz). After setting the timing mode, use the OnView
to adjust the screen image.

For the best picture quality set your LCD display timing mode to:

VESA 1024 x 768 @ 60 Hz.

To set the Timing Mode:

Set the resolution: Right-click on the Windows desktop >

1

Settings

Set the refresh rate: See your graphic card's user guide for instructions.

2

(example 1024 x 768) and

> set the resolution.

refresh rate

timing mode

(or vertical frequency;

consists of the

®

controls

Properties

>

WARNING:

maximum refresh rate of 75Hz; doing so may result in permanent damage to
your LCD display.

Do not set the graphics card in your computer to exceed the

.

OSD and Power Button Lock Modes

OSD Lock

the control menus until this mode is unlocked.

•

OSD Lock:

buttons are pressed the message

•

OSD Unlock:

Power Button Lock

position.

•

Power Button Lock:

seconds. If the power button is pressed the message
will display for 5 seconds. With or without this setting, after a power failure,
your LCD display’s power will automatically turn ON when power is restored.

•

Power Button Unlock:

10 seconds.

This mode locks all current control settings and prevents access to

Press and hold [1] and the up arrow

OSD Locked

Press and hold [1] and the up arrow

This mode locks the power of the

Press and hold [1] and the down arrow

Press and hold [1] and the down arrow

for 10 seconds. If any

▲

will display for 5 seconds.

again for 10 seconds.

▲

LCD display in the ON

for 10

▼

Power Button Locked

again for

▼

ViewSonic VG150mb 6

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView®
controls which display on the screen. The OnView controls are explained at the
top of the next page and are defined in “Main Menu Controls” on page 9.

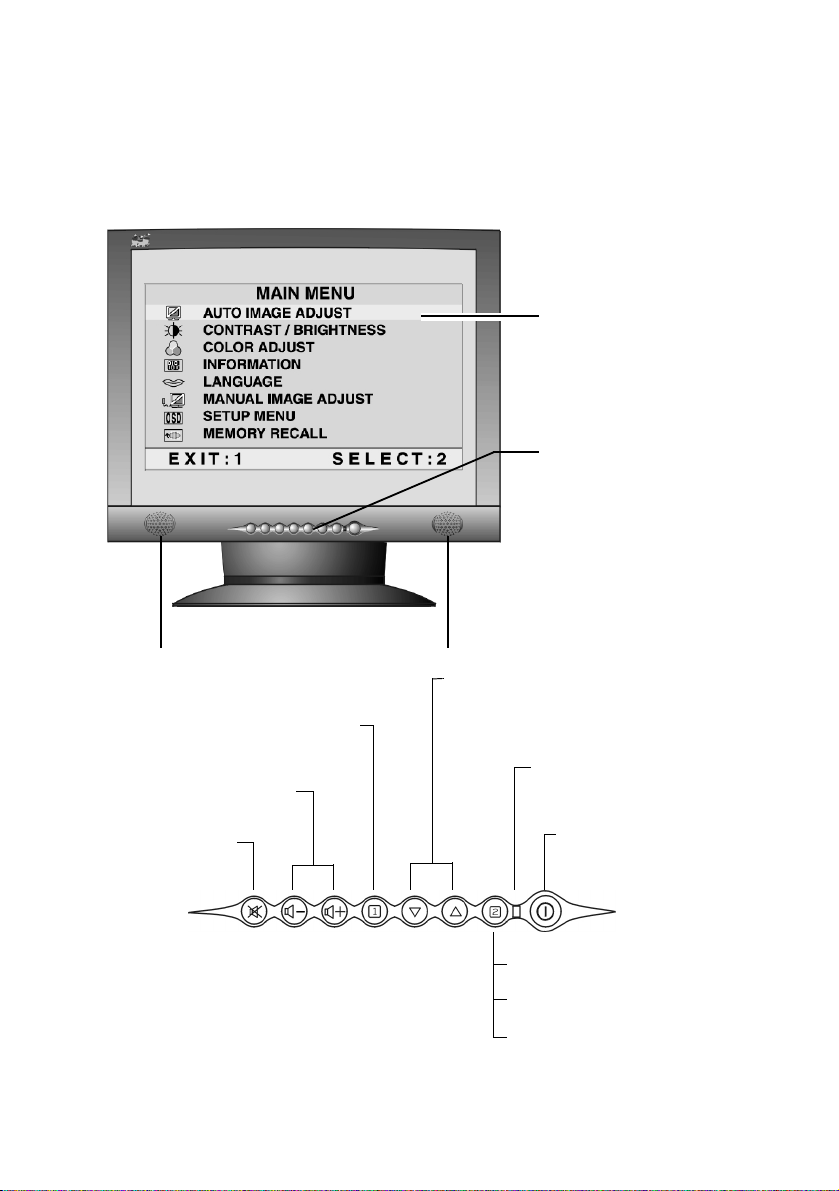

Main Menu
with OnView controls

Front Control Panel
show below in detail

Speaker

Displays the Main Menu
or exits the control screen
and saves adjustments.

Decreases or
increase volume.

Temporarily silences
audio output.

Speaker

Scrolls through menu options and
adjusts the displayed control.

Also a shortcut to display the
Contrast adjustment control screen.

Power light
Green = ON
Orange = Power Saving

Power On/Off

Displays the control screen
for the highlighted control.

Also toggles between two
controls on some screens.

Also a shortcut to Auto
Image Adjust.

ViewSonic VG150mb 7

Do the following to adjust the screen image:

To display the Main Menu, press button [1].

1

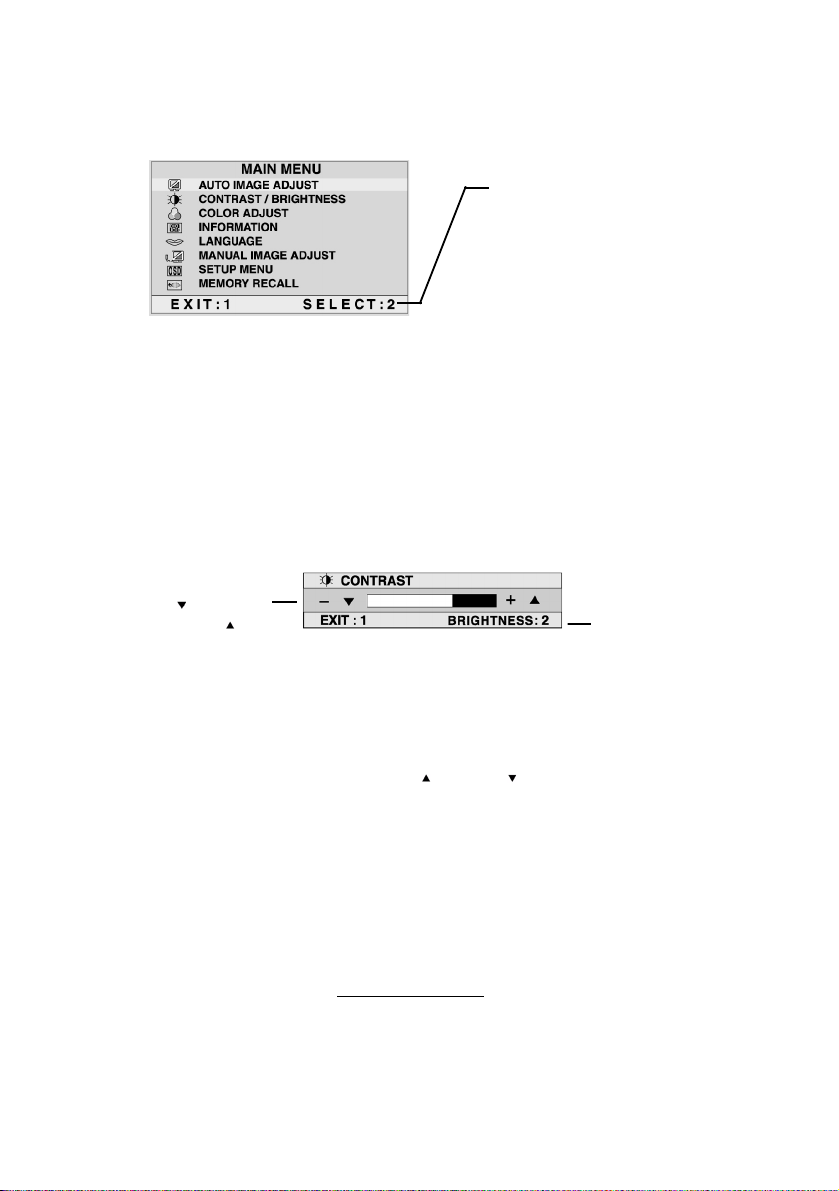

The line at the bottom of the
screen tells you what you can do
next: Exit this menu or Select the
control that is highlighted.

NOTE:

All OnView menus and adjustment screens disappear automatically
after about 30 seconds. This time period is adjustable through the Setup
menu and the OSD timeout control described on page 11.

To highlight a control you want to adjust, press ▲ or ▼ to scroll up or down

2

the Main Menu.
To select the highlighted control, press button [2]. A control screen appears

3

like the example shown below.

down arrow

The
decreases, up
arrow increases

To adjust the control, press the up or down buttons.

4

To save the adjustments and exit the menu, press button [1]

5

The line at the
bottom of the
screen tells you
what you can do
next: Exit or Select
the control that is
highlighted.

.

twice

The following tips may help you optimize your display:

• Adjust your computer's graphic card so that it outputs a video signal 1024 x
768 @ 60 Hz to the LCD display. (Look for instructions on "changing the
refresh rate" in your graphic card's user guide.)

• If necessary, make small adjustments using H POSITION and V POSITION
until the screen image is completely visible

. (The black border around the
edge of the screen should barely touch the illuminated "active area" of the
LCD display.)

ViewSonic VG150mb 8

Main Menu Controls

Adjust the menu items shown below by using the up

Control Explanation

automatically sizes, centers, and fine tunes

Auto Image Adjust

the video signal to eliminate waviness and distortion.
Press the [2] button to obtain a sharper image.

: Auto Image Adjust works with most common video

NOTE

cards. If this function does not work on your LCD display, then
lower the video refresh rate to 60 Hz and set the resolution to its
pre-set value.

Contrast

adjusts the difference between the image background

(black level) and the foreground (white level).

Brightness

Color Adjust

adjusts background black level of the screen image.

provides several color options: preset color
temperatures and User which allows you to adjust red (R), green
(G), and blue (B). The factory setting for this product is 6500K
(6500 Kelvin).

and down

buttons.

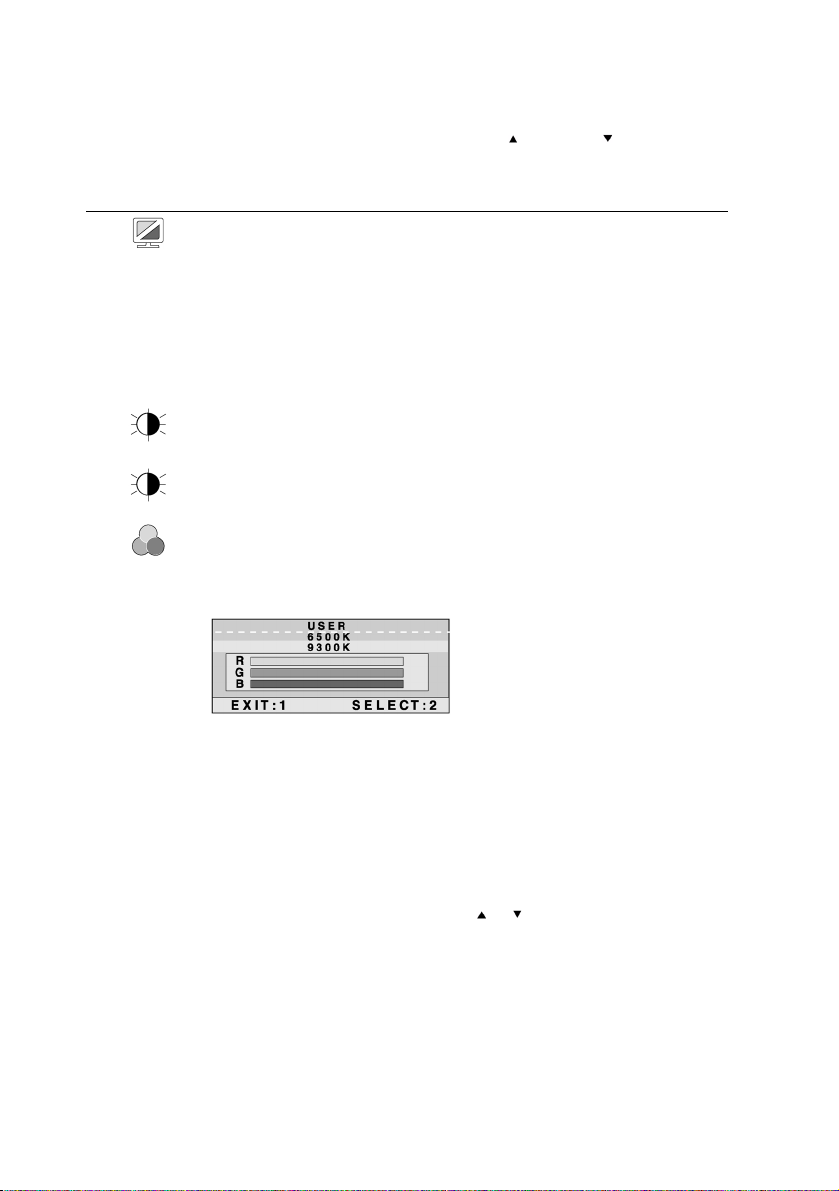

User

6500K

Individual adjustments for red, green, and blue.

—

Adds red to the screen image for warmer white and

—

richer red. Default setting.

9300K

Adds blue to the screen image for cooler white (used

—

in most office settings with fluorescent lighting).

To select color (R, G or B) press button [2].

1

To adjust selected color, press or

2

When you are finished making all color adjustments, press

3

button [1]

twice

.

.

ViewSonic VG150mb 9

Control Explanation

Information

displays the timing mode (video signal input)
coming from the graphics card in your computer. See your
graphic card’s user guide for instructions on changing the
resolution and refresh rate (vertical frequency).

VESA 1024 x 768 @ 60 Hz (recommended) means that the
resolution is 1024 x 768 and the refresh rate is 60 Hertz.

Language

allows you to choose the language used in the menus

and control screens.

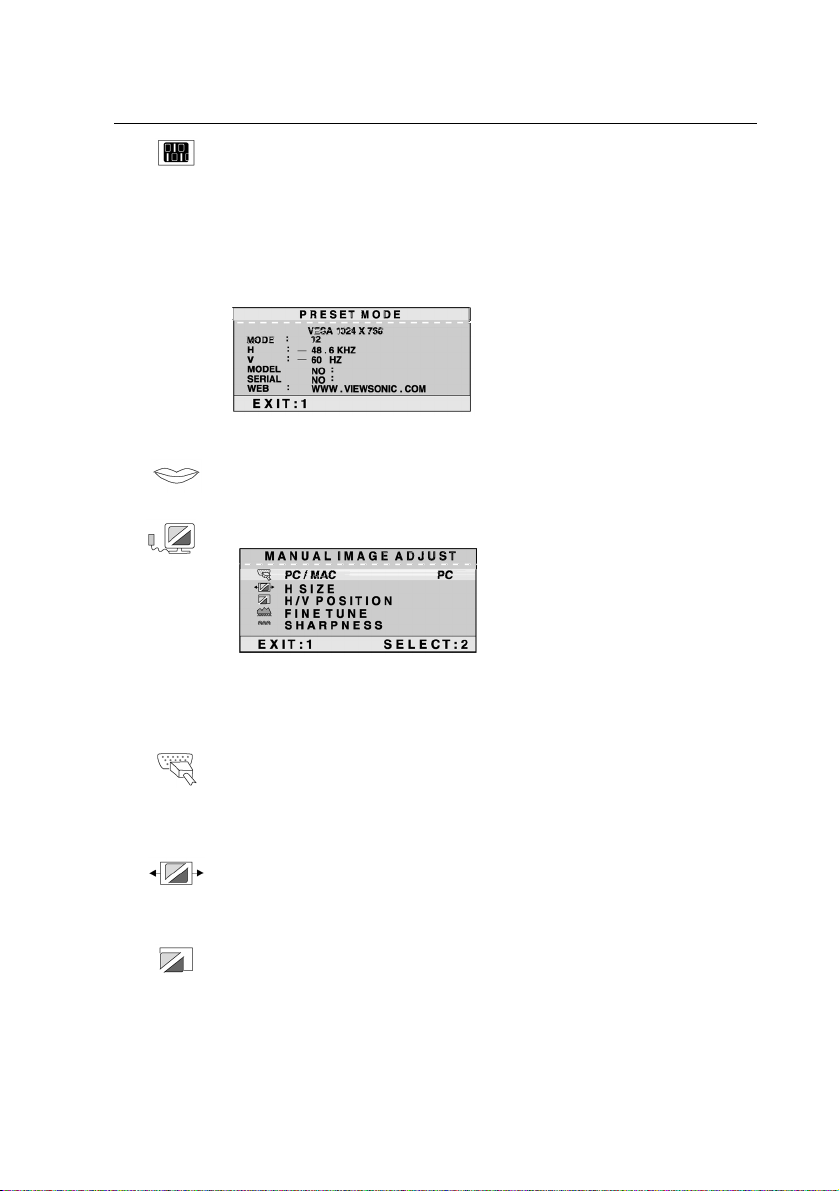

Manual Image Adjust

The Manual Image Adjust controls are explained below:

PC/MAC

Shortcut

allows you to toggle between a PC and a Macintosh.

: From the Windows desktop, press

button [2] to bypass

the Main Menu and switch ports.

(Horizontal Size) adjusts the width of the screen image.

H. Size

NOTE:

H./V. Position

Vertical size is automatic with your LCD display.

adjusts horizontal and vertical position of the
screen image. You can toggle between Horizontal and Vertical
by pressing button [2]. Horizontal moves the screen image to
the left or to the right. Vertical moves the screen image up and
down.

ViewSonic VG150mb 10

Control Explanation

sharpens focus by aligning the illuminated text and/

Fine Tune

or graphic characters.

Try the

NOTE:

Fine Tune

Sharpness

control.

adjusts the clarity and focus of the screen image.

Auto Image Adjust

(see page 9) before using the

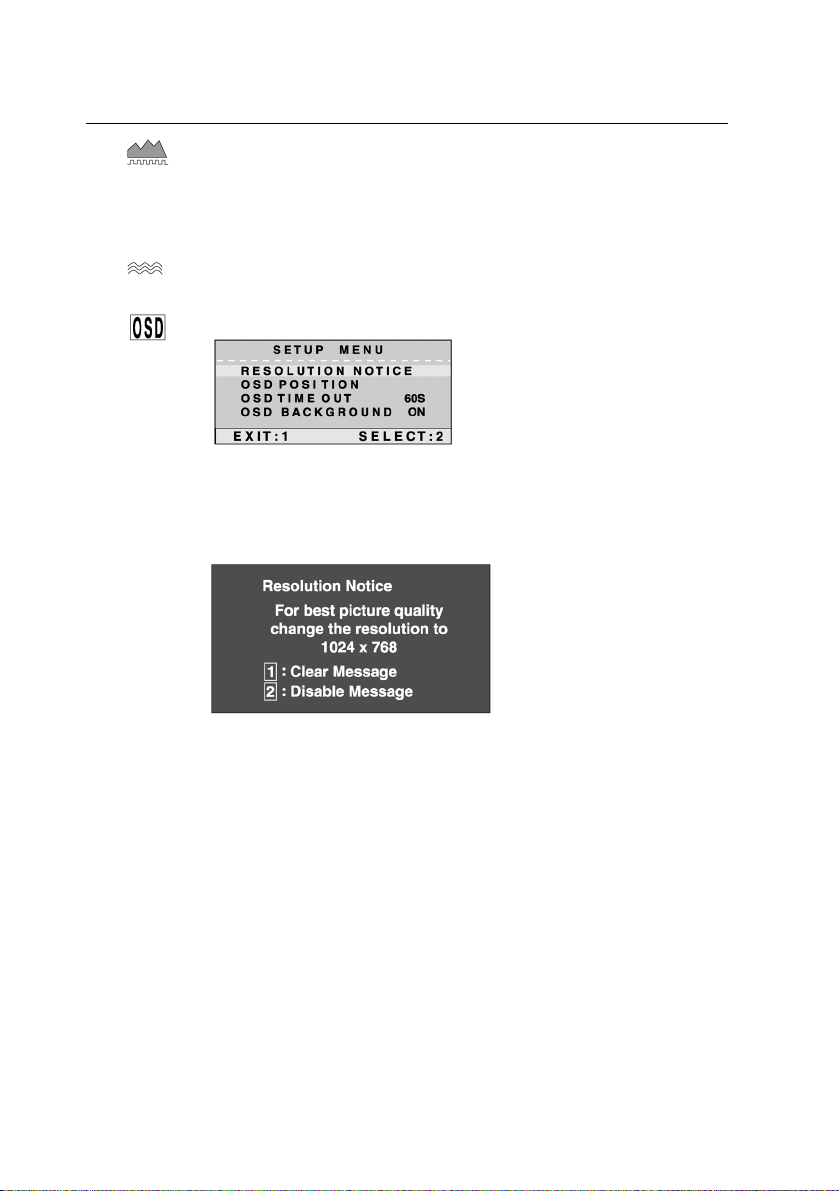

Setup Menu

displays the menu shown below.

The Setup Menu controls are explained below.

Resolution Notice

OSD Position

advises the optimal resolution to use.

allows you to move the on-screen display

menus and control screens.

OSD Timeout

sets the length of time an on-screen display
screen is displayed. For example, with a “15 second” setting, if
a control is not pushed within 15 seconds, the display screen
disappears.

OSD Background

allows you to turn the On-Screen display
background on or off. This means that while making adjustments
from the OSD control screens you can also view open software
applications, or the Windows desktop.

ViewSonic VG150mb 11

Control Explanation

Memory Recall

returns adjustments to the original factory

settings if the display is operating in a factory Preset Timing
Mode listed in this user guide.

Exception: This control does not effect changes made with the
User Color control.

ViewSonic VG150mb 12

Other Information

Specifications

LCD

Input signal

Compatibility

Resolution

Power

Display area

Operating
conditions

Storage
conditions

Dimensions

Weight

Ty p e

Color Filter
Glass surface

Video Sync RGB analog (0.7/1.0 Vp-p, 75 ohms)

PC
Macintosh

Recommended
and supported

Voltage 100-240 VAC, 50/60 Hz (auto switch), 12V DC, 3A

Full Scan 304.1mm (H) x 228.1 mm (V)

Temperature
Humidity
Altitude

Temperature
Humidity
Altitude

Physical
(LCD display only)

Net 3.5 kg (7.7 lb) LCD display only

1

Regulations

Power saving
modes

Preset Timing Mode

Warn ing :

Do not set the graphics card in your computer to exceed these refresh rates; doing so may

result in permanent damage to the LCD display.

On Normal (green LED)
Active Off <3W (orange LED)

(pre-adjusted to VESA® 1024 x 768 @ 60 Hz)

15" (full 15" viewable diagonal area), TFT (Thin Film

Transistor), Active Matrix XGA LCD,

0.297mm pixel pitch

RGB vertical stripe

Anti-Glare

Separate Sync

:30-62 kHz, fv:50-75 Hz

f

h

Up to 1024 x 768 Non-interlaced

Powe r M acintosh

1024 x 768 @ 60, 70, 72, 75 Hz

800 x 600 @ 56, 60, 72, 75 Hz

640 x 480 @ 60, 75 Hz

640 x 400 @ 70 Hz

720 x 400 @ 70 Hz

12.0" (H) x 9.0" (V)

32° F to + 104° F (0° C to + 40° C)

10% to 90% (no condensation)

To 10,000 feet

-4° F to + 140° F (-20° C to + 60° C)

10% to 90% (no condensation)

To 40,000 feet

359 mm (W) x 325 mm (H) x 19.50 mm (D)

14.13" (W) x 12.8" (H) x 7.5" (D)

UL, FCC-B,
NEMKO, SEMKO, DEMKO, FIMKO, C-UL, TCO95, TUV-S,
EPA, VCCI, BSMI, CB, ISO13406-2, Gost, PCT (BZ02)

up to 1024 x 768

NERGY STAR

E

®

, IC-B (Doc-B), CE, MPRII,

1

Macintosh computers older than G3 require a ViewSonic®, Macintosh adapter. To order an adapter,

contact ViewSonic.

ViewSonic VG150mb 13

Troubleshooting

No power

• Make sure power button (or switch) is ON.

• Make sure A/C power cord is securely connected to the DC power supply
and the power supply is firmly connected to the LCD display.

• Plug another electrical device (like a radio) into the power outlet to verify that
the outlet is supplying proper voltage.

Power is ON but no screen image

• Make sure the video cable supplied with the LCD display is tightly secured to
the video output port on the back of the computer. If the other end of the
video cable is not attached permanently to the LCD display, tightly secure it to
the LCD display.

• Adjust brightness and contrast.

• If you are using an Macintosh older than G3, you need a Macintosh adapter.

Wrong or abnormal colors

• If any colors (red, green, or blue) are missing, check the video cable to make
sure it is securely connected. Loose or broken pins in the cable connector
could cause an improper connection.

• Connect the LCD display to another computer.

• If you have an older graphics card, contact ViewSonic
adapter.

®

for a non-DDC

Control buttons do not work

• Press only one button at a time.

ViewSonic VG150mb 14

Customer Support

For technical support or product service, see the table below or contact your
reseller.

NOTE:

You will need the product serial number.

Country/

Web site T = Telephone

Region

United States

Canada

United Kingdom viewsoniceurope.com

Europe, Middle
East, Baltic
countries, and
North Africa

Australia and New
Zealand

Singapore/India
and Southeast
Asia

Other Asia/Pacific
countries

South Africa viewsonic.com/asia

viewsonic.com/
support

viewsonic.com/
support

viewsoniceurope.com Contact your

viewsonic.com.au

viewsonic.com.sg

viewsonic.com.tw

F = FAX

T:

[phone]

F:

[phone]

T:

[phone]

F:

[phone]

T:

0800 833 648

F:

[phone]

reseller

T:

[phone]

F:

[phone]

T:

65 273 4018

F:

65 273 1566

T:

886 2 2246 3456

F:

886 2 8242 3668

T:

886 2 2246 3456

F:

886 2 8242 3668

Email

service.us@
viewsonic.com

service.ca@
viewsonic.com

service.eu@
viewsoniceurope.com

service.eu@
viewsoniceurope.com

service.au@
viewsonic.com

service.sg@
viewsonic.com

service.ap@
viewsonic.com

service.ap@
viewsonic.com

ViewSonic VG150mb 15

Cleaning the LCD Display

• MAKE SURE THE LCD DISPLAY IS TURNED OFF.

• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE
SCREEN OR CASE.

To clean the screen:

Wipe the screen with a clean, soft, lint-free cloth. This removes dust and

1

other particles.
If still not clean, apply a small amount of non-ammonia, non-alcohol based

2

glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen.

To clean the case:

Use a soft, dry cloth.

1

If still not clean, apply a small amount of a non-ammonia, non-alcohol

2

based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then
wipe the surface.

Disclaimer

ViewSoni c
cleaners on the LCD display screen or case. Some chemical cleaners have been
reported to damage the screen and/or case of the LCD display. ViewSonic will not
be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

®

does not recommend the use of any ammonia or alcohol-based

ViewSonic VG150mb 16

Limited Warranty

VIEWSONIC LCD DISPLAY

What the warranty covers:

ViewSonic

warranty period. If a product proves to be defective in material or workmanship during the warranty
period,
product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:
ViewSonic

one (3) years for all labor from the date of the first consumer purchase.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact

2. To obtain service under warranty, you will be required to provide (a) the original dated sales slip, (b) your

3. Take or ship the product freight prepaid in the original container to an authorized

4. For additional information or the name of the nearest

Limitation of implied warranties:

THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, WHICH EXTEND BEYOND THE
DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusion of damages:

VIEWSONIC'S LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE
PRODUCT. VIEWSONIC SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of
incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on
contact

ViewSonic LCD Warranty (V3.0) Release Date: 01-29-2002

®

warrants its products to be free from defects in material and workmanship during the

ViewSonic

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by
c. Any damage of the product due to shipment.
d. Removal or installation of the product.
e. Causes external to the product, such as electrical power fluctuations or failure.
f. Use of supplies or parts not meeting
g. Normal wear and tear.
h. Any other cause which does not relate to a product defect.

You will need to provide your product's serial number.

name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

vice center or

ViewSonic

BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF
PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH
BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.

ViewSonic

will, at its sole option, repair or replace the product with a like product. Replacement

LCD displays are warranted for three (3) years for all parts including the light source and

ViewSonic.

ViewSonic.

.

or your local

ViewSonic

ViewSonic

ViewSonic

dealer.

’s specifications.

ViewSonic Customer Support.

ViewSonic

ViewSonic

products sold outside of the U.S.A. and Canada,

service center, contact

ser-

ViewSonic VG150mb 17

Appendix

Safety Guidelines

Warn ing :

12VDC LSE9901B1250, 12VDC UP06031120.

CAUTION:

CAUTION:

fied for the individual country. Some examples are listed below:

This device must be operated with the original power supply, part number:

The socket-outlet should be installed near the equipment and should be easily accessible.

Use a power cable that is properly grounded. Always use the appropriate AC cord that is certi-

USA.................UL

Canada.............CSA

Germany .......... VDE

Switzerland ..... SEV

Britain ............. BASE/BS

Japan ............... Electric Appliance Control Act

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The power cord set for this unit has been enclosed and has been selected according to the country of des­tination and must be used to prevent electric shock. Use the following guidelines if it is necessary to replace
the original cord set, or if the cord set is not enclosed.

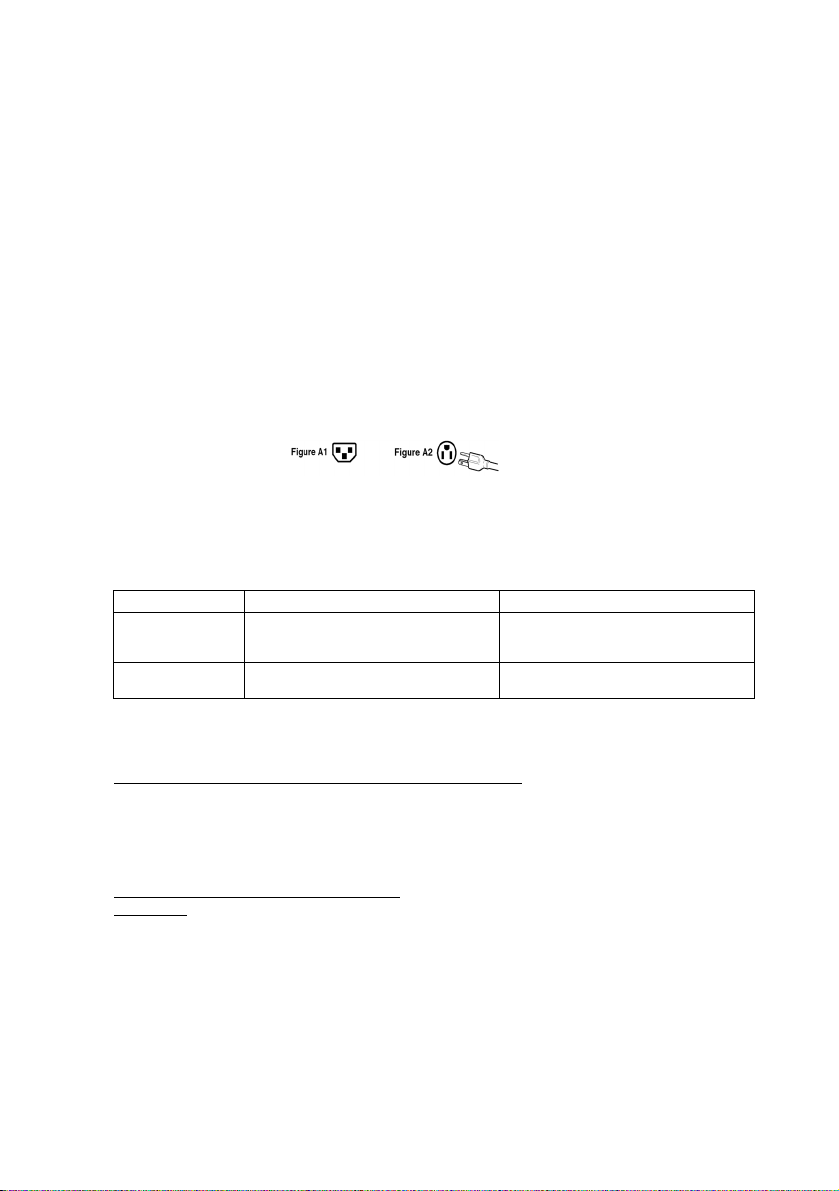

The female receptacle of the cord set must meet IEC-60320 requirements and may look like (Figure A1
below):

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure A2), UL Listed, and CSA
Labeled. For units which are mounted on a desk or table, type SVT or SJT cord sets may be used. For
units which sit on the floor, only SJT type cord sets may be used. The cord set must be selected according
to the current rating for your unit. Please consult the table below for the selection criteria for power cords
used in the United States and Canada.

Cord Type Size of Conductors in Cord Maximum Current Rating of Unit

SJT 18 AWG

SVT 18 AWG

16 AWG
14 AWG

17 AWG

10 Amps
12 Amps
12 Amps

10 Amps
12 Amps

For European Countries

In Europe you must use a cord set which is appropriate for the receptacles in your country. The cord set is HAR­Certified, and a special mark that will appear on the outer sheath, or on the insulation of one of the inner conductors.

AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

IF THE FITTED MOULDED PLUG IS UNS UITABLE FOR THE SOCKET OUTLET THEN THE P LUG SHOULD BE
CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO AN
APPROPRIATE SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

WARNING:

IMPORTANT:

If the coloured wires of the mains lead of this appliance do not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by
the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or
coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked
with the letter L or coloured RED.

If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you
have purchased the product.

THIS APPLIANCE MUST BE EARTHED.

The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Earth
Blue: Neutral
Brown: Live

ViewSonic VG150mb 18

Compliance Information for U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi­dential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer­ence to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the provided
shielded video interface cable with bonded ferrite cores. If a BNC cable is going to be used, use only a
shielded BNC(5) cable. Also, any unauthorized changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this device.

Notice for Japan

This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information
Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may
cause radio interference. Install and use the equipment according to the instruction manual.

CE Conformity for Europe

The device complies with the requirements of the EEC directive 89/336/EEC as amended
by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility, and 73/
23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety."

ViewSonic VG150mb 19

ViewSonic Corporation
