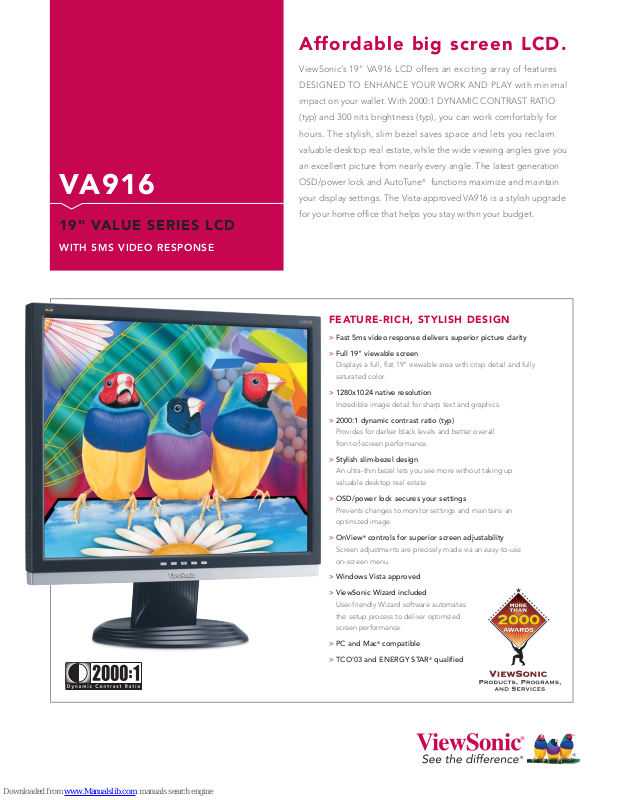

ViewSonic VA916 - 19"" LCD Monitor, VA916 Specification
VA916
19" VALUE SERIES LCD
WITH 5MS VIDEO RESPONSE
Affordable big screen LCD.
ViewSonic’s 19" VA916 LCD offers an exciting array of features
DESIGNED TO ENHANCE YOUR WORK AND PLAY with minimal
impact on your wallet. With 2000:1 DYNAMIC CONTRAST RATIO
(typ) and 300 nits brightness (typ), you can work comfortably for
hours. The stylish, slim bezel saves space and lets you reclaim
valuable desktop real estate, while the wide viewing angles give you
an excellent picture from nearly every angle. The latest generation
®
OSD/power lock and AutoTune
your display settings. The Vista-approved VA916 is a stylish upgrade
for your home office that helps you stay within your budget.
FEATURE-RICH, STYLISH DESIGN
> Fast 5ms video response delivers superior picture clarity
> Full 19" viewable screen
Displays a full, flat 19" viewable area with crisp detail and fully
saturated color.
> 1280x1024 native resolution
Incredible image detail for sharp text and graphics.
> 2000:1 dynamic contrast ratio (typ)
Provides for darker black levels and better overall
front-of-screen performance.
> Stylish slim-bezel design
An ultra-thin bezel lets you see more without taking up
valuable desktop real estate.
> OSD/power lock secures your settings
Prevents changes to monitor settings and maintains an
optimized image
> OnView
Screen adjustments are precisely made via an easy-to-use
on-screen menu
> Windows Vista approved
> ViewSonic Wizard included
User-friendly Wizard software automates
the setup process to deliver optimized
screen performance.
> PC and Mac®compatible
> TCO’03 and ENERGY STAR
.
®
controls for superior screen adjustability
.
functions maximize and maintain
®
qualified
VA916
19" VALUE SERIES LCD WITH 5MS VIDEO RESPONSE
LCD Type 19" color TFT active matrix SXGA LCD
Display Area 14.8" horizontal x 11.9" vertical; 19.0" diagonal
Optimum Resolution 1280x1024
Contrast Ratio 1000:1 static (typ), 2000:1 dynamic (typ)
Viewing Angles 170° horizontal, 160° vertical
Response Time 5ms (typ)
Light Source Long life, 40,000 hrs. (typ)
Brightness 300 cd/m2 (typ)
Panel Surface Anti-glare
VIDEO INPUT Analog RGB analog (75 ohms, 0.7 Vp-p)
Frequency Fh: 30~82kHz, Fv: 50~75Hz
Sync H/V separated (TTL)
COMPATIBILITY PC VGA up to 1280x1024 non-interlaced
Mac®* Power Mac™ G3/G4/G5 up to 1280x1024
CONNECTOR Analog 15-pin mini D-sub
Power 3-pin AC plug (CEE22)
POWER Voltage AC 100–240V (universal), 50/60Hz (auto switch)
Consumption 32W (typ)
CONTROLS Basic Power, 1, down, up, 2
ERGONOMICS Tilt -5°/+20°
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 20–90% (non-condensing)
DIMENSIONS Physical with stand 16.2" x 17.1" x 7.7" (412mm x 434mm x 194mm)
(W x H x D) Physical without stand 16.2" x 14.0" x 2.5" (412mm x 355mm x 64mm)
WEIGHT Net with stand 8.4 lb. (3.8 kg)
REGULATIONS UL, cUL, FCC-B, CB, CE, NOM, TUV-S, TUV/GS, TUV/ERGO
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please dispose of
POWER MANAGEMENT Meets TCO’03 and ENERGY STAR®standards
PACKAGE CONTENTS LCD display, video cable, power cable, Quick Start Guide,
WARRANTY Three-year limited warranty on parts, labor and backlight
®
OnView
Net without stand 7.3 lb. (3.3 kg)
Gross with stand 11.1 lb. (5.0 kg)
Auto image adjust, contrast, brightness, ViewMatch®color
adjust (sRGB, 9300K, 6500K – default, 5400K, RGB), information,
manual image adjust (H. size, H. position, V. position, fine
tune, sharpness), setup menu (language, resolution notice,
OSD position, OSD timeout, OSD background), memory recall
(covers ISO13406-2), MPR II, BSMI, CCC, ENERGY STAR,
PSB, C-TICK, RoHS, WEEE, VCCI, GOST-R, SASO, TCO’03,
EPEAT-Silver
in accordance with local, state and federal laws.
ViewSonic Wizard
®
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details.
Windows Vista and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2007 ViewSonic Corporation. All rights reserved. [13626-00B-08/07] VA916-2
For more product information, visit us on the web at ViewSonic.com
