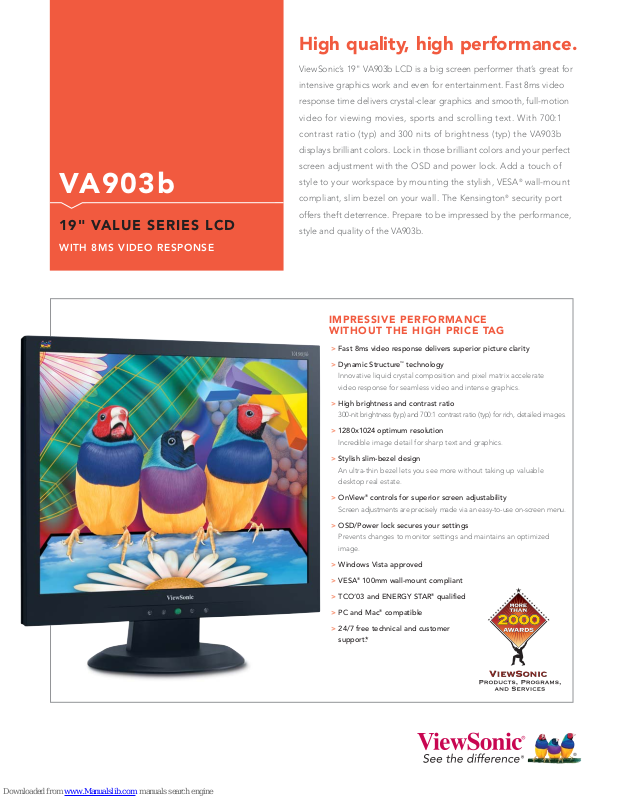

ViewSonic VA903B - 19"" LCD Monitor, VA903B Specification
VA903b
19" VALUE SERIES LCD
WITH 8MS VIDEO RESPONSE
High quality, high performance.
ViewSonic’s 19" VA903b LCD is a big screen performer that’s great for
intensive graphics work and even for entertainment. Fast 8ms video
response time delivers crystal-clear graphics and smooth, full-motion
video for viewing movies, sports and scrolling text. With 700:1
contrast ratio (typ) and 300 nits of brightness (typ) the VA903b
displays brilliant colors. Lock in those brilliant colors and your perfect
screen adjustment with the OSD and power lock. Add a touch of
®
style to your workspace by mounting the stylish, VESA
compliant, slim bezel on your wall. The Kensington
offers theft deterrence. Prepare to be impressed by the performance,
style and quality of the VA903b.
IMPRESSIVE PERFORMANCE
WITHOUT THE HIGH PRICE TAG
> Fast 8ms video response delivers superior picture clarity
> Dynamic Structure
Innovative liquid crystal composition and pixel matrix accelerate
video response for seamless video and intense graphics.
> High brightness and contrast ratio
300-nit brightness (typ) and 700:1 contrast ratio (typ) for rich, detailed images.
> 1280x1024 optimum resolution
Incredible image detail for sharp text and graphics.
> Stylish slim-bezel design
An ultra-thin bezel lets you see more without taking up valuable
desktop real estate.
> OnView®controls for superior screen adjustability
Screen adjustments are precisely made via an easy-to-use on-screen menu
> OSD/Power lock secures your settings
Prevents changes to monitor settings and maintains an optimized
image.
> Windows Vista approved
®
> VESA
> TCO’03 and ENERGY STAR
> PC and Mac
> 24/7 free technical and customer
100mm wall-mount compliant
support.*
™
®
compatible
technology
®
qualified
wall-mount
®
security port
.
VA903b
19" VALUE SERIES LCD WITH 8MS VIDEO RESPONSE
LCD Type 19" color TFT active matrix SXGA LCD
Display Area 14.8" horizontal x 11.9" vertical; 19.0" diagonal
Optimum Resolution 1280x1024
Contrast Ratio 700:1 (typ)
Viewing Angles 160° horizontal, 160° vertical @ contrast ratio > 5:1
Response Time 8ms (typ)
Light Source Long life, 50,000 hrs. (typ)
Brightness 300 cd/m2 (typ)
Panel Surface Anti-glare
VIDEO INPUT Analog RGB analog (75 ohms, 0.7 Vp-p)
Frequency Fh: 30~82kHz, Fv: 50~85Hz
Sync H/V separated (TTL)
COMPATIBILITY PC VGA up to 1280x1024 non-interlaced
Mac®** Power Mac™ G3/G4/G5 up to 1024x768
CONNECTOR Analog 15-pin mini D-sub
Power 3-pin AC plug
POWER Voltage AC 100–240V (universal), 50/60Hz (auto switch)
Consumption 33W (typ)
CONTROLS Basic Power, 1, down, up, 2
OPERATING Temperature 32–104°F (0–40°C)
CONDITIONS Humidity 20–90% (non-condensing)
DIMENSIONS Physical (mm) 416mm x 428mm x 210mm
(W x H x D) Physical (in.) 16.4" x 16.9" x 8.3"
WEIGHT Net 10.8 lb. (4.9 kg)
REGULATIONS UL, cUL, FCC-B, CB, CE, ENERGY STAR®, NOM, TUV/GS,
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please dispose of
POWER MANAGEMENT Meets TCO’03 and ENERGY STAR®standards
PACKAGE CONTENTS LCD display, video cable, power cable, Quick Start Guide,
WARRANTY Three-year limited warranty on parts, labor and backlight.
®
OnView
Gross 15.2 lb. (6.9 kg)
Auto image adjust, brightness, contrast, input selection,
ViewMatch®color adjust (sRGB, 9300K, 6500K, 5400K),
information (mode, model number, serial number), manual
image adjust (H. position, V. position, fine tune, sharpness),
setup menu (language, resolution notice, OSD position, OSD
timeout, OSD background), memory recall
TUV/ERGO, TCO’03, BSMI, CCC, PSB, C-TICK, RoHS, WEEE
in accordance with local, state and federal laws.
ViewSonic Wizard
ViewSonic Corporation’s QMS & EMS have been registered to
ISO 9001 & ISO 14001, respectively, by the British Standards Institution.
ViewSonic Corporation • 381 Brea Canyon Road, Walnut, CA 91789
Customer Service and Technical Support: (800) 688-6688 • Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
*Excluding major U.S. holidays. **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic
representative for complete details. Windows Vista and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Corporate names, trademarks stated
herein are the property of their respective companies. Copyright © 2007 ViewSonic Corporation. All rights reserved. [13345-00B-01/07] VA903b-2
For more product information, visit us on the web at ViewSonic.com
