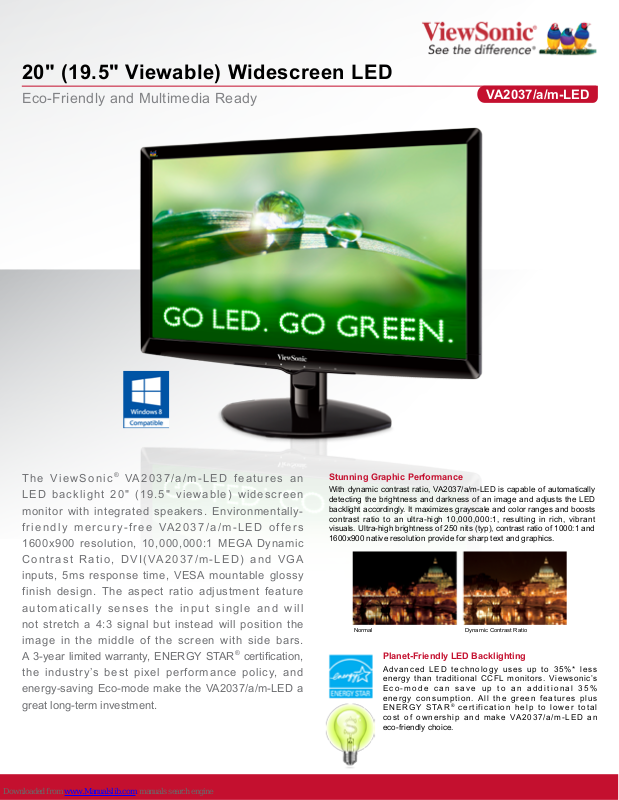

ViewSonic VA2037/a/m, VA2037-LED, VA2037a-LED Specifications

20" (19.5" Viewable) Widescreen LED

Eco-Friendly and Multimedia Ready

VA2037/a/m-LED

The ViewSonic® VA2037/a/m-LED features an
LED backlight 20" (19.5" viewable) widescreen
monitor with integrated speakers. Environmentally­friendly mercury-free VA2037/a/m-LED offers
1600x900 resolution, 10,000,000:1 MEGA Dynamic
Contrast Ratio, DVI(VA2037/m-LED) and VGA
inputs, 5ms response time, VESA mountable glossy
finish design. The aspect ratio adjustment feature
automatically senses the input single and will
not stretch a 4:3 signal but instead will position the
image in the middle of the screen with side bars.

®

A 3-year limited warranty, ENERGY STAR

certication,

the industry’s best pixel performance policy, and
energy-saving Eco-mode make the VA2037/a/m-LED a
great long-term investment.

Stunning Graphic Performance

With dynamic contrast ratio, VA2037/a/m-LED is capable of automatically
detecting the brightness and darkness of an image and adjusts the LED
backlight accordingly. It maximizes grayscale and color ranges and boosts
contrast ratio to an ultra-high 10,000,000:1, resulting in rich, vibrant
visuals. Ultra-high brightness of 250 nits (typ), contrast ratio of 1000:1 and
1600x900 native resolution provide for sharp text and graphics.

Dynamic Contrast RatioNormal

Planet-Friendly LED Backlighting

Advanced LED technology uses up to 35%* less
energy than traditional CCFL monitors. Viewsonic’s
Eco-mode can save up to an additional 35%
energy consumption. All the green features plus
ENERGY STAR® certification help to lower total
cost of ownership and make VA2037/a/m-LED an
eco-friendly choice.

20" (19.5" Viewable) Widescreen LED

VA2037/a/m-LED

sRGB Color Correction Denes
the Truest Color

With built-in sRGB color correction
technology, the VA2037/a/m-LED can
reproduce 100% sRGB rich color
performance and capture the
original and true colors from
screen to print.

Menu Controls

Kensington®

Lock Slot

VESA® Mountable and Kensington® Security Lock Slot

The VA2037/a/m-LED features a 100mmx100mm VESA mountable design
that allows you to mount it on a monitor stand or on a wall, depending on

your specic needs, and the built-in Kensington® security lock slot ensures

physical security for public environments.

The VA2037/a/m-LED is Perfect for:

Integrated SpeakersIntegrated Speakers

DVI-D

• Corporations

• Web Surng

VGAAC In

(Only VA2037 &
VA2037m-LED)

Tilt

Forward 5º / Back 20º

• Small Ofce / Home Ofce

• Government / Education

VESA Wall Mount

(100x100mm)

Audio In

(Only VA2037m-LED)

Specications

LCD PANEL

VIDEO INPUT

AUDIO

COMPAT­IBILITY

CONNECTOR

POWER

CONTROLS

ERGONOM­ICS

ITEM VA2037-LED VA2037m-LED VA2037a-LED

Type

Display Area

Optimum Resolution

Brightness

Contrast Ratio

Dynamic Contrast Ratio

Viewing Angles

Response Time

Backlight
Backlight Life
Panel Surface

Analog

Digital

Frequency

Sync

Speakers 2-watt (x2)

Mac®

Video Analog

Video Digital

Audio In

Power

Voltage

Consumption

Optimize

Conserve

Front Panel Buttons

OSD

20" (19.5" viewable) Wide Color TFT Active Matrix LCD

DVI-D (TMDS, 100ohms) DVI-D (TMDS, 100ohms)

N/A N/A

PC

PC compatibles (VGA up to 1600x900 non-interlaced)

DVI-D(V1.3 with HDCP)

NA
NA

Internal Power Board, 3-pin plub (CEE22)

Auto Image Adjust, Contrast/Brightness, Input Select

(D-SUB, DVI), Audio Adjust (Volume, Mute), Color Adjust

(sRGB, Bluish, Cool, Native, Warm, User Color [R,G,B]),

Information, Manual Image Adjust (H/V Position, Horizontal

Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect

Ratio, Eco-mode), Setup Menu (Language Select,

Resolution Notice, OSD Position, OSD Timeout, OSD

Background, Auto Power O, Power Indicator),

Tilt Forward 5º, Back 20º

19.5" diagonal
1600x900

250 cd/m2 (typ.)

1000:1 (typ.)
10,000,000:1

170º horizontal, 160º vertical

5ms (typ)

White-light LED

30,000 hours (min.)

Anti-glare, hard-coating (3H)

RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Fh: 24~82kHz, Fv: 50~76Hz

Separate Sync

Up to 1600x900

15-pin mini D-sub (VGA)

DVI-D(V1.3 with HDCP)

3.5mm mini jack
2W x2

AC 100–240V (universal), 50 / 60Hz

18W (typ.)
16W (typ.)
12W (typ.)

Power, 1, up, down, 2

Memory Recall

ITEM VA2037-LED VA2037m-LED VA2037a-LED

OPERATING
CONDITIONS

DIMENSIONS

(W x H x D)

WEIGHT

WALL

NA

NA
NA
NA

MOUNT

REGULA­TIONS

POWER

MANAGE­MENT

What's in the box?

VA2037-LED/VA2037m-LED/VA2037a-LED display, power cable, VGA cable, audio cable (only for
VA2037m-LED) , Quick Start Guide, ViewSonic Wizard CD (available in some countries only)

Temperature

Humidity

Physical with Stand

Physical without Stand

Packaging

Net with Stand

Net without Stand

Gross

VESA® 100x100 mm

32–104º F (0–40º C)

10–90% (non-condensing)

18.6 x 14.0 x 7.1 in. / 472.8 x 355.7 x 179.8 mm

18.6 x 11.7 x 2.0 in. / 472.8 x 397.2 x 50.9 mm

21.1 x 4.9 x 14.5 in. / 537 x 124 x 368 mm

6.2 lb. / 2.8 kg

5.8 lb. / 2.6 kg

8.7 lb. / 3.9 kg

CB, WEEE, RoHS, Vista Premium, XP,

Windows 7, UL, cUL, FCC-B, TUV-S,

NOM, Energy Star 5.0, CE GOST-R+Hygienic,

SASO, Ukraine, CCC, CEL, BSMI,

PSB, C-TICK, KC, e-Standby

ENERGY STAR® standards

ViewSonic Corporation’s QMS & EMS
have been registered to ISO 9001 & ISO

14001, respectively, by TUV NORD.

Sales: [phone] or [e-mail] • More product information: www.ViewSonic.com
