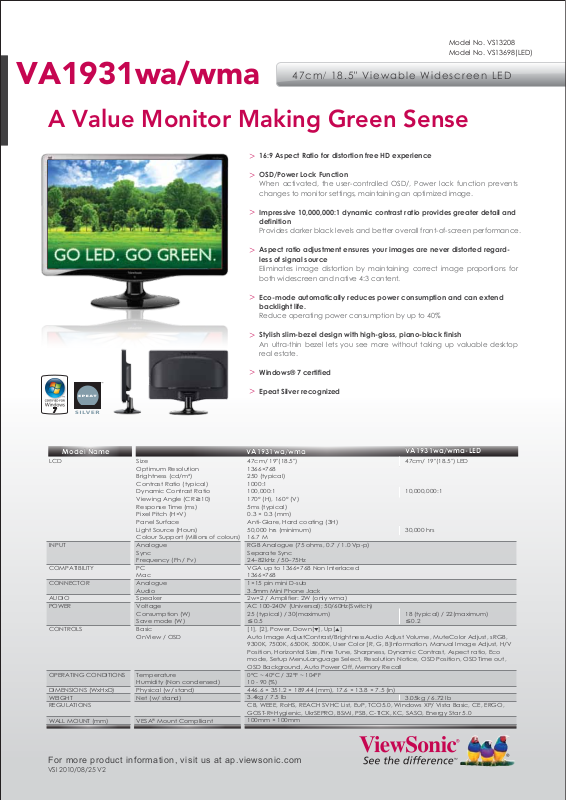

ViewSonic VA1931wa, VA1931wma User Manual

Model Name

VA1931wa/wma

VA1931wa/wma-LED

Model No. VS13208 Model No. VS13698(LED)

VA1931wa/wma

A Value Monitor Making Green Sense

47cm / 18.5 " View a ble W i descr e en LE D

16:9 Aspect Ratio for distortion free HD experience

OSD/Power Lock Function

When activated, the user-controlled OSD/, Power lock function prevents changes to monitor settings, maintaining an optimized image.

Impressive 10,000,000:1 dynamic contrast ratio provides greater detail and definition

Provides darker black levels and better overall front-of-screen performance.

Aspect ratio adjustment ensures your images are never distorted regardless of signal source

Eliminates image distortion by maintaining correct image proportions for both widescreen and native 4:3 content.

Eco-mode automatically reduces power consumption and can extend backlight life.

Reduce operating power consumption by up to 40%

Stylish slim-bezel design with high-gloss, piano-black finish

An ultra-thin bezel lets you see more without taking up valuable desktop real estate.

Model Name

LCD

INPUT

COMPATIBILITY

CONNECTOR

AUDIO POWER

CONTROLS

OPERATING CONDITIONS

DIMENSIONS (WxHxD) WEIGHT REGULATIONS

WALL MOUNT (mm)

Size Optimum Resolution Brightness (cd/m²) Contrast Ratio (typical) Dynamic Contrast Ratio Viewing Angle (CR Response Time (ms) Pixel Pitch (H×V) Panel Surface Light Source (Hours) Colour Support Analogue Sync Frequency (Fh / Fv) PC Mac Analogue Audio Speaker Voltage Consumption (W) Save mode (W) Basic OnView / OSD

Temperature Humidity (Non condensed) Physical (w/ stand) Net (w/ stand)

VESA

Mount Complliant

≧

10)

(Millions of colours)

Windows® 7 certified

Epeat Silver recognized

VA1931wa/wma

47cm/ 19"(18.5") 1366×768 250 (typical) 1000:1 100,000:1 170° (H), 160° (V) 5ms (typical)

0.3 × 0.3 (mm) Anti-Glare, Hard coating (3H) 50,000 hrs (minimum)

16.7 M RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p) Separate Sync 24–82kHz / 50–75Hz VGA up to 1366×768 Non Interlaced 1366×768 1×15 pin mini D-sub

3.5mm Mini Phone Jack 2w×2 / Amplifier: 2W (only wma) AC 100-240V (Universal); 50/60Hz(Switch) 25 (typical) / 30(maximum)

≦

0.5 [1], [2], Power, Down[ Auto Image AdjustContrast/BrightnessAudio Adjust Volume, MuteColor Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup MenuLanguage Select, Resolution Notice, OSD Position, OSD Time out, OSD Background, Auto Power Off, Memory Recall

0°C ~ 40°C / 32°F ~ 104°F 10 - 90 (%)

446.6 × 351.2 × 189.44 (mm), 17.6 × 13.8 × 7.5 (in)

3.4kg / 7.5 lb CB, WEEE, RoHS, REACH SVHC List, EuP, TCO5.0, Windows XP/ Vista Basic, CE, ERGO, GOST-R+Hygienic, UkrSEPRO, BSMI, PSB, C-TICK, KC, SASO, Energy Star 5.0 100mm × 100mm

▼

], Up[▲]

VA1931wa/wma-LED

47cm/ 19"(18.5") LED

10,000,000:1

30,000 hrs

18 (typical) / 22(maximum)

≦

0.2

3.05kg / 6.72 lb

For more product in formation, visit us at ap .viewsonic. com

VSI 2010/08/25 V2
