ViewSonic VA1912w-3, VA1912wb-3, VS10866 Service manual

Service Manual

ViewSonic VA1912w-3

VA1912wb-3

Model No. VS10866

19” Color TFT LCD Display

(VA1912w-3_VA1912wb-3_SM Rev. 1a Aug. 2006)

ViewSonic 381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583

Copyright

Copyright © 2006 by ViewSonic Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranty of merchantability or fitness for any particular purpose. Further, ViewSonic reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of ViewSonic to notify any person of such revision or changes.

Trademarks

Optiquest is a registered trademark of ViewSonic Corporation. ViewSonic is a registered trademark of ViewSonic Corporation. All other trademarks used within this document are the property of their respective owners.

Revision History

Revision SM Editing Date ECR Number Description of Changes Editor

1a 8/8/2006 Initial Release Jamie Chang

i ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

TABLE OF CONTENTS

1. Precautions and Safety Notices 1

2. Specification 3

3. Front Panel Function Control Description 10

4. Circuit Description 16

5. Adjustment Procedure 17

6. Troubleshooting Flow Chart 37

7. Recommended Spare Parts List 45

8. Exploded Diagram and Exploded Parts List 49

9. Block Diagram 51

10. Schematic Diagrams 52

11. PCB Layout Diagrams 59

ii ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

1. Precautions and Safety Notices

1. Appropriate Operation

(1) Turn off the product before cleaning. (2) Use only a dry soft cloth when cleaning the LCD panel surface. (3) Use a soft cloth soaked with mild detergent to clean the display housing. (4) Use only a high quality, safety approved AC/DC power cord.

(5) Disconnect the power plug from the AC outlet if the product will not be used for a long period of time. (6) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off. (7) Do not touch the LCD panel surface with sharp or hard objects. (8) Do not place heavy objects on the LCD display, video cable, or power cord. (9) Do not use abrasive cleaners, waxes or solvents for your cleaning. (10) Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas containing excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- In direct sunlight.

2. Caution

No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly

familiar with all of the following safety checks and servicing guidelines.

3. Safety Check

Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter circuit, the voltage is

exposed in such areas as the associated transformer circuits.

4. LCD Module Handling Precautions

4.1 Handling Precautions

(1) Since front polarizer is easily damaged, pay attention not to scratch it. (2) Be sure to turn off power supply when connecting or disconnecting input connector. (3) Wipe off water drops immediately. Long contact with water may cause discoloration or spots. (4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth. (5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface. (6) Since CMOS LSI is used in this module, take care of static electricity and ensure human earth when handling. (7) Do not open or modify the Module Assembly. (8) Do not press the reflector sheet at the back of the module in any direction. (9) In the event that a Module must be put back into the packing container slot after it was taken out of the container, do

not press the center of the CCFL Reflector edge. Instead, press at the far ends of the CFL Reflector edge softly. Otherwise the TFT Module may be damaged.

(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate or tilt the Interface Connector of

the TFT Module.

(11) After installation of the TFT Module into an enclosure (LCD monitor housing, for example), do not twist or bend the

TFT Module even momentarily. When designing the enclosure, it should be taken into consideration that no bending/twisting forces may be applied to the TFT Module from outside. Otherwise the TFT Module may be damaged.

(12) The cold cathode fluorescent lamp in the LCD contains a small amount of mercury. Please follow local ordinances or

regulations for disposal.

(13) The LCD module contains a small amount of materials having no flammability grade. The LCD module should be

supplied with power that complies with the requirements of Limited Power Source (IEC60950 or UL1950), or an exemption should be applied for.

(14) The LCD module is designed so that the CCFL in it is supplied by a Limited Current Circuit (IEC60950 or UL1950).

Do not connect the CCFL to a Hazardous Voltage Circuit

1 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Correct methods : Incorrect Methods : Only touch the metal-frame of the panel or the front cover of the monitor. Do not touch the surface of the polarizer .

Surface of the panel is pressed by fingers & this may cause “ MURA “

Take out the monitor with cushion Take out the monitor by grasping the LCD panel.

That may cause “ MURA“.

Place the monitor on a clean & soft foam pad . Place the monitor on foreign objects .

That could scratch the surface of panel

2 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

2. Specification

2.1 INSTRUCTION

FEATURES VA1912w-3 / VA1912wb-3

Size 19” wide

Luminance (Typ, cd/㎡) 300 cd/㎡

Contrast Ratio (Typ) 700:1

TFTLCD PANEL

Input Signal

Sync Compatibility

Compatibility

Power Voltage AC 100-240V, 50/60Hz Yes

Power Consumption

Audio Amplifier / Speaker 1.5 W / 2.5W x 2

Colors ( 6 bit + 2 bit FRC) 16.2 M colors

Response Time (Typ) 8 ms

Viewing Angle (H/V) 150 ° / 130 °

Recommend resolution 1440 x 900@60Hz

Analog (75ohms, 0.7/1.0 Vp-p) Yes

Digital Yes

Separate Sync Yes

Composite Sync No

Sync on Green No

PC Yes

Power Mac Yes

TV Box (NextVision 6) Yes

On Mode(Max / Typ) 36W(max) / 32W(typ)

Active Off Mode (Max) 2W

Tilt ( 20 ° to -5 °)

Ergonomics

OSD Control [; X] [ 1 ] [▼] [▲] [ 2 ] [ ] Yes

Dimension

Weight

Operating Condition

Storage Condition

Swivel No

Pivot No

Height Adjust No

Physical (W x H x D mm)

Package (W x H x D mm)

Physical (Net kg/lb) 4.5kg (9.9lb)

Package (Gross Kg/lb) 6.2kg (13.7lb)

Temperature (℉/℃) 41℉-95℉/+5℃-+35℃

Humidity (%) 20 % - 80 %

Temperature (℉/℃) -4℉-131℉/-20℃-55℃

Humidity (%) 20 % - 85 %

CB / TCO

03/ UL/cUL / FCC-B / ICES 003 / Argentina-TUV/S / NOM / EPA Energy

451 x 391 x 197 (mm)

17.8 x 15.4 x 7.8 (in)

538 x 470 x 158 (mm)

21.2 x 18.5 x 6.2 (in)

Ye s

Regulation

Star / TUV/Ergo / ISO13406-2 / TUV/GS / CE / GOST-R / SASO / BSMI / PSB /

C-Tick / Korea (MIC) / CCC

3 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

2.2 GENERAL SPECTION

Test Resolution & Frequency 1440 x 900 @ 60Hz

Test Image Size Full Size

Contrast and Brightness Controls

2.3 VIDEO INTERF ACE

Analog Input Connector DB-15 (Analog), refer the appendix A

Digital Input Connector DVI-D

Default Input Connector Defaults to the first detected input

Video Cable Strain Relief Equal to twice the weight of the monitor for five minutes

Video Cable Connector DB-15 Pin out Compliant DDC 2B

Video Signals

Video Impedance 75 Ohms (Analog)

Maximum PC Video Signal 950 mV with no damage to monitor

Maximum Mac Video Signal 1250 mV with no damage to monitor

Sync Signals TTL

Factory Default:

Contrast = 70%, Brightness = 100%

1. Video RGB (Analog)

2. DVI (Digital)

Separate

DDC 2B Compliant with Revision 1.3

Sync Compatibility Separate Sync

Video Compatibility

Resolution Compatibility

Exclusions Not compatible with interlaced video

Shall be compatible with all PC type computers,

Macintosh computers, and after market video cards

640 x 350*, 640 x 480, 720 x 400* (640 x 400*), 800 x

600, 832 x 624, 1024 x 768, 1152 x 864, 1280 x 768,

1280 x 960, 1280 x 1024, 1440 x 900

* The image vertical size might not be full screen.

But the image vertical position should be at the center.

4 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

2.4 POWER SUPPLY

Power Supply (Adapter) Part Number: 27-D003247

Input Voltage Range

Input Frequency Range

Short Circuit Protection

Over Current Protection

Leakage Current

Efficiency 80 % TYPICAL AT 100VAC @60HZ

Fuse

Power Dissipation

Max Input AC Current

Inrush Current (Cold Start) 80 A @ 240VAC , 50HZ

Power Supply Cold Start

Power Supply Transient Immunity

Power Supply Line Surge Immunity

90 to 264 VAC

47 to 63 Hertz

OUTPUT CAN BE SHORTED WITHOUT DAMAGE

FUSE 3.15A TYPICAL AT 250 VA C

75 MA (MAX) AT 240VAC / 50HZ

INTERNAL AND NOT USER REPLACEABLE

36 WATT S

1.6 ARMS @ nominal RANGE

SHALL START AND FUNCTION PROPERLY WHEN UNDER FULL LOAD, WITH ALL COMBINATIONS OF INPUT VOLTAGE, INPUT FREQUENCY, AND OPERATING TEMPERATURE SHALL BE ABLE TO WITHSTAND AN EN61000-4-4 ±2KV TRANSIENT TEST WITH NO DAMAGE

Shall be able to withstand ±2KV (L-L) and ±2.3KV

(L-PE) with no damage

Power Supply Missing Cycle Immunity

Power Supply Acoustics

US Type Power Cable

European Type Power Cable

CCC Type Power Cable

Shall be able to function properly, without reset or visible

screen artifacts, when ½ cycle of AC power is randomly

missing at nominal input

The power supply shall not produce audible noise that

would be detectable by the user. Audible shall defined

to be in compliance with ISO 7779 (DIN EN27779:1991)

Noise measurements of machines acoustics. Power

Switch noise shall not be considered

Separate 3-prong NEMA 5-15P type plug. Length =

1.8m. Connects to display.

Color = Black

Schuko CEE7-7 type plug.

Length = 1.8m, Connects to display.

Color = Black

Separate 3-prong type plug.

Length = 1.8m. Connects to display.

Color = Black

Separate 2-prong NEMA 1-15P type plug. Length =

PSE Type Power Cable

Power Saving Operation(Method) VESA DPMS Signaling

Power Consumption

Recovery Time

1.8m. Connects to display.

Color = Black

ON Mode < 36 W (max) / 32 W (typ)

ACTIVE OFF < 1 W ON Mode = N/A, ACTIVE OFF < 5 sec

5 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

2.5 ELECTRICAL REQUIREMENT

Horizontal / Vertical Frequency

Horizontal Frequency

Vertical Refresh Rate

Maximum Pixel Clock 135 MHz (EDID file is 140MHz)

Sync Polarity Independent of sync polarity.

30 – 82 kHz

50 – 85* Hz.

Timing Table

Item Timing Analog Digital

1 640 x 350 @ 70Hz, 31.5kHz Yes Ye s

2 640 x 400 @ 60Hz, 31.5kHz Yes* Ye s

3 640 x 400 @ 70Hz, 31.5kHz Yes Ye s

4 640 x 480 @ 60Hz, 31.5kHz Yes Yes

5 640 x 480 @ 67Hz, 35.0kHz Yes Ye s

6 640 x 480 @ 72Hz, 37.9kHz Yes Yes

7 640 x 480 @ 75Hz, 37.5kHz Yes Yes

8 640 x 480 @ 85Hz, 43.27kHz Yes Ye s

9 720 x 400 @ 70Hz, 31.5kHz Yes Yes

10 800 x 600 @ 56Hz, 35.1kHz Yes Yes

11 800 x 600 @ 60Hz, 37.9kHz Yes Yes

12 800 x 600 @ 75Hz, 46.9kHz Yes Yes

13 800 x 600 @ 72Hz, 48.1kHz Yes Yes

14 800 x 600 @ 85Hz, 53.7kHz Yes Ye s

15 832 x 624 @ 75Hz, 49.7kHz Yes Yes

16 1024 x 768 @ 60Hz, 48.4kHz Yes Yes

17 1024 x 768 @ 70Hz, 56.5kHz Yes Yes

18 1024 x 768 @ 72Hz, 58.1kHz Yes Ye s

19 1024 x 768 @ 75Hz, 60.0kHz Yes Ye s

20 1024 x 768 @ 85Hz, 68.67kHz Yes Ye s

21 1152 x 864@ 75Hz, 67.5kHz Yes Yes

22 1280 x 1024 @ 60Hz, 63.4kHz Yes Yes

23 1280 x 1024 @ 75Hz, 79.97kHz Yes No

24 1280x 768 @ 60Hz, 47.78kHz Yes Ye s

25 1280 x 960 @60Hz, 60kHz Yes Yes

26 1440 x 900 @ 60Hz, 55.96kHz Yes Yes

*The image vertical size might not be full screen.

6 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Primary Presets

1440 x 900 @ 60Hz

User Presets

Number of User Presets (recognized timings) Available: 10 presets total in FIFO configuration

Changing Modes

● Maximum Mode Change Blank Time for image stability : 3 seconds (Max), excluding “Auto Adjust” time

● Under DOS mode (640 x 350, 720 x 400 & 640 x 400), there is no “Auto Adjust” feature.

● The monitor needs to do “Auto Adjust” the first time a new mode is detected but except the DOS mode 640 x 350, 720 x

400 & 640 x 400.(see section “0-Touch™ Function Actions”)

● While running Change Mode, Auto Adjust or Memory Recall, the image shall blank

2.6 FRONT PANEL C ONTROLS AND INDICATORS

Front Panel Hardware Controls

Power Switch (Front Head) Power Control, soft Power Switch.

Power LED (Front Head) Green – ON

Orange – Active Off

Dark = Soft Power Switch OFF

Front Panel Controls (Head)

[;X] [ 1 ] [▼] [▲] [ 2 ] [

Reaction Time OSD must fully appear within 0.5s after pushing Button 1

Short Cuts Function from the button(s)

[1] Main Menu

[2] Input toggle (Analog or Digital)

[▼] or [▲]

]

To immediately activate Contrast menu. It should be change to Brightness OSD by

push button [2]

[

] Power

[ 1 ] BUTTON 1

[ 2 ] Button 2

[▲] UP ARROW BUTTON [▼] DOWN ARROW BUTTON [; X] Audio Mute on/off

Note: Power Button, Button 1 and Button 2 and Mute Button must be

one-shot logic operation. (i.e. there should be no cycling)

[▼] + [▲] Recall both of Contrast and Brightness to default

[1] + [2] Toggle 720x400 and 640x400 mode when input 720x400 or 640x400 mode

[1] + [▼] + [▲] White Balance. (Not shown on user’s guide)

[1] + [▼] Power Lock

[1] + [▲] OSD Lock

[;X] Audio Mute on /off

7 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Remark : All the short cuts function are only available while OSD off

Main Menu Controls

Auto Image Adjust* Contrast/Brightness*

1

2*4

Input Select

Analog, Digital

Audio Adjust

Vo l u m e *

4

, Mute*4

Color Adjust

sRGB, 9300K, 6500K(default), 5400, 5000, User Color [R, G, B]

Information

H Frequency, V Frequency, Resolution, Pixel Clock, Serial Number,

Model Number, “www.ViewSonic.com

”

Manual Image Adjust

H. Size*

1

, H./V. Position*1, Fine Tune*1, Sharpness*3

Setup Menu

Language [English, French, German, Spanish, Italian, Finnish, Japanese, Traditional Chinese, Simplified Chinese],

Resolution Notice, OSD Position, OSD Timeout, OSD Background

Memory Recall

1

*

These functions are not available in Digital Mode

2

*

These functions are not available under sRGB Mode

3

*

These functions are not available under Native Resolution Mode

4

*

These functions setting can be recalled to default by [▼]+[▲]

[Remark] Please refer to the detail in the Appendix C

Function descriptions OSD Lock short cuts function for the buttons

The OSD lock will be activated by pressing the front panel control buttons "(1), & (▲)" for 10 seconds. If the user then tries to

access the OSD by pressing any of the buttons "1", "▼", "▲", "2" a message will appear on the screen for 3 seconds showing

"OSD Locked". The OSD lock will be deactivated by pressing the front panel control buttons "(1), & (▲)" again for 10

seconds.

Note1: When the OSD is locked will lock all functions, including “Volume” and “Mute”

Note 2: Status bar indicating OSD Lock or Unlock is in progress and when complete it will indicate “OSD Locked”

Note 3: OSD Lock should not lock Power Button and Power Lock function Power Lock short cuts function for the buttons

The power button lock will be activated by pressing the front panel control buttons "(1), & (▼)" for 10 seconds. Locking the

power button means that the user won't be able to turn off the LCD while the power button is locked. If the user presses the

power button while it is locked, a message will appear on the screen for 3 seconds showing "Power Button Locked". It also

means that with the power button locked, the LCD would automatically turn back "On" when power is restored after a power

failure. If the power button is not in the locked mode, then power should return to it's previous state when power is restored

8 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

after a power failure. The power button lock will be deactivated by pressing the front panel control buttons "(1), & (▼)" again

for 10 seconds.

Note 1: Status bar indicating Power Button lock or unlock is in progress and when complete it will indicate “Power Button

Locked”

Note 2: Power should only be lockable in the “On State”

Memory Recall Actions

Memory Recall action on the analog and digital mode as below

1. Set the factory defaults as shown in Section 4-8

2. Clean all the mode setting buffer

3. Execute Auto Image Adjust

Note: Memory Recall should have no effect for Language, Power Lock, User Color Settings or Input Priority

Resolution Notice Ac tions

1. Resolution Notice OSD should show on screen after changing to non-native mode for 30 sec

2. The OSD should disappear after 10 sec or by pushing button [1] or [2] Resolution Notice function should be disabled when push button [2] under Resolution Notice OSD

0-Touch™ Function Actions

1. Execute Auto Image Adjust when new mode detected, and save the settings to buffer for further use

2. It should be reset by Memory Recall function

(Should not reset by power off, power unplug and others) OSD Auto Save The OSD shall save new settings when it is turned off by the user or when it times out. There shall not be a separate save

2.7 AUDIO INTERFACE (SPEAKER SPECIFICATION)

Line input connection

Line input signal 1 Vrms

Line input impedance 20k ohms

Maximum power output (Electric)

Signal to Noise Ratio 72 dB

Frequency response 300 TO 20KHZ Distortion 8%@1kHz

Vibration

3.5 mm stereo jack

1.5W / CH

There should be no audible vibration with volume at 100%. (Input

signal within 1 Vrms)

Screen image

Connector PC99 requirement Audio in

Cable type / length 3.5mm stereo cable / 1.8m length

Audio DPMS

There should be no affect on the screen image stability under any

conditions

Lime Green pantone # 577C

NOTE: THERE IS NO GUARANTEE <1 W POWER CONSUMPTION IN ACTIVE OFF MODE, WHEN THE AUDIO CABLE IS CONNECTED

9 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

3. Front Panel Function Control Description

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OSD controls which display on the screen. The OSD controls are explained at the top of the next page and are defined in “Main Menu Controls” on page 10.

Main Menu

with OSD controls

Front Control Panel

shown below in detail

Displays the Main Menu or

exits the control screen and

saves adjustments.

Audio Mute

button turns

the sound off

Scrolls through menu options and adjusts the displayed control.

Also a shortcut to display the Contrast adjustment control screen.

Displays the control screen for the highlighted control.

Also toggles between two controls on some screens.

Also a shortcut to toggle analog and digital connection.

Power light Green = ON Orange = Power Saving

Standby Power On/Off

10 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Do the following to adjust the display setting:

1. To display the Main Menu, press button [1].

NOTE: All OSD menus and adjustment screens disappear automatically after about 15

seconds. This is adjustable through the OSD timeout setting in the setup menu.

2. To select a control to adjust, pressSorTto scroll up or down in the Main Menu.

3. After the desired control is selected, press button [2]. A control screen like the one shown

below appears.

The command line at the bottom of the control screen tells what to do next from this screen. You can toggle between control screens, adjust the selected option, or exit the screen.

4. To adjust the setting, press the up S or down T buttons.

5. To save the adjustments and exit the menu, press button [1] twice.

The following tips may help you optimize your display:

• Adjust the computer's graphics card so that it outputs a 1440 x 900 @ 60Hz video signal to the LCD display. (Look for instructions on “changing the refresh rate” in the graphics card's user guide.)

• If necessary, make small adjustments using H. POSITION and V. POSITION until the screen image is completely visible. (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.)

11 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Main Menu Controls

Adjust the menu items shown below by using the up S and down T buttons.

Control Explanation

Auto Image Adjust sizes and centers the screen image automatically.

Contrast adjusts the difference between the image background (black level)

and the foreground (white level).

Brightness adjusts background black level of the screen image.

Input Select toggles between inputs if you have more than one computer

connected to the VA1912w/VA1912wb.

Audio Adjust Vol ume increases the volume, decreases the volume, and mutes the audio. Mute temporarily silences audio output.

Color Adjust provides several color adjustment modes, including preset color

temperatures and a User Color mode which allows independent adjustment of red (R), green (G), and blue (B). The factory setting for this product is 6500K (6500 Kelvin).

sRGB-This is quickly becoming the industry standard for color management, with support being included in many of the latest applications. Enabling this setting allows the LCD display to more accurately display colors the way they were originally intended. Enabling the sRGB setting will cause the Contrast and Brightness adjustments to be disabled.

12 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Control Explanation

9300K-Adds blue to the screen image for cooler white (used in most office

settings with fluorescent lighting).

6500K-Adds red to the screen image for warmer white and richer red.

5400K-Adds green to the screen image for a darker color.

5000K-Adds blue and green to the screen image for a darker color.

User Color Individual adjustments for red (R), green (G), and blue (B).

1. To select color (R, G or B) press button [2].

2. To adjust selected color, pressSandT. Important: If you select RECALL from the Main Menu when the product is

set to a Preset Timing Mode, colors return to the 6500K factory preset.

Information displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL. See your graphics card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency). NOTE: VESA 1440 x 900 @ 60Hz (recommended) means that the resolution is 1440 x 900 and the refresh rate is 60 Hertz.

Manual Image Adjust Sub-menu

13 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Control Explanation

H. Size (Horizontal Size) adjusts the width of the screen image.

H./V. Position (Horizontal/Vertical Position) moves the screen image left or

right and up or down.

Fine Tune sharpens the focus by aligning text and/or graphics with pixel boundaries.

NOTE: Try Auto Image Adjust first.

Sharpness adjusts the clarity and focus of the screen image.

Setup Menu displays the menu shown below:

Language Select allows the user to choose the language used in the menus and

control screens.

14 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Control Explanation

Resolution Notice allows the user to enable or disable this notice.

If you enable the Resolution Notice shown above and your computer is set at a resolution other than 1440 x 900, the following screen appears.

OSD Position allows the user to move the OSD menus and control screens.

OSD Timeout sets the length of time the OSD screen is displayed. For example,

with a “30 second” setting, if a control is not pushed within 30 seconds, the display screen disappears.

OSD Background allows the user to turn the OSD background On or Off.

Memory Recall returns the adjustments back to factory settings if the display is

operating in a factory Preset Timing Mode listed in the Specifications of this manual.

15 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

4. Circuit Description

The TSUM57AK is total solution graphics processing IC for LCD monitors with panel resolutions up to SXGA. It is

configured with a high-speed integrated triple-ADC/PLL, an integrated DVI receiver, a high quality display processing engine,

and an integrated output display interface that can support RSDS panel interface format. To further reduce system costs, the

TSUM57AK also integrates intelligent power management control capability for green-mode requirements and spread-

spectrum support for EMI management.

The TSUM57AK incorporates the world’s first coherent oversampled RGB graphics ADC in a monitor controller system.

The oversampling ADC samples the input RGB signals at a frequency that is much higher than the signal source pixel rate.

This can preserve details in the video signal that ordinarily would be lost due to input signal jitter or bandwidth limitations in

non-oversampled systems. The TSUM57AK also incorporates a new Dynamic Frame Rate (DFR) generator

output video to the display panel that preserves the advantages of a fixed output clock rate, while eliminating the output end of

frame short-line.

for the digital

16 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

5. Adjustment Procedure

A. Function Test and Alignment Procedur e

1. All Modes Reset You should do “All Model Reset” (Refer to Chap 3. Hot Keys for Function Controls) first. This action will allow you to erase all end-user’s settings and restore the factory defaults.

2. Auto Image Adjust The Auto Adjust is aimed to offer a best screen quality by built-in ASIC. For optimum screen quality, the user has to adjust each function manually .

A.Turn the computer and LCD monitor on.

B. Press the ‘Auto’ button on monitor keypad to Auto Adjust.

C. The LCD monitor will start the Auto Adjust process automatically and run for 10 consecutive seconds, during

which time you will notice the image change.

3. Firmware Test Patten: Burn in Model (Refer to Chap3. Hot Keys for Function Control)

-Make sure the F/W is the latest version.

4. DCC Test Patten: EDID program

-Make sure it can pass test program.

5. Window Shut Down Test Signal: 1280*1024@60Hz Test Pattern:

Checkered Pattern Every One Pixel (50%Green & 50%Blue) Inspection Item: Flicker, Mura

6. Window BG Test Signal: 1280*1024@60Hz Test Pattern:

Window standard pattern Inspection Item: Line Defect, Function Defect & Mura

7. 25 Gray Test Signal: 1280*1024@60Hz Test Pattern:

Full Screen 25% White (Gray) Inspection Item: Particle, Line Defect & Mura

8. 50 Gray Test Signal: 1280*1024@60Hz Test Pattern:

Full Screen 50% White (Gray) Inspection Item: Bright Dot, Particle, Line Defect & Mura

9. White Box Test Signal: 1280*1024@60Hz Test Pattern:

Window standard pattern Inspection Item: Particle, Line Defect, Power, Image Remain & Mura

17 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

10. Black Box Test Signal: 1280*1024@60Hz Test Pattern:

Window standard pattern Inspection Item: Bright Dot, Line Defect & Power

11. RED Test Signal: 1280*1024@60Hz Test Pattern:

Full Screen Red Inspection Item: Bright Dot, Partial & Line Defect

12. Green Test Signal: 1280*1024@60Hz Test Pattern:

Full Screen Green Inspection Item: Bright Dot, Partial & Line Defect

13. Blue Test Signal: 1280*1024@60Hz Test Pattern:

Full Screen Green Inspection Item: Bright Dot, Partial & Line Defect

14. Gray_Scale_0-100_V64 Test Signal: 1280*1024@60Hz Test Pattern:

Vertical 64 (256) Gray Scale (Right → Left，From 0 to 100% White) Inspection Item: Line Defect & Function Defect

15. Function Test Display pattern

Item Pattern Description Remark

1 2

3 4 5

6

Gray_Scale_0-100_V Gray_Scale_0-100_H

Vertical 64 (256) Gray Scale (right→left，From 0 to 100% White)

Horizontal 64 (256) Gray Scale (up→down，From 0 to 100% White)

Black Full Screen Black Figure 3

Red Full Screen 50% Red Figure 4

Green Full Screen 50% Green Figure 5

Blue Full Screen 50% Blue Figure6

Figure 1

Figure 2

7 8

White Full Screen White Figure7

Black_Tile Black Tile Under White Background Figure 8

18 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Figure 1 Figure 2

Figure 3 Figure 4

Figure 5 Figure 6

Figure 7 Figure 8

19 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

BIOS update procedure

Mstar ISP Tool User Manual

Setp1:

Take the cable of Print Port to connect Print Port of PC and Print Port of fixture(and EDID burn in the same fixture) to connect VGA Cable between D-sub of fixture and D-sub of AD Board of monitor，the monitor must be turned on the power。

Step 2 :

Open ISP Tool

20 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 3 :

Press ”connect” into ISP mode，display the model of Flash，The dialog of figure is displayed “Device Type is Pm25LV512” then press ”確定”。

Step 4:

Press ”Read” then enter as below figure，then press

If down load BIOS that is successful as below figure then press”確定”。

to down load the program of BIOS (*.bin)。

21 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 5 :

Press ”Auto” into below figure that display the value of BIOS Checksum below figure is displayed “0x1626” then press ”Run” to execute the BIOS procedure。

The BIOS procedure is displayed the message ”Verify OK” that the BIOS procedure is successful。

Step 6 :

Press ”Dis Con” then leave the mode of ISP。

22 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 7：

When select ”ReConnect” and press “Run” then repeat to connect the mode of ISP into next the action of BIOS procedure

23 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Packing For Shipping And Disassembly Procedure

Packing For Shipping

1. Packing Procedure

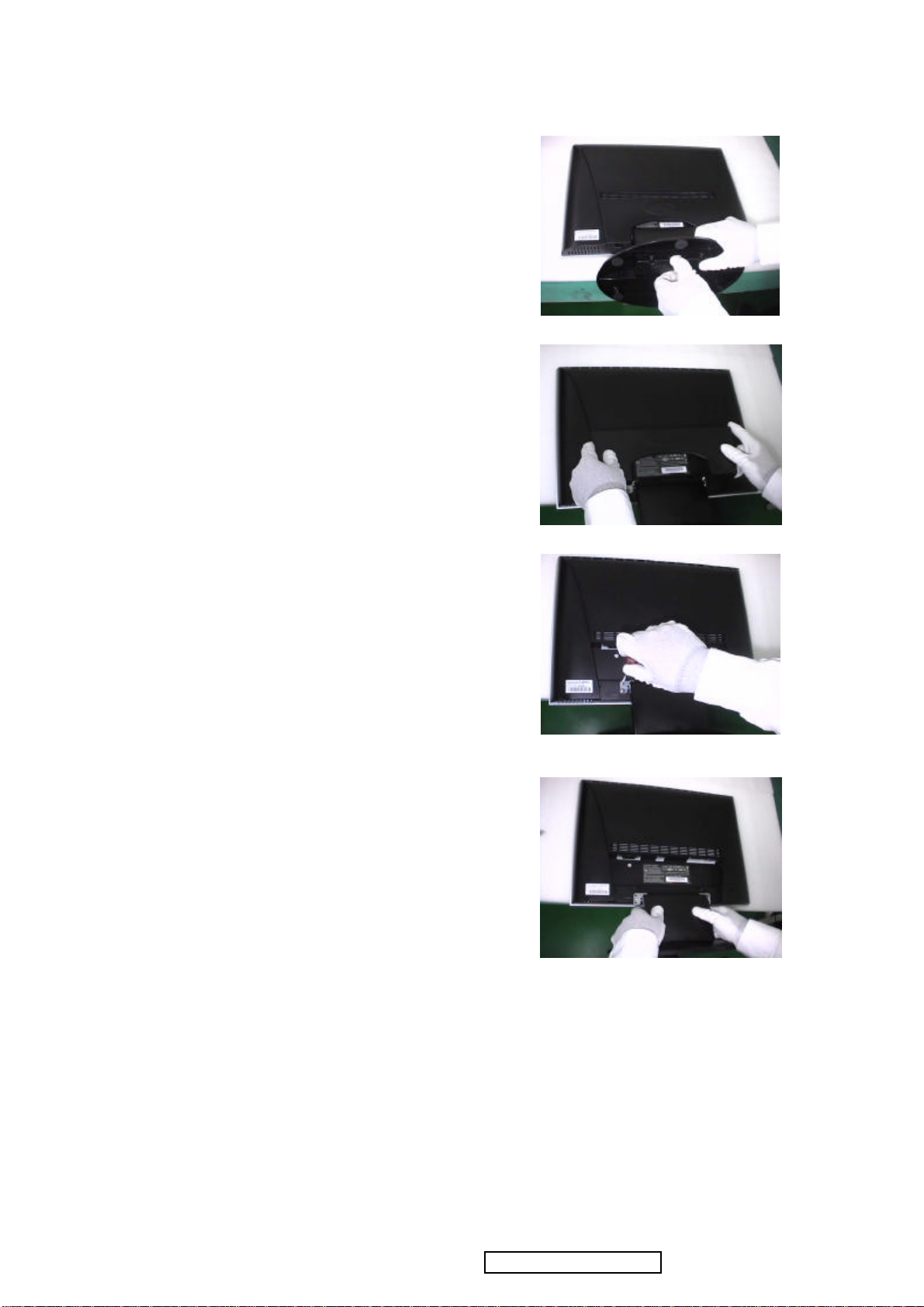

1.1 Paste protection film to protect the monitor. (Figure 1)

1.2 Put the monitor in the PE bag and seal the bag with tape. (Figure 2)

1.3 Put the cushions on the monitor. (Figure 3)

1.4 Place the monitor into the carton and then put all the accessories into the carton. As last, close the carton and seal it with

tape. (Figure 4)

Figure 1

Figure 2

Figure 3

24 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Figure 4

Monitor Assembly and Disassembly 1 Separate Stand Assy

1.1 Remove Stand Cover

Step 1 :

Remove the Seat Assy

Step 2 :

Remove the Stand Cover.

Step 3 :

Loose and remove 4 screws

Step4 :

Remove the Stand Assy

Step 5 :

Completed.

25 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

2 Separate Rear Cover (Rear Case Assy) Separate Bezel hooks to take Bezel and Rear Cover apart.

Step 1 :

Loose and remove 2 screws.

Step 2 :

Separate Bezel hooks to take

Bezel and Rear Cover apart.

Step 3 :

Remove Rear Cover.

Step 4 :

Completed.

26 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

3 Remove Power Board and AD Board

3.1 Remove Metal Cover

Step 1 :

Remove FFC from OSD Board.

Step 2 :

Loose and remove 4 screws.

Step 3 : Lift up LCD module and remove bezel.

Step 4 : Remove 2 pieces of Backlight wires.

Step 5 : Remove 2 pieces of Backlight wires.

27 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 6 : Loose and remove 2 screws.

Step 7 : Loose and remove 2 screws.

Step 8 : Loose and remove 4 screws.

Step 9 : Remove the PCBA Cover

28 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

3.2 Remove Power Board and AD Board

Step 1 : Loose and remove 4 screws.

Step 2 : Remove Lips Board

Step 3 : Remove 2 pieces of FFCs.

Step 4 : Remove the FFC.

29 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 5 : Loose and remove 4 screws.

Step 6 : Remove AD PCBA.

Step7 :

Completed.

4 Change New AD Board and Power Board

Step 1 :

Place new AD Board.

And fasten 4 fixed screws.

Step 2 :

Fasten 4 fixed screws.

Step 3 :

Insert FFC.

30 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 4 :

Insert 2 pieces of FFCs .

Step 5 : Insert new Lips Board.

Step 6 :

Fasten 4 fixed screws.

Step 7 :Completed.

31 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

5. Remove OSD Board

Step 1 :

Separate both Audio Cable.

Step 2 :

Take OSD Board apart.

Step 3:

Completed.

32 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

6.Change New OSD Board Step 1 :

Place New OSD Board.

Step 2 :

Insert Audio cable to connectors of

New OSD Board.

Step 3:

Completed.

7. Add Cover to AD PCB Heatsink

Step 1 :

Join the PCB Cover.

Step 2 :

Fasten 4 fixed screws.

33 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 3 :

Fasten 2 fixed screws

Step 4 :

Fasten 2 fixed screws.

Step 5 :

Insert 2 pieces of Backlight wires.

Step 6 :

Insert 2 pieces of Backlight. wires.

34 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 7 : Join LCD module and remove bezel.

Step 8 :

Fasten 4 fixed screws.

Step 9 :

Insert FFC.

Step 10 :

Completed.

8. Rear Assy & Stand Assembly

Step 1 :

Place Rear Cover.

Step 2 :

Fasten 2 fixed screws.

Step 3 :

Place the Stand Assy.

35 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Step 4 :

Fasten 4 fixed screws.

Step 5 :

Join the Stand Cover.

Step 6 :

Join the Seat Assy

Step 7 :

Completed.

36 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

6. Troubleshooting Flow Chart

p

Defect Mode Failure Analysis Repair Testing

Light On Test

※ “ Panel Change” Should be Performed to Level 3 Repair

Flash Dots

Abnormal

Display

Bright Dot

Dark Dot

Backlight

Light Leakage

Mura

Image Sticking

Brightness spot

Particle

Dot Defect

Image Remain

Group Bright Dots

Others Cosmetics

Check Panel

Panel Change

Defect

A

37 ViewSonic Corporation

NG

Next Ste

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

TEST

Completed

Defect Mode Failure Analysis Repair Testing

※ “ Panel Change” Should be Performed to Level 3 Repair

A

Display Noise

Power on

Check PCBA

AD/B Change

Display Abnormal

Power/B Change

Inverter/B Change

Flicker

CNT/B Change

Beat Display Flicker

Beat Display Shut Down

Check Panel

Panel Change

Display Wave

Check PCBA

AD/B Change

Power/B Change

CNT/B Change

Check Panel

Panel Change

No Backlight

Check Adapter

Adapter Change

Next Step

NG

TEST

B

Completed

38 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

p

A

Failure Analysis Repair Testing

※ “ Panel Change” Should be Performed to Level 3 Repair

B

Display White Out

Check PCB

AD/B Change

Power/B Change

Booting Delay

Brightness Even Abnormal

Check PCB

Inverter/B Change

OSD/B Change Power/B Change

Beat Display No Backlight

Check Panel

Inverter/B Change

Panel Change

Check Adapter

Adapter Change

No signal

AD/B Change

R.G.B Display Abnormal

Check PCB

CNT/B Change

Gray Scale Display Abnormal

Check Wire

Check Panel

VGA cable

DVI cable

Panel Change

Next Ste

NG

TEST

C

Completed

39 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Defect Mode Failure Analysis Repair Testing

※ “ Panel Change” Should be Performed to Level 3 Repair

C

Horizontal Line Defect

Vertical Weak Line

Horizontal Weak Line

Check PCBA

AD/B Change

Vertical Band Defect

Check Panel

Panel Change

Horizontal Band Defect

Power Saving Display Abnormal

Check PCBA

AD/B Change

Peculiar Smell

Check PCBA

Power/B Change

Inverter/B Change

Next Step

NG

TEST

Complete

40

ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

r

g

p

Defect Mode Failure Analysis Repair Testing

※ “ Panel Change” Should be Performed to Level 3 Repair

AD/B Change

Power/B Change

Power ON/OFF

Abnormal

No Power

Turn Off

Check PCBA

Abnormal

CNT/B Change Inverter/B

OSD/B Change

Check Wire

Check Adapter

OSD Cable

AC Power Change

DC Power CNT

Cable Chan

Adapter Change

e

LED Display

Abnormal

LED Off

LED Dark

Check PCBA

AD/B Change

Power/B Change Inverter/B

OSD/B Change

LED Abnormal

LED Loss

LED Flicke

Check Wire

OSD Cable

DC Power CNT

Cable Chan

Adapter Change

e

NG

Next Ste

41 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

TEST

Completed

Defect Mode Failure Analysis Repair Testing

Abnormal BIOS

&OSD

※ “ Panel Change” Should be Performed to Level 3 Repair

OSD Key Unavailable

OSD Can’t Input

OSD Can’t Read

Check PCB

AD/B Change

CNT/B Change

Power/B Change Inverter/B

OSD/B Change

Abnormal

Louds

peaker

OSD No Display

OSD Jiggle

OSD Display Abnormal

Voice Loss

Abnormal Loud

L/R Abnormal

Check Wire

Check BIOS

Check PCBA

Check Wire

D-sub cable OSD cable

VGA cable DVI cable

BIOS Update

AD/B Change CNT/B Change

Power/B Change Inverter/B Change

OSD/B Change

No Voice

L/R Same Volume

Check Loudspeaker

OSD Cable Change

Loudspeaker Change

42 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Loudspeaker Noise

Next Step

NG

TEST

Completed

A

p

Defect Mode Failure Analysis Repair Testing

Other Abnormal

Display

※ “ Panel Change” Should be Performed to Level 3 Repair

Display Shut Down

Check PCB

AD/B Change

Power/B Change

CNT/B Change

Check Panel

Panel Change

Display Flicker ((tapping )

Check PCBA

AD/B Change

CNT/B Change

Check Panel

Panel Change

DVI Signal Display

Check PCB

AD/B Change

Abnormal

EDID Update

TV Function Display Abnormal

Check PCBA

Check Wire

Check Controller

TV /B Change

AV Cable Change

Remote controller Change

Next Ste

NG

TEST

Complete

43 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

Trouble Shooting Analysis

Check the information in this section to see if the problems can be solved before requesting repair.

Note：The consumers are only allowed to solve the problems described as below. Any unauthorized product modification, or failure to follow instructions supplied with the product

will end the warranty immediately.

z No image

 Make sure power button is ON.  Check whether the LCD monitor and computer power cords are plugged and whether there is a

supply of power.

z No Signal Input

 Check the signal connection between the computer and LCD monitor.

z “Out of Range”

 Check the computer image output resolution and frequency and compare the value with the

preset values (Please refer to [Appendix-Display Mode]).

z Fuzzy Image

 Adjust Phase.

z Image too bright

 Adjust brightness and contrast by OSD.

z Image too dark

 Adjust brightness and contrast by OSD.

z Irregular image

 Check the signal connection between the computer and LCD monitor.  Perform Auto Adjust.

z Distorted image

 Reset the LCD monitor  Take off extra accessories (such as signal extension cord).

z Image is not centered

 Use OSD Image Menu to adjust H_Position and V_Position.  Check image size setting.  Perform Auto Adjust.

z Size is not appropriate

 Use OSD Image Menu to adjust H_Position and V_Position.  Check image size setting.  Perform Auto Adjust.

z Uneven color

 Use OSD Color Menu to adjust color setting.

z Color too dark

 Use OSD Color Menu to adjust color setting.

z Dark area distorted

 Use OSD Color Menu to adjust color setting.

z White color is not white

 Use OSD Color Menu to adjust color setting.

44 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

7. Recommended Spare Parts List

ViewSonic Model Number: VS10866

Serial No. Prefix: QBK Rev: 1a

Item Description ECR/ECN ViewSonic P/N Ref. P/N Location Universal number# Q'ty

Accessories:

1

PC Board Assembly:

2

3

4 5

Cabinets:

6 7 8 9

Cables:

10 11 12

Documentation:

13 14

15

16

Hardware:

17 18 19

20 21 22 Miscellaneous: 23

Packing Material:

24

25

26

Power Code, UL, SVT#18/3C, 75C, LP-30B+LS-13, L=1830+/-50mm, Black, Linetek, 18AWG, No Bag, Green I PCBA for , A190A2-H, A190A2-H-K3, 106-02, Rev.02, USI/ITC, ODM, Green II B-00005600 35-D005166

PCBA for , A190A2-A02-T, A190A2-A02-H-S1, 1206-04, Rev.04, ODM, Green II B-00005705 35-D005062

Power Supply Board (Lips With Audio)DAC-12M030 A, Ver:0F, 5 V/3 A, 12 V/0.7 A, I TYPE, 7 mA, 1710 V, Delta Dongguan_Inverter/Delta Jiangsu_Adaptor, RoHS

Bezel Assy, A190A2-H05, ABS PA757N, Silver(Pantone877C), Fuking C-00004281 40-D004255 1 Rear Assy, A190A2-H05, ABS PA757N, Black(J91A11B5), Fuking C-00004282 40-D004257 1 Cover Hinge, A190A2-H05, ABS PA757N, Black(J91A11B5), Fuking C-00004284 40-D004250 1 Seat Assy, A190A2-H05, ABS PA757N, Black(J91A11B5), Hontech Precision C-00004285 40-D004259 1 Audio Cable, A150X2, 18AWG, 180cm, Black, JCE, Green I CB-00000544 32F2818004 1 Accessory Cable, D-Sub, BLACK, Johnson Components & Equipments, A150X2, Green I FFC, A190A2-H05, 15 Pins, Tennsure/Young Shin, L=108.5 CB-00004288 32-D004533 1 FFC, FFCX816, 36 Pins, Tennsure, package AL_Foil, Green II CB-00005742 32-D005773 1 Safety Label for , A190A2-H05, 120 mmx50 mm, Chang Huang, VSC_VA1912w-2, Green II Label, Pallet Barcode Label, 75x40, A190E2-H03, VSC, Non Green DC-00008010 7741513161 1 Carton Label for , A190E2-H06, 20 mmx20 mm, Chang Huang, VSC_VA912_for Europe, Green I MENU for A190A2-H05, Complex, 1C, VSC_VA1912w/wb-3 +Caution Card, Green II SCREW, M3, P=0.5 mm, L=4 mm, Pan Head, Phillips Cross Recess, Green I HW-00000553 42A9930008 2000 Screw, M3*P1.27*12, φ5.5*2, Steel, Green I HW-00000556 42A9990005 2000 SCREW, M4, P=0.7 mm, L=15 mm, Pan Head, Phillips Cross Recess, Green I HW-00000590 42A9930013 2000 SCREW, M4, P=0.7 mm, L=8 mm, Round Head, Phillips Cross Recess, plate color Zn, Screw_with_Washer, Shye Ching/Hama Naka Motogawa, head D8, Green I

SCREW, M4, P=0 mm, L=11.8 mm, Hexagon Stand Off, Socket, Green I HW-00006041 42A9940007 2000 Tape, Security Tape, OPP, L900xW50x0.045mm, VSC, Non Green M-00000560 7345511002 1 Bag, 570 mmx600 mmx0.13 mm, White, Non Green P-00000595 7841919921 1 Cushion, A190A2-T05, EPS, WHITE, 450 mmx160 mmx145 mm, Sing Home, PS FOAM (Left), Green II Carton, A190A2-H05, , 538 mmx158 mmx470 mm, VSC_VA1912w-3 5ms, Green II Cushion, A190A2-T05, EPS, WHITE, 450 mmx160 mmx145 mm, Sing Home, PS FOAM (Right), Green II

Remark 1:

Above listed items are examples, supplier can expand the rows to add more necessary items.

Remark 2: All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR approved by ViewSonic Corporation. This is to eliminate repeated

cross checks of each item between this version and prior versions.

RECOMMENDED SPARE PARTS LIST (VA1912W-3)

A-00008008 32E1818015

B-00008008 27-D007836

CB-00004287 32F3018003

DC-00008009 77-D012196

DC-00008011 77-D011736

DC-00008012 76-D011749

HW-00004042 42-D000649

P-00004295 78-D004392

P-00008012 78-D011686

P-00004296 78-D004388

(AJ0A2H6A25)

1

2000

1

45 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

ViewSonic Model Number: VS1086

6

I

5

I

n

t

x

RECOMMENDED SPARE PARTS LIST (VA1912WB-3)

Serial No. Prefix: QBN Rev: 1a

Item Description ECR/ECN ViewSonic P/N Ref. P/N Location Universal number# Q'ty

1

Accessories: PC Board Assembly:

2

3

4 5

Cabinets:

6 7 8 9

Cables:

10 11 12

Documentation:

13

14

15 16

Hardware:

17 18

19

20

21 22

Miscellaneous:

23

Packing Material:

24

25 26 27

28

Power Cord, PC-323+COC-01, Black, CCC, 1830 mm, Green I A-00002058 32E1818013 PCBA for , A190A2-H, A190A2-H-K3, 106-02, Rev.02, USI/ITC, ODM, Green I Lips With Audio, DAC-19M008 AF, 0F, 5 V/3 A, 13.8 V0.7 A, I TYPE, 7 mA, 1710 V, , Green II Audio Control PCBA for , A190A2-A02-H, A190A2-A02-H-S1, 120605, Rev.04, IGreen II Bezel Assy, A190A2-H05, ABS PA757N, Green Rear Assy, A190A2-H05, ABS PA757N, Green Cover Hinge, A190A2-H05, ABS PA757N, Green Seat Assy, A190A2-H05, ABS PA757N, Green Audio Cable, A150X2, 18AWG, 180cm, Black, JCE, Green Accessory Cable, D-Sub, BLACK, Johnson Components & Equipments, A150X2, Green I FFC, A190A2-H05, 15 Pins, Tennsure/Young Shin, L=108. FFC, FFCX816, 36 Pins, Tennsure, package AL_Foil, Green I Safety Label for , A190A2-H05, 120 mmx50 mm, VA1912wb Ver.3, Green II SN Label for , A190A2-H05, 50 mmx25 mm, VA1912wb-3 for China, Green II Carton Label for , A190A2-H05, 76.2 mmx76.2 mm, VA1912wb-3, Green II MENU for A190A2-H05, VA1912w/wb-3, Green II DC-00008019 76-D011751 SCREW, M3, P=0.5 mm, L=4 mm, Pan Head, Phillips Cross Recess, Green I Screw, M3*P1.27*12, φ5.5*2, Steel, Green I HW-00000556 42A9990005 SCREW, M4, P=0.7 mm, L=15 mm, Pan Head, Phillips Cross Recess, Green I SCREW, M4, P=0.7 mm, L=8 mm, Round Head, Phillips Cross Recess, plate color Zn, Screw_with_Washer, Shye Ching/Hama Naka Motogawa, head D8, Green I SCREW, M4, P=0 mm, L=11.8 mm, Hexagon Stand Off, Socket, Green I Tape, Security Tape, OPP, L900xW50x0.045mm, VSC, Non Gree Bag, 570 mmx600 mmx0.13 mm, White, Non Gree Cushion, A190A2-T05, EPS, WHITE, 450 mmx160 mmx145 mm, Sing Home, PS FOAM (Left), Green II Cushion, A190A2-T05, EPS, WHITE, 450 mmx160 mmx145 mm, Sing Home, PS FOAM (Right), Green II Generic Foam Se Generic Bo Craft Box, A190A2-H05, 538 mmx158 mmx470 mm, VA1912wb-3 5ms, Green II

Remark 1: Remark 2:

All revised RSPLs with newly added items or any change made should be highlighted and correlated with the ECN/ECR

approved by ViewSonic Corporation. This is to eliminate repeated cross checks of each item between this version and prior

Above listed items are examples, supplier can expand the rows to add more necessary items.

B-00005600 35-D005166

B-00008008 27-D007836

B-00008011 35-D008184

C-00004276 40-D004254 C-00004277 40-D004253 C-00004279 40-D004258

C-00004280 40-D004256 CB-00000544 32F2818004 CB-00004287 32F3018003

CB-00004288 32-D004533 CB-00005742 32-D005773 DC-00008016 77-D012194

DC-00008017 77-D011742

DC-00008018 77-D011733

HW-00000553 42A9930008

HW-00000590 42A9930013

HW-00004042 42-D000649

HW-00006041 42A9940007

M-00000560 7345511002

P-00000595 7841919921

P-00004295 78-D004392

P-00004296 78-D004388

P-00001347 30833

P-00002515 20653

P-00008014 78-D011685

2000

1

1 1 1 1 1

1

1 1

1

1 1

1

46

ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

BOM LIST (VA1912W-3)

ViewSonic Model Number: VS10866 Rev: 1a

Serial No. Prefix: QBK

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

1 N/A MJ0A10DK01

2 N/A 36X8636401 Driver IC, Scan, 300Channel, , RoHS, Green I 3 3 N/A L3J009XXX8 19" wide PS TN Asahi 0.7mm glass Resin BM (Panel Base) 1

4 N/A 74-D002212

5 N/A 74-D002213

6 N/A 73-C000047

7 N/A 7344191017 ACF, AC-4251FY-16, 100M/RL, Green I 0.0044

8 N/A 36-D002378

9 N/A 73-D002676 ACF, PCB, AC-9825R-35, 100000 mmx1.5 mm, PCB-ACF, Green I 0.0044 10 N/A 35-D004361 PCBA for , A190A2-H, A190A2-A02-H-X, 1206-01, Rev.01, Green I 1 11 N/A 7349951002 Silicone, TORAY/-9187L, 330g 0.4

12 HW-00000553 42A9930008

13 HW-00006041 42A9940007 SCREW, M4, P=0 mm, L=11.8 mm, Hexagon Stand Off, Socket, Green I 2

14 N/A 41-D000643

15 HW-00004042 42-D000649

16 N/A 73-D002886

17 B-00006039 27-D003247

18 N/A 44-D003584 Backlight Unit, A190A2, Green I 1 19 C-00005686 41-D003772 Cover AD Assy, A190A2, SECC, without Dvi-D Hole, Green II 1 20 N/A 35-D008184 PCBA for , A190A2-A02-H, A190A2-A02-H-S1 1 21 CB-00005742 32-D005773 FFC, FFCX816, 36 Pins, package AL_Foil, Green II 2

22 N/A PJ0EACL000

23 CB-00002083 32F0000004 Accessory Cable, DVI, Black 24 CB-00000544 32F2818004 Audio Cable, A150X2, 18AWG, 180cm, Black, JCE, Green I 1 25 CB-00004287 32F3018003 Accessory Cable, D-Sub, BLACK, A150X2, Green I 1

26 A-00002058 32E1818013

27 HW-00000590 42A9930013 SCREW, M4, P=0.7 mm, L=15 mm, Pan Head, Green I 4 28 HW-00000555 42A9930014 Screw, M3*P0.5*6, Green I 4 29 HW-00000556 42A9990005 Screw, M3*P1.27*12, φ5.5*2, Steel, Green I 2 30 C-00004284 40-D004250 Cover Hinge, A190A2-H05, ABS PA757N, Black(J91A11B5) 1 31 C-00004282 40-D004257 Rear Assy, A190A2-H05, ABS PA757N, Black(J91A11B5) 1 32 C-00004281 40-D004255 Bezel Assy, A190A2-H05, ABS PA757N, Silver(Pantone877C) 1 33 CB-00004288 32-D004533 FFC, A190A2-H05, 15 Pins, L=108.5 1 34 B-00005600 35-D005166 PCBA for , A190A2-H, A190A2-H-K3, 106-02, Rev.02, ODM, Green II 1 35 C-00004283 40-D004252 Stand Assy, A190A2-H05, ABS PA757N, Black(J91A11B5) 1

36 PL-00006048 73-D005900

37 DC-00005602 77-D008324

38 N/A 77-D008330

39 HW-00002076 7841595111 Corner Protector, paper, 50 mmx50 mmx1850 mm, Green I 1 40 N/A 7841595191 Separator, 紙板(AA), 1120*820*11mm, A150X2-T01, Non Green 0.025 41 P-00000595 7841919921 Bag, 570 mmx600 mmx0.13 mm, White, Non Green 1 42 DC-00000586 7741999141 Label, Pallet Barcode Label, 75x40, A190E2-H03, VSC, Non Green 0.021 43 M-00000560 7345511002 Tape, Security Tape, OPP, L900xW50x0.045mm, VSC, Non Green 0.3 44 N/A 77-D000114 Customer Label, A170E1-H0G, 180 mm, 100 mm, Green I 1 45 N/A 77-D000118 Customer Label, A170E1-H0G, 130 mm, 80 mm, Green I 1 46 N/A 78-D000275 Warranty Card, A170E1-H0G, 143 mmx210 mm, VSC_VA712, Green I 1

47 DC-00005603 77-D000576

48 N/A 77-D001323

49 N/A 78-D001492 Pallet, A150X2-T01, Wooden, 1150 mmx840 mmx138 mm, Green I 0.02 50 C-00004285 40-D004259 Seat Assy, A190A2-H05, ABS PA757N, Black(J91A11B5) 1

51 P-00004295 78-D004392

52 P-00004296 78-D004388

53 N/A 79-D004425 Shipping Package Information for , A190A2-H05, ViewSonic 1 54 N/A 77-D000114 Customer Label for , A170E1-H0G 1 55 N/A 78-D011686 Carton, A190A2-H05 1 56 N/A 76-D011751 MENU for A190A2-H05 1

Olympic, 19" Wide, Common BOM(Semi-Product), A190A2, 1440X900, TN, 5ms

Polarizer, TFT, Degree 135, 414 mmx259.7 mmx0.215 mm, NWF-LESEG, M190A1, Green I Polarizer, CF, Degree 135, 415.84 mmx262.15 mmx0.215 mm, NWFLESEGAGS1, M190A1, Green I ACF, COG, AC-8405Z-23 1.5mmX100M, 100000 mmx1.5 mm, COG-ACF, Green I

Driver IC, COF, Data, M190A1-L01, HX8018-A050CBAK, Reel, 6 bit, 432Channel, RoHS, Green I

SCREW, M3, P=0.5 mm, L=4 mm, Pan Head, Phillips Cross Recess, Green I

Metal Frame Front, M190A1-L01/A190A2/M190A1-L03, SECC 0.6t, 19"wide

SCREW, M4, P=0.7 mm, L=8 mm, Round Head, Phillips Cross Recess, plate color Zn, Screw_with_Washer, head D8, Green I Conductive Tape, PET+Adhesive, 409 mmx58.55 mmx0.05 mm, Mylar_Cover_PcbaX_a190a2, Green I Lips With Audio, DAC-12M030 A, Ver:0F, 5 V/3 A, 12 V/0.7 A, I TYPE, 7 mA, 1710 V, RoHS

Accessory BOM, D-sub+DVI+Audio, China 3 pin, Black, Power built-in;RoHS

Power Cord, CCC, 300/500V, 0.75mm2, 3C, PC-323+COC-01, L=1830+/50mm, Black, Linetek, 18AWG, No Bag, Green I

Panel Protector Film, A190A2-H05, XG-536 T=0.1, With_Print, Green II

Safety Label for , A190A2-H05, 120 mmx50 mm, VSC_VA1912w-2, Green II

SN Label for , A190A2-H05, 50 mmx25 mm, VSC_VA1912w-2 for China, Green II

Carton Label for , A190E2-H06, 20 mmx20 mm, VSC_VA912_for Europe, Green I Customer Label for , A170E1-H0G, 15 mmx15 mm, QC Pass Label_VSC_for China, Green I

Cushion, A190A2-T05, EPS, WHITE, 450 mmx160 mmx145 mm, PS FOAM (Left), Green II Cushion, A190A2-T05, EPS, WHITE, 450 mmx160 mmx145 mm, PS FOAM (Right), Green II

0.00168

10

16

1

47

ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

BOM LIST (VA1912WB-3)

ViewSonic Model Number: VS10866 Rev: 1a

Serial No. Prefix: QBN

Item ViewSonic P/N Ref. P/N Description Location Universal number# Q'ty

1 E-00005747 MJ0A10AK01 19" Wide Semi Product, A190A2, 1440X900, TN 1

2 N/A 36X8636401 Driver IC, Scan, HX8636APD400(TSMC), 300Channel, , RoHS, Green I 3

3 N/A L3J009XXXX 19" wide PS TN Asahi 0.7mm glass Cr BM(Panel Base) 1

4 N/A 74-D002212

5 N/A 74-D002213

6 N/A 73-C000047 ACF, COG, AC-8405Z-23 1.5mmX100M, 100000 mmx1.5 mm, COG-ACF, Green I

7 N/A 7344191017 ACF, AC-4251FY-16, 100M/RL, Green I 0.0044

8 N/A 36-D002378

9 N/A 73-D002676 10 N/A 35-D004361 PCBA for , A190A2-H, A190A2-A02-H-X, 1206-01, Rev.01, Green I 1 11 N/A 7349951002 Silicone, TORAY/-9187L, 330g 0.4 12 N/A PJ0AFT0Q04 Olympic, 19"W, Function BOM, D-sub+Audio, Morning Star, TSUM17AK 1 13 HW-00000553 42A9930008 SCREW, M3, P=0.5 mm, L=4 mm, Pan Head, Phillips Cross Recess, Green I 16 14 HW-00006041 42A9940007 SCREW, M4, P=0 mm, L=11.8 mm, Hexagon Stand Off, Socket, Green I 2 15 N/A 41-D000643 Metal Frame Front, M190A1-L01/A190A2/M190A1-L03, SECC 0.6t, 19"wide 1

16 HW-00004042 42-D000649

17 N/A 73-D002886

18 B-00008008 27-D007836 19 N/A 44-D003584 Backlight Unit, A190A2, Green I 1 20 C-00005686 41-D003772 Cover AD Assy, A190A2, SECC, without Dvi-D Hole, Green II 1 21 B-00008011 35-D008184 PCBA for , A190A2-A02-H, A190A2-A02-H-S1, 1206-05, Rev.04, IGreen II 1 22 CB-00005742 32-D005773 FFC, FFCX816, 36 Pins, package AL_Foil, Green II 2

23 N/A 24 CB-00000544 32F2818004 Audio Cable, A150X2, 18AWG, 180cm, Black, JCE, Green I 1 25 CB-00004287 32F3018003 Accessory Cable, D-Sub, BLACK, A150X2, Green I 1

26 A-00002058 32E1818013

27 N/A PJ0AI1521C 28 HW-00000590 42A9930013 SCREW, M4, P=0.7 mm, L=15 mm, Pan Head, Green I 4 29 HW-00000555 42A9930014 Screw, M3*P0.5*6, Green I 4 30 HW-00000556 42A9990005 Screw, M3*P1.27*12, φ5.5*2, Steel, Green I 2 31 C-00004279 40-D004258 Cover Hinge, A190A2-H05, ABS PA757N, Green I 1 32 C-00004277 40-D004253 Rear Assy, A190A2-H05, ABS PA757N, Green I 1 33 C-00004276 40-D004254 Bezel Assy, A190A2-H05, ABS PA757N, Green I 1 34 CB-00004288 32-D004533 FFC, A190A2-H05, 15 Pins, L=108.5 1 35 B-00005600 35-D005166 PCBA for , A190A2-H, A190A2-H-K3, 106-02, Rev.02, ODM, Green II 1 36 C-00004278 40-D004251 Stand Assy, A190A2-H05, ABS PA757N, Green I 1 37 PL-00006048 73-D005900 Panel Protector Film, A190A2-H05, XG-536 T=0.1, With_Print, Green II 1 38 DC-00008016 77-D012194 Safety Label for , A190A2-H05, 120 mmx50 mm, VA1912wb Ver.3, Green II 1 39 DC-00008017 77-D011742 SN Label for , A190A2-H05, 50 mmx25 mm, VA1912wb-3 for China, Green II 40 HW-00002076 7841595111 Corner Protector, paper, 50 mmx50 mmx1850 mm, Green I 1 41 N/A 7841595191 Separator,(AA), 1120*820*11mm, A150X2-T01, Non Green 0.025 42 P-00000595 7841919921 Bag, 570 mmx600 mmx0.13 mm, White, Non Green 1 43 DC-00000586 7741999141 Label, Pallet Barcode Label, 75x40, A190E2-H03, VSC, Non Green 0.021 44 M-00000560 7345511002 Tape, Security Tape, OPP, L900xW50x0.045mm, VSC, Non Green 0.3 45 N/A 77-D000114 Customer Label, A170E1-H0G, 180 mm, 100 mm, Green I 1 46 N/A 77-D000118 Customer Label, A170E1-H0G, 130 mm, 80 mm, Green I 1 47 N/A 78-D010933 Warranty Card, A170E1-H0G, 143 mmx210 mm, VA712 Ver.2, Green II 1 48 DC-00008018 77-D011733 Carton Label for , A190A2-H05, 76.2 mmx76.2 mm, VA1912wb-3, Green II 1 49 P-00008014 78-D011685 Carton, A190A2-H05, 538 mmx158 mmx470 mm, VA1912wb-3 5ms, Green II 1 50 N/A 77-D000114 Customer Label for , A170E1-H0G, , Green IVA712 Ver.2, Green II 1 51 N/A 78-D001492 Pallet, A150X2-T01, Wooden, 1150 mmx840 mmx138 mm, Green I 0.02 52 C-00004280 40-D004256 Seat Assy, A190A2-H05, ABS PA757N, Green I 1

53 P-00004295 78-D004392

54 P-00004296 78-D004388 55 N/A 79-D004425 Shipping Package Information for , A190A2-H05, ViewSonic 1 56 DC-00008019 76-D011751 MENU for A190A2-H05, VA1912w/wb-3, Green II 1

PJ0EACL000

Polarizer, TFT, Degree 135, 414 mmx259.7 mmx0.215 mm, NWF-LESEG, M190A1, Green I Polarizer, CF, Degree 135, 415.84 mmx262.15 mmx0.215 mm, NWF-LESEGAGS1, M190A1, Green I

Driver IC, COF, Data, M190A1-L01, HX8018-A050CBAK, Reel, 6 bit, 432Channel, RoHS, Green I ACF, PCB, AC-9825R-35, 100000 mmx1.5 mm, Hitachi Chemical, PCB-ACF, Green I

SCREW, M4, P=0.7 mm, L=8 mm, Round Head, Phillips Cross Recess, plate color Zn, Screw_with_Washer, head D8, Green I Conductive Tape, PET+Adhesive, 409 mmx58.55 mmx0.05 mm, Mylar_Cover_PcbaX_a190a2, Green I Lips With Audio, DAC-19M008 AF, 0F, 5 V/3 A, 13.8 V0.7 A, I TYPE, 7 mA, 1710 V, , Green II

Olympic, 19", Accessory BOM, D-sub+DVI+Audio, China 3 pin, Black, Power builtin;RoHS, A190E3

Power Cord, CCC, 300/500V, 0.75mm2, 3C, PC-323+COC-01, L=1830+/-50mm, Black, Linetek, 18AWG, No Bag, Green I Olympic, 19"Wide, ID BOM, D-sub+DVI+Audio, China, Black, VSC, 5ms;TSUM57AK

Cushion, A190A2-T05, EPS, WHITE, 450 mmx160 mmx145 mm, PS FOAM (Left), Green II Cushion, A190A2-T05, EPS, WHITE, 450 mmx160 mmx145 mm, PS FOAM (Right), Green II

0.00168

10

0.0044

1

48

ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

8. Exploded Diagram and Exploded Parts List

EXPLODED PARTS LIST (VA1912W-3)

ViewSonic Model Number: VS10866 Rev: 1a

Serial No. Prefix: QBK

Item ViewSonic P/N Ref. P/N Description Q'ty

1 N/A 44-D003584 BACKLIGHT UNIT 1 2 N/A L3J009XXXX PANEL ASSY 1 3 N/A 41-D000643 BACKLIGHT FRONT COVER 1 4 HW-00000553 42A9930008 SCREW M3*4L 2 5 B-00006039 27-D003247 POWER PCB ASSY 1 6 B-00005599 35-D005694 AD PCB ASSY 1 7 HW-00000553 42A9930008 SCREW M3*4L 7 8 C-00005686 41-D003772 AD COVER 1

9 C-00004281 40-D004255 BEZEL ASSY 1 10 C-00004282 40-D004257 REAR ASSY 1 11 N/A 42A9230001 SCREW D3*8L 4 12 C-00004283 40-D004252 STAND ASSY 1 13 C-00004284 40-D004250 COVER HINGE 1 14 C-00004285 40-D004259 SEAT ASSY 1

EXPLODED PARTS LIST (VA1912WB-3)

ViewSonic Model Number: VS10866 Rev: 1a

Serial No. Prefix: QBN

Item ViewSonic P/N Ref. P/N Description Q'ty

1 N/A 44-D003584 2 N/A L3J009XXXX 3 N/A 4 HW-00000553 42A9930008 5 B-00006039 6 B-00005599 7 HW-00000553 8 C-00005686

9 C-00004281 10 C-00004282 40-D004257 11 N/A 42A9230001 12 C-00004283 40-D004252 13 C-00004284 40-D004250 14 C-00004285

41-D000643 BACKLIGHT FRONT COVER 1

27-D003247 POWER PCB ASSY 1 35-D005694 AD PCB ASSY 1

42A9930008 SCREW M3*4L 7

41-D003772 AD COVER 1 40-D004255 BEZEL ASSY 1

40-D004259 SEAT ASSY 1

BACKLIGHT UNIT 1

PANEL ASSY 1

SCREW M3*4L 2

REAR ASSY 1

SCREW D3*8L 4

STAND ASSY 1

COVER HINGE 1

49 ViewSonic Corporation Confidential - Do Not Copy VA1912w-4_VA1912wb-4

PACKING PART LIST ( VA1912W-3 )

ViewSonic Model Number: VS10866 Rev: 1a

Item ViewSonic P/N Ref. P/N Location Q'ty

1 N/A 2 P-00000595 3 P-00004295 4 P-00004296

5 N/A

6 N/A

7 N/A 8 CB-00004287 9 CB-00000544

10 N/A

11 N/A

12 N/A

13 N/A 14 C-00004285

15 N/A

VA1912W-2

7841919921 78-D004392 78-D004388

Different region

(refer to BOM)

Different region

(refer to BOM)

Different region

(refer to BOM)

32F3018003 32F2818004

N/A

Different region

(refer to BOM)

Different region (refer to BOM ) Different region

(refer to BOM)

40-D004259

Different region

(refer to BOM)

LCD Monitior 1 PE Foam Bag 1 PS Foam (Left) 1 PS Foam(Right) 1

Carton 1

Power Cord 1

Power Cord 1 Monitor Cable 1 Audio Cable 1 DVI Cable (N/A) 1

Menu (Quick Setup) 1

Menu (CD-ROM) 1

Warranty Registration card 1 Seat 1

Customer Label 1

PACKING PART LIST ( VA1912WB-3 )

ViewSonic Model Number: VS10866 Rev: 1a

Item ViewSonic P/N Ref. P/N Location Q'ty

1 N/A 2 P-00000595 3 P-00004295 4 P-00004296

5 N/A

6 N/A

7 N/A 8 CB-00004287 9 CB-00000544

10 N/A

11 N/A

12 N/A

13 N/A 14 C-00004285

15 N/A

VA1912W-2

7841919921 78-D004392 78-D004388

Different region

(refer to BOM)

Different region

(refer to BOM)

Different region

(refer to BOM)

32F3018003 32F2818004

N/A

Different region

(refer to BOM) Different region (refer to BOM ) Different region

(refer to BOM)

40-D004259

Different region

(refer to BOM)

LCD Monitior 1 PE Foam Bag 1 PS Foam (Left) 1 PS Foam(Right) 1

Carton 1

Power Cord 1

Power Cord 1 Monitor Cable 1 Audio Cable 1 DVI Cable (N/A) 1

Menu (Quick Setup) 1

Menu (CD-ROM) 1

Warranty Registration card 1 Seat 1

Customer Label 1

50 ViewSonic Corporation Confidential - Do Not Copy VA1912w-4_VA1912wb-4

9. Block Diagram

D-sub

Analog Video

OSD Key Pad / Audio Out

Main Board

LDO

DC-5V

DC-12V

Speaker

3.3V

5V

LCD Module

12V

Signal

AC Power

Audio In

LIPS

Backlight

51 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

10. Schematic Diagrams

B1

OSD

B2

INVERTER I/F

LED_OR LED_GL

TURBO

MENU

LEFT

RIGHT

AUTO

POWER

V33C

AUDIOR-

AUDIOR+

AUDIOL-

AUDIOL+

AUDIOL-

AUDIOR+

AUDIOR-

AUD_DET

VOL_ADJ

AUDIO_ON

LED_GL

AUDIOR-

AUDIOR+

AUDIOL-

AUDIOL+

AUD_DET

VOL_ADJ

LED_OR LED_GL

TURBO

MENU LEFT RIGHT AUTO POWER

V5A_ESD

VGA_5V

DVI_5V

V5A

B3

V5A

VGA_5V

V5A_ESD

B4

V5A_ESD

V5A

DVI_5V

B5

V5A

DVI_5V

VGA_5V

POWER

VGA

DVI

V33C

DSUB_DET

DDCA_DAT DDCA_CLK

GNDR

GNDG

GNDB HSYNC VSYNC

DDCD_CLK

DDCD_DAT

CLK+

CLK-

VCTRL

Vref

V18C

V33P

V12A

B6

DSUB_DET SOG DDCA_DAT DDCA_CLK RIN GNDR GIN GNDG BIN GNDB HSYNC VSYNC

DDCD_CLK DDCD_DAT R+ RG+ GB+ BCLK+ CLK-

LED_OR LED_GL TURBO MENU LEFT RIGHT AUTO POWER

AUDIO_ON INV_ON/OFF DCDC_ON/OFF PANEL_ON/OFF VCM_PWM VOL_ADJ INV_ADJ AUD_DET

DVI_5V

VCTRL

V12A V18C V33C Vref V5A

SCALER

DSUB_DET

SOG

RIN

GIN

BIN

R+

R-

G+

G-

B+

B-

V33P V33P

V18C

SOG DDCA_DAT DDCA_CLK RIN GNDR GIN GNDG BIN GNDB HSYNC VSYNC

DDCD_CLK DDCD_DAT

R+ RG+ GB+ BCLK+ CLK-

AUDIO_ON

INV_ON/OFF

DCDC_ON/OFF

PANEL_ON/OFF

VCM_PWM

VOL_ADJ INV_ADJ AUD_DET

Vref

BR2N BR2P BR1N BR1P BR0N BR0P

BG2N BG2P BG1N BG1P BG0N BG0P

BB2N BB2P BB1N BB1P BB0N BB0P

FR2N FR2P FR1N FR1P FR0N FR0P

FG2N FG2P FG1N FG1P FG0N FG0P

FB2N FB2P FB1N FB1P FB0N FB0P

FCKN FCKP FSTH

BCKN BCKP BSTH

STB POL

CPV STV

GVOFF

OE

BR2N BR2P BR1N BR1P BR0N BR0P

BG2N BG2P BG1N BG1P BG0N BG0P

BB2N BB2P BB1N BB1P BB0N BB0P

FR2N FR2P FR1N FR1P FR0N FR0P

FG2N FG2P FG1N FG1P FG0N FG0P

FB2N FB2P FB1N FB1P FB0N FB0P

FCKN FCKP FSTH

BCKN BCKP BSTH

STB POL

CPV STV OE

GVOFF

VCM_PWM PANEL_ON/OFF

DCDC_ON/OFF

V12A

V5A

B8

PANEL_INTERFACE

BR2N BR2P BR1N BR1P BR0N BR0P

BG2N BG2P BG1N BG1P BG0N BG0P

BB2N BB2P BB1N BB1P BB0N BB0P

FR2N FR2P FR1N FR1P FR0N FR0P

FG2N FG2P FG1N FG1P FG0N FG0P

FB2N FB2P FB1N FB1P FB0N FB0P

FCKN FCKP FSTH

BCKN BCKP BSTH

STB POL

CPV STV OE

GVOFF

VCM_PWM PANEL_ON/OFF

DCDC_ON/OFF

V12A

V33P

V5A

V33C

V12A

INV_ADJ

INV_ON/OFF

INV_ADJ

INV_ON/OFF

ViewSonic Corporation

52

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

ViewSonic Corporation

Model

Title

System Diagram

Date Rev:

gram

VCC

STV

CPV

OE

STB

POL

PANEL_ON/OFF

DCDC_ON/OFF

VCM_PWM

GVOFF

FSTH

BSTH

VCC1VCC1

1

STV1STV1

1

CPV1CPV1

1

OE1OE1

1

STB1STB1

1

POL1POL1

1

PANEL_ON/OFF1PANEL_ON/OFF1

1

DCDC_ON/OFF1DCDC_ON/OFF1

1

VCM_PWM1VCM_PWM1

1

GVOFF1GVOFF1

1

FSTH1FSTH1

1

BSTH1BSTH1

1

S Board X Board

RA N/P --> BA P/N GA N/P --> GA P/N BA N/P --> RA P/N

V33P

L7 FBMJ2125HS420/PbFL7 FBMJ2125HS420/PbF

V5A

V12A

V5A

1206/22u/16V/Y/RoHS

V12A

C119

GND

C118

C118 0603/100n/25V/X/RoHS

0603/100n/25V/X/RoHS

GND

0603/100n/25V/7/RoHS

GND

VCC

C120

FSTH FB2P FB2N FB1P FB1N FB0P FB0N

FG2P FG2N FG1P FG1N FG0P FG0N

FCKP FCKN

FR2P FR2N FR1P FR1N FR0P FR0N

BB2P BB2N BB1P BB1N BB0P BB0N

BG2P BG2N BG1P BG1N BG0P BG0N

BCKP BCKN

BR2P BR2N BR1P BR1N BR0P BR0N

BSTH

GVOFF

VCM_PWM DCDC_ON/OFF PANEL_ON/OFF

CN2

36

35

FSTH

STB POL

OE CPV STV

STB POL

OE CPV STV

BSTH

GVOFF

VCM_PWM DCDC_ON/OFF PANEL_ON/OFF

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

IL-FHR-F36S-HF/RoHS

CN1

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

IL-FHR-F36S-HF/RoHS

ViewSonic Corporation

53

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

C121

1206/4.7u/35V/Y/E

C122

0603/100n/25V/X/RoHS

GND

ViewSonic Corporation

Model

Title

Panel Interface

Date Rev:

0603/100n/25V/7

U1

RIN

GNDR

GIN

GNDG

SOG

BIN GNDB HSYNC VSYNC

DDCA_DAT DDCA_CLK

R+

R-

G+

G-

B+

B-

CLK+

CLK-

DDCD_DAT DDCD_CLK

C91

2 1 6 5

Y1

14.31818MHz

102 104

R114

R115

0603/10K/5%

GND

VOLTAGE

1.77V

1.24V

0.47V

1.77V

1.24V

0.47V

SR1(1.77) SR2(0.93)

59

RIN0P

58

RIN0N

56

GIN0P

55

GIN0N

57

SOGIN0

54

BIN0P

53

BIN0N

63

HSYNC0

64

VSYNC0

65

DDCA_SDA/RS232_Tx

66

DDCA_SCL/RS232_Rx

39

RX2P

40

RX2N

42

RX1P

43

RX1N

45

RX0P

46

RX0N

48

RXCKP

49

RXCKN

36

DDCD_SDA

37

DDCD_SCL

51

REXT

62

REFP

61

REFM

70

SDO

71

SCZ

72

SCK

73

SDI

19

RST

32

XIN

33

XOUT

MODE[0] MODE[1]

DDCA_DAT DDCA_CLK

DDCD_DAT DDCD_CLK

1206/10u/16V/X/PbF

C80

V5A

0603/100n/25V/7

R116

0603/10K/5%

GND

RIN

GNDR

GIN

GNDG

SOG

BIN

GNDB HSYNC VSYNC

R+ RG+ GB+ B-

CLK+

CLK-

R124 0603/390R/1%R124 0603/390R/1%

AVDD

VCC33

0603/100n/25V/7

U2

8

SDO

VDD

WP

C90

7

CE#

HOLD#

WP

3

WP#

SCK

VSS4SDI

Pm25LV512U2Pm25LV512

GND

C94 0603/22p/50V/NC94 0603/22p/50V/N

C93 0603/22p/50V/NC93 0603/22p/50V/N

GND

VCC33

R118 R0603/OPENR118 R0603/OPEN R119 R0603/OPENR119 R0603/OPEN

need to modify, the SAR is 6 bits and the max voltage is 1.8V

RIGHT

POWER

AUTO

LEFT

MENU

TURBO

RIGHT +LEFT +POWER

ViewSonic Corporation

14

60

VDDP

AVDD_ADC

47

116

C152

GND

1

TP

R200

67

GND

VDDCVDPPAVDDVPLLVDVI VMPLL

103

115

12

97

VDDP

VDDP95VDDP

VDDP

VDDC

CLKAP/LVB3P/LHSYNC

CLKAN/LVB3M/LVSYNC

CLKBP/LVBCKP/LCK_ODD

CLKBN/LVBCKM/LDE

VCC33

R127

R127 0603/20K/1%/OPEN

0603/20K/1%/OPEN

R128

0603/23.2K/1%/OPEN

R67

0603/12.1K/1%/OPEN

R134

0603/3.3K/1%/OPEN

117

68

GND

VDDC

NC/LVACKP/NC

NC/LVACKM/NC

VDD_OTP

RA1P/LVA2P/RA2 RA1N/LVA2M/RA3 RA2P/LVA1P/RA4 RA2N/LVA1M/RA5 RA3P/LVA0P/RA6 RA3N/LVA0M/RA7

GA1P/NC/GA2 GA1N/NC/GA3 GA2P/NC/GA4

GA2N/NC/GA5 GA3P/LVA3P/GA6 GA3N/LVA3M/GA7

BA1P/NC/BA2

BA1N/NC/BA3

BA2P/NC/BA4

BA2N/NC/BA5

BA3P/NC/BA6

BA3N/NC/BA7

RB1P/NC/RB2

RB1N/NC/RB3

RB2P/NC/RB4

RB2N/NC/RB5

RB3P/NC/RB6

RB3N/NC/RB7

GB1P/NC/GB2

GB1N/NC/GB3

GB2P/NC/GB4

GB2N/NC/GB5

GB3P/NC/GB6

GB3N/NC/GB7

NC/LVB2P/NC

NC/LVB2M/NC

BB1P/LVB1P/BB2

BB1N/LVB1M/BB3

BB2P/LVB0P/BB4

BB2N/LVB0M/BB5

BB3P/NC/BB6

BB3N/NC/BB7

GPIO_P22 GPIO_P23 GPIO_P03

GPIO_P16/PWM2 GPIO_P15/PWM0 PWM2/GPIO_P24 GPIO_P27/PWM1

GPIO_P12

PWM1/GPIO_P25

GPIO_P00/SAR1 GPIO_P01/SAR2 GPIO_P02/SAR3

GPIO_P06 GPIO_P07

PWM0/GPIO_P26

GPIO_P13 GPIO_P14

DDCROM_SCL

DDCROM_SDA

C92

C92 0603/100n/25V/7

0603/100n/25V/7

11

VCTRL

107 108 109 110 111 112 113 114

98 99 100 101 105 106

89 90 91 92 93 94

9 10 15 16 17 18

2 3 5 6 7 8

118 119 120 121 122 123 124 125 126 127 128 1

80

ESP

81

OSP

88

GPO0

87

GPO1

86

GPO2

85

GPO3

84

GPO4

83

GPO5

82

GPO6

75 74 26

35 69 78 79

20 21

22

RSTN

23 24 25

27 28 29 30 31

77 76

LEFT

MENU

TURBO

FB0N FB0P FB1N FB1P FB2N FB2P

FG0N FG0P FG1N FG1P FG2N FG2P

FR0N FR0P FR1N FR1P FR2N FR2P

BB0N BB0P BB1N BB1P BB2N BB2P

BG0N BG0P BG1N BG1P BG2N BG2P

FCKP FCKN BCKP BCKN

BR0N BR0P BR1N BR1P BR2N BR2P

BSTH FSTH GVOFF STB STV CPV

GPO51 GPO51

OE

1

TP

POL

R103 0603/100R/5%R103 0603/100R/5% R104 0603/100R/5%R104 0603/100R/5%

VCM_PWM PANEL_ON/OFF

INV_ON/OFF INV_ADJ

SAR1

R110 0603/100R/5%R110 0603/100R/5%

SAR2

R117 0603/100R/5%R117 0603/100R/5% R121 0603/100R/5%R121 0603/100R/5%

LED_GL

LED_OR

R105 0603/100R/5%R105 0603/100R/5%

VCC33

0805/10u/6.3V/5/open

SAR21 SAR21

0603/10M/5%/RoHS/OPEN

AUDIO_ON

R107

R106

0603/10K/5%

R101 0603/100R/5%R101 0603/100R/5%

C150

1

C68

44

50

34

4

GND

AVDD_DVI

AVDD_MPLL

13

0805/10u/6.3V/5/open

SAR11 SAR11

0603/10M/5%/RoHS/OPEN

52

AVDD_PLL

TSUM57AK

GND41GND

GND38GND96GND

GND

SAR1

54

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

VCTRL

FB0N FB0P FB1N FB1P FB2N FB2P

FG0N FG0P FG1N FG1P FG2N FG2P

FR0N FR0P FR1N FR1P FR2N FR2P

BB0N BB0P BB1N BB1P BB2N BB2P

BG0N BG0P BG1N BG1P BG2N BG2P

FCKP FCKN BCKP BCKN

BR0N BR0P BR1N BR1P BR2N BR2P

BSTH FSTH GVOFF STB STV CPV OE

POL

0603/20K/1%/OPEN

GND

R1000603/100R/5%R1000603/100R/5%

GND

SAR2SAR2

TP

R201

GND

VCC33

R111

R122

0603/10K/5%

R79

DVI

DSUB

LED_GL LED_OR VOL_ADJ

VCC33

R137

R137 0603/20K/1%/OPEN

0603/20K/1%/OPEN

0603/23.2K/1%/OPEN

R139

0603/12.1K/1%/OPEN

R140

0603/3.3K/1%/OPEN

VCC33

R113

0603/10K/5%/open

AUD_DET

AUTO POWER

GND

MENU LEFT RIGHT

TURBO

C81

C81 0603/100n/25V/7

0603/100n/25V/7

AT24C16AN-10SU-2.7/RoHS

R138

V33C

0603/10K/5%

R209OPEN/R0603 R209OPEN/R0603

8

VCC

7 6

SCL SDA5GND

RIGHT

POWER

AUTO

V12A

R210

0603/30K/5%

U7

A0 A12WP A2

VCC33

L10L10

1 2

1206/10u/16V/X/PbF

L11L11

1 2

1206/10u/16V/X/PbF

L12 HCB2012KF-420T40L12 HCB2012KF-420T40

1 2

1206/10u/16V/X/PbF

L13L13

1 2

1206/10u/16V/X/PbF

L14L14

1 2

1206/10u/16V/X/PbF

V5A

R112

0603/10K/5%/OPEN

R120 0603/10K/5%R120 0603/10K/5%

C88 0603/100n/25V/7C88 0603/100n/25V/7

1

3 4

GND

C65

C76

C78

GND

C55

GND

C74

GND

0603/10n/25V/7/RoHS

C56

C56 0603/100n/25V/7

0603/100n/25V/7

Close to respective power Pins

C66

C66 0603/100n/25V/7

0603/100n/25V/7

Close to respective power Pins

VMPLL

C75

C75 0603/100n/25V/7

0603/100n/25V/7

Close to respective power Pins

VPLL

VPLL1 VPLL1

1

TP

C77

C77 0603/100n/25V/7

0603/100n/25V/7

Close to respective power Pins

AVDD

AVDD1 AVDD1

1

TP

C79

C79 0603/100n/25V/7

0603/100n/25V/7

Close to respective power Pins

VCC33

R108

0603/10K/5%

R102

R102 0603/4.7K/0.1%/RoHS

0603/4.7K/0.1%/RoHS

R109

0603/10K/5%

Q7

1

MMBT3904-FQ7MMBT3904-F

2 3

GND

U5

4

NC

5

CD

C70

RN5VD40AA/RoHS

GND

VDVI

C67

C67 0603/100n/25V/7

0603/100n/25V/7

VMPLL1 VMPLL1

1

TP

DVI

DSUB

DCDC_ON/OFF

VSS VDD OUT

C57

C57 0603/100n/25V/7

0603/100n/25V/7

VDVI1TPVDVI1

1

TP

V18C

0603/0R/5%/open

R214

0603/0R/5%/open

R213

C89

C89 0603/100n/25V/7

0603/100n/25V/7

3

GND

2 1

VCC18

1 2

DVI_5V

DCDC_ON/OFF

VCC33

WP

C58

C58 0603/100n/25V/7

0603/100n/25V/7

L17L17

DSUB_DET

Vref

R212

R212 0603/1K/5%

0603/1K/5%

GND

VDPP

C59

C59 0603/100n/25V/7

0603/100n/25V/7

C84

C84 1206/4.7u/16V/Y

1206/4.7u/16V/Y

C60

C60 0603/100n/25V/7

0603/100n/25V/7

C85

C85 0603/100n/25V/7

0603/100n/25V/7

Close to respective power Pins

ViewSonic Corporation

Model

Title

Date Rev:

VDPP1 VDPP1

1

TP

C86

C86 0603/100n/25V/7

0603/100n/25V/7

Scalar

VDDC

C87

C87 0603/100n/25V/7

0603/100n/25V/7

VDDC1 VDDC1

1

TP

16 15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

CN4

Header2X8FR2.54

GND_INV

AUD_DET

C7

0603/1u/10V/Y/open

UWT1E101MCL1GS/RoHS

AUD_DET

Q1

2N7002/RoHS

CP1

1206/10u/16V/5/RoHS

AUD_Shutdown

0603/1K/5%/RoHS

R12

32

1

GND

CP2

+

V33C

R14

0603/4.7K/5%/RoHS

LP1

FBMJ2125HS420/PbF

FBMJ2125HS420/PbF CP3

CP3

1210/4.7u/25V/5/RoHS

GNDGNDGND

VOL

AUDIORAUDIOR+ AUDIOLAUDIOL+

V33C

R13

0603/4.7K/5%/RoHS

INV_ADJ

V5A

VIN_12V

R22

MUTE

0603/0R/5%/RoHS/OPEN

MUTE

R182

GND

FP1

3216FF/1206/3A/RoHS

0603/0.1u/25V/open

V5A

1 2

0603/10K/5%/RoHS

C8

LP5

LP5 FBMJ2125HS420/PbF

FBMJ2125HS420/PbF

LV470M025E055R

32

GND

12

CP4

1210/4.7u/25V/5/RoHS

GND

R9 0603/10K/5%/RoHSR9 0603/10K/5%/RoHS

Q2

Q2 2N7002/RoHS

2N7002/RoHS

R10

0603/4.7K/5%/RoHS

1

R11

R11 0603/10K/5%/OPEN

0603/10K/5%/OPEN

V12A

CP5

CP6

CP6 1210/4.7u/25V/5/RoHS

1210/4.7u/25V/5/RoHS

V33C

V12A

INV_ON/OFF

TP0610K/PbF

Q16

AUD_Shutdown

V5A

1

3 2

R183

R183 0603/1K/5%/RoHS

0603/1K/5%/RoHS

V5A

VIN_12V

INV_ON/OFF

INV_ADJ

V5A1 V5A1

1

TP

VIN_12V1

1

TP

INV_ON/OFF1

1

TP

INV_ADJ1

1

TP

R181

0603/10K/5%/RoHS

R181

Q18

2N7002/RoHS

LP2 FBMJ2125HS420/PbFLP2 FBMJ2125HS420/PbF LP3 FBMJ2125HS420/PbFLP3 FBMJ2125HS420/PbF LP4 FBMJ2125HS420/PbFLP4 FBMJ2125HS420/PbF

[GND_INV]

32

1

C161

0603/100n/25V/Y/RoHS

GNDGND

GND

LED_GL

V5A

VOL_ADJ

VOL_ADJ1VOL_ADJ1

1

2N7002/RoHS

0603/0R/5%/RoHS/OPEN

1

R19

R19 0603/1K/5%/RoHS

0603/1K/5%/RoHS

32

Q5

GND

R20

0603/10K/5%/RoHS

R18

OPEN/0603

ViewSonic Corporation

V5A

VOL1VOL1

R17

1

C6

1206/10u/16V/5/RoHS

C6

GND

C4

C4 OPEN/0603

OPEN/0603

VOL

C5

C5 0603/100n/25V/7/RoHS

0603/100n/25V/7/RoHS

55

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

TP0610K/PbF

Q3

MUTE

V5A

3 2

R16

R16 0603/1K/5%/RoHS

0603/1K/5%/RoHS

R15

0603/10K/5%/RoHS

1

R15

Q4

2N7002/RoHS

32

Low: MUTE OFF

1

C3

0603/100n/25V/Y/RoHS

GND

AUDIO_ON

ViewSonic Corporation

Model

Title

Inverter Interface

Date Rev:

L18

FBMJ2125HS420/PbF

D9

1 2

B240A-FD9B240A-F

VGA_5V

R1

R5

0603/0R/5%/open

1

3

Vref

DVI_5V

0603/0R/5%/open

2

D7

D7 BAV70W/open

BAV70W/open

C42

1206/22u/16V/Y/RoHS

C43

0603/100n/25V/7/RoHS

3

VIN

GND

U4

LM1117MPX-3.3/RoHS

2

VOUT

4

VOUT

GND

1

1206/22u/16V/Y/RoHS

C44

V33C1 V33C1

TP

1

V33C

C45

0603/100n/25V/7/RoHS

V33CV5A

(SCALER VCC)

D35

D35 1N4148WS-F

1N4148WS-F

1 2

R204

0603/100R/1%

1 3

Q8

B E

H2907ASQ8H2907AS

GND

C

4 2

Heat-Sink

GND

VCTRL

R202

R202 0603/51R/1%

0603/51R/1%

C160

C160 0805/4.7u/16V/Y

0805/4.7u/16V/Y

R203

R203 0603/2K/1%

0603/2K/1%

V18V1 V18V1

V18C

1

TP

L9 FBMJ2125HS420/PbFL9 FBMJ2125HS420/PbF

1206/22u/16V/Y/RoHS

ViewSonic Corporation

U6

LM1117MPX-3.3/RoHS

GND

1

VOUT VOUT

GND

2 4

C52

1206/22u/16V/Y/RoHS

C50

C51

0603/100n/25V/7/RoHS

3

VIN

56

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

V33P1 V33P1

TP

1

C53

0603/100n/25V/7/RoHS

V33P

(POWER FOR SCALER)

V33PV5A

(Panel VCC)

ViewSonic Corporation

Model

Title

POWER

Date Rev:

DDCA_DAT

D1

0603/10p/varistor/OPEN

GND

R35

0603/0R/5%/OPEN

D2

11 12 13 14 15

CN7

CN7 89263-6762

89263-6762

1 6 2 7 3 8 4 9 5 10

GND

DDCA_CLK

R144

R144 0603/0R/5%/OPEN

0603/0R/5%/OPEN

32

1

0603/100n/25V/X/RoHS

D24

D24 BAV99W/RoHS

BAV99W/RoHS

C157

32

1

D25

D25 BAV99W/RoHS

BAV99W/RoHS

C158

0603/100n/25V/X/RoHS

32

1

0603/100n/25V/X/RoHS

D5

D5 BAV99W/RoHS

BAV99W/RoHS

C159

0603/75R/1%

V5A_ESD

R78

R30

0603/75R/1%

GND

V5A_ESD

R29

0603/75R/1%

R21 0603/56R/1%R21 0603/56R/1% R34 0603/56R/1%R34 0603/56R/1% R23 0603/56R/1%R23 0603/56R/1% R24 0603/470R/1%R24 0603/470R/1%

R25 0603/100R/1%R25 0603/100R/1% R26 0603/100R/1%R26 0603/100R/1% R27 0603/100R/1%R27 0603/100R/1%

C9 0603/47n/16V/7/RoHSC9 0603/47n/16V/7/RoHS C10 0603/47n/16V/7/RoHSC10 0603/47n/16V/7/RoHS C11 0603/47n/16V/7/RoHSC11 0603/47n/16V/7/RoHS C15 0603/1n/16V/7C15 0603/1n/16V/7

C123 0603/47n/16V/7/RoHSC123 0603/47n/16V/7/RoHS C124 0603/47n/16V/7/RoHSC124 0603/47n/16V/7/RoHS C125 0603/47n/16V/7/RoHSC125 0603/47n/16V/7/RoHS

RIN GIN BIN SOG

GNDR GNDG GNDB

HSI

VSI

D29

D10

0603220KV05T/RoHS

D29 0603220KV05T/RoHS

0603220KV05T/RoHS

GND

0603220KV05T/RoHS

ViewSonic Corporation

GND

L20 0603/0R/5%/RoHSL20 0603/0R/5%/RoHS

D32

D32 UDZSF-5.6B/PbF

UDZSF-5.6B/PbF

1 2

GND

R66 0603/0R/5%/RoHSR66 0603/0R/5%/RoHS

D33

D33 UDZSF-5.6B/PbF

UDZSF-5.6B/PbF

1 2

GND

R64 0603/100R/5%/RoHSR64 0603/100R/5%/RoHS R131 0603/100R/5%/RoHSR131 0603/100R/5%/RoHS

VGA_5V

R133

0603/10R/5%/RoHS

D30

D30 BZT52-C5V6S/RoHS

BZT52-C5V6S/RoHS

1 2

U15

1

NC

2

NC

3

NC GND4SDA

AT24C02-10TU-1.8/RoHS

GND

VCC

VCLK

SCL

VGA_5V

2

8 7 6 5

D6

0603/100n/25V/X/RoHS

L8

BK1608LL121/PbF

C129

57

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

R55

0603/2.2K/5%/RoHS

GND GND

R129

0603/2.2K/5%/RoHS

V5A

3

R136 0603/3.9K/5%/RoHSR136 0603/3.9K/5%/RoHS

VGA_5V

1

D31

D31 BAV70W/RoHS

BAV70W/RoHS

V5A

R60

R60 0603/47K/5%/RoHS

0603/47K/5%/RoHS

R57 0603/1K/1%/RoHSR57 0603/1K/1%/RoHS

C128

C128 0603/33p/50V/N/RoHS

0603/33p/50V/N/RoHS

GND

R54 0603/1K/1%/RoHSR54 0603/1K/1%/RoHS

C100

0603/220p/50V/N

GND

R68 0603/10K/5%/RoHSR68 0603/10K/5%/RoHS R135 0603/10K/5%/RoHSR135 0603/10K/5%/RoHS

GND

C126

C126 0603/33p/50V/N/RoHS/open

0603/33p/50V/N/RoHS/open

C127

C127 0603/33p/50V/N/RoHS/open

0603/33p/50V/N/RoHS/open

GNDGND

HSYNC

VSYNC

DDCA_CLK

DSUB_DET

C23

C23 0603/100n/25V/7/RoHS

0603/100n/25V/7/RoHS

GND

DDCA_DAT

HSYNC

1

TP

HSYNC1 HSYNC1

VSYNC

1

TP

VSYNC1 VSYNC1

ViewSonic Corporation

Model

Title

VGA

Date Rev:

TP0610K/PbF

Q12

V33C

1

3 2

R3

R3 0603/249R/1%/RoHS

0603/249R/1%/RoHS

MENU LEFT RIGHT TURBO AUTO

POWER

0603*4/10K/5%/RoHS

R62

0603/10K/5%/RoHS

2N7002/RoHS/OPEN

R62

Q13

785

6

RP46

312

4

LED_O

LED_G

V33C

R7

32

0603/0R/5%/RoHS

1

GND GND

V33C

785

6

RP47

RP47 0603*4/10K/5%/RoHS

0603*4/10K/5%/RoHS

312

4

R36

R36 0603/1K/5%/RoHS/OPEN

0603/1K/5%/RoHS/OPEN

C2

0603/100n/25V/Y/RoHS/OPEN

V33C

LED_OR

Bead Array LP8,LP9,LP11=>modified RoHs

LP6 BK32164M121LP6 BK32164M121

1 2 3 4

LP7 BK32164M121LP7 BK32164M121

1 2 3 4

8 7 6 5 8 7 6 5

CP7

CP7 0603*4/100n/25V/RoHS

0603*4/100n/25V/RoHS

453627

18

CP8

0603*4/100n/25V/RoHS

GND

CN3

15 14 13 12 11 10 9

L1

AUDIOR-

18

AUDIOR+

AUDIOL-

AUDIOL+

1 2

MPZ1608S221/RoHS

L2

1 2

MPZ1608S221/RoHS

L3

1 2

MPZ1608S221/RoHS

L4

1 2

GND

8 7 6 5 4 3 2 1

HEADER 10_2/RoHS

LED_O

V33C V33C

R63

Q15

GND

32

1

0603/0R/5%/RoHS

TP0610K/PbF

Q14

R4

0603/249R/1%/RoHS

R4

LED_G

3 2

0603/10K/5%/RoHS

1

2N7002/RoHS/OPEN

ViewSonic Corporation

R2

R2 0603/1K/5%/RoHS/OPEN

R8

0603/1K/5%/RoHS/OPEN

LED_GL

C1

0603/100n/25V/Y/RoHS/OPEN

GND

58

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

ViewSonic Corporation

Model

Title

OSD

Date Rev:

11. PCB Layout Diagrams

59 ViewSonic Corporation

Confidential - Do Not Copy VA1912w-3_VA1912wb-3

60 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

61 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

* Reader’s Response*

Dear Readers:

Thank you in advance for your feedback on our Service Manual, which allows continuous improvement of our products. We would appreciate your completion of the Assessment Matrix below, for return to ViewSonic Corporation.

Assessment

A. What do you think about the content of this Service Manual?

Unit Excellent Good Fair Bad

1. Precautions and Safety Notices

2. Specification

3. Front Panel Function Control Description

4. Circuit Description

5. Adjustment Procedure

6. Troubleshooting Flow Chart

7. Recommended Spare Parts List

8. Exploded Diagram and Exploded Parts List

9. Block Diagrams

10. Schematic Diagrams

11.PCB Layout Diagrams

B. Are you satisfied with this Service Manual?

Item Excellent Good Fair Bad

1. Service Manual Content

2. Service Manual Layout

3. The form and listing

C. Do you have any other opinions or suggestions regarding this service manual?

Name:

Reader’s basic dada:

Title: Company: Add: Tel:

Fax:

E-mail:

After completing this form, please return it to ViewSonic Quality Assurance in the USA at facsimile 1-909-839-7943. You may also e-mail any suggestions to the Director, Quality Systems & Processes (marc.maupin@viewsonic.com)

62 ViewSonic Corporation Confidential - Do Not Copy VA1912w-3_VA1912wb-3

ViewSonic VA1912w-3, VA1912wb-3, VS10866 Service manual

Specifications and Main Features

Frequently Asked Questions

User Manual
