Viewsonic V52hd User guide

Page 1

LS740W V52HD

Projector User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box on our website.

Model No. VS19578 | VS19579

P/N: LS740W | V52HD

Page 2

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Page 3

Safety Precau⿿ons

Please read the following Safety Precau⿿ons before you start using the projector.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.

• Place the projector in a well-ventilated area. Do not place anything on the projector that prevents heat dissipation.

• Do not place the projector on an uneven or unstable surface. The projector may fall over, causing personal injury or projector malfunction.

• Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

• Always open the lens shutter or remove the lens cap when the projector lamp is on.

• Do not block the projection lens with any objects when the projector is under operation as this could cause objects to become heated and deformed or even cause a fire.

• Do not attempt to disassemble the projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.

• When moving the projector, be careful not to drop or bump the projector on anything.

• Do not place any heavy objects on the projector or connection cables.

• Avoid exposing the projector to direct sunlight or other sources of sustained heat. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that may increase the temperature of the projector to dangerous levels.

• Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply and call your local service center to have the projector serviced.

• When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal operation and not a defect.

• Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide and third blade are provided for your safety. If the plug does not fit into your outlet, obtain an adapter and do not attempt to force the plug into the outlet.

Page 4

• When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the projector.

• In some countries, the voltage is NOT stable. This projector is designed to operate safely within a voltage between 100 to 240 volts DC, but could fail if power cuts or surges of ±10 volts occur. In areas where voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector, or uninterruptable power supply (UPS).

• If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector.

• Use only attachments/accessories specified by the manufacturer.

• Disconnect the power cord from the DC outlet if the projector is not being used for a long period of time.

• Refer all servicing to qualified service personnel.

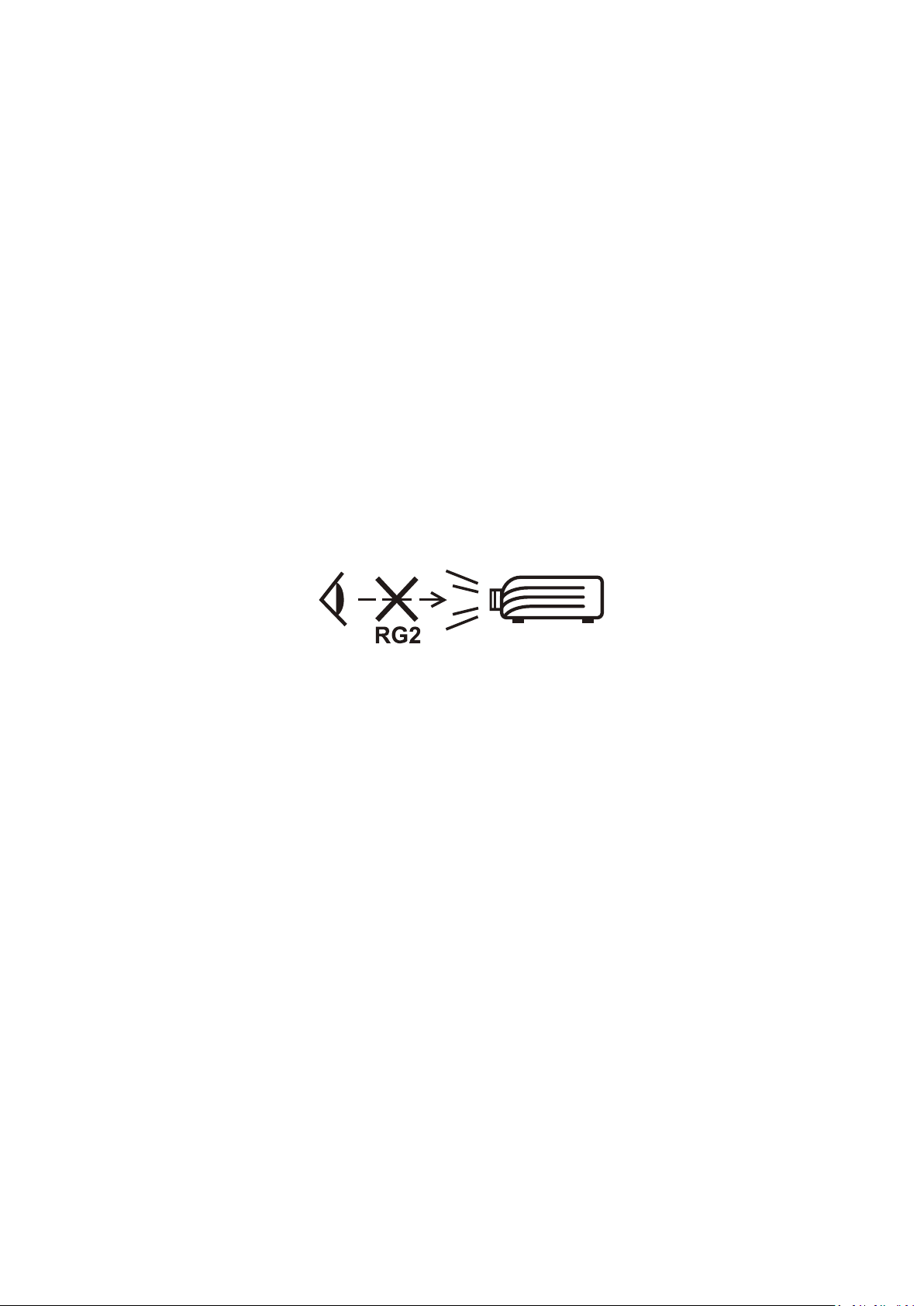

CAUTION: Possibly hazardous optical radiation is emitted from this product. As

with any bright light source, do not stare into the beam, RG2 IEC 624715:2015. Additional warning against eye exposure for close exposures less than 1 m.

Page 5

Safety Precautions - Ceiling Mounting

Please read the following Safety Precautions before you start using the projector.

If you intend to mount the projector on the ceiling, it is strongly recommended that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use an inappropriate projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

Laser Caution

This product belongs to CLASS I laser product and complies with IEC 60825-1:2014, EN 60825-1:2014/A11:2021, EN 50689:2021.

IEC60825-1:2014, EN 60825 1 2014A11 2021, EN 50689:2021 CLASS 1 CONSUMER LASER  PRODUCT RISK GROUP2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIPas deﬁned in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019. IEC 60825-1:2014 1RG2

IEC 60825-1:20141RG2

Above laser cautions are located on the bottom of this apparatus.

• Notice is given to supervise children and to never allow them to stare into the projector beam at any distance from the projector.

• Notice is given to use caution when using the remote control for starting the projector while in front of the projection lens.

• Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the beam.

Page 6

Contents

Safety Precautions ....................................................... 3

Introduction ................................................................ 9

Package Contents - LS740W ...................................................................................9

Package Contents - V52HD ...................................................................................10

Product Overview ................................................................................................. 11

Projector ................................................................................................................ 11

Keypad ................................................................................................................... 12

Indicator Lights ...................................................................................................... 12

I/O Ports ................................................................................................................ 13

Remote Control ..................................................................................................... 14

Initial Setup ............................................................... 18

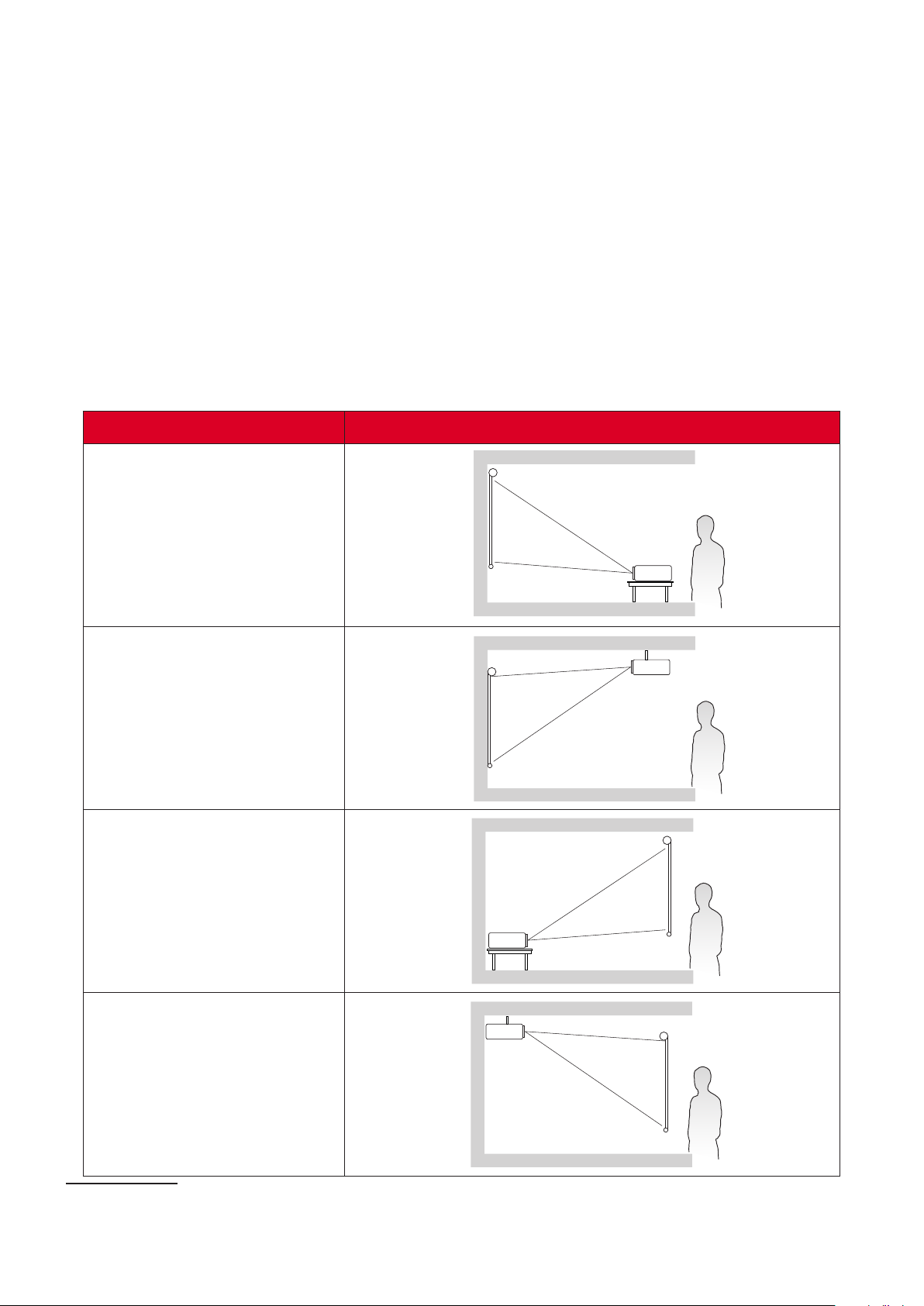

Choosing a Location - Projection Orientation .......................................................18

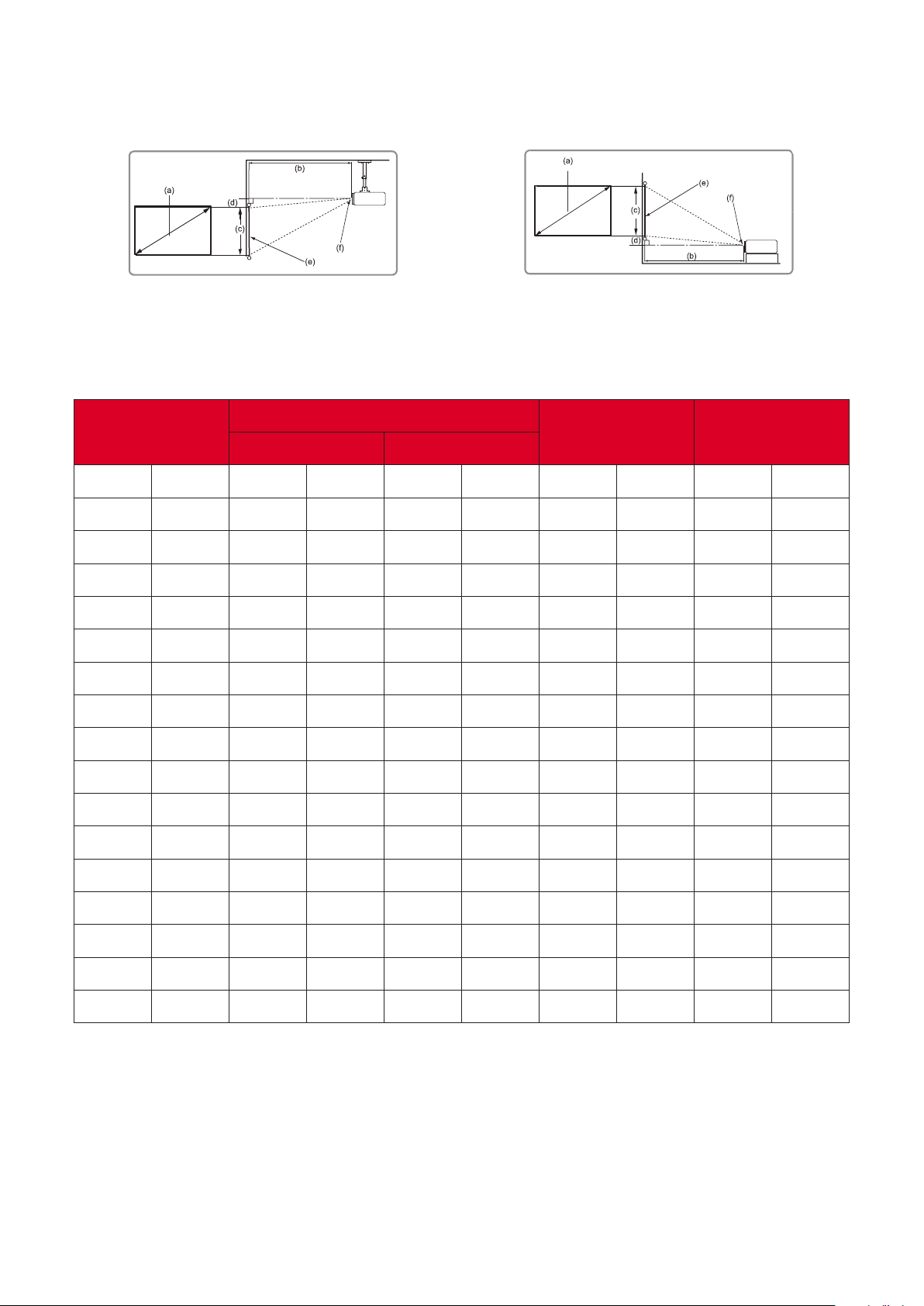

Projection Dimensions - LS740W ..........................................................................19

Projection Dimensions - V52HD ...........................................................................21

Mounting the Projector ........................................................................................ 23

Using the Security Bar ..........................................................................................23

Making Connections .................................................. 24

Connecting to Power ............................................................................................24

Connecting to External Devices ............................................................................ 25

HDMI Connection .................................................................................................. 25

Audio Connection .................................................................................................. 26

USB Connection ..................................................................................................... 27

RS-232 Connection ................................................................................................ 28

Using the Projector .................................................... 29

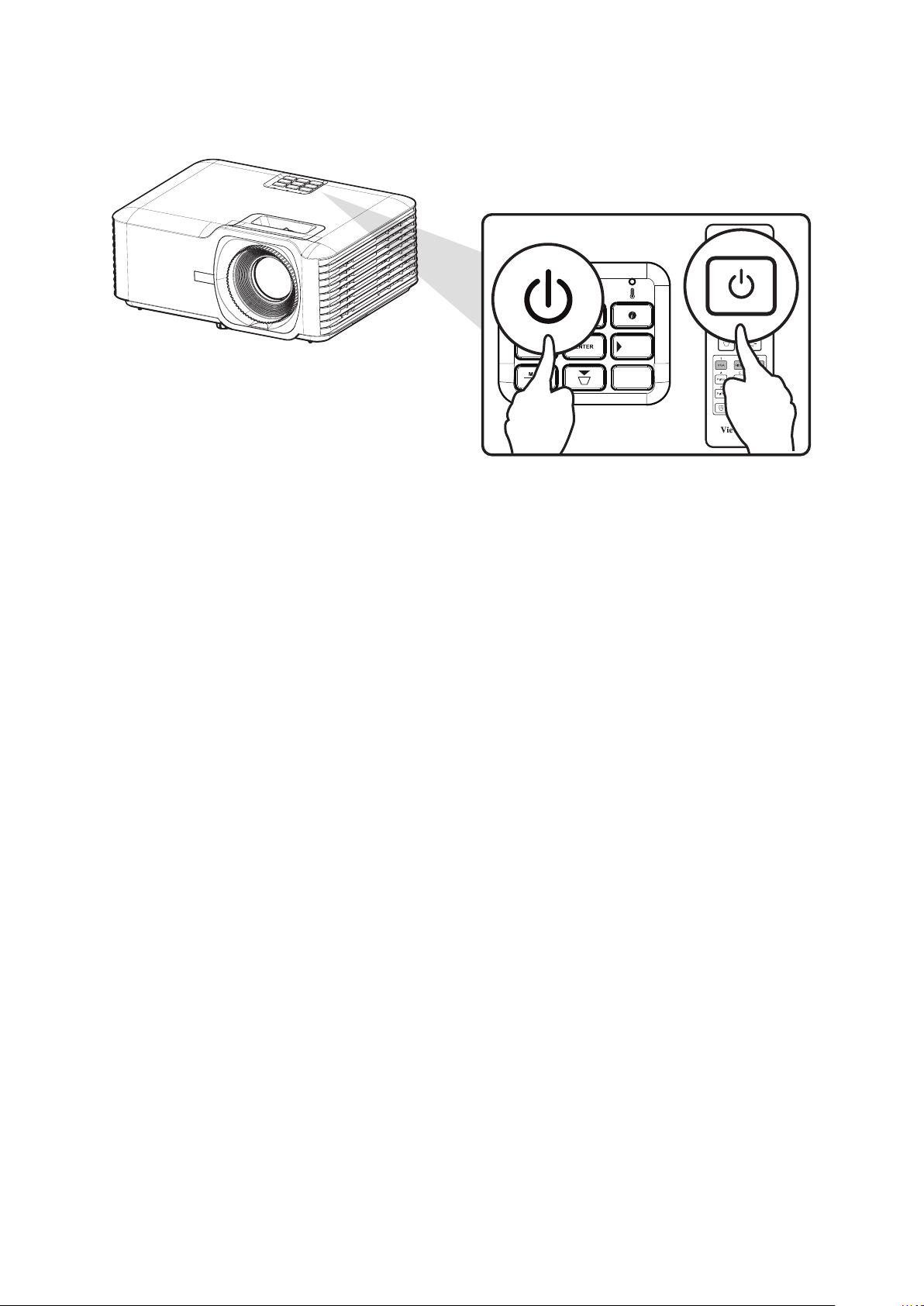

Starting Up the Projector ......................................................................................29

Selecting an Input Source .....................................................................................30

Adjusting the Projected Image .............................................................................31

Adjusting the Projector’s Height and Projection Angle ......................................... 31

Adjusting the Focus, Keystone, and Zoom ............................................................ 32

Shutting Down the Projector ................................................................................ 33

Page 7

Operating the Projector ............................................. 34

On-Screen Display (OSD) Menu ............................................................................ 34

Menu Navigation ..................................................................................................35

On-Screen Display (OSD) Menu Tree .................................................................... 36

Menu Operation ................................................................................................... 41

Display Menu......................................................................................................... 41

Audio Menu ........................................................................................................... 46

Setup Menu ........................................................................................................... 47

Information Menu ................................................................................................. 50

Appendix ................................................................... 51

Specifications ........................................................................................................51

Projector Dimensions ...........................................................................................52

Timing Chart .........................................................................................................53

LS740W ................................................................................................................. 53

HDMI PC Timing .................................................................................................... 53

3D Support Timing ................................................................................................. 54

V52HD ................................................................................................................... 55

HDMI PC Timing .................................................................................................... 55

3D Support Timing ................................................................................................. 56

Troubleshooting ...................................................................................................57

LED Indicators ........................................................................................................ 59

Maintenance.........................................................................................................60

General Precautions .............................................................................................. 60

Cleaning the Lens .................................................................................................. 60

Cleaning the Case .................................................................................................. 60

Storing the Projector ............................................................................................. 60

Page 8

Regulatory and Service Information .......................... 61

Compliance Information ....................................................................................... 61

FCC Compliance Statement ................................................................................... 61

Industry Canada Statement ................................................................................... 61

CE Conformity for European Countries ................................................................. 62

Declaration of RoHS2 Compliance......................................................................... 63

Indian Restriction of Hazardous Substances ......................................................... 64

Product Disposal at End of Product Life ................................................................ 64

Customer Service .................................................................................................. 66

Limited Warranty .................................................................................................. 67

Mexico Limited Warranty ...................................................................................... 70

Page 9

Introduc⿿on

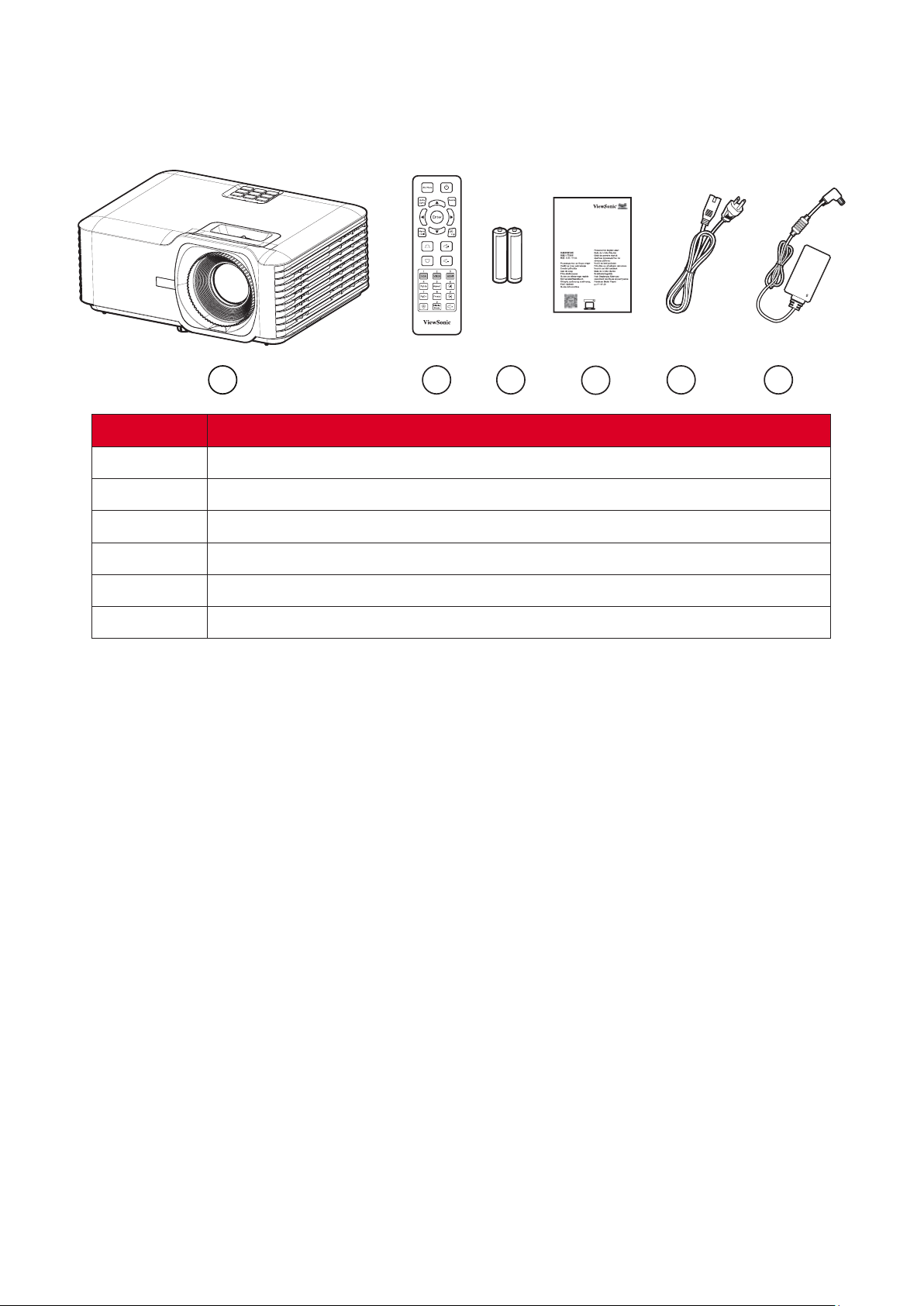

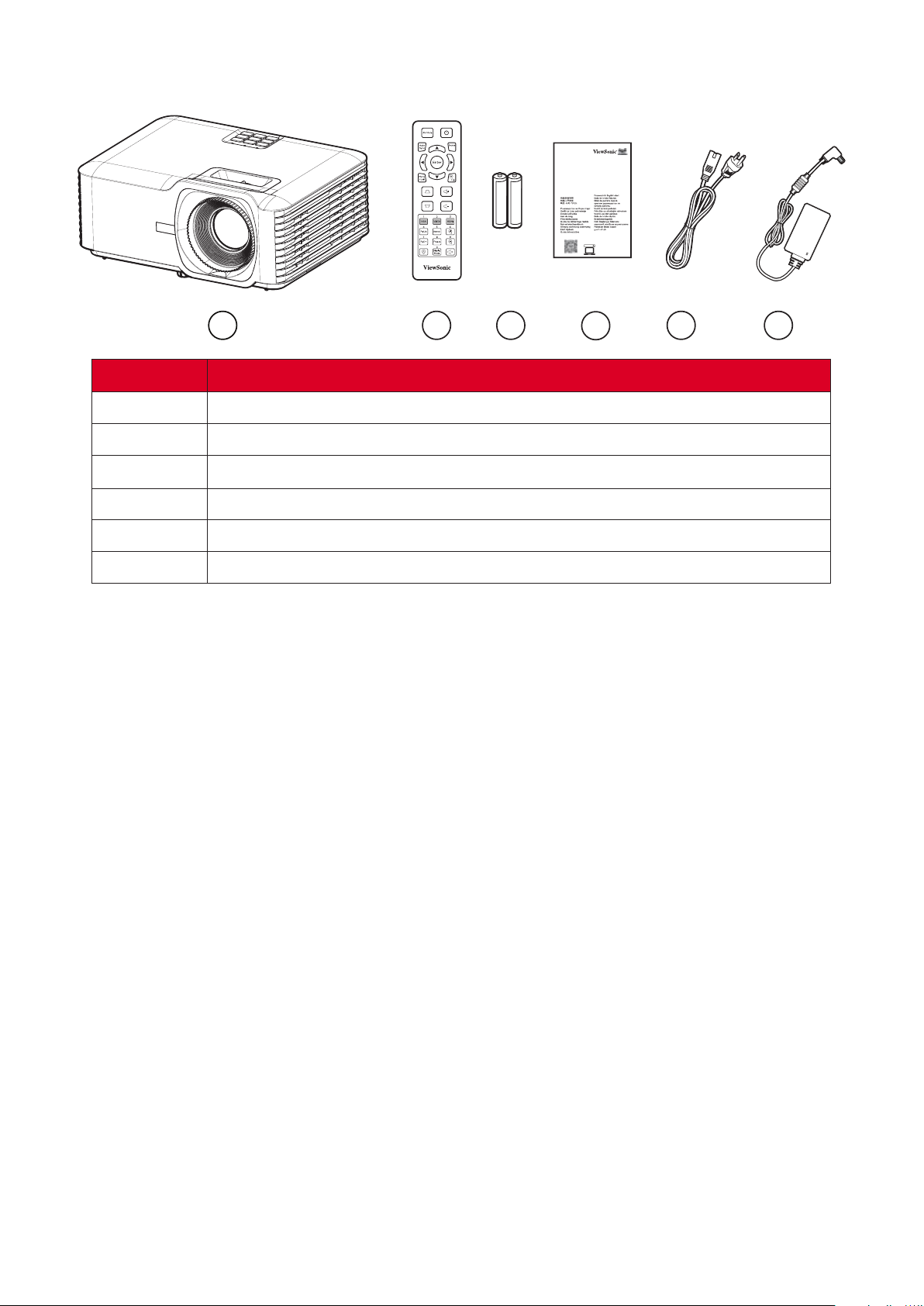

Package Contents - LS740W

LS740W Series

DLP Projector

Quick Start Guide

クイックスタートガイド

http://vsweb.us

Download Link

http://vsweb.us/q/dn.php

ViewSonic Projector

1 2 3

5 6

Number Descrip⿿on

1 2

4 5 6

Projector

Remote Control

Batteries

Quick Start Guide

Power Cord

Power Adapter

NOTE: The power cord and remote control included in your package may vary

depending on your country. Please contact your local reseller for more information.

Page 10

Package Contents - V52HD

DLP Projector

LS740W Series

Quick Start Guide

クイックスタートガイド

http://vsweb.us/q/dn.php

http://vsweb.us

Download Link

ViewSonic Projector

1 2 3

5 6

V52HD Series

DLP Projector

Quick Start Guide

クイックスタートガイド

http://vsweb.us

ViewSonic Projector

Download Link

http://vsweb.us/q/dn.php

61 2 3

Number Descrip⿿on

1 2

4 5 6

Projector

Remote Control

Batteries

Quick Start Guide

Power Cord

Power Adapter

NOTE: The power cord and remote control included in your package may vary

depending on your country. Please contact your local reseller for more information.

Page 11

Product Overview

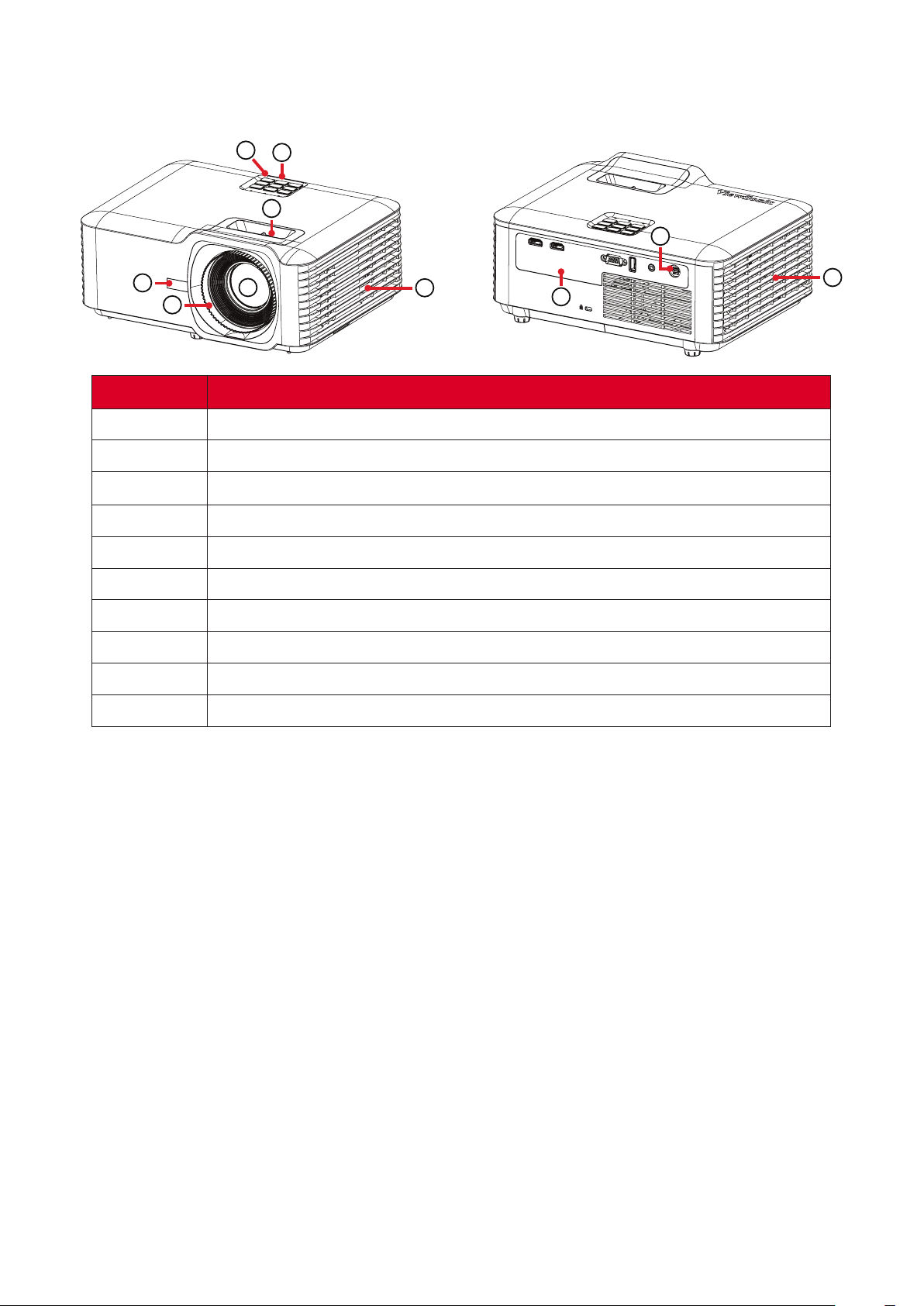

Projector

Number Descrip⿿on

1 2

4 5 6 7 8 9

Keypad Focus Ring Zoom Ring

Front IR

Top IR

DC In

Lens

I/O Ports

Vent (inlet)

Vent (outlet)

NOTE: Do not block projector intake and exhaust vents.

Page 12

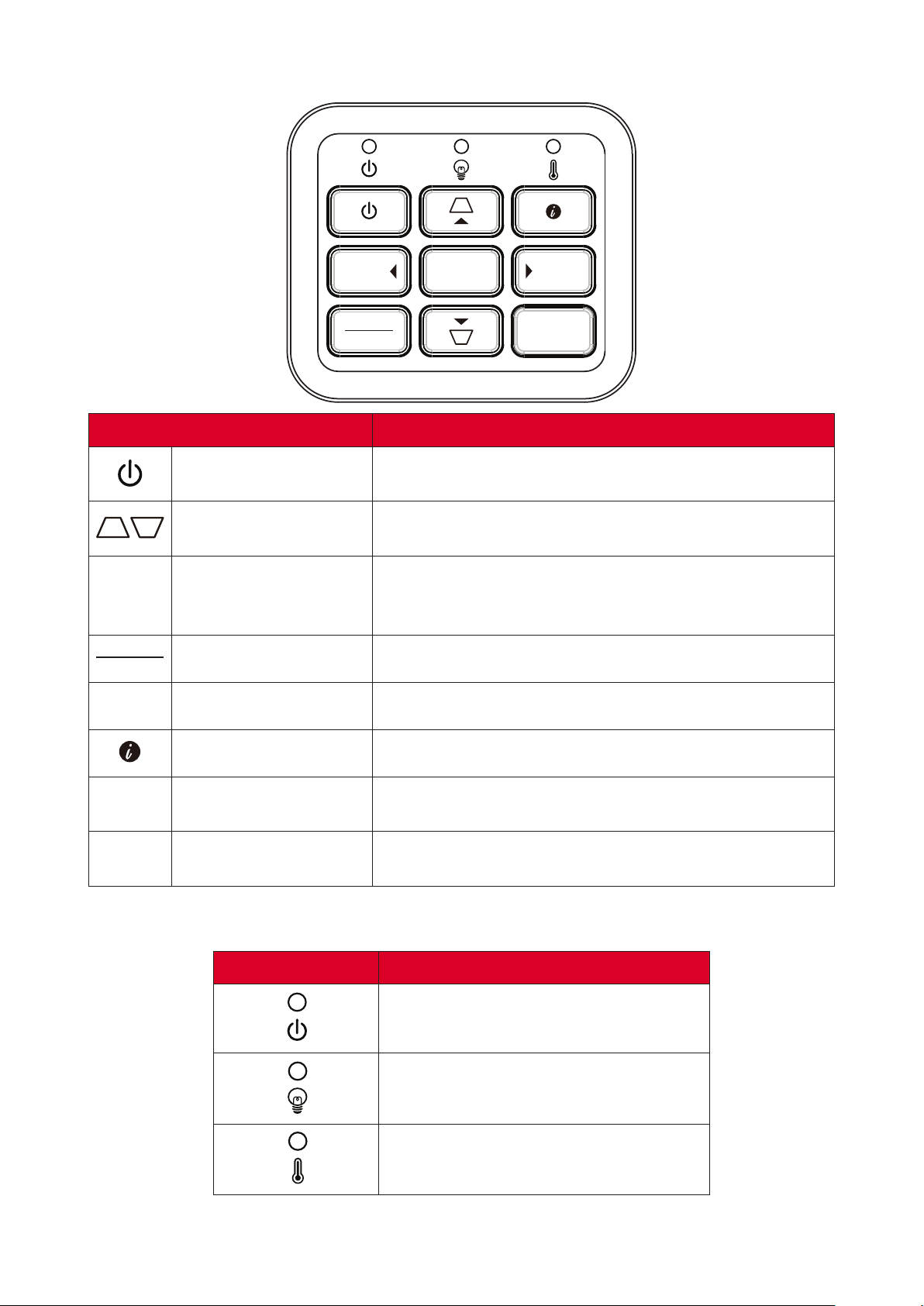

Keypad

ENTERSOURCE AUTO

ENTER

AUTO

ENTERSOURCE AUTO

EXIT

Key Descrip⿿on

tupq

EXIT

SOURCE

ENTER

AUTO

Power

Keystone

Naviga⿿on

Menu/Exit

Source

Informa⿿on

Enter

Auto

Toggles the projector between standby mode and Power On.

Manually corrects distorted images resulting from an angled projection.

Selects the desired menu items and makes adjustments when the On-Screen Display (OSD) Menu is activated.

Opens/exits the On-Screen Display (OSD) Menu.

Displays the input source selection bar.

Displays the INFORMATION menu.

Enacts the selected On-Screen Display (OSD) Menu item when the OSD Menu is activated.

Automatically determines the best picture timings for the displayed image.

Indicator Lights

Indicator Light Descrip⿿on

Power indicator light

Light source indicator light

Temperature indicator light

Page 13

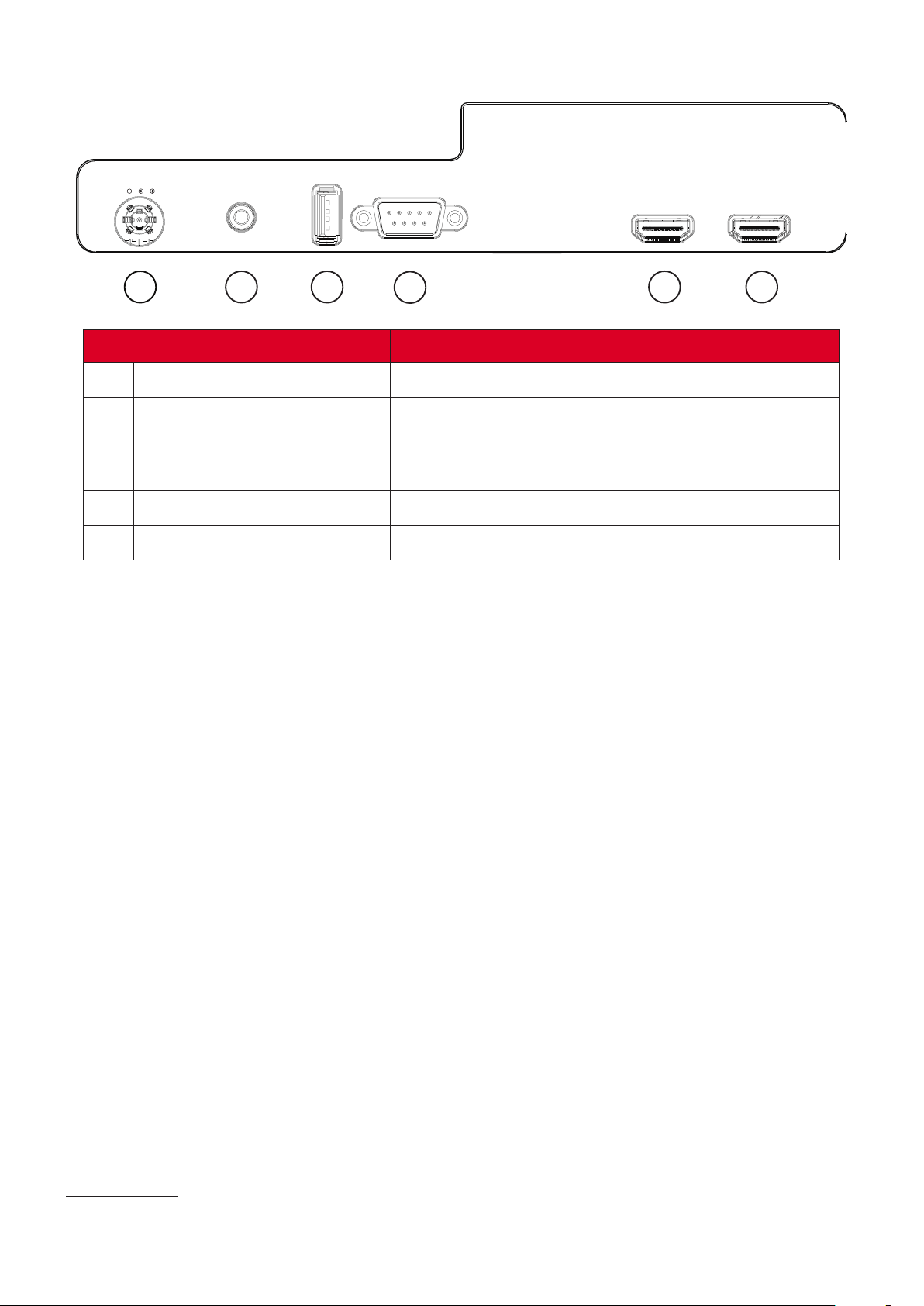

I/O Ports

2 3

5 5

DC IN

USB 5V/1.5A

AUDIO OUT

(SERVICE)

RS232

HDMI 2 HDMI 1

Port Descrip⿿on

1 DC IN

2 AUDIO OUT

USB (5V/1.5A Out)

(Service)

4 RS-232

5 HDMI 11 / HDMI 21

DC IN socket.

Audio signal output socket.

USB Type A port for power and service.

RS-232 control port.

HDMI port.

¹ Supports HDCP 1.4

Page 14

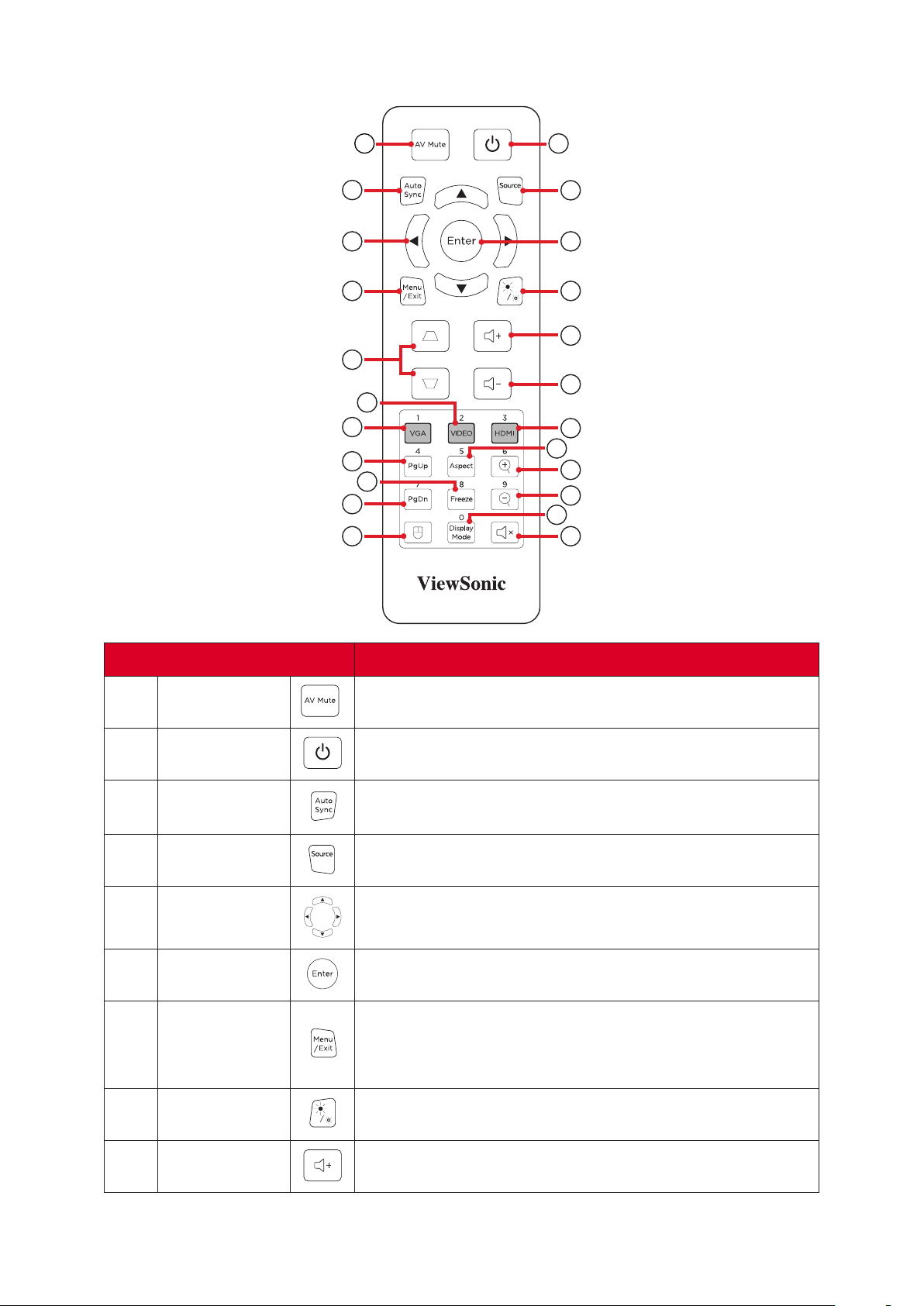

Remote Control

1 2

Bu㿿on Descrip⿿on

AV Mute Hides the screen picture and volume mute.

Power Turns the projector On or Off

Auto Sync

Source Displays the input source selection bar.

Naviga⿿on

Bu㿿ons

Enter Confirms the selection.

Menu/Exit

Automatically determines the best picture timings for the displayed image.

Navigates and selects the desired menu items and make adjustments.

• Turns the On-Screen Display (OSD) Menu On or Off.

• Go back to a previous OSD Menu.

• Exit and Save menu settings.

Brightness Displays the brightness mode selection bar.

Volume Up Increase the volume level.

Page 15

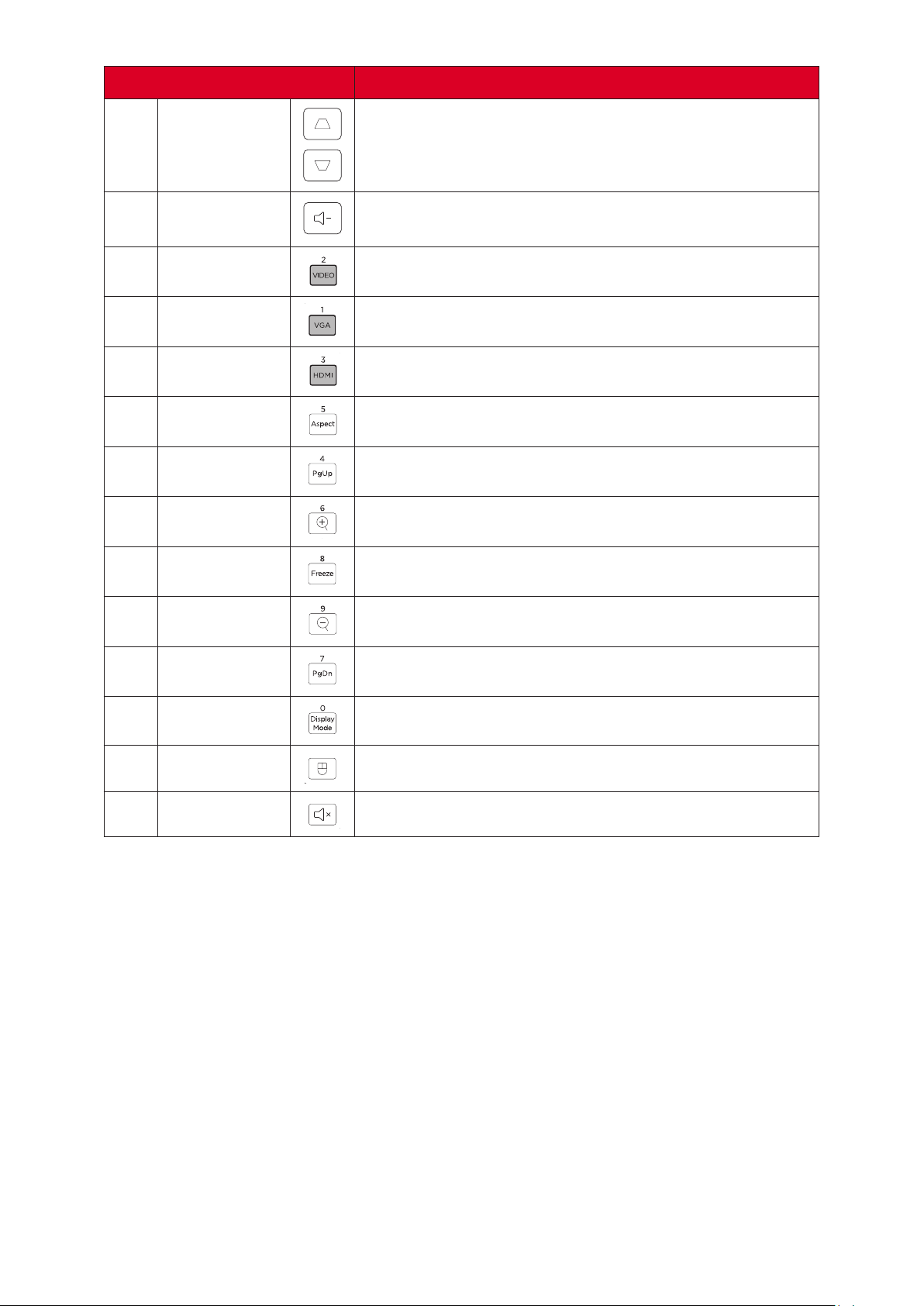

Bu㿿on Descrip⿿on

Keystone Manually correct distorted images.

Volume

Down

Video Unsupported Bu�on

VGA Unsupported Bu�on

HDMI Selects the HDMI 1 or HDMI 2 input source.

Aspect Displays the aspect ratio selection bar.

Page Up Unsupported Bu�on

Zoom In Increases the projected image size.

Freeze Freeze the projected image.

Decrease the volume level.

Zoom Out Reduces the projected image size.

Page Down Unsupported Bu�on

Display Mode Displays the color mode selection bar.

Mouse Mode Unsupported Bu�on

Mute Mute/Unmute.

Page 16

Remote Control - Receiver Range

Appro

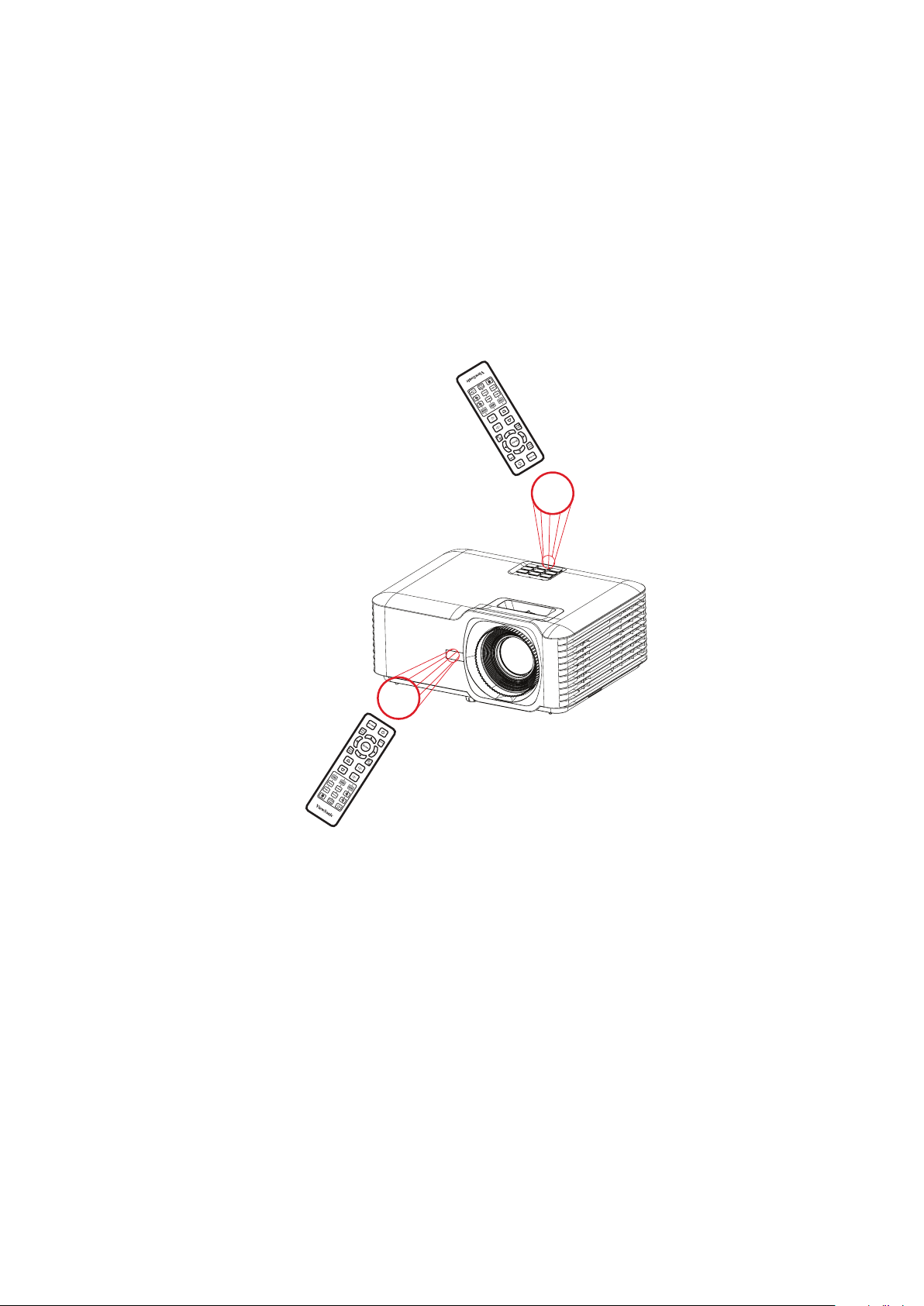

To ensure proper function of the remote control follow the steps below:

1. The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s).

2. The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.)

NOTE: Refer to the illustration for the location of the infrared (IR) remote

control sensor(s).

Approx. 30°

x. 30°

Page 17

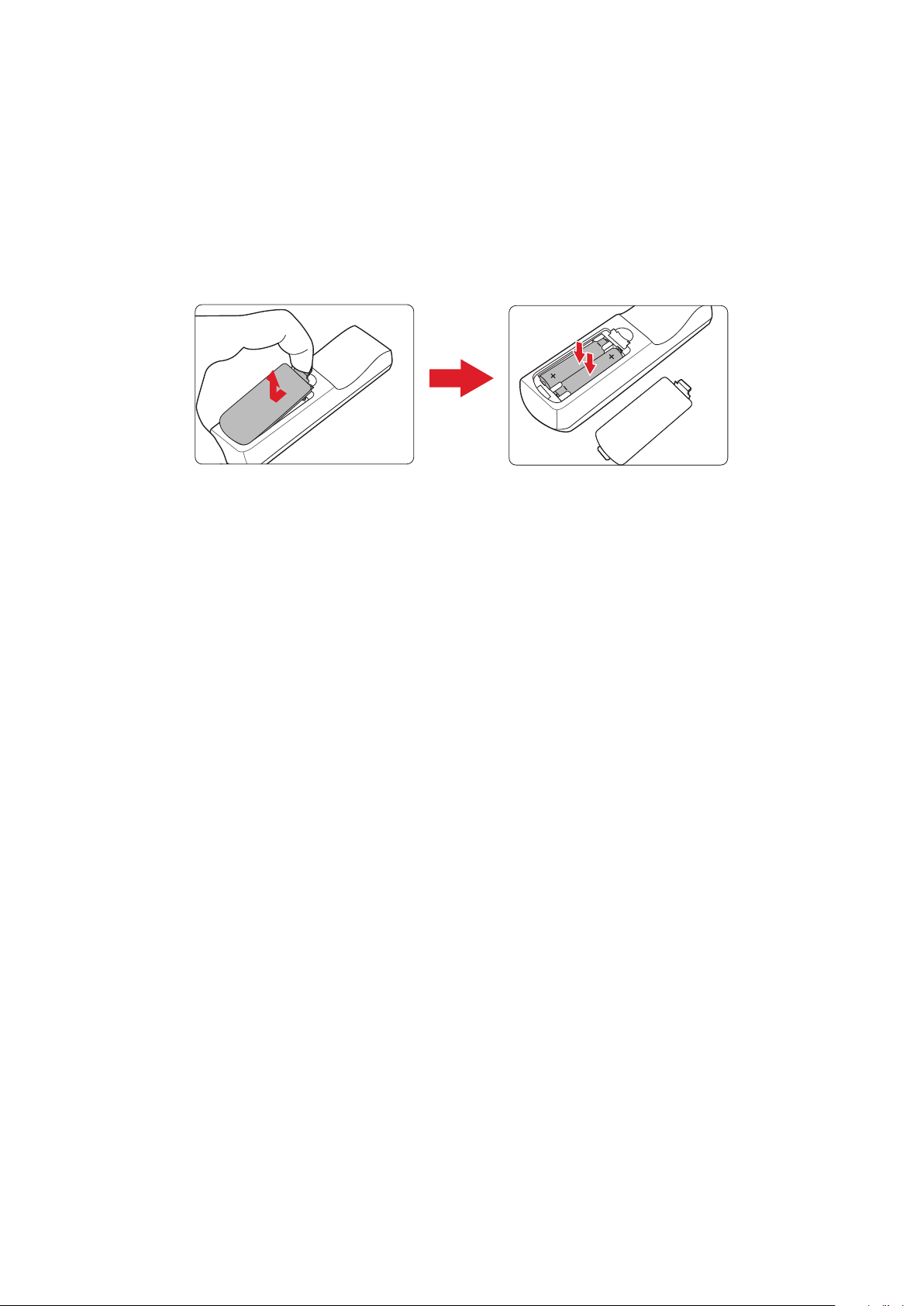

Remote Control - Replacing the Ba㿿eries

1. Remove the battery cover from the bottom of the remote control by pressing the finger grip and sliding it across.

2. Remove any existing batteries (if necessary) and install two AAA batteries.

NOTE: Observe the battery’s polarities as indicated.

3. Replace the battery cover by aligning it with the base and pushing it back into position.

NOTE:

• Avoid leaving the remote control and batteries in excessive heat or a humid environment.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• If the batteries are drained or if you will not be using the remote control for an extended period of time, remove the batteries to avoid damage to the remote control.

• Dispose of the used batteries according to the manufacturer’s instructions and local environment regulations for your region.

Page 18

Ini⿿al Setup

This section provides detailed instructions for the initial set up your projector.

Choosing a Loca⿿on - Projec⿿on Orienta⿿on

Personal preference and room layout will decide the installation location. Consider the following:

• Size and position of your screen.

• Location of a suitable power outlet.

• Location and distance between the projector and other equipment.

The projector is designed to be installed in one of the following locations:

Loca⿿on

Desk Front

The projector is placed near the floor in front of the screen.

Ceiling Front

The projector is suspended upside-down from the ceiling in front of the screen.

Desk Rear1

The projector is placed near the floor behind the screen.

Ceiling Rear1

The projector is suspended upside-down from the ceiling behind the screen.

¹ A rear projection screen is required.

Page 19

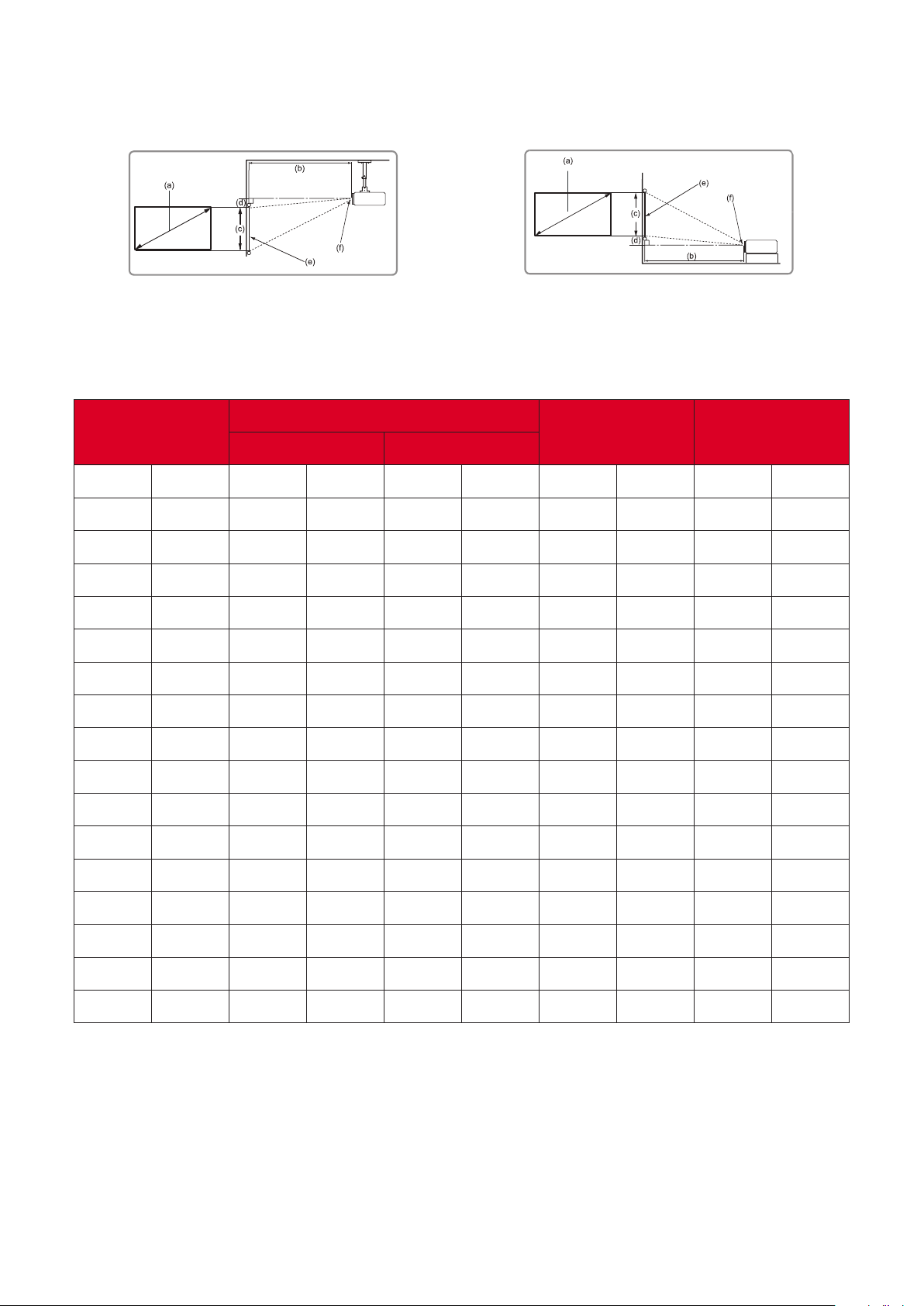

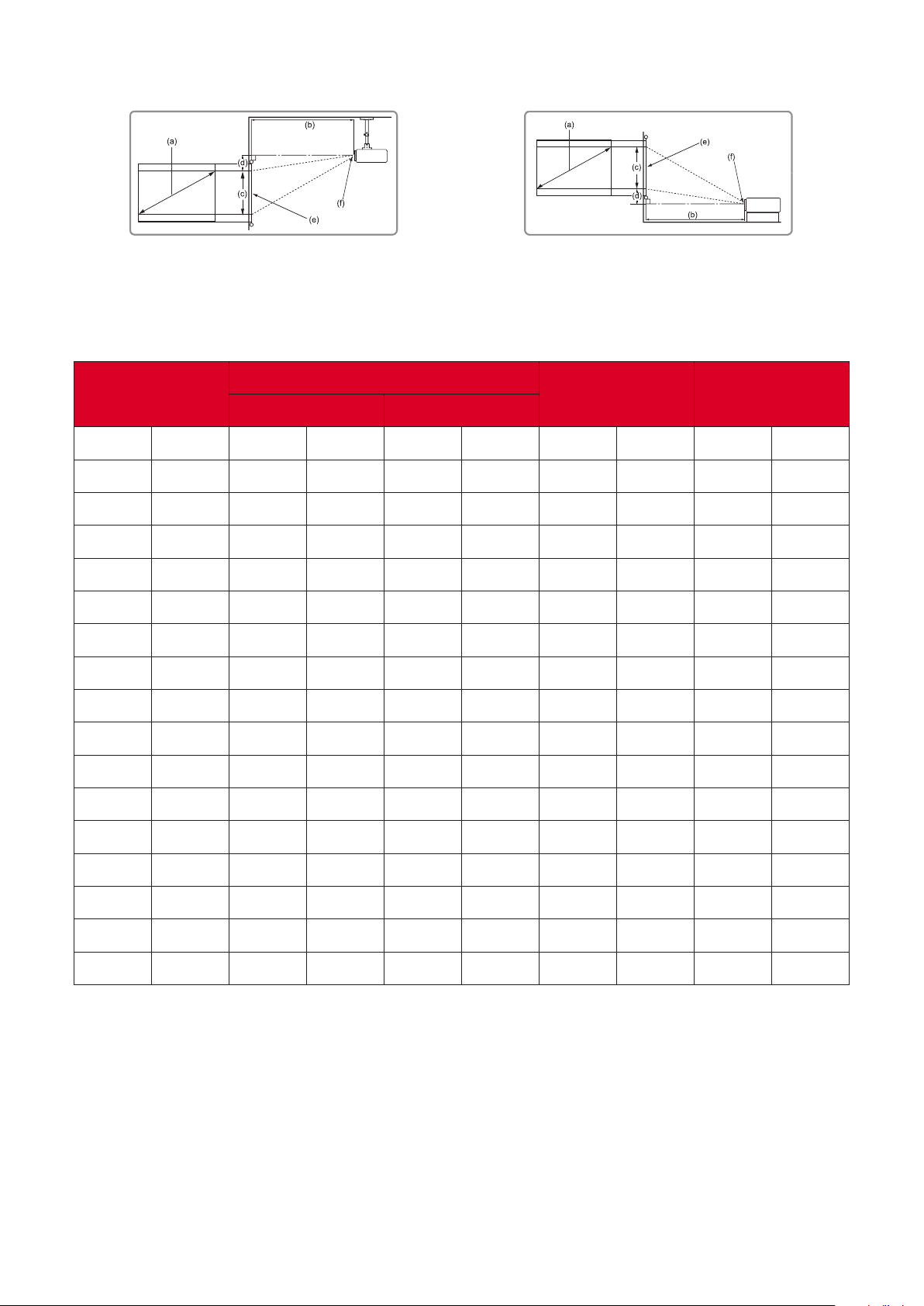

Projec⿿on Dimensions - LS740W

• 16:10 Image on a 16:10 Screen

NOTE:

• (e) = Screen (f) = Center of Lens

16:10 Image on a 16:10 Screen

(b) Projec⿿on Distance

(d) Ver⿿cal

(a) Screen Size

Minimum Maximum

in.

30 762 30.20 767 39.28 998 15.90 404 1.97 50 40 1016 40.26 1023 52.37 1330 21.20 538 2.63 67 50 1270 50.33 1278 65.47 1663 26.50 673 3.29 83 60 1524 60.39 1534 78.56 1995 31.80 808 3.94 100 70 1778 70.46 1790 91.65 2328 37.10 942 4.60 117 80 2032 80.53 2045 104.74 2661 42.40 1077 5.26 134

90 2286 90.59 2301 117.84 2993 47.70 1212 5.91 150

100 2540 100.66 2557 130.93 3326 53.00 1346 6.57 167 110 2794 110.72 2812 144.02 3658 58.30 1481 7.23 184 120 3048 120.79 3068 157.12 3991 63.60 1615 7.89 200 130 3302 130.85 3324 170.21 4323 68.90 1750 8.54 217

in.

mm in. mm

Height

in.

O�set

in.

140 3556 140.92 3579 150 3810 150.99 3835 196.40 4988 79.50 2019 9.86 250 200 5080 201.31 5113 261.86 6651 106.00 2692 13.14 334 250 6350 251.64 6392 327.33 8314 132.50 3365 16.43 417 300 7620 301.97 7670 392.79 9977 159.00 4039 19.72 501

183.30 4656 74.20 1885 9.20 234

NOTE:

• These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.

• It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

Page 20

• 16:10 Image on a 4:3 Screen

NOTE:

• (e) = Screen (f) = Center of Lens

16:10 Image on a 4:3 Screen

(b) Projec⿿on Distance

(d) Ver⿿cal

(a) Screen Size

Minimum Maximum

in.

30 762 28.49 724 37.06 941 15.00 381 1.86 47 40 1016 37.98 965 49.41 1255 20.00 508 2.48 63 50 1270 47.48 1206 61.76 1569 25.00 635 3.10 79 60 1524 56.98 1447 74.11 1882 30.00 762 3.72 94 70 1778 66.47 1688 86.46 2196 35.00 889 4.34 110 80 2032 75.97 1930 98.82 2510 40.00 1016 4.96 126

90 2286 85.46 2171 111.17 2824 45.00 1143 5.58 142

100 2540 94.96 2412 123.52 3137 50.00 1270 6.20 157 110 2794 104.46 2653 135.87 3451 55.00 1397 6.82 173 120 3048 113.95 2894 148.22 3765 60.00 1524 7.44 189 130 3302 123.45 3136 160.58 4079 65.00 1651 8.06 205

in.

mm in. mm

Height

in.

O�set

in.

140 3556 132.94 3377 172.93 4392 150 3810 142.44 3618 185.28 4706 75.00 1905 9.30 236 200 5080 189.92 4824 247.04 6275 100.00 2540 12.40 315 250 6350 237.40 6030 308.80 7844 125.00 3175 15.50 394 300 7620 284.88 7236 370.56 9412 150.00 3810 18.60 472

70.00 1778 8.68 220

NOTE:

• These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.

• It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

Page 21

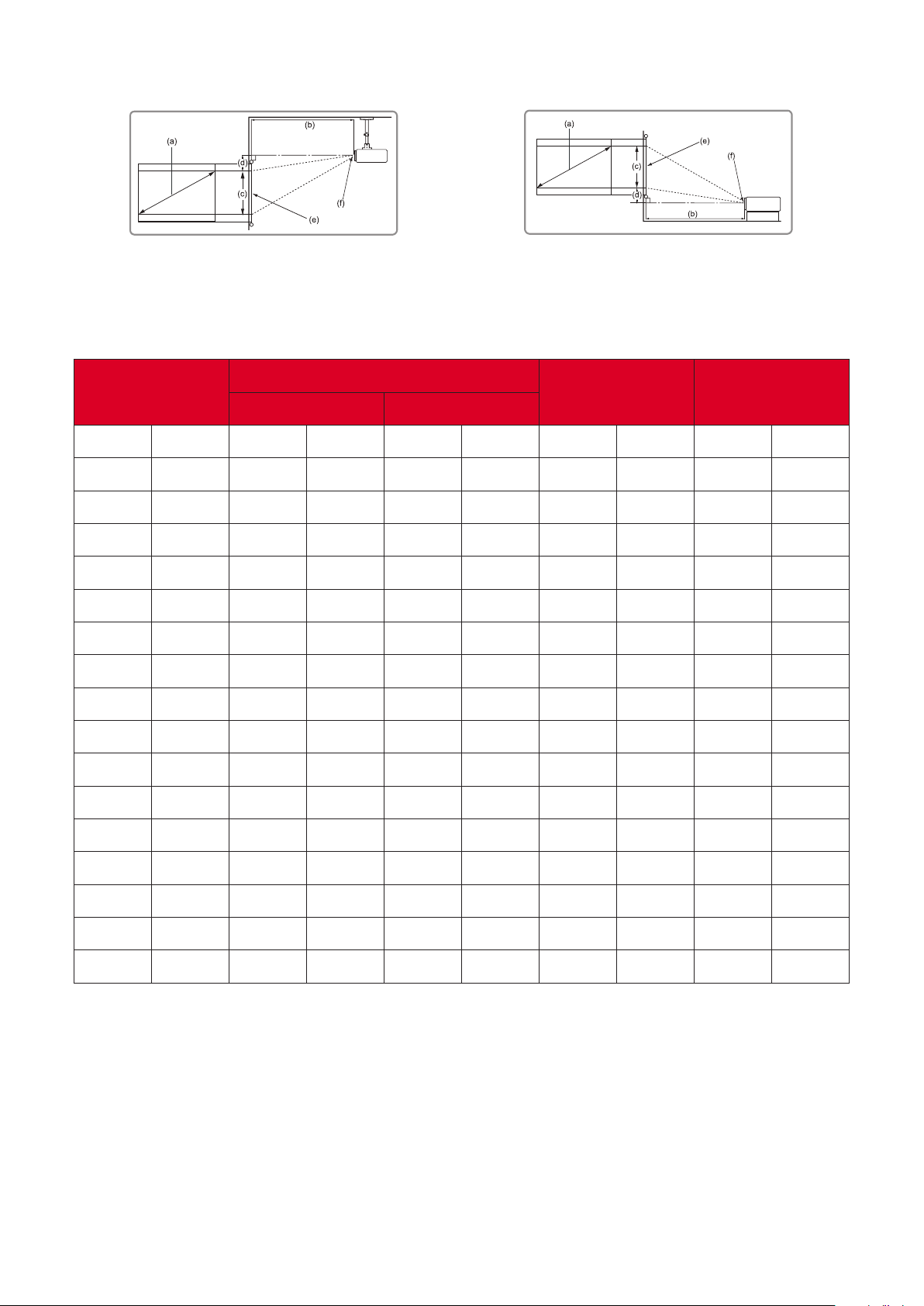

Projec⿿on Dimensions - V52HD

• 16:9 Image on a 16:9 Screen

NOTE:

• (e) = Screen (f) = Center of Lens

16:9 Image on a 16:9 Screen

(b) Projec⿿on Distance

(d) Ver⿿cal

(a) Screen Size

Minimum Maximum

in.

30 762 29.55 750 38.44 976 14.71 374 2.35 60 40 1016 39.40 1001 51.25 1302 19.61 498 3.14 80 50 1270 49.24 1251 64.06 1627 24.51 623 3.92 100 60 1524 59.09 1501 76.87 1953 29.42 747 4.71 120 70 1778 68.94 1751 89.69 2278 34.32 872 5.49 139 80 2032 78.79 2001 102.50 2603 39.22 996 6.28 159

90 2286 88.64 2251 115.31 2929 44.12 1121 7.06 179

100 2540 98.49 2502 128.12 3254 49.03 1245 7.84 199 110 2794 108.34 2752 140.93 3580 53.93 1370 8.63 219 120 3048 118.19 3002 153.75 3905 58.83 1494 9.41 239 130 3302 128.03 3252 166.56 4231 63.73 1619 10.20 259

in.

mm in. mm

Height

in.

O�set

in.

140 3556 137.88 3502 179.37 4556 150 3810 147.73 3752 192.18 4881 73.54 1868 11.77 299 200 5080 196.98 5003 256.24 6509 98.05 2491 15.69 398 250 6350 246.22 6254 320.30 8136 122.57 3113 19.61 498 300 7620 295.46 7505 384.36 9763 147.08 3736 23.53 598

68.64 1743 10.98 279

NOTE:

• These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.

• It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

Page 22

• 16:9 Image on a 4:3 Screen

NOTE:

• (e) = Screen (f) = Center of Lens

16:9 Image on a 4:3 Screen

(b) Projec⿿on Distance

(d) Ver⿿cal

(a) Screen Size

Minimum Maximum

in.

30 762 27.12 689 35.28 896 13.50 343 2.16 55 40 1016 36.16 918 47.04 1195 18.00 457 2.88 73 50 1270 45.20 1148 58.80 1494 22.50 572 3.60 91 60 1524 54.24 1378 70.56 1792 27.00 686 4.32 110 70 1778 63.28 1607 82.32 2091 31.50 800 5.04 128 80 2032 72.32 1837 94.08 2390 36.00 914 5.76 146

90 2286 81.36 2067 105.84 2688 40.50 1029 6.48 165

100 2540 90.40 2296 117.60 2987 45.00 1143 7.20 183 110 2794 99.44 2526 129.36 3286 49.50 1257 7.92 201 120 3048 108.48 2755 141.12 3584 54.00 1372 8.64 219 130 3302 117.52 2985 152.88 3883 58.50 1486 9.36 238

in.

mm in. mm

Height

in.

O�set

in.

140 3556 126.56 3215 164.64 4182 150 3810 135.60 3444 176.40 4481 67.50 1715 10.80 274 200 5080 180.80 4592 235.20 5974 90.00 2286 14.40 366 250 6350 226.00 5740 294.00 7468 112.50 2858 18.00 457 300 7620 271.20 6888 352.80 8961 135.00 3429 21.60 549

63.00 1600 10.08 256

NOTE:

• These figures are for reference purposes only. Please refer to the actual projector for the precise dimensions.

• It is recommended that if you intend to permanently install the projector to physically test the projection size and distance using the actual projector before you permanently install it.

Page 23

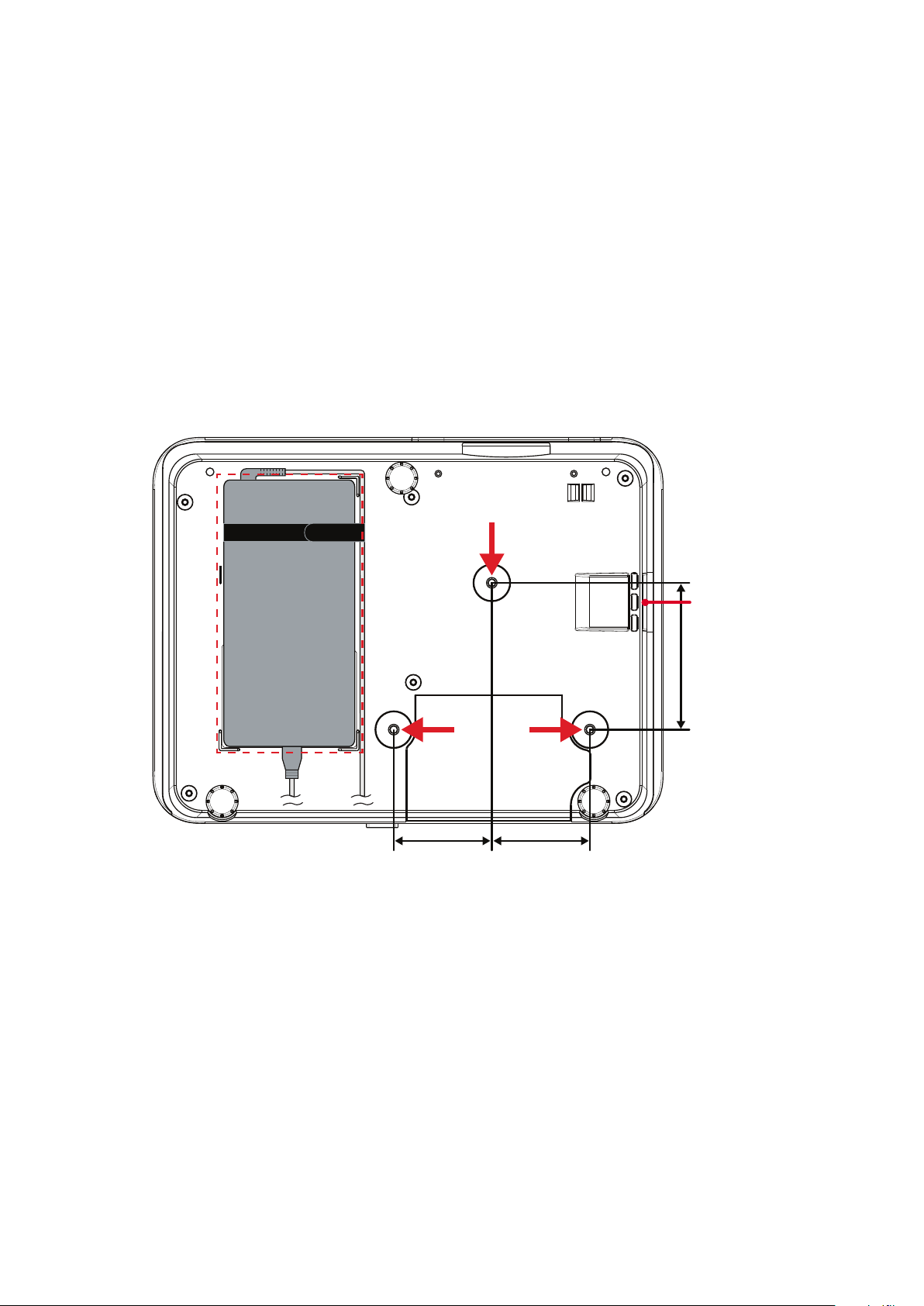

Moun⿿ng the Projector

NOTE: If you buy a third party mount, please use the correct screw size. Screw

size can vary depending on the thickness of the mounting plate.

1. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount.

2. Ensure the screws used to attach the mount to the projector meet the following specifications:

• Screw type: M4 x 8

• Maximum Screw Length: 8 mm

3. Place the power adapter within the designated area and secure it with a cable strap.

Security Bar

82.3 mm

55 mm

CAUTION:

• Avoid installing the projector near a heat source or air conditioner.

• Keep at least a 10 cm (3.9 in.) gap between the ceiling and the bottom of the projector.

Using the Security Bar

To help prevent the projector from being stolen, use a security slot locking device to secure the projector to a fixed object.

Page 24

Making Connec⿿ons

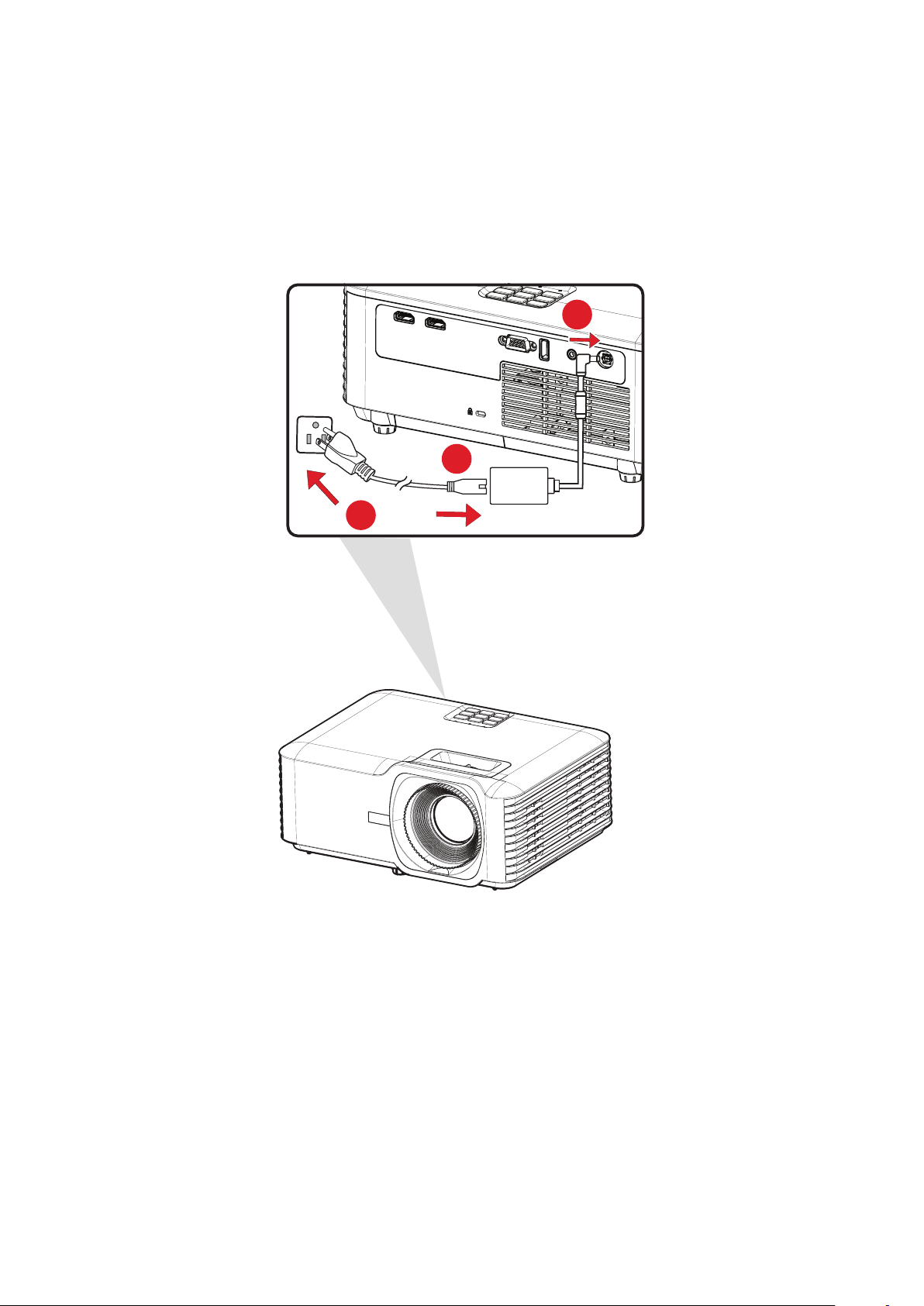

Connec⿿ng to Power

1. Connect the power cord to the power adapter.

2. Connect the power adapter to the DC IN jack at the rear of the projector.

3. Plug the power cord into a power outlet.

NOTE: When installing the projector, incorporate a readily accessible disconnect

device in the fixed wiring, or connect the power plug to an easily accessible outlet near the unit. If a fault should occur during operation of the projector, use the disconnect device to switch off the power supply, or disconnect the power plug.

Page 25

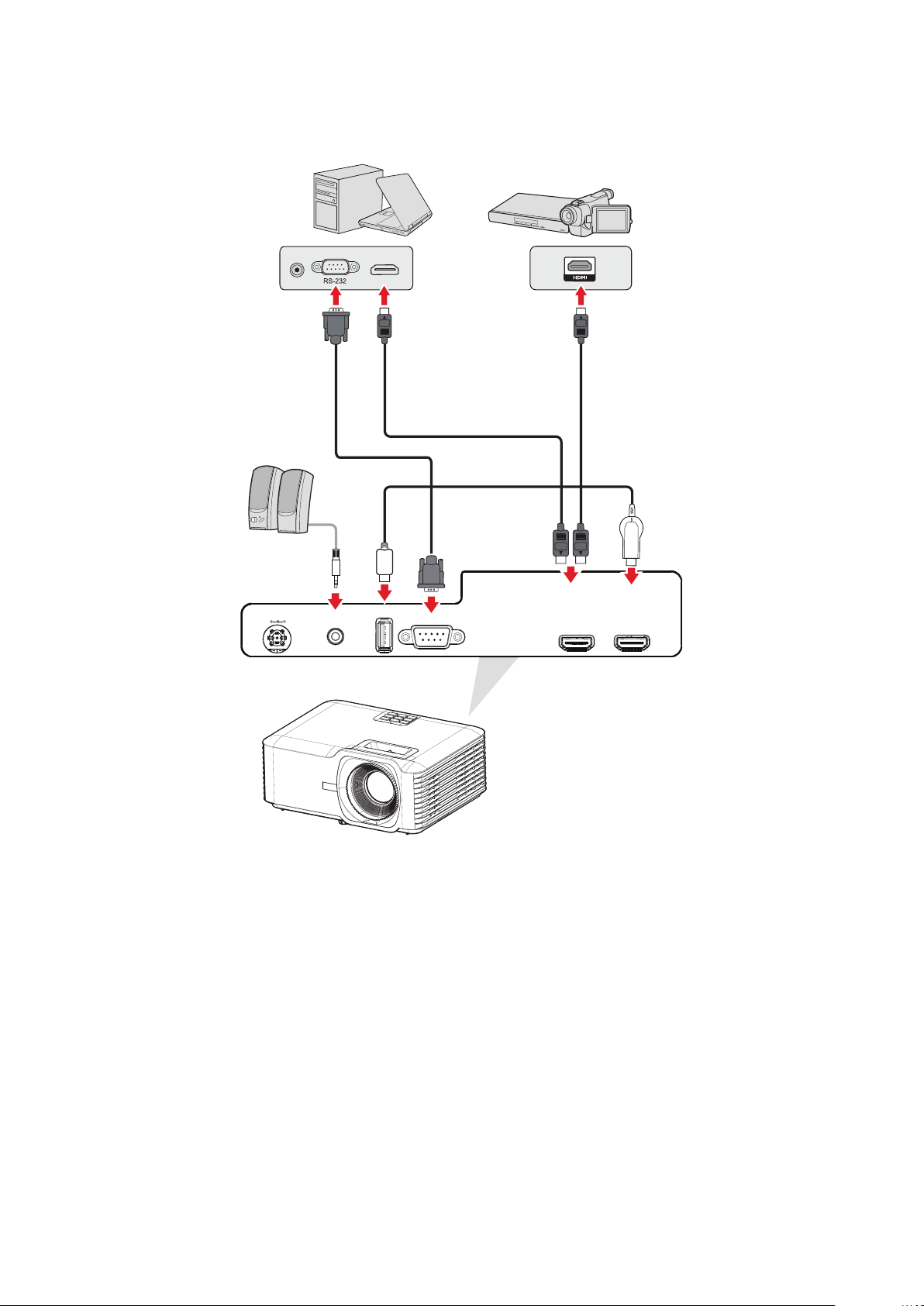

Connec⿿ng to External Devices

HDMI Connec⿿on

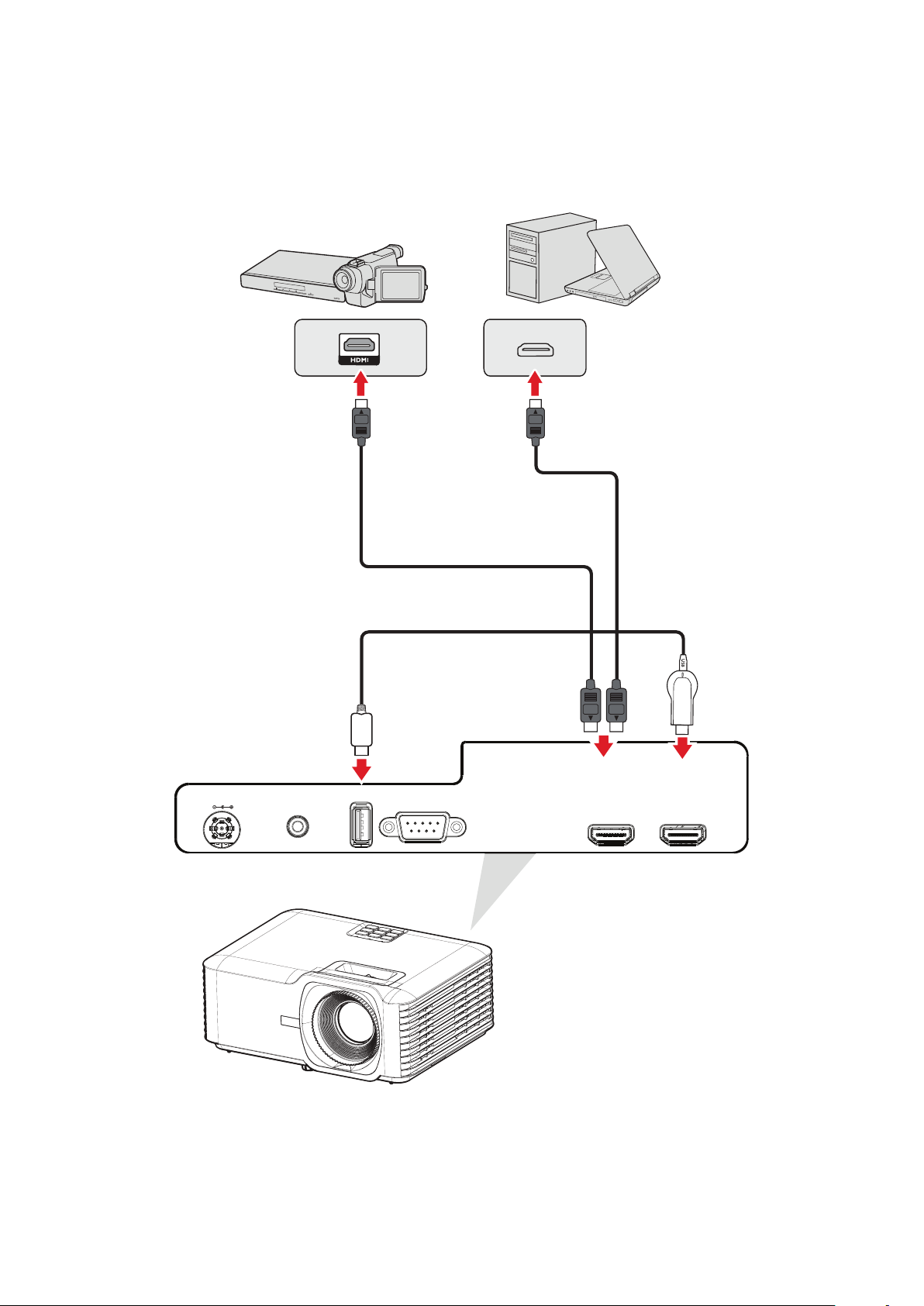

Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1/2 port of your projector.

DC IN

AUDIO OUT

USB 5V/1.5A

(SERVICE)

RS232

HDMI 2 HDMI 1

Page 26

Audio Connec⿿on

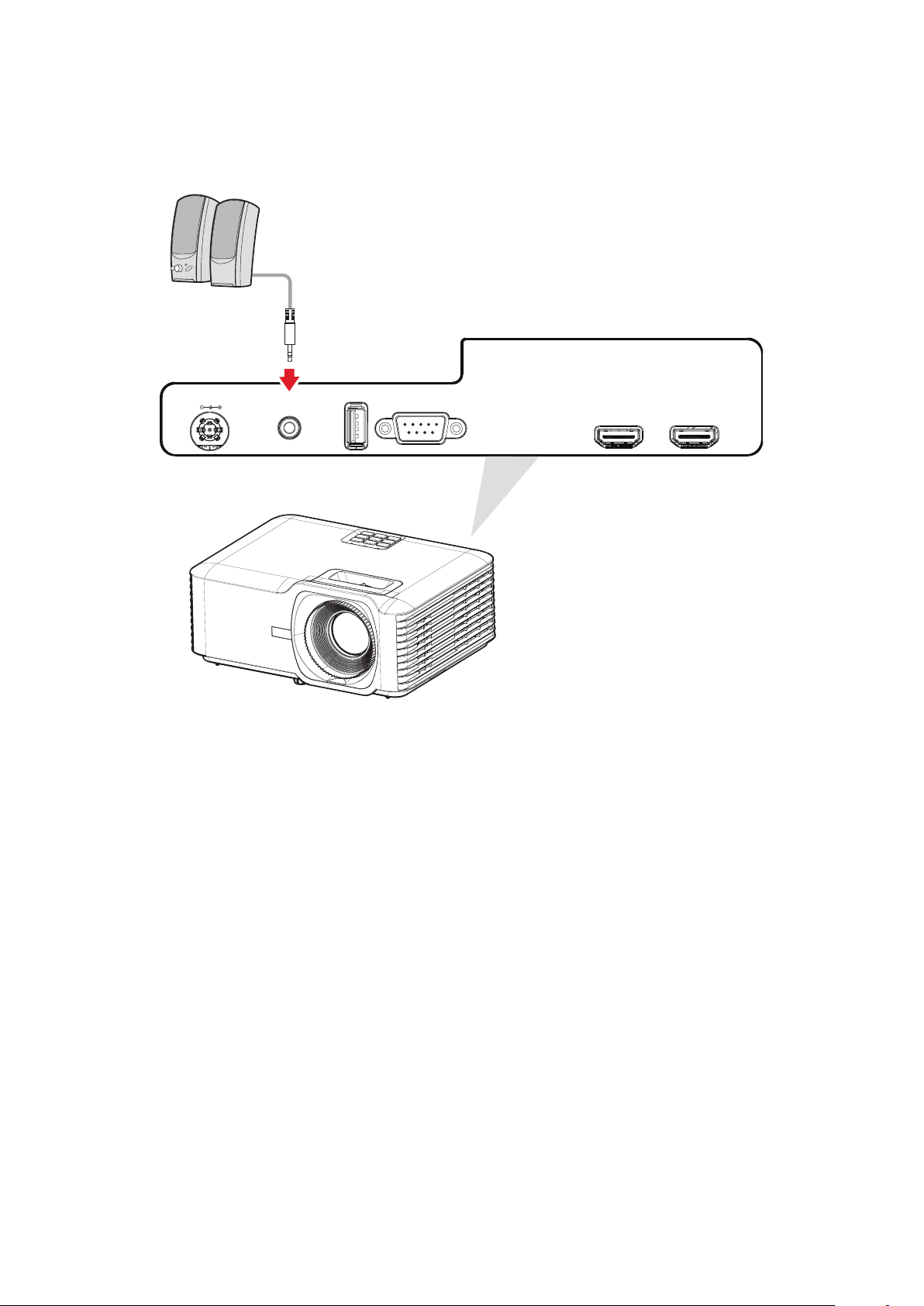

To play audio from the projector through an external speaker, connect one end of an audio cable to the external speaker, and the other end to the projector’s AUDIO OUT port.

USB 5V/1.5A

DC IN

AUDIO OUT

(SERVICE)

RS232

HDMI 2 HDMI 1

Page 27

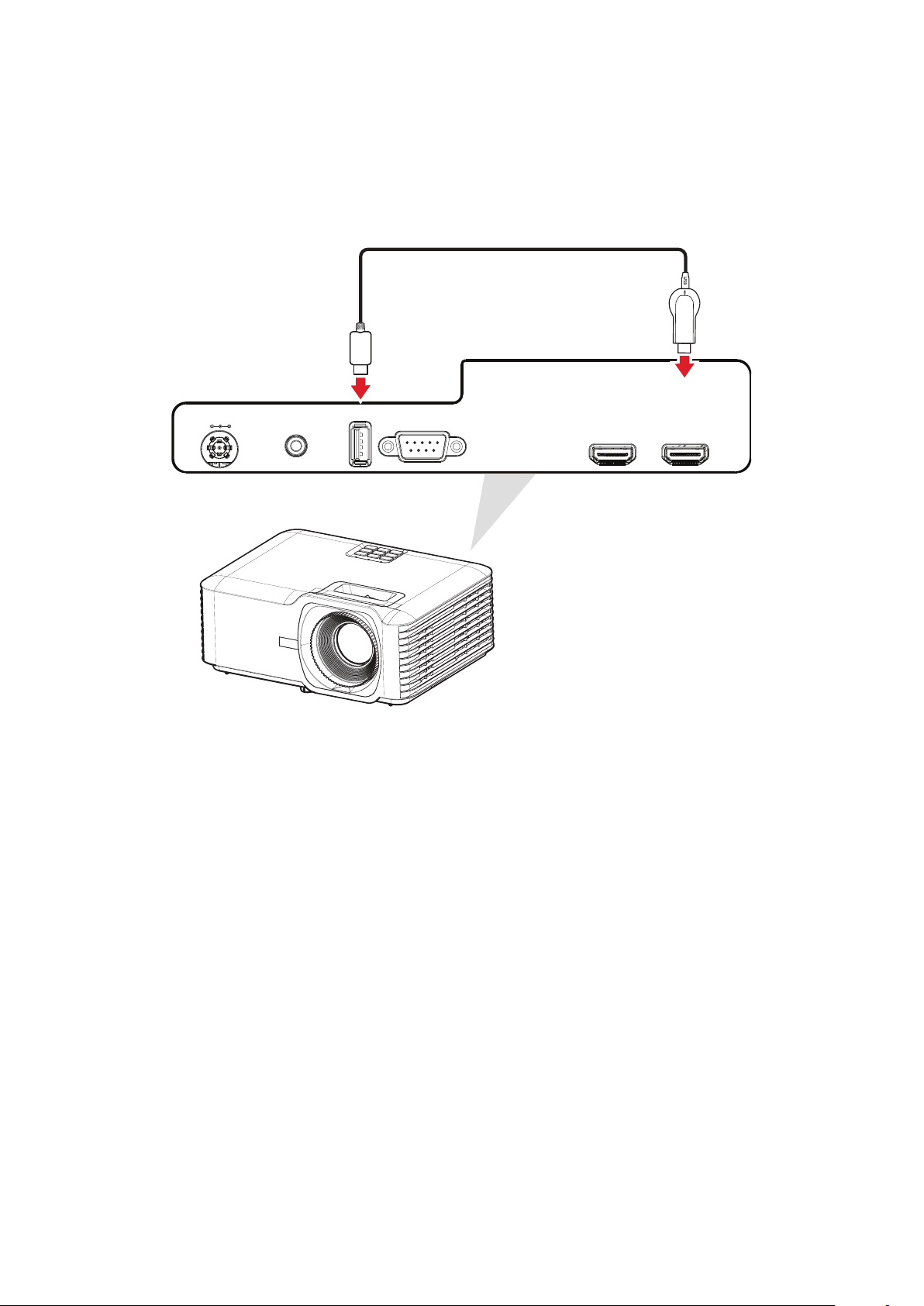

USB Connec⿿on

USB Type A Connec⿿on

The USB port is for supplying power (e.g., dongles) and service needs.

NOTE: The USB port does not supply power when the projector is in standby

mode.

USB 5V/1.5A

DC IN

AUDIO OUT

(SERVICE)

RS232

HDMI 2 HDMI 1

Page 28

RS-232 Connec⿿on

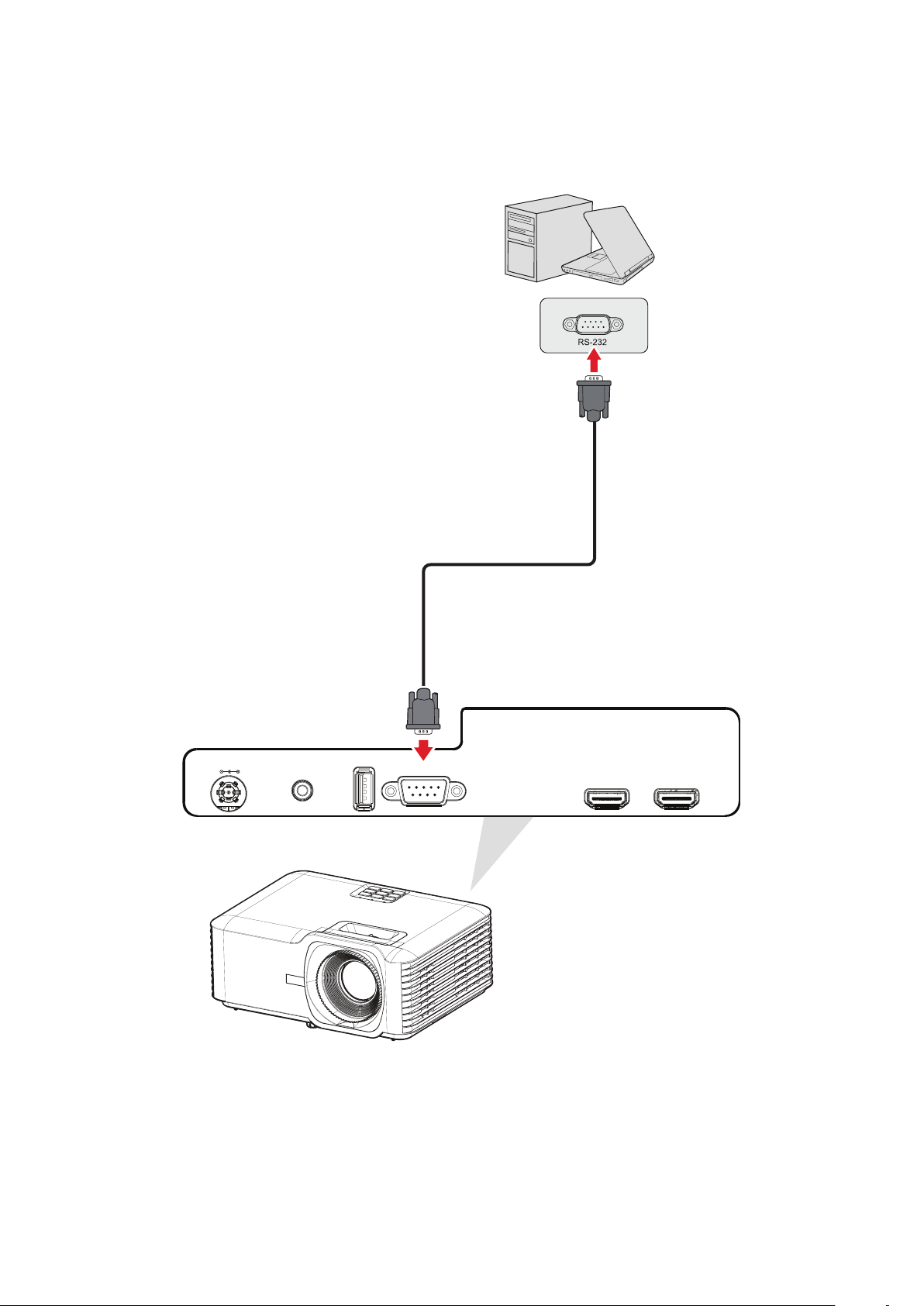

When you use a RS-232 serial port cable to connect the projector to an external computer certain functions can be controlled remotely by the PC, including Power On/Off, Volume adjustment, Input select, Brightness, and more.

DC IN

AUDIO OUT

USB 5V/1.5A

(SERVICE)

RS232

HDMI 2 HDMI 1

Page 29

Using the Projector

Star⿿ng Up the Projector

SO E

EXIT

ENU

AUTO

1. Ensure the projector’s power cord is properly connected to a power outlet.

2. Press the Power button on the projector or remote control to turn on the

projector.

NOTE:

• The Power Indicator Light will be flashing blue during startup.

• The first time the projector is turned on, you will be prompted to select the preferred language, projection orientation, and other settings.

Page 30

Selec⿿ng an Input Source

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

USB 5V/1.5A

DC IN

AUDIO OUT

(SERVICE)

RS232

HDMI 2 HDMI 1

When Auto Source is On, the projector will automatically search for input sources. If multiple sources are connected, press the Source button on the projector or remote control to select the desired input.

NOTE: Ensure the connected sources are also turned on.

Page 31

Adjus⿿ng the Projected Image

Tilt-Adjustment Ring

Adjus⿿ng the Projector’s Height and Projec⿿on Angle

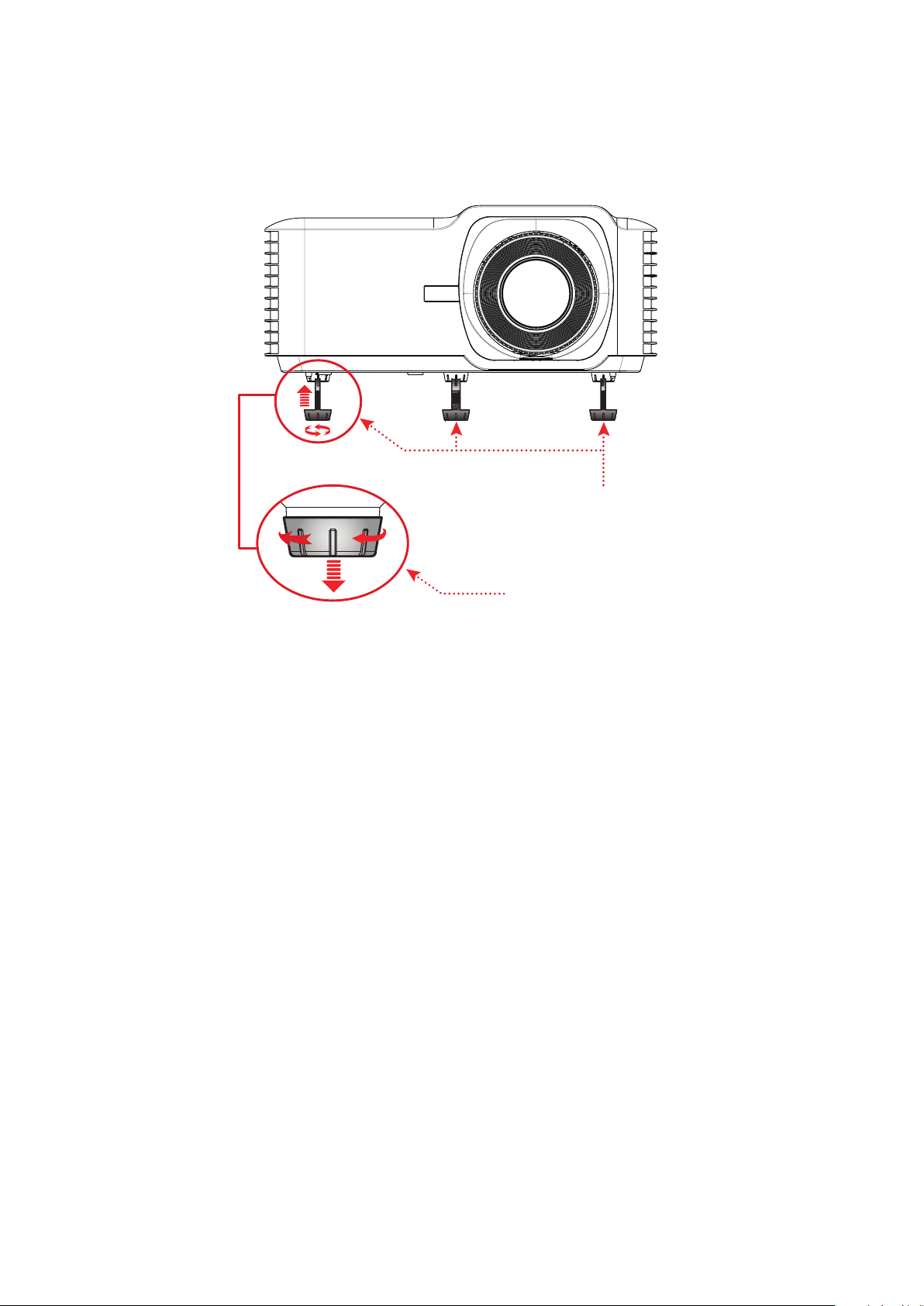

The projector is equipped with three (3) adjustment feet. Adjusting the feet will change the projector’s height and the vertical projection angle.

Adjustment Feet

Page 32

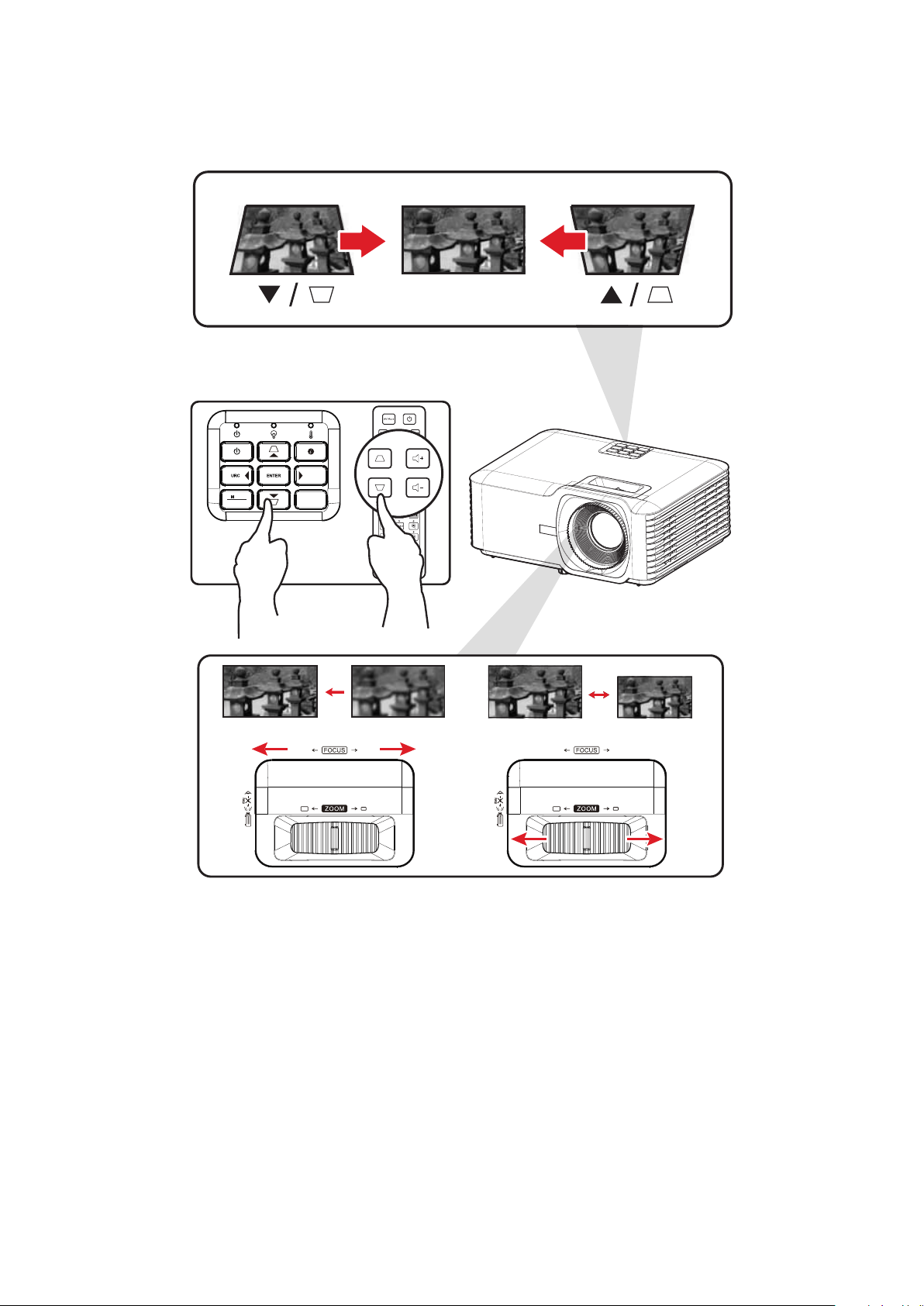

Adjus⿿ng the Focus, Keystone, and Zoom

You can improve and adjust the clarity and position of the image by adjusting the Focus Ring, Keystone Keys, or Zoom Ring.

SO E

AUTO

ENU

EXIT

Page 33

Shu俿ng Down the Projector

1. Press the Power button on the projector or remote control and a “power off message” will appear.

2. Press the Power button again to confirm and shut down the projector.

3. The Power Indicator Light will turn solid red and enter standby mode.

Page 34

Opera⿿ng the Projector

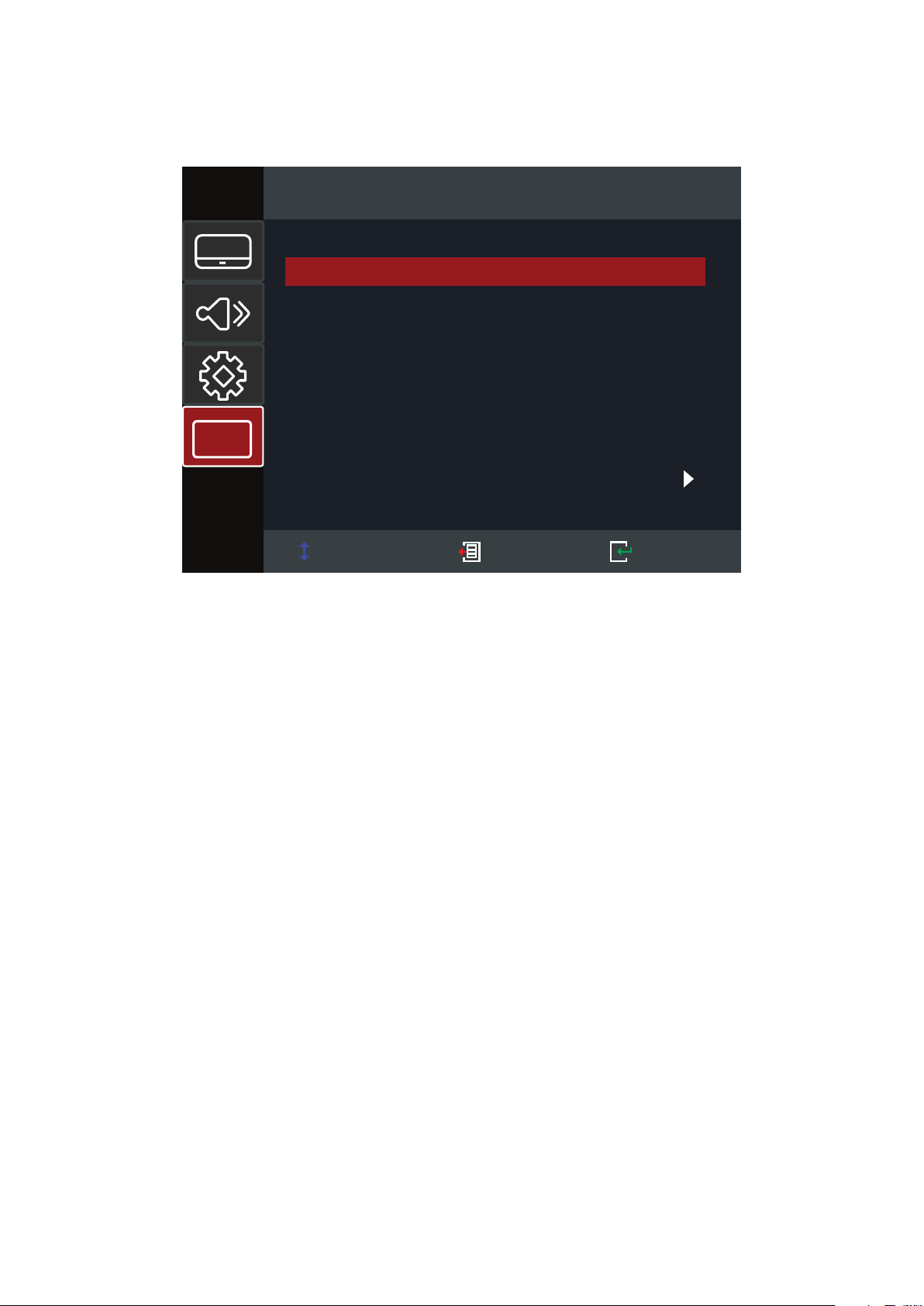

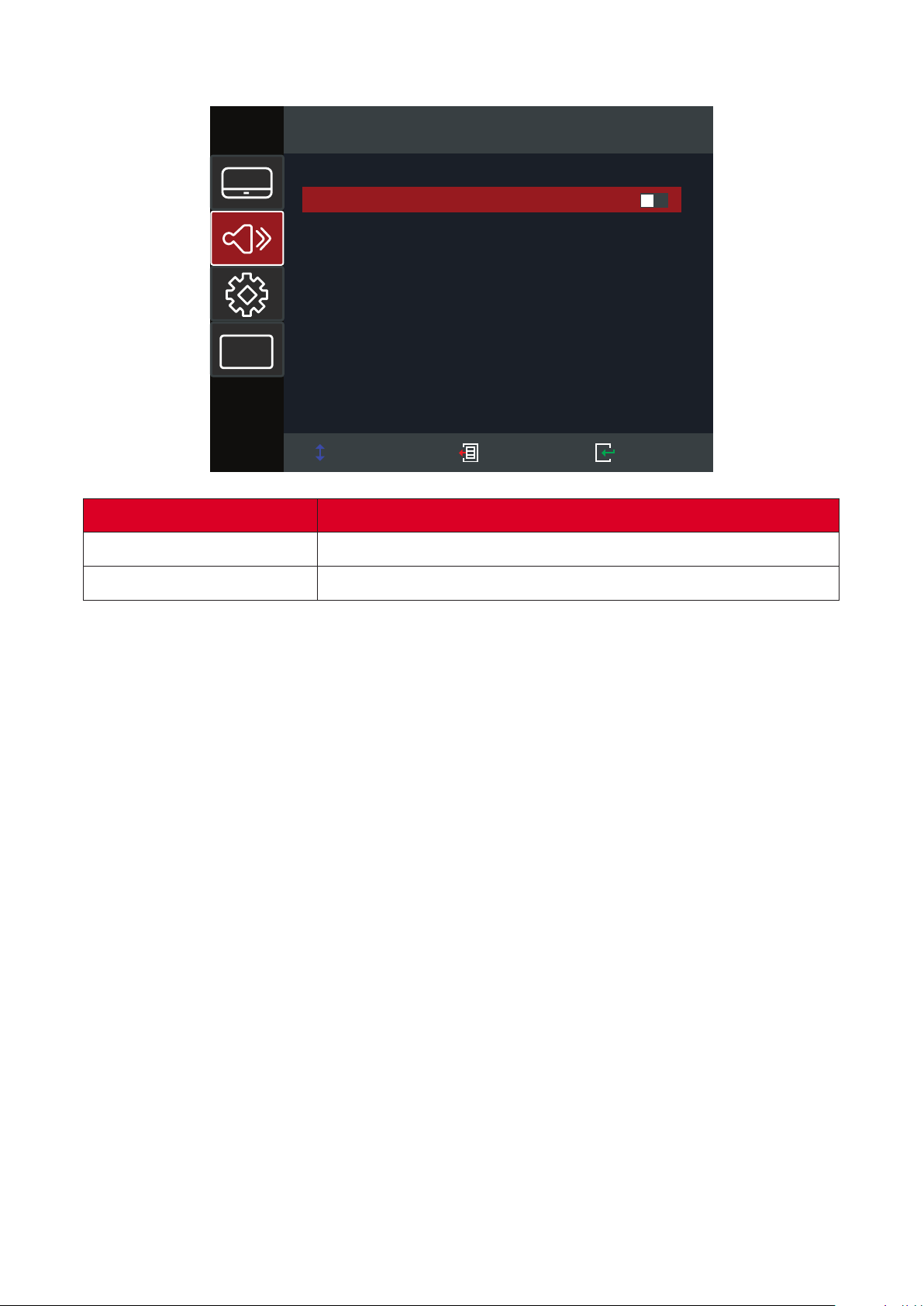

On-Screen Display (OSD) Menu

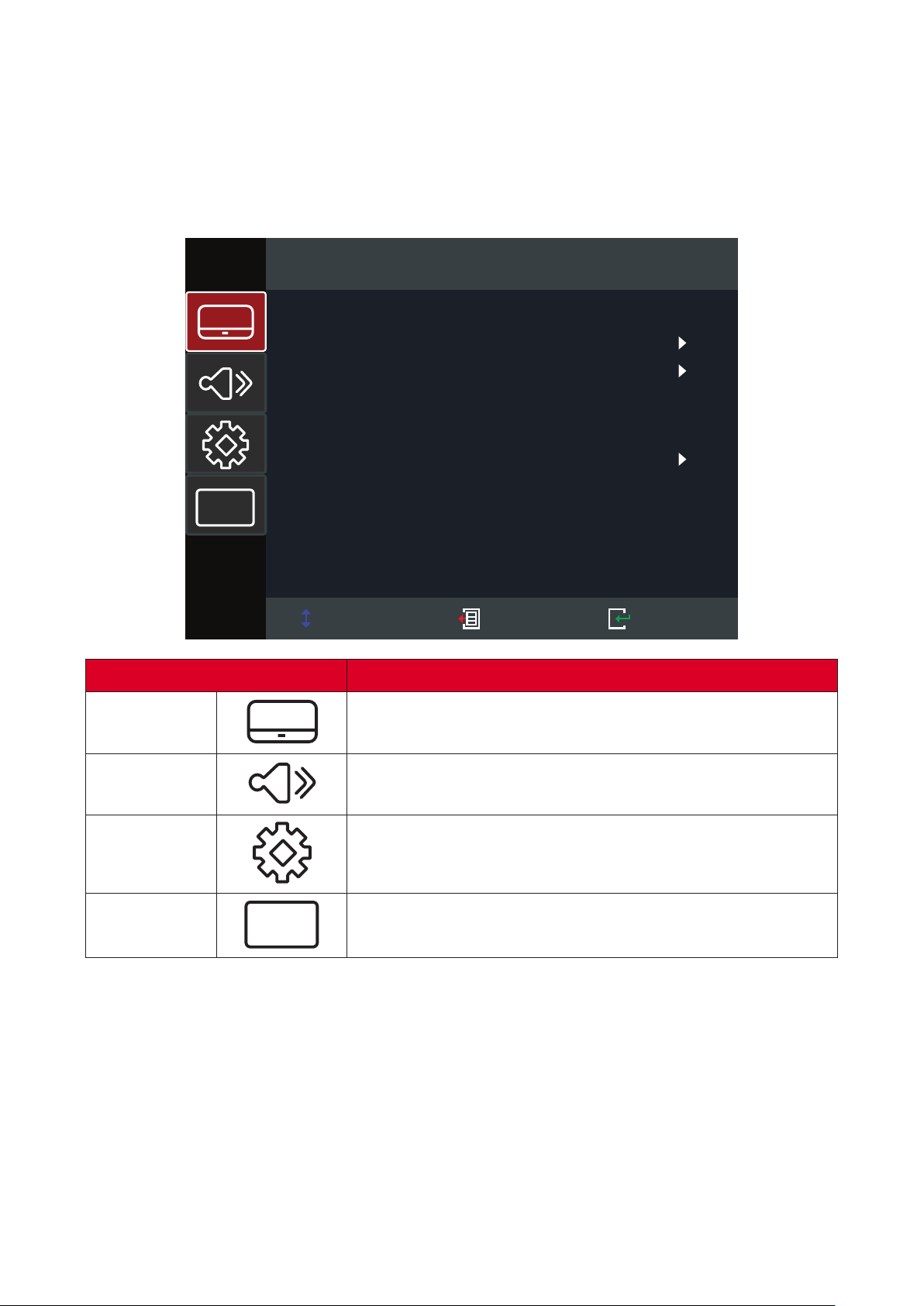

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings.

Display

Image Settings

Aspect Ratio

Zoom

Keystone

4:3

Menu Descrip⿿on

Display

Audio

Setup

Informa⿿on

Select Exit Enter

Adjust Image, 3D, Aspect Ratio, Zoom, and Keystone settings.

Adjust the volume level or mute.

Adjust Projection, Power, Security, Language, Input Source, etc. settings.

View projector information.

Page 35

Menu Naviga⿿on

The projector has multilingual on-screen display menus that allow for image and settings adjustment.

1. To open the On-Screen Display (OSD) Menu, press the Menu/Exit button on the projector or the remote control.

2. When the OSD is displayed, use the Naviga⿿on buttons (pq) to select any item in the main menu. While making a selection on a particular page, press the Enter button on the projector or the remote control to enter a sub-menu.

3. Use the Naviga⿿on buttons (tu) to select the desired item in the sub-menu and then press Enter to view further settings. Adjust the settings by using the Naviga⿿on buttons (tu).

4. Select the next item to be adjusted in the sub-menu and adjust as described above.

5. Press Enter to confirm, and the screen will return to the main menu.

6. To exit, press the Menu/Exit button again. The OSD menu will close and the

projector will automatically save the new settings.

Page 36

On-Screen Display (OSD) Menu Tree

Main Menu Sub-menu Menu Op⿿on

Presentation

Bright

Cinema

Display Mode

Gaming

User

Brightness (-/+, -50~50)

Contrast (-/+, -50~50)

Sharpness (-/+, 1~15)

Color (-/+, -50~50)

Tint (-/+, -50~50)

Film

Video

Gamma

Graphics

Display

Image Settings

Color Settings

Standard (2.2)

BrilliantColor™ (-/+, 1~10)

Warm

Color

Temperature

Color

Matching

Standard

Cold

Color

Hue / R (*) (-/+, -50~50)

Saturation /

G (*)

Red

Green

Blue

Cyan

Yellow

Magenta

White

(-/+, -50~50)

Gain / B (*) (-/+, -50~50)

Reset

Exit

Page 37

Main Menu Sub-menu Menu Op⿿on

Auto

RGB (0~255)

Color Settings Color Space

RGB (16~235)

YUV

Image Settings

Dynamic Black

Display

Brightness

Mode

Reset

3D Mode

3D Format

3D Sync Invert

4:3

16:9

Eco

Power

100%~50%

Off

Auto

SBS

Top and Bottom

Frame

Sequential

Off

Audio

Aspect Ratio

Zoom (-/+, -5~25)

Keystone

Mute

Volume (-/+, 0~10)

Full

L.BOX

Auto

Four Corners

H. Keystone (-/+, -30~30)

V. Keystone (-/+, -30~30)

Reset

Off

Top-Left

Top-Right

Bottom-Left

Bottom-Right

Page 38

Main Menu Sub-menu Menu Op⿿on

Desk Front

Desk Rear

Projection

Ceiling Front

Ceiling Rear

Setup

Power Settings

Security

Direct Power

Signal Power

Auto Power

Off

Security

Security Timer

Change

Password

Off

(-/+, 0~180)

minutes

Off

Month (-/+, 0~12)

Day (-/+, 0~30)

Hour (-/+, 0~24)

Page 39

Main Menu Sub-menu Menu Op⿿on

Off

HDMI CEC HDMI CEC

Off

Green Grid

Magenta Grid

Test Pattern Test Pattern

White Grid

White

Test Card

English

Deutsch

Français

Italiano

Español

Português

Setup

Options Language

Polski

Nederlands

Svenska

Norsk

Suomi

ελληνικά

繁體中文簡体中文

日本語 한국어

Русский

Čeština

عربي

ไทย

Türkçe

Tiếng Việt

Bahasa

Indonesia

Page 40

Main Menu Sub-menu Menu Op⿿on

Off

Auto Source

Off

High Altitude

Options

Setup

Keypad Lock

Logo

Off

Default

User

Informa⿿on

Reset

Serial Number

Source

Resolution

Refresh Rate

Display Mode

Light Source

Hours

Brightness

Mode

Firmware

Version

Reset to

Default

System

MCU

Page 41

Menu Opera⿿on

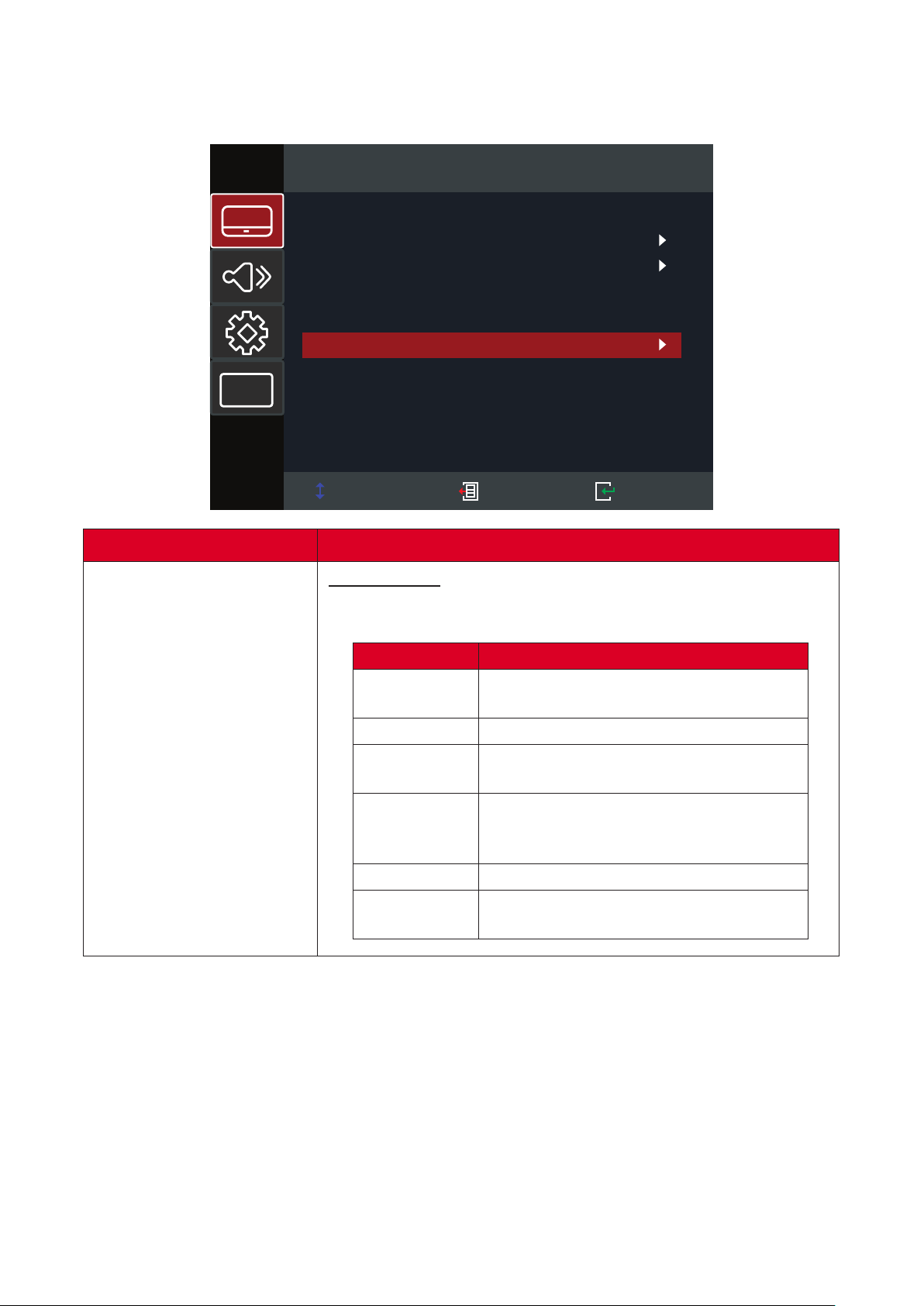

Display Menu

Display

Image Settings

Aspect Ratio

Zoom

Keystone

Select Exit Enter

4:3

Menu Descrip⿿on

Display Mode

There are several predefined display modes that you can choose from to suit your viewing preference.

Mode Descrip⿿on

Suitable for most presenting needs for business and education environments.

Provides the best balance of detail and colors for watching movies.

Optimizes your projector for maximum contrast and vivid colors allowing you to see shadow detail when playing games.

Optimized for 3D content.

NOTE: 3D glasses are needed.

Image Se俿ngs

Presenta⿿on

Bright Suitable for bright, well-lit environments.

Cinema

Gaming

User User’s custom settings.

Page 42

Menu Descrip⿿on

Brightness

The higher the value, the brighter the image. Lower values will result in a darker image.

Contrast

Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Sharpness

A high value results in a sharper picture; a low value softens the picture.

Image Se俿ngs

Color

Adjust an image from black and white to fully saturated color.

Tint

The higher the value, the more greenish the picture becomes. The lower the value, the more reddish the picture becomes.

Gamma

Reflects the relationship between input source and picture brightness.

Page 43

Menu Descrip⿿on

Color Settings

Se俿ng Descrip⿿on

A color-processing algorithm and

BrilliantColor™

enhancements to enable higher brightness while providing true, more vibrant colors in picture.

Image Se俿ngs

Color Temperature

Color Matching

Color Space

Select from Warm, Standard, or Cold.

Only in permanent installations with controlled lighting levels such as: boardrooms, lecture halls, or home theaters should Color Matching be considered.

Color Matching provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

If you have purchased a test disc, which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc., you can project any image from the disc on the screen and enter the Color Matching menu to make adjustments.

Select from Auto, RGB (0~255), RGB (16~235), and YUV color space.

Brightness Mode

Mode Descrip⿿on

Automatically adjust the picture

Dynamic Black

Eco

Power

brightness in order to give optimum contrast performance.

Dim the light output, lowering power consumption.

Select the power percentage (50%~100%) for brightness mode.

Reset

Return current display mode settings (Brightness, Contrast, Sharpness, Color, Tint, Gamma, Brilliant Color, Color Temperature, Color Matching, Color Space, Brightness Mode) to default values.

Page 44

Menu Descrip⿿on

3D Mode

Enable or disable the 3D function.

3D Format

Select the 3D content format.

NOTE: A Blu-ray 3D source will be detected

automatically, and options will not be selectable.

Op⿿on Descrip⿿on

Auto

SBS Display in Side-by-Side format.

Top and Bo㿿om Display in Top and Bottom format.

Frame Sequen⿿al Display in Frame Sequential format.

3D Sync Invert

Enable or disable the 3D Sync Invert function.

When a 3D identification signal is detected, the 3D format is selected automatically.

NOTE: This projector is a 3D ready projector with DLP-Link 3D solution. Please

make sure your 3D glasses are for DLP-Link 3D. This projector supports frame sequential (page-flip) 3D via the HDMI 1/HDMI 2 ports. For the best performance, 1920 x 1080 resolution is recommended. Please note that 4K (3840 x 2160) resolution is not supported in 3D mode.

Page 45

Menu Descrip⿿on

Select the aspect ratio of the projected image.

Aspect Ra⿿o Descrip⿿on

Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for

4:3

16:9

Aspect Ra⿿o

L.BOX

4:3 images like computer monitors, standard definition TV, and 4:3 aspect DVD movies, as it displays them without aspect alteration.

Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV.

For non-16:9 letterbox source and if you use an external 16:9 lens to display 2.35:1 aspect ratio in full resolution.

Zoom

Keystone

Full

Auto

Extend the image to fully fill the screen.

Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither 4:3 nor 16:9 and you want to make the most use of the screen without altering the image’s aspect ratio.

Reduce or magnify the projected image.

Op⿿on Descrip⿿on

Adjust each corner to make a square image when the projection surface is not level.

NOTE: While adjusting the Four

Four Corners

Corners, the Aspect Ratio, and Zoom menus will be disabled. To enable them, reset the Keystone settings to default.

H. Keystone Adjust image distortion horizontally.

V. Keystone Adjust image distortion vertically.

Reset

Return the Keystone settings to default.

Page 46

Audio Menu

Menu Descrip⿿on

Audio

Mute

Volume

Select Exit Enter

Mute

Volume

Temporarily turn off the sound.

Adjust the volume level.

Page 47

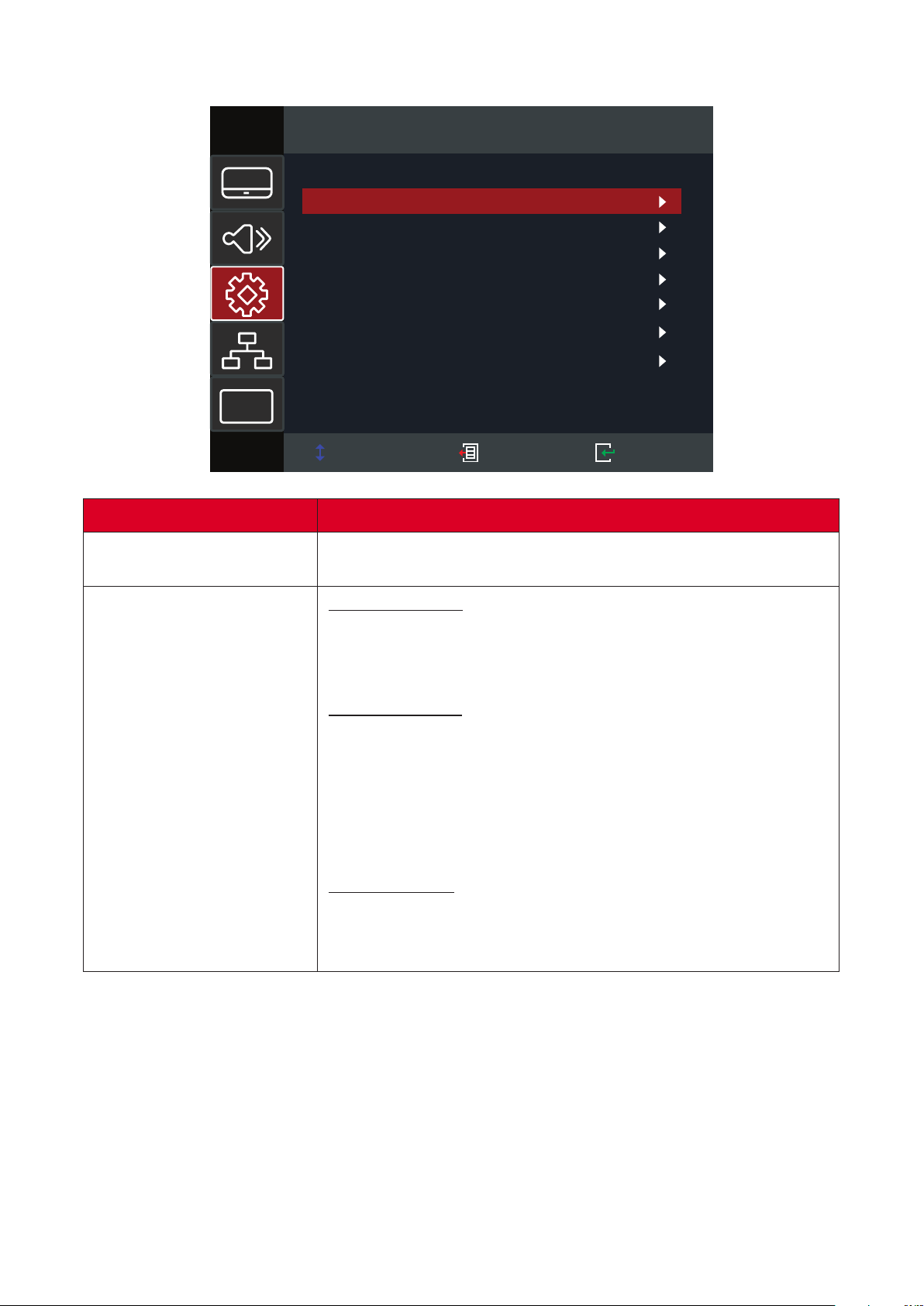

Setup Menu

Menu Descrip⿿on

Setup

Projection

Power Settings

Security

HDMI CEC

Test Pattern

Options

Reset

Select Exit Enter

Projec⿿on

Power Se俿ngs

Select the preferred projection location: Desk Front, Desk Rear, Ceiling Front, or Ceiling Rear.

Direct Power On

Automatically power on the projector when DC power is supplied, without pressing the Power button on the projector or the remote control.

Signal Power On

Automatically power on the projector when a signal is detected, without pressing the Power button on the projector or on the remote control.

NOTE: The projector will not power on automatically

by HDMI if there is one HDMI cable already connected.

Auto Power Off

A countdown timer will start when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Page 48

Menu Descrip⿿on

Security

Enable or disable a password prompt before using the projector.

NOTE: The default password is: 1234

Security Timer

Set the amount of time the projector can be used. Once

Security

this time has elapsed you will be requested to enter your password again.

Change Password

Set or modify the password.

NOTE: Please follow the OSD message to input the

current password first, then enter a new password (security code). Confirm the new password by entering the new password again.

When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI CEC control feature in the projector’s OSD. This lets one device or multiple devices in a group power on or power off via HDMI CEC in a typical configuration.

HDMI CEC

Test Pa㿿ern

NOTE:

• In order for the CEC function to work properly, make sure that the device is correctly connected to the HDMI input of the projector via an HDMI cable, and its CEC function is turned on.

• If both HDMI 1 and HDMI 2 ports are occupied, the CEC function will not be able to

detect the correct source.

• Depending on the connected device, the CEC function may not work.

Select the test pattern from green grid, magenta grid, white grid, white, test card or disable this function (off).

Page 49

Menu Descrip⿿on

Language

Select the On-Screen Display (OSD) Menu language.

Auto Source

Automatically find an available input source.

Op⿿on Descrip⿿on

Only search the current input

O�

selection. Press the Source button to display the list of sources.

Automatically finds an available input source. Press the Source button to automatically detect the next source.

NOTE: The scan order is: HDMI

1 > HDMI 2.

Op⿿ons

Reset

High Altitude

When On, the fans will spin faster for better cooling and performance. This is useful for high altitude environments where the air is thin.

Keypad Lock

Lock all keypad buttons, except for the Power key.

NOTE: To release keypad lock, press and hold the Enter

key on the projector for 5 seconds. You can also use the remote control and go to: Setup > Keypad Lock > O�.

Logo

Set the “startup screen”. If changes are made, they will take effect the next time the projector is powered on.

NOTE: Use the “splash tool” to change the startup

screen image.

Return the settings to default.

NOTE: When resetting, the following settings will still

remain: Language, Projection, High Altitude, Security Settings, Zoom, Keystone Settings.

Page 50

Informa⿿on Menu

View Serial Number, Source, Resolution, Refresh Rate, Display Mode, Light Source Hours, Brightness Mode, and Firmware Version information.

Information

Serial Number

Source

Resolution

Refresh Rate

Display Mode

Light Source Hours

Brightness Mode

FW Version

Select Exit Enter

0000123456789

HDMI

1080P

24Hz

None

99999 hr

Dynamic Black

Page 51

Appendix

Speci῿ca⿿ons

Item Category

Display Size 30”~300”

Speci῿ca⿿ons

LS740W V52HD

Type Laser

Projector

Input Signal

Resolution

Power

Operating

Conditions

Storage

Conditions

Dimensions

Throw Ratio

Lens F=2.43~2.78, f=16.901~21.6076 mm

Display System

HDMI (v. 1.4)

Native 1280 x 800 1920 x 1080

Input Voltage DC 100~240V, 50/60 Hz (auto switch)

Temperature 0°C to 40°C (32°F to 104°F)

Humidity 10% to 80% (non-condensing)

Altitude

1,520 to 3,660 m (5,000 to 12,000 ft.) at 0°C to 30°C (32°F to 86°F)

Temperature -20°C to 60°C (-4°F to 140°F)

Humidity 0% to 90% (non-condensing)

Altitude 0 to 12,100 m (0 to 40,000 ft.)

Physical

(W x H x D)

0 to 760 m (0 to 2,500 ft.) at 0°C to 40°C (32°F to 104°F)

760 to 1,520 m (2,500 to 5,000 ft.) at 0°C to 35°C (32°F to 95°F)

1.18~1.54

(100”@2.54 m)

1-CHIP DMD

: 15~102 kHz, fv:23~120 Hz, Pixel rate: 165 MHz

286 x 216 x 129 mm

(11.26” x 8.50” x 5.08”)

1.13~1.47

(100”@2.50 m)

Weight

Power

Consumption

¹ The test condition follows EEI standards.

Physical 3.00 kg (6.61 lbs)

On¹ 210W (Typical)

Off < 0.5W (Standby)

Page 52

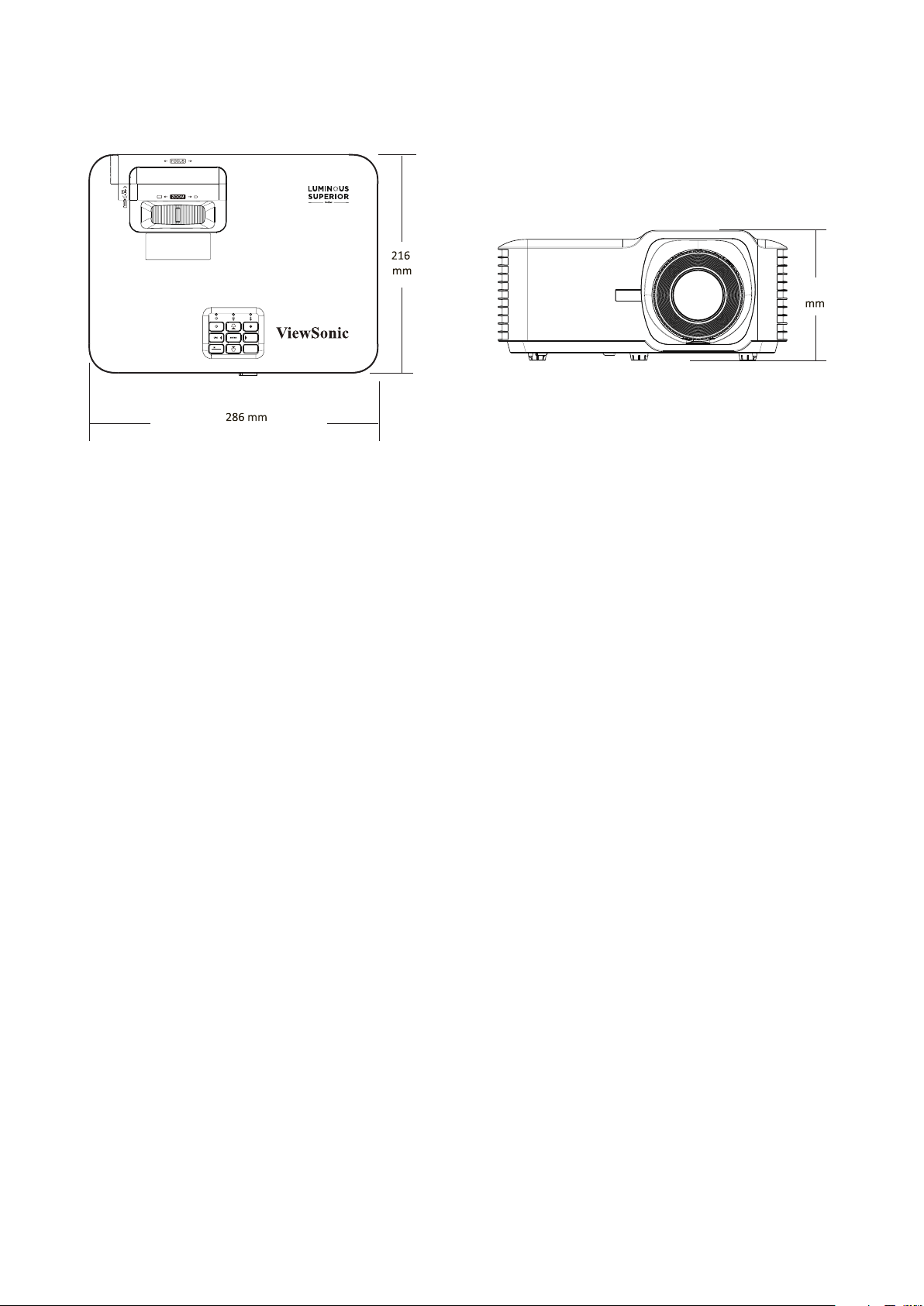

Projector Dimensions

286 mm (W) x 129 mm (H) x 216 mm (D)

SO E

AUTO

ENU EXIT

129

Page 53

Timing Chart

LS740W

HDMI Video Timing

Timing Resolu⿿on Refresh Rate (Hz)

SDTV

SDTV (480i)

SDTV (480p)

SDTV (576i)

SDTV (576p)

HDTV (720p)

HDTV (1080i)

HDTV (1080p)

HDMI PC Timing

Timing Resolu⿿on Refresh Rate (Hz)

VGA

SVGA

640 x 480 60 720 x 480 60 720 x 480 60 720 x 576 50 720 x 576 50

1280 x 720 50 / 60 1920 x 1080 50 / 60 1920 x 1080 24 / 50 / 60

640 x 480 60 / 67 / 72 / 75 720 x 400 70 800 x 600 56 / 60 / 72 / 75 832 x 624 75

XGA

WXGA

Quad-VGA

SXGA

WXGA+

WSXGA+

WUXGA

1080P MAC 13" MAC 19" MAC 21"

1024 x 768 60 / 70 / 75 1152 x 864 75 1280 x 800 60 1280 x 960 60

1280 x 1024 60 / 75

1440 x 900 60

1680 x 1050 60

1920 x 1200-RB2 59.95

1280 x 720 50 / 60 / 120

1920 x 1080 50 / 60

640 x 480 60 1024 x 768 75 1152 x 870 75

Page 54

3D Support Timing

Timing Resolu⿿on Refresh Rate (Hz)

HDMI 3D

Frame Packing Format

1080p

720p

1920 x 1080 24

1280 x 720 50 / 60

Side by Side Format

Timing Resolu⿿on Refresh Rate (Hz)

1080i

1920 x 1080 50 / 60

Top and Bo㿿om Format

Timing Resolu⿿on Refresh Rate (Hz)

1080p

1920 x 1080 24

Page 55

V52HD

HDMI Video Timing

Timing Resolu⿿on Refresh Rate (Hz)

SDTV

SDTV (480i)

SDTV (480p)

SDTV (576i)

SDTV (576p)

HDTV (720p)

HDTV (1080i)

HDTV (1080p)

HDMI PC Timing

Timing Resolu⿿on Refresh Rate (Hz)

VGA

SVGA

640 x 480 60

720 x 480 60

720 x 576 50

720 x 576 50 1280 x 720 50 / 60

1920 x 1080 50 / 60 1920 x 1080 24 / 50 / 60

640 x 480 60 / 67 / 72 / 75

720 x 400 70

800 x 600 56 / 60 / 72 / 75

832 x 624 75

XGA

Quad-VGA

SXGA

WXGA+

WSXGA+

WUXGA

1080P MAC 13" MAC 19" MAC 21"

1024 x 768 60 / 70 / 75 1152 x 864 75 1280 x 960 60

1280 x 1024 60 / 75

1440 x 900 60

1680 x 1050 60

1920 x 1200-RB2 59.95

1280 x 720 50 / 60 / 120

1920 x 1080 50 / 60

640 x 480 60 1024 x 768 75 1152 x 870 75

Page 56

3D Support Timing

Timing Resolu⿿on Refresh Rate (Hz)

HDMI 3D

Frame Packing Format

1080p

720p

1920 x 1080 24

1280 x 720 50 / 60

Side by Side Format

Timing Resolu⿿on Refresh Rate (Hz)

1080i

1920 x 1080 50 / 60

Top and Bo㿿om Format

Timing Resolu⿿on Refresh Rate (Hz)

1080p

1920 x 1080 24

Page 57

Troubleshoo⿿ng

This section describes some common problems that you may experience when using the projector.

Problem or Issue Possible Solu⿿ons

• Ensure the power cord is properly attached to the projector and to the power outlet.

• If the cooling process has not completed, please

The projector does not turn on

There is no picture

The image is blurred

wait until it has finished then try to turn on the projector again.

• If the above does not work, try another power outlet or another electrical device with the same power outlet.

• Ensure the video source cable is connected properly, and that the video source is turned on.

• If the input source is not selected automatically, select the correct source with the “Source Input” on either the projector or the remote control.

• Adjusting focus with the Focus Switch will help correctly focus the projection lens.

• Ensure the projector and screen are aligned properly. If necessary, adjust the height of the projector as well as the projection angle and direction.

The image is reversed

The image is stretched when projecting a 16:9 DVD

The remote control does not work

• Open the OSD Menu and go to: Setup > Projec⿿on and adjust the projection option.

• When you play an anamorphic DVD or 16:9 DVD, the projector will show the best image in 16:9.

• If you play a 4:3 format DVD title, please change the format as 4:3 in projector OSD Menu.

• Please setup the display format as 16:9 (wide) aspect ratio on the DVD player.

• Ensure there are no obstacles between the remote control and projector; and that they are within range, 8m (26 ft).

• The batteries may be out of power, please check and replace if necessary.

Page 58

Problem or Issue Possible Solu⿿ons

The projector stops responding to all controls

• Turn off the projector and unplug the power cord. Wait at least 20 seconds then reconnect and try again.

Page 59

LED Indicators

When the warning indicators (see below) light up or flash, the projector will automatically shutdown. Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicators light up or flash, please contact your nearest service center for assistance.

Status and

Descrip⿿on

Standby State

(Power cord

input)

Power On

(Warming)

Power On and

Lamp Ligh⿿ng

Power O�

(Cooling)

Temperature

Power Indicator Light

Indicator

Light

Red Blue Red Red

Steady Light

Flashing

(0.5 sec off/0.5

sec on)

Steady Light

Flashing

(0.5 sec off/0.5

sec on)

Back to red

steady light

when the

cooling fan

turns off.

Light Source

Indicator

Light

Error

(Lamp failure)

Error

(Fan failure)

Error

(Overheat)

Steady Light

Flashing

Steady Light

Page 60

Maintenance

General Precau⿿ons

• Make sure the projector is turned off and the power cable is unplugged from the power outlet.

• Never remove any parts from the projector. Contact ViewSonic® or a reseller when any part of the projector needs replacing.

• Never spray or pour any liquid directly onto the case.

• Handle the projector with care, as a darker-colored projector, if scuffed, may show marks more clearly than a lighter-colored projector.

Cleaning the Lens

• Use a canister of compressed air to remove dust.

• If the lens is still not clean, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the surface.

CAUTION: Never rub the lens with abrasive materials.

Cleaning the Case

• Use a soft, lint-free, dry cloth to remove dirt or dust.

• If the case is still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non-abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.

CAUTION: Never use wax, alcohol, benzene, thinner, or other chemical

detergents.

Storing the Projector

If you intend to store the projector for an extended period of time:

• Ensure the temperature and humidity of the storage area are within the recommend range.

• Retract the adjuster foot completely.

• Remove the batteries from the remote control.

• Pack the projector in its original packaging or equivalent.

Disclaimer

• ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector.

• ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

Page 61

Regulatory and Service Informa⿿on

Compliance Informa⿿on

This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme NMB-003 du Canada.

CAN ICES-003(B) / NMB-003(B)

Page 62

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Ecodesign Directive 2009/125/EC.

The following informa⿿on is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

Page 63

Declara⿿on of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Lead (Pb) 0.1% < 0.1% Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01% Hexavalent Chromium (Cr6⁺) 0.1% < 0.1% Polybrominated biphenyls (PBB) 0.1% < 0.1% Polybrominated diphenyl ethers

(PBDE) Bis (2-ethylhexyl) phthalate

(DEHP) Butyl benzyl phthalate (BBP) 0.1% < 0.1% Dibutyl phthalate (DBP) 0.1% < 0.1% Diisobutyl phthalate (DIBP) 0.1% < 0.1%

Proposed Maximum

Concentra⿿on

0.1% < 0.1%

Actual Concentra⿿on

Certain components of products as stated above are exempted under the Annex

III of the RoHS2 Direc⿿ves as noted below. Examples of exempted components

are:

• Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

 Short length (500 mm): maximum 3.5 mg per lamp.  Medium length (> 500 mm and 1,500 mm): maximum 5 mg per lamp.  Long length (> 1,500 mm): maximum 13 mg per lamp.

• Lead in glass of cathode ray tubes.

• Lead in glass of fluorescent tubes not exceeding 0.2% by weight.

• Lead as an alloying element in aluminum containing up to 0.4% lead by weight.

• Copper alloy containing up to 4% lead by weight.

• Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).

• Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Page 64

Indian Restric⿿on of Hazardous Substances

Restriction on Hazardous Substances statement (India). This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Product Disposal at End of Product Life

ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic® website to learn more.

USA & Canada:

https://www.viewsonic.com/us/go-green-with-viewsonic

Europe:

https://www.viewsonic.com/eu/go-green-with-viewsonic

Taiwan:

https://recycle.moenv.gov.tw/

For EU users, please contact us for any safety/accident issue experienced with this product:

ViewSonic Europe Limited Haaksbergweg 75 1101 BR Amsterdam Netherlands

+31 (0) 650608655

[email protected]

https://www.viewsonic.com/eu/

Page 65

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo are registered trademarks of ViewSonic® Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS, DisplayPort, and DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic® Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic® Corporation.

LS740W_V52HD_UG_ENG_1b_20240329

Page 66

Customer Service

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product’s serial number.

Country/ Region Website Country/ Region Website

Asia Paci῿c & Africa

Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/

中国 (China)

Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/

Indonesia www.viewsonic.com/id/ Israel www.viewsonic.com/il/

日本 (Japan)

Malaysia www.viewsonic.com/my/ Middle East www.viewsonic.com/me/

Myanmar www.viewsonic.com/mm/ Nepal www.viewsonic.com/np/

New Zealand www.viewsonic.com/nz/ Pakistan www.viewsonic.com/pk/

Philippines www.viewsonic.com/ph/ Singapore www.viewsonic.com/sg/

臺灣 (Taiwan)

Việt Nam

www.viewsonic.com.cn

www.viewsonic.com/jp/ Korea www.viewsonic.com/kr/

www.viewsonic.com/tw/

www.viewsonic.com/vn/ South Africa & Mauritius www.viewsonic.com/za/

香港 (繁體中文)

ประเทศไทย

www.viewsonic.com/hk/

www.viewsonic.com/th/

Americas

United States www.viewsonic.com/us Canada www.viewsonic.com/us

Latin America www.viewsonic.com/la

Europe

Europe www.viewsonic.com/eu/ France www.viewsonic.com/fr/

Deutschland www.viewsonic.com/de/ Қазақстан www.viewsonic.com/kz/

Россия www.viewsonic.com/ru/ España www.viewsonic.com/es/

Türkiye www.viewsonic.com/tr/ Україна www.viewsonic.com/ua/

United Kingdom www.viewsonic.com/uk/

Page 67

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic® warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty:

Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic® office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

Page 68

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified, or

removed.

2. Damage, deterioration, or malfunction resulting from:  Accident, misuse, neglect, fire, water, lightning, or other acts of nature,

unauthorized product modification, or failure to follow instructions supplied

with the product.  Operation outside of product specifications.  Operation of the product for other than the normal intended use or not

under normal conditions.  Repair or attempted repair by anyone not authorized by ViewSonic®.  Any damage of the product due to shipment.  Removal or installation of the product.  Causes external to the product, such as electric power fluctuations or

failure.  Use of supplies or parts not meeting Viewsonic’s specifications.  Normal wear and tear.  Any other cause which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic®

Customer Support (Please refer to the “Customer Support” page). You will need to provide your product’s serial number.

2. To obtain warranted service, you will be required to provide: (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®.

4. For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®.

Limita⿿on of implied warran⿿es:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Page 69

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

E�ect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from local authority. Some local governments do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic® products sold outside of the U.S.A. and Canada, contact ViewSonic® or your local ViewSonic® dealer.

The warranty period for this product in mainland China (Hong Kong, Macao, and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found at:

http://www.viewsonic.com/eu/ under “Support/Warranty Information”.

Projector Warranty Term Template In UG

VSC_TEMP_2005

Page 70

Mexico Limited Warranty

ViewSonic® Projector

What the warranty covers:

How long the warranty is e�ec⿿ve:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only.

All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty excludes and does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration, or malfunction resulting from:

 Accident, misuse, neglect, fire, water, lightning, or other acts of nature,

unauthorized product modification, unauthorized attempted repair, or

failure to follow instructions supplied with the product.  Any damage of the product due to shipment.  Causes external to the product, such as electrical power fluctuations or

failure.  Use of supplies or parts not meeting ViewSonic®’s specifications.  Normal wear and tear.  Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

4. Removal, installation, insurance, and set-up service charges.

Page 71

How to get service:

For information about receiving service under warranty, contact ViewSonic® Customer Support (Please refer to the attached “Customer Service” page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

For Your Records

Product Name: Model Number:

Document Number: Serial Number:

Purchase Date: Extended Warranty Purchase? (Y/N)

If so, what date does warranty expire?

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

2. Take or ship the product, in the original container packaging, to an authorized ViewSonic® service center.

3. Round trip transportation costs for in-warranty products will be paid by ViewSonic®.

Limita⿿on of implied warran⿿es:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for:

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic®.

Page 72

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:

México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

Hermosillo:

Distribuciones y Servicios Computacionales SA de CV. Calle Juarez 284 local 2 Col. Bugambilias C.P: 83140 Tel: 01-66-22-14-9005 E-Mail: [email protected]

Puebla, Pue. (Matriz):

RENTA Y DATOS, S.A. DE C.V. Domicilio: 29 SUR 721 COL. LA PAZ 72160 PUEBLA, PUE. Tel: 01(52).222.891.55.77 CON 10 LINEAS E-Mail: [email protected]

Chihuahua:

Soluciones Globales en Computación C. Magisterio # 3321 Col. Magisterial Chihuahua, Chih. Tel: 4136954 E-Mail: [email protected]

Distrito Federal:

QPLUS, S.A. de C.V. Av. Coyoacán 931 Col. Del Valle 03100, México, D.F. Tel: 01(52)55-50-00-27-35 E-Mail : [email protected]

Villahermosa:

Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: [email protected]

Veracruz, Ver.:

CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419 ENTRE PINZÓN Y ALVARADO Fracc. Reforma C.P. 91919 Tel: 01-22-91-00-31-67 E-Mail: [email protected]

Cuernavaca:

Compusupport de Cuernavaca SA de CV Francisco Leyva # 178 Col. Miguel Hidalgo C.P. 62040, Cuernavaca Morelos Tel: 01 777 3180579 / 01 777 3124014 E-Mail: [email protected]

Guadalajara, Jal.:

SERVICRECE, S.A. de C.V. Av. Niños Héroes # 2281 Col. Arcos Sur, Sector Juárez 44170, Guadalajara, Jalisco Tel: 01(52)33-36-15-15-43 E-Mail: [email protected]

Guerrero Acapulco:

GS Computación (Grupo Sesicomp) Progreso #6-A, Colo Centro 39300 Acapulco, Guerrero Tel: 744-48-32627

MERIDA:

ELECTROSER Av Reforma No. 403Gx39 y 41 Mérida, Yucatán, México CP97000 Tel: (52) 999-925-1916 E-Mail: [email protected]

Tijuana:

STD Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembr Tijuana, Mexico

Projector Mexico Warranty Term Template In UG VSC_TEMP_2006

Monterrey:

Global Product Services Mar Caribe # 1987, Esquina con Golfo Pérsico Fracc. Bernardo Reyes, CP 64280 Monterrey N.L. México Tel: 8129-5103 E-Mail: [email protected]

Oaxaca, Oax.:

CENTRO DE DISTRIBUCION Y SERVICIO, S.A. de C.V. Murguía # 708 P.A., Col. Centro, 68000, Oaxaca Tel: 01(52)95-15-15-22-22 Fax: 01(52)95-15-13-67-00 E-Mail. [email protected]

FOR USA SUPPORT:

ViewSonic® Corporation 381 Brea Canyon Road, Walnut, CA. 91789 USA Tel: 800-688-6688 E-Mail: http://www.viewsonic.com

Page 73
