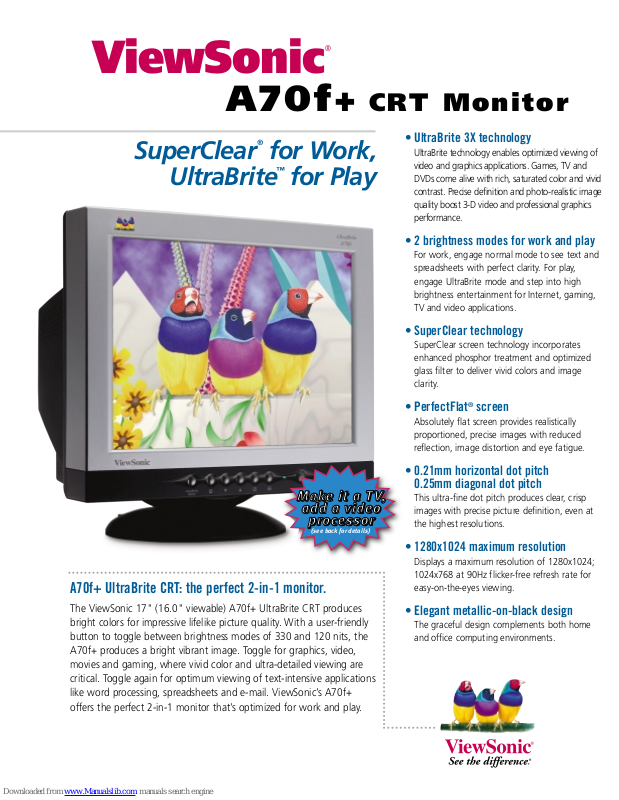

ViewSonic UltraBrite A70f+, A70f Specifications

A70f+ CRT Monitor

ViewSonic

®

A70f+ UltraBrite CRT: the perfect 2-in-1 monitor.

The ViewSonic 17" (16.0" viewable) A70f+ UltraBrite CRT produces
bright colors for impressive lifelike picture quality. With a user-friendly
button to toggle between brightness modes of 330 and 120 nits, the
A70f+ produces a bright vibrant image. Toggle for graphics, video,
movies and gaming, where vivid color and ultra-detailed viewing are
critical. Toggle again for optimum viewing of text-intensive applications
like word processing, spreadsheets and e-mail. ViewSonic’s A70f+
offers the perfect 2-in-1 monitor that’s optimized for work and play.

• UltraBrite 3X technology

UltraBrite technology enables optimized viewing of
video and graphics applications. Games, TV and
DVDs come alive with rich, saturated color and vivid
contrast. Precise definition and photo-realistic image
quality boost 3-D video and professional graphics
performance.

• 2 brightness modes for work and play

For work, engage normal mode to see text and
spreadsheets with perfect clarity. For play,
engage UltraBrite mode and step into high
brightness entertainment for Internet, gaming,
TV and video applications.

• SuperClear technology

SuperClear screen technology incorporates
enhanced phosphor treatment and optimized
glass filter to deliver vivid colors and image
clarity.

• PerfectFlat®screen

Absolutely flat screen provides realistically
proportioned, precise images with reduced
reflection, image distortion and eye fatigue.

• 0.21mm horizontal dot pitch

0.25mm diagonal dot pitch

This ultra-fine dot pitch produces clear, crisp
images with precise picture definition, even at
the highest resolutions.

• 1280x1024 maximum resolution

Displays a maximum resolution of 1280x1024;
1024x768 at 90Hz flicker-free refresh rate for
easy-on-the-eyes viewing.

• Elegant metallic-on-black design

The graceful design complements both home
and office computing environments.

MMMMaaaakkkkeeee iiiitttt aaaa TTTTVVVV,,

,,

aaaadddddddd aaaa vvvviiiiddddeeeeoo

oo

pppprrrroooocccceeeessssssssoooorr

rr

(see back for details)

SuperClear®for Work,

UltraBrite™for Play

AAAAdddddddd

TTTTVVVV!!

!!

ViewSonic

®

A70f+ CRT Monitor

*Sold separately **Adapter may be required. Analog adapter available from ViewSonic. Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate
names, trademarks stated herein are the property of their respective companies. Copyright © 2003 ViewSonic Corporation. All rights reserved. [10701-01B-03/03]

17.0" (16.0" VIEWABLE) PERFECTFLAT®ULTRABRITE™CRT COLOR MONITOR

CRT Type 17" (16.0" viewable), CRT 90º deflection

Dot Pitch 0.21mm horizontal, 0.13mm vertical, 0.25mm diagonal
Phosphor RGB P22 medium/short persistence
Glass Surface Anti-static, anti-glare,Tint:TM ~ 50%
Case Color Metallic-on-black

INPUT SIGNAL

Video RGB Analog (75 ohms, 0.7/1.0Vp-p)
Sync H/V separated (TTL), composite
Frequency fh: 30~72kHz, fv: 50~150Hz

COMPATIBILITY

PC IBM compatible from VGA up to 1280x1024
Mac®** Power Mac up to 1024x768

RESOLUTION

Maximum 1280x1024 @ 67Hz

1024x768 @ 90Hz
800x600 @ 112Hz

CONNECTOR Signal 15-pin mini D-sub (high density)

Power 3-pin plug (IEC320)

POWER Voltage AC 90–264VAC (auto switch) 50–60 (+/-3) Hz

Consumption 75W (typ)

CONTROLS Basic Power on/off, key-1, up, down, key-2

OnView

®

Contrast, brightness, degauss, H. size/position, V. size/
position, pincushion, pinbalance, trapezoid,
parallelogram, tilt, moiré reduction, ViewMatch®(9300,
6500, 5000, user), language, ViewMeter®, OSD position,

zoom, and memory recall.
VIDEO INPUT Bandwidth 120MHz
MISCONVERGENCE 0.25mm (max) at center

0.35mm (max) at corner of standard display area

DISPLAY AREA Factory Setting 310mm (H) x 230mm (V)

Maximum Scan 325mm (H) x 243mm(V) (Dependent on timing signal)

OPERATING Temperature 32°F–104°F (0°C–40°C)
CONDITIONS Humidity 5%–95% (non-condensing)

DIMENSIONS Physical 404mm x 406mm x 425mm
(W x H x D) 15.9" x 16.0" x 16.7"

WEIGHT Net 35.9 lbs. (16.3 kgs.)

Gross 42.1 lbs. (19.1 kgs.)
REGULATIONS ULcUL, FCC-B, DHHS, ICES-003, ENERGY STAR®, CB,MPR II
POWER MANAGEMENT Meets ENERGY STAR®and MPR II standards
WARRANTY One-year limited warranty on CRT, parts and labor.

U.S.only, (3) three years outside of U.S.

• Add the entertainment accessory,
a ViewSonic video processor.*

• Watch high resolution TV

• Play Xbox, PS2, GameCube games in

UltraBrite color

• Experience full-screen DVD/VHS movies in

UltraBrite resolution

• OnView®controls including
ViewMatch®feature

Image adjustments are made via the OnView
menu using simple on-screen controls.
ViewMatch feature allows easy adjustment to
color temperature and intensity for optimal
screen-to-print color matching.

• OSD lock function

When activated, user-controlled OSD lock
function prevents changes to monitor settings,
maintaining an optimized image.

• Anti-static, anti-glare screen

This treatment cuts reflection and glare while
maintaining the highest image quality.

•

• PC and Mac®compatible

• One-year limited warranty

U.S. only, (3) years outside of U.S.
