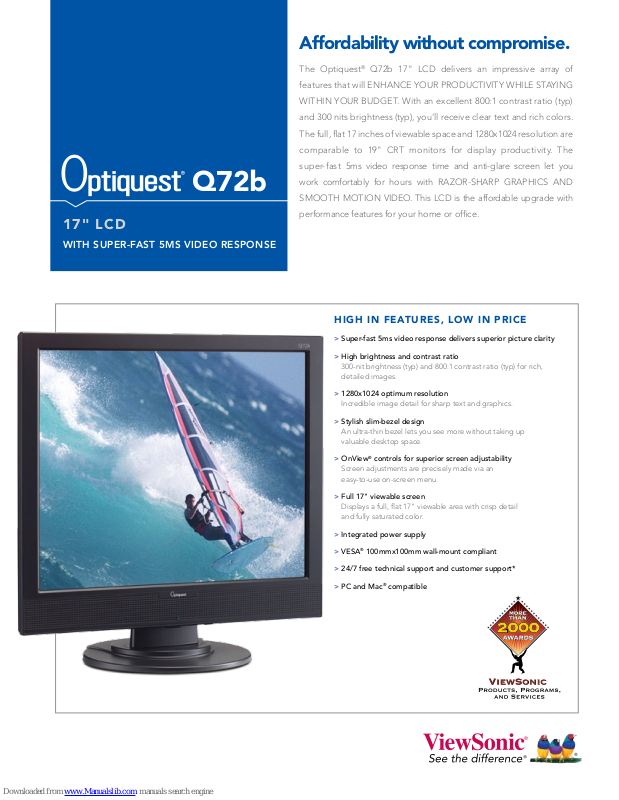

ViewSonic Q72B - Optiquest - 17"" LCD Monitor Specification

Q72b

17" LCD

WITH SUPER-FAST 5MS VIDEO RESPONSE

Affordability without compromise.

The Optiquest® Q72b 17" LCD delivers an impressive array of

features that will ENHANCE YOUR PRODUCTIVITY WHILE STAYING

WITHIN YOUR BUDGET. With an excellent 800:1 contrast ratio (typ)

and 300 nits brightness (typ), you’ll receive clear text and rich colors.

The full, flat 17 inches of viewable space and 1280x1024 resolution are

comparable to 19" CRT monitors for display productivity. The

super-fast 5ms video response time and anti-glare screen let you

work comfortably for hours with RAZOR-SHARP GRAPHICS AND

SMOOTH MOTION VIDEO. This LCD is the affordable upgrade with

performance features for your home or office.

HIGH I N FEATURES, LOW IN PRICE

Super-fast 5ms video response delivers superior picture clarity

>

High brightness and contrast ratio

>

300-nit brightness (typ) and 800:1 contrast ratio (typ) for rich,
detailed images.

1280x1024 optimum resolution

>

Incredible image detail for sharp text and graphics.

Stylish slim-bezel design

>

An ultra-thin bezel lets you see more without taking up
valuable desktop space.

OnView® controls for superior screen adjustability

>

Screen adjustments are precisely made via an
easy-to-use on-screen menu.

Full 17" viewable screen

>

Displays a full, flat 17" viewable area with crisp detail
and fully saturated color.

Integrated power supply

>

VESA® 100mmx100mm wall-mount compliant

>

24/7 free technical support and customer support*

>

PC and Mac® compatible

>

Q72b

1 7 " L C D W I T H S U P E R - F A S T 5 M S V I D E O R E S P O N S E

LCD Type 17" color TFT active matrix LCD

Display Area 13.3" horizontal x 10.6" vertical; 17.0" diagonal
Optimum Resolution 1280x1024
Contrast Ratio 800:1 (typ)
Viewing Angles 160º horizontal, 160º vertical
Response Time 5ms (typ)
Light Source Long life, 50,000 hrs. (typ)
Brightness 300 cd/m
Panel Surface Anti-glare

VIDEO INPUT Analog RGB analog (75 ohms, 0.7 Vp-p)

Frequency F
Sync H/V separated (TTL)

COMPATIBILITY PC VGA up to 1280x1024 non-interlaced

Mac

CONNECTOR Analog 15-pin mini D-sub

Power 3-pin AC plug (CEE22)

POWER Voltage AC 100–240V (universal), 50–60Hz (auto switch)

Consumption 36W (typ)

CONTROLS Basic Power, menu, – , +

OnView
adjust (cool, neutral warm, black level adjust (R, G, B),
user color), H. position, V. position, language, phase,
clock, recall, volume, OSD H. position, OSD V. postion

ERGONOMICS Tilt –5º/+20º
OPERATING Temperature 41–104ºF (5–40ºC)
CONDITIONS Humidity 20–85% (non-condensing)
DIMENSIONS Physical with stand 15.1" x 15.3" x 8.0" (383mm x 389mm x 203mm)
(W x H x D) Physical without stand 16.0" x 11.0" x 2.26" (383mm x 342mm x 58mm)
WEIGHT Net with stand 8.8 lb. (4.0 kg)

Net without stand 8.1 lb. (3.7 kg)
Gross with stand 12.1 lb. (5.5 kg)

REGULATIONS UL, cUL, FCC-B, NOM, , ENERGY STAR®, CE, CB, TUV-S,

CSA, RoHS, MPR II

RECYCLE/DISPOSAL The lamp in this product contains mercury. Please

dispose of in accordance with local, state or federal laws.

POWER MANAGEMENT ENERGY STAR® standards
PACKAGE CONTENTS LCD display, power cable, video cable, User Guide
WARRANTY

®

** G3/G4/G5 up to 1280x1024

®

Auto setup, brightness, contrast, ViewMatch® color

One-year limited warrranty on parts, labor and backlight

2

(typ)

: 30~81kHz, Fv: 56~75Hz

h

ViewSonic Corporation’s QMS & EMS have been
registered to ISO 9001 & ISO 14001, respectively,

by the British Standards Institution.
