ViewSonic Pro10 Series VS15149, Pro10 Series VS15541, Pro10 Series User Manual
Pro10 Series
Professional DLP® Projector
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for
future service. Warranty information contained in this User Guide will describe your
limited coverage from ViewSonic Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional
selection box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”
Model No. VS15149/VS15541
i
FCC Statement
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
Warning: You are cautioned that changes or modications not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.
For Canada
CAN ICES-3(A)/NMB-3(A)
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EC.
Warning -
- This product must not be used in residential areas.
- This product may cause interference if used in residential areas.
Such use must be avoided unless the user takes special measures to reduce
electromagnetic emissions to prevent interference to the reception of radio and
television broadcasts.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive
2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent
or discarded batteries or accumulators as unsorted municipal waste, but use the return
and collection systems available.
If the batteries, accumulators and button cells included with this equipment, display
the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal
content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than
0.004% Lead.
Compliance Information
ii
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean with a soft, dry cloth.
7. Do not block any ventilation openings. Install the unit in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade and the third prong are provided for your safety. If
the provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs. Convenience
receptacles and the point where they exit from the unit. Be sure that the power outlet is
located near the unit so that it is easily accessible.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the unit. When a cart is used, use caution when
moving the cart/unit combination to avoid injury from tipping over.
13. Unplug this unit when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the unit has
been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid
is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the
unit does not operate normally or has been dropped.
iii
Declaration of RoHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/
EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to
comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
Substance
Proposed Maximum
Concentration
Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex III of the
RoHS2 Directives as noted below:
Examples of exempted components are:
1. Mercury in cold cathode uorescent lamps and external electrode uorescent lamps
(CCFL and EEFL) for special purposes not exceeding (per lamp):
(1) Short length (≦500 mm): maximum 3.5 mg per lamp.
(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.
(3) Long length (＞1,500 mm): maximum 13 mg per lamp.
2. Lead in glass of cathode ray tubes.
3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.
4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.
5. Copper alloy containing up to 4% lead by weight.
6. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85%
by weight or more lead).
7. Electrical and electronic components containing lead in a glass or ceramic other than
dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic
matrix compound.
iv
Copyright Information
Copyright © ViewSonic® Corporation, 2013. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks
of ViewSonic Corporation.
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and
DDC are trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omis-
sions contained herein; nor for incidental or consequential damages resulting from furnishing
this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
Product Registration
To fulll possible future product needs, and to receive additional product information as it
becomes available, please visit your region section on ViewSonic’s website to register your
product online.
The ViewSonic CD also provides an opportunity for you to print the product registration form.
Upon completion, please mail or fax to a respective ViewSonic ofce. To nd your registration
form, use the directory “:\CD\Registration”. Registering your product will best prepare you for
future customer service needs.
Please print this user guide and ll the information in the “For Your Records” section.
For additional information, please see the “Customer Support” section in this guide.
For Your Records
Product Name: Pro10 Series
ViewSonic Professional DLP® Projector
Model Number: VS15149/VS15541
Document Number: Pro10 Series_UG_ENG Rev. 1A 05-06-13
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Product disposal at end of product life
The lamp in this product contains mercury which can be dangerous to you and the environment.
Please use care and dispose of in accordance with local, state or federal laws.
ViewSonic respects the environment and is committed to working and living green. Thank you
for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
v
Notes on the AC Power Cord
AC Power Cord must meet the requirement of countries where you use this projector. Please
conrm your AC plug type with the graphics below and ensure that the proper AC Power Cord
is used. If the supplied AC Power Cord does not match your AC outlet, please contact your
sales dealer. This projector is equipped with a grounding type AC line plug. Please ensure
that your outlet ts the plug. Do not defeat the safety purpose of this grounding type plug. We
highly recommend using a video source device also equipped with a grounding type AC line
plug to prevent signal interference due to voltage uctuations.
Ground Ground
GroundGround
For Australia and Mainland China For the U.S.A and Canada
For Continental Europe For the U.K.
vi
Please follow all warnings, precautions and maintenance as
recommended in this user’s guide.
▀■ Warning-
Do not look into the projector’s lens when the lamp is on. The
bright light may hurt your eyes.
▀■ Warning-
To reduce the risk of re or electric shock, do not expose this
projector to rain or moisture.
▀■ Warning-
Please do not open or disassemble the projector as this may
cause electric shock.
▀■ Warning-
When replacing the lamp, please allow the unit to cool down.
Follow instructions as described on pages 65-66.
▀■ Warning-
This projector will detect the life of the lamp itself. Please be
sure to change the lamp when it shows warning messages.
▀■ Warning-
Reset the “Lamp Reset” function from the on-screen display
“OPTIONS | Lamp Settings” menu after replacing the lamp
module (refer to page 56).
▀■ Warning-
When switching the projector off, please ensure the cooling
cycle has been completed before disconnecting power. Allow
60 seconds for the projector to cool down.
▀■ Warning-
Do not use lens cap when projector is in operation.
▀■ Warning-
When the lamp is approaching the end of its lifetime, the
message “Lamp Warning: Lamp life exceeded.” will show
on the screen. Please contact your local reseller or service
center to change the lamp as soon as possible.
▀■ Warning-
Do not look into or point the laser pointer on your remote
control into your or someone’s eyes. Laser pointer can cause
permanent damage to eyesight.
▀■ Warning-
Do not transport the projector with any lens installed.
Precautions
vii
Do:
y Turn off and unplug the power plug from the AC outlet before cleaning the
product.
y Use a soft dry cloth with mild detergent to clean the display housing.
y Disconnect the power plug from AC outlet if the product is not being used for a
long period of time.
Do not:
y Block the slots and openings on the unit provided for ventilation.
y Use abrasive cleaners, waxes or solvents to clean the unit.
y Use under the following conditions:
- In extremely hot, cold or humid environments.
` Ensure that the ambient room temperature is within 5°C ~ 40°C
` Relative humidity is 10% ~ 85%
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
8
Table of Contents
SCREEN | PIP / POP ....................... 40
SETTING ......................................... 41
SETTING | Lens Function ................ 42
SETTING | Security ......................... 43
SETTING | Signal (RGB) ................. 44
SETTING | Signal (Video) ................ 45

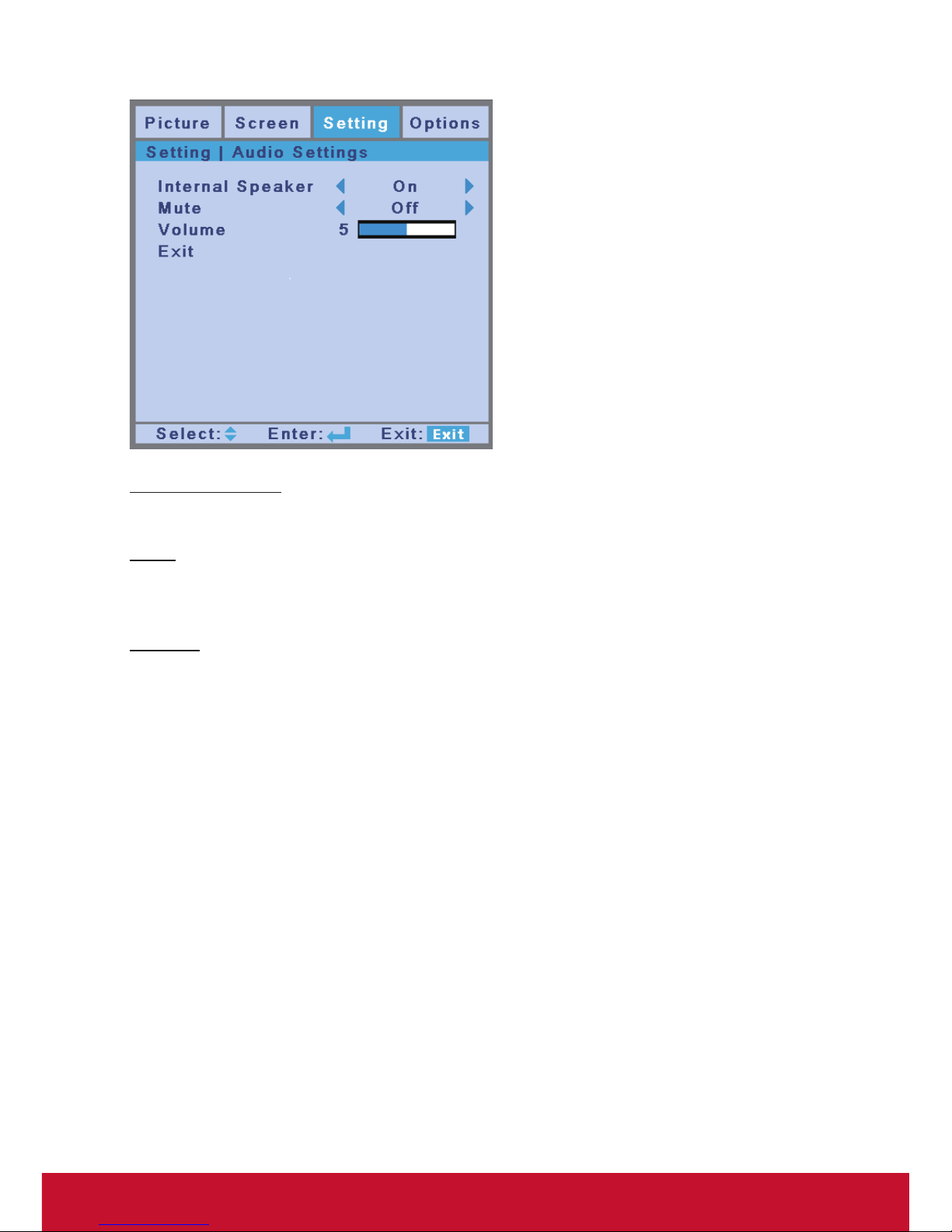

SETTING | Audio Settings ............... 46
SETTING | Advanced ....................... 47
SETTING | Network ......................... 48
SETTING | Image Blending ............. 52
OPTIONS ......................................... 53
OPTIONS | Lamp Settings ............... 55
OPTIONS | Remote Settings ........... 56
OPTIONS | Advanced ...................... 57
Appendices 58
Troubleshooting .................................... 58
Image Problems ............................... 58
Projector Problems .......................... 61
On Screen Messages ...................... 64
Replacing the Lamp ............................. 65
Replacing the Filter .............................. 67
Compatibility Modes ............................. 68
Remote Key Code ................................ 70
RS232 Pin Assignments ....................... 71
RS232 Protocol Function List ............... 72
Ceiling Mount Installation ..................... 79
Specications ....................................... 80
Customer Support ................................ 82
Limited Warranty .................................. 83
Mexico Limited Warranty ...................... 85
Precautions ............................................vi
Introduction 9
Product Features .................................... 9
Package Overview ............................... 10
Product Overview ..................................11
Main Unit ...........................................11
Control Panel ................................... 12
Connection Ports ............................. 13
Remote Control ................................ 14
Installation 16
Installing the Projector Lens ................. 16
Connecting to Computer/Notebook ...... 17
Connecting to Video Sources ............... 18
Powering On/Off the Projector ............. 19
Powering On the Projector ............... 19
Powering Off the Projector ............... 20
Warning Indicator ............................. 21
LED Lighting Message ..................... 21
Adjusting the Projected Image ............. 22
Adjusting the Projector’s Height ....... 22
Adjusting the Projecting Image’s
Position ............................................ 23
User Controls 26
Using the Control Panel ....................... 26
On-screen Display Menus .................... 27
How to operate ................................ 27
Structure .......................................... 28
PICTURE ......................................... 32
PICTURE | Advanced ...................... 34
SCREEN .......................................... 36
SCREEN | Geometry ....................... 37
9
` XGA (1024x768) / WXGA(1280x800), support resolution: Up to WUXGA
@60Hz (Reduced Blanking) and UXGA @60Hz
` Single lamp system
` Power Zoom/Focus
` Power lens shift
` Dynamic Aperture
` 10W x 1 speaker
` Filter module
` Support PIP/POP function
` Support network management for remote control and monitoring
Introduction
Product Features
10
Power Cord
Unpack and inspect the box contents to ensure all parts listed below are in
the box. If something is missing, please contact our customer service.
Documentation:
y User’s Manual (CD)
y Quick Start Card
y Warranty Card (China only)
Projector with lens cover
Package Overview
Due to different applications in each Country, some regions may have different accessories.
VGA Cable
Remote Control
AA
AA
Pattern
VGA
BNC
Sync
Standby
HDMI
DVI
Source
Video
S-Video
Blank
Vol +
Vol -
Exit Mute
Menu Memory
Focus ShiftZoom
Lamp PW
Mode
RGB Gain
PIP
BlendGeo
MyButton
Aspect
Keystone
RC ID
Reset
123
456
789
0
LENS
Power On
AA Batteries x 2
(For remote control)
Plug for wired remote at
projector side
Φ 3.5mm phone jack
Plug for wired remote at
remote control side
Φ 2.5mm phone jack
11
Product Overview
1. Lens Ring
2. Zoom Lens
3. IR Receivers
4. LED Indicators
5. Lamp Door
Main Unit
3
2
3
6. Outlet Vent
7. Kensington Lock
8. Security Bar
9. Power Switch
10. Power Connector
(Front View)
(Rear View)
5
1
4
11
Do not block projector in/out air vents and keep 30cm clearance around vents for air ow concern.
6
8
7
9
12
13
14
10
11. Connector Panel
12. Inlet Vent & Filter
13. Audio Vent
14. Keypad Panel
Min.
30cm
Min.
30cm
Min.
30cm
12
Control Panel
1. / Power key & Power LED
2. Menu key
3. Enter key
4. Exit key
5. Shift key
6. Sync key
7. Focus key
8. Zoom key
9. Source key
10. Information key
11. Four directional select keys
Source
Sync
Shift
11
9
8
4
10
2
65
7
31
13
1. Composite Video Input Connector
2. HDMI Connector
3. DVI-D Connector
4. BNC Connector
5. Wired Remote Input Connector
6. 12V Trigger Relay Connector
7. RJ45 Network Connector
8. S-Video Input Connector
9. VGA Input Connector
10. VGA Output Connector
11. Audio Input Connector
12. Audio Output Connector
13. RS232 Connector (9-pin DIN Type)
Connection Ports
321
64 5
7 9
10 11 1312
8
14
Remote Control
Pattern
VGA
BNC
Sync
Standby
HDMI
DVI
Source
Video
S-Video
Blank
Vol +
Vol -
Exit Mute
Menu Memory
Focus ShiftZoom
Lamp PW
Mode
RGB Gain
PIP
BlendGeo
MyButton
Aspect
Keystone
RC ID
Reset
123
456
789
0
LENS
Power On
1. Power ON
Power on the projector.
2. Pattern
Display a test pattern.
3. VGA
Switch to VGA source.
4. BNC
Switch to Component video
source.
5. Sync
Synchronize projector with
source.
6. Blank
Switch to a blank screen.
7. Four Directional Select Keys
Press up, down, left, right
direction buttons to select
items or make adjustments.
8. Exit
Exit a menu.
9. Menu
Launch the OSD main menu.
10. Focus
Adjust the lens focus.
11. Lamp PW
Adjust lamp power.
12. PIP
Launch the Picture-in-Picture
function.
13. MyButton
Launch a user-dened
setting.
14. RC ID
Set the remote control ID.
15. Reset
Reset the projector to factory
default settings.
16. Standby
Turn off the projector.
17. Video
Switch to Composite Video
source.
2
3
9
10
11
12
13
14
15
1
16
17
18
21
22
23
26
28
30
33
27
29
31
32
4
5
6
7
8
20
19
24
25
34
15
18. HDMI
Switch to HDMI source.
19. S-Video
Switch to S-Video source.
20. DVI
Switch to DVI source.
21. Source
Automatically scans for connected source.
22. Enter
Conrm your item selection.
23. Mute
Turn the projector audio off/on.
24. Memory
Save the current lens settings to the memory.
25. Zoom
Adjust the lens zoom function.
26. Shift
Adjust the lens shift up/down/left/right.
27. RGB Gain
Enter the color management setting page.
28. Mode
Select the display mode (Presentation, Bright, Movie, sRGB, DICOM SIM, and
User).
29. Geo
Enable Geo tag information.
30. Blend
Adjust display blend function.
31. Keystone
Adjust image distortion caused by tilting the projector.
32. Aspect
Adjust the aspect ratio of the projected screen.
33. Information (i)
Display the projector information.
34. Numeric Keypad
Press “0~9” to input a numeric value such as a password in the “Security”
settings.
When using the number keypad for password input, do not use “0” as part of the password.
16
Installation
Installing the Projector Lens
Lens Installing Procedure:
1. Remove the lens ring cover by counter-clockwise rotation. 1
2. Remove the lens cap by counter-clockwise rotation.
2
3. Pull the release bar and push the lens into position.
3
4. Lens assembled by clockwise rotation.
4
5. Lens ring cover assembled by clockwise rotation.
5
Warning: Do not transport the projector with any lens installed.
1
2
3
4
5
Before installing or replacing the lens, switch off the power of the projector.
Avoid using the remote control or projector keypad button to adjust the lens shift or zoom/focus while the
lens is being attached.
17
1. RS232 Cable
2. VGA Cable
3. DVI-D Cable
4. HDMI Cable
5. 12V DC Jack
Connecting to Computer/Notebook
6. Audio Cable
7. RJ45 Cable
8. VGA Cable
9. Power Cord
Due to the difference in applications for each country, some regions may have different accessories.
Plug for 12V DC jack
Plug: ID Φ 1.7mm
OD Φ 4.0mm
R
Monitor
Computer / Notebook
Power socket
1
7
3
2
4
5
+12V Output
8
6
9
Plug for wired remote
at projector side
Power
Signal
Ground
Φ 3.5mm
phone jack
Plug for wired remote
at remote control side
Power
Signal
Ground
Φ 2.5mm
phone jack
18
Connecting to Video Sources
1. Composite Video cable
2. S-Video Cable
3. BNC Cable
4. HDMI Cable
5. Audio Cable
6. Power Cord
R
DVD player, Set-top box,
HDTV receiver
S-Video output
DVD player Audio output
1
5
3
4
2
6
Power socket
DVD player
Due to the difference in applications for each country, some regions may have different accessories.
19
Powering On the Projector
1. Securely connect the power cord and signal cable. Power on the switch 1 and
the Power LED ashes Blue.
2. Turn on the lamp by pressing the “
” button either on the control panel of the
projector or on the remote control
2. The Power LED will turn blue.
The startup screen will display in approximately 10 seconds. The rst time you
use the projector, you will be asked to select the preferred language and power
saving mode.
3. Turn on and connect the source that you want to display on the screen
(computer, notebook, video player, etc). The projector will detect the source
automatically. If not, push the menu button and go to “OPTIONS”.
Make sure that “Auto Source” has been set to “Off”.
` If you connect multiple sources at the same time, press the direct source
buttons on the control panel or on the remote control to switch between
inputs.
Powering On/Off the Projector
1
Source
Sync
Shift
Pattern
VGA
BNC
Sync
Standby
HDMI
DVI
Source
Video
S-Video
Blank
Vol +
Vol -
Exit Mute
Menu Memory
Focus ShiftZoom
Lamp PW
Mode
RGB Gain
PIP
BlendGeo
MyButton
Aspect
Keystone
RC ID
Reset
123
456
789
0
LENS
Power On
2
Turn on the projector rst and then select the signal sources.
20
Powering Off the Projector
1. Press the “Standby” button on the remote control or the “ ” button on the control panel to turn off the projector
1. The following message will be displayed on
the screen.
Press the “Standby” button on the remote control or the “ ” button on the
control panel again 1 to conrm otherwise the message will disappear after 15
seconds. When you press for the second time, the projector will shut down.
2. The cooling fans will complete the cooling cycle for about 60 seconds and the
POWER LED will ash Blue. The projector has entered standby mode.
If you wish to turn the projector back on, you must wait until the projector has
completed the cooling cycle and has entered standby mode. Once in standby
mode, simply press the “
” button either on the control panel of the projector
or on the remote control to restart the projector. 2
3. Power off the switch
3.
4. Disconnect the power cord from the electrical outlet and from the projector.
3
Source
Sync
Shift
Pattern
VGA
BNC
Sync
Standby
HDMI
DVI
Source
Video
S-Video
Blank
Vol +
Vol -
Exit Mute
Menu Memory
Focus ShiftZoom
Lamp PW
Mode
RGB Gain
PIP
BlendGeo
MyButton
Aspect
Keystone
RC ID
Reset
123
456
789
0
LENS
Power On
1
2
Do not turn on the projector immediately following the power of procedure.
21
Warning Indicator
When the warning indicators (see below) come on, the projector will automatically
shutdown:
y “LAMP” LED indicator is lit red and the “ERROR” LED indicator ashes red. This
indicates that the lamp has failed.
y “TEMP” LED indicator is lit red and the “ERROR” LED indicator ashes red. This
indicates the projector has overheated. Under normal conditions, the projector
can be switched back on.
y “TEMP” LED indicator ashes red and the “ERROR” LED indicator ashes red.
This indicates that the fan has failed.
y “ERROR” LED indicator ashes red and the “FILTER” LED indicator ashes red.
This indicates that the lter needs replacement.
y “FILTER” LED indicator ashes red. This indicates that the lter needs to be
cleaned.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the
warning indicator light up again, please contact your nearest service center for
assistance.
LED Lighting Message
Message
Power LED Lamp LED Temp LED Error LED Filter LED
Red Blue Red Red Red Red
Standby State
(LAN off)
Flashing
Standby State
(LAN On)
Flashing
Power on & Lamp
lighting
Steady light
Power off (Cooling) Flashing
Error (Lamp fail) Steady light Flashing
Error (Over Temp) Steady light Flashing
Error (Fan fail) Flashing Flashing
Error (Filter Switch) Flashing Flashing
Error (Filter Cleaning) Flashing
22
Adjusting the Projector’s Height
The projector is equipped with elevator rubber feet for adjusting the image
height.
1. Locate the adjustable foot you wish to modify on the underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise
to lower it. Repeat with the remaining feet as needed.
Adjusting the Projected Image
1 2
23
Adjusting the Projecting Image’s Position
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the projector
and the rest of your equipment.
HH
H1 Width
V1
Height
V1
V
V
H1
Screen
For XGA
Platform XGA (4:3)
DMD 0.7”
Projection Lens LEN-008 LEN-009 LEN-010
Wide Zoom Standard Long Zoom
Throw Ratio 0.99-1.26 1.26-1.58 1.58-3.00
Zoom Ratio 1.28X 1.25X 1.9X
Throw Distance 1.01~7.68m 1.28~9.63m 1.61~18.29m
Projection screen size Projection distance (m)
Throw Ratio 0.99 1.26 1.26 1.58 1.58 3.00
Diagonal
(inch)
Height
(m)
Width
(m)
Min
(m)
Max
(m)
Min
(m)
Max
(m)
Min
(m)
Max
(m)
50 0.76 1.02 1.01 1.28 1.28 1.61 1.61 3.05
60 0.91 1.22 1.21 1.54 1.54 1.93 1.93 3.66
70 1.07 1.42 1.41 1.79 1.79 2.25 2.25 4.27
Platform H V H1 V1
XGA 15% 50% 0% 20%
WXGA 15% 50% 10% 30%
24
80 1.22 1.63 1.61 2.05 2.05 2.57 2.57 4.88
90 1.37 1.83 1.81 2.30 2.30 2.89 2.89 5.49
100 1.52 2.03 2.01 2.56 2.56 3.21 3.21 6.10
110 1.68 2.24 2.21 2.82 2.82 3.53 3.53 6.71
120 1.83 2.44 2.41 3.07 3.07 3.85 3.85 7.32
130 1.98 2.64 2.62 3.33 3.33 4.17 4.17 7.92
140 2.13 2.84 2.82 3.58 3.58 4.49 4.49 8.53
150 2.29 3.05 3.02 3.84 3.84 4.82 4.82 9.14
160 2.44 3.25 3.22 4.10 4.10 5.14 5.14 9.75
170 2.59 3.45 3.42 4.35 4.35 5.46 5.46 10.36
180 2.74 3.66 3.62 4.61 4.61 5.78 5.78 10.97
190 2.90 3.86 3.82 4.86 4.86 6.10 6.10 11.58
200 3.05 4.06 4.02 5.12 5.12 6.42 6.42 12.19
250 3.81 5.08 5.03 6.40 6.40 8.03 8.03 15.24
300 4.57 6.10 6.04 7.68 7.68 9.63 9.63 18.29
For WXGA
Platform WXGA (16:10)
DMD 0.65”
Projection Lens LEN-008 LEN-009 LEN-010
Wide Zoom Standard Long Zoom
Throw Ratio 1.00-1.28 1.28-1.61 1.60-3.07
Zoom Ratio 1.28X 1.25X 1.9X
Throw Distance 1.08~8.27m 1.38~10.40m 1.72~19.84m
Projection screen size Projection distance (m)
Throw Ratio 1.00 1.28 1.28 1.61 1.60 3.07
Diagonal
(inch)
Height
(m)
Width
(m)
Min
(m)
Max
(m)
Min
(m)
Max
(m)
Min
(m)
Max
(m)
50 0.67 1.08 1.08 1.38 1.38 1.73 1.72 3.31
60 0.81 1.29 1.29 1.65 1.65 2.08 2.07 3.97
70 0.94 1.51 1.51 1.93 1.93 2.43 2.41 4.63
80 1.08 1.72 1.72 2.21 2.21 2.77 2.76 5.29
90 1.21 1.94 1.94 2.48 2.48 3.12 3.10 5.95
100 1.35 2.15 2.15 2.76 2.76 3.47 3.45 6.61
110 1.48 2.37 2.37 3.03 3.03 3.81 3.79 7.27
120 1.62 2.58 2.58 3.31 3.31 4.16 4.14 7.94
130 1.75 2.80 2.80 3.58 3.58 4.51 4.48 8.60
140 1.88 3.02 3.02 3.86 3.86 4.85 4.82 9.26
150 2.02 3.23 3.23 4.14 4.14 5.20 5.17 9.92
160 2.15 3.45 3.45 4.41 4.41 5.55 5.51 10.58
25
170 2.29 3.66 3.66 4.69 4.69 5.90 5.86 11.24
180 2.42 3.88 3.88 4.96 4.96 6.24 6.20 11.90
190 2.56 4.09 4.09 5.24 5.24 6.59 6.55 12.56
200 2.69 4.31 4.31 5.51 5.51 6.94 6.89 13.23
250 3.37 5.38 5.38 6.89 6.89 8.67 8.62 16.53
300 4.04 6.46 6.46 8.27 8.27 10.40 10.34 19.84
26
User Controls
Using the Control Panel
Source
Sync
Shift
Name
Description
Power
Turn the projector on/off.
Menu Launch the on-screen display (OSD).
Exit Exit a menu.
Enter Conrm a selected item.
Four Directional
Select Keys
1. Use ▲▼◄► to select items or make adjustments to your
selection.
2. ▲/▼act as short hot keys for Keystone +/- adjustment.
Sync Synchronize the projector with the input source.
Source Select an input signal.
Shift Adjust the lens shift up/down/left/right.
Focus Adjust the lens focus function.
Zoom Adjust the lens zoom function.

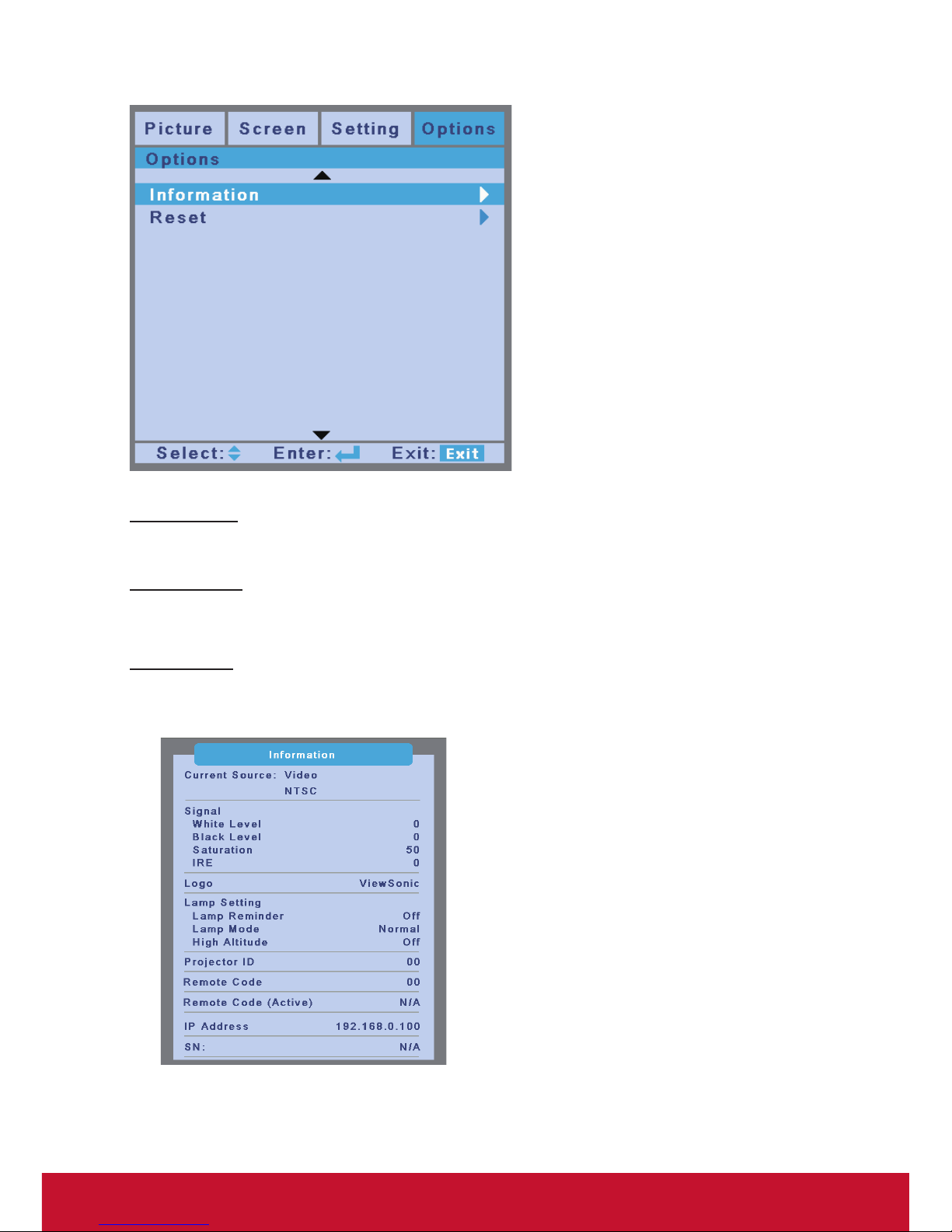

Information Display the projector’s information.
