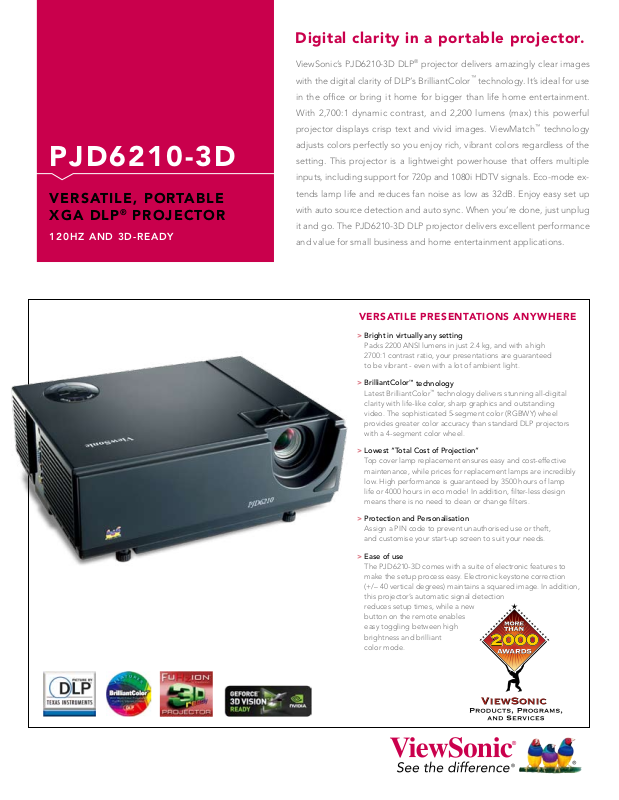

PJD6210-3D

VERSATILE, PORTABLE XGA DLP® PROJECTOR

120HZ AND 3D-READY

Digital clarity in a portable projector.

ViewSonic’s PJD6210-3D DLP® projector delivers amazingly clear images

™

with the digital clarity of DLP’s BrilliantColor

in the ofﬁce or bring it home for bigger than life home entertainment.

With 2,700:1 dynamic contrast, and 2,200 lumens (max) this powerful

projector displays crisp text and vivid images. ViewMatch

adjusts colors perfectly so you enjoy rich, vibrant colors regardless of the

setting. This projector is a lightweight powerhouse that offers multiple

inputs, including support for 720p and 1080i HDTV signals. Eco-mode ex-

tends lamp life and reduces fan noise as low as 32dB. Enjoy easy set up

with auto source detection and auto sync. When you’re done, just unplug

it and go. The PJD6210-3D DLP projector delivers excellent performance

and value for small business and home entertainment applications.

VERSATILE PRESENTATIONS ANYWHERE

technology. It’s ideal for use

™

technology

Bright in virtually any setting >

Packs 2200 ANSI lumens in just 2.4 kg, and with a high

2700:1 contrast ratio, your presentations are guaranteed to be vibrant - even with a lot of ambient light.

BrilliantColor >

Latest BrilliantColor clarity with life-like color, sharp graphics and outstanding video. The sophisticated 5-segment color (RGBWY) wheel provides greater color accuracy than standard DLP projectors with a 4-segment color wheel.

Lowest “Total Cost of Projection” >

Top cover lamp replacement ensures easy and cost-effective maintenance, while prices for replacement lamps are incredibly low. High performance is guaranteed by 3500 hours of lamp life or 4000 hours in eco mode! In addition, ﬁlter-less design means there is no need to clean or change ﬁlters.

Protection and Personalisation >

Assign a PIN code to prevent unauthorised use or theft,

and customise your start-up screen to suit your needs.

Ease of use >

The PJD6210-3D comes with a suite of electronic features to make the setup process easy. Electronic keystone correction (+/– 40 vertical degrees) maintains a squared image. In addition, this projector’s automatic signal detection reduces setup times, while a new button on the remote enables easy toggling between high brightness and brilliant color mode.

™

technology

™

technology delivers stunning all-digital

PJD6210-3D

VERSATILE, PORTABLE XGA DLP® PROJECTOR – 120HZ AND 3D-READY

DISPLAY Type 0.55" Digital Micromirror Device (DLP™)

Resolution XGA 1024x768 (native) / SXGA 1280×1024 (compressed) Lens 1.1× manual optical zoom / manual optical focus Keystone Vertical digital keystone correction: +/– 40 degrees Size 30"–300" / 0.8m–7.6m (diagonal) Throw Distance 1.2m–10m / 3.9ft–32.8ft Throw Ratio 1.97:1–16:1 Lamp 180 watt Lamp Life (Normal / Eco-mode) 3500 / 4000* hours Brightness 2200 Lumens Contrast Ratio 2000:1 (typ), 2700:1 (dynamic) Aspect Ratio 4:3 (native) and 16:9

INPUT SIGNAL Computer and Video RGB analog, NTSC M (3.58 MHz), NTSC 4.43MHz,

PAL (B, D, G, H, I, M, N, 60), SECAM, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i) Frequency Fh: 31–100KHz, Fv: 50–120Hz

COMPATIBILITY PC Analog: VGA up to SXGA scaled

Mac® Analog: up to XGA scaled (may require Mac Adapter)

CONNECTOR RGB Input 1 × 15-pin mini D-sub

Composite Input 1 × RCA jack Control 1 × RS-232 (9-pin D-sub)

POWER Voltage 90~240VAC (auto switching), 50/60Hz (universal)

Consumption 230W (typ) / 9W (stand-by mode)

LANGUAGE English / Dutch / French / Spanish / Italian / Korean / Thai /

Portuguese / Traditional Chinese / Simpliﬁed Chinese / Japanese / Russian / German / Swedish / Turkish / Finnish / Polish

CONTROLS Basic Standby/on, input, menu

OSD Picture: Brightness, contrast, color setting, keystone, aspect ratio, image, white intensity, gamma Computer Image: Frequency, tracking, H. position, V. position Video Image: Saturation, sharpness, Tint Setting: Manual position, projection, signal type, lamp hour, lamp hour reset, power saving, auto source, eco-mode, high altitude, OSD timeout Advance: Blank screen, brilliant color, password, factory reset

OTHER FEATURES Bright in virtually in any setting with 2,200 lumens

5-segment color wheel, 2700:1 high dynamic contrast ratio, eco-mode

OPERATING Temperature 41ºF–95ºF (5ºC–40ºC) CONDITIONS Humidity 10%–80% (non-condensing)

Altitude 0 to + 6,000 ft

NOISE LEVEL Normal / Eco-mode 34dB / 32dB DIMENSIONS Physical 10.7 × 4.3 × 8.5 (in) / 273 × 108 × 215 (mm) (W x H x D) Packaging 12.8 × 12.0 × 7.2 (in) / 325 × 305 × 183 (mm)

Optional Accessories

> Replacement Lamp RLC-046

Projection

Distance

1.5

1.8

Feet

4.92

5.90

6.56

9.84

16.40

32.80

0.99

1.18

1.32

1.97

3.29

6.58

4:3 Screen Size

Wide Tele

Inches

38.85

46.62

51.80

77.70

129.51

259.01

0.89

1.07

1.19

1.79

2.98

5.95

Inches

117

234

WEIGHT Net 5.3 lb (2.4 kg) REGULATIONS CB, RoHS, WEEE, UL/cUL, FCC-B, ICES-003, IRAM

(Argentina), NOM, PSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC

PACKAGE CONTENTS ViewSonic projector, power cable, VGA cable, remote control,

lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide)

WARRANTY 3-year limited warranty on parts, 1-year limited warranty

on lamp, 1st year Express Exchange® service.

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.

Sales: (888) 881-8781 . SalesInfo@ViewSonic.com . ViewSonic.com

*Running eco-mode exclusively can extend lamp life. See ViewSonic.com for full Express Exchange details. Speciﬁcations subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved [14496-02B-12/09] PJD6210-3D-1
