ViewSonic PJD5350LS User Manual

PJD5155L/PJD5255L/
PJD5555LW/PJD5350LS/
PJD5550LWS
DLP Projector

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://

www.viewsonic.com in English, or in specic languages using the Regional selection

box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”

Model No.
VS15903/VS15906/VS15908/VS15918/VS15921

Thank you for choosing ViewSonic

With over 25 years as a world leading provider of visual solutions,
ViewSonic is dedicated to exceeding the world’s expectations for
technological evolution, innovation, and simplicity. At ViewSonic, we
believe that our products have the potential to make a positive impact
in the world, and we are confident that the ViewSonic product you have
chosen will serve you well.

Once again, thank you for choosing ViewSonic !

Compliance Information

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void your authority to operate the
equipment.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EC.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic
Equipment Directive 2012/19/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment
including any spent or discarded batteries or accumulators as unsorted
municipal waste, but use the return and collection systems available.
If the batteries, accumulators and button cells included with this equipment,
display the chemical symbol Hg, Cd, or Pb, then it means that the battery
has a heavy metal content of more than 0.0005% Mercury or more than,

0.002% Cadmium, or more than 0.004% Lead.

i

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive
2011/65/EU of the European Parliament and the Council on restriction of the use
of certain hazardous substances in electrical and electronic equipment (RoHS2
Directive) and is deemed to comply with the maximum concentration values issued
by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%

6+

Hexavalent Chromium (Cr
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

) 0.1% < 0.1%

Proposed Maximum
Concentration

Actual Concentration

Certain components of products as stated above are exempted under the Annex III
of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode uorescent lamps and external electrode uorescent
lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

(1) Short length (≦500 mm): maximum 3.5 mg per lamp.
(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.
(3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing
85% by weight or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other
than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or
ceramic matrix compound.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India) This product complies
with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers in
concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for
the exemptions set in Schedule 2 of the Rule.

ii

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth.

7. Do not block any ventilation openings. Install the unit in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves,

or other devices (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade and the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure
that the power outlet is located near the unit so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the unit. When a cart is used, use caution
when moving the cart/unit combination to avoid injury from tipping
over.

13. Unplug this unit when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

unit has been damaged in any way, such as: if the power-supply cord or plug is
damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed
to rain or moisture, or if the unit does not operate normally or has been dropped.

iii

Copyright Information

Copyright © ViewSonic Corporation, 2014. All rights reserved.
Macintosh and Power Macintosh are registered trademarks of Apple Inc.
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft
Corporation in the United States and other countries.

ViewSonic and the three birds logo are registered trademarks of ViewSonic
Corporation.
VESA is a registered trademark of the Video Electronics Standards Association.
DPMS and DDC are trademarks of VESA.
PS/2, VGA and XGA are registered trademarks of International Business Machines
Corporation.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors
or omissions contained herein; nor for incidental or consequential damages resulting
from furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves
the right to change product specifications without notice. Information in this

document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means,
for any purpose without prior written permission from ViewSonic Corporation.

iv

Product Registration

To fulfill possible future product needs, and to receive additional product information
as it becomes available, please visit your region section on ViewSonic’s website to
register your product online.
The ViewSonic CD also provides an opportunity for you to print the product
registration form. Upon completion, please mail or fax to a respective ViewSonic
office. To find your registration form, use the directory “:\CD\Registration”.
Registering your product will best prepare you for future customer service needs.
Please print this user guide and fill the information in the “For Your Records” section.
For additional information, please see the “Customer Support” section in this guide.

For Your Records

Product Name: PJD5155L/PJD5255L/PJD5555LW/PJD5350LS/

PJD5550LWS
ViewSonic DLP Projector

Model Number: VS15903/VS15906/VS15908/VS15918/VS15921
Document Number: PJD5155L/PJD5255L/PJD5555LW/PJD5350LS/

PJD5550LWS_UG_ENG Rev. 1A 11-13-14

Serial Number:
Purchase Date:

Product disposal at end of product life

The lamp in this product contains mercury which can be dangerous to you and the
environment. Please use care and dispose of in accordance with local, state or
federal laws.
ViewSonic respects the environment and is committed to working and living green.
Thank you for being part of Smarter, Greener Computing.
Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

v

Table of contents

Introduction ........................................................................................... 1

Projector features ................................................................................................................................... 1

Package contents .................................................................................................................................. 2

Projector overview ................................................................................................................................. 3

Using the product .................................................................................. 5

Control panel ......................................................................................................................................... 5

Connection ports .................................................................................................................................... 7

Remote control ....................................................................................................................................... 8

Installing the batteries .......................................................................................................................... 11

Remote control operation ..................................................................................................................... 12

Connection .......................................................................................... 13

Connecting a computer or monitor ....................................................................................................... 14

Connecting Video source devices ........................................................................................................ 14

Operation ............................................................................................. 16

Powering on/off the projector ............................................................................................................... 16

Adjusting the projector height .............................................................................................................. 17

Adjusting the projector zoom and focus ............................................................................................... 17

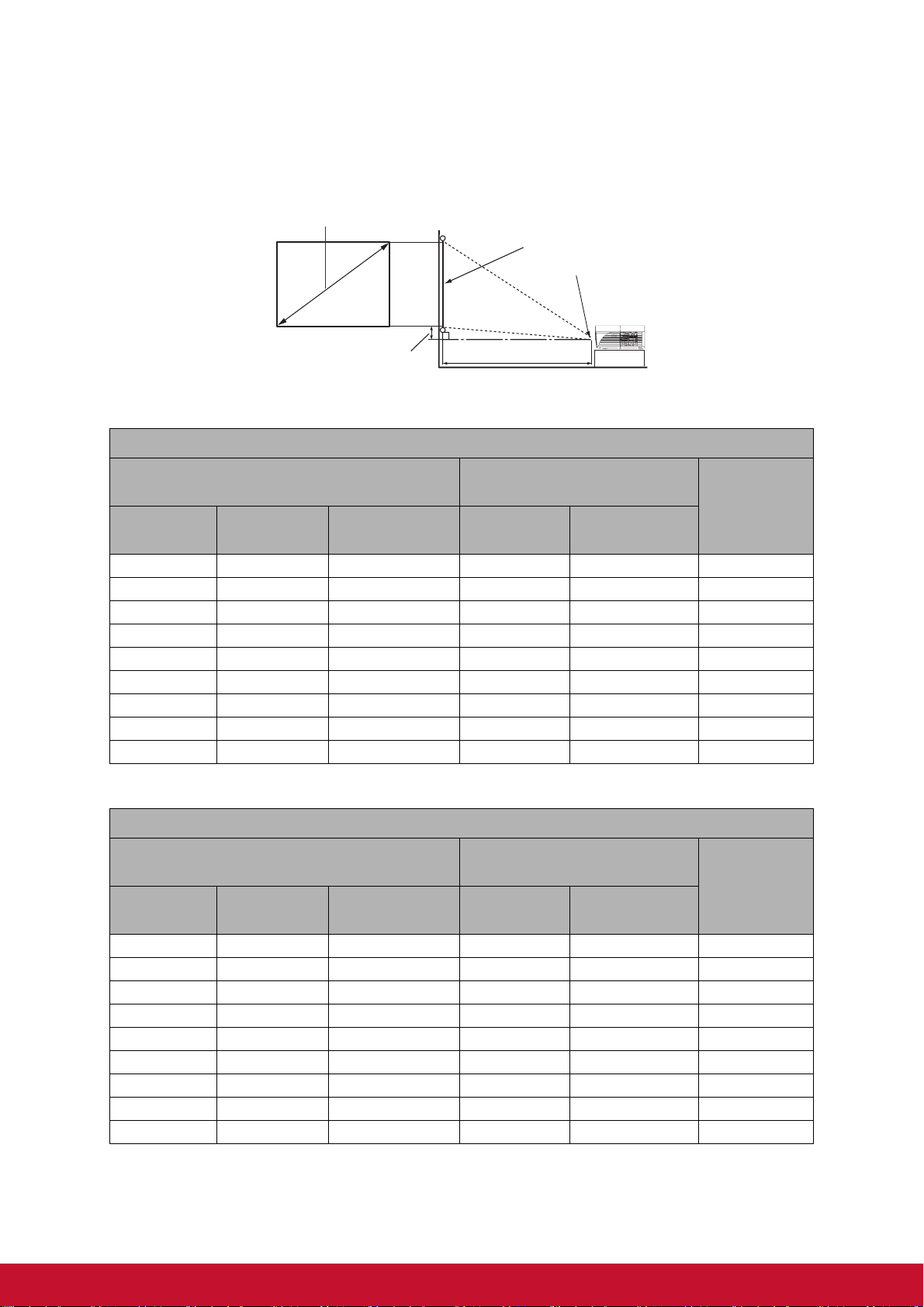

Adjusting projection image size ........................................................................................................... 18

Securing the projector .......................................................................................................................... 20

Locking control keys ............................................................................................................................ 22

Setting the presentation timer .............................................................................................................. 23

Menu operation .................................................................................................................................... 24

Maintenance ........................................................................................ 39

Cleaning the lens ................................................................................................................................. 39

Cleaning the projector housing ............................................................................................................ 39

Installing the dust filter (optional accessory) ........................................................................................ 40

Installing the cable management cover (optional accessory) .............................................................. 41

Replacing the lamp .............................................................................................................................. 42

Specifications ...................................................................................... 44

Dimensions .......................................................................................................................................... 46

Ceiling mount installation ..................................................................................................................... 46

Appendix .............................................................................................. 47

LED indicator messages ..................................................................................................................... 47

Compatibility modes ............................................................................................................................. 48

Troubleshooting ................................................................................................................................... 50

RS-232 command and configuration ................................................................................................... 51

IR control table ..................................................................................................................................... 57

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user - friendly
design to deliver high reliability and ease of use.

The projector offers the following features:

• Compatibility with Macintosh® computers

• Compatibility with NTSC, PAL, SECAM and HDTV

• D-Sub 15-pin terminal for analog video connectivity

• Equipped with HDMI connection supporting HDCP

• Multi-language On-Screen Display (OSD) menus

• Digital keystone correction to correct distorted images

• RS-232 connector for serial control

• Power saving function decreasing the power consumption of the lamp by up to 30%
when no input signal can be detected for a set period of time.

• Presentation timer for better control of time during presentations

• Blu-Ray 3D function supported

• Selectable quick power off function

• Color Management allowing color adjustments to your liking

• Screen Color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• HDMI CEC (Consumer Electronics Control) function allows synchronized power
ON/OFF operation between the projector and a CEC-compatible DVD player device
connected to the HDMI input of the projector

Note

• The information in this manual is subject to change without notices.

• The reproduction, transfer or copy of all or any part of this document is not permitted
without express written consent.

1

Package contents

When you unpack the projector, make sure you have all these components:

Power

COMP1 COMP2 HDMI

Auto

Source

Sync

Enter

Menu 3D Exit

PgDn

PgUp

Pattern

Blank

Mouse

ID set 1 2

345

678

Eco

Color

Mode

Mode

RCP01051

PJD5155L/PJD5255L/

PJD5555LW projector

PJD5350LS/

PJD5550LWS projector

Remote control (IR) & batteries

(AAA *2 PCS)

AC power cord VGA cable (D-SUB to D-SUB) ViewSonic CD wizard

Optional accessories

1. Cable management cover (rear cable cover)

2. Carry bag

3. Dust filter

4. Lens cap for PJD5155L/PJD5255L/PJD5555LW

Quick start guide

Note

• Contact you dealer immediately if any items are missing, appear damaged, or if the unit
does not work

.

• For maximum protection of the product, please save the original shipping carton and
packing materials and repack your product as it was originally packed at the factory if
you need to ship it.

2

Projector overview

Front view

8

9

7

6

5

PJD5155L/PJD5255L/

4

PJD5555LW

1

8

9

1

2

3

6

5

4

3

PJD5350LS/PJD5550LWS

1. Front IR remote control sensor 2. Lens cover

3. Projection lens 4. Speaker

5. Ventilation holes 6. Focus ring

7. Zoom ring 8. Control panel

9. Lamp cover

3

Rear View

RS-232

COMPUTER IN

MINI
USB

HDMI

1

2

3

1. Connection ports 2. Kensington lock

3. AC power socket

Bottom View

65.89

1

2

60.01113.54

Ceiling mount screws:
M4 x 8 (Max. L = 8 mm)

Unit: mm

1. Security bar 2. Ceiling mount holes

Note

• This projector can be used with a ceiling mount for support. The ceiling mount is not
included in the package.

• Contact your dealer for information to mount the projector on a ceiling.

4

Using the product

Control panel

1

1. POWER

Turn the projector on or off.

2. Blank/ Left key

Hide the screen picture.

Power

Source /

2

Menu

Exit

Blank

12

3

?

4

Enter

4

6

5

7

8

9

10

Color
Mode

11

3. Menu/Exit

Menu: Display or exit the on-screen display menus.

Exit: Goes back to previous OSD menu, exits and saves menu settings.

4. Keystone/Arrow keys ( / Up, / Down)

Manually correct distorted images resulting from an angled projection.

5. Enter

Enacts the selected On-Screen Display (OSD) menu item.

6. (My Button)

User definable key for customized function.

7. (Lock)/ Right key

Lock: Activates panel key lock or disable panel key lock by a long press for 3 sec­onds.

Right key: When the On-Screen Display (OSD) menu is activated, #2 #4 and #7
keys are used as directional arrows to select the desired menu items and to make
adjustments.

8. (Power LED indicator)

Refer to “LED Indicator Messages”.

9. (Temp LED indicator)

Refer to “LED Indicator Messages”.

10. (Lamp LED indicator)

5

Refer to “LED Indicator Messages”.

11. Color Mode

Select the picture setup mode.

12. Source/ (Help)

?

Source: Display the source selection bar.

Help: Display the HELP menu by a long press for 3 seconds.

6

Connection ports

1

2 3

RS-232

COMPUTER IN

4

MINI
USB

HDMI

1. COMPUTER IN

Connect image input signal (analog RGB or component) to this jack.

2. RS-232

When operating the projector via a computer, connect this to the controlling com­puter's RS-232C port.

3. HDMI

Connect HDMI output from video equipment to this jack.

4. MINI USB

This connector is for firmware update and mouse function support.

7

Remote control

16
17

3
4

5
4

18
19
20

5

6

21

7
8
9

10

11

12
13
14
15

1. Power

Turn the projector on or off.

2. COMP1

Display COMPUTER IN 1 signal.

3. Auto Sync

Automatically determines the best picture timings for the displayed image.

4. / (Keystone)

Manually correct distorted images resulting from an angled projection.

22
23
24
25
26
27

28
29

5. (Up)/ (Down)/ (Left)/ (Right)
When the On-Screen Display (OSD) menu is activated, the #4 and #5 keys are
used as directional arrows to select the desired menu items and to make adjust­ments.

6. 3D

Activates the 3D On-Screen Display (OSD) menu item.

7. Menu

Display on-screen display menus.

8. (Right mouse)

Perform the right button of the mouse when mouse mode is activated.

9. (Left mouse)

Perform the left button of the mouse when mouse mode is activated.

10. Mouse

8

Switch between the normal and mouse modes.

11. (Lock)/ID Set

Lock: Activates or disables panel key lock.

ID Set: Sets remote control code.

12. (Timer)

Activate P-Timer OSD menu.

13. (Volume+)

Increase the volume level.

14. Eco Mode

Switch the lamp mode from Normal, Economic, Dynamic to Sleep.

15. (Volume-)

Decrease the volume level.

16. (My Button)

User definable key for customized function.

17. HDMI

Display HDMI signal.

18. COMP2

Not available for PJD5 series.

19. Source

Display the source selection bar.

20. Enter

Enacts the selected On-Screen Display (OSD) menu item.

21. Exit

Goes back to previous OSD menu, exits and saves menu settings.

22.

(Page Up)

Perform page up function when mouse mode is activated.

23.

(Page Down)

Perform page down function when mouse mode is activated.

24. Pattern

Display embedded test pattern.

25. Blank

Hide the screen picture.

?

26. (Help)

Display the Help menu.

27. (Magnify)

Displays the zoom bar that magnifies or reduces the projected picture size.

28. Color Mode

Select the picture setup mode.

29. (Mute)

Toggles the projector audio between on and off.

9

Using the remote mouse control

The capability of operating your computer with the remote control gives you more
flexibility when delivering presentations.

1. Connect the projector to your PC or notebook with a USB cable prior to using the
remote control in place of your computer’s mouse. See "Connecting a computer"

on page 14 for details.

2. Set the input signal to COMPUTER.

3. Press Mouse on the remote control to switch from the normal mode to the mouse
mode. An icon appears on the screen to indicate the activation of the mouse
mode.

4. Perform the desired mouse controls on your remote control.

• To move the cursor on the screen, press / / / .

• To left-click, press .

• To right-click, press .

• To operate your display software program (on a connected PC) which responds

to page up/down commands (like Microsoft PowerPoint), press Page Up/Page
Down.

• To return to the normal mode, press Mouse again or other keys except for the

mouse related multi-function keys.

Remote control code

The projector can be assigned to 8 different remote control
codes, 1 to 8. When several adjacent projectors are in
operation at the same time, switching the remote control
codes can prevent interference from other remote
controls. Set the remote control code for the projector first
before changing that for the remote control.

To switch the code for the projector, select from among 1
to 8 in the SYSTEM SETTING: ADVANCED > Remote
Control Code menu.

To switch the code for the remote control, press ID set and the corresponding button
from 1 to 8 buttons on the remote control together for 5 seconds or more. The initial
code is set to1. When the code is switched to 8, the remote control can control every
projector.

Note

• If different codes are set on the projector and remote control, there will be no response
from the remote control. When that happens, switch the code for the remote control
again.

10

Installing the batteries

1. Open the battery cover in the
direction shown.

2. Install batteries as indicated by the
diagram inside the compartment.

3. Close the battery cover into position.

Caution

• Risk of explosion if battery is replaced by an incorrect type.

• Dispose of used batteries according to the instructions.

• Make sure the plus and minus terminals are correctly aligned when loading a battery.

Note

• Keep the battery out of the reach of children.

• Remove batteries from remote control when not using for extended periods.

• Do not recharge the battery or expose the battery to fire or water.

• Do not dispose the used battery along with household waste. Dispose
according to local regulations.

• Danger of explosion may happen if batteries are incorrectly replaced. Replace only with
the same type recommended by the manufacturer.

• Battery should not be in or near to fire or water, keep batteries in a dark, cool and dry
place.

• If suspect battery leakage, wipe out the leakage and then replace a new battery. If the
leakage adheres to your body or clothes, rinse well with water immediately.

used batteries

11

Remote control operation

Point the remote control at the infrared remote sensor and press a button.

• Operating the projector from the
front.

15

15

5m

8m

7m

Note

• The remote control may not operate when there is sunlight or other strong light such as
a fluorescent lamp shining on the remote sensor.

• Operate the remote control from a position where the remote sensor is visible.

• Do not drop the remote control or jolt it.

• Keep the remote control out of locations with excessively high temperature or humidity.

• Do not get water on the remote control or place wet objects on it.

• Do not disassemble the remote control.

12

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

4

3

1

RS-232

COMPUTER IN

2

MINI
USB

HDMI

1. HDMI cable 2. VGA (D-Sub) to HDTV (RCA) cable

3. VGA to DVI-A cable 4. USB cable

Important

• In the connections shown above, some cables may not be included with the projector
(see "Package contents" on page 2). They are commercially available from electronics
stores.

• The connection illustrations above are for reference only. The rear connecting jacks
available on the projector vary with each projector model.

• For detailed connection methods, see pages 14-16.

13

Connecting a computer or monitor

Connecting a computer

The projector provides two VGA input sockets that allow you to connect them to both
IBM® compatibles and Macintosh® computers. A Mac adapter is needed if you are
connecting legacy version Macintosh computers.

To connect the projector to a notebook or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of
the computer.

2. Connect the other end of the VGA cable to the COMPUTER signal input socket on
the projector.

Important

• Many notebooks do not turn on their external video ports when connected to a
projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display
on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol
on the notebook. Press FN and the labeled function key simultaneously. Refer to your
notebook's documentation to find your notebook's key combination.

Connecting Video source devices

You need only connect the projector to a Video source device using just one of the
above connecting methods, however each provides a different level of video quality.
The method you choose will most likely depend upon the availability of matching
terminals on both the projector and the Video source device as described below:

Terminal name Terminal appearance Reference Picture quality

HDMI

HDMI

COMPUTER

Component Video

"Connecting an HDMI

source device" on page

15

"Connecting a

Component Video

source device" on page

15

Best

Better

14

Connecting an HDMI source device

Examine your Video source device to determine if it has a set of unused HDMI output
jacks available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an HDMI source device:

1. Take an HDMI cable and connect one end to the HDMI output jack of the HDMI
source device.

2. Connect the other end of the HDMI cable to the HDMI jack on the projector.

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component
Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take a VGA (D-Sub) to HDTV (RCA) cable and connect the end with 3 RCA type
connectors to the Component Video output sockets of the Video source device.
Match the color of the plugs to the color of the sockets; green to green, blue to
blue, and red to red.

2. Connect the other end of the cable (with a D-Sub type connector) to the COM-
PUTER socket on the projector.

Important

• If the selected video image is not displayed after the projector is turned on and the
correct video source has been selected, check that the Video source device is turned on
and operating correctly. Also check that the signal cables have been connected
correctly.

15

Operation

Powering on/off the projector

Powering on the projector:

1. Complete the AC power cord and peripheral signal cable(s) connections.

2. Press to turn on the projector.
The projector takes a minute or so to warm up.

• If the projector is still hot from previous activity, it will run the cooling fan for

approximately 60 seconds before energizing the lamp.

3. Turn on your source (computer, notebook, DVD, etc.).

• If you are connecting multiple sources to the projector simultaneously, press

Source to select your desired signal or press your desired signal key on the
remote control.

• If the projector doesn't detect a valid signal, the message 'No Signal' will con-

tinue to be displayed.

• Be sure the Quick Auto Source function in the SOURCE menu is On if you

want the projector to automatically search for the signals.

Warning

• Never look into the lens when the lamp is on. This can damage your eyes.

• This focal point concentrates high temperature. Do not place any object near it to avoid
possible fire hazard.

Powering off the projector:

1. Press to turn off the projector lamp. You will see a message "Power off? Press
Power again" appear on the screen.

2. Press again to confirm.

• When Active VGA/ Audio Out function is turned off, the Power LED begins

flashing and the projector has entered stand-by mode.

• When Active VGA/ Audio Out function is turned on, the Power LED becomes

steady light and the projector has entered stand-by mode.

• If you want to turn the projector back on, you must wait until the projector has

completed the cooling cycle and has entered stand-by mode. Once in stand-by
mode, simply press to restart the projector.

3. Disconnect the AC power cord from the electrical outlet and the projector.

4. Do not turn on the projector right after power off.

16

Adjusting the projector height

Elevator foot

The projector is equipped with an elevator foot to adjust the image height. To raise or
lower the image, turn the elevator foot to fine-tune the height.

Note

• To avoid damaging the projector, make sure that the elevator foot is fully retracted
before placing the projector in its carrying case.

Adjusting the projector zoom and focus

Zoom ring

Focus ring

PJD5155L/PJD5255L/PJD5555LW

1. Sharpen the image by rotating the focus ring.

2. Adjust the image size by rotating the zoom ring or move the projector forward or
backward.

PJD5350LS/PJD5550LWS

17

Adjusting projection image size

Refer to the graphic and table below to determine the screen size and projection
distance.

Diagonal size

Screen

Center of lens

H

W

Vertical offset

Projection distance

PJD5155L/PJD5255L

4 : 3 Screen diagonal

Screen size

Diagonal

[inch (cm)]W[inch (cm)]

30 (76) 24 (61) 18 (46) 47 (1.2) 51 (1.3) 2.7 (6.9)

40 (102) 32 (81) 24 (61) 62 (1.6) 69 (1.7) 3.6 (9.1)

60 (152) 48 (122) 36 (91) 94 (2.4) 103 (2.6) 5.4 (13.7)

80 (203) 64 (163) 48 (122) 125 (3.2) 137 (3.5) 7.2 (18.3)

100 (254) 80 (203) 60 (152) 156 (4.0) 172 (4.4) 9.0 (22.9)

150 (381) 120 (305) 90 (229) 234 (5.9) 257 (6.5) 13.5 (34.3)

200 (508) 160 (406) 120 (305) 312 (7.9) 343 (8.7) 18.0 (45.7)

250 (635) 200 (508) 150 (381) 390 (9.9) 429 (10.9) 22.5 (57.2)

300 (762) 240 (610) 180 (457) 468 (11.9) 515 (13.1) 27.0 (68.6)

H

[inch (cm)]

Projection distance

[inch (m)]

(min.) (max.)

Vertical offset

[inch (cm)]

PJD5555LW

16 : 10 Screen diagonal

Screen size

Diagonal

[inch (cm)]W[inch (cm)]

30 (76) 26 (65) 16 (40) 36 (0.9) 46 (1.2) 1.2 (3.0)

40 (102) 34 (86) 21 (54) 49 (1.2) 61 (1.5) 1.6 (4.1)

60 (152) 51 (130) 32 (81) 75 (1.9) 93 (2.4) 2.4 (6.1)

80 (203) 68 (173) 42 (108) 100 (2.5) 124 (3.2) 3.2 (8.1)

100 (254) 85 (216) 53 (135) 126 (3.2) 156 (4.0) 4.0 (10.1)

150 (381) 128 (324) 80 (202) 189 (4.8) 235 (6.0) 6.0 (15.2)

200 (508) 170 (432) 106 (269) 253 (6.4) 313 (8.0) 8.0 (20.2)

250 (635) 213 (540) 133 (337) 317 (8.0) 392 (10.0) 10.0 (25.3)

300 (762) 255 (648) 159 (404) 380 (9.7) - 12.0 (30.4)

H

[inch (cm)]

Projection distance

[inch (m)]

(min.) (max.)

Vertical offset

[inch (cm)]

18

PJD5350LS

4 : 3 Screen diagonal

Screen size

Diagonal

[inch (cm)]

30 (76) 24 (61) 18 (46) 15 (0.4) 2.7 (6.9)

40 (102) 32 (81) 24 (61) 20 (0.5) 3.6 (9.1)

60 (152) 48 (122) 36 (91) 30 (0.8) 5.4 (13.7)

80 (203) 64 (163) 48 (122) 40 (1.0) 7.2 (18.3)

100 (254) 80 (203) 60 (152) 50 (1.3) 9.0 (22.9)

150 (381) 120 (305) 90 (229) 75 (1.9) 13.5 (34.3)

200 (508) 160 (406) 120 (305) 100 (2.5) 18.0 (45.7)

250 (635) 200 (508) 150 (381) 125 (3.2) 22.5 (57.2)

300 (762) 240 (610) 180 (457) 150 (3.8) 27.0 (68.6)

W

[inch (cm)]

H

[inch (cm)]

Projection distance

[inch (m)]

Vertical offset

[inch (cm)]

PJD5550LWS

16 : 10 Screen diagonal

Screen size

Diagonal

[inch (cm)]

30 (76) 25 (65) 16 (40) 13 (0.3) 2.0 (5.0)

40 (102) 34 (86) 21 (54) 17 (0.4) 2.6 (6.7)

60 (152) 51 (129) 32 (81) 26 (0.7) 4.0 (10.1)

80 (203) 68 (172) 42 (108) 36 (0.9) 5.3 (13.5)

100 (254) 85 (215) 53 (135) 45 (1.1) 6.6 (16.8)

150 (381) 127 (323) 79 (202) 68 (1.7) 9.9 (25.2)

200 (508) 170 (431) 106 (269) 91 (2.3) 13.2 (33.6)

250 (635) 212 (538) 132 (336) 115 (2.9) 16.6 (42.1)

300 (762) 254 (646) 159 (404) 138 (3.5) 19.9 (50.5)

W

[inch (cm)]

H

[inch (cm)]

Projection distance

[inch (m)]

Vertical offset

[inch (cm)]

Note

• Position the projector in a horizontal position; other positions can cause heat build-up
and damage to the projector.

• Keep a space of 30 cm or more between the sides of the projector.

• Do not use the projector in a smoky environment. Smoke residue may build-up on
critical parts and damage the projector or its performance.

19

Securing the projector

Setting a password

1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Advanced
> Security Settings menu. Press Enter. The Security Settings page displays.

2. Highlight Change Password and press Enter.

3. As pictured to the right, the four arrow keys ( / / / ) respectively represent 4
digits (1, 2, 3, 4). According to the password you desire to set, press the arrow
keys to enter six digits for the password.

4. Confirm the new password by re-entering the new password.

5. Go back to SYSTEM SETTING: ADVANCED > Advanced > Security Settings >
Power on Lock menu, and press Enter. You will be asked to input password.
Once the password is set, the OSD menu returns to the Power On Lock. Select
On by pressing / .

6. To leave the OSD menu, press Menu/Exit.

Entering the password recall procedure

If the password function is activated, you will be asked to enter the six-digit password
every time you turn on the projector. If you enter the wrong password, the password
error message displays. Press Menu to re-enter the password.

1. If you enter an incorrect password 5 times in succession, the projector will display
a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local ViewSonic service center to decode the number. You may
be required to provide proof of purchase documentation to verify that you are an
authorized user of the projector.

Changing the password

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Advanced >
Security Settings > Change Password menu.

2. Enter the old password.

• If the password is correct, another message 'INPUT NEW PASSWORD' dis-
plays.

• If the password is incorrect, the password error message displays, and the
message 'INPUT CURRENT PASSWORD' displays for your retry. You can
press Menu to cancel the change or try another password.

3. Enter a new password.

4. Confirm the new password by re-entering the new password.

5. You have successfully assigned a new password to the projector. Remember to
enter the new password next time the projector is started.

6. To leave the OSD menu, press Menu/Exit.

20

Disabling the password function

To disable password protection, go back to SYSTEM SETTING: ADVANCED >
Advanced > Security Settings > Power on Lock menu, and press Enter. You will be

asked to input password. Once the password is set, the OSD menu returns to the

Power On Lock. Select Off by pressing / . To leave the OSD menu, press Menu/
Exit.

21

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings
from being changed accidentally (by children, for example). When the Panel Key
Lock is on, no control keys on the projector will operate except Power.

1. Press Lock on the remote control or keypad
on the projector for 3 seconds.Press Lock on
the remote control, a confirmation message
“Are you sure to lock panel keys?” is
displayed. Select Yes to confirm.

To release panel key lock:

1. Press Lock on the remote control directly.

The Panel keys are unlock.

2. Press Lock on the keypad on projector, a message is displayed. Panel keys
are locked. please press lock key for 3 seconds to unlock panel keys.

Menu

Exit

Enter

Blank

Power

Source /

Color

?

Mode

Important

• If you press Power to turn off the projector without disabling panel key lock, the

projector will still be in locked status the next time it is turned on.

• Keys on the remote control are still functional when panel key lock is enabled.

22

Setting the presentation timer

The presentation timer can indicate the presentation time on the screen to help you
achieve better time management when giving presentations. Follow these steps to
utilize this function:

1. Press Timer on the remote control to access the
Presentation Timer menu or go to the SYSTEM
SETTING: BASIC > Advanced > Presentation Timer
menu and press Enter to display the Presentation
Timer page.

2. Highlight Timer Period and decide the timer period by
pressing / .

3. Press

to highlight Timer Display and choose if you

want the timer to show up on the screen by pressing / .

Selection Description

Always Displays the timer on screen throughout the presentation time.
1 Min/2 Min/3 Min Displays the timer on screen in the last 1/2/3 minute(s).
Never Hides the timer throughout the presentation time.

4. Press to highlight Timer Position and set the timer position by pressing /
Top-Left → Bottom-Left → Top-Right → Bottom-Right

5. Press to highlight Timer Counting Direction and select your desired counting
direction by pressing / ..

Selection Description

Count Up Increases from 0 to the preset time.
Count Down Decrease from the preset time to 0.

6. Press to highlight Sound Reminder and select your desired counting direction
by pressing / . If you select On, a double beep sound will be heard at the last
30 seconds of counting down/up, and a triple beep sound will be produced when
the timer is up.

.

7. To activate the presentation timer, press to highlight Start Counting and select
Yes.

8. To cancel the timer, highlight Start Counting and select No.

23

Menu operation

The projector has multilingual on-screen display menus that allow you to make image
adjustments and change a variety of settings.

How to operate

1. Press Menu to open the OSD menu.

2. When OSD is displayed, use / to select any feature in the main menu.

3. After selecting the desired main menu item, press to enter sub-menu for feature

setting.

4. Use / to select the desired item and adjust the settings with / .

5. Press Menu, the screen will return to the main menu or go back to the upper level

of the menu.

24

Menu tree

Main Menu Sub Menu Settings

Screen Color Off / Blackboard / Greenboard / Whiteboard

Auto / 4:3 / 16:9 (PJD5155L/PJD5255L/

DISPLAY


Aspect Ratio

Keystone -40 - 40

Position

Phase 0 - 31
H. Size -15 - 15

Zoom

Color Mode

Brightness 0 - 100
Contrast -50 - 50

Color Temp.

OverScan Off / 1 / 2 / 3 / 4 / 5

HDMI Settings

Advanced

Reset Color
Settings

PJD5350LS) / 16:10 (PJD5555LW/
PJD5550LWS) / Wide / Anamorphic/

X: -5 - 5
Y: - 5 - 5

PC:1.0X - 2.0X
Video:1.0X - 1.8X
Brightest / Dynamic / Standard / ViewMatch /
Movie

Warm / Normal / Neutral / Cool
Red Gain
Green Gain
Blue Gain
Red Offset
Green Offset
Blue Offset

HDMI Format Auto/ RGB / YUV
HDMI Range Auto / Enhanced / Normal
Color -50 - 50
Tint -50 - 50
Sharpness 0 - 31
Gamma 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8

Brilliant Color

Noise Reduc­tion

Color Manage­ment

Reset / Cancel

Off / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9
/ 10

0 - 31

Primary color

R / G / B / C / M

/ Y
Hue -99 - 99
Saturation 0 - 199
Gain 5 - 195

25

SOURCE

Quick Auto
Search

3D Settings

Off / On

3D Sync

3D Sync Invert Disable /Invert
Computer Disable/ Enable

Auto Power On

CEC Disable/ Enable
Direct Power
On
Power Saving Disable/ 10/ 20/ 30 min

Auto Power Off

Sleep Timer

Smart Restart Disable / Enable
Quick Power
Off

Disable / Enable

Auto
Off
Frame Sequential
Frame Packing
Top -Bot tom
Side-by-Side

Off / On

Disable / 30 min/ 1 hr / 2 hr / 3
hr / 4 hr / 8 hr / 12 hr

26

Language

SYSTEM
SETTING: BASIC

Projector Posi­tion

Menu Settings

Blank Timer

Front Table / Rear Table / Rear Ceiling / Front
Ceiling
Menu Display
Time

Menu Position

5 sec / 10 sec / 15 sec / 20 sec /
25 sec / 30 sec
Center / Top-Left / Top-Right /
Bottom-Left / Bottom-Right

Disable / 5 min / 10 min / 15 min / 20 min / 25 min
/ 30 min

Splash Screen Black / Blue / ViewSonic/ Off

Auto Sync / Projector Position / Menu Position /
Color Temp. / Brightness / Contrast / 3D Settings

My Button

/ Screen Color / Splash Screen / Message /
Quick Auto Search / CEC / Lamp Mode / DCR /
Power Saving / Freeze / Information
Pattern Off / 01 / 02 / 03 / 04 / 05
Message On / Off

Timer period 1 ~ 240 min

Timer display

Advanced

Presentation

Timer Position

Timer

Timer counting
direction
Sound
Reminder
Start Counting /
Off

Always / 1 min

/ 2 min / 3 min /

Never

Top - L eft /

Bottom-Left /

Top - R ig h t /

Bottom-Right

Count Down /

Count Up

On / Off

Yes / No

27

SYSTEM
SETTING:
ADVANCED

INFORMATION

High Altitude
Mode

Off / On

DCR Off / On

Mute Off / On

Audio Settings

Audio Volume 0 - 20
Power On/Off
Ring Tone

Lamp Mode

Lamp Settings

Reset Lamp
Hours
Lamp hours
Filter Mode Off / On

Filter Settings

Reset Filter
Hours

Filter Hours
Remote Con­trol Code

1 / 2 / 3 / 4 / 5 / 6 / 7 / 8

Security
Advanced

Settings

Panel Key Lock Off / On
Reset Settings Reset / Cancel
Current System Status
Source
Color Mode
Resolution
Color System
Lamp Hours
Filter Hours
Firmware Version

On/ Off

Normal / Economic / Dynamic /
Sleep Mode

Reset / Cancel

Reset / Cancel

Change password
Power on Lock Off / On

28

DISPLAY

Screen Color

The Screen Color feature can help correct the projected picture’s colors to prevent
possible color difference between the source and projected pictures.

There are several precalibrated colors to choose from: Whiteboard, Greenboard, and
Blackboard.

Aspect Ratio

Select how the picture fits on the screen:

• Auto: Scales an image proportionally to fit the projector's native resolution in its
horizontal or vertical width. You want to make most use of the screen without
altering the source image’s aspect ratio.

• 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3
aspect ratio, as it displays them without aspect alteration.

• 16:9: Available for PJD5155L/PJD5255L/PJD5350LS
Scales an image so that it is displayed in the center of the screen with a 16:9 aspect

ratio, as it displays them without aspect alteration.

• 16:10: Available for PJD5555LW/PJD5550LWS
Scales an image so that it is displayed in the center of the screen with a 16:10

aspect ratio,as it displays them without aspect alteration.

• Wide: Available for PJD5555LW/PJD5550LWS
Scales a 4:3 aspect image vertically and horizontally in a non-linear manner so that

it fills the screen with a 16:10 aspect ratio.

• Anamorphic: Scales a 16:9 aspect image vertically and horizontally in a non-linear
manner so that it fills the screen with a 4:3 aspect ratio.

Keystone

Manually correct distorted images resulting from an angled projection.
Press Keystone / on the projector or remote control to display the Keystone
correction page.
Press to correct keystone at the top of the image.
Press to correct keystone at the bottom of the image.

Position

Displays the position adjusent page. This function is only available when a PC type
input signal is selected.

Phase

Adjusts the clock phase to reduce image distortion. This function is only available
when a PC type input signal is selected.

H. Size

Adjusts the horizontal width of the image. This function is only available when a PC
type input signal is selected.

29

Zoom

Using the remote control

1. Press on the remote control to display the Zoom bar.

2. Press / to magnify the picture to a desired size.

3. Press repeatedly to magnify the picture to a desired size.

4. To navigate the picture, press Enter to switch to the paning mode and press the

directional arrows ( , , , ) to navigate the picture.

5. To reduce size of the picture, press Enter to switch back to the zoom in/out

functionality, and press Auto Sync to restore the picture to its original size. You
can also press repeatedly until it is restored to the original size.

Using the OSD menu

1. Press Menu and then press until the DISPLAY menu is highlighted.

2. Press to select Zoom and press Enter. The Zoom bar displays.

3. Repeat steps 3-5 in the section of Using the remote control above.

30


Color Mode

There are many factory presets optimized for various types of images.

• Brightest: Maximizes the brightness of the projected image. This mode is suitable
for environments where extra-high brightness is required.

• Dynamic: Is designed for presentations under daylight environment to match PC
and notebook coloring. In addition, the projector will optimize the image quality
using the dynamic PC function in accordance with the projected contents.

• Standard: Is designed for presentations under daylight environment to match PC
and notebook coloring.

• ViewMatch: Switches between high brightness performance and accurate color
performance.

• Movie: Is appropriate for playing colorful movies. This mode is suitable for viewing
in a blackened (little light) environment

Brightness

Brighten or darken the image.

Contrast

Sets the difference between light and dark areas.

Color Temp.

Sets a color temperature from Warm, Normal, Neutral and Cool.

• Cool: With the highest color temperature, Cool makes the image appear the most
bluish white than other settings.

• Neutral: Makes images appear bluish white.

• Normal: Maintains normal colorings for white.

• Warm: Makes images appear reddish white.

• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green, and
Blue.

• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red, Green,
and Blue.

OverScan

OverScan function removes the noise in a video image. Overscan the image to
remove video encoding noise on the edge of video source.

HDMI Settings

HDMI Format

Selects appropriate HDMI format automatically or manually.

Note

• This function is only available when the HDMI-input port is in use.

HDMI Range

31

• Enhanced: The range for HDMI output signal is from 0 - 255.

• Normal: The range for HDMI output signal is from 16 - 235.

Advanced

Color

The higher the value, the more reddish the picture becomes. The lower the value, the
more greenish the picture becomes.

Tint

Adjusts the red and green color tones of the image.

Sharpness

Adjusts the image to make it look sharper or softer.

Gamma

Effect the represent of dark scenery. With greater gamma value, dark scenery will look
brighter.

Brilliant Color

This adjustable item utilizes a new color-processing algorithm and system level
enhancements to enable higher brightness while providing true, more vibrant colors in
picture. The range is from “1” to “10”. If you prefer a stronger enhanced image, adjust
toward the maximum setting. For a smoother, more natural image, adjust toward the
minimum setting.

Noise Reduction

This function reduces electrical image noise caused by different media players. The
higher the setting, the less the noise.

Color Management

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When
you select each color, you can independently adjust its hue, saturation and gain
according to your preference.

Reset Color Settings

Reset the Color Mode settings of the current input source to default values.

32

SOURCE

Quick Auto Search

Automatically scan through all the input source if the function in the OSD menu is On.
The function will stop the signal auto scan process and fix the signal source you
preferred if you turn Off the Quick Auto Search.

3D Settings

This projector features a 3D function which enables you to enjoy the 3D movies, vid­eos, and sporting events in a more realistic way by presenting the depth of the
images. You need to wear a pair of 3D glasses to view the 3D images.

3D Sync

When you discover the inversion of the image depth, enable this function to correct
the problem.

3D Sync Invert

When you discover the inversion of the image depth, enable this function to correct
the problem.

Auto Power On

Computer

Selecting Enable the projector will turn on automatically when COMPUTER signal is
detected.

CEC

This projector supports CEC (Consumer Electronics Control) function for synchro­nized power on/off operation via HDMI connection. That is, if a device that also sup­ports CEC function is connected to the HDMI input of the projector, when the
projector’s power is turned off, the power of the connected device will also be turned
off automatically. When the power of the connected device is turned on, the projector’s
power will be turned on automatically.

Note

• When connected to the HDMI input of the projector via an HDMI cable, and its CEC
function is turned on.

• Depending on the connected device, the CEC function may not work.

• The function can't be enabled when Active VGA/Audio out function is disabled.

Direct Power On

Selecting On the projector will turn on automatically after the power cord has been
connected and power has been applied.

Auto Power Off

Power Saving

33

The projector lowers the projector power if no input source is detected after 5 minutes
to prevent unnecessary waste of lamp life. You can further decide if you would like the
projector to turn off automatically after a set period of time.
When Disable is selected, the projector power will be reduced to 30% after no signal
is detected for 5 minutes.
If you select 10 min, 20 min or 30 min, the projecter power will be reduced to 30%
after no signal is detected for 5 minutes. And when 10 min, 20 min or 30 min is up,
the projector will turn off automatically.

Sleep Timer

This function allows the projector to turn off automatically after a set period of time to
prevent unnecessary waste of lamp life.

Smart Restart

It takes some time to initate this function. Make sure the projector has been turned on
for more than 4 minutes. If the projector is resumed by using the Smart Restart fea­ture, this function can be executed immediately.

Quick Power Off

• ON: Quick power on function speeds up the cooling process when turning off the
projector.

• OFF: Turn off with cooling procedure.

Note

• When Desable is selected, the Smart Restart function will be automatically turned OFF.

34

SYSTEM SETTING: BASIC

Language

Select the language used by the on-screen menu.

Projector Position

Adjust the picture to match the orientation of the projector: upright or upside-down, in
front of or behind the screen. Invert or reverse the image accordingly.

Menu Settings

Menu Display Time

Duration of OSD menu display countly starts (at idle state by second).

Menu Position

Choose the menu location on the display screen.

Blank Timer

Sets the image blank time when the Blank Timer feature is activated, once elapsed
the image will return to the screen.

Splash Screen

Allows you to select which logo screen will display during projector start-up.

My Button

Allow user to define a short cut key on the remote control, and the function item is
selected in OSD menu. Available options are: Auto Sync, Projector Position, Menu
Position, Color Temp., Brightness, Contrast, 3D Settings, Screen Color, Splash
Screen, Message, Quick Auto Search, CEC, Lamp Mode, DCR, Power Saving,
Freeze, and Information.

Advanced

Pattern

Display embedded test pattern.

Message

Enable or disable the message box at the right bottom of the screen.

Presentation Timer

Remind the presenter to finish the presentation within a certain time frame. See "Set-

ting the presentation timer" on page 23.

35

SYSTEM SETTING: ADVANCED

High Altitude Mode

Use this function to allow the fans operates at full speed continuously to achieve
proper high altitude cooling of the projector.

DCR

DCR (Dynamic Contrast Ratio): Enable DCR will further enhance contrast ratio by
darkening the black scenes. Disable DCR will resume to normal contrast
performance. DCR will impact lamp life and system noise performance.

Audio Settings

Mute

Cuts off the sound temporarily.

Audio Volume

Adjusts the projector’s volume level.

Power On/Off Ring Tone

Setting the sound mute or changing the sound level will not affect the Power On/Off
Ring Tone. The only way to change Power On/Off Ring Tone is setting On or Off here.

Lamp Settings

Lamp Mode

Sets the Lamp Mode.

• Normal: 100% lamp power

• Economic: 80% lamp power

• Dynamic: 30~100% lamp power based on signal

• Sleep Mode: 30% lamp power

Reset Lamp Hours

Reset the lamp Hour to 0 hours.

Lamp Hours

Display the lamp’s elapsed operating time (in hours).

Filter Settings (Optional)

Filter Mode

Use this function to activate filter mode after the projector is installed an optional filter
cover.

Reset Filter Hours

Reset the filter Hour to 0 hours.

Filter Hours

Display the filter’s elapsed operating time (in hours).

36

Remote Control Code

See "Remote control code" on page 10 for details.

Advanced

Security Settings

• Change Password: Allows you to set or change the password.

• Power on Lock: If you enable this function, you will have to enter the password next
time you turn on the projector.

See "Securing the projector" on page 20 for details.

Panel Key Lock

Disables or enables all panel key functions except Power on the projector and keys on
the remote control. See "Locking control keys" on page 22 for details.

Reset Settings

Restore settings to factory default. The following settings will still remain: Keystone,
Language, Projector Position, High Altitude Mode, Security Settings, Remote Control
Code.

37

INFORMATION

Current System Status

Shows the currect system status.

Source

Shows the current signal source.

Color Mode

Shows the selected mode in the Color Mode menu.

Resolution

Shows the native resolution of the input signal.

Color System

Shows input system format, NTSC, PAL, SECAM, or RGB.

Lamp Hours

Displays the number of hours the lamp has been used.

Filter Hours

Displays the number of hours the filter has been used.

Firmware Version

Shows firmware version.

38

Maintenance

The projector needs proper maintenance. You should keep the lens clean as dust, dirt
or spots will project on the screen and diminish image quality. If any other parts need
replacing, contact your dealer or qualified service personnel. When cleaning any part
of the projector, always switch off and unplug the projector first.

Warning

• Never open any of the covers on the projector. Dangerous electrical voltages inside the
projector can cause severe injury. Do not attempt to service this product yourself. Refer
all servicing to qualified service personnel.

Cleaning the lens

Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands.

Cleaning the projector housing

Gently wipe with a soft cloth. If dirt and stains are not easily removed, use a soft cloth
damped with water, or water and neutral detergent, and wipe dry with a soft, dry cloth.

Note

• Turn off the projector and remove the AC power cord from the power outlet before
beginning maintenance work.

• Make sure the lens is cool before cleaning.

• Do not use detergents or chemicals other than those noted above. Do not use benzene
or thinners.

• Do not use chemical sprays.

• Use a soft cloth or lens paper only.

39

Installing the dust filter (optional accessory)

Caution

• It is important to clean the dust filter every 100 hours after the dust filter is installed.

• Be sure to turn off the projector and unplug it from power source before installing or
detaching the filter.

• If your projector is ceiling-mounted or is not easily accessible, pay special attention to
your personal safety when replacing the dust filter.

Installing the dust filter

1. Be sure to turn off the projector and unplug it from power source.

2. As the arrows shown to the right, fit the filter by
aligning and inserting it into the projector slots.
Make sure it clicks into place.

For first time installation:

3. Open the OSD menu and go to the SYSTEM
SETTING: ADVANCED > Filter Settings menu.

4. Press Enter and the Filter Settings page is
displayed.

5. Highlight Filter Mode and select "On". The filter timer starts counting and the
projector will remind you to clean the filter when the filter is in use for over 100
hours.

Caution

• Set Filter Mode to On only when using the projector after the dust filter (optional
accessory) is properly attached. Failing to do so will result in a shorter lamp life.

Obtaining the filter hour information

1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter
Settings menu.

2. Press Enter and the Filter Settings page is displayed.

3. You will see the Filter Hours information on the menu.

Cleaning the dust filter

1. Be sure to turn off the projector and unplug it from power source.

2. Press the latches on the dust filter and remove the filter from the projector.

3. Use a small vacuum cleaner or a soft brush to sweep the dust on the filter away.

4. Re-install the dust filter.

40

Resetting the filter timer

5. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter
Settings menu.

6. Press Enter and the Filter Settings page is displayed.

7. Highlight Reset Filter Hours and press Enter. A warning message is displayed
asking if you want to reset the filter timer.

8. Highlight Reset and press Enter. The lamp timer will be reset to '0'.

Caution

• Remember to use Filter Mode to Off in the SYSTEM SETTING: ADVANCED > Filter
Settings menu when using the projector with the dust filter removed. Setting Filter Mode
to Off does not reset the filter timer. The timer will continue counting the next time you
fit the filter back on and set Filter Mode to On.

Installing the cable management cover (optional accessory)

1. Make sure that all the cables are properly connected to the projector.

2. Attach the cable management cover to the back of the projector.

3. Tighten the screws that secure the cable management cover.

41

Replacing the lamp

As the projector operates over time, the brightness of the projector lamp gradually
decreases and the lamp becomes more susceptible to breakage. We recommend
replacing the lamp if a warning message is displayed. Do not attempt to replace the
lamp yourself. Contact the qualified service personnel for replacement.

Note

• The lamp is extremely hot right after turning off the projector. If you touch the lamp, you
may scald your finger. When you replace the lamp, wait for at least 45 minutes for the
lamp to cool down.

• Do not touch the lamp glass at any time. The lamp may explode due to improper
handling, including the touching of the lamp glass.

• Lamp lifetime may differ from lamp to lamp and according to the environment of use.
There is no guarantee of the same lifetime for each lamp. Some lamps may fail or
terminate their lifetime in a shorter period of time than other similar lamps.

• A lamp may explode as a result of vibration, shock or degradation as a result of hours of
use as its lifetime draws to an end. Risk of explosion may differ according to the
environment or conditions in which the projector and lamp are being used.

• Wear protective gloves and eyeglasses when fixing or detaching the lamp.

• Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at least for 5
minutes to turn off the projector after powering on.

• Do not operate the lamp in proximity to paper, cloth, or other combustible material nor
cover it with such materials.

• Do not operate the lamp in an atmosphere containing an inflammable substance, such
as thinner.

• Thoroughly ventilate the area or the room when operating the lamp in an oxygen
atmosphere (in the air). If ozone is inhaled, it could cause headaches, nausea, dizziness,
and other symptoms.

• The inorganic mercury is involved in the lamp. If the lamp bursts, the mercury inside the
lamp will be exposed. Leave the area immediately if the lamp shatters while being
operated and ventilate the area for at least 30 minutes in order to avoid the inhalation of
mercury fumes. Otherwise it could be harmful to user’s health.

42

1. Turn off the projector.

2. If the projector is installed in a ceiling mount, remove it.

3. Unplug the power cord.

4. Loosen the screw in the side of the lamp cover.1

5. Remove the cover.2

6. Loosen the screws from the lamp module.3

7. Raise the handle and pull out the lamp module slowly and carefully.4

8. Insert the new lamp module into the projector and tighten the screws.

9. Replace the lamp cover and tighten the screw.

10.Turn on the projector. If the lamp does not turn on after the warm-up period, try
reinstalling the lamp.

11. Reset the lamp hour. Refer to the “SYSTEM SETTING: ADVANCED > Lamp
Settings > Reset Lamp Hours” menu.

3

4

2

1

Note

• Dispose the used lamp according to local regulations.

• Ensure that screws are tightened properly. Screws not tightened fully may result in
injury or accidents.

• Since the lamp is made of glass, do not drop the unit and do not scratch the glass.

• Do not reuse the old lamp. This could cause the lamp to explode.

• Be sure to turn off the projector and unplug the AC power cord before replacing the
lamp.

• Do not use the projector with the lamp cover removed.

43

Specifications

Model name PJD5155L PJD5255L PJD5555LW
Dislay system Single 0.55" DLP panel Single 0.65" DLP panel
Resolution SVGA (800 x 600

pixels)
Zoom 1.1x 1.2x
F/No. 2.5 - 2.7 2.56
Focal length 22.08 - 24.28mm 20.99 - 25.61mm
Screen size 30” - 300”
Lamp 190W
Input terminal D-Sub 15-pin x 1, HDMI x 1
Output terminal D-Sub 15 pin x 1
Control terminal RS-232 x 1, Mini-B USB x1 (supports firmware upgrade and

remote mouse control)
Speaker 2 watt x 1
Video compatibility NTSC, NTSC 4.43

PAL, PA L-N, PAL M

SECAM, HDTV (480i/p, 576p, 720p, 1080i/p), Composite

video
Scanning frequency

Horizontal frequency
Vertical frequency

Environment Operating:

Power requirement AC 100-240 V, 50 - 60 Hz, 2.6A
Power consumption 265W (Max.)
Dimension

(W x D x H)
Weight 2.4 kg (5.3 lb) without cable management cover
Note: Design and Specifications are subject to change without prior notice.

31 - 100 KHz

24 - 120 Hz

Temperature: 0°C to 40°C

Humidity: 10%-90%

Storage:

Temperature: -20°C to 60°C

Humidity:10%-90%

362 x 231 x 109 mm

XGA (1024 x
768 pixels)

WXGA (1280 x 800
pixels)

44

Model name PJD5350LS PJD5550LWS
Display system Single 0.55" DLP panel Single 0.65" DLP panel
Resolution XGA (1024 x 768 pixels) WXGA (1280 x 800 pixels)
Zoom Fix
F/No. 2.8
Focal length 7.26mm 7.51mm
Screen size 30” - 300”
Lamp 210W
Input terminal D-Sub 15-pin x 1, HDMI x 1
Output terminal D-Sub 15 pin x 1
Control terminal RS-232 x 1, Mini-B USB x1 (supports firmware upgrade

and remote mouse control)
Speaker 2 watt x 1
Video compatibility NTSC, NTSC 4.43

PAL, PAL-N, PAL M

SECAM, HDTV (480i/p, 576p, 720p, 1080i/p),

Composite video
Scanning frequency

Horizontal frequency
Vertical frequency

31 - 100 KHz

24 - 120 Hz
Environment Operating:

Temperature: 0°C to 40°C

Humidity: 10%-90%

Storage:

Temperature: -20°C to 60°C

Humidity:10%-90%
Power requirement AC 100-240 V, 50 - 60 Hz, 2.6A
Power consumption 275W (Max.)
Dimension (W x D x H) 362 x 248 x 116 mm
Weight 2.5 kg (5.5 lb) without cable management cover
Note: Design and Specifications are subject to change without prior notice.

45

Dimensions

PJD5155L/PJD5255L/PJD5555LW

362 mm (W) x 231 mm (D) x 109 mm (H)

231

PJD5350LS/PJD5550LWS

362 mm (W) x 248 mm (D) x 116 mm (H)

362

109

362

Ceiling mount installation

PJD5155L/PJD5255L/PJD5555LW

248

116

Ceiling mount screws:
M4 x 8 (Max. L = 8 mm)

Unit: mm

PJD5350LS/PJD5550LWS

46

Appendix

LED indicator messages

LED Type Color Status Meaning

Power LED Blue Solid
Temp LED Red Off
Lamp LED Red Off
Power LED Blue Flash

Lamp LED Red Off
Power LED Blue Flash

Lamp LED Red Off
Power LED Blue Solid

Lamp LED Red Off
Power LED Blue Solid

Lamp LED Red Off
Power LED Blue Solid
Temp LED Red Flash
Lamp LED Red Flash
Power LED Blue Solid The lamp has reached its end of life and
Temp LED Red Off
Lamp LED Red Flash

Power LED Blue Flash 1. Temperature is too high. The lamp will
Temp LED Red Flash
Lamp LED Red Off

Power LED Blue Flash
Temp LED Red Off
Lamp LED Red Solid
Power LED Blue Solid

Lamp LED Red Solid

Normal power of standby mode .
(Not available for PJD5 series)

Low power of standby mode. Temp LED Red Off

Powering upTem p LED Red Off

Normal operationTemp LED Red Off

Powering downTemp LED Red Off

If the projector system has some problems
with its fans, the projector will shut down.

must be changed soon. The lamp will
continue to operate until it fails. Change the
lamp. If the lamp is off, then the ballast will
become malfunction.

turn off. The fan motor is cooling the lamp.
Or

2. The cooling process is not complete after
the projector is shut down and re-started
right away.

The lamp ignition failed. If temperature is
too high, the fans will cool the lamp.

Color wheel start failTemp LED Red Solid

47

Compatibility modes

Supported 3D signal for PC input

Horizontal

Resolution

640 x 480

720 x 400 70.087 31.469 28.3221

800 x 600

1024 x 768

1152 x 864 75 67.5 108

1280 x 720

1280 x 768 59.87 47.776 79.5

1280 x 800

1280 x 1024

1280 x 960

1360 x 768 60.015 47.712 85.5

1440 x 900 59.887 55.935 106.500
1400 x 1050 59.978 65.317 121.750
1600 x 1200 60 75 162.000
1680 x 1050 59.954 65.29 146.25
1920 x 1200 59.95 74.038 154.000

640 x 480

@67Hz

832 x 624

@75Hz

1024 x 768

@75Hz

1152 x 870

@75Hz

frequency

(KHz)

59.94 31.469 25.175

72.809 37.861 31.500
75 37.5 31.500

85.008 43.269 36.000

60.317 37.879 40.000

72.188 48.077 50.000
75 46.875 49.500

85.061 53.674 56.250

119.854 77.425 83.000

60.004 48.363 65.000

70.069 56.476 75.000

75.029 60.023 78.750

84.997 68.667 94.500

119.989 97.551 115.5

60 45 74.250

120 90.000 148.500

59.81 49.702 83.500

74.934 62.795 106.500

84.88 71.554 122.500

119.909 101.563 146.25

60.02 63.981 108.000

75.025 79.976 135.000

85.024 91.146 157.500
60 60 108.000

85.002 85.938 148.500

66.667 35 30.240

74.546 49.722 57.280

75.02 60.241 80.000

75.06 68.68 100.000

Vertical

frequency

(Hz)

Pixel

Frequency

(MHz)

3D frame

sequential

◎◎◎

◎◎◎

◎
◎◎◎

◎

◎◎◎
◎
◎◎◎
◎◎◎

◎

3D top

bottom

◎◎

◎◎

◎◎
◎◎
◎◎
◎◎
◎◎
◎◎

3D side
by side

• The timings showing above may not be supported due to EDID file and VGA
graphic card limitations. It is possible that some timings cannot be chosen.

• 120Hz is signals are supported for frame sequential format only.

48

Supported timing for Component-YPbPr input

Timing Resolution

480i* 720 x 480 59.94 15.73 13.5

480p* 720 x 480 59.94 31.47 27

576i 720 x 576 50 15.63 13.5

576p 720 x 576 50 31.25 27

720/50p 1280 x 720 50 37.5 74.25

720/60p* 1280 x 720 60 45.00 74.25

1080/50i 1920 x 1080 50 28.13 74.25

1080/60i 1920 x 1080 60 33.75 74.25
1080/24P 1920 x 1080 24 27 74.25
1080/25P 1920 x 1080 25 28.13 74.25
1080/30P 1920 x 1080 30 33.75 74.25
1080/50P 1920 x 1080 50 56.25 148.5
1080/60P 1920 x 1080 60 67.5 148.5

Vertical

Frequency (Hz)

Horizontal

Frequency

(kHz)

Pixel

Frequency

(MHz)

• *Supported timing for 3D signal with Frame Sequential format.

• Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight
image vibration.

49

Troubleshooting

Refer to the symptoms and measures listed below before sending the projector for
repairs. If the problem persists, contact your local reseller or service center. Please
refer to "LED Indicator Messages" as well.

Start-up problems

If no lights turn on:

•

Be sure that the power cord is securely connected to the projector and the other end
plugged into an outlet with power.

• Press the power button again.

is

Unplug the power cord and wait for a short while, then plug it in and press the power

•
button again.

Image problems

If the searching source is displayed:

•

Press

• Be sure the external source is turned on and connected.

•

For a computer connection, ensure your notebook computer’s external video port is
turned on. Refer to the computer manual.

If the image is out of focus:

•

While displaying the on-screen menu, adjust the focus ring. (The image size should
not change; if it does, you are adjusting the zoom, not the focus.)

• Check the projection lens to see if it needs cleaning.

• If the image is flickering or unstable for a computer connection:

• Press

Source to select an active input source.

Menu

, go to DISPLAY and adjust Phase or H. Size.

Remote control problems

If the remote control does not operate:

• Be sure nothing is blocking the remote control receiver on the front of the projector.
Use the remote control within the effective range.

• Aim the remote control at the screen or at the front of the projector.

•

Move the remote control so it is more directly in front of the projector and
the side.

50

not as far to

RS-232 command and configuration

D-Sub 9 pin

11 CD
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9RI

Wire List

SHELL DW SHELL

C1 COLOR C2

1 Black 1
2Brown 3
3Red 2
4 Orange 6
5 Yellow 5
6Green 4
7Blue 8
8Purple 7
9White 9

Baud Rate 115200 bps

Data Length 8 bit

Parity Check None

Stop Bit 1 bit

Flow Control None

51

Function Status Action cmd

Write

Power

Read Power status (on/off)

Reset all settings Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x02 0x00 0x5F
Reset Color
Settings

Write

Splash Scr een

Read Splash Screen status

Write

Quick Power Off

Read

Write

High Altitude Mode

Read

Write

Lamp Mode

Read Lamp Mode status

Write

Message

Read Message status

Write

Projector Position

Read

Write

3D Sync

Read 3D Sync Status

Write

3D Sync Invert

Read

Power on 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D
Power off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00
0x5E

Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87

Splash Screen Black 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67
Splash Screen Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68
Splash Screen
ViewSonic
Splash Screen
Screen Capture
Splash Screen Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x04 0x6B

Quick Power Off Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x00 0x68
Quick Power Off On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x01 0x69
Quick Power Off
status
High Altitude Mode
Off
High Altitude Mode
On
High Altitude Mode
status
Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x00 0x6D
Economic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x01 0x6E
Dynamic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x02 0x6F
Sleep Mode 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x03 0x70

Message Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x00 0x84
Message On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x01 0x85

Front Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x00 0x5E
Rear Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x01 0x5F
Rear Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x02 0x60
Front Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x03 0x61
Projector position
status
OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x00 0x7E
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x01 0x7F
Frame Sequential 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x02 0x80
Frame Packing 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x03 0x81
Top-Bottom 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x04 0x82
Side-by-Side 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x05 0x83

Off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x00 0x7F
On 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x01 0x80
3D Sync Invert
Status

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x03 0x6A

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A
0x68

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0B
0x69

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x00 0x69

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x01 0x6A

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0C
0x6A

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x10
0x6E

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x27
0x85

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x00
0x5F

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x20
0x7F

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x21
0x80

52

Write

Contrast

Read Contrast ratio

Write

Brightness

Read Brightness

Write

Aspect ratio

Read Aspect ratio

Auto Adjust Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x05 0x00 0x63

Write

Horizontal position

Read Horizontal position

Write

Vertical position

Read read Vertical position

Write

Color temperature

Read

Write

Blank

Read Blank status

Keystone­Vertical

Keystone­Horizontal

Color mode

Write

Read Keystone status

Write

Read Keystone status

Write

Read Preset mode status

Contrast decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x00 0x60
Contrast increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x01 0x61

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x02

0x61
Brightness decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x00 0x61
Brightness increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x01 0x62

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x03

0x62
Aspect ratio Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x00 0x62
Aspect ratio 4:3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x02 0x64
Aspect ratio 16:9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65
Aspect ratio 16:10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x04 0x66
Aspect ratio
Anamorphic
Aspect ratio Wide 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x06 0x68

Horizontal position
shift right
Horizontal position
shift left

Vertical position shift
up
Vertical position shift
down

color temperature
Warm
color temperature
Normal
color temperature
Neutral
color temperature
Cool
color temperature
status
Blank On 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x01 0x68
Blank Off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x00 0x67

Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x00 0x8E
Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x01 0x8F

Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x00 0x8E
Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x01 0x8F

Brightest 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x00 0x69
Movie 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x01 0x6A
PC 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x04 0x6D
ViewMatch 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x05 0x6E
Dynamic 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x08 0x71

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x06 0x68

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x04

0x63

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x01 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x00 0x64

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x06

0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x00 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x01 0x66

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x07

0x66

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x00 0x66

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x01 0x67

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x02 0x68

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x03 0x69

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x08

0x67

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x09

0x68

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x31

0x8F

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x31

0x8F

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0B

0x6A

53

Primary Color

Hue

Saturation

Gain

Freeze

Source input

Quick Auto Search

Mute

Volume

Primary color R 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x00 0x6E
Primary color G 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x01 0x6F

Write

Read Primary color status

Write

Read Hue

Write

Read Saturation

Write

Read Gain

Write

Read Freeze status

Write

Read Source

Write

Read

Write

Read Mute status

Write

Read Volume

Primary color B 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x02 0x70
Primary color C 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x03 0x71
Primary color M 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x04 0x72
Primary color Y 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x05 0x73

Hue decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x00 0x6F
Hue increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x01 0x70

Saturation decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x00 0x70
Saturation increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x01 0x71

Gain decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x00 0x71
Gain increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x01 0x72

Freeze On 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x01 0x60
Freeze Off 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x00 0x5F

Input source VGA 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x00 0x60
Input source VGA2 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x08 0x68
Input source HDMI 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x03 0x63
Input source HDMI2 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x07 0x67
Input source
Composite
Input source SVIDEO 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x06 0x66

Quick Auto Search
on
Quick Auto Search
off
Quick Auto Search
status
Mute on 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x01 0x61
Mute off 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x00 0x60

Increse Volume 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x01 0x00 0x61
Decrese Volume 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x02 0x00 0x62

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x10

0x6F

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x11

0x70

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x12

0x71

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x13

0x72

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00

0x60

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x05 0x65

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x01

0x61

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x01 0x62

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x00 0x61

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x02

0x62

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x00

0x61

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x03

0x64

54

English 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x00 0x61

Deutsch 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x02 0x63
Italiano 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x03 0x64

Write

Language

Read Language

Write

Lamp Time

Read Lamp usuage hour

Write

HDMI Format

Read HDMI Format status

Write

HDMI Range

Read HDMI Range status

Write

CEC

Read CEC status

Error status Read Read error status

Write

Brilliant Color

Read Brilliant Color status

Svenska 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0a 0x6B
Nederlands 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0b 0x6C

Polski 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71
Suomi 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72

Indonesia 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x13 0x74

Reset Lamp usuage
hour

RGB 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x00 0x85
YUV 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x01 0x86
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x02 0x87

Enhanced 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x00 0x86
Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x01 0x87
Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x02 0x88

Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x00 0x88
On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x01 0x89

Brilliant Color 0 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x00 0x6D
Brilliant Color 1 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x01 0x6E
Brilliant Color 2 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x02 0x6F
Brilliant Color 3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x03 0x70
Brilliant Color 4 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x04 0x71
Brilliant Color 5 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x05 0x72
Brilliant Color 6 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x06 0x73
Brilliant Color 7 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x07 0x74
Brilliant Color 8 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x08 0x75
Brilliant Color 9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x09 0x76
Brilliant Color 10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x0A 0x77

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x01 0x62

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x04 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x05 0x66

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x06 0x67

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x07 0x68

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x08 0x69

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x09 0x6A

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0c 0x6D

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6D

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x12 0x73

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x14 0x75

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00

0x62

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x01 0x00 0x62

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x01

0x63

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x28

0x86

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x29

0x87

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x2B

0x89

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x0D

0x66

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0F

0x6E

55

Remote Control
code

Screen Color

Over Scan

Remote Key Write

Write

Read

Write

Read Screen Color status

Write

Read Overscan status

code 1 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x00 0xA0
code 2 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x01 0xA1
code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2
code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3
code 5 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x04 0xA4
code 6 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x05 0xA5
code 7 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x06 0xA6
code 8 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x07 0xA7
Remote Control code
status
Screen color Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x00 0x8F
Blackboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x01 0x90
Greenboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x02 0x91
Whiteboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x03 0x92

Overscan Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x00 0x90
Overscan 1 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x01 0x91
Overscan 2 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x02 0x92
Overscan 3 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x03 0x93
Overscan 4 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x04 0x94
Overscan 5 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x05 0x95

Menu 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0F 0x61
Exit 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x13 0x65
Top 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0B 0x5D
Bottom 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0C 0x5E
Left 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0D 0x5F
Right 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0E 0x60
Source 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x04 0x56
Enter 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x15 0x67
Auto 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x08 0x5A
My Button 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x11 0x63

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x048

0xA1

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x32

0x90

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x33

0x91

56

IR control table

System Code: 83F4
Format : NEC

Power

COMP1 COMP2 HDMI

Auto
Sync

Source

Enter

Menu 3D Exit

PgDn

PgUp

Mouse

Mode

Pattern

ID set 1 2

345

678

Eco

RCP01051

Blank

Color
Mode

57

Key Format Byte1 Byte2 Byte3 Byte4

Freeze NEC X3 F4 03 FC

PgDn NEC X3 F4 05 FA
PgUp NEC X3 F4 06 F9
Blank NEC X3 F4 07 F8

Auto sync NEC X3 F4 08 F7

Up NEC X3 F4 0B F4

Down NEC X3 F4 0C F3

Left NEC X3 F4 0E F1

Right NEC X3 F4 0F F0

Color Mode NEC X3 F4 10 EF

Aspect NEC X3 F4 13 EC

Mute NEC X3 F4 14 EB

Enter NEC X3 F4 15 EA

Power ON NEC X3 F4 17 E8

Magnify NEC X3 F4 32 CD

Presentation Timer NEC X3 F4 27 D8

Exit NEC X3 F4 28 D7

D. ECO

(Eco mode)

Menu NEC X3 F4 30 CF

Mouse NEC X3 F4 31 CE

Mouse Left NEC X3 F4 36 C9

Mouse Right NEC X3 F4 37 C8

Source NEC X3 F4 40 BF

VGA (PC) NEC X3 F4 41 BE

Pattern NEC X3 F4 55 AA

My button NEC X3 F4 56 A9

HDMI NEC X3 F4 58 A7

Volume+ NEC X3 F4 82 7D

Volume- NEC X3 F4 83 7C

Key pad lock NEC X3 F4 8E 71

RC ID NEC X3 F4 96 69

NEC X3 F4 2B D4

Address code

Code 1 83F4
Code 2 93F4
Code 3 A3F4
Code 4 B3F4
Code 5 C3F4
Code 6 D3F4
Code 7 E3F4
Code 8 F3F4

58

Customer Support

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product serial number.

Country/Region Website

Australia
New Zealand

Canada www.viewsonic.com

Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk/
Hong Kong www.hk.viewsonic.com T= 852 3102 2900 [e-mail]
India www.in.viewsonic.com T= 1800 419 0959 [e-mail]
Korea ap.viewsonic.com/kr/ T= 080 333 2131 [e-mail]
Latin America

(Argentina)
Latin America

(Chile)
Latin America

(Columbia)
Latin America

(Mexico)
Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F.

Tel: [phone])6547-6484
Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico

Latin America
(Peru)

Macau www.hk.viewsonic.com T= 853 2870 0303 [e-mail]
Middle East ap.viewsonic.com/me/ Contact your reseller [e-mail]

Puerto Rico &
Virgin Islands

Singapore/
Malaysia/Thailand

South Africa ap.viewsonic.com/za/ Contact your reseller [e-mail]

United States www.viewsonic.com

www.viewsonic.com.au

www.viewsonic.com/la/

www.viewsonic.com/la/

www.viewsonic.com/la/

www.viewsonic.com/la/

www.viewsonic.com/la/

www.viewsonic.com

www.ap.viewsonic.com T= 65 6461 6044 [e-mail]

T= Telephone
C = CHAT ONLINE

AUS= 1800 880 818
NZ= 0800 008 822

T (Toll-Free)= 1-866-463-4775
T (Toll)= 1-424-233-2533

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

T= 1-800-688-6688 (English)
C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

T (Toll-Free)= 1-800-688-6688
T (Toll)= 1-424-233-2530

Email

[e-mail]

[e-mail]

[e-mail]

[e-mail]

[e-mail]

[e-mail]

[e-mail]

[e-mail]
[e-mail]

[e-mail]

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal
use, during the warranty period. If a product proves to be defective in material or workmanship during
the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product.
Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty

Subject to the more limited one (1) year warranty set out below, North and South America: Three
(3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the
original lamp from the date of the first consumer purchase.
Other regions or countries: Please check with your local dealer or local ViewSonic office for the
warranty information.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average
daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1)
year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase;
Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90)
days for the original lamp from the date of the first consumer purchase.
Other regions or countries: Please check with your local dealer or local ViewSonic office for the
warranty information.
Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s

installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, improper

maintenance, unauthorized product modification, or failure to follow instructions supplied with
the product.

b. Operation outside of product specifications.

c. Operation of the product for other than the normal intended use or not under normal

conditions.

d. Repair or attempted repair by anyone not authorized by ViewSonic.

e. Any damage of the product due to shipment.

f. Removal or installation of the product.

g. Causes external to the product, such as electric power fluctuations or failure.

h. Use of supplies or parts not meeting ViewSonic’s specifications.

i. Normal wear and tear.

j. Any other cause which does not relate to a product defect.

3. Removal, installation, one way transportation, insurance, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support
(Please refer to Customer Support page). You will need to provide your product's serial number.

2. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b)
your name, (c) your address, (d) a description of the problem, and (e) the serial number of the
product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic
service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact
ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein
including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not
be liable for:

1. Damage to other property caused by any defects in the product, damages based upon
inconvenience, loss of use of the product, loss of time, loss of profits, loss of business
opportunity, loss of goodwill, interference with business relationships, or other commercial loss,
even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion
of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada,
contact ViewSonic or your local ViewSonic dealer.
The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is
subject to the terms and conditions of the Maintenance Guarantee Card.
For users in Europe and Russia, full details of warranty provided can be found in www.
viewsoniceurope.com under Support/Warranty Information.

Projector Warranty Term Template In UG
VSC_TEMP_2005

Mexico Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during
the warranty period. If a product proves to be defective in material or workmanship during the warranty period,
ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts
may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first
consumer purchase.
Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed
lamp only.
All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
b. Any damage of the product due to shipment.
c. Causes external to the product, such as electrical power fluctuations or failure.
d. Use of supplies or parts not meeting ViewSonic's specifications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is
displayed on the product for an extended period of time.

4. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the
attached Customer Support page). You will need to provide your product's serial number, so please record the
product information in the space provided below on your purchase for your future use. Please retain your receipt
of proof of purchase to support your warranty claim.
For Your Records
Product Name: _____________________________ Model Number: _________________________________
Document Number: _________________________ Serial Number: _________________________________
Purchase Date: _____________________________ Extended Warranty Purchase? _________________ (Y/N)
If so, what date does warranty expire? _______________

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c)
your address, (d) a description of the problem, and (e) the serial number of the product.

2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.

3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the
implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss
of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference
with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:

México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,
