ViewSonic PJD5250L, PJD5550LWS, PJD5155L, PJD5255L, PJD5555LW User Manual

...

PJD5150/PJD5250L DLP Projector

User Guide

Model No. VS15902/VS15905

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://

www.viewsonic.com in English, or in specic languages using the Regional selection

box in the upper right corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic

With over 25 years as a world leading provider of visual solutions, ViewSonic is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic !

Compliance Information

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available. If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than,

0.002% Cadmium, or more than 0.004% Lead.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Proposed Maximum Concentration

Actual Concentration

Lead (Pb) 0.1% < 0.1% Mercury (Hg) 0.1% < 0.1% Cadmium (Cd) 0.01% < 0.01% Hexavalent Chromium (Cr

) 0.1% < 0.1% Polybrominated biphenyls (PBB) 0.1% < 0.1% Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode uorescent lamps and external electrode uorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

(1) Short length (≦500 mm): maximum 3.5 mg per lamp. (2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp. (3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India) This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth.

7. Do not block any ventilation openings. Install the unit in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves,

or other devices (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure that the power outlet is located near the unit so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the unit. When a cart is used, use caution when moving the cart/unit combination to avoid injury from tipping over.

13. Unplug this unit when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.

Copyright © ViewSonic Corporation, 2015. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation. VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA. PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this

document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To fulfill possible future product needs, and to receive additional product information as it becomes available, please visit your region section on ViewSonic’s website to register your product online. The ViewSonic CD also provides an opportunity for you to print the product registration form. Upon completion, please mail or fax to a respective ViewSonic office. To find your registration form, use the directory “:\CD\Registration”. Registering your product will best prepare you for future customer service needs. Please print this user guide and fill the information in the “For Your Records” section. For additional information, please see the “Customer Support” section in this guide.

For Your Records

Product Name: PJD5150/PJD5250L

ViewSonic DLP Projector

Model Number: VS15902/VS15905 Document Number: PJD5150/PJD5250L_UG_ENG Rev. 1A 03-16-15 Serial Number: Purchase Date:

Product disposal at end of product life

The lamp in this product contains mercury which can be dangerous to you and the environment. Please use care and dispose of in accordance with local, state or federal laws. ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/ Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

FCC notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, detectable by turning the equipment in question off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the distance between the equipment and the receiver

• Connect the equipment to an outlet on a different circuit than that which the receiver is connected to

• Or consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference that may cause undesired operation.

Safety instructions

Read all of these instructions before you operate your projector and save for future reference.

1. Read instructions

All the safety and operating instructions should be read before the appliance is operated.

2. Notes and warnings

All notes and warnings in the operating instructions should be adhered to.

3. Cleaning

Unplug the projector from the wall socket before cleaning. Use a damp cloth for cleaning the projector housing. Do not use liquid or aerosol cleaners.

4. Accessories

Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. Keep the plastic packing materials (from the projector, accessories and optional parts) out of the reach of children as these bags may result in death by suffocation. Be particularly careful around the small children.

5. Ventilation

The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust). Do not block or place anything near these slots, or internal heat build-up may occur, causing picture degradation or damage to the projector.

6. Power sources

Check that the operating voltage of your unit is identical with the voltage of your local power supply.

7. Servicing

Do not attempt to service this projector yourself. Refer all servicing to qualified service personnel.

8. Replacement parts

When replacement parts are required, be sure that the replacement parts are specified by the manufacture. Unauthorized substitutions may result in fire, electric shock or other hazards.

9. Moisture Condensation

Never operate this projector immediately after moving it from a cold location to a warm one. When the projector is exposed to such a change in temperature, moisture may condense on the lens and the crucial internal parts. To prevent the unit from possible damage, do not use the projector for at least 2 hours when there is an extreme or sudden change in temperature.

iii

Notes on the AC power cord

AC Power Cord must meet the requirement of countries where you use this projector. Please confirm your AC plug type with the graphics below and ensure that the proper AC Power Cord is used. If the supplied AC Power Cord does not match your AC outlet, please contact your sales dealer. This projector is equipped with a grounding type AC line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug. We highly recommend using a video source device also equipped with a grounding type AC line plug to prevent signal interference due to voltage fluctuations.

For Australia and Mainland China

For the U.S.A. and Canada

For the U.K.

Ground

For Continental Europe

Ground

Table of contents

Introduction ........................................................................................... 1

Projector features ................................................................................................................................... 1

Package contents .................................................................................................................................. 2

Projector overview ................................................................................................................................. 3

Using the product .................................................................................. 5

Control panel ......................................................................................................................................... 5

Connection ports .................................................................................................................................... 7

Remote control ....................................................................................................................................... 8

Installing the batteries .......................................................................................................................... 11

Remote control operation ..................................................................................................................... 12

Connection .......................................................................................... 13

Connecting a computer or monitor ....................................................................................................... 14

Connecting Video source devices ........................................................................................................ 14

Operation ............................................................................................. 16

Powering on/off the projector ............................................................................................................... 16

Adjusting the projector height .............................................................................................................. 17

Adjusting the projector zoom and focus ............................................................................................... 17

Adjusting projection image size ........................................................................................................... 18

Securing the projector .......................................................................................................................... 19

Locking control keys ............................................................................................................................ 21

Setting the presentation timer .............................................................................................................. 22

Menu operation .................................................................................................................................... 23

Maintenance ........................................................................................ 37

Cleaning the lens ................................................................................................................................. 37

Cleaning the projector housing ............................................................................................................ 37

Installing the dust filter (optional accessory) ........................................................................................ 38

Installing the cable management cover (optional accessory) .............................................................. 39

Replacing the lamp .............................................................................................................................. 40

Specifications ...................................................................................... 42

Dimensions .......................................................................................................................................... 43

Ceiling mount installation ..................................................................................................................... 43

Appendix .............................................................................................. 44

LED indicator messages ..................................................................................................................... 44

Compatibility modes ............................................................................................................................. 45

Troubleshooting ................................................................................................................................... 47

RS-232 command and configuration ................................................................................................... 48

IR control table ..................................................................................................................................... 54

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user - friendly design to deliver high reliability and ease of use.

The projector offers the following features:

• Compatibility with Macintosh® computers

• Compatibility with NTSC, PAL, SECAM and HDTV

• D-Sub 15-pin terminal for analog video connectivity

• Multi-language On-Screen Display (OSD) menus

• Digital keystone correction to correct distorted images

• RS-232 connector for serial control

• Power saving function decreasing the power consumption of the lamp by up to 30% when no input signal can be detected for a set period of time.

• Presentation timer for better control of time during presentations

• Selectable quick power off function

• Color Management allowing color adjustments to your liking

• Screen Color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

Note

• The information in this manual is subject to change without notices.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Package contents

When you unpack the projector, make sure you have all these components:

Note

• Contact you dealer immediately if any items are missing, appear damaged, or if the unit does not work

• For maximum protection of the product, please save the original shipping carton and packing materials and repack your product as it was originally packed at the factory if you need to ship it.

PJD5150/PJD5250L

projector

Remote control (IR) &

batteries (AAA *2 PCS)

AC power cord

VGA cable (D-SUB to D-SUB) ViewSonic CD wizard Quick start guide

Optional accessories

1. Cable management cover (rear cable cover)

2. Carry bag

3. Dust filter

Power

COMP1 COMP2 HDMI

Source

Enter

Menu 3D Exit

PgUp

Mouse

Pattern

Blank

PgDn

ID set 1 2

345

678

Eco Mode

Color Mode

RCP01051

Auto Sync

Projector overview

Front view

1. Front IR remote control sensor 2. Projection lens

3. Ventilation holes 4. Focus ring

5. Zoom ring 6. Control panel

7. Lamp cover

Rear View

Bottom View

Note

• This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package.

• Contact your dealer for information to mount the projector on a ceiling.

1. Connection ports 2. Kensington lock

3. AC power socket

1. Security bar 2. Ceiling mount holes

MINI USB

VIDEO

COMPUTER IN

RS-232

Ceiling mount screws: M4 x 8 (Max. L = 8 mm)

Unit: mm

60.01113.54

65.89

Using the product

Control panel

1. POWER

Turn the projector on or off.

2. Blank/ Left key

Hide the screen picture.

3. Menu/Exit

Menu: Display or exit the on-screen display menus.

Exit: Goes back to previous OSD menu, exits and saves menu settings.

4. Keystone/Arrow keys ( / Up, / Down)

Manually correct distorted images resulting from an angled projection.

5. Enter

Enacts the selected On-Screen Display (OSD) menu item.

6. (My Button)

User definable key for customized function.

7. (Lock)/ Right key

Lock: Activates panel key lock or disable panel key lock by a long press for 3 seconds.

Right key: When the On-Screen Display (OSD) menu is activated, #2 #4 and #7 keys are used as directional arrows to select the desired menu items and to make adjustments.

8. (Power LED indicator)

Refer to “LED Indicator Messages”.

9. (Temp LED indicator)

Refer to “LED Indicator Messages”.

10. (Lamp LED indicator)

Enter

Blank

Power

Color Mode

Exit

Source /

Refer to “LED Indicator Messages”.

11. Color Mode

Select the picture setup mode.

12. Source/ (Help)

Source: Display the source selection bar.

Help: Display the HELP menu by a long press for 3 seconds.

Connection ports

1. COMPUTER IN

Connect image input signal (analog RGB or component) to this jack.

2. RS-232

When operating the projector via a computer, connect this to the controlling computer's RS-232C port.

3. VIDEO

Connect composite video output from video equipment to this jack.

4. MINI USB

This connector is for firmware update and mouse function support.

MINI USB

VIDEO

COMPUTER IN

RS-232

2 3

Remote control

1. Power

Turn the projector on or off.

2. COMP1

Display COMPUTER IN 1 signal.

3. Auto Sync

Automatically determines the best picture timings for the displayed image.

4. / (Keystone)

Manually correct distorted images resulting from an angled projection.

5. (Up)/ (Down)/ (Left)/ (Right) When the On-Screen Display (OSD) menu is activated, the #4 and #5 keys are used as directional arrows to select the desired menu items and to make adjustments.

6. 3D

Activates the 3D On-Screen Display (OSD) menu item.

7. Menu

Display on-screen display menus.

8. (Right mouse)

Perform the right button of the mouse when mouse mode is activated.

9. (Left mouse)

Perform the left button of the mouse when mouse mode is activated.

10. Mouse

4 5

11 12

13 14

16 17 18 19 20

24 25

22 23

28 29

Switch between the normal and mouse modes.

11. (Lock)/ID Set

Lock: Activates or disables panel key lock.

ID Set: Sets remote control code.

12. (Timer)

Activate P-Timer OSD menu.

13. (+)

Not available for PJD5150/PJD5250L

14. Eco Mode

Switch the lamp mode from Normal, Economic, Dynamic to Sleep.

15. (-)

Not available for PJD5150/PJD5250L.

16. (My Button)

User definable key for customized function.

17. HDMI

Not available for PJD5150/PJD5250L.

18. COMP2

Not available for PJD5150/PJD5250L.

19. Source

Display the source selection bar.

20. Enter

Enacts the selected On-Screen Display (OSD) menu item.

21. Exit

Goes back to previous OSD menu, exits and saves menu settings.

22.

(Page Up)

Perform page up function when mouse mode is activated.

23.

(Page Down)

Perform page down function when mouse mode is activated.

24. Pattern

Display embedded test pattern.

25. Blank

Hide the screen picture.

26. (Help)

Display the Help menu.

27. (Magnify)

Displays the zoom bar that magnifies or reduces the projected picture size.

28. Color Mode

Select the picture setup mode.

29. (Mute)

Not available for PJD5150/PJD5250L.

Using the remote mouse control

The capability of operating your computer with the remote control gives you more flexibility when delivering presentations.

1. Connect the projector to your PC or notebook with a USB cable prior to using the remote control in place of your computer’s mouse. See "Connection" on page 13 for details.

2. Set the input signal to COMPUTER.

3. Press Mouse on the remote control to switch from the normal mode to the mouse mode. An icon appears on the screen to indicate the activation of the mouse mode.

4. Perform the desired mouse controls on your remote control.

• To move the cursor on the screen, press / / / .

• To left-click, press .

• To right-click, press .

• To operate your display software program (on a connected PC) which responds

to page up/down commands (like Microsoft PowerPoint), press Page Up/Page Down.

• To return to the normal mode, press Mouse again or other keys except for the

mouse related multi-function keys.

Remote control code

The projector can be assigned to 8 different remote control codes, 1 to 8. When several adjacent projectors are in operation at the same time, switching the remote control codes can prevent interference from other remote controls. Set the remote control code for the projector first before changing that for the remote control.

To switch the code for the projector, select from among 1 to 8 in the SYSTEM SETTING: ADVANCED > Remote Control Code menu.

To switch the code for the remote control, press ID set and the corresponding button from 1 to 8 buttons on the remote control together for 5 seconds or more. The initial code is set to1. When the code is switched to 8, the remote control can control every projector.

Note

• If different codes are set on the projector and remote control, there will be no response from the remote control. When that happens, switch the code for the remote control again.

Installing the batteries

1. Open the battery cover in the direction shown.

2. Install batteries as indicated by the diagram inside the compartment.

3. Close the battery cover into position.

Caution

• Risk of explosion if battery is replaced by an incorrect type.

• Dispose of used batteries according to the instructions.

• Make sure the plus and minus terminals are correctly aligned when loading a battery.

Note

• Keep the battery out of the reach of children.

• Remove batteries from remote control when not using for extended periods.

• Do not recharge the battery or expose the battery to fire or water.

• Do not dispose the used battery along with household waste. Dispose

used batteries

according to local regulations.

• Danger of explosion may happen if batteries are incorrectly replaced. Replace only with the same type recommended by the manufacturer.

• Battery should not be in or near to fire or water, keep batteries in a dark, cool and dry place.

• If suspect battery leakage, wipe out the leakage and then replace a new battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

Remote control operation

Point the remote control at the infrared remote sensor and press a button.

• Operating the projector from the front.

Note

• The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor.

• Operate the remote control from a position where the remote sensor is visible.

• Do not drop the remote control or jolt it.

• Keep the remote control out of locations with excessively high temperature or humidity.

• Do not get water on the remote control or place wet objects on it.

• Do not disassemble the remote control.

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

Important

• In the connections shown above, some cables may not be included with the projector (see "Package contents" on page 2). They are commercially available from electronics stores.

• The connection illustrations above are for reference only. The rear connecting jacks available on the projector vary with each projector model.

• For detailed connection methods, see pages 14-15.

1. VGA (D-Sub) to HDTV (RCA) cable 2. Composite Video cable

3. VGA to DVI-A cable 4. USB cable

MINI USB

VIDEO

COMPUTER IN

RS-232

Connecting a computer

The projector provides two VGA input sockets that allow you to connect them to both IBM® compatibles and Macintosh® computers. A Mac adapter is needed if you are connecting legacy version Macintosh computers.

To connect the projector to a notebook or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.

2. Connect the other end of the VGA cable to the COMPUTER signal input socket on the projector.

Important

• Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connecting Video source devices

You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Terminal name Terminal appearance Reference Picture quality

Video

VIDEO

"Connecting a

composite Video source

device" on page 15

Good

Component Video

COMPUTER

"Connecting a

Component Video

source device" on page

Normal

Connecting a composite Video source device

Examine your Video source device to determine if it has a set of unused composite Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a composite Video source device:

1. Take a Video cable and connect one end to the composite Video output socket of the Video source device.

2. Connect the other end of the Video cable to the VIDEO socket on the projector.

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take a VGA (D-Sub) to HDTV (RCA) cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red.

2. Connect the other end of the cable (with a D-Sub type connector) to the COM- PUTER socket on the projector.

Important

• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Operation

Powering on/off the projector

Powering on the projector:

1. Complete the AC power cord and peripheral signal cable(s) connections.

2. Press to turn on the projector. The projector takes a minute or so to warm up.

• If the projector is still hot from previous activity, it will run the cooling fan for

approximately 60 seconds before energizing the lamp.

3. Turn on your source (computer, notebook, DVD, etc.).

• If you are connecting multiple sources to the projector simultaneously, press

Source to select your desired signal or press your desired signal key on the remote control.

• If the projector doesn't detect a valid signal, the message 'No Signal' will con-

tinue to be displayed.

• Be sure the Quick Auto Source function in the SOURCE menu is On if you

want the projector to automatically search for the signals.

Warning

• Never look into the lens when the lamp is on. This can damage your eyes.

• This focal point concentrates high temperature. Do not place any object near it to avoid possible fire hazard.

Powering off the projector:

1. Press to turn off the projector lamp. You will see a message "Power off? Press Power again" appear on the screen.

2. Press again to confirm.

• When power off the projector, the Power LED begins flashing and the projector

has entered stand-by mode.

• If you want to turn the projector back on, you must wait until the projector has

completed the cooling cycle and has entered stand-by mode. Once in stand-by mode, simply press to restart the projector.

3. Disconnect the AC power cord from the electrical outlet and the projector.

4. Do not turn on the projector right after power off.

Adjusting the projector height

The projector is equipped with an elevator foot to adjust the image height. To raise or lower the image, turn the elevator foot to fine-tune the height.

Note

• To avoid damaging the projector, make sure that the elevator foot is fully retracted before placing the projector in its carrying case.

Adjusting the projector zoom and focus

1. Sharpen the image by rotating the focus ring.

2. Adjust the image size by rotating the zoom ring.

Elevator foot

Zoom ring

Focus ring

Adjusting projection image size

Refer to the graphic and table below to determine the screen size and projection distance.

Note

• Position the projector in a horizontal position; other positions can cause heat build-up and damage to the projector.

• Keep a space of 30 cm or more between the sides of the projector.

• Do not use the projector in a smoky environment. Smoke residue may build-up on critical parts and damage the projector or its performance.

4 : 3 Screen diagonal

Screen size

Projection distance

[inch (m)]

Vertical offset

[inch (cm)]

Diagonal

[inch (cm)]W[inch (cm)]

[inch (cm)]

(min.) (max.)

30 (76) 24 (61) 18 (46) 47 (1.2) 51 (1.3) 2.7 (6.9)

40 (102) 32 (81) 24 (61) 62 (1.6) 69 (1.7) 3.6 (9.1)

60 (152) 48 (122) 36 (91) 94 (2.4) 103 (2.6) 5.4 (13.7)

80 (203) 64 (163) 48 (122) 125 (3.2) 137 (3.5) 7.2 (18.3)

100 (254) 80 (203) 60 (152) 156 (4.0) 172 (4.4) 9.0 (22.9)

150 (381) 120 (305) 90 (229) 234 (5.9) 257 (6.5) 13.5 (34.3)

200 (508) 160 (406) 120 (305) 312 (7.9) 343 (8.7) 18.0 (45.7)

250 (635) 200 (508) 150 (381) 390 (9.9) 429 (10.9) 22.5 (57.2)

300 (762) 240 (610) 180 (457) 468 (11.9) 515 (13.1) 27.0 (68.6)

Diagonal size

Projection distance

Center of lens

Screen

Vertical offset

Securing the projector

Setting a password

1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Advanced > Security Settings menu. Press Enter. The Security Settings page displays.

2. Highlight Change Password and press Enter.

3. As pictured to the right, the four arrow keys ( / / / ) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys to enter six digits for the password.

4. Confirm the new password by re-entering the new password.

5. Go back to SYSTEM SETTING: ADVANCED > Advanced > Security Settings > Power on Lock menu, and press Enter. You will be asked to input password. Once the password is set, the OSD menu returns to the Power On Lock. Select On by pressing / .

6. To leave the OSD menu, press Menu/Exit.

Entering the password recall procedure

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message displays. Press Menu to re-enter the password.

1. If you enter an incorrect password 5 times in succession, the projector will display a coded number on the screen when you press the auto key 3~5 seconds.

2. Write down the number and turn off your projector.

3. Seek help from the local ViewSonic service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Changing the password

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Advanced > Security Settings > Change Password menu.

2. Enter the old password.

• If the password is correct, another message 'INPUT NEW PASSWORD' dis- plays.

• If the password is incorrect, the password error message displays, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press Menu to cancel the change or try another password.

3. Enter a new password.

4. Confirm the new password by re-entering the new password.

5. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.

6. To leave the OSD menu, press Menu/Exit.

Disabling the password function

To disable password protection, go back to SYSTEM SETTING: ADVANCED > Advanced > Security Settings > Power on Lock menu, and press Enter. You will be

asked to input password. Once the password is set, the OSD menu returns to the

Power On Lock. Select Off by pressing / . To leave the OSD menu, press Menu/ Exit.

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no control keys on the projector will operate except Power.

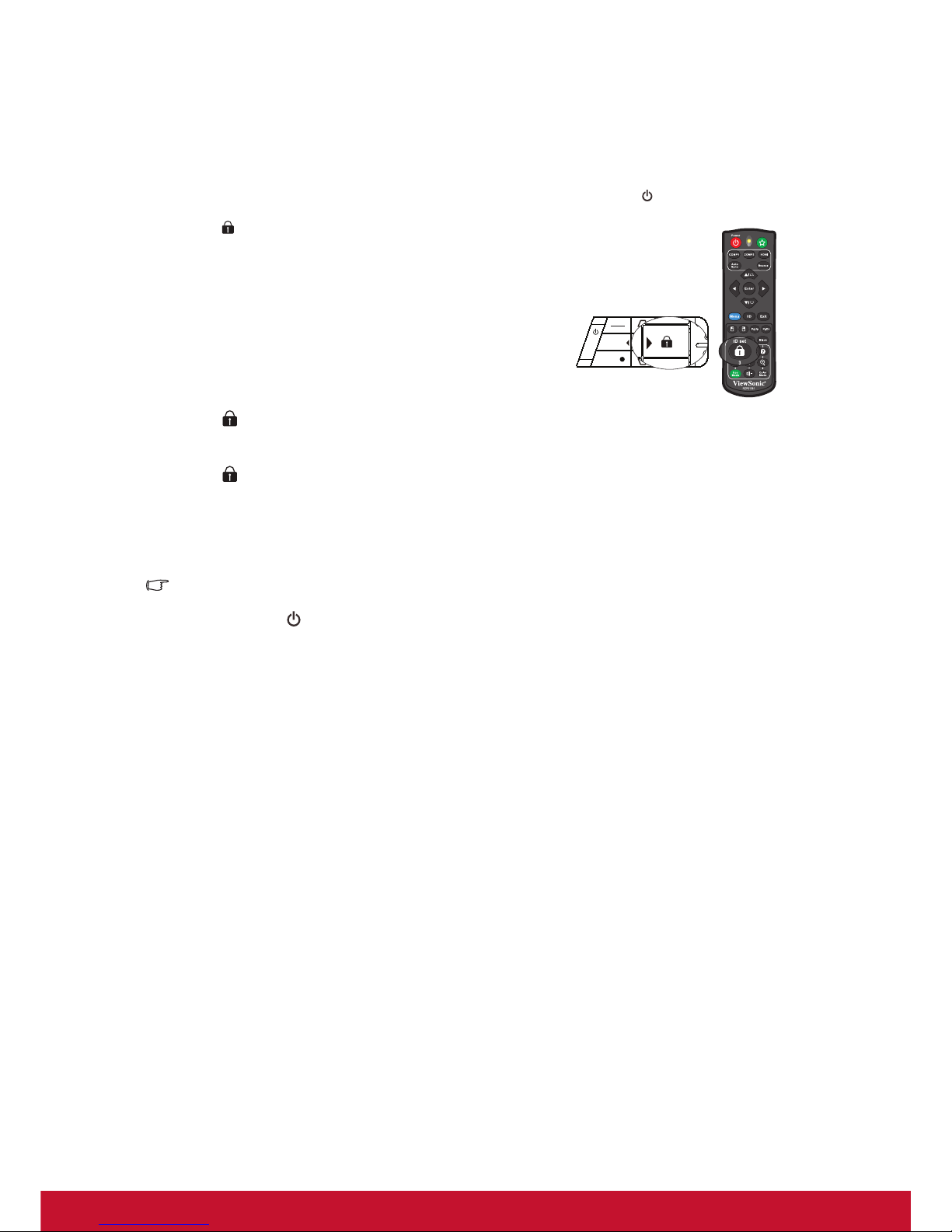

1. Press Lock on the remote control or keypad on the projector for 3 seconds.Press Lock on the remote control, a confirmation message “Are you sure to lock panel keys?” is displayed. Select Yes to confirm.

To release panel key lock:

1. Press Lock on the remote control directly.

The Panel keys are unlock.

2. Press Lock on the keypad on projector, a message is displayed. Panel keys are locked. please press lock key for 3 seconds to unlock panel keys.

Important

• If you press Power to turn off the projector without disabling panel key lock, the

projector will still be in locked status the next time it is turned on.

• Keys on the remote control are still functional when panel key lock is enabled.

Enter

Blank

Power

Color Mode

Exit

Source/

Setting the presentation timer

The presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function:

1. Press Timer on the remote control to access the Presentation Timer menu or go to the SYSTEM SETTING: BASIC > Advanced > Presentation Timer menu and press Enter to display the Presentation Timer page.

2. Highlight Timer Period and decide the timer period by pressing / .

3. Press

to highlight Timer Display and choose if you

want the timer to show up on the screen by pressing / .

4. Press to highlight Timer Position and set the timer position by pressing /

Top-Left → Bottom-Left → Top-Right → Bottom-Right

5. Press to highlight Timer Counting Direction and select your desired counting direction by pressing / ..

6. To activate the presentation timer, press to highlight Start Counting and select Yes.

7. To cancel the timer, highlight Start Counting and select No.

Selection Description

Always Displays the timer on screen throughout the presentation time. 1 Min/2 Min/3 Min Displays the timer on screen in the last 1/2/3 minute(s). Never Hides the timer throughout the presentation time.

Selection Description

Count Up Increases from 0 to the preset time. Count Down Decrease from the preset time to 0.

Menu operation

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings.

How to operate

1. Press Menu to open the OSD menu.

2. When OSD is displayed, use / to select any feature in the main menu.

3. After selecting the desired main menu item, press to enter sub-menu for feature

setting.

4. Use / to select the desired item and adjust the settings with / .

5. Press Menu, the screen will return to the main menu or go back to the upper level

of the menu.

Menu tree

Main Menu Sub Menu Settings

DISPLAY

Screen Color Off / Blackboard / Greenboard / Whiteboard Aspect Ratio Auto / 4:3 / 16:9 / Anamorphic/ Keystone -40 - 40

Position

X: -5 - 5

Y: - 5 - 5 Phase 0 - 31 H. Size -15 - 15

Zoom

PC:1.0X - 2.0X

Video:1.0X - 1.8X


Color Mode

Brightest / Dynamic / Standard / ViewMatch /

Movie Brightness 0 - 100 Contrast -50 - 50

Color Temp.

Warm / Normal / Neutral / Cool

Red Gain

Green Gain

Blue Gain

Red Offset

Green Offset

Blue Offset

Advanced

Color -50 - 50

Tint -50 - 50

Sharpness 0 - 31

Gamma 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8

Brilliant Color

Off / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10

Color Manage-

ment

Primary color

R / G / B / C / M

/ Y Hue -99 - 99 Saturation 0 - 199 Gain 5 - 195

Reset Color Settings

Reset / Cancel

SOURCE

Quick Auto Search

Off / On

3D Settings

3D Sync

Off Frame Sequential To p- Bo ttom Side-by-Side

3D Sync Invert Disable /Invert

Auto Power On

Computer Disable/ Enable Direct Power On

Off / On

Auto Power Off

Power Saving Disable/ 10/ 20/ 30 min

Sleep Timer

Disable / 30 min/ 1 hr / 2 hr / 3 hr / 4 hr / 8 hr / 12 hr

Smart Restart Disable / Enable Quick Power Off

Disable / Enable

SYSTEM SETTING: BASIC

Language

Projector Position

Front Table / Rear Table / Rear Ceiling / Front Ceiling

Menu Settings

Menu Display Time

5 sec / 10 sec / 15 sec / 20 sec / 25 sec / 30 sec

Menu Position

Center / Top-Left / Top-Right / Bottom-Left / Bottom-Right

Blank Timer

Disable / 5 min / 10 min / 15 min / 20 min / 25 min / 30 min

Splash Screen Black / Blue / ViewSonic/ Off

My Button

Auto Sync / Projector Position / Menu Position / Color Temp. / Brightness / Contrast / 3D Settings / Screen Color / Splash Screen / Message / Quick Auto Search / Lamp Mode / DCR / Power Saving / Freeze / Information

Advanced

Pattern Off / 01 / 02 / 03 / 04 / 05 Message On / Off

Presentation Timer

Timer period 1 ~ 240 min

Timer display

Always / 1 min

/ 2 min / 3 min /

Never

Timer Position

Top - L ef t /

Bottom-Left /

Top - R ig h t /

Bottom-Right Timer counting direction

Count Down /

Count Up Start Counting / Off

Yes / No

SYSTEM SETTING: ADVANCED

High Altitude Mode

Off / On

DCR Off / On

Closed Caption

Closed Caption Enable

Off / On

Caption Version CC1 / CC2 / CC3 / CC4

Lamp Settings

Lamp Mode

Normal / Economic / Dynamic / Sleep Mode

Reset Lamp Hours

Reset / Cancel

Lamp hours

Filter Settings

Filter Mode Off / On Reset Filter Hours

Reset / Cancel

Filter Hours Remote Control Code

1 / 2 / 3 / 4 / 5 / 6 / 7 / 8

Advanced

Security

Settings

Change password Power on Lock Off / On

Panel Key Lock Off / On Reset Settings Reset / Cancel

INFORMATION

Current System Status Source Color Mode Resolution Color System Lamp Hours Filter Hours Firmware Version

DISPLAY

Screen Color

The Screen Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures.

There are several precalibrated colors to choose from: Whiteboard, Greenboard, and Blackboard.

Aspect Ratio

Select how the picture fits on the screen:

• Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal or vertical width. You want to make most use of the screen without altering the source image’s aspect ratio.

• 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio, as it displays them without aspect alteration.

• 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio, as it displays them without aspect alteration.

• Anamorphic: Scales a 16:9 aspect image vertically and horizontally in a non-linear manner so that it fills the screen with a 4:3 aspect ratio.

Keystone

Manually correct distorted images resulting from an angled projection. Press Keystone / on the projector or remote control to display the Keystone correction page. Press to correct keystone at the top of the image. Press to correct keystone at the bottom of the image.

Position

Displays the position adjusent page. This function is only available when a PC type input signal is selected.

Phase

Adjusts the clock phase to reduce image distortion. This function is only available when a PC type input signal is selected.

H. Size

Adjusts the horizontal width of the image. This function is only available when a PC type input signal is selected.

Zoom

Using the remote control

1. Press on the remote control to display the Zoom bar.

2. Press / to magnify the picture to a desired size.

3. Press repeatedly to magnify the picture to a desired size.

4. To navigate the picture, press Enter to switch to the paning mode and press the

directional arrows ( , , , ) to navigate the picture.

5. To reduce size of the picture, press Enter to switch back to the zoom in/out

functionality, and press Auto Sync to restore the picture to its original size. You can also press repeatedly until it is restored to the original size.

Using the OSD menu

1. Press Menu and then press until the DISPLAY menu is highlighted.

2. Press to select Zoom and press Enter. The Zoom bar displays.

3. Repeat steps 3-5 in the section of Using the remote control above.


Color Mode

There are many factory presets optimized for various types of images.

• Brightest: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required.

• Dynamic: Is designed for presentations under daylight environment to match PC and notebook coloring. In addition, the projector will optimize the image quality using the dynamic PC function in accordance with the projected contents.

• Standard: Is designed for presentations under daylight environment to match PC and notebook coloring.

• ViewMatch: Switches between high brightness performance and accurate color performance.

• Movie: Is appropriate for playing colorful movies. This mode is suitable for viewing in a blackened (little light) environment

Brightness

Brighten or darken the image.

Contrast

Sets the difference between light and dark areas.

Color Temp.

Sets a color temperature from Warm, Normal, Neutral and Cool.

• Cool: With the highest color temperature, Cool makes the image appear the most bluish white than other settings.

• Neutral: Makes images appear bluish white.

• Normal: Maintains normal colorings for white.

• Warm: Makes images appear reddish white.

• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green, and Blue.

• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red, Green, and Blue.

Advanced

Color

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Tint

Adjusts the red and green color tones of the image.

Sharpness

Adjusts the image to make it look sharper or softer.

Gamma

Effect the represent of dark scenery. With greater gamma value, dark scenery will look brighter.

Brilliant Color

This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from “1” to “10”. If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Color Management

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its hue, saturation and gain according to your preference.

Reset Color Settings

Reset the Color Mode settings of the current input source to default values.

SOURCE

Quick Auto Search

Automatically scan through all the input source if the function in the OSD menu is On. The function will stop the signal auto scan process and fix the signal source you preferred if you turn Off the Quick Auto Search.

3D Settings

This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.

3D Sync

When you discover the inversion of the image depth, enable this function to correct the problem.

3D Sync Invert

When you discover the inversion of the image depth, enable this function to correct the problem.

Auto Power On

Computer

Selecting Enable the projector will turn on automatically when COMPUTER signal is detected.

Direct Power On

Selecting On the projector will turn on automatically after the power cord has been connected and power has been applied.

Auto Power Off

Power Saving

The projector lowers the projector power if no input source is detected after 5 minutes to prevent unnecessary waste of lamp life. You can further decide if you would like the projector to turn off automatically after a set period of time. When Disable is selected, the projector power will be reduced to 30% after no signal is detected for 5 minutes. If you select 10 min, 20 min or 30 min, the projecter power will be reduced to 30% after no signal is detected for 5 minutes. And when 10 min, 20 min or 30 min is up, the projector will turn off automatically.

Sleep Timer

This function allows the projector to turn off automatically after a set period of time to prevent unnecessary waste of lamp life.

Smart Restart

It takes some time to initate this function. Make sure the projector has been turned on for more than 4 minutes. If the projector is resumed by using the Smart Restart feature, this function can be executed immediately.

Quick Power Off

• ON: Quick power on function speeds up the cooling process when turning off the projector.

• OFF: Turn off with cooling procedure.

Note

• When Desable is selected, the Smart Restart function will be automatically turned OFF.

SYSTEM SETTING: BASIC

Language

Select the language used by the on-screen menu.

Projector Position

Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or behind the screen. Invert or reverse the image accordingly.

Menu Settings

Menu Display Time

Duration of OSD menu display countly starts (at idle state by second).

Menu Position

Choose the menu location on the display screen.

Blank Timer

Sets the image blank time when the Blank Timer feature is activated, once elapsed the image will return to the screen.

Splash Screen

Allows you to select which logo screen will display during projector start-up.

My Button

Allow user to define a short cut key on the remote control, and the function item is selected in OSD menu. Available options are: Auto Sync, Projector Position, Menu Position, Color Temp., Brightness, Contrast, 3D Settings, Screen Color, Splash Screen, Message, Quick Auto Search, Lamp Mode, DCR, Power Saving, Freeze, and Information.

Advanced

Pattern

Display embedded test pattern.

Message

Enable or disable the message box at the right bottom of the screen.

Presentation Timer

Remind the presenter to finish the presentation within a certain time frame. See "Set-

ting the presentation timer" on page 23.

SYSTEM SETTING: ADVANCED

High Altitude Mode

Use this function to allow the fans operates at full speed continuously to achieve proper high altitude cooling of the projector.

DCR

DCR (Dynamic Contrast Ratio): Enable DCR will further enhance contrast ratio by darkening the black scenes. Disable DCR will resume to normal contrast performance. DCR will impact lamp life and system noise performance.

Closed Caption

Enable or disable closed captions by selecting CC1 (closed caption1, the most common channel), CC2, CC3, CC4, T1, T2 or OFF.

Lamp Settings

Lamp Mode

Sets the Lamp Mode.

• Normal: 100% lamp power

• Economic: 80% lamp power

• Dynamic: 30~100% lamp power based on signal

• Sleep Mode: 30% lamp power

Reset Lamp Hours

Reset the lamp Hour to 0 hours.

Lamp Hours

Display the lamp’s elapsed operating time (in hours).

Filter Settings (Optional)

Filter Mode

Use this function to activate filter mode after the projector is installed an optional filter cover.

Reset Filter Hours

Reset the filter Hour to 0 hours.

Filter Hours

Display the filter’s elapsed operating time (in hours).

Remote Control Code

See "Remote control code" on page 10 for details.

Advanced

Security Settings

• Change Password: Allows you to set or change the password.

• Power on Lock: If you enable this function, you will have to enter the password next time you turn on the projector.

See "Securing the projector" on page 20 for details.

Panel Key Lock

Disables or enables all panel key functions except Power on the projector and keys on the remote control. See "Locking control keys" on page 22 for details.

Reset Settings

Restore settings to factory default. The following settings will still remain: Keystone, Language, Projector Position, High Altitude Mode, Security Settings, Remote Control Code.

INFORMATION

Current System Status

Shows the currect system status.

Source

Shows the current signal source.

Color Mode

Shows the selected mode in the Color Mode menu.

Resolution

Shows the native resolution of the input signal.

Color System

Shows input system format, NTSC, PAL, SECAM, or RGB.

Lamp Hours

Displays the number of hours the lamp has been used.

Filter Hours

Displays the number of hours the filter has been used.

Firmware Version

Shows firmware version.

Maintenance

The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first.

Warning

• Never open any of the covers on the projector. Dangerous electrical voltages inside the projector can cause severe injury. Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

Cleaning the lens

Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands.

Cleaning the projector housing

Gently wipe with a soft cloth. If dirt and stains are not easily removed, use a soft cloth damped with water, or water and neutral detergent, and wipe dry with a soft, dry cloth.

Note

• Turn off the projector and remove the AC power cord from the power outlet before beginning maintenance work.

• Make sure the lens is cool before cleaning.

• Do not use detergents or chemicals other than those noted above. Do not use benzene or thinners.

• Do not use chemical sprays.

• Use a soft cloth or lens paper only.

Installing the dust filter (optional accessory)

Caution

• It is important to clean the dust filter every 100 hours after the dust filter is installed.

• Be sure to turn off the projector and unplug it from power source before installing or detaching the filter.

• If your projector is ceiling-mounted or is not easily accessible, pay special attention to your personal safety when replacing the dust filter.

Installing the dust filter

1. Be sure to turn off the projector and unplug it from power source.

2. As the arrows shown to the right, fit the filter by aligning and inserting it into the projector slots. Make sure it clicks into place.

For first time installation:

3. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter Settings menu.

4. Press Enter and the Filter Settings page is displayed.

5. Highlight Filter Mode and select "On". The filter timer starts counting and the projector will remind you to clean the filter when the filter is in use for over 100 hours.

Caution

• Set Filter Mode to On only when using the projector after the dust filter (optional accessory) is properly attached. Failing to do so will result in a shorter lamp life.

Obtaining the filter hour information

1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter Settings menu.

2. Press Enter and the Filter Settings page is displayed.

3. You will see the Filter Hours information on the menu.

Cleaning the dust filter

1. Be sure to turn off the projector and unplug it from power source.

2. Press the latches on the dust filter and remove the filter from the projector.

3. Use a small vacuum cleaner or a soft brush to sweep the dust on the filter away.

4. Re-install the dust filter.

Resetting the filter timer

5. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter Settings menu.

6. Press Enter and the Filter Settings page is displayed.

7. Highlight Reset Filter Hours and press Enter. A warning message is displayed asking if you want to reset the filter timer.

8. Highlight Reset and press Enter. The lamp timer will be reset to '0'.

Caution

• Remember to use Filter Mode to Off in the SYSTEM SETTING: ADVANCED > Filter Settings menu when using the projector with the dust filter removed. Setting Filter Mode to Off does not reset the filter timer. The timer will continue counting the next time you fit the filter back on and set Filter Mode to On.

Installing the cable management cover (optional accessory)

1. Make sure that all the cables are properly connected to the projector.

2. Attach the cable management cover to the back of the projector.

3. Tighten the screws that secure the cable management cover.

Replacing the lamp

As the projector operates over time, the brightness of the projector lamp gradually decreases and the lamp becomes more susceptible to breakage. We recommend replacing the lamp if a warning message is displayed. Do not attempt to replace the lamp yourself. Contact the qualified service personnel for replacement.

Note

• The lamp is extremely hot right after turning off the projector. If you touch the lamp, you may scald your finger. When you replace the lamp, wait for at least 45 minutes for the lamp to cool down.

• Do not touch the lamp glass at any time. The lamp may explode due to improper handling, including the touching of the lamp glass.

• Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.

• A lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.

• Wear protective gloves and eyeglasses when fixing or detaching the lamp.

• Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at least for 5 minutes to turn off the projector after powering on.

• Do not operate the lamp in proximity to paper, cloth, or other combustible material nor cover it with such materials.

• Do not operate the lamp in an atmosphere containing an inflammable substance, such as thinner.

• Thoroughly ventilate the area or the room when operating the lamp in an oxygen atmosphere (in the air). If ozone is inhaled, it could cause headaches, nausea, dizziness, and other symptoms.

• The inorganic mercury is involved in the lamp. If the lamp bursts, the mercury inside the lamp will be exposed. Leave the area immediately if the lamp shatters while being operated and ventilate the area for at least 30 minutes in order to avoid the inhalation of mercury fumes. Otherwise it could be harmful to user’s health.

1. Turn off the projector.

2. If the projector is installed in a ceiling mount, remove it.

3. Unplug the power cord.

4. Loosen the screw in the side of the lamp cover.1

5. Remove the cover.2

6. Loosen the screws from the lamp module.3

7. Raise the handle and pull out the lamp module slowly and carefully.4

8. Insert the new lamp module into the projector and tighten the screws.

9. Replace the lamp cover and tighten the screw.

10.Turn on the projector. If the lamp does not turn on after the warm-up period, try reinstalling the lamp.

11. Reset the lamp hour. Refer to the “SYSTEM SETTING: ADVANCED > Lamp Settings > Reset Lamp Hours” menu.

Note

• Dispose the used lamp according to local regulations.

• Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents.

• Since the lamp is made of glass, do not drop the unit and do not scratch the glass.

• Do not reuse the old lamp. This could cause the lamp to explode.

• Be sure to turn off the projector and unplug the AC power cord before replacing the lamp.

• Do not use the projector with the lamp cover removed.

Specifications

Model name PJD5150 PJD5250L Dislay system Single 0.55" DLP panel Resolution SVGA (800 x 600 pixels) XGA (1024 x 768 pixels) Zoom 1.1x F/No. 2.5 - 2.7 Focal length 22.08 - 24.28mm Screen size 30” - 300” Lamp 203W Input terminal D-Sub 15-pin x 1, Video x 1 Control terminal RS-232 x 1, Mini-B USB x1 (supports firmware upgrade and

remote mouse control)

Video compatibility NTSC, NTSC 4.43

PAL, PA L-N, PAL M SECAM, HDTV (480i/p, 576p, 720p, 1080i/p), Composite video

Scanning frequency Horizontal frequency Vertical frequency

31 - 100 KHz 24 - 120 Hz

Environment Operating:

Temperature: 0°C to 40°C Humidity: 10%-90% Storage: Temperature: -20°C to 60°C

Humidity:10%-90% Power requirement AC 100-240 V, 50 - 60 Hz, 2.6A Power consumption 265W (Max.) Dimension

(W x D x H)

362 x 231 x 109 mm

Weight 2.4 kg (5.3 lb) without cable management cover Note: Design and Specifications are subject to change without prior notice.

Dimensions

362 mm (W) x 231 mm (D) x 109 mm (H)

Ceiling mount installation

362

231

Ceiling mount screws: M4 x 8 (Max. L = 8 mm)

Unit: mm

65.89

113.54 60.01

109

Appendix

LED indicator messages

LED Type Color Status Meaning

Power LED Blue Solid

Normal power of standby mode . (Not available for PJD5 series)

Temp LED Red Off Lamp LED Red Off Power LED Blue Flash

Low power of standby mode. Temp LED Red Off Lamp LED Red Off Power LED Blue Flash

Powering upTe mp LED Red Off Lamp LED Red Off Power LED Blue Solid

Normal operationTemp LED Red Off Lamp LED Red Off Power LED Blue Solid

Powering downTemp LED Red Off Lamp LED Red Off Power LED Blue Solid

If the projector system has some problems

with its fans, the projector will shut down.

Temp LED Red Flash Lamp LED Red Flash Power LED Blue Solid The lamp has reached its end of life and

must be changed soon. The lamp will

continue to operate until it fails. Change the

lamp. If the lamp is off, then the ballast will

become malfunction.

Temp LED Red Off Lamp LED Red Flash

Power LED Blue Flash 1. Temperature is too high. The lamp will

turn off. The fan motor is cooling the lamp.

2. The cooling process is not complete after

the projector is shut down and re-started

right away.

Temp LED Red Flash Lamp LED Red Off

Power LED Blue Flash

The lamp ignition failed. If temperature is

too high, the fans will cool the lamp.

Temp LED Red Off Lamp LED Red Solid Power LED Blue Solid

Color wheel start failTemp LED Red Solid Lamp LED Red Solid

Compatibility modes

Supported 3D signal for PC input

• The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.

• 120Hz is signals are supported for frame sequential format only.

Resolution

Horizontal frequency

(KHz)

Vertical

frequency

(Hz)

Pixel

Frequency

(MHz)

3D frame

sequential

3D top

bottom

3D side by side

640 x 480

59.94 31.469 25.175

◎◎◎

72.809 37.861 31.500 75 37.5 31.500

85.008 43.269 36.000

720 x 400 70.087 31.469 28.3221

800 x 600

60.317 37.879 40.000

◎◎◎

72.188 48.077 50.000 75 46.875 49.500

85.061 53.674 56.250

119.854 77.425 83.000

◎

1024 x 768

60.004 48.363 65.000

◎◎◎

70.069 56.476 75.000

75.029 60.023 78.750

84.997 68.667 94.500

119.989 97.551 115.5

◎

1152 x 864 75 67.5 108

1280 x 720

60 45 74.250

◎◎◎

120 90.000 148.500

◎

1280 x 768 59.87 47.776 79.5

◎◎◎

1280 x 800

59.81 49.702 83.500

◎◎◎

74.934 62.795 106.500

84.88 71.554 122.500

119.909 101.563 146.25

◎

1280 x 1024

60.02 63.981 108.000

◎◎

75.025 79.976 135.000

85.024 91.146 157.500

1280 x 960

60 60 108.000

◎◎

85.002 85.938 148.500

1360 x 768 60.015 47.712 85.5

◎◎

1440 x 900 59.887 55.935 106.500

◎◎

1400 x 1050 59.978 65.317 121.750

◎◎

1600 x 1200 60 75 162.000

◎◎

1680 x 1050 59.954 65.29 146.25

◎◎

1920 x 1200 59.95 74.038 154.000

◎◎

640 x 480

@67Hz

66.667 35 30.240

832 x 624

@75Hz

74.546 49.722 57.280

1024 x 768

@75Hz

75.02 60.241 80.000

1152 x 870

@75Hz

75.06 68.68 100.000

Supported timing for Component-YPbPr input

• *Supported timing for 3D signal with Frame Sequential format.

• Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.

Timing Resolution

Vertical

Frequency (Hz)

Horizontal

Frequency

(kHz)

Pixel

Frequency

(MHz)

480i* 720 x 480 59.94 15.73 13.5

480p* 720 x 480 59.94 31.47 27

576i 720 x 576 50 15.63 13.5

576p 720 x 576 50 31.25 27

720/50p 1280 x 720 50 37.5 74.25

720/60p* 1280 x 720 60 45.00 74.25

1080/50i 1920 x 1080 50 28.13 74.25

1080/60i 1920 x 1080 60 33.75 74.25 1080/24P 1920 x 1080 24 27 74.25 1080/25P 1920 x 1080 25 28.13 74.25 1080/30P 1920 x 1080 30 33.75 74.25 1080/50P 1920 x 1080 50 56.25 148.5 1080/60P 1920 x 1080 60 67.5 148.5

Troubleshooting

Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center. Please refer to "LED Indicator Messages" as well.

Start-up problems

If no lights turn on:

•

Be sure that the power cord is securely connected to the projector and the other end

plugged into an outlet with power.

• Press the power button again.

•

Unplug the power cord and wait for a short while, then plug it in and press the power button again.

Image problems

If the searching source is displayed:

•

Press

Source to select an active input source.

• Be sure the external source is turned on and connected.

•

For a computer connection, ensure your notebook computer’s external video port is turned on. Refer to the computer manual.

If the image is out of focus:

•

While displaying the on-screen menu, adjust the focus ring. (The image size should not change; if it does, you are adjusting the zoom, not the focus.)

• Check the projection lens to see if it needs cleaning.

• If the image is flickering or unstable for a computer connection:

• Press

, go to DISPLAY and adjust Phase or H. Size.

Remote control problems

If the remote control does not operate:

• Be sure nothing is blocking the remote control receiver on the front of the projector. Use the remote control within the effective range.

• Aim the remote control at the screen or at the front of the projector.

•

Move the remote control so it is more directly in front of the projector and

not as far to

the side.

RS-232 command and configuration

D-Sub 9 pin

11 CD 2RXD 3TXD 4DTR 5GND 6DSR 7RTS 8CTS 9RI

Baud Rate 115200 bps

Data Length 8 bit

Parity Check None

Stop Bit 1 bit

Flow Control None

Wire List

C1 COLOR C2

1 Black 1 2Brown 3 3Red 2 4 Orange 6 5 Yellow 5 6Green 4 7Blue 8 8Purple 7 9White 9

SHELL DW SHELL

Function Status Action cmd

Power

Write

Power on 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D Power off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E

Read Power status (on/off)

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00

0x5E Reset all settings Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x02 0x00 0x5F Reset Color Settings

Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87

Splash Scr een

Write

Splash Screen Black 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67 Splash Screen Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68 Splash Screen ViewSonic

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69

Splash Screen Screen Capture

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x03 0x6A

Splash Screen Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x04 0x6B

Read Splash Screen status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A

0x68

Quick Power Off

Write

Quick Power Off Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x00 0x68 Quick Power Off On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x01 0x69

Read

Quick Power Off status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0B

0x69

High Altitude Mode

Write

High Altitude Mode Off

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x00 0x69

High Altitude Mode On

0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x01 0x6A

Read

High Altitude Mode status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0C

0x6A

Lamp Mode

Write

Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x00 0x6D Economic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x01 0x6E Dynamic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x02 0x6F Sleep Mode 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x03 0x70

Read Lamp Mode status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x10

0x6E

Message

Write

Message Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x00 0x84 Message On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x01 0x85

Read Message status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x27

0x85

Projector Position

Write

Front Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x00 0x5E Rear Table 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x01 0x5F Rear Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x02 0x60 Front Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x03 0x61

Read

Projector position status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x00

0x5F

3D Sync

Write

OFF 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x00 0x7E Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x01 0x7F Frame Sequential 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x02 0x80 Frame Packing 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x03 0x81 Top-Bottom 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x04 0x82 Side-by-Side 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x05 0x83

Read 3D Sync Status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x20

0x7F

3D Sync Invert

Write

Off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x00 0x7F On 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x01 0x80

Read

3D Sync Invert Status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x21

0x80

Contrast

Write

Contrast decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x00 0x60 Contrast increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x01 0x61

Read Contrast ratio

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x02

0x61

Brightness

Write

Brightness decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x00 0x61 Brightness increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x01 0x62

Read Brightness

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x03

0x62

Aspect ratio

Write

Aspect ratio Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x00 0x62 Aspect ratio 4:3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x02 0x64 Aspect ratio 16:9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65 Aspect ratio 16:10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x04 0x66 Aspect ratio Anamorphic

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x06 0x68

Aspect ratio Wide 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x06 0x68

Read Aspect ratio

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x04

0x63 Auto Adjust Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x05 0x00 0x63

Horizontal position

Write

Horizontal position shift right

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x01 0x65

Horizontal position shift left

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x00 0x64

Read Horizontal position

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x06

0x65

Vertical position

Write

Vertical position shift up

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x00 0x65

Vertical position shift down

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x01 0x66

Read read Vertical position

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x07

0x66

Color temperature

Write

color temperature Warm

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x00 0x66

color temperature Normal

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x01 0x67

color temperature Neutral

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x02 0x68

color temperature Cool

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x03 0x69

Read

color temperature status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x08

0x67

Blank

Write

Blank On 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x01 0x68 Blank Off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x00 0x67

Read Blank status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x09

0x68

KeystoneVertical

Write

Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x00 0x8E Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x01 0x8F

Read Keystone status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x31

0x8F

KeystoneHorizontal

Write

Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x00 0x8E Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x01 0x8F

Read Keystone status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x31

0x8F

Color mode

Write

Brightest 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x00 0x69 Movie 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x01 0x6A PC 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x04 0x6D ViewMatch 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x05 0x6E Dynamic 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x08 0x71

Read Preset mode status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0B

0x6A

Primary Color

Write

Primary color R 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x00 0x6E Primary color G 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x01 0x6F Primary color B 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x02 0x70 Primary color C 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x03 0x71 Primary color M 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x04 0x72 Primary color Y 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x05 0x73

Read Primary color status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x10

0x6F

Hue

Write

Hue decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x00 0x6F Hue increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x01 0x70

Read Hue

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x11

0x70

Saturation

Write

Saturation decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x00 0x70 Saturation increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x01 0x71

Read Saturation

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x12

0x71

Gain

Write

Gain decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x00 0x71 Gain increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x01 0x72

Read Gain

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x13

0x72

Freeze

Write

Freeze On 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x01 0x60 Freeze Off 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x00 0x00 0x5F

Read Freeze status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00

0x60

Source input

Write

Input source VGA 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x00 0x60 Input source VGA2 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x08 0x68 Input source Composite

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x05 0x65

Input source SVIDEO 0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x06 0x66

Read Source

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x01

0x61

Quick Auto Search

Write

Quick Auto Search on

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x01 0x62

Quick Auto Search off

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x00 0x61

Read

Quick Auto Search status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x02

0x62

Language

Write

English 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x00 0x61

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x01 0x62

Deutsch 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x02 0x63 Italiano 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x03 0x64

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x04 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x05 0x66

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x06 0x67

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x07 0x68

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x08 0x69

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x09 0x6A

Svenska 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0a 0x6B Nederlands 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0b 0x6C

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0c 0x6D

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6D

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70

Polski 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71 Suomi 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x12 0x73

Indonesia 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x13 0x74

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x14 0x75

Read Language

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00

0x62

Lamp Time

Write

Reset Lamp usuage hour

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x01 0x00 0x62

Read Lamp usuage hour

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x01

0x63

Error status Read Read error status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x0D

0x66

Brilliant Color

Write

Brilliant Color 0 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x00 0x6D Brilliant Color 1 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x01 0x6E Brilliant Color 2 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x02 0x6F Brilliant Color 3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x03 0x70 Brilliant Color 4 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x04 0x71 Brilliant Color 5 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x05 0x72 Brilliant Color 6 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x06 0x73 Brilliant Color 7 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x07 0x74 Brilliant Color 8 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x08 0x75 Brilliant Color 9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x09 0x76 Brilliant Color 10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x0A 0x77

Read Brilliant Color status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0F

0x6E

Remote Control code

Write

code 1 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x00 0xA0 code 2 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x01 0xA1 code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2 code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3 code 5 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x04 0xA4 code 6 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x05 0xA5 code 7 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x06 0xA6 code 8 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x07 0xA7

Read

Remote Control code status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x048

0xA1

Screen Color

Write

Screen color Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x00 0x8F Blackboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x01 0x90 Greenboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x02 0x91 Whiteboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x03 0x92

Read Screen Color status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x32

0x90

Remote Key Write

Menu 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0F 0x61 Exit 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x13 0x65 Top 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0B 0x5D Bottom 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0C 0x5E Left 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0D 0x5F Right 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0E 0x60 Source 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x04 0x56 Enter 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x15 0x67 Auto 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x08 0x5A My Button 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x11 0x63

IR control table

System Code: 83F4 Format : NEC

Power

COMP1 COMP2 HDMI

Source

Enter

Menu 3D Exit

PgUp

Mouse

Pattern

Blank

PgDn

ID set 1 2

345

678

Eco

Mode

Color Mode

RCP01051

Auto Sync

Address code

Key Format Byte1 Byte2 Byte3 Byte4

Freeze NEC X3 F4 03 FC

PgDn NEC X3 F4 05 FA PgUp NEC X3 F4 06 F9 Blank NEC X3 F4 07 F8

Auto sync NEC X3 F4 08 F7

Up NEC X3 F4 0B F4

Down NEC X3 F4 0C F3

Left NEC X3 F4 0E F1

Right NEC X3 F4 0F F0

Color Mode NEC X3 F4 10 EF

Aspect NEC X3 F4 13 EC

Mute NEC X3 F4 14 EB

Enter NEC X3 F4 15 EA

Power ON NEC X3 F4 17 E8

Magnify NEC X3 F4 32 CD

Presentation Timer NEC X3 F4 27 D8

Exit NEC X3 F4 28 D7

D. ECO

(Eco mode)

NEC X3 F4 2B D4

Menu NEC X3 F4 30 CF

Mouse NEC X3 F4 31 CE

Mouse Left NEC X3 F4 36 C9

Mouse Right NEC X3 F4 37 C8

Source NEC X3 F4 40 BF

VGA (PC) NEC X3 F4 41 BE

Pattern NEC X3 F4 55 AA

My button NEC X3 F4 56 A9

Key pad lock NEC X3 F4 8E 71

RC ID NEC X3 F4 96 69

Code 1 83F4 Code 2 93F4 Code 3 A3F4 Code 4 B3F4 Code 5 C3F4 Code 6 D3F4 Code 7 E3F4 Code 8 F3F4

Customer Support

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product serial number.

Country/Region Website

T= Telephone C = CHAT ONLINE

Australia New Zealand

www.viewsonic.com.au

AUS= 1800 880 818 NZ= 0800 008 822

service@au.viewsonic.com

Canada www.viewsonic.com

T (Toll-Free)= 1-866-463-4775 T (Toll)= 1-424-233-2533

service.ca@viewsonic.com

Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk/ Hong Kong www.hk.viewsonic.com T= 852 3102 2900 service@hk.viewsonic.com India www.in.viewsonic.com T= 1800 419 0959 service@in.viewsonic.com Korea ap.viewsonic.com/kr/ T= 080 333 2131 service@kr.viewsonic.com Latin America

(Argentina)

www.viewsonic.com/la/

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

soporte@viewsonic.com

Latin America (Chile)

www.viewsonic.com/la/

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

soporte@viewsonic.com

Latin America (Columbia)

www.viewsonic.com/la/

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

soporte@viewsonic.com

Latin America (Mexico)

www.viewsonic.com/la/

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

soporte@viewsonic.com

Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F. Tel: 55) 6547-6454 55)6547-6484 Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico

Latin America (Peru)

www.viewsonic.com/la/

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

soporte@viewsonic.com

Macau www.hk.viewsonic.com T= 853 2870 0303 service@hk.viewsonic.com Middle East ap.viewsonic.com/me/ Contact your reseller service@ap.viewsonic.com

Puerto Rico & Virgin Islands

www.viewsonic.com

T= 1-800-688-6688 (English) C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

service.us@viewsonic.com soporte@viewsonic.com

Singapore/ Malaysia/Thailand

www.ap.viewsonic.com T= 65 6461 6044 service@sg.viewsonic.com

South Africa ap.viewsonic.com/za/ Contact your reseller service@ap.viewsonic.com

United States www.viewsonic.com

T (Toll-Free)= 1-800-688-6688 T (Toll)= 1-424-233-2530

service.us@viewsonic.com

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty

Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s

installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, improper

maintenance, unauthorized product modification, or failure to follow instructions supplied with the product.

b. Operation outside of product specifications.

c. Operation of the product for other than the normal intended use or not under normal

conditions.

d. Repair or attempted repair by anyone not authorized by ViewSonic.

e. Any damage of the product due to shipment.

f. Removal or installation of the product.

g. Causes external to the product, such as electric power fluctuations or failure.

h. Use of supplies or parts not meeting ViewSonic’s specifications.

i. Normal wear and tear.

j. Any other cause which does not relate to a product defect.

3. Removal, installation, one way transportation, insurance, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to Customer Support page). You will need to provide your product's serial number.

2. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer. The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found in www. viewsoniceurope.com under Support/Warranty Information.

Projector Warranty Term Template In UG VSC_TEMP_2005

Mexico Limited Warranty

ViewSonic® Projector

What the warranty covers:

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, unauthorized attempted repair, or failure to follow instructions supplied with the product. b. Any damage of the product due to shipment. c. Causes external to the product, such as electrical power fluctuations or failure. d. Use of supplies or parts not meeting ViewSonic's specifications. e. Normal wear and tear. f. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is displayed on the product for an extended period of time.

4. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product's serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim. For Your Records Product Name: _____________________________ Model Number: _________________________________ Document Number: _________________________ Serial Number: _________________________________ Purchase Date: _____________________________ Extended Warranty Purchase? _________________ (Y/N) If so, what date does warranty expire? _______________

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.

3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:

México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

Hermosillo:

Distribuciones y Servicios Computacionales SA de CV. Calle Juarez 284 local 2 Col. Bugambilias C.P: 83140 Tel: 01-66-22-14-9005 E-Mail: disc2@hmo.megared.net.mx

Villahermosa:

Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: compumantenimientos@prodigy.net.mx

Puebla, Pue. (Matriz):

RENTA Y DATOS, S.A. DE C.V. Domicilio: 29 SUR 721 COL. LA PAZ 72160 PUEBLA, PUE. Tel: 01(52).222.891.55.77 CON 10 LINEAS E-Mail: datos@puebla.megared.net.mx

Veracruz, Ver.:

CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419 ENTRE PINZÓN Y ALVARADO Fracc. Reforma C.P. 91919 Tel: 01-22-91-00-31-67 E-Mail: gacosta@qplus.com.mx

Chihuahua

Soluciones Globales en Computación C. Magisterio # 3321 Col. Magisterial Chihuahua, Chih. Tel: 4136954 E-Mail: Cefeo@soluglobales.com

Cuernavaca

Compusupport de Cuernavaca SA de CV Francisco Leyva # 178 Col. Miguel Hidalgo C.P. 62040, Cuernavaca Morelos Tel: 01 777 3180579 / 01 777 3124014 E-Mail: aquevedo@compusupportcva.com

Distrito Federal:

QPLUS, S.A. de C.V. Av. Coyoacán 931 Col. Del Valle 03100, México, D.F. Tel: 01(52)55-50-00-27-35 E-Mail : gacosta@qplus.com.mx

Guadalajara, Jal.:

SERVICRECE, S.A. de C.V. Av. Niños Héroes # 2281 Col. Arcos Sur, Sector Juárez 44170, Guadalajara, Jalisco Tel: 01(52)33-36-15-15-43 E-Mail: mmiranda@servicrece.com

Guerrero Acapulco

GS Computación (Grupo Sesicomp) Progreso #6-A, Colo Centro 39300 Acapulco, Guerrero Tel: 744-48-32627

Monterrey:

Global Product Services Mar Caribe # 1987, Esquina con Golfo Pérsico Fracc. Bernardo Reyes, CP 64280 Monterrey N.L. México Tel: 8129-5103 E-Mail: aydeem@gps1.com.mx

MERIDA:

ELECTROSER Av Reforma No. 403Gx39 y 41 Mérida, Yucatán, México CP97000 Tel: (52) 999-925-1916 E-Mail: rrrb@sureste.com

Oaxaca, Oax.:

CENTRO DE DISTRIBUCION Y SERVICIO, S.A. de C.V. Murguía # 708 P.A., Col. Centro, 68000, Oaxaca Tel: 01(52)95-15-15-22-22 Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com

Tijuana:

STD Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembre Tijuana, Mexico

FOR USA SUPPORT:

ViewSonic Corporation 14035 Pipeline Ave. Chino, CA 91710, USA Tel: 800-688-6688 (English); 866-323-8056 (Spanish); E-Mail: http://www.viewsonic.com

Projector Mexico Warranty Term Template In UG VSC_TEMP_2006

ViewSonic PJD5250L, PJD5550LWS, PJD5155L, PJD5255L, PJD5555LW User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
