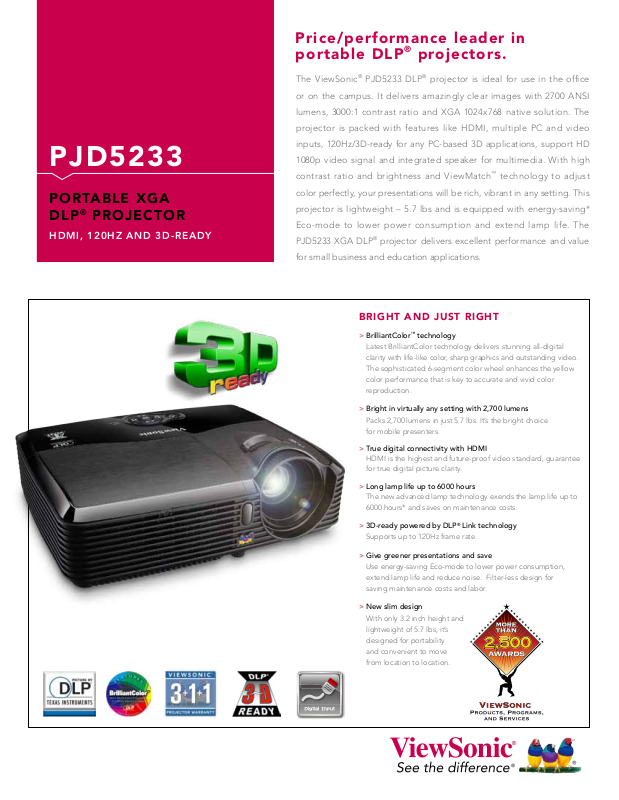

ViewSonic PJD5233 Product Sheet

PJD5233

PORTABLE XGA
DLP® PROJECTOR

HDMI, 120HZ AND 3D-READY

Price/performance leader in

®

portable DLP

The ViewSonic® PJD5233 DLP® projector is ideal for use in the office

or on the campus. It delivers amazingly clear images with 2700 ANSI

lumens, 3000:1 contrast ratio and XGA 1024x768 native solution. The

projector is packed with features like HDMI, multiple PC and video

inputs, 120Hz/3D-ready for any PC-based 3D applications, support HD

1080p video signal and integrated speaker for multimedia. With high

contrast ratio and brightness and ViewMatch

color perfectly, your presentations will be rich, vibrant in any setting. This

projector is lightweight – 5.7 lbs and is equipped with energy-saving*

Eco-mode to lower power consumption and extend lamp life. The

®

PJD5233 XGA DLP

for small business and education applications.

projector delivers excellent performance and value

BRIGHT AND JUST RIGHT

projectors.

™

technology to adjust

> BrilliantColor™ technology

Latest BrilliantColor technology delivers stunning all-digital

clarity with life-like color, sharp graphics and outstanding video.
The sophisticated 6-segment color wheel enhances the yellow
color performance that is key to accurate and vivid color
reproduction.

> Bright in virtually any setting with 2,700 lumens

Packs 2,700 lumens in just 5.7 lbs. It’s the bright choice

for mobile presenters.

> True digital connectivity with HDMI

HDMI is the highest and future-proof video standard, guarantee

for true digital picture clarity.

> Long lamp life up to 6000 hours

The new advanced lamp technology exends the lamp life up to

6000 hours* and saves on maintenance costs.

®

> 3D-ready powered by DLP

Supports up to 120Hz frame rate.

> Give greener presentations and save

Use energy-saving Eco-mode to lower power consumption,

extend lamp life and reduce noise. Filter-less design for
saving maintenance costs and labor.

> New slim design

With only 3.2 inch height and

lightweight of 5.7 lbs, it’s
designed for portability
and convenient to move
from location to location.

Link technology

PJD5233

PORTABLE XGA DLP® PROJECTOR – HDMI, 120HZ AND 3D-READY

DISPLAY Type 0.55" Digital Micromirror Device (DLP™)

Resolution XGA 1024x768 (Native)
Lens 1.1× Manual optical zoom / Manual optical focus
Keystone Vertical digital keystone correction: +/– 40 degrees
Size 27"–300" / 0.7m–7.6m
Throw Distance 3.9ft.–32.8ft. / 1.2m–10m
Throw Ratio 1.97–2.17:1
Lamp 180 watt
Lamp Life (Normal / Eco-mode) 5000 / 6000* hours
Brightness 2,700 Lumens
Contrast Ratio 2000:1 (typ) / 3000:1 (dynamic)
Aspect Ratio 4:3 (native), 16:9, 16:10, auto
Color Depth 24 bits, 16.7M colors (8+8+8)
Color Wheel 6-Seg RGBCYW / 7200rpm

INPUT SIGNAL Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60),

SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and
576p, HD 720p, 1080i and 1080p
Frequency Fh: 31–100KHz, Fv: 50–120Hz

COMPATIBILITY PC VGA to UXGA

Mac® Up to UXGA (scaled)

CONNECTOR RGB Input 15-pin mini D-sub (x2)

RGB Output 15-pin mini D-sub
Digital Input HDMI 1.3
Component 15-pin mini D-sub (x2, shared with RGB)
Composite Input RCA jack
S-video Input 4-pin mini-DIN
Audio Input 3.5mm mini jack
Audio Output 3.5mm mini jack
Control RS-232 (DB-9)
USB Type B

AUDIO Speaker 1W
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)

Consumption 235W (typ) / <1W (stand-by mode)

CONTROLS Basic Power, keystone/arrow keys, left/source, menu/exit,

right/mode
OSD Picture: Color Mode, Brightest, PC, ViewMatch, Movie,
User 1, User 2, White board, Black board, Green board,

Optional Accessories

> Replacement Lamp RLC-072
> Universal Ceiling Mount Kit WMK-005
> Wireless Presentation Gateway WPG-360
> Soft Case PJ-CASE-0 01
> Extended E xpress Exchange

Projection Distance

4:3 Screen

Meters

1.2

1.5

1.8

2

3

5

10

Feet

3.9

4.9

5.9

6.6

9.8

16.4

32.8

®

PRJ-EE-05-03

Screen Size

4:3 Screen

Meters

0.7~0.8

0.9~1.0

1.0~1.1

1.2~1.3

1.7~1.9

2.9~3.2

5.8~6.3

Inches

28.0~31.5

35.4~39.4

39.4~43.3

47.2~51.2

67.0~74.8

114.2~126.0

228.3~248.0

Brightness, Contrast, Color setting, User color, White
intensity, Gamma, Aspect Ratio, Keystone, 3D sync, 3D invert
Video/Audio: Frequency, Tracking, H & V position, Zoom,
Video setting, Audio setting
Setting (Basic): Projector Projection, Menu Setting, Signal
Type, Blank Screen, Test Pattern, Start up screen, Message,
Auto source, Power saving, Green Mode
Option (Advanced): Closed Caption, DCR, Password,
Presentation Timer, High Altitude, Lamp Setting, Factory Default
Information: Current System Status, Input Source,
Resolution, H & V Frequency, Lamp hours

OPERATING Temperature 32ºF–104ºF (0ºC–40ºC)
CONDITIONS Humidity 10%–80% (non-condensing)

Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft (3048m)

NOISE LEVEL Normal / Eco-mode 32dB / 30dB
DIMENSIONS Physical 11.2 × 3.2 × 9.2 (in) / 284 × 82 × 234 (mm)
(W x H x D) Packaging 13.0 × 13.0 × 5.5 (in) / 330 × 330 × 140 (mm)
WEIGHT Net 5.7 lb (2.6 kg)

Gross 7.5 lb (3.4 kg)

REGULATIONS RoHS, CB, CCC, PSB,C-tick, KC, SASO, CE, GOST-R, Ukr,

ErP, SVHC list & REACH DoC, UL, FCC(including ICES-003),
cUL/ CSA, Argen, NOM

PACKAGE CONTENTS ViewSonic projector, power cable, VGA cable, remote

control with batteries, Quick Start Guide, ViewSonic Wizard
CD (with User Guide)

WARRANTY 3-year limited warranty on parts and labor, 1-year limited

warranty on lamp, 1st year Express Exchange® service.

ViewSonic Corporation’s QMS & EMS have been registered

to ISO 9001 & ISO 14001, respectively, by TUV NORD.
