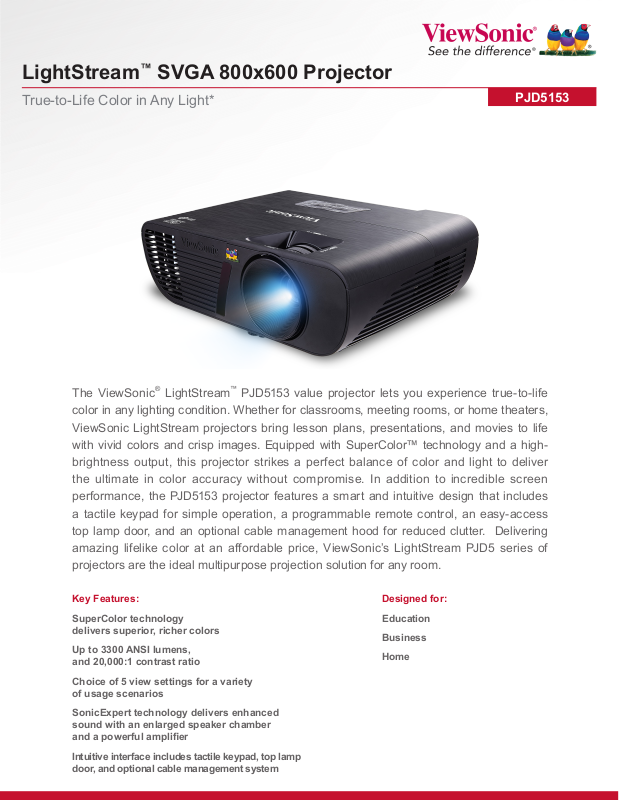

ViewSonic PJD5153 Product Sheet

LightStream™ SVGA 800x600 Projector

True-to-Life Color in Any Light*

PJD5153

The ViewSonic® LightStream™ PJD5153 value projector lets you experience true-to-life
color in any lighting condition. Whether for classrooms, meeting rooms, or home theaters,
ViewSonic LightStream projectors bring lesson plans, presentations, and movies to life
with vivid colors and crisp images. Equipped with SuperColor™ technology and a high­brightness output, this projector strikes a perfect balance of color and light to deliver
the ultimate in color accuracy without compromise. In addition to incredible screen
performance, the PJD5153 projector features a smart and intuitive design that includes
a tactile keypad for simple operation, a programmable remote control, an easy-access
top lamp door, and an optional cable management hood for reduced clutter. Delivering
amazing lifelike color at an affordable price, ViewSonic’s LightStream PJD5 series of
projectors are the ideal multipurpose projection solution for any room.

Key Features:

SuperColor technology
delivers superior, richer colors

Up to 3300 ANSI lumens,
and 20,000:1 contrast ratio

Choice of 5 view settings for a variety
of usage scenarios

Designed for:

Education

Business

Home

SonicExpert technology delivers enhanced
sound with an enlarged speaker chamber

and a powerful amplier

Intuitive interface includes tactile keypad, top lamp
door, and optional cable management system

LightStream™ SVGA 800x600 Projector

PJD5153

PProjection Distance

Inches Meters Inches Meters

59.5-65.3 1.51-1.66 40 1.0

74.4-81.6 1.89-2.07 50 1.3

89.3-97.9 2.27-2.49 60 1.5

104.2-114.2 2.65-2.9 70 1.8

119.0-130.6 3.02-3.32 80 2.0

133.9-146.9 3.4-3.73 90 2.3

148.8-163.2 3.78-4.15 100 2.5

178.6-195.8 4.54-4.97 120 3.0

223.2-244.8 5.67-6.22 150 3.8

297.6-326.4 7.56-8.29 200 5.1

372.0-408.0 9.45-10.36 250 6.4

Screen Size (16:9)

Diagonal

Focus Ring

Zoom Ring

Control Panel

Specications

DISPLAY Type 0.55" Digital Micromirror Device (DLP™)

INPUT SIGNAL Computer and Video NTSC M(3.58MHz), 4.43MHz, PAL (B, D, G, H, I M, N,

COMPATIBILITY PC Up to 1600-1200

CONNECTOR RGB Input 15-pin mini D-Sub (x2)

Resolution 800 x 600 (native)

Lens 1.1x manual optical zoom / manual optical focus

Keystone Manual vertical digital keystone correction (± 40º)

Throw Distance 3.3 – 32.8 ft. / 1.0 – 8.0 m

Composite Input RCA jack

Size 30 – 300 in. / 0.76 – 7.62 m (diagonal)

Throw Ratio 1.86~2.04:1

Lamp 190 watt

Light Life 5000 / 6000 / 10000 hours** (Normal / Eco-mode /

Brightness 3300 lm

Contrast Ratio 20,000:1 (DynamicEco™ Mode)

Aspect Ratio 4:3 (native), 16:9

Color Depth 30 bits, 1.07B Color (10+10+10)

Frequency Fh: 15–102KHz, Fv: 23–120Hz

RGB Output 15-pin mini D-Sub

Audio Input 3.5mm mini jack

Audio Output 3.5mm mini jack

DynamicEco™ Mode)

60), SECAM (B. D. G. L. L1), SD 480i and 576i, ED 480p
and 576p, HD 720p, 1080i, 1080p

Mac®Up to 1400x1050 (may require MAC adapter)

S-Video 4-pin mini-DIN

USB Mini type B (mouse control and maintenance)

Control RS232

Optional Accessories

Wireless Presentation Gateway ................................................................. WPG-370

3D Active Shutter Glasses .......................................................................... PGD-350

Ceiling Mount Kit ........................................................................................ WMK-005

Cable Management .................................................................................... PJ-CM-001

Carrying Case............................................................................................. PJ-CASE-008

IR Remote Sensor

Projection Lens

Vent

AUDIO Speaker 2W (x1)

NOISE LEVEL Normal/Eco-mode 32 dB / 27 dB

POWER Voltage 100~240VAC (Auto Switching), 50-60Hz (universal)

CONTROLS Basic Power, keystone/arrow keys, left/blank, menu/exit,

OPERATING
CONDITIONS

DIMENSIONS
(W x H x D)

WEIGHT Net 4.63 lb. / 2.1 kg

REGULATIONS CB, TUV-GS, UL/cUL, FCC (including ICES-003), CE,

WARRANTY 3-year limited warranty on parts and labor, 1-year limited

Consumption 265W (max) / <0.5W (stand-by mode)

right/panel key lock, mode/enter, auto, source

OSD Display, Picture, Source, System Setup (Basic), System

Setup (Advanced), Information
(See user guide for full OSD functionality)

Temperature 32–104º F (0–40º C)

Humidity 10–90% (non-condensing)

Altitude 0~6,000 ft (1,800m), operational up to 10,000 ft

(3,048m)

Physical 12.44 x 8.98 x 4.08 in. / 316 x 228 x 103.7 mm

Packaging 16.0 x 8.54 x 13.0 in. / 408 x 217 x 330 mm

Gross 7.5 lb. / 3.4 kg

C-Tick, Mexico Energy, EAC, UkrSEPRO/EMC DOC,
UL COC, TUV-S, PSB, KCC, KC, SASO, CCC, WEEE,
RoHS, REACH, SVHC, ErP

warranty on lamp, 1st year free Express Exchange®
service***

Elevation Foot

Audio In / Out

S-Video / Video In

USB mini Type B

RS232

Kensington®

Lock Slot

Monitor Out

VGA In

AC In

What's in the box?

PJD5153 projector, power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewS­onic Wizard CD (with User Guide)

*Based on normal variance in ofce/classroom/home lighting conditions. **Lamp life may vary based on actual usage and other factors. ***One year Express

Exchange® service requires product registration. Programs, specications and availability are subject to change without notice. Selection, offers and programs may
vary by country; see your ViewSonic representative for complete details.Corporate names, trademarks stated herein are the property of their respective companies, DLP®

and DLP logo are registered trademarks of Texas Instruments. HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks

of HDMI Licensing LLC in the United States and other countries. Copyright © 2015 ViewSonic Corporation. All rights reserved. [17890-00B-03/15]
