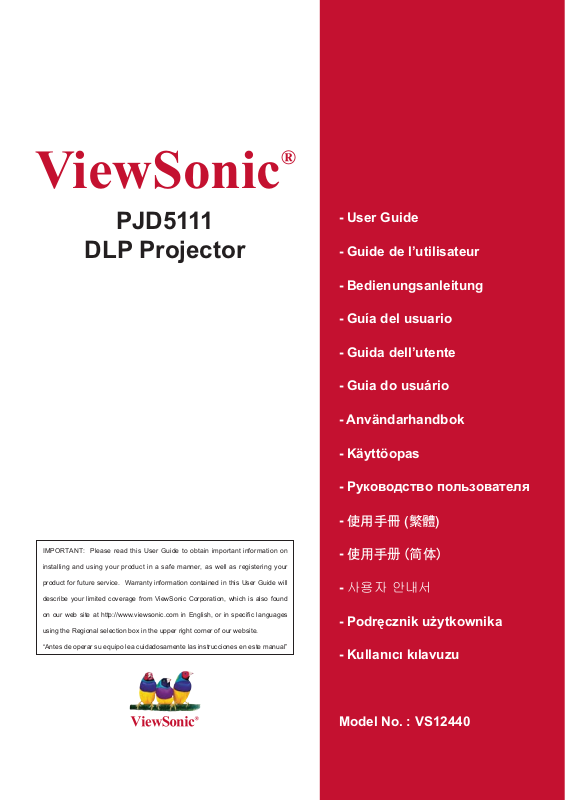

ViewSonic

PJD5111

DLP Projector

IMPORTANT: Please read this User Guide to obtain important information on

installing and using your product in a safe manner, as well as registering your

product for future service. Warranty information contained in this User Guide will

describe your limited coverage from ViewSonic Corporation, which is also found

RQRXU ZHEVLWH DWKWWSZZZYLHZVRQLFFRP LQ(QJOLVK RULQ VSHFL¿FODQJXDJHV

using the Regional selection box in the upper right corner of our website.

“Antes de operar su equipo lea cuidadosamente las instrucciones en este manual”

- User Guide

- Guide de l’utilisateur

- Bedienungsanleitung

- Guía del usuario

- Guida dell’utente

- Guia do usuário

- Användarhandbok

- Käyttöopas

Ɋɭɤɨɜɨɞɫɬɜɨɩɨɥɶɡɨɜɚɬɟɥɹ

- ٺҢЙыġĩᖅᡝĪ

- ሢ၊࿁࿳ġĩ⇷␅Ī

- ㇠㟝㣄G㙼⇨㉐

3RGUĊF]QLNXĪ\WNRZQLND

.XOODQȚFȚNȚODYX]X

Model No. : VS12440

Compliance Information

FCC Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: <RXDUHFDXWLRQHGWKDWFKDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\

responsible for compliance could void your authority to operate the equipment.

For Canada

• This Class B digital apparatus complies with Canadian ICES-003.

• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.

)ROORZLQJLQIRUPDWLRQLVRQO\IRU(8PHPEHUVWDWHV

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

PJD51119LHZ6RQLF i

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below:

Examples of exempted components are:

0HUFXU\LQFRPSDFWÀXRUHVFHQWODPSVQRWH[FHHGLQJPJSHUODPSDQGLQRWKHUODPSVQRW

VSHFL¿FDOO\PHQWLRQHGLQWKH$QQH[RI5R+6'LUHFWLYH

/HDGLQJODVVRIFDWKRGHUD\WXEHVHOHFWURQLFFRPSRQHQWVÀXRUHVFHQWWXEHVDQGHOHFWURQLF

ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or

more lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium

containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.

Proposed Maximum

Concentration

Actual Concentration

9LHZ6RQLF ii PJD5111

Copyright© ViewSonic® Corporation, 2009. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation. VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA. ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® partner, ViewSonic Corporation has determined that this product meetsthe ENERGY STAR® guidelines for energy efciency. PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves the right to

change product specications without notice. Information in this document may change without

notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic® Wizard CD-ROM also provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.

PJD5111

ViewSonic DLP Projector

VS12440

PJD5111_UG_ENG Rev. 1D 03-10-09

_______________________________

PJD5111ViewSonic iii

Table of contents

Important safety

instructions .......................

Introduction......................5

Projector features .................................5

Shipping contents.................................6

Projector exterior view......................... 7

Controls and functions ......................... 8

Positioning your

projector..........................11

Choosing a location............................11

Projection dimensions........................12

Connection ......................13

Connecting a computer or monitor ....13

Connecting Video source devices ...... 15

Operation ........................19

Starting up the projector..................... 19

Using the menus................................. 20

Utilizing the password function .........21

Switching input signal........................ 23

Adjusting the projected image ........... 24

Magnifying and searching for details. 26

Selecting the aspect ratio ...................26

Optimizing the image......................... 28

Hiding the image................................31

Locking control keys.......................... 31

Freezing the image............................. 32

Operating in a high altitude

environment .......................................32

Adjusting the sound ........................... 32

Personalizing the projector

menu display ......................................33

Shutting down the projector .............. 33

Menu operation.................................. 34

Maintenance ...................40

Care of the projector .......................... 40

Lamp information.............................. 41

Troubleshooting .............47

Specifications ..................48

Projector specifications...................... 48

Dimensions ........................................ 49

Timing chart ...................................... 49

Appendix.........................52

IR control table .................................. 52

RS232 command table....................... 52

Table of contents 1

Important safety instructions

Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth.

Do not block any ventilation openings. Install the unit in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

GHYLFHVLQFOXGLQJDPSOL¿HUVWKDWSURGXFHKHDW

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided

IRU\RXUVDIHW\,IWKHSURYLGHGSOXJGRHVQRW¿WLQWR\RXURXWOHWFRQVXOWDQHOHFWULFLDQ

for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure that the power outlet is located near the unit so that it is easily accessible.

 2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFL¿HGE\WKHPDQXIDFWXUHU

12. 8VHRQO\ZLWKWKHFDUWVWDQGWULSRGEUDFNHWRUWDEOHVSHFL¿HGE\WKH

manufacturer, or sold with the unit. When a cart is used, use caution when moving the cart/unit combination to avoid injury from tipping over.

13. Unplug this unit when unused for long periods of time.

 5HIHUDOOVHUYLFLQJWRTXDOL¿HGVHUYLFHSHUVRQQHO6HUYLFLQJLVUHTXLUHGZKHQWKHXQLW

has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.

15. Please read this manual before you operate your projector. Save it for future

reference.

16. Do not look straight at the projector lens during operation. The intense light beam

may damage your eyes.

17. 5HIHUVHUYLFLQJWRTXDOL¿HGVHUYLFHSHUVRQQHO

18. Always open the lens shutter or remove the lens cap when the projector lamp is

on.

Important safety instructions2

19. In some countries, the line voltage is NOT stable. This projector is designed to operate

safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. ,QDUHDVZKHUHWKHPDLQVYROWDJHPD\ÀXFWXDWH

or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).

20. Do not block the projection lens with any objects when the projector is under operation

DVWKLVFRXOGFDXVHWKHREMHFWVWREHFRPHKHDWHGDQGGHIRUPHGRUHYHQFDXVHD¿UH7R

temporarily turn off the lamp, press BLANK on the projector or remote control.

21. The lamp becomes extremely hot during operation. Allow the projector to cool for

approximately 45 minutes prior to removing the lamp assembly for replacement.

22. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond

the rated life could cause them to break on rare occasions.

23. Never replace the lamp assembly or any electronic components unless the projector is

unplugged.

24. Do not place this product on an unstable cart, stand, or table. The product may fall,

sustaining serious damage.

25. Do not attempt to disassemble this projector. There are dangerous high voltages inside

which may cause death if you should come into contact with live parts. The only user serviceable part is the lamp which has its own removable cover.

Under no circumstances should you ever undo or remove any other covers. Refer

VHUYLFLQJRQO\WRVXLWDEO\TXDOL¿HGSURIHVVLRQDOVHUYLFHSHUVRQQHO

26. Do not place this projector in any of the following environments.

 6SDFHWKDWLVSRRUO\YHQWLODWHGRUFRQ¿QHG$OORZDWOHDVWFPFOHDUDQFHIURP

ZDOOVDQGIUHHÀRZRIDLUDURXQGWKHSURMHFWRU

- Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector’s life span and darkening the picture.

 /RFDWLRQVQHDU¿UHDODUPV

- Locations with an ambient temperature above 40°C / 104°F

- Locations where the altitudes are higher than 3000 m (10000 feet).

27. Do not block the ventilation holes. If the ventilation holes are seriously obstructed,

YHUKHDWLQJLQVLGHWKHSURMHFWRUPD\UHVXOWLQD¿UH

- Do not place this projector on a blanket, bedding or any other soft surface.

- Do not cover this projector with a cloth or any other item.

 'RQRWSODFHLQÀDPPDEOHVQHDUWKHSURMHFWRU

28. Always place the projector on a level, horizontal surface during operation.

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back. Using the projector when it is not fully horizontal may cause a malfunction of, or damage to, the lamp.

29. Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage to the projector.

Important safety instructions 3

30. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

31. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply’ s wall socket and call your local service center to have the projector serviced.

32. This product is capable of displaying inverted pictures for ceiling mount installation.

8VHRQO\TXDOL¿HGFHLOLQJPRXQWNLWIRUPRXQWLQJWKHSURMHFWRUDQGHQVXUH

it is securely installed.

33. When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a product defect.

34. Do not use the Security bar for transporting or installation. It should be used with a commercially available theft prevention cable.

Safety instructions for ceiling mounting of the projector

We want you to have a pleasant experience using your projector, so we need to bring this safety matter to your attention to prevent damage to person and property. If you intend to mount your projector on the ceiling, we strongly recommend that you use

DSURSHU¿WWLQJSURMHFWRUFHLOLQJPRXQWNLWDQGWKDW\RXHQVXUHLWLVVHFXUHO\DQGVDIHO\

installed. If you use an inappropriate projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws. You can purchase a projector ceiling mount kit from the place you purchased your projector.We recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Important safety instructions4

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features.

• Screen Color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Up to 8 sets of picture modes providing multiple choices for different projection purposes

• Selectable quick cooling function makes the projector cool in a shorter time

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• High brightness projection lamp

• Ability to display 16.7 million colors

• Multi-language On-Screen Display (OSD) menus

• Switchable normal and economic modes to reduce the power consumption

• Component HDTV compatibility (YP

• High quality manual zoom lens

• The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input signal contrast/brightness settings, and is directly proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers specifications. This is normal and expected behavior.

bPr)

Introduction 5

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Projector Power Cord VGA Cable

Multi-language user manual

Pull the tab before using the remote control.

Optional accessories

1. Ceiling mount, wall mount

2. Replacement lamp

3. Optional cases

Introduction6

Quick Start Guide Remote Control & Battery

Projector exterior view

Front/upper side

Rear/lower side

18 20

1. External control panel (See "Projector and remote control"

on page 8 for details.)

2. Vent (heated air exhaust)

3. Quick-release button

4. Lens cover

5. Focus ring and Zoom ring

6. Front IR remote sensor

7. Projection lens

8. AC power cord inlet

9. RS-232 control port

10. RGB signal output socket

11. RGB (PC)/Component video

(YPbPr/YCbCr) signal input socket-1

12. RGB (PC)/Component video (YPbPr/YCbCr) signal input socket-2

1714131110

15 1612

13. Video input socket

14. S-Video input socket

15. Audio signal input socket

16. Audio signal output socket

17. Kensington anti-theft lock slot

18. Quick-release foot

19. Lamp cover

20. Rear adjuster foot

21. Security bar Connects a commercially available

theft prevention cable.

Warni ng

• THIS APPARATUS MUST BE EARTHED.

• When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

Introduction 7

Controls and functions

Projector and remote control

1. Focus ring

Adjusts the focus of the projected image. See "Fine-tuning the image size and

clarity" on page 25 for details.

2. Zoom ring

Adjusts the size of the image. See "Fine-

tuning the image size and clarity" on page 25 for details.

3. TEMPerature indicator light

Lights up red if the projector's temperature becomes too high. See "Indicators" on page

46 for details.

4. POWER indicator light

Lights up or flashes when the projector is under operation. See "Indicators" on page

46 for details.

5. POWER

Toggles the projector between standby mode and on. See "Starting up the

projector" on page 19 and "Shutting down the projector" on page 33 for details.

6. Keystone/Arrow keys ( / Up, / Down)

Manually corrects distorted images resulting from an angled projection. See

"Correcting keystone" on page 25 for

details.

7. Left/BLANK

Hides the screen picture. See "Hiding the

image" on page 31 for details.

8. MENU/EXIT

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using

the menus" on page 20 for details.

Introduction8

9. LAMP indicator light

Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators" on page 46 for details.

10. AUTO

Automatically determines the best picture timings for the displayed image. See

"Auto-adjusting the image" on page 24 for

details.

11. Ri gh t/

Activates panel key lock. See "Locking

control keys" on page 31 for details.

When the On-Screen Display (OSD) menu is activated, the #6, #7, and #11 keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menus" on

page 20 for details.

12. MODE/ENTER

Selects an available picture setup mode. See "Selecting a picture mode" on page 28 for details. Enacts the selected On-Screen Display (OSD) menu item.

13. SOURCE

Displays the source selection bar. See

"Switching input signal" on page 23 for

details.

14. FREEZE

Freezes the projected image. See

"Freezing the image" on page 32 for

details.

15. Left

Selects the desired menu items and makes adjustments. See "Using the

menus" on page 20 for details.

16. BLANK

Hides the screen picture. See "Hiding the

image" on page 31 for details.

17. Digital Zoom keys (+, -)

Magnifies or reduces the projected picture size. See "Magnifying and

searching for details" on page 26 for

details.

18. ViewMatch

Switch in between high brightness performance or Accuracy color performance.

19. Volume keys (+, -)

Magnifies or reduces the volume level. See "Adjusting the sound" on page 32 for details.

Introduction 9

Remote control effective range

Infra-Red (IR) remote control sensor is located on the front of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

Replacing the remote control battery

1. Pull out the battery holder.

Please follow the illustrated instructions. Push and hold the locking arm while pulling out the battery holder.

2. Insert the new battery in the holder. Note the positive polarity should face outward.

3. Push the holder into the remote control.

CAUTION

• Avoid excessive heat and humidity.

• There may be battery damage if the battery is incorrectly replaced.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used battery according to the battery manufacturer’s instructions.

• Never throw a battery into a fire. There may be danger of an explosion.

• If the battery is dead or if you will not be using the remote control for a long time, remove

the battery to prevent damage to the remote control from possible battery leakage.

Introduction10

Positioning your projector

Choosing a location

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Your projector is designed to be installed in one of four possible installation locations:

1. Front Table

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

2. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

Purchase the projector ceiling mount kit from your dealer to mount your projector on the ceiling.

Set Front Ceiling in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

3. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the projector ceiling mounting kit are required for this installation location.

Set Rear Ceiling in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

4. Rear Table

Select this location with the projector placed near the floor behind the screen.

Note that a special rear projection screen is required.

Set Rear Table in the SYSTEM SETUP: Basic > Projector Position menu after you turn the projector on.

Positioning your projector 11

Projection dimensions

Refer to "Dimensions" on page 49 for the center of lens dimensions of this projector before calculating the appropriate position.

• 4:3 image on a 4:3 screen

(b)

(a)

(d)

(c)

(f)

(e)

(a)

(e)

(c)

(d)

(f)

(b)

• 16:9 image on a 4:3 screen

(a)

(d)

(c)

(b)

(f)

(e)

(f): Center of lens(e): Screen

(a) Screen

Size

[inch (m)]

(b) Projection distance

[m (inch)]

min. max. min. max.

4:3 Screen 16:9 Screen

[cm (inch)]

height

(d) Vertical

offset

[cm (inch)]

40 (1.0) 1.5 (59) 1.7 (65) 61 (24) 6 (2) 1.6 (65) 1.8 (71) 50 (20) 15 (6)

50 (1.3) 1.9 (74) 2.1 (82) 76 (30) 8 (3) 2.1 (81) 2.3 (89) 62 (25) 19 (7)

60 (1.5) 2.3 (89) 2.5 (98) 91 (36) 9 (4) 2.5 (97) 2.7 (107) 75 (29) 22 (9)

70 (1.8) 2.6 (104) 2.9 (114) 107 (42) 11 (4) 2.9 (113) 3.2 (125) 87 (34) 26 (10)

80 (2.0) 3.0 (119) 3.3 (131) 122 (48) 12 (5) 3.3 (129) 3.6 (142) 100 (39) 30 (12)

90 (2.3) 3.4 (134) 3.7 (147) 137 (54) 14 (5) 3.7 (146) 4.1 (160) 112 (44) 34 (13)

100 (2.5) 3.8 (149) 4.2 (163) 152 (60) 15 (6) 4.1 (162) 4.5 (178) 125 (49) 37 (15)

120 (3.0) 4.5 (178) 5.0 (196) 183 (72) 18 (7) 4.9 (194) 5.4 (214) 149 (59) 45 (18)

150 (3.8) 5.7 (223) 6.2 (245) 229 (90) 23 (9) 6.2 (243) 6.8 (267) 187 (74) 56 (22)

200 (5.1) 7.5 (297) 8.3 (327) 305 (120) 30 (12) 8.2 (324) 9.0 (356) 249 (98) 75 (29)

250 (6.4) 9.4 (371) 10.4 (409) 381 (150) 38 (15) 10.3 (405) 11.3 (445) 311 (123) 93 (37)

300 (7.6) 11.3 (446) 12.5 (490) 457 (180) 46 (18) 12.3 (486) 13.6 (534) 374 (147) 112 (44)

There is 3% tolerance among these numbers due to optical component variations. It is recommended that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

(a)

(c)

(d)

(b) Projection

distance [m (inch)]

(e)

(b)

height

[cm (inch)

(f)

(d) Vertical

offset

[cm (inch)]

Positioning your projector12

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector (see

"Shipping contents" on page 6). They are commercially available from electronics stores.

Connecting a computer or monitor

Connecting a computer

The projector provides two VGA input sockets that allow you to connect them to both IBM® compatibles and Macintosh® computers. A Mac adapter is needed if you are connecting legacy version Macintosh computers.

To connect the projector to a notebook or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.

2. Connect the other end of the VGA cable to the COMPUTER IN 1 or COMPUTER IN 2 signal input socket on the projector.

3. If you wish to make use of the projector (mixed mono) speaker in your presentations, take a suitable audio cable and connect one end of the cable to the audio output socket of the device, and the other end to the AUDIO IN socket of the projector.

4. If you wish, you can use another suitable audio cable and connect one end of the cable to the AUDIO OUT socket of the projector, and the other end to your external speakers (not supplied).

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Adjusting the sound" on page 32 for details.

The final connection path should be like that shown in the following diagram:

Notebook or desktop computer

VGA cable

Speakers

Audio cable

Connection 13

Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the COMPUTER OUT signal output socket on the projector to an external monitor with a VGA cable following the instructions below:

To connect the projector to a monitor:

1. Connect the projector to a computer as described in "Connecting a computer" on page

13.

2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the D-Sub input socket of the video monitor.

Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable and connect the DVI end of the cable to the DVI input socket of the video monitor.

3. Connect the other end of the cable to the COMPUTER OUT socket on the projector.

The final connection path should be like that shown in the following diagram:

Monitor

Notebook or desktop computer

VGA to DVIA cable

VGA cable

• The COMPUTER OUT output only works when COMPUTER IN 1 or COMPUTER IN 2 is

made to the projector.

• If you wish to use this connection method when the projector is in standby mode, make

sure the Active VGA Out function is turned on in the SYSTEM SETUP: Advanced menu. See "Active VGA Out" on page 38 and the table below for details.

Active VGA Out status

Active connector: *COMPUTER

On (Default)

Off

* The signal being displayed from COMPUTER OUT port depends on which signal (COMPUTER IN 1 or COMPUTER IN 2) is selected for the projector.

IN 1/*COMPUTER IN 2/

COMPUTER OUT/AUDIO IN/

AUDIO OUT

VGA cable

Projector status

Power On Standby

Active connector: COMPUTER

/COMPUTER OUT/AUDIO

IN 1

IN/AUDIO OUT

N/A N/A

Connection14

Connecting Video source devices

You can connect your projector to various Video source devices that provide any one of the following output sockets:

• Component Video

•S-Video

• Video (composite)

You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Best video quality

The best available video connection method is Component Video (not to be confused with composite Video). Digital TV tuner and DVD players output Component Video natively, so if available on your devices, this should be your connection method of choice in preference to (composite) Video.

See "Connecting a Component Video source device" on page 16 for how to connect the projector to a component video device.

Better video quality

The S-Video method provides a better quality analog video than standard composite Video. If you have both composite Video and S-Video output terminals on your Video source device, you should elect to use the S-Video option.

See "Connecting an S-Video source device" on page 17 for how to connect the projector to an S-Video device.

Least video quality

Composite Video is an analog video and will result in a perfectly acceptable, but less than optimal result from your projector, being the least video quality of the available methods described here.

See "Connecting a composite Video source device" on page 18 for how to connect the projector to a composite Video device.

Connecting audio

The projector has one built-in mono speaker which is designed to provide basic audio functionality accompanying data presentations for business purposes only. They are not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speaker.

If you wish, you can make use of the projector (mixed mono) speaker in your presentations, and also connect separate amplified speakers to the Audio Out socket of the projector. The audio output is a mixed mono signal and controlled by the projector Volume and Mute settings.

If you have a separate sound system, you will most likely want to connect the audio output of your Video source device to that sound system, instead of to the mono audio projector.

Connection 15

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take a Component Video to VGA (D-Sub) adaptor cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red.

2. Connect the other end of the Component Video to VGA (D-Sub) adaptor cable (with a D-Sub type connector) to the COMPUTER IN 1 or COMPUTER IN 2 socket on the projector.

4. If you wish, you can use another suitable audio cable and connect one end of the cable to the AUDIO OUT socket of the projector, and the other end to your external speakers Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Adjusting the sound" on page 32 for details.

The final connection path should be like that shown in the following diagram:

AV device

Component Video to VGA

Speakers

(D-Sub) adaptor cable

Audio

Audio cable

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is

connected. See "Connecting audio" on page 15 for details.

• If the selected video image is not displayed after the projector is turned on and the correct

video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

•

VGA-Component adapter (ViewSonic P/N: CB-00008906)

cable

Connection16

Connecting an S-Video source device

Examine your Video source device to determine if it has an unused S-Video output socket available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an S-Video source device:

1. Take an S-Video cable and connect one end to the S-Video output socket of the Video source device.

2. Connect the other end of the S-Video cable to the S-VIDEO socket on the projector.

The final connection path should be like that shown in the following diagram:

AV device

Speake rs

Audio cable

Audio

S-Video cable

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is

connected. See "Connecting audio" on page 15 for details.

• If the selected video image is not displayed after the projector is turned on and the correct

video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

• If you have already made a Component Video connection between the projector and this

S-Video source device using Component Video connections, you need not connect to this device using an S-Video connection as this makes an unnecessary second connection of poorer picture quality. See "Connecting Video source devices" on page 15 for details.

cable

Connection 17

Connecting a composite Video source device

Examine your Video source device to determine if it has a set of unused composite Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a composite Video source device:

1. Take a Video cable and connect one end to the composite Video output socket of the Video source device.

2. Connect the other end of the Video cable to the VIDEO socket on the projector.

4. If you wish, you can use another suitable audio cable and connect one end of the cable to the AUDIO OUT socket of the projector, and the other end to your external speakers

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Adjusting the sound" on page 32 for details.

The final connection path should be like that shown in the following diagram:

Speake rs

AV device

• The projector is only capable of playing mixed mono audio, even if a stereo audio input is

connected. See "Connecting audio" on page 15 for details.

• If the selected video image is not displayed after the projector is turned on and the correct

video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

• You need only connect to this device using a composite Video connection if Component

Video and S-Video inputs are unavailable for use. See "Connecting Video source devices"

on page 15 for details.

Video cable

Audio cable

Connection18

Operation

Starting up the projector

1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector flashes blue after power has been applied.

2. Remove the lens cap. If it is closed, it could become deformed due to the heat produced by the projection lamp.

3. Press POWER on the projector or remote

• If the projector is still hot from previous activity, it will run the cooling fan for

approximately 90 seconds before energizing the lamp.

• To maintain the lamp life, once you turn the projector on, wait at least 5 minutes before

turning it off.

4. Switch all of the connected equipment on.

5. The projector will start to search for input signals. The current input signal being

If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See "Timing chart" on page 49 for details.

control to start the projector. The POWER indicator light stays blue when the projector is

on. The start up procedure takes about 30 seconds.

In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

scanned displays in the upper left corner of the screen. If the projector doesn't detect a valid signal, the message 'No Signal' will continue displaying until an input signal is found.

You can also press SOURCE on the projector or remote control to select your desired input signal. See "Switching input signal" on page 23 for details.

Operation 19

Using the menus

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

Below is the overview of the OSD menu.

Main menu icon

Highlight

Sub-menu

Current input signal

Screen Color Aspect Ratio Keystone

Position

Phase H. Size Digital Zoom

Analog RGB

Off

Auto

ENTER

MENU Exit

To use the OSD menus, please set them to your familiar language first.

1. Press MENU/EXIT on the projector or remote control to turn the OSD menu on.

3. Press to highlight Language and press / to

select a preferred language.

Screen Color Aspect Ratio Keystone Position Phase H. Size Digital Zoom

Analog RGB

2. Use / to highlight the SYSTEM SETUP: Basic menu.

Projector Position Auto Power Off Blank Timer Panel Key Lock Timer Controller Splash Screen

Off

Auto

Exit

Language

Projector Position Auto Power Off Blank Timer Panel Key Lock Timer Controller

EnglishLanguage

Front Table

Disable Disable

Off

Disable

ViewSonic

Splash Screen

Analog RGB

4. Press MENU/EXIT twice* on the projector or remote control

Analog RGB

MENU Exit

to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

Status

Press MENU/ EXIT to the previous page or to exit.

English

Front Table

Disable Disable

Off

Disable

ViewSonic

MENU Exit

: DISPLAY

: PICTURE

: SOURCE

: SYSTEM SETUP: Basic

: SYSTEM SETUP: Advanced

: INFORMATION

Operation20

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on

page 20.

You will be inconvenienced if you activate the password functionality and subsequently forget the password. Print this user manual (if necessary) and write the password you used in this manual, and keep it in a safe place for later use.

Setting a password

Once a password has been set, the projector cannot be used unless the correct password is entered every time the projector is started.

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings menu. Press MODE/ENTER. The Security Settings page displays.

2. Highlight Power On Lock and select On by pressing / .

3. As pictured to the right, the four arrow keys ( ,

, , ) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys to enter six digits for the password.

4. Confirm the new password by re-entering the new password. Once the password is set, the OSD menu returns to the Security Settings page.

The digits being input will display as asterisks on-screen. Write your selected password down here in this user manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: __ __ __ __ __ __

Keep this user manual in a safe place.

5. To leave the OSD menu, press MENU/EXIT.

INPUT NEW PASSWORD

BackMENU

If you forget the password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the message 'INPUT PASSWORD' follows. You can retry by entering another six-digit password, or if you did not record the password in this user manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 22 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Password Error

Please try again.

Operation 21

Entering the password recall procedure

1. Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

RECALL PASSWORD

Please write down the recall code, and contact ViewSonic Customer Center.

Recall code:

0 2 1 2

Changing the password

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Security Settings > Change Password menu.

2. Press MODE/ENTER. The message 'INPUT CURRENT PASSWORD' displays.

3. Enter the old password.

• If the password is correct, another message 'INPUT NEW PASSWORD'

displays.

• If the password is incorrect, the password error message displays lasting for

three seconds, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

4. Enter a new password.

Password: __ __ __ __ __ __

Keep this user manual in a safe place.

5. Confirm the new password by re-entering the new password.

6. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.

7. To leave the OSD menu, press MENU/EXIT.

Exit

Disabling the password function

To disable password protection, go back to the SYSTEM SETUP: Advanced > Security Settings > Power On Lock menu after opening the OSD menu system. Select Off by

pressing / . The message 'INPUT PASSWORD' displays. Enter the current password.

• If the password is correct, the OSD menu returns to the Security Settings page

with 'Off' shown in the row of Power On Lock. You will not have to enter the password next time you turn on the projector.

• If the password is incorrect, the password error message displays lasting for

three seconds, and the message 'INPUT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Operation22

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

Be sure the Quick Auto Search function in the SOURCE menu is On (which is the default of this projector) if you want the projector to automatically search for the signals.

You can also manually cycle through the available input signals.

1. Press SOURCE on the projector or remote control. A source selection bar displays.

2. Press / until your desired signal is selected and press MODE/ENTER. Once detected, the selected source information will display on the screen for seconds. If there are multiple devices connected to the projector, repeat steps 1-2 to search for another signal.

• The brightness level of the projected image will

change accordingly when you switch between different input signals. Data (graphic) "PC" presentations using mostly static images are generally brighter than "Video" using mostly moving images (movies).

• The input signal type effects the options available

for the Preset Mode. See "Selecting a picture

mode" on page 28 for details.

• The native display resolution of this projector is in a 4:3 aspect ratio. For best display

picture results, you should select and use an input signal which outputs at this resolution. Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See "Selecting

the aspect ratio" on page 26 for details.

D-Sub / Comp. 1

D-Sub / Comp. 2

Video

S-Video

Operation 23

Adjusting the projected image

Adjusting the projection angle

The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector:

1. Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position.

2. Screw the rear adjuster foot to fine tune the horizontal angle.

To retract the foot, hold up the projector while pressing the quick-release button, then slowly lower the projector. Screw the rear adjuster foot in a reverse direction.

If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. To correct this situation, see "Correcting keystone" on page 25 for details.

• Do not look into the lens while the lamp is on. The strong light from the lamp may cause

damage to your eyes.

• Be careful when you press the adjuster button as it is close to the exhaust vent where hot

air comes from.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

• The screen will be blank while AUTO is

functioning.

• This function is only available when PC signal

(analog RGB) is selected.

Operation24

Fine-tuning the image size and clarity

1. Adjust the projected image to the size that you need using the zoom ring.

2. Then sharpen the image by rotating the focus ring.

Correcting keystone

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen.

To correct this, besides adjusting the height of the projector, you will need to manually correct it following one of these steps.

• Using the remote control

Press / on the projector or remote control to display the Keystone correction page. Press to correct keystoning at the top of the image. Press to correct keystoning at the bottom of the image.

• Using the OSD menu

1. Press MENU/EXIT and then press / until the

2. Press to highlight Keystone and press MODE/ENTER. The Keystone correction page displays.

3. Press to correct keystoning at the top of the image or press to correct keystoning at the bottom of the image.

DISPLAY menu is highlighted.

Press /.

Operation 25

Magnifying and searching for details

If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture.

• Using the remote control

1. Press Digital Zoom +/- to display the Zoom bar.

2. Press Digital Zoom + to magnify the center of the picture. Press the key repeatedly until the picture size is suitable for your need.

3. Use the directional arrows ( , , , ) on the projector or remote control to navigate the picture.

4. To restore the picture to its original size, press AUTO. You can also press Digital Zoom -. When the key is pressed again, the picture is further reduced until it is restored to the original size.

• Using the OSD menu

1. Press MENU/EXIT and then press / until the DISPLAY menu is highlighted.

2. Press

3. Repeat steps 2-4 in the section of "Using the remote control" above. Or if you are

4. Press on the projector repeatedly to magnify the picture to a desired size.

5. To navigate the picture, press MODE/ENTER to switch to the paning mode and

6. Use the directional arrows ( , , , ) on the projector or remote control to

7. To reduce size of the picture, press MODE/ENTER to switch back to the zoom in/out

The picture can only be navigated after the picture is magnified. You can further magnify the picture while searching for details.

to highlight Digital Zoom and press MODE/ENTER. The Zoom bar

displays.

using the projector control panel, continue to the following steps.

press the directional arrows ( , , , ) to navigate the picture.

navigate the picture.

functionality, and press AUTO to restore the picture to its original size. You can also press repeatedly until it is restored to the original size.

Selecting the aspect ratio

The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, which is the default for this projector, and digital TV and DVDs are usually in 16:9 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input signal.

To change the projected image ratio (no matter what aspect the source is):

1. Press MENU/EXIT and then press / until the DISPLAY menu is highlighted.

2. Press

3. Press / to select an aspect ratio to suit the format of the video signal and your

Operation26

to highlight Aspect Ratio.

display requirements.

About the aspect ratio

In the pictures below, the black portions are inactive areas and the white portions are active areas. OSD menus can be displayed on those unused black areas.

1. Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

2. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.

3. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

16:10 picture

15:9 picture

4:3 picture

16:9 picture

Operation 27

Optimizing the image

Selecting a picture mode

The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.

To select an operation mode that suits your need, you can follow one of the following steps.

• Press MODE/ENTER on the remote control

or projector repeatedly until your desired mode is selected.

•Go to the PICTURE > Preset Mode menu and press / to select a desired mode.

Picture modes for different types of signals

The picture modes available for different types of signals are listed below.

PC input signals: D-Sub / Comp. 1/2 (analog RGB)

1. Brightest mode (Default): Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

2. Daylight mode: Is designed for presentations under daylight environment to match PC and notebook coloring.

3. ViewMatch mode: Switch in between high brightness performance or Accuracy color performance.

4. Cinema mode: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (little light) environment.

5. User 1/User 2 mode: Recalls the settings customized based on the current available picture modes. See "Setting the User 1/User 2 mode" on page 29 for details.

Video input signals: S-Video, Video, D-Sub / Comp. 1/2 (YPbPr)

1. Brightest mode: Is suitable for playing gamebox-based video games in a normal living room lighting level environment.

2. Standard mode (Default): Is appropriate for viewing colorful movies, video clips from digital cameras or DVs.

3. Cinema mode: Is suitable for enjoying dark movies or DVD movies best viewed in a blackened (little light) home cinema or lounge room environment.

4. User 1/User 2 mode: Recalls the settings customized based on the current available picture modes. See "Setting the User 1/User 2 mode" on page 29 for details.

Operation28

Setting the User 1/User 2 mode

There are two user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the User 1/User 2) as a starting point and customize the settings.

1. Press MENU/EXIT to open the On-Screen Display (OSD) menu.

2. Go to the PICTURE > Preset Mode menu.

3. Press / to select User 1 or User 2.

4. Press to highlight Reference Mode.

This function is only available when User 1 or User 2 mode is selected up in the Preset Mode sub-menu item.

5. Press / to select a picture mode that is closest to your need.

6. Press to select a sub-menu item to be changed and adjust the value with / . See "Fine-tuning the image quality in user modes" below for details.

7. When all settings have been done, highlight Save Settings and press MODE/ENTER to store the settings.

8. The confirmation message 'Setting Saved' displays.

Using Screen Color

In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Screen Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures.

To use this function, go to the DISPLAY > Screen Color menu and press / to select a color which is closest to the color of the projection surface. There are several precalibrated colors to choose from: Whiteboard, Greenboard, and Blackboard.

This function is only available when a PC type input signal is selected.

Fine-tuning the image quality in user modes

According to the detected signal type, there are some user-definable functions available when User 1 or User 2 mode is selected. You can make adjustments to these functions based on your needs.

Adjusting Brightness

Highlight the PICTURE > Brightness menu and press / .

The higher the value, the brighter the image. And the lower the setting, the darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

Highlight the PICTURE > Contrast menu and press / .

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

+30

+50

+70

-30

Operation 29

Adjusting Color

Highlight the PICTURE > Color menu and press / .

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusting Tint

Highlight the PICTURE > Tint menu and press / .

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Adjusting Sharpness

Highlight the PICTURE > Sharpness menu and press / .

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

Adjusting Brilliant Color

Highlight the PICTURE > Brilliant Color menu and press / .

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in the projected picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. If you don’t need it, select Off.

On is the default and recommended selection for this projector. When Off is selected, the Color Temperature function is not available.

Selecting a Color Temperature

Highlight the PICTURE > Color Temperature menu and press / .

The options available for color temperature* settings vary according to the signal type selected.

1. T1: With the highest color temperature, T1 makes the image appear the most bluish white than other settings.

2. T2: Makes images appear bluish white.

3. T3: Maintains normal colorings for white.

4. T4: Makes images appear reddish white.

*About color temperatures:

There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the “color temperature”. A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

Operation30

Hiding the image

In order to draw the audience's full attention to the presenter, you can use on the projector or BLANK

on the remote control to hide the screen image. Press any key on the projector or remote control to restore the image. The word 'BLANK' appears at the lower right corner of the screen while the image is hidden.

You can set the blank time in the

SYSTEM SETUP:

Basic > Blank Timer menu to let the projector

return the image automatically after a period of time when there is no action taken on the blank screen.

Once BLANK is pressed, the projector enters Economic mode automatically.

CAUTION

Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no

control keys on the projector will operate except POWER.

1. Press / on the projector or remote control or go to the

SYSTEM SETUP: Basic >

Panel Key Lock menu, and select On by

pressing / on the projector or remote control.

2. A confirmation message displays. Select Yes to confirm.

To release panel key lock, press and hold / for 3 seconds on the projector or remote control.

You can also use the remote control to enter the SYSTEM SETUP: Basic > Panel Key Lock and press / to select Off.

• Keys on the remote control are still functional when panel key lock is enabled.

• If you press POWER to turn off the projector without disabling panel key lock, the

projector will still be in locked status the next time it is turned on.

Operation 31

Freezing the image

Press FREEZE on the remote control to freeze the image. The word 'FREEZE' will display in the upper left corner of the screen. To release the function, press any key on the projector or remote control.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen on screen.

Operating in a high altitude environment

We recommend you use the High Altitude Mode when your environment is between 1500 m–3000 m above sea level, and temperature is between 0°C–35°C.

CAUTION

Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on under such a condition.

To activate the High Altitude Mode:

1. Press MENU/EXIT and then press / until the SYSTEM SETUP: Advanced menu is highlighted.

2. Press to highlight High Altitude Mode and press / to select On. A confirmation

message displays.

3. Highlight Yes and press MODE/ENTER.

Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Notice

We recommend you use the High Altitude mode by selecting it whenever your environment is higher than 1500 m.

Do you want to turn High Altitude Mode ON?

Yes

Adjusting the sound

The sound adjustments made as below will have an effect on the projector speaker. Be sure you have made a correct connection to the projector audio input. See "Connection" on page

13 for how the audio input is connected.

Muting the sound

To temporarily turn off the sound:

1. Press MENU/EXIT and then press / until the SYSTEM SETUP: Advanced menu is highlighted.

2. Press to highlight Audio Settings and press MODE/ENTER. The Audio Settings page displays.

3. Highlight Mute and press / to select On.

Operation32

Adjusting the sound level

To adjust the sound level, press Volume +/- on the remote control, or:

1. Repeat steps 1-2 above.

2. Press to highlight Volume and press / to select a desired sound level.

Personalizing the projector menu display

The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance.

• Menu Display Time in the SYSTEM SETUP: Advanced > Menu Settings menu sets

the length of time the OSD will remain active after your last key press. The time length ranges from 5 to 30 seconds in 5-second increments. Use / to select a suitable time

frame.

• Menu Position in the SYSTEM SETUP: Advanced > Menu Settings menu sets the

OSD position in five locations. Use / to select a preferred position.

• Language in the SYSTEM SETUP: Basic menu sets your familiar language for the

OSD menus. Use / to select your language.

• Splash Screen in the SYSTEM SETUP: Basic menu sets a preferred logo screen to be

displayed during projector start-up. Use / to select a screen.

Shutting down the projector

1. Press POWER and a confirmation message

2. Press POWER a second time. The

3. Disconnect the power cord from the wall

CAUTION

• To protect the lamp, the projector will not respond

to any commands during the cooling process.

• To shorten the cooling time, you can also activate the Quick Cooling function. See "Quick

Cooling" on page 38 for details.

• Do not unplug the power cord before the projector shutdown sequence is complete or

during the 90-second cooling down process.

• If the projector is not properly shut down, to protect the lamp, when you attempt to re-start

the projector, the fans will run for a few minutes to cool down. Press POWER again to start the projector after the fans stop and the POWER indicator light flashes blue.

displays prompting you. If you don't respond in a few seconds, the message will disappear.

POWER indicator light flashes blue, the projection lamp shuts down, and the fans will continue to run for approximately 90 seconds to cool down the projector.

socket if the projector will not be used in an extended period of time.

Operation 33

Menu operation

Menu system

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

The menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

Main menu Sub-menu Options

Off/Whiteboard/Greenboard/ Blackboard

DISPLAY


3. SOURCE

Screen Color

Aspect Ratio Auto/4:3/16:9 Keystone Position Phase H. Size Digital Zoom

PC source: Brightest/Daylight/ViewMatch/

Preset Mode

Reference Mode

Brightness Contrast Color Tint Sharpness Brilliant Color On/Off Color Temperature T1/T2/T3/T4 Save Settings

Quick Auto Search On/Off

Cinema/User 1/User 2 Video source: Brightest/Standard/Cinema/User 1/ User 2

PC source: Brightest/Daylight/ViewMatch/Cinema Video source: Brightest/Standard/Cinema

Operation34

Language

SYSTEM SETUP: Basic

SYSTEM SETUP: Advanced

INFORMATION

Projector Position

Auto Power Off

Blank Timer

Panel Key Lock On/Off

Timer Controller

Splash Screen Black/Blue/ViewSonic

Quick Cooling On/Off

High Altitude Mode On/Off

DCR On/Off

Active VGA Out On/Off

Audio Settings

Menu Settings

Closed Caption

Lamp Settings

Security Settings

Reset All Settings On/Off

Current System Status

Mute On/Off

Volume

Menu Display Time

Menu Position

Closed Caption Enable

Caption Version CC1/CC2/CC3/CC4

Lamp Mode Normal/Economic

Reset Lamp Timer

Equivalent Lamp Hour

Change Password

Power On Lock On/Off

Front Table/Rear Table/Rear Ceiling/Front Ceiling

Disable/5 min/10 min/15 min/20

min/25 min/30 min

Disable/5 min/10 min/15 min/20 min/25 min/30 min

Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/12 hr

5 sec/10 sec/15 sec/20 sec/25 sec/30 sec

Center/Top-Left/Top-Right/ Bottom-Left/Bottom-Right

On/Off

• Source

• Preset Mode

• Resolution

• Color System

• Equivalent Lamp Hour

Operation 35

Description of each menu

Function

(default setting/value)

Screen Color

(Off)

Aspect Ratio

(Auto)

Keystone

1. DISPLAY menu

(0)

Position

(0)

Phase

(depends on the selected input signal)

H. Size

(0)

Digital Zoom

(1.0X)

Preset Mode

(PC source: Brightest; Video source:

2. PICTURE menu

Standard)

Reference Mode

(Brightest)

Brightness

(50)

Description (default setting/value)

Corrects the projected picture’s color when the projection surface is not white. See "Using Screen Color" on page 29 for details.

There are three options to set the image's aspect ratio depending on your input signal source. See "Selecting the aspect ratio" on

page 26 for details.

Corrects any keystoning of the image. See "Correcting keystone"

on page 25 for details.

Displays the position adjustment page. To move the projected image, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.

Adjusts the clock phase to reduce image distortion.

Adjusts the horizontal width of the image.

Magnifies or reduces the projected image. See "Magnifying and

searching for details" on page 26 for details.

Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See "Selecting

a picture mode" on page 28 for details.

Selects a picture mode that most suits your need for the image quality and further fine-tune the image based on the selections listed on the same page below. See "Setting the User 1/User 2

mode" on page 29 for details.

Adjusts the brightness of the image. See "Adjusting Brightness"

on page 29 for details.

Operation36

Contrast

(0)

Color

(0)

Adjusts the degree of difference between dark and light in the image. See "Adjusting Contrast" on page 29 for details.

Adjusts the color saturation level -- the amount of each color in a video image. See "Adjusting Color" on page 30 for details.

Function

(default setting/value)

Tint

(0)

2. PICTURE menu Sharpness

(15)

Description (default setting/value)

Adjusts the red and green color tones of the image. See

"Adjusting Tint" on page 30 for details.

The function is only available when Video or S-Video with NTSC system is selected.

Adjusts the image to make it look sharper or softer. See

"Adjusting Sharpness" on page 30 for details.

Brilliant Color

(On)

Adjusts white peaking while maintaining correct color presentation. See "Adjusting Brilliant Color" on page 30 for details.

Color Temperature

(T1)

Save Settings

See "Selecting a Color Temperature" on page 30 for details.

Saves the settings made for the User 1 or User 2 mode.

3. SOURCE

Quick Auto Search

(On)

Language

(English)

4. SYSTEM SETUP: Basic Projector Position

(Front Table)

Auto Power Off

(Disable)

Blank Timer

(Disable)

Panel Key Lock

(Off)

See "Switching input signal" on page 23 for details.

Sets the language for the On-Screen Display (OSD) menus. See

"Using the menus" on page 20 for details.

The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See "Choosing a location" on page 11 for details.

Allows the projector to turn off automatically if no input signal is detected after a set period of time. See "Setting Auto Power

Off" on page 41 for details.

Sets the image blank time when the Blank feature is activated, once elapsed the image will return to the screen. See "Hiding the

image" on page 31 for details.

Disables or enables all panel key functions except POWER on the projector and keys on the remote control. See "Locking

control keys" on page 31 for details.

Operation 37

Function

(default setting/value)

4. SYSTEM SETUP:

Timer

Basic menu

Controller

(Disable)

Description (default setting/value)

Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 12 hours.

Splash Screen

(ViewSonic logo)

Quick Cooling

(On)

High Altitude Mode

5. SYSTEM SETUP: Advanced menu

(Off)

DCR

(Off)

Active VGA Out

(On)

Audio Settings

Menu Settings

Allows you to select which logo screen will display during projector start-up. Three options are available: ViewSonic logo, Black screen, or Blue screen.

Selecting On enables the function and the projector cooling time will be shortened to a few seconds.

If you attempt to restart the projector right after the quick cooling process, it may not be turned on successfully and will rerun its cooling fans.

A mode for operation in high altitude areas. See "Operating in a

high altitude environment" on page 32 for details.

Enables or disables the DCR (Dynamic Contrast Ratio) function. Selecting On enables the function and the projector will automatically switch the lamp mode between normal and economic modes according to the input image detected.

This function is only available when a PC source is in use.

After enabling DCR, frequent lamp mode switching may shorten lamp life and noise level will vary during operation.

Outputs a VGA signal when the COMPUTER IN and COMPUTER OUT sockets are correctly connected to devices.

See "Connecting a monitor" on page 14 for how to make the connection.

Enabling this function slightly increases the standby power consumption.

Mute (Off) Volume (5)

See "Adjusting the sound" on page 32 for details.

Menu Display Time (15 sec)

Sets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.

Menu Position (Center)

Sets the On-Screen Display (OSD) menu position.

Operation38

Function

(default setting/value)

Closed Caption Enable (Off)

Activates the function by selecting On when the selected input signal carries closed captions.

• Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked as "CC" in TV listings).

5. SYSTEM SETUP: Advanced menu Closed

Caption

Caption Version (CC1)

Selects a preferred closed captioning mode. To view captions, select CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary language in your area).

Lamp Mode (Normal)

See "Setting Lamp mode as Economic" on page 41 for details.

Lamp Settings

Reset Lamp Timer

See "Resetting the lamp timer" on page 45 for details.

Equivalent Lamp Hour

ee "Getting to know the lamp hour" on page 41 for details

on how the total lamp hour is calculated.

Security Settings

See "Utilizing the password function" on page 21 for details,

Returns all settings to the factory preset values.

Reset All Settings

6. INFORMATION menu

Current System Status

Source

Shows the current signal source.

Preset Mode Shows the selected mode in the PICTURE menu.

Resolution

Shows the native resolution of the input signal.

Color System

Shows input system format, NTSC, PAL, SECAM, or RGB.

Equivalent Lamp Hour

Displays the number of hours the lamp has been used.

Description (default setting/value)

Set your screen aspect ratio to 4:3. This function is not available when the aspect ratio is “16:9”.

This function is only available when a Composite video or S-Video input signal is selected and its system format is NTSC.

The following settings will still remain: Phase, H. Size, User 1, User 2, Language, Projector Position, High Altitude Mode, Security Settings.

Operation 39

Maintenance

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.

• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

CAUTION

Never rub the lens with abrasive materials.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 33 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.

• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

CAUTION

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 48 or consult your dealer about the range.

• Retract the adjuster feet.

• Remove the battery from the remote control.

• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent.

Maintenance40

Lamp information

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:

Total (equivalent) lamp hour = 1 (hours used in Economic mode) + 4/3 (hours used in Normal mode)

See "Setting Lamp mode as Economic" below for more information on Economic mode.

The lamp hour in Economic mode is calculated as 3/4 of that in Normal mode. That is, using the projector in Economic mode helps to extend the lamp hour by 1/3.

To obtain the lamp hour information:

1. Press MENU/EXIT and then press / until the SYSTEM SETUP: Advanced

menu is highlighted.

2. Press to highlight Lamp Settings and press MODE/ENTER. The Lamp Settings

page displays.

3. You will see the Equivalent lamp hour information displaying on the menu.

4. To leave the menu, press MENU/EXIT.

You can also get the lamp hour information on the INFORMATION menu.

Extending lamp life

The projection lamp is a consumable item that normally can last up to 3000-4000 hours with proper usage. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

Setting Lamp mode as Economic

Using Economic mode reduces system noise and power consumption by 20%. If the Economic mode is selected, the light output will be reduced and result in darker projected

pictures.

Setting the projector in Economic mode also extends the lamp operation life. To set

Economic mode, go into the SYSTEM SETUP: Advanced > Lamp Settings > Lamp mode menu and press / .

Setting Auto Power Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time to prevent unnecessary waste of lamp life.

To s et Auto Power Off, go into the SYSTEM SETUP: Basic > Auto Power Off menu and press / . The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

Maintenance 41

Timing of replacing the lamp

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

CAUTION

The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after turning the power back on, please contact your dealer. See "Indicators" on

page 46 for details.

The following lamp warning displays will remind you to change the lamp.

Status Message

The lamp has been in operation for 3500 hours. Install a new lamp for optimal performance. If the projector is normally run with Economic selected (See "Setting Lamp mode as Economic" on page

41), you may continue to operate the projector

until the 3950 hour lamp warning appears.

Notice

Order Replacement Lamp

Lamp > 3500 Hours

The lamp has been in operation for 3950 hours. A new lamp should be fitted to avoid the inconvenience when the projector runs out of lamp time.

The lamp has been in operation for 4000 hours.

It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished. If the lamp is not replaced beforehand, it must be replaced after 4000 hours usage.

The lamp MUST be replaced before the projector will operate normally.

Notice

Replace Lamp Soon

Lamp > 3950 Hours

Notice

Replace Lamp Now

Lamp > 4000 Hours Lamp usage time exceeded

Notice

Lamp usage time exceeded

Replace lamp (refer to User Manual) Then reset lamp timer

Maintenance42

Replacing the lamp

To prepare a new lamp, contact your dealer and tell the lamp type number.

Type number : RLC-047

WARNING

Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org

• To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.

• To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

• To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces. Before replacing the lamp, clean the lamp compartment and dispose of cleaning materials. Be careful of sharp edges in the lamp compartment. Wash hands after lamp replacement.

• Only ViewSonic certified lamps are tested with this projector. Use of other lamps may cause electrical shock and fire.

1. Turn the power off and disconnect the

projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.

2. Turn the projector over. Then loosen

the screws on the lamp cover.

3. Remove the lamp cover from the

projector.

WARNING

• Do not turn the power on with the lamp cover removed.

• Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries.

4. Loosen the screw that secures the lamp.

Maintenance 43

5. Pull out the lamp connector from a slot

in the lamp compartment. Disconnect it from the projector as illustrated.

6. Lift the handle so that it stands up. Use

the handle to slowly pull the lamp out of the projector.

CAUTION

• Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.

• Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.

• Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.

7. Insert the new lamp into the lamp

compartment and make sure it fits in the projector.

8. Reconnect the lamp connector and

place it back into its slot to be flush with the projector.

Maintenance44

9. Tighten the screw that secures the lamp.

CAUTION

• Loose screw may cause a bad connection, which could result in malfunction.

• Do not over tighten the screw.

10. Ensure the handle is fully laid flat and

locked in place.

11. Replace the lamp cover on the

projector.

12. Tighten the screws that secure the lamp

cover.

CAUTION

• Loose screw may cause a bad connection, which could result in malfunction.

• Do not over tighten the screws.

13. Restart the projector.

CAUTION

Do not turn the power on with the lamp cover removed.

Resetting the lamp timer

14. After the startup logo, open the On-Screen

Display (OSD) menu. Go to the SYSTEM SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER. The Lamp Settings page displays. Press to highlight Reset lamp timer and press MODE/ENTER. A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ ENTER. The lamp time will be reset to '0'.

CAUTION

Do not reset if the lamp is not new or replaced as this could cause damage.

Notice

Reset Lamp Timer?

Reset

Cancel

Maintenance 45

Indicators

Light Status & Description

Power Te mp Lamp

Blue

Flashing

Blue Off Off

Blue

Flashing

Purple

Flashing

Off Off Red

Off Red Off

Off Red Red

Off Red Green

Red Red Red

Red Red Green

Blue Red Red

Blue Red Green

Purple Red Red

Purple Red Green

Off Green Red

Off Off

Off Red

Power events

Stand-by mode

Powering up

Normal operation

1. The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process. Or

2. The projector needs to cool for 90 seconds after the power is turned off. Or

3. The projector has shut down automatically. If you try to re-start the projector, it will shut down again. Please contact your dealer for assistance.

Lamp events

The projector has shut down automatically. If you try to restart the projector, it will shut down again. Please contact your dealer for assistance.

1. The projector needs 90 seconds to cool down. Or

2. Please contact your dealer for assistance.

Thermal events

The projector has shut down automatically. If you try to restart the projector, it will shut down again. Please contact your dealer for assistance.

Maintenance46

Troubleshooting

The projector does not turn on.

Cause Remedy

There is no power from the power cord.

Attempting to turn the projector on again during the cooling process.

No picture

Cause Remedy

The video source is not turned on or connected correctly.

The projector is not correctly connected to the input signal device.

The input signal has not been correctly selected.

The lens cover is still closed. Open the lens cover.

Blurred image

Cause Remedy

The projection lens is not correctly focused.

The projector and the screen are not aligned properly.

The lens cover is still closed. Open the lens cover.

Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.

Wait until the cooling down process has completed.

Turn the video source on and check that the signal cable is connected correctly.

Check the connection.

Select the correct input signal with the SOURCE key on the projector or remote control.

Adjust the focus of the lens using the focus ring.

Adjust the projection angle and direction as well as the height of the projector if necessary.

Remote control does not work

Cause Remedy

The battery is out of power. Replace the battery with a new one.

There is an obstacle between the remote control and the projector.

You are too far away from the projector.

Remove the obstacle.

Stand within 8 meters (26 feet) of the projector.

Troubleshooting 47

Specifications

Projector specifications

All specifications are subject to change without notice.

General

Product name Digital Projector Model name PJD5111

Optical

Resolution 800 x 600 SVGA Display system 1-CHIP DMD Lens F/Number F = 2.56 to 2.8, f = 21 to 23 mm Lamp 185 W lamp

Electrical

Power supply AC100–240V, 2.9 A, 50/60 Hz (Automatic) Power consumption 280 W (Max)

Mechanical

Dimensions 264 mm (W) x 96.4 mm (H) x 225 mm (D) Weight 5.07 lbs (2.3 Kg)

Input terminal

Computer input RGB input D-Sub 15-pin (female) x 2 Video signal input S-VIDEO Mini DIN 4-pin port x 1 VIDEO RCA jack x 1 SD/HDTV signal input Analog – D-Sub <–> Component RCA jack x 3

(through RGB input)

Output terminal

RGB output D-Sub 15-pin (female) x 1 Speaker 1 watt (mono) x 1

Control terminal

RS-232 serial control 8 pin x 1

Environmental Requirements

Operating temperature 0°C–40°C at sea level Operating relative humidity 10%–90% (without condensation) Operating altitude • 0–1499 m at 0°C–35°C

• 1500–3000 m at 0°C–30°C (with High Altitude Mode on)

Specifications48

Dimensions

264 mm (W) x 96.4 mm (H) x 225 mm (D)

225

264

96.4

Timing chart

Supported timing for PC input

Horizontal

Resolution

640 x 480

720 x 400 31.469 70.087 28.3221 720 x 400_70

800 x 600

1024 x 768

1280 x 800 49.702 59.810 83.500 SXGA_60

1280 x 1024 63.981 60.020 108.000 SXGA3_60

1280 x 960 60.000 60.000 108.000 1280 x 960_60 640 x 480@67Hz 35.000 66.667 30.240 MAC13 832 x 624@75Hz 49.722 74.546 57.280 MAC16

1024 x 768@75Hz 60.241 75.020 80.000 MAC19 1152 x 870@75Hz 68.680 75.060 100.00 MAC21

Frequency

(kHz)

31.469 59.940 25.175 VGA_60

37.861 72.809 31.500 VGA_72

37.500 75.000 31.500 VGA_75

43.269 85.008 36.000 VGA_85

37.879 60.317 40.000 SVGA_60

48.077 72.188 50.000 SVGA_72

46.875 75.000 49.500 SVGA_75

53.674 85.061 56.250 SVGA_85

48.363 60.004 65.000 XGA_60

56.476 70.069 75.000 XGA_70

60.023 75.029 78.750 XGA_75

68.667 84.997 94.500 XGA_85

Ver ti ca l

Frequency

(Hz)

Pixel

Frequency

(MHz)

Mode

Specifications 49

Supported timing for Component-YPbPr input

Signal Format Horizontal Frequency (kHz) Vertical Frequency (Hz)

480i(525i)@60Hz 15.73 59.94

480p(525p)@60Hz 31.47 59.94

576i(625i)@50Hz 15.63 50.00 576p(625p)@50Hz 31.25 50.00 720p(750p)@60Hz 45.00 60.00 720p(750p)@50Hz 37.50 50.00

1080i(1125i)@60Hz 33.75 60.00 1080i(1125i)@50Hz 28.13 50.00

Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.

Supported timing for Video and S-Video inputs

Video mode

NTSC 15.73 60 3.58

PAL 15.63 50 4.43

SECAM 15.63 50 4.25 or 4.41

PAL-M 15.73 60 3.58

PAL-N 15.63 50 3.58

PA L- 60 15 .7 3 6 0 4. 43

NTSC4.43 15.73 60 4.43

Horizontal

Frequency (kHz)

Vertical Frequency

(Hz)

Color sub-carrier Frequency (MHz)

Specifications50

Copyright 2009. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, ViewSonic Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP and Digital Micromirror Device (DMD) are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.

Appendix

IR control table

Key Format Byte1 Byte2 Byte3 Byte4

Power NEC 83 F4 02 fd

Freeze NEC 83F403 fc

Up NEC 83 F4 0b f4

Down NEC 83 F4 0c f3

Left NEC 83F40d f2

Right NEC 83 F4 0e f1

Mode NEC 83 F4 0f f0

Volume+ NEC 83 F4 05 fa

Volume- NEC 83 F4 06 f9

Auto NEC 83F408 f7

Source NEC 83F404 fb

Blank NEC 83 F4 07 f8

Menu NEC 83F410 ef

Digital Zoom+ NEC 83 F4 18 e7

Digital Zoom- NEC 83 F4 19 e6

ViewMatch NEC 83 F4 13 ec

RS232 command table

Function Status Action CMD

Write

Power

Read

Reset Execute 0x06 0x14 0x00 0x03 0x00 0x34 0x11 0x02 0x5E

Mirror

Contrast

Write

Read Mirror status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x00 0x5F

Write

Read

Turn on 0x06 0x14 0x00 0x03 0x00 0x34 0x11 0x00 0x5C

Turn off 0x06 0x14 0x00 0x03 0x00 0x34 0x11 0x01 0x5D

Power

status (on/

off/cool

down)

Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x00 0x5E

H Inverse 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x01 0x5F

V Inverse 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x03 0x61

H&V Inverse 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x02 0x60

Contrast

decrease

Contrast increase

Contrast

ratio

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00 0x5E

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x00 0x60

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x01 0x61

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x02 0x61

Appendix52

Function Status Action CMD

Brightness

Aspect ratio

Auto Adjust Execute 0x06 0x14 0x00 0x03 0x00 0x34 0x12 0x05 0x62

Horizontal

position

Vert ical position

Write

Read Brightness 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x03 0x62

Write

Read Aspect ratio 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x04 0x63

Write

Read

Write

Read

decrease

Brightness

increase

Aspect ratio

Auto

Aspect ratio

4:3

Aspect ratio

16:9

Horizontal

position shift

right

Horizontal

position shift

left

Horizontal

position

Vert ical

position shift

Vert ical

position shift

down

Vert ical

position

Color

temperatureT10x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x00 0x66

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x00 0x61

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x01 0x62

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x00 0x62

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x02 0x64

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x01 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x06 0x00 0x64

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x06 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x00 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x01 0x66

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x07 0x66

Color

temperature

Write

Read

Color

temperatureT20x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x01 0x67

Color

temperatureT30x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x02 0x68

Color

temperatureT40x06 0x14 0x00 0x04 0x00 0x34 0x12 0x08 0x03 0x69

Color

temperature

status

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x08 0x67

Appendix 53

Function Status Action CMD

Blank on 0x06 0x14 0x00 0x03 0x00 0x34 0x12 0x09 0x66

Blank off

Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x00 0x68

Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0A 0x01 0x69

Keystone

status

Brightest 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x00 0x69

Cinema 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x01 0x6A

User 1 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x02 0x6B

User 2 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x03 0x6C

Daylight 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x04 0x6D

ViewMatch 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x05 0x6E

Standard

(only for

video)

Preset mode

status

Freeze on 0x06 0x14 0x00 0x03 0x00 0x34 0x13 0x00 0x5E

Freeze off

Freeze

status

Input source

VGA

Input source

VGA2

Input source

Composite

Input source

S-VIDEO

Source scan

off

Source scan

status

Mute on 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x01 0x61

Mute off 0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x00 0x60

Increase

Volume

Decrease

Volume

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0A 0x69

0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x06 0x6F

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0B 0x6A

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00 0x60

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x00 0x60

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x08 0x68

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x05 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x06 0x66

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x01 0x62

0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x00 0x61

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x02 0x62

0x06 0x14 0x00 0x03 0x00 0x34 0x14 0x01 0x60

0x06 0x14 0x00 0x03 0x00 0x34 0x14 0x02 0x61

Blank

Keystone-

Vert ical

Preset mode

Freeze

Source input

Source scan

Mute

Volume

Write

Read Blank status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x09 0x68

Write

Read

Write

Read

Write

Read

Write

Read Source 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x01 0x61

Write

Read

Write

Read Mute status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x00 0x61

Write

Read Volume 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x03 0x64

Appendix54

Function Status Action CMD

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x00 0x61

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x01 0x62

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x02 0x63

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x03 0x64

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x04 0x65

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x05 0x66

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x06 0x67

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x07 0x68

Language

Lamp time

Error status Read 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x02 0x64

Write

Read Language 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00 0x62

Write

Read

Reset Lamp

usage hour

Lamp usage

hour

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x08 0x69

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x09 0x6A

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0a 0x6B

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0b 0x6C

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0c 0x6D

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6E

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71

0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72

0x06 0x14 0x00 0x03 0x00 0x34 0x15 0x01 0x61

0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x01 0x63

Appendix 55

Customer Support

For technical support or product service, see the table below or contact your reseller. Note : You will need the product serial number.

Country/Region Web Site

Australia/New Zealand www.viewsonic.com.au

Canada www.viewsonic.com

Europe/Middle East/Baltic countries/North Africa

Hong Kong www.hk.viewsonic.com T= 852 3102 2900 service@hk.viewsonic.com

India www.in.viewsonic.com T= 1800 11 9999 service@in.viewsonic.com

Korea www.kr.viewsonic.com T= 080 265 9080 service@kr.viewsonic.com

Latin America (Argentina) www.viewsonic.com/la/ T= 0800 666 0194 soporte@viewsonic.com

Latin America (Brazil) www.viewsonic.com/la/ T= 0800 891 6984 soporte@viewsonic.com

Latin America (Chile) www.viewsonic.com/la/ T= 800 440 303 soporte@viewsonic.com

Latin America (Columbia) www.viewsonic.com/la/ T= 01 800 915 6588 soporte@viewsonic.com

Latin America (Mexico) www.viewsonic.com/la/ T= 001 800 514 6518 soporte@viewsonic.com

Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS

Electroser, Av Reforma No. 403Gx39 y 41, 97000 Merida, Yucatan. Tel: 01.999.925.19.16

Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico

Latin America (Peru) www.viewsonic.com/la/ T= 0800 53458 soporte@viewsonic.com

www.viewsoniceurope.com Contact your reseller

T=Telephone

F=Fax

AUS=1800 880 818

NZ=0800 008 822

T (Toll-Free)= 1-866-463-4775 T (Toll)= 1-424-233-2533 F= 1-909-468-1202

E-mail

service@au.viewsonic.com

service.ca@viewsonic.com

Macau www.hk.viewsonic.com T= 853 700 303 service@hk.viewsonic.com

Puerto Rico & Virgin Islands www.viewsonic.com

Singapore/Malaysia/Thailand www.ap.viewsonic.com T= 65 6461 6044 service@sg.viewsonic.com

South Africa www.viewsoniceurope.com www.viewsoniceurope.com/uk/Support/Calldesk.htm

United Kingdom www.viewsoniceurope.com/uk/ www.viewsoniceurope.com/uk/Support/Calldesk.htm

United States www.viewsonic.com

T= 1-800-688-6688 (English) T= 1-866-379-1304 (Spanish) F= 1-909-468-1202

T (Toll-Free)= 1-800-688-6688 T (Toll)= 1-424-233-2530 F= 1-909-468-1202

service.us@viewsonic.com

soporte@viewsonic.com

service.us@viewsonic.com

Limited Warranty

VIEWSONIC® PROJECTOR

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

How long the warranty is effective:

North and South America: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for

WKHRULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHUSXUFKDVH

Europe: 3 years for all parts excluding the lamp, 3 years for labor, with 1 year limited lamp

ZDUUDQW\IRUWKHRULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHUSXUFKDVH Other regions or countries:3OHDVHFKHFNZLWK\RXUORFDOGHDOHURUORFDO9LHZ6RQLFRI¿FHIRUWKH

warranty information.

/DPSZDUUDQW\VXEMHFWWRWHUPVDQGFRQGLWLRQVYHUL¿FDWLRQDQGDSSURYDO$SSOLHVWR

manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

7KLVZDUUDQW\LVYDOLGRQO\IRUWKH¿UVWFRQVXPHUSXUFKDVHU

What the warranty does not cover:

1. $Q\SURGXFWRQZKLFKWKHVHULDOQXPEHUKDVEHHQGHIDFHGPRGL¿HGRUUHPRYHG

2. Damage, deterioration or malfunction resulting from:

a. $FFLGHQWPLVXVHQHJOHFW¿UHZDWHUOLJKWQLQJRURWKHUDFWVRIQDWXUHXQDXWKRUL]HG

SURGXFWPRGL¿FDWLRQRUIDLOXUHWRIROORZLQVWUXFWLRQVVXSSOLHGZLWKWKHSURGXFW

b. Repair or attempted repair by anyone not authorized by ViewSonic. c. Any damage of the product due to shipment. d. Removal or installation of the product. e. &DXVHVH[WHUQDOWRWKHSURGXFWVXFKDVHOHFWULFSRZHUÀXFWXDWLRQVRUIDLOXUH f. 8VHRIVXSSOLHVRUSDUWVQRWPHHWLQJ9LHZ6RQLF¶VVSHFL¿FDWLRQV g. Normal wear and tear. h. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as “image burn-in” which results when

a static image is displayed on the product for an extended period of time.

4. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer

Support (please refer to “Customer Support” page). You will need to provide your product’s serial number.

To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic

service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact

ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained

KHUHLQLQFOXGLQJWKHLPSOLHGZDUUDQW\RIPHUFKDQWDELOLW\DQG¿WQHVVIRUDSDUWLFXODUSXUSRVH

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon

LQFRQYHQLHQFHORVVRIXVHRIWKHSURGXFWORVVRIWLPHORVVRISUR¿WVORVVRIEXVLQHVV

opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

Effect of state law:

7KLVZDUUDQW\JLYHV\RXVSHFL¿FOHJDOULJKWVDQG\RXPD\DOVRKDYHRWKHUULJKWVZKLFKYDU\IURP

state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer. The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found in www. viewsoniceurope.com under Support/Warranty Information.

4.3: Projector Warranty PRJ_LW01 Rev. 1h 06-25-07

Mexico Limited Warranty

VIEWSONIC®PROJECTOR

What the warranty covers:

How long the warranty is effective:

\HDUVIRUDOOSDUWVH[FOXGLQJWKHODPS\HDUVIRUODERU\HDUIRUWKHRULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHU

purchase.

/DPSZDUUDQW\VXEMHFWWRWHUPVDQGFRQGLWLRQVYHUL¿FDWLRQDQGDSSURYDO$SSOLHVWRPDQXIDFWXUHU¶VLQVWDOOHGODPSRQO\

All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

7KLVZDUUDQW\LVYDOLGRQO\IRUWKH¿UVWFRQVXPHUSXUFKDVHU

What the warranty does not cover:

 $Q\SURGXFWRQZKLFKWKHVHULDOQXPEHUKDVEHHQGHIDFHGPRGL¿HGRUUHPRYHG

2. Damage, deterioration or malfunction resulting from:

 D $FFLGHQWPLVXVHQHJOHFW¿UHZDWHUOLJKWQLQJRURWKHUDFWVRIQDWXUHXQDXWKRUL]HGSURGXFW

PRGL¿FDWLRQXQDXWKRUL]HGDWWHPSWHGUHSDLURUIDLOXUHWRIROORZLQVWUXFWLRQVVXSSOLHGZLWKWKHSURGXFW

b. Any damage of the product due to shipment.

 F &DXVHVH[WHUQDOWRWKHSURGXFWVXFKDVHOHFWULFDOSRZHUÀXFWXDWLRQVRUIDLOXUH  G 8VHRIVXSSOLHVRUSDUWVQRWPHHWLQJ9LHZ6RQLF¶VVSHFL¿FDWLRQV

e. Normal wear and tear. f. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

4. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim. For Your Records Product Name: ________________________ Model Number: __________________________ Document Number: ____________________ Serial Number: ___________________________ Purchase Date: ________________________ Extended Warranty Purchase? _______________(Y/N) If so, what date does warranty expire? _________

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.

3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including

WKHLPSOLHGZDUUDQW\RIPHUFKDQWDELOLW\DQG¿WQHVVIRUDSDUWLFXODUSXUSRVH

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience,

ORVVRIXVHRIWKHSURGXFWORVVRIWLPHORVVRISUR¿WVORVVRIEXVLQHVVRSSRUWXQLW\ORVVRIJRRGZLOO

interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:

México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

Hermosillo:

Distribuciones y Servicios Computacionales SA de CV. Calle Juarez 284 local 2 Col. Bugambilias C.P: 83140 Tel: 01-66-22-14-9005 E-Mail: disc2@hmo.megared.net.mx

Puebla, Pue. (Matriz):

RENTA Y DATOS, S.A. DE C.V. Domicilio: 29 SUR 721 COL. LA PAZ 72160 PUEBLA, PUE. Tel: 01(52).222.891.55.77 CON 10 LINEAS E-Mail: datos@puebla.megared.net.mx

Chihuahua

Soluciones Globales en Computación C. Magisterio # 3321 Col. Magisterial Chihuahua, Chih. Tel: 4136954 E-Mail: Cefeo@soluglobales.com

Distrito Federal:

QPLUS, S.A. de C.V. Av. Coyoacán 931 Col. Del Valle 03100, México, D.F. Tel: 01(52)55-50-00-27-35 E-Mail : gacosta@qplus.com.mx

Guerrero Acapulco

GS Computación (Grupo Sesicomp) Progreso #6-A, Colo Centro 39300 Acapulco, Guerrero Tel: 744-48-32627

MERIDA:

ELECTROSER Av Reforma No. 403Gx39 y 41 Mérida, Yucatán, México CP97000 Tel: (52) 999-925-1916 E-Mail: rrrb@sureste.com

Tijuana:

STD Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembre Tijuana, Mexico

Villahermosa:

Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: compumantenimientos@prodigy.net.mx

Veracruz, Ver.:

CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419 ENTRE PINZÓN Y ALVARADO Fracc. Reforma C.P. 91919 Tel: 01-22-91-00-31-67 E-Mail: gacosta@qplus.com.mx

Cuernavaca

Compusupport de Cuernavaca SA de CV Francisco Leyva # 178 Col. Miguel Hidalgo C.P. 62040, Cuernavaca Morelos Tel: 01 777 3180579 / 01 777 3124014 E-Mail: aquevedo@compusupportcva.com

Guadalajara, Jal.:

SERVICRECE, S.A. de C.V. Av. Niños Héroes # 2281 Col. Arcos Sur, Sector Juárez 44170, Guadalajara, Jalisco Tel: 01(52)33-36-15-15-43 E-Mail: mmiranda@servicrece.com

Monterrey:

Global Product Services Mar Caribe # 1987, Esquina con Golfo Pérsico Fracc. Bernardo Reyes, CP 64280 Monterrey N.L. México Tel: 8129-5103 E-Mail: aydeem@gps1.com.mx

Oaxaca, Oax.:

CENTRO DE DISTRIBUCION Y SERVICIO, S.A. de C.V. Murguía # 708 P.A., Col. Centro, 68000, Oaxaca Tel: 01(52)95-15-15-22-22 Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com

FOR USA SUPPORT:

ViewSonic Corporation 381 Brea Canyon Road, Walnut, CA. 91789 USA Tel: 800-688-6688 (English); 866-323-8056 (Spanish); Fax: 1-800-685-7276 E-Mail: http://www.viewsonic.com

4.3: ViewSonic Mexico Limited Warranty PRJ_LW03 Rev. 1A 06-25-07

ViewSonic PJD5111 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
