LS800WU/LS800HD DLP Projector

User Guide

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://

ZZZYLHZVRQLFFRPLQ (QJOLVKRU LQ VSHFL¿FODQJXDJHV XVLQJ WKH 5HJLRQDOVHOHFWLRQ

box in the upper right corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Model No. VS17078/VS17079

Compliance Information

FCC Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

y Consult the dealer or an experienced radio/TV technician for help.

Warning:<RXDUHFDXWLRQHGWKDWFKDQJHVRUPRGL¿FDWLRQVQRWH[SUHVVO\DSSURYHG

by the party responsible for compliance could void your authority to operate the equipment.

For Canada

CAN ICES-3 (B)/NMB-3(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE).

The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than,

0.002% Cadmium, or more than 0.004% Lead.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth.

7. Do not block any ventilation openings. Install the unit in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves,

RURWKHUGHYLFHVLQFOXGLQJDPSOL¿HUVWKDWSURGXFHKHDW

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third SURQJDUHSURYLGHGIRU\RXUVDIHW\,IWKHSURYLGHGSOXJGRHVQRW¿WLQWR\RXU outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure that the power outlet is located near the unit so that it is easily accessible.

 2QO\XVHDWWDFKPHQWVDFFHVVRULHVVSHFL¿HGE\WKHPDQXIDFWXUHU  8VHRQO\ZLWKWKHFDUWVWDQGWULSRGEUDFNHWRUWDEOHVSHFL¿HGE\

the manufacturer, or sold with the unit. When a cart is used, use caution when moving the cart/unit combination to avoid injury from tipping over.

13. Unplug this unit when unused for long periods of time.

 5HIHUDOOVHUYLFLQJWRTXDOL¿HGVHUYLFHSHUVRQQHO6HUYLFLQJLVUHTXLUHGZKHQWKH

unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Lead (Pb) 0.1% < 0.1% Mercury (Hg) 0.1% < 0.1% Cadmium (Cd) 0.01% < 0.01% Hexavalent Chromium (Cr Polybrominated biphenyls (PBB) 0.1% < 0.1% Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

) 0.1% < 0.1%

Proposed Maximum Concentration

Actual Concentration

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. 0HUFXU\LQFROGFDWKRGHÀXRUHVFHQWODPSVDQGH[WHUQDOHOHFWURGHÀXRUHVFHQW

lamps (CCFL and EEFL) for special purposes not exceeding (per lamp): (1) Short length (≦500 mm): maximum 3.5 mg per lamp. (2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp. (3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. /HDGLQJODVVRIÀXRUHVFHQWWXEHVQRWH[FHHGLQJE\ZHLJKW

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other

than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

iii

Copyright © ViewSonic® Corporation, 2018. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation. VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA. PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves WKHULJKWWRFKDQJHSURGXFWVSHFL¿FDWLRQVZLWKRXWQRWLFH,QIRUPDWLRQLQWKLVGRFXment may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To fulfill possible future product needs, and to receive additional product information as it becomes available, please visit your region section on ViewSonic’s website to register your product online. Registering your product will best prepare you for future customer service needs. Please print this user guide and fill the information in the “For Your Records” section. For additional information, please see the “Customer Support” section in this guide.

For Your Records

Product Name: LS800WU/LS800HD

ViewSonic DLP Projector

Model Number: VS17078/VS17079 Document Number: LS800WU/LS800HD_UG_ENG Rev. 1A 11-22-17

Serial Number: ________________________________________ Purchase Date: ________________________________________

Product disposal at end of product life

The lamp in this product contains mercury which can be dangerous to you and the environment. Please use care and dispose of in accordance with local, state or federal laws. ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more. USA & Canada: http://www.viewsonic.com/company/green/recycle-program/ Europe: http://www.viewsoniceurope.com/eu/support/call-desk/ Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Table of contents

Important safety

instructions .......................2

Introduction......................7

Projector features ................................. 7

Shipping contents.................................8

Projector exterior view.........................9

Controls and functions ....................... 10

Positioning your

projector .........................16

Choosing a location............................16

Projection dimensions ........................ 17

Connection......................21

Connecting a computer or a monitor.. 22

Connecting Video source devices ...... 22

Playing sound through the projector .. 25

Operation........................26

Starting up the projector..................... 26

Using the menus................................. 27

Utilizing the password function .........28

Switching input signal........................ 30

Adjusting the projected image ...........31

Adjusting projected image position

using lens shift .................................. 33

Magnifying and searching

for details............................................ 35

Selecting the aspect ratio.................... 36

Optimizing the image......................... 37

Setting the presentation timer ............41

Hiding the image................................42

Locking control keys.......................... 42

Operating in a high altitude

environment ....................................... 42

Using the CEC function..................... 43

Using the 3D functions ...................... 43

Using the projector in standby mode . 44

Adjusting the sound ........................... 44

RJ45 ................................................... 45

Preparing Email Alerts ...................... 50

RS232 by Telnet Function................. 52

Shutting down the projector .............. 56

Menu operation.................................. 57

Maintenance ...................67

Care of the projector .......................... 67

Light Source Hours information........ 68

Troubleshooting .............71

Specifications..................72

Projector specifications...................... 72

Dimensions ........................................ 73

Ceiling mount installation ................. 73

Timing chart ................... 74

Appendix.........................79

IR control table .................................. 79

RS232 command table....................... 80

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you operate your projector. Save it for future reference.

2. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

3. Refer servicing to qualified service personnel.

4. Always open the lens shutter or remove the lens cap when the projector light source is on.

5. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate

or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).

6. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the light source, press BLANK on the remote control.

7. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

8. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.

Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

9. Do not place this projector in any of the following environments.

- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

- Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector's life span and darkening the picture.

- Locations near fire alarms

- Locations with an ambient temperature above 40°C / 104°F

- Locations where the altitudes are higher than 3000 m (10000 feet).

10. Do not block the ventilation holes. If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

- Do not place this projector on a blanket, bedding or any other soft surface.

- Do not cover this projector with a cloth or any other item.

- Do not place inflammables near the projector.

11. Positioning precautions: This projector can be installed 360

portrait situation. Portrait area Not suggest.

° range. But life of optical parts will be shorten as

12. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

13. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call your local service center to have the projector serviced.

14. This product is capable of displaying inverted pictures for ceiling mount installation.

Use only qualified ceiling mount kit for mounting the projector and ensure it is securely installed.

15. When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a product defect.

16. Do not use the Security bar for transporting or installation. It should be used with a commercially available theft prevention cable.

Safety instructions for ceiling mounting of the projector

We want you to have a pleasant experience using your projector, so we need to bring this safety matter to your attention to prevent damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use an inappropriate projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a projector ceiling mount kit from the place you purchased your projector. We recommend that you also purchase a separate security cable and attach it securely to both the anti-theft lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015.

Laser warning

This symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed.

Class 3R laser product

This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE.

Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects.

Direct or scattered light can be hazardous to eyes and skin.

There is a potential hazard of eye exposure to laser radiation if the included instructions are not followed.

Caution – use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Laser parameters

• Wavelength: 450nm - 460nm (Blue)

• Mode of operation: Pulsed, due to frame rate

• Pulse width: 1.34ms

• Pulse repetition rate: 120Hz

• Maximum laser energy: 0.698mJ

• Total internal power: >100w

• Apparent source size: >10mm, at lens stop

• Divergence: >100 mili Radian

Product labels

Complies with FDA performance standards for laser

products except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007

LASER RADIATION AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT Emitted wavelength : 450-460 nm

Max. Pulse energy: 0.698 mJ, Pulse duration: 1.34 ms

ࢍү忿دଈұ䧙ՈӰࣻܯ࢑د8ࢍү䟖ռ

ࡇ斴 TS

ޣל労妧ৗଞ  S0労妧㨺族  SY 

RAYONNEMENT LASER

EXPOSITION DIRECTE DANGEREUSE POUR LES YEUX

APPAREIL LASER DE CLASSE 3R?

longueur d'onde : 450-460nm

maximum ergie de impulsion : 0. mJ,én 698

dur de impulsion : . 4 msée 13

GB 7247.1-2012 / IEC/EN 60825-1:2007

CLASS 1 LASER PRODUCT

IEC/EN 60825-1:2014

PRODUIT LASER DE CLASSE 1

IEC/EN 60825-1:2014

Below drawing show the label’s location.

1. Hazard Warning Symbol and Aperture Label

2. Explanatory Label

Complies with FDA performance standards for laser

products except for deviations pursuant to Laser

Notice No. 50, dated June 24, 2007

LASER RADIATION

AVOID DIRECT EYE EXPOSURE

CLASS 3R LASER PRODUCT

Emitted wavelength : 450-460 nm

Max. Pulse energy: 0.698 mJ, Pulse duration: 1.34 ms

ࢍү忿دଈұ䧙ՈӰࣻܯ࢑د8ࢍү䟖ռ

ࡇ斴 TS

ޣל労妧ৗଞ  S0労妧㨺族   SY  

RAYONNEMENT LASER

EXPOSITION DIRECTE DANGEREUSE POUR LES YEUX

APPAREIL LASER DE CLASSE 3R?

longueur d'onde : 450-460nm

maximum ergie de impulsion : 0. mJ,én 698

dur de impulsion : . 4 msée 13

GB 7247.1-2012 / IEC/EN 60825-1:2007

CLASS 1 LASER PRODUCT

IEC/EN 60825-1:2014

PRODUIT LASER DE CLASSE 1

IEC/EN 60825-1:2014

Location of laser aperture

/DVHUDSHUWXUH

Below drawing is the laser aperture location. Be careful not to let the eye see the light directly.

Interlock switches

This machine has 1 (Top cover) Interlock switches to protect the laser light Leakage.

Will power-off the system individually when the top cover is removed.

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features.

• Power saving function decreasing the power consumption of the light source by up to 70% or 80% when no input signal can be detected for a set period of time

• Presentation timer for better control of time during presentations

• Supports 3D display

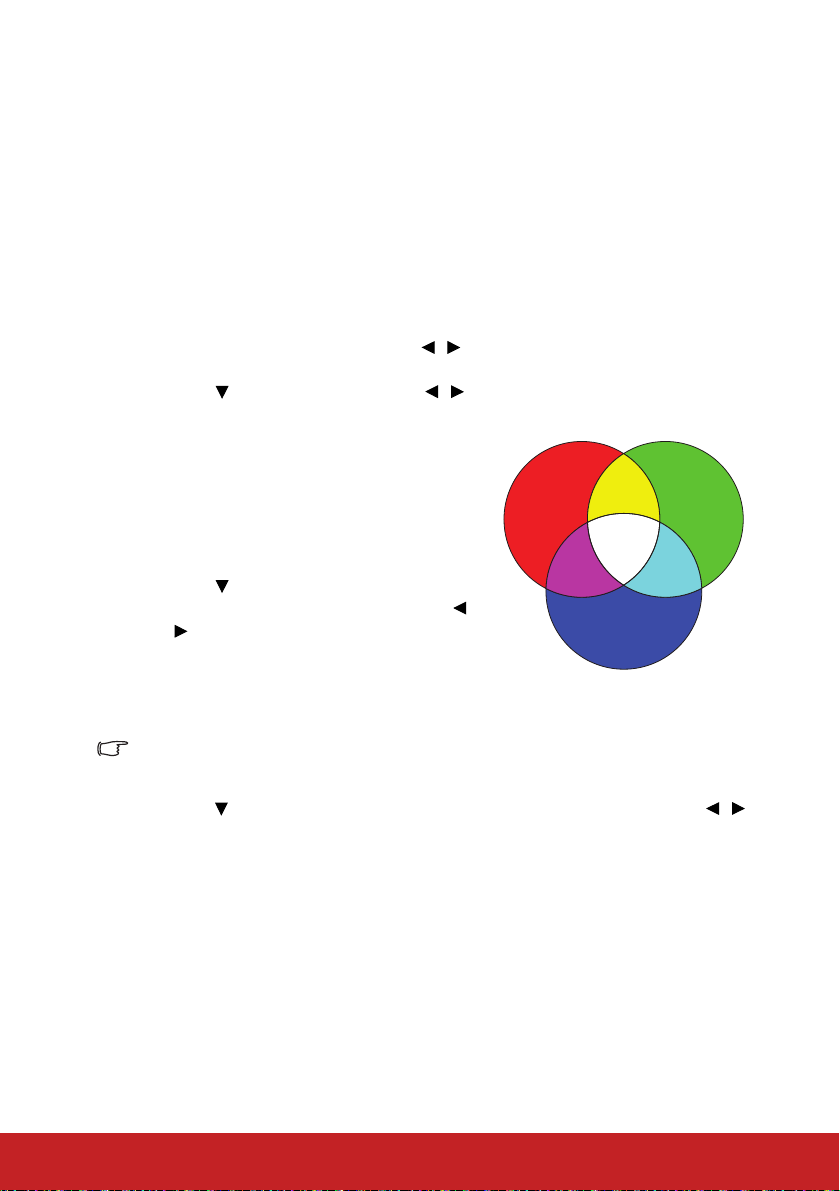

•Color Management allowing color adjustments to your liking

• Less than 0.5W power consumption when power saving mode is turned on

• Screen Color correction allowing projection on surfaces of several predefined colors

• Quick auto search speeding up the signal detecting process

• Color modes providing choices for different projection purposes

• Selectable Smart Energy function

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color management control for data/video display

• Ability to display 1.07 billion colors

• Multi-language On-Screen Display (OSD) menus

• Switchable normal and economic modes to reduce the power consumption

• Component HDTV compatibility (YP

• HDMI CEC (Consumer Electronics Control) function allows synchronized power ON/ OFF operation between the projector and a CEC-compatible DVD player device connected to the HDMI input of the projector

The apparent brightness of the projected image will vary depending on the ambient lighting conditions, selected input signal contrast/brightness settings, and is directly proportional to projection distance.

The light source brightness will decline over time and may vary within the light source manufacturers specifications. This is normal and expected behavior.

bPr)

Shipping contents

Home Projector

Quick Start Guide

ViewSonic Corporation (US/Canada/Latin America)

: www.viewsonic.com/support/product-registration : 14035 Pipeline Ave. Chino, CA 91710, USA : 909-468-1240

ViewSonic Europe Ltd.

: www.viewsoniceurope.com : 1st Floor, Salamanca Place,9 Albert Embankment, London SE1 7SP, United Kingdom : +44 (0) 207 382 8251

United States

1-800-688-6688 service.us@viewsonic.com

Canada

1-866-463-4775 service.ca@viewsonic.com

Europe

http://www.viewsoniceurope.com/eu/support/call-desk/

ViewSonic China Limited

: www.viewsonic.com.cn/?fservice_register

Puerto Rico & Virgin Islands

1-800-688-6688 (English) http://www.viewsonic.com/ la/soporte/servicio-tecnico (Español) soporte@viewsonic.com service.us@viewsonic.com

Latin America

http://www.viewsonic.com/la/ soporte@viewsonic.com

Chile

1230-020-7975

Mexico

001-8882328722

Peru

0800-54565

Argentina

0800-4441185

http://vsweb.us/

http://vsweb.us

UG Link

Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Projector Power Cord VGA Cable

Quick Start Guide

Remote Control &

Batteries

Projector exterior view

4 5 63 7 8 91 2

Front/upper side

Rear/lower side

• THIS APPARATUS MUST BE EARTHED.

• When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,

1. Front IR remote sensor

2. Projection lens

3. Focus ring

4. Zoom ring

5. LENS SHIFT UP/DOWN

6. LENS SHIFT RIGHT/LEFT

7. Vent (air inlet)

8. External control panel (See "Projector" on page 10 for details.)

9. Power button and top IR remote sensor

10. AC power cord inlet

11. HDMI 1 port

12. HDMI 2 port

13. LAN port

14. HDMI 3 port

141312 16 18 19 20 2115

17 22

15. HDBaseT port

16. Monitor out socket

17. RS232 control port

18. Computer In/Component video (YPbPr/YCbCr) signal input socket

19. Video input socket

20. 3D Sync port

21. Mini USB port

22. USB port (5V/1.5A out)

23 24 25 26 27 28 23

23. Adjuster foot

24. Audio signal output socket

25. Mic input socket

26. Audio signal input socket

27. Audio signal input L/R socket

28. Kensington lock

Warni ng

or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

Controls and functions

Projector

3 421

1. LENS SHIFT UP/DOWN

Rotate to move lens up or down.

2. Focus ring

Adjusts the focus of the projected image.

3. Zoom ring

Adjusts the size of the projected image.

4. LENS SHIFT RIGHT/LEFT

Rotate to move lens right or left.

5. Menu

Turns on the On-Screen Display (OSD) menu.

6. Source

Displays the source selection bar.

7. (Left)

Selects the desired menu items and makes adjustments.

(Keystone key)

Manually corrects distorted images resulting from an angled projection.

8. Enter

Enacts the selected On-Screen Display (OSD) menu item.

25 26 27 29 21028 211 212

13 14 15 16

9. (Menu up)

Selects the desired menu items and makes adjustments.

(Keystone key)

Manually corrects distorted images resulting from an angled projection.

10. (Menu down)

Selects the desired menu items and makes adjustments.

(Keystone key)

Manually corrects distorted images resulting from an angled projection.

11. (Right )

Selects the desired menu items and makes adjustments.

(Keystone key)

Manually corrects distorted images resulting from an angled projection.

12. Auto

Automatically determines the best picture timings for the displayed image.

13. Temperature indicator light

Lights up red if the projector's temperature becomes too high.

14. Light source indicator light

Indicates the status of the light source. Lights up or flashes when the light source has developed a problem.

15. Power indicator light

Lights up or flashes when the projector is under operation.

16. Power

Toggles the projector between standby mode and Power ON.

Remote control

12 13 14 15

16 17

1. Power

2. HDMI 1

3. COMP

4. HDBaseT

5. HDMI 3

6. Auto Sync

Toggles the projector between standby mode and Power ON.

Selects HDMI 1 source for display.

Selects D-Sub / Comp. source for display.

Selects HDBaseT source for display.

Selects HDMI 3 source for display.

Automatically determines the best picture timings for the displayed image.

7. /// (Keystone keys)

Manually corrects distorted images resulting from an angled projection.

Left/ Right/ Up/ Down

Selects the desired menu items and makes adjustments.

8. Menu

Turns on the On-Screen Display (OSD) menu.

9. Laser

Emits a visible laser pointer beam which can be used during presentations.

10. (Aspect ratio)

Displays the aspect ratio selection bar.

11. (Information)

Displays the Information menu.

12. PgUp (Page Up)/1

Operates your display software program (on a connected PC) which responds to page up commands (like Microsoft PowerPoint) when the mouse mode is activated.

13. (Volume up)/2

Increase the volume level.

14. PgDn (Page Down)/4

Operates your display software program (on a connected PC) which responds to page down commands (like Microsoft PowerPoint).

Only available when a PC input signal is selected.

15. (Volume down)/5

Decrease the volume level.

16. (Presentation Timer)/7

Brings up the Presentation Timer settings menu.

17. Eco Mode/ID Set

Selects a light source mode.

18. Pattern/0

Displays embedded test pattern.

19. Power Off

Turns the projector off.

20. HDMI 2

Selects HDMI 2 source for display.

21. Source

Displays the source selection bar.

22. Blank

Hides the screen picture.

23. Enter

Enacts the selected On-Screen Display (OSD) menu item.

24. Exit

Goes back to previous OSD menu, exits and saves menu settings.

25. (Help)

Displays the HELP menu.

26. (Zoom in)/3

Magnifies the projected picture size.

27. (Zoom out)/6

Reduces the projected picture size.

28. (Mute)/8

Toggles the projector audio between on and off.

29. Network/9

Selects Network Display source for display.

30. Color Mode

Selects an available picture setup mode.

Remote control code

Approx. 30°

The projector can be assigned to 8 different remote control codes, 1 to 8. When several adjacent projectors are in operation at the same time, switching the remote control codes can prevent interference from other remote controls. Set the remote control code for the projector first before changing that for the remote control.

To switch the code for the projector, select from among 1 to 8 in the SYSTEM SETTING > Remote Control Code menu.

To switch the code for the remote control, press ID set and the number button corresponding to the remote control code set in the projector OSD together for 5 seconds or more. The initial code is set to

1. When the code is switched to 8, the remote control can control every projector.

If different codes are set on the projector and remote control, there will be no response from the remote control. When that happens, a message will display to remind you to switch the code for the remote control.

Using the remote PgUp/PgDn function

The capability of operating your computer with the remote control gives you more flexibility when delivering presentations.

1. Set the input signal to a PC signal.

2. Connect the projector to your PC or notebook with a USB cable prior to using the remote control in place of your computer’s mouse. See "Connecting a computer or a

monitor" on page 22 for details.

3. To operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint), press PgUp/PgDn.

Remote control effective range

The Infra-Red (IR) remote control is located on the front and top of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

Replacing the remote control batteries

1. Remove the cover by sliding it in the direction indicated by the arrow.

2. Insert two new AAA batteries (check the polarity).

3. Replace the cover.

WARNING

• Avoid leaving the remote control and batteries in an excessive heat or humid environment

like the kitchen, bathroom, sauna, sunroom or in a closed car.

• Replace only with the same or equivalent type recommended by the battery manufacturer.

• Dispose of the used batteries according to the manufacturer's instructions and local

environment regulations for your region.

• Never throw the batteries into a fire. There may be danger of an explosion.

• If the batteries are drained or if you will not be using the remote control for an extended

period of time, remove the batteries to avoid damage to the remote control from possible battery leakage.

• RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

• DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Positioning your projector

Choosing a location

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Your projector is designed to be installed in one of the following 4 possible installation locations:

1. Front Table

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

2. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

Purchase the projector ceiling mount kit from your dealer to mount your projector on the ceiling.

Set Front Ceiling in the SYSTEM > Projector

Position menu after you turn the projector on.

3. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the projector ceiling mounting kit are required for this installation location.

Set Rear Ceiling in the SYSTEM > Projector

Position menu after you turn the projector on.

4. Rear Table

Select this location with the projector placed near the floor behind the screen.

Note that a special rear projection screen is required.

Set Rear Table in the SYSTEM > Projector Position menu after you turn the projector on.

Projection dimensions

(f): Center of lens(e): Screen

• 16:9 image on a 16:9 screen

• 16:9 image on a 4:3 screen

LS800HD (1080P)

The "screen" mentioned below refers to the projection screen usually consisting of a screen surface and a support structure.

(a) Screen

Size

inch mm inch mm inch mm inch mm inch mm inch mm

50 1270 50 1273 83 2103 25 623 5.5 140 5.5 140

60 1524 60 1528 99 2524 29 747 6.6 168 6.6 168

70 1778 70 1782 116 2944 34 872 7.7 196 7.7 196

80 2032 80 2037 132 3365 39 996 8.8 224 8.8 224

90 2286 90 2291 149 3786 44 1121 9.9 252 9.9 252

100 2540 100 2546 166 4206 49 1245 11.0 280 11.0 280

110 2794 110 2800 182 4627 54 1370 12.1 308 12.1 308

120 3048 120 3055 199 5047 59 1494 13.2 336 13.2 336

130 3302 130 3310 215 5468 64 1619 14.3 364 14.3 364

140 3556 140 3564 232 5889 69 1743 15.4 392 15.4 392

150 3810 150 3819 248 6309 74 1868 16.5 420 16.5 420

170 4318 170 4328 282 7151 83 2117 18.8 476 18.8 476

190 4826 190 4837 315 7992 93 2366 21.0 532 21.0 532

16:9 image on a 16:9 Screen

(b) Projection distance

min. max. min. max.

(d) Vertical offset

(a) Screen

Size

inch mm inch mm inch mm inch mm inch mm inch mm

54 1372 50 1262 82 2085 24 617 5.5 139 5.5 139

65 1651 60 1519 99 2510 29 743 6.6 167 6.6 167

76 1930 70 1776 116 2934 34 869 7.7 195 7.7 195

87 2210 80 2033 132 3359 39 994 8.8 224 8.8 224

98 2489 90 2290 149 3784 44 1120 9.9 252 9.9 252

109 2769 100 2547 166 4208 49 1246 11.0 280 11.0 280

120 3048 110 2804 182 4633 54 1372 12.2 309 12.2 309

131 3327 121 3061 199 5058 59 1497 13.3 337 13.3 337

142 3607 131 3318 216 5482 64 1623 14.4 365 14.4 365

153 3886 141 3575 233 5907 69 1749 15.5 393 15.5 393

163 4140 150 3809 248 6293 73 1863 16.5 419 16.5 419

185 4699 170 4323 281 7142 83 2115 18.7 476 18.7 476

207 5258 190 4837 315 7992 93 2366 21.0 532 21.0 532

(b) Projection distance

min. max. min. max.

16:9 image on a 4:3 Screen

(d) Vertical offset

LS800WU (WUXGA)

(b)

(c)

(a)

(d)

(f)

(f): Center of lens(e): Screen

• 16:10 image on a 16:10 screen

• 16:10 image on a 4:3 screen

(b)

(a)

(d)

(c)

(e)

The "screen" mentioned below refers to the projection screen usually consisting of a screen surface and a support structure.

(a) Screen

Size

inch mm inch mm inch mm inch mm inch mm inch mm

50 1270 49 1239 81 2046 26 673 4.0 101 4.0 101

60 1524 59 1486 97 2455 32 808 4.8 121 4.8 121

70 1778 68 1734 113 2865 37 942 5.6 141 5.6 141

80 2032 78 1982 129 3274 42 1077 6.4 162 6.4 162

90 2286 88 2229 145 3683 48 1212 7.2 182 7.2 182

100 2540 98 2477 161 4092 53 1346 7.9 202 7.9 202

110 2794 107 2725 177 4502 58 1481 8.7 222 8.7 222

120 3048 117 2972 193 4911 64 1615 9.5 242 9.5 242

130 3302 127 3220 209 5320 69 1750 10.3 263 10.3 263

140 3556 137 3468 226 5729 74 1885 11.1 283 11.1 283

150 3810 146 3716 242 6139 79 2019 11.9 303 11.9 303

170 4318 166 4211 274 6957 90 2289 13.5 343 13.5 343

190 4826 185 4706 306 7776 101 2558 15.1 384 15.1 384

16:10 image on a 16:10 Screen

(b) Projection distance

min. max. min. max.

(d) Vertical offset

(a) Screen

Size

inch mm inch mm inch mm inch mm inch mm inch mm

54 1372 50 1262 82 2085 27 686 4.1 103 4.1 103

65 1651 60 1519 99 2510 33 826 4.9 124 4.9 124

76 1930 70 1776 116 2934 38 965 5.7 145 5.7 145

87 2210 80 2033 132 3359 44 1105 6.5 166 6.5 166

98 2489 90 2290 149 3784 49 1245 7.4 187 7.4 187

109 2769 100 2547 166 4208 55 1384 8.2 208 8.2 208

120 3048 110 2804 182 4633 60 1524 9.0 229 9.0 229

131 3327 121 3061 199 5058 66 1664 9.8 250 9.8 250

142 3607 131 3318 216 5482 71 1803 10.7 271 10.7 271

153 3886 141 3575 233 5907 77 1943 11.5 291 11.5 291

163 4140 150 3809 248 6293 82 2070 12.2 311 12.2 311

185 4699 170 4323 281 7142 93 2350 13.9 352 13.9 352

207 5258 190 4837 315 7992 104 2629 15.5 394 15.5 394

There is 3% tolerance among these numbers due to optical component variations. It is recommended that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

(b) Projection distance

min. max. min. max.

16:10 image on a 4:3 Screen

(d) Vertical offset

Connection

Y Pb Pr

21 2

H D

B a

s e T

T r a

s m

i t

R S

2 3 2

R J

R J 45 L A N

Y P b

P r

G A I N

H D

Notebook or desktop computer

A/V device

Speakers

Monitor

or(DVI) (VGA)

3D glasses

Microphone

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.

2. Use the correct signal cables for each source.

3. Ensure the cables are firmly inserted.

In the connections shown below, some cables may not be included with the projector (see

"Shipping contents" on page 8). They are commercially available from electronics stores.

The connection illustrations below are for reference only. The rear connecting jacks available on the projector vary with each projector model.

For detailed connection methods, see pages 22-25.

1. VGA to DVI-A cable

2. VGA cable

3. HDMI cable

4. RS232 cable

5. Audio cable

6. Video cable

7. Mini USB cable

8. USB power supply 5V/1.5A

9. Audio L/R cable

10. Component Video to VGA (D-Sub) adapter cable

11. 3D IR glasses transmitter unit

12. Microphone 3.5 mini jack cable

13. LAN cable

14. Cat 5e/6 cable

Connecting a computer or a monitor

Connecting a computer

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.

2. Connect the other end of the VGA cable to the COMPUTER IN signal input socket on the projector.

Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connecting a monitor

If you want to view your presentation close-up on a monitor as well as on the screen, you can connect the MONITOR OUT signal output socket on the projector to an external monitor with a VGA cable following the instructions below:

1. Connect the projector to a computer as described in "Connecting a computer" on page

22.

2. Take a suitable VGA cable (only one supplied) and connect one end of the cable to the D-Sub input socket of the video monitor.

Or if your monitor is equipped with a DVI input socket, take a VGA to DVI-A cable and connect the DVI end of the cable to the DVI input socket of the video monitor.

3. Connect the other end of the cable to the MONITOR OUT socket on the projector.

The MONITOR OUT output only works when COMPUTER IN connection is made to the projector.

To use this connection method when the projector is in standby mode, turn on the Active VGA Out function under the SOURCE > Standby Settings menu.

Connecting Video source devices

You can connect your projector to various Video source devices that provide any one of the following output sockets:

• HDMI

• Component Video

• Video (composite)

You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Best video quality

The best available video connection method is HDMI. If your source device is equipped with an HDMI socket, you can enjoy uncompressed digital video quality.

See "Connecting an HDMI device" on page 23 for how to connect the projector to an HDMI source device and other details.

If no HDMI source is available, the next best video signal is Component video (not to be confused with composite video). Digital TV tuner and DVD players output Component

video natively, so if available on your devices, this should be your connection method of choice in preference to (composite) video.

See "Connecting a Component Video source device" on page 24 for how to connect the projector to a component video device.

Least video quality

Composite Video is an analog video and will result in a perfectly acceptable, but less than optimal result from your projector, being the least video quality of the available methods described here.

See "Connecting a composite Video source device" on page 25 for how to connect the projector to a composite Video device.

Connecting audio

The projector has built-in stereo speaker(s) which is designed to provide basic audio functionality accompanying data presentations for business purposes only. It is not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications.

If you wish, you can make use of the projector speaker in your presentations, and also connect separate amplified speakers to the Audio Out socket of the projector. The audio output is a stereo signal and controlled by the projector Volume and Mute settings.

If you have a separate sound system, you will most likely want to connect the audio output of your Video source device to that sound system, instead of to the stereo audio projector.

Connecting an HDMI device

You should use an HDMI cable when making connection between the projector and HDMI devices.

1. Take an HDMI cable and connect one end to the HDMI output port of the video device.

2. Connect the other end of the cable to the HDMI input port on the projector.

In the unlikely event that you connect the projector to a DVD player via the projector’s HDMI input and the projected picture displays wrong colors, please change the color space to YUV. See "Changing HDMI input settings" on page 30 for details.

The projector is capable of playing stereo audio. See "Connecting audio" on page 23 for details.

Connecting a HDBaseT device

HDBaseT is a technology to transmit image signal use LAN function, RS-232 function and IR function through a LAN cable.

Connect Cat5e/Cat6 cable from HDBaseT TX Box for HDBaseT signal received.

Video Signal - Connect it to HDBaseT output equipment (Such as high-definition TV

source, Blu-ray Player....etc).

LAN Function - Key in the correct IP Address or the computer host name which is the same as the projector’s host name, then you can remote control the projector by internet.

RS-232 Function: When the projector connects to HDBaseT by RS-232 communication, the projector can be controlled with RS-232 commands from the computer. For details of RS232 commands, refer to RS-232 Communication command table.

Please turn On the HDBaseT from Network Settigs and HDBaseT channel from RS232 settings in the OSD menu when using LAN function / RS232 function.

LAN port and RS-232C port are disabled when Network Settigs to the HDBaseT and RS232 settings to HDBaseT channel.

Use LAN cables of up to 100m long. Exceeding this length, the image will be deteriorated, and can experience malfunction on LAN transmission.

HDBaseT BEST PRACTICE:

i. When In Doubt, Use Shielded Cat6 With Shielded Plugs.

ii. Use Proper Grounding.

iii.Isolate HDBaseT Cat Cables from Other Signal Types.

HDBaseT control function table

Control

Side

Projector

HDBaseT

TX Box

Function

Front-IR(wireless) O O

Top-IR(wireless) O O

RS-232 O O

LAN X O

HDBT-IR(wireless) X X O

RS-232 X X O

LAN X X O

Green

Mode

Projector Mode

Network Standby

Normal

O (Can disable

by OSD)

O (Can disable

by OSD)

O (Can disable

by OSD)

O (Can disable

by OSD)

Remark

O : Enable X : Disable

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

1. Take a VGA (D-Sub)-Component adaptor cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red.

2. Connect the other end of the VGA (D-Sub)-Component adaptor cable (with a D-Sub type connector) to the COMPUTER IN socket on the projector.

If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Connecting a composite Video source device

Examine your Video source device to determine if it has a set of unused composite Video output sockets available:

• If so, you can continue with this procedure.

• If not, you will need to reassess which method you can use to connect to the device.

1. Take a Video cable and connect one end to the composite Video output socket of the Video source device.

2. Connect the other end of the Video cable to the VIDEO socket on the projector.

You need only connect to this device using a composite Video connection if Component Video input is unavailable for use. See "Connecting Video source devices" on page 22 for details.

Connecting a 3D Sync

Connect to 3D IR glasses transmitter unit.

Playing sound through the projector

You can make use of the projector speaker in your presentations, and also connect separate amplified speakers to the AUDIO OUT socket of the projector.

If you have a separate sound system, you will most likely want to connect the audio output of your Video source device to that sound system, instead of to the audio projector.

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus. See "Adjusting the sound" on page 44 for details.

About the microphone input

• If you wish to use a microphone, connect a 3.5 mini jack cable microphone to the

projector.

• There are one way to adjust microphone volumes.

• Directly set microphone volume levels in the Basic > Audio Setting >

Microphone Volume menu.

• Set projector volume levels in the Basic > Audio Setting > Audio Volume menu,

or press or on the remote control. (The projector volume setting will affect the microphone volume.)

• To make the microphone input available when the projector is in standby mode, turn on

the Basic > Audio Setting > Microphone menu.

• If the microphone is not working, check the volume setting and cable connection.

• You might get feedback noise from the microphone when you are too close to the

speaker of the projector. Move the microphone away from the speaker of the projector. The greater volume you require, the greater distance you need to be away from the Speaker to prevent the noise.

Operation

Starting up the projector

1. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted).

2. (If available) Remove the lens cap.

3. Press Power to start the projector. As soon as the light source lights up, a "Power On Ring Tone" will be heard. The Power indicator light stays blue when the projector is on. (If necessary) Rotate the focus ring to adjust the image clearness.

If the projector is still working from previous activity, it will run the cooling fan for approximately 120 seconds before energizing the light source.

To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 45 for details.

4. If the projector is activated for the first time, select your OSD language following the on-screen instructions.

5. Switch all of the connected equipment on.

6. The projector will start to search for input signals. The current input signal being scanned appears in the bottom right corner of the screen. If the projector doesn't detect a valid signal, the message 'No Signal' will continue to be displayed until an input signal is found. You can also press Source to select your desired input signal. See "Switching input

signal" on page 30 for details.

If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See "Timing chart" on page 74 for details.

Using the menus

Current input signal

Main menu icon

Sub-menu

Highlight

Go to the previous page or to exit.

Status

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

The OSD screenshots below are for reference only, and may differ from the actual design.

Below is the overview of the OSD menu.

When projector is first time turned on after out of box, language selection will pop out automatically.

1. Press Menu to turn the OSD menu on.

2. Use / to highlight the SYSTEM menu.

3. Press to highlight Language and press Enter.

Then press // / to select a preferred language.

4. Press Exit twice* to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on

page 27.

You will be inconvenienced if you enable the password function yet forget the password somehow. Do make a note of your password, and keep the note in a safe place for later recall.

Setting a password

Once a password has been set and the power on lock is enabled, the projector cannot be used unless the correct password is entered every time the projector is started.

1. Open the OSD menu and go to the SYSTEM > Security Settings > Change Password menu.

2. Press Enter and the password dialog box is displayed.

3. Highlight Power On Lock and select On by pressing / .

4. As pictured to the right, the four arrow keys ( , , , ) respectively represent 4 digits (1, 2, 3,

4). According to the password you desire to set, press the arrow keys to enter six digits for the password.

5. Confirm the new password by re-entering the new password.

Once the password is set, the OSD menu returns to the Security Settings page.

6. To leave the OSD menu, press Exit.

If you forget the password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right is displayed lasting for 5 seconds, and the message 'INPUT PASSWORD' follows. You can retry by entering another six-digit password, or if you did not record the password in this user manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 29 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Entering the password recall procedure

1. Continuous press Auto Sync on the remote or Auto on the key pad for 8 times. The projector will display a coded number on the screen.

2. Write down the number and turn off your projector.

3. Seek help from the local service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

The "XXX" shown in the above screenshot are numbers that vary depending on different projector models.

Changing the password

1. Open the OSD menu and go to the SYSTEM > Security Settings > Change Password menu.

2. Press Enter. The message 'INPUT CURRENT PASSWORD' is displayed.

3. Enter the old password.

• If the password is correct, another message 'INPUT NEW PASSWORD' is

displayed.

• If the password is incorrect, the password error message is displayed lasting for

5 seconds, and the message 'INPUT CURRENT PASSWORD' is displayed for your retry. You can press Exit to cancel or try another password.

4. Enter a new password.

5. Confirm the new password by re-entering the new password.

6. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.

7. To leave the OSD menu, press Exit.

The digits being input will be displayed as asterisks on-screen. Do make a note of your password, and then keep the note in a safe place for later recall.

Disabling the password function

1. Open the OSD menu and go to the SYSTEM > Security Settings > Power On Lock menu.

2. Press / to select Off.

3. The message 'INPUT PASSWORD' is displayed. Enter the current password.

• If the password is correct, the OSD menu returns to the Security Settings page

with 'Off' shown in the row of Power On Lock. You will not have to enter the password next time you turn on the projector.

• If the password is incorrect, the password error message is displayed lasting for

5 seconds, and the message 'INPUT PASSWORD' is displayed for your retry. You can press Exit to cancel or try another password.

Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

Be sure the Quick Auto Search function in the SYSTEM menu is On if you want the projector to automatically search for the signals.

You can also manually select the desired signal by pressing one of the source selection keys on the remote control, or cycle through the available input signals.

1. Press Source. A source selection bar is displayed.

2. Press / until your desired signal is selected and press Enter. Once detected, the selected source information will be displayed on the screen for seconds. If there are multiple devices connected to the projector, repeat steps 1-2 to search for another signal.

Please see "Projector specifications" on page 72 for the native display resolution of this projector. For best display picture results, you should select and use an input signal which outputs at this resolution. Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See "Selecting the aspect ratio" on page 36 for details.

Changing HDMI input settings

In the unlikely event that you connect the projector to a device (like a DVD or Blu-ray player) via the projector’s HDMI input and the projected picture displays wrong colors, please change the color space to an appropriate one that fits the color space setting of the output device.

To do this:

1. Open the OSD menu and go to the ADVANCED > HDMI Format Settings menu.

2. Press Enter.

3. Highlight HDMI Format Settings and press / to select a suitable color space according to the color space setting of the output device connected.

• RGB: Sets the color space as RGB.

• YUV: Sets the color space as YUV.

• Auto: Sets the projector to detect the color space setting of the input signal

automatically.

4. Highlight HDMI Range and press / to select a suitable HDMI color range according to the color range setting of the output device connected.

• Enhanced: Sets the HDMI color range as 0 - 255.

• Normal: Sets the HDMI color range as 15 - 235.

• Auto: Sets the projector to detect the HDMI range of the input signal

automatically.

This function is only available when the HDMI input port is in use.

Refer to the documentation of the device for information on the color space and HDMI range settings.

Adjusting the projected image

Adjusting the projection angle

The projector is equipped with two adjuster foot. It changes the image height and vertical projection angle. Screw the adjuster foot to fine tune the angle until the image is positioned where you want it.

If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. To correct this situation, see "Correcting keystone" on page 34 for details.

Do not look into the lens while the light source is on. The strong light from the light source may cause damage to your eyes.

Adjusting the vertical image position

The vertical image height can be adjusted around 14.7% for 1080P and 12% for WUXGA of offset position. Note that the maximum vertical image height adjustment can be limited by the horizontal image position. For example it is not possible to achieve the maximum vertical image position height detailed above if the horizontal image position is at maximum. Please consult the Shift Range diagram below for further clarification.

Adjusting the horizontal image position

With the lens horizontal image position can be adjusted to a maximum of 5% for 1080P and 5% for WUXGA of the image width. Note that the maximum horizontal image height adjustment can be limited by the vertical image position. For example it is not possible to achieve the maximum horizontal image position if the vertical image position is at maximum. Please consult the Shift Range diagram below for further clarification.

Lens Shift Range Diagram

Signal Offset (A)

1080P 45 % 14.7 % 5 %

WUXGA

30 % 12% 5 %

Lens Shift V. (B) Lens Shift H. (C)

Adjusting projected image position using lens

Horizontal Lens Shift Knob

Verti ca l Lens Shift Knob

shift

The Lens Shift feature provides a lens shift function that can be used to adjust the position of the projected image either horizontally or vertically within the range detailed below.

Shift is a unique system that provides lens shift while maintaining a much higher ANSI contrast ratio than traditional lens shift systems.

Do not rotate lens shift knob further under click sound and lightly press the knob to rotate back.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press Auto Sync on the remote control. Within 5 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

The screen will be blank while auto adjustment is functioning.

This function is only available when PC D-Sub input signal (analog RGB) is selected.

Fine-tuning the image clarity

Press /

1. Adjust the projected image to the size that you need using the zoom ring.

2. If necessary, sharpen the image by rotating the focus ring.

Correcting keystone

Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection.

To correct this, besides adjusting the height of the projector, you will need to manually correct it following one of these steps.

• Using the remote control

1. Press /// to display the Keystone correction page.

2. Press to correct keystoning at the top of

the image. Press to correct keystoning at the bottom of the image.

3. Press to correct keystoning at the right of

the image. Press to correct keystoning at the left of the image.

• Using the OSD menu

1. Open the OSD menu and go to the

2. Press Enter. The Keystone correction page is displayed.

3. Press to correct keystoning at the top of the image or press to correct keystoning at the bottom of the image.

4. Press to correct keystoning at the right of the image. Press to correct keystoning at the left of the image.

DISPLAY > Keystone menu.

Adjusting 4 corners

Using the OSD menu

Open the OSD menu and go to the DISPLAY > Corner Adj. menu.

1. It will show 4 corner adjustmant OSD on screen.

2. To select the corner you want to adjust than the selected area will show gray color

3. Two degree selection couble be adjust

4. To save the settings before you want to close the OSD menu

How to reset the corner adj.:

•Press “Auto” to reset. The screen will show “Reset Notice: Do you want to reset? Reset

/ Cancel”.

• Adjust the keystone and Aspect Ratio to reset. The screen will back to orignal angle

automatically.

Magnifying and searching for details

If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture.

• Using the remote control

• Press remote control ( and ) for screen zoom in or zoom out

• Using the OSD menu

1. Open the OSD menu and go to the

2. Press Enter. The Zoom bar is displayed.

3. To navigate the picture, press Enter to switch to the paning mode and press the directional arrows ( , , , ) to navigate the picture.

4. To reduce size of the picture, press Enter to switch back to the zoom in/out functionality, and press repeatedly until it is restored to the original size. You can also press Auto Sync on the remote control to restore the picture to its original size.

The picture can only be navigated after it is magnified. You can further magnify the picture while searching for details.

DISPLAY > Zoom menu.

Selecting the aspect ratio

16:10 picture

16:9 picture

4:3 picture

16:9 picture

16:10 picture

The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, and digital TV and DVDs are usually in 16:9 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input signal.

To change the projected image ratio (no matter what aspect the source is):

• Using the remote control

•Press Aspect on the remote until your desired mode is selected.

• Using the OSD menu

1. Open the OSD menu and go to the

2. Press / to select an aspect ratio to suit the format of the video signal and your display requirements.

About the aspect ratio

In the pictures below, the black portions are inactive areas and the white portions are active areas. OSD menus can be displayed on those unused black areas.

1. Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

DISPLAY > Aspect Ratio menu.

2. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration.

3. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

4. 16:10: Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect, as it displays them without aspect alteration.

5. Native: The image is projected as its original

4:3 picture

16:9 picture

2.35:1 picture

resolution, and resized to fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector away from the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.

6. 2.35:1: Scales an image so that it is displayed in the center of the screen with a 2.35:1 aspect ratio without aspect alteration.

Optimizing the image

Selecting a picture mode

The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type.

To select an operation mode that suits your need, you can follow one of the following steps.

• Press Color Mode on the remote control until your desired mode is selected.

•Go to the IMAGE > Color Mode menu and press / to select a desired mode.

Picture modes for different types of signals

The picture modes available for different types of signals are listed below.

1. Brightest mode: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.

2. Presentation mode: Is designed for presentations under daylight environment with high contrast ratio.

3. Standard mode: Is designed to represent vivid color performance.

4. Photo mode: Is designed for photo viewing.

5. Movie mode: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (little light) environment.

Using Screen Color

-30

+80

In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Screen Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures.

To use this function, go to the DISPLAY > Screen Color menu and press / to select a color which is closest to the color of the projection surface. There are several precalibrated colors to choose from: Whiteboard, Greenboard, and Blackboard. The effects of these settings may vary depending on different models.

This function is only available when a PC or HDMI input signal is selected.

Fine-tuning the image quality in user modes

According to the detected signal type, there are some user-definable functions available. You can make adjustments to these functions based on your needs.

Adjusting Brightness

Go to the IMAGE > Brightness menu and press / .

The higher the value, the brighter the image. And the lower the setting, the darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

Go to the IMAGE > Contrast menu and press / .

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Adjusting Color

Go to the IMAGE > ADVANCED > Color menu and press / .

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

This function is only available when the input signal is Video, YPbPr or YCbCr.

Adjusting Tint

Go to the IMAGE > ADVANCED > Tint menu and press / .

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

This function is only available when the input signal is Video, YPbPr or YCbCr.

Adjusting Sharpness

Go to the IMAGE > ADVANCED > Sharpness menu and press / .

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

This function is only available when the input signal is Video, YPbPr or YCbCr.

-30

Adjusting Brilliantcolor

Go to the IMAGE > ADVANCED > Brilliantcolor menu and press / .

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in the projected picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select a level that suits your need. If you don’t need it, select Off.

Reducing image noise

Go to the IMAGE > ADVANCED > Noise Reduction menu and press / .

This function reduces electrical image noise caused by different media players. The higher the setting, the less the noise.

This function is only available when a PC, or Video input signal is selected.

Selecting a gamma setting

Go to the IMAGE > ADVANCED > Gamma menu and select a preferred setting by pressing / .

Gamma refers to the relationship between input source and picture brightness.

Selecting a Color Temperature

Go to the IMAGE > Color Temp menu and press / .

The options available for color temperature settings vary according to the signal type selected.

1. Cool: With the highest color temperature, Cool makes the image appear the most bluish white than other settings.

2. Normal: Maintains normal colorings for white.

3. Warm: Makes images appear reddish white.

Setting a preferred color temperature

1. Go to the IMAGE > Color Temp menu.

2. Press / to select Cool, Normal or Warm and press Enter.

3. Press / to highlight the item you want to change and adjust the values by

pressing /

• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green,

and Blue.

• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red,

Green, and Blue.

This function is only available when a PC input signal is selected.

Color Management

RED

BLUE

GREEN

Yellow

Cyan

Magenta

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc., you can project any image from the disc on the screen and enter the Color Management menu to make adjustments.

To adjust the settings:

1. Open the OSD menu and go to the IMAGE > ADVANCED > Color Management menu.

2. Press Enter and the Color Management page is displayed.

3. Highlight Primary Color and press / to select a color from among Red, Yellow, Green, Cyan, Blue, or Magenta.

4. Press to highlight Hue and press / to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors.

Please refer to the illustration to the right for how the colors relate to each other. For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

5. Press to highlight Saturation and adjust its values to your preference by pressing /

. Every adjustment made will reflect to the image immediately. For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of “0” removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

6. Press to highlight Gain and adjust its values to your preference by pressing / . The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately.

7. Repeat steps 3 to 6 for other color adjustments.

8. Make sure you have made all of the desired adjustments.

9. Press Exit to exit and save the settings.

Setting the presentation timer

Presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function:

1. Go to the BASIC > Presentation Timer menu.

2. Press Enter to display the Presentation Timer page.

3. Highlight Timer Period and decide the time period by pressing / . The length of time can be set from 1 to 5 minutes in 1-minute increments and 5 to 240 minutes in 5minute increments.

If the timer is already on, the timer will restart whenever the Timer Period is reset.

4. Press to highlight Timer Display and choose if you want the timer to show up on the screen by pressing

Selection Description

Always

1 min/2 min/3 min Displays the timer on screen in the last 1/2/3 minute(s). Never Hides the timer throughout the presentation time.

5. Press to highlight Timer Position and set the timer position by pressing / .

Top-Left Bottom-Left Top-Right Bottom-Right

6. Press to highlight Timer Counting Direction and select your desired counting direction by pressing / .

Selection Description Count Up Increases from 0 to the preset time. Count Down Decreases from the preset time to 0.

/ .

Displays the timer on screen throughout the presentation time.

7. Press to highlight Sound Reminder and decide if you want to activate sound reminder by pressing / . If you select On, a double beep sound will be heard at

the last 30 seconds of counting down/up, and a triple beep sound will be produced when the timer is up.

8. To activate the presentation timer, press and press / to highlight Start Counting and press Enter.

9. A confirmation message displays. Highlight Yes and press Enter to confirm. You will see the message “Timer is On” displaying on the screen. The timer starts counting when the timer is on.

To cancel the timer, perform the following steps:

1. Go to the BASIC > Presentation Timer menu.

2. Highlight Off. Press Enter. A confirmation message displays.

3. Highlight Yes and press Enter to confirm. You will see the message “Timer is Off” displaying on the screen.

Hiding the image

In order to draw the audience's full attention to the presenter, you can press BLANK to hide the screen image. Press any key on the projector or remote control to restore the image. The word 'BLANK' appears at the lower right corner of the screen while the image is hidden.

You can set the blank time in the BASIC the image automatically after a period of time when there is no action taken on the blank screen.

CAUTION

Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.

> Blank Timer menu to let the projector return

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no

control keys on the projector will operate except Power.

1. Go to the

2. Press / to select On.

3. A confirmation message is displayed. Select Yes to confirm.

You can also use the remote control to enter the press / to select Off.

Keys on the remote control are still functional when panel key lock is enabled.

If you press Power to turn off the projector without disabling panel key lock, the projector will still be in locked status the next time it is turned on.

SYSTEM > Panel Key Lock menu.

SYSTEM > Panel Key Lock menu and

Operating in a high altitude environment

We recommend you use the High Altitude Mode when your environment is between 1500 m–3000 m above sea level, and temperature is between 5°C–25°C.

CAUTION

Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature is between 5°C and 35°C. The projector will be over cooled, if you turn the mode on under such a condition.

To activate the High Altitude Mode:

1. Open the OSD menu and go to the SYSTEM > High Altitude Mode menu.

2. Press / to select On. A confirmation message is displayed.

3. Highlight Yes and press Enter.

Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Using the CEC function

This projector supports CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector’s power will be turned on automatically.

To turn on the CEC function:

1. Open the OSD menu and go to the POWER MANAGEMENT > Auto Power On > CEC menu.

2. Press / to select All.

In order for the CEC function to work properly, make sure that the device is correctly connected to the HDMI input of the projector via an HDMI cable, and its CEC function is turned on.

Depending on the connected device, the CEC function may not work.

Using the 3D functions

This projector features 3D function which enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view 3D images.

If the 3D signal is input from an HDMI 1.4a compatible device, the projector detects the signal for 3D Sync information and once detected, it projects images in 3D format automatically. In other cases, you may need to manually select a 3D Sync format for the projector to project 3D images correctly.

To select a 3D Sync format:

1. Go to the ADVANCED > 3D Settings menu.

2. Press Enter. The 3D Settings page is displayed.

3. Highlight 3D Sync and press Enter.

4. Press

When the 3D Sync function is on:

• The brightness level of the projected image will decrease.

• The Color Mode and Zoom function cannot be adjusted.

If you discover the inversion of the 3D image depth, set the 3D Sync Invert function to “Invert” to correct the problem.

to select a 3D Sync setting and then press Enter to confirm.

Using the projector in standby mode

Some of the projector functions are available in standby mode (plugged in but not turned on). To use these functions, be sure you have turned on the corresponding menus under POWER MANAGEMENT > Standby Settings, and the cable connections are correctly made. For the connection methods, see the Connection chapter.

Standy mode

When HDBaseT switch on, Standby Settings mode will change to Normal.

Green mode Power consumption <0.5w, when selected, switch Off following function: VGA loop

through, Audio Pass Through, Standby LAN Control and HDBaseT.

Network standby Power consumption < 2w, when selected, switch On following function: Standby LAN

Control and switch OFF VGA loop through, Audio Pass Through and HDBaseT.

Normal Allows all standby features switch On.

VGA loop through

Enable or Disable VGA out loop through function. When switch On, Standby Settings mode will change to Normal.

Audio Pass Through

Select Audio Pass Through from Audio in, Audio L/R, or Disable this function. When switch On, Standby Settings mode will change to Normal.

Adjusting the sound

The sound adjustments made as below will have an effect on the projector speaker. Be sure you have made a correct connection to the projector audio input/output jacks. See

"Connection" on page 21 for more details.

Muting the sound

1. Open the OSD menu and go to the BASIC > Audio Settings > Mute menu.

2. Press / to select On.

If available, you can press on the remote control to toggle the projector audio between on and off.

Adjusting the sound level

1. Open the OSD menu and go to the BASIC > Audio Settings > Audio Volume menu.

2. Press / to select a desired sound level.

If available, you can press or on the remote control to adjust the projector’s sound level.

Microphone: On / Off

Enable or Disable microphone function.

When microphone plugged in and auto detected, priority is higher than Audio In to Audio Out.

Microphone Volume

To adjust the microphone sound level,

1. Open the OSD menu and go to the BASIC > Audio Settings.

2. Press level.

to highlight Microphone Volume and press / to select a desired sound

Turning off the Power On/Off Ring Tone

1. Open the OSD menu and go to the BASIC > Audio Settings > Power On/Off Ring Tone menu.

2. Press / to select Off.

The only way to change Power On/Off Ring Tone is setting On or Off here. Setting the sound mute or changing the sound level will not affect the Power On/Off Ring Tone.

RJ45

Wired LAN Terminal functionalites

Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible. Compatibility with Crestron / AMX (Device Discovery) / Extron control boxes enables not only collective projector management on a network but also management from a control panel on a PC (or Laptop) browser screen.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the United States.

• Extron is a registered trademark of Extron Electronics, Inc. of the United States.

• AMX is a registered trademark of AMX LLC of the United States.

• PJLink applied for trademark and logo registration in Japan, the United States of

America, and other countries by JBMIA.

Supported External Devices

This projector is supported by the specified commands of the Crestron Electronics controller and related software (ex, RoomView

http://www.crestron.com/

This projector is supported by Control4 ( SDDP ).

http://www.control4.com/

This projector is supported by AMX ( Device Discovery ).

http://www.amx.com/

This projector is compliant to support Extron device(s) for reference.

Ethernet

http://www.extron.com/

This projector supports all commands of PJLink Class1 (Version 1.00).

http://pjlink.jbmia.or.jp/english/

For more detail of information about the diverse types of external devices which can be connected to the LAN/RJ45 port and remote/control the projector, as well as the related control commands supporting for each external device, kindly please get contact with the Support-Service team directly.

LAN_RJ45

1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).

2. On the PC (Laptop), select Start > Control Panel > Network and Internet.

3. Right-click on Local Area Connection, and select Properties.

4. In the Properties window, select the Networking tab, and select Internet Protocol (TCP/IP).

5. Click Properties.

6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK.

7. Press the MENU button on the projector.

8. Select Advanced > Network Setting > Wired LAN.

9. After getting into Wired LAN, input the following:

• DHCP: Off

• IP Address: 10.10.10.10

• Subnet Mask: 255.255.255.0

• Gateway: 0.0.0.0

• DNS Server: 0.0.0.0

10. Press ENTER / . to confirm settings. Open a web browser (for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).

11. In the Address bar, input the IP address: 10.10.10.10.

12. Press ENTER /.

The projector is setup for remote management. The LAN/RJ45 function displays as follows.

Category Item Input Length

IP Address 15

Crestron Control

Projector

Network Configuration

User Password

Admin Password

IP ID 3 Port 5 Projector Name 10 Location 10 Assigned To 10 DHCP (Enabled) (N/A) IP Address 15 Subnet Mask 15 Default Gateway 15 DNS Server 15 Enabled (N/A) New Password 10 Confirm 10 Enabled (N/A) New Password 10 Confirm 10

more information, please visit http://www.crestron.com.

Preparing Email Alerts

1. Make sure that user can access the homepage of LAN RJ45 function by web browser (for ex-ample, Microsoft Internet Explorer v6.01/v8.0).

2. From the Homepage of LAN/RJ45, click Alert Settings.

3. By default, these input boxes in Alert Settings are blank.

4. For Sending alert mail, input the following:

• The SMTP field is the mail server for sending out email (SMTP protocol). This

is a required field.

• The To field is the recipient’s email address (for example, the projector

administrator). This is a required field.

• The Cc field sends a carbon copy of the alert to the specified email address. This

is an optional field (for example, the projector administrator’s assistant).

• The From field is the sender’s email address (for example, the projector

administrator). This is a required field.

Select the alert conditions by checking the desired boxes.

Fill in all fields as specified. User can click Send Test Mail to test what setting is correct. For successful sending an e-mail alert, you must select alert conditions and enter a correct e-mail address.

RS232 by Telnet Function

Besides projector connected to RS232 interface with “Hyper-Terminal” communication by dedicated RS232 command control, there is alternative RS232 command control way, so called “RS232 by TELNET” for LAN/RJ45 interface.

Quick Start-Guide for “RS232 by TELNET”

1. Check and get the IP-Address on OSD of the projector.

2. Make sure that laptop/PC can access the web-page of the projector.

3. Make sure that “Windows Firewall” setting to be disabled in case of “TELNET” function filtering out by laptop/PC.

4. Start > All Programs > Accessories > Command Prompt.

5. Input the command format like the below: telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed)

(ttt.xxx.yyy.zzz: IP-Address of the projector) If Telnet-Connection ready, and user can have RS232 command input, then Enter key

pressed, the RS232 command will be workable.

How to have TELNET enabled in Windows VISTA / 7 / 8 / 10

By default installation for Windows VISTA / 7 / 8 / 10, “TELNET” function is not included. But end-user can have it by way of “Turn Windows features On or Off” to be enabled.

1. Open Control Panel in Windows VISTA / 7 / 8 / 10.

2. Open Programs.

3. Select Turn Windows features on or off to open.

4. Have Telnet Client option checked, then press OK button.

Specsheet for “RS232 by TELNET” :

1. Telnet: TCP.

2. Telnet port: 4661. (for more detail, kindly please get contact with the service agent or team)

3. Telnet utility: Windows “TELNET.exe” (console mode).

4. Disconnection for RS232-by-Telnet control normally: Close Windows Telnet utility directly after TELNET connection ready.

Limitation 1 for Telnet-Control: there is less than 50 bytes for successive network payload for Telnet-Control application.

Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control. Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms).

(*, In Windows built-in “TELNET.exe” utility, “Enter” key pressed will have “Carriage-Return” and “New-Line” code.)

Shutting down the projector

1. Press Power and a confirmation message is displayed prompting you. If you don't respond in a few seconds, the message will disappear.

2. Press Power a second time.

3. Once the cooling process finishes, a "Power Off Ring Tone" will be heard. Disconnect the power cord from the wall socket if the projector will not be used in an extended period of time.

To turn off the ring tone, see "Turning off the Power On/Off Ring Tone" on page 45 for details.

CAUTION

• To protect the light source, the projector will not respond to any commands during the

cooling process.

• Do not unplug the power cord before the projector shutdown sequence is complete.

Menu operation

Menu system

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

The menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

Main menu Sub-menu Options

Off/Blackboard/Greenboard/ Whiteboard

Top-Right/Top-Left/Bottom-Right/ Bottom-Left

Brightest/Presentation/Standard/ Photo/Movie

Warm/Normal/Cool Red Gain Green Gain Blue Gain Red Offset Green Offset Blue Offset

Primary Color Hue Saturation Gain

1. DISPLAY

2. IMAGE

Screen Color

Aspect Ratio Auto/4:3/16:9/16:10/Native/2.35:1 Keystone Vertical/Horizontal

Corner Adj.

Position Phase H. Size Zoom OverScan Off/1/2/3/4/5 3X Fast Input Inactive/Active

Color Mode

Brightness Contrast

Color Temp

Color Tint Sharpness Gamma C1~C8/G1~G5/DICOM SIM/sRGB

ADVANCED

Reset Color Settings Reset/Cancel

Brilliantcolor Off/1/2/3/4/5/6/7/8/9/10 Noise Reduction

Color Management

Main menu Sub-menu Options

Computer Disable/Enable HDMI Disable/Enable CEC Disable/Enable Direct Power

On Auto Power Off

Sleep Timer

Power Saving Enable/Disable Standby

mode VGA loop

through Audio Pass

Through Mute On/Off Audio Volume 0 ~ 20 Microphone On/Off Microphone

Vol ume Power On/Off

Ring Tone

Timer Period

Timer Display Always/1 min /2 min/3 min/Never Timer Position Timer Counting

Direction Sound

Reminder Start

Counting/Off

Off/On

Disable/10 min/20 min/30 min

Disable/30 min/1 hr /2 hr/3 hr/ 4 hr/8 hr/12 hr

Green Mode/Network Standby/Normal

On/Off

Off/Audio in/ Audio L/R

0 ~ 10

On/Off

1 ~ 240 min (1, 2, 3, 4, 5, 10, 15, 20, 60, …240)

Top-Left/Bottom-Left/Top-Right/ Bottom-Right

Count Down/Count Up

On/Off

Yes /No

Disable/5 min/10 min/15 min/20 min/25 min/30 min

Black/Blue/ViewSonic/Off

3. POWER MANAGEM ENT

4. BASIC

Auto Power On

Smart Energy

Standby Settings

Audio Settings

Presentation Timer

Blank Timer

Message On/Off Pattern On/Off Splash

Screen

Main menu Sub-menu Options

Auto/Off/Frame Sequential/Frame Packing/Top-Bottom/Side-by-Side

Disable/Invert

DHCP/IP Address/Subnet Mask/ Gateway/DNS Server/Standby LAN Control/Apply

On/Off

2400/4800/9600/14400/19200/38400/ 57600/115200

All/Front/Top/Off

Normal/Eco/Custom

20-100%

Reset / Cancel

Normal/Eco/Custom

On/Off

CC1/CC2/CC3/CC4

Reset/Cancel

5. ADVANCE D

3D Settings

HDMI Settings

Network Settings

RS232 Settings

Remote Sensor

Light Source Settings

Closed Caption

Reset Settings

3D Sync

3D Sync Invert HDMI Format Auto/RGB/YUV

HDMI Range Auto/Enhanced/Normal

Wired LAN

AMX Device Discovery

Control 4 On/Off HDBaseT On/Off

Baud Rate

Channel Local/HDBaseT

Light Source Mode

Light Source Power

Reset Light Source Hours

Light Source Hours

Closed caption Enable

Caption Version

Main menu Sub-menu Options

Language Multi-language OSD selection

6. SYSTEM

7. INFORMAT ION

Projector Position

Menu Display Menu Settings

High Altitude Mode

Quick Auto Search

Security Settings

Panel Key Lock

Remote Control Code

Current System Status

Time

Position

Change

Password

Power on

Lock

Front Table/Rear Table/ Rear Ceiling/Front Ceiling

5 sec/10 sec/15 sec/20 sec/ 25 sec/30 sec

Center/Top-Left/Top-Right/ Bottom-Left/Bottom-Right

Off/On

1/2/3/4/5/6/7/8

• Source

• Color Mode

• Resolution

• Color System

•IP Address

• MAC Address

• Light Source Usage

• Firmware Version

• S/N

Description of each menu

Function Description

See "Using Screen Color" on page 38 for details.

Screen Color

Aspect Ratio See "Selecting the aspect ratio" on page 36 for details.

Keystone See "Correcting keystone" on page 34 for details.

Corner Adj. See "Adjusting 4 corners" on page 35 for the details.

Position

1. DISPLAY menu

Phase

H. Size

Zoom See "Magnifying and searching for details" on page 35 for details.

OverScan

3X Fast Input

This function is only available when a PC input signal is selected.

Displays the position adjustment page. To move the projected image, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.

This function is only available when a PC input signal is selected.

The adjustment range may vary under different timings.

Adjusts the clock phase to reduce image distortion.

This function is only available when a PC input signal is selected.

Adjusts the horizontal width of the image.

This function is only available when a PC input signal is selected.

Adjusts the overscan rate from 0% to 5%.

This function is only available when a Composite Video or HDMI input signal is selected.

Selecting Active enables the function. This function is favorable to frame rate reducing. Quick response time in native timing can be achieved. When enabled, the following settings will return to factory preset values: Aspect Ratio, Keystone, Corner, Position, Zoom, OverScan.

This function is only available when a native timing input signal is selected.

Function Description

Color Mode See "Selecting a picture mode" on page 37 for details.

Brightness See "Adjusting Brightness" on page 38 for details.

Contrast See "Adjusting Contrast" on page 38 for details.

Color Temp

See "Selecting a Color Temperature" on page 39 and "Setting a

preferred color temperature" on page 39 for details.

Color

See "Adjusting Color" on page 38 for details.

Tint

2. IMAGE menu

See "Adjusting Tint" on page 38 for details.

The function is only available when Video input with NTSC system is selected.

Sharpness

See "Adjusting Sharpness" on page 38 for details.

ADVANCED

Gamma

See "Selecting a gamma setting" on page 39 for details.

Brilliantcolor

See "Adjusting Brilliantcolor" on page 39 for details.

Noise Reduction

See "Reducing image noise" on page 39 for details.

Color Management

See "Color Management" on page 40 for details.

Reset Color Settings

Returns all color settings to the factory preset values.

Function Description

Computer

Selecting Enable allows the projector to turn on automatically once the VGA signal is fed through the VGA cable.

3. POWER MANAGEMENT menu

Auto Power On

Smart Energy

Standby Settings

Audio Settings See "Adjusting the sound" on page 44 for details.

Presentation

4. BASIC menu

Timer

Blank Timer See "Hiding the image" on page 42 for details.

Message

Pattern

Splash Screen

HDMI

Selecting Enable allows the projector to turn on automatically once the HDMI signal is fed through the HDMI cable.

CEC

See "Using the CEC function" on page 43 for details.

Direct Power On

Selecting On allows the projector to turn on automatically once the power is fed through the power cord.

Auto Power Off

See "Setting Auto Power Off" on page 68 for details.

Sleep Timer

See "Setting Sleep Timer" on page 68 for details.

Power Saving

See "Setting Power Saving" on page 69 for details.

See "Using the projector in standby mode" on page 44 for details.

See "Setting the presentation timer" on page 41 for details.

Selecting On displays the current information on the screen when the projector is detecting or searching for a signal.

The projector can display grid test patterns. It helps you adjust the image size and focus and check that the projected image is free from distortion.

Allows you to select which logo screen will be displayed during projector start-up.

Function Description

3D Settings See "Using the 3D functions" on page 43 for details.

HDMI Format Settings

See "Changing HDMI input settings" on page 30 for details.

Wired LAN

• DHCP: If the projector installation environment has the Dynamic Host Configuration Protocol server. You can set this function ON to let the projector get the auto ID from server. If no DHCP, even you set ON for this function. You still need to input the projector ID by yourself.

• IP Address: If has DHCP server and the function is on. The ID address will auto display here , or you need to enter ID by yourself.

• Subnet Mask: If has DHCP server and the function is on. The Subnet Mask address will auto display here , or you need to enter it value by yourself.

• Gateway: If has DHCP server and the function is on. The

5. ADVANCED menu Network Settings

Gateway address will auto display here , or you need to enter it value by yourself.

• DNS Server: If has DHCP server and the function is on. The DNS Server address will auto display here , or you need to enter it value by yourself.

• Standby LAN Control: When switch on, standby mode change to Network Standby or Normal.

• Apply: Press ENTER/ . to confirm settings.

AMX Device Discovery

When AMX Device Discovery is On, the projector can be detected by AMX controller.

Control4

If you network environment uses a Control4 or Control4 SDDP controller, turn on the Control4 setting to allow the projector to be detected.

HDBaseT

See "Connecting a HDBaseT device" on page 23 for the details.

Baud Rate

Select RS232 Baud Rate.

RS232 Settings

Channel Select RS232 control channel from Local or HDBaseT.

When select HDBaseT for RS232 control channel, change Baud rate to 9600

Remote Sensor

Setting IR Remote Control Sensor from the projector that you prefer.

Function Description

Light Source Mode

• Normal: Brightness will be 100% when set to Normal mode. If the projection environment requires brighter picture, you can set the light source mode to Normal for the highest projection brightness.

• Eco: When set to Eco mode, the brightness will be 80% of the normal brightness.

• Custom: If the picture brightness at Eco mode is still too bright

Light Source

5. ADVANCED menu

Settings

for you you can set it to custom to specify the power mode to make fine adjustments to the brightness of the projected picture.

Light Source Power Only available when light source mode is under Custom.

Reset Light Source Hours

Service center shall reset light source hour after change light source parts.

Light Source Hours

Display light source usage hours.

Caption Version

Closed Caption

Selects a preferred closed captioning mode. To view captions, select CC1, CC2, CC3, or CC4 (CC1 displays captions in the primary language in your area).

Returns all settings to the factory preset values.

Reset Settings

The following settings will still remain: Keystone, OverScan, Language, Projector Position, High Altitude Mode, Security Settings, Remote Control Code, Corner Adj., 3D Settings, Color mode.

Function Description

Language

Projector Position

Menu Settings

6. SYSTEM menu

High Altitude Mode

Quick Auto Search

Security Settings

Panel Key Lock See "Locking control keys" on page 42 for details.

Remote Control Code

7. INFORMATION menu

Current System Status

Sets the language for the On-Screen Display (OSD) menus. See

"Using the menus" on page 27 for details.

See "Choosing a location" on page 16 for details.

Menu Display Time

Sets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.

Menu Position

Sets the On-Screen Display (OSD) menu position.

A mode for operation in high altitude areas.

See "Switching input signal" on page 30 for details.

See "Utilizing the password function" on page 28 for details.

See "Remote control code" on page 14 for details.

Source

Shows the current signal source.

Color Mode Shows the selected mode in the IMAGE menu.

Resolution

Shows the native resolution of the input signal.

Color System

Shows input system format.

IP Address

Shows the current IP address.

MAC Address

Shows the current MAC address.

Light Source Usage

Shows the Light Source Usage times.

Firmware Version

Shows the current firmware version.

S/N

Shows the project serial number.

Maintenance

Care of the projector

You need to keep the lens and/or filter (optional accessory) clean on a regular basis.

Never remove any parts of the projector. Contact your dealer when any part of the projector needs replacing.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.

• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

CAUTION

Never rub the lens with abrasive materials.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 56 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.

• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

CAUTION

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 72 or consult your dealer about the range.

• Retract the adjuster foot.

• Remove the battery from the remote control.

• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent.

Light Source Hours information

Getting to know the light source hours

When the projector is in operation, the duration (in hours) of light source usage is automatically calculated by the built-in timer.

To obtain the light source hour information:

1. Open the OSD menu and go to the ADVANCED > Light Source Setting menu.

2. Press Enter and the Light Source Settings page is displayed.

3. You will see the Light Source Hours information on the menu.

4. To leave the menu, press Exit.

Extending light source life

The projection light source is a consumable item. To keep the light surce life as long as possible, you can do the following settings via the OSD menu.

Setting Light Source Mode

Setting the projector In Eco/Custom mode reduces system noise, power consumption and extends the light source operation life.

Light Source mode

Normal Provide 100% Light Source power.

ECO

Custom

To set the light source mode, go to the ADVANCED > Light Source Setting > Light Source Mode menu and press / to select Eco.

Setting Auto Power Off

This function allows the projector to turn off automatically after a set period of time once no input source is detected to prevent unnecessary waste of light source life.

1. Open the OSD menu and go to the POWER MANAGEMENT > Smart Energy

menu.

2. Press Enter and the Smart Energy page is displayed.

3. Highlight Auto Power Off and press / .

4. If the preset time lengths are not suitable for your need, select Disable. The projector

will not automatically shut down in a certain time period.

Description

Reduce light source power consumption by 20% and lower brightness to extend the light source life and decreases the fan noise.

Reduce light source power consumption by 0~ 80% adjustable by user and lower brightness to extend the light source life and decreases the fan noise.

Setting Sleep Timer

This function allows the projector to turn off automatically after a set period of time to prevent unnecessary waste of light source life.

1. Open the OSD menu and go to the POWER MANAGEMENT > Smart Energy

menu.

2. Press Enter and the Smart Energy page is displayed.

3. Highlight Sleep Timer and press / .

4. If the preset time lengths are not suitable for your need, select Disable. The projector

will not automatically shut down in a certain time period.

Setting Power Saving

The projector lowers the power consumption if no input source is detected after 5 minutes to prevent unnecessary waste of light source life. You can further decide if you would like the projector to turn off automatically after a set period of time.

1. Open the OSD menu and go to the POWER MANAGEMENT > Smart Energy

menu.

2. Press Enter and the Smart Energy page is displayed.

3. Highlight Power Saving and press / .

4. When Enable is selected, the projector light source will be changed to Eco mode after

no signal is detected for 5 minutes.

Indicators

Light

Blue Red

ON Off Off

Flashing Off Off

7 blinks Off Off

8 blinks Off Off

9 blinks Off Off

9 blinks 1 blinks Off

2 blinks Off Off

Off 1 blinks On

Off 2 blinks On

Off 3 blinks On

Off 4 blinks On

Off 5 blinks On

4 blinks Off Off

6 blinks 1 blinks Off

6 blinks 2 blinks Off

6 blinks 3 blinks Off

6 blinks 4 blinks Off

6 blinks 5 blinks Off

6 blinks 6 blinks Off

Status & Description

Red

Power events

Light source Ready

Start

Cooling

Case Open

DMD Error

Color Wheel Error

Phosphor wheel error

System events

1W MCU detects scaler stops working

Thermal events

Over Temperature T1

Over Temperature T2

Over Temperature T3

Over Temperature T4

Over Temperature T5

Thermal Break Sensor Error

Fan 1 Error

Fan 2 Error

Fan 3 Error

Fan 4 Error

Fan 5 Error

Fan 6 Error

Troubleshooting

The projector does not turn on.

Cause Remedy

There is no power from the power cord.

Attempting to turn the projector on again during the cooling process.

No picture

Cause Remedy

The video source is not turned on or connected correctly.

The projector is not correctly connected to the input signal device.

The input signal has not been correctly selected.

Blurred image

Cause Remedy

The projection lens is not correctly focused. Adjust the focus of the lens using the focus ring.

The projector and the screen are not aligned properly.

Remote control does not work

Cause Remedy

The battery is out of power. Replace the battery with a new one.

There is an obstacle between the remote control and the projector.

You are too far away from the projector. Stand within 8 meters (26 feet) from the projector.

The remote control code on the projector and that on the remote control are not consistent.

Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.

Wait until the cooling down process has completed.

Turn the video source on and check that the signal cable is connected correctly.

Check the connection.

Select the correct input signal with the Source key on the projector or remote control.

Adjust the projection angle and direction as well as the height of the projector if necessary.

Remove the obstacle.

Adjust the remote control code.

Specifications

Projector specifications

• All specifications are subject to change without notice.

• Not all models can be purchased in your region.

General

Product name DLP Projector

Optical

Resolution LS800HD:

Display system 1-CHIP DMD Light source Laser Diode

Electrical

Power supply AC100–240V, 50–60 Hz (Automatic) Power consumption 430 W (Max); < 0.5 W (Standby)

Mechanical

Weight 11 Kg (24.25 lbs)

Input terminal

Computer input RGB input D-Sub 15-pin (female) x 1 Video signal input VIDEO RCA jack x 1 SD/HDTV signal input

Analog – D-Sub <–> Component RCA jack x 3 (through RGB input)

Digital – HDMI V1.4a x 3

Audio signal input Audio in jack x 1

Mic In Audio jack x 1 3D Sync x 1 HDbaseT RJ45 x 1 HDMI input x 3

Output terminal

Audio signal output Audio jack x 1 Speaker 5 watt x 2 USB Type A DC5V/1.5A Monitor out D-Sub 15-pin (female) x 1

Control terminal

RS-232 serial control 9 pin x 1 USB serial control Type mini B IR receiver x 2 (Front and Top) LAN RJ45 x 1

1920 x 1080 1080p

LS800WU:

1920 x 1200 WUXGA

Audio in jack L/R in x 1

Environmental Requirements

135.00mm (5.3")

130.00mm (5.1" )

160.00mm (6.3")

Ceiling mount screws: M4 x 12 (Max. L = 12 mm)

Unit: mm

Operating temperature 5°C–40°C at sea level Operating relative

10%–90% (without condensation)

humidity Operating altitude • 0–1499 m at 5°C–35°C

• 1500–3000 m at 5°C–25°C (with High Altitude Mode on) Storage temperature -10°C to +60°C Storage humidity 10% to 85% Non-Condensing Storage altitude 30°C@ 0 to 12200m above sea level

Dimensions

360 mm (W) x 169 mm (H) x 452 mm (D)

442.50mm (17.4")

452.00mm (17.8")

440.00mm (17.3")

360.00mm (14.2")

161.1mm (6.3")

146.1mm (5.8")

169.0mm (6.7")

Ceiling mount installation

Timing chart

Analog RGB

Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)

VGA 640 x 480 4:3 60/72/75/85

SVGA 800 x 600 4:3 60/72/75/85

XGA

WXGA

Quad-VGA 1280 x 960 4:3 60/85

SXGA 1280 x 1024 5:4 60

SXGA+ 1400 x 1050 4:3 60

WXGA+ 1440 x 900 16:10 60

UXGA 1600 x 1200 4:3 60

WSXGA+ 1680 x 1050 16:10 60

HD 1280 x 720 16:9 60

MAC 13" 640 x 480 4:3 67

1024 x 768 4:3 60/70/75/85

1152 x 864 4:3 75

1280 x 768 15:9 60

1280 x 800 16:10 60/75/85

1360 x 768 16:9 60

MAC 16" 832 x 624 4:3 75

MAC 19" 1024 x 768 4:3 75

MAC 21" 1152 x 870 4:3 75

HDTV (1080p) 1920 x 1080 16:9 60

HDMI

Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)

VGA 640 x 480 4:3 60

SVGA 800 x 600 4:3 60

XGA 1024 x 768 4:3 60

1280 x 768 15:9 60

WXGA

Quad-VGA 1280 x 960 4:3 60

SXGA 1280 x 1024 5:4 60

SXGA+ 1400 x 1050 4:3 60

WXGA+ 1440 x 900 16:10 60

WSXGA+ 1680 x 1050 16:10 60

HDTV (1080p) 1920 x 1080 16:9 50 / 60

HDTV (1080i) 1920 x 1080 16:9 50 / 60

HDTV (720p) 1280 x 720 16:9 50 / 60

SDTV (480p) 720 x 480 4:3 / 16:9 60

SDTV (576p) 720 x 576 4:3 / 16:9 50

SDTV (480i) 720 x 480 4:3 / 16:9 60

SDTV (576i) 720 x 576 4:3 / 16:9 50

1280 x 800 16:10 60

1360 x 768 16:9 60

3D (HDMI signal included)

Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)

SVGA 800 x 600 4:3 60* / 120**

XGA 1024 x 768 4:3 60* / 120**

HD 1280 x 720 16:9 60* / 120**

WXGA 1280 x 800 16:9 60* / 120**

HDTV (1080p) 1920 x 1080 16:9 60*

for Video Signal

Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)

SDTV (480i)*** 720 x 480 4:3 / 16:9 60

60Hz signals are supported for

** 120 Hz signals are supported for Frame Sequential format only.

*** Video signal (SDTV 480i) is supported for Frame Sequential format only.

Side-by-Side, Top-Bottom

, and

Frame Sequential

HDMI 3D

In Frame packing format

Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)

1080p 1920 x 1080 16:9 23.98/24

720p 1280 x 720 16:9 50/59.94/60

In Side by side format

formats.

Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)

1080i 1920 x 1080 16:9 50/59.94/60

In Top and Bottom format

Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)

1080p 1920 x 1080 16:9 23.98/24

720p 1280 x 720 16:9 50/59.94/60

Component video

Signal Resolution (dots) Aspect Ratio Refresh Rate (Hz)

HDTV (1080p) 1920 x 1080 16:9 50 / 60

HDTV (1080i) 1920 x 1080 16:9 50 / 60

HDTV (720p) 1280 x 720 16:9 50 / 60

SDTV (480p) 720 x 480 4:3 / 16:9 60

SDTV (576p) 720 x 576 4:3 / 16:9 50

SDTV (480i) 720 x 480 4:3 / 16:9 60

SDTV (576i) 720 x 576 4:3 / 16:9 50

Composite video

Signal Aspect Ratio Refresh Rate (Hz)

NTSC 4:3 60

PAL 4: 3 50

PAL60 4:3 60

SECAM 4:3 50

Copyright 2017. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, ViewSonic Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP and Digital Micromirror Device (DMD) are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.

Appendix

IR control table

Key (with Blue back light) Format Byte1 Byte2 Byte3 Byte4

Power On NEC X3 F4 4F B0

Power Off NEC X3 F4 4E B1

COMP NEC X3 F4 41 BE

HDMI NEC X3 F4 58 A7

HDMI2 NEC X3 F4 59 A6

HDMI3 NEC X3 F4 A2 5D

HDBaseT NEC X3 F4 A3 5C

Source NECX3F440BF

Auto sync NEC X3 F4 08 F7

Up / V keystone + NEC X3 F4 0B F4

Blank NEC X3 F4 07 F8

Left / H keystone - NEC X3 F4 0E F1

Enter NEC X3 F4 15 EA

Right / H keystone + NEC X3 F4 0F F0

Menu NEC X3 F4 30 CF

Down / V keystone - NEC X3 F4 0C F3

Exit NEC X3 F4 28 D7

Information NEC X3 F4 97 68

Aspect ratio NEC X3 F4 13 EC

Help NEC X3 F4 21 DE

PgUp / ID 1 NEC X3 F4 06 F9

Volume+ / ID 2 NEC X3 F4 82 7D

Zoom + / ID 3 NEC X3 F4 67 98

PgDn / ID 4 NEC X3 F4 05 FA

Volume- / ID5 NEC X3 F4 83 7C

Zoom - / ID 6 NEC X3 F4 68 97

Presentation Timer / ID 7 NEC X3 F4 27 D8

Mute / ID 8 NEC X3 F4 14 EB

Network / ID 9 NEC X3 F4 69 96

Eco mode / ID Set NEC X3 F4 2B D4

Pattern / Number 0 NEC X3 F4 55 AA

Color Mode NEC X3 F4 10 EF

Laser

RS232 command table

Pin Description Pin Description

1NC2RX

3TX4NC

5GND6NC

7RTSZ8CTSZ

9NC

RS-232 protocol

Baud Rate 115200 bps (default)

Data Length 8 bit

Parity Check None

Stop Bit 1 bit

Flow Control None

When select HDBaseT for RS232 control channel, change Baud rate to 9600.

Function Type Action Command

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x00 0x00 0x5D

0x01 0x00 0x5E

0x00 0x11 0x00 0x5E

0x02 0x00 0x5F

0x2A 0x00 0x87

0x0A 0x00 0x67

0x0A 0x01 0x68

0x0A 0x02 0x69

0x00 0x11 0x0A 0x68

0x0B 0x00 0x68

0x0B 0x01 0x69

0x00 0x11 0x0B 0x69

0x0C 0x00 0x69

0x0C 0x01 0x6A

0x00 0x11 0x0C 0x6A

0x10 0x00 0x6D

0x10 0x01 0x6E

0x00 0x11 0x10 0x6E

0x27 0x00 0x84

0x27 0x01 0x85

0x00 0x11 0x27 0x85

Power

Reset All

Settings

Reset Color

Settings

Splash Screen

Quick Power

Off

High Altitude

Mode

Light Source

Mode

Message

Write

OFF

Read Status

Write Execute

Black

Write

Read Status

Write

Read Status

Write

Read Status

Write

Read Status

Write

Read Status

Blue

ViewSonic

OFF

Normal

Eco

OFF

Function Type Action Command

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x00 0x00 0x5E

0x00 0x01 0x5F

0x00 0x02 0x60

0x00 0x03 0x61

0x00 0x12 0x00 0x5F

0x20 0x00 0x7E

0x20 0x01 0x7F

0x20 0x02 0x80

0x20 0x03 0x81

0x20 0x04 0x82

0x20 0x05 0x83

0x00 0x12 0x20 0x7F

0x21 0x00 0x7F

0x21 0x01 0x80

0x00 0x12 0x21 0x80

0x02 0x00 0x60

0x02 0x01 0x61

0x00 0x12 0x02 0x61

0x03 0x00 0x61

0x03 0x01 0x62

0x00 0x12 0x03 0x62

Projector

Position

3D Sync

Invert

Contrast

Brightness

Front Table

Rear Table

Write

Rear Ceiling

Front Ceiling

Read Status

OFF

Auto

Frame Sequential

Write

Frame Packing

Top Bottom

Side by Side

Read Status

OFF

Write

Read Status

Decrease

Write

Increase

Read Get Value

Decrease

Write

Increase

Read Get Value

Function Type Action Command

Auto

4:3

16:9

Write

Aspect ratio

Read Get Value

Auto Adjust Write Execute

Horizontal

position

Vertical

position

Color

temperature

Blank

Write

Read Get Value

Write

Read Get Value

Write

Read Get Value

Write

Read Status

16:10

2.35:1

Cycle

Shift Right

Shift Left

Shift Up

Shift Down

Warm

Normal

Cool

OFF

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x06 0x14 0x00 0x04 0x00 0x34 0x13

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x04 0x00 0x62

0x04 0x02 0x64

0x04 0x03 0x65

0x04 0x04 0x66

0x04 0x07 0x69

0x31 0x00 0x90

0x00 0x12 0x04 0x63

0x05 0x00 0x63

0x06 0x01 0x65

0x06 0x00 0x64

0x00 0x12 0x06 0x65

0x07 0x00 0x65

0x07 0x01 0x66

0x00 0x12 0x07 0x66

0x08 0x00 0x66

0x08 0x01 0x67

0x08 0x03 0x69

0x00 0x12 0x08 0x67

0x09 0x01 0x68

0x09 0x00 0x67

0x00 0x12 0x09 0x68

Function Type Action Command

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x06 0x14 0x00 0x04 0x00 0x34 0x13

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x0A 0x00 0x68

0x0A 0x01 0x69

0x00 0x12 0x0A 0x69

0x0B 0x00 0x69

0x0B 0x09 0x72

0x0B 0x04 0x6D

0x33 0x00 0x92

0x0B 0x13 0x7C

0x0B 0x14 0x7D

0x00 0x12 0x0B 0x6A

0x10 0x00 0x6E

0x10 0x01 0x6F

0x10 0x02 0x70

0x10 0x03 0x71

0x10 0x04 0x72

0x10 0x05 0x73

0x00 0x12 0x10 0x6F

0x11 0x00 0x6F

0x11 0x01 0x70

0x00 0x12 0x11 0x70

Keystone-

Vertical

Color mode

Primary

Color

Hue

Decrease

Write

Increase

Read Get value

Brightest

Movie

Standard

Write

Cycle


Presentation

Read Status

Write

Read Status

Decrease

Write

Increase

Read Get value

Function Type Action Command

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x13

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x13

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x13

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x12 0x00 0x70

0x12 0x01 0x71

0x00 0x12 0x12 0x71

0x13 0x00 0x71

0x13 0x01 0x72

0x00 0x12 0x13 0x72

0x0E 0x00 0x6C

0x0E 0x01 0x6D

0x00 0x12 0x0E 0x6D

0x00 0x01 0x60

0x00 0x00 0x5F

0x00 0x13 0x00 0x60

0x01 0x00 0x60

0x01 0x03 0x63

0x01 0x07 0x67

0x01 0x09 0x69

0x01 0x05 0x65

0x01 0x0C 0x6C

0x00 0x13 0x01 0x61

0x02 0x01 0x62

0x02 0x00 0x61

0x00 0x13 0x02 0x62

Saturation

Gain

Sharpness

Freeze

Source input

Quick Auto

Decrease

Write

Increase

Read Get value

Decrease

Write

Increase

Read Get value

Decrease

Write

Increase

Read Get value

Write

OFF

Read Status

D-Sub / Comp.

HDMI 1

HDMI 2

Write

HDMI 3

Composite Video

HDbaseT

Read Status

Write

OFF

Read Status

Function Type Action Command

0x06 0x14 0x00 0x04 0x00 0x34 0x14

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x14

0x06 0x14 0x00 0x04 0x00 0x34 0x13

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x15

0x00 0x01 0x61

0x00 0x00 0x60

0x00 0x14 0x00 0x61

0x01 0x00 0x61

0x02 0x00 0x62

0x2A 0x11 0x9A

0x00 0x14 0x03 0x64

0x00 0x00 0x61

0x00 0x01 0x62

0x00 0x02 0x63

0x00 0x03 0x64

0x00 0x04 0x65

0x00 0x05 0x66

0x00 0x06 0x67

0x00 0x07 0x68

0x00 0x08 0x69

0x00 0x09 0x6A

0x00 0x0a 0x6B

0x00 0x0b 0x6C

0x00 0x0c 0x6D

Write

Mute

Read Status

Write

Volume

Read Get Value

Language Write

OFF

Increse

Decrese

Write Value

Function Type Action Command

Language

Light Source Hours Reset

HDMI Format

HDMI Range

Write

Vie

Read Status

Write Reset to ZERO

Read Get Usage Time

RGB

Write

Read Status

Write

Read Status

YUV

Auto

Enhanced

Normal

Auto

0x06 0x14 0x00 0x04 0x00 0x34 0x15

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x15

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x00 0x0d 0x6E

0x00 0x0e 0x6F

0x00 0x0f 0x70

0x00 0x10 0x71

0x00 0x11 0x72

0x00 0x12 0x73

0x00 0x13 0x74

0x00 0x14 0x75

0x00 0x15 0x76

0x00 0x15 0x00 0x62

0x01 0x00 0x62

0x00 0x15 0x01 0x63

0x28 0x00 0x85

0x28 0x01 0x86

0x28 0x02 0x87

0x00 0x11 0x28 0x86

0x29 0x00 0x86

0x29 0x01 0x87

0x29 0x02 0x88

0x00 0x11 0x29 0x87

Function Type Action Command

OFF

Write

CEC

Read Status

Error status Read Status

Write

Brilliant Color

Read Status

Remote

Control Code

Write

OFF

Color 1

Color 2

Color 3

Color 4

Color 5

Color 6

Color 7

Color 8

Color 9

Color 10

code 1

code 2

code 3

code 4

code 5

code 6

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x12

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x0C

0x2B 0x00 0x88

0x2B 0x01 0x89

0x00 0x11 0x2B 0x89

0x00 0x0C 0x0D 0x66

0x0F 0x00 0x6D

0x0F 0x01 0x6E

0x0F 0x02 0x6F

0x0F 0x03 0x70

0x0F 0x04 0x71

0x0F 0x05 0x72

0x0F 0x06 0x73

0x0F 0x07 0x74

0x0F 0x08 0x75

0x0F 0x09 0x76

0x0F 0x0A 0x77

0x00 0x12 0x0F 0x6E

0x48 0x00 0xA0

0x48 0x01 0xA1

0x48 0x02 0xA2

0x48 0x03 0xA3

0x48 0x04 0xA4

0x48 0x05 0xA5

Function Type Action Command

0x06 0x14 0x00 0x04 0x00 0x34 0x0C

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x06 0x14 0x00 0x04 0x00 0x34 0x11

0x07 0x14 0x00 0x05 0x00 0x34 0x00

0x48 0x06 0xA6

0x48 0x07 0xA7

0x00 0x0C 0x48 0xA1

0x32 0x00 0x8F

0x32 0x01 0x90

0x32 0x02 0x91

0x32 0x03 0x92

0x00 0x11 0x32 0x90

0x33 0x00 0x90

0x33 0x01 0x91

0x33 0x02 0x92

0x33 0x03 0x93

0x33 0x04 0x94

0x33 0x05 0x95

0x00 0x11 0x33 0x91

Remote

Control code

Screen Color

Over Scan

code 7

Write

code 8

Read Status

OFF

Blackboard

Write

Greenboard

Whiteboard

Read Status

OFF

Val u e 1

Val u e 2

Write

Val u e 3

Val u e 4

Val u e 5

Read Get Value

Function Type Action Command

Exit

To p

Bottom

Remote Key Write

AMX Write AMX response AMX

Left

Right

Source

Enter

Auto

0x02 0x14 0x00 0x04 0x00 0x34 0x02

0x04 0x0F 0x61

0x04 0x13 0x65

0x04 0x0B 0x5D

0x04 0x0C 0x5E

0x04 0x0D 0x5F

0x04 0x0E 0x60

0x04 0x04 0x56

0x04 0x15 0x67

0x04 0x08 0x5A

Customer Support

For technical support or product service, see the table below or contact your reseller.

Note : You will need the product serial number.

Country/Region Website

Australia New Zealand

Canada www.viewsonic.com T= 1-866-463-4775 service.ca@viewsonic.com Europe www.viewsoniceurope.com http://www.viewsoniceurope.com/eu/support/call-desk/ Hong Kong www.hk.viewsonic.com T= 852 3102 2900 service@hk.viewsonic.com India www.in.viewsonic.com T= 1800 419 0959 service@in.viewsonic.com Korea ap.viewsonic.com/kr/ T= 080 333 2131 service@kr.viewsonic.com

Latin America) www.viewsonic.com/la/ Macau www.hk.viewsonic.com T= 853-2840-3687 service@hk.viewsonic.com

Middle East ap.viewsonic.com/me/ Contact your reseller service@ap.viewsonic.com Puerto Rico &

Virgin Islands Singapore/

Malaysia/Thailand South Africa ap.viewsonic.com/za/ Contact your reseller service@ap.viewsonic.com United States www.viewsonic.com T= 1-800-688-6688 service.us@viewsonic.com

www.viewsonic.com.au

www.viewsonic.com

www.ap.viewsonic.com T= 65 6461 6044 service@sg.viewsonic.com

T= Telephone C = CHAT ONLINE

AUS= 1800 880 818 NZ= 0800 008 822

C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

T= 1-800-688-6688 (English) C= http://www.viewsonic.com/

la/soporte/servicio-tecnico

service@au.viewsonic.com

soporte@viewsonic.com

service.us@viewsonic.com soporte@viewsonic.com

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty

Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years

IRUODERUDQGRQH\HDUIRUWKHRULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHU

purchase. Other regions or countries: Please check with your local dealer or local ViewSonic

RI¿FHIRUWKHZDUUDQW\LQIRUPDWLRQ

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector’s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the

RULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHUSXUFKDVH(XURSH2QH\HDU

warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days

IRUWKHRULJLQDOODPSIURPWKHGDWHRIWKH¿UVWFRQVXPHUSXUFKDVH

Other regions or countries: Please check with your local dealer or local ViewSonic

RI¿FHIRUWKHZDUUDQW\LQIRUPDWLRQ /DPSZDUUDQW\VXEMHFWWRWHUPVDQGFRQGLWLRQVYHUL¿FDWLRQDQGDSSURYDO$SSOLHVWR

manufacturer’s installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

7KLVZDUUDQW\LVYDOLGRQO\IRUWKH¿UVWFRQVXPHUSXUFKDVHU

What the warranty does not cover:

$Q\SURGXFWRQZKLFKWKHVHULDOQXPEHUKDVEHHQGHIDFHGPRGL¿HGRUUHPRYHG

2. Damage, deterioration, failure, or malfunction resulting from:

D$FFLGHQWDEXVHPLVXVHQHJOHFW¿UHZDWHUOLJKWQLQJRURWKHUDFWVRIQDWXUH

LPSURSHUPDLQWHQDQFHXQDXWKRUL]HGSURGXFWPRGL¿FDWLRQRUIDLOXUHWRIROORZ

instructions supplied with the product.

E2SHUDWLRQRXWVLGHRISURGXFWVSHFL¿FDWLRQV

c. Operation of the product for other than the normal intended use or not under

normal conditions. d. Repair or attempted repair by anyone not authorized by ViewSonic. e. Any damage of the product due to shipment. f. Removal or installation of the product.

J&DXVHVH[WHUQDOWRWKHSURGXFWVXFKDVHOHFWULFSRZHUÀXFWXDWLRQVRUIDLOXUH K8VHRIVXSSOLHVRUSDUWVQRWPHHWLQJ9LHZ6RQLF¶VVSHFL¿FDWLRQV

i. Normal wear and tear. j. Any other cause which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to “Customer Support” page). You will need to provide your product’s serial number.

2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description

FRQWDLQHGKHUHLQLQFOXGLQJWKHLPSOLHGZDUUDQW\RIPHUFKDQWDELOLW\DQG¿WQHVVIRUD

particular purpose.

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based

XSRQLQFRQYHQLHQFHORVVRIXVHRIWKHSURGXFWORVVRIWLPHORVVRISUR¿WVORVVRI

business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

Effect of local law:

7KLVZDUUDQW\JLYHV\RXVSHFL¿FOHJDOULJKWVDQG\RXPD\DOVRKDYHRWKHUULJKWV

which vary from local authority. Some local governances do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer. The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found in www.viewsoniceurope.com under Support/Warranty Information.

Projector Warranty Term Template In UG VSC_TEMP_2005

Mexico Limited Warranty

What the warranty covers:

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of

WKH¿UVWFRQVXPHUSXUFKDVH /DPSZDUUDQW\VXEMHFWWRWHUPVDQGFRQGLWLRQVYHUL¿FDWLRQDQGDSSURYDO$SSOLHVWRPDQXIDFWXUHU¶V

installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

7KLVZDUUDQW\LVYDOLGRQO\IRUWKH¿UVWFRQVXPHUSXUFKDVHU

What the warranty does not cover:

 $Q\SURGXFWRQZKLFKWKHVHULDOQXPEHUKDVEHHQGHIDFHGPRGL¿HGRUUHPRYHG

2. Damage, deterioration or malfunction resulting from:

D$FFLGHQWPLVXVHQHJOHFW¿UHZDWHUOLJKWQLQJRURWKHUDFWVRIQDWXUHXQDXWKRUL]HGSURGXFW

PRGL¿FDWLRQXQDXWKRUL]HGDWWHPSWHGUHSDLURUIDLOXUHWRIROORZLQVWUXFWLRQVVXSSOLHGZLWKWKH

product.

b. Any damage of the product due to shipment.

F&DXVHVH[WHUQDOWRWKHSURGXFWVXFKDVHOHFWULFDOSRZHUÀXFWXDWLRQVRUIDLOXUH G8VHRIVXSSOLHVRUSDUWVQRWPHHWLQJ9LHZ6RQLF¶VVSHFL¿FDWLRQV

e. Normal wear and tear. f. Any other cause which does not relate to a product defect.

3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is displayed on the product for an extended period of time.

4. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product’s serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim. For Your Records Product Name: ________________________ Model Number: ____________________________ Document Number: ____________________ Serial Number: ____________________________ Purchase Date: ________________________ Extended Warranty Purchase? _____________(Y/N) If so, what date does warranty expire? __________

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.

2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.

3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein

LQFOXGLQJWKHLPSOLHGZDUUDQW\RIPHUFKDQWDELOLW\DQG¿WQHVVIRUDSDUWLFXODUSXUSRVH

Exclusion of damages:

ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon

LQFRQYHQLHQFHORVVRIXVHRIWKHSURGXFWORVVRIWLPHORVVRISUR¿WVORVVRIEXVLQHVVRSSRUWXQLW\

loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.

ViewSonic® Projector

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:

Name, address, of manufacturer and importers:

México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm

NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004

Hermosillo:

Distribuciones y Servicios Computacionales SA de CV. Calle Juarez 284 local 2 Col. Bugambilias C.P: 83140 Tel: 01-66-22-14-9005 E-Mail: disc2@hmo.megared.net.mx

Puebla, Pue. (Matriz):

RENTA Y DATOS, S.A. DE C.V. Domicilio: 29 SUR 721 COL. LA PAZ 72160 PUEBLA, PUE. Tel: 01(52).222.891.55.77 CON 10 LINEAS E-Mail: datos@puebla.megared.net.mx

Chihuahua

Soluciones Globales en Computación C. Magisterio # 3321 Col. Magisterial Chihuahua, Chih. Tel: 4136954 E-Mail: Cefeo@soluglobales.com

Distrito Federal:

QPLUS, S.A. de C.V. Av. Coyoacán 931 Col. Del Valle 03100, México, D.F. Tel: 01(52)55-50-00-27-35 E-Mail : gacosta@qplus.com.mx

Guerrero Acapulco

GS Computación (Grupo Sesicomp) Progreso #6-A, Colo Centro 39300 Acapulco, Guerrero Tel: 744-48-32627

MERIDA:

ELECTROSER Av Reforma No. 403Gx39 y 41 Mérida, Yucatán, México CP97000 Tel: (52) 999-925-1916 E-Mail: rrrb@sureste.com

Tijuana:

STD Av Ferrocarril Sonora #3780 L-C Col 20 de Noviembre Tijuana, Mexico

Villahermosa:

Compumantenimietnos Garantizados, S.A. de C.V. AV. GREGORIO MENDEZ #1504 COL, FLORIDA C.P. 86040 Tel: 01 (993) 3 52 00 47 / 3522074 / 3 52 20 09 E-Mail: compumantenimientos@prodigy.net.mx

Veracruz, Ver.:

CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419 ENTRE PINZÓN Y ALVARADO Fracc. Reforma C.P. 91919 Tel: 01-22-91-00-31-67 E-Mail: gacosta@qplus.com.mx

Cuernavaca

Compusupport de Cuernavaca SA de CV Francisco Leyva # 178 Col. Miguel Hidalgo C.P. 62040, Cuernavaca Morelos Tel: 01 777 3180579 / 01 777 3124014 E-Mail: aquevedo@compusupportcva.com

Guadalajara, Jal.:

SERVICRECE, S.A. de C.V. Av. Niños Héroes # 2281 Col. Arcos Sur, Sector Juárez 44170, Guadalajara, Jalisco Tel: 01(52)33-36-15-15-43 E-Mail: mmiranda@servicrece.com

Monterrey:

Global Product Services Mar Caribe # 1987, Esquina con Golfo Pérsico Fracc. Bernardo Reyes, CP 64280 Monterrey N.L. México Tel: 8129-5103 E-Mail: aydeem@gps1.com.mx

Oaxaca, Oax.:

CENTRO DE DISTRIBUCION Y SERVICIO, S.A. de C.V. Murguía # 708 P.A., Col. Centro, 68000, Oaxaca Tel: 01(52)95-15-15-22-22 Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com

FOR USA SUPPORT:

ViewSonic Corporation 14035 Pipeline Ave. Chino, CA 91710, USA Tel: 800-688-6688 E-Mail: http://www.viewsonic.com

Projector Mexico Warranty Term Template In UG VSC_TEMP_2006

ViewSonic LS800WU, LS800HD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
